1 Introduction

Figure 1: We build a pure NeRF-based generator trained in a patch-wise fashion. Left two grids: samples on FFHQ  Karras et al. (2019) and Cats  Zhang et al. (2008)

. Middle grids: interpolations between samples on M-Plants and M-Food (upper) and corresponding geometry interpolations (lower). Right grid: background separation examples. In contrast to the upsampler-based methods, one can naturally incorporate the techniques from the traditional NeRF literature into our generator: for background separation, we simply copy-pasted the corresponding code from NeRF++

Zhang et al. (2020).

Generative models for image synthesis achieved remarkable success in recent years and enjoy a lot of practical applications Ramesh et al. (2022); Karras et al. (2020a). While initially they mainly focused on 2D images Ho et al. (2020); Van den Oord et al. (2016); Karras et al. (2019); Brock et al. (2018); Kingma and Dhariwal (2018), recent research explored generative frameworks with partial 3D control over the underlying object in terms of texture/structure decomposition, novel view synthesis or lighting manipulation (e.g.,  Shi et al. (2021); Schwarz et al. (2020); Chan et al. (2021a); Wang et al. (2021a); Chan et al. (2021b); Deng et al. (2022); Pan et al. (2021)). These techniques are typically built on top of the recently emerged neural radiance fields (NeRF) Mildenhall et al. (2020) to explicitly represent the object (or its latent features) in 3D space.

NeRF is a powerful framework, which made it possible to built expressive 3D-aware generators from challenging RGB datasets Chan et al. (2021a); Deng et al. (2022); Chan et al. (2021b)

. Under the hood, it trains a multi-layer perceptron (MLP)

to represent a scene by encoding a density for each coordinate position and a color value from and view direction  Mildenhall et al. (2020). To synthesize an image, one renders each pixel independently by casting a ray (for ) from origin into the direction and aggregating many color values along it with their corresponding densities. Such a representation is very expressive, but comes at a cost: rendering a single pixel is computationally expensive and makes it intractable to produce a lot of pixels in one forward pass. It is not fatal for reconstruction tasks where the loss can be robustly computed on a subset of pixels, but it creates significant scaling problems for generative NeRFs: they are typically formulated in a GAN-based framework Goodfellow et al. (2014) with 2D convolutional discriminators requiring a full image as input.

People address these scaling issues of NeRF-based GANs in different ways, but the dominating approach is to train a separate 2D decoder to produce a high-resolution image from a low-resolution image or feature grid rendered from a NeRF backbone Niemeyer and Geiger (2021b). During the past six months, there appeared more than a dozen of methods which follow this paradigm (e.g., Chan et al. (2021b); Gu et al. (2022); Xu et al. (2021); Or-El et al. (2021); Zhou et al. (2021); Mejjati et al. (2021); Zhang et al. (2021); Jo et al. (2021); Xue et al. (2022); Zhang et al. (2022); Tan et al. (2022)). While using the upsampler allows to scale the model to high resolution, it comes with two severe limitations: 1) it breaks multi-view consistency of a generated object, i.e. its texture and shape change when the camera moves; and 2) the geometry gets only represented in a low resolution (). In our work, we show that by dropping the upsampler and using a simple patch-wise optimization scheme, one can build a 3D generator with better image quality, faster training speed and without the above limitations.

Patch-wise training of NeRF-based GANs was originally proposed by GRAF Schwarz et al. (2020) and got largely neglected by the community since then. The idea is simple: instead of training the generative model on full-size images, one does this on small random crops. Since the model is coordinate-based Sitzmann et al. (2020); Tancik et al. (2020), it does not face any issues to synthesize only a subset of pixels. This serves as a good way to save computation for both the generator and the discriminator, since it makes both of them operate on patches of small spatial resolution. To make the generator learn both the texture and the structure, crops are sampled to be of variable scales (but having the same number of pixels): in some sense, this can be seen as optimizing the model on low-resolution images + high-resolution patches.

In our work, we improve patch-wise training in two crucial ways. First, we redesign the discriminator by making it better suited to operating on image patches of variable scales and locations. Convolutional filters of a neural network learn to capture different patterns in their inputs depending on their semantic receptive fields

Krizhevsky et al. (2012); Olah et al. (2017). That’s why it is detrimental to reuse the same discriminator to judge both high-resolution local and low-resolution global patches, inducing additional burden on it to mix filters’ responses of different scales. To mitigate this, we propose to modulate the discriminator’s filters with a hypernetwork Ha et al. (2016), that predicts which filters to suppress or reinforce from a given patch scale and location.

Second, we change the random scale sampling strategy from an annealed uniform to an annealed beta distribution. Typically, patch scales are sampled from a uniform distribution

 Schwarz et al. (2020); Meng et al. (2021); Chai et al. (2022), where the minimum scale is gradually decreased (i.e. annealed) till some iteration from to a smaller value (in the interval ) during training. This sampling strategy prevents learning high-frequency details early on in training and puts too little attention on the structure after reached its final value . This makes the overall convergence of the generator slower and less stable that’s why we propose to sample patch scales using the beta distribution instead, where is gradually annealed from to some maximum value . In this way, the model starts learning high-frequency details immediately after the training starts and has more focus on the structure after the growth is done. This simple change stabilizes the training and allows to converge faster than the typically used uniform distribution Schwarz et al. (2020); Chai et al. (2022); Meng et al. (2021).

We use those two ideas to develop a novel state-of-the-art 3D GAN: Efficient patch-informed Generative Radiance Fields (EpiGRAF). We employ it for high-resolution 3D-aware image synthesis on four datasets: FFHQ Karras et al. (2019), Cats Zhang et al. (2008), Megascans Plants and Megascans Food. The last two benchmarks are introduced in our work and contain renderings of photo-realistic scans of different plants and food objects (described in §4). They are much more difficult in terms of geometry and are well suited for assessing the structural limitations of modern 3D-aware generators.

Our model uses a pure NeRF-based backbone, that’s why it represents geometry in high resolution and does not suffer from multi-view synthesis artifacts, as opposed to upsampler-based generators. Moreover, it has higher or comparable image quality (as measured by FID Heusel et al. (2017)) and lower training cost. Also, in contrast to upsampler-based 3D GANs, our generator can naturally incorporate the techniques from the traditional NeRF literature. To demonstrate this, we incorporate background separation into our framework by simply copy-pasting the corresponding code from NeRF++ Zhang et al. (2020).

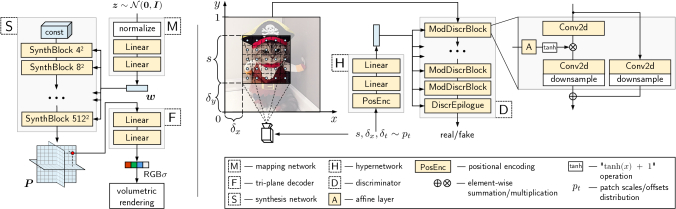

Figure 2: Our generator (left) is purely NeRF-based and uses the tri-plane backbone Chan et al. (2021b) with the StyleGAN2 Karras et al. (2020b) decoder (but without the 2D upsampler). Our discriminator (right) is also based on StyleGAN2, but is modulated by the patch location and scale parameters. We use the patch-wise optimization for training Schwarz et al. (2020) with our proposed Beta scale sampling, which allows our model to converge 2-3 faster than the upsampler-based architectures despite the generator modeling geometry in full resolution (see Tab 1).

2 Related work

Neural Radiance Fields. Neural Radiance Fields (NeRF) is an emerging area Mildenhall et al. (2020), which combines neural networks with volumetric rendering techniques to perform novel-view synthesis Mildenhall et al. (2020); Zhang et al. (2020); Barron et al. (2021), image-to-scene generation Yu et al. (2021), surface reconstruction Oechsle et al. (2021); Wang et al. (2021b); Niemeyer et al. (2020) and other tasks Chen et al. (2021); Hao et al. (2021); Park et al. (2020a). In our work, we employ them in the context of 3D-aware generation from a dataset of RGB images Schwarz et al. (2020); Chan et al. (2021a).

3D generative models

. A popular way to learn a 3D generative model is to train it on 3D data or in an autoencoder’s latent space (e.g.,

Chen and Zhang (2019); Wu et al. (2015); Achlioptas et al. (2018); Luo and Hu (2021); Li et al. (2021); Mittal et al. (2022); Kosiorek et al. (2021)). This requires explicit 3D supervision and there appeared methods which train from RGB datasets with segmentation masks, keypoints or multiple object views Gadelha et al. (2017); Li et al. (2019); Pavllo et al. (2020). Recently, there appeared works which train from single-view RGB only, including mesh-generation methods Henderson et al. (2020); Ye et al. (2021); Pavllo et al. (2021) and methods that extract 3D structure from pretrained 2D GANs Shi et al. (2021); Pan et al. (2020). And recent neural rendering advancements allowed to train NeRF-based generators Schwarz et al. (2020); Chan et al. (2021a); Niemeyer and Geiger (2021a) from purely RGB data from scratch, which became the dominating direction since then and which are typically formulated in the GAN-based framework Goodfellow et al. (2014).

NeRF-based GANs. HoloGAN Nguyen-Phuoc et al. (2019) generates a 3D feature voxel grid which is projected on a plane and then upsampled. GRAF Schwarz et al. (2020) trains a noise-conditioned NeRF in an adversarial manner. -GAN Chan et al. (2021a) builds upon it and uses progressive growing and hypernetwork-based Ha et al. (2016) conditioning in the generator. GRAM Deng et al. (2022) builds on top of -GAN and samples ray points on a set of learnable iso-surfaces. GNeRF Meng et al. (2021)

adapts GRAF for learning a scene representation from RGB images without known camera parameters. GIRAFFE

Niemeyer and Geiger (2021b) uses a composite scene representation for better controllability. CAMPARI Niemeyer and Geiger (2021a) learns a camera distribution and a background separation network with inverse sphere parametrization Zhang et al. (2020). To mitigate the scaling issue of volumetric rendering, many recent works train a 2D decoder under different multi-view consistency regularizations to upsample a low-resolution volumetrically rendered feature grid Chan et al. (2021b); Gu et al. (2022); Xu et al. (2021); Or-El et al. (2021); Zhou et al. (2021); Xue et al. (2022); Zhang et al. (2022). However, none of such regularizations can currently provide the multi-view consistency of pure-NeRF-based generators.

Patch-wise generative models. Patch-wise training had been routinely utilized to learn the textural component of image distribution when the global structure is provided from segmentation masks, sketches, latents or other sources (e.g.,  Isola et al. (2017); Shaham et al. (2019); Choi et al. (2018); Vinker et al. (2021); Park et al. (2020b, 2019); Lin et al. (2021); Skorokhodov et al. (2021b)). Recently, there appeared works which sample patches at variable scales, in which way a patch can carry global information about the whole image. Recent works use it to train a generative NeRF Schwarz et al. (2020), fit a neural representation in an adversarial manner Meng et al. (2021) or to train a 2D GAN on a dataset of variable resolution Chai et al. (2022).

3 Model

Figure 3:

Comparing uniform (left) and beta (middle) annealed patch scale sampling in terms of their probability density function (PDF) (for visualization purposes, we clamp the maximum density value to 5); (right) PDF of

, provided for completeness. Uniform distribution with annealed from 0.9 to does not put any attention to high-frequency details in the beginning and treats small-scale and large-scale patches equally at the end of the annealing. Beta distribution with annealed to , in contrast, lets the model learn high-resolution texture immediately after the training starts, and puts more focus on the structure at the end.

We build upon StyleGAN2 Karras et al. (2020b), replacing its generator with the tri-plane-based NeRF model Chan et al. (2021b) and using its discriminator as the backbone. We train the model on patches (we use everywhere) of random scales instead of the full images of resolution . Scales are randomly sampled from a time-varying distribution .

3.1 3D generator

Compared to upsampler-based 3D GANs Gu et al. (2022); Niemeyer and Geiger (2021b); Xue et al. (2022); Zhou et al. (2021); Chan et al. (2021b); Zhang et al. (2022), we use a pure NeRF Mildenhall et al. (2020) as our generator and utilize the tri-plane representation Chan et al. (2021b); Chen et al. (2022) as the backbone. It consists of three components: 1) mapping network

which transforms a noise vector

into the latent vector ; 2) synthesis network which takes the latent vector and synthesizes three 32-dimensional feature planes of resolution (i.e. ); 3) tri-plane decoder network , which takes the space coordinate and tri-planes as input and produces the RGB color and density value at that point by interpolating the tri-plane features in the given coordinate and processing them with a tiny MLP. In contrast to classical NeRF Mildenhall et al. (2020), we do not utilize view direction conditioning since it worsens multi-view consistency Chan et al. (2021a) in GANs which are trained on RGB datasets with a single view per instance. To render a single pixel, we follow the classical volumetric rendering pipeline with hierarchical sampling Mildenhall et al. (2020); Chan et al. (2021a), using 48 ray steps in coarse and 48 ones in fine sampling stages. See the accompanying source code for more details.

3.2 2D scale/location-aware discriminator

Our discriminator is built on top of StyleGAN2 Karras et al. (2020b). Since we train the model in a patch-wise fashion, the original backbone is not well suited for this: convolutional filters are forced to adapt to signals of very different scales and extracted from different locations. A natural way to resolve this problem is to use separate discriminators depending on the scale, but that strategy has three limitations: 1) each particular discriminator receives less overall training signal (since the batch size is limited); 2) from an engineering perspective, it is more expensive to evaluate a convolutional kernel with different parameters on different inputs; 3) one can use only a small fixed amount of possible patch scales. This is why we develop a novel hypernetwork-modulated Ha et al. (2016); Skorokhodov et al. (2022) discriminator architecture to operate on patches with continuously varying scale.

To modulate the convolutional kernels of , we define a hypernetwork as a 2-layer MLP with tanh non-linearity at the end which takes patch scale and its cropping offsets as input and produces modulations (we shift the tanh output by 1 to map into the 1-centered interval), where is the number of output channels in the -th convolutional layer. Given a convolutional kernel and input , a straightforward strategy to apply the modulation is to multiply on the weights (depicting the convolution operation by and omitting its other parameters for simplicity):

(1)

where we broadcast the remaining axes and

is the layer output (before the non-linearity). However, using different kernel weights on top of different inputs is not too efficient in modern deep learning frameworks (even with the group-wise convolution trick

Karras et al. (2020b)), that’s why we use an equivalent strategy of multiplying the weights on instead:

(2)

This suppresses and reinforces different convolutional filters of the layer depending on the patch scale and location. And to incorporate an even stronger conditioning, we also use the projection strategy Miyato and Koyama (2018) in the final discriminator block. We depict our discriminator architecture in Fig 2. As we show in Tab 2, it allows to obtain % lower FID compared to the standard discriminator.

Figure 4: Comparing samples of EpiGRAF and modern 3D-aware generators. Our method attains state-of-the-art image quality, recovers high-fidelity geometry and preserves multi-view consistency for both simple-shape (FFHQ and Cats) and variable-shape (M-Plants and M-Food) datasets. We refer the reader to the supplementary for the video comparisons to evaluate multi-view consistency.

3.3 Patch-wise optimization with Beta-distributed scales

Training NeRF-based GANs is computationally expensive, because rendering each pixel via volumetric rendering requires many evaluations (e.g., in our case, 96) of the underlying MLP. For scene reconstruction tasks, it does not create issues since the typically used loss Mildenhall et al. (2020); Zhang et al. (2020); Wang et al. (2021b) can be robustly computed on a sparse subset of the pixels. But for NeRF-based GANs, it becomes prohibitively expensive for high resolutions since convolutional discriminators operate on dense full-size images. The currently dominating approach to mitigate this is to train a separate 2D decoder to upsample a low-resolution image representation, rendered from a NeRF-based MLP. But this breaks multi-view consistency (i.e. object’s shape and texture change when the camera is moving) and learns the 3D geometry in a low resolution (from  Xue et al. (2022) to  Chan et al. (2021b)). This is why we build upon the multi-scale patch-wise training scheme Schwarz et al. (2020) and demonstrate that it can give state-of-the-art image quality and training speed without the above limitations.

Patch-wise optimization works the following way. On each iteration, instead of passing the full-size image to , we instead input only a small patch with resolution of random scale and extracted with a random offset . We illustrate this procedure in Fig 2. Patch parameters are sampled from distribution:

(3)

where is the current training iteration. In this way, patch scales depend on the current training iteration and offsets are sampled independently after we know . As we show next, the choice of distribution has crucial influence on the learning speed and stability.

Typically, patch scales are sampled from the annealed uniform distribution Schwarz et al. (2020); Meng et al. (2021); Chai et al. (2022) :

(4)

where lerp is the linear interpolation function111 for and ., and the left interval bound is gradually annealed during the first iterations until it reaches the minimum possible value of .222In practice, those methods use a very slightly different distribution (see Appx B) But this strategy does not let the model learn high-frequency details early on in training and puts little focus on the structure when is fully annealed to (which is usually very small, e.g. for a typical patch-wise training on resolution). As we show, the first issue makes the generator converge slower, and the second one makes the overall optimization less stable.

To mitigate this, we propose a small change in the pipeline by simply replacing the uniform scale sampling distribution with:

(5)

where is gradually annealed from to some final value . Using beta distribution instead of the uniform one gives a very convenient knob to shift the training focus between large patch scales (carrying the global information about the whole image) and small patch scales (representing high-resolution local crops).

A natural way to do the annealing is to anneal from : at the start, the model focuses entirely on the structure, while at the end it transforms into the uniform distribution (See Fig 3). We follow this strategy, but from the design perspective instead set to a value, which is slightly smaller than 1 (we use everywhere) to keep more focus on the structure at the end of the annealing as well. In our initial experiments, we observed that perform similarly. The scales distributions comparison between beta and uniform sampling is provided in Fig 3 and the convergence comparison in Fig 6.

3.4 Training details

We inherit the training procedure from StyleGAN2-ADA Karras et al. (2020a) with minimal changes. The optimization is performed by Adam Kingma and Ba (2014) with learning rate of 0.002 and betas of 0 and 0.99 for both and . We use for , and set . is trained with R1 regularization Mescheder et al. (2018) with . We train with the overall batch size of 64 for M images seen by for resolution and M for . Similar to previous works Chan et al. (2021b); Deng et al. (2022), we use pose supervision for for the FFHQ and Cats dataset to avoid geometry ambiguity. We train in full precision and use mixed precision for . Since FFHQ has too noticeable 3D biases, we use generator pose conditioning for it Chan et al. (2021b). Further details can be found in the source code.

4 Experiments

Method FFHQ Cats M-Plants M-Food Training cost
Geometry constraints
StyleNeRF Gu et al. (2022) 8.00 7.8 5.91 19.32 16.75 40 56 -res + 2D upsampler
StyleSDF Or-El et al. (2021) 11.5 11.19 42 56 -res + 2D upsampler
EG3D Chan et al. (2021b)   4.8   4.7 N/A 76 -res + 2D upsampler
VolumeGAN Xu et al. (2021) 9.1 N/A N/A -res + 2D upsampler
MVCGAN Zhang et al. (2022) 13.7 13.4 39.16 31.70 29.29 42 64 -res + 2D upsampler
GIRAFFE-HD Xue et al. (2022) 11.93 12.36 N/A N/A -res + 2D upsampler
pi-GAN Chan et al. (2021a) 53.2 OOM 68.28 75.64 51.99 56 none
GRAM Deng et al. (2022) 13.78 OOM 13.40 188.6 178.9 56 iso-surfaces
EpiGRAF (ours) 9.71 9.92 6.93 19.42 18.15 16 24 none
Table 1: FID scores of modern 3D GANs. “” — evaluated on a re-aligned version of FFHQ (different from original FFHQ Karras et al. (2019)). Training cost is measured in terms of NVidia V100 GPU days. “OOM” denotes out-of-memory error.
Figure 5: Visualizing the learned geometry for different methods. -GAN Chan et al. (2021a) recovers high-fidelity shapes, but has worse image quality (see Table 1) and is much more expensive to train than our model. MVC-GAN Zhang et al. (2022) fails to capture good geometry because of the 2D upsampler. Our method learns proper geometry and achieves state-of-the-art image quality. We extracted the surfaces using marching cubes from the density fields sampled on grid and visualized them in PyVista Sullivan and Kaszynski (2019). We manually optimized the marching cubes contouring threshold for each checkpoint of each method. We noticed that -GAN Chan et al. (2021a) produces a lot of “spurious” density which makes.

4.1 Experimental setup

Benchmarks. In our study, we consider four benchmarks: 1) FFHQ Karras et al. (2019) in and resolutions, consisting of 70,000 (mostly front-view) human face images; 2) Cats  Zhang et al. (2008), consisting of 9,998 (mostly front-view) cat face images; 3) Megascans Food (M-Food) consisting of 199 models of different food items with 128 views per model (25472 images in total); and 4) Megascans Plants (M-Plants) consisting of 1108 different plant models with 128 views per model (141824 images in total). The last two datasets are introduced in our work to fix two issues with the modern 3D generation benchmarks. First, existing benchmarks have low variability of global object geometry, focusing entirely on a single class of objects, like human/cat faces or cars, that do not vary much from instance to instance. Second, they all have limited camera pose distribution: for example, FFHQ Karras et al. (2019) and Cats Zhang et al. (2008) are completely dominated by the frontal and near-frontal views (see Appx D). That’s why we obtain and render 1307 Megascans models from Quixel, which are photo-realistic (barely distinguishable from real) scans of real-life objects with complex geometry. Those benchmarks, together with the rendering code, will be made publicly available.

Metrics. We use FID Heusel et al. (2017)

to measure image quality and also estimate the training cost for each method in terms of NVidia V100 GPU days needed for it to complete the training process.

Baselines. For upsampler-based baselines, we compare to the following generators: StyleNeRF Gu et al. (2022), StyleSDF Or-El et al. (2021), EG3D Chan et al. (2021b), VolumeGAN Xu et al. (2021), MVCGAN Zhang et al. (2022) and GIRAFFE-HD Xue et al. (2022). Apart from that, we also compare to pi-GAN Chan et al. (2021a) and GRAM Deng et al. (2022)

, which are non-upsampler-based GANs. To compare on Megascans, we train StyleNeRF, MVCGAN, pi-GAN, and GRAM from scratch using their official code repositories (obtained online or requested from the authors), using their FFHQ or CARLA hyperparameters, except for the camera distribution and rendering settings. We also train StyleNeRF, MVCGAN and

-GAN on Cats . GRAM Deng et al. (2022) restricts the sampling space to a set of learnable iso-surfaces which makes it not well-suited for datasets with varying geometry.

4.2 Results

EpiGRAF achieves state-of-the-art image quality. For Cats , M-Plants and M-Food , EpiGRAF outperforms all the baselines in terms of FID except for StyleNeRF, performing very similar to it on all the datasets despite the fact that it does not have a 2D upsampler. For FFHQ, our model attains very similar FID scores as the other methods, ranking 4/9 (including older -GAN Chan et al. (2021a)), noticeably losing only to EG3D Chan et al. (2021b), which trains and evaluates on a different version of FFHQ and uses pose conditioning in the generator (which potentially improves FID at the cost of multi-view consistency). We provide a visual comparison for different methods in Fig 4. GRAM’s high FID scores on M-Plants/M-Food are due to its severe mode collapse (see Fig 13 in Appx E).

EpiGRAF is much faster to train. As reported in Tab 1, existing methods typically train for week on 8 V100s, EpiGRAF finishes training in just 2 days for and days for resolutions, which is faster. Note that this high training efficiency is achieved without the use of an upsampler, which initially enabled high-resolution synthesis of 3D-aware GANs. As to the non-upsampler methods, we couldn’t train GRAM or -GAN on resolution due to the memory limitations of the setup with 8 NVidia V100 32GB GPUs (i.e., 256GB of GPU memory in total).

EpiGRAF learns high-fidelity geometry. Using a pure NeRF-based backbone carries two crucial benefits: it provides multi-view consistency and allows to learn the geometry in the full dataset resolution. In Fig 5, we visualize the learned shapes on M-Food and M-Plants for 1) -GAN: a pure NeRF-based generator without the geometry constraints; 2) MVC-GAN Zhang et al. (2022): an upsampler-based generator with strong multi-view consistency regularization; 3) our model. We provide the details and analysis in the caption of Fig 5.

EpiGRAF easily capitalizes on techniques from the NeRF literature. Since our generator is purely NeRF based and renders images without a 2D upsampler, it is well coupled with the existing techniques from the NeRF scene reconstruction field. To demonstrate this, we adopted background separation from NeRF++ Zhang et al. (2020) using the inverse sphere parametrization by simply copy-pasting the corresponding code from their repo. We depict the results in Fig 1 and provide the details in Appx B.

4.3 Ablations

We report the ablations for different discriminator architectures and patch sizes on FFHQ and M-Plants in Tab 2. Using a traditional discriminator architecture results in worse performance. Using several ones (via the group-wise convolution trick Karras et al. (2020b)) results in noticeably slower training time and degrades the image quality a lot. We hypothesize that the reason of it was the reduced overall training signal which each discriminator receives, which we tried to alleviate by increasing the learning rate for them, but that did not improve the results. A too small patch size hampers the learning process and results in a % worse FID. A too large one provides decent image quality, but greatly reduces the training speed.

To assess the convergence of our proposed patch sampling scheme, we compared against uniform sampling on Cats  for , representing different annealing speeds. We show the results for it in Fig 6: our proposed beta scale sampling strategy with k schedule robustly converges to lower values than the uniform one with k or k and does not fluctuate much compared to the uniform one (where the model reached its final annealing stage in just 1k kilo-images seen by ).

To analyze how hyper-modulation manipulates the convolutional filters of the discriminator, we visualize the modulation weights , predicted by , in Fig 7 (see the caption for the details). These visualizations show that some of the filters are always switched on, regardless of the patch scale; while others are always switched off providing potential room for pruning He et al. (2017). And % of the filters are getting switched on and off depending on the patch scale, which shows that indeed learns to perform meaningful modulation.

Figure 6: Convergence comparison on Cats for EpiGRAF between uniform and beta scale sampling strategies in terms of log-FID measured on 2048 fake images. Experiment FFHQ M-Plants Training cost Discriminator  – standard 11.57 21.77 24  – 2 scale-specific -s 10.87 21.02 28  – 4 scale-specific -s 21.56 43.11 28  – scale/position-aware 9.92 19.42 24 Patch size  – 17.44 34.32 19  – (default) 9.92 19.42 24  – 11.36 18.90 34 Table 2: Ablating the patch size and the discriminator architecture for our model in terms of FID scores and training cost (V100 GPU days) on resolution.

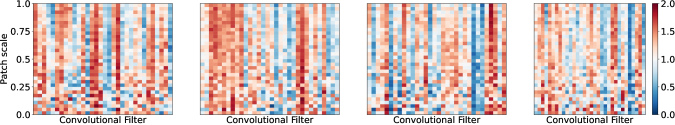

Figure 7: Visualizing modulation weights , predicted by for 2-nd, 6-th, 10-th and 14-th convolutional layers. Each subplot denotes a separate layer and we visualize random 32 filters for it.

5 Conclusion

In this work, we showed that it is possible to build a state-of-the-art 3D GAN framework without a 2D upsampler, but using a pure NeRF-based generator trained in a multi-scale patch-wise fashion. For this, we improved the traditional patch-wise training scheme in two important ways. First, we proposed to use a scale/location-aware discriminator with convolutional filters modulated by a hypernetwork depending on the patch parameters. Second, we developed a schedule for patch scale sampling based on the beta distribution, that leads to faster and more robust convergence. We believe that the future of 3D GANs is a combination of efficient volumetric representations, regularized 2D upsamplers, and patch-wise training. We propose this avenue of research for future work.

Our method also has several limitations. Before switching to training 3D-aware generators, we spent a considerable amount of time exploring our ideas on top of StyleGAN2 for traditional 2D generation. This always resulted in increased FID scores (see Appx A). Further, the discriminator looses information about global context. We tried multiple ideas to incorporate global context, but it did not lead to an improvement. Finally, 3D GANs generating faces and humans may have negative societal impact as discussed in Appx G.
