1 Introduction

In the quantum Internet [2, 23], one of the most important tasks is to establish entanglement [1, 2, 3, 4, 5, 6, 7, 8, 9, 10] between the legal parties [11, 12, 13, 14, 15] so as to allow quantum communication beyond the fundamental limits of point-to-point connections [41, 42, 43]. For the problem of entanglement distribution in quantum repeater networks several methods [7, 10, 11, 12, 13, 14, 15], and physical approaches have been introduced [16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 47, 48, 49]. The current results are mainly focusing on the physical-layer of the quantum transmission [5, 6, 7, 8, 9], implementations of entanglement swapping and purification, or on the optimization of quantum memories and quantum error correction in the repeater nodes [16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40]. However, if the legal users of the quantum network are associated with different priority levels, or if a differentiation of entanglement availability between the users is a necessity in a multiuser quantum network, then an efficient and easily implementable entanglement availability service is essential.

In this work, we define the entanglement availability differentiation (EAD) service for the quantum Internet. We introduce differentiation methods, Protocols 1 and 2, within the EAD framework. In Protocol 1, the differentiation is made in the amount of entanglement associated with the legal users. The metric used for the quantization of entanglement is the relative entropy of entanglement function [44, 45, 46]. In Protocol 2, the differentiation is made in the amount of time that is required to establish a maximally entangled system between the legal parties.

The EAD framework contains a classical phase (Phase 1) for the distribution of timing information between the users of the quantum network. Phase 2 consists of all quantum transmission and unitary operations. In Phase 2, the entanglement establishment is also performed between the parties according to the selected differentiation method.

The entanglement distribution phase of EAD utilizes Hamiltonian dynamics, which allows very efficient practical implementation for both the entanglement establishment and the differentiation of entanglement availability. Using the Hamiltonian dynamics approach as a core protocol of Step 2 of the EAD framework, the entanglement differentiation method requires only unitary operations at the transmitter and requires no entanglement transmission. The application time of the unitaries can be selected as arbitrarily small in the transmitter to achieve an efficient practical realization. The proposed EAD framework is particularly convenient for experimental quantum networking scenarios, quantum communication networks, and future quantum internet.

The novel contributions of our manuscript are as follows:

  • We define the entanglement availability differentiation (EAD) service for the quantum Internet.

  • The entanglement availability differentiation is achieved via Hamiltonian dynamics between the users of the quantum network.

  • The EAD framework can differentiate in the amount of entanglement with respect to the relative entropy of entanglement associated to the legal users (Protocol 1), and also in the time domain with respect to the amount of time that is required to establish a maximally entangled system (Protocol 2) between the legal parties.

  • The framework provides an efficient and easily-implementable solution for the differentiation of entanglement availability in experimental quantum networking scenarios.

This paper is organized as follows. Section 2 defines the framework for the proposed entanglement differentiation methods. Section 3 discusses the entanglement differentiation schemes. Finally, Section 4 concludes the results. Supplemental information is included in the Appendix.

2 System Model

The proposed EAD service allows differentiation in the amount of entanglement shared between the users or the amount of time required for the establishment of maximally entangled states between the users. The defined service requires no entanglement transmission to generate entanglement between the legal parties. The differentiation service consists of two phases: a classical transmission phase (Phase 1) to distribute side information for the entanglement differentiation and a quantum transmission phase (Phase 2), which covers the transmission of unentangled systems between the users and the application of local unitary operations to generate entanglement between the parties.

The proposed entanglement availability differentiation methods are detailed in Protocol 1 and Protocol 2. The protocols are based on a core protocol (Protocol 0) that utilizes Hamiltonian dynamics for entanglement distribution in quantum communication networks (see Section A.1). The aim of the proposed entanglement differentiation protocols (Protocol 1 and Protocol 2) is different from the aim of the core protocol, since Protocol 0 serves only the purpose of entanglement distribution, and allows no entanglement differentiation in a multiuser quantum network. Protocol 0 is used only in the quantum transmission phase and has no any relation with a classical communication phase.

2.1 Classical Transmission Phase

In the classical transmission phase (Phase 1), the timing information of the local Hamiltonian operators are distributed among the legal parties by an encoder unit. The content of the timing information depends on the type of entanglement differentiation method. The Hamiltonian operators will be applied in the quantum transmission phase (Phase 2) to generate entangled systems between the users. Since each types of entanglement differentiation requires the distribution of different timing information between the users, the distribution of classical timing information will be discussed in detail in Section 3.

2.2 Quantum Transmission Phase

The quantum transmission phase (Phase 2) utilizes a core protocol for the entanglement distribution protocol of the EAD framework. The core protocol requires no entanglement transmission for the entanglement generation, only the transmission of an unentangled quantum system (i.e., separable state [10, 11, 12, 13, 14, 15]) and the application of a unitary operation for a well-defined time in the transmit user. The core protocol of the quantum transmission phase for a user-pair is summarized in Protocol 0. It assumes the use of redundant quantum parity code [7] for the encoding222Actual coding scheme can be different.. For a detailed description of Protocol 0, see Section A.1.

Step 1. Alice (transmitter node) and Bob (receiver node) agree on a time , in which they want to establish entanglement between subsystems and . Alice generates a separable initial system , with no entanglement between and as
(1)
where , . Alice encodes subsystem , via an redundant quantum parity code as
(2)
where , and sends subsystem to Bob through the network of intermediate transfer nodes. Each intermediate transfer nodes receives and retransmits . Bob receives and decodes it. Step 2. Alice prepares a system , denoted by density which is completely uncorrelated from , where is the identity operator, is the Pauli matrix, while is a constant. Alice applies a unitary on and , which produces the initial system with no entanglement between and as
(3)
where . Step 3. Alice applies the unitary on subsystem for a time , as
(4)
where
(5)
is the Hamiltonian with energy
(6)
where is the reduced Planck constant, which results in the maximally entangled

system with probability

as
(7)
Protocol 1 Core Protocol

2.3 Framework

In our multiuser framework, the quantum transmission phase is realized by the core protocol of Phase 2; however, time of the Hamiltonian operator is selected in a different way among the users, according to the selected type of differentiation. For an -th user , the application time of the local unitary is referred to as . Without loss of generality, the -th transmit user is referred to as , and the -th receiver user is .

In the system model, the user pairs can use the same physical quantum link, therefore in the physical layer the users can communicate over the same quantum channel. On the other hand, in a logical layer representation of the protocols, the communication between the user pairs formulate logically independent channels.

The method of entanglement differentiation service is summarized in Fig. 1. The basic model consists of two phases: distribution of timing information over classical links (Fig. 1(a)) and the transmission of quantum systems and the application of local unitary operations (Fig. 1(b)).

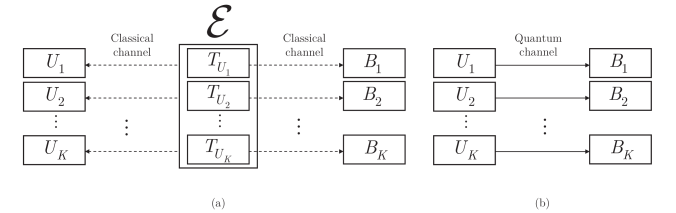

Figure 1: Framework of the entanglement differentiation service in a multiuser quantum network. (a): Phase 1. Classical transmission. The encoder unit distributes the timing information for the legal transmit users and receiver users via a classical channel. (b): Phase 2. Quantum transmission. The users apply the core protocol for the entanglement establishment. Then, using the received timing information the transmit users apply the local unitaries for time .

3 Methods of Entanglement Availability Differentiation

The EAD service defines different types of differentiation. The differentiation can be achieved in the amount of entanglement in terms of the relative entropy of entanglement between the users (Protocol 1: differentiation in the amount of entanglement). In this method, all users have knowledge of a global oscillation period [10] of time for the application of their local unitaries, but the users will get different amounts of entanglement as a result.

The differentiation is also possible in the amount of time that is required to establish a maximally entangled system between the users (Protocol 2: differentiation in the time domain). In this method, all users get a maximally entangled system as a result; however, the time that is required for the entanglement establishment is variable for the users, and there is also no global oscillation period of time.

3.1 Differentiation in the Amount of Entanglement

The differentiation of the entanglement amount between the users allows us to weight the entanglement amount between the users in terms of relative entropy of entanglement. Using the timing information distributed in Phase 1 between the transmit users

(8)

where

(9)

for an -th transmit user , the protocol generates an initial system , transmits separable B to receiver , and applies the local unitary on subsystem for time (using the core protocol of Phase 2). Depending on the selected , the resulting subsystem between users and contains the selected amount of entanglement,

(10)

3.1.1 Relative Entropy of Entanglement

In the proposed service framework, the amount of entanglement is quantified by the relative entropy of entanglement function. By definition, the relative entropy of entanglement function of a joint state of subsystems and is defined by the quantum relative entropy function, without loss of generality as

(11)

where is the set of separable states .

3.1.2 Differentiation Service

The Phases 1 and 2 of the method of entanglement amount differentiation (Protocol 1) are as included in Protocol 1.

Step 1. Let be the set of transmit users, and are the receiver users. Distribute the , where , timing information via an encoder unit between all transmit users using a classical authenticated channel (Phase 1). Step 2. In the transmit user , generate the initial system , transmit separable B to receiver , and apply the local unitary on subsystem for time (Core protocol of Phase 2 between the users). Step 3. The resulting subsystem after total time between users and contains entanglement .
Protocol 2 Differentiation in the Amount of Entanglement
Description

In the quantum transmission phase, the entanglement oscillation in is generated by the energy of the Hamiltonian [10]. This oscillation has a period of time , which exactly equals to ,

(12)

where is determined by Alice and Bob. In other words, time identifies , where is the oscillation period. Therefore, in Protocol 1, the density of the final state is as

(13)

where at time is evaluated as

(14)

which at (see (8)) of user , for a given is evaluated as

(15)

where the sign change on is due to the eigenstate on , and where

(16)

Thus, up to the global phase, both states are the same.

Therefore, the system state of at is yielded as

(17)

therefore, the resulting time state at and , is a non-maximally entangled system

(18)

with entanglement between user and as

(19)

3.2 Differentiation in the Time Domain

In the time domain differentiation service, a transmit user generates the initial system , transmits separable to receiver , and applies the local unitary on subsystem for time (using the core protocol of Phase 2). Using the oscillation period distributed in Phase 1, the resulting subsystem after total time

(20)

between users and , is a maximally entangled system, , for all .

3.2.1 Differentiation Service

The Phases 1 and 2 of the time domain differentiation method (Protocol 2) are as included in Protocol 2.

Step 1. Let be the set of transmit users, and are the receiver users. Let be the oscillation time selected for user pairs and , and let be defined as
(21)
For all , distribute the oscillation period of time information via an encoder unit between and (Phase 1). Step 2. In the transmit user , generate the initial system , transmit separable B to receiver , and apply the local unitary on subsystem for time (Core protocol of Phase 2 between the users). Step 3. The resulting subsystem after total time between users and is a maximally entangled system, , for all .
Protocol 3 Differentiation in Time Domain
Description

Let us focus on a particular of users and . The same results apply for all users of the network.

After the steps of Protocol 2, the density of the final state is as

(22)

where at is evaluated as

(23)

where the sign change on is due to the eigenstate on .

Thus, at , the system state is

(24)

where

(25)

Thus, up to the global phase both states are the same yielding relative entropy of entanglement between users and as

(26)

with unit probability.

3.3 Comparative Analysis

The results of the proposed differentiation methods, Protocols 1 and 2, are compared in Fig. 2. Fig. 2(a) illustrates the results of a differentiation in the entanglement quantity, while Fig. 2(b) depicts the results of the time-domain differentiation method.

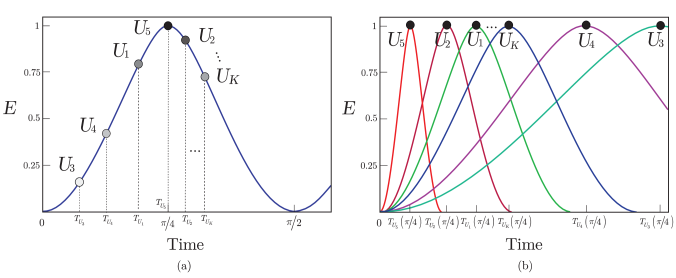

Figure 2: Entanglement differentiation service via Hamiltonian dynamics in a multiuser environment. (a): Protocol 1. Each user gives a different amount of entanglement at a global period of time . The differentiation is made in the amount of entanglement (relative entropy of entanglement) by applying the local unitaries for time for . User has the highest priority thus the user gets a maximally entangled system, user is the lowest priority user and associated with a low amount of entanglement. (b): Protocol 2. All users are assigned with a maximally entangled system, , and the differentiation is made in the time domain. For users a particular period of time is assigned, and each local unitary is applied for time o achieve maximally entangled states between the parties. User has the highest priority thus the user associated with the shortest time period, user is the lowest priority user with a long time period for the generation of a maximally entangled system.

4 Conclusions

Entanglement differentiation is an important problem in quantum networks where the legal users have different priorities or where differentiation is a necessity for an arbitrary reason. In this work, we defined the EAD service for the availability of entanglement in quantum Internet. In EAD, the differentiation is either made in the amount of entanglement associated with a legal user or in the amount of time that is required to establish a maximally entangled system. The EAD method requires a classical phase for the distribution of timing information between the users. The entanglement establishment is based on Hamiltonian dynamics, which allows the efficient implementation of the entanglement differentiation methods via local unitary operations. The method requires no entanglement transmission between the parties, and the application time of the unitaries can be selected as arbitrarily small via the determination of the oscillation periods to achieve an efficient practical realization. The EAD method is particularly convenient for practical quantum networking scenarios, quantum communication networks, and future quantum Internet.
