Next generation cellular networks Wu et al. (2017)Agiwal et al. (2016) are envisioned to have some unique beneficial characteristics, among which ultra-dense deployment Ge et al. (2016) of network nodes is one of the most crucial paradigms. Ideally, ultra-dense deployment of nodes enhances the coverage and capacity of the system Zhou et al. (2014). However, there are still some problems with this concept if the deployment and system parameters are not properly optimized. Since the number of transmitters in such networks is very large, this causes huge interference. Consequently, energy-efficient transmission is one of the important research endeavors in this arena. In order to obtain fruitful outcome in this context, designing an effective and efficient radio access technology Edler and Lundberg (2014) is one of the possible solutions. Non-orthogonal multiple access (NOMA) is considered as the most promising radio access technique for next generation wireless systems Ding et al. (2014)HIGUCHI and BENJEBBOUR (2015)Wong et al. (2017). Through experimentation and theoretical analysis Higuchi and Kishiyama (2013)Endo et al. (2012)Umehara et al. (2012)Otao et al. (2012), it is proved that the NOMA technique is able to provide enhanced performance in different sectors of wireless communication systems comparing with other orthogonal multiple access (OMA) techniques. Conceptually, power-domain NOMA Islam et al. (2017) allows multiple users to occupy the same resource. This leads to additional interference for NOMA-equipped networks and their neighboring networks. Consequently, existing resource management techniques Feng et al. (2013) in conventional networks, especially the energy-efficient ones, need to be revisited due to the incorporation of additional interference this new technology brings.
Although the NOMA technique allows multiple users to be superimposed on the same frequency channel, due to the usage of practical, finite-length and possibly non-Gaussian codes, it is not an optimal design to assign large number users to the same channel. Consequently, dedicated spectrum of a system needs to be subdivided into multiple subchannels in order to support increased number of users Dai et al. (2015)
. At the same time, how to allocate these subchannels among the users in a multiplexed manner given the maximum allowable number of users that can utilize a subchannel simultaneously, is an important problem. While targeting on the maximization of the overall throughput, some research has been conducted on the downlink and uplink subchannel and power allocation in such NOMA systems. Based on some assumption of having constant power on the subchannels, existing works typically provide some heuristic solutions for the subchannel-user mapping problem. Once the subchannel-user mapping is done, in order to enhance the performance of the system further, different existing works have provided different schemes for the power allocation. For example, inSaito et al. (2013); Benjebbour et al. (2013), the authors use the fractional transmit power allocation technique among users and apply the equal power allocation technique across subchannels. Hojeij et al. (2015) uses the water filling-based approach for the power allocation, and in Parida and Das (2014), the authors use difference of convex (DC) programming-based approach Vucic et al. (2010) for the power allocation at both the user and subchannel levels. For uplink systems, there are some works as well, such as Kumaran and Qian (2003); Al-Imari et al. (2015); Mollanoori and Ghaderi (2014). In Al-Imari et al. (2015), the authors used the iterative water filling idea Yu et al. (2004) for both the subchannel-user mapping problem and their granular power allocation. On the other hand, in Mollanoori and Ghaderi (2014), the authors assumed that the resources are time slots instead of frequency channels. Although the work in Al-Imari et al. (2015) can ensure that users can be assigned to multiple subchannels, each user is assigned to at most one resource block via the scheme in Mollanoori and Ghaderi (2014). While the base station (BS) of all these works is assumed to be equipped with the half-duplex functionality, the authors in Sun et al. (2017) have proposed a joint subchannel and power allocation scheme for such a system based on the assumption that the BS is equipped with the full-duplex functionality to serve uplink and downlink users simultaneously.
With the increasing desire to have green communications in the recent years, reducing energy consumption has become the prime concern for researchers, and the fifth generation (5G) systems have also targeted energy efficiency as one of the major milestones to achieve Abrol and Jha (2016). Although the minimization of used power reported in Lei et al. (2016) could be one of the objectives of energy-efficient transmissions, the resultant solution of such a type of formulation is not spectrum-efficient. In order to achieve spectrum efficiency with the minimal power, the ideal objective of an energy-efficient transmission is to maximize the achievable bits of a channel under the unit Joule of power consumption Jumira and Zeadally (2012). For a NOMA-equipped single cell, which has two users, an energy-efficient power allocation scheme is studied in Han et al. (2013). In this work, the authors found the relationship between energy efficiency and spectrum efficiency under the total system power constraint. At the same time, energy efficiency is also studied for NOMA-equipped MIMO systems in Sun et al. (2015). The closest to ours and the most recent energy-efficient resource allocation scheme appeared in Fang et al. (2016). The system model that this paper considered is similar to ours, and our target is to enhance the performance of the proposed scheme in this paper further. This work has proposed an energy-efficient downlink subchannel and power allocation scheme for a cellular network under total power constraint at the BS with a number of drawbacks. For example, through their scheme, each user cannot be assigned to multiple subchannels, the concept of which fails to exploit the multi-user diversity of wireless systems Tse and Viswanath (2005). Moreover, each subchannel can be assigned to at most two users, which also conflicts with the NOMA concept. Furthermore, they have used the DC programming-based approach in order to allocate power across all the subchannels and users of the system. Actually, through this power allocation, the entire power at the BS is used up, and hence the system fails to reach the optimal energy-efficient state. On the other hand, they also have utilized the DC programming-based approach in order to calculate the optimal instantaneous rate of a subchannel, which is an essential intermediate step of their subchannel-user mapping algorithm. However, the DC programming-based approach is appropriate only in this case because of provisioning at most two users to a subchannel. If the allowable number of users per subchannel is increased, the DC programming-based approach is not appropriate to solve this problem any more as the problem can no longer be expressed as a difference of convex functions under this realistic consideration.
The contribution of this paper is the design of an energy-efficient downlink subchannel and power allocation scheme in a cellular network with enhanced performance compared to the work in Fang et al. (2016). Since this problem considers subchannels assignment which are associated with discrete variables in the formulated problem, the problem is NP-hard in general. Moreover, even if the subchannel assignment information is known, the power allocation problem is non-convex Bertsekas (1999)
. As a result, joint subchannel assignment and power allocation of this problem can be considered as an mixed integer non-linear programming (MINLP) problem. Considering the importance of the overall energy efficiency for such a system from the perspective of green communications, since the existing solution ofFang et al. (2016) is approximate, the investigation of the better ones is required. Consequently, we find that decomposing the problem into a subchannel allocation problem followed by a power loading problem and then solving each problem individually while considering inter-dependency, is an elegant approach to solve this problem. In the first step, under the assumption that total power of the BS is subdivided equally among all the subchannels, we solve the subchannel-user mapping problem via a many-to-many matching model Hamidouche et al. (2014); Roth (1984). However, unlike the scheme in Fang et al. (2016), our proposed subchannel-user mapping scheme can utilize the multi-user diversity efficiently. On the other hand, one of the assumptions of the subchannel-users mapping algorithm in Fang et al. (2016) is, at most users can be assigned to a subchannel. Because of this assumption, the power allocation problem of a subchannel is amenable to the DC programming-based approach. If a subchannel is assigned to more than users, the power allocation problem is no longer amenable to the DC programming-based approach. In contrast, our proposed scheme is general, and the number of users assigned to a subchannel is arbitrary. Our discovery to solve this problem via the geometric programming (GP)-based Boyd et al. (2007); Chiang (2005) approach is one of the specific contributions of this paper. Then, in the second step, once the subchannel-user mapping information are known, we adopt the GP-based approach in order to allocate power across all subchannel-user slots upon approximating the energy efficiency of system by a ratio of two posynomials. The DC programming-based approach in Fang et al. (2016) allocates power across the subchannels while ignoring the detailed granularity of the user power level. Our proposed power loading scheme using the GP-based approach allocates power to each user’s data stream on each of its allocated subchannels. Compared to the most relevant existing work Fang et al. (2016), the major contributions of the paper are summarized as follows.
For the subchannel-user mapping task, unlike the one in Fang et al. (2016), we have adopted a many-to-many matching model that exploits the multi-user diversity of wireless systems efficiently. Through this scheme, not only each subchannel can be used to serve multiple users, but also each user can utilize multiple subchannels. However, assigning more and more users to a subchannel cannot necessarily enhance the energy efficiency of the system further. Our proposed algorithm can smartly adapt user assignment to each subchannel given the information of some maximal allowable number of users to each subchannel.
While solving the subchannel-user mapping problem, it is required to determine the optimal instantaneous sum-rate of a subchannel in the intermediate decision making steps. When a subchannel can serve at most users, the approach in Fang et al. (2016) is appropriate to determine the instantaneous sum-rate of a subchannel. However, in practice, having more than users on a subchannel can enhance the system performance. On the other hand, when a subchannel is assigned to more than users, the DC programming-based approach is no longer a suitable method to determine the optimal instantaneous sum-rate of that subchannel. This is because the objective function cannot be expressed as a difference of convex functions in this case. However, this problem is amenable to GP via the single condensation heuristic method after approximating the objective function of the problem by a ratio of two posynomials. Consequently, upon the approximation, we have adopted the single condensation method to determine the optimal instantaneous sum-rate of each subchannel while making the decision about each subchannel-user assignment.
Once the subchannel-user mapping information are known from the first step, the DC programming-based approach in Fang et al. (2016) can allocate power optimally across the subchannels. However, this power allocation scheme ignores the detailed granularity of each subchannel-user slot, and the entire power of the BS is used up. While targeting on the optimality and considering the detailed granularity of each subchannel-user slot, we approximate the original problem via replacing the log function by the first term of its approximated series Nave to facilitate the problem solving via the GP-based approach. Upon approximating the objective function of the problem via a ratio of two posynomials, we adopt the GP-based single condensation heuristic to solve the approximated problem. The proposed scheme allocates power to each user’s data stream on each of its allocated subchannels. As a result, the total required power, to reach the optimal overall energy-efficient state, is much less than the total power of the BS. From the perspective of green communications, this phenomenon of our power loading scheme is a big advantage over the DC programming-based approach. Although the proposed GP-based approach provides fine-grained power allocation across each subchannel and user with higher energy efficiency, this approach is computationally intensive with the growing number of users and subchannels due to the implementation limitation of the off-the-shelf GP solvers Grant and Boyd (2014). Therefore, based on the insights of the optimal solution, we also have proposed a computationally-efficient suboptimal solution for the fine-grained energy-efficient power loading problem, which has a polynomial time complexity.
Extensive simulation has been conducted in order to verify the effectiveness of our proposed resource allocation scheme. The results demonstrate that our scheme always outperforms the scheme in Fang et al. (2016) under various realistic scenarios.
The rest of the paper is organized as follows. Along with the background information and the description of the system, in Section 2, we formulate our energy-efficient resource allocation problem. The detailed solution approach is provided in Section 3. Followed by the simulation methodology, we evaluate the performance of our proposed resource allocation schemes in Section 4. Finally, Section 5 concludes the paper with some implication.
2 System Model and Problem Formulation
In this paper, we consider a downlink scenario of a cellular network, which has one BS. Time is divided into frames, and the entire pre-assigned spectrum for the system is divided into subchannels in each frame. The resultant subchannels are the elements of a set, denoted by N. There are users in the system, and the corresponding set holding these users is denoted by M. Using the subchannels in set N as the transmission media, the BS transmits data to the users in set M. Both the BS and the users in the system are equipped with NOMA technologies. The BS transmits its data to a set of users using the superposition coding (SC) technique over a set of subchannels. Whereas, the receivers (i.e., the users) apply the SIC technique on each subchannel to decode the superimposed signals for extracting their own individual signal. However, before the downlink transmission operation, it is required to schedule subchannels and power across the users optimally so that the overall energy efficiency of the system is maximized. We assume that the scheduling scheme in the system is centralized, and the BS is appointed to conduct the entire scheduling operation. To develop this scheduling scheme, since the entire channel state information (CSI) of the system is required, the BS is aware of all these information. At the beginning of each time frame, all users send their CSI to the BS via some reliable control channels. The CSI of the subchannels in set N follows the block fading model Tse and Viswanath (2005), where the CSI of each subchannel is constant for a time slot and varies in an i.i.d. manner from time slot to time slot. The BS has the maximal power constraint, denoted by .
We assume that the BS assigns users to the th subchannel, and the corresponding set holding these users is denoted by . Given this, let denote the symbol transmitted by the BS on subchannel as , and it is given by . Here, is the modulated symbol of the th user on subchannel and is the power level assigned to user on subchannel . Consequently, the received signal of user on subchannel can be represented as
where is the channel gain of user on the th subchannel. is the noise power over subchannel , which follows Additive White Gaussian Noise (AWGN) McClaning (2000)
distribution with mean zero and variance, i.e., . The noise power of subchannel is statistically same for all users. In NOMA systems, each subchannel is shared by multiple users. Consequently, each user on subchannel receives its signal as well as the the interference signals from the other users that share the same subchannel. Let us denote the set holding the users that cause interference to user on subchannel as . Given the information of set , the received signal-to-interference-ratio (SINR) of the th user on subchannel is given by
where is the noise power on subchannel , and represents the power gain of the th user on subchannel .
Since the NOMA users are equipped with the SIC technique, the way a NOMA user retrieves information depends on the order of the allocated power level among all the NOMA users in the corresponding subchannel. In other words, a particular NOMA user can decode the information of other users that are assigned to larger power level compared to itself. On the other hand, this user can decode its own information considering the power level of other remaining users (that are assigned to lower power level compared to itself) as noise. Therefore, if the order of the power level assigned to the NOMA users are known, the decoding order is straightforward for a particular NOMA user and vice versa. It is clear that the optimal decoding order of the NOMA users and their power assignment are coupled to each other and is not a straightforward problem. However, in order to reduced the complexity of the proposed solution scheme in this paper, we intend to fix the order of the power level among the NOMA users while solving the entire energy efficiency problem. Ideally, in order to maximize the energy efficiency of the system, the optimal power allocation among the NOMA users of a subchannel should follow the water filling-based approach. On the other hand, when the fairness of the system is considered, the order of the ideal power allocation should be in-between the water filling-based approach and the opposite of the water filling one. If we would fix the order of the power level among the NOMA users according to the water filling norm, it is very likely that an ideal power loading scheme222The proposed power loading scheme in this paper is particularly optimal for the applications that work in the low SNR regime. assigns very low power to the users with worse channel condition. In this case, those users (with worse channel condition) may not be able to decode their information or this is not a fair attitude to those users. Therefore, while considering the fairness of the system, we have adopted the opposite norm of the water filling technique so that the users with worse channel have fair provision. In other words, in order to reduce the overall computational complexity of the solution schemes and considering the fairness of the system, similar to Fang et al. (2016), the users with larger gain are assigned to lower power level compared to the users with lower gain. As a result, following the norm of the SIC technique, the set of users that cause interference to user on subchannel is given by . Consequently, the sum-rate of subchannel , denoted by , can be obtained by the Shannon’s capacity formula Hazewinkel (2001).
If the circuit power consumption on subchannel is denoted by , the energy efficiency of subchannel is given by
In this work, given the power constraint of the BS, our objective is to allocate the subchannels in set N across all the users in set M so that the aggregate energy efficiency of all subchannels,
, is maximized. Clearly, this is an optimization problem. To formulate this problem, we define binary variables. implies that subchannel is allocated to user , and means the other case. Ideally, more and more users are assigned to a subchannel, the better the system performance. However, due to the increasing level of interference with more and more assigned users and the decoding complication of the SIC technique, not necessarily more users assigned to a subchannel will enhance the system energy efficiency. While giving weight to this observation and insight, we assume that maximum users can be assigned to a subchannel333Setting to , the multi-user diversity of a subchannel can be fully exploited. Due to the limited power level and the superposition-coded interference level caused by other users, an ideal resource allocation scheme should smartly select the users that are beneficial for that subchannel in terms of energy efficiency. Therefore, if the achieved instantaneous rate of user is and its minimum required rate is (to satisfy its quality-of-service requirement), the energy-efficient downlink subchannel and power allocation problem in this context can be formulated as (2)-(6). Note that the aggregate power level of subchannel is denoted by , and .
In the above formulation, there are two types of variables, i.e., and . are the set of discrete variables, and the problem is NP-hard because of these variables. The NP-hardness property of this problem can be proved by mapping it to the classical relaxed bin-packing problem Martello and Toth (1990). Let us assume that the subchannels in set N are the possible bins, the users in set M are items and the capacity of each bin is . Now, if we assume that an item can reside into multiple bins and if we transform the objective of the problem from minimizing the number of used bins to maximizing the system energy efficiency, reduction of our problem to the relaxed bin packing problem is completed. Thus, the NP-hardness property of our problem is proved. On the other hand, even if the information of set are known, it is straightforward to prove that the problem is non-convex with respect to (w.r.t.) . Moreover, in order to reduce the complexity of the solution method proposed in the following section, the ordering of the power level and gain of the users in set are considered to be fixed and given as follows. For any users and in set , if they follow , they must hold .
3 Solution Approach
In this section, we explore the solution approach of the energy-efficient downlink resource allocation problem of a NOMA system described in (2)-(6). Apparently, due to the discrete nature of subchannel assignment (i.e., variables ) and the continuous nature of power assignment (i.e., variables ), this is an MINLP problem. Furthermore, the assignment issue of users on the same subchannel brings further complication in the solution strategy. Therefore, we realize that decomposing the problem into a subchannel allocation subproblem followed by a power loading subproblem and then solving each subproblem based on the insights of the optimal solution, is a good strategy to solve the joint problem. Consequently, based on the assumption that the maximal power of the BS () is equally subdivided among all the subchannels, we solve the subchannel-user mapping subproblem using a many-to-many matching model. Compared to the one-to-many matching model adopted in Fang et al. (2016), we believe that a many-to-many one can capture the structure of the problem well. This is because one user can be assigned to multiple subchannels in order to exploit the multi-user diversity of wireless systems, and one subchannel can be assigned to multiple users to take the advantages of the NOMA technology. While solving the subchannel-user mapping subproblem, given the power constraint of each subchannel, it is required to assign power optimally among the allocated users so that the overall rate of that subchannel is maximized. For this purpose, we have noticed that if the value of is larger than , the resultant optimization problem cannot be written as the difference of convex functions, and hence the DC programming-based approach is not appropriate to solve this problem. However, we found that GP is a well-fit technique to solve this problem after approximating the objective function of the original problem by a ratio of two posynomials. For the solution of the second part of the problem, we assume that the subchannel-user mapping information are available. Given this information, Fang et al. (2016) has utilized the DC programming-based approach to allocate power across the subchannels while ignoring the detailed granularity of the user power level. On the attempt of finding an elegant solution for the power loading subproblem, we find that the GP-based approach is a good one as well upon approximating the problem by a ratio of two posynomials.
3.1 Subchannel and User Mapping Scheme
Intuitively, assignment of many subchannels to a user and allocating multiple users to a subchannel (to follow the guidelines of the NOMA technique) is expected to enhance the overall energy efficiency of the system. However, due to the usage of practical, finite-length and possibly non-Gaussian codes, we assume that maximum users can be assigned to a subchannel. Given the total power constraint of the BS, this problem is NP-hard. The nature of the problem implies that a many-to-many matching model Hamidouche et al. (2014); Roth (1984) is appropriate to capture the aforementioned behavior. Given that maximum users can be multiplexed to a subchannel, users in set M and subchannels in set N are two sets of players of this many-to-many matching model. Note that each user can have infinite ( in practice) subchannels if possible. In this case, since the BS has the maximal power constraint , this should be subdivided equally among all the subchannels.
Definition 1: A many-to-many matching model is a mapping from set M to set N such that every and satisfy the following properties:
if and only if
where is the set of partners for user and is the set of partners for subchannel under the matching model . The definition states that each user in set M is matched to a subset of subchannels in set N, and vice versa. However, before accomplishing these assignment operations, each user needs to have a preference list based on some criteria. The criterion of constructing the preference list for the users is based on their gain from the subchannels, which is similar to that in Fang et al. (2016). The preference of each subchannel is based on the overall benefit (i.e., energy efficiency) of the system. For example, if user chooses subchannel , this subchannel only accepts this user if and only the energy efficiency of the system is enhanced by this allocation.
To solve our subchannel-user mapping problem, we are interested to look at a stable solution, in which there are no players that are not matched to one another but they all prefer to be partners. Since the subchannel players give preference to the overall energy efficiency of the system while choosing partners from set M, a stable solution is considered to be an elegant solution of this problem444At this point, none of the players can enhance their performance further by choosing alternative partners, and hence this point is considered as a stable point.. In the many-to-many matching models Roth (1984), many stability concepts can be considered based on the number of players that can improve their utility by forming new partners among one another. However, due to the large number of players () in our problem, identifying optimal subset of partners for a player is computationally intractable. Consequently, we choose to solve the matching problem by identifying the partners one by one from the opposite set. This way of choosing the partners in the matching relation brings pair-wise stability. In Definition 1 and Definition 2, we highlight some properties of a pair-wise stable matching relation. For the sake of these definitions, we define some notations. For example, denotes the choice set of user , which basically follows . Moreover, implies that subchannel prefers the users in set over that in set .
Definition 1: Consider that pair is not the element of matching model , that is and . Now consider another pair , that satisfies and . For the matching relation to be pairwise stable, it is not possible that both and are satisfied.
Definition 2: Let () be the set of matched users of subchannel under the matching relation , and . Consider is one of the matched users in set . Now, another user has come to be matched with subchannel . Note that . However, if user is replaced by user , the performance of subchannel is enhanced. Therefore, in order to have stable matching, should hold. This phenomenon of stable matching is called substitutability.
While satisfying the properties of a stable many-to-many matching relation (e.g, substitutability Roth (1984)), we have proposed an algorithm in Algorithm 1. In order to bring the stability in this matching relation or enhance the overall energy efficiency of the system, we have adopted a few heuristics or strategies. The description of the algorithm is as follows. In order to realize the outcome of each step of the algorithm, we introduce one more type of set variable: that holds the allocated subchannels for user . First, and are initialized with . These sets are gradually filled up as we go through the iterations in between step and step . At the initialization phase, each user also constructs its subchannel preference list based on the descending order of their gain. Then, inside the outer-most loop (between step and step ), if no assignment is possible, the algorithm terminates555At this point, it is assumed that the system has reached a stable situation or the improvement of energy efficiency is no longer possible.. Inside the inner loop (between step and step ), each user chooses its most preferred unallocated (and not rejected already) subchannel . At this point, two conditions are possible. The first condition is that the number of allocated users to subchannel can be less than (maximum allowable number of users per subchannel), and the second condition is the other case. If the first condition is true, we can apply the addition strategy for this subchannel-user assignment: user can be added to this subchannel and this strategy is added to set S (which was initialized before sorting out the possible strategies for use ). Whereas, for the second condition, only substitution strategy (already allocated user can be replaced by new user ) is possible. After filling the strategy set S, no matter the number of allocated users to subchannel is less than or equal to , the elements of S are filtered based on the previous sum-rate of subchannel before this new possible assignment. The filtered strategy set is CS in Algorithm 1. Finally, strategy is chosen based on the sum-rate ( in Algorithm 1) each strategy achieves. If is empty, the innermost loop continues, and the next user is chosen from set M for building its possible strategy set. For the other case, the corresponding strategy is executed. As a result, set , set (only for the substitution strategy) and set are updated. By analyzing the algorithm, we conclude Proposition 1, Proposition 2 and Theorem 1.
Proposition 1: Given a certain value of , allocating more and more users to a subchannel cannot enhance the energy efficiency further.
Proof: See Appendix A.
Proposition 2: Once a user is rejected while to be assigned with a subchannel through the addition or the substitution strategy, that rejection is final. More precisely, even if that user wants to be assigned to that particular subchannel later, this assignment no longer enhances the system energy efficiency.
Proof: See Appendix B.
Theorem 1: The subchannel-user mapping algorithm (i.e., Algorithm 1) is guaranteed to converge to a pair-wise stable matching relation.
Proof: See Appendix C.
Computational Complexity of Algorithm 1: As discussed and proved in Proposition 2, if user is rejected by subchannel once, that user does not propose subchannel to be matched with anymore. This is because the energy efficiency of this subchannel is not enhanced in any way if previously rejected user is given preference in the following iterations. The enhancement of the energy efficiency for each subchannel implies the enhancement of the overall energy efficiency in the system. The termination of the outer-most loop (between step and step ) depends on the improvement of the overall energy efficiency. To be precise, if user in the inner loop proposes a subchannel and the corresponding results in empty value, the next user in set M builds its possible strategy set. If none of the users in set M can be matched with any of the subchannel in set N, the outer-most loop terminates. Therefore, intuitively, each user approaches at most subchannels to be matched with. Consequently, the outer-most loop runs at most times. On the other hand, the complexity of finding the best strategy for each user inside the inner loop is , and the corresponding reason is as follows. If the number of users assigned to subchannel is less than , only one strategy (the addition strategy) is possible. If the number of users assigned to subchannel is exactly , then strategies are possible due to the possible replacement policies. Since the value of is usually not large in practice, we consider the complexity of finding the best strategy as constant. The remaining operations inside the inner-most loop happen in constant time, and so we can ignore the complexity of these operations as well. Consequently, the overall complexity of the algorithm is .
3.2 Power Allocation Scheme
From Algorithm 1, we know the subchannel-user mapping information, i.e., and . This information is derived based on the assumption that the maximal power level of the BS is equally subdivided among all subchannels, i.e., . However, in (2), we see that the instantaneous rate of user assigned to subchannel is the increasing function of and the decreasing function of the interference power level caused by other users, i.e., . Consequently, even if the information about and are known, the power allocation across all subchannel-user slots, i.e., , is a non-convex optimization problem. In the literature, the transformation of such a type of problem to convex form is not reported yet, and hence the dual-based method Wang et al. (2016) or the bisection search Sun et al. (2015) cannot be adopted to solve this problem. Therefore, our next objective is to design a method that allocates power across all the subchannel-user slots in such a manner that near-optimality is achieved. We have adopted the GP-based optimization technique to solve this power allocation problem, the description of which is provided in the following discussions.
is a type of mathematical optimization problem with the characteristics that the objective and constraint functions must be monomial(s) or posynomial(s). Two problems that we have discussed in the following have a certain form, such as. Here, both functions and are posynomials; are the variables in the problem; and is the number of variables. This type of function is still not amenable to GP. To make this problem amenable to GP, there are some heuristics, such as the single condensation method and the double condensation method Boyd et al. (2007); Chiang (2005). We plan to apply the single condensation method in this context, which requires the denominator (i.e., ) to be approximated via some monomial . Given the values of , the unknown variables of this monomial can be approximated by and . As a result, the approximated objective function becomes the ratio of a posynomial and a monomial, which is a posynomial. Consequently, we require an iterative process in order to solve this problem step by step. The steps of this iterative process are provided in Section III-A of Ruby et al. (2015).
3.2.1 Joint Power Allocation among all Subchannels
Once the subchannel-user assignment information, i.e., , in order to obtain the energy-efficient power level of each subchannel-user tuple given the power constraint at the BS, we need to solve an optimization problem, which is as follows.
The relations in (6) basically are associated with equations. The number of variables (i.e., ) in all these equations is . However, using (18) Fang et al. (2016), the number of variables in all these equations can be reduced to . Therefore, for , intuitively, by solving all these equations jointly, the relations in the last constraint of (3.2.1) are achievable. For the other case (i.e., ), the last constraint of (3.2.1) can be approximated as well based on some simple assumption. Moreover, on subchannel , the set of users, , that cause interference to user is determined based on the decoding order described in Section 2. Clearly, the objective function here is not amenable to GP (not even any GP-based heuristic method) because of the energy efficiency factor . Therefore, we have decided to expand the log series. Since the SINR of user on subchannel is larger than zero, we can expand the log function according to Nave . The accuracy of the log expansion is verified in Fig. 1. For the sake of simplicity, using the first term of the expanded log function, we transform the original objective function to a form, which becomes the ratio of two posynomials. As shown in Fig. 1, both the original log function and the first term of the expanded series are increasing with the increasing value of . Moreover, the difference between the original log function and the first term of the log series increases with the increasing value of . However, this difference is negligible when the value of is . If we look at the objective function in (3.2.1), is mapped to the SINR term of each user on a particular subchannel. The SINR of a user on a subchannel is a function of its and other users’ gain and assigned power level. If the values of gain and maximal power level of the system are such that the SINR of a user on a subchannel does not exceed dB (the absolute value of which is around 3), the resultant approximated problem using the first term of the log series does not deviate much from the original problem. On the other hand, the search range of the SINR for a user over a subchannel may exceed dB at higher gains and a larger power level of the system. However, the first term of the log series dominates the entire log function. Moreover, since the nature of the log function as well as the first term of the log series are increasing, the sum of the log function as well as the sum of the first term (of the log series) are increasing. Therefore, when the search range of a SINR exceeds dB, although the approximated function is deviated from the original function, the resultant solution of the approximated problem should not be very bad. The accuracy of the resultant solution can be improved by approximating the problem using the first two terms of the log series instead of only the first one. Since the problem is a maximization problem, we apply the inverse function666The inverse function of is . to transform it to the minimization one. Consequently, the problem becomes solvable via GP, as described in Section 3.2. The outcome of the proposed fine-grained power allocation scheme strengthens the well-established truth Han et al. (2013) that the two objectives of maximizing the energy efficiency and maximizing the spectrum efficiency cannot be achieved simultaneously at the same operating point.
3.2.2 Power Allocation of a Subchannel
For subchannel , once and are known, we would like to determine . If , Fang et al. (2016) has proved that this problem can be solved using the DC programming-based approach. However, if , this problem can no longer be solvable via this approach. To prove this statement, let us assume , and holds for subchannel . Under this circumstances, the instantaneous rate of the rd user on subchannel can be given by . The interference term in the instantaneous rate of the rd user is a barrier to express the problem in terms of a difference of convex functions. If the value of is even larger, the nonconforming nature of the problem to the DC programming-based approach becomes even more severe. In general, the energy-efficient power allocation problem of subchannel can be written as follows.
3.2.3 Joint Computationally-Efficient Suboptimal Power Allocation among all Subchannels
The solution of the fine-grained power allocation problem in Section 3.2.1 is computationally intensive due to the cumbersome iterative process of the single condensation method as well as the implementation complication of the off-the-shelf GP solvers Grant and Boyd (2014)
. The complexity of this iterative process is proportional to the number of degrees of freedom in the system. If the number of users and subchannels in the system is moderately large, the solution of the problem cannot be obtained in a reasonable amount of time. Consequently, in this subsection, we have proposed another suboptimal solution for the fine-grained power allocation across the subchannels and users with much less computational overhead even with the off-the-shelf GP solversGrant and Boyd (2014). The mechanism of this suboptimal solution is developed based on the insights of the optimal solution, the description of which is given as follows. The idea of this suboptimal solution is to obtain the energy-efficient solution of the subchannels one by one. For this, using (18) Fang et al. (2016), we plan to approximate the problem in (9)-(10) to a one-variable optimization problem no matter the value of is. If the energy-efficient power level of subchannel is , using (18) Fang et al. (2016), we have , where . Then, we can transform the problem in (9)-(10) to either the problem in (11)-(12) or that in (13)-(14). Since we do not know the allocated power level of subchannel in advance, we assume that the maximal power level at the BS, , is the upper limit to be allocated at the beginning. It is proved in Fang et al. (2016) that is a concave function, and hence the DC-programming-based approach can be used to solve the problem in (11)-(12). On the other hand, in (13)-(14), both the and are the polynomial functions of variable . Using the first term of the log series, this problem can be transformed to a form which is the ratio of two posynomials as well. Consequently, we can adopt the GP-based single condensation method to obtain an elegant energy efficiency of subchannel . From our experiments, the latter solution approach provides better solution for this problem, and so we adopt it as a part of our proposed suboptimal energy-efficient power allocation scheme. The number of iterations required for the single condensation method is constant as the number of optimization variable is one in this case no matter the value of for subchannel is.
After solving the problem in (13)-(14) for all the subchannels, the resultant total power can be or . For the latter case, the resultant total power, , can be considered as an elegant solution. On the other hand, for the former case, we need to revisit the solution of the optimization problem further. In order to develop a good solution for this case, we need to know the energy efficiency rate per unit of power level for all subchannels. Once these information are known, we can develop a suboptimal scheme, that assigns unit power to the subchannels one by one until the total allocated power to all the subchannels results in . In order to know which subchannel has higher rate of energy efficiency, we construct an energy efficiency rate matrix EEM, the dimension of which is . The st row of this EEM matrix contains the energy efficiency of the subchannels given that each subchannel is assigned with level of power. Each element of the nd row contains the subtracted energy efficiency when the corresponding subchannel is allocated with and level of power. Finally, each element of the last row contains the subtracted energy efficiency of the corresponding subchannel when it is assigned to and level of power. The energy efficiency of each subchannel is computed using the formulation in (13)-(14) given the maximal power constraint designated for each element in matrix EEM. Based on the information of this matrix, power is assigned to each subchannel one by one in an iterative manner. For example, in one iteration, tuple in EEM matrix has been selected since it has the highest value. In this case, subchannel is assigned to level of power. This process continues until the allocated power level to all subchannels, , is equal to . The detailed steps of the entire iterative process are provided in Algorithm 2.
Computational complexity of Algorithm 2: Ideally, the GP-based single condensation method is supposed to adopt a conventional optimization solver, such as the interior-point method to solve the transformed convex problem in each iteration. Since the number of iterations is constant for the single condensation method to solve the problem in (13)-(14), its computational complexity is equivalent to the complexity of the adopted convex optimization solver. In Nesterov and Nemirovskii (1994), it is shown that the interior-point method can obtain the -optimal solution in polynomial time, and hence we can say that the complexity of the single condensation method to solve the problem in (13)-(14) has a polynomial time complexity. Moreover, although the off-the-shelf GP solvers do not solve a GP problem in a native manner, since the number of variable(s) of the problem in (13)-(14) is one, the computational complexity of the resultant solution is constant and quick unlike that in Section 3.2.1. The steps in between and , the problem in (13)-(14) needs to be solved times. If the resultant total power does not satisfy the power constraint, we need to construct matrix EEM. Except the st row, for each tuple of matrix EEM, the problem in (13)-(14) needs to be solved twice while replacing by different values. Therefore, the process of constructing matrix EEM takes a polynomial time multiplied with . Since each tuple is marked once it is selected for the assignment of power, the steps in between and run at most times. As a result, the complexity of constructing matrix EEM is dominated by the rest of the other steps in Algorithm 2.
4 Performance Evaluation
In this section, via simulation, we evaluate the performance of our proposed energy-efficient downlink resource allocation schemes. Followed by the methodology, we exhibit the detailed outcome of the simulation in order to verify the effectiveness of the proposed schemes.
4.1 Simulation Setup
The cellular network, that we consider, is isolated from the neighboring networks. It has a circular-like shape and suitable for an office environment. We place the BS at the center of the network, and the users are uniformly spread surrounding the BS within m distance. Typically, the minimum relative distance between two emploees in an office environment could be m, and hence we set the minimum distance between two users as m. Although we set a minimum relative distance between two users, the performance of each NOMA user is independent of this distance Shahab and Shin (2018). We also set the minimum distance from each user to the BS as m. As mentioned previously, continuous time is divided into frames. Each time frame is equivalent to s. During each time frame, the designated spectrum is equally subdivided among subchannels, and these subchannels are available to be allocated among users in the system. Each subchannel is assumed to have KHz bandwidth. According to Qiu and Chawla (1999), the theoretical limit of the channel capacity is given by , where denotes the Bit Error Rate (BER). The BER for each subchannel is configured as
. We consider that the shadow and Rayleigh are two main fading components of a wireless channel between the BS and a user in the system. The shadow fading follows the log-normal distribution with variance.
In order to calculate the quantity of the shadow fading over a subchannel, we assume the reference distance as km and the SNR for this reference distance is dB. The Rayleigh fading for all users over all subchannels follows the Rayleigh distribution with mean and variance. Using all these parameters, the gain of each subchannel for a user towards the BS is computed following () in Ruby et al. (2015). We employ the SIC technique in Vanka et al. (2012); Miridakis and Vergados (2013) for a user in order to decode the SC-coded signal of each subchannel transmitted by the BS.
In addition to implementing our proposed resource allocation schemes, we have implemented the scheme in Fang et al. (2016). In the following, this scheme is referred as “Scheme in Fang et al. (2016)”. In order to show that the many-to-many matching model applied in the subchannel-user mapping algorithm outperforms the one-to-many matching model, we have one version (i.e., Proposed Scheme-1) which uses Algorithm 1 to solve the subchannel-user mapping problem and the DC programming-based approach for the final power allocation across the subchannels and users. Note that in this version, for step of Algorithm 1, () Fang et al. (2016) is used. On the other hand, in order to show the superiority of our fine-grained power allocation scheme via the GP technique over the DC programming-based power allocation approach, we have another version (i.e., Proposed Scheme-). This version adopts the subchannel-user mapping algorithm in Fang et al. (2016) for the first step, and adopts the scheme in Section 3.2.1 in order to have power allocation across each allocated subchannel-user slot. We have three more versions of our proposed schemes, namely Scheme-, Scheme- and Scheme-, in order to exhibit a tradeoff between optimality and computational complexity. Both Scheme- and Scheme- adopt the GP technique in Section 3.2.1 for the final power allocation. However, Scheme- uses () Fang et al. (2016) for step in Algorithm 1, and Scheme- uses the GP technique in Section 3.2.2. Consequently, step in Algorithm 1 happens in constant time for Scheme- version. On the other hand, this operation of Scheme- has polynomial time complexity w.r.t. . Since the maximum value of is (e.g., in our simulation), this complexity of Scheme- can be considered negligible, but provides better solution compared to Scheme-. Moreover, our Scheme- version uses the technique in Section 3.2.2 for step of the subchannel-user mapping algorithm, and uses Algorithm 2 for the final fine-grained power allocation across the subchannels and users. The complexity of the suboptimal power allocation algorithm (i.e., Algorithm 2) is elaborately explained in Section 3.2.3. Apparently, both Algorithm 2 and the fine-grained power allocation scheme in Section 3.2.1 have polynomial time complexity. However, since the complexity of the GP technique is computationally intensive with the large number of optimization variables (e.g., ), the proposed Scheme- or Scheme- may run very slowly with the growing number of users and subchannels in the system. On the other hand, although step of Algorithm 2 is associated with solving the problem in (13)-(14) via the GP technique, the corresponding problem has only one optimization variable which results in constant time complexity for this step. Other steps of Algorithm 2 have constant time complexity, and hence the complexity of Scheme- can be considered negligible compared to Scheme- or Scheme-. However, because of the intense search of the fine-grained power allocation scheme in Section 3.2.1, Scheme- and Scheme- (especially Scheme-) achieve much better performance compared to Scheme-, which has been verified in the subsequent discussions. Finally, in order to demonstrate the global optimal performance, we apply the brute-force search on both the subchannel-user mapping and power allocation problems for a system with and users. In the following subsection, for each data point, we conduct the simulation over times.
4.2 Simulation Results

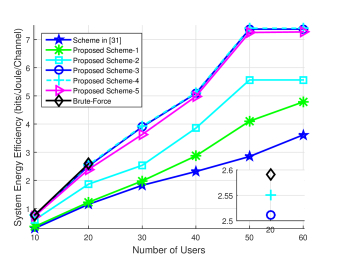

For , and , Fig. 2 presents the increasing energy efficiency with the increasing number of users. Given the constant power level at the BS, the more the users, the higher the sum-rate, and hence the larger the efficiency is. This trend is similar for all the schemes no matter it is ours or the scheme in Fang et al. (2016). Via the many-to-many matching model, if a user has better gain over many subchannels compared to other users, that user can be assigned to as many subchannels as possible if such assignments increase the system energy efficiency. On the other hand, via the one-to-many matching model, it is possible that a user with worse gain is forced to be assigned to a subchannel, despite such assignment is not necessarily beneficial for the system energy efficiency. This is because each user can be assigned to at most one subchannel via this matching model. As a result, both intuitively and empirically, we see the evidence of enhanced performance for our Scheme- compared to that in Fang et al. (2016), even when we use (18) Fang et al. (2016) for step in Algorithm 1 and the DC programming-based approach for the final power allocation. To provide further evidence, for , we plot Fig. (a)a and Fig. (b)b, which are the outcome of the subchannel-user mapping algorithms. In Fig. (b)b, we compare the number of allocated subchannels to each individual user (the users are sorted in the ascending order of their distance from the BS) between the one-to-many and our model. From our observation, we see that via the many-to-many matching model, a user can be assigned to multiple subchannels, and this number depends on the subchannels over which that particular user can achieve enhanced energy efficiency compared to other users. Our channel model is such that the quantity of the shadow fading is dominated by that of the Rayleigh fading. Therefore, a user that is closer to the BS is likely to have better gain over more subchannels compared to a farther user. Therefore, in Fig. (b)b, we see that a user that is the closest to the BS is assigned to the largest number of subchannels. On the other hand, based on the dynamics of users’ gain, in order to enhance the energy efficiency further, some subchannels accommodate more users compared to other subchannels.
In Fig. (a)a, we compare the number of assigned users to each individual subchannel between two subchanel-user mapping algorithms. In this figure, although , not necessarily all subchannels have allocated users. In general, it is seen that if the difference of gain between any two assigned users over any subchannel is larger compared to other subchannels, that subchannel achieves better sum-rate as well as better energy efficiency. The numerical degree of users’ gain over a subchannel also plays a crucial role in the decision whether additional user will be allocated to that subchannel or not. Because of these user dynamics, some subchannels cannot be assigned to many users as the allocation of more and more users may decrease the sum-rate as well as its energy efficiency, which is proved in Proposition 1. Due to the structure of the formulation, unlike the DC programming-based approach, the GP technique can provide fine-grained energy-efficient power allocation across all subchannel-user tuples. Hence, the energy efficiency is much better for this case (i.e., Scheme-) even if we use (18) Fang et al. (2016) for step of Algorithm 1. If we use the GP technique instead of (18) Fang et al. (2016) for step in Algorithm 1 (i.e., Scheme-), we obtain better organization in the subchannel-user map due to the better power allocation among the users of each subchannel. Therefore, this scheme has the best performance compared to all the others. The elegance of the fine-grained GP technique is further evident from the enhanced performance of Scheme- over the scheme in Fang et al. (2016). In Scheme-, we take the same subchannel-user mapping algorithm (via the one-to-many matching model) as that in Fang et al. (2016). On the other hand, we argued previously that the fine-grained power allocation using the GP technique is computationally quite intensive. Consequently, we developed Algorithm 2 in order to have fine-grained energy-efficient power allocation across all the allocated subchannel-user tuples in a low complexity manner. Because of adopting the insights of the optimal solution, the resource allocation scheme via this algorithm (i.e., Scheme-) has very close performance to that of the Scheme- and Scheme- versions, and obviously outperforms the scheme with the DC programming-based approach.

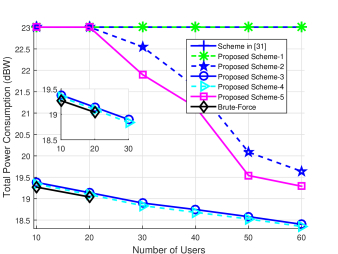

Given and , Fig. 6 presents total power consumption with the increasing number of users. This is natural that the more the users in the system, the diversity of the users that spread among all the allocated subchannels (i.e., multi-user diversity) increases. Therefore, with the increasing number of users, it is more likely that each subchannel is assigned to at least one user with good channel. On the other hand, from our observation, it is seen that if a subchannel has at least one user with good channel, it requires less power for that subchannel to reach the optimal energy-efficient state. Consequently, a lower power level should be required to reach the optimal energy-efficient state for a system with more users compared to that with less users. This observation and insights hold for both the GP technique and Algorithm 2. However, since the mechanism of Algorithm 2 is somewhat suboptimal (although developed based on the insights of the optimal solution) compared to that in Section 3.2.1, total consumed power in this case is slightly larger compared to the other one. The findings of this figure are quite interesting in a sense that the schemes with the fine-grained power allocation via the GP technique and Algorithm 2 use much less power compared to that with the DC programming-based approach. If we compare Fig. 2 with this figure, it becomes even more interesting as our schemes achieve much better energy efficiency using much less power compared to that with the DC programming-based approach. On the other hand, the schemes with the DC programming-based approach use full power of the BS, but incur much less energy efficiency. From the perspective of green communications, the results presented in this figure verify our original motivation towards pursuing this work.
Similar to our work, the conventional definition of energy efficiency is achievable blocks of bits from a channel under the usage of unit power level. The Shannon’s information capacity theorem has already established that two objectives, i.e., minimizing the consumed energy and maximizing the spectral efficiency are not achievable simultaneously at the same operating point. Consequently, under the consideration of fixed circuit power, there always exist two separate optimal points in the energy efficiency versus spectrum efficiency curve. In Fig. 7, we compare the energy-efficient total throughput acheievd by all aforementioned schemes. The more the users, the better the utilization of limited resources because of the enhanced multi-user diversity. Hence, we see the increasing trend in the energy-efficient total throughput, achieved by all the schemes, with the increasing number of users. However, due to the fact in the Shannon’s information capacity theorem, since the scheme in Fang et al. (2016) does not achieve the optimal energy-efficient state, it is possible that the total energy-efficient throughput achieved by this scheme is larger than our schemes. This is what observed in this figure.
In Fig. (a)a, given and , we show the energy efficiency with the increasing power at the BS. As we saw in the previous results that the scheme in Fang et al. (2016) fails to exploit the multi-user diversity of wireless systems as well as uses the DC programming-based approach to obtain the coarse-grained power allocation, this scheme has the lowest energy efficiency no matter the power constraint of the BS is. For this case, we see that with the increasing power level, the trend of energy efficiency is decreasing. This is because there is a tradeoff between the transmission capacity and the energy-efficient power consumption. Whereas, for our case, since the GP technique provides a fine-grained elegant power allocation, the overall energy efficiency is much better compared to the benchmark scheme. Moreover, since the GP technique provides the unique solution while consuming much less power, no matter we increase the power level of the BS, the energy efficiency remains same at the unique point. Similar trend is observed in the case of our suboptimal Algorithm 2 although the energy efficiency achieved by this scheme is slightly lower compared to the fine-grained GP-based power allocation scheme. In order to show the power consumption for this case, we plot Fig. (b)b. Since the optimal energy-efficient state of the system is unique and our proposed GP technique is able to search this state to some extent, we see the constant level of used power no matter how much power the BS has. In the similar manner, given the subchannel-user mapping matrix, via our suboptimal Algorithm 2, we obtain an elegant energy-efficient point for each individual subchannel. Consequently, although this suboptimal scheme does not achieve as good solution as by that in Section 3.2.1, the suboptimal unique energy efficiency is still achieved at the unique power level. Whereas, the schemes, which use the DC programming-based approach, consume full power of the BS. Therefore, in this case, we see the increasing power consumption with the increasing total power at the BS.
In Fig. (a)a, given and , we show the decreasing overall energy efficiency with the increasing circuit power consumption. This is a natural trend achieved by all the schemes. Since circuit power is not used in enhancing system throughput but is added as consumed power, the overall energy efficiency is decreasing with the increasing circuit power. However, our subchannel-user mapping scheme can better exploit the multi-user diversity of wireless systems and we use the GP technique for the final fine-grained energy-efficient power allocation, our schemes, even via our suboptimal Algorithm 2, always outperform the scheme in Fang et al. (2016). In order to show the total power consumption in this case, we plot Fig. (b)b with the increasing . Increasing means, a subchannel requires higher power to reach its energy-efficient state. Consequently, the optimal energy efficiency is achieved at larger power level with the increasing . For the similar reason, via our suboptimal Algorithm 2, the same trend is observed with the increasing . On the other hand, since the DC programming-based approach uses full power of the BS no matter the value of is, the total power consumption is constant (i.e., ) via the scheme in Fang et al. (2016) and our Scheme- version.
In this paper, we proposed an energy-efficient downlink subchannel and power allocation scheme for NOMA systems with enhanced performance compared to the most relevant existing work in the literature. Due to the discrete nature of subchannel assignment and the characteristics of the NOMA technique, this is an MINLP problem. Therefore, similar to an existing work, we solved the problem via decomposing it into a subchannel allocation subproblem followed by a power loading subproblem. However, unlike the existing work, via a many-to-many matching model, we better exploited the multi-user diversity of wireless systems in the solution of the subchannel-user mapping subproblem. In the second step, unlike the DC programming-based approach, via the GP technique, we were able to allocate the power level across the allocated subchannel-user slots in a fine-grained manner such that better energy efficiency is achieved compared to the benchmark scheme. Since the fine-grained power allocation via the GP technique is computationally intensive using the off-the-shelf GP solvers, we also proposed a suboptimal fine-grained power allocation algorithm with much lower computational complexity. Under various realistic scenarios, extensive simulation had been conducted to verify that our scheme (even via our computationally-efficient suboptimal power allocation algorithm) can outperform the existing scheme while consuming much less power in the system.
Besides achieving an elegant energy-efficient state via the better resource allocation schemes, the implication of this work is extended to a certain extent. Via our schemes (even the suboptimal one), since better energy efficiency is achieved at a lower power level, the interference effect to the neighboring networks is expected to be mitigated. At the same time, unused power in the system can be used for other purposes.
Appendix A Proof of Proposition 1
Consider a subchannel , and it has two allocated users, indexed by and . Moreover, we set , and there is one assumption, i.e., . It implies that the sum-rate of user and user is larger than that of only user . Now, user has come to be assigned with subchannel . There are two possible conditions for this assignment, which are and . According to step of Algorithm 1, we only consider this user to construct an addition strategy if and only if the former case is true. In practice, both the conditions for any subchannel can happen. This statement can be proved from the result of Fig. 14. In this figure, we plot w.r.t. . It is obvious that can be both positive and negative. The energy efficiency of subchannel is enhanced if and only if the aforementioned value is positive, and user is not added to subchannel for the negative case. This completes the proof. Note that and in Fig. 14.
Appendix B Proof of Proposition 2
Without loss of generality, let us assume . Consider that subchannel has already users, indexed by and , and holds. At this point, user has come to be assigned with subchannel with . Since the nature of function is increasing w.r.t. (as shown in Fig. 15), we can conclude . Moreover, using (18) Fang et al. (2016) and then simplifying, and are given by
