I Introduction

In real-time monitoring and control applications for Internet of Things (IoT) such as temperature status sensing, power grid phase data update, velocity and acceleration monitoring of a vehicle, etc., timely information update is strictly required to guarantee the availability of the latest system state. Therefore, instead of transmission or queuing delay, people are interested in a novel performance metric termed as age-of-information [1], or simply age, defined as the time elapsed since the generation of the latest received update. On the other hand, for status sensing applications, sensor nodes are usually battery powered, i.e., energy-constrained. It is critical to reduce energy consumption when updating status information timely. Hence, similar to energy-delay tradeoff in conventional wireless communications, there exists a tradeoff between energy consumption and age-of-information.

In the literature, the concept of age-of-information has been extensively studied. The average age for a first-come-first-served (FCFS) queuing system was analyzed in [1], where information updates are generated randomly. When a source has access to the channel’s idle/busy state, it can generate information updates by its own will. In this case, generating a fresh update just as the prior update is delivered and the channel becomes idle, known as just-in-time scheduling [2], is preferred as it completely eliminates the waiting time in the queue. The optimality of just-in-time scheduling, or zero-wait policy, was analyzed in [3] with generalized age penalty functions. Concerning energy consumption, information age in energy harvesting systems was analyzed. The age-optimal policies under infinite battery, unit battery, and generalized finite battery were studied in [4], [5], and [6], respectively, assuming that each packet can be delivered instantly using a unit energy. When the packet delivery time is taken into account and is inversely related to the transmit power, total age-of-information minimization problem subject to energy causality constraints was considered in [7]. However, the above works only consider transmission energy consumption, while ignore the energy for sensing which is not negligible in many applications [8].

When considering sensing energy consumption, there is a tradeoff between energy and age-of-information when transmitting updates via an error-prone wireless channel. If a receiver fails to receive a status update packet and sends back a NACK to its transmitter, the transmitter needs to determine whether to retransmit the existing packet or to sense a fresh status and transmit a new packet. Without sensing energy consumption, obviously sensing and transmitting a new packet is the best choice [9]. However, if sensing process consumes energy, retransmitting the existing packet can save energy consumption for sensing, while sensing and transmitting the new packet is expected to reduce the average age. The retransmission policies for uncontrolled status sensing process were studied in [10, 11]. However, to the best of our knowledge, there is no existing work dedicated to the analysis of energy-age tradeoff. Although both sensing energy and retransmissions were jointly considered in [8] and age performance was analyzed, the optimal energy-age tradeoff was still absent.

The energy-age tradeoff analysis can be originated to the studies on energy-delay tradeoff. The monotonic relation between transmit power and average delay in fading channels was analyzed in [12]. When jointly considering non-ideal circuit power, the tradeoff between energy and delay may not be always monotonic. To achieve the optimal tradeoff, sleeping policy should be adopted to match energy consumption with traffic requirement [13, 14]. In [15], a dedicated base station sleeping energy consumption model was derived, and energy-delay performance evaluation for -policy was given. Despite of a large amount of studies on energy-delay tradeoff, age-of-information is a quite different performance metric compared with delay in terms of concepts and ways of calculation. Hence, energy-age tradeoff analysis is an open issue. Moreover, it is also important in status monitoring applications since sensors are usually energy-constrained.

In this paper, we study a status update system where a source detects environmental status and sends status updates to a receiver via an error-prone channel. Both sensing process and transmission process consumes energy. The receiver feeds back an ACK/NACK depending on whether reception is successful or not. Upon receiving a NACK, the source needs to decide either to detect and transmit a fresh status update or to retransmit the existing packet. We analyze the average age-of-information and average energy consumption of a threshold-based retransmission policy, i.e., the source retransmits the same packet no more than times. Numerical results illustrate the tradeoff between energy and age, as well as the influence of power control on the energy-age tradeoff.

Ii System Model

Consider a status update system as shown in Fig. 1. The latest status information is sensed and an update packet containing this information is generated by the source. Then, the update is transmitted from the transmitter to the receiver through an identically and independently distributed (i.i.d.) channel with transmission failure probability . After a successful reception, the receiver sends an ACK signal back to the transmitter through a error-free feedback channel. Otherwise, the receiver sends back a NACK signal in case of a failure. If an ACK is sent back to the transmitter, it will notify the source to generate a new packet to update the status information. The energy consumption for status sensing is denoted by . If a NACK is sent on the other hand, the current packet may be retransmitted to save energy for status sensing. Each packet is allowed to be transmitted no more than times. In our system, a slot is defined as the time duration from transmitting a packet to receiving an acknowledgement feedback. The slot length is denoted by , and the energy consumption for transmitting a packet is denoted by . Without loss of generality, we set in the rest of this paper.

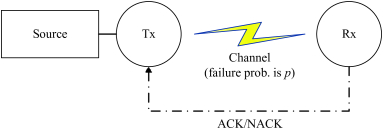

Fig. 1: Status update system model with transmission failure and ACK/NACK feedback for retransmission.

Age-of-information represents the freshness of data. At any time , if the latest data packet that is successfully received by the receiver is generated at time , the age can be expressed as

(1)

In other words, the age-of-information is the time elapsed since the moment the freshest received update was generated.

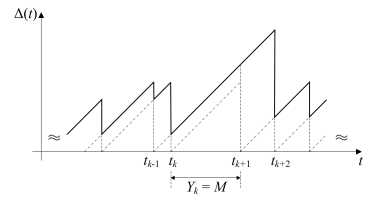

Fig. 2: Evolution of age-of-information.

The evolution of in this model is depicted in Fig. 2, where denotes the time instance when the -th packet is generated. Denote as the time interval between two consecutive packet generations. Recalling that the transmission slot length is normalized as , equals to the total number of transmissions of the packet. If the current transmission succeeds, the instantaneous age decreases and a new update will be generated. If the current transmission fails when , a new packet will be generated and transmitted while the age-of-information will continuously increase until a successful reception. The average age-of-information is typically defined as

(2)

In our model, it can be calculated over transmission slots and will be detailed in the next section. The average energy consumption can be calculated as

(3)

In the above equation, the denominator is the total number of transmission slots, and the nominator is composed of sensing energy consumption and transmission energy consumption , where is the the energy consumption for transmitting one packet. It is modeled as a function of the transmit power , i.e.,

(4)

where is the circuit energy consumption, is the transmit power, and is the inverse of the drain efficiency of power amplifier. When tuning the transmit power , the channel transmission failure probability changes accordingly. Assume the channel follows Rayleigh fading, and hence, the failure probability can be calculated as [16, Eq. 5.55]

(5)

where is the data rate, is the noise power.

Due to the existence of transmission failures and retransmissions, the calculation of the average age-of-information is not trivial, which is detailed in the next section.

Iii Average age-of-information and Energy Consumption

In this section, the main results are listed at first for ease of reading. Then the analysis on the average age-of-information and the average energy consumption is presented in detail.

Iii-a Main Results

With constant transmit energy consumption , the average age-of-information and the average energy consumption can be respectively expressed as

(6)
(7)

where is expressed as (5). It can be seen that with the increase of , the average energy consumption decreases due to the reduced number of status sensing, while on the other hand, the average age-of-information may increase. Hence, there is a tradeoff between reducing total energy consumption and maintaining a low information age. The tradeoff can also be obtained by adjusting the transmit power to balance the transmit energy consumption and channel failure probability. It will be illustrated later in numerical result section.

Iii-B Calculation of Average Age-of-Information

For ease of calculation, the system is re-indexed by the successfully received packets instead of the generated packets. In the rest of this paper, the index refers to the -th successfully received packet which may contain multiple packet generations. For clarity, we present the following definitions.

Definition 1.

Define as the time instance for the generation of a new update after the -th successful reception.

Definition 2.

Define as the time duration between two consecutive successful receptions.

Definition 3.

Define as the transmission time duration for the -th successfully received packet.

Remark: Recall that is the time duration between two consecutive packet generations. As some packets may not be successfully received due to transmission failure, may contain several s. For instance, in Fig. 2, there are two packet generations at and , respectively. The former is not successfully received while the latter is successfully received at . Thus, we have for some . On the other hand, only concerns the successfully received packet . In Fig. 2, we have for some . In the following, we use and to derive the main results.

By using the above definitions, the evolution curve of can be re-depicted as Fig. 3. Then, the average age-of-information can be calculated as the average area of the gray trapezoid , i.e.,

(8)

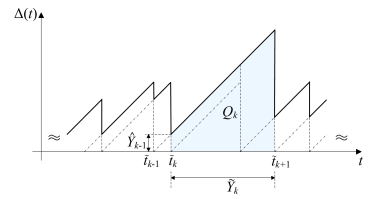

Fig. 3: Re-indexed evolution of age-of-information.

According to (8), to calculate the average age-of-information, we need to calculate and . Firstly, we have

(9)

where the first equality holds by the definition of a trapezoid’s area, an the third equality holds as the transmission of each packet is independent. Combining (8) and (9), we have

(10)

Thus, to calculate , we only need to focus on the distributions of and .

As the slot length is set to 1, the random variable

equals to the number of transmissions between two consecutive successful receptions. It follows a geometric distribution, i.e.,

(11)

where . Then, we have

(12)
(13)

The random variable equivalents to the number of transmissions of the -th successfully received packet. Hence, it has finite possible values, i.e., . Its distribution can be calculated based on the distribution of . In particular, corresponds to a set of events , which means consecutive failures and packet transmission plus retransmission before success. Therefore, we have

(14)

where . Then by definition, we have

(15)

Combining (10), (12), (13), and (15), the average age-of-information (6) can be obtained.

Iii-C Calculation of Average Energy Consumption

The average energy consumption (3) can be rewritten as

(16)

where is the number of status sensing in the interval (including the status sensing at the beginning of the interval). In the case that the -th packet is successfully received while the previous consecutive packets are not, . It corresponds to . Hence, the distribution of is

(17)

where . Thus, the expectation can be expressed as

(18)

Combining (12), (16), and (18), the average energy consumption (7) can be obtained.

Iv Numerical Results

In this section, numerical simulations are conducted to show the energy-age tradeoff performance. We adopt the power consumption model for home applications from EARTH project [17]. In particular, W, , and dBm. We evaluate the impact of , as well as on the energy-age tradeoff curve.

Iv-a Fixed Transmission Energy

Firstly, consider the case that is constant. We set and calculate the theoretical results for different settings of and according to (6) and (7). In this simulation, the value of indicates the channel quality. To validate the theoretical results, we generate a large number of data packets and random channel realizations to simulate the status sensing and packet retransmission process, and then calculate average energy consumption and age-of-information.

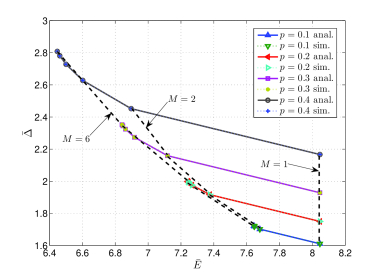

Fig. 4: Energy-Age tradeoff with constant transmit power. .

As shown in Fig. 4, the numerical simulations match well with the analytical results, which validates our analysis. More importantly, for a given channel failure probability , there is a tradeoff between energy consumption and age-of-information by varying the maximum number of allowed retransmissions . For instance, with , the average energy consumption can be reduced by 1.6 via increasing from 1 to 6 while the average age-of-information is increased by 0.64. It is noticeable that with small value of , the increase of does not have significant impact on the performance. In particular, with , the results with overlaps. This means that when the channel condition is good enough, the reception will succeed with high probability within a small number of transmissions. In addition, the maximum average energy consumption for all curves is 8.05, which corresponds to generating and then transmitting a new packet in each slot.

Fig. 5: Impact of sensing energy consumption on energy-age tradeoff with constant transmit power. .

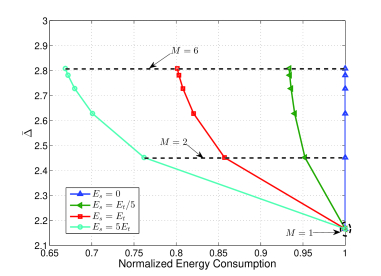

Then, we change the value of to show its impact on the tradeoff. The result with is shown in Fig. 5, where the energy consumption is normalized by for ease of comparison. It can be seen that when , the total energy consumption does not change. Hence, it is better to sense and transmit a new packet in each slot. While when is non-zero, the energy consumption can be reduced by trading the age performance. With the same average age, less energy is consumed if a larger is given. Therefore, retransmission is preferred when the sensing energy consumption is large.

Iv-B Transmit Power Control

Next, we study the impact of transmit power control on the energy-age curve. The channel failure probability is determined according to (5), where the reference SNR with dBm is set to 20 dB to calculate , and the data rate bps/Hz. We test the transmit power from 2 dBm to 20 dBm with sampling interval 3 dB. The result with fixed sensing energy is depicted in Fig. 6. It can be seen that for a fixed , the average age-of-information decreases with the increase of the transmit power, while the energy consumption increases as well. For a fixed transmit power , there is also a tradeoff between age-of-information and energy consumption. Even for , i.e., a new packet is generated and transmitted in each slot, we still have a tradeoff between energy and age, despite that the curve is steep.

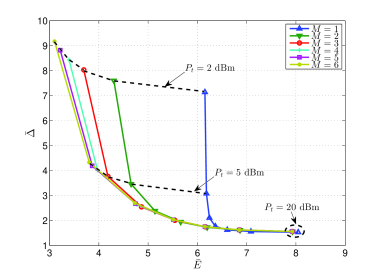

Fig. 6: Energy-Age tradeoff with transmit power control. .

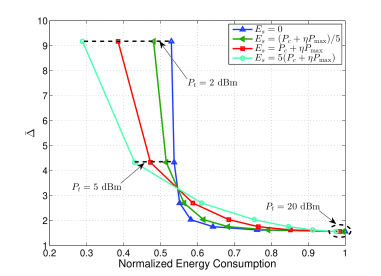

Finally, the impact of sensing energy on energy-age tradeoff with transmit power control is illustrated in Fig. 7, where we set , and normalize the energy consumption by . Similar to the constant transmit power case, the tradeoff range is wider when the sensing energy is larger. The difference is that there still exists energy-age tradeoff when .

Fig. 7: Impact of sensing energy consumption on energy-age tradeoff with transmit power control. .

V Conclusion and Future Work

In this paper, the tradeoff between age-of-information and energy consumption in the presence of channel error and retransmissions was studied. By deriving the closed form expressions and running the numerical simulations, the impact of different parameters on the energy-age tradeoff was extensively analyzed. The main conclusions include: (1) With the existence of sensing energy, there is a tradeoff between energy consumption and age-of-information by tuning the retransmission threshold

to balance energy consumption for sensing and transmission. (2) The impact of retransmission policy is more significant when the channel failure probability is larger. (3) In the absence of sensing energy, energy consumption cannot be traded off by sacrificing age performance if the transmit power is constant. But if the transmit power can be adjusted, the tradeoff exists as power control provides a new degree of freedom. (4) The volume of sensing energy relative to transmit energy determines the range of the energy-age tradeoff.

This paper is a prior work on energy-age tradeoff. Future work can consider hybrid automatic repeat request (HARQ) strategy. Current policy simply abandons the failed packet and decodes a new one. If HARQ is applied, the failed packets can be reused and combined for decoding, so that the failure probability decreases with the increase of retransmission number. Thus, HARQ provides another degree of freedom to improve the energy-age tradeoff.
