End-to-end Joint Entity Extraction and Negation Detection for Clinical Text

12/13/2018 ∙ by Parminder Bhatia, et al. ∙ Amazon 0

Negative medical findings are prevalent in clinical reports, yet discriminating them from positive findings remains a challenging task for information extraction. Most of the existing systems treat this task as a pipeline of two separate tasks, i.e., named entity recognition (NER) and rule-based negation detection. We consider this as a multi-task problem and present a novel end-to-end neural model to jointly extract entities and negations. We extend a standard hierarchical encoder-decoder NER model and first adopt a shared encoder followed by separate decoders for the two tasks. This architecture performs considerably better than the previous rule-based and machine learning-based systems. To overcome the problem of increased parameter size especially for low-resource settings, we propose the Conditional Softmax Shared Decoder architecture which achieves state-of-art results for NER and negation detection on the 2010 i2b2/VA challenge dataset and a proprietary de-identified clinical dataset.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.


In recent years, natural language processing (NLP) techniques have demonstrated increasing effectiveness in clinical text mining. Electronic health record (EHR) narratives, e.g., discharge summaries and progress notes contain a wealth of medically relevant information such as diagnosis information and adverse drug events. Automatic extraction of such information and representation of clinical knowledge in standardized formats could be employed for a variety of purposes such as clinical event surveillance, decision support

[Jin et al.2018], pharmacovigilance, and drug efficacy studies.

Although many NLP applications that successfully extract findings from medical reports have been developed in recent years, identifying assertions such as positive (present), negative (absent), and hypothetical remains a challenging task, especially to generalize [Wu et al.2014]. However, identifying assertions is critical since negative and uncertain findings are frequent in clinical notes, and information extraction algorithms that do not distinguish between them will not paint a clear picture of the patient.

In this paper, we focus on identifying the negated findings in multi-task setting [Bhatia, Arumae, and Celikkaya2018]. Most of the existing systems treat this task as a pipeline of two separate tasks, i.e., named entity recognition (NER) and negation detection. Previous efforts in this area include both rule-based and machine-learning approaches.

Rule-based systems rely on negation keywords and rules to determine the cue of negation. NegEx [Chapman et al.2001] is a widely used algorithm that consists of ontology lookup to index findings, and negation regular expression search in a fixed scope. ConText [Harkema et al.2009] extends NegEx to other attributes like hypothetical and make scope variable by searching for a termination term. NegBio [Peng et al.2018] uses a universal dependency graph for scope detection. Another similar work is [Gkotsis et al.2016], where they utilize a constituency-based parse tree to prune out the parts outside the scope. However, these approaches use rules and regular expressions for cue detection which rely solely on surface text and thus are limited when attempting to capture complex syntactic constructions such as long noun phrases.

Kernel-based approaches are also very common, especially in the 2010 i2b2/VA task of predicting assertions. The state-of-the-art in that challenge applies support vector machines (SVM) to assertion prediction as a separate step after concept extraction

[de Bruijn et al.2011]

. They train classifiers to predict assertions of each concept word, and a separate classifier to predict the assertion of the whole concept.

[Shivade et al.2015] proposes Augmented Bag of Words Kernel (ABoW), which generates features based on NegEx rules along with bag-of-words features. [Cheng, Baldwin, and Verspoor2017] uses CRF for classification of cues and scope detection. These machine learning based approaches often suffer in generalizability, the ability to perform well on unseen text.

Recently, neural network models such as

[Fancellu, Lopez, and Webber2016] and [Rumeng, Jagannatha Abhyuday, and Hong2017] have been proposed. [Fancellu, Lopez, and Webber2016]

exploits feedforward and bidirectional Long Short Term Memory (BiLSTM) networks for generic negation scope detection. This is a slightly different task since the negation cue is assumed to be given as input. Most relevant to our work is

[Rumeng, Jagannatha Abhyuday, and Hong2017]

where gated recurrent units (GRUs) are used to represent the clinical events and their context, along with an attention mechanism. Given a text annotated with events, it classifies the presence and period of the events. However, this approach is not end-to-end as it does not predict the events. Additionally, these models generally require large annotated corpus, which is necessary for good performance. Unfortunately, such clinical text data is not easily available.

Multi-task Learning (MTL) is one of the most effective solutions for knowledge transfer across tasks. In the context of neural network architectures, we perform MTL by sharing parameters across models, such as pretraining using word embeddings [Bhatia, Guthrie, and Eisenstein2016, Bojanowski et al.2016], a popular approach for most NLP tasks. In this paper, we propose a multi-task learning (MTL) approach to negation detection that overcomes some of the limitations in the existing models such as data accessibility. MTL leverages overlapping representation across sub-tasks and it is one of the most effective solutions for knowledge transfer across tasks. In the context of neural network architectures, we perform MTL by sharing parameters across tasks. We look towards parameter sharing methods [Peng and Dredze2017] to transfer overlapped representation from two the tasks.

To the best of our knowledge, this is the first work to jointly model named entity and negation in an end-to-end system. Our main contributions are summarized below:

  • [noitemsep,topsep=5pt]

  • An end-to-end hierarchical neural model consisting of shared encoder and different decoding schemes to jointly extract entities and negations. Using our proposed model, we obtain substantial improvement over prior models for both entities and negations on the 2010 i2b2/VA challenge task as well as a proprietary de-identified clinical note dataset for medical conditions.

  • Conditional softmax shared decoder model to overcome the problem for low resource settings (datasets that have limited amounts of training data), which achieves state of art results across different datasets.

  • A thorough empirical analysis of parameter sharing for low resource setting highlighting the significance of the shared decoder.


We first present a standard neural framework for named entity recognition. To facilitate multi-task learning, we expand on that architecture by building a two decoder model. Then, to overcome the issues of the two decoder model we propose a single shared decoder model. Finally, we introduce the Conditional softmax shared decoder.

Named Entity Recognition Architecture

A sequence tagging problem such as NER can be formulated as maximizing the conditional probability distribution over tags

given an input sequence , and model parameters .


is the length of the sequence, and are tags for the previous words. The architecture we use as a foundation is that of [Lample et al.2016, Yang, Salakhutdinov, and Cohen2016]. The model consists of three main components: the (i) character and (ii) word encoders, and the (iii) decoder/tagger.


Given an input sequence whose coordinates indicate the words in the input vocabulary, we first encode the character level representation for each word. For each the corresponding sequence of character embeddings is fed into an encoder, where is the length of a given word and is the size of the character embedding. The character encoder employs two LSTM units which produce , and

, the forward and backward hidden representations, respectively, where

is the last timestep in both sequences. We concatenate the last timestep of each of these as the final encoded representation, , of at the character level.

The output of the character encoder is concatenated with a pre-trained word embedding, , which is used as the input to the word level encoder.

Using learned character embeddings alongside word embeddings has shown to be useful for learning word level morphology, as well as mitigating loss of representation for out-of-vocabulary words. Similar to the character encoder we use a BiLSTM to encode the sequence at the word level. The word encoder does not lose resolution, meaning the output at each timestep is the concatenated output of both word LSTMs, .

Decoder and Tagger

Finally, the concatenated output of the word encoder is used as input to the decoder, along with the label embedding of the previous timestep. During training we use teacher forcing [Williams and Zipser1989] to provide the gold standard label as part of the input.


where , is the number of hidden units in the decoder LSTM, and is the number of tags. The model is trained in an end-to-end fashion using a standard cross-entropy objective.

Figure 1: Two decoder model, upper decoder for NER and the lower decoder for negation, where encoder provides same input to both the decoders.
Model Precision Recall
Named Entity
Chalapathy et al. [2016] 0.844 0.834 0.839
Indepedent NER (baseline) 0.857 0.841 0.848
Two Decoder 0.849 0.855 0.851
Shared Decoder 0.852 0.821 0.834
Conditional Decoder 0.854 0.858 0.855
Negex 0.896 0.799 0.845
ABoW Kernel 0.899 0.900 0.900
Indepedent Negation (baseline) 0.81 0.85 0.82
Two Decoder 0.894 0.908 0.899
Shared Decoder 0.87 0.902 0.882
Conditional Decoder 0.919 0.891 0.905
(B) Proprietary Medical Condition Dataset
Model Precision Recall
Named Entity
LSTM:CRF 0.82 0.84 0.83
Indepedent NER 0.88 0.848 0.863
Two Decoder 0.876 0.861 0.868
Shared Decoder 0.864 0.841 0.857
Conditional Decoder 0.878 0.872 0.874
Negex 0.403 0.932 0.563
Indepedent Negation 0.84 0.82 0.83
Two Decoder 0.931 0.865 0.897
Shared Decoder 0.921 0.85 0.878
Conditional Decoder 0.928 0.874 0.899
Table 1: Test set performance during multi-task training. Table 1A displays results from i2b2. Table 1B uses our medical condition data. The baseline is the current state-of-the art optimized architecture.
(A) 2010 i2b2/VA Dataset

Two Decoder Model

To facilitate the multi-task learning setting, we started with a two decoder model consisting of two decoders which use the shared encoder representation to jointly predict entities and negation attribute (Figure 1). This is a standard architecture used in multi-task learning setting which consists of different LSTM’s for equation followed by different softmax. This model mitigates the issues associated with rule-based models that rely solely on surface text, and thus are limited when attempting to capture complex syntactic constructions. With shared contextual encoder representation consisting of character and word embedding based models, the proposed architecture provides an effective solution for knowledge transfer across tasks, thus consolidating the ability to perform well on unseen text. However, this proposed architecture is not scalable, the number of decoders scales linearly with the number of attributes. Another problem we realized with this architecture is the performance degradation when working in an extremely low resource setting, where more parameters prevents the model to generalize well.

Shared Decoder Model

To overcome the issues with two decoder model we propose a shared decoder model (Figure 2). We share the encoder and decoder for the two tasks and the common output from the decoder is fed into two different softmax for entity and negations.

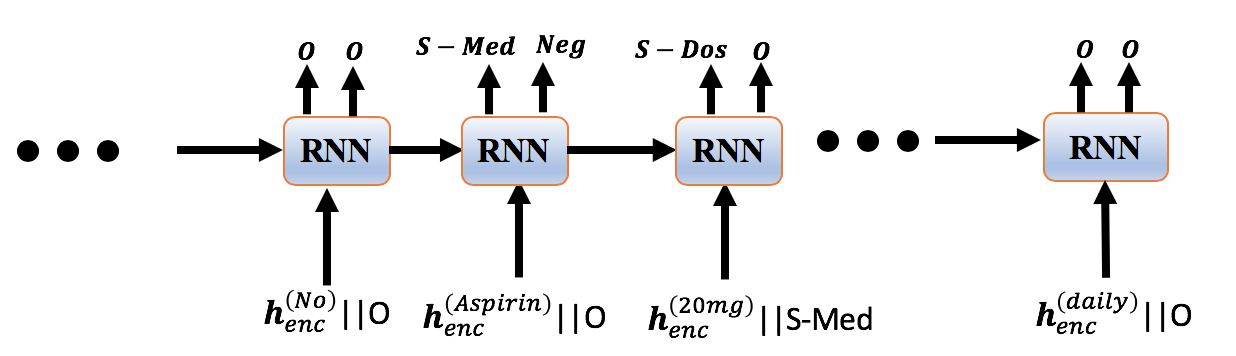

Figure 2: Shared decoder model

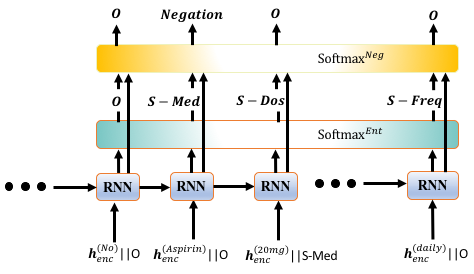

Figure 3: Conditional softmax decoder model
