I Introduction

Clock synchronization protocols have become an essential building block of numerous applications that rely on a precise notion of time. The deployment of clock synchronization for controlling system clocks of critical applications in telecommunication, industrial automation, financial markets, avionics, or energy distribution has increased the dependency of critical infrastructures on clocks synchronized with increasingly high precision. Many processes, especially in measurement, control, telecommunications, industrial and financial applications are not only sensitive to errors in the value domain but also to errors in the time domain. Examples for strict dependencies on precise time are safety-critical applications in the Smart Grid, which require an accuracy of   to     (  in case of current differential line protection with high fault current sensitivity 61850-90-1C37.118.1-2011) or MiFID II in the financial sector, requiring an accuracy of up to  mfidmfidamfidb. Cellular networks also have strong requirements for synchronized clocks ( [cellularclock]. Errors in clock synchronization can lead to wrong timings and may therefore originate faulty sensor reports, endanger control decisions, and adversely affect the overall functionality of a wide range of (critical) services that depend on accurate time.

In recent years, security of clock synchronization received increased attention as various attacks on clock synchronization protocols (and countermeasures) were proposed. For this reason, clock synchronization protocols need to be secured whenever used outside of fully trusted network environments. Clock synchronization protocols are specifically susceptible to delay attacks since the times when messages are sent and received have an actual effect on the receiver’s notion of time. Delay attacks specifically can degrade the precision of clock synchronization such that applications depending on it may malfunction. Such malfunctioning is endangering critical infrastructures that increasingly depend on a precise notion of time.

Encrypting and signing clock synchronization messages (with IPsec [rfc6071], MACsec [macsec], or TLS rfc8446) is commonly recommended in order to provide security against a wealth of network-based attacks. In this paper, we show that encryption alone cannot provide sufficient security against delay attacks on high-precision clock synchronization, which highlights the insecurity of numerous applications (including critical infrastructures) that depend on a precise notion of time. We present a fundamental limitation of clock synchronization over untrusted networks that is independent of the actual clock synchronization protocol and communication network and even holds when the communication is (supposedly) secured.

I-a Contributions

The main contributions of this paper are the following:

  • ptp traffic detection by statistical analysis: We present a method for statistical traffic analysis

    of ptp’s 2-step mode that allows to identify ptp traffic even if it is encrypted and transmitted together with other traffic. We show that some statistical properties (length, timing, and direction) are sufficient to identify ptp traffic and the particular ptp message types with very high probability — even when the traffic is encrypted.

  • Selective message delay attacks on encrypted traffic: Using the properties identified in the traffic analysis, we design and implement selective message delay attacks on encrypted traffic. This shows that delay attacks can be conducted on ptp even when it is (supposedly) secured with state-of-the-art network encryption schemes such as IPsec, MACsec, or TLS.

  • Countermeasures

    : We discuss countermeasures against traffic analysis (length padding, timing randomization), selective message delay attacks (strict replay protection), and asymmetric link delay attacks (owd limits).

  • General clock synchronization limitations in adversarial settings: We analyze the theoretical foundations that make clock synchronization protocols susceptible to delay attacks and identify the main vulnerability to be the delay compensation mechanism, which is necessary to achieve high precision. This leads us to asymmetric link delay attacks that cannot be prevented by encryption. While additional knowledge of the underlying communication network can bound the maximum impact of delay attacks, we argue that clock synchronization protocols cannot be designed in a way that prevents asymmetric link delay attacks entirely.

The resulting bounds, which we found based on our analysis, do not satisfy requirements with respect to high-precision clock synchronization. Therefore, high precision can only be guaranteed on trusted networks.

Ii Background

Each clock has a natural drift caused by the non-ideality of physical oscillators such an oscillator’s frequency affected by temperature. The aim of clock synchronization is to keep clocks within acceptable boundaries. Currently, there are two widely used technologies for high-precision clock synchronization: (1) the satellite-based gps for pps synchronization to global utc, and ptp targeted for network-based clock synchronization to a local clock. The main disadvantages of gps pps are that it is operated by a single entity (the US Air Force) and that it requires free view on at least four satellites111View to four gps satellites is the requirement for gps-pps signal generation in the general case. However, from a theoretical point of view, one single satellite in view is sufficient whenever the exact gps antenna position is known, which might be difficult to get (in data centers for example). Moreover, the (public) gps signal is not secured so that it may be spoofed with reasonable effort [gpsspoof]. Due to the missing backchannel to satellites, gps is conceptionally different to the ntp and ptp. In this paper, we focus on ptp because it can achieve extremely high precision, is widely used, and is more similar to other clock synchronization protocols such as ntp. Most of the findings in this paper, however, are applicable to other clock synchronization protocols as well.

ptp [ptp] (or IEEE 1588) is designed to provide high-precision clock synchronization in the order of microseconds or even sub-microseconds. ptp achieves such high precision mainly by reducing the impact of delay variation in to the hosts’ operating systems. For this purpose, nic with dedicated ptp hardware support can precisely timestamp ptp messages at send and receive times in order to eliminate software uncertainty. ptp assumes trustworthy and somewhat deterministic networks with low latency that are entirely under control of the operator. It can be run over a lan via Ethernet or over a wan via UDP.

New applications that require increasingly precise clock synchronization lead to ptp being deployed also in critical infrastructures and other areas that ptp has not been designed for specifically. Base stations in mobile networks that depend on highly accurate time are a prominent example. Originally, manufacturers used gps pps to synchronize clocks. Nowadays manufacturers also offer ptp as an alternative that is widely used. Given the fact that base stations typically use wan to connect to their core network, employing ptp contradicts the original assumptions of being used within lan. In this way, new attack vectors are created such as the delay attacks presented in this paper. More examples include but are not limited to areas such as Smart Grids or financial applications.

Ii-a The Two Phases in Clock Synchronization

Clock synchronization algorithms aim at synchronizing a slave clock to a master clock by exchanging timestamped messages over packet-switched networks. In this paper we assume that the master’s clock is accurate and reliable. Details on how the master implements and accesses such a reliable clock are out of scope of this paper. Network-based clock synchronization protocols depend on two distinct phases that will be discussed below: (a) clock offset measurement and (b) delay measurement.

Clock Offset Measurement Phase

The goal of the clock offset measurement phase is to calculate the relative difference between the slave and master clocks. Clock offset can either be measured in a single message (-step mode) supported by both ntp and ptp or in two messages (2-step mode) supported by ptp. In any case, the master sends a SYNC message to the slaves, and the slave records the transmitting time . In -step mode the SYNC message contains the transmitting timestamp (), in two-step mode the SYNC message is just used as a marker, and the FOLLOW UP message contains the exact point in time when the SYNC message left the master (). This way, higher precision may be achieved. Fig. 1 depicts the -step clock offset measurement and delay measurement.

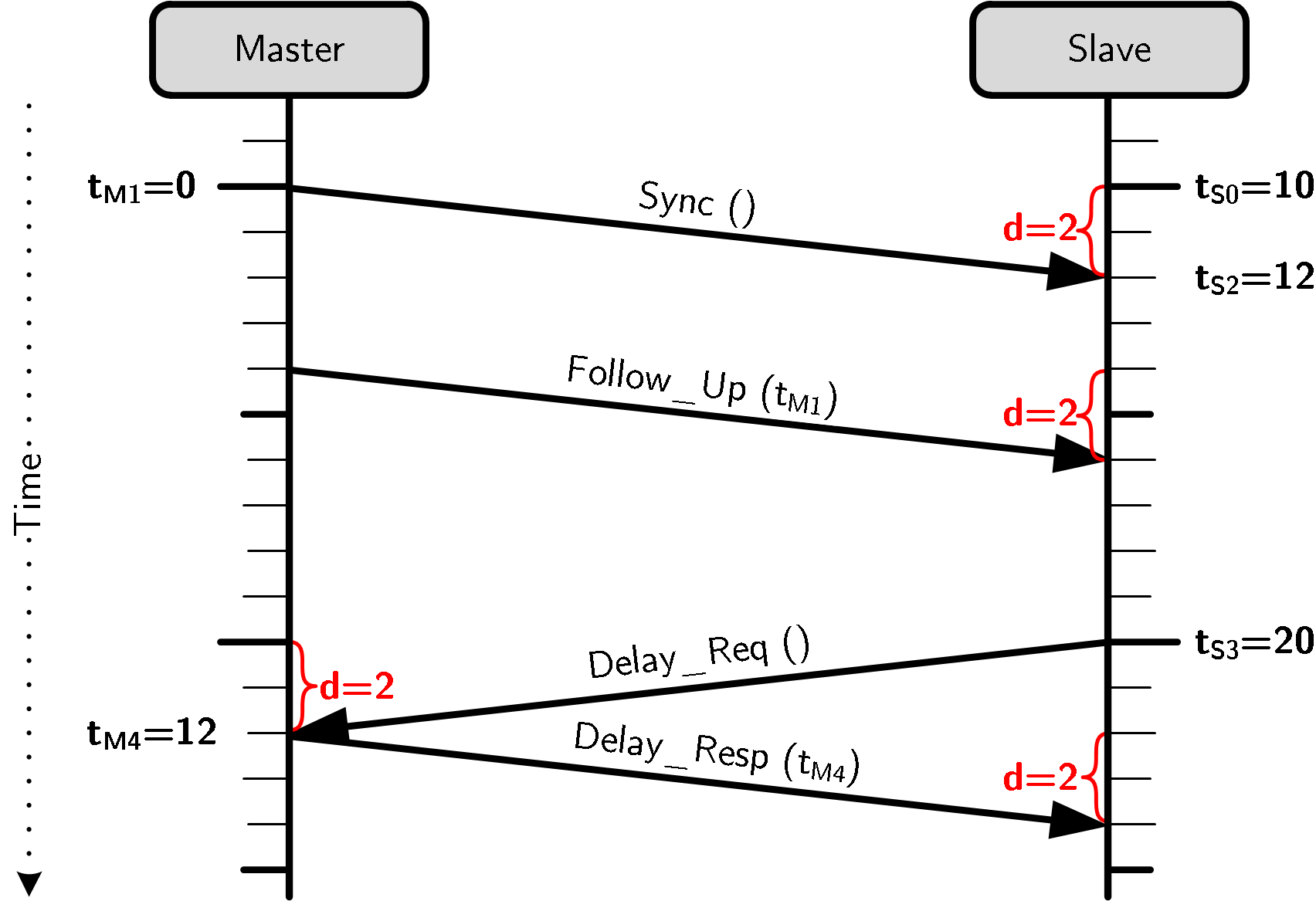

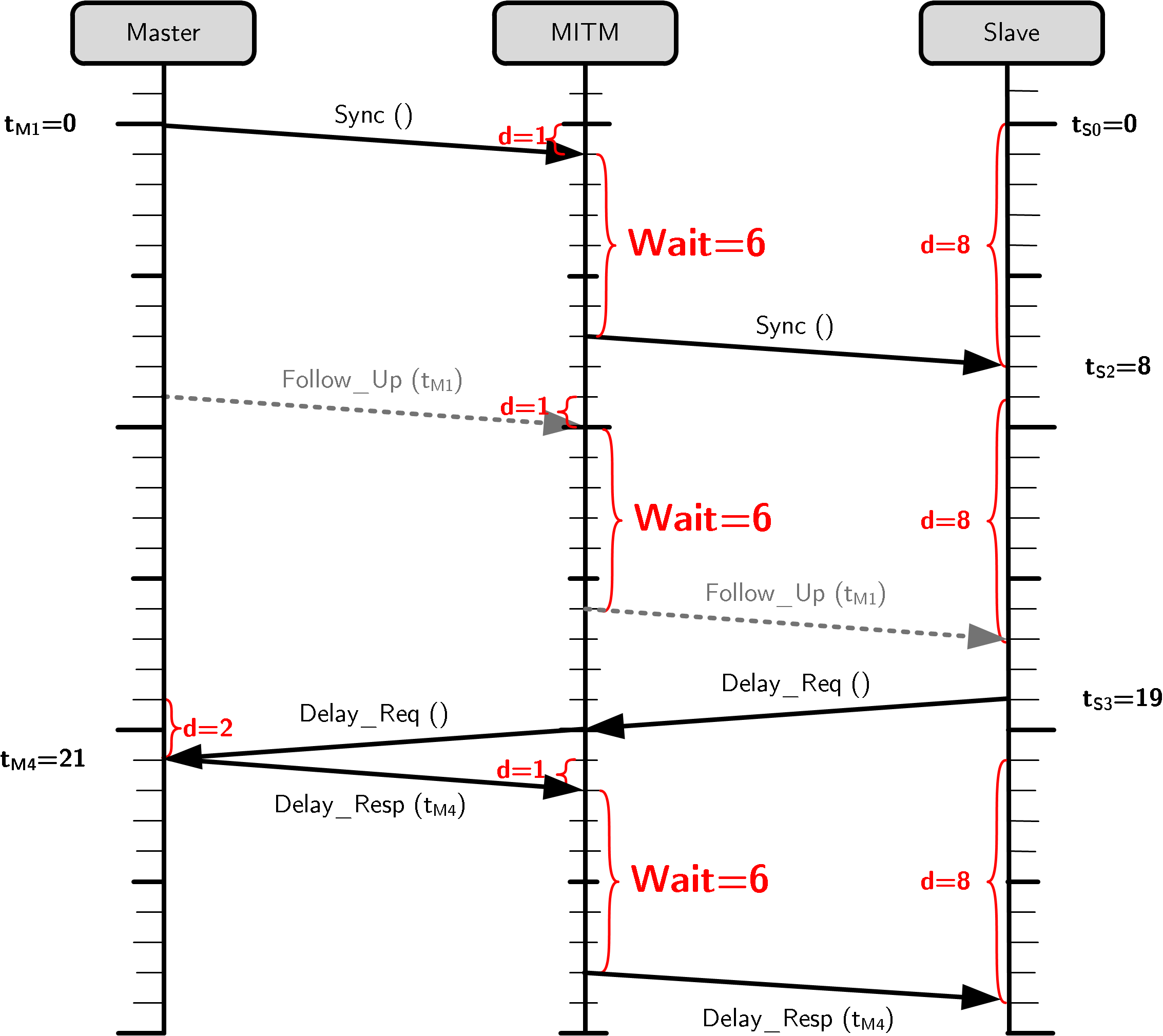

Fig. 1: 2-step clock synchronization with deterministic and symmetric delays and initial clock offset of time units.
Delay Measurement Phase

The SYNC and FOLLOW UP messages are subject to various delay. These delays are added to (and therefore negatively affect) the measured clock offset. The overall delay consists of transmission delays, queuing delays, processing delays, and propagation delays, which themselves consist of constant and stochastic parts222There is some constant delay for a given route and message size and stochastic delay that mainly depends on other traffic and states of network devices.. The goal of the delay measurement phase is to measure the overall delay and to subtract it from the measured clock offset in order to derive the actual clock offset as precisely as possible.

In ptp a delay measurement consists of two messages, one sent from the slave to the master (DELAY REQUEST) where the slave records the transmitting time and a subsequent message from the master to the slave (DELAY RESPONSE) that includes the time instant when the DELAY REQUEST was received at the master (). Eventually, the slave knows four timestamps: , , , and . The slave calculates the network rtd by measuring the owd in both directions (see Eq. 1). The rtd is calculated as the sum of the delay from master to slave ( and the delay from slave to master (). The owd are approximated as , assuming symmetric owd.

(1)

Ii-B Clock Offset Calculation

For simplicity reasons, in the following example we assume that master and slave clocks do not drift. The initial clock offset is time units such that the local timestamp on the master corresponds to the local timestamp on the slave (from an external observer’s point of view). The owd are time units in each direction. The slave calculates its clock offset to the master according to Eq. (2).

(2)

Eq. (2) consists of the uncorrected clock offset () corrected with the owd that is approximated by halving the rtd (Eq. 1). In this specific example, the slave calculates the owd as and the clock offset as . Now the slave knows that its clock is time units ahead of the master and can adjust accordingly. In real-world scenario, all physical clocks are subject to drift so that the process of offset correction needs to be run repeatedly in order to achieve a common notion of time.

Iii Threat Model

The goal of the adversary is to make slaves adhere to false clock values or to degrade the precision of the clock synchronization to such an extent that it cannot be considered high-precision anymore. We define high-precision that for every time instant holds, and the goal of the adversary is to disturb this synchronicity of the master and slave clocks at some instant.

We assume that the adversary is in a privileged mitm position in the network, by having gained access to a network node or a link of the communication path, or by conducting an ARP poisoning attack for example. The adversary can, therefore, selectively manipulate, capture, and delay any packet on the communication network, in particular any clock synchronization packet that master and slave exchange. We assume the communication between master and slaves to be confidential and integrity-protected such that the adversary can neither read nor modify the communication in the value domain but can only modify the time domain. The computational power of the adversary is limited but not necessarily bound to that of the master or the slaves. I.e., the adversary can use more powerful devices and larger storage.

Iv Delay Attacks

Whenever clock synchronization messages are neither encrypted nor integrity-protected, an adversary can attack clock synchronization protocols in the value domain, i.e., the adversary modifies the timestamp values included in the messages. This is a well-studied field and various countermeasures have been proposed to secure clock synchronization against attacks in the value domain such as encrypting the communication (with MACsec, IPsec, or TLS) or employing digital signatures to ensure the integrity and authenticity of the communication.

To conduct an attack in the time domain an adversary intercepts clock synchronization messages and delays them artificially for some time before forwarding333Theoretically delay attacks can also be conducted by accelerating messages (instead of delaying them). To conduct such acceleration attack, the adversary needs to delay all messages by default and selectively forward some messages with less delay in order to achieve an acceleration effect. Another option to accelerate messages would be to route them through faster paths if the attacker has this option.. The maliciously introduced delay can be constant, variable, or even random, and the slave clock can be manipulated this way [rfc7384]. Since the clock synchronization protocol has no information about the underlying communication network, one fundamental prerequisite and assumption of ptp is symmetric network delay between master and slave. I.e., the owd from master to slave is identical to the owd from slave to master. Delay attacks exploit this assumption of symmetric delay by maliciously introducing asymmetry such that the slave synchronizes to an inaccurate time.

The goal of delay attacks is to maliciously manipulate one of the two messages that are crucial to clock offset measurement and delay measurement: SYNC and DELAY REQUEST. While other network-based attacks are important as well, delay attacks and especially countermeasures against delay attacks on clock synchronization have not been studied in required depth yet. This paper focuses on this gap in research — delay attacks and their impact on clock synchronization’s precision.

As we will show in Section VI and VIII, delay attacks are feasible despite security measures in place (i.e., traffic being encrypted and integrity-protected). Encrypting traffic is not sufficient, mainly because successful verification of a message’s integrity only certifies the correctness of the (sending time reported in the) message but not of its effective propagation time through the network [katz_digital_2010]. For this reason, the delay attacks can also be conducted on encrypted and integrity-protected traffic. The assumption of symmetric owd is essential to the delay attacks presented in this paper as those exploit non-deterministic delays in communication networks.

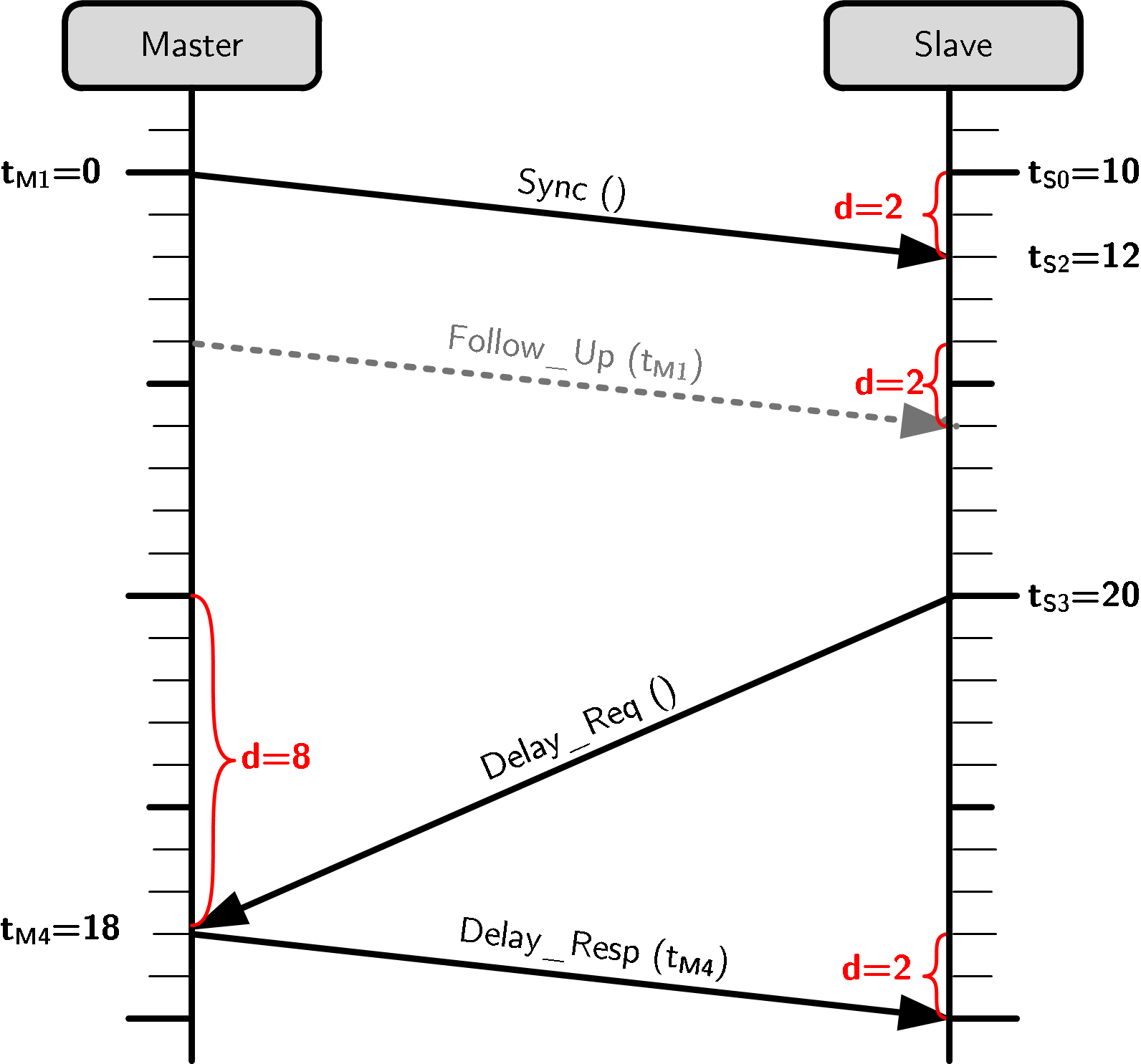

Fig. 2: PTP clock synchronization with delayed DELAY REQUEST message.

Asymmetric owd have a direct effect on the precision of clock synchronization. The effect of asymmetric owd on clock synchronization is depicted in Fig. 2 and 3. In Fig. 2, the messages from master to slave take time units while those from slave to master take . The slave therefore calculates the clock offset according to Eq. 2 as , which is off from the actual offset (). In this example, the slave clock remains time units ahead of the master’s because of the asymmetric delay in the DELAY REQUEST message. If the SYNC message, on the other hand, takes longer than the DELAY REQUEST message (Fig. 3), the slave miscalculates the clock offset (again according to Eq. 2) as so that the slave corrects its clock too much and its clock is then behind the master’s. Such asymmetric delays are an inherent part of packet-switched communication networks as transmission delays, propagation delays, queuing delays, and processing delays are never entirely symmetric444Sometimes, asymmetry is even intentional like with Ethernet where cables are asymmetric by design to reduce far end crosstalk [6645332]..

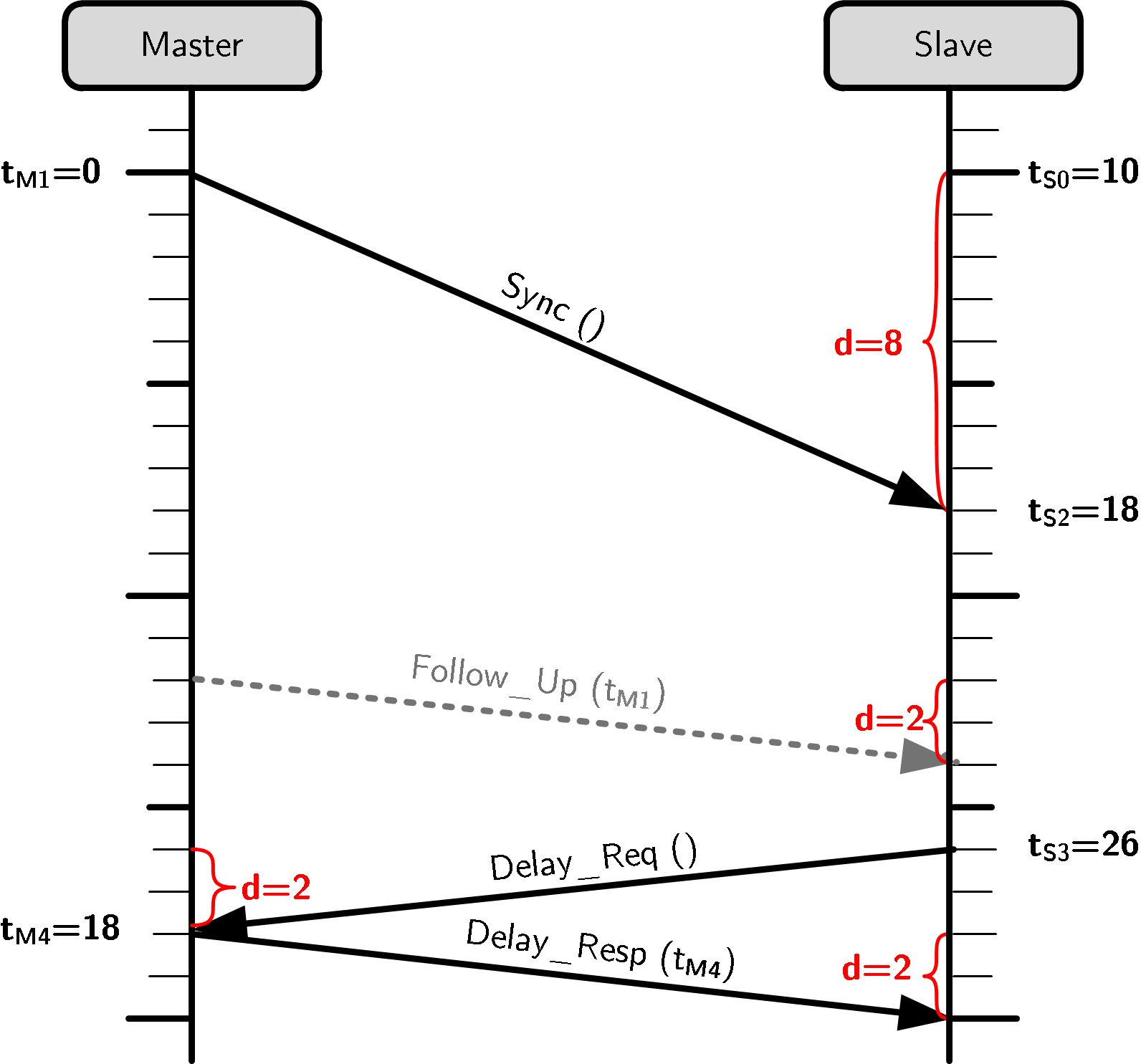

Fig. 3: PTP clock synchronization with delayed SYNC message.

V Related Work

tsang2005security where the first to analyze the security of ptp in tsang2005security tsang2005securitytsang_security_2006. They describe delay attacks briefly and propose to average delay measurements as a countermeasure. We argue that averaging delay measurements also averages the malicious delay such that the attack is only barely mitigated. The attack has even full effect as soon as the duration of the attack is longer than the averaging interval555And if the averaging interval is too long, the clock synchronization precision may be negatively affected (since reacting on changes in the rtd would take too long).. The authors furthermore propose to check for abnormal values. But abnormal values (i.e., spikes in the measured clock offset) only occur for simple delay attacks but not for incremental delay attacks (as to be shown in Section VI-C).

ptp version 2 includes an experimental security extension, Annex K [ptp], which provides message integrity and replay protection. In Annex K, however, several flaws were discovered and it was never properly formalized treytl_security_2009moreira_security_2015. In any case, Annex K does not cover attacks in the time domain at all. Interestingly, the ptp standard [ptp] mentions link asymmetry (although in a single sentence only) but does not cover delay attacks any further. We analyze asymmetric link delay attacks in Section VIII and countermeasures against such attacks in Section IX.

nts ietf-ntp-network-time-securityietf-ntp-using-nts-for-ntpietf-ntp-cms-for-nts-message consist of a set of ietf drafts that aim at providing authenticity and integrity for unicast clock synchronization protocols. Until now, nts is only specified for ntp and covers delay attacks briefly. A recently proposed security extension to ptp itkin_security_2016-1itkin_security_2016 aims to secure the -step mode in ptp. The authors mention delay attacks in the extended version of their paper but refer to related work when it comes to countermeasures.

ptpv3macsec as well as 4659223 recommend MACsec to secure clock synchronization ptpv3macsec4659223. mizrahi_time_2011 analyzes IPsec and MACsec as means to secure clock synchronization [mizrahi_time_2011]. Delay attacks are very briefly mentioned but the paper neither has details on how delay attacks can be conducted or mitigated nor how IPsec and MACsec relate to delay attacks. treytl_securing_2010 discuss the usage of IPsec to protect ptp [treytl_securing_2010] but do not mention delay attacks at all. mizrahi_game_2012 states that encrypting clock synchronization traffic makes it more difficult to conduct delay attacks [mizrahi_game_2012]. We will show that this holds true to some extent for selective messages attacks only (Section VI), but asymmetric link delay attacks (Section VIII) are not obstructed by encryption at all.

In [6645332], 6645332 simulated delay attacks and propose a countermeasure based on hypothesis testing. moreira_security_2015 discuss delay attacks briefly [moreira_security_2015]. ullmann_delay_2009 examined delay attacks on ptp and ntp [ullmann_delay_2009] and propose what we call bound clock offset by limiting the rtd as mitigation. lisova_protecting_2016 provide a good analysis of the consequences of delay attacks and discusses rtd limits as countermeasure [lisova_protecting_2016]. Other countermeasures discussed, such as monitoring interarrival times, are unreasonable in a general setting because those times will be equally affected by a delay attack and cannot be used therefore as a countermeasure against delay attacks. mizrahi_game_2012 also briefly discusses rtd limits as a potential countermeasure against delay attack [mizrahi_game_2012], and so do securetime [securetime].

mizrahi_game_2012 proposes to use multiple paths between master and slave to mitigate delay attacks [mizrahi_game_2012]. The assumptions are quite strong, however, as all paths need to be entirely (i.e., also physically) independent and the adversary may only attack a minority of paths successfully. From a practical perspective it seems unrealistic to provide multiple low-latency paths with low delay variation that are entirely independent. It is implicitly assumed that the various networking components such as nic, routers, and switches are from distinct vendors and that paths are symmetric. Furthermore, the countermeasure does not scale well as it is more costly to establish new independent paths than to compromise any majority of paths.

In recent work 8357814 developed a mathematical model that defines necessary and sufficient conditions for secure clock synchronization [8357814]. Focusing on conditions that must be met in wireless networks to detect mitm attacks on clock synchronization, the paper builds on earlier work [securetime] to conclude that round-trip message exchange is a prerequisite for secure clock synchronization and that one-way clock synchronization can not be secured against delay attacks. However, 8357814 rely on uniquely identifiable clock synchronization messages in an isolated context and maximum round-trip delays, whereas our work analyses the much broader context of clock synchronization as part of real, encrypted traffic.

Summarizing related work, research on secure clock synchronization often either excludes delay attacks or refers to related work for discussion on this issue. None of the related work discusses delay attacks on encrypted clock synchronization traffic in a realistic context, including detection of clock synchronization traffic. Furthermore, related work does not recognize the ability of clock synchronization slaves to determine guaranteed bounds on their clock offset at a specific point in time, nor does it identify the fundamental limitation inherent to network-based clock synchronization: clock synchronization can either be high-precision or secure against delay attacks.

Vi Selective Message Delay Attacks

To secure communications over untrusted networks the entire communication is commonly encrypted and authenticated, for instance with IPsec. For this reason, we tested delay attacks with IPsec in tunnel mode666We have tested selective message delay attacks successfully against commercially available systems like routers or protections switches that tunnel ptp using security protocols different than IPsec, too. Methods and conclusions are identical to the ones presented for IPsec tunnels for all tested systems.. In such scenario, the attacker has access only to encrypted traffic, which means that there is no information available about protocols, source and destination ports, nor the IP addresses of the real endpoints.

In this section, we show that clock synchronization messages can be reliably identified in an encrypted traffic stream with reasonable effort. This identification of (encrypted) clock synchronization messages builds the foundation for selective message delay attacks. For this purpose, we aim to answer the following questions:

  • Are there any (statistical) properties of ptp traffic that can be used to identify ptp messages within encrypted traffic?

  • Can ptp traffic be modified such that delay attacks can be prevented or at least mitigated?

  • Can encryption schemes provide reasonable security against selective message delay attacks?

To answer whether it is possible to identify both ptp traffic in general and specific types of ptp messages in encrypted traffic, we conduct statistical traffic analysis of ptp traffic. From this analysis, we identify several properties of ptp traffic that build the foundations for selective message delay attacks. We furthermore implement selective message delay attacks on actual devices to show the feasibility of our proof of concept in practice.

Vi-a PTP Traffic Analysis

In order to make a slave adhere to a false time, either the SYNC or the DELAY REQUEST message need to be delayed by the adversary (as pointed out in Section IV). Depending on the delaying of either SYNC or DELAY REQUEST, the slave’s notion of time is going to be behind or ahead of the master’s, respectively. When traffic is encrypted, traffic analysis is limited to a restricted set of features: time, packet length, source, and destination. In our specific case, each of these features can be used to identify the particular type of ptp message in encrypted traffic. The statistical properties identified in ptp in both phases, i.e., clock offset measurement and delay measurement, are closely related to timing, packet length, and packet direction.

One ptp clock synchronization cycle consists of a series of four messages as highlighted in Section II. (1) A SYNC message from the master to the slave. (2) Another message (FOLLOW UP) from the master to the slave. (3) A message DELAY REQUEST in the reverse direction from the slave to the master, and (4) a message from the master to the slave (DELAY RESPONSE). This series repeats at a fixed interval. Every two seconds we observe another ptp message (ANNOUNCE) from the master to the slave. The ANNOUNCE message is used for the Best-Master-Clock algorithm, which we do not focus on in this paper.

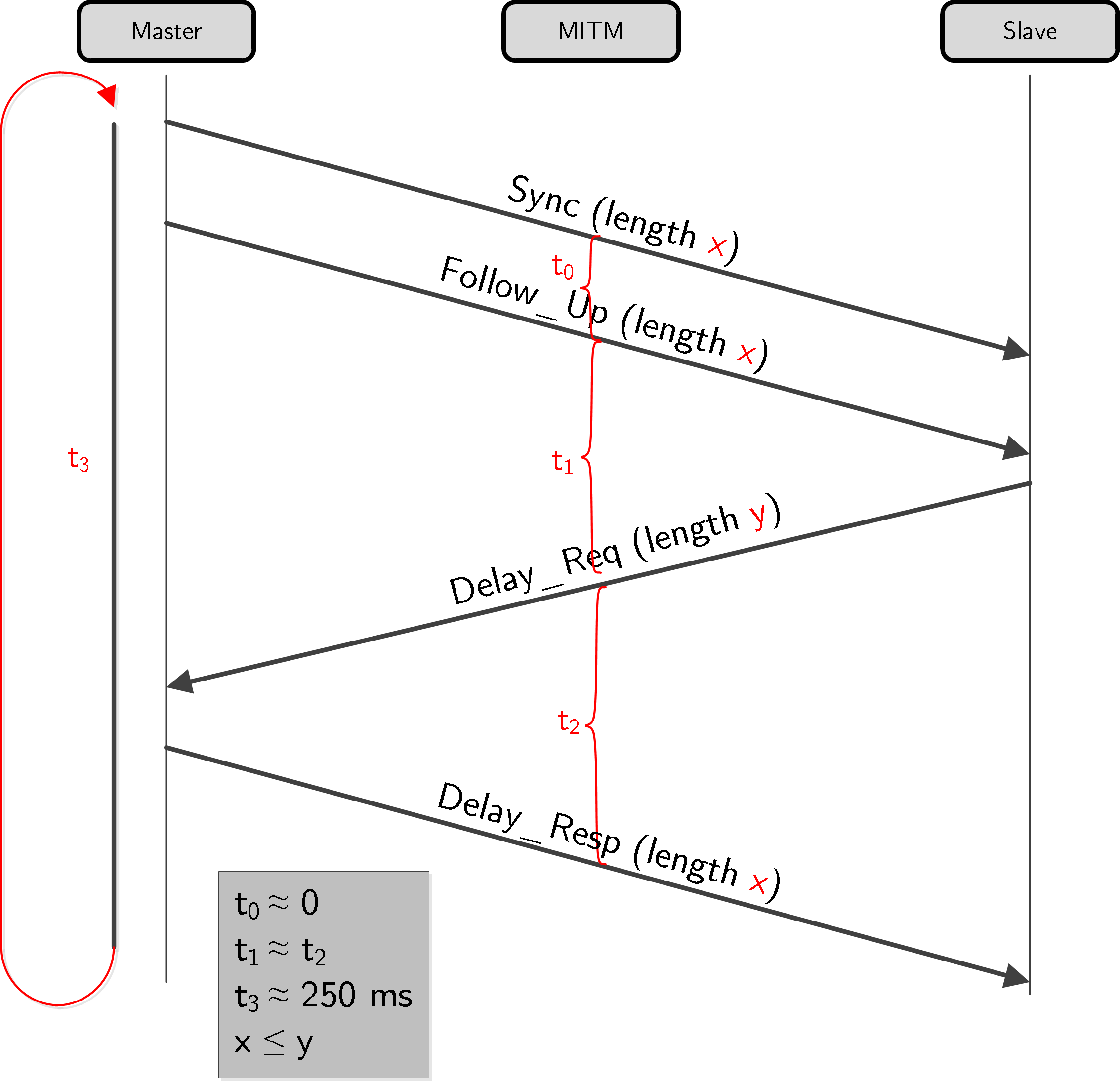

Fig. 4: ptp traffic patterns in timing, length, and direction.

Our traffic analysis revealed some specific properties of ptp traffic. These properties are the length of packets, the timing, and the direction of messages. The lengths of the packets are appealing as they are highly deterministic and mostly constant. The reason for this is that the designers of ptp wanted to avoid variation in the transmission delays because of differences in packet lengths. Fig. 4 sketches the results of our ptp traffic analysis. Firstly, all messages from the master to a slave are of the same length and the DELAY REQUEST message in the reverse direction is either of equal length or slightly longer, which means that the length of a ptp message is related to its direction. The specific lengths of the messages depend on the underlying communication protocols and on which layer the messages are observed. In our setup, the lengths of (unencrypted) ptp messages were and for SYNC, FOLLOW UP, and DELAY RESPONSE and DELAY REQUEST respectively (and for ANNOUNCE messages). In encrypted traffic, additional information is added to the packet by the encryption scheme, increasing the packet’s length. The packet lengths observed were and in a test with IPsec encryption. Other encryption schemes result in different lengths but the observed pattern persists. Messages of length occur every , which corresponds to ANNOUNCE messages. The remaining packets with a length of occur every and in sets of (which corresponds to the SYNC, FOLLOW UP, and DELAY REQUEST and DELAY RESPONSE messages). The length of encrypted ptp messages are deterministic, as well, and therefore identifiable.

Secondly, we observe that ptp messages follow a specific timing pattern. The FOLLOW UP message is sent from the master with minimal delay () after the SYNC message; the DELAY REQUEST message is sent with a small delay () after the FOLLOW UP message was received by the slave; and the DELAY RESPONSE is also sent immediately after the DELAY REQUEST was received () by the master. From the adversary’s point of view and are roughly similar, which is about the owd between master and slave777 and are roughly similar if the attacker is positioned equidistant in terms of time between master and slave. If the attacker is closer to either master or slave, the difference between and increases — visible by shifting the observation point to the left or to the right, respectively, in Fig. 4.. Because of their periodicity, the observed timings are also visible in encrypted traffic, as we will see later in this section.

Thirdly, the direction of the messages is fixed as long as the master and slave roles persist. And this pattern repeats periodically at a fixed interval () for as long as the clock synchronization service is running. This clock synchronization interval can be configured and was left to the default setting of during our tests. Table I summarizes the results of our traffic analysis. In Section VI-B we show how these properties can be used to identify ptp traffic in a stream of encrypted traffic.

Message type Direction (master-slave) Length Timing
SYNC /
FOLLOW UP /
DELAY REQUEST / one-way delay
DELAY RESPONSE / one-way delay
ANNOUNCE / fixed interval (ignored)
  • with regard to the last DELAY RESPONSE message, i.e., the clock synchronization interval.

TABLE I: Identified properties of ptp traffic.

Vi-B Identification of PTP messages in Encrypted Traffic

In order to conduct a selective message delay attack on an encrypted traffic stream, we first need to identify the specific PTP messages within the encrypted traffic without prior knowledge of the communications within that stream. To this end, we setup a proof of concept to verify that specific PTP messages can be identified within encrypted traffic. In a real-world scenario, the specific setup will always be different, and attackers may not have the plaintext communication available to figure out the specific parameters of the setup (i.e., the specific packet sizes, the PTP session interval, etc). Also, packet lengths differ in encrypted traffic (as there is additional data added by the encryption scheme) but the basic properties (frequency, direction, timing and the relation of the lengths) persist.

Using the results of our ptp traffic analysis, we wanted to know whether identifying ptp messages in encrypted traffic is possible. For this purpose, we conducted some experiments in which ptp communications were simulated. The communication under test selects random timings , , , , and random lengths and

. The simulation takes two parameters, the noise level and the time to observe the traffic. Noise is added to the simulated ptp communication, which is the probability to obtain a non-ptp packet of random length every millisecond. Eventually, the script tries to estimate

, , , , and the lengths and just by observing the communication.

This proof of concept relies on four assumptions:

  1. Time is discretized with a sampling time of .

  2. There is only one packet per time bin.

  3. The pattern repeats all over the observation period.

  4. , , , and are constant from the perspective of the sampling time.

Such assumptions draw some limitations for simulating communications, but they are assumable since experiments are intended to be proofs of concept and not fully-fledged implementations. Real-world communications comprise additional complexities that might defy the proof of concept detector, but such situation can usually be faced by refining the detector (for example, by using recurrence analysis, granger causality, or markov models). Our goal is to show that the detection of the pursued time parameters and lengths is theoretically possible and feasible by the application of methods based on statistics.

Our simulations show that packet lengths, directions, and timing are sufficient to separate ptp from other traffic and even to identify the particular type of ptp message so that the selective message delay attack can be conducted. If the noise level is increased, the observation time needs to be increased as well (as expected). Under our simulation conditions, at a noise level of %, we need to observe the communications for seconds to reliably determine the particular times and lengths.

A challenging scenario for the detection would be the occurrence of periodic signals with similar properties (timing, lengths, and direction) within the same flow. We argue that the properties of ptp are very particular and the chances to encounter communications with similar properties in the same traffic are very low. In the light of our experimental results, we conclude that ptp traffic can be identified with high probability within encrypted network traffic. For this reason, selective message delay attacks can be conducted on PTP even when it is (supposedly) secured with state of the art network encryption schemes such as IPsec.

Vi-C Experimental Results

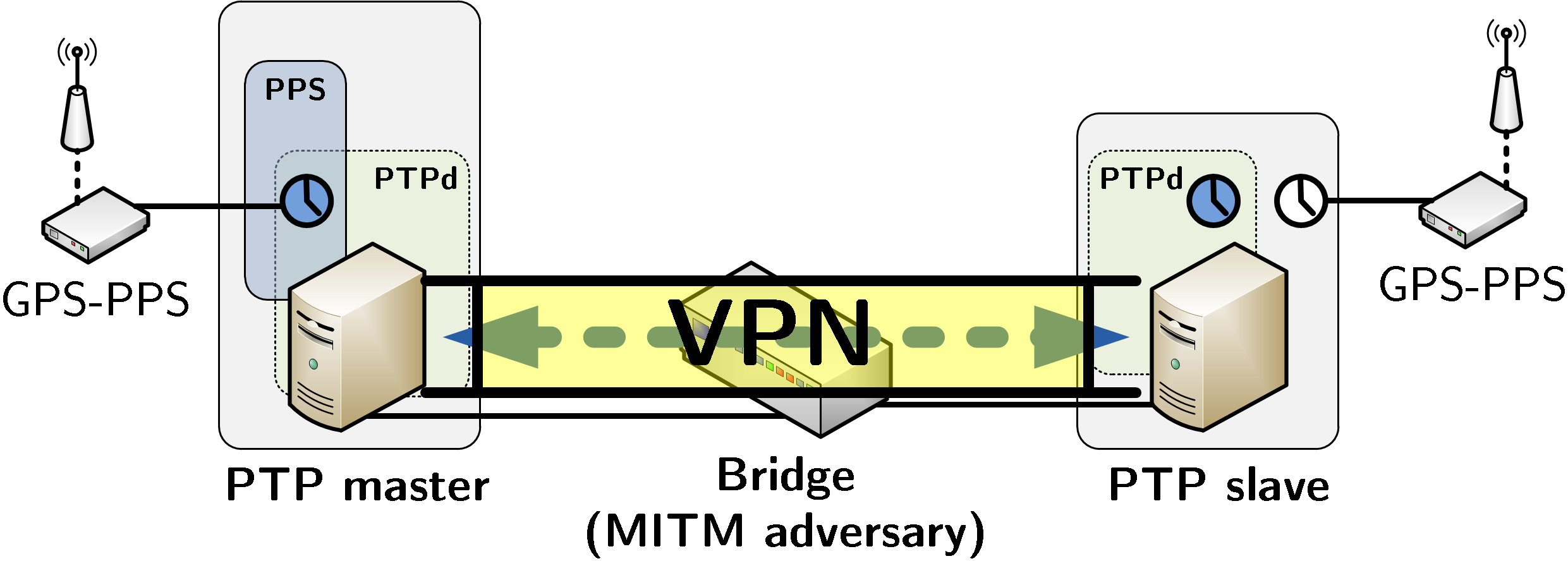

Fig. 5: Experimental setup used to examine the effect of delay attacks on ptp over an untrusted network.

Based on the statistical properties we identified in the traffic analysis (Section VI-A) and the theoretical confirmation that these properties can be used to identify ptp messages within encrypted traffic (Section VI-B), we implemented a ptp traffic detection and ptp message type identification on a real clock synchronization system. We furthermore implemented selective message delay attacks on actual devices to show the feasibility of our proof of concept in a practical setting. Fig. 5 depicts the experimental setup we used to evaluate the feasibility of our proof of concept and to examine the effect of delay attacks on real ptp systems over untrusted networks. We used three Linux systems: one that runs as ptp master, another as ptp slave, and the third acts as network bridge. Master and slave were connected through an IPsec tunnel such that the bridge could only observe encrypted traffic. ptp master and slave both run PTPd version 2.3.1. Master and slave receive a gps pps signal but only the master clock is synchronized to it. With this setup, we can synchronize the master clock to utc, which is not overly precise but enough to highlight the effect of selective message delay attacks. The slave clock is synchronized to the master via ptp. To compare the slave clock to the pps signal, the “ppstest” tool888https://github.com/redlab-i/pps-tools was used.

Both systems are connected through an Ethernet bridge. On the bridge, we implemented a mitm application that can delay specific packets. The bridge is implemented with libnetfilter_queue999https://netfilter.org/projects/libnetfilter_queue/ so that packets are not only available in kernelspace but also in userspace, which facilitates easier classification and attack implementation. Since traffic is encrypted, a delay attack in the value domain does not work because the timestamps within the packets cannot be modified. Instead, the attack only works in the time domain. In general, the adversarial application on the bridge aims to identify ptp messages and delay specific messages as soon as the selective message delay attack is started. We expect that the slave clock is then desynchronized from the master clock after a short time (due to an averaging algorithm employed in PTPd).

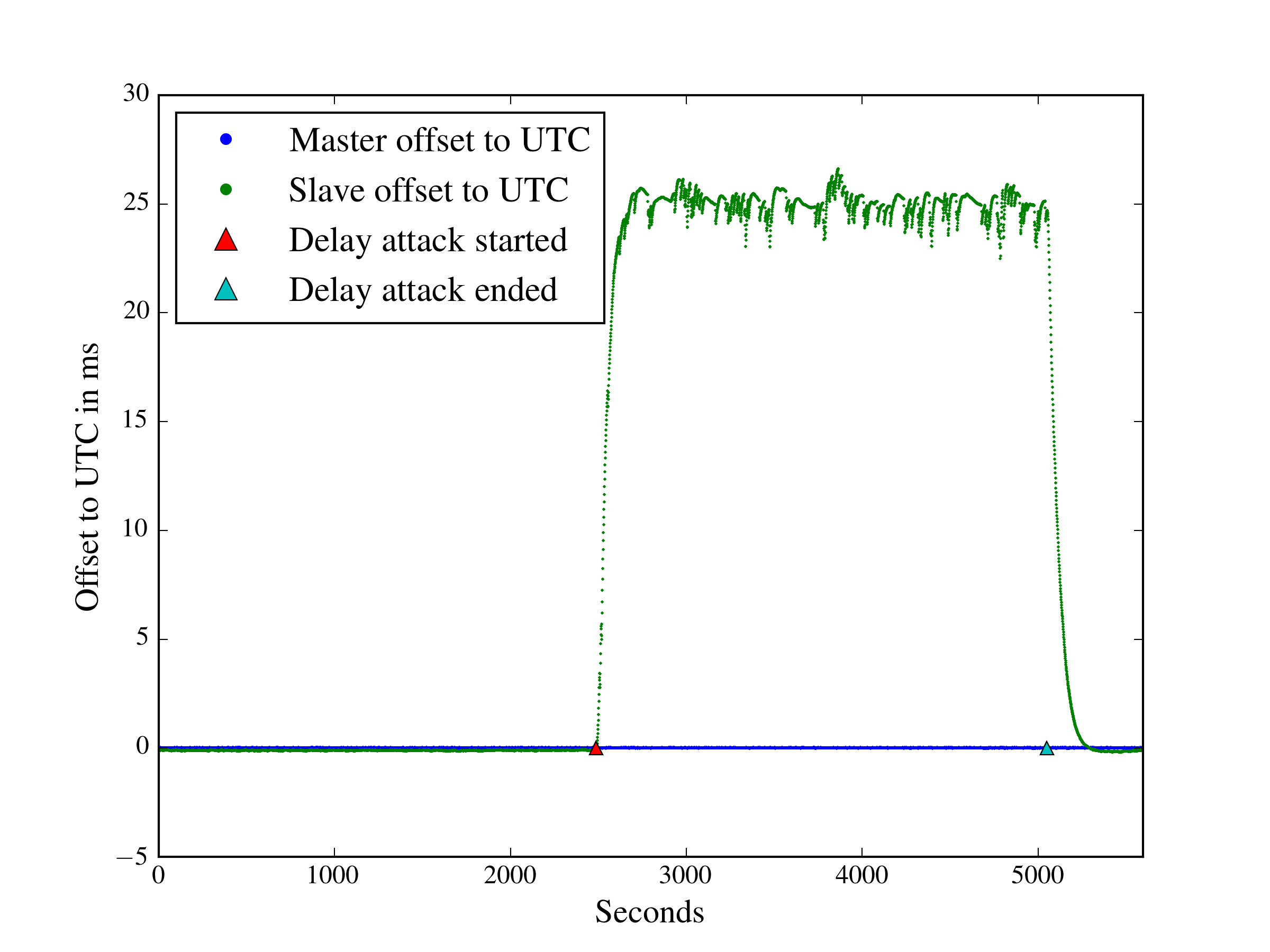

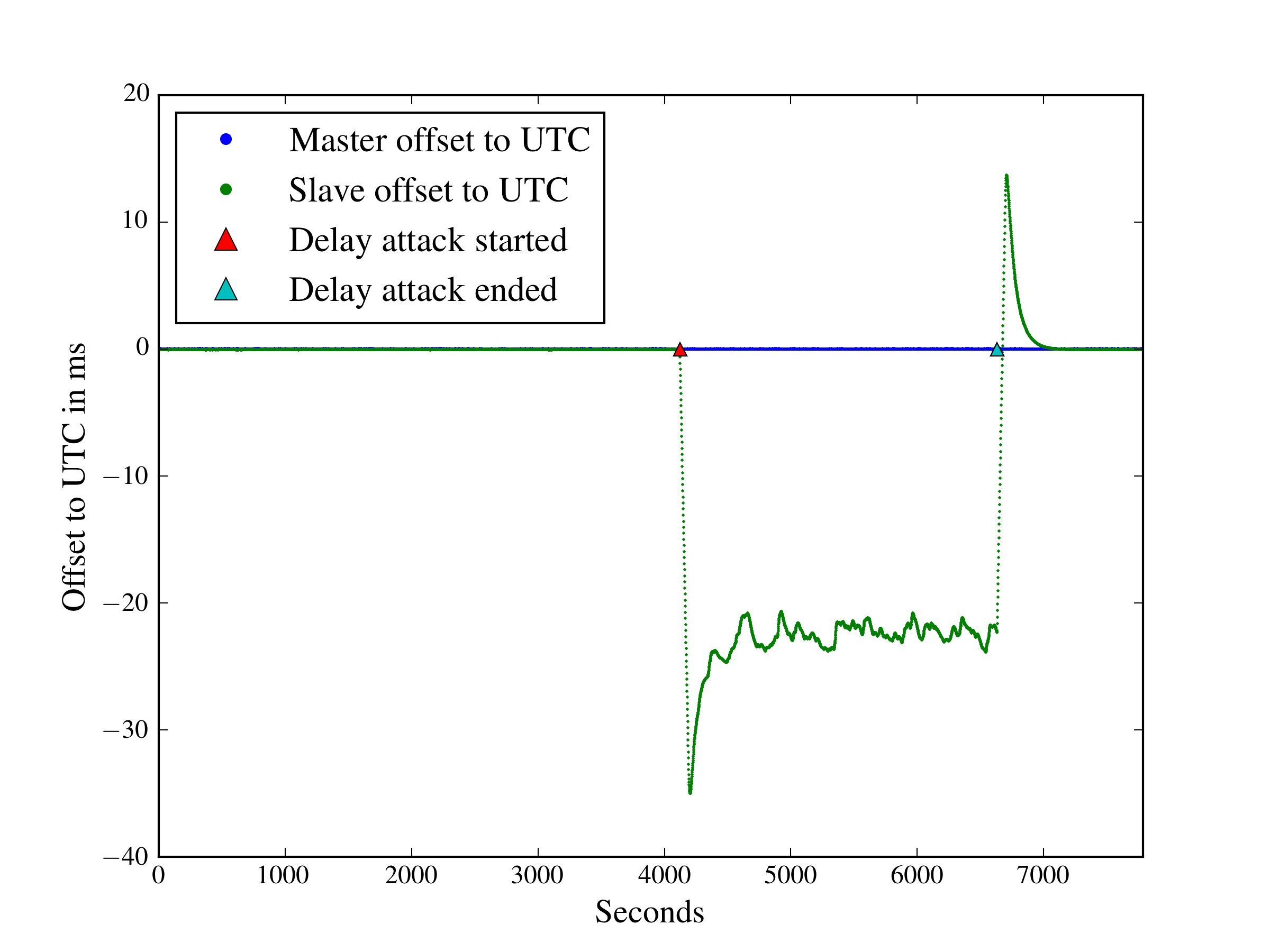

Fig. 6: Offset to UTC during an selective SYNC message delay attack.

Vi-C1 Experiment 1: Delayed Sync messages

In the first experiment, we programmed our malicious application to delay all SYNC (and FOLLOW UP) messages by . We chose such large delay to stress that during such an attack the clock synchronization cannot be considered high-precision any more. Fig. 6 shows the results, i.e., the offset of the master and of the slave clock to utc during normal operation and during the attack. The master clock is quite stable throughout the run of the experiment, as expected. The slave clock spikes101010Presumably, the overshooting in those spikes at the begin and at the end of the attack is caused by the specific control algorithm implementation in PTPd. shortly after the attack is started (at time ) and ended (at time ) and settles around  to utc after a couple of seconds throughout the attack. The master clock is not affected at all by the selective SYNC-message delay attack, as expected. The slave clock is affected, however, since the clock synchronization messages of the master are delayed maliciously. The delay attack operates as intended since the slave clock is around  behind the master’s during the attack.

Vi-C2 Experiment 2: Delayed Delay Request messages

The same setup was used in a second experiment. This time, DELAY REQUEST messages were delayed by our adversarial application on the bridge (instead of SYNC and FOLLOW UP messages). For this reason the slave clock is (roughly ) ahead of the master’s clock during the attack as shown in Fig.7.

Fig. 7: Offet to UTC during a selective DELAY REQUEST message delay attack.

Vi-C3 Experiment 3: Incremental delay attack

One may argue that the spikes in clock offset at the start and end of the attacks may raise a suspicion in security-critical environments. For this reason, we also implemented selective message delay attacks that incrementally add malicious delay. In that case (shown in Fig. 8

), the attacker does not apply the full malicious delay from the moment the attack is started but instead incrementally increases the malicious delay with each message. In this way, there is no more spike in the slave’s time offset when the attack starts. At time

the incremental delay attack was started as DELAY REQUEST messages were (increasingly) delayed by ppm.

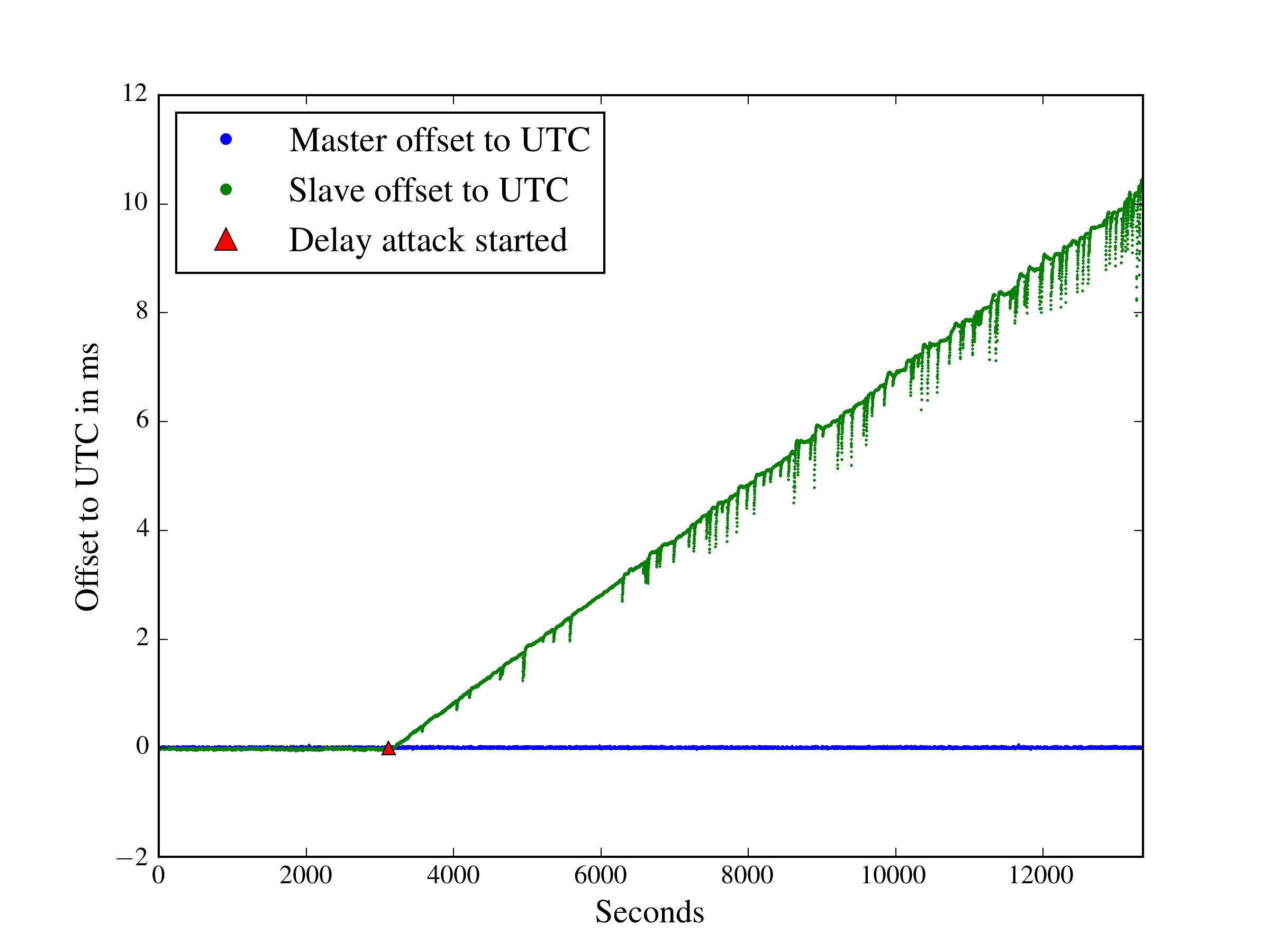

Fig. 8: Offset to UTC during a incremental selective DELAY REQUEST message delay attack.

This incremental delay was deliberately chosen small (with ppm) to highlight that such small delay is indistinguishable from delay variation while still having a significant effect on the clock’s precision. Despite the small incremental delay, the slave clock is off more than  to utc after two hours, which is completely unacceptable for most time critical systems that rely on a precise notion of time. The slave cannot notice the drift of its clock relative to the master’s because of the incremental delay attack and is therefore convinced to be perfectly synchronized.

Vi-C4 Discussion

While the first two attacks might be detectable due to the spikes in the clock offset at the start and end of the attacks, the incremental attack cannot be detected easily. Moreover, we argue later in Section IX that such incremental delay attack cannot be prevented at all (only be mitigated to some extent under specific circumstances). Although the attacker can neither see the packets’ contents, nor the real endpoints, nor ports, selective message delay attacks can be conducted successfully. This indicates that encryption alone cannot prevent selective message delay attacks on clock synchronization.

Vii Countermeasures Against Selective Message Delay Attacks

In order to secure ptp from selective message delay attacks, encryption of the communication is not sufficient. But there exist two options to counter selective message delay attacks: (1) prevent traffic analysis, and (2) mitigate the actual attack. Both options will be discussed in this section.

Vii-a Traffic Analysis Mitigation

Direction, timing, and packet length are sufficient to reliably identify ptp traffic and the specific types of ptp messages. In traffic analysis mitigation, the goal is to disturb traffic analysis. For this purpose, we need to make sure that the observable features entail no information that can be used to conduct an attack. Those features are packet length, time, and direction.

While packet lengths are usually highly deterministic and constant, they can be hidden by padding to a fixed length. Such padding can even be implemented without changing the clock synchronization protocol. esp mode in IPsec, for example, supports payload padding up to padding bytes [rfc4303], and the Extension Header could be used in IPv6 [rfc2460]. Alternatively or additionally tfc [tfc] could be employed to ensure that all ptp messages have the same length. Alternatively, random lengths could be used, but this would increase variation of transmission delays (in addition to increasing bandwidth requirements), which is detrimental to the goal of achieving high-precision clock synchronization.

Nevertheless, padding alone is not sufficient for traffic analysis mitigation since information about the time and the direction are still sufficient to identify ptp packets (and therefore to conduct selective message delay attacks). The next feature that needs to be changed is the timing. Because of the periodicity of ptp messages discovered in our ptp traffic analysis, the specific messages can be identified reliably even in encrypted traffic. Changing the timing, however, can only be done from within the clock synchronization protocol and not by external mechanisms. The offset measurement and delay measurement could be separated, the offset correction not executed periodically but in random intervals, and there could be a random interval as well between SYNC and FOLLOW UP messages. In this way, the timing properties of ptp could hardly be used anymore to identify ptp packets reliably under the assumption that sufficient cover traffic exists with similar timing properties. The major downside of this method is that it depends on the continuous existence of suitable cover traffic over the entire path from master to slave, nevertheless. This prerequisite of suitable cover traffic shifts the discussion to the well-researched area of traffic obfuscation in order to protect ptp from selective message delay attacks (even when traffic is encrypted). Traffic obfuscation is known to be very complex and its security highly depends on the specific threat model111111A special case here is that other periodic signals (that show similar properties to those identified in ptp) could be used to mitigate traffic analysis..

The last feature that is used to prepare selective message delay attacks is the direction of messages. As we have seen from the traffic analysis (Section VI-A), the packets’ directions are highly deterministic in ptp. There is no straight-forward way to remove this feature.

Vii-B Mitigation of Delay Attacks

In this section, we highlight two techniques to mitigate delay attacks. The first technique relies on knowledge of the underlying communication network and requires changes to the clock synchronization protocol. The second technique builds upon the replay protection of the encryption scheme. It needs to be stressed, however, that both techniques are mitigation only and cannot prevent the attacks. Table II summarizes the results.

Countermeasure Benefit Drawbacks Prevents attack
Random send and reply times Confuses traffic analysis based on timings Requires protocol changes and depends on cover traffic. No
Equal (or variable) message lengths Confuses traffic analysis based on lengths Variable lenghts reduce precision and depends on cover traffic. No
Strict replay protection Limits max. impact of the attack Not feasible in all scenarios No
Limiting owd Limits max. impact of the attack Requires knowledge of the underlying communication network. No
TABLE II: List of countermeasures against selective message delay attacks.

As the name suggests, the replay protection of a network security protocol is supposed to prevent or mitigate replay attacks (and has not been specifically designed to prevent delay attacks). At the same time, however, the replay protection also limits the maximum impact of selective message delay attacks since packets cannot be delayed arbitrarily. The impact of selective message delay attacks may be limited by maxing the encryption scheme’s replay protection and assuring that a sufficient number of packets per clock synchronization interval are sent through the network as cover traffic. Replay protection usually works as follows: a sequence number is added to the packet, and the receiver accepts packets with strictly increasing sequence numbers only or with sequence numbers from a certain window to allow packets to overtake other packets in the network. While not specifically designed for this purpose, such replay protection also limits the impact of delay attacks since packets will not be accepted by the receiver if too many other packets have been received meanwhile. For this reason, the maximum impact of the selective packet delay attack is directly related to the replay protection and to the number of packets per clock synchronization interval at the network location the attacker has access to.

Therefore, replay protection should be configured strictly (when possible) such that overtaking of packets is not allowed at all. Packets may still be delayed maliciously, however, until the subsequent packets arrive. Also, the attacker may drop or delay the subsequent packets as well in order to increase the malicious delay for the ptp packets. If there are no additional security measures in place such delay or drop of packets will not raise any suspicion. In any case, the strict replay protection in conjunction with sufficient packets per clock synchronization interval may limit the impact of selective message delays. It needs to be stressed that this mitigation depends on additional cover traffic within the entire network path from master to slave (and vice versa) which may not be under the defender’s control. Furthermore, strict replay protection is not feasible in all scenarios because reducing packet loss rate may be more important in some scenarios than stricter replay protection.

Countermeasures asymmetric link delay attacks (i.e., limiting owd - to be introduced in Section IX) are also applicable as countermeasures against selective message delay attacks (but countermeasures against selective message delay attacks are not applicable to asymmetric link delay attacks).

Viii Asymmetric Link Delay Attacks

In Section VI we introduced selective packet delay attacks, in which the attacker aims to identify ptp messages (in an encrypted traffic stream) in order to delay specific ptp packets selectively. In this section, we present an additional delay attack, which we denote in the following as asymmetric link delay attack. In such asymmetric link delay attack, the attacker delays all packets in one direction of the link but not in the other (e.g., all packets from the master to the slave are delayed maliciously but those from slave to master are not).

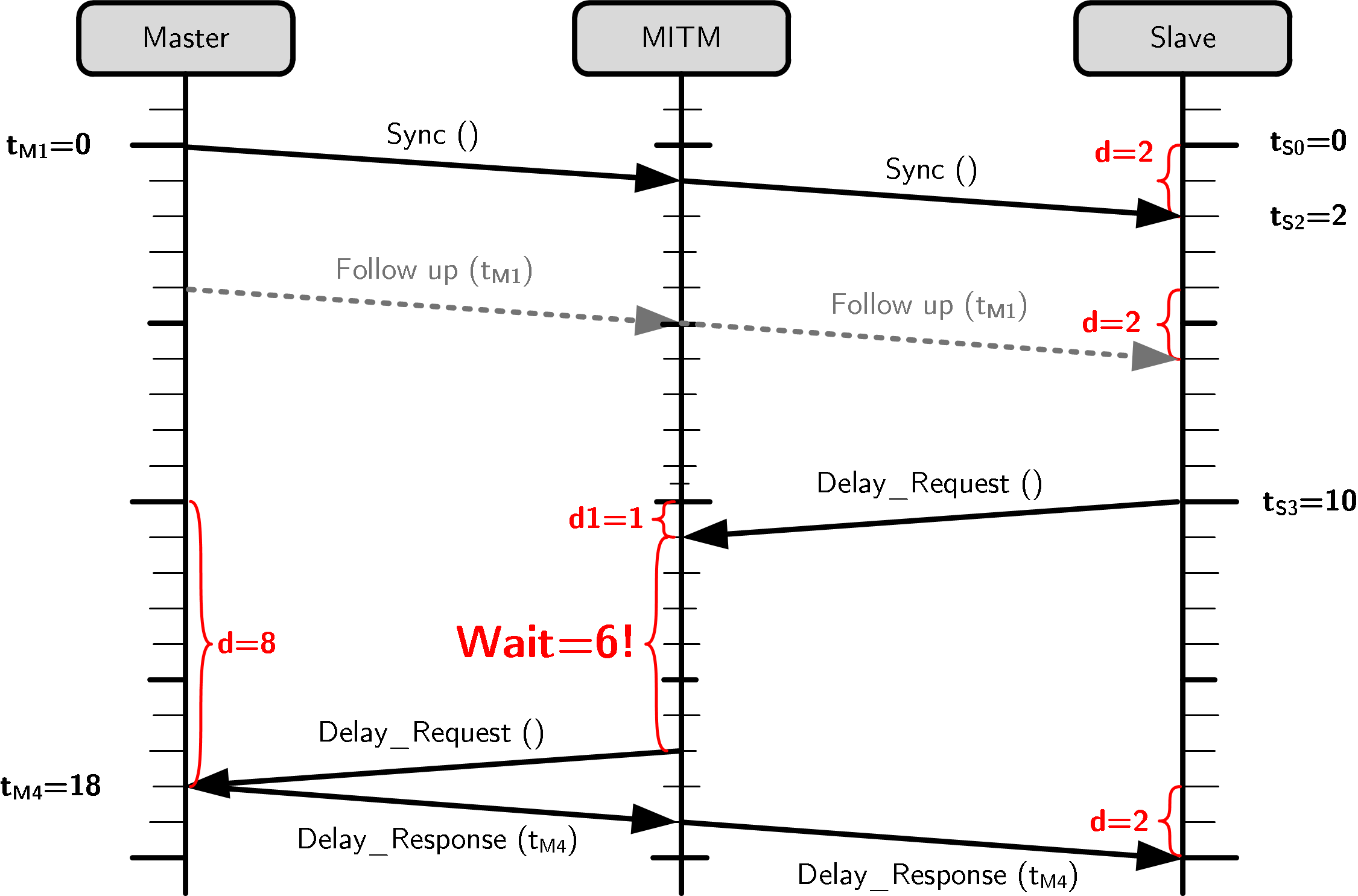

Fig. 9: Asymmetric link delay attack where the masterslave link is delayed.

In order to analyze how delaying all packets in one direction affects clock synchronization we use the example discussed in Section IV. This time, however, we delay all packets sent by the master to the slave without delaying the messages sent by the slave to the master as illustrated in Fig. LABEL:fig:ptp_attack2. The slave eventually calculates the offset according to Eq. (2) as (again we assume for simplicity reasons that clocks are neither desynchronized nor drifting). The miscalculated clock offset () is half of the delay asymmetry while the real clock offset is . For this reason, the slave sets its clock backwards by time units. If the attacker conducts the attack in reverse direction (i.e., the packets from slave to master are maliciously delayed but the packets from master to slave are not, see Fig. 10), the slave miscalculates the offset as (according to Eq. (2)) when it is actually . For this reason, the slave will set its clock ahead by time units.

Fig. 10: Asymmetric link delay attack where the slavemaster link is delayed.

An attacker who conducts an asymmetric link delay attack by delaying all packets in one direction can, therefore, manipulate the clock offset by half of the asymmetric delay. The attacker can also influence the sign of the malicious offset correction by choosing which direction of packets are delayed maliciously. Link asymmetry being closely related to clock offset correction, two questions arise: (1) what is the exact relation between clock offset correction and link asymmetry, and (2) can asymmetric link delay attacks be prevented? These two questions will be examined in the remainder of this section.

When analyzing clock synchronization messages in detail, the first message is sent at by the master and received at by the slave. In the case of a hypothetical zero-delay link, the difference would represent the exact offset of the slave clock relative to the master. As pointed out in Section II, clock synchronization messages in real systems experience various (constant and stochastic) delays along their path from master to slave and vice-versa. The receiving time as well as the slave-computed clock offset incorporate the sum of all of those delays.

In practice, transmission and propagation delays account for main part of the clock synchronization message end-to-end delay. This is why clock synchronization protocols comprise delay measurement methods to infer on applicable delays in order to compensate for them. On top of these measurements, high-precision clock synchronization protocols such as ptp propose dedicated functionality in intermediate devices (so-called transparent clocks in routers and switches) to compensate for queuing and processing delays within intermediate systems, even though those delays typically amount to a minor part of the overall delay.

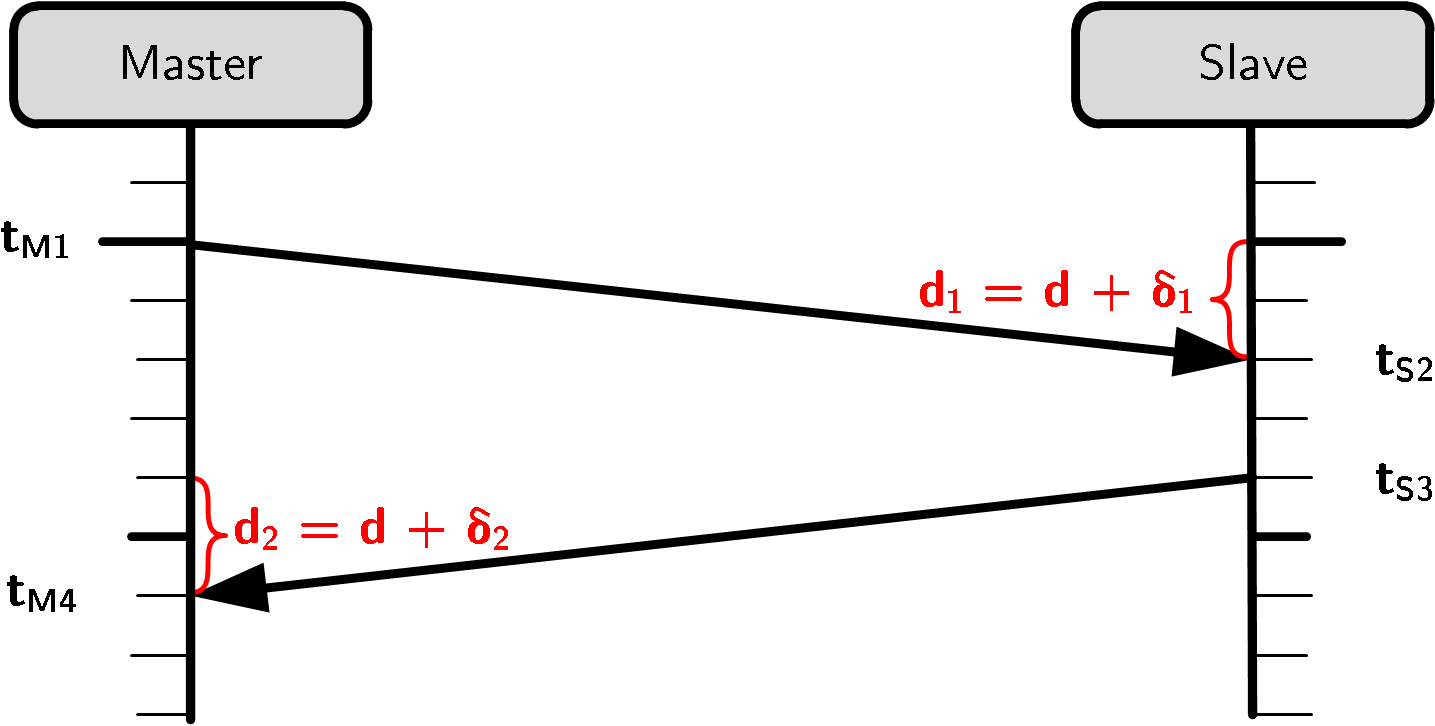

Fig. 11: One-way delays in clock synchronization.

To facilitate the compensation of delays, two assumptions are required: (1) the relative clock drift within one measurement interval is negligible, and (2) the owd are symmetric, i.e., the sum of delays from master to slave equals the sum of the delays from slave to master. Fig. 11 shows the owd and in the general case. The offset of the slave at time is and at time is . The offset is always calculated from the perspective of the slave so that the master inverts its offset calculation (as the offset of the slave clock relative to the master is the inverse of the offset of the master clock relative to the slave). The fact that always the slave’s offset is calculated can be exploited by an attacker that maliciously alters delay asymmetry, even if the attacker does neither know the content of a message (because it is encrypted) nor its type (because traffic is perfectly obfuscated). The direction alone is sufficient to manipulate the measured clock offset.

The assumptions mentioned above are essential to compensate the delays as the owd are approximated as half of the measured rtd. If those assumptions do not hold true, the system of two equations and four unknown variables in Eq. 3 cannot be solved. The first assumption (relative clock drift is negligible during one measurement interval) implies that the clock offset at time should be almost identical to the offset at time . For this reason, one variable is eliminated as . The second assumption (symmetric delays) helps to eliminate another variable as , where is the delay from master to slave and is the delay from slave to master as shown in Fig. 11. This way, we end up having two equations with two variables that can be solved.

In an asymmetric link delay attack an attacker exploits the assumption on symmetric delays. Assuming that there is a common part in owd and additional two distinct delays and for both directions (as shown in Fig. 11), the two offset equations are as follows:

(3)

such that the offset can be calculated as

(4)

as long as holds true. The symmetric delay component is completely eliminated from the equation but and remain. If the delay is symmetric, then they cancel each other (as ) so that the offset can be calculated precisely. But if the delays are not symmetric, offset calculation will be off by , which is in the interval given that an attacker will eventually minimize either and keep close to zero or keep close to zero and maximize .

Ix Countermeasures Against Asymmetric Link Delay Attacks

In this section, we propose a method that facilitates defining maximum guaranteed bounds for the clock offset of the slave relative to the master. For the following discussion we assume that master and slave clocks are synchronous at time and that there is no clock drift during one clock synchronization interval. All ptp messages are cryptographically signed and encrypted, so the mitm can not modify timestamp values within these messages. The FOLLOW UP message is omitted, and we assume that the slave immediately sends the DELAY REQUEST after reception of the SYNC message, i.e., , for sake of simplicity. However, it is important to stress that neither the initial clock synchronization nor the immediate sending of DELAY REQUEST are a prerequisite for the proposed method. This is essential for avoiding DELAY REQUEST message collisions from multiple slaves following SYNC multicasts by the master, which could cause link-layer collisions in the network. However, the (in)equations below consider already separate timestamps and , so slaves can use random delays after receiving SYNC to avoid potential collisions.

In Fig. 12, the master sends the SYNC message at time and receives the slave’s DELAY REQUEST at time . The slave receives the master’s timestamp in the DELAY RESPONSE message and computes the rtd as (according to Eq. 1). The default assumption of ptp is that communication paths are symmetrical and, therefore, the timestamps must be mapped to the center of the master’s interval, i.e. as shown in Fig. 12.

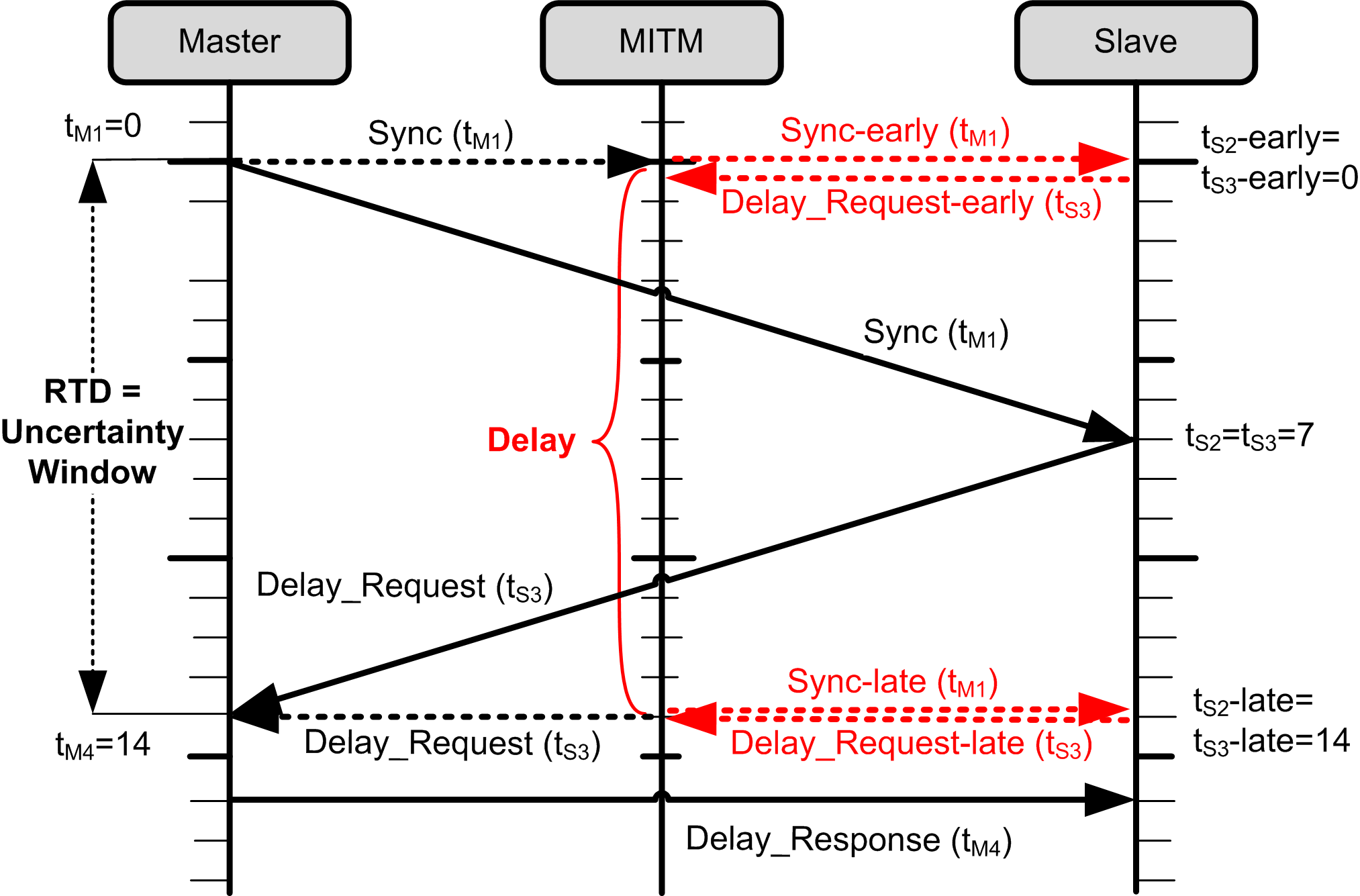

Fig. 12: Theoretical (worst case) offset uncertainty bound calculation.

Unless there is specific information available on physical delays for the forward and reverse communication path, it must be assumed that the delay of one or both of these paths can be (close to) zero. This gives an adversary the opportunity to arbitrarily delay the master’s SYNC message on the forward path or the slave’s DELAY REQUEST message on the reverse path within the given window of time units (as shown in Fig. 12). The mitm adversary can forward the master’s SYNC message without additional delay (SYNC EARLY) and delay the slave’s DELAY REQUEST EARLY message by time units, resulting in slave timestamps . Alternatively, the adversary can delay the master’s SYNC message (SYNC LATE) and forward the slave’s DELAY REQUEST LATE message without additional delay, resulting in slave timestamps . Therefore, depending on which scenario the adversary mitm adopts, it can shift the slave’s offset within time units (according to Eq. (2)). Whenever the slave depends on maximum guaranteed bounds of its clock offset, this uncertainty must be considered.

Bound Clock Offset With Knowledge on OWDs

In order to reduce the uncertainty and guarantee bounds on the clock offset, we present a method that builds upon knowledge on physical parameters and constraints of the clock synchronization’s communication path. In this way, the attacker’s ability to conduct delay attacks is reduced, and the slave is supported in determining stricter guaranteed bounds for its clock offset. It is worth noting that the method can only mitigate delay attacks but not prevent them entirely.

We assume that the communication path is asymmetric and its minimum owd is known for both directions. We denote the minimum owd from master slave as and the minimum owd for slave master as . The exact measurement of owd depends on precisely synchronized clocks, which is why in real-world scenarios may be approximated using topology and physical parameters like propagation-, transmission- and processing delays of the network path’s links and components. A mandatory precondition for guaranteed clock offset bounds is that the approximated owd must be less or equal to the minimum real packet delay on the path. Conservative approximations on and , i.e., lower minimum owd values are detrimental to the offset bounds but are essential to guarantee the bounds in adversarial settings.

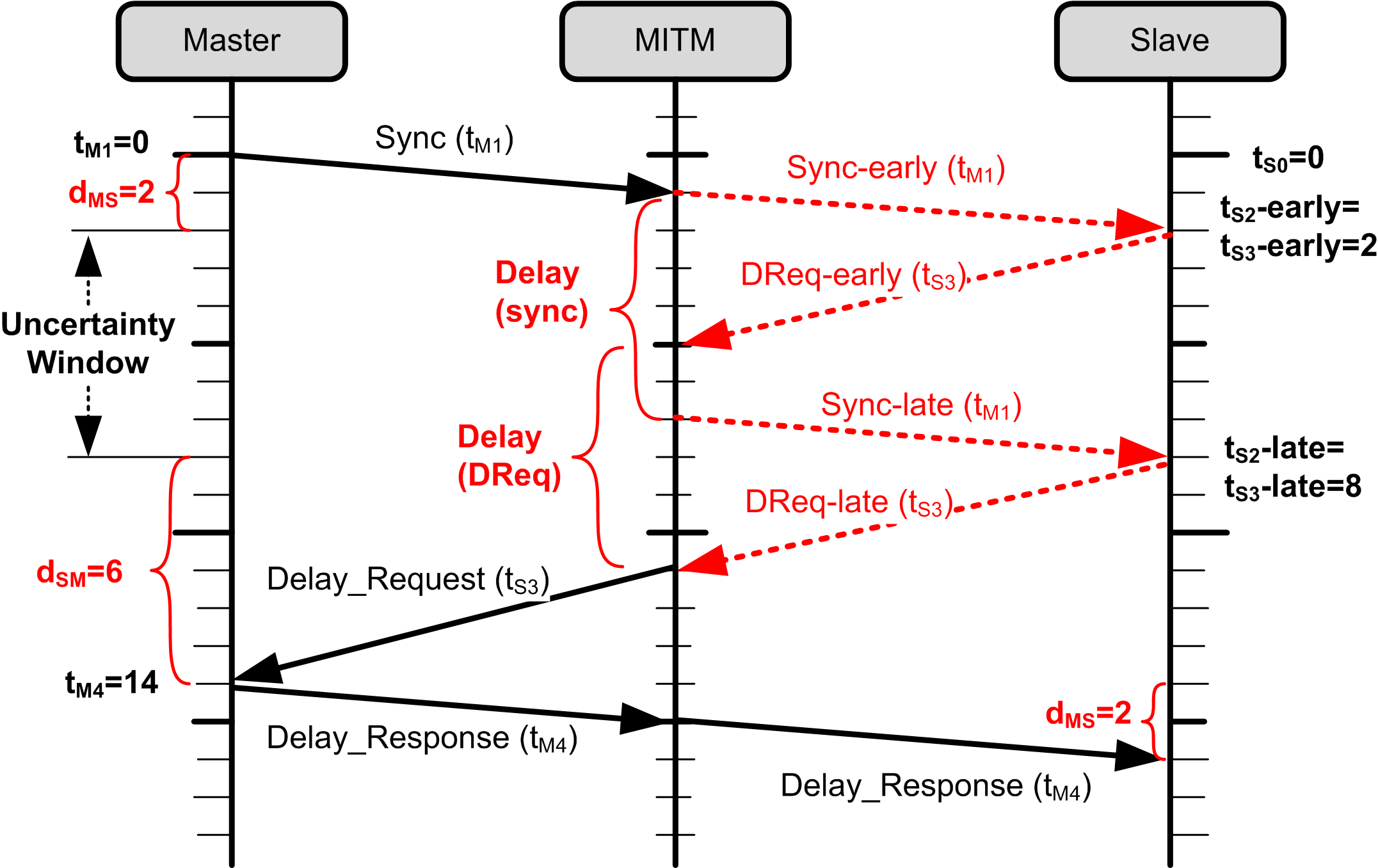

Fig. 13: Offset uncertainty bound calculation using one-way delay limits and unsynchronized clocks.

For computing guaranteed offset bounds using and , the slave first measures the rtd according to Eq. (1). In Fig. 13 the forward communication path from master to slave has a known minimum owd of and the reverse path a minimum owd of time units. Relying on the minimum delay constraints, whenever the slave receives the master’s SYNC message it knows that the master assigned timestamp at least time units earlier then the slave’s reception timestamp . The slaves also knows when sending its DELAY REQUEST message that the master will receive it and assign timestamp at least time units later then slave time . Using this knowledge and the timestamp it received in the master’s DELAY RESPONSE message, the slave can rely on the inequalities (5a) and (5b) to hold true.

Assuming an (unknown) clock offset between the slave and master clocks, the slave can define the causal ordering of timestamps using the inequalities Eq. (5a) and Eq. (5b). All terms except the offset being known, by reordering the inequalities the slave can bound its clock offset after a clock synchronization interval by Eq. (5c).

(5a)
(5b)
(5c)

Applying Eq. (5c) to the scenario in Fig. 13 yields bounds of for the early case and for the late case , which maps to the uncertainty window depicted in the figure. In order to obtain a clock offset bound that centers around (despite asymmetric communication path and delay attacks), we suggest replacing clock offset calculation from Eq. (2) by Eq. (6), which basically averages the minimum and maximum offset, assuming that the uncertainty (i.e., difference between the measured rtd and the sum of the minimum owd and ) affects the forward or reverse link with equal probability. In Fig. 13 the average offset is mapped to the center of the marked uncertainty window. This yields a symmetrical interval for guaranteed clock offset bounds that formally satisfy Eq. (7) with . For the scenario in Fig. 13, the new offset calculation results in the same size of the uncertainty window (i.e., ) but the offset within centered around (according to Eq. (7)). The knowledge of the physical delay therefore allows a stricter bound of the guaranteed clock offset compared to the case without knowledge on the owd presented in Fig. 12

. In this way, the adversary’s degree of freedom in manipulating clock synchronization is effectively decreased and the guaranteed bounds on the clock offset are improved.

(6)
(7)

While the clock offset can be guaranteed after a clock synchronization interval (Eq. (7)), the question about the clock offset that can be guaranteed for a particular system remains open as an attacker could still increase the rtd arbitrarily (and therefore manipulate the clock offset). To prevent such clock offset manipulation, the rtd that is accepted needs to be restricted. Intuitively, the lower the maximum rtd that is accepted (), the tighter the bound on the clock offset that can be guaranteed, but also the higher the probability of clock synchronization intervals to be discarded during unfavorable network conditions.

In order to derive clock offset bounds for a system, a time needs to be defined that represents the maximum time interval between any two consecutive clock synchronization intervals with . Between two consecutive clock synchronization intervals, the slave clock drifts at most , with being the maximum relative clock drift of slave and master clocks. Generally one can say that the smaller the network the smaller , the better the network operations the smaller , and the better the clocks the smaller . Eq. (8) shows the guaranteed clock offset bounds for a system.

(8)

While the relative clock offset can be bounded, it needs to be stressed that high-precision clock synchronization requires significantly tighter clock synchronization guarantees than can be provided by the bounds in Eq. (7) and (8). Deterministic networks might help as they provide guarantees on the maximum rtd and delay variation, but they depend on a precise notion of time themselves in the first place.

It is worth noting that slaves can apply the algorithm that has been described above for the SYNC and DELAY REQUEST message round-trip for the DELAY REQUEST DELAY RESPONSE message exchange, too. The ptp protocol does not evaluate the DELAY RESPONSE message’s delay as part of its operation, which is why the SYNC and DELAY REQUEST message exchange is the preferred one for clock bounding. However, the slave could acquire the DELAY RESPONSE receiving timestamp and use it to compute clock bounds for DELAY REQUEST DELAY RESPONSE. One possible application is, for instance, the detection of selective SYNC message delays conducted by a resource-limited adversary. The clock offset bounds of the SYNC DELAY REQUEST round-trip being substantially larger (inaccurate) than the one of DELAY REQUEST DELAY RESPONSE could be a strong indication of an ongoing selective delay attack. Still, the general observation holds true: none of these methods can protect against an asymmetrical link delay attack that an adversary with unlimited resources can conduct.

X Clock Synchronization: Either Precise or Secure

The outcome of Section VIII that an attacker can manipulate offset correction by through link asymmetry raises the question whether a clock synchronization protocol can be designed that handles link asymmetry such that its offset calculation remains unaffected in an adversarial setting. We argue that constructing such protocol is impossible as delay cannot be distinguished from clock offset. Main reason is that link asymmetry can only be measured with synchronized clocks, and it can not be guaranteed that the link asymmetry is constant (especially in an adversarial setting). Synchronized clocks would be required in the first place to measure link asymmetry in order to have secure clock synchronization after all, which is circular reasoning.

If we suppose an oracle to exist that can instantaneously read the clocks of master and slave, the oracle has knowledge of the real clock offset (according to Eq. (2)) and is not influenced by link asymmetry. The clock offset measured by the slave also includes the link asymmetry (Eq. (9)), however.

(9)

If the oracle analyzes two consecutive offset measurements (at time and ) during which clock offset was not corrected, it would observe that the difference between the offsets measured at time and at time consists of two distinct parts: (1) the change in the real offset () that is a result of the relative clock drift between slave and master, and (2) the change in the link asymmetry that is determined by delay variation () such as network jitter for example.

The relative clock drift, which determines the change of the real offset, depends on the quality of the physical oscillators used and typically ranges from to ppm. The delay variation is highly indeterministic and depends on various factors such as the current network load as well as the quality of the network and its components. Delay variation typically ranges from to ppm. Important to note is that delay variation is by several orders of magnitudes larger than the relative clock drift, and that only an oracle could distinguish the change of the real clock offset from the change of the link asymmetry. For master and slave, however, they are indistinguishable as only the sum of the change can be observed in terms of measured clock offset. This means that an attacker can exploit this indistinguishability to conduct and hide an asymmetric link delay attack. As soon as a clock synchronization protocol aims to achieve high precision, it needs to entail delay measurements in order to compensate for delays. And this delay compensation mechanism is susceptible to asymmetric links because link delay variation cannot be separated from clock drift.

The other issue is the direction of messages. To conduct an asymmetric link delay attack, the attacker only needs to know the direction of messages, which is tied to the master and slave roles because it is always the clock offset of the slave relative to the master that is calculated. Delaying messages in one direction has the inverse effect on clock synchronization than delaying messages in the reverse direction (as the slave clock should be synchronized to the master and not the other way around). For this reason we conclude that no clock synchronization protocol can be designed that is precise and prevents delay attacks entirely (even when messages are obfuscated in terms of length and timing and cover traffic exists).

If clock synchronization protocols can be either high-precision or secure against delay attacks, then applications must not rely on a precise notion of time when employing untrusted communication networks — if applications rely on a precise notion of time, then they must only be executed in trusted environments. This conclusion is (not limited to but) especially important to critical infrastructures.

Xi Conclusion

In this paper, we focused on attacks against clock synchronization protocols in the time domain, which means that protocol message content is not altered and only the timing of messages is changed. One assumption is that the attacker is in a privileged network position121212While we assume the difficulty of gaining such privileged network position is within the power of an attacker who attacks critical infrastructures, we think that asymmetric link delay attacks specifically might be conducted even from non-privileged network positions by influencing the queues of network devices in a particular direction (for example by sending an excessive number of packets). . We first conducted a statistical traffic analysis of ptp and identified properties of ptp traffic with regard to timing, packet length, and packet directions. We showed that these properties can be used to identify ptp messages in encrypted traffic in order to conduct selective message delay attacks.

We explored various countermeasures to mitigate selective message delay attacks. The first set of countermeasures aims to obstruct traffic analysis. To this end, ptp can be modified in a way that randomizes the timings and the use of packet length padding, although such modification may have a negative impact on the clock synchronization’s precision. Security, nevertheless, depends on the existence of suitable cover traffic, which leads to the field of traffic obfuscation. Furthermore, strict replay protection should be activated if possible to minimize the impact of the attack (and to make the attack easier to detect as the packet loss rate increases).

Then we introduced asymmetric link delay attacks. While asymmetric link delay attacks have potentially lower impact on clock synchronization’s precision, we found that they are fundamentally tied to the goal of high-precision. Bounding the uncertainties of the clock offset by applying knowledge of the physical parameters of the communication path (i.e., limiting owd) ensures that individual messages cannot be delayed arbitrarily. Until now, network-based clock synchronization protocols asked for deterministic delays, and delays could be either symmetric or have a known asymmetry to be compensated by the ptp configuration. The results show that knowledge of the underlying communication networks is essential to mitigate delay attacks and to safeguard maximum guaranteed bounds on clock offset. Nevertheless, asymmetric link delay attacks can only be mitigated but not be prevented entirely.

We argue that no high-precision clock synchronization protocol can exist that prevents asymmetrical link delay attacks entirely because of the delay compensation mechanism that is required to achieve high-precision. In adversarial settings, an attacker can manipulate the delay variation in such a way that links become asymmetric and clock offset calculation is impaired maliciously since clock drift and delay variation cannot be distinguished. This implies that clocks synchronization cannot be arbitrarily precise while maintaining security against delay attacks. This finding contradicts the common belief that clocks synchronization over untrusted networks can be secured by encryption and authentication methods, while improving precision. Given the results from this paper, we argue the contrary: clock synchronization can either be precise or secure against delay attacks (but not both!).

Delay attacks are an inherent threat for high-precision clock synchronization since the times when messages are sent and received have an actual effect on the precision of clock synchronization and even small differences can have a large impact. The impact of those delay attacks can only be bounded but those attacks limit the precision of clock synchronization, nevertheless. Practically achievable limits are certainly stricter than some critical infrastructure applications assume today. Those infrastructures are supposed to improve specific areas but also introduce a new attack vector by their strict dependency on a precise notion of time.
