1 Introduction

In the past few decades, deep neural networks (DNNs) have achieved remarkable success in various difficult tasks of machine learning

(Krizhevsky et al., 2012; Graves et al., 2013; Goodfellow et al., 2014; He et al., 2016; Silver et al., 2017; Devlin et al., 2019). Albeit the great progress DNNs have made, there are still many problems which have not been thoroughly studied, such as the expressivity and optimization of DNNs.

High expressivity is believed to be one of the most important reasons for the success of DNNs. It is well known that a standard deep feedforward network with piecewise linear activations can partition the input space into many linear regions, where different linear functions are fitted (Pascanu et al., 2014; Montufar et al., 2014). More specifically, the activation states are in one-to-one correspondence with the linear regions, i.e., all points in the same linear region activate the same nodes of the DNN, and hence the hidden layers serve as a series of affine transformations of these points. As approximating a complex curvature usually requires many linear regions (Poole et al., 2016), the expressivity of a DNN is highly relevant to the number of the linear regions.

Studies have shown that the number of the linear regions increases more quickly with the depth of the DNN than with the width (Montufar et al., 2014; Poole et al., 2016; Arora et al., 2018). Serra et al. (2018)

detailed the trade-off between the depth and the width, which depends on the number of neurons and the size of the input. However, a deep network usually leads to difficulties in optimization, such as the vanishing/exploding gradient problem

(Bengio et al., 1994; Hochreiter, 1998) and the shattered gradients problem (Balduzzi et al., 2017)

. Batch normalization (BN) can alleviate these by repeatedly normalizing the outputs to zero-mean and unit standard deviation, so that the scale of the weights can no longer affect the gradients through the layers

(Ioffe & Szegedy, 2015). Another difficulty is that the high complexity caused by the depth can easily result in overfitting. Srivastava et al. (2014) proposed dropout to reduce overfitting, which allows a DNN to randomly drop some nodes during training and work like an ensemble of several thin networks during testing.

Despite the empirical benefits of these techniques, their effects on the trained model and the reasons behind their success are still unclear. Previous studies focused on explaining why these techniques can help the optimization during training (Wager et al., 2013; Santurkar et al., 2018; Bjorck et al., 2018). Different from theirs, our study is trying to answer the following question:

What properties do these techniques introduce to the linear regions after training?

We present an intuitive view of different techniques’ effects on the linear regions in Figure 1. We may observe that:

  1. BN and dropout help the DNN partition the input space into many more linear regions than the vanilla DNN.

  2. The linear regions resulted from the BN model are more uniform in size than those from the dropout DNN.

  3. Many transition boundaries of the dropout DNN share similar norm directions, and concentrate around the decision boundaries.

Figure 1 illustrates that different optimization techniques can lead to completely different linear regions even using the same DNN architecture, which may influence the behaviors of the DNN, such as its adversarial robustness (Biggio et al., 2013; Szegedy et al., 2014) or some other undiscovered ones (Appendix A shows another example on a two-dimensional toy dataset). Therefore, it is important to probe the properties of the linear regions introduced by these frequently-used optimization techniques, instead of just looking at the learning curves.

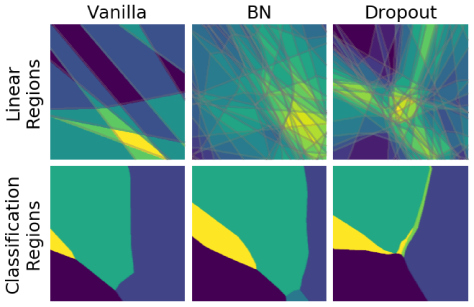

Figure 1:

Linear regions and classification regions of models trained with different optimization techniques. The gray curves in the top row are transition boundaries separating different linear regions, and the color represents the activation rate of the corresponding linear region. In the bottom row, different colors represent different classification regions, separated by the decision boundaries. The models were trained on the vectorized MNIST dataset, and this figure shows a two-dimensional slice of the input space. The vanilla model was a fully-connected ReLU network with three hidden layers. To make the figure more readable, each hidden layer only included 20 nodes. The BN model was the vanilla model with BN added after pre-activations of every hidden layer, and the dropout model added dropout layers after the hidden layers, with drop rate 0.2.

This paper introduces mathematical tools of polyhedral computation into linear region analysis, and systematically compares various properties of the linear regions after DNNs being trained with different optimization techniques (BN, dropout). Though the models have similar classification accuracies, we do observe significant differences among their linear regions:

  1. BN can help DNNs partition the input space into smaller linear regions, whereas dropout helps around the decision boundaries.

  2. BN can make the norm directions of the hyperplanes orthogonal, whereas dropout the opposite.

  3. Dropout makes regions in which data points lie less likely to contain the decision boundaries.

  4. The gradient information of a linear region has high relevance to its surrounding regions; however, BN slightly reduces the relevance.

It should be noted that our approach can also be applied to analyzing the preferences introduced by other optimization techniques, such as different initialization approaches (Glorot & Bengio, 2010; He et al., 2015), different optimizers (Duchi et al., 2011; Kingma & Ba, 2014), some widely-used operators like skip-connection (He et al., 2016)

, and even different hyperparameters. Since training deep learning models is related to the complex interaction among the training dynamics, data manifold and model architectures, we believe it is better to decouple it into two subtasks: 1)

figure out what kinds of linear regions can best approximate the data manifold; and, 2) design optimization techniques to achieve such linear regions. Our work provides tools to analyze the linear regions, which helps study both subtasks.

The remainder of the paper is organized as follows: Section 2 presents the details of the linear regions of DNNs with ReLU activation. Section 3 shows how BN and dropout influence the linear regions. Section 4 draws conclusions.

2 Linear Regions

This section describes the detailed approach for searching for the linear regions of a given input, and introduces some basic concepts of convex polytopes.

2.1 Search for the Linear Regions

A linear region is the intersection of a finite number of halfspaces. Therefore, to search for the linear region in which a given input point lies, we only need to search for its corresponding halfspaces, which are determined by the activation state of the DNN.

Let’s consider a vanilla fully-connected DNN with hidden layers and ReLU activation. Mathematically, let denote the -dimensional vectorized input, the pre-activation outputs of the -th hidden layer with nodes (),

the logits of the output layer, and

the number of classes. Given an input example , because of the one-to-one correspondence relationship between a linear region and an activation state, its corresponding linear region is a set of inputs which lead to the same activation state of the DNN.

Let denote a set of the inputs whose activation states of the first hidden layers are the same as those of . Obviously, . Consider the first layer. Since is simply an affine transform of , according to the activation state, can be written as:

(1)

where

(2)
(3)

Next, we select the points from to construct , which activate the same nodes of the second layer as does. Recall that the points in lead to the same activation state of the first layer, hence is also an affine transform of . Therefore, can be constructed by adding linear inequality constraints to , in the same way as (1). Due to the linearity of (where ) for all , this procedure can be repeated till the last hidden layer. The detailed deduction is presented in Appendix B, and the depth-wise exclusion process to search for a linear region of is illustrated in Figure 2.

Let be the set of parameters of all the linear inequality constraints. Then , which is the linear region that lies in, can be represented as the intersection of halfspaces:

(4)

where the DNN is a locally linear model, as is an affine transform of .

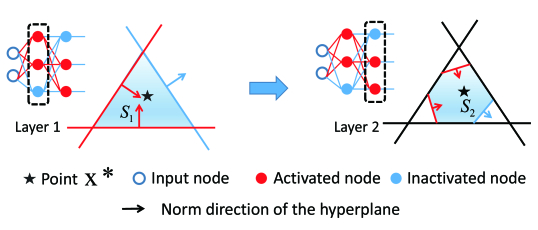

Figure 2: Depth-wise exclusion process to search for the linear region of . Each node in each layer provides a hyperplane to cut the polytope defined by the preceding layers.

Though we mainly discuss the standard fully-connected DNNs, the form to describe a linear region can be extended to other situations with little modification. For instance, BN is just a reparameterization of the weights, a convolutional neural network (CNN) can be viewed as a sparse fully-connected DNN, and max-pooling is simply adding more linear inequalities to identify the maximum.

2.2 Convex Polytopes

A linear region can be represented as the set of solutions to a finite set of linear inequalities in (4), which is exactly the H-representation of a convex polyhedron. With the natural bounds of the input value, these linear regions are convex polytopes111Here we use the term polytope to denote a bounded polyhedron.. We omit the word convex in the rest of the paper to avoid repetition.

A polytope can also be represented as a convex hull of a finite set of points, which is known as the V-representation. Different representations may lead to different complexities when dealing with the same problem; nevertheless, it is challenging to convert one representation into the other (Toth et al., 2017). As the dimensionality increases, it is even harder to calculate the number of vertices/facets with a single H-/V- representation (Linial, 1986), or to verify the equivalence between an H-representation and a V-representation (Freund & Orlin, 1985). More information about polyhedral computation can be found here222https://inf.ethz.ch/personal/fukudak/polyfaq/polyfaq.html.

It should be noted that convex optimization is capable of probing the properties of the linear regions, because H-representation is a natural description of a convex feasible region, and a DNN’s behavior is completely linear in this feasible region.

3 Properties of the Linear Regions

This section presents various properties of the linear regions of DNNs, which were trained using different optimization settings.

3.1 Models

We used a fully-connected DNN as our vanilla model, which consisted of three hidden layers with 1,024 rectified linear nodes in each. The BN model was the vanilla model with BN added after the pre-activations of each hidden layer, and the dropout model added dropout after the activations. We trained our models on the vectorized MNIST dataset, which were rescaled to .

All models were trained using Adam optimizer (Kingma & Ba, 2014) with the default setting (, ) but different learning rates (1e-3 and 1e-4), and the batch size was 256. We used the Xavier uniform initializer for weight initialization, with biases set to zero (Glorot & Bengio, 2010). Early stopping was used to reduce overfitting. The classification accuracies are shown in Table 1. Since it is unlikely to explore the influence of all optimization settings, this paper emphasizes two optimization techniques, i.e., BN and dropout, and compares the influence of different learning rates.

Learning Rate Vanilla BN Dropout
1e-3 97.8 97.9 97.5
1e-4 98.0 98.3 98.2
Table 1: Test accuracies (%) of different DNN models.

As shown in Section 2, the number of constraints in (4) equals the number of hidden nodes; hence, it is hard to handle the constraints as the scale of DNN increases, such as removing the redundant inequalities. In our experiments, the number of constraints was . In addition to the natural bounds for the pixel values (), each linear region is defined by linear inequalities.

Our analysis of CNNs trained on the CIFAR-10 dataset is presented in Appendix E.

3.2 The Inspheres

We first probed the inspheres of the linear regions, which are highly related to the expressivity of a DNN. Though we cannot make a definite statement that a small insphere always leads to a small linear region, it does indicate a region’s narrowness.

The insphere of a polytope can be found by solving the following convex optimization problem:

(5)
s. t.

where is the center of the insphere, the inradius, and the set of parameters of defined in (4). The main idea of the optimization is to find a point in a polytope, whose distance to the nearest facet is the largest.

As shown in Figure 1, linear regions vary according to their closeness to the decision boundaries, hence we studied the inspheres of three different categories of regions333These regions should not be confused with a classification region, which is partitioned according to the classes of the points in the input space., which are defined as follows:

Manifold region:

The region in which the test points lie.

Decision region:

The region which contains the normal decision boundaries

. We define a normal decision boundary as the classification boundary between one test point and the mean point of another class. When we test our models, the mean point of a class is classified into the same class for the MNIST dataset.

Adversarial region:

The region which contains the adversarial decision boundaries. We define the adversarial decision boundary as the classification boundary between a test point and its adversarial example. The adversarial examples were generated by the projected gradient descent (PGD) method (Madry et al., 2018).

Linear interpolation was used to search for regions which contain the decision boundaries. Let

denote the test point, and the adversarial point or the mean point of another class. We searched for the maximum which causes to be classified into the same class as , and the region in which lies contains the decision boundaries.

As shown in Figure 3, different optimization settings introduce significantly different inradius distributions. Compared with the vanilla models, BN leads to the smallest inradiuses of the linear regions, whereas dropout, as shown in the second column of Figure 3, makes the decision regions narrower. It also shows that the inradius distributions of the adversarial regions are more similar to those of the manifold regions, which demonstrates the fundamental differences between the adversarial and the normal decision boundaries. Comparing the two rows in Figure 3

, we can observe that a larger learning rate increases the variance of the distributions. However, BN seems to make the inradius distribution less sensitive to the learning rate, which is consistent with the observations in

Bjorck et al. (2018) that BN enables training with larger learning rates. Comparing the first two columns of Figure 3, we can also find that the decision regions are usually narrower than the manifold regions, which was also observed by Novak et al. (2018) that on-manifold regions are larger than off-manifold regions. It is reasonable because decision boundary curves need more sophisticated approximation.

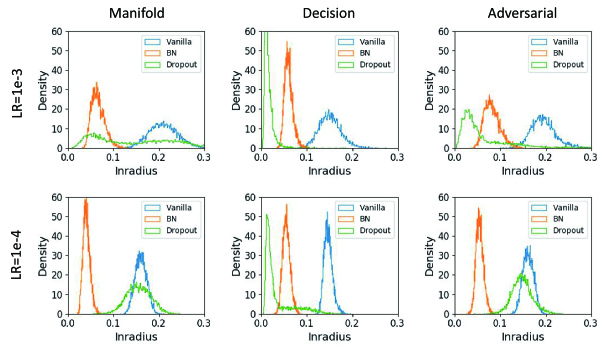

Figure 3: Inradius distributions for different learning rates and optimization techniques. The models in the top row were trained with a larger learning rate (1e-3), and the bottom row a smaller learning rate (1e-4). The three columns show the inradius distributions of the manifold regions, the decision regions, and the adversarial regions, respectively.

3.3 Directions of the Hyperplanes

Another observation is that BN makes the directions of the hyperplanes of a linear region orthogonal, whereas dropout the opposite. Since it is time-consuming to eliminate the redundant hyperplanes, as explained in Appendix C, we calculated the angles using all hyperplanes.

The direction of a hyperplane is pointing to the interior of the linear region, because all constraints are in the form of . Figure 4 shows the angles between directions of every two different hyperplanes of a manifold region. The directions of the hyperplanes become more consistent as the layer goes deeper. Dropout and large learning rates amplify this trend, whereas BN makes the directions more orthogonal. Though we only present one example here, the patterns can be observed for almost all manifold regions.

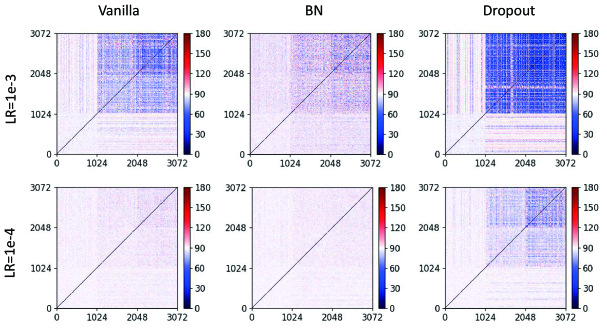

Figure 4: Angles between the directions of different hyperplanes of a particular manifold region. The indices on both axes indicate different hyperplanes: 0-1,023 represent the hyperplanes of the first hidden layer, 1,024-2,047 the second layer, and 2,048-3,071 the third layer. The value of a pixel is , i.e., the angle between and . The models in the top row were trained with a larger learning rate (1e-3), and the bottom row a smaller learning rate (1e-4).

As shown in (2), the direction is actually the gradient of the corresponding hidden node with respect to the input, hence the angle between the directions can be viewed as the correlation between the gradients. However, it should be noted that the shattered gradients problem (Balduzzi et al., 2017) cannot explain the decorrelation characteristics of BN, though they look similar. The shattered gradients problem studies the correlation between the gradients with respect to different inputs, whereas our observation is about the gradients of different hidden nodes with respect to a fixed input.

We also observed an interesting phenomenon: the orthogonality of the weights vanished during training. We tried to explicitly decorrelate the directions at initialization by introducing an orthogonal initializer (Saxe et al., 2014), but the orthogonality was still broken after training. It is interesting to see if the properties of initialization can be preserved in training, which is one of our future research directions.

3.4 Decision Boundaries in a Manifold Region

Adversarial examples are benign inputs with imperceptible perturbations, which can dramatically degrade the performance of a machine learning model (Biggio et al., 2013; Szegedy et al., 2014). Adversarial attacks aim to push a benign input across the nearest decision boundary (Szegedy et al., 2014; Goodfellow et al., 2015; Moosavi-Dezfooli et al., 2016; Carlini & Wagner, 2017), hence it is important to study the decision boundaries in a manifold region.

The most important question we may ask is: Do decision boundaries exist in a manifold region? To address this question, we seek the point

which has the maximum probability to be classified as Class

, by solving the following optimization problem:

(6)
s. t.

where is the number of classes, and the -th entry of the logits . When satisfies the constraints, i.e., , is an affine function of , hence can be rewritten as:

(7)

which implies that the optimization objective in (6) is concave. The classification region of Class exists in if and only if is classified into Class .

lies on the faces of the polytope in most cases, as shown in Appendix D. Since computing the volume of a polytope given by only the V-/H- representation is known as a #P-hard problem (Dyer & Frieze, 1988), the distance between and the original test point , called distortion in this paper, is used to informally measure the size of a linear region:

(8)

We randomly selected 1000 test points to search for the classification regions in their manifold regions. The average number of classification regions and the average distortions are shown in Table 2. The results show that a manifold region may contain several classification regions, which contradicts the conjecture in Hanin & Rolnick (2019) that two points falling into the same linear region are unlikely to be classified differently. We can also find that training with a large learning rate, using dropout or BN can make the manifold regions less likely to contain decision boundaries. However, this is not the case for BN in CNNs (see Appendix E for more information). In addition, BN can significantly decrease the distortion of , which implies a smaller size of the linear regions. Figure 5 shows a specific example of generated from models trained with different optimization techniques, which also demonstrates our observation.

Measure Learning Rate Vanilla BN Dropout
Number 1e-3 1.116 1.083 1.012
1e-4 8.766 2.622 1.048
Distortion 1e-3 26.35 14.90 25.28
1e-4 23.81 07.61 25.41
Table 2: Average number of classification regions in a manifold region, and the average distortions.

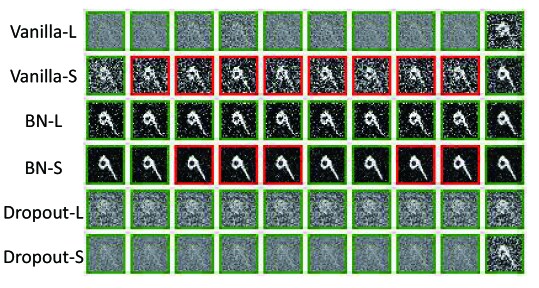

Figure 5: Different of the point , which is classified into Class (number 9). From left to right, varies from to (number to number ). Images with green borders are correctly classified into Class , and red borders misclassified into Class . Different rows represent the models trained with different optimization techniques or learning rates. The models whose names end with “-L” were trained with a larger learning rate (1e-3), and “-S” a smaller learning rate (1e-4).

Probing decision boundaries from the linear region perspective can bring many potential advantages for analysis. Due to the linearity of the manifold regions, high-order adversaries are not guaranteed to be better than first-order ones. Besides, adding random noise may help generate adversarial examples since more linear regions can be included during searching, which may explain why PGD with random restarts is a powerful adversarial attack approach (Madry et al., 2018).

3.5 Relevance of the Surrounding Regions

The expressivity of a DNN depends on the number of the linear regions, but it makes optimization challenging when the gradient information of the surrounding regions has little relevance.

Given an example , we try to find an from a different region, with parallel to all the decision boundaries of the region in which lies, i.e., orthogonal to the directions of the decision boundaries. Then we compare the gradient information between and . As the classification result of is equal to , the directions of the decision boundaries can be written in the following form:

(9)

Therefore, to satisfy the orthogonality, we can sample an -normalized direction from the nullspace of the matrix :

(10)

and then can be written as:

(11)

so that

(12)

Our experiments were performed on 1000 randomly selected test points. For each test point , we randomly sampled 100 -normalized direction . As varied from to , may belong to different regions. We searched for the linear regions along these directions () and counted the number of unique linear regions. As shown in Figure 6, models using BN or trained with a smaller learning rate can usually partition the input space into more linear regions.

Figure 6:

(a): boxplot of the number of unique surrounding regions for 1000 test points. Different colors represent different learning rates (LRs). (b) and (c): distributions of the cosine similarity

of all unique surrounding regions. Models in (b) were trained with a larger learning rate (1e-3), and (c) a smaller learning rate (1e-4).

Next, we checked the relevance of these unique surrounding regions. First, we chose an from each unique linear region and calculated as its decision direction:

(13)

where and are the indices of the two largest elements of logits. We calculated the cosine similarity to measure the relevance of different linear regions. As illustrated in Figures 6 and 6, a linear region has high relevance to its surrounding regions, which demonstrates the linearity of DNNs. It also shows that BN slightly reduces the relevance.

However, it was found that this relevance decreases rapidly with the depth of the DNN, resulting in gradients that resemble the white noise, which is known as the shattered gradients problem

(Balduzzi et al., 2017). The low relevance also makes it hard to perform adversarial attacks because of the limited information of the local gradients (Athalye et al., 2018).

4 Discussions and Conclusions

This paper proposes novel tools to analyze the linear regions of DNNs. We explored the linear regions of models trained with different optimization settings, and observed significant differences of their inspheres, directions of the hyperplanes, decision boundaries, and relevance of the surrounding regions. Our empirical observations illustrated that different optimization techniques may introduce different properties of the linear regions, even though they have similar classification accuracies. This phenomenon indicates that a more meticulous perspective is needed to study the behaviors of DNNs.

For DNNs with smooth nonlinear activations, it is still an open problem to define their linear regions with soft transition boundaries. One way to address the problem is to approximate the activation function by a piecewise linear function, in which case our approaches can directly be utilized to analyze the linear regions. By choosing a local linearity measure, like the one proposed by

Qin et al. (2019), a soft linear region may also be precisely described by a set of inequalities, which require that the local linearity of each neuron is larger than a certain threshold. However, our approaches cannot be applied to these linear regions since their convexity is not guaranteed.

Our future research will reduce the high computational cost of our approach when applied to deeper and larger DNNs, and formulate a theoretical framework to explain why different optimization techniques can result in different properties of the linear regions. Eventually, we will try to answer the following questions:

  • What is the relationship between the properties of linear regions and the behaviors of a DNN?

  • What kinds of linear regions can best approximate the data manifold?

  • How to design novel optimization techniques to achieve such linear regions?

5 Acknowledgments

This research was supported by the National Natural Science Foundation of China Grant 61873321 and Hubei Technology Innovation Platform Grant 2019AEA171.

References

  • Arora et al. (2018) Raman Arora, Amitabh Basu, Poorya Mianjy, and Anirbit Mukherjee.

    Understanding deep neural networks with rectified linear units.

    In Proc. Int’l Conf. on Learning Representations, Vancouver, Canada, May 2018.
  • Athalye et al. (2018) Anish Athalye, Nicholas Carlini, and David Wagner. Obfuscated gradients give a false sense of security: Circumventing defenses to adversarial examples. In Proc. 35th Int’l Conf. on Machine Learning, pp. 274–283, Stockholm, Sweden, July 2018.
  • Balduzzi et al. (2017) David Balduzzi, Marcus Frean, Lennox Leary, JP Lewis, Kurt Wan-Duo Ma, and Brian McWilliams. The shattered gradients problem: If resnets are the answer, then what is the question? In Proc. 34th Int’l Conf. on Machine Learning, volume 70, pp. 342–350, Sydney, Australia, August 2017.
  • Bengio et al. (1994) Yoshua Bengio, Patrice Simard, Paolo Frasconi, et al. Learning long-term dependencies with gradient descent is difficult. IEEE Trans. on Neural Networks, 5(2):157–166, March 1994.
  • Biggio et al. (2013) Battista Biggio, Igino Corona, Davide Maiorca, Blaine Nelson, Nedim Šrndić, Pavel Laskov, Giorgio Giacinto, and Fabio Roli. Evasion attacks against machine learning at test time. In Proc. Joint European Conf. on Machine Learning and Knowledge Discovery in Databases, pp. 387–402, Berlin, Germany, September 2013. Springer.
  • Bjorck et al. (2018) Nils Bjorck, Carla P Gomes, Bart Selman, and Kilian Q Weinberger. Understanding batch normalization. In Proc. Advances in Neural Information Processing Systems, pp. 7694–7705, Montreal, Canada, December 2018.
  • Carlini & Wagner (2017) Nicholas Carlini and David Wagner. Towards evaluating the robustness of neural networks. In Proc. IEEE Symposium on Security and Privacy, pp. 39–57, San Jose, CA, May 2017.
  • Devlin et al. (2019) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. BERT: Pre-training of deep bidirectional transformers for language understanding. In Proc. of the Conf. of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, volume 1, pp. 4171–4186, Minneapolis, MN, June 2019.
  • Duchi et al. (2011) John Duchi, Elad Hazan, and Yoram Singer. Adaptive subgradient methods for online learning and stochastic optimization. Journal of Machine Learning Research, 12(Jul):2121–2159, July 2011.
  • Dyer & Frieze (1988) Martin E. Dyer and Alan M. Frieze. On the complexity of computing the volume of a polyhedron. SIAM Journal on Computing, 17(5):967–974, October 1988.
  • Freund & Orlin (1985) Robert M Freund and James B Orlin. On the complexity of four polyhedral set containment problems. Mathematical programming, 33(2):139–145, November 1985.
  • Glorot & Bengio (2010) Xavier Glorot and Yoshua Bengio. Understanding the difficulty of training deep feedforward neural networks. In Proc. of the 13th Int’l Conf. on Artificial Intelligence and Statistics, pp. 249–256, Sardinia, Italy, May 2010.
  • Goodfellow et al. (2014) Ian Goodfellow, Jean Pouget-Abadie, Mehdi Mirza, Bing Xu, David Warde-Farley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. Generative adversarial nets. In Proc. Advances in Neural Information Processing Systems, pp. 2672–2680, Montreal, Canada, December 2014.
  • Goodfellow et al. (2015) Ian J. Goodfellow, Jonathon Shlens, and Christian Szegedy. Explaining and harnessing adversarial examples. In Proc. Int’l Conf. on Learning Representations, San Diego, CA, May 2015.
  • Graves et al. (2013) Alex Graves, Abdel-rahman Mohamed, and Geoffrey Hinton.

    Speech recognition with deep recurrent neural networks.

    In Proc. IEEE Int’l Conf. on Acoustics, Speech and Signal Processing, pp. 6645–6649, Vancouver, Canada, May 2013.
  • Hanin & Rolnick (2019) Boris Hanin and David Rolnick. Complexity of linear regions in deep networks. In Proc. 36th Int’l Conf. on Machine Learning, pp. 2596–2604, Long Beach, CA, May 2019.
  • He et al. (2015) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun.

    Delving deep into rectifiers: Surpassing human-level performance on imagenet classification.

    In

    Proc. of the IEEE Int’l Conf. on Computer Vision

    , pp. 1026–1034, Santiago, Chile, December 2015.
  • He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In

    Proc. IEEE Conf. on Computer Vision and Pattern Recognition

    , pp. 770–778, Las Vegas, NV, June 2016.
  • Hochreiter (1998) Sepp Hochreiter.

    The vanishing gradient problem during learning recurrent neural nets and problem solutions.

    Int’l Journal of Uncertainty, Fuzziness and Knowledge-Based Systems, 6(02):107–116, April 1998.
  • Ioffe & Szegedy (2015) Sergey Ioffe and Christian Szegedy. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In Proc. 32nd Int’l Conf. on Machine Learning, pp. 448–456, Lile, France, July 2015.
  • Kingma & Ba (2014) Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. In Proc. Int’l Conf. on Learning Representations, Banff, Canada, April 2014.
  • Krizhevsky et al. (2012) Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. Imagenet classification with deep convolutional neural networks. In Proc. Advances in Neural Information Processing Systems, pp. 1097–1105, Lake Tahoe, NE, December 2012.
  • Linial (1986) Nathan Linial. Hard enumeration problems in geometry and combinatorics. SIAM Journal on Algebraic Discrete Methods, 7(2):331–335, April 1986.
  • Madry et al. (2018) Aleksander Madry, Aleksandar Makelov, Ludwig Schmidt, Dimitris Tsipras, and Adrian Vladu. Towards deep learning models resistant to adversarial attacks. In Proc. Int’l Conf. on Learning Representations, Vancouver, Canada, May 2018.
  • Montufar et al. (2014) Guido F Montufar, Razvan Pascanu, Kyunghyun Cho, and Yoshua Bengio. On the number of linear regions of deep neural networks. In Proc. Advances in Neural Information Processing Systems, pp. 2924–2932, Montreal, Canada, December 2014.
  • Moosavi-Dezfooli et al. (2016) Seyed-Mohsen Moosavi-Dezfooli, Alhussein Fawzi, and Pascal Frossard. Deepfool: A simple and accurate method to fool deep neural networks. In Proc. IEEE Conf. on Computer Vision and Pattern Recognition, pp. 2574–2582, Las Vegas, NV, June 2016.
  • Novak et al. (2018) Roman Novak, Yasaman Bahri, Daniel A. Abolafia, Jeffrey Pennington, and Jascha Sohl-Dickstein. Sensitivity and generalization in neural networks: An empirical study. In Proc. Int’l Conf. on Learning Representations, Vancouver, Canada, May 2018.
  • Pascanu et al. (2014) Razvan Pascanu, Guido Montufar, and Yoshua Bengio. On the number of response regions of deep feed forward networks with piece-wise linear activations. CoRR, abs/1312.6098, 2014. URL https://arxiv.org/abs/1312.6098.
  • Poole et al. (2016) Ben Poole, Subhaneil Lahiri, Maithra Raghu, Jascha Sohl-Dickstein, and Surya Ganguli. Exponential expressivity in deep neural networks through transient chaos. In Proc. Advances in Neural Information Processing Systems, pp. 3360–3368, Barcelona, Spain, December 2016.
  • Qin et al. (2019) Chongli Qin, James Martens, Sven Gowal, Dilip Krishnan, Krishnamurthy Dvijotham, Alhussein Fawzi, Soham De, Robert Stanforth, and Pushmeet Kohli. Adversarial robustness through local linearization. In Proc. Advances in Neural Information Processing Systems, pp. 13824–13833, Vancouver, Canada, December 2019.
  • Santurkar et al. (2018) Shibani Santurkar, Dimitris Tsipras, Andrew Ilyas, and Aleksander Madry. How does batch normalization help optimization? In Proc. Advances in Neural Information Processing Systems, pp. 2483–2493, Montreal, Canada, December 2018.
  • Saxe et al. (2014) Andrew M. Saxe, James L. McClelland, and Surya Ganguli. Exact solutions to the nonlinear dynamics of learning in deep linear neural networks. In Proc. Int’l Conf. on Learning Representations, Banff, Canada, April 2014.
  • Serra et al. (2018) Thiago Serra, Christian Tjandraatmadja, and Srikumar Ramalingam. Bounding and counting linear regions of deep neural networks. In Proc. 35th Int’l Conf. on Machine Learning, pp. 4565–4573, Stockholm, Sweden, July 2018.
  • Silver et al. (2017) David Silver, Julian Schrittwieser, Karen Simonyan, Ioannis Antonoglou, Aja Huang, Arthur Guez, Thomas Hubert, Lucas Baker, Matthew Lai, and Adrian Bolton. Mastering the game of Go without human knowledge. Nature, 550(7676):354, October 2017.
  • Srivastava et al. (2014) Nitish Srivastava, Geoffrey Hinton, Alex Krizhevsky, Ilya Sutskever, and Ruslan Salakhutdinov. Dropout: A simple way to prevent neural networks from overfitting. Journal of Machine Learning Research, 15(1):1929–1958, January 2014.
  • Szegedy et al. (2014) Christian Szegedy, Wojciech Zaremba, Ilya Sutskever, Joan Bruna, Dumitru Erhan, Ian J. Goodfellow, and Rob Fergus. Intriguing properties of neural networks. In Proc. Int’l Conf. on Learning Representations, Banff, Canada, April 2014.
  • Toth et al. (2017) Csaba D Toth, Joseph O’Rourke, and Jacob E Goodman. Handbook of discrete and computational geometry. Chapman and Hall/CRC, third edition, 2017.
  • Wager et al. (2013) Stefan Wager, Sida Wang, and Percy S Liang. Dropout training as adaptive regularization. In Proc. Advances in Neural Information Processing Systems, pp. 351–359, Lake Tahoe, NE, December 2013.

Appendix A Illustration on a Toy Dataset

Figure 1 shows a two-dimensional slice of a high-dimensional input space, which may not be convincing enough to describe the properties of linear regions through the entire input space. To address the problem, we trained three models (vanilla, BN, dropout) on a two-dimensional toy dataset to see if the properties still remain.

Figure 7 visualizes the toy dataset we constructed, which consists of two separate spirals, representing two different classes. The vanilla model used here was a fully-connected DNN which consisted of three hidden layers with 10 rectified linear nodes in each. The BN model was the vanilla model with BN added after the pre-activations of each hidden layer, and the dropout model added dropout after the activations (the drop rate was 0.2). The models were trained with Adam optimizer (LR=1e-3, =0.9, =0.999).

Figure 7: Visualization of the toy dataset. Different colors represent different classes.

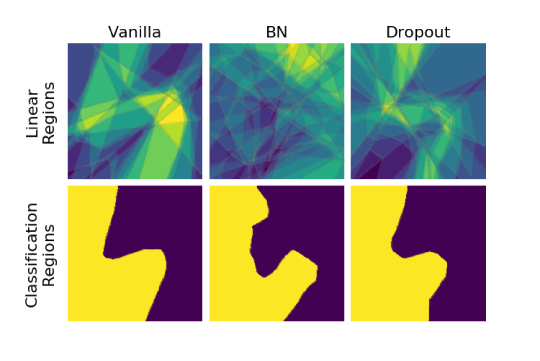

The test accuracies for the three models were all 100%. Figure 8 plots linear regions and classification regions in the input space, illustrating the same properties as Figure 1 shows.

Figure 8: Linear regions and classification regions of models trained with different optimization techniques. The gray curves in the top row are transition boundaries separating different linear regions, and the color represents the activation rate of the corresponding linear region. In the bottom row, different colors represent different classification regions, separated by the decision boundary.

Appendix B Calculate Parameters of the Inequalities

As mentioned in Section 2.1, the first hidden layers serve as an affine transformation of . Besides, the pre-activation outputs of the -th hidden layer are also an affine transformation of the activation outputs of the -th layer, hence is a linear function of , which means , where denotes a node of the -th layer. So, we have:

(14)
(15)

Recall that according to the definition of , shares the same linear function as other , therefore we have:

(16)
(17)

Then we should select from to construct , which means satisfies , i.e., has the same activation state of Node as . For convenience, and are directly multiplied by to obtain the form in (4).

Appendix C Remove Redundant Inequalities

Every constraint in

represents a halfspace, but some of them are redundant, i.e., they are completely overrode by others. To eliminate the redundant constraints, we need to successively solve the following linear programming problem for each untested constraint and sequentially remove the redundant constraint from

:

(18)
s. t.

The constraint is redundant if and only if .

Note that each and every constraint needs to be tested sequentially, resulting in very heavy computational cost when dealing with thousands of constraints.

Appendix D Lies on the Faces of the Linear Region in Most Cases

Proposition

defined in Section 3.4 lies on the faces of its linear region in most cases.

Proof

Let denote the number of classes, a given point lying in the bounded linear region , the faces of . Recall that the function fitted in a linear region is completely linear, hence the -th logit can be rewritten as:

(19)

As defined in (6), let , then . If , must be a maximum, which means:

(20)

Therefore,

(21)

Recall that and , hence in most cases are linear independent, which means cannot be represented as the linear combination of . Since , there is no satisfying (21). Therefore, .

Appendix E Experiments on the CIFAR-10 Dataset

We also analyzed simple CNN models trained on the CIFAR-10 dataset. The results are presented in this Appendix.

e.1 Models

The base architecture of the CNN models is shown in Table 3

. To simplify the analysis, the convolutional layers were not padded, and large strides were used to replace the max-pooling layers. For the BN model, BN was added before ReLU activations. For the dropout model, dropout layers were added after ReLU activations.

Layers Parameters Activation
Input input size=(32, 32)3 -
Conv filters=(3, 3)32; strides=(2, 2) ReLU
Conv filters=(3, 3)64; strides=(2, 2) ReLU
Conv filters=(3, 3)128; strides=(2, 2) ReLU
Flatten - -
Dense nodes=1024 ReLU
Dense nodes=10 Softmax
Table 3: Architecture of the vanilla CNN model.

The models were trained with Adam optimizer (learning rate 1e-3, =0.9, =0.999) on the CIFAR-10 dataset without data augumentation. The pixel values were rescaled to [-1, 1]. The batch size was 256, and early stopping was used to reduce overfitting. After training, the accuracies on the test set of the vanilla, BN and dropout models were 68.2%, 70.1% and 69.2%, respectively. Since the goal of this paper is to show that different optimization techniques can result in models with similar classification accuracies but significantly different linear regions, we only trained our models with one learning rate (1e-3), because other learning rates (1e-2, 1e-4) led to models with significantly different classification accuracies.

e.2 Properties

As we have claimed in Section 2, a CNN model can be regarded as a highly sparse fully-connected DNN, which means we can analyze the properties of its linear regions in the same way. However, a convolutional layer may introduce some other properties into the linear regions. For example, considering the sparsity of the weights, a node of a convolutional layer can only partition a subspace into linear regions (instead of the whole input space, like a node in fully-connected DNNs does). Therefore, the partition of the linear regions are relatively independent for the nodes in a CNN, as most subspaces do not intersect. A direct consequence of their independency is that the properties of the linear regions in a CNN are more stable than those in a fully-connected DNN, which will be shown in the following experiments.

We randomly selected 1000 test points to perform the analysis. The inspheres of the linear regions in the CNNs are shown in Figure 9. Compared with the MNIST dataset, the CIFAR-10 dataset is more complicated and the mean point of a class is no longer classified into the same class, hence we randomly sampled a point from another class to replace the mean point described in Section 3 when constructing the decision regions. The experimental results show that both BN and dropout can narrow the linear regions. For dropout, the effect is more obvious on the decision boundaries than on the manifold regions.

Figure 9: Inradius distributions of different optimization techniques for CNN models.(a) Manifold region; (b) Decision region; (c) Adversarial region.

Figure 10 shows the angles between different hyperplanes of a linear region. According to the architecture of the models, the first hyperplanes were provided by the convolutional layers, and the last by the fully-connected hidden layer. Since a node in a convolutional layer only partitions a certain subspace into regions, most of the pixel values are 0 in Figure 10 because there is no intersection between two subspaces. However, we can still observe that BN can orthogonalize the directions of the hyperplanes, whereas dropout the opposite.

Figure 10: Angles between directions of different hyperplanes of a single manifold region. The indices on both axes indicate different hyperplanes: 0-7,199 represent the hyperplanes of the first convolutional layer, 7,200-10,335 the second convolutional layer, 10,336-11,487 the third convolutional layer, and 11,488-12,511 the fully-connected hidden layer. The value of a pixel is , i.e., the angle between and . (a) Vanilla; (b) BN; (c) Dropout.

Decision boundaries in the manifold regions of the CNNs seem less likely to be eliminated, compared with the fully-connected DNNs. As shown in Table 4, dropout can eliminate the decision boundaries in the manifold regions of CNNs, but BN did not work anymore. However, according to the distortions of the three models, BN still showed its ability to reduce the size of the manifold regions. Figure 11 shows a specific example of , whose original point was classified as . of the BN model had smaller distortion, which was also observed in fully-connected DNNs.

Measure Vanilla BN Dropout
Number 7.811 9.984 2.901
Distortion 27.08 20.85 25.25
Table 4: Average numbers of the classification regions in a manifold region, and the average distortions.

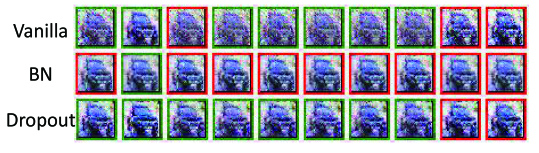

Figure 11: Different of a point which is classified into Class (automobile). From left to right, varies from to (airplane, automobile, bird, cat, deer, dog, frog, horse, ship, truck). Images with green borders are correctly classified into Class , and red borders misclassified into Class . Different rows represent models trained with different optimization techniques.

The numbers of unique surrounding regions of a manifold region are shown in Figure 12. Though BN showed its strength in increasing the number of the linear regions, the effect was less obvious compared with those in Figure 6 for fully-connected DNNs. As we have pointed out before, the sparsity of the weights in the convolutional layers contributes to the stability of the properties of the linear regions. The relevance of the surrounding regions shown in Figure 12 was similar to fully-connected DNNs. BN still shattered the decision directions, as well as dropout, which was slightly different from the results for fully-connected DNNs.

Figure 12: (a) Boxplot of the number of unique surrounding regions for 1000 test points; (b) Distributions of the cosine similarity of all unique surrounding regions for the 1000 test points.
