EMOGI: Efficient Memory-access for Out-of-memory Graph-traversal In GPUs

06/12/2020 ∙ by Seung Won Min, et al. ∙ ibm University of Illinois at Urbana-Champaign Nvidia 0

Modern analytics and recommendation systems are increasingly based on graph data that capture the relations between entities being analyzed. Practical graphs come in huge sizes, offer massive parallelism, and are stored in sparse-matrix formats such as CSR. To exploit the massive parallelism, developers are increasingly interested in using GPUs for graph traversal. However, due to their sizes, graphs often do not fit into the GPU memory. Prior works have either used input data pre-processing/partitioning or UVM to migrate chunks of data from the host memory to the GPU memory. However, the large, multi-dimensional, and sparse nature of graph data presents a major challenge to these schemes and results in significant amplification of data movement and reduced effective data throughput. In this work, we propose EMOGI, an alternative approach to traverse graphs that do not fit in GPU memory using direct cacheline-sized access to data stored in host memory. This paper addresses the open question of whether a sufficiently large number of overlapping cacheline-sized accesses can be sustained to 1) tolerate the long latency to host memory, 2) fully utilize the available bandwidth, and 3) achieve favorable execution performance. We analyze the data access patterns of several graph traversal applications in GPU over PCIe using an FPGA to understand the cause of poor external bandwidth utilization. By carefully coalescing and aligning external memory requests, we show that we can minimize the number of PCIe transactions and nearly fully utilize the PCIe bandwidth even with direct cache-line accesses to the host memory. EMOGI achieves 2.92× speedup on average compared to the optimized UVM implementations in various graph traversal applications. We also show that EMOGI scales better than a UVM-based solution when the system uses higher bandwidth interconnects such as PCIe 4.0.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Graph workloads are becoming increasingly widespread and common in various applications such as social network analysis, recommendation systems, financial modeling, bio-medical applications, graph database systems, web data, geographical maps, and many more (Sahu et al., 2017; Davis and Hu, 2011; Boldi et al., 2004b; Rossi and Ahmed, 2015; Yang and Leskovec, 2012; Beamer et al., 2015; Boldi and Vigna, 2004; Boldi et al., 2011, 2004a). Graphs used in these applications often come in huge sizes. A recent survey conducted by the University of Waterloo (Sahu et al., 2017) finds that many organizations use graphs that consist of billions of edges and consume hundreds of gigabytes of storage.

The main challenge that graph application developers currently face is performing graph traversal computations on large graphs (Sahu et al., 2017). Because of the massive parallelism present in the graph traversal computation, GPUs are increasingly used to perform graph analytics. However, the ability to process large graphs in GPUs is currently hampered by their limited memory capacity. Thus in this work, we primarily focus on developing an efficient graph traversal system using GPUs that accesses large graph data from host memory.

For efficient storage and access, graphs are stored in a compressed sparse row (CSR) data format as it has low memory overhead. In CSR format, a graph is stored as the combination of a vertex list and an edge list. Even with CSR data format, large graph datasets cannot fit in today’s GPU memory. Thus, most prior works store these large graphs in host memory and have GPUs access them through the unified virtual memory (UVM) mechanism (Harris, 2017; Gera et al., 2020; Li et al., 2019; Kim et al., 2020; Mailthody et al., 2018; Agarwal et al., 2015; Ausavarungnirun et al., 2017; Kehne et al., 2015). UVM brings both CPU memory and GPU memory into a single shared address space. UVM allows GPUs to simply access the data in the unified virtual address space and it transparently migrates required pages between host memory and GPU memory using a paging mechanism.

However, several prior work (Gera et al., 2020; Li et al., 2019; Kim et al., 2020; Mailthody et al., 2018; Agarwal et al., 2015; Ausavarungnirun et al., 2017; Kehne et al., 2015) have reported that the performance of graph traversal using UVM is not competitive. This is because memory accesses that go to the edge list during graph traversal are irregular in nature. Furthermore, based on our analysis of 1122 graphs that have at least 1M vertices and edges from LAW (Boldi et al., 2004b), SuiteSparse Matrix Collection (Davis and Hu, 2011), and Network Repository (Rossi and Ahmed, 2015), we find the average degree per vertex is about 71. This implies that when those graphs are represented in a compressed adjacency list format such as CSR, each vertex’s neighbor edge list is about 71 elements long on average. Thus transferring an entire 4KB page, as in the case of UVM, can cause memory thrashing and unnecessary I/O read amplification.

As a result, prior works have proposed pre-processing of input graphs by partitioning and loading those edges that are needed during the computation (Wang et al., 2016; Sengupta et al., 2015; Han et al., 2017; Sabet et al., 2020) or proposing UVM specific hardware or software changes such as locality enhancing graph reordering (Gera et al., 2020), GPU memory throttling (Li et al., 2019; Kim et al., 2020), overlapping compute and I/O (Gómez-Luna et al., 2017), or even proposing new prefetching policies in hardware that can increase data locality in GPU memory (Agarwal et al., 2015; Ausavarungnirun et al., 2017; Kehne et al., 2015).

In this work, we take a step back and revisit the existing hardware memory management mechanism for when data does not fit in GPU memory. Specifically, we focus on zero-copy memory access which allows GPUs to directly access the host memory in cache-line granularity. With zero-copy memory access, no complicated data migration is needed and GPUs can fetch data as small as 32-byte from the host memory. Even with such advantages, unfortunately, zero-copy is known to have underwhelming performance due to the low external interconnect bandwidth (Ganguly et al., 2020). Interestingly, however, we do not find any systematic analysis showing the exact limiting factor of the zero-copy performance or leading to any effort to improve it.

Instead of making a premature conclusion, we build a system with a custom-designed FPGA-based PCIe traffic monitor and explore any opportunity to optimize zero-copy performance. We use the system to address the question of whether a sufficiently large number of overlapping cache-line-sized accesses can be sustained to 1) tolerate the long latency to host memory, 2) fully utilize the available bandwidth, and 3) achieve favorable execution performance for graph traversal applications. To this end, the key goal of our work is to avoid performing any pre-processing or data manipulation on the input graph and allowing GPU threads to directly perform cache-line-sized accesses to data stored in host memory during graph traversals.

By using a toy example, we show that by naively enabling zero-copy, the system cannot saturate the PCIe 3.0 x16 bandwidth (see  3.3). To address this, we propose two key software optimizations needed to best exploit PCIe bandwidth for the zero-copy access. First, we propose the merged memory access optimization that optimizes for generating maximum-sized PCIe request to zero-copy memory (see  3.3). Second, we propose forcing memory access alignment by shifting all warps to 128-byte boundaries when there is misalignment. This is because the memory access merge optimization does not guarantee memory request alignment. Such misalignment can result in performance degradation. While these optimizations sacrifice some parallelism and incur additional control divergence during kernel execution, their benefit in terms of improved bandwidth utilization far outweighs the cost. We then apply these two optimizations to popular graph traversal applications including breadth-first search (BFS), single-source shortest path (SSSP), and connected components (CC) to enable efficient traversal on large graphs.

Using real-world and synthetic large graphs (see Table 2), we show that EMOGI can achieve 2.93 speedup on average compared to the optimized UVM implementations of BFS, SSSP and CC benchmarks across a variety of graphs. We also evaluate EMOGI on the latest generation of the NVIDIA Ampere A100 GPU with PCIe 4.0 and show that EMOGI still remains performant and scales better than the UVM solution when using higher-bandwidth interconnect. EMOGI achieves speedups of up to 4.73 over current state-of-art GPU solutions (Gera et al., 2020; Sabet et al., 2020) for large out-of-memory graph traversals. In addition, EMOGI does not require preprocessing or runtime page migration engine.

To the best of our knowledge, EMOGI is the first work to systematically characterize GPU PCIe access patterns to optimize zero-copy access and to provide in-depth profiling results of varying PCIe access behaviors for a wide range of graph traversal applications. Overall, our main contributions can be summarized as follows:

  1. We propose EMOGI, a novel zero-copy based system for very large graph traversal on GPUs.

  2. We propose two zero-copy optimizations, memory access merge and memory access alignment, that can be applied to graph traversal kernel code to maximize PCIe bandwidth.

  3. We show EMOGI performance scales linearly with CPU-GPU interconnect bandwidth improvement by evaluating PCIe 3.0 and PCIe 4.0 interconnects.

The rest of the paper is organized as follows: we provide a brief primer on GPU based graph traversal and the challenges in executing graph traversals using UVM in  2. We then discuss how to enable zero-copy memory with GPUs and discuss the reasons for its poor performance in a naive but common kernel code pattern in  3. Using the gained insights, we then apply zero-copy optimizations to graph traversal algorithms in  4. We discuss EMOGI’s performance improvement for various graph traversal algorithms on several large graphs in  5.  7 discusses how EMOGI differs from prior work and we conclude in  8.

2. Background

In this section, we first provide a brief primer on GPU based graph traversal. Then we will describe techniques used to traverse graphs that cannot fit into the GPU memory.

2.1. Parallelizing Graph Traversal on GPUs

Graph traversals can be largely divided into a vertex-centric (Harish and Narayanan, 2007; Khorasani et al., 2014; Tian et al., 2013) method and an edge-centric (Roy et al., 2013) method. The vertex-centric method can be further divided into a scatter-based method and a gather-based method. In this paper, we mainly focus on the vertex-centric + scatter method due to its simplicity.

set_initial_active_vertex()
for all vertices v in Graph G do
       if v is active then
             set v as inactive
             for all neighbors v of v do
                   application_dependant_workload()
                   if application_dependant_condition() then
                         set v as active
                   end if

             end for

       end if

end for
Algorithm 1 High-level Graph Traversal Flow

The exact workflow of the graph traversal highly depends on the type of the application and the optimization level, but a general flow can be described with Algorithm 1. First, before the traversal begins, initial active vertices need to be set. In the case of BFS, only a single vertex needs to be set as active, which is basically a source vertex. Once all the initial active vertices are set, the graph traversal can begin. Graph traversal is composed of multiple iterations of sub-traversals. In each sub-traversal, all immediately neighboring vertices of the currently active vertices are exhaustively traversed. The condition to set the next active vertices depends on the type of application as well. In the case of BFS, any neighboring vertices which are not visited ever before are marked to be the next active vertices. The traversal ends once there are no more active vertices left in the graph.

The main benefit of the GPU implementation of the graph traversal comes from the massive number of vertices (Boldi and Vigna, 2004; Boldi et al., 2011; Yang and Leskovec, 2012). With a help of several atomic instructions (may not be necessary), both the inner loop and the outer loop in Algorithm 1 can be fully parallelized with GPU for various kinds of graph traversal applications (Harish and Narayanan, 2007; Hawick et al., 2010; Che, 2014; Hong et al., 2011).

As an input graph format for the GPU graph traversal, we use compressed sparse row (CSR) format. CSR is arguably the most popular way to represent a graph because of its low memory overhead (Wang et al., 2016; Sengupta et al., 2015; Han et al., 2017; Sabet et al., 2020; Pan et al., 2017; Zhong and He, 2014). CSR encodes the entire graph with just 2 arrays, as shown in Figure 1. The edge list stores each vertex’s neighbor list contiguously, such that all the neighbors of vertex 0 are stored first, then the neighbors of vertex 1, and so on. The vertex list is indexed by a vertex ID and stores the starting offset of that vertex’s neighbor list in the edge list. When there are any additional vertex and edge values such as weights, they can be either combined with the existing lists by forming tuples or a separate dedicated list can be allocated.

Figure 1. Sample undirected (a) graph and its (b) CSR representation. The edge list contains the neighbor list for each node. The vertex list is indexed by vertex IDs and contains the offsets for the starting position of that vertex’s neighbor list in the edge list.

2.2. Out-of-Memory Graph Traversal on GPUs

Graphs, even in the CSR format, can be orders of magnitude larger than GPU memory. The easiest way to enable GPU based graph traversal on such graphs is to use the Unified Virtual Memory (UVM) (M. Harris (2017); 37; 38; P. Gera, H. Kim, P. Sao, H. Kim, and D. Bader (2020); C. Li, R. Ausavarungnirun, C. J. Rossbach, Y. Zhang, O. Mutlu, Y. Guo, and J. Yang (2019); H. Kim, J. Sim, P. Gera, R. Hadidi, and H. Kim (2020); V. S. Mailthody, K. Date, Z. Qureshi, C. Pearson, R. Nagi, J. Xiong, and W. Hwu (2018); C. Pearson, M. Almasri, O. Anjum, V. S. Mailthody, Z. Qureshi, R. Nagi, J. Xiong, and W. Hwu (2019); N. Agarwal, D. Nellans, M. Stephenson, M. O’Connor, and S. W. Keckler (2015); R. Ausavarungnirun, J. Landgraf, V. Miller, S. Ghose, J. Gandhi, C. J. Rossbach, and O. Mutlu (2017); J. Kehne, J. Metter, and F. Bellosa (2015)). UVM is a unified memory management module that provides a single memory address space accessible by both CPU and GPU through the page faulting mechanism. UVM reduces the burden on the programmer as they do not have to explicitly manage where the data resides. UVM transparently allows device memory over-subscription with the use of CPU memory, enabling computation on large data sets that exceed GPU device memory capacity. The UVM driver is responsible for on-demand page migration between the CPU and GPU.

The granularity of the data migration may vary depending on the data access pattern, but the minimum granularity is a system page size (4KB). Once the page is migrated, subsequent accesses to the same page do not need additional data migrations and the accesses can directly go to the GPU memory. If the memory footprint of the kernel is larger than the GPU memory, some pages need to be evicted from the GPU memory to host other pages during the kernel runtime. Since the entire management process is single-threaded, the overall performance of the UVM page migration heavily depends on the single-thread performance of the host CPU.

The inefficiency of UVM in graph traversal comes in two ways. First, for the very large graphs, it is hard to exploit temporal locality as the limited GPU memory capacity will cause frequent page thrashing. Second, there is a lack of spatial locality between the neighbor lists of vertices being visited in an iteration, causing significant I/O read amplification and more frequent page migrations. For example, in Figure 1, the neighbor lists of the vertex 1 and 3 need to be accessed at the same time we start BFS from the vertex 4. However, as shown in the CSR representation, the lists are non-contiguous in the edge list. In a more realistic case with a large graph, these lists can be separated by millions of elements in the edge list. Therefore, accessing these two lists will likely generate two separate 4KB page migrations. Assuming that all accesses to the different neighbor lists will generate separate 4KB page migrations, all neighbor lists should have least 512 to 1024 of elements (depends on the datatype size) to make the 4KB data transfer 100% efficient, which might be quite challenging. By combining the frequent page migrations caused by the lack of data locality and the high page fault handling overhead of UVM, GPU performance can be severely throttled.

3. Zero-Copy

To allow GPU threads access to the external memory in smaller granularity than UVM, GPUs support marking memory address ranges as zero-copy memory (9). Zero-copy, also often referred to as direct access, does not require any page migration or duplication between the external and GPU memories. Instead, GPU threads access zero-copy memory as if it was GPU global memory, and the GPU transforms memory requests from the threads to memory requests over an external interconnect like PCIe. The target of the memory requests can be anywhere in the system as long as the location can be memory-mapped into the shared bus address. Common examples include system memory, peer-connected PCIe network interface card, and peer-connected GPU. Due to the high latency of the external interconnects, using zero-copy was thought to have low bandwidth (Ganguly et al., 2020) and thus often used for only accessing small or infrequently accessed data. In this section, we describe how to enable zero-copy and use a peer-connected FPGA to explore any optimization opportunities available for zero-copy in detail. Based on the analysis, we show several essential optimization techniques to maximize the zero-copy bandwidth. With proper implementation, zero-copy can nearly saturate the PCIe bandwidth.

3.1. Enabling Zero-Copy

From the system’s point of view, zero-copy is enabled as follows: First, the data to be shared with GPU must be pinned in the host memory. Pinned memory cannot be swapped out to the disk or relocated by the host OS memory manager. Second, the corresponding bus address (e.g. PCIe) of the pinned data should be mapped into the GPU page table so the GPU can generate a correct external memory request. Finally, the mapped address should be passed to the userspace so the programmer can use pointers in the GPU kernel to access the region.

From CUDA API’s point of view, zero-copy can be enabled in three ways. First technique uses cudaMallocManged() to allocate UVM space and applies cudaMemAdviseSetAccessedBy flag with cudaMemAdvise(). The resulting data pointer can be directly used from CUDA kernels to generate zero-copy memory access. One thing worth noting here is that the cudaMemAdviseSetAccessedBy flag should not be used with other cudaMemAdvise() flags since the other flags override cudaMemAdviseSetAccessedBy. Second is by using cudaMallocHost(). This is the simplest method since the memory allocated by cudaMallocHost() can be directly used in the CUDA kernel to do zero-copy access. The last scheme uses general memory allocators, like malloc(), and cudaHostRegister() and cudaGetDevicePointer() on top of the allocated memory. In this case, the cudaHostRegister() pins the allocated memory space and cudaGetDevicePointer() returns a CUDA-compatible pointer. Our experiments showed all three techniques provided the same performance.

Figure 2. PCIe traffic monitoring environment. The FPGA is used to characterize the zero-copy memory access pattern from GPU.
Figure 3. GPU PCIe memory request patterns observed with FPGA. In (a), each thread scans a different 128-byte block and end up making multiple 32B PCIe memory read requests. In (b), individual 32B memory read requests in a contiguous address space occur at the same time and GPU merges them into a single 128B PCIe memory read request. In (c) each warp is performing a misaligned memory request (off by 32B from 128B boundary) resulting in generating a 32B PCIe and 96B PCIe request. In this figure, we assume each memory access is for 4B.

3.2. Zero-Copy Analysis Setup

To understand how GPU accesses external zero-copy memory over PCIe, we designed and built the monitoring system shown in Figure 2. The FPGA is connected to the GPU using a PCIe switch in peer-to-peer mode. Furthermore, the FPGA is programmed to advertise itself as a large memory using the base address register (BAR) region provided by the PCIe specification (41). This advertised FPGA memory region can be mapped to the user space using the mmap() system call. The returned pointer value from the mmap() call can be used by CPU to access the FPGA as a zero-copy region. To allow the GPU direct access to the FPGA, we pass the pointer to cudaHostRegister() and cudaGetDevicePointer() CUDA APIs. The final pointer generated by the two APIs can be passed to the CUDA kernel code and dereferenced by GPU threads, thus allowing zero-copy access to the FPGA. Using this system, we can now analyze the low-level PCIe traffic of zero-copy memory access by the GPU. To this end, we add custom logic in the FPGA to monitor the request count, average/peak number of outstanding memory requests, and request sizes.

3.3. Zero-Copy Mechanism and Optimization

Now that we have a way to track zero-copy memory requests, we next need to understand the GPU access pattern to zero-copy memory. We create a toy example where the GPU needs to traverse a large 1D array in a zero-copy region and use a GPU kernel to copy its content to the GPU’s global memory. The algorithm to solve the toy example can either perform strided access or merged with misaligned access or merged with aligned access. All PCIe traffic generated by these three variants is monitored using the FPGA monitoring platform and Intel VTune

(23). PCIe layer in Figure 3 shows the GPU access patterns we observed with the FPGA monitoring platform while trying different CUDA kernels. We observe that GPU can access the zero-copy memory in four different sizes starting from 32-byte to 128-byte in 32-byte steps. The access size is dependent on the algorithm access pattern and is described next.

Strided Access: In this method, each thread takes a chunk of the 1D-array and iterates over the chunk one element at a time. This access pattern is illustrated in Figure 3 (a). With GPU threads iterating over their neighbor lists, we find that each thread generates a new 32-byte request every time they cross a 32-byte address boundary. Therefore, if the data type of the array is 4-byte, each PCIe request can serve up to 8 memory accesses.

However, this 32-byte request brings several limitations to the overall system. First, each PCIe 3.0 transaction layer packet (TLP) has at least an 18-byte of header overhead. Thus, fetching 32-byte of data makes the PCIe overhead ratio of at least 36%. Second, considering the PCIe latency, the number of outstanding requests to saturate the PCIe interconnect is non-negligible. With our test platform, we find the PCIe round trip time (RTT) between the GPU and the FPGA is about roughly 1.0us to 1.6us. By the PCIe 3.0 specification, the maximum number of outstanding requests is 256 as the width of the tag field used to record the outstanding request is 8-bit (41). In this case, the maximum bandwidth we can achieve with only 32-byte requests and 1.0us of RTT is merely 32B / ( 1.0us / 256 ) = 7.63GB/s. If we assume the PCIe RTT is always 1.6us, the bandwidth further decreases to 4.77GB/s. Third, the minimum memory access size for DDR4 DRAM is 64-byte in the test system. Considering that DDR4 2400MHz DRAM can provide 19.2GB/s of sequential bandwidth, requesting only 32-byte read requests halves the effective DRAM bandwidth to 9.6GB/s. Even the overall DRAM bandwidth can be increased by adding more memory channels, this is still very wasteful. Finally, these 32-byte data items will likely occupy GPU cache and can be evicted before all elements are traversed due to cache thrashing.

Figure 4 shows the average PCIe and DRAM bandwidth utilization over time when executing the traversing kernel as reported by Intel VTune. The peak bandwidth we achieved with UVM is drawn as a red dashed line in the figure as a reference. Looking at Figure 4 (a), we can clearly identify the limitations previously described. The amount of data that needs to be read from DRAM is doubled to serve 32-byte PCIe requests. The PCIe bandwidth is also far from the maximum PCIe 3.0 x16 bandwidth as the number of outstanding requests is not enough and the per-request PCIe overhead is significant. Furthermore, it results in transferring more bytes to the GPU compared to the original dataset size due to the frequent cacheline evictions. To address these limitations the key is to align and merge accesses. We analyze the PCIe and DRAM bandwidth utilization with these optimizations next.

Figure 4. Average PCIe and DRAM bandwidth utilization for the different zero-copy access patterns, as reported by Intel VTune.

Merged and Aligned Access: In this case, threads are grouped into warps, with each warp containing 32 threads, and the threads in a warp access consecutive elements in a 128-byte cacheline of the input array. This allows the GPU coalescing unit to automatically merge the contiguous 32-byte memory requests into a single larger 128-byte PCIe request (Figure 3 (b)). With 128-byte PCIe requests, it becomes much easier to reach the maximum PCIe bandwidth. First, the PCIe TLP overhead ratio decreases from 36% to 12.3% . Second, having only 135 PCIe outstanding requests is sufficient to reach 16GB/s of bandwidth (without considering other PCIe overheads). Lastly, 128-byte is a multiple DRAM request size and therefore there is no inefficiency in the DRAM interface. In Figure 4 (b), we see this approach can saturate the PCIe bandwidth at about 12.23GB/s, matching the measured bandwidth when using the cudaMemcpy() API to perform a block data transfer.

Merged but Misaligned Access: However, for all practical purposes, guaranteeing 128-byte alignment for any data structure can be difficult. It is possible that the starting index of a warp is not aligned with the 128-byte boundary. Some warps may need to make two separate PCIe requests to fetch a single 128-byte cacheline. In the worst case, if a warp’s memory access is not 128-byte aligned and warps access contiguous regions of memory, the misalignment can be cascaded to all subsequent warps. Unfortunately, this results in all warps generating two PCIe requests. In Figure 3 (c), we show an emulated misaligned case where each warp is intentionally accessing memory offset by 32-byte from 128-byte boundary and therefore all warps end up generating a 32-byte and a 96-byte PCIe request. From Figure 4 (c), we can see the achieved PCIe bandwidth is lower than the aligned case. To avoid this, either the starting index of warps should be shifted or the input data must be shifted in memory so the data accessed first is 128-byte aligned.

4. EMOGI: Zero-Copy Graph Traversal

Now that we understand zero-copy memory and its characteristics, we discuss how to efficiently use zero-copy memory for graph traversal when the graph cannot fit in the GPU memory. First, we describe the micro data locality we observed in graph traversal applications to justify why zero-copy should perform better than UVM (see  4.1). Then, we introduce our baseline graph traversal algorithm (see  4.2) and optimize it for zero-copy memory based on the knowledge we gathered from  3.3 (see  4.3).

4.1. Data locality in Graph Traversal

To exploit zero-copy for graph traversal, we preferably need at least 128-byte of spatial locality to best use each memory access. A single 128-byte zero-copy access can have 16 or 32 elements of data if the CSR data type is 8-byte or 4-byte, respectively. Compared to UVM, which requires at least 4KB of spatial locality (512 or 1024 elements of data), finding 16 to 32 elements of spatial locality is reasonable for the graphs we studied.

Based on our analysis of 1122 graphs from Network Repository (Rossi and Ahmed, 2015), SuiteSparse Matrix Collection (Davis and Hu, 2011), and LAW (Boldi et al., 2004b), we find the average degree per vertex is 71. This means, when those graphs are represented in an adjacency list format like CSR, each vertex’s neighbor list is 71 elements long on average. Considering that graph traversal algorithms require scanning the entire neighbor list of a vertex, we can obtain a spatial locality of 71 elements on average in graphs. Such a spatial locality can benefit from efficient 128-byte requests to zero-copy memory. In contrast, it is more difficult to achieve the same level of efficiency using UVM since the available spatial locality is significantly less than the required 512 or 1024 elements.

4.2. EMOGI Baseline

EMOGI assumes the input graph is stored in the memory using the CSR data layout (see  2.1). All input data structures are statically mapped during initialization. The edge list is allocated in the host memory as it doesn’t fit in GPU memory, but other small data structures such as buffers and the vertex list are allocated in GPU memory. It is worth noting that even for the biggest graphs we evaluated (see  5.2), the vertex list consumes at most about 1GB of memory. Thus, GPU memory is sufficient for the vertex list.

EMOGI adopts vertex-centric graph traversal algorithms. For every vertex that needs to be processed, a worker is assigned and the worker traverses a neighbor list associated with the vertex in the edge list. Listing 1 shows the pseudo-code of our naive baseline implementation. Here, the worker is a single GPU thread and each worker is assigned to the neighbor list associated with its corresponding vertex. When each neighbor list is larger than 128-byte, this baseline implementation has a similar memory access pattern to the strided case explained in  3.3.

Compared with the UVM approach, EMOGI’s graph traversal approach removes the page faults from occurring and reduces the I/O amplification as only the needed bytes are moved. In the vertex-centric graph traversal approach, the input graph is traversed by a single vertex depth on every kernel execution. Therefore the total number of kernels launched, say in the case of breadth-first-search (BFS), is equal to the distance between the source vertex to the furthest reachable vertex.

4.3. Optimizations

Since the EMOGI baseline implementation is similar to the strided case presented in  3.3, it suffers from uncoalesced memory requests. As we noted, without addressing this, one cannot generate efficient PCIe requests to the zero-copy memory. In this subsection, we will discuss how EMOGI addresses this limitation using the insights from  3.3 and modifying only the GPU kernel code of the traversal application. Thus, it is entirely possible to package the proposed optimizations into a library to lessen the programmer’s effort when trying to exploit them.

1void naive(*edgeList, *offset, ...) {
2    thread_id = get_thread_id();
3    ...
4    start = offset[thread_id];
5    end = offset[thread_id + 1];
6
7    // Each thread loops over a chunk of edge list
8    for (i = start; i < end; i++) {
9        edgeDst = edgeList[i];
10        ...
11    }
12    ...
13}
Listing 1: Uncoalesced Memory Access
1#define WARP_SIZE 32
2
3void aligned(*edgeList, *offset, ...) {
4    thread_id = get_thread_id();
5    lane_id = thread_id % WARP_SIZE;
6    // Group by warp
7    warp_id = thread_id / WARP_SIZE;
8    ...
9    start_org = offset[warp_id];
10    // Align starting index to 128-byte boundary
11    start = start_org & ~0xF; // 8-byte data type
12    end = offset[warp_id + 1];
13
14    // Every thread in a warp goes to the same edgelist
15    for (i = start; i < end; i += WARP_SIZE) {
16        // Prevent underflowed accesses
17        if (i >= start_org) {
18            edgeDst = edgeList[i + lane_id];
19            ...
20        }
21    }
22    ...
23}
Listing 2: Coalesced Memory Access (Merged + Aligned)

4.3.1. Merged Memory Access:

EMOGI performs merged memory accesses in per vertex granularity, similar to  (Hong et al., 2011). The difference between EMOGI and  (Hong et al., 2011) is that EMOGI always fixes the worker size to an entire warp (i.e., 32 threads). Thus a whole warp is responsible for traversing the neighbor list of one vertex. The specific implementation of this optimization is explained with red comments in Listing 2. This allows EMOGI to always optimize for generating the maximum sized PCIe request to the zero-copy memory. If the input graph fits in the GPU memory and the average degree of vertices in the graph is small, fine-tuning the worker size could potentially reduce the number of idle threads during each fetch, exploit more memory parallelism, and ultimately utilize GPU global memory bandwidth more efficiently. However, EMOGI’s primary goal is to achieve good performance on graphs that do not fit in the GPU memory and it requires fetching data over an external interconnect that is about 10-100 slower than the GPU global memory. In this case, fine-tuning and reducing the worker size cannot add any additional benefit as there is no further room to accept more memory requests in the already constrained interconnect. In fact, making smaller memory requests can have an adverse effect and decrease the effective bandwidth. Empirically we observed when the interconnect bandwidth is low, a large number of threads are idle. Therefore, assigning a 32-thread warp to fetch data for even vertices with very few neighbors results in acceptable performance.

4.3.2. Aligned Memory Access

As we discussed in  3.3

, a misaligned access to the 1D data array can result in multiple smaller zero-copy requests. To address this, we have to not only merge memory accesses but align them as well. However, doing this on a CSR edge list is not straightforward. This is because CSR doesn’t align the edge list as alignment requires padding and thus increases memory footprint. Starting addresses of neighbor lists for graphs stored in CSR can be at any location in the memory.

One way to address this challenge is to pre-process the CSR graphs and align neighbor lists to 128-byte boundaries. However, this might incur excessive memory overhead. More importantly, one of the goals of this work is to avoid any pre-processing.

Therefore, instead of manipulating the input data, we force all warps to start from the closest preceding 128-byte boundary when there is misalignment. For instance, as shown in Listing 2 with blue comments, all starting indices fetched from the offset array is shifted to the closest 128-byte boundary before the list. With this change to the GPU kernel code, all subsequent warp memory accesses are guaranteed to have 128-byte alignment. Of course, some of the threads in the warp must be turned off during the first iteration of data fetching with a conditional statement to prevent reading unnecessary bytes. Similar to the memory access merge optimization, this additional conditional statement increases the occurrence of control divergence in CUDA kernels. However, due to the high external interconnect latency, it is more important to not miss any opportunity for generating large memory requests.

5. Evaluation

Our evaluation shows that (1) EMOGI improves the performance of graph traversal algorithms by efficiently accessing the zero-copy memory for very large graphs, (2) EMOGI is mainly limited by the PCIe bandwidth and it scales almost perfectly linearly when PCIe 3.0 is replaced with PCIe 4.0, (3) EMOGI remains performant even with the latest generation of GPU NVIDIA Ampere A100 (35) and achieves better scaling compared to the UVM optimized implementation.

5.1. Experiment Setup

5.1.1. System Overview:

We use a Cascade-lake server machine with two 20 core Intel Xeon Gold 6230 CPUs equipped with 256GB of DDR4 2933MHz memory and an NVIDIA Tesla SXM2 V100 16GB GPU as our evaluation platform. The system is configured as shown in Figure 2. We use the FPGA only to analyze the zero-copy memory access pattern across different graphs. The detailed system specification is provided in Table 1. Graph edge lists are stored in the host memory while the vertex list and other temporary data structures are stored in the GPU memory.

5.1.2. Systems Compared:

To show the performance benefit of EMOGI, we use three different graph traversal algorithms: Breadth-First Search (BFS), Single-Source Shortest Path (SSSP), and Connected Components (CC). We base our initial implementation of BFS and SSSP from  (Nai et al., 2015; Hong et al., 2011) while the CC baseline implementation is from  (Xu et al., 2017). We compare EMOGI with the following systems:

(a) UVM implementation stores the CSR edge list in the UVM address space while the vertex list is kept in the GPU memory. In addition, the CSR edge list in the UVM address space is marked as cudaMemAdviseSetReadMostly using the cudaMemAdvise() CUDA API call. This optimization allows the GPU to create a read-only copy of the accessed pages in the GPU’s memory. We also tested other available flags and UVM hints and we found that this configuration provided the best overall performance when using UVM.

(b) Naive implementation is the baseline implementation of EMOGI using zero-copy memory and is identical to Algorithm 1. In this implementation, the vertex list is stored in the GPU memory while the edge list is kept in the zero-copy host memory.

(c) Merged implementation of EMOGI merges the memory requests to the zero-copy memory, as discussed in  4.3.1. However, in this implementation, there is no guarantee that accesses to the zero-copy memory are aligned.

(d) Merged+Aligned implementation is the fully optimized version of EMOGI where the memory accesses are not only merged but we force all warps to shift to the 128-byte boundary when there is a misalignment. This implementation is discussed in  4.3.2.

Category Specification
CPU Dual Socket Intel Xeon Gold 6230 20C/40T
Memory DDR4 2933MHz 256GB in Quad Channel Mode
GPU Tesla V100 HBM2 16GB, 5120 CUDA cores
OS CentOS 8.1.1911 & Linux kernel 5.5.13
S/W NVIDIA Driver 440.82 & CUDA 10.2.89
Table 1. Evaluation system configuration.
Sym. Graph Number Size (GB)
GK GAP-kron (Beamer et al., 2015) 134.2M 4.22B 31.5 15.7
GU GAP-urand (Beamer et al., 2015) 134.2M 4.29B 32.0 16.0
FS Friendster (Yang and Leskovec, 2012) 65.6M 3.61B 26.9 13.5
ML MOLIERE_2016 (Sybrandt et al., 2017) 30.2M 6.67B 49.7 24.8
SK sk-2005 (Boldi and Vigna, 2004; Boldi et al., 2011, 2004a) 50.6M 1.95B 14.5 7.3
UK5 uk-2007-05 (Boldi and Vigna, 2004; Boldi et al., 2011) 105.9M 3.74B 27.8 13.9
Table 2. Graph Datasets. = Vertex, = Edge, and = Weight.

5.2. Evaluation Datasets

For the evaluation, we use the graphs listed in Table 2. GK, GU, FS, and ML are the largest four graphs from SuiteSparse Matrix Collection (Davis and Hu, 2011) and SK, and UK5 are commonly used large graphs from LAW (Boldi et al., 2004b). This collection of graphs covers data from different areas such as biomedicine, social networks, web crawls, and even synthetic graphs. All vertex and edge lists use 8-byte per element unless specified otherwise. All the graphs, except for SK and UK5, are undirected. We use the default weights for GU, GK, and ML graphs while we randomly initialize weights for the rest of the graph from the integer values between 8 to 72. Weights are represented in 4-byte datatype. The average degree of the graphs is 38, except for the ML graph, which has an average degree of 222. For fair BFS and SSSP performance evaluations, we pick 64 random vertices from each graph as the starting sources and reuse the selected vertices for all measurements. The final execution time is calculated by averaging the execution times of the 64 cases, but some results are removed from the average when the selected vertices have no outgoing edges.

5.3. Case-Study: Breadth-First Search

In this section, we take BFS as an example and thoroughly evaluate PCIe traffic for request size distribution, achieved bandwidth, and the total amount of data transferred. Throughout the evaluation, we use the UVM implementation as the baseline.

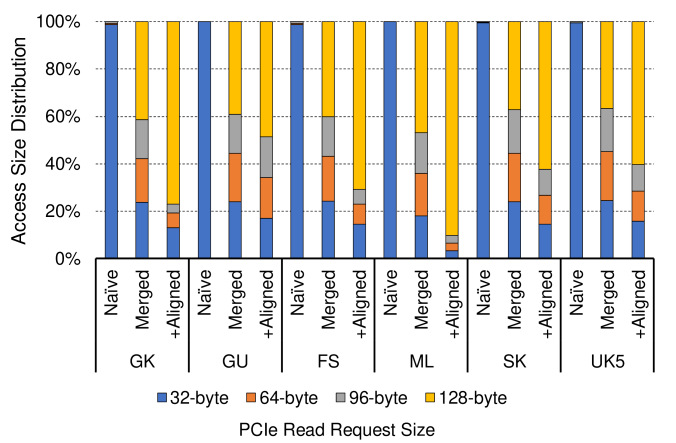

Figure 5. Distribution of PCIe read request sizes in BFS. +Aligned is abbreviation for Merged+Aligned. As the merged and aligned optimizations are added, the BFS application generates more 128-byte requests for efficient access.

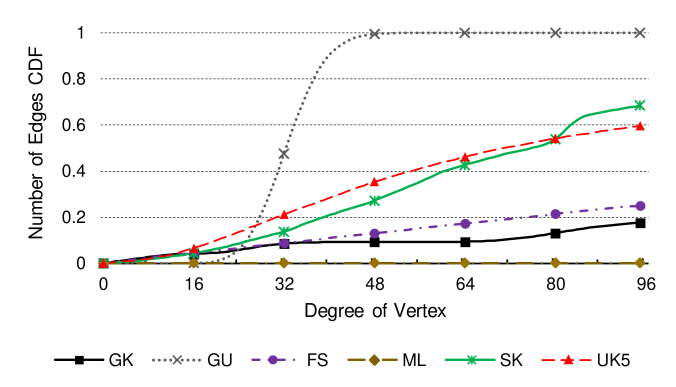

Figure 6. Number of edges CDF of evaluation graph. This plot provides us a better understanding of the distribution of the neighbor list sizes in the graphs. For example, the GU graph has all of its edges associated with vertices with degree between 16 and 48, meaning the neighbor lists contain at most 48 neighbors.

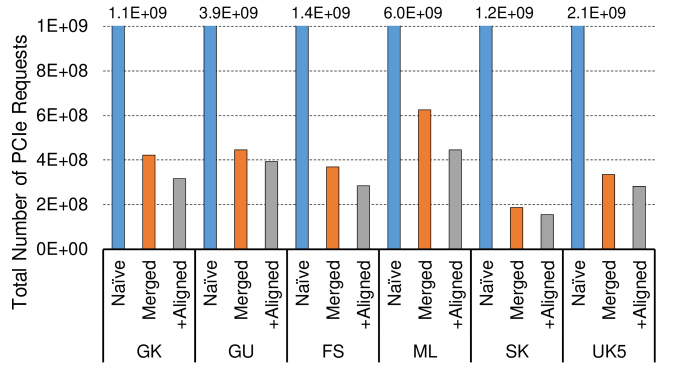

Figure 7. Number of PCIe requests sent for Naive, Merged and Merged+Aligned implementations while executing BFS on various graph. Collected from FPGA. Merged optimization reduces the PCIe memory requests by up to 83.3% compared to the Naive implementation. Merged+Aligned optimization can further reduce the PCIe memory requests by up to 28.8%. +Aligned is abbreviation for Merged+Aligned.

5.3.1. Zero-copy Request Size Distribution:

In this evaluation, we show the impact of optimizing the memory access pattern from  3.3 on generating different sizes of PCIe request. The histogram of the PCIe request size is gathered using the FPGA monitoring platform explained in  3.2. In Figure 5, we show the breakdown of request sizes for all the PCIe requests from the three implementations: Naive, Merged, and Merged+Aligned.

We observe in Figure 5 that nearly all PCIe requests in the case of Naive implementation are of 32-byte granularity. This is because it is only possible to generate a PCIe request larger than 32-byte in the Naive implementation when multiple neighbor lists happen to be spatially near in the edge list and they are accessed by multiple threads in a single warp. However, such a scenario is extremely unlikely. For example, we observe that only 1.3% of the PCIe requests from BFS on the FS graph are of a size bigger than 32-bytes.

When we analyze the request size distribution for the Merged and Merged+Aligned optimized implementations, we observe the following. First, although with the Merged approach the percent of 128-byte requests increases to about 40% on average, the percent of 128-byte requests is slightly higher than average for the ML graph, at about 46.7%. Second, when using the +Aligned approach on graphs that have most of their edges associated with high-degree vertices, we expect that most zero-copy memory requests should be for 128-bytes. This is expected because in the +Aligned implementation, zero-copy memory requests are merged and aligned to 128-byte granularity whenever possible. We observe this behavior for most graphs in Figure 5. For example, the percent of 128-byte requests improves by 1.86 for the GK graph between the Merged and +Aligned implementations. However, the percent of 128-byte requests improves by only 1.25 between the two implementations on the GU graph, a graph that has a similar number of edges and vertices as the GK graph.

To further analyze these behaviors, we plot in Figure 6

, the cumulative distribution function (CDF) on the number of edges in each graph. CDF on the number of edges provides us a better understanding of the distribution of the neighbor list sizes in the graph. The horizontal axis of this CDF is cut to 96 as many of the graphs have vertices with an extremely high degree. From Figure

6, we see that the ML graph has nearly no edges associated with small degree vertices. Thus, with the Merge optimization many requests can be merged to 128-bytes for the ML graph. The other graphs, like FS, have some edges associated with small degree vertices. Thus not all of their requests can be merged. Because most vertices have long neighbor lists in the ML graph, the +Aligned optimization further maximizes the 128-byte zero-copy accesses, as shown in Figure 5, and, as a result, reduces the total number of zero-copy memory requests by 28.8%, as shown in Figure 7.

To understand why the request size distribution of GK and GU graphs are significantly different for the +Aligned optimization, we need to understand the neighbor list size distributions of these graphs. The neighbor lists of the GK graph are extremely unbalanced while the GU graph has uniformly low degrees varying from 16 to 48. If we assume the starting location of each neighbor list is uniformly random, then the chance of each neighbor list starting at the exact 128-byte boundary is only 6.25% when the data type size is 8-bytes. Therefore, in most cases, the neighbor lists of graphs are not aligned at the 128-byte boundary by default. If the neighbor list sizes are extremely unbalanced, like in GK, then the misalignment is less problematic since the vertices with high degrees can amortize the cost of the one-time misalignment fix. However, if all vertices have uniformly low degrees, like in GU, then there is no opportunity to amortize the cost of the one-time misalignment fix per vertex. Due to this, among all the graphs evaluated, only GU shows very little improvement with the +Aligned optimization.

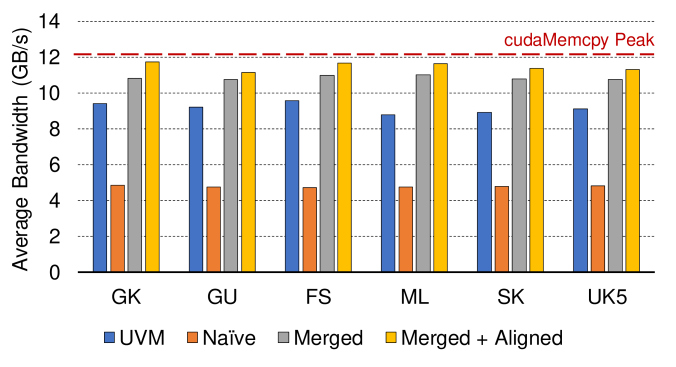

Figure 8. Average PCIe 3.0 x16 bandwidth utilization of the different implementations executing BFS. The Merged+Aligned implementation can nearly saturate the available PCIe bandwidth.

5.3.2. PCIe Bandwidth Analysis:

The bandwidths we measured are more or less aligned with PCIe request size distributions. In Figure 8, we show the average achieved PCIe bandwidth while executing BFS. We measured the maximum achievable PCIe bandwidth with cudaMemcpy() to be 12.3GB/s. Because of the page faulting overhead present in the UVM, it can only achieve PCIe bandwidth of 9GB/s. EMOGI’s Naive implementation of BFS can only reach up to 4.7GB/s PCIe bandwidth. This is in sync with what we observed using the toy example in Figure 4. With the merge optimization, the PCIe bandwidth utilization increased up to 11GB/s, reaching about 90% of the peak cudaMemcpy() bandwidth. With the Merged+Aligned optimization, we add about 0.5 to 1GB/s of additional bandwidth utilization on top of merge optimization in all cases. The GU graph has the least amount of improvement from the alignment optimization among all graphs. This is because BFS on the GU graph cannot send enough number of 128-byte requests to saturate PCIe interconnect bandwidth. By comparing Figure 5 and Figure 8, we can clearly see the correlation between the distribution of PCIe request sizes and the achieved bandwidths in a real application, thus confirming our the analysis in  3.3.

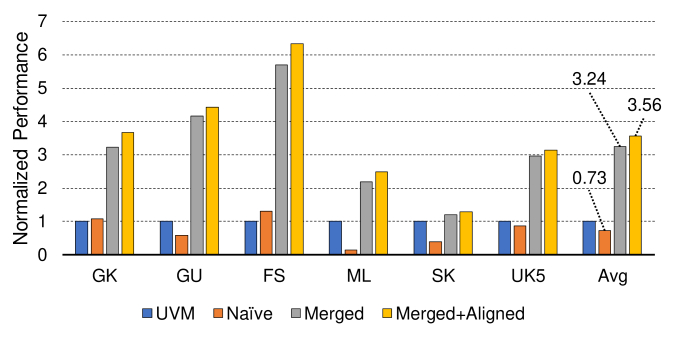

Figure 9. BFS performance of the Naive, Merged and Merged+Aligned implementations against the UVM baseline. EMOGI’s Merged+Aligned implementation provides the best performance across all graphs.

5.3.3. Analysis of Zero-copy Optimizations:

We next evaluate the performance difference between Naive, Merge and Merge+Aligned implementation of BFS on various graphs and compare it with the UVM implementation. As shown in the Figure 9, the Naive implementation’s performance is 0.73 of that of UVM on average. As discussed in  3.3, this is expected as the Naive implementation does not use the PCIe bandwidth efficiently. On the other hand, merging requests that go to zero-copy memory with the Merged implementation provides a speedup of 3.24 over the UVM baseline on average. For the SK graph, the performance gain using the Merged optimization is only 1.21 over UVM. This is because the SK graph can almost fit in the 16GB GPU memory. When we add memory access alignment optimization on top of merging of request with the Merged+Aligned implementation, we notice a 1.10 improvement in performance over the Merged implementation on average. This improvement can be associated with the reduced number of PCIe requests that go out to the zero-copy memory because of the Merged+Aligned optimization, as was shown in Figure 7.

5.3.4. I/O Read Amplification:

We now demonstrate the I/O read amplification benefit of EMOGI’s fine-granular data accesses over the 4KB page movement in UVM in BFS graph traversal. For this experiment, we chose the Merge+Aligned EMOGI implementation to represent EMOGI as it provides the best performance. Figure 10 shows the ratio of data read from the host memory over the dataset size while performing BFS using UVM and EMOGI on each graph. UVM generally has a very high I/O read amplification factor, up to 5.16 for the FS graph, as for these graphs, the neighbor lists accessed during traversal are in different locations in memory and thus there is very little spatial locality exploited for each 4KB page moved. However, the two notable exceptions to this are the ML and SK graphs as UVM’s I/O read amplification factor for them is 2.28 and 1.14, respectively. This is because the average degree of a vertex in the ML graph is 222 and the SK graph is so small that it can almost fit in GPU memory, thus making UVM’s page movements a little more efficient in both cases. In contrast, EMOGI’s I/O read amplification factor doesn’t exceed 1.31. This is because the fine-granular, merged, and aligned data access to zero-copy memory allow EMOGI to efficiently move only the necessary bytes over the slow PCIe interconnect.

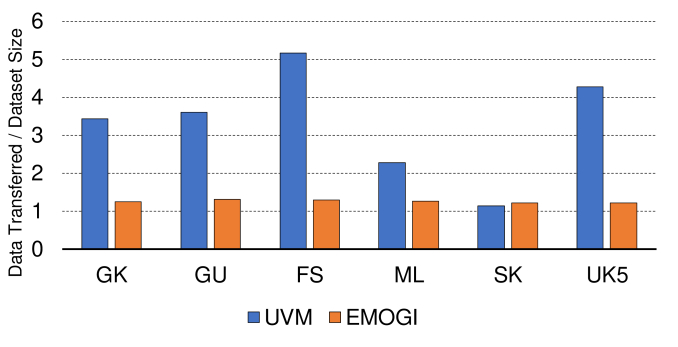

Figure 10. I/O Read Amplification of EMOGI and the UVM baseline while performing BFS. EMOGI has far less I/O read amplification when the graph sizes are significantly larger than the GPU memory.

5.4. Beyond BFS

In this section, we apply EMOGI’s optimization techniques to other graph traversal applications and measure their execution time. In addition to BFS from the previous sections, we add the single-source shortest path (SSSP) and connected components (CC) applications. We do not evaluate the performance with the SK and UK5 graph with CC as these graphs are directed. The overall performance results are shown in Figure 11.

EMOGI provides the best performance for all the graph traversal applications and graph datasets we studied. On average, EMOGI is 2.92 faster than UVM. For CC graph traversal application, EMOGI shows relatively lower speed-ups over UVM than the other applications. In the case of SSSP and BFS, a specific vertex is selected as a root vertex and the applications start traversing the entire graph from the root vertex. However, with CC, instead of picking a specific vertex to start with, all vertices are set as root vertices and the entire edge list is traversed. In this case, the application data access pattern is similar to streaming the edge list resulting in having more spatial locality when compared to the other applications and less I/O read amplification on the part of UVM.

Figure 11. Performance comparison between UVM and EMOGI with different graph traversal applications. EMOGI is 2.92 faster that UVM on average.

5.5. Performance Scaling with PCIe 4.0

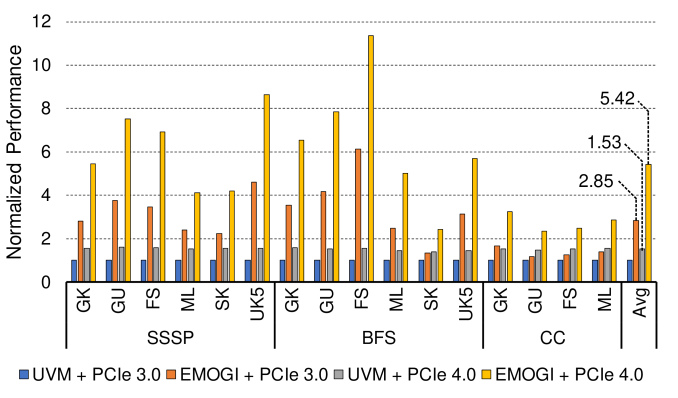

Figure 12. Performance comparison between UVM and EMOGI using PCIe 3.0 and PCIe 4.0. All results are measured in DGX A100. EMOGI is able to scale almost linearly with the PCIe bandwidth.

As was shown in  5.3.2 and  5.3.3, EMOGI can nearly saturate the PCIe 3.0 bandwidth while out-performing the UVM implementation. NVIDIA’s latest GPU, the Ampere A100, communicates with the host memory over the PCIe 4.0 interconnect. PCIe 4.0’s measured peak bandwidth, approximately 24GB/s, is twice as much as PCIe 3.0’s peak measured bandwidth of approximately 12GB/s. In this section, we study the ability of both UVM and EMOGI to take advantage of the increased bandwidth in accessing the host memory. To this end, we use a DGX A100 machine  (36) with the A100 GPU and Dual AMD Rome 7742 CPUs paired with 1TB of system memory. This machine allows us to switch the root port to run in either PCIe 3.0 mode or PCIe 4.0 mode. Neither the EMOGI implementation nor the UVM implementation was re-optimized for the A100 GPU in these experiments.

The overall evaluation results comparing the performance of UVM and EMOGI on the DGX A100 system are shown in Figure 12. Here, we normalize the performance speed-up achieved by each configuration to the UVM implementation running on the A100 GPU with the PCIe 3.0 interconnect. While EMOGI’s performance scales by 1.9 on average with the faster interconnect, UVM’s performance scales by only 1.53 on average. This is because the UVM implementation suffers from page fault handling overhead when accessing pages of the edge list in host memory. The page fault handler is part of the UVM driver running on the CPU and can’t keep up to make use of the higher bandwidth of the PCIe 4.0 interface. However, EMOGI doesn’t suffer any page faulting overhead as the edge list is pinned in host memory, leading to EMOGI’s performance scaling almost linearly with the PCIe bandwidth.

5.6. Comparison with Previous Works

In this section, we compare EMOGI with the current state-of-the-art GPU solutions for out-of-memory graph traversals, HALO (Gera et al., 2020) and Subway (Sabet et al., 2020). HALO proposes a new CSR reordering method that targets improvements in data locality and data transfer during graph traversal with UVM. Subway proposes an improved design of graph partitioning that does pre-processing to determine the activeness of a vertex. Since the source code of the HALO is not publicly available, we compare EMOGI with the results available in the published paper. As HALO’s results were gathered using a Titan Xp GPU, we also use a Titan Xp instead of V100 for a fair comparison and re-measure our execution times. For Subway, we use the publicly available source code and evaluate it in our platform described in  5.1. Between Subway-async and Subway-sync implementations, Subway-async shows better performance and therefore we use Subway-async to compare with our work. Since one of the goals of EMOGI is to avoid any data manipulation, we include the sub-graph generation and kernel execution time in our measurements. The publicly available implementation of Subway fails to execute on the GU graph due to unidentified CUDA out-of-memory errors and it cannot execute on the ML graph as the framework currently supports a maximum of edges. Since Subway uses 4-byte data type in the edge list, we re-evaluate EMOGI with the same edge list for a fair comparison. The overall results with HALO and Subway are shown in the Table 3. Overall, across all the graph datasets and graph traversal algorithms, EMOGI observes speedups of 1.34 to 4.73 over the current state-of-the-art GPU solutions for out-of-memory graph traversals.

Work App Graph Time (s) EMOGI (s) Speedup
HALO (Gera et al., 2020) BFS ML 9.54 4.43 2.15
FS 8.27 2.59 3.19
SK 2.17 1.62 1.34
UK5 6.03 4.00 1.51
Subway (Sabet et al., 2020) SSSP GK 20.96 7.94 2.64
FS 14.95 6.97 2.14
SK 8.99 3.92 2.30
UK5 25.78 8.08 3.19
BFS GK 6.88 1.66 4.14
FS 4.22 1.49 2.83
SK 1.69 0.85 1.99
UK5 8.75 1.85 4.73
CC GK 6.34 3.11 2.04
FS 4.31 2.75 1.57
Table 3. Comparison with the state-of-the-art GPU solutions for out-of-memory graph traversal works. The comparison with HALO (Gera et al., 2020) is done with a Titan Xp (12GB) and the comparison with Subway (Sabet et al., 2020) is done with a Tesla V100 (16GB). We use graphs with 4-byte type when comparing Subway and EMOGI, as Subway only supports 4-byte data types.

6. Discussion

EMOGI is mainly focusing on improving the data transfer efficiency between the host memory and the GPU while traversing very large graphs. On top of EMOGI, several graph traversal specific optimizations such as a workload balancing between long and short neighbor lists (Nasre et al., 2013; Nodehi Sabet et al., 2018) can be added. However, it is important to understand many of the previous graph traversal specific optimizations techniques were introduced in the context of where the input graphs were small. If any of the optimizations need to increase the input dataset size by any means, they may not be suitable for out-of-memory graph traversals. For example, CuSha (Khorasani et al., 2014) greatly improves the chance of coalescing memory accesses for various kinds of input graphs by transforming CSR into shards, but the shards also require about 2.5 more space of CSR. The input dataset size increase in out-of-memory graph traversal is fatal since the workload is nearly entirely bottlenecked by the external interconnect bandwidth. Furthermore, the larger input dataset can be problematic for the host memory capacity as well.

On the other hand, EMOGI can potentially directly benefit from compression of input data. As discussed in  4.3.1, many of the GPU threads are idling while waiting for the data from the host memory. While maintaining the basic structure of CSR, if each neighbor list can be stored into the host memory in a compressed form, these idling resources can be utilized to decompress the list without any overall performance loss. However, of course, such an approach requires data pre-processing and therefore a careful evaluation must be done to understand the overall improvement.

7. Related Works

Graph Analytics on GPU: Graph traversal algorithms such as BFS exhibit a massive amount of parallelism. This has led to increasing research in leveraging the massive computation power offered by GPUs to speed up graph analytics. Prior work focused on improving the performance of graph traversal algorithms either by making GPU specific algorithmic improvements (Gaihre et al., 2019; Hong et al., 2011; Khorasani et al., 2014; Zhong and He, 2014; Wang et al., 2016; Zhang et al., 2019; Merrill et al., 2015) or by performing data transformations (Nodehi Sabet et al., 2018; Pai and Pingali, 2016). However, most of these works assume graphs fit in the GPU memory.

Practical graphs, on the other hand, often cannot fit into the GPU memory. Web graphs (Boldi and Vigna, 2004; Boldi et al., 2011), social network graphs (Yang and Leskovec, 2012) and bio-medical graphs (Beamer et al., 2015) can be significantly larger than available GPU memory (see Table 2). To address this, prior works have proposed either to partition the input graph and loading only those edges that are needed during computation (Wang et al., 2016; Sengupta et al., 2015; Han et al., 2017; Sabet et al., 2020) or leveraging automatic memory oversubscription using UVM (Gómez-Luna et al., 2017; Gera et al., 2020; Edwards et al., 2014; Li et al., 2019; Kim et al., 2020; Mailthody et al., 2018; Pearson et al., 2019). For example, GraphReduce (Sengupta et al., 2015) partitions the oversized graphs and does explicit memory management between the GPU and the host memory. Recently, Subway (Sabet et al., 2020) further improved the design of the input partitioning scheme using GPU-accelerated subgraph generation preprocessing technique that tracks activeness of a vertex and also by generating subgraphs asynchronously. EMOGI does not perform any explicit memory management or preprocessing of the graph.

Alternatively, to support large graphs in GPU, programmers can use UVM which does automatic memory oversubscription (37; 38). Prior works such as (Gómez-Luna et al., 2017; Gera et al., 2020; Edwards et al., 2014; Li et al., 2019; Kim et al., 2020; Mailthody et al., 2018; Pearson et al., 2019; Agarwal et al., 2015; Ausavarungnirun et al., 2017; Kehne et al., 2015) have observed significant overhead from UVM and have proposed optimizations such as overlapping IO and computation (Gómez-Luna et al., 2017), memory spaces(Edwards et al., 2014), memory throttling (Li et al., 2019), modifying driver to support larger page fault batch sizes (Kim et al., 2020) and reordering of graphs to enhance locality in UVM (Gera et al., 2020). Instead of leveraging the previously proposed optimizations, EMOGI takes a step back and revisits the reasoning behind the performance degradation with UVM. Like (Zheng et al., 2016), EMOGI initially observes the PCIe bandwidth utilization being low for graph traversal applications. As shown in  5, by carefully re-orchestrating the memory access pattern using direct access, EMOGI is able to boost graph traversal execution performance for large graphs without any additional optimizations. Indeed the prior proposed software and hardware optimizations can be exploited by EMOGI. We leave this as future research. Also, EMOGI could be easily incorporated into a library to lessen the programmer’s effort and provide out-of-the box performance improvements.

Multi-GPU and Collaborative CPU-GPU: Aside from single GPU graph traversal, prior works have proposed using multi-GPU  (Pan et al., 2017; Zhong and He, 2014; Khorasani et al., 2015; Wang et al., 2016) and collaborative CPU-GPU computation to meet the needs of large graphs computation (Mailthody et al., 2018; Gómez-Luna et al., 2017; Ma et al., 2017; Gharaibeh et al., 2012; Tian et al., 2013). Multi-GPU and collaborative CPU-GPU computing are enabled using UVM where hardware moves the pages on-demand across different computing blocks. EMOGI can be extended to support both multi-GPU and hybrid CPU-GPU computing and we leave it as future research.

Architectural support for improving UVM: Besides algorithm and system-level changes, prior works also propose hardware changes that can enable executing graph traversal algorithms efficiently on large graphs. Specifically, memory compression techniques to reduce the memory footprint in the GPU (Li et al., 2019), efficient migration policies using hardware counters, and optimized prefetching schemes (Agarwal et al., 2015; Ausavarungnirun et al., 2017; Ganguly et al., 2019), and software-hardware co-design using memory hints are proposed (38; 35). These techniques are orthogonal to EMOGI and can be leveraged by EMOGI to gain further performance improvements in future GPU architectures.

8. Conclusion

In this work, we present EMOGI, a new method for optimizing the traversal of very large graphs with a GPU using zero-copy. Using a thorough analysis of fine-grained GPU memory access patterns over PCIe to zero-copy memory, we identified key optimizations to best utilize bandwidth to zero-copy memory: merged and aligned memory accesses. We applied these optimizations to key graph traversal applications to enable efficient GPU traversal of graphs that do not fit in GPU memory. Our experiments show that EMOGI out-performs the state-of-the-art solutions for traversing larges graphs. This is because EMOGI avoids I/O read amplification by leveraging efficient fine-grained accesses to fetch only the needed bytes from zero-copy memory. Furthermore, EMOGI’s performance scales almost linearly with the improved bandwidth of newer interconnects as it is not bottle-necked by the page fault handling overhead of traditional methods using UVM.

Acknowledgements.
This work was partially supported by the Applications Driving Architectures (ADA) Research Center and Center for Research on Intelligent Storage and Processing-in-memory (CRISP), JUMP Centers co-sponsored by SRC and DARPA, IBM-ILLINOIS Center for Cognitive Computing Systems Research (C3SR) - a research collaboration as part of the IBM AI Horizon Network. This work would not have been possible without the generous hardware donations from Xilinx and NVIDIA.

References

  • N. Agarwal, D. Nellans, M. Stephenson, M. O’Connor, and S. W. Keckler (2015) Page placement strategies for gpus within heterogeneous memory systems. SIGARCH Comput. Archit. News 43 (1), pp. 607–618. Cited by: §1, §1, §1, §2.2, §7, §7.
  • R. Ausavarungnirun, J. Landgraf, V. Miller, S. Ghose, J. Gandhi, C. J. Rossbach, and O. Mutlu (2017) Mosaic: a gpu memory manager with application-transparent support for multiple page sizes. In Proceedings of the 50th Annual IEEE/ACM International Symposium on Microarchitecture, MICRO-50 ’17, New York, NY, USA, pp. 136–150. Cited by: §1, §1, §1, §2.2, §7, §7.
  • S. Beamer, K. Asanovic, and D. A. Patterson (2015) The GAP benchmark suite. CoRR abs/1508.03619. External Links: Link, 1508.03619 Cited by: §1, Table 2, §7.
  • P. Boldi, B. Codenotti, M. Santini, and S. Vigna (2004a) UbiCrawler: a scalable fully distributed web crawler. Software: Practice & Experience 34 (8), pp. 711–726. Cited by: §1, Table 2.
  • P. Boldi, B. Codenotti, M. Santini, and S. Vigna (2004b) UbiCrawler: a scalable fully distributed web crawler. Software: Practice and Experience 34 (8), pp. 711–726. Cited by: §1, §1, §4.1, §5.2.
  • P. Boldi, M. Rosa, M. Santini, and S. Vigna (2011) Layered label propagation: a multiresolution coordinate-free ordering for compressing social networks. In Proceedings of the 20th international conference on World Wide Web, S. Srinivasan, K. Ramamritham, A. Kumar, M. P. Ravindra, E. Bertino, and R. Kumar (Eds.), pp. 587–596. Cited by: §1, §2.1, Table 2, §7.
  • P. Boldi and S. Vigna (2004) The WebGraph framework I: Compression techniques. In Proceedings of the Thirteenth International World Wide Web Conference (WWW 2004), Manhattan, USA, pp. 595–601. Cited by: §1, §2.1, Table 2, §7.
  • S. Che (2014) GasCL: a vertex-centric graph model for gpus. In 2014 IEEE High Performance Extreme Computing Conference (HPEC), Vol. , pp. 1–6. Cited by: §2.1.
  • [9] (2020) CUDA c++ best practices guide. Nvidia Corporation. Note: https://docs.nvidia.com/cuda/cuda-c-best-practices-guide/index.html Cited by: §3.
  • T. A. Davis and Y. Hu (2011) The university of florida sparse matrix collection. ACM Trans. Math. Softw. 38 (1). Cited by: §1, §1, §4.1, §5.2.
  • H. C. Edwards, C. R. Trott, and D. Sunderland (2014) Kokkos: enabling manycore performance portability through polymorphic memory access patterns. Journal of Parallel and Distributed Computing 74 (12), pp. 3202 – 3216. Note: Domain-Specific Languages and High-Level Frameworks for High-Performance Computing Cited by: §7, §7.
  • A. Gaihre, Z. Wu, F. Yao, and H. Liu (2019) XBFS: exploring runtime optimizations for breadth-first search on gpus. In Proceedings of the 28th International Symposium on High-Performance Parallel and Distributed Computing, HPDC ’19, New York, NY, USA, pp. 121–131. Cited by: §7.
  • D. Ganguly, Z. Zhang, J. Yang, and R. Melhem (2020) Adaptive page migration for irregular data-intensive applications under gpu memory oversubscription. In Proceedings of the Thirty-forth International Conference on Parallel and Distributed Processing (IPDPS), Cited by: §1, §3.
  • D. Ganguly, Z. Zhang, J. Yang, and R. Melhem (2019) Interplay between hardware prefetcher and page eviction policy in cpu-gpu unified virtual memory. In Proceedings of the 46th International Symposium on Computer Architecture, ISCA ’19, New York, NY, USA, pp. 224–235. Cited by: §7.
  • P. Gera, H. Kim, P. Sao, H. Kim, and D. Bader (2020) Traversing large graphs on gpus with unified memory. Proceedings of the VLDB Endowment 13 (7), pp. 1119–1133. Cited by: §1, §1, §1, §1, §2.2, §5.6, Table 3, §7, §7.
  • A. Gharaibeh, L. Beltrão Costa, E. Santos-Neto, and M. Ripeanu (2012) A yoke of oxen and a thousand chickens for heavy lifting graph processing. In Proceedings of the 21st International Conference on Parallel Architectures and Compilation Techniques, PACT ’12, New York, NY, USA, pp. 345–354. Cited by: §7.
  • J. Gómez-Luna, I. E. Hajj, L. Chang, V. García-Floreszx, S. G. de Gonzalo, T. B. Jablin, A. J. Peña, and W. Hwu (2017) Chai: collaborative heterogeneous applications for integrated-architectures. In 2017 IEEE International Symposium on Performance Analysis of Systems and Software (ISPASS), Vol. , pp. 43–54. Cited by: §1, §7, §7, §7.
  • W. Han, D. Mawhirter, B. Wu, and M. Buland (2017) Graphie: large-scale asynchronous graph traversals on just a gpu. In Proceedings of 26th International Conference on Parallel Architectures and Compilation Techniques (PACT), Vol. , pp. 233–245. Cited by: §1, §2.1, §7.
  • P. Harish and P. J. Narayanan (2007) Accelerating large graph algorithms on the gpu using cuda. In Proceedings of the 14th International Conference on High Performance Computing, HiPC’07, Berlin, Heidelberg, pp. 197–208. Cited by: §2.1, §2.1.
  • M. Harris (2017) Unified memory for cuda beginners. Note: https://devblogs.nvidia.com/unified-memory-cuda-beginners/ Cited by: §1, §2.2.
  • K. A. Hawick, A. Leist, and D. P. Playne (2010) Parallel graph component labelling with gpus and cuda. Parallel Comput. 36 (12), pp. 655–678. External Links: ISSN 0167-8191, Link, Document Cited by: §2.1.
  • S. Hong, S. K. Kim, T. Oguntebi, and K. Olukotun (2011) Accelerating cuda graph algorithms at maximum warp. In Proceedings of the 16th ACM Symposium on Principles and Practice of Parallel Programming, PPoPP ’11, New York, NY, USA, pp. 267–276. Cited by: §2.1, §4.3.1, §5.1.2, §7.
  • [23] (2020) Intel® vtune™ profiler. Intel Corporation. Note: https://software.intel.com/content/www/us/en/develop/tools/vtune-profiler.html Cited by: §3.3.
  • J. Kehne, J. Metter, and F. Bellosa (2015) GPUswap: enabling oversubscription of gpu memory through transparent swapping. SIGPLAN Not. 50 (7), pp. 65–77. Cited by: §1, §1, §1, §2.2, §7.
  • F. Khorasani, R. Gupta, and L. N. Bhuyan (2015) Scalable simd-efficient graph processing on gpus. In 2015 International Conference on Parallel Architecture and Compilation (PACT), Vol. , pp. 39–50. Cited by: §7.
  • F. Khorasani, K. Vora, R. Gupta, and L. N. Bhuyan (2014) CuSha: vertex-centric graph processing on gpus. In Proceedings of the 23rd International Symposium on High-Performance Parallel and Distributed Computing, HPDC ’14, New York, NY, USA, pp. 239–252. Cited by: §2.1, §6, §7.
  • H. Kim, J. Sim, P. Gera, R. Hadidi, and H. Kim (2020) Batch-aware unified memory management in gpus for irregular workloads. In Proceedings of the Twenty-Fifth International Conference on Architectural Support for Programming Languages and Operating Systems, ASPLOS ’20, New York, NY, USA, pp. 1357–1370. Cited by: §1, §1, §1, §2.2, §7, §7.
  • C. Li, R. Ausavarungnirun, C. J. Rossbach, Y. Zhang, O. Mutlu, Y. Guo, and J. Yang (2019) A framework for memory oversubscription management in graphics processing units. In Proceedings of the Twenty-Fourth International Conference on Architectural Support for Programming Languages and Operating Systems, ASPLOS ’19, New York, NY, USA, pp. 49–63. Cited by: §1, §1, §1, §2.2, §7, §7, §7.
  • L. Ma, Z. Yang, H. Chen, J. Xue, and Y. Dai (2017) Garaph: efficient gpu-accelerated graph processing on a single machine with balanced replication. In Proceedings of the 2017 USENIX Conference on Usenix Annual Technical Conference, USENIX ATC ’17, USA, pp. 195–207. Cited by: §7.
  • V. S. Mailthody, K. Date, Z. Qureshi, C. Pearson, R. Nagi, J. Xiong, and W. Hwu (2018) Collaborative (cpu+ gpu) algorithms for triangle counting and truss decomposition. In 2018 IEEE High Performance extreme Computing Conference (HPEC’18), Boston, USA. Cited by: §1, §1, §2.2, §7, §7, §7.
  • D. Merrill, M. Garland, and A. Grimshaw (2015) High-performance and scalable gpu graph traversal. ACM Transactions on Parallel Computing 1 (2). Cited by: §7.
  • L. Nai, Y. Xia, I. G. Tanase, H. Kim, and C. Lin (2015) GraphBIG: understanding graph computing in the context of industrial solutions. In Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis, SC ’15, New York, NY, USA. Cited by: §5.1.2.
  • R. Nasre, M. Burtscher, and K. Pingali (2013) Morph algorithms on gpus. SIGPLAN Not. 48 (8), pp. 147–156. External Links: ISSN 0362-1340, Link, Document Cited by: §6.
  • A. H. Nodehi Sabet, J. Qiu, and Z. Zhao (2018) Tigr: transforming irregular graphs for gpu-friendly graph processing. SIGPLAN Not. 53 (2), pp. 622–636. Cited by: §6, §7.
  • [35] (2020) NVIDIA a100 gpu architecture whitepaper. Nvidia Corporation. Note: https://www.nvidia.com/content/dam/en-zz/Solutions/Data-Center/nvidia-ampere-architecture-whitepaper.pdf Cited by: §5, §7.
  • [36] (2020) NVIDIA dgx a100 datasheet. Nvidia Corporation. Note: https://www.nvidia.com/content/dam/en-zz/Solutions/Data-Center/nvidia-dgx-a100-datasheet.pdf Cited by: §5.5.
  • [37] (2016) NVIDIA tesla p100 architecture whitepaper. Nvidia Corporation. Note: https://www.nvidia.com/object/pascal-architecture-whitepaper.html Cited by: §2.2, §7.
  • [38] (2017) NVIDIA tesla v100 gpu architecture whitepaper. Nvidia Corporation. Note: https://images.nvidia.com/content/volta-architecture/pdf/volta-architecture-whitepaper.pdf Cited by: §2.2, §7, §7.
  • S. Pai and K. Pingali (2016) A compiler for throughput optimization of graph algorithms on gpus. SIGPLAN Not. 51 (10), pp. 1–19. Cited by: §7.
  • Y. Pan, Y. Wang, Y. Wu, C. Yang, and J. D. Owens (2017) Multi-gpu graph analytics. In 2017 IEEE International Parallel and Distributed Processing Symposium (IPDPS), Vol. , pp. 479–490. Cited by: §2.1, §7.
  • [41] (2020) PCIe 3.0 specification. PCI SIG Working Group. Note: https://members.pcisig.com/wg/PCI-SIG/document/download/8257 Cited by: §3.2, §3.3.
  • C. Pearson, M. Almasri, O. Anjum, V. S. Mailthody, Z. Qureshi, R. Nagi, J. Xiong, and W. Hwu (2019) Update on triangle counting on gpu. In 2019 IEEE High Performance extreme Computing Conference (HPEC’19), Boston, USA. Cited by: §2.2, §7, §7.
  • R. A. Rossi and N. K. Ahmed (2015) The network data repository with interactive graph analytics and visualization. In AAAI, External Links: Link Cited by: §1, §1, §4.1.
  • A. Roy, I. Mihailovic, and W. Zwaenepoel (2013) X-stream: edge-centric graph processing using streaming partitions. In Proceedings of the Twenty-Fourth ACM Symposium on Operating Systems Principles, SOSP ’13, New York, NY, USA, pp. 472–488. External Links: ISBN 9781450323888, Link, Document Cited by: §2.1.
  • A. H. N. Sabet, Z. Zhao, and R. Gupta (2020) Subway: minimizing data transfer during out-of-gpu-memory graph processing. In Proceedings of the Fifteenth European Conference on Computer Systems, EuroSys ’20, New York, NY, USA. Cited by: §1, §1, §2.1, §5.6, Table 3, §7.
  • S. Sahu, A. Mhedhbi, S. Salihoglu, J. Lin, and M. T. Özsu (2017) The ubiquity of large graphs and surprising challenges of graph processing. Proceedings of the VLDB Endowment 11 (4), pp. 420–431. Cited by: §1, §1.
  • D. Sengupta, S. L. Song, K. Agarwal, and K. Schwan (2015) GraphReduce: processing large-scale graphs on accelerator-based systems. In Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis, SC ’15, New York, NY, USA. Cited by: §1, §2.1, §7.
  • J. Sybrandt, M. Shtutman, and I. Safro (2017) MOLIERE: automatic biomedical hypothesis generation system. In Proceedings of the 23rd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, KDD ’17, New York, NY, USA, pp. 1633–1642. Cited by: Table 2.
  • Y. Tian, A. Balmin, S. A. Corsten, S. Tatikonda, and J. McPherson (2013) From “think like a vertex” to “think like a graph”. Proceedings of the VLDB Endowment 7 (3), pp. 193–204. Cited by: §2.1, §7.
  • Y. Wang, A. Davidson, Y. Pan, Y. Wu, A. Riffel, and J. D. Owens (2016) Gunrock: a high-performance graph processing library on the gpu. In Proceedings of the 21st ACM SIGPLAN Symposium on Principles and Practice of Parallel Programming, PPoPP ’16, New York, NY, USA. Cited by: §1, §2.1, §7, §7, §7.
  • Z. Xu, X. Chen, J. Shen, Y. Zhang, C. Chen, and C. Yang (2017) GARDENIA: A domain-specific benchmark suite for next-generation accelerators. CoRR abs/1708.04567. External Links: Link, 1708.04567 Cited by: §5.1.2.
  • J. Yang and J. Leskovec (2012) Defining and evaluating network communities based on ground-truth. CoRR abs/1205.6233. External Links: Link, 1205.6233 Cited by: §1, §2.1, Table 2, §7.
  • Y. Zhang, X. Liao, H. Jin, B. He, H. Liu, and L. Gu (2019) DiGraph: an efficient path-based iterative directed graph processing system on multiple gpus. In Proceedings of the Twenty-Fourth International Conference on Architectural Support for Programming Languages and Operating Systems, ASPLOS ’19, New York, NY, USA, pp. 601–614. Cited by: §7.
  • T. Zheng, D. Nellans, A. Zulfiqar, M. Stephenson, and S. W. Keckler (2016) Towards high performance paged memory for gpus. In 2016 IEEE International Symposium on High Performance Computer Architecture (HPCA), Vol. , pp. 345–357. Cited by: §7.
  • J. Zhong and B. He (2014) Medusa: simplified graph processing on gpus. IEEE Transactions on Parallel and Distribution Systems 25 (6), pp. 1543–1552. Cited by: §2.1, §7, §7.
