Electoral Forecasting Using a Novel Temporal Attenuation Model: Predicting the US Presidential Elections

04/30/2020 ∙ by Alexandru Topirceanu, et al. ∙ Universitatea Politehnica Timisoara 0

Electoral forecasting is an ongoing scientific challenge with high social impact, as current data-driven methods try to efficiently combine statistics with economic indices and machine learning. However, recent studies in network science pinpoint towards the importance of temporal characteristics in the diffusion of opinion. As such, we combine concepts of micro-scale opinion dynamics and temporal epidemics, and develop a novel macro-scale temporal attenuation (TA) model, which uses pre-election poll data to improve forecasting accuracy. Our hypothesis is that the timing of publicizing opinion polls plays a significant role in how opinion oscillates, especially right before elections. Thus, we define the momentum of opinion as a temporal function which bounces up when opinion is injected in a multi-opinion system of voters, and dampens during states of relaxation. We validate TA on survey data from the US Presidential Elections between 1968-2016, and TA outperforms statistical methods, as well the best pollsters at their time, in 10 out of 13 presidential elections. We present two different implementations of the TA model, which accumulate an average forecasting error of 2.8-3.28 points over the 48-year period. Conversely, statistical methods accumulate 7.48 points error, and the best pollsters accumulate 3.64 points. Overall, TA offers increases of 23-37 art. We show that the effectiveness of TA does not drop when relatively few polls are available; moreover, with increasing availability of pre-election surveys, we believe that our TA model will become a reference alongside other modern election forecasting techniques.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Understanding the dynamics of information, which shapes many aspects of our social lives, is a major research drive in our increasingly networked society Granovetter (1973); Barabási (2002); Lazer et al. (2009); Börner et al. (2018). Be it under the form of a commercial, a rumour, a virus, or a blog post, information diffusion (or propagation) receives substantial attention from multidisciplinary fields of research Pastor-Satorras et al. (2015); Jackson and Watts (2002); Easley and Kleinberg (2010)

. Out of these, the ability to predict election outcomes is just one of many areas of research that sees benefits from cutting-edge investigation techniques, like social media analysis and data science

Golbeck and Hansen (2013); Rodriguez et al. (2011); Guille and Hacid (2012).

Research on forecasting election polls was originally constructed by employing classic statistical models, applied on opinion polls prior to the election day Nadeau et al. (2010); Whiteley (1979). Ever since the late ’70s, it became a scientific fact that correct timing of the election date can be crucial for the outcome Whiteley (1979). Election forecasting – especially in the case of presidential elections – employs so-called macromodels Jensen et al. (2017); these are statistical models based on national economic and political fluctuations. On the other hand, micromodels are models based on surveys of individual voters during the pre-election period Lewis-Beck and Tien (1999). Current state of the art in forecasting employs multilevel regression and post-stratification Christensen and Florence (2008); Kiewiet de Jonge et al. (2018); Hummel and Rothschild (2014) (MRP). Hence, we mention several reputable institutions in the United States, dedicated to the analysis of election data using variants of MRP, like Real Clear Politics, Huffington Post, FiveThirtyEight, Daily Kos, or Understanding America Study. Arching over the specific methodologies employed by these platforms, we summarize them as follows:

  • Poll weighing/averaging – polls from different sources are weighted based on the pollster credibility.

  • Poll adjustment – number of likely voters, convention influence, omission of third party candidates are taken into account.

  • Adding demographic and optional economic data – used to scale surveys at state and national levels.

  • Simulating – using a probabilistic distribution to account for uncertainty in the data.

Apart from techniques like MRP, we find studies proving that alternative subjective surveying methods may also be efficient forecasters. Thus, the American National Election Surveys from 1956 to 1996 show that voters could themselves better forecast who will win the presidential elections Lewis-Beck and Tien (1999). Another study shows that quick and unreflective facial judgments of gubernatorial candidates are more accurate in predicting the winners than deliberating on the competence of each candidate Ballew and Todorov (2007). In essence, voter forecasting models derived from vote expectations, represent a promising alternative to classic statistical approaches Lewis-Beck and Skalaban (1989).

Bridging over to social networks and media, there is a scientific debate on how the wide coverage of publicized opinion polls in media can affect voters before election Weimann (1990). It is already known that social networks have a decisive role in the diffusion of information, and have proven to be very powerful in many situations involving macroscopic behavior Golbeck (2013); Golbeck and Hansen (2013). Examples include, decisively influencing the Arab Spring in 2010 Hussain and Howard (2013); Howard et al. (2011), and the U.S. presidential elections in 2008 Hughes and Palen (2009), and 2012 Conway et al. (2013). Analyzing the dynamics of this social layer can offer substantial predictive power over the real-world social networks they model. Studies on diffusion predictability are further found in marketing and public relations Easley and Kleinberg (2010); Papasolomou and Melanthiou (2012), epidemic spreadingHufnagel et al. (2004), hurricane forecasting Gladwin et al. (2007), or forecasting box-office revenues of movies Asur and Huberman (2010).

Network science proposes understanding diffusion processes by designing interactions at micro-scale level (i.e., between individual social agents), and forecasting opinion evolution at macro-scale level Jackson et al. (2017). Specifically, the macroscopic behavior is inferred by: (i) monitoring when social agents become indoctrinated by their neighborhood (i.e., they adopt information, get infected, buy merchandise Pastor-Satorras et al. (2015); Easley and Kleinberg (2010); Barabási and Pósfai (2016)), then, (ii) predicting how cascades of information flow, and how the diffusion process is percolated by individuals. Nevertheless, temporal aspects are shown to play an essential role in the diffusion of influence Rodriguez et al. (2011); Guille and Hacid (2012), as does the timing of publicizing opinion polls Weimann (1990) and even organizing elections Whiteley (1979).

Consequently, this paper builds upon the premises that we are able to extrapolate the macroscopic behavior of a society (here, in the context of elections) by inferring microscopic temporal dynamic models during the pre-election period. Thus, our contributions in this paper are:

  • We formulate an analytic methodology for modeling the macro-scale evolution of a multi-opinion system, targeting better election poll forecasting.

  • We define an experimental setup, based on pre-election data, to validate the underlying assumptions of our approach.

  • We present a comprehensive case study on US Presidential Elections to measure the efficiency of our approach against state of the art forecasting estimates, including MRP, as recently used by the best pollsters in the USA.

  • We explore the feasibility of applying TA in real time, during an ongoing pre-election period, and compare its performance to MRP at several points in time, relative to the election day.

2 The temporal attenuation model

Application of TA starts by gathering a set of pre-election multi-opinion polls with temporal information, i.e.

, corresponding to specific relative dates before an election. Based on the number of candidates for election, we define temporal poll vectors

, where is the index of the candidate in the multi-opinion system, and is the time (date) of the poll. We define as opinion injection, at any time , all discrete observations which stem from the public opinion polls , preceding the election day . We further define a discrete temporal election axis as being relative to the date of the first opinion poll (which becomes ), and the last opinion poll prior to the election day .

An essential aspect of TA is to reproduce the real-world timing when injecting opinion, i.e., in this paper, at the level of day, as explained in Figure 1a. As such, we do not condense consecutive polls, one after another, but scatter them along the temporal axis in order to model bounces and periods of relaxation mirroring the real-world general opinion.

Given the available poll vectors , we construct dataset consisting of daily opinion corresponding to each candidate. Since there may be days without available polls, we compensate every such day by adding a 0 (no vote) for each candidate. Consequently, we can describe dataset and an individual poll vector as:

(1)
(2)

Equation 1 specifies that consists of continuous (daily) poll vectors . Equation 2 specifies that if a poll is available for a specific day, then we calculate a normalized opinion value based on the raw poll data (e.g., number of voters, vote percentages). In the validation data we have polls ranging from a few hundred to tens of thousands of voters, so that a normalization of the raw amplitudes is recommended.

2.1 Micro-scale interactions

Most existing micro-scale models for opinion injection rely on fixed thresholds, or thresholds evolving according to simple probabilistic processes Axelrod (1997); Goldenberg et al. (2001); Topirceanu et al. (2016), and are impervious to any temporal aspects Guille et al. (2013)

. Nonetheless, studies applied in epidemiology propose three popular parametric models for the likelihood of disease transmission rates, considering time as a parameter

Wallinga and Teunis (2004); Myers and Leskovec (2010): power-law, exponential, and Rayleigh. These functions model the temporal damping (fading) of infectiousness after exposure, yet, they may be used to trace the evolution of opinion after each injection.

In this paper, we introduce the power-law (PTA) and exponential (ETA) temporal attenuated models, and analyze their efficiency. In their continuous epidemiological formulation Myers and Leskovec (2010), these models express the transmission likelihood of a disease in time, after a relative time since an individual was infected, as expressed by the following expression: for PTA, respectively for ETA.

Additionally, we parameterize the two TA models with an amplitude factor and a damping factor , specific for every candidate . The factor determines the amplitude of the positive bounce when opinion is injected, and the factor controls the damping speed towards the relaxed state () for any candidate (see Figure 1b).

2.1.1 Macro-scale emergent behavior

Based on the introduced temporal micro-scale models, we define the concept of opinion momentum . The momentum of each candidate is an aggregated macro-scale estimator for the evolution of opinion of the entire voter system. We extrapolate for PTA and ETA as follows:

(3)

The amplitude

evolves according to the following rules: if we are during a relaxation state, when there is no opinion injection at moment

(i.e., ), then remains unchanged. Consequently, as we progress on the discrete time axis (), momentum will decrease. On the other hand, if opinion is injected and we have a poll at the current moment, then is increased by an amplitude proportional to the normalized number of votes . The evolution in time of is given by the following equation:

(4)

By simulating the evolution of each opinion momentum in time, we can infer the current opinion by normalizing the momentums of each candidate as follows:

(5)

The process of evolving momentums and opinions is detailed on a proof of concept voting system in Figure 1. A detailed comparative analysis of TA is further provided given in Appendix A.

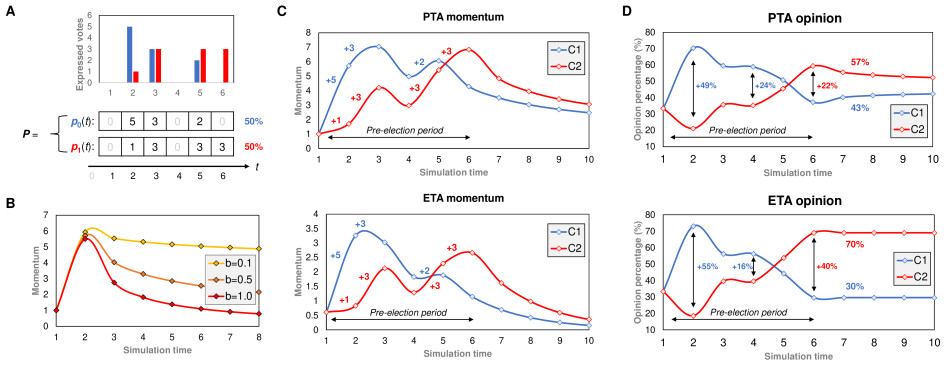

Figure 1: Overview of the temporal attenuation (TA) model applied on two candidates (C1-blue and C2-red) receiving an equal number of votes (i.e., suggesting a 50-50% tie) over 6 days before election, but according to different temporal patterns. (A) Surveys are collected for the two candidates at . From these, set is assembled consisting of poll vectors and . (B) Impact of damping factor on a TA function with one spike at , followed by a continuous relaxation state. A higher translates into a more abrupt damping of the momentum. (C) Momentum evolution for PTA and ETA corresponding to the poll vectors and . Individual votes are displayed in absolute value on the graphs. The simulation using dataset corresponds to the pre-election period (). (D) Opinion evolution for PTA and ETA corresponding to the momemtums in panel (c). Several poll differences are displayed at using the color of the virtual winner at that moment.

2.2 Temporal attenuation algorithm

By corroborating all the introduced terms, we present the flowchart of applying TA on a pre-election dataset in Figure 2, and provide the supporting algorithmic pseudocode in Algorithm 1. The required input is a dataset consisting of pre-election polls, where each poll expresses opinion for each candidate in the multi-opinion system. The first stage of the algorithm (data preparation), depicted in Figure 2a, creates the intermediary dataset consisting of daily poll vectors for each day . The second stage of the algorithm (temporal attenuation), depicted in Figure 2b, computes the momentum of opinion from using the amplitude , damping factor , and daily poll vectors . The output, represented by the daily opinion evolution , is computed from each momentum .

1:Input: Pre-election polls for each candidate , with timestamp
2:Stage A: Data preparation
3:     sort polls by date in increasing order
4:     assign first poll’s date as day
5:     assign election date as day
6:     assign relative day for pre-election poll
7:     for each day assign according to Equation 2
8:     output:
9:Stage B: Temporal attenuation
10:     input: (Equation 1)
11:     compute opinion momentum :
12:     for  candidate in the multi-opinion system  do
13:
14:         for  do
15:              if  then (Equation 4)
16:
17:              else
18:
19:              end if
20:               (Equation 3)
21:         end for
22:     end for
23:     compute opinion :
24:     for  do
25:          (Equation 5)
26:     end for
27:Output: Evolution of daily opinion towards each candidate in time
Algorithm 1 Electoral forecasting algorithm based on temporal attenuation (TA)

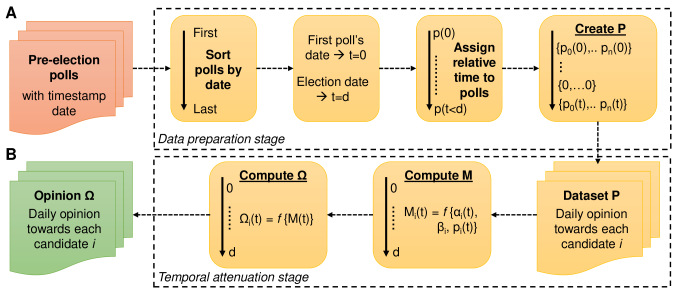

Figure 2: Flowchart of applying TA. (A) The data preparation stage takes as input a set of pre-election polls with timestamp, and produces the daily opinion set of poll vectors as an intermediary output. Polls are first sorted by date from first to last, then the first date is assigned as relative day , while the election day is assigned as relative day . Each other poll gets assigned a relative day . is created by either setting a normalized poll for that day (), or, if no poll is available, an empty poll vector . (B) The temporal attenuation stage further takes as input to compute the momemtum , based on , , and . Consequently, the daily opinion towards each candidate is computed as output from .

2.3 Experimental validation

Prediction models, where microscopic interactions are considered, consistently represent data as information cascades triggered by so-called opinion sources (also spreader nodes, stubborn agents, vital nodes) Axelrod (1997); Goldenberg et al. (2001); Topirceanu et al. (2016). While these interactions are meaningful, accounting for all of them is still technologically, ethically, and legally impossible (e.g., analyzing all tweets posted by all users in the USA before an election). As such, we use ubiquitous data under the form of pre-election opinion polls, which are centralized and open, gathered from Real Clear Politics, Understanding America Study, and Daily Kos (detailed in Methods).

We present a case study on the US presidential elections between 1968–2016 in order to showcase the superior performance of our TA method. For each election year, we compare the poll estimates obtained with our PTA and ETA methods, to the statistical methods of survey averaging (SA), cumulative vote counting (CC) (see Methods for details), and the best pollster estimations at the respective time.

Given the nature of the US presidential election system, we validate TA on a three candidate system. We refer to these as the Democratic (D), Republican (R) and ”other” (O) candidate. The ground truth for forecasting validation represents the actual poll results from each respective election.

3 Materials and methods

3.1 US Presidential Elections datasets

Data were aggregated from Real Clear Politics (2012a, 2016a), Understanding America Study (2016b), and Daily Kos (1968–2008, 2012b). Table 1 provides information on all 15 datasets alongside the US presidential election results for the Democratic, Republican and ”other” candidates between 1968–2016. These values are used as ground truth for measuring the performance of our TA method. Extended information on the data is found in Appendix D.

Dataset D(%) R(%) O(%) Winner Surveys Duration
1968 42.7 43.4 13.9 R 12 140
1972 37.5 60.7 1.8 R 14 140
1976 50.1 48 1.9 D 29 144
1980 41 50.7 8.3 R 25 139
1984 40.6 58.8 0.6 R 32 139
1988 45.6 53.4 1 R 47 138
1992 43 37.4 19.6 D 64 144
1996 49.2 40.7 10.1 D 75 147
2000 48.4 47.9 3.7 D 356 147
2004 48.3 50.7 1 R 150 146
2008 52.9 45.7 1.4 D 188 147
2012a 52.9 45.7 1.4 D 326 1276
2012b 51.1 47.2 1.7 D 114 147
2016a 48.2 46.1 5.7 R 259 529
2016b 48.2 46.1 5.7 R 121 120
Table 1: US presidential election results between 1968–2016 expressed as percentages, the winning political party (D or R), number of polls in dataset, and pre-election duration (in days).

3.2 Alternative poll estimation methods

Cumulative vote counting (CC) is applied by summing up all votes expressed by the polls for each candidate over the total polling period . Note that for CC we do not use the normalized value , but the absolute number of votes expressed in each poll . Consequently, we define a cumulative momentum which is updates as:

(6)

At the end of the polling period (), each cumulative momentum will store the total number of votes expressed for each candidate . At any time, we can infer the current opinion towards a candidate by normalizing each momentum:

(7)

Survey averaging (SA) is applied by averaging the normalized poll results over the entire pre-election period. In order to express opinion after elapsed days, we use the normalized poll vector directly:

(8)

In Equation 8 we obtain the current poll at time (expressed as number of days) by summing up all normalized votes for the period and divide by the number (cardinal) of polls in that same period.

The main distinction between CC and SA is that the first method uses the absolute number of votes for each candidate, whereas SA uses the normalized poll values.

3.3 Determining near-optimal amplitude and damping factors

The poll forecasting performance of the TA model depends on choosing the right and factors. As such, we simulate forecasting on all datasets with the following values for amplitude, respectively for damping.

For each forecasting simulation, we measure the total error expressed as percentage offset from the final election results. Based on the real results under the form (given in Table 1), we define the relative estimation error as the sum of positive differences between the estimation error for all three candidates :

(9)

By varying only the scale of the momentums changes. Hence, since we normalize all in order to obtain the poll results , the value of the amplitude becomes irrelevant. On the other hand, we notice that the impact of is significant. As an example, we display in Figure 3 the evolution of the total error for the 2012 and 2016 elections, by employing PTA (violet) and ETA (yellow). Striving for a minimal error, our results suggest the following ideal values: , , , and .

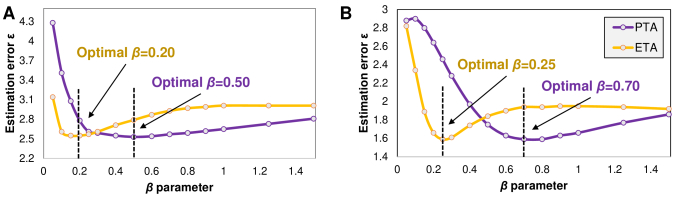

Figure 3: Total poll estimation error (D+R+O) for the PTA (violet) and ETA (yellow) methods. A smaller is better, and we highlight the corresponding values with vertical dotted lines.

The same process of finding an ideal combination () can be repeated for each dataset. However, choosing an optimal damping factor during a real-time pre-election period is not plausible because we cannot compute without the final, real results. Therefore, we compute a pseudo-ideal factor from the average of the best ’s measured over all past datasets, in the perspective that it should be used for present and future predictions. As such, all forecasting simulations presented in this paper are based on the same data-derived damping factor for PTA, and for ETA.

4 Results

A good electoral forecasting method should have two qualities: (i) it should produce poll estimations for all candidates that are – overall – as close as possible to the real election results, and (ii) it should correctly determine the winner of the election.

We quantify the first property by the total estimation error given as the sum of positive differences between the estimation error for all candidates (see Equation 9). A smaller translates into a more performant forecasting method. Table 2 displays between each forecasting method and the actual election results. Averaged over all datasets, we measure a forecasting error of 3.64 points for the best pollster, 7.31 for CC and 7.49 for SA. The errors of TA are only 3.28 points for PTA and 2.87 points for ETA. These results translate into a superior performance of TA over all other state of the art methods. We obtain a 0.364 point improvement for PTA, respectively 0.774 for ETA compared to the best pollster estimations.

Dataset CC SA PTA ETA Best
1968 9.82 9.78 4.15 4.11 4.1 (Gallup)
1972 5.63 5.64 4.02 1.04 1.8 (Gallup)
1976 9.22 8.97 1.56 0.53 0.9 (Roper)
1980 12.35 15.18 7.02 6.71 6.7 (Gallup)
1984 7.17 7.66 3.4 2.42 2.4 (Gallup)
1988 8.32 8.1 7.32 7.33 11.0 (CBS/NYT)
1992 6.52 5.18 1.06 1.68 3.4 (CBS/NYT)
1996 6.95 6.75 3.04 2.64 3.1 (Gallup)
2000 6.43 8.13 2.54 2.35 2.4 (IBD/CSM)
2004 7.18 6.54 1.73 1.74 2.7 (RCP)
2008 7.59 6.67 2.47 1.81 2.0 (RCP)
2012a 7.3 6.88 2.53 2.55 3.2 (RCP)
2012b 5.28 4.95 3.16 2.95 3.2 (RCP)
2016a 3.91 5.72 1.59 1.59 3.9 (RCP)
2016b 5.99 6.17 3.64 3.63 3.9 (RCP)
Table 2: Estimation error of forecasting methods during the 1968-2016 presidential elections, alongside the best predictor at that time (name of pollster specified in parenthesis).

The second property is quantified by the offset from the real difference between the Democratic and Republican candidates (D-R), expressed in percentage points. Table 3 represents the real (D-R) differences for all election years, followed by the relative offsets of each forecasting method from this difference. For example, in 1968, (D-R)=-0.7 and the offset of PTA is -1.43 (we can infer that PTA estimated the (D-R) difference at points). By averaging all forecasting offsets (in positive value) over all datasets, we measure a total (D-R) offset of 1.95 points for the best pollster, 4.07 for CC and 3.59 for SA. TA outperforms again the other methods by scoring an average offset of 1.74 for PTA and 1.91 for ETA.

Dataset (D-R) CC SA PTA ETA Best
1968 -0.7 -6.12 -5.8 -1.43 -1.31 -1.3
1972 -23.2 -3.51 -3.52 0.24 -1.04 -0.8
1976 2.1 8.46 7.93 0.12 0.53 0.9
1980 -9.7 7.15 3.42 7.02 6.71 6.7
1984 -18.2 3.43 3.32 1.16 1.2 1.2
1988 -7.8 6.14 6.54 -0.14 -1.31 -0.2
1992 5.6 -6.52 -5.18 -1.06 1.24 3.4
1996 8.5 6.95 6.75 3.04 2.64 2.5
2000 0.5 -2.47 -2.49 -0.38 1.25 -2.4
2004 -2.4 1.12 0.58 1.73 1.56 0.9
2008 7.2 -3.07 -2.17 0.51 0.83 0.4
2012a 3.9 -1.36 -1.2 -2.53 -2.55 -3.2
2012b 3.9 -1.62 -1.73 -3.16 -2.95 -3.2
2016a 2.1 2.89 2.94 1.59 1.59 1.1
2016b 2.1 -0.27 -0.25 2 1.89 1.1
Average - 4.07 3.59 1.74 1.91 1.95
Table 3: Column (D-R) represents the absolute percentage difference between the Democratic and Republican candidates after election. All subsequent columns represent the relative offset of the forecasting methods from the (D-R) difference. A smaller offset means a closer estimation of the winning party.

Additionally, we investigate how many out of the 13 elections (1968–2016) are correctly predicted in terms of picking the right winning party. As such, the reference statistical methods are the least performant, with CC predicting only 10 out of 13 presidents, and SA predicting 11 out of 13. The best pollsters manage to predict 11 out of 13, while PTA and ETA predict 12 out of 13 winners. No method was able to predict the correct 2016 winner. We did find one pollster which correctly predicted the winner of those elections, but did so by a much greater error in terms of popular vote. Supporting results for Tables 2, 3 are provided in Appendix E.

Furthermore, we highlight in Figure 4 the superior estimation performance of TA compared to the state of the art. We underline the fact that our TA methods outperform the best pollster, in terms of estimation error , on 8 out of 15 datasets (PTA), respectively 12 out of 15 datasets (ETA). Overall, TA outperforms the competing predictors in 10 out of 13 election years (77%). The upper panel in Figure 4 graphically represents the ratio between the best pollster prediction error and the TA method prediction error (i.e., ). As such, values (represented as columns) over 1.0 mean a higher performance for our TA methods. The lower panel in Figure 4classifies the cases when our PTA or ETA methods outperform the best pollster prediction (i.e., with green, otherwise red), for each election dataset. Also, we represent the cases when any of the three methods compared manage to forecast the correct winner of the elections. The only notable difference is that the best pollster does not succeed to forecast the winning party in the 2000 elections.

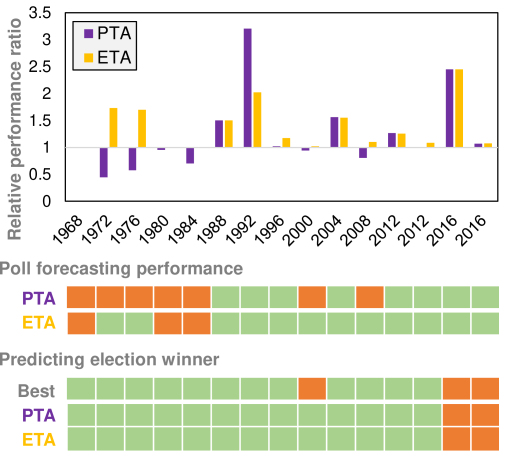

Figure 4: Ratio between the best pollster prediction error and the PTA (violet), respectively, ETA (yellow) prediction error. Values above 1 translate into higher prediction performance of our TA methods. In the lower panel we highlight the cases when TA outperforms the best pollster (green, or red otherwise), and the election years in which any of the three predictors manage to forecast the correct election winner.

4.1 Real time feasibility analysis

We extend our analysis by exploring the feasibility of our theoretical framework in the context of application during a real time pre-election period. Thus, we use the 2016a (RCP) dataset and compare the prediction errors at different points in time. The dataset consists of 259 polls over a 529 day period prior to the elections. We choose arbitrarily to measure the predictions and corresponding at . Table 4 represents the estimation errors for all five forecasting methods (here the best pollster is RCP), and the improvement ratio is . Values greater than 1 mean higher performance for ETA. Detailed experimental results are given in Appendix B.

CC SA PTA ETA RCP Ratio
100 9.88 10.41 3.82 3.69 6.7 1.81
250 5.16 6.94 6.95 7.32 2.8 0.38
400 6.95 7.82 6.6 6.55 10.2 1.55
500 4.83 6.72 4.58 4.57 4.8 1.05
529 3.91 5.72 1.59 1.59 3.9 2.45
Table 4: Estimation error of forecasting methods during the 2016 presidential pre-election period at different moments in time (here, t=0: 2015/05/26 and t=529: 2016/11/08). In the last column, the ratio between the RCP estimation error and the ETA error.

We find that the prediction accuracy of the statistical methods (CC, SA) depends mainly on the amount of data, as their forecasts slowly converge towards the real results. Conversely, the other methods do not depend on the increasing amount of data (as we get closer to the election day), but rather on the volatility of the socio-political context. Namely, RCP has the highest fluctuations, registering jumps from a low (February 2016) to a very high (July 2016), then falling back to (October 2016). Our TA methods register more stability than RCP, and are not influenced by the same social volatility we measured in RCP. We note that the Democratic candidate gathered increasing popularity until March 2016, so that TA reflects this by giving her a higher virtual chance of winning. Nevertheless, as the popularity of the Republican candidate rapidly increased, during mid-spring and mid-summer 2016, our forecasting becomes better leaning towards a balanced outcome that is closer to the final registered popular vote.

We have found that, unlike the best pollsters, which rely on MRP corroborated with social, economical and political trends, our TA method improves its forecasting based solely on the time-aware convergence of public opinion, which can be considered of significant estimation prowess Lewis-Beck and Tien (1999); Becker et al. (2017); Sjöberg (2009).

5 Discussion

Our study differs in several respects from previous work on election forecasting. In comparison to basic statistical approaches, like CC and SA, our TA needs additional temporal information on each pre-election poll (i.e., date when a poll was made public). Unlike simple averaging of the information, we feed the survey data to our simulation framework which is highly influenced by the temporal aspect. Both PTA and ETA methods model opinion momentum, in time, as a function which bounces up when opinion is injected, and dampens down otherwise. This process resembles the way a capacitor charges (i.e., opinion being injected) and discharges slowly (i.e., relaxation state, no opinion injected). Compared to the state of the art methods, like MRP Christensen and Florence (2008); Kiewiet de Jonge et al. (2018); Hummel and Rothschild (2014), our TA does not need any demographic, economic, or political information related to the context of the election. This distinction represents a significant advantage for TA over MRP since our method may be applied, given enough reliable public polls, in any political region of the world. Similar to the case study in this paper, we did not consider any additional information about the USA during the 1968–2016 period.

In essence, the TA model is aimed at improving the prediction of the popular vote. Nevertheless, we find studies especially tailored to systems like the US, which are based on the college system Hummel and Rothschild (2014); Kiewiet de Jonge et al. (2018), and, conversely, tailored to systems utilizing a direct popular vote, like France Nadeau et al. (2010). The work of Hummel and Rothschild (2014); Kiewiet de Jonge et al. (2018) manages to forecast US presidential, senatorial, and gubernatorial elections at the state level by incorporating state level demographics to better predict the college vote. However, we have developed the TA forecasting model to be usable outside any political context, as long as there is sufficient and reliable pre-election poll data. This choice may give it an apparent disadvantage in the US system, but as our case study was intended to show, in practice TA still yields superior performance. Moreover, where other models may need specific tuning to be used in other countries of the world, TA will work without the need for customization.

In this study we start from the premises that the opinion injected in social networks, stemming from publicly accredited opinion polls, has a very high media coverage. To this end, recent studies on how US adults keep themselves informed about political candidates and issues, show that TV (news) occupies the leading spot with 73%, followed by 45% for news websites/apps, 24% for newspapers, and 21% specifically for social media. These statistics are in favor of our premises since opinion injection from pollsters is practically done through all the enumerated media types Graber and Dunaway (2017). Furthermore, in terms of polling reliability, current media types are diverse, but their combined coverage remains high, including in the electoral context, and polling accuracy remains reliable Groves (2006).

Finally, as an explanation to why TA outperforms more complex data-driven methods used by pollsters (e.g., MRP), we notice that the forecasts of TA for the ”other” (O) candidates are lower, and implicitly closer, to the real results. Averaged over all datasets, the pre-election surveys predict that 11.61% will vote for the O candidate; TA predicts 6.94%, and the best pollster predicts 7.57%. However, following each election, we compute the real average percentages for the O candidate at only 5.08%. This means that, even though the forecasts for the D and R candidates may be realistic, the public opinion polls are unable to distribute a difference of of remaining votes. On the other hand, the best pollsters are unable to distribute of overall votes, and TA only of votes. This observation does not mean that TA simply overestimates the percentages for the two main candidates; it means that TA is able to distribute the votes for the O candidate more realistically based on the dynamics of expressing opinion just before the end of the pre-election period, which usually sees an abrupt drop of in popularity for O (see an extended statistical analysis in Appendix C. Of course, these performance gains of TA can be further analyzed in future research, and supported by both social psychology or political science assumptions.

5.1 Limitations of the model

Our TA model brings some limitations along, which we further discuss. For instance, we consider social media as an ubiquitous diffusion mechanism, but there are also, so called, non-users. We added this form of simplification to our model due to difficulty in acquiring data for offline users, and due to the reliability of that data. Official statistics approximate that 3/4 of the US population are engaged in social media. Even in this case, we argue that our model’s simplification remains robust, as a study on political attitudes concludes that no statistically significant differences arise between social media users and non-users on political attention, values or political behavior Mellon and Prosser (2017)

Another realistic simplification in our model allows us to consider the electoral system relatively hard to shape from the outside, so that we do not have to account for data beyond our reach (i.e., external influences). The liberal democracy index was developed to measure the robustness of a political system, and, according to a study by the Swedish V-Dem institute, the USA scores 0.75 (out of 1) and lies within the top 20% liberal nations Coppedge et al. (2019). As such, we can consider the studied US electoral system as robust.

Existing vote polarization and poll credibility are also important topics to consider in the futureBernhardt et al. (2008), however, our electoral forecasting model was designed to be, as much as possible, unaffected by any social and political contexts, including the effects of opinion polarization.

5.2 Conclusions

Driven by the increases in access to data and computational power, modern election forecasting systems should, intuitively, evolve along one of two directions: a possible microscopic framework built on extensively detailed social media data, or a possible macroscopic framework employing complex data science techniques on demographics and economic indices. However, our proposed model represents a trade-off between both micro and macro worlds, and the result is a simple, intuitive and robust methodology which can be applied on any pre-election data with temporal information. We argue that this simplification is effective since social influence often pertains to the knowledge of crowds Becker et al. (2017). In other words, the aggregated judgment of many individuals (macro-scale) can be more accurate than the judgments of individual experts (micro-scale) Sjöberg (2009). This effect is significantly strengthened when applied on larger population sizes Becker et al. (2017).

Despite the apparently simplified assumptions behind TA, revolving around the idea that we can apply a microscopic opinion interaction model to predict macroscopic behavior, our results pinpoint to the fact that time-awareness is more significant in poll forecasting than previously considered. In our case study, TA outperforms state of the art election forecasting methods in 10 out of the 13 presidential elections. TA accumulates an average forecasting error of 2.87–3.28 points, while statistical methods accumulate 7.48 points error, and the best pollster estimations accumulate 3.64 points. This translates into a roughly 30% prediction improvement for our method, in terms of forecasting accuracy of the popular vote.

Moreover, analyzing the methods of reputable institutions in the US, like the Huffington Post, Real Clear Politics, or Five Thirty Eight, we have not seen any temporal attenuation method that is similar to the one proposed in this paper. Other statistical, or data science approaches (e.g.

, MRP) rely on specific social, economical, and political contexts to improve and tune their predictions. Conversely our TA does not require socio-economical contextual information, and we believe that this independence translates into an advantage. It will probably never be possible to create the perfect forecasting system, due to the complexity of elections, but our TA represents a novel and distinguishable scientific proposal with proven high performance.

Conflicts of interest

The authors declare that there are no conflicts of interest.

Acknowledgments

This study relies partially on data from survey(s) administered by the Understanding America Study, which is maintained by the Center for Economic and Social Research (CESR) at the University of Southern California. The content of this paper is solely the responsibility of the authors and does not necessarily represent the official views of USC or UAS.

References

  • S. Asur and B. A. Huberman (2010) Predicting the future with social media. In Proceedings of the 2010 IEEE/WIC/ACM International Conference on Web Intelligence and Intelligent Agent Technology-Volume 01, pp. 492–499. Cited by: §1.
  • R. Axelrod (1997) The dissemination of culture: a model with local convergence and global polarization. Journal of conflict resolution 41 (2), pp. 203–226. Cited by: §2.1, §2.3.
  • C. C. Ballew and A. Todorov (2007) Predicting political elections from rapid and unreflective face judgments. Proceedings of the National Academy of Sciences 104 (46), pp. 17948–17953. Cited by: §1.
  • A. Barabási and M. Pósfai (2016) Network science. Cam. Univ. press. Cited by: §1.
  • A. Barabási (2002) Linked: the new science of networks. Basic Books. Cited by: §1.
  • J. Becker, D. Brackbill, and D. Centola (2017) Network dynamics of social influence in the wisdom of crowds. Proceedings of the national academy of sciences 114 (26), pp. E5070–E5076. Cited by: §4.1, §5.2.
  • D. Bernhardt, S. Krasa, and M. Polborn (2008) Political polarization and the electoral effects of media bias. Journal of Public Economics 92 (5-6), pp. 1092–1104. Cited by: §5.1.
  • K. Börner, W. B. Rouse, P. Trunfio, and H. E. Stanley (2018) Forecasting innovations in science, technology, and education. Proceedings of the National Academy of Sciences 115 (50), pp. 12573–12581. Cited by: §1.
  • W. F. Christensen and L. W. Florence (2008) Predicting presidential and other multistage election outcomes using state-level pre-election polls. The American Statistician 62 (1), pp. 1–10. Cited by: §1, §5.
  • B. A. Conway, K. Kenski, and D. Wang (2013) Twitter use by presidential primary candidates during the 2012 campaign. American Behavioral Scientist 57 (11), pp. 1596–1610. Cited by: §1.
  • M. Coppedge, J. Gerring, C. H. Knutsen, S. I. Lindberg, J. Teorell, D. Altman, M. Bernhard, M. S. Fish, A. Glynn, A. Hicken, et al. (2019) V-dem codebook v9. Cited by: §5.1.
  • D. Easley and J. Kleinberg (2010) Networks, crowds, and markets: reasoning about a highly connected world. Cambridge University Press. Cited by: §1, §1, §1.
  • H. Gladwin, J. K. Lazo, B. H. Morrow, W. G. Peacock, and H. E. Willoughby (2007) Social science research needs for the hurricane forecast and warning system. Natural Hazards Review 8 (3), pp. 87–95. Cited by: §1.
  • J. Golbeck and D. Hansen (2013) A method for computing political preference among twitter followers. Social Networks. Cited by: §1, §1.
  • J. Golbeck (2013) Analyzing the social web. Access Online via Elsevier. Cited by: §1.
  • J. Goldenberg, B. Libai, and E. Muller (2001) Talk of the network: a complex systems look at the underlying process of word-of-mouth. Marketing letters 12 (3), pp. 211–223. Cited by: §2.1, §2.3.
  • D. A. Graber and J. Dunaway (2017) Mass media and american politics. Cq Press. Cited by: §5.
  • M. S. Granovetter (1973) The strength of weak ties. American journal of sociology 78 (6), pp. 1360–1380. Cited by: §1.
  • R. M. Groves (2006) Nonresponse rates and nonresponse bias in household surveys. Public opinion quarterly 70 (5), pp. 646–675. Cited by: §5.
  • A. Guille, H. Hacid, C. Favre, and D. A. Zighed (2013) Information diffusion in online social networks: a survey. ACM Sigmod Record 42 (2), pp. 17–28. Cited by: §2.1.
  • A. Guille and H. Hacid (2012) A predictive model for the temporal dynamics of information diffusion in online social networks. In Proceedings of the 21st international conference on World Wide Web, pp. 1145–1152. Cited by: §1, §1.
  • P. N. Howard, A. Duffy, D. Freelon, M. M. Hussain, W. Mari, and M. Maziad (2011) Opening closed regimes: what was the role of social media during the arab spring?. Available at SSRN 2595096. Cited by: §1.
  • L. Hufnagel, D. Brockmann, and T. Geisel (2004) Forecast and control of epidemics in a globalized world. Proceedings of the National Academy of Sciences 101 (42), pp. 15124–15129. Cited by: §1.
  • A. L. Hughes and L. Palen (2009) Twitter adoption and use in mass convergence and emergency events. International Journal of Emergency Management 6 (3-4), pp. 248–260. Cited by: §1.
  • P. Hummel and D. Rothschild (2014) Fundamental models for forecasting elections at the state level. Electoral Studies 35, pp. 123–139. Cited by: §1, §5, §5.
  • M. M. Hussain and P. N. Howard (2013) What best explains successful protest cascades? icts and the fuzzy causes of the arab spring. International Studies Review 15 (1), pp. 48–66. Cited by: §1.
  • M. O. Jackson, B. W. Rogers, and Y. Zenou (2017) The economic consequences of social-network structure. Journal of Economic Literature 55 (1), pp. 49–95. Cited by: §1.
  • M. O. Jackson and A. Watts (2002) The evolution of social and economic networks. Journal of Economic Theory 106 (2), pp. 265–295. Cited by: §1.
  • J. B. Jensen, D. P. Quinn, and S. Weymouth (2017) Winners and losers in international trade: the effects on us presidential voting. International Organization 71 (3), pp. 423–457. Cited by: §1.
  • C. P. Kiewiet de Jonge, G. Langer, and S. Sinozich (2018) Predicting state presidential election results using national tracking polls and multilevel regression with poststratification (mrp). Public Opinion Quarterly 82 (3), pp. 419–446. Cited by: §1, §5, §5.
  • D. Lazer, A. S. Pentland, L. Adamic, S. Aral, A. L. Barabasi, D. Brewer, N. Christakis, N. Contractor, J. Fowler, M. Gutmann, et al. (2009) Life in the network: the coming age of computational social science. Science (New York, NY) 323 (5915), pp. 721. Cited by: §1.
  • M. S. Lewis-Beck and A. Skalaban (1989) Citizen forecasting: can voters see into the future?. British Journal of Political Science 19 (1), pp. 146–153. Cited by: §1.
  • M. S. Lewis-Beck and C. Tien (1999) Voters as forecasters: a micromodel of election prediction. International Journal of Forecasting 15 (2), pp. 175–184. Cited by: §1, §1, §4.1.
  • J. Mellon and C. Prosser (2017) Twitter and facebook are not representative of the general population: political attitudes and demographics of british social media users. Research & Politics 4 (3), pp. 2053168017720008. Cited by: §5.1.
  • S. Myers and J. Leskovec (2010) On the convexity of latent social network inference. In Advances in neural information processing systems, pp. 1741–1749. Cited by: §2.1, §2.1.
  • R. Nadeau, M. S. Lewis-Beck, and É. Bélanger (2010) Electoral forecasting in france: a multi-equation solution. International Journal of Forecasting 26 (1), pp. 11–18. Cited by: §1, §5.
  • I. Papasolomou and Y. Melanthiou (2012) Social media: marketing public relations’ new best friend. Journal of Promotion Management 18 (3), pp. 319–328. Cited by: §1.
  • R. Pastor-Satorras, C. Castellano, P. Van Mieghem, and A. Vespignani (2015) Epidemic processes in complex networks. Reviews of modern physics 87 (3), pp. 925. Cited by: §1, §1.
  • M. G. Rodriguez, D. Balduzzi, and B. Schölkopf (2011) Uncovering the temporal dynamics of diffusion networks. arXiv preprint arXiv:1105.0697. Cited by: §1, §1.
  • L. Sjöberg (2009) Are all crowds equally wise? a comparison of political election forecasts by experts and the public. Journal of Forecasting 28 (1), pp. 1–18. Cited by: §4.1, §5.2.
  • A. Topirceanu, M. Udrescu, M. Vladutiu, and R. Marculescu (2016) Tolerance-based interaction: a new model targeting opinion formation and diffusion in social networks. PeerJ Computer Science 2, pp. e42. Cited by: §2.1, §2.3.
  • J. Wallinga and P. Teunis (2004) Different epidemic curves for severe acute respiratory syndrome reveal similar impacts of control measures. American Journal of epidemiology 160 (6), pp. 509–516. Cited by: §2.1.
  • G. Weimann (1990) The obsession to forecast: pre-election polls in the israeli press. Public Opinion Quarterly 54 (3), pp. 396–408. Cited by: §1, §1.
  • P. Whiteley (1979) Electoral forecasting from poll data: the british case. British Journal of Political Science 9 (2), pp. 219–236. Cited by: §1, §1.
