1 Introduction

Deep Convolutional Neural Networks (CNN) have achieved tremendous success among many computer vision tasks

[14, 25, 39]. However, a hand-crafted network structure tailored to one task may perform poorly on another task. Therefore, it usually requires extensive amount of human efforts to design an appropriate network structure for a certain task.

Recently, there are emerging research works  [2, 3, 6, 22, 32, 51] on automatically searching neural network structures for image recognition tasks. In this paper, we focus on optimizing the evolution-based algorithms [30, 33, 42, 44] for searching networks from scratch with poorly-initialized networks, such as a network with one global pooling layer, and with few constraints forced during the evolution [36] as we assume no prior knowledge about the task domain. Existing work along this line of research suffers from either prohibitive computational cost or unsatisfied performance compared with hand-crafted network structures. In [36], it costs more than hours on GPU for searching neural network structures, which is not affordable for general users. In [44], the final learned network structure by their genetic approach achieves about test accuracy on CIFAR-10, even though better performance as 92.9% could be obtained after fine-tuning certain parameters and modifying some structures on the discovered network. In [27], they firstly aim to achieve better performance with the reduced computational cost by the proposed aggressive selection strategy in genetic approach and more mutations operation to increase diversity which is decreased by the proposed selection strategy. In their work, they reduce computational cost dramatically from more than GPU hours (GPUH) to few hundreds GPUH. However, their approach still suffers performance sacrifice, for example, test accuracy compared to test accuracy from [36] on CIFAR-10 dataset.

Inspired by a few key concepts in ecological system, in this paper, we try to improve the genetic approach to achieve better test performance compared to [36] or competitive performance to hand-crafted network structures [18] under limited computation cost [27], but without utilizing pre-designed architectures [29, 30, 31, 51]. Inspired by primary, secondary succession from ecological system [38], we enforce a poorly initialized population of neural network structures to rapidly evolve to a population containing network structures with dramatically improved performance. After the first stage of primary succession, we perform fine-grained search for better networks in a population during the secondary succession stage. During the succession stages, we also introduce an accelerated extinction algorithm to improve the search efficiency. In our approach, we apply the mimicry [16] concept to help inferior networks learn the behavior from superior networks to obtain the better performance. In addition, we also introduce the gene duplication to further utilize the novel block of layers that appear in the discovered network structure.

The contribution of this paper is four-fold and can be summarized as follows:

  • We proposed an efficient genetic approach to search neural network structure from scratch with poorly initialized network and without limiting the searching space. Our approach can greatly reduce the computation cost compared to other genetic approaches, where neural network structures are searched from scratch. This is different from some recent works [13, 31, 34] that significantly restricts the search space.

  • We incorporate primary and secondary succession concepts from ecological system into our genetic framework to search for optimal network structures under limited computation cost.

  • We explore the mimicry concept from ecological system to help search better networks during the evolution and use the gene duplication concept to utilize the discovered beneficial structures.

  • Experimental results show that the obtained neural network structures achieves better performance compared with existing genetic-based approaches and competitive performance with the hand-crafted network structures.

2 Related Work

There is growing interest on automatic searching of neural network architectures from scratch. Methods based on reinforcement learning (RL) show promising results on obtaining the networks with the performance similar or better than human designed architectures

[3, 48, 50]. Zoph et al. propose to searching in cells, including a normal cell and a reduction cell, where the final architecture is based on stacking the cells [51]. The idea of cell based searching is widely adopted in many studies [9, 10, 29, 31, 34, 49]. In order to reduce high computational cost, efforts have been done to avoid training all networks during the searching process from scratch [4, 5, 7, 9, 11, 13, 23, 47]. However, these works require strict hand-designed constraints to reduce computation cost, and comparison with them are not the focus of this paper.

On the other hand, there emerges a few studies [36, 43, 44] targeting on network searching using evolutionary approaches. In order to have a fair comparison with the RL and evolutionary based approaches, Real et al. [35] conduct the study where the RL and evolutionary approaches are performed under the same searching space. Experiments show the evolutionary approach converges faster than RL.

Therefore, in this paper we focus on the genetic-based approaches for searching optimal neural network structures. Suganuma et al.

propose the network searching based on Cartesian genetic programming

[17]. However, a pre-defined grid with the fixed row and column is used as the network has to fit in the grid [43] . The studies that have the searching space similar to us are introduced in  [27, 36, 44], where the network searching starts from poorly-initialized networks and uses few constraints during the evolution. Since in this paper we focus on achieving better performance with limited computational cost through a genetic approach, we will highlight the differences between our work with the similar studies [27, 36, 44] in the following from two aspects: reducing computation cost and improving performance.

In [36], the authors encode each individual network structure as a graph into DNA and define several different mutation operations such as IDENTITY and RESET-WEIGHTS to apply to each parent network to generate children networks. The essential part of this genetic approach is that they utilize a large amount of computation to search the optimal neural network structures in a huge searching space. Specifically, the entire searching procedure costs more than hours with GPUs to achieve test accuracy from the learned network structure on CIFAR-10 dataset, which is not affordable for general users.

Due to prohibitive computation cost, in [44] the authors impose restriction on the neural network searching space. In their work, they only learn one block of network structure and stack the learned block by certain times in a designed routine to obtain the best network structure. Through this mechanism, the computation cost is reduced to several hundreds GPU hours, however, the test performance of the obtained network structure is not satisfactory, for example, the found network achieves test accuracy on CIFAR-10, even though fine-tuning parameters and modifying certain structures on the learned network structure could lead to the test accuracy as 92.9%.

In [27], they aim to achieve better performance from automatically learned network structure with limited computation cost in the course of evolution, which is not brought up previously. Different from restricting the search space to reduce computational cost [12, 44], they propose the aggressive selection strategy to eliminate the weak neural network structures in the early stage. However, this aggressive selection strategy may decrease the diversity which is the nature of genetic approach to improve performance. In order to remedy this issue, they define more mutation operations such as add_fully_connected or add_pooling. Finally, they reduce computation cost dramatically to 72 GPUH on CIFAR-10. However, there is still performance loss in their approach. For example, on CIFAR-10 dataset, the test accuracy of the found network is about lower than [36].

At the end of this section, we highlight that our work is in the line of  [27]. Inspired from ecological concepts, we propose the Ecologically-Inspired GENetic approach (EIGEN) for neural network structure search by evolving the networks through rapid succession, and explore the mimicry and gene duplication along the evolution.

3 Approach

Our genetic approach for searching the optimal neural network structures follows the standard procedures: i) initialize population in the first generation with simple network structures; ii) evaluate the fitness score of each neural network structure (fitness score is the measurement defined by users for their purpose such as validation accuracy, number of parameters in network structure, number of FLOP in inference stage, and so on); iii) apply a selection strategy to decide the surviving network structures based on the fitness scores; iv) apply mutation operations on the survived parent network structures to create the children networks for next generation. The last three steps are repeated until the convergence of the fitness scores. Note that in our genetic approach, the individual is denoted by an acyclic graph with each node representing a certain layer such as convolution, pooling and concatenation layer. A children network can be generated from a parent network through a mutation procedure. A population includes a fixed number of networks in each generation, which is set as 10 in our experiments. For details of using genetic approach to search neural network structures, we refer the readers to [27]. In the following, we apply the ecological concepts of succession, extinction, mimicry and gene duplication to the genetic approach for an accelerated search of neural network structures.

3.1 Evolution under Rapid Succession

Our inspiration comes from the fact that in an ecological system, the population is dominated by diversified fast-growing individuals during the primary succession, while in the secondary succession, the population is dominated by more competitive individuals [38]. Therefore, we treat all the networks during each generation of the evolution process as a population and focus on evolving the population instead of on a single network [36].

With this treatment, we propose a two-stage rapid succession for accelerated evolution, analogous to the ecological succession. The proposed rapid succession includes a primary succession, where it starts with a community consisting of a group of poorly initialized individuals which only contains one global pooling layer, and a secondary succession which starts after the primary succession. In the primary succession, a large search space is explored to allow the community grow at a fast speed, and a relatively small search space is used in the secondary succession for fine-grained search.

In order to depict how the search space is explored, we define mutation step-size as the maximum mutation iterations between the parent and children. The actual mutation step for each child is uniformly chosen from . In the primary succession, in order to have diversified fast-growing individuals, a large mutation step-size is used in each generation so the mutated children could be significantly different from each other and from their parent. Since we only go through the training procedure after finishing the entire mutation steps, the computation cost for each generation will not increase with the larger step-size. In the secondary succession, we adopt a relative small mutation step-size to perform a fine-grained search for network structures.

Each mutation step is randomly selected from the nine following operations including:

  • INSERT-CONVOLUTION: A convolutional layer is randomly inserted into the network. The inserted convolutional layer has a default setting with kernel size as 3

    3, number of channels as 32, and stride as 1. The convolutional layer is followed by batch normalization

    [21]

    and Rectified Linear Units

    [25].

  • INSERT-CONCATENATION: A concatenation layer is randomly inserted into the network where two bottom layers share the same size of feature maps.

  • INSERT-POOLING: A pooling layer is randomly inserted into the network with kernel size as 22 and stride as 2.

  • REMOVE-CONVOLUTION: The operation randomly remove a convolutional layer.

  • REMOVE-CONCATENATION: The operation randomly remove a concatenation layer.

  • REMOVE-POOLING: The operation randomly remove a pooling layer.

  • ALTER-NUMBER-OF-CHANNELS, ALTER-STRIDE, ALTER-FILTER-SIZE: The three operations modify the hyper-parameters in the convolutional layer. The number of channels is randomly selected from a list of ; the stride is randomly selected from a list of ; and the filter size is randomly selected from .

During the succession, we employ the idea from previous work [27] that only the best individual in the previous generation will survive. However, instead of evaluating the population in each generation after all the training iterations, it is more efficient to extinguish the individuals that may possibly fail at early iterations, especially during the primary succession where the diversity in the population leads to erratic performances. Based on the assumption that a better network should have better fitness score at earlier training stages, we design our extinction algorithm as follows.

To facilitate the presentation, we denote as the population size in each generation, and as the landmark iterations, and as fitness scores (validation accuracy used in our work) of the network in the generation after training and iterations, and as threshold to eliminate weaker networks at and iterations in the generation. In the generation, we have fitness scores for all networks and after training and iterations, respectively. Note that can be less than since weaker networks are eliminated after iterations. The thresholds and are updated at iteration as

(1)

and

(2)

where is a sorting operator in decreasing order on a list of values and the subscripts and represents and value after the sorting operation, and are the hyper-parameters.

For each generation, we perform the following steps until the convergence of the fitness scores: (i) train the population for iterations, extinguish the individuals with fitness scores less than ; (ii) train the remaining population for iterations, and distinguish the population with fitness scores less than ; (iii) the survived individuals are further trained till convergence and the best one is chosen as the parent for next generation. The details for the extinction algorithm are described in Algorithm 1.

1:  Input: , , , , ,
2:  for  do
3:     Obtain by training all individuals for iterations
4:     Update based on Eq. 1
5:     Extinguish the individuals with fitness value less than
6:     Obtain by training the remain individuals for iterations
7:     Update based on Eq. 2
8:     Extinguish the individuals with fitness value less than
9:     Train the remain individuals for iterations and select the best one as parent
10:  end for
Algorithm 1 Algorithm for Extinction

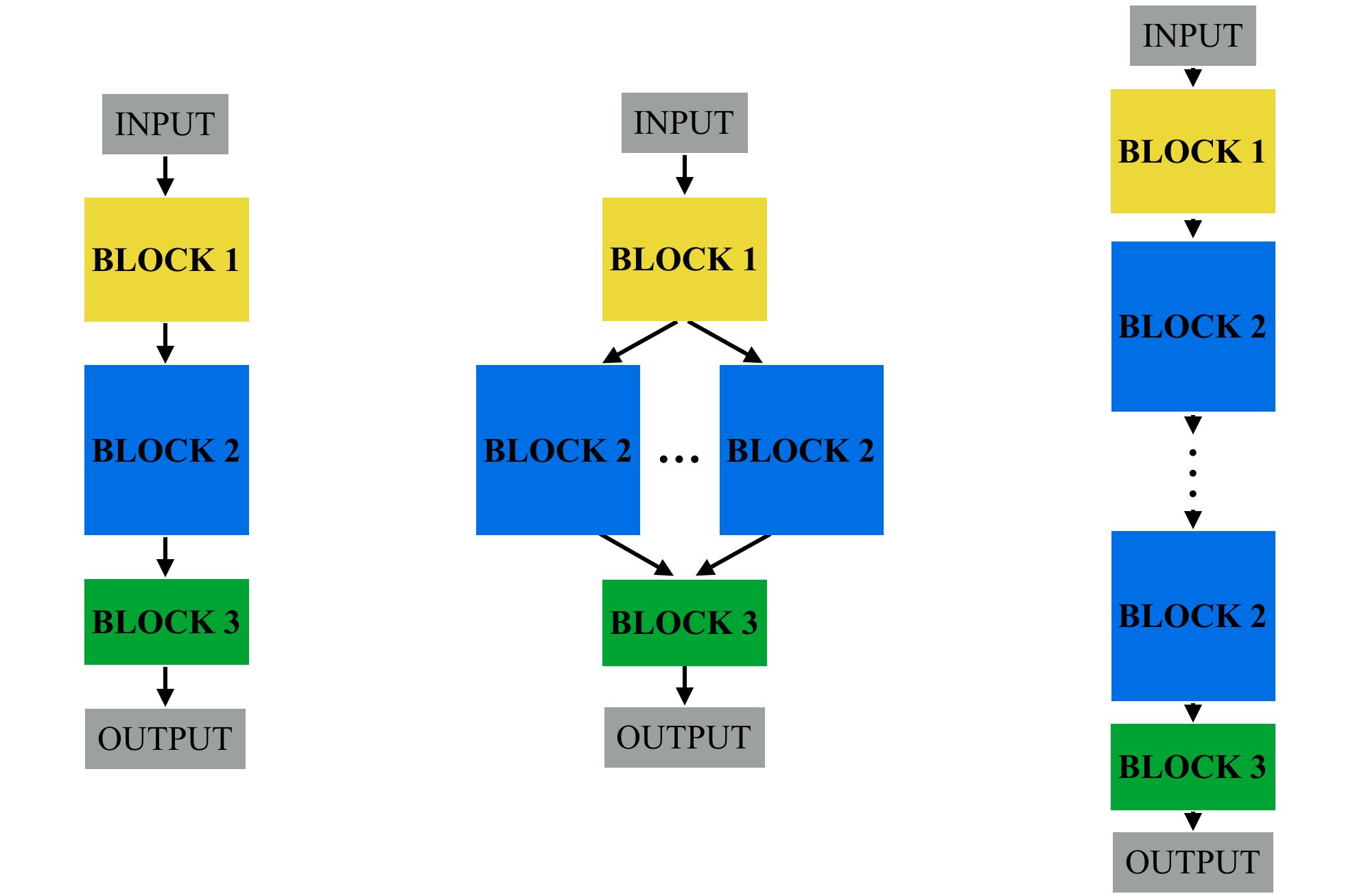

Figure 1: Example of duplication. The image on the left shows the structure discovered after the rapid succession, where each block includes a number of layers with the same size of feature maps. The image in the middle and right are two examples of the duplication that the Block 2 undergoes different combination to create new architectures.
Model PARAMS. C10+ C100+ Comp Cost
MAXOUT [15] - 90.7% 61.4% -
Network In Network [28] - 91.2% 64.3% -
ALL-CNN [40] 1.3 M 92.8% 66.3% -
DEEPLY SUPERVISED [26] - 92.0% 65.4% -
HIGHWAY [41] 2.3 M 92.3% 67.6% -
RESNET [18] 1.7 M 93.4% 72.8% -
DENSENET ([20] 25.6 M 96.5% 82.8% -
Teacher Network 17.2 M 96.0% 82.0% -
EDEN [12] 0.2 M 74.5% - -
Genetic CNN [44] - 92.9% 71.0% 408 GPUH
LS-Evolution [36] 5.4 M 94.6% - 64,000 GPUH
LS-Evolution [36] 40.4 M - 77.0% 65,536 GPUH
AG-Evolution [27] - 90.5% - 72 GPUH
AG-Evolution [27] - - 66.9% 136 GPUH
EIGEN 2.6 M 94.6% - 48 GPUH
EIGEN 11.8 M - 78.1% 120 GPUH
Table 1:

Comparison with hand-designed architectures and automatically discovered architectures using genetic algorithms. The C10+ and C100+ columns indicate the test accuracy achieved on data-augmented CIFAR-10 and CIFAR-100 datasets, respectively. The PARAMS. column indicates the number of parameters in the discovered network.

3.2 Mimicry

In biology evolution, mimicry is a phenomenon that one species learn behaviours from another species. For example, moth caterpillars learn to imitate body movements of a snake so that they could scare off predators that are usually prey items for snakes [16]. The analogy with mimicry signifies that we could force inferior networks to adopt (learn) the behaviors, such as statistics of feature maps [37, 45]

or logits

[8, 19], from superior networks in designing neural network structure during the evolution.

In our approach, we force the inferior networks to learn the behavior of a superior network by generating similar distribution of logits in the evolution procedure. Since learning the distribution of logits from the superior network gives more freedom for inferior network structure, compared to learning statistics of feature maps. This is in fact the knowledge distillation proposed in [19]. More specifically, for the given training image with one-hot class label , we define as the logits predicted from the pre-trained superior network, and as the logits predicted by the inferior network. We use the following defined

as the loss function to encode the prediction discrepancy between inferior and superior networks as well as the difference between inferior networks prediction and ground truth annotations during the evolution:

(3)

where is the softmax function,

is the cross-entropy of two input probability vectors such that

(4)

is the ratio controlling two loss terms and is a hyper-parameter. We adopt the terms from knowledge distillation [19] where student network and teacher network represent the inferior network and superior network, respectively. We fix as a constant. While the target of neural network search is to find the optimal architecture, mimicry is particularly useful when we want to find a small network for applications where inference computation cost is limited.

3.3 Gene Duplication

During the primary succession, the rapid changing of network architectures leads to the novel beneficial structures decoded in DNA [36] that are not shown in the previous hand-designed networks. To further leverage the automatically discovered structures, we propose an additional mutation operation named duplication to simulate the process of gene duplication since it has been proved as an important mechanism for obtaining new genes and could lead to evolutionary innovation [46]. In our implementation, we treat the encoded DNA as a combination of blocks. For each layer with the activation map defined as , where denote the batch size, depth, width and height, respectively, the block includes the layers with activation map that have the same and . As shown in Figure 1, the optimal structure discovered from the rapid succession could mutate into different networks by combining the blocks in several ways through the duplication. We duplicate the entire block instead of single layer because the block contains the beneficial structures discovered automatically while simple layer copying is already an operation in the succession.

(a) The discovered network architecture using the proposed method on CIFAR-10 dataset that includes convolutional layers, concatenation layers and global pooling layer.
(b) The detailed architecture of the BLOCK shown in (a).
Figure 2: Discovered neural network structure for CIFAR-10 dataset.
(a) Primary succession using the mutation step-size as 1, 2, 10 and 100.
(b) Primary succession using the muation step-size as 50, 100 and 200.
Figure 3:

The effect of different mutation step-size for the primary succession on CIFAR-10. The solid lines show the average test accuracy over five experiments of the individuals with the highest accuracy in each generation. The shaded area around each line has a width of standard deviation

. In general, the larger mutation step-size, the faster the convergence of fitness score.

4 Experimental Results and Analysis

In this section, we report the experimental results of using EIGEN for structure search of neural networks. We first describe the experiment setup including datasets preprossessing and training strategy in Subsection 4.1 and show the comparison results in Subsection 4.2. Following that, we analyze the experimental results in Subsection 4.3 with regard to each component of our approach.

4.1 Experiment Setup

Datasets.

The experiments are conducted on two benchmark datasets including CIFAR-10 [24] and CIFAR-100 [24]. The CIFAR-10 dataset contains 10 classes with 50, 000 training images and 10, 000 test images. The images have the size of 3232. The data augmentation is applied by a Global Contrast Normalization (GCN) and ZCA whitening [15]. The CIFAR-100 dataset is similar to CIFAR-10 except it includes 100 classes.

Training Strategy and Details.

During the training process, we use mini-batch Stochastic Gradient Descent (SGD) to train each individual network with the batch size as 128, momentum as 0.9, and weight-decay as 0.0005. Each network is trained for a maximum of 25, 000 iterations. The initial learning rate is 0.1 and is set as 0.01 and 0.001 at 15, 000 iterations and 20, 000 iterations, respectively. The parameters in Algorithm

1 are set to , , , , and . For the mimicry, we set to 5 and to 0.9 in Eq. 3. The teacher network is an ensemble of four Wide-DenseNet ([20]. The fitness score is validation accuracy from validation set. The primary succession ends when the fitness score saturates and then the secondary succession starts. The entire evolution procedure is terminated when the fitness score converges. Training is conducted with TensorFlow [1].

We directly adopt the hyper-parameters developed on CIFAR-10 dataset to CIFAR-100 dataset. The experiments are run on a machine that has one Intel Xeon E5-2680 v4 2.40GHz CPU and one Nvidia Tesla P100 GPU.

4.2 Comparison Results

The experimental results shown in Table 1 justify the proposed approach are competitive with hand designed networks. Compared with the evolution-based algorithms, we can achieve the best results with the minimum computational cost. For example, we obtain similar results on the two benchmark datasets compared to  [36], but our approach is 1,000 times faster. Also, the number of parameters of the networks found by our approach on the two datasets are more than two times smaller than LS-Evolution [36].

We show the discovered network architecture using our proposed method on CIFAR-10 dataset in Figure 2, where Figure 1(a) shows the engire network and Figure 1(b) represents the detailed architecture in the BLOCK of Figure 1(a).

4.3 Analysis

Effect of Primary Succession.

We show the results on different mutation step-size for the primary succession in Figure 3. The solid lines show average test accuracy of the best networks among five experiments and the shaded area represents the standard deviation in each generation among five experiments. Larger mutation step-size, such as 100, leads to the faster convergence of fitness score compared with the smaller mutation step-size, as shown in Figure 2(a). However, no further improvement is observed by using too large mutation step-size, such as 200, as shown in Figure 2(b).

Effect of Secondary Succession.

We further analyze the effect of the secondary succession during the evolution process. After the primary succession, we utilize the secondary succession to search the networks with a smaller searching space. We adopt small mutation step-size for the purpose of fine-grained searching based on the survived network from previous generation. Figure 4 shows the example evolution on CIFAR-10 and CIFAR-100 during the rapid succession. We use mutation step-size 100 and 10 for primary succession and secondary succession, respectively. The blue line in the plots shows performance of the best individual in each generation. The gray dots show the number of parameters for the population in each generation, and the red line indicates where the primary succession ends. The accuracy on the two datasets for the secondary succession shown in Table 2 demonstrates that small mutation step-size is helpful for searching better architectures in the rapid succession.

(a) Experiment on CIFAR-10 dataset.
(b) Experiment on CIFAR-100 dataset.
Figure 4: The progress of rapid succession on CIFAR-10 (a) and CIFAR-100 (b). The blue line is the test performance of the best individual in each generation. The gray dots show the number of parameters of the individuals in each generation. The red line denotes the generation where primary succession ends.

Analysis on Mimicry.

In order to analyze the effect of mimicry, we consider the situation where only primary and secondary succession are applied during the evolution. Both the duplication and mimicry are disabled. We denote the method as EIGEN w/o mimicry and duplication. We compare EIGEN w/o mimicry and duplication with the approach where mimicry is enabled and denote it as EIGEN w/o duplication. The comparison between EIGEN w/o mimicry and duplication and EIGEN w/o duplication in Table 3 proves the effectiveness of the mimicry during the rapid succession.

Succession C10+ C100+
Primary Succession 93.3% 74.7%
Secondary Succession 93.7% 76.9%
Table 2: The results of secondary succession during the evolution. After the primary succession, the smaller mutation step-size is adopted to search the better network architectures. The accuracy on both CIFAR-10 and CIFAR-100 are improved.
Method C10+ C100+
EIGEN w/o mimicry and duplication 92.4% 74.8%
EIGEN w/o duplication 93.7% 76.9%
Table 3: Analysis of mimicry during the raipd succession.

Effect of Gene Duplication.

After the rapid succession, the duplication operation is applied to leverage the automatically discovered structures. To analyze the effect of gene duplication, we denote the approach without duplication as EIGEN w/o duplication and show the results on CIFAR-10 and CIFAR-100 in Table 4. Although more parameters are induced in the networks by duplication, the beneficial structures contained in the block can actually contribute to the network performance through duplication.

Method C10+ (PARAMS.) C100+ (PARAMS.) EIGEN w/o duplication 93.7% (1.2 M) 76.9% (6.1 M) EIGEN 94.6% (2.6 M) 78.1% (11.8 M)

Table 4: Analysis of the gene duplication operation on CIFAR-10 and CIFAR-100. The performance on the two datasets is improved with more parameters on the networks discovered from gene duplication.

Furthermore, we analyze the effect of mimicry on the network after the gene duplication. We denote the best network found by our approach as EIGEN network. By utilizing the mimicry to train the network from scratch, which is EIGEN network w mimicry, the networks obtain the improvement as 1.3% and 4.2% on CIFAR-10 and CIFAR-100, respectively, compared with the network trained from scratch without mimicry, which is EIGEN network w/o mimicry.

Method C10+ C100+ EIGEN network w/o mimicry 93.3% 73.9% EIGEN network w mimicry 94.6% 78.1%

Table 5: Analysis of mimicry after the gene duplication.

5 Discussion and Conclusions

In this paper, we propose an Ecologically-Inspired GENetic Approach (EIGEN) for searching neural network architectures automatically from scratch, with poor initialization networks, such as a network with one global pooling layer, and few constraints forced during the searching process. Our searching space follows the work in [27, 36] and we introduce rapid succession, mimicry and gene duplication in our apporach to make the search more efficient and effective. The rapid succession and mimicry could evolve a population of networks into an optimal status under the limited computational resources. With the help of gene duplication, the performance of the found network could be boosted without sacrificing any computational cost. The experimental results show the proposed approach can achieve competitive results on CIFAR-10 and CIFAR-100 under dramatically reduced computational cost compared with other genetic-based algorithms.

Admittedly, compared with other searching neural network algorithms [31, 34] which aim to searching network under limited computation resource, our work has the slightly higher error rate. But our genetic algorithm requires little prior domain knowledge from human experts, and is more “complete-automatic” compared with other semi-automatic searching neural network approaches [31, 34], which require more advanced initialization, carefully designed cell-based structures and much more training iterations after the searching process. Such comparison, although unfair, still indicates that more exploration is needed to improve the efficiency for genetic-based approaches in searching neural networks from scratch for the future study.
