Efficiently making (almost) any concurrency control mechanism serializable

05/13/2016 ∙ by Tianzheng Wang, et al. ∙ UNIVERSITY OF TORONTO Amazon The University of Sydney LogicBlox 0

Concurrency control (CC) algorithms must trade off strictness for performance. Serializable CC schemes generally pay higher cost to prevent anomalies, both in runtime overhead and in efforts wasted by aborting transactions. We propose the serial safety net (SSN), a serializability-enforcing certifier which can be applied with minimal overhead on top of various CC schemes that offer higher performance but admit anomalies, such as snapshot isolation and read committed. The underlying CC retains control of scheduling and transactional accesses, while SSN tracks the resulting dependencies. At commit time, SSN performs an efficient validation test by examining only direct dependencies of the committing transaction to determine whether it can commit safely or must abort to avoid a potential dependency cycle. SSN performs robustly for various workloads. It maintains the characteristics of the underlying CC without biasing toward certain types of transactions, though the underlying CC might. Besides traditional OLTP workloads, SSN also allows efficient handling of heterogeneous workloads with long, read-mostly transactions. SSN can avoid tracking the majority of reads (thus reducing the overhead of serializability certification) and still produce serializable executions with little overhead. The dependency tracking and validation tests can be done efficiently, fully parallel and latch-free, for multi-version systems on modern hardware with substantial core count and large main memory. We demonstrate the efficiency, accuracy and robustness of SSN using extensive simulations and an implementation that overlays snapshot isolation in ERMIA, a memory-optimized OLTP engine that is capable of running different CC schemes. Evaluation results confirm that SSN is a promising approach to serializability with robust performance and low overhead for various workloads.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Concurrency control (CC) algorithms interleave read and write requests from multiple users simultaneously, while giving the (perhaps imperfect) illusion that each transaction has exclusive access to the data. Serializable CC mechanisms generate concurrent transaction executions that are equivalent to some

serial ones. This is desirable for users, because serializable executions never have anomalies (e.g., lost update and write skew) and can preserve integrity constraints over the data. Enforcing a cycle-free transaction dependency graph is a necessary condition to achieve serializability, and is the focus of this work.

111Phantom protection, as we will discuss later in Section 6, is another necessary, but largely orthogonal issue. Some CC schemes—such as two-phase locking (2PL) and serializable snapshot isolation (SSI) [5]—forbid all dependency cycles to guarantee serializability, but in doing so they also forbid many valid serializable schedules.

Traditional serializable CC schemes have been either pessimistic or optimistic. In today’s environment of massively parallel, large main memory hardware, it is common for the working set—or even the whole database—to fit in main memory. I/O operations are completely out of the critical path. Existing pessimistic scheme implementations often scale poorly in this situation, due to physical contention (e.g., on centralized lock tables [21, 40]). Lightweight optimistic concurrency control (OCC) [28] is favored in many recent memory-optimized systems [27, 29, 49], but OCC is known to be unfriendly to heterogeneous workloads that have a significant amount of analytical operations and read-mostly transactions [20, 26]. Considering the performance impact of both kinds of serializable CC, many designs have non-serializable execution as the common case. For example, although serializable SI (SSI) [5] has been implemented in PostgreSQL to ensure full serializability [42], Read Committed (RC) is still the default isolation level in PostgreSQL for performance reasons [17], and a similar default is found in most widely-used database systems. Sometimes there is no available isolation level that guarantees serializability. Whenever an application uses transactions that may not be serializable, data corruption is a risk, so our focus is on guaranteeing serializability while reducing the performance degradation as much as possible.

Figure 1: Relative merits of existing CC schemes (solid dots) vs. the serial safety net (hollow dots).

Fig. 1 illustrates the relative strictness vs. performance trade-off for several well-known CC schemes. At one extreme, strict 2PL ensures serializability but offers low concurrency because readers and writers block each other. At the other extreme, a system with no CC whatsoever (No CC) offers maximum concurrency but admits often intolerable anomalies (e.g., dirty reads and lost writes). With low performance cost, RC and its lock-based variant (RCL) offer much stronger semantics than No CC, and are often used in practice. Snapshot isolation (SI) makes a very attractive compromise, offering reasonably strict semantics and fairly high performance, while SSI offers full serializability but lowers concurrency. Fully precise serialization graph testing (SGT) [6] allows all (and only) cycle-free executions, but is impractical as every commit requires an expensive search for cycles over an ever-changing dependency graph.

1.1 The serial safety net in a nutshell

This paper describes the serial safety net (SSN), an efficient, general-purpose certifier to enforce serializability on top of a variety of CC schemes, such as RC and SI. SSN does not dictate access patterns—the underlying CC scheme does that—but instead tracks dependencies and aborts transactions that might close a dependency cycle if allowed to commit. SSN admits false positives, but is much more accurate than prior practical serializable CC schemes (e.g., 2PL and SSI). As illustrated by Fig. 1, SSN guarantees serializability with concurrency levels not drastically worse than the underlying CC scheme. In particular, SI+SSN, RC+SSN, and RCL+SSN all allow higher concurrency than 2PL and SSI. The SSN infrastructure can also be used to prevent phantoms, and so offers full protection for any CC mechanism that forbids dirty reads and lost writes. The majority of schemes meet these constraints; read uncommitted (ANSI SQL) and eventual consistency (NoSQL favorite) are perhaps the most notable exceptions, by allowing dirty reads and lost writes, respectively. SSN thus expands significantly the universe of CC schemes that can be made serializable.

SSN can be implemented in both traditional disk-based systems and recent main-memory databases. We focus on multi-version main-memory systems in this paper. To facilitate dependency tracking, SSN requires globally unique timestamps, which can be generated from a centralized source (e.g., a counter incremented by the atomic fetch-and-add instruction on x86 [19]) or by augmenting unique thread-local counters to block-allocated timestamps from a centralized source.

The gist of SSN consists of two parts: (1) a low watermark for transaction that summarizes “dangerous” transactions that committed before but which must be serialized after , and (2) a conservative validation test that is applied when commits at time : if has already committed and had a conflict with (i.e., must be serialized before ), then is forbidden because might also need to be serialized after , forming a cycle in the dependency graph. We prove that maintaining this exclusion window suffices to prevent all cycles in the serial dependency graph, and then show how phantoms can be converted into dependency cycles so that SSN can enforce truly serializable executions in systems that otherwise lack phantom protection. We also show that can be computed efficiently for multi-version systems.

One unique aspect of SSN is that it works in spite of bugs, omissions, or unanticipated behaviors in the underlying CC scheme, so long as the basic requirements still hold. This protection is important, because CC schemes tend to be complex to implement, and bugs can lead to subtle problems that are difficult to detect and reproduce. Unanticipated behaviors are even more problematic. For example, a read-only anomaly in SI arises only if a reader arrives at exactly the wrong moment

[12]. This anomaly was not discovered until SI had been in use for many years. Assuming SSN is implemented correctly—hopefully achievable, given its simplicity—bugs or unexpected behaviors in the CC scheme that would confuse applications, will instead trigger extra transaction aborts caused by SSN. The application sees only serializable executions that preserve data integrity.

SSN is amenable to a variety of workloads and does not exaggerate the underlying CC’s favor for either reader or writer accesses. Moreover, SSN’s efficient dependency tracking and exclusion window test give the opportunity to optimize emerging heterogeneous workloads that contain a significant portion of long, read-mostly transactions: reads of stale records that are not updated recently do not have to be tracked in the transaction’s read set. This greatly reduces bookkeeping footprint and improves performance.

1.2 Contributions and paper organization

We have introduced the main techniques of SSN in an earlier paper [50]. SSN uses only local knowledge of each transaction and its direct conflicts to determine whether committing a transaction will close a potential dependency cycle. In this paper, we leverage these main techniques to further propose a generic approach to optimizing emerging heterogeneous workloads, and an efficient parallel commit protocol with minimum overhead for today’s memory-optimized, multi-version systems.

Compared to the earlier version of this paper, we evaluate SSN with a much wider set of experiments, both in simulation and ERMIA [26], a recent OLTP system optimized for massively parallel processors and large main memory. Simulation results show that SSN works well under a wide variety of circumstances, including both lock-based and multi-version CC, mixed workloads and very high contention. Evaluation using ERMIA on a quad-socket, 60-core Xeon server shows that SSN scales as well as the underlying CC scheme. In particular, SSN’s optimization for read-mostly transactions can significantly reduce last level cache misses and perform more than 2 better than an efficient parallel SSN implementation without the optimization. Compared to SSI, SSN matches its performance for workloads with low and medium contention that do not stress the CC protocol. For high-contention workloads with retrying aborted transactions, SSN can provide more robust performance and better accuracy for both write-intensive and read-only transactions.

The rest of the paper is organized as follows. In Sect. 2, we give background on serial dependency graphs that we use throughout the paper to understand serializability properties. Sect. 3 discusses the design and presents a theoretical proof of the correctness of SSN. Sect. 4 gives an efficient and scalable implementation of SSN for multi-version systems, leveraging parallel programming techniques. In Sect. 5, we discuss ways of making SSN lightweight and efficient, including how we optimize read-only and heterogeneous workloads using SSN. Sect. 6 extends the SSN infrastructure to prevent phantoms for systems that are not otherwise phantom-free. We then present evaluation results of SSN in Sect. 7 and 8, using simulation and implementation respectively. We survey related work in Sect. 9 and conclude in Sect. 10.

2 Serial dependency graphs

We model the database as a multi-version system that consists of a set of records [1]. Each transaction consists of a sequence of reads and writes, each dealing with a single record. In this model, each record is seen as a totally-ordered sequence of versions. A write always generates a new version at the end of the record’s sequence; a read returns a version in the record’s sequence that the underlying CC mechanism deems appropriate. In the model, each record exists forever, with a continually growing set of versions. In practice, obsolete versions that are no longer needed are periodically recycled to avoid wasting storage space. Insertions and deletions are represented using a special “invalid” value, for the initial version of a record that has not yet been inserted, and also for the last version of a deleted record. Insertions are updates that replace invalid versions. A deletion flags a record as invalid without physically deleting it, and the record can continue to participate in CC if needed. The physical deletion is performed in background once the record is no longer reachable [14]. In this model, we do not explicitly model the case where a transaction reads a record it has previously written, because doing so does not add new edges to the dependency graph, i.e., no new cycles can arise. Many real systems ensure that a read will return the version that the transaction itself wrote. We note, however, that there are exceptions: certain OCC-based systems [27, 49] do not allow a transaction to read its own writes.

We first only consider the serial dependency cycles that may arise among individual records that are read and written. In the absence of insertions, preventing such cycles produces a serializable schedule. In Sect. 6, we extend these concepts to include analogs of hierarchical locking, lock escalation, and predicate-based selection to prevent phantoms.

Accesses by transaction generate serial dependencies that constrain ’s place in the global partial order of transactions. Serial dependencies can take two forms:

  1. (read/write dependency): read () or overwrote () a version that created, so must be serialized after .

  2. (read anti-dependency): read a version that overwrote, so must be serialized before .

A read implies a dependency on the transaction that created the returned version, and an anti-dependency from the transaction that (eventually) produces the next version of the same record (overwriting the version that was read). A write implies a dependency on the transaction that generated the overwritten version as well as dependencies on all reads that access the new version. Accessing different versions of the same record (e.g., a non-repeatable read) within a transaction implies a serialization failure: .

We use to represent a serial dependency of either case: either or , and we say that is a direct predecessor of (i.e., is a direct successor of ). Note that in the former case can be or . The set of all serial dependencies between committed transactions forms the edges in a directed graph , whose vertices are committed transactions and whose edges indicate required serialization ordering relationships. When a transaction commits, it is added to , along with any edges involving previously committed transactions. may also have potential edges to uncommitted dependencies, which will be added to if/when those transactions commit.

Note that our notation puts the arrowhead of a dependency arrow near the transaction that must be serialized before the other. This is the reverse of the usual notation [1] but it makes the arrowhead look similar to the transitive effective ordering relation symbol we define next.

We define a relation for , such that means is ordered before along some path through (i.e., ). We say that is a predecessor of (or equivalently, that is a successor of ). When considering potential edges, we can also speak of potential successors and predecessors. These are transactions for which the potential edges (along with edges already in ) require them to be serialized after (or respectively before) .

A cycle in produces , and indicates a serialization failure because then admits no total ordering. The simplest cycles involve two transactions and two edges:

  1. . and saw each others’ writes (isolation failure).

  2. . saw some, but not all, of ’s writes (atomicity failure).

  3. . and each overwrote a value that the other read (write skew).

In our work, a central concept is the relationship between the partial order of transactions that defines, and the total order defined by their commit times. At the moment transaction enters pre-commit, we take a monotonically increasing timestamp, and call it . An edge in is a forward edge when the predecessor committed first in time, and a back edge when the successor committed first. A forward edge can be any type of dependency, but (for the types of CC algorithms we deal with, which enforce write isolation) back edges are always read anti-dependencies where the overwrite committed before the read. We denote forward and back edges as and , respectively. Let us write for the reflexive and transitive back edge situation where is reachable from without following any forward edges, e.g., . Note that always holds.

We next describe a representative but not exhaustive sampling of CC mechanisms that will be used for both discussions and evaluations in the rest of the paper:

  • Read Committed (RC). Reads return the newest committed version of a record and never block. Writes add a new version that overwrites the latest one, blocking only if the latter is uncommitted. Allows dependency cycles but forbids isolation failures (dirty reads and lost writes).

  • Read Committed with Locking (RCL). An RC variant (with the same types of cycles) that can be implemented with a single-version system using in-place updates. RCL is typically achieved by combining short-duration read locks with long-duration write locks. Readers and writers alike must block until the latest version is committed, but readers do not block writers.

  • Snapshot Isolation (SI). Each transaction reads from a consistent snapshot, consisting of the newest version of each record that predates some timestamp (typically, the transaction’s start time). Writers must abort if they would overwrite a version created after their snapshot. Allows write skew anomalies, but forbids isolation failures and enforces write atomicity.

  • Serializable Snapshot Isolation (SSI). Like SI, but forbids the “dangerous structure”: where committed first [5] (with some exceptions made for read-only transactions [42]). No cycles are possible and so all executions are serializable.

  • Strict Two-Phase Locking (2PL). Used by many single-version systems with long-duration read and write locks. Reads return the newest version of a record, blocking if it has not committed yet. Writes replace the latest version, blocking if there are any in-flight reads or writes on the record by other transactions. No cycles are possible.

SSN can work with most realistic CC schemes that are at least as strong as RC (formal requirements are given in Sect. 3). We are especially interested in weaker CC schemes that allow atomicity failures, non-repeatable reads, write skew, and more complex cycles in , including various forms of read skew (e.g. ).

Figure 2: A pictorial motivation and description of SSN. Subsets of the dependency graph are shown in a serial-temporal layout where forward and back edges always have positive and negative slopes, respectively.

3 SSN: The serial safety net

In this section, we first describe how SSN prevents committing transactions that will close potential cycles in the dependency graph. We then formally prove the correctness of SSN and compare it with other serializable CC schemes.

3.1 Preventing dependency cycles

Given a CC scheme that admits cycles in the serial dependency graph, SSN can be layered on top as a pre-commit protocol to abort transactions that might form potential cycles if committed. Although SSN can be overlaid on various CC schemes, we require the underlying CC scheme forbid lost writes and dirty reads (unless it is the transaction reading its own writes), which is effectively as strong as RC.

In addition to the commit timestamp of transaction , SSN associates with two other timestamps: and , which are respectively the low and high watermarks used to detect conditions that might indicate a cycle in the dependency graph if is committed. We define as the commit time of ’s oldest successor reached through a path of back edges:

The first equation captures the definition, in which ’s successor that overwrote versions read by , committed first, forming a back edge that represents a read anti-dependency. The second, equivalent recursive equation, shows how this would be computed from only the immediate successors of a transaction in , without traversing the whole graph. Note that , and the values of and are fixed once has committed; will not change because committed only acquires new successors via forward edges, which do not influence .

The essence of SSN is a certification that prevents a transaction from committing if an exclusion window check fails for some direct predecessor :

Definition 1

A dependency edge in (or alternatively, transaction ) violates the exclusion window of if .

The inequality checks whether (a predecessor of which committed first) might also be a successor of (because did not commit earlier than ’s oldest successor), indicating a potential cycle in . When implementing exclusion window checks, we can use two observations to simplify the process. First, we need only consider predecessors that committed before (the second inequality), which means the check can be completed during pre-commit of (regardless of what happens later). Second, of those predecessors that committed before , we only need to examine the most recently-committed one. Using the following definition of , an exclusion window violation occurs if , so must abort:

We next illustrate visually why tracking and enforcing exclusion windows might prevent cycles in . Formal descriptions are provided later in Sect. 3.3.

Fig. 2(a) gives a serial-temporal representation of a cycle in . The horizontal axis gives the relative serial dependency order (as implied by the edges in ); the vertical axis gives the global commit order. In this figure, forward edges have positive slope (e.g., ), while back edges have negative slope (e.g., ). A transaction might appear more than once (connected by dashed lines, e.g., ), if a cycle precludes a total ordering.

Visually, it is clear that violates ’s exclusion window because . Fig. 2(b) depicts information that is available to as local knowledge. Without knowing ’s predecessors, must assume that might also be a successor. Fig. 2(c) demonstrates a case where the exclusion window is satisfied: committed before —even earlier than ’s oldest successor—so could not be a successor and will not close a cycle if committed; cannot have any predecessor newer than as that would violate its own exclusion window; any later transactions that links with would suffer an exclusion window violation.

Finally, Fig. 2(d) illustrates a false positive case, where aborts due to an exclusion window violation, even though no cycle exists. We note, however, that allowing to commit would be dangerous: some predecessor to might yet commit with a dependency on , closing a cycle without triggering any additional exclusion window violations.

3.2 Safe retry

Users submit transactions supposing they will commit, however, the underlying CC scheme might abort transactions due to various reasons, such as write-write conflicts. Ideally, the CC scheme should ensure that all transactions eventually commit (perhaps after some number of automatic retries), unless the user requests an abort.

SSN exhibits the safe retry property [42]. Suppose SSN aborts transaction because violates its exclusion window, and that the user retries immediately with . Any back-edge successor had, is a transaction that committed before . Since started after committed, will not read data that will be overwritten by . That is, will not have the same successor, and the same set of dependencies cannot form for .

The importance of safe retry is often overlooked, and many serializable schemes do not provide this property, including 2PL ( could deadlock with the winner of a previous deadlock) and OCC [29, 49] that relies on read set validation (the overwriter could still be in progress, causing another failure). In Sect. 8, we empirically evaluate this property for SSN and other CC schemes.

Figure 3: SSN allows all schedules (a–e) that do not have “peaks,” and also “peaks” where no predecessor of violates the exclusion window. SSN rejects only case (f); other schemes tend to reject the “valleys” that arise frequently under MVCC.

3.3 Correctness

We now formally prove the correctness of SSN. Based on the database model we set up in Section 2, we first recall the key result of serialization theory:

Theorem 2

Let an execution with schedule have a serial dependency graph with no cycles. Then the execution is serializable222There are many formulations such as [4] and [41], the presentation with this form of dependency definition is in [1]..

As mentioned in previous sections, SSN requires the underlying CC scheme forbid lost writes and dirty reads:

Definition 3

Let a certifiable scheduler be any CC scheme that forbids lost writes and dirty reads (other than a transaction reading its own writes).

Definition 3 effectively allows any CC scheme at least as strong as RC. In particular, the underlying CC scheme is free to return any committed version from a read (not necessarily in a repeatable fashion), and can delay accesses arbitrarily.

Given a non-serializable schedule produced by a certifiable scheduler, we first identify the “dangerous” edges in its dependency graph that SSN targets. We then prove that these edges exist in any dependency cycle that arises under a certifiable scheduler. We argue the correctness of SSN as follows:

Theorem 4

Let be any non-serializable history produced by a certifiable scheduler. Then the dependency graph contains at least one exclusion window violation.

By the hypothesis that is non-serializable and Theorem 2, must contain a cycle involving transactions.333We ignore self loops, since our model excludes them. In reality transactions should be allowed to read their own writes. We first name the transactions in that cycle, so that committed first in time: . Because committed first in the cycle, its predecessor—which is also a successor—must be reached by a back edge. We can choose the lowest value of such that holds. Then . Further, the predecessor of (, or if ) must be reached by a forward edge. Combining the two facts reveals an exclusion window violation: . Since we have shown that always exists and always has a predecessor that violates ’s exclusion window, we conclude that always contains an exclusion window violation.

Definition 5

A certifiable scheduler is said to apply SSN certification if it aborts any transaction that, by committing, would introduce an exclusion window violation into the dependency graph. That is, SSN forces to abort if there exists a potential edge where .

Theorem 6

All executions produced by a certifiable scheduler that applies SSN certification are serializable.

By contradiction: If there is any execution of the scheduler that is non-serializable, Theorem 4 shows that there is an edge in the dependency graph that violates the exclusion window. However, the certification check in the scheduler does not allow any such edge to be introduced.

We next formally prove SSN’s safe retry property. Suppose SSN aborts transaction because violates its exclusion window, and that the user retries immediately with . Then the same dependencies cannot force to abort (though other newly arrived transactions could produce a new exclusion window violation for ).

Theorem 7

SSN provides the “safe retry” property, assuming the underlying CC scheme does not allow to see versions that were overwritten before began.

An exclusion window violation requires , where and read a value which will eventually overwrite. By the definition of back edge, committed before tried to commit, therefore, before starts. Therefore, will read the version created (or a later one), so no anti-dependency between and will be created. That is, the situation that caused to have an exclusion window violation will not occur for , although other dependencies might form for , and another violation may occur.

3.4 Discussion

We now compare SSN with other cycle prevention schemes, and reason about their relative merits. Fig. 3 highlights several “shapes” that transaction dependencies can take when plotted in the serial-temporal form. Of all the serializable schedules shown, SSN rejects only the last. In contrast, 2PL admits only the first (all others contain forbidden back edges). SSI always admits cases (a) and (b), always rejects (d), and often rejects (c) and (f).444SSI allows (c) if the leftmost transaction is read-only and sufficiently old, but rejects (f) if a (harmless) forward anti-dependency edge joins with its predecessor. Case (e) cannot even arise under SI, let alone SSI. Thus, the improved cycle test in SSN allows it to tolerate a more diverse set of transaction profiles than existing schemes, including schedules forbidden by SI.

Fig. 4 illustrates the accuracy of SSN in a different way using a simple schedule involving only three transactions, with time flowing downward (a). On the surface, all might appear reasonable: each transaction makes some number of reads before writing one record and committing. However, once the execution passes the horizontal dotted line, many serializable CC strategies are doomed to abort at least one transaction.

Figure 4: A pathological scenario that will deadlock under 2PL but be serializable under SI (a); the resulting serial-temporal plot when T3 commits last under SI (b) and when T1 commits last (c); the serial-temporal plot that results under RC (d). The horizontal and vertical axes of (b)–(d) represent dependency and commit orders, respectively.

2PL will deadlock: reads B, blocking which in turn blocks . Meanwhile, blocks attempting to write A, which has read-locked. With SI-based schemes, ’s read of B will return the original version rather than the one produced in , so there will be a back edge (as well as ). Thus SI-based certifiers that check for single back edges will abort at least one of the transactions, and SSI will also abort one due to the dangerous structure where committed first and is not read-only. In contrast, SI+SSN safely allows all three transactions to commit, with the dependency structure shown in Fig. 4(b). SI+SSN is not a perfect certifier, as it sometimes aborts transactions unnecessarily: if tries to commit last (after commits), then SI+SSN would abort with a failed exclusion window test because , even though the schedule is actually serializable. Fig. 4(c) depicts the dependency structure for this case. Finally, suppose the concurrency control is RC+SSN and the schedule is that of Fig. 4(a). Now, ’s read of B sees the version produced in ’s write, and so the dependencies have a cycle, with as well as . Thus ; and because is also a potential successor of , violates the exclusion window test for , and this will force to abort, thereby preventing the non-serializable execution. Fig. 4(d) shows the dependencies for this case.

Despite this pathological case being simple, it gives an intuitive explanation for why SSN works well compared to other schemes: most schemes identify and reject the existence of back edges (either singly or in pairs) as a necessary condition to close cycles. However, we have seen that the “peaked” deadly structure identified earlier is a more precise cycle-closing pattern that allows SSN to ignore a large fraction of harmless back edges while still detecting all harmful ones.

As a final observation, we expect write-intensive workloads to perform better under RC+SSN than under SSI: A major source of transaction failures under SSI is temporal skew, where a transaction attempts to overwrite a version created after its snapshot. By allowing transactions to always access the latest version (except when forbidden by SSN), RC should lower the risk of encountering temporal skew in a short transaction. We show this effect in Sect. 7.4.

4 SSN protocols in multi-version systems

In this section, we describe how SSN can be implemented for multi-version systems, including disk-based and main-memory optimized ones. Specifically, we discuss how SSN processes each read, write and commit request. We assume that each version and transaction is associated with some storage to store the metadata SSN requires. To overlay SSN on top of a single-version CC scheme (e.g., Read Committed with Locking), one will need to store information in lock entries as proxies for the versions and keep some locks (in non-blocking modes) longer than the underlying CC would have done. This is similar to PostgreSQL’s SSI implementation [42]. We leave lock-based SSN as future work, and in this paper we focus on multi-version systems.

The rest of this section first gives the basic SSN protocols that can be made parallel using latches. We then describe how the protocols can be parallelized in a latch-free manner that is suitable for modern main-memory databases.

4.1 Basic protocols

The basic protocols of SSN require space and computation linearly proportional to the combined read/write footprints of all in-flight transactions, plus constant space per version. Each transaction should maintain its footprints using read and write sets, which contain all the versions read and written by the transaction, respectively. SSN summarizes dependencies between transactions using various timestamps that correspond to commit times. For in-flight and recently-committed transactions, these timestamps can be stored in the transaction’s context. For older transactions, the timestamps can be maintained in versions without a need to remember which committed transactions were involved. SSN supports early detection of exclusion window violations before entering pre-commit, aborting the transaction immediately if the arrival of a too-new (too-old) potential predecessor (successor) dooms it to failure.

Suppose transaction created version , while transactions and respectively read and overwrote . Then we can define , , and . These per-version timestamps maintained in each version record everything we need to implement SSN if transaction execution is single-threaded. Explicit dependency tracking (making transactions aware of other transactions) is only needed to avoid races between transactions that coexist in time, particularly those whose validation phases overlap.

Table 1 summarizes the metadata (along with the corresponding initial values) which SSN tracks for each transaction and version . Version-related states persist for the life of the version, while transaction states are discarded soon after the transaction ends. Although SSN increases per-version space overhead, we note that many MVCC implementations already track some of these values.555For example, PostgreSQL maintains the equivalent of v.cstamp and v.prev. In each version, SSN takes an extra of 16 bytes for sstamp and pstamp, assuming 8-byte stamps. For one million versions, SSN needs in total less than 16MB of extra memory. This is likely tolerable in today’s systems with abundant memory and storage.

Value Meaning Initial value
t.cstamp Transaction end time, 0
t.status In-flight/committed/aborted in-flight
t.pstamp Predecessor high watermark, 0
t.sstamp Successor low watermark,
t.reads Non-overwritten read set
t.writes Write set
v.cstamp Version creation stamp, “invalid” (0)
v.pstamp Version access stamp, 0
v.sstamp Version successor stamp,
v.prev Pointer to the overwritten version NULL
Table 1: Metadata required by SSN.

4.1.1 Interactions with the underlying CC

As we have discussed previously, it is the underlying CC that dictates which version a transaction should see. Therefore, SSN’s read and write protocols (ssn_read and ssn_write functions in Algorithm 1, respectively) receive a reference to the version returned by the underlying CC as a parameter. It is up to the underlying CC to employ the appropriate synchronization mechanism to guarantee correct interactions among threads. For example, in an SI implementation the worker thread could walk through the version chain to find the latest committed version that is visible to the transaction, and then pass the desired version to ssn_read. The SI implementation could indicate that a version is not yet committed by storing the creator transaction ID (TID) in the version’s commit timestamp field. Readers who see a version with a TID in the commit stamp field will skip and continue to examine the next available version. Upon commit, the creator transaction will transform the TID to the real commit timestamp. Some recent systems [29, 26] follow this paradigm. As a result, ssn_read itself needs no extra synchronization protocol. It always reads a version that is already committed and made immutable by the creator transaction.

Neither does ssn_write need to handle concurrent writes itself: the underlying CC determines whether a new version can be appended, possibly by latching the version chain and compare transaction/version timestamps. If the transaction successfully installs a new version, as part of the underlying CC’s write protocol, v.prev should point to the version that is overwritten. The transaction then proceeds to update the timestamps using ssn_write. The underlying CC ensures that the in-flight new version is invisible to concurrent reader transactions, e.g., by storing the creator’s TID in the version’s commit timestamp field as described earlier.

Different from the read and write protocols, SSN’s commit protocol needs proper synchronization among transactions with overlapping footprints. We discuss the details following SSN’s read and write protocols.

1def ssn_read(t, v):
  if v not in t.writes:
    # update \eta(t) with w:r edges
4    t.pstamp = max(t.pstamp, v.cstamp)
    if v.sstamp is infinity:
7      t.reads.add(v)  # no overwrite yet
      # update \pi(t) with r:w edge
10      t.sstamp = min(t.sstamp, v.sstamp)
13def ssn_write(t, v):
  if v not in t.writes:
    # update \eta(t) with w:r edge
16    t.pstamp = max(t.pstamp, v.prev.pstamp)
    t.reads.discard(v)  # avoid false positive
19    verify_exclusion_or_abort(t)
Algorithm 1 SSN read and write protocols (for multi-version systems).

4.1.2 Read

Lines 1–11 of Algorithm 1 describe SSN’s read protocol. Besides the reading transaction t, it also receives a reference to the appropriate version returned by the underlying CC as a parameter. Transaction will record in t.pstamp the largest v.cstamp it has seen to reflect ’s dependency on the version’s creator (line 4). To record the read anti-dependency from the transaction that overwrote (if any), records the smallest v.sstamp in t.sstamp (lines 9–10). As shown by line 7 of Algorithm 1, if the version has not yet been overwritten, it will be added to ’s read set and checked for late-arriving overwrites during pre-commit. The transaction then verifies the exclusion window and aborts if a violation is detected. The transaction will transition from in-flight status to the aborted status. If the transaction is aborted, the safe retry property allows it to retry immediately, minimizing both wasted work and latency.

Note that does not track reads of versions it creates or overwrites, nor does it track reads if an overwrite has already committed (i.e., v.sstamp

is valid). The read and write sets are currently implemented as simple arrays/vectors in our prototype. Further, the read set does not need to be searchable in order to enforce repeatable reads: SSN automatically enforces repeatable reads because a non-repeatable read corresponds to the cycle

. While a practical implementation would be well-advised to enforce repeatable reads by less draconian means, this is a matter of performance optimization, not correctness.

4.1.3 Write

The write protocol is shown by lines 13–19 of Algorithm 1. Note that v in ssn_write refers to the new version generated by . When updating a version, updates its predecessor timestamp t.pstamp with v.prev.pstamp. We use v.prev.pstamp rather than v.prev.cstamp because a write will never cause inbound read anti-dependencies, but it can trigger outbound read anti-dependencies (i.e., , in which read before overwrote it). then records in its write set for the final validation at pre-commit (line 17). If more reads came later, would update t.pstamp with v.prev.pstamp, which were updated by readers that came after but installed the new version v before entered pre-commit. Additionally, we must remove from ’s read set, if present: updating using the edge would violate ’s own exclusion window and trigger an unnecessary abort. Sect. 4.2.2 describes how we efficiently “remove” from ’s read set by skipping processing when examining the read set, without having to make the read set searchable.

4.1.4 Commit

1def ssn_commit(t):
  t.cstamp = next_timestamp()  # begin pre-commit
4  # finalize \pi(T)
  t.sstamp = min(t.sstamp, t.cstamp)
  for v in t.reads:
7    t.sstamp = min(t.sstamp, v.sstamp)
  # finalize \eta(T)
10  for v in t.writes:
    t.pstamp = max(t.pstamp, v.prev.pstamp)
13  verify_exclusion_or_abort(t)
  t.status = COMMITTED  # post-commit begins
16  for v in t.reads:  # update \eta(V)
    v.pstamp = max(v.pstamp, t.cstamp)
  for v in t.writes:
19    v.prev.sstamp = t.sstamp # update \pi(V)
    # initialize new version
    v.cstamp = v.pstamp = t.cstamp
Algorithm 2 SSN commit protocol (for multi-version systems).

We divide the commit process into two phases: pre-commit and post-commit. During pre-commit we first finalize and , and then test the exclusion window. If the exclusion window is not violated, commits and the system propagates appropriate timestamps into affected versions during the post-commit phase. Pre-commit begins when requests a commit timestamp in the in-flight status (set at transaction initialization), which determines its global commit order, as depicted by line 2 of Algorithm 2. After initializing , is no longer allowed to perform reads or writes. It then computes , following the formula given in Section 3. The computation only considers of reads that were overwritten before .

The transaction next computes ) using a similar strategy, but must account for more dependency edge types. Recall that can acquire predecessors in two ways: reading or overwriting a version causes a dependency on the transaction that created it; overwriting a version also causes a dependency on all readers of the overwritten version. The read and write protocols account for the former by checking , and pre-commit accounts for the latter using .

Once and are both available, a simple check for identifies exclusion window violations. As shown by line 14 of Algorithm 2, transactions having are allowed to commit, transitioning to the committed status. Otherwise, the transaction would abort with an “aborted” status and remove any new versions it installed during forward processing. The pstamp and sstamp maintained during forward processing and pre-commit are discarded, as if the transaction was never processed. During post-commit, the transaction updates for each version it created, for each version it overwrote, and for each non-overwritten version it read. Post-commit is a clean-up and resource reclamation operation that does not cause extra transaction aborts. Versions created by a pre-committed transaction that is still in post-commit do not delay transactions. A concurrent transaction can access the versions and infer their timestamps by inspecting the corresponding pre-committed transactions’ metadata.

The commit protocol described above allows parallel transaction execution but itself executes serially. The caller should hold a latch upon entering ssn_commit and release the latch after finished executing the function. The restriction is due to a number of races that can arise between acquiring , computing and for the transaction, and updating sstamp and pstamp for versions in the transaction’s read and write sets.

4.2 Latch-free parallel commit

Latch-based serial validation imposes an unacceptable scalability penalty, as shown by recent research [24], and especially so for modern main-memory optimized systems [49, 27, 26, 32, 29]. In the rest of this section, we describe how SSN’s commit protocol can be parallelized in a latch-free manner for recent main-memory systems. Although not as significant as in main-memory systems, conventional disk-based systems can also benefit from our approach, with appropriate adjustment to a few assumptions described later. In this paper, we focus on main-memory systems.

4.2.1 Main-memory OLTP systems

The abundant amount of memory available in modern severs have lead to many recent main-memory OLTP systems [26, 49, 27, 29, 32]. These systems assume that at least the working set (if not the whole database) resides in memory, thus allowing several important optimizations. First, a thread can execute a transaction from beginning to the end without any context switch. Heavyweight I/O operations are completely out of the critical path. In case the transaction needs to fetch data from storage, mechanisms such as Anti-Caching [8] will abort and restart the transaction when all the data needed is available in memory. Second, main-memory OLTP systems utilize massively parallel processors and large main memory more effectively, by using memory-friendly data structures and algorithms that utilize high parallelism. For examples, most main-memory systems dispense with centralized locking and co-locate the locks with records [43, 27]. Lock-free techniques are often used to obtain high CPU utilization [35, 26].

We exploit atomic primitives provided by the hardware to devise our latch-free parallel commit protocol. In particular, we assume 8-byte atomic reads/writes and the availability of the compare_and_swap (CAS) instruction; both are supported by most modern parallel processors. We also assume that during transaction execution, there will be no I/O operations on the critical path and a thread will not be re-purposed.

4.2.2 Finalizing

As shown in Algorithm 2, a committing transaction needs to calculate and in a critical section (lines 4–11). Recall that needs to update t.sstamp with v.sstamp, which is set by the transaction that overwrote . In the latch-based commit protocol (Algorithm 2), only one transaction can examine v.sstamp at the same time, and no concurrent write to v.sstamp is allowed. A latch-free protocol, however, must account for transactions that are concurrently committing: v.sstamp might be changed at any time by the overwriter , which might have acquired a commit timestamp earlier or later than ’s. In case acquired a commit timestamp that is earlier than t.cstamp, should update its t.sstamp with ’s successor low watermark (i.e., u.sstamp) if u.sstamp is smaller than t.sstamp.

As we have discussed in Section 4.1, an SI implementation can indicate that a version is not yet available for reading by storing the owner transaction’s TID on the version’s cstamp field. This approach is applicable to solving the above problem as well: an updater should install its TID in the overwritten version ’s sstamp after it successfully installs a new version (i.e., as of the write before entering pre-commit). Our implementation does this in ssn_write. then changes v.sstamp to contain u.sstamp during ’s post-commit phase. Consequently, a concurrent transaction might read an sstamp field and see a TID when reading a version or committing.666 Storing TID (before the overwriter finalizes) in the overwritten version’s sstamp also eases the removal of updated versions from the read set (see the end of Section 4.1.3). When iterating the read set, the updater simply skips versions whose sstamp points to ’s own TID. For the former case, the transaction simply treats it in the same way as if v.sstamp contained  in ssn_read (i.e., no overwrite yet) and adds the tuple to its read set. Lines 9–18 of Algorithm 3 show how the latter case is handled in our latch-free commit protocol. After detects a TID in v.sstamp (line 9), it will obtain ’s transaction context (line 10) through a centralized transaction table indexed by TIDs. Note that since v.sstamp might be changed to contain the overwriter’s commit timestamp from its TID at any time, at line 8 we must read v.sstamp into v_sstamp and determine if we should proceed to line 10 using v_sstamp. Recall that by Definition 1, . So if has acquired a commit timestamp earlier than t.cstamp, has to wait for to conclude so that ’s successor low-watermark is stable.777There exists other viable approaches other than spinning for ’s sstamp to become stable; e.g., could deduce ’s low-watermark by helping with ’s pre-commit phase by iterating over ’s read set. In experiments, we use spinning due to its simplicity and lightweightness. As line 12 shows, if has not entered pre-commit, then it will have a commit timestamp larger than ’s. Otherwise, we spin at line 13 until u.cstamp contains ’s commit timestamp in u.cstamp. Note that such spinning is necessary, because acquiring a commit timestamp (line 3) and storing it in u.cstamp are not done atomically by a single instruction. For example, next_timestamp itself might draw a timestamp form a centralized counter using an atomic fetch-and-add instruction. Therefore, transactions entering pre-commit must first transition to a “committing” status, and then obtain a commit timestamp (lines 2–3). As a result, upon detecting has entered pre-commit (i.e., status is not INFLIGHT), u.cstamp is guaranteed to contain a valid commit timestamp eventually. Note that this “committing” status is not needed in the latch-based commit protocol (Section 4.1.4): only a single thread can execute ssn_commit at a time; a transaction’s status is not exposed to other concurrent transactions.

1def ssn_parallel_commit(t):
  t.status = COMMITTING
  t.cstamp = next_timestamp()  # begin pre-commit
  # finalize \pi(T)
  t.sstamp = min(t.sstamp, t.cstamp)
7  for v in t.reads:
    v_sstamp = v.sstamp
    if is_TID(v_sstamp):
10      u = get_transaction(v_sstamp)
      # obtain u.cstamp
      if u.status is not INFLIGHT:
13        spin_while(u.cstamp == 0)
        if u.cstamp < t.cstamp:
          # wait for U to finish pre-commit
16          spin_while(u.status == COMMITTING)
          if u.status == COMMITTED:
            t.sstamp = min(t.sstamp, u.sstamp)
19    else:
      t.sstamp = min(t.sstamp, v.sstamp)
22  # finalize \eta(T)
  for v in t.writes:
    for r in v.prev.readers
25      if r.status is not INFLIGHT:
        spin_while(r.cstamp == 0)
        if r.cstamp < t.cstamp:
28          spin_while(r.status == INFLIGHT)
          if r.status = COMMITTED:
            t.pstamp = max(t.pstamp, r.cstamp)
31    # re-read pstamp in case we missed any reader
    t.pstamp = max(t.pstamp, v.prev.pstamp)
34  verify_exclusion_or_abort(t)
  t.status = COMMITTED  # post-commit begins
37  for v in t.reads:  # update \eta(V)
    pstamp = v.pstamp
    while pstamp < c.cstamp
40      if CAS(v.pstamp, pstamp, t.cstamp):
      pstamp = v.pstamp
  for v in t.writes:
    v.prev.sstamp = t.sstamp # update \pi(V)
46    # initialize new version
    v.cstamp = v.pstamp = t.cstamp
Algorithm 3 Latch-free SSN commit protocol (for multi-version systems).

After obtaining u.cstamp, the protocol continues to check if u.cstamp is smaller than t.cstamp. If so, needs to find out ’s final result (line 16): if indeed pre-committed, then updates t.sstamp with u.sstamp to finalize its successor low-watermark (lines 17–18). If, however, acquired a commit timestamp later than t.cstamp or has not even started its pre-commit phase, can continue to process the next element in the read set without spinning on at line 16.

4.2.3 Finalizing

We first note a fundamental difference between v.sstamp and v.pstamp that determines how their calculations can be parallelized: during the lifetime of , could only have at most one successful overwriter, i.e., the transaction that installed a new version of and committed. Before enters pre-commit, however, multiple concurrent reader transactions (denoted as “readers” for simplicity) could have read during ’s lifetime. Each of these concurrent readers will need to update v.pstamp as shown by lines 16–17 of Algorithm 2 (the latch-free version is described later). In a latch-free commit protocol, as a result, will have to take into consideration all possible concurrent readers that have obtained a commit timestamp earlier than t.cstamp. Essentially v.pstamp becomes an array of the commit timestamps of all the readers of .

A simple implementation might convert v.pstamp directly to an array of timestamps, one per predecessor, bloating the amount of metadata needed per version. To make the readers-tracking efficient, we use a bitmap to summarize all of ’s readers. Each bit corresponds to one reader transaction. As we have discussed in Section 4.2.1, in most main-memory databases, transactions are rarely delayed (e.g., by I/O operations). A worker thread processes only one transaction at a time, and there is roughly one worker thread per CPU core. We use this fact and correspond the -th bit in the bitmap to thread/transaction . Whenever a thread reads on behalf of a transaction for the first time, the thread registers itself by setting the corresponding bit in v.readers. R clears the bit after it concludes.

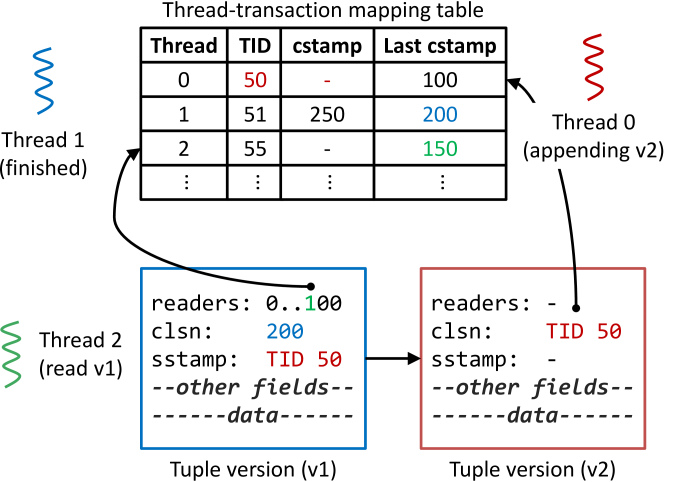

Fig. 5 shows an example of three threads, each executing on behalf of a different transaction. In this example, Thread 1 created tuple version v1 and has already committed. Thread 0 appended a new version, v2, after v1 but has not yet entered pre-commit. At the same time, Thread 2 read v1 and registered itself in v1.readers by setting the third least significant bit. As a result, when Thread 0 tries to commit, it will be able to locate the transaction being executed by Thread 2 by following v1.readers and locate its cstamp in the transaction-thread mapping table.

Figure 5: The bit positions in the readers bitmap serve as indexes to the centralized transaction table which records details on the transaction that is being run by each thread (we discuss the use of the “last cstamp” field later in Sect. 5.3).

With a readers bitmap in each version, is able to examine all the concurrent readers of to finalize t.pstamp. The details are described by lines 23–32 of Algorithm 3. For brevity, in the algorithm we omit the details of extracting the thread ID from the readers bitmap. Our current implementation uses the bit scan reverse (BSR) instruction available on x86 platforms [19]. As shown by lines 24–30, for each overwritten version, examines and waits for each reader that acquired an earlier commit timestamp to finish pre-commit, using the same spinning machinery introduced earlier for finalizing . If the reader successfully committed, will update t.pstamp using r.cstamp.

If we accounted concurrent readers in an array, garbage collection is needed to remove unneeded readers metadata from (after the overwriter committed). The list of readers serves as a history of all transactions that have read . It suffices for to go though the list for finalizing .

In the bitmap-based approach, however, has to make sure the reader is indeed the predecessor that read . It is possible that the real reader has already left and the same bit position now points to a totally different transaction, which may or may not have read

. As a conservative estimate,

has to also consult v.pstamp to catch such cases after going through all the concurrent readers using v.readers (line 32). Theoretically, this approach could make larger (hence more false positives) because a newer reader might update v.pstamp with its commit timestamp. In practice, our evaluation in ERMIA reveals that the benefits of using a bitmap outweighs the drawback.

4.2.4 Post-commit

After and are finalized, tests the exclusion window and aborts if necessary (line 34 in Algorithm 3). then starts the post-commit phase to finalize the creation of new versions it wrote and timestamps of existing versions it read. As lines 37–42 of Algorithm 3 show, will have to compete with other readers to set v.pstamp, so that v.pstamp is no less than t.cstamp. Finalizing v.sstamp is straightforward: simply updates it with t.cstamp and change its type from “TID” to “timestamp” (line 45). The initialization of new versions (line 47) is the same as the serial commit protocol described in Algorithm 2.

5 Reducing SSN overheads

SSN requires space and time proportional to the transaction’s footprint. The metadata (e.g., and ) associated with each version and transaction incurs more storage overhead, and post-processing requires time proportional to the amount of transaction-private state kept. SSN requires pre-commit work proportional to the combined size of the read and write sets. In particular, the work required for examining the read set will become a concern for long, read-only and read-mostly transactions.

In the rest of this section, we first discuss how SSN can leverage features that are available in most existing systems to reduce some of the above mentioned overheads. We then propose two optimizations specifically designed to reduce the overhead of handling reads. We adapt the safe snapshot [42] to free read-only transactions from dependency tracking, and propose an optimization for read-mostly workloads that can avoid tracking reads of cold data. With these two optimizations, the vast majority of read-tracking is eliminated, while serializability is still guaranteed. The work required at commit time becomes much less for (usual) cases where the write set is much smaller than the read set, allowing a high-performance implementation of SSN.

5.1 Leveraging existing infrastructure

Out of the four machine words SSN maintains in each version, most MVCC implementations are already tracking two of them: the version creation timestamp (v.cstamp) and a pointer to the overwritten version (v.prev). These are respectively needed to control snapshot visibility and to allow transactions to retrieve the appropriate version. SSN can therefore utilize existing infrastructure, leaving only v.pstamp and v.sstamp as new overheads. However, we observe that SSN never needs both two values at the same time. The pstamp is set at version creation and updated by any reader that commits before the version is overwritten. No transaction will access v.pstamp once an overwrite of commits. Meanwhile, the overwriting transaction sets v.sstamp when it commits, and all subsequent readers will use it to update their own successor timestamps. We can thus store both fields in a single machine word. If the remaining machine word is still objectionable, further space savings could be achieved in implementation-specific ways (such as storing a delta that occupies fewer bits), but we will not discuss such approaches further here.

As shown respectively by lines 14 and 28 in Algorithms 2 and 3, a transaction is considered “committed” if it survived pre-commit. The versions wrote immediately become visible to other transactions (depending on the underlying CC’s visibility policy). Before finishes its post-commit phase, readers can use the TID stored in the version written by to look up ’s status and complete the read if the underlying CC allows; the indirection is only used until post-commit converts the TID to a proper timestamp in each version (described in Section 4).

5.2 Safe snapshots and read-only queries

In systems that can provide read-only snapshots, including SI-based and some single-version systems [27, 49, 25], SSN supports a variant of the “safe snapshot” [42]: a transaction known to be read-only can avoid the overhead of SSN completely, by using a snapshot that the system guarantees will not participate in any serial anomalies.

The original safe snapshot design was a passive mechanism: a query takes a snapshot and then waits until all in-flight transactions have ended, while monitoring the system for unsafe accesses. If no unsafe accesses occurred before the last in-flight transaction committed, the snapshot is deemed “safe” and can be used without further concern. This approach requires tracking transaction footprints after commit, and can lead to long delays that make it most suitable for large read-only queries executing for tens of seconds or longer.

We instead propose an active mechanism: when requested, the system forcibly takes a safe snapshot, with its timestamp stored in a global variable. SSN treats the snapshot as a transaction that has read every record in the database, inflicting a read anti-dependency on all update transactions that were in-flight at snapshot creation time. Update transactions can still overwrite versions in the safe snapshot, but will abort if they also take a read anti-dependency on a version created before the snapshot. Reads not using the safe snapshot are unaffected by it. Simulations suggest that active safe snapshots have minimal impact on abort rate, even under heavy contention, unless the time between safe snapshots is less than the expected duration of an update transaction (see Sect. 8 for details).

Ports and Grittner [42] also describe a read-only optimization for SSI that applies to SSN over SI: a transaction that enters pre-commit with an empty write set can set to its snapshot time, thus keeping v.pstamp smaller and reducing (sometimes significantly) the likelihood that a subsequent overwrite will trigger an exclusion window violation. Unlike with SSI, however, implementing this “read-only” optimization with SSN actually protects update transactions from read-only predecessors. Protecting writers is more helpful anyway, as read-only transactions would normally use the very lightweight safe snapshot mechanism we propose above.

5.3 Read-mostly transactions

SSN relies on version stamps to implicitly track (part of) the dependency graph to test exclusion window violations. As we have discussed previously, this mandates the tracking of full transactional footprints. Reads that are not overwritten upon access have to be kept in the transaction’s read set for verification later at pre-commit (line 7 of Algorithm 1); writes also have to be tracked and get finalized at post-commit. On the one hand, tracking writes is usually not a concern for OLTP workloads: compared to the amount of reads a transaction performs, writes are usually minority, unless the transaction is write-heavy (in which case, however, it is usually short as well). On the other hand, emerging heterogeneous workloads feature even more reads per transaction, i.e., read-mostly transactions [26]. It is not uncommon in these workloads that a much longer scan or series of reads are mixed with a small but non-empty write set. Tracking and validating a large read set dominates the cost of SSN because the write set is tiny by comparison. As we discuss in Sect. 8.4, examining each of these reads during pre-commit is a major potential source of last level cache misses that drags down the system’s performance.

It is worth noting that because these read-mostly transactions’ read set is much larger than their write set, it is unlikely for most reads to be overwritten by concurrent update transactions. We leverage this fact to optimize read-mostly transactions: versions that are not overwritten recently (governed by a threshold) are deemed “stale” and are not tracked in the read set.

Eliminating the tracking of (potentially long) reads reduces the burden of readers at pre-commit to verify their reads, however, this also brings challenges for SSN to finalize and for testing exclusion window violations. First, writers are unable to obtain up-to-date predecessor status because the readers that skip read tracking will not update the pstamp of each read version. Second, it becomes impossible for readers to check whether the read versions are overwritten by concurrent writers at pre-commit, because they are not tracked at all. This fact has profound impact on the parallel commit protocol: the happens-before relationship we relied on (when finalizing ) will not hold anymore. In Algorithm 3 (line 27), an updater only needs to wait for the commit result of the readers who entered pre-commit earlier; those who entered pre-commit later than the updater will in turn spin on the updater (successor), in case the updater has not finished pre-commit yet. When we skip tracking certain reads, however, there is no chance for a reader to spin on its successor who entered pre-commit earlier—it even does not have a chance to know the existence of such updaters. Allowing a reader to commit without properly accounting for its successors will potentially lead to non-serializable execution.

To solve these problems, we again leverage the fact that main-memory systems execute a transaction on a single thread from beginning to the end without migrating among threads. We allow read-mostly transactions to commit without having to stamp each read version, but instead require each thread record the cstamp of the read-mostly transaction on whose behalf the thread has committed. As shown in Figure 5, the reader puts its cstamp in the last_cstamp field in its private entry in the translation table upon commit. The last_cstamp field essentially serves as a proxy that summarizes the commit stamps of all the read-mostly transactions on the same thread. Because of the lack of read tracking, readers will likely to have larger values, leaving more back edges unaccounted for and becoming more unlikely to be aborted. Since readers might not update pstamp, it then becomes the updater’s responsibility to detect non-serializable schedules.

At pre-commit, the updater examines the readers bitmap and uses set bits to find the status of each thread. Note that a reader still indicates its existence in the readers bitmap upon version access, but without clearing it upon conclusion—the read is not tracked in the first place. The updater needs to consult last_cstamp to find out the last committed reader’s cstamp when calculating t.pstamp.

We note, however, t.pstamp calculated in this way is conservative and can admit false positives: a reader that set but did not clear the bit position in v.readers might lead the updater to inspect another completely irrelevant transaction—one that has non-overlapping footprints—and cause unnecessary aborts. Suppose transaction being executed by thread read without tracking it. would have set the bit position in v.readers and commit by setting ’s last cstamp to t.cstamp without clearing the bit in v.readers. After committed, transaction running on thread overwrote and entered pre-commit. Suppose now starts another transaction whose footprint does not overlap with or . During pre-commit, would follow v.readers to find , because it inherited the bit that was used by a previous reader , although ’s footprint does not overlap with ’s. According to Algorithm 3, depending on the final and values calculated, might abort unnecessarily. We expect that such false positives are not a major concern for workloads with significant portions of long, read-mostly transactions where reads are the majority.

Using a thread-private last_cstamp as a proxy that accumulates pstamps solves only half of the problem: an updater can account for read-mostly transactions that entered pre-commit earlier, but not those that entered pre-commit later. Recall that a read-mostly transaction might not spin on its successor (line 20 of Algorithm 3) with a smaller cstamp because of the lack of read tracking. Consequently, the updater (as a successor) will then have to figure out the read-mostly transaction’s state when it discovered that a concurrent reader exists through the readers bitmap. Otherwise, the updater would have to blindly abort, which will make it hard to commit write-intensive transactions that have overlapped footprint with read-mostly transactions, especially when the read-mostly transaction is much longer.

Therefore, it would be desirable for the writer to update the read-mostly transaction’s sstamp (using the updater’s cstamp) during pre-commit; the reader proceeds as usual and tests for exclusion window violation at the end of pre-commit. We employ a lightweight locking mechanism for the sstamp to guarantee correctness: the most significant bit (MSB) of sstamp serves as a lock; the sstamp value updated when its MSB is unset is guaranteed to be taken into account by the reader. The updater issues a CAS instruction to update the reader’s sstamp with its cstamp, expecting the MSB is 0. The reader should atomically set the MSB of sstamp to 1 (e.g., by using an atomic fetch-and-or instruction) right before it tests for exclusion window violation at the end of pre-commit. An updater that failed the CAS because the MSB is set will have to abort. In this way, we reduce unnecessary aborts of updaters, although more heavy read-mostly transactions might be aborted than without this lightweight machinery. Our empirical evaluation in Sect. 8.4 reveals that this effect is minimal, and SSN can still achieve a transaction breakdown that is close to the specification under a variant of the TPC-E [47] benchmark.

6 Locks and phantom avoidance

The description of SSN in the previous section works with per-transaction read sets and write sets, with the assumption that these sets contain versions of records. To ensure full serializability, e.g., repeatable counts, we need phantom protection, or the ability to prevent insertions that would change the results of an uncommitted query. Systems based on pessimistic concurrency control employ several useful concepts such as hierarchical locking and lock escalation to reduce tracking overheads, plus key and predicate locking approaches [9, 15, 38] for phantom prevention in ordered indexes such as B-trees. SSN is compatible with those mechanisms to prevent phantoms and so guarantee full serializability. To the extent that the underlying CC implementation is already phantom-free (as is the case for many recent systems [26, 21, 27, 49]), we will not need to redo them in SSN. Otherwise, the following subsections describe how to incorporate phantom detection into the SSN protocol.

6.1 Hierarchical dependency tracking

We first adapt the idea of hierarchical locking to SSN’s dependency tracking needs. In a traditional lock-based system, the database is organized as a hierarchy: schemas, tables, pages, and records. Transactions acquire a concrete lock on the finest-grained object that suits their needs, and intention locks on the object’s parents in the hierarchy. With a hierarchical locking scheme in place, lock escalation also becomes possible: a transaction can choose to replace a large number of fine-grained locks with a single coarse-level lock, trading off reduced tracking overhead for an increased risk of conflicts.

We can adopt the same philosophy in SSN: a transaction that will read the majority of a table can acquire a single read (R) lock on the table, and only needs to update the table-level pstamp. Meanwhile, updating transactions acquire IW and W locks on the table and individual records, respectively. They update only v.sstamp but must check both table- and version-level pstamps to detect all conflicts. Table 2 summarizes the pre-commit checks and post-commit updates required when the system supports intention modes.

If update contention by readers is a concern, either the lock or the corresponding pseudo-version can be replicated, following the “super-latching” feature of SQL Server [37]. A reader (common case) can then update only one of many sub-versions, with the trade-off that a writer (infrequent) must examine all of them.

Mode Check Update
R V.sstamp R.pstamp
IR V.sstamp R.pstamp, V.pstamp
IW R.pstamp, V.pstamp V.sstamp
W R.pstamp, V.pstamp V.sstamp
Table 2: Lock modes and their commit actions.

6.2 Predicates and phantoms

In addition to preventing dependency cycles between reads and writes, a serializable system must prevent the phantoms that arise if an insertion would change the result of a scan. In a database with no installed indices, the hierarchical lock system described above detects all phantoms: any scan—no matter how selective its predicates—must access the entire table, and the resulting table R lock will conflict with the IW locks of both inserts and updates. However, predicates involving a (partial) index key mean finer-grained range scans that access only a portion of the table. Phantom protection can be achieved in these cases by locking the gaps between keys that fall inside the range being scanned.

Several gap-locking schemes have been proposed [38, 34], and any of them could be adapted for use with SSN. We describe here a variant of the scheme due to Graefe [13], where each lock is a composite that can independently reference a particular key and/or the gap that follows that key. Both keys and gaps can be held in read and write mode, with conflicts tracked in piecewise fashion. For example, pairing W/N (key-write, gap none) with N/R (key none, gap read) does not imply any dependency edge, but W/N and R/R implies an edge because both transactions accessed the key (there is no conflict on the gap). The full action/mode table can be generated mechanically (component by component) using Table 2 as a starting point, so we do not reproduce it here.

With locks that cover key/gap pairs, SSN can prevent phantoms without abandoning the notions of read and write sets: when a transaction inserts into an index, its write set contains a version for the key (probably its index entry) associated with either a

W/N or N/W lock, depending on whether the key was already present. Meanwhile, the read set of a range-scan transaction contains index entries it read, each associated with R/N, N/R, or R/R locks, depending on whether key, gap, or both fall within the scan’s endpoints. From there, the normal SSN machinery will see these new “reads” and “writes”, and check for exclusion window violations.

7 SSN in simulation

We implement the SSN protocol from Sect. 3 in a discrete event simulator888Code and scripts available at https://github.com/ermia-db/ssn-simulator. to examine SSN’s accuracy and impact over a wide variety of transaction profiles, contention levels, and schedules. We are especially interested in the impact of contention, interference among readers and writers in a mixed workload, and the impact of active safe snapshots on writer abort rates. In the next section, we implement parallel, latch-free SSN in ERMIA [26] to measure actual commit and abort rates with variants of the TPC-C and TPC-E benchmarks.

7.1 Simulation framework

We have implemented in Python a discrete event simulator designed specifically to evaluate CC schemes. We use it to compare the CC schemes listed in Sect. 2, with and without SSN. The simulator allows us to quantitatively compare supported concurrency levels and abort rates of different concurrency control models. It also exposes anomalies that would indicate potential design flaws. The simulator was invaluable not only in performing evaluations and isolating bugs in the various models, but also in driving the discovery and proof of SSN in the first place.

In all models, the simulator serializes write conflicts by blocking; 2PL and RCL also block readers that conflict with writers. To bound delays and avoid deadlocks, we apply a variant of wait depth limiting (WDL) [46]: the system aborts any transaction that attempts to block on a predecessor that has already blocked. Because all deadlocks necessarily involve transactions blocking on blocked transactions, using WDL also also obviates the need for deadlock detection. Under this arrangement, performance degrades much more gracefully under contention than it would otherwise. This is especially important for 2PL, which tends to “freeze up” once the combined transactional footprint of blocked transactions encompasses a majority of the working set. Without WDL, the system can suddenly enter overload and the expected wait times spike upwards by several factors, increasing the aggregate transactional footprint even further in a vicious cycle. With WDL, 2PL achieves drastically better performance than is traditionally reported, both in terms of latency and completion rate. Meanwhile, the effect on non-locking schemes is minimal. Even under the most extreme contention, RC—whose failures are all due to WDL—has a commit rate better than 90%.

The simulation framework provides basic support for statistics and monitoring, automatic detection of serial anomalies, scheduling, and multi-versioned data access. Pluggable database models then implement the specific CC schemes, including 2PL and RCL (which simply choose not to return overwritten versions). The base simulator comprises 1200 LoC, and most models require 200-300 additional LoC (SI and 2PL are extreme cases, at 80 and 400 LoC, respectively).

To ensure runs using different CC methods are comparable, we use an open queuing system: each client submits requests at predetermined times (at intervals roughly equal to expected transaction latency), independent of previous requests. This models the real world of connection concentrators and users who do not coordinate with each other before submitting requests. Thus, if two simulations are started with the same random seed, the same transactions will be offered at precisely the same times for both, independent of delays imposed by the CC model in use. Thus, any difference in throughput, relative latency or abort rates is due to the models themselves, not differences between transactions offered. Further, exact reproducibility allows standard test case reduction tools to isolate problems from a large simulation trace.

Finally, we point out one caveat: although the simulator models transaction execution times, the low-fidelity timing model does not account accurately for overheads and bottlenecks that would arise in a real system implementing these CC schemes. We present the results only to show the relative timing and concurrency characteristics of different CC schemes. A later section presents results for one implementation of SSN in ERMIA, but an exhaustive performance study of optimized implementations in multiple database engines is outside the scope of this paper.

7.2 Microbenchmark description

Our simulated evaluations use an enhanced version of the SIBENCH [5] microbenchmark. The database consists of a single table and a fixed number of records. Each record contains a single attribute that stores the TID of the transaction that last wrote to it. Each transaction makes a random number of accesses, selected uniformly at random from a tunable range of valid footprint sizes. The last of those accesses are writes (with being a workload parameter). Repeated reads, repeated overwrites, and blind writes are all allowed. Mixed workloads can be emulated by instantiating multiple client groups with differing parameters (e.g. to mingle large read-only queries with short write-intensive transactions).

The benchmark logs the w:w or w:r dependencies implied by each access, using the TID stored in each record to identify the predecessor. After the run completes, a post-processing step reconstructs the r:w anti-dependency edges and tests the resulting graph for strongly connected components (SCC). To avoid blaming one cycle on multiple transactions (and to allow blaming multiple cycles on one transaction), we only report transactions in an SCC as serialization failures if they also fail the exclusion window test (every SCC is guaranteed to contain at least one such failure). This pruning strategy is quite effective in practice, flagging only 1–2 transactions from a typical SCC involving 2-20 transactions, or up to dozen in SCC with hundreds of transactions. Nevertheless, we recognize that this strategy overestimates the true number of serialization failures, because SSN admits false positives.

Offline cycle testing is important for two reasons. First, it is completely independent of the concurrency control mechanism used; the simulator does not trust any CC scheme to be correct (with or without SSN). Second, long chains of r:w anti-dependency edges can produce serialization failures that reach arbitrarily far back in time, and a test with a limited horizon would fail to detect such cycles.999For example, consider , where each begins just before commits.

Figure 6: The effect of contention for single-version (top) and multi-version (bottom) models, with 30 clients.

7.3 SSN and other schemes under contention

Our first experiment, shown in Fig. 6, calibrates expectations. Each transaction makes between 8 and 12 accesses, with 25% of them being writes. We fix the number of clients at 30. The figure shows completion rates of single-version (top) and multi-version (bottom) CC schemes as the database size varies along the log-scale horizontal axis. Contention decreases as the database size increases. For reference only, we show the (non-serializable) commit rates of SI, RC and RCL. We also show the effective commit rates of those schemes if we subtract off the number of serialization failures the simulator reports, given as SI/SER, etc. Note that the numbers for RCL/SER and SI/SER are highly unrealistic—requiring offline oracle to compute—and are for reference only. However, the difference between SI/SER and SI, etc, provides information on how many of the executions are committing with potential anomalies when a non-serializable scheme is used.

We make two observations: first, SI suffers a lower commit rate because transactions cannot overwrite versions outside their snapshot. This weakness extends to SSI and SI+SSN as well. Second, the number of actual serialization failures remains quite low until contention becomes severe, and gives a sense of the false positive rates the other schemes produce (quite high for SSI, very low for RCL+SSN). Finally, we note that protecting weaker CC schemes (RC and RCL) with SSN yields significantly higher completion rates than any other approach, across the full range of contention. RCL+SSN, in particular, sees 90% or better completion rates until the database size drops below 400 records. SSI passes that point at 1600 records. Note that this workload averages an aggregate transactional footprint of 300 records at any given moment. For a 100-record database, RCL+SSN has a completion rate above 50%, even though three or more transactions compete for each record. A completion rate of above 50% is relatively high for this setting, considering that every record a transaction reads will have an active writer with high probability.

Overall, these results indicate that, for these workload parameters, a database smaller than 500 records suffers severe contention while one larger than 5,000 records is nearly contention-free (though some schemes have non-negligible abort rates even then).

7.4 Transactions with varying write intensity

One of the key benefits of multi-version schemes is that reads and writes need not block each other. A secondary benefit—for read-only queries at least—is the ability to access a stable snapshot. However, any transaction that makes at least one update suffers a temporal skew under SI, where all reads occur at the start of the transaction and all writes take effect at commit time. Fig. 7 illustrates this vulnerability: we run 30 clients, each making 100 uniformly random accesses against a database containing 100k records. As the fraction of accesses which are writes increases to 100% along the horizontal axis, the SI and non-SI schemes are clearly differentiated, with the latter all converging to a completion rate nearly doubles that of the SI-based schemes. The SI schemes all converge to the same performance because temporal skew is the primary cause of transaction failure. In contrast, schemes that always read the latest committed value (2PL, RC, RCL) are much less vulnerable to temporal skew and consistently achieve better completion rates. Note that the workload should have low-contention: all clients together have an aggregate transactional footprint covering at most 3% of the database at any given time.

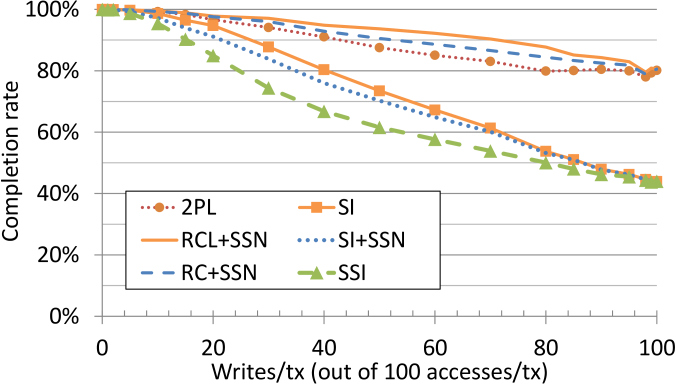

Figure 7: Effect of write-intensive transactions.
Figure 8: Interference between ten update transactions and a varying number of read-only queries under single (top) and multi (bottom) version models. Both RC+SSN and RCL+SSN suffer very high abort rates for readers.

7.5 Interference between readers and writers

So far, all our simulations involve fairly update-intensive workloads, with transactions of uniform size and no read-only queries. Lock-based approaches tend to outperform more optimistic approaches under updates, in no small part because MVCC is of little use to a writer (who must always overwrite the newest version of a record). Indeed, we have seen that 2PL performs quite competitively in update-intensive workloads. However, 2PL interacts very poorly with large read-only transactions, as demonstrated in Fig. 8. Here, we model a system with 10 update clients (denoted as class “Write” in the figure) and a varying number of read-only clients (denoted as class “Read”). Each update client writes between 8 and 12 records, so the aggregate footprint of the update clients is roughly 100 records. The database contains 3000 records. Thus, update clients collectively touch only 3% of the database at any given time. We vary along the horizontal axis the number of read-only clients and measure the resulting abort rate (note the logarithmic vertical axis). Each read-only client reads between 100 and 200 records (5% of the database, on average) before committing. We disable safe snapshots for both SSI and SSN in this experiment. This workload exhibits extreme contention under 2PL, with reader and writer abort rates both quickly approaching 100% as additional queries overload the system. RC+SSN and RCL+SSN also suffer high abort rates ranging from 53–55% for readers across all experiments with readers, because the (already-long) query suffers additional delays due to W-R conflicts that drastically increase the likelihood of a non-repeatable read that will be aborted by SSN. In contrast, SI-based models avoid non-repeatable reads, and so achieve completion rates that suggest low contention: SSI and SI+SSN achieve better than 97% completion rates for updates and—thanks to its read-only optimization—99.9% completion rates for readers.

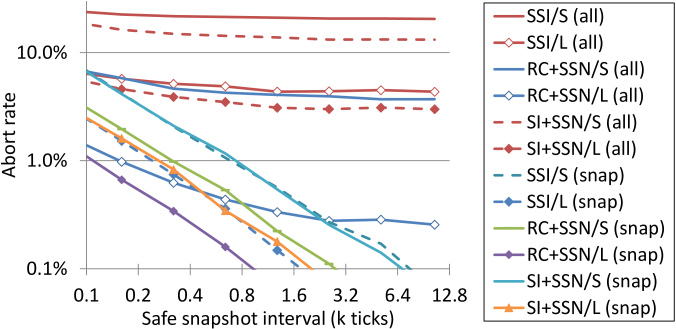

Figure 9: Abort rate vs. safe snapshot frequency.

7.6 Writer abort rate due to safe snapshots

Finally, we examine the performance impact of our safe snapshot mechanism. Safe snapshots forcibly aborts writers that would invalidate a snapshot, so we would expect higher abort rates in return for reduced latency vs. the passive safe snapshot described in prior work [42]. Fig. 9 examines this trade-off, varying the frequency of safe snapshots along the horizontal axis and plotting the resulting abort rate suffered by two 30-client update workloads: the class “S” workload touches roughly 10 records per transaction (in a 1000-record database), while the class “L” workload touches 40 (in a 4000-record database). Both workloads have a 3:1 read/write ratio, and scaling the database size with transactional footprint produces similar contention levels in both. We compare abort rates of SSI, SI+SSN and RC+SSN, for each of two footprint sizes, differentiating between aborts due to safe snapshot conflicts vs. other causes. Both horizontal and vertical axes are log-scale.

Even though the workload is rather contentious (aggregate transactional footprint size is more than 30% of the database), in most cases abort rates are relatively low, 10% or less. The fraction of aborts due to safe snapshot conflicts drops exponentially as snapshots are taken less frequently. For both transaction sizes, the snapshot kill rate drops to below 1% once the delay between snapshots matches or exceeds the expected update transaction latency (note the 4 difference in snapshot interval, corresponding to the 4 difference in footprint size). Given that most read-only queries are far larger than any update transaction (the latter tend to finish in a few ms at most), fairly infrequent snapshots (every 10ms or so) will have virtually little or no impact on writer abort rates or reader latency.

8 SSN in action

We have incorporated SSN in ERMIA [26] to provide robust CC for heterogeneous workloads.101010Code available at https://github.com/ermia-db/ermia. ERMIA is a multi-version, memory-optimized database system that uses a single atomic fetch-and-add instruction per transaction to provide cheap global commit ordering, making it amenable to various CC schemes, such as SI (with and without SSN) and SSI. ERMIA prevents phantoms at low cost using its index (Masstree [36]). The SSI implementation in ERMIA follows the parallel commit paradigm described in Sect. 4.2. In this section, we focus on evaluating the following:

  • Performance of SSN and other comparing CC schemes under traditional OLTP workloads (Sect. 8.3);

  • Impact of the optimizations for read-mostly transactions on heterogeneous workloads (Sect. 8.4);

  • Effectiveness SSN’s safe retry property and SSN’s accuracy under high contention (Sect. 8.5).

8.1 Benchmarks

ERMIA implements a wide variety of benchmarks, including TPC-C [48], TPC-E [47] and their extensions for different evaluation purposes. We evaluate SSN and compare its performance with SI, SSI, and optimistic CC (OCC) [28] using these benchmarks available in ERMIA. We first use TPC-C to explore how SSN performs for traditional OLTP workloads with low contention. We also compare different CC schemes using TPC-CC, a more contentious variant of TPC-C [26]. Finally, TPC-EH, a heterogeneous OLTP workload (detailed in [26]) that features long, read-mostly transactions is used to evaluate the effectiveness of SSN’s read optimization. Details of these benchmarks are described below.

TPC-C. The TPC-C benchmark simulates an order-entry environment and is the dominant benchmark for traditional OLTP systems. It is a write-intensive, easily partitionable and low-contention workload. We partition the database by warehouse. Each thread is assigned a home warehouse; 15% and 1% of the Payment and New-Order transactions are cross-partition, respectively. We run TPC-C to compare the performance of different CC schemes under low contention.

TPC-CC. As we have discussed above, the stock TPC-C benchmark exhibits low contention. To evaluate SSN under high contention, we use TPC-CC, a variant of TPC-C implemented in ERMIA that uses a random warehouse for each transaction [26]. Instead of assigning each thread a home warehouse, a thread chooses a warehouse randomly as its home warehouse upon starting a transaction. The percentage of remote transactions for Payment and New-Order remain the same as in TPC-C.

Figure 10: Commit throughput of TPC-C (left), TPC-CC (middle), and throughput breakdown of TPC-CC running at 60 threads (right). Under low contention (TPC-C), OCC outperforms all the other schemes. The gap between OCC and SSI/SSN shrinks with more contention (TPC-CC). OCC favors write intensive transactions; other schemes’ profiles are similar to the Ideal.

TPC-EH. Compared to TPC-C, TPC-E [47] is a more recent OLTP benchmark that features more sophisticated and realistic tasks that are performed by brokerage firms. It has a significantly higher read-to-write ratio (10:1 vs. 3:1 of TPC-C) [7]. Although TPC-E models modern OLTP workloads more realistically, it lacks the support for emerging heterogeneous workloads, where the execution of long and read-mostly transactions are of paramount importance. TPC-EH [26] fills this gap by introducing an additional read-mostly transaction—Asset-Eval—to TPC-E, and extending the schema with an Asset-History table. Asset-Eval aggregates assets for a set of customers and inserts the results to Asset-History. For each customer account, Asset-Eval computes the total asset by joining the Holding-Summary and Last-Trade tables. As a result, Asset-Eval will contend mostly with the Market-Feed and Trade-Result transactions, which modify the Last-Trade and Holding-Summary tables, respectively. In our experiments, Asset-Eval scans 20% of all the records in the Customer-Account table.

The Asset-Eval transaction takes 20% of the total transaction mix in TPC-EH. Because our goal is to evaluate CC schemes under contention, Data-Maintenance and Trade-Cleanup are omitted from our TPC-EH implementation. The revised transaction mix therefore becomes: Broker-Volume (4.9%), Customer-Position (8%), Market-Feed (1%), Market-Watch (13%), Security-Detail (14%), Trade-Lookup (8%), Trade-Order (10.1%), Trade-Result (10%), Trade-Status (9%), Trade-Update (2%) and Asset-Eval (20%).

8.2 Experimental setup

We apply SSN over SI (denoted as SI+SSN) and compare it with other CC schemes, including SI and SSI in ERMIA, and also with OCC. The OCC implementation used in our experiments is Silo [49], a single-version, main-memory optimized system that uses a decentralized architecture to avoid physical contention. There have been newer systems that follow a similar philosophy to achieve even better performance, such as FOEDUS [27]. However, ERMIA shares the same benchmark code and implementation paradigm with Silo (e.g., both use threads—instead of processes in FOEDUS—as transaction workers). Therefore, for fair comparison, we use Silo in our experiments. The version of Silo we used is augmented with the same TPC-C, TPC-CC and TPC-EH benchmarks in ERMIA.

We run the benchmarks described in Sect. 8.1 in Silo and ERMIA under various CC schemes on a quad-socket Linux server with four Intel Xeon E7-4890 v2 processors clocked at 2.8GHz (60 physical cores in total) and 3TB of main memory. Each worker thread is pinned to a physical core. We keep all the data in memory and direct log writes to /dev/null.

The performance numbers we report are averages of three consecutive 10-second runs, each starting with a freshly loaded database. Unless explicitly stated, all transactions aborted due to CC reasons (e.g., phantoms, exclusion window violations and write-write conflicts) are dropped. In production environments, these aborted transactions should be retried until they successfully commit. We only avoid retrying to evaluate the fairness among transactions under different CC schemes. User-instructed aborts (such as those found in TPC-E) are never retried. For TPC-C and TPC-CC, the number of concurrent threads is fixed to the scale factor (i.e., number of warehouses) unless otherwise stated. We use ten working days and a scale factor of 500 for TPC-EH.

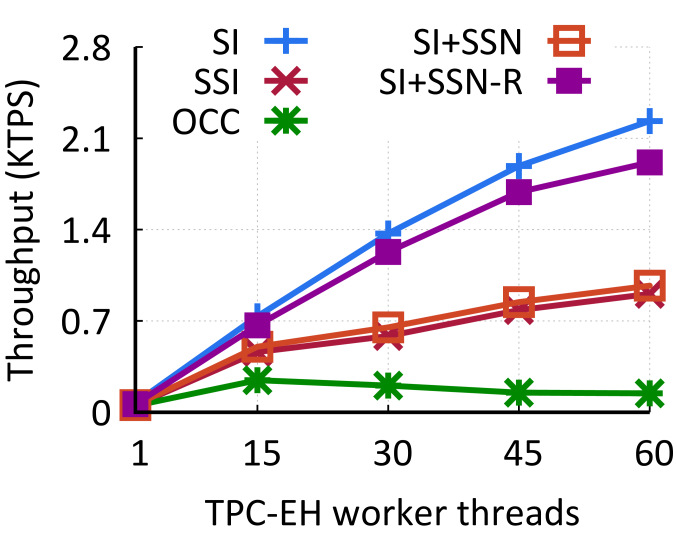

Figure 11: Commit throughput of the TPC-EH benchmark (left) and the throughput breakdown under 60 threads (right).

8.3 Traditional OLTP workloads

We first explore how SSN and other CC schemes perform under traditional OLTP workloads, by comparing the throughput of TPC-C and TPC-CC under various CC schemes. Fig. 10 shows the throughput of TPC-C (left) and TPC-CC (middle) with a varying number of concurrent threads. The number of warehouses is fixed to the number of concurrent threads. Note that with such setting, neither TPC-C nor TPC-CC generates enough conflicts to stress the CC significantly. Therefore, the purpose of this experiment is to understand how different CC schemes perform for the most common and simple workloads. We explore how they behave under more contention in Section 8.5. SI outperforms SI+SSN and SSI in all cases, however, it is not serializable. OCC outperforms the other schemes under TPC-C, which has low contention. With random warehouse selection in TPC-CC, the gap shrinks and OCC starts to perform similarly to SI. SSI performs slightly worse than SI+SSN. OCC only marginally outperforms SI+SSN under TPC-CC, showing the minimal overhead of SSN on top of the underlying CC scheme.

To further understand how different types of transactions perform under SSN, the vertical axis of Fig. 10(right) presents the relative percentage of each transaction’s commit in the TPC-CC mix, for the different CC schemes in the horizontal axis, including the transaction mix specified by the TPC-C specification [48] (“Ideal”) for comparison. The experiment was conducted with 60 threads and aborted transactions are dropped to show any bias a CC scheme might have toward certain types of transactions. Among all the schemes we evaluated, OCC has shown a bias toward the write-intensive Payment transaction, but the other multi-version schemes have shown similar profiles to Ideal. While this is expected as OCC is known to favor write-intensive transactions, we emphasize that SI+SSN provides fair scheduling and has kept a low abort rate, without deviating much from the workload specification. SSN does not aggravate the underlying CC’s bias. We further explore the behaviors of different CC schemes under high contention in Sect. 8.5.

Figure 12: Commit throughput of the Asset-Eval transaction in TPC-EH.
Figure 13: Commit (left) and abort (right) rates of TPC-CC. The number of warehouses is fixed to the number of worker threads. Aborted transactions are retried.

8.4 Read-mostly transactions

We evaluate the performance of read-mostly transactions using TPC-EH. As shown by Fig. 11(left), OCC keeps up with the other multi-version schemes until 30 threads. With more threads, OCC’s performance drops sharply, achieving less than 20% of SI’s throughput at 60 threads. Because of its optimistic and single-version nature, OCC does not allow any back edges in the dependency graph. Long reads can be easily invalidated by concurrent, conflicting writers, leading to massive aborts of read-mostly transactions. We plot the throughput of the Asset-Eval transaction in Fig. 13. In the figure, OCC showed a declining trend after 15 threads. Although the aggregate throughput kept increasing from 15 to 30 threads as shown in Fig. 11(left), the corresponding throughput numbers for Asset-Eval transactions in Fig. 13 do not show a similar trend. In other words, OCC processed more other transactions, and adding more workers does not help in committing more Asset-Eval transactions. Most of them are aborted by concurrent updaters to the same scanned region. The throughput breakdown shown on the right side of Fig. 11 aligns with this observation: OCC commits much fewer Asset-Eval transaction than the other schemes. SI+SSN and SSI slightly deviates from Ideal by committing 1.76% more and 0.8% fewer of Asset-Eval transactions, respectively. Unlike single-version OCC, multi-versioning allows SI-based schemes to accept all (SI) or some (deemed not harmful by SSI or SI+SSN) back edges in the dependency graph, thus allowing more valid schedules.

As shown by Fig. 11, both SI+SSN and SSI scale well under TPC-EH, but with a widening gap between them and SI as the number of worker threads increases. A similar trend is found for the Asset-Eval transaction in Fig. 13. Compared to SI, SI+SSN and SSI have to maintain a read set in each transaction for validation at pre-commit. With more concurrent threads, the tracking and checking of read sets imposes higher overhead. Specifically, as shown by Algorithm 3, SSN has to iterate over the whole read set during pre-commit (SSI does so, too), which is a major source of last level cache (LLC) misses. Our profiling results for a 20-second run of TPC-EH under 30 threads show that although SI+SSN’s parallel commit procedure only takes 12% of the total CPU cycles, the function alone incurs 36.25% and 16.23% of LLC load and store misses, respectively. In this experiment, we have added a new variant (SI+SSN-R) that employs the read-mostly optimizations (Section 5.3). SI+SSN-R skips tracking the majority of reads, thus avoiding most LLC misses during pre-commit. As shown in Fig. 11 and 13, SI+SSN-R achieves 136% and 97% better performance compared to vanilla SSN, for the overall and Asset-Eval performance of TPC-EH, respectively.

Transaction SI SSI SI+SSN SI+SSN-R
Asset-Eval 2232.50 907.60 970.67 1915.35
Broker-Volume 532.83 222.27 234.88 572.15
Customer-Position 899.02 376.98 399.32 971.44
Market-Feed 49.10 16.68 16.58 54.92
Market-Watch 1464.58 603.80 643.42 1588.25
Security-Detail 1552.43 661.19 702.25 1687.43
Trade-Lookup 885.77 359.61 381.04 959.91
Trade-Order 783.42 333.41 351.53 851.80
Trade-Result 563.76 211.33 220.02 607.78
Trade-Status 984.51 405.26 429.60 1068.06
Trade-Update 229.45 93.63 101.59 248.44
Total TPS 10177.37 4191.75 4450.90 10525.52
Table 3: Throughput (TPS) of individual TPC-EH transactions under multi-version CC schemes with 60 threads.

Astute readers might have noticed that SI+SSN-R could even outperform SI in terms of total commit rate as shown in Fig. 11, especially when running at 60 threads. Table 3 lists the commit rates of individual TPC-EH transactions under different CC schemes running at 60 threads. Compared to SI, SI+SSN-R commits fewer heavy-weighted Asset-Eval and Market-Feed transactions, leaving more resources available for other transactions. We note that it is critical to set an appropriate threshold for SI+SSN-R, which governs whether a version is tracked in the read set. In the case of TPC-EH, our experiments show that using a low threshold tends to kill more Market-Feed transactions because of conflicts in the Last-Trade table (reads from Asset-Eval, updates from Market-Feed), leading to even higher commit rates for other transactions. In general, under SI+SSN-R an updater that overwrote a stale version needs to adjust the reader’s sstamp, and the longer the reader is, the easier can an updater catch the reader “alive” during the latter’s pre-commit phase. As a result, longer readers will have a higher chance of being stamped a lower sstamp, making it easier to violate an exclusion window. For the experimental results reported in this paper, we set the threshold to 0xFFFFF. It provided a balance between overall commit rate and fairness among individual transactions. With a threshold of 0xFFFFF, versions that are not updated during the past period in which 1MB of data are written in the database, are considered stale and consequently not tracked in the read set.111111Our current implementation accepts a user-defined, workload-specific threshold. Self-tuning it as workload changes is future work. For SI+SSN-R to provide both high aggregate throughput and fair scheduling, one must adjust the threshold depending on the workload. In summary, as shown in Table 3, SI+SSN roughly follows SI’s breakdown but provides lower commit rates, while SI+SSN-R sacrifices a little fairness toward readers but also maintains high aggregate throughput (similar to SI’s) with a proper threshold.

Figure 14: Abort rate of TPC-CC with retry due to SSI/SSN certification failures.

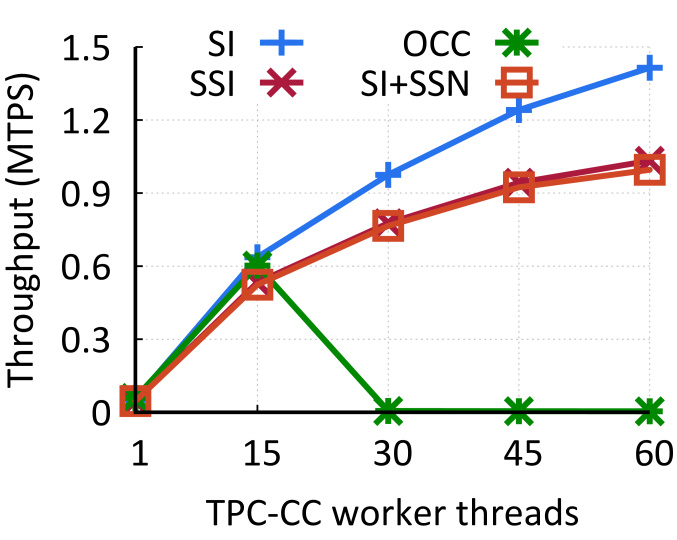

Figure 15: TPC-CC throughput (left) and abort rate due to certification failures (right) with fixed database size (15 warehouses). Aborted transactions are retried.

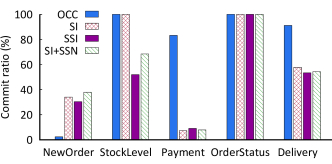

Figure 16: Commit ratio of TPC-CC with 15 warehouses running at 60 threads when aborted transactions are retried.

8.5 Safe retry and high-contention workloads

This section evaluates SSN’s safe retry property. We set both ERMIA and Silo to retry aborted transactions until they commit successfully (therefore the throughput breakdown—although not shown—will strictly follow the benchmark specification). Fig. 13 shows the commit (left) and abort (right) rates of TPC-CC with a varying number of concurrent worker threads. Despite the extra effort needed to retry transactions, SSN matches the performance of SSI and performs similarly to the case where we drop aborted transactions (right side of Fig. 10). OCC’s commit rate collapsed as core count increases, especially after 15 threads. Our profiling results show that Silo spent the vast majority of CPU cycles (higher than 60%) on retrying index insertions (mostly for New-Order), minimizing the available cycles for other transactions and getting little useful work done. Therefore, as shown by Fig. 13(right), OCC also kept a much lower abort rate than SSI/SSN did. Compared to Silo, ERMIA uses indirection arrays for multi-versioning [35, 26, 45]. This design makes tuple insertion less reliant on index performance: Silo needs to first retry index insertion before finalizing the tuple write at commit time, putting tremendous pressure on the index, while ERMIA only needs to insert to the index after successfully appended an entry in the table’s indirection array, amortizing much contention on the index.

Although both SSI and SI+SSN commit and abort similar numbers of transactions, they do so because of different reasons: SSN exhibits higher accuracy and lower abort rate due to certification failures, i.e., it aborts fewer transactions due to serializability check than SSI does. Fig. 15

shows this effect. As we increase the number of concurrent threads, SSI tends to abort more transactions due to certification failures, while SI+SSN tends to abort more due to other reasons including write-write conflicts and unsuccessful lookups. We also note that a random backoff strategy during retries can largely mitigate this problem in Silo. However, this will introduce a large variance in transaction latency, whereas SSN’s safe retry property can keep good performance and maintain stable latency.

In Fig. 15 we further stress the CC schemes under high contention: the number of warehouses is fixed to 15 and we vary the number of concurrent threads. Like previous experiments, each thread chooses a random warehouse and retries a transaction until it is successfully committed. At 15 threads, all CC schemes exhibit exactly the same performance numbers as shown by Fig. 13. As we increase the number of concurrent threads (i.e., more contention), as shown by Fig. 15(left), multi-version schemes can still benefit from the increased parallelism. OCC, however, almost completely collapsed as it keeps failing index insertions. Fig. 15(right) exhibits a similar but more significant effect in Fig. 15, showing SSN’s accuracy and robustness under high contention. We also observed the similar trend under TPC-CC without retrying aborted transactions under moderate levels of contention (equal numbers of warehouses and concurrent threads). For example, when running at 60 threads, SSN exhibits overall 60% lower aborts due to serialization failures when compared to SSI.

Fig. 16 shows the commit ratio for each transaction and CC scheme running at 60 threads with 15 warehouses. The vertical axis represents the percentage of a transaction committed out of all its retries. Similar to the previous experiment, OCC has exhibited a bias toward the write-intensive Payment transaction with a higher than 80% of commit ratio, i.e., on average at most one in five transactions needs to retry. But the percentage of committed NewOrder transactions is only 2.36%, due to its repetitive failure of index insertion. For NewOrder, SI+SSN achieved the highest commit ratio, although SSI and SI+SSN have similar aggregate throughput. Both SI and OCC have 100% commit ratio for the two read-only transactions (StockLevel and OrderStatus): the former does not track and validate reads, while the latter uses a read-only snapshot for read-only transactions. Finally, the commit ratios under SSI and SI+SSN for StockLevel show the accuracy of SSN which achieves a 17% higher commit ratio when compared to SSI.

9 Related work

An initial presentation of the SSN protocol (without some optimizations we report here) was in [50]. This paper further extends SSN with more optimizations and functionality, such as a carefully designed parallel pre-commit protocol, the adaptation of safe snapshot, phantom protection, optimizations for heavy-weight read-mostly transactions, etc.

The possibility of various isolation levels, some of which are not serializable, was defined by Gray et al. [16]. Definitions of isolation properties based on patterns of dependency edges are given by Adya [1]. Recent efforts on CC focus on optimistic and multi-version based methods, such as OCC defined by Kung et al. [28] and SI defined academically (and proven non-serializable) by Berenson et al. [3].

Certification approaches that guarantee serializability are forms of optimistic CC. Obtaining exact accuracy using serialization graph testing was proposed by Casanova and Bernstein [6], and extended to support multi-versioning by Hadzilacos [18]. A different approach tests for cycles before transactions start in a real-time database system [30]. Recent OCC-based systems focus on eliminating physical contention to achieve good performance. FOEDUS [27] uses an extremely decentralized design inspired by Silo [49] to provide high performance on traditional TPC-C like workloads. BCC [51] identifies specific dependency graph patterns to reduce false aborts caused by vanilla OCC. Compared to SSN and multi-version CC, these approaches cannot well support emerging heterogeneous workloads featuring a significant amount of read-mostly transactions, as we have shown in Sect. 8.4.

The original SSI algorithm runs specifically along with SI to ensure serializable executions [5]. An improved form (which we call SSI in our paper) was implemented in PostgreSQL [42]. Revilak et al. proposed accompanying SI with an exact certification using serialization graph testing [44]. Other certification algorithms have been developed that can be used in a snapshot-based system (one where all reads within a transaction come from a common snapshot): Lomet et al. [33] choose a commit timestamp from an allowed interval, and the chosen timestamp is the effective serial order commit time. SSN, on the other hand, uses the commit time as timestamp, and tracks excluded values. The chosen timestamp does not necessarily coincide with the actual serial order commit time. Hekaton [29] specifically aims for main-memory stores and rejects all back edges. Deuteronomy [32] separates physical and logical operations with dedicated data and transaction components, and thus supports phantom protection while keeping a separation between the CC and storage layers [31]. Neumann [39] et al. adapts precision locking [22] and uses undo buffers in Hyper [25] to validate serializability.

Another class of proposals ensure serializable execution by doing static pre-analysis of the application mix [11, 23, 2]. In the context of main-memory optimized systems, Bohm [10] determines serializable schedules prior to transaction execution, requiring that transactions submitted in their entirety with the write sets deducible before execution. Unlike SSN, these methods are not suitable with ad-hoc queries or data dependent queries.

10 Conclusions

In this paper, we have presented the serial safety net (SSN), a cheap certifier that can overlay a variety of concurrency control schemes and make them serializable. We prove the correctness of SSN, we show how SSN can be efficiently implemented for multi-version systems, and we have evaluated SSN in both simulation and ERMIA, a recent main-memory multi-version database system designed for modern hardware.

SSN is robust against a variety of workloads, ranging from traditional OLTP applications to emerging heterogeneous workloads. In particular, we have proposed specific optimizations for these heterogeneous workloads where long, read-mostly transactions are of paramount importance. With the help of a carefully designed lock-free, parallel commit protocol, SSN adds minimal overhead to the underlying CC scheme in a multi-version system, in terms of read/write tracking and commit-time validation. Experiments using TPC-C and TPC-E based benchmarks show that SSN is superior to prior state-of-the-art, in being more accurate (fewer aborts and higher commit ratio), more general (not requiring SI), more robust against retries and more friendly to emerging heterogeneous workloads that features read-mostly transactions.


The authors gratefully acknowledge Goetz Graefe and Harumi Kuno for their invaluable suggestions and input they provided during the development of SSN, as well as Kangnyeon Kim for his help building the prototype. We also thank the anonymous reviewers for their comments and suggestions that greatly improved this paper.


  • [1] Adya, A.: Weak consistency: a generalized theory and optimistic implementations for distributed transactions. Ph.D. thesis, MIT (1999)
  • [2] Alomari, M., Fekete, A., Röhm, U.: Performance of program modification techniques that ensure serializable executions with snapshot isolation DBMS. Inf. Syst. 40, 84–101 (2014)
  • [3] Berenson, H., Bernstein, P.A., Gray, J., Melton, J., O’Neil, E.J., O’Neil, P.E.: A critique of ANSI SQL isolation levels. SIGMOD pp. 1–10 (1995)
  • [4] Bernstein, P.A., Shipman, D.W., Wong, W.S.: Formal aspects of serializability in database concurrency control. IEEE Trans. Software Eng. 5(3), 203–216 (1979)
  • [5] Cahill, M.J., Röhm, U., Fekete, A.D.: Serializable isolation for snapshot databases. ACM TODS 34(4), 20:1–20:42 (2009)
  • [6] Casanova, M., Bernstein, P.: General purpose schedulers for database systems. Acta Inf. 14, 195–220 (1980)
  • [7] Chen, S., Ailamaki, A., Athanassoulis, M., Gibbons, P.B., Johnson, R., Pandis, I., Stoica, R.: TPC-E vs. TPC-C: Characterizing the new TPC-E benchmark via an I/O comparison study. SIGMOD Rec. 39(3), 5–10 (2011)
  • [8] DeBrabant, J., Pavlo, A., Tu, S., Stonebraker, M., Zdonik, S.: Anti-caching: A new approach to database management system architecture. PVLDB 6(14), 1942–1953 (2013)
  • [9] Eswaran, K.P., Gray, J., Lorie, R.A., Traiger, I.L.: The notions of consistency and predicate locks in a database system. Commun. ACM 19(11), 624–633 (1976)
  • [10] Faleiro, J.M., Abadi, D.J.: Rethinking serializable multiversion concurrency control. PVLDB 8(11), 1190–1201 (2015)
  • [11] Fekete, A., Liarokapis, D., O’Neil, E., O’Neil, P., Shasha, D.: Making snapshot isolation serializable. ACM TODS 30(2), 492–528 (2005)
  • [12] Fekete, A., O’Neil, E., O’Neil, P.: A read-only transaction anomaly under snapshot isolation. SIGMOD Rec. 33(3) (2004)
  • [13] Graefe, G.: Hierarchical locking in b-tree indexes. In: BTW, pp. 18–42 (2007)
  • [14] Graefe, G.: A survey of B-tree locking techniques. ACM TODS 35(3), 16:1–16:26 (2010)
  • [15] Gray, J.: Notes on data base operating systems. Advanced course: operating systems. Springer (1978)
  • [16] Gray, J., Lorie, R.A., Putzolu, G.R., Traiger, I.L.: Granularity of locks and degrees of consistency in a shared data base. IFIP Working Conf. on Modelling in DBMS (1976)
  • [17] PostgreSQL Global Development Group: Chapter 13. Concurrency Control. PostgreSQL 9.4.1 Documentation (2015)
  • [18] Hadzilacos, T.: Serialization graph algorithms for multiversion concurrency control. PODS pp. 135–141 (1988)
  • [19] Intel Corporation: Intel 64 and ia-32 architectures software developer’s manual (2015)
  • [20] Johnson, R., Kim, K., Wang, T., Pandis, I.: Robust concurrency control in main-memory DBMS: what main memory giveth, the application taketh away. IMDM pp. 57–59 (2014)
  • [21] Johnson, R., Pandis, I., Hardavellas, N., Ailamaki, A., Falsafi, B.: Shore-MT: a scalable storage manager for the multicore era. In: EDBT (2009)
  • [22] Jordan, J.R., Banerjee, J., Batman, R.B.: Precision locks. SIGMOD pp. 143–147 (1981)
  • [23] Jorwekar, S., Fekete, A., Ramamritham, K., Sudarshan, S.: Automating the detection of snapshot isolation anomalies. PVLDB pp. 1263–1274 (2007)
  • [24] Jung, H., Han, H., Fekete, A., Röhm, U., Yeom, H.Y.: Performance of serializable snapshot isolation on multicore servers. In: Database Systems for Advanced Applications, LNCS, vol. 7826, pp. 416–430 (2013)
  • [25] Kemper, A., Neumann, T.: HyPer: A hybrid OLTP&OLAP main memory database system based on virtual memory snapshots. In: ICDE, pp. 195–206 (2011)
  • [26] Kim, K., Wang, T., Johnson, R., Pandis, I.: ERMIA: Fast memory-optimized database system for heterogeneous workloads. SIGMOD (2016)
  • [27] Kimura, H.: FOEDUS: OLTP engine for a thousand cores and NVRAM. SIGMOD pp. 691–706 (2015)
  • [28] Kung, H.T., Robinson, J.T.: On optimistic methods for concurrency control. ACM TODS 6(2), 213–226 (1981)
  • [29] Larson, P.A., Blanas, S., Diaconu, C., Freedman, C., Patel, J.M., Zwilling, M.: High-performance concurrency control mechanisms for main-memory databases. PVLDB (2011)
  • [30] Lee, V.C., Lam, K.W.: Conflict free transaction scheduling using serialization graph for real-time databases. Journal of Systems and Software 55(1), 57–65 (2000)
  • [31] Levandoski, J., Lomet, D., Sengupta, S., Stutsman, R., Wang, R.: Multi-version range concurrency control in Deuteronomy. PVLDB pp. 2146–2157 (2015)
  • [32] Levandoski, J.J., Lomet, D., Mokbel, M.F., Zhao, K.K.: Deuteronomy: Transaction support for cloud data. CIDR (2011)
  • [33] Lomet, D., Fekete, A., Wang, R., Ward, P.: Multi-version concurrency via timestamp range conflict management. ICDE pp. 714–725 (2012)
  • [34] Lomet, D.B.: Key range locking strategies for improved concurrency. PVLDB pp. 655–664 (1993)
  • [35] Lomet, D.B., Sengupta, S., Levandoski, J.J.: The bw-tree: A b-tree for new hardware platforms. ICDE pp. 302–313 (2013)
  • [36] Mao, Y., Kohler, E., Morris, R.T.: Cache craftiness for fast multicore key-value storage. EuroSys pp. 183–196 (2012)
  • [37] Microsoft: Hot it works: SQL Server super-latching / sub-latches. Official Team Web Log for Microsoft Customer and Support (CSS) SQL Support (2009). URL https://blogs.msdn.microsoft.com/psssql/2009/01/28/hot-it-works-sql-server-superlatching-sub-latches/
  • [38] Mohan, C.: ARIES/KVL: A key-value locking method for concurrency control of multiaction transactions operating on B-Tree indexes. PVLDB pp. 392–405 (1990)
  • [39] Neumann, T., Mühlbauer, T., Kemper, A.: Fast serializable multi-version concurrency control for main-memory database systems. SIGMOD pp. 677–689 (2015)
  • [40] Pandis, I., Johnson, R., Hardavellas, N., Ailamaki, A.: Data-oriented transaction execution. PVLDB 3(1) (2010)
  • [41] Papadimitriou, C.H.: The serializability of concurrent database updates. J. ACM 26(4), 631–653 (1979)
  • [42] Ports, D.R.K., Grittner, K.: Serializable snapshot isolation in PostgreSQL. PVLDB 5(12), 1850–1861 (2012)
  • [43] Ren, K., Thomson, A., Abadi, D.J.: Lightweight locking for main memory database systems. PVLDB pp. 145–156 (2013)
  • [44] Revilak, S., O’Neil, P.E., O’Neil, E.J.: Precisely serializable snapshot isolation (PSSI). ICDE (2011)
  • [45] Sadoghi, M., Ross, K.A., Canim, M., Bhattacharjee, B.: Making updates disk-I/O friendly using SSDs. PVLDB 6(11), 997–1008 (2013)
  • [46] Thomasian, A.: A performance comparison of locking methods with limited wait depth. IEEE Trans. on Knowl. and Data Eng. 9(3), 421–434 (1997)
  • [47] Transaction Processing Performance Council: Standard specification. TPC Benchmark E Version 1.12.0 (2010)
  • [48] Transaction Processing Performance Council: Standard specification. TPC Benchmark C Version 5.11 (2010)
  • [49] Tu, S., Zheng, W., Kohler, E., Liskov, B., Madden, S.: Speedy transactions in multicore in-memory databases. SOSP pp. 18–32 (2013)
  • [50] Wang, T., Johnson, R., Fekete, A., Pandis, I.: The serial safety net: Efficient concurrency control on modern hardware. DaMoN pp. 8:1–8:8 (2015)
  • [51] Yuan, Y., Wang, K., Lee, R., Ding, X., Xing, J., Blanas, S., Zhang, X.: BCC: Reducing false aborts in optimistic concurrency control with low cost for in-memory databases. PVLDB (2016)
