Efficient RDF Graph Storage based on Reinforcement Learning

10/22/2020 ∙ by Lei Zheng, et al. ∙ Harbin Institute of Technology 0

Knowledge graph is an important cornerstone of artificial intelligence. The construction and release of large-scale knowledge graphs in various fields pose new challenges to knowledge graph data management. Due to the maturity and stability, relational database is also suitable for RDF data storage. However, the complex structure of RDF graph brings challenges to storage structure design for RDF graph in the relational database. To address the difficult problem, this paper adopts reinforcement learning (RL) to optimize the storage partition method of RDF graph based on the relational database. We transform the graph storage into a Markov decision process, and develop the reinforcement learning algorithm for graph storage design. For effective RL-based storage design, we propose the data feature extraction method of RDF tables and the query rewriting priority policy during model training. The extensive experimental results demonstrate that our approach outperforms existing RDF storage design methods.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 9

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

As the latest achievement of the development of symbolism, the knowledge graph is an important cornerstone of Artificial Intelligence (AI), and it has been continuously developed and applied. In recent years, knowledge graphs with a scale of one million vertices and hundreds of millions of edges have become common in many areas such as Semantic Web [1]. Many knowledge graphs in the Linking Open Data (LOD) cloud map released in August 2018 exceed 1 billion triples [2]. For example, both the Wikipedia Knowledge Graph and the Geographic Information Knowledge Graph have more than 3 billion RDF data, and the protein knowledge graph has more than 13 billion RDF data. The construction and release of large-scale knowledge graphs in various fields pose new challenges to knowledge graph management [3].

RDF has been widely used in various fields. In the past several decades, RDF plays an important role in query processing. For example, it is used to assist search engines to better find resources, to classify and describe the content and relationships in the websites and libraries, and to represent, share and exchange knowledge in intelligent software agents. There has been a flurry of activity around designing specialized graph analytics engines

[4]. With the increasing applications of RDF, the storage and query requirements of RDF have also put forward higher requirements [5].

In the field of knowledge graph management, the relationship-based and the graph-based are two mainstream storage approach directions. Due to the development of the relational database for decades, with a reasonable storage management scheme, it achieves better performance and stability than graph databases for massive data with complex connections [6]. For this reason, we intend to adopt the relational database to store RDF data.

For relational storage of graph data, it is essential to partition the triple to multiple tables or join some partial results to accelerate query processing. Such determination brings challenges. On the one hand, existing selection methods of graph data storage structures and indices depend on the database administrators (DBAs) [7]. It is over-demanding for DBAs to decide how to partition and store a large-scale graph [8]. Besides, it is hardly for human to know the global feature of the complex graph, which causes the non-optimal solution.

On the other hand, due to the rapid update of data and workload in graph data applications, the current database system can not adapt to dynamically changing graph data and workload in real time. When the RDF data or workload changes, the current storage scheme may not still be effective. Dynamic schemas and data sparsity are typical characteristics of RDF data which are not commonly associated with relational databases. Therefore, it is not a coincidence that existing approaches that store RDF data over relational stores [9, 10, 11] can not handle this dynamicity without altering their schemas [12]. These constraints make the graph storage problem difficult to solve. Therefore, there is an urgent need to develop an automatic graph data storage design technique to solve the above problems.

Fortunately, in recent years, reinforcement learning (RL) has been widely used to solve data management problems [13]. For example, SageDB [14] uses RL to optimize query scheduling. GALO [15] proposes the method of guided automated learning for query workload re-optimization. Neo [16]

proposes an end-to-end query plan optimization based on machine learning. SkinnerDB

[17] uses RL to avoid local optimization of the initial query plan. However, there are only a few studies using artificial intelligence for data partition optimization. Schism [18] uses the partition strategy based on machine learning. GridFormation [19] tries to use RL methods on the column store database to select data blocks and data distribution methods. Partitioning Advisor [20] applies the idea of RL to the partition problem of distributed databases.

However, RL can be hardly applied to graph storage design directly. To conduct reinforcement learning on relational storage design for graph data, Markov Decision Process should be defined well on the storage process. It is non-trivial to define state, i.e. how to store complex RDF table sequence into numerical vector. Additionally, since the storage scheme is based on

dividing and merging tables, the action space can be infinite. To guarantee as small action space as possible, the action should be defined reasonably. The last but not least, under the changing storage structure, the calculation of reward should be adaptive.

Facing the challenges above, we propose an intelligent storage scheme for graph data based on reinforcement learning. We take predicates as the feature of tables and map the predicates to numerical variables. Besides, we extract features of the workload to restrict the size of the action space. We also propose the priority-based policy for query rewriting to calculate the reward dynamically. The contributions of this paper are summarized as follows:

  • We solve the problem of RDF graph storage with reinforcement learning. To the best of our knowledge, this is the first work to adopt RL to solve graph storage problem.

  • We design the effective RL model for the graph storage problem.

  • To verify the performance of the proposed approach, we conduct extensive experiments. Experimental results demonstrate that time performance of our method outperforms Apache Jena.

The remainder of this paper is organized as follows. We start in Section II with an overview of our RDF graph storage based on RL. Section III describes the design of reinforcement learning model for graph storage. In Section IV, we discuss the query rewrite policy. Section V presents the experimental results of our system and the comparison with Apache Jena. In the end, Section VI concludes our system and put forward the improvement of future work.

Ii Overview

In this paper, we aim at finding a solution for this challenging problem of RDF graph storage. We realize the graph storage design based on relational database with reinforcement learning. Our idea is to transform the graph storage problem into a Markov decision process (MDP), and define the five factors of the MDP related to graph storage. On this basis, we perform feature extraction on the data and train the reinforcement learning network. At the same time, the query rewrite policy is optimized. The framework of our work is shown in Figure 1.

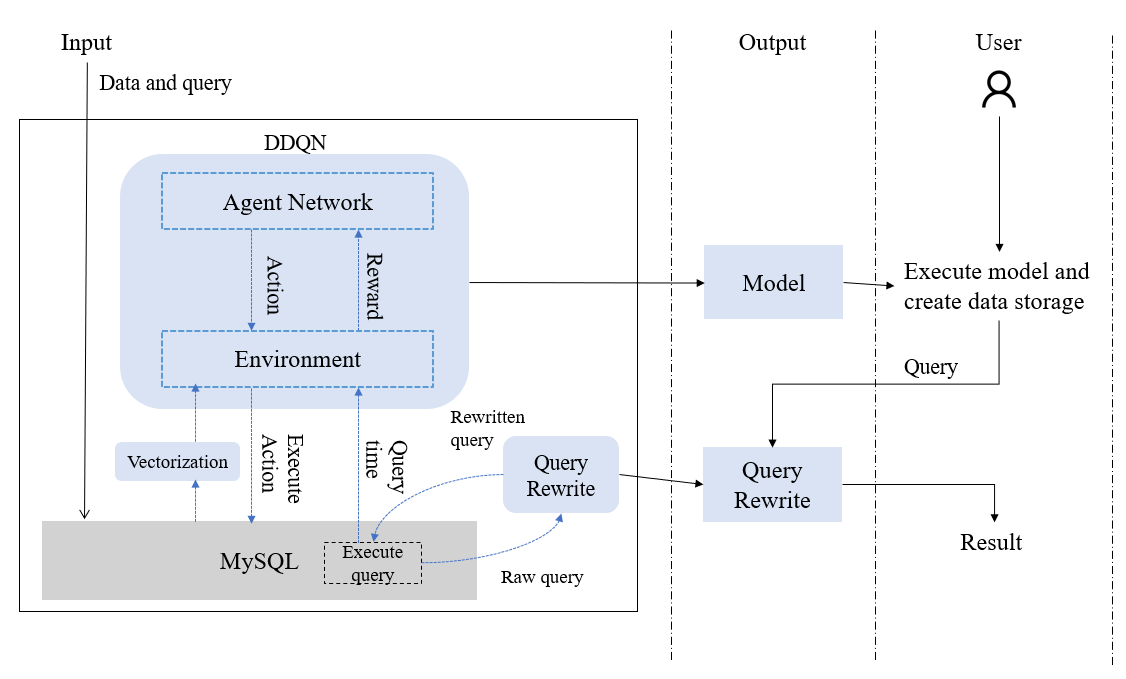

Fig. 1: Framework

The system runs as follows: (1) Input module is to input dataset and workload. The dataset is stored in a table in the form of triples. (2) Next, vectorization module extracts and converts the data storage features to a vector. It will be introduced in Section III-D. (3) DDQN module makes the storage decision by reinforcement learning. It selects the action for the database to execute. And the database returns the workload query time for the calculation of the reward. DDQN continuously interacts with the database environment to update the Q value. This will be introduced in Section III-E. (4) Query rewrite module rewrites the query to minimize the query execution time under the current storage structure. When the storage structure changes, the query rewrite policy ensures high performance by adapting the query execution strategy to the changed storage. This module will be introduced in Section IV. (5) After the model is trained, the user can execute the model to establish a data storage structure.

This system can realize the optimal storage scheme of the graph. We extract and vectorize the dataset features as the input of DDQN. DDQN outputs the Q value of a certain action under the current state, and selects the action with the largest Q value to decide whether to divide or to merge tables. Next, the environment executes the rewritten query statement and returns the execution time. The model updates the Q value until the Q value converges or the episode reaches the maximum number of iterations. Thus, the whole system implements automatic data storage.

The flow of the agent is shown in Figure 2. The agent chooses actions of dividing or merging tables according to its decision policy. For each step, the quadruples of current state, action, next state and reward

are stored in experience pool. After each round, the fixed scale replay batch is used for neural network weights updating. These two networks take the

current and next state as the input, respectively, and outputs Q and Q’, which are used for updating Q value matrix. Then the Q-evaluation is trained with the current states batch and Q value matrix. After a few rounds, the weights of evaluation-network are copied to the target-network. In environment, storage scheme will change with the agent’s actions. The reward of each step is calculated with promotion of the proposed strategy.

Fig. 2: Flowchart

Iii The Design of Reinforcement Learning for Graph Storage

Reinforcement learning is a continuous decision-making process. Its basic idea is to maximize the cumulative reward value, which is achieved by continuously interacting with the environment and learning the optimal strategy together [21]. In this section, we propose a reinforcement learning method to make data storage automatic and intelligent. It uses predicates to characterize table data and adopts DDQN for action selection. By interacting with the database environment, we make the database automatically learn the storage strategy of the data to achieve the purpose of the optimal storage scheme.

Currently, many reinforcement learning methods have been proposed, the most classic in which is Q-learning algorithm [22, 23, 24]. The traditional Q-Learning method used in reinforcement learning is to create a Q value table to store state-action values. However, when the action space and state space are too large, it is not suitable for the Q value table to store. On the one hand, the computer’s memory is limited, which will be the bottlenecks of storage performance. On the other hand, searching for the corresponding state in a large table is a time-consuming task. DQN can solve the above problems well [25]. However, the target Q value of DQN is directly obtained by greedy policy. Selecting the largest Q value can make the Q value close to the possible optimization target, but it is easy to lead to overestimation. Therefore, in this paper, we use Double Deep Q-Network (DDQN) to realize our idea, since DDQN can reduce overestimation by decomposing the max operation in the target into action selection and action evaluation [26].

The main system architecture of this article is shown in Figure 3. First, the RDF graph data and workload are taken as the input. However, the data-scale is extremely large. We extract useful features and encode them as the input vector of the DDQN. In the training process, SQL query rewriting is required to ensure validity of workload. Finally, the optimized storage scheme is formed after the model training is completed.

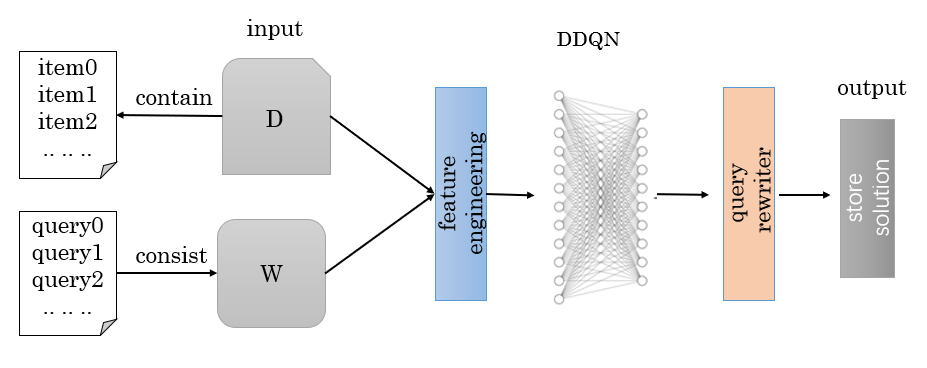

Fig. 3: System architecture of data storage

To formulate the optimization problem of relational storage structure for graph data as a reinforcement learning problem, we need to formalize the generating process of storage structure as a Markov Decision Process (MDP). We will introduce the specific definition of important factors in this optimization method and give corresponding examples in Section III-AIII-BIII-C, respectively. The Section III-D describes the feature extraction and vector mapping methods of data. In Section III-E, the implementation of reinforcement learning network is introduced.

Iii-a States

represents a finite state set. For the state at any time , it satisfies . represents the division of the table in the database at the current time. The initial state is , and there is only one initial table , which stores all data in the form of triples, indicating that the data has not been divided.

Next, we illustrate the state transition process:

  • The initial state , which means that there is only one initial table in the table set.

  • If at time , the reinforcement learning algorithm chooses the action to divide the table, and the condition is to divide the table according to , then select the record of from the initial table and store it in a newly created triple table. The state at this time can be represented as .

  • If at time , the reinforcement learning algorithm chooses action to divide the table, and the condition is to divide the table according to , then select the record of from the initial table and store it in a new triple table. It can be represented as .

  • If at time , the tables and merge according to a join condition, and the connection condition is , the database will store the join results of and in a new table called , the state at this time can be expressed as .

  • By analogy, if at the end of the final algorithm, the generated tables are finally , and the storage structure of each table is different, then the data storage table scheme is the determined storage scheme.

When characterizing the state definition described above, we face two challenges. One is how to represent a triple pattern as a vector, and how to use the encoding to reflect the frequently queried sub-graph structure in these triple patterns. The other is that the vectors corresponding to the table sequence states are different at different time. For reinforcement learning algorithms, the dimensionality of the input data (the feature vector of the state) needs to be kept a constant, so it is more difficult to convert the triple pattern set of various numbers into a vector with a fixed length as the input of the network.

In order to solve the above two problems, we map the triple table to the predicates it contains. This is because for a triple pattern, its predicates can best reflect the characteristics of the triple pattern, which is the most important information of a triple pattern. Therefore, it is appropriate to use a predicate to uniquely represent the triple pattern.

After obtaining the result of the mapping, we encode and vectorize the predicate feature, and add a separation bit encoding to represent the separation between the two tables. However, this still cannot solve the problem of inconsistent vector dimensions obtained after different table partitioning states are characterized. In order to solve this problem, we need to predetermine the vector dimension of the characterization result when the data storage environment is initialized. After vectorizing all the predicate features, if the length of the vector obtained is less than the fixed dimension, then zeros are added at the end. Thus, the characterization result of each state can be turned into a fixed-length vector, which is convenient for normalizing the input of the neural network.

Iii-B Actions

Let represent a finite set of actions. For the state at any time , it satisfies . The actions in the graph data storage process include actions of dividing and merging. Dividing action divides a table according to the predicate , and the records of are selected from the initial table and stored in the newly created table. The table merging actions are divided into four categories, which are mainly based on the connection conditions of the two tables. It is denoted as . According to the flag condition, the triples in the tables and are combined. In the case that both and are obtained from the dividing table, has four options:

  • , which means that the table is merged according to ;

  • , which means that the table is merged according to ;

  • , which means that the table is merged according to ;

  • , which means that the table is merged according to ;

However, if and may be obtained by the action of merging tables, then there will be more options for flag. Assuming that is merged from tables, and is merged from tables, the options for total kinds.

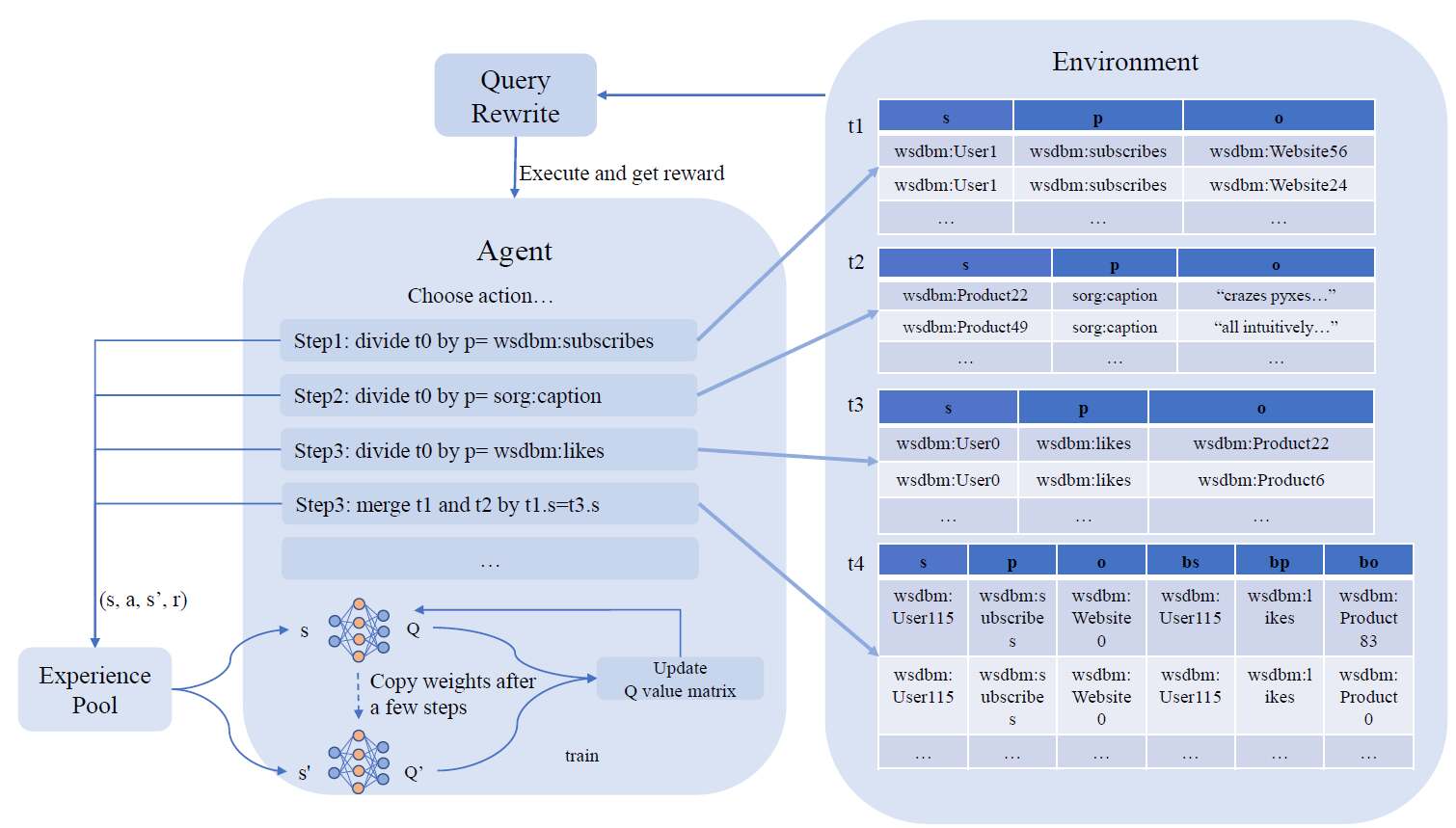

Take Figure 4 as an example to illustrate the execution process of dividing and merging actions. The initial table contains predicates , and there may be thousands of other records. With the table dividing action, the record of the predicate from is selected and stored in ; with the table dividing action, select the record of the predicate from is selected and stored in ; with the table merging action. The action is denoted as , meaning that tables and are joined according to , and the obtained records are stored in table .

Fig. 4: The Actions of dividing and merging tables

Iii-C Rewards

Reward is the feedback information given by the environment after the learner performs an action. It is used to inform the learner of the result of the action and help the learner learn the value of the action. In the graph storage problem, the database executes the query of the workload according to the current table status at every step, and the performance of the data storage is measured by the query time. The less query time is used to execute the workload, the better the storage solution in this state is. Therefore, we use the increase in workload execution time compared to the previous state, i.e. the decreased time, as the reward in the current state. The more time the current state takes compared to the previous state query, the more efficient the query is, the greater the reward is, and the more effective the current action is.

Iii-D Predicate vector mapping

Since the scale of the graph data is extremely large, it is unrealistic to use all the data information as the input of the neural network. Therefore, our goal is to extract useful features of graph data and map them into fixed-length vector.

A useful feature in graph data is its edge, which is the in the triple , which can represent some information of the graph very well. Therefore, we vectorize the predicates in the graph data to represent the storage state of the current tables, and use the vector as the input of the neural network.

First, we count all the predicates in the graph, get the dictionary of , and map each word to an integer from to ( represents the total number of predicates). Next, we perform the mapping of the table state, and use the mapped vector as the input of the neural network below. An example of the table state mapping is shown in Figure 5.

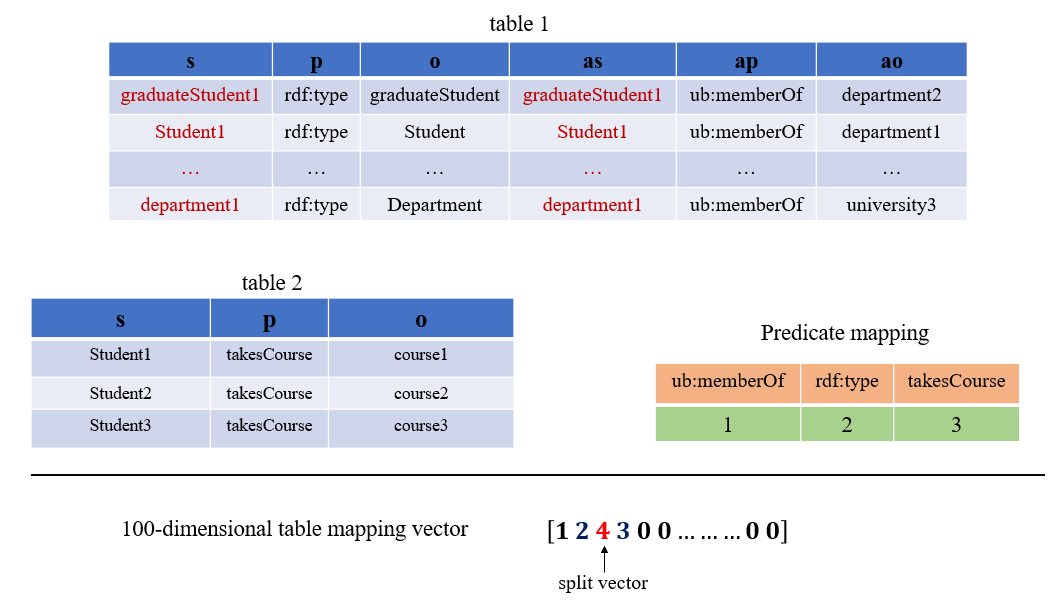

Fig. 5: Table state mapping process

Since the input vector dimension of the neural network is fixed, based on experience, we set the input vector dimension to 100 dimensions. Initially, the vector is all-zero. After a certain number of iterations, in the current state, the state space mapping method of the table is as follows:

First, get all predicates in order of each table (except the initial table ) in the table sequence and perform vector mapping. After mapping the predicates of a table, an interval bit between different tables is added, and usually set to the maximum encoding of all the current predicates plus one. Next, the predicate is mapped on all other tables according to the above process. If the vector does not reach the dimension of the input vector, it is filled with zeros until it reaches the fixed input dimension.

Iii-E Double Deep Q-Network Deep Learning Network

Since in reinforcement learning, our observational data is ordered, step by step, using such data to update the parameters of the neural network in DQN will cause overestimation problem. In supervised learning,

recall depends on the data. Therefore, DQN uses the experience pool method [27] to break the correlation between data and accelerate the convergence of the algorithm.

We use DDQN neural network to solve the problem of overestimation by decoupling the target Q value action selection and target Q value calculation[28]. In the following, the specific implementation are introduced.

DDQN is composed of two identical neural network structures, namely the target network and the prediction network. The network architecture of the system is shown in Figure 6. In order to improve the nonlinear mapping capability of the network, we add three hidden layers. Since the number of input dimensions is often smaller than the output dimensions, we first raise the dimensions of hidden layers to a value higher than the output dimension. We set two or more layers to increase the dimension gradually. Even if a deeper network may achieve higher accuracy, for efficiency issues, we design a three-layer fully connected layer hidden network.

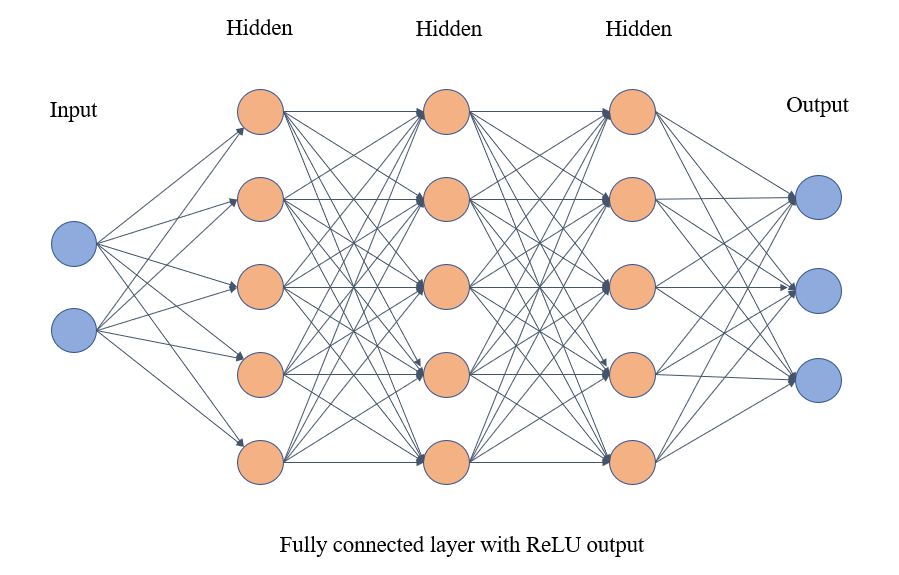

Fig. 6: Reinforcement learning network structure

In the training process of the network, the DDQN neural network model chooses whether to divide or to merge in the current state. We set each round of training to a number of steps, and get the specific step with the largest accumulated reward, which should be the optimal step, as the reward feedback in each round. Therefore, this step and the previous reward feedback are more meaningful. Add them to the experience pool. During each training, the experience is randomly selected from the experience pool as the current network training sample.

Iv Query rewrite

SPARQL as a query language for RDF data, was released by W3C in 2008, has thus been a core focus of research and development for Semantic Web technologies [29]. Since SPARQL queries cannot be used directly for query in relational database, a SPARQL-to-SQL module is required [30].

Whether in the process of model training or using the trained model to decide the storage structure, query rewrite policy is indispensable. In the process of model training, the storage structure of the tables may change. Thus, using the same query statement may not conform to the optimal query policy. We will introduce the optimal rewrite policy with examples in Section IV-A.

Query rewriting policy has an important impact on query efficiency. The reason is that if a poor policy choose a non-optimal one of all possible rewritten queries, the reward will be reduced. Thus, the agent will be misled. To ensure the optimality, we propose a priority-based rewriting policy to assist the generation of rewriting decisions. It can effectively solve the problem of how to select the optimal rewriting statement. This will be introduced in IV-B.

Iv-a Rewrite policy

As an important part of the system, query rewrite policy provides an important basis for reward in MDP. The query rewrite policy aims to rewrite the execution plan of the workload, i.e. the query statement, under a given state, to minimize the execution time. The rewrite policy is defined formally as follows:

Definition 1.

Given the table sequence T: , rewrite policy : {raw query statement}{rewritten query statement}, for {raw query statement}, if has the shortest execution time compared with other policies, it is the optimal one.

For example, the following table sequence presents the predicates contained in the table and what join condition used to join:

Example 1.

, {type}, {comment}, {topic}, {type, comment, type.s=comment.s, comment.s=type.s}, {type, comment, topic, type.s=comment.s, comment.s=type.s, comment.o=topic.s, topic.s=comment.o}
The raw SQL: select a.s from a, b, c where a.p = ’type’ and a.o = ’senior user’ and b.p = ’comment’ and c.p = ’topic’ and c.o = ’university’ and a.s = b.s and b.o = c.s;
There may be many kinds of rewritten query statement, such as select a.s from a, , where a.p=’type’ and a.o=’senior user’ and .o = ’university’ and a.s = .s and .o = .s; which uses and for query optimization.
Some policy can also choose and for query optimization. In this case, the rewritten query statement should be select a.s from , where .o=’senior user’ and .o = ’university’ and .bo = .s;.
The optimal query rewritten policy can give a rewritten query which has the shortest execution time.

Since the policy can give the optimal query rewriting under a given table sequence, the environment reward calculating will become more accurate, which has a more accurate guiding significance for the agent to update the action selection policy.

Iv-B Priority list

Since query rewrite policy is of great significance to the calculation of reward value, it directly affects the feedback from the environment to the agent, thus affecting the agent’s action selection policy. Therefore, the query rewrite policy should be as close to the facts as possible. First, from the empirical analysis of SQL execution time, we guess that the join of tables is the main factor of query time cost. In this way, the speed for a query executed in a joined table is faster than that in several single tables due to the cost of join. That is, the less the join times are, the faster the query execution speed is. But such experience cannot decide which query is faster when they all have the same join times.

However, in the actual experiment (in Section V-C), we discover that in the query execution of SQL, it is not always that the less the join times is, the faster the query speed is. Sometimes, the query execution time of SQL that needs twice joins is close to that of SQL that needs no join. Sometimes, the query execution speed of SQL with one join is slower than that of SQL with twice joins. The query execution time of two SQL query statements with the same join times may also differ greatly. Therefore, we can not judge the execution speed of rewritten SQL simply according to the join times.

In the test, we find that the execution time of the rewritten SQL overturned our empirical conjecture, so we decide to use the real execution time of the rewritten queries of workload, i.e., to choose with practice experience as the query rewrite policy. We use exhaustive method to calculate the execution time of each rewritten SQL, sort by time, and generate our final priority item list. The algorithm is as follows:

Algorithm 1 takes the raw SQL as input and generates a table sequence which may be used for any rewritten query in the following process. Lines 1-3 creates all single-tables (tables which have one single type of predicate) from by all predicates. Lines 4-6 creates all merged tables, which needs only one join, from the existing single-tables by any possible join condition. Lines 7-18 using traversal method, creates all merged tables which needs at least two joins. Let and denotes the number of join conditions and the maximum join times, respectively. The time complexity of Algorithm 2 should be .

0:     Raw SQL
0:     All tables that may be used to execute any equivalent rewritten SQL queries in database.
1:   for all  in all predicates involved in  do
2:       Create a new table with data divided by from t0;
3:   end for
4:   for all  in all join conditions involved in  do
5:       Create a new table with data merged by ;
6:   end for
7:    the maximum join times;
8:   for  to  do
9:       tableSet = {all tables which needs times join};
10:       for each tableSet do
11:           for each all join conditions involved in  do
12:               if  join conditions involved in can be used on for join the result of join with on does not exist then
13:                     the table involved in but not involved in ;
14:                    Create a new table with data merged by and with ;
15:               end if
16:           end for
17:       end for
18:   end for
Algorithm 1 Table Sequence Generation

Algorithm 2 takes the table sequence generated by Algorithm 1, and outputs and . This is the main algorithm for the traversal generation of priority items. Lines 3-36 uses depth-first search (DFS) with a stack storing the serial number of table. Let weight() represents the weight of table . The weight of a single-table is set to be the number of the table and the weight of a merged table is set to be the sum of all tables involved. denotes the sum of all single-tables’ weight. When , which is the weight of all tables in the stack, equals , the tables involved in any table in the stack exactly cover the whole dataset. Therefore, in Line 19, if the condition is true, it means that the tables in the stack are exactly involved in a possible rewritten query. Besides, if the condition in Line 23 is true, let keep the priority item, so that Lines 37-39 can add priority items which may include into . When the weight of tables in the stack is greater than or equal to , the program will run to Lines 27-34. The table in stack will be popped up one at a time, and update related variables. And for loops from the next position of the stack popping position to the number of tables, Lines 8-22 are repeated to find all possible priority item using DFS. Let denote the number of tables in the table sequence. Let and be the maximum and minimum possible join times in any rewritten query, respectively. Apparently, should be less than the number of predicates in raw query. The time complexity of Algorithm 2 should between and .

0:     the table sequence generated by Algorithm 1
0:     , the set of tables involved in the priority item, the rewritten SQL query statement for the priority item
1:    ;
2:    the number of tables in the table sequence;
3:   while  do
4:       , .push();
5:        weight()
6:        {single-table name including };
7:       for  to  do
8:           {all single-tables involved in }
9:           if weight()  then
10:               weight();
11:               .push();
12:               ;
13:           else if  then
14:               continue;
15:           else
16:               break;
17:           end if
18:       end for
19:       if  then
20:            {all tables in };
21:            rewrite raw query so that it can be executed with tables in ;
22:           .add((, ));
23:           if  is the set of all single-tablethen
24:               (, );
25:           end if
26:       end if
27:       while   do
28:           remove every single-table involved in the table on the top of the from ;
29:            weight(the table on the top of the );
30:           .pop()
31:           for  length() to  do
32:               repeat 8-22;
33:           end for
34:       end while
35:
36:   end while
37:   if  is not null then
38:       Add priority item which may include table into .
39:   end if
40:   return
Algorithm 2 Priority Item Enumeration

Algorithm 3 takes generated by Algorithm 2 as input, which contains and . It calculates how much time each priority item costs and construct join conditions from the rewritten SQL. Line 1-2 sort the priority items by the (rewritten) query execution time. Line 3-6 construct join conditions and store them into . This is the basis of satisfaction when searching the table sequence in rewriting query. Line 5 checks the connectivity of join conditions i.e. if there are join condition that .s= and .s=.s, .s=.s should also be in this join condition. Let be the size of priority list. The time complexity of Algorithm 3 should be .

0:      generated by Algorithm 2
0:     , ditto, ditto, the average of three times of the rewritten SQL execution time, keeps the sufficient condition for the priority item
1:   Execute SQL query in the database three times for each priority item in . Record execution time and get the average.
2:   Sort by the average time of execution time.
3:   for each in  do
4:       Construct join condition as from the rewritten SQL;
5:       Check connectivity of join conditions in ;
6:       Add into ;
7:   end for
8:   return
Algorithm 3 Priority List Generation

V Experimental results

The experimental environment is Huawei Cloud Server. The CPU is Intel(R) Xeon(R) Gold 6151 CPU @ 3.00GHz. The memory is 64G memory. The system is CentOS Linux release 7.4.1708 (Core), and the database environment is MySQL 8.0.21.

The datasets used in this experiment are WatDiv [31] dataset and LUBM [32] dataset.

  1. WatDiv data. The data set is designed for measuring how an RDF data management system performs across a wide spectrum of SPARQL queries with varying structural characteristics and selectivity classes. It provides data generator and query templates. We choose 10 different scale datasets with scale factor from 2 to 20 with the interval of 2. Dataset at scale factor 1 contains 105,257 triples, 5,597 distinct subjects, 85 distinct predicates, 13,258 distinct objects. We execute 20 queries on the data.

  2. LUBM data. The data set consists of a university domain ontology, customizable and repeatable synthetic data. We generate a data set with 850 universities from based on it. The generated data contains 117,489,648 triples, 27,941,697 distinct subjects and objects, and 18 distinct predicates. Since the LUBM dataset is very large, we only selected two thousandths of the scale as the test data, so the original workload is slightly modified to make it possible to have query results on small datasets. We execute 10 relatively simple queries on them.

We test our approach on these two datasets on our model, which will be introduced in Section V-A. We also conduct a comparative experiment on Apache Jena to verify the performance of the model, which will be introduced in Section V-B. In Section V-C, experimental results about empirical conjecture are showed. Summary of experimental results is discussed in Section V-D.

V-a Self-result

Episodes t1 (s) t2 (s) increase space(M)
5 3.355 0.392 88.32% 420.43
10 3.367 0.386 88.54% 420.43
20 3.359 0.358 89.34% 510.72
30 3.371 0.341 89.88% 510.55
40 3.341 0.387 88.42% 420.43
t1 is the original time.
t2 is the time after promotion.
TABLE I: LUBM dataset test results

As can be observed from Table I, the execution time of the original LUBM workload fluctuates between 3.34s and 3.37s. With the increase in the number of training episodes, the optimized query time (t2) is continuously decreasing, and the improvement percentage is constantly increasing. At round 30, the improvement percentage has reached 89.88%.

Episodes t1 (s) t2 (s) increase Space(M)
5 7.586 2.686 64.59% 99.07
10 7.569 2.714 64.14% 102.21
15 7.568 0.606 91.99% 296.62
20 7.563 0.519 93.14% 295.63
25 7.57 0.521 93.12% 295.63
30 7.559 0.522 93.09% 295.63
35 7.571 0.521 93.12% 294.64
50 7.552 0.514 93.19% 295.38
100 7.571 0.518 93.16% 295.38
150 7.577 0.521 93.12% 295.38
t1 is the original time.
t2 is the time after promotion.
TABLE II: WatDiv data set test results

From Table II, the execution time of the original WatDiv workload is less than 8s. With the increase in the number of training episodes, the optimized query time is continuously decreasing, and the improvement percentage is constantly increasing. At round 20, the improvement percentage has reached 93.12%.

Fig. 7: Query time changes with the number of training episodes

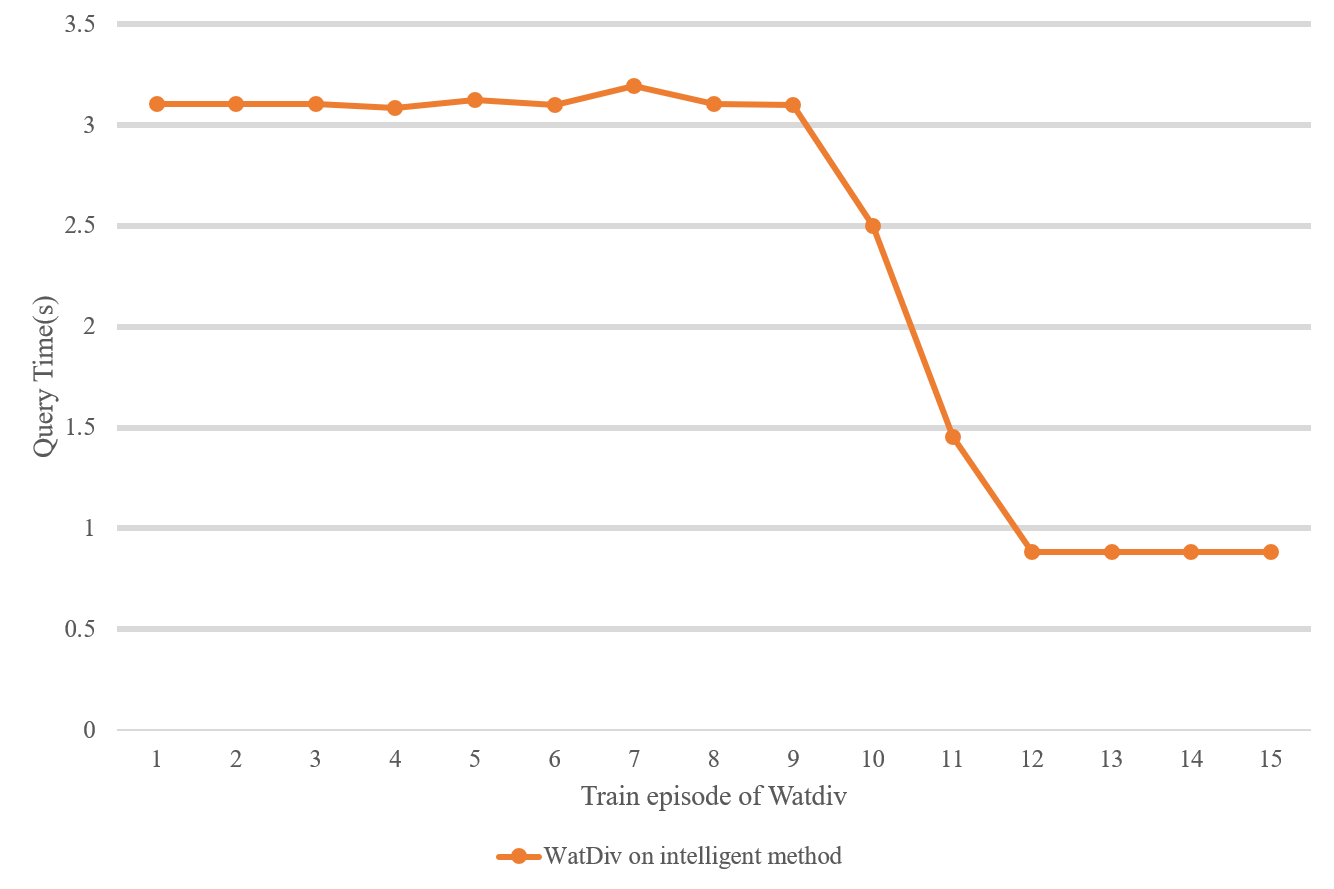

Figure 7 shows the convergence of optimization with the increase of episodes. Before the 9th episode, the query time has not been significantly optimized. After the 9th episode, the optimized query time gradually becomes shorter. From the 12th episode, the optimization effect begins to converge. It shows the convergence of the reinforcement learning method.

The results above show that the reinforcement learning method can effectively improve the query efficiency.

V-B Compare with Jena SDB

Apache Jena (or Jena in short)[33]

is a free and open source Java framework for building Semantic Web and Linked Data applications. The framework is composed of different APIs interacting together to process RDF data. Jena has two data storage methods. One is TDB, which is the native storage method of Jena. The other is SDB, which is a persistent triple stores method using relational databases. SDB uses an SQL database for the storage and query of RDF data. In this experiment, we use MySQL

[34] as the backend storage database for SDB.

Datasets space1 (M) space2 (M) t1 (s) t2 (s)
watdiv2 30.67 45.22 34.695 5.383
watdiv4 60.56 90.34 70.064 9.746
watdiv6 92.51 134.38 110.694 15.156
watdiv8 123.24 165.56 154.925 26.481
watdiv10 152.63 204.66 197.395 33.424
watdiv12 184.88 258.72 251.377 31.635
watdiv14 216.33 287.77 305.563 40.178
watdiv16 245.83 329.03 361.361 40.635
watdiv18 278.11 390.09 420.701 55.420
watdiv20 307.43 424.17 486.605 57.562
space1 is the dataset size on disk.
space2 is the storage space size on database.
t1 is the total time of construction.
t2 is the total time of queries in workload.
TABLE III: Experimental results of WatDiv data on Jena

According to Table III, the storage space of the tables created by Jena is small. However, in the process of the experiment, we find that there are empty tables created by Jena. In some degree, this demonstrates that the data storage on Jena is unevenly distributed.

We test the performance on various data sizes and observe how the performance of Jena and our approach changes as the increase of data scale. We can see that the storage spaces on our model are larger than on Jena in Figure 8. And the time of table construction is longer than Jena according to Figure 9. However, the query time is much less than Jena according to Figure 10.

We also test the LUBM dataset on Jena, and the experiment results compared with our model are shown in Figure 11. We run 10 queries respectively to compare Jena and our approach. We observe that the query time on our approach is less than 60ms. However, all query time on Jena exceeds 100ms. Especially on query2, the time on our approach reduces by 117.3ms compared to Jena. From the results, our storage structure significantly improves query performance.

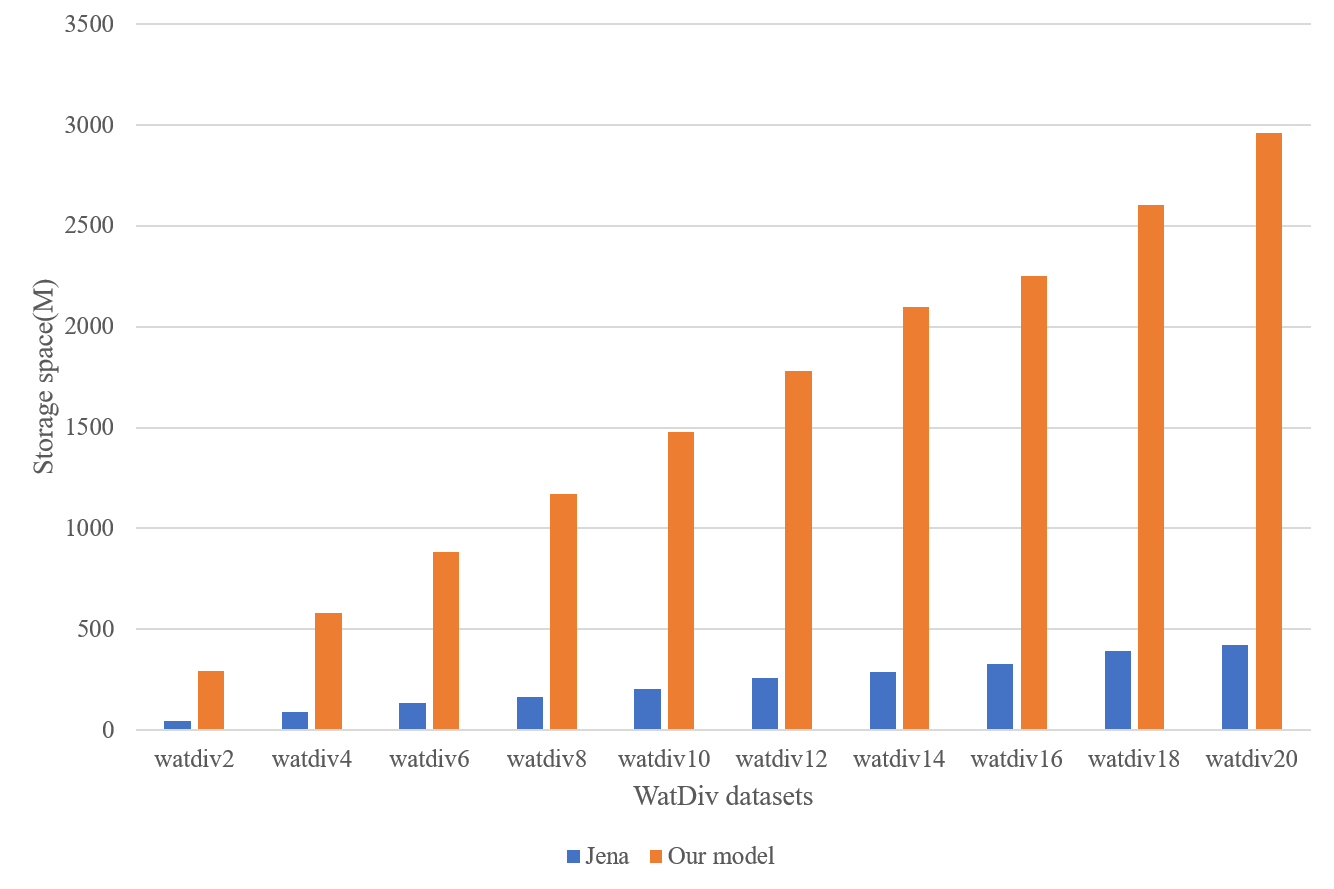

Fig. 8: The storage space of WatDiv datasets on Jena and our approach

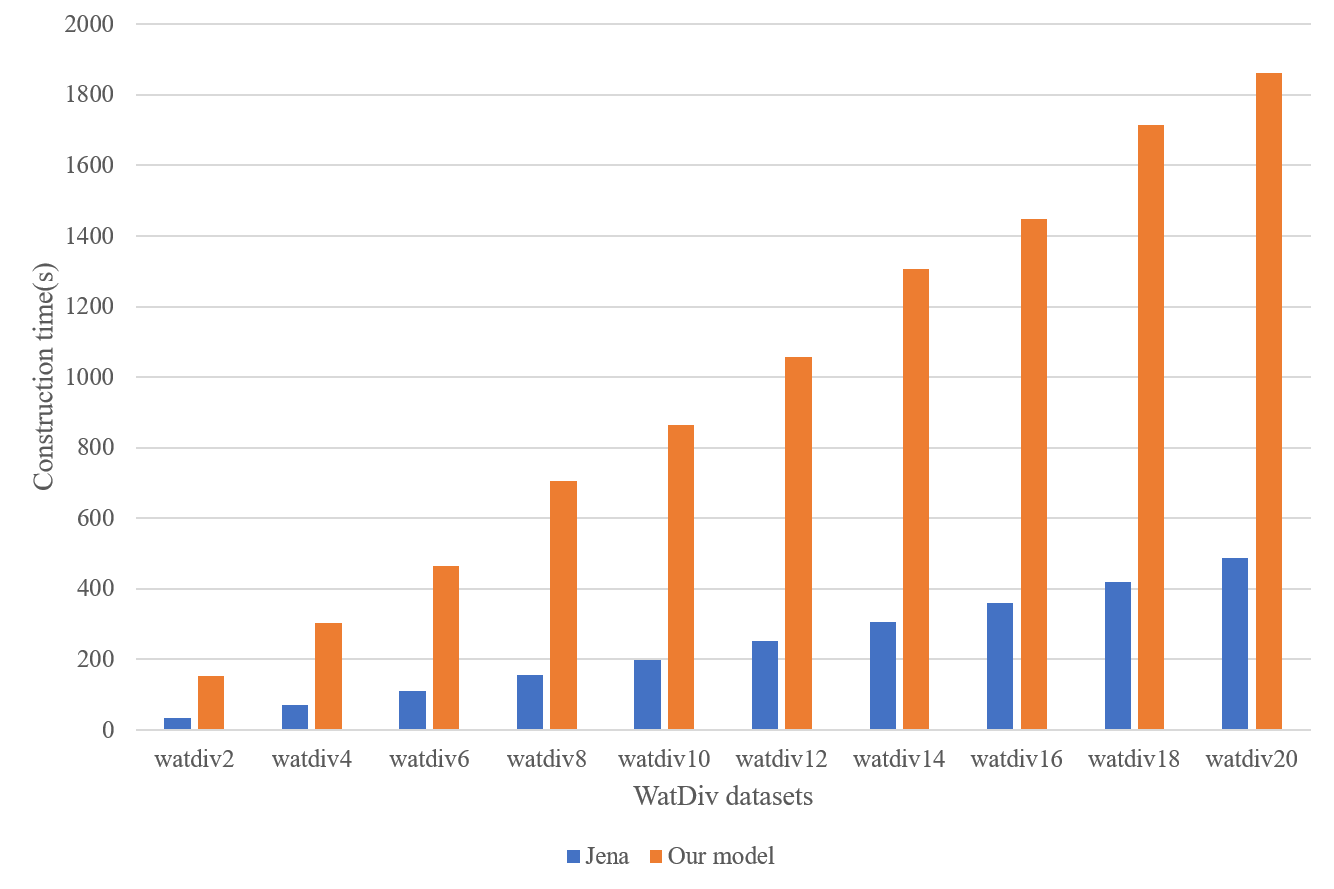

Fig. 9: The time of construct tables on Jena and our approach

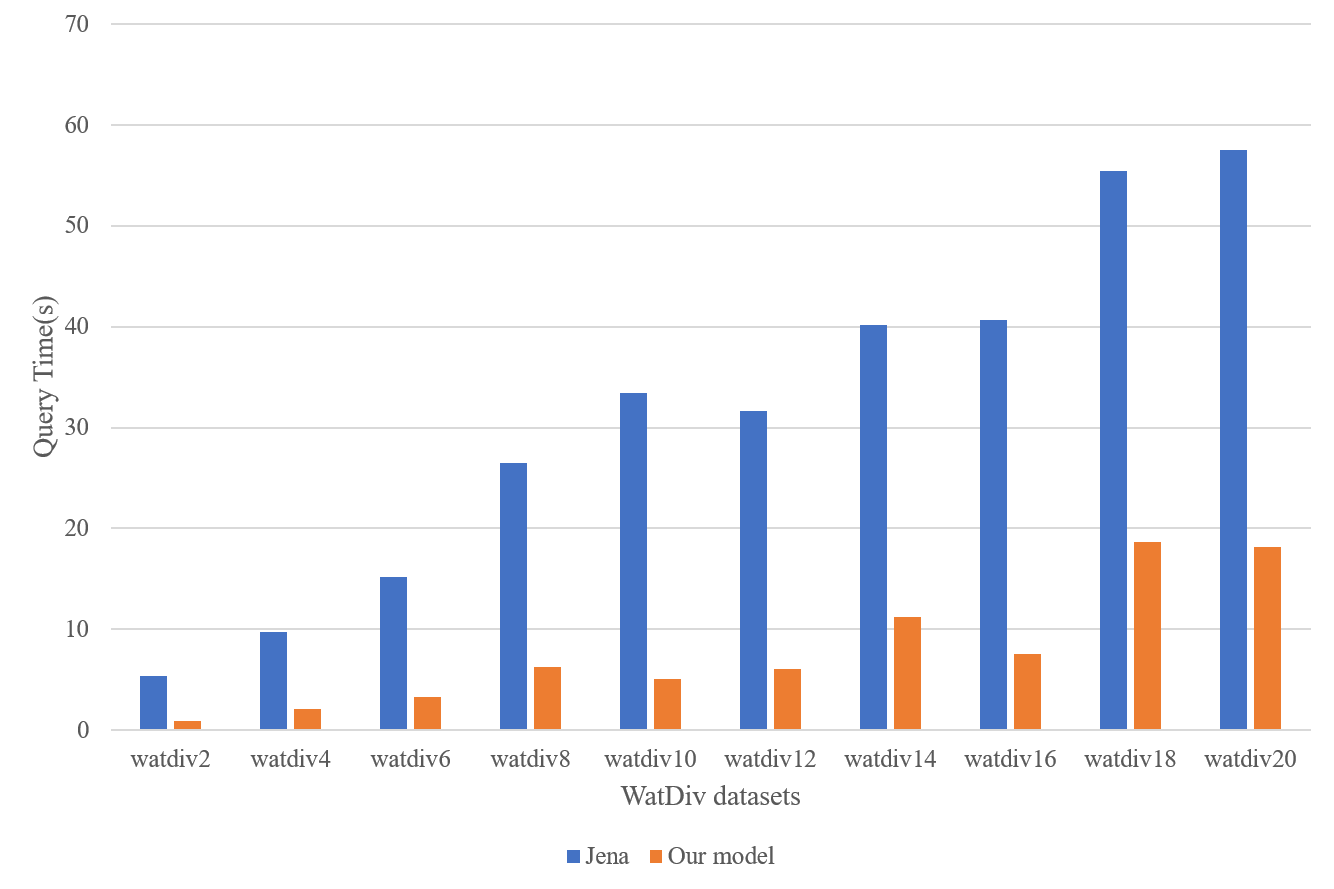

Fig. 10: The query time of WatDiv datasets on Jena and our apporach

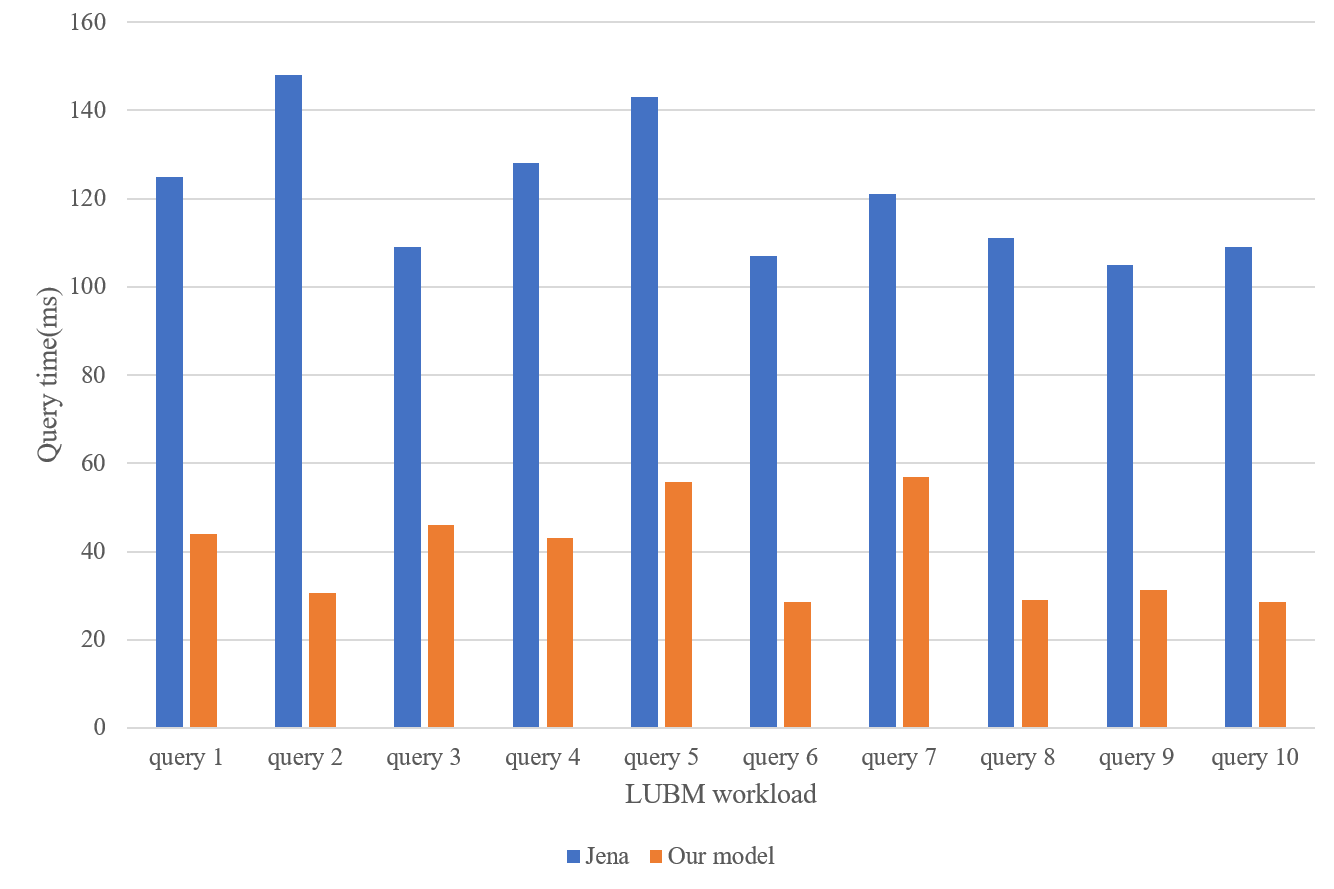

Fig. 11: The query time of LUBM workload on Jena and our approach

V-C Execution time for priority items

During the study on how to construct priority list for rewriting query, we find that the empirical conjecture which holds that the less the join times are, the faster the query execution speed is, is not always true. This is confirmed in Example 2.

Example 2.

In the priority list of select a.o, b.s from t0 a, t0 b, t0 c where a.o = c.o and b.s = c.s and a.s = ’http://db.uwaterloo.ca/~galuc/wsdbm/City0’ and a.p = ’http://www.geonames.org/ontology#parentCountry’ and b.p = ’http://db.uwaterloo.ca/~galuc/wsdbm/likes’ and b.o = ’http://db.uwaterloo.ca/~galuc/wsdbm/Product0’ and c.p = ’http://schema.org/nationality, a few items are showed as followed, which overturns out empirical conjecture.

  1. Let denote the table divided by http://www.geonames.org/ontology#parentCountry from . Let denote the table merged by the single-table with predicate http://schema.org/nationality and the single-table with predicate http://db.uwaterloo.ca/~galuc/wsdbm/likes with the condition . Thus, the rewritten query should make use of and for execution, which has one single join. The execution time is 0.659ms. The rewriten query is select tp0.o, tp3.s from tp0,tp3 where tp0.o=tp3.bo and tp0.s=’http://db.uwaterloo.ca/~galuc/wsdbm/City0’ and tp3.o=’http://db.uwaterloo.ca/~galuc/wsdbm/Product0.

  2. Let denote the table divided by http://www.geonames.org/ontology#parentCountry from . Let denote the table divided by the http://db.uwaterloo.ca/~galuc/wsdbm/likes. Let denote the table divided by the http://schema.org/nationality. Thus, the rewritten query should make use of , and for execution, which has two joins. The execution time is 2.227ms. The rewritten query is select tp0.o, tp1.s from tp0,tp1,tp2 where tp1.s=tp2.s and tp0.o=tp2.o and tp0.s=’http://db.uwaterloo.ca/~galuc/wsdbm/City0’ and tp1.o=’http://db.uwaterloo.ca/~galuc/wsdbm/Product0.

  3. Let denote the table merged by the single-table with predicate http://www.geonames.org/ontology#parentCountry, the single-table with the predicate http://db.uwaterloo.ca/~galuc/wsdbm/likes and the single-table with predicate http://schema.org/nationality, with the condition and . Thus, the rewritten query should make only use of for execution, which has no join. The execution time is 10.267ms. The rewritten query is select tp5.o, tp5.bs from tp5 where tp5.s=’http://db.uwaterloo.ca/~galuc/wsdbm/City0’ and tp5.bo=’http://db.uwaterloo.ca/~galuc/wsdbm/Product0.

V-D Summary

Overall, our approach can converge in considerable time. The increase of execution time after convergence can reach to 89% (LUBM) and 93% (WatDiv), with the cost of about 7 times extra storage space. At different scales of dataset, the improvement also performs well. In comparison to WatDiv, even though our storage space is about 6 times of Jena, and the construction time is also longer, our query time is one-sixth to one-third of Jena. For each query in LUBM workload, our execution time is about one-third to one-fourth of Jena. Therefore, the storage structure constructed by our method can effectively improve query performance.

Vi Conclusion

To solve the problem of automatical relational storage structure design for graph data, we propose an approach based on reinforcement learning. The proposed method comprehensively uses the characteristics of data and workload. At the same time, the method is universal, i.e. there is an optimal storage solution for different graph datasets, which can greatly improve the data storage efficiency under large datasets. Experimental results demonstrate that proposed approach could generate efficient storage structure. In future work, we plan to design a more complex and more effective storage structure for queries to make our approach more complete.

References

  • [1] T. Berners-Lee, J. Hendler, and O. Lassila. The Semantic Web. Scientific American, March 2001.
  • [2] Zou Lei, Chen Yueguo. Massive RDF Data Management[J]. Communications of the Chinese Computer Society, 2012, 11: 32-43.
  • [3] Wang X, Zou L, Wang CK, Peng P, Feng ZY. Research on Knowledge Graph Data Man-agement: A Survey. Journal of Software (7), pp.2139-2174(2019).
  • [4] Aberger C R , Tu S , Olukotun K , et al. EmptyHeaded: A Relational Engine for Graph Processing[J]. 2015.
  • [5] Yang Qin. Research and implementation of RDF storage and query based on relational database[D]. University of Electronic Science and Technology of China. (2010).
  • [6] Prud’ hommeaux E. Optimal RDF access to relational databases[J]. 2004.
  • [7] T. Vu. Deep query optimization. In SIGMOD, pages 1856 C1858, 2019.
  • [8] Hongzhi Wang, Zhixin Qi, et al. April: An Automatic Graph Data Management System Based on Reinforcement Learning. In CIKM, 2020.
  • [9] D. J. Abadi, A. Marcus, S. R. Madden, and K. Hollenbach. Scalable semantic web data management using vertical partitioning. In VLDB, pages 411’C422, 2007.
  • [10] K. Wilkinson, C. Sayers, H. A. Kuno, and D. Reynolds. Efficient RDF Storage and Retrieval in Jena2. In Semantic Web and Databases Workshop, pages 131’C150, 2003.
  • [11] Virtuoso Open-Source Edition. http://virtuoso.openlinksw.com/wiki/main/.
  • [12] Bornea M A , Dolby J , Kementsietsidis A , et al. Building an efficient RDF store over a relational database[C]// Acm Sigmod International Conference on Management of Data. ACM, 2013.
  • [13] P. Domingos. Machine learning for data management: problems and solutions. In SIGMOD, pages 629 C629, 2018.
  • [14] Kraska T, Alizadeh M, Beutel A, et al. Sagedb: A learned database system[C] //CIDR. (2019).
  • [15] Damasio G F. Galo: Guided Automated Learning for Query Workload Re-optimization[D]. University of Ontario Institute of Technology (Canada), (2018).
  • [16] Marcus R, Negi P, Mao H, et al. Neo: A learned query optimizer. PVLDB, 12(11), pp.1705-1718(2019).
  • [17] Trummer I, Wang J, Maram D, et al. SkinnerDB: regret-bounded query evaluation via re-inforcement learning[C]//Proceedings of the 2019 International Conference on Manage-ment of Data. ACM, 2019: 1153-1170.
  • [18] Curino C, Jones E, Zhang Y, Madden S. Schism: a workload-driven approach to database replication and partitioning. Proceedings of the international conference on Very large data bases, 2010,3(1-2):48-57.
  • [19] Durand GC, Pinnecke M, Piriyev R, Mohsen M, Broneske D, Saake G, Sekeran MS, Rodriguez F, Balami L. GridFormation: Towards self-driven online data partitioning using reinforcement learning. Proceedings of the First International Workshop on Exploiting Artificial Intelligence Techniques for Data Management, 2018.
  • [20] Hilprecht B, Binnig C, Roehm U. Learning a partitioning advisor with deep reinforcement learning. arXiv preprint arXiv:1904.01279 (2019).
  • [21] Cao L C , ZhiMin. An Overview of Deep Reinforcement Learning[C]// the 2019 4th International Conference. 2019.
  • [22] Watkins, Christopher. (1989). Learning From Delayed Rewards.
  • [23] Sutton R S, McAllester D A, Singh S P, et al. Policy gradient methods for reinforcement learning with function approximation[C]//Advances in neural information processing systems. 2000: 1057-1063.
  • [24] Konda V R, Tsitsiklis J N. Actor-critic algorithms[C]//Advances in neural information processing systems. 2000: 1008-1014.
  • [25] Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A., Antonoglou, I., Wierstra, D., & Riedmiller, M. (2013). Playing Atari with Deep Reinforcement Learning. ArXiv, abs/1312.5602.
  • [26] Van Hasselt H , Guez A , Silver D . Deep Reinforcement Learning with Double Q-learning[J]. Computer ence, 2015.
  • [27] Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A., Antonoglou, I., Wierstra, D., & Riedmiller, M. (2013). Playing Atari with Deep Reinforcement Learning. ArXiv, abs/1312.5602.
  • [28] Van Hasselt H , Guez A , Silver D . Deep Reinforcement Learning with Double Q-learning[J]. Computer ence, 2015.
  • [29] Buil-Aranda C , Hogan A , Jrgen Umbrich, et al. SPARQL Web-Querying Infrastructure: Ready for Action?[J]. 2013.
  • [30]

    Chebotko A , Lu S , Fotouhi F . Semantics preserving SPARQL-to-SQL translation[J]. Data & Knowledge Engineering, 2009, 68(10):973-1000.

  • [31] Watdiv. https://dsg.uwaterloo.ca/watdiv/.
  • [32] Lubm. http://swat.cse.lehigh.edu/projects/lubm/.
  • [33] Jena. https://jena.apache.org/
  • [34] MySQL. https://www.mysql.com/cn/
