An important theme in modern network science is the inference of structure in complex networks. The simplest and most well studied type of structure is based on partitions of vertices commonly denoted as blockmodels. The basic assumption in block modeling is that the vertices are partitioned into non-overlapping sets, the blocks
, and the probability of observing an edge between two vertices depends only on the block each vertex belong to. This implies vertices in the same block are structurally equivalentWhite et al. (1976)
. If the partition of vertices into blocks and the other parameters in the model are all considered as random variables in a Bayesian framework the resulting method is commonly known as thestochastic blockmodel (SBM) Holland et al. (1983).
The SBM has two desirable properties. Firstly, it is sufficiently flexible to capture many different patterns of interaction. Secondly, the model is easy to implement and allows inference of structure in larger networks. When considering extensions of the SBM the following line of reasoning is often followed: The SBM makes use of a latent structure where the vertices are divided into groups or communities. The assumption that everything belongs to exactly one group (friends, family, coworkers, etc.) is too simplistic since these communities often overlap in reality, hence the assumption each vertex belong to one group should be relaxed. This line of thinking lead to two classes of models depending on how the partition-assumption is relaxed. The first type replaces the partition structure of the vertices with a multi-set, that is, a collection of non-empty but potentially overlapping subsets of the vertices Miller et al. (2009); Palla et al. (2012); Morup et al. (2011). The second is a continuous relaxation where for each vertex and each ”community” there is a continuous parameter specifying the degree of which the vertex is associated with the community Airoldi et al. (2008); Ball et al. (2011); Menon and Elkan (2011). A difficulty with both approaches is that when the assumption of each vertex belonging to a single block is relaxed, the probability that two vertices link to each other must be specified as a function of all the blocks the two vertices are associated with or belong to. The multitude of ingenious ways this problem is solved attests to this being a difficult problem and many of these methods are difficult to implement efficiently and are therefore only applied to small networks.
We wish to emphasize that the above mentioned approaches to extend the basic SBM to models with overlapping blocks, both derive from a more basic assumption; namely that the main goal of block modeling is to model groups or communities of vertices. We dub this view the communities first view to emphasize the focus on detecting latent group structure in the network. Comparing to the original work on block modeling by White et al.(White et al., 1976), we argue there are two subtle but important distinctions from this more modern interpretation of block modeling: Firstly, that the block only exists as a postulate of structural equivalence between vertices and are specifically not thought to have an interpretation as communities. Secondly, this partitioning of vertices into blocks is only admissible by carefully keeping edges of different types as distinct networks. That is to say, that by representing edges of different types as distinct networks, the simplifying assumption of stochastic equivalence across blocks becomes permissible. To emphasize this distinction we call this view the networks first view.
In this work we propose a method which focuses on the networks first view. We consider a single network as being composed of multiple networks and the principled goal of network modeling is to de-mix this structure into separate networks and model each of the networks with a simpler model. In our work we consider this simplified model to be a stochastic blockmodel, however we emphasize the idea naturally extents to many other types of latent structure including models of overlapping structure. The resulting model, which we name the multi-network stochastic blockmodel (MNSBM), has several benefits
Our sampler for Bayesian inference is easy to specify, the hardest part boiling down to a discrete sampling problem, which can be efficiently parallelized.
The inference is nonparametric in that it infers the model order automatically for each subnetwork.
The method is easily extended to include hybrid models such as models of overlapping hierarchies and blockmodels.
The remainder of the paper is organized as follows: In section I.1 we will argue more carefully that the networks first view is found in the original work by White et al., in section II we will introduce the MNSBM and in section III demonstrate our model is able to de-mix planted structure in synthetic data as well as successfully increase link prediction performance on real-world data sets by modeling networks as multiple, overlapping SBMs.
i.1 Assumptions of block modeling
White et al. considers models for multiple networks defined on the same set of vertices. An example is the Samson monastery networks dataset Sampson (1969) in which there are 8 networks where each network is comprised by the answer of the monks to specific question such as the degree to which they like, praise, esteem, etc., other monks. In the terminology of the article each of these networks represents a type and an edge in a particular network is an edge of that type. For instance an edge between two monks can be of the type ”like” or ”praise” etc. The distinction into multiple networks is taken as fundamental:
We take as given the incidence of each of several distinct types of tie (…). Each is a separate network to be contrasted with other such networks, rather than merged with them to form a complex bond between each pair of actors. This analytic segregation of network types is basic to our framework (White et al., 1976, p731)
It is worth emphasizing why according to White et al. the segregation into different networks is considered basic. The blockmodel hypothesis is given as five points, and we pay special attention to the following two:
First, structural equivalence requires that members of the population be partitioned into distinct sets, each treated homogeneously not only in its internal relations but also in its relations to each other such set. (…) Third, many different types of tie [edges] are needed to portray the social structure [i.e. communities] of a population.(White et al., 1976, p739)
However if a block is simply defined as structurally equivalent vertices (as opposed to a community of vertices), it is on this definition no longer obvious what it means for two blocks to overlap since the overlap would break structural equivalence. The de-emphasis on blocks as capturing explicit group structure and emphasis on the need for types of ties lead us to dub this the networks first view.
It is worth contrasting this with a modern view on blockmodels where blocks are taken to signify structure. For instance Latouche et al. Latouche et al. (2011) first discuss the blockmodel as introduced by White et al. and then discuss the point of contention:
A drawback of existing graph clustering techniques is that they all partition the vertices into disjoint clusters, while lots of objects in real world applications typically belong to multiple groups or communities. (Latouche et al., 2011, p310)
thus a block or group in this view clearly reflects a real entity thought to exist in the graph, which vertices may or may not belong to, and not simply structural equivalence; hence the term communities first view. We wish to emphasize that we do not consider the communities first view on network modeling as being wrong or mistaken, for instance Latouche et al. (and references therein) consider many concrete instances where it is thought to hold. However, we consider it a particular hypothesis on the structure of the network composed of the following two assumptions; (i) the network is composed of links of homogeneous type, and (ii) the network should be thought of as containing groups the vertices may be members to and these groups explain the links. On the contrary, the networks first view considers the complexity of the network as primarily being derived from it containing a mixture of networks of many types. For instance when we collect a network of friendships on an online social network, we may suppose the friendships fall into several categories such as “friendship”-ties, “family”-ties, “work colleague”-ties, and so on. It is the overlap of these distinct types of ties that induces much of the difficulty in modeling complex networks, and when these networks are kept separate, the problem of inferring structure simplifies potentially to the point where naive assumptions such as structural equivalence (as in the SBM) may suffice.
Consider a network comprised of vertices, , and let denote the observed number of edges between vertices and . The reason we allow multiple edges between vertices will be apparent later, however for simplicity (but without loss of generality) we will otherwise consider as being symmetric and without self-loops, i.e. and . In line with the networks first view we consider as arising from multiple networks, , which have been aggregated due to an unknown data registration process. In the terminology above each network is comprised by a particular type of edge corresponding to for instance different social relations. We will denote the process of aggregation by a function . In principle this could be a function of networks, however we will make the assumption
and in particular be interested in the case where is the heavy-side step function , defined as 1 when the input is positive and otherwise zero. This corresponds to the natural assumption; we discover an edge between two vertices if there is an edge in any of the networks of different edge types. Next we assume each network arise from a model with latent parameters . In this case
From this we can easily extract the marginal probabilities:
An important special case is if the marginal probabilities
are Poisson distributed and the parametersare independent. We may write this as where denotes the Poisson distribution and the rates
are considered part of the parameter vector. Recall the following basic properties of Poisson random variables: If is a set of independent Poisson random variables then their sum is Poisson distributed with rate and the conditional distribution of on is distributed as a multinomial distribution ():
Introducing then with these assumptions it follows
Since the restriction in eq. (9) is on a univariate density it will for all reasonable choices of be easy to handle analytically. In the particular case of the Heaviside function we have
Accordingly, eqs. (9) and (10) may be sampled very quickly independently for each edge in the observed network and sampling eq. (11) is only as complex as sampling a single network model and, when considering networks, these parameters may be sampled independently of each other.
ii.1 Overlapping networks for the stochastic blockmodels
Under the above assumptions of Poisson observations any model for single networks that can be re-formulated to have Poisson observations can be used in a multi-network setting. This include diverse types of network models including for instance the hierarchical network model of Clauset et al. Clauset et al. (2008) or the overlapping community-type models such as Miller et al. (2009); Latouche et al. (2011) which are easy to re-formulate as Poisson observations (trivially if one simple consider the Bernoulli probability as the rate in the Poisson model) or in the case of Menon and Elkan (2010) or Ball et al. (2011) already formulated in terms of Poisson observations, and one can also consider hybrids where different mixtures of models are used.
However we will consider the simplest case where each network is modeled as a SBM. Many popular references exist on the SBM Holland et al. (1983); Girvan and Newman (2002); Kemp et al. (2006) however we will re-state it for completeness. The SBM assumes the vertices are divided into non-overlapping blocks. The assignment of vertex to block in network is indicated by and we denote by the assignment vector of all vertices in network . As a prior for assignments we use the Chinese Restaurant Process (CRP) parameterized by a single parameter controlling the distribution of group size Aldous (1985), which we indicate by the symbol . Using our notation, this has a density given as
where is the Gamma function and indexes the blocks of network . For further details on why the CRP is advantageous over, say a uniform prior, see (Herlau et al., 2014, p.2). The generative process we then write up as:
In words, this process can be understood as follows
: Sample cluster assignments from the Chinese Restaurant Process Aldous (1985) parametrized by a single parameter controlling the distribution of group size, thus obtaining the partitioning of cluster associations for each vertex () into clusters.
: Generate intra- and intercluster link rates from a Gamma distribution with shape parameterand rate parameter .
: Generate edges that are independently Poisson distributed with the expected number of links between vertices and being .
An illustrative example of single-network and two-network MNSBM is shown in FIG. 1. Here the shaded regions in (b) and (c) surrounding the vertices represent blocks and next to the networks are given corresponding link rates. Both models FIG. (b)b and FIG. (c)c will, given Poisson observation models, on average generate the observed network FIG. (a)a.
ii.2 Inference and missing data
An efficient inference scheme is easily obtained through eqs. (9), (10) and (11). Notice when updating in eq. (11) one can use the standard tool to integrate out the parameters. This leaves only the assignments
and hyperparameters, , to be sampled. We sampled using standard Gibbs sampling and the hyperparameters using random-walk Metropolis-Hastings in log-transformed coordinates (Kemp et al., 2006). For simplicity we assumed a prior for , , . For details on deriving the collapsed Gibbs sampler, we refer to Herlau et al. (2014).
To predict missing edges we used imputation. Suppose an edgeis unobserved. Then if we implement the sampler exactly as described but for this pair replace eq. (9) with the unconstrained distribution
we will get a sequence of MCMC estimates of, . Predictions may then be estimated as the MCMC average
In terms of computational complexity, a single Gibbs sweep over scales as , where , is the number of realized edges in (notice this is lower than the number of observed edges), and is the number of components. In addition the multinomial re-sampling steps in eq. (9),(10) scales as taking up only a small fraction of the time spent. Thus with computational complexity per Gibbs sweep. While this would indicate an computational cost roughly times greater than a single SBM it is worth emphasizing the stochastic de-coupling of networks in eq. (11) admits a very easy parallelization over Gibbs sweeps and with the advent of multi-core machines this allows the method to parallelize easily which we made use of. In addition in section III.2 we will show the use of multiple networks allow each network to be modeled using fewer blocks reducing the quadratic factor in the cost. Taken together the cost of our method, when was lower than the number of cores on the machine, was comparable to the case.
Iii Results and discussion
We test our method on both synthetic (computer generated) networks as well as a number of real world network datasets. Our synthetic benchmarks allow us to test the sampler as well as monitor how well the model identifies ground truth, i.e., planted structure, under controlled conditions. Analyzing real networks gives us an idea of the performance of our model in real-world scenarios.
iii.1 Synthetic networks
Since MNSBM is a generative model of networks, we can artificially sample data from known parameters. Running the model and comparing the solutions with ground truth, allows us to monitor how well the model performs when conditions are varied, e.g., community structure and area of overlap.
iii.1.1 Generating synthetic networks
The synthetic data that we generate will serve to demonstrate that MNSBM can recover solutions with structure close to the ground truth.
We generate synthetic data by sampling from an instantiated MNSBM model with two subnetworks. In each subnetwork, we put equally sized clusters, i.e., the same number of communities for each subnetwork. We set the diagonal of to , the diagonal of to and the off-diagonals of both to everywhere, thus generating strong community structure in both subnetworks. Setting slightly different link rates in the diagonals of and helps with the identifiability of the true structure. The overlap in the generated networks we control by circular shifting the clusters in the second subnetwork. Hence, in a network of nodes and a circular shift of , the number of overlapping nodes is , where for notational simplicity we assume is a multiple of . Consequently, with a shift , there are nodes in non-overlapping clusters as well as nodes in overlapping clusters. Since we control overlap by a circular shift of the clusters in one subnetwork, the structure is trivially symmetric around , i.e., structurally there is no difference whether we shift or for all . Therefore we are interested in varying the overlap and we define a parameter as a discrete scale between 0 and 1, measuring from no shift up to the maximum . In FIG. 2 we show an example of synthetic networks generated as described above using , , and .
Using , we generate networks with nodes, respectively, and vary in the interval .
iii.1.2 Performance on synthetic networks
When testing our model on synthetic data, we are interested in how well our inference procedure is able to identify planted structure. In order to measure similarity between true and estimated models, however, we identify that similarity measures on the true and estimated assignment vectors directly introduces a matching problem. To circumvent this problem, we opt instead for a measure of match between the overall structures as follows. Suppose we are trying to infer the block structure of an artificially constructed graph, , containing true subnetworks using a MNSBM with subnetworks. Then, assuming the MNSBM works correctly, one of the subnetworks will be empty and the community structure will not be informative. To avoid empty subnetworks to influence our results, we will therefore focus on whether the MNSBM partitions the realized edges correctly. This can be done by, for each edge of , determine (i) if the particular true subnetwork which generated , , assigned to the same block and (ii) compare this to whether the subnetwork in the inferred structure which ”explains” (i.e. has ) also assigns to the same block. Since each true edge may be explained by multiple subnetworks, we simply compute the weighted average over each subnetwork explaining this edge. This results in a binary vector of ’s consisting of the true same-block information and a weighted vector of ’s consisting of the estimated same-block probability averaged over all Markov samples. Specifically, for any given edge we define:
where is an indicator function that is 1 if the condition () is true and 0 otherwise. We can then compute area under the curve (AUC) of the receiver operating characteristics based on and .

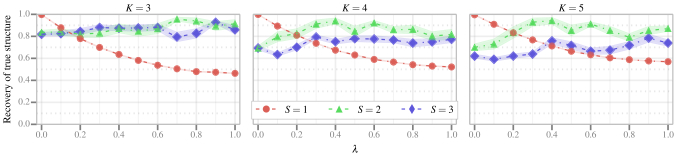

In FIG. 3 we show the dependencies of (plot titles), the choice of (different curves) and the overlap parameter . We observe that for , the simplest network model is always best, which is unsurprising since there is no overlapping structure. Since the single network, , infers disjoint clusters for the overlapping structure, which increases in size as , we see a decline in similarity. For we begin to see the model with two subnetworks, , outperforming the single network model. With the networks sizes that we have chosen for these experiments, means there is only one node in each overlap and it looks as if it is necessary with a bit more nodes per overlap, i.e., three (), in order for the model to consistently pick up the structure.
For , where the model allows too many subnetworks, we see the similarity degrades compared to using . I.e., the sampler is not perfectly able to set to zero all the edges of one of the subnetworks. As we will see in our experiments on real networks, choosing too large does however not necessarily mean worse predictive performance. In practice one seldom knows the underlying structure, so for empirically assessing which is better, we must resort to other strategies. In that case, we suggest cross-validating on a held-out sample of edges w.r.t. a problem specific measure such as AUC, RMSE, MAE, etc., depending on the task at hand, and picking based on a plot of the target measure as a function of .
iii.2 Real networks
We have tested MNSBM on a number of real world network datasets, where we are interested in link prediction for out-of-sample edges. We vary the number of sub-networks from 1 to 5 and repeatedly run inferences five times with random initialization and a random subset of 5% edges (and a similar number of non-edges) held-out for measuring link prediction performance. The link prediction performance we report in area under curve (AUC) of the receiver operating characteristics.
The nine networks we analyze are.
Hagmann: undirected weighted network of the number of links between 998 brain regions as estimated by tractography from diffusion spectrum imaging across five subjects Hagmann et al. (2008). As in Herlau et al. (2014), the graph of each subject has been symmetrized, thresholded at zero and the five subject graphs added together.
SciMet: directed weighted network of a citation network between 3,086 authors in the Scientometrics journal 1978-2000 Batagelj and Mrvar (2006).
SmaGri: directed weighted network of another citation network between 1,059 authors to Small & Griffith and Descendants Batagelj and Mrvar (2006).
facebook100/*: undirected unweighted networks from five friendship networks in U.S. colleges from the Facebook100 dataset Traud et al. (2011). Caltech36: 769 nodes, Haverford76: 1446 nodes, Reed98: 962 nodes, Simmons81: 1518 nodes, Swarthmore42: 1659 nodes.
For all the directed networks, we symmetrize them, i.e., treat them as undirected, and for the weighted networks, we make them unweighted by treating any non-zero edge as a link.

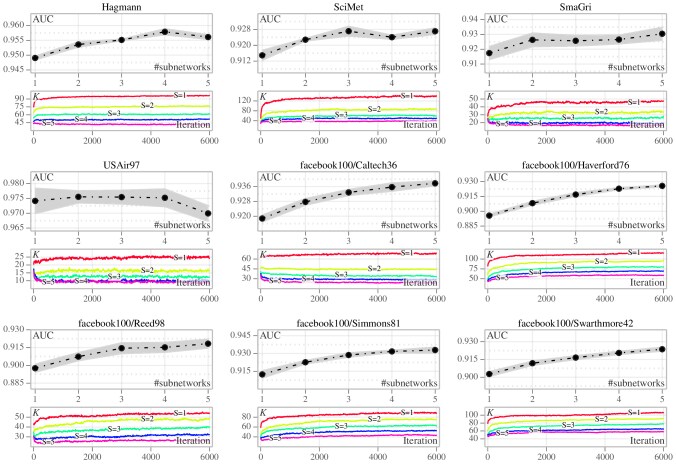

The results are shown in FIG. 4. For each of the networks, we show in the top the average AUC scores with the shaded region being standard deviations of the average based on five random restarts and different held-out samples. In the bottom, we show the evolution of average number of inferred communities per subnetwork. As we increase , the number of subnetworks in MNSBM, we generally see the AUC scores increasing, meaning that the link prediction for missing edges improves. The only exception is USAir97, which is also the smallest network in our benchmark. Either USAir97 does not exhibit overlapping structure or the small size of the dataset is an inhibiting factor. In terms of average number of inferred communities, we see that this is consistently decreasing as we increase and eventually saturates. These experiments confirm that on a variety of real world networks, MNSBM enables modeling ensembles of simpler substructures while increasing link prediction performance.

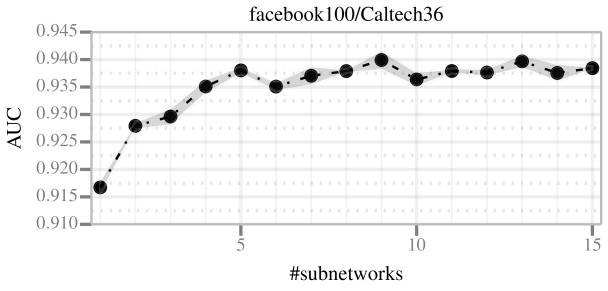

As a separate experiment, we have run additional five independent trials with the facebook100/Caltech36 network, where we let increase to 15. The AUC as a function of is shown in FIG. 5. We see that after the performance saturates, which shows that our method is robust towards choosing too high number of subnetworks. I.e., overfitting is not really a concern here. In practice what happens is that as the sampler progresses, superfluous subnetworks get very few edges assigned (if any), hence they become redundant without affecting the performance negatively.
In this work we have discussed two views on extending existing methods for structural network modeling. In the communities first view, which we argue is prominent in recent complex networks research, the (simplifying) assumption of structural equivalence is sacrificed in order to allow for overlapping groups leading to evermore complicated definitions on what constitutes a ”group” and how these groups interact. We explore an alternative view which we attribute to the seminal work of White et al., which we dub the networks first view. The key distinction is that it considers the complexity of observed networks as arising as a consequence of multiple networks of different types of ties (edges) being aggregated. Inspired by the latter view of complex networks we introduce the multiple-networks stochastic blockmodel (MNSBM), which seeks to separate the observed network into subnetworks of different types and where the problem of inferring structure in each subnetwork can benefit from the simplifying assumption of structural equivalence. The result is effectively the joint inference problem of splitting the observed edges between subnetworks and identifying (block) structure in each subnetwork. We formulate this model in a generative Bayesian framework over parameters that can be inferred efficiently using Gibbs sampling. Thereby we obtain an effective multiple-membership model without introducing the drawbacks that originate from defining complex interactions between groups. We demonstrate results on the recovery of planted structure in synthetic networks, as well as provide results in terms of link prediction performances on a number of real-world network data sets, which highly motivate the use of multiple subnetworks over a naive stochastic blockmodel, assuming disjoint blocks globally on the networks.
