1 Introduction

Cryptography deals with the techniques to secure the private data. In these techniques, the data is transformed into an unreadable form by using some keys so that the adversaries cannot extract any useful information. S-box is the only non-linear component of many well-known cryptosystems including AES. It is therefore the security of such cryptosystems solely depends on the cryptographic properties of their S-box. Shannon [1], proved that a cryptosystem is secure if it can create confusion and diffusion in the data up to a certain level. An S-box is cryptographically strong enough to create desire confusion and diffusion if it satisfies certain tests including the test of non-linearity, approximation, strict avalanche, bit independence and algebraic complexity.

Nowadays, AES is considered to be the most secured and widely used cryptosystem, and hence many cryptographers studied its S-box. The study in [2, 3, 4, 5] reveals that the AES S-box is vulnerable against algebraic attacks because of its sparse polynomial representation. It is also noticed that a cryptosystem based on a single S-box is unable to generate desirable security if the data is highly correlated [6, 7] . Furthermore, it is shown that the security of a cryptosystems can be improved by using dynamic S-boxes instead of static S-boxes [8]. Due to these reasons many researchers have proposed new S-box generation techniques based on different mathematical structures including algebraic, and differential equations. For an S-box design technique, it is necessary that the resultant S-box: (a) inherits the properties of the underlying mathematical structure. This is an important requirement which leads to the efficient generation and better understanding of the cryptographic properties of the S-box; (b) satisfies the security tests; and (c) is generated in less time and space complexity. Of course, an S-box generation technique with high time complexity is not suitable for the cryptosystems using multiple, and dynamic S-boxes. Liu et al. [9] presented an improved AES S-box based on an algebraic method. Cui et al. [10] used an affine function to generate an S-box with 253 non-zero terms in its polynomial representation. Tran et al. [11] used composition of a Gray code instead of affine mapping with the AES S-box to generate an S-box with high algebraic complexity. Khan et al. [12, 13] proposed different methods for the generation of cryptographically strong S-boxes based on a generalization of Gray S-box, and affine functions. Azam [6] used the later S-boxes for the encryption of confidential images. Chaotic maps including Baker, logistic, and Chebyshev maps are used to generate new S-boxes in [14, 15, 16]. Similarly, elliptic curves (ECs) are also used in the field of cryptography for the development of highly secure cryptosystems. Miller [17] presented an EC based security system which has smaller key size and higher security as compared to RSA. Jung et al. [18] developed a link between the points on hyper-elliptic curves and non-linearity of an S-box. Hayat et al. [19] for the first time used EC over a prime field for the generation of S-box. In this scheme, an S-box is generated by using the -coordinates of the points on the EC followed by the modulo operation . Although the technique is capable of generating cryptographically strong S-boxes, but the output is uncertain. That is, for each set of input parameters the algorithm does not necessarily output an S-box. Furthermore, the time complexity of this scheme is , where is the prime in the underlying EC.

The purpose of this article is to develop such a novel and efficient S-box generation technique based on a finite Mordell elliptic curve (MEC) which generates secure S-box inheriting the properties of the underlying MEC for each set of input parameters. To achieve this, we defined some typical type of total orders on the points on the MEC, and then used -coordinates instead of -coordinates to obtain an S-box. The remaining paper is organized as follows: In Section 2, some basic definitions and results related to EC are discussed. The proposed algorithm is described in Section 3. Section 4 contains the security analysis, and a comparison of the proposed S-box design technique with some of the existing techniques. Finally conclusions are drawn in Section 5.

2 Preliminaries

For a prime , and two non-negative integers , the EC over the prime field is defined to be the collection of infinity point

, and all ordered pairs

satisfying the equation

We call , and the parameters of the EC . An approximation for the total number of points on can be obtained by using Hasse’s formula [20]

Mordell elliptic curve (MEC) is a special kind of elliptic curve with . The significance of MEC is that some of the MECs have exactly . The following Theorem is taken from [21] gives the information about such MECs.

Theorem 1

Let be a prime such that . Then for each , the MEC has exactly distinct points, and has each integer in exactly once as a -coordinate.

Henceforth, a MEC where is simply denoted by .

3 Description of the Proposed S-box Designing Technique

In this section, we give an informal intuition of our proposed method. Our aim is to develop such an S-box generation technique based on MEC which outputs an S-box: (a) in constant time for each set of input parameters; (b) that inherits the properties of the underlying MEC; and (c) having high security against cryptanalysis. Note that the S-box design technique proposed by Hayat et al. [19] does not satisfy condition (a) and (b). One of the possible way of designing such technique is to input that EC which contains all values from to without repetition. It is, therefore, the proposed algorithm takes an MEC as input, and uses -coordinates to generate an S-box instead of -coordinates. Now the next task is to use these -coordinates in such a way that the resultant S-box inherits the properties of the underlying MEC. Of course, the usage of some arithmetic operations such as modulo operation on the -coordinates to get an S-box will destroy the structure of the underlying MEC. It is therefore, we used the concept of total order on the MEC to get an S-box. Order theory is intensively used in formal methods, programming languages, logic, and statistic analysis. Now the natural question is how to define different orderings on the MEC. Note that for each value of MEC, there are two values. Thus, we can divide the orderings on MEC into two categories: (1) one is that in which the two values of each appear consecutively; and (2) the other one contains those orderings in which the two values of each do not appear consecutively. Based on this fact, we defined three different type of orderings on the MEC to generate three different S-boxes for a given MCE .

3.1 The proposed orderings on a MEC

The orderings used in the proposed method are discussed below.

(1) A natural ordering on MEC: We define a natural ordering on based on -coordinates as follows

(1)

where .

The aim of this ordering is to order the points on the MEC in such a way that the -coordinates are in non-decreasing order, and the two values corresponding to each appear consecutively.

The next two orderings are introduced based on the following observation deduced from Theorem 1 to diffuse the -coordinates on a MEC.


Observation: For any two distinct points and on the MEC , and either or , it holds that .


(2) A diffusion ordering on MEC: An ordering is defined on to diffuse the two values of each . Let and be any two points on , the diffusion ordering is defined to be

(2)
Lemma 2

The relation is a total order on the MEC .

Proof. For each , we have , and therefore . This implies that is reflexive. Next, we need to show that satisfies the antisymmetric property. Thus, for , suppose that and hold. This implies that . This is because of the fact that , and are the only cases for which the supposition and are true, which eventually imply that Now if then by the supposition and the fact , we have and , which lead to the contradiction . Thus and hold, which ultimately imply that , and therefore . Now, to prove the transitivity property, suppose that , and hold, where Now if and , or and , then , and therefore Similarly, if , then and , and hence and This completes the proof.


(3) A modulo diffusion ordering on MEC: The order defined below produces diffusion in both -coordinates and -coordinates of the points on . Let , then

(3)
Lemma 3

The relation is a total order on the MEC .

Lemma 3 can be proved by using the similar arguments as used in the proof of Lemma 2. The effect of these orderings and on -coordinates of MEC is shown in Figure 1 by plotting them in a non-decreasing order of their points on MEC w.r.t and , respectively.

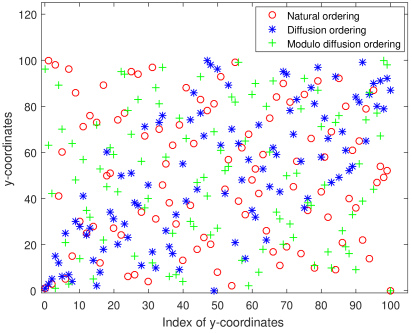

Figure 1: The arrangements of -coordinates of under the proposed orderings

Similarly, a relation among the sets of all -coordinates of MEC obtained by different proposed orderings and where is quantified by computing their correlation coefficient . The correlation results for different MECs are shown in Table 1. It is evident from the results that each ordering has different effect on the -coordinates of the underlying MEC.

101 1 -0.0588 0.0550 -0.0497
827 87 -0.0044 0.0008 0.0027
1013 118 0.0028 -0.0059 0.0003
2027 8 0.0007 -0.0068 -0.0002
Table 1: Results of the correlation test

3.2 The proposed construction technique

Let be a Mordell elliptic curve (MEC), where . The lower bound on the prime is for the proposed method so that MEC has at least points. An S-box , where is generated by selecting the -coordinates on which are in the interval as

such that , and .

It is clear from Theorem 1 that is a bijection, which further implies that the proposed method generates an S-box for each set of input parameters.

Lemma 4

For any prime such that integer , and the S-box can be generated in constant time, and space.

Proof. The generation of requires calculation of points on the MEC with -coordinates in , and then their sorting. Of course this can be done in constant time, and space complexity.

The S-boxes and generated by the proposed technique are presented in Tables (2)-(4), respectively.

154 217 227 110 85 29 199 37 68 21 91 78 208 3 148 40
198 52 54 2 73 7 168 201 229 184 146 6 172 28 44 67
195 53 106 10 204 131 157 185 187 156 206 161 81 103 211 33
96 159 72 134 164 143 140 193 145 231 237 12 221 188 197 116
47 19 129 104 51 236 56 133 55 220 87 1 203 117 210 24
4 174 175 113 34 213 171 255 30 43 130 191 57 137 76 234
247 244 173 223 63 60 230 166 8 190 139 99 49 200 23 245
58 102 226 83 122 70 241 94 127 41 194 233 97 251 107 26
109 61 248 90 192 167 147 82 158 225 36 50 84 92 88 38
74 136 138 232 62 176 128 189 124 118 169 14 228 0 243 181
123 254 20 202 75 149 219 120 160 9 253 39 180 207 114 142
183 93 101 15 238 177 132 212 35 250 239 249 179 17 65 186
11 125 178 45 170 141 121 126 119 64 144 182 112 22 165 222
100 69 252 216 13 27 152 235 80 5 196 59 25 151 79 155
240 77 115 71 31 105 95 86 209 150 98 89 163 246 66 18
162 214 218 42 242 46 111 48 215 224 135 108 153 32 16 205
Table 2: The S-box generated by the proposed method based on the natural ordering
33 151 65 207 12 103 96 123 190 126 82 155 21 1 229 186
61 224 42 179 63 178 73 153 138 168 146 41 46 9 109 184
124 243 236 57 19 6 100 94 69 48 116 216 54 228 90 81
47 13 88 197 247 129 206 198 221 5 78 80 150 200 145 55
60 105 212 18 210 43 137 250 135 166 52 115 91 208 25 199
77 170 121 122 11 254 27 157 175 34 104 201 95 222 133 176
36 3 141 218 30 162 220 193 28 110 223 161 74 182 226 113
0 112 234 144 241 20 156 62 49 23 26 35 148 101 233 56
181 130 118 149 70 173 71 45 50 204 10 87 232 93 177 67
4 120 8 40 72 125 92 114 68 83 225 246 158 143 53 196
249 242 136 195 160 213 131 107 66 29 230 188 38 111 205 253
171 251 102 235 31 127 217 17 183 117 37 211 164 97 119 219
167 134 24 16 255 2 32 215 227 154 187 75 231 240 172 142
244 89 14 98 76 85 147 79 64 180 214 139 152 238 51 185
22 44 194 99 39 169 203 189 108 86 132 237 163 239 209 245
59 202 15 58 248 128 174 140 192 191 106 165 159 84 7 252
Table 3: The S-box generated by the proposed method based on the diffusion ordering
15 13 247 249 167 183 179 173 101 204 105 210 214 205 199 19
164 38 85 72 98 90 113 12 239 217 165 228 123 195 26 216
207 30 182 219 14 215 232 135 241 145 17 244 223 114 29 70
104 81 71 99 191 128 227 86 172 185 5 75 197 184 109 248
162 250 25 110 125 230 129 35 102 234 54 171 194 16 33 73
155 246 154 84 149 134 238 18 240 67 200 253 61 31 170 180
55 20 224 187 10 147 92 133 196 242 146 27 34 140 28 192
63 127 143 203 137 2 74 193 65 4 124 51 107 24 42 122
103 22 41 226 235 252 116 212 77 49 48 201 148 221 251 80
229 115 93 139 181 52 97 119 189 166 21 45 53 100 32 131
112 94 59 142 117 36 153 254 66 158 79 121 8 130 132 60
245 231 126 152 151 89 0 39 160 136 37 78 236 56 206 157
222 174 82 69 6 83 220 3 57 111 208 47 141 87 168 176
11 118 169 58 243 120 150 91 190 23 178 44 7 43 177 76
161 144 163 68 88 138 218 108 159 186 40 237 175 46 198 96
202 9 62 50 64 233 255 209 188 1 106 225 95 213 156 211
Table 4: The S-box generated by using the proposed method based on the modulo diffusion ordering

4 Security Analysis and Comparison

Several standard tests are applied on the S-boxes obtained by the proposed method to test their cryptographic strength. A brief introduction to these security tests, and their results for some of the newly generated S-boxes , , , , , , and are discussed in this section.

4.1 Non-Linearity (NL)

It is important for an S-box to create confusion in the data up to a certain level to keep the data secure from the adversaries. The confusion creation capability of an S-box over the Galois Field is measured by its non-linearity , which is defined below

where , ,  and “” represents dot product over

An S-box with high NL is capable of generating high confusion in the data. However, it is also shown in [22] that an S-box with high NL may not satisfy other cryptographic properties. The NL of some of the newly constructed S-boxes is listed in Table 5. Note that each listed S-box has NL 106, which is large enough to create high confusion.

S-boxes
NL 106 106 106 106 106 106 106 106 106
Table 5: Non-linearity of the newly generated S-boxes

4.2 Approximation Attacks

A cryptographically strong S-box must have high resistance against approximation attacks. The approximation attacks can be divided into two categories namely linear approximation attacks, and differential approximation attacks which are explained below.

4.2.1 Linear Approximation Probability (LAP)

The resistance of an S-box against linear approximation attacks is measured by calculating its maximum number of coincident input bits with the output bits. The mathematical expression of is as follows

where and .

An S-box is said to be highly resistive against linear approximation attacks if it has low value of . The LAP of the newly generated S-boxes is listed in Table 6. The average LAP of all of the listed S-boxes is which is very low, and hence the proposed technique is capable of generating S-boxes with high resistance against linear approximation attacks.

S-boxes
LAP 0.1328 0.1328 0.1406 0.1484 0.1328 0.1406 0.1328 0.1328 0.1406
Table 6: LAP of the newly generated S-boxes

4.2.2 Differential Approximation Probability (DAP)

The strength of an S-box against differential approximation attacks is measured by calculating its DAP. For an S-box , the DAP

is the maximum probability of a specific change

in the output bits when the input bits are changed to i.e.,

where   and “” is bit-wise addition over .

The smaller is the value of DAP, the higher is the security of the S-box against differential approximation attacks. The experimental results of DAP on the newly generated S-boxes are presented in Table 7. It is evident from Table 7 that the newly generated S-boxes have high resistance against differential attacks.

S-boxes
DAP 0.0391 0.0391 0.0391 0.0391 0.0391 0.0391 0.0391 0.0391 0.0391
Table 7: DAP of the newly generated S-boxes

4.3 Strict Avalanche Criterion (SAC)

The diffusion creation capability of an S-box is calculated by SAC. The SAC of an S-box is the measure of change in output bits when a single input bit is changed. The SAC of an S-box with boolean functions where , is computed by calculating an eight dimensional square matrix by using each of the eight elements with only one non-zero bit as

where

 denotes the number of non-zero bits in the vector

.

SAC test is fulfilled, if all entries of are close to . The entries of SAC matrix corresponding to each newly generated S-boxes , and are plotted in a linear order in Figure 2. The average of minimum, and maximum values of corresponding to each of the newly generated S-boxes are and , respectively. Table 8 clearly shows that the S-boxes generated by the proposed method based on MEC is capable of generating high diffusion in the data.

S-boxes
SAC(max) 0.5938 0.625 0.6563 0.6406 0.6094 0.6094 0.5938 0.6094 0.625
SAC(min) 0.4531 0.4219 0.4219 0.4063 0.4219 0.4063 0.375 0.3906 0.3594
Table 8: SAC of the newly generated S-boxes

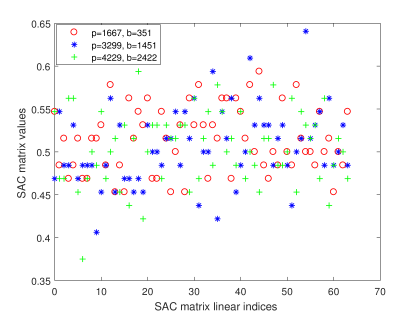

Figure 2: SAC matrix plot for , and

4.4 Bit Independence Criterion (BIC)

BIC is also an important test to measure the diffusion creation strength of an S-box. The main idea of this test is to investigate the dependence of a pair of output bits when an input bit is reversed. The BIC of an S-box over  with boolean functions is also calculated by computing a square matrix of dimension eight as follows

Of course . An S-box is said to be good if all off-diagonal values of its BIC matrix are near to . The experimental results of this test on the newly generated S-boxes , and excluding the value are shown in a linear order in Figure 3. The minimum, and maximum values of BIC matrix of each of the newly generated S-boxes are listed in Table 9. It is evident from Figure 3 and Table 9 that the S-boxes generated by the proposed methods are strong enough to generate high diffusion in the data.

S-boxes
BIC(max) 0.5273 0.5293 0.5313 0.5371 0.5273 0.5254 0.5254 0.5313 0.5449
BIC(min) 0.4648 0.4629 0.4707 0.4707 0.4844 0.4746 0.4688 0.4766 0.4727
Table 9: BIC of the newly generated S-boxes

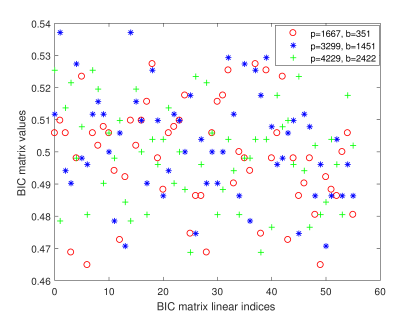

Figure 3: BIC matrix plot for , and

4.5 Algebraic Complexity(AC)

The resistance of an S-box against algebraic attacks is measured by computing its linear polynomial. The AC of an S-box is the number of non-zero terms in its linear polynomial. The greater is the AC, the greater is the security of the S-box against algebraic attacks. The AC of the newly generated S-boxes is computed, and is presented in Table 10. The minimum, and maximum values of AC of the newly generated S-boxes are and , respectively, which are very close to the optimal value . Thus, the proposed method is able to generate S-boxes with good AC based on MEC.

S-boxes
AC 254 254 255 255 254 255 253 253 255
Table 10: The AC of the newly generated S-boxes

5 Comparison and Discussion

A comparison of the security efficiency of the proposed S-box design technique with some of the existing techniques [14, 15, 16, 23, 24, 25, 26, 27, 28, 29, 30] is presented in this section by comparing the cryptographic properties of their S-boxes. The cryptographic properties of the S-boxes used in this comparison are listed in Table 11. Note that the non-linearity (NL) of the S-boxes , and is greater than that of the S-boxes in [14, 15, 19, 25, 28, 29, 30], and hence the newly generated S-boxes create better confusion in the data as compared to the later S-boxes. This implies that the proposed technique is capable of generating S-boxes with good NL as compared to some of the other existing techniques. Moreover, the linear approximation probability (LAP) of the newly generated S-boxes is better than the LAP of the S-boxes in [14, 15, 16, 28, 29, 30], while their differential approximation probability (DAP) is at most the DAP of the S-boxes in [14, 15, 16, 19, 25, 28, 29, 30]. Hence, the S-boxes generated by the proposed technique have same or better security against approximation attacks as compared to the other S-boxes. Similarly, the SAC, BIC and AC test results of the newly generated S-boxes are comparable with the S-boxes listed in Table 11. Hence, the proposed S-box generation technique based on MEC is capable of generating cryptographically strong S-boxes as compared to some of the existing S-box construction techniques based on different mathematical structures. Furthermore, the proposed algorithm takes constant time for the generation of an S-box, while the method based on EC in [19] takes time, where is the prime of the underlying EC. This implies that the proposed algorithm is fast as compared to the method in [19].

S-boxes NL LAP DAP SAC(Max) SAC(Min) BIC(Max) BIC(Min) AC
Ref. [14] 103 0.1328 0.0391 0.5703 0.4414 0.5039 0.4961 255
Ref. [15] 102 0.1484 0.0391 0.6094 0.375 0.5215 0.4707 254
Ref. [16] 106 0.1406 0.0391 0.5938 0.4375 0.5313 0.4648 251
Ref. [19] 104 0.0391 0.0391 0.625 0.3906 0.53125 0.4707 255
Ref. [25] 104 0.109 0.0469 0.593 0.39 0.499 0.454 255
Ref. [27] 112 0.062 0.0156 0.562 0.453 0.504 0.480 9
Ref. [28] 74 0.2109 0.0547 0.6875 0.1094 0.5508 0.4023 253
Ref. [29] 100 0.1328 0.0547 0.6094 0.4219 0.5313 0.4746 255
Ref. [30] 103 0.1328 0.0391 0.5703 0.3984 0.5352 0.4727 255
106 0.1328 0.0391 0.5938 0.4531 0.5273 0.4648 254
106 0.1484 0.0391 0.6406 0.4063 0.5371 0.4707 255
106 0.1328 0.0391 0.5938 0.375 0.5254 0.4688 253
Table 11: Comparison of the newly generated S-boxes with some of the existing S-boxes

6 Conclusion

In this article, we presented an S-box design technique based on -coordinates of a finite Mordell elliptic curve (MEC) where prime is congruent to modulo . The technique uses some special type of total orders on the points of the MEC, and generates an S-box in constant time. Several standard security tests are performed on the S-boxes generated by the proposed method to analyze its cryptographic efficiency. Experimental results show that the newly generated S-boxes are cryptographically strong. Furthermore, a comparison of some of the newly generated S-boxes with S-boxes generated by some of the existing techniques is also performed. It is evident from the comparison that the proposed method is capable of generating more secure S-boxes as compared to some of the existing S-box design techniques.
