1 Introduction
Advances in deep neural networks have heavily contributed to the recent popularity of AI. Most algorithms that exhibit stateoftheart performance in various fields
simonyan2014very ; chae2018end are based on deep neural networks. However, it is difficult to implement deep neural networks without utilizing highend computing because of their complex and massive network structure. To supply the computing power, most of the existing products based on deep neural networks are processed by highend servers, which brings about three critical limitations on latency, network cost, and privacy. Therefore, it is necessary to implement deep neural networks on independent clients rather than on servers. Network compression technology is becoming very important as a tool to achieve this.Various studies on network compression have been extensively performed he2017channel ; lee2018snip ; hu2016network ; li2016pruning ; guo2016dynamic ; hubara2017quantized ; wu2016quantized ; zhou2017incremental ; ullrich2017soft . Additionally, among existing network compression methods, iterative pruning is one of the most renowned methods, as it has been proven to be effective in several previous studies han2015deep ; han2015learning ; iandola2016squeezenet , and is considered to be a stateoftheart technique han2015deep . In the iterative pruning process, the importance of weights in the original network are first evaluated; then, the weights with low importance are removed prior to retraining of the remaining weights for finetuning. This pruning process is iteratively performed until the stopping condition is satisfied. However, in this process, the importance of weights is solely determined as based on the original network; thus, it is possible that the pruned weight may be appropriate for implementation in the retrained network. Therefore, we propose a more effective and sophisticated weight pruning method that is based on simulation of a reduced network.
2 SimulationGuided Iterative Pruning
In this section, the proposed method of simulationguided iterative pruning for effective network compression is introduced. Algorithm 1 shows the detailed algorithm of the proposed method. The main distinction from the baseline model han2015deep is that the proposed method utilizes the temporarily reduced network in the simulation.
In the first step of the simulation, the importance of each weight in the original network is calculated, and the original network itself is separately stored in the memory. Then, the weights in the original network with importance below a certain threshold are temporarily set to zero to create a temporarily reduced network. Here, a predetermined percentile threshold, rather than the threshold in the baseline method, is used to ensure consistency throughout the iterative simulation process. The gradients for each weight of the temporarily reduced network, including zero weights, are then calculated by using a batch of training data. These gradients are applied to the stored original network rather than the reduced network. Then, this simulation process begins again from the first step, incorporating the changes made to the original network, and repeats until the network is sufficiently simulated.
After this simulation process, the importance of the weights are computed, and weights below the threshold are removed as described above for the iterative pruning method. Then, the pruned weights are permanently fixed, and the entire process is repeated with a higher threshold and no retraining process.
The proposed approach can supplement the limitations of the baseline model. Figure 1 conceptualizes the iterative simulation process; the horizontal axis corresponds to weight values, and the grey dashed lines indicate the pruning threshold. The green dashed line indicates the ideal value of a truly insignificant weight that is positioned near zero; the red dashed line indicates the ideal value of a weight that is considered to be significant. Since the learning process of the network implements a stochastically chosen batch of data, the ideal value of a significant weight is also stochastically distributed near the absolute ideal value, as is shown in the figure. In this case, even if the absolute ideal value of the significant weight is larger than the threshold, the value of the weight could be undesirably categorized as within the cutoff range. Pruning of this particular type of weight results in unnecessary loss of information. Therefore, it is important to distinguish between the truly insignificant weights and significant but miscategorized weights. Here, when the weight value is set to zero during the simulation, the gradient of the insignificant weight has a randomized direction because the absolute ideal value is sufficiently close to zero. On the other hand, the direction of the gradient of the significant weight is unchanged until the weight is rescued through the iterative simulation. Moreover, unlike the baseline method, this screening process relies on simulation of a pruned network, and thus enables more sophisticated pruning.
3 Experiment
3.1 Experimental Setup
For the experiment, we respectively applied the proposed and baseline algorithms to MNIST data lecun1998gradient . The network architecture used for each algorithm was a fullyconnected LeNet lecun1998gradient . The architecture comprises three hidden layers, with each layer respectively consisting of 784, 300, and 100 nodes in sequence. The final output layer consists of 10 nodes.
In the experiment, the batch size was set as 50, and the optimizer was the Adam optimizer. The loss term of L2 regularization was 0.0001, and the learning rate was 0.005. Pruning began with a model that was first trained on 10 epochs and a batch size of 50. For each iteration, the percentile threshold for pruning was set as 5%, and the pruned weight was set to zero.
3.2 Experimental Result

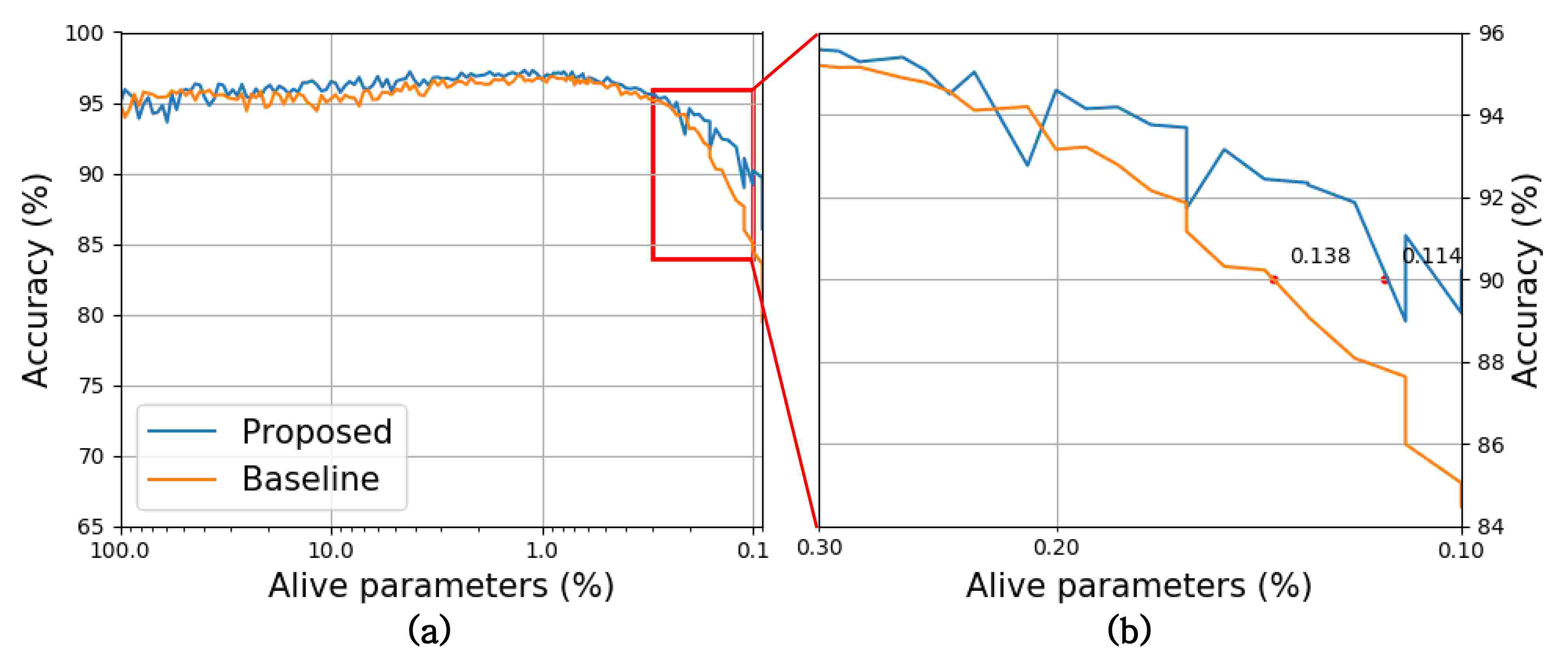

Figure 2 shows the performances of the proposed and baseline algorithms implemented in this experiment. The experimental results are presented as classification accuracy as a function of the ratio of alive parameters in the pruning process. Figure 2 (a) shows that there is no significant difference in performance, even when the number of parameters is reduced by 1%. In addition, the performance of the baseline algorithm is drastically degraded as the number of the surviving parameters drops below 1%, whereas that of the proposed algorithm remains relatively high at the same level.
Figure 2 (b) is an enlargement of the results in the red box of figure 2 (a); the difference between the performances of the two algorithms dramatically increases. The results show that the proposed algorithm performs network compression more effectively than the baseline algorithm at the same performance level. Specifically, the proposed algorithm compressed the network into 0.114% of its original size while maintaining a classification accuracy of 90%, whereas the baseline algorithm can only compress the same network into 0.138% of its original size.
4 Conclusion
In this paper, we proposed a novel method to compress deep neural networks. We focused on making the iterative pruning process more effective by simulating a temporarily reduced network. With this method, the reduced network enables collaborative learning of a more suitable structure and optimal weights. The experiment to evaluate the method showed that the proposed algorithm outperforms the baseline algorithm. The proposed method can be used to mount a highperformance deep learning model onto an embedded system with limited resources.
Acknowledgment
This work (Grants No. S2520005) was supported by Business for Startup growth and technological development(TIPS Program) funded Korea Ministry of SMEs and Startups in 2018.
References
 [1] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for largescale image recognition. arXiv preprint arXiv:1409.1556, 2014.
 [2] Myungsu Chae, TaeHo Kim, Young Hoon Shin, JunWoo Kim, and SooYoung Lee. Endtoend multimodal emotion and gender recognition with dynamic joint loss weights. arXiv preprint arXiv:1809.00758, 2018.

[3]
Yihui He, Xiangyu Zhang, and Jian Sun.
Channel pruning for accelerating very deep neural networks.
In
International Conference on Computer Vision (ICCV)
, volume 2, 2017.  [4] Namhoon Lee, Thalaiyasingam Ajanthan, and Philip HS Torr. Snip: Singleshot network pruning based on connection sensitivity. arXiv preprint arXiv:1810.02340, 2018.
 [5] Hengyuan Hu, Rui Peng, YuWing Tai, and ChiKeung Tang. Network trimming: A datadriven neuron pruning approach towards efficient deep architectures. arXiv preprint arXiv:1607.03250, 2016.
 [6] Hao Li, Asim Kadav, Igor Durdanovic, Hanan Samet, and Hans Peter Graf. Pruning filters for efficient convnets. arXiv preprint arXiv:1608.08710, 2016.
 [7] Yiwen Guo, Anbang Yao, and Yurong Chen. Dynamic network surgery for efficient dnns. In Advances In Neural Information Processing Systems, pages 1379–1387, 2016.

[8]
Itay Hubara, Matthieu Courbariaux, Daniel Soudry, Ran ElYaniv, and Yoshua
Bengio.
Quantized neural networks: Training neural networks with low
precision weights and activations.
The Journal of Machine Learning Research
, 18(1):6869–6898, 2017.
[9]
Jiaxiang Wu, Cong Leng, Yuhang Wang, Qinghao Hu, and Jian Cheng.
Quantized convolutional neural networks for mobile devices.
InProceedings of the IEEE Conference on Computer Vision and Pattern Recognition
, pages 4820–4828, 2016.  [10] Aojun Zhou, Anbang Yao, Yiwen Guo, Lin Xu, and Yurong Chen. Incremental network quantization: Towards lossless cnns with lowprecision weights. arXiv preprint arXiv:1702.03044, 2017.
 [11] Karen Ullrich, Edward Meeds, and Max Welling. Soft weightsharing for neural network compression. arXiv preprint arXiv:1702.04008, 2017.
 [12] Song Han, Huizi Mao, and William J Dally. Deep compression: Compressing deep neural networks with pruning, trained quantization and huffman coding. arXiv preprint arXiv:1510.00149, 2015.
 [13] Song Han, Jeff Pool, John Tran, and William Dally. Learning both weights and connections for efficient neural network. In Advances in neural information processing systems, pages 1135–1143, 2015.
 [14] Forrest N Iandola, Song Han, Matthew W Moskewicz, Khalid Ashraf, William J Dally, and Kurt Keutzer. Squeezenet: Alexnetlevel accuracy with 50x fewer parameters and< 0.5 mb model size. arXiv preprint arXiv:1602.07360, 2016.
 [15] Yann LeCun, Léon Bottou, Yoshua Bengio, and Patrick Haffner. Gradientbased learning applied to document recognition. Proceedings of the IEEE, 86(11):2278–2324, 1998.
