Effect of an attached end mass in the dynamics of uncertainty nonlinear continuous random system

07/27/2021
by   Americo Cunha Jr, et al.
0

This work studies the dynamics of a one dimensional elastic bar with random elastic modulus and prescribed boundary conditions, say, fixed at one end, and attached to a lumped mass and two springs (one linear and another nonlinear) on the other extreme. The system analysis assumes that the elastic modulus has gamma probability distribution and uses Monte Carlo simulations to compute the propagation of uncertainty in this continuous–discrete system. After describing the deterministic and the stochastic modeling of the system, some configurations of the model are analyzed in order to characterize the effect of the lumped mass in the overall behavior of this dynamical system.

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

05/21/2021

On the nonlinear stochastic dynamics of a continuous system with discrete attached elements

This paper presents a theoretical study on the influence of a discrete e...
10/06/2020

Efficient Graph-based Tensile Strength Simulations of Random Fiber Structures

In this paper, we propose a model-simulation framework for virtual tensi...
08/31/2018

Multilevel Monte Carlo for uncertainty quantification in structural engineering

Practical structural engineering problems often exhibit a significant de...
06/25/2019

h- and p-refined Multilevel Monte Carlo Methods for Uncertainty Quantification in Structural Engineering

Practical structural engineering problems are often characterized by sig...
07/14/2021

Quantification of parametric uncertainties induced by irregular soil loading in orchard tower sprayer nonlinear dynamics

This paper deals with the nonlinear stochastic dynamics of an orchard to...
12/08/2021

Information fractal dimension of mass function

Fractal plays an important role in nonlinear science. The most important...
07/05/2022

Effect of boundary conditions on a high-performance isolation hexapod platform

Isolation of spacecraft microvibrations is essential for the successful ...

1 Introduction

The dynamics of a mechanical system depends on some parameters such as physical and geometrical properties, constraints, external and internal loading, initial and boundary conditions. Most of the theoretical models used to describe the behavior of a mechanical system assume nominal values for these parameters, such that the model gives one response for a given particular input. In this case the system is deterministic and its behavior is described by a single set of differential equations. However, in real systems they do not have a fixed value since they are subjected to uncertainties of measurement, imperfections in manufacturing processes, change of properties, etc. This variability in the set of system parameters leads to a large number of possible system responses for a given particular input. Now the system is stochastic and there is a family of differential equations sets (one for each realization of the random system) associated to it.

This work aims to study the propagation of uncertainty in the dynamics of a nonlinear continuos random system with a discrete element attached to it. In this sense, this work considers a one dimensional elastic bar, with random elastic modulus, fixed on the left extreme and with a lumped mass and two springs (one linear and another nonlinear) on the right extreme (fixed-mass-spring bar).

This paper is organized as follows. In section 2 is presented the deterministic modeling of the problem, the discretization procedure and the algorithm used to solve the equation of interest. The stochastic modeling of the problem is shown in section 3, as well as the construction of a probability distribution for the elastic modulus, using the maximum entropy principle, and a brief discussion on the Monte Carlo method. In section 4, some configurations of the model are analyzed in order to characterize the effect of lumped mass in the system dynamical behavior. Finally, in section 5, the main conclusions are emphasized and some directions for future work outlined.

2 Deterministic Approach

The continuous system of interest is the one-dimensional fixed-mass-spring bar shown in Figure 1.

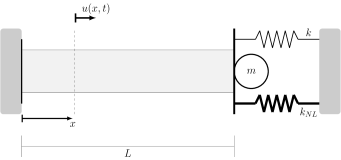

Figura 1: Sketch of a bar fixed at one and attached to two springs and a lumped mass on the other extreme.

2.1 Strong Formulation

The displacement of this system

evolves according to the following partial differential equation

(1)

which is valid for and , being the bar unstretched length and a finite instant of time. In this equation is the mass density, is the elastic modulus, is the circular cross section area, is the damping coefficient, and is an external force depending on position and instant .

The left side of the bar is fixed at a rigid wall while the right side is attached to a lumped mass and two springs fixed to a rigid wall. The first spring (of stiffness ) is linear and exerts a restoring force proportional to the stretching on the bar. The second spring (of stiffness ) is nonlinear and its restoring force is proportional to the cube of the stretching. The force which the lumped mass exerts on the bar is proportional to acceleration. These boundary conditions read as

(2)

Initially, any point of the bar presents displacement and a velocity respectively equal to

(3)

for . In these equations and are given functions of position .

Moreover, it is noteworthy that is assumed to be as regular as needed for the initial–boundary value problem of Eqs.(1), (2), and (3) to be well posed.

2.2 Variational Formulation

Let be the class of (time dependent) basis functions and be the class of weight functions. These sets are chosen as the space of functions with square integrable spatial derivative, which satisfy the essential boundary condition defined by Eq.(2).

The variational formulation of the problem under study says that one wants to find that satisfy, for all , the weak equation of motion given by

(4)

where is the mass operator, is the damping operator, is the stiffness operator, is the external force operator, and is the nonlinear force operator. These operators are, respectively, defined as

(5)
(6)
(7)
(8)
(9)

where   is an abbreviation for temporal derivative and   is an abbreviation for spatial derivative.

The variational formulations for the initial conditions of Eq.(3), which are valid for all , are respectively given by

(10)

and

(11)

where is the associated mass operator, defined as

(12)

2.3 An Eigenvalue Problem

Now consider the following generalized eigenvalue problem associated to Eq.(

4),

(13)

where is a natural frequency and is an associated mode shape.

In order to solve Eq.(13), the technique of separation of variables is employed, which leads to a Sturm-Liouville problem (Al Gwaiz, 2007), with denumerable number of solutions. Therefore, this generalized eigenvalue problem has a denumerable number of solutions, all of then such as the following eigenpair , where is the -th bar natural frequency and is the -th bar mode shape.

It is important to observe that, the eigenfunctions

span the space of functions which contains the solution of the Eq.(13) (Brezis, 2010). As can be seen in Hagedorn DasGupta (2007), these eigenfunctions satisfy, for all , the orthogonality relations given by

(14)

and

(15)

which made then good choices for the basis function when a weighted residual procedure (Finlayson Scriven, 1966) is used to approximate the solution of a nonlinear variational equation, such as Eq.(4).

2.4 Mode Shapes and Natural Frequencies

According to Blevins (1993), a fixed-mass-spring bar has its natural frequencies and the corresponding orthogonal modes shape given by

(16)

and

(17)

where is the wave speed, and the are the solutions of

(18)

The first six orthogonal modes shape of the fixed-mass-spring bar with , whose the other parameters are presented in the beginning of section 4, are illustrated in Figure 2. In this figure each sub-caption indicates the approximated natural frequency associated with the corresponding mode.

(a)
(b)
(c)
(d)
(e)
(f)
Figura 2: The first six orthogonal modes shape and the corresponding (approximated) natural frequencies of a fixed-mass-spring bar with .

2.5 Galerkin Formulation

In order of approximate the solution of Eqs.(4), (10) and (11) the Galerkin method (Hughes, 2000) is employed. Therefore, the displacement field is approximated by a linear combination of the form

(19)

where the basis functions are the orthogonal modes shape of the fixed-mass-spring bar, exemplified in the end of section 2.4, and the coefficients are time-dependent functions. For a reason that will be clear soon, define of

as the vector in which the

-th component is .

Since is not a solution of Eq.(4), when the field is approximated by a residual function is obtained. This residual function is orthogonally projected into the vector space spanned by the functions in order to minimize the error incurred by the approximation (Hughes, 2000). This procedure results in the following

set of nonlinear ordinary differential equations

(20)

supplemented by the following pair of initial conditions

(21)

where is the mass matrix, is the damping matrix, is the stiffness matrix, and the upper dot again denotes the time derivative. Also, , , , and are vectors of , which respectively represent the external force, the nonlinear force, the initial position, and the initial velocity.

The initial value problem of Eqs.(20) and (21) has its solution approximated by Newmark method (Newmark, 1959). The reader interested in details about this integration scheme is encouraged to see Hughes (2000).

3 Stochastic Approach

3.1 Probabilistic Model

Consider a probability space , where is sample space, is a -field over and

is a probability measure. In this probabilistic space, the elastic modulus is assumed to be a random variable

that associates to each event a real number . Consequently, the displacement of the bar is the random field , which evolves according the following stochastic partial differential equation

(22)

being the partial derivatives now defined in the mean square sense (Papoulis Pillai, 2002). This problem has boundary and initial conditions similar to those defined in Eqs.(2) and (3), by changing for only.

3.2 Elastic Modulus Distribution

The elastic modulus cannot be negative, so it is reasonable to assume the support of random variable as the interval

. Therefore, the probability density function (PDF) of

is a nonnegative function , which respects the following normalization condition

(23)

Also, the mean value of is known real number , i.e.,

(24)

where the expected value operator of is defined as

(25)

Finally, one also wants that

has finite variance, i.e.,

(26)

which is possible (Soize, 2000), for example, if

(27)

Following the suggestion of Soize (2000), the maximum entropy principle (Shannon, 1948; Jaynes, 1957a, b) is employed in order to consistently specify . This methodology chooses for the PDF which maximizes the differential entropy function, defined by

(28)

subjected to (23), (24), and (27), the restrictions that effectively define the known information about .

Respecting the constraints imposed by (23), (24), and (27), the PDF that maximizes Eq.(28) is given by

(29)

where denotes the indicator function of the interval , is the dispersion factor of , and

indicates the gamma function. This PDF is a gamma distribution.

3.3 Stochastic Solver: Monte Carlo Method

Uncertainty propagation in the stochastic dynamics of the continuous–discrete system under study is computed by Monte Carlo (MC) method (Metropolis Ulam, 1949). This stochastic solver uses a Mersenne twister pseudorandom number generator (Matsumoto Nishimura, 1998), to obtain many realizations of the random variable . Each one of these realizations defines a new Eq.(4), so that a new variational problem is obtained. After that, these new variational problems are solved deterministically, such as in section 2.5. All the MC simulations reported in this work use samples to access the random system. Further details about MC method can be seen in Liu (2001); Shonkwiler Mendivil (2009); Robert Casella (2010).

4 Numerical Experiments

The numerical experiments presented in this section adopt the following deterministic parameters for the studied system: , , , , , , and . Besides that, four values for the lumped mass are considered: . The random variable , is characterized by and .

The initial conditions for displacement and velocity are respectively given by

(30)

where and . Note that reaches the maximum value at . This function is used to “activate"the spring cubic nonlinearity, which depends on the displacement at .

The time-dependent external force acting on the system has the form of a sine wave with circular frequency equal to the first natural frequency

(31)

where the external force amplitude is .

(a)
(b)
(c)
(d)
Figura 3: This figure illustrates the mean value (blue line) and a 98% of probability interval of confidence (grey shadow) for the random process , for several values of the continuous–discrete mass ratio.

4.1 Analysis of Random System Envelope of Reliability and Phase Space

The mean value of and an envelope of reliability, wherein a realization of the stochastic system has 98% of probability of being contained, are shown, for different values of the continuous–discrete mass ratio , in Figure 3. By observing this figure one can note that, as the value of lumped mass increases, the decay of the system displacement amplitude decreases significantly. This indicates that this continuous–discrete system is not much influenced by damping for small values of the continuous–discrete mass ratio.

The mean phase space of the fixed-mass-spring bar at is shown, for different values of the continuous–discrete mass ratio, in Figure 4. The observation made in the previous paragraph can be confirmed by analyzing this figure, since the system mean orbit tends from a stable focus to an ellipse as the continuous–discrete mass ratio decreases. In other words the limiting behavior of the system when is a mass-spring system.

(a)
(b)
(c)
(d)
Figura 4: This figure illustrates the mean value of the fixed-mass-spring bar phase space at , for several values of the continuous–discrete mass ratio.

4.2 Analysis of Random System PDF

The difference between the system dynamical behavior, for different values of

, is even clearer if one looks to the PDF estimations of the (normalized) random variable

, which are presented in Figure 5. For large values of the continuous–discrete mass ratio, the PDF of displays bimodal shape, which tends to a unimodal shape as the lumped mass grows, i.e., the continuous–discrete mass ratio decreases. Furthermore, it can be noted that when the greatest probability occurs around the mean value of .

(a)
(b)
(c)
(d)
Figura 5: This figure illustrates estimations to the PDF of the (normalized) random variable , for several values of the continuous–discrete mass ratio.

5 Concluding Remarks

A model to describe the dynamics of fixed-mass-spring bar with a random elastic modulus is presented. The aleatory parameter is modeled as a random variable with gamma distribution, being the probability distribution of this parameter obtained by the principle of maximum entropy. The paper analyzes some configurations of the model to order to characterize the effect of the lumped mass in the overall behavior of this dynamical system. This analysis shows that the dynamics of the random system is significantly altered when the values of the lumped mass are varied.

6 Acknowledgments

The authors are indebted to Brazilian Council for Scientific and Technological Development (CNPq), Coordination of Improvement of Higher Education Personnel (CAPES), and Foundation for Research Support in Rio de Janeiro State (FAPERJ) for the financial support.

Referencias

  • Al Gwaiz (2007) Al Gwaiz M.A. Sturm-Liouville Theory and its Applications. Springer, New York, 2007.
  • Blevins (1993) Blevins R.D. Formulas for Natural Frequency and Mode Shape. Krieger Publishing Company, Malabar, 1993.
  • Brezis (2010) Brezis H. Functional Analysis, Sobolev Spaces and Partial Differential Equations. Springer, New York, 2010.
  • Finlayson Scriven (1966) Finlayson B. Scriven L. The method of weighted residuals- A review. Applied Mechanics Reviews, 19:735–748, 1966.
  • Hagedorn DasGupta (2007) Hagedorn P. DasGupta A. Vibrations and Waves in Continuous Mechanical Systems. Wiley, Chichester, 2007.
  • Hughes (2000) Hughes T.J.R. The Finite Element Method. Dover Publications, New York, 2000.
  • Jaynes (1957a) Jaynes E.T. Information theory and statistical mechanics. Physical Review Series II, 106:620–630, 1957a. doi:10.1103/PhysRev.106.620.
  • Jaynes (1957b) Jaynes E.T. Information theory and statistical mechanics II. Physical Review Series II, 108:171–190, 1957b. doi:10.1103/PhysRev.108.171.
  • Liu (2001) Liu J.S. Monte Carlo Strategies in Scientific Computing. Springer, New York, 2001.
  • Matsumoto Nishimura (1998) Matsumoto M. Nishimura T. Mersenne twister: a 623-dimensionally equidistributed uniform pseudo-random number generator. ACM Transactions on Modeling and Computer Simulation, 8:3–30, 1998. doi:10.1145/272991.272995.
  • Metropolis Ulam (1949) Metropolis N. Ulam S. The Monte Carlo Method. Journal of the American Statistical Association, 44:335–341, 1949. doi:10.2307/2280232.
  • Newmark (1959) Newmark N. A method of computation for structural dynamics. Journal of the Engineering Mechanics Division, 85:67–94, 1959.
  • Papoulis Pillai (2002) Papoulis A. Pillai S.U. Probability, Random Variables and Stochastic Processes. McGraw-Hill, New- York, 4th , 2002.
  • Robert Casella (2010) Robert C.P. Casella G. Monte Carlo Statistical Methods. Springer, New York, 2010.
  • Shannon (1948) Shannon C. A mathematical theory of communication. Bell System Technical Journal, 27:379– 423, 1948.
  • Shonkwiler Mendivil (2009) Shonkwiler R.W. Mendivil F. Explorations in Monte Carlo Methods. Springer, New York, 2009.
  • Soize (2000) Soize C. A nonparametric model of random uncertainties for reduced matrix models in structural dynamics. Probabilistic Engineering Mechanics, 15:277 – 294, 2000. doi:10.1016/S0266-8920(99)00028-4.
