Introduction

Deep neural networks (DNNs) achieve state-of-the-art performance in various tasks in machine learning and artificial intelligence, such as image classification, speech recognition, machine translation and game-playing. Despite their effectiveness, recent studies have illustrated the vulnerability of DNNs to adversarial examples

[Szegedy et al.2013, Goodfellow, Shlens, and Szegedy2015]. For instance, a carefully designed perturbation to an image can lead a well-trained DNN to misclassify. Even worse, effective adversarial examples can also be made virtually indistinguishable to human perception. For example, Figure 1

shows three adversarial examples of an ostrich image crafted by our algorithm, which are classified as “safe”, “shoe shop” and “vacuum” by the Inception-v3 model

[Szegedy et al.2016], a state-of-the-art image classification model.

The lack of robustness exhibited by DNNs to adversarial examples has raised serious concerns for security-critical applications, including traffic sign identification and malware detection, among others. Moreover, moving beyond the digital space, researchers have shown that these adversarial examples are still effective in the physical world at fooling DNNs [Kurakin, Goodfellow, and Bengio2016a, Evtimov et al.2017]. Due to the robustness and security implications, the means of crafting adversarial examples are called attacks to DNNs. In particular, targeted attacks aim to craft adversarial examples that are misclassified as specific target classes, and untargeted attacks aim to craft adversarial examples that are not classified as the original class. Transfer attacks aim to craft adversarial examples that are transferable from one DNN model to another. In addition to evaluating the robustness of DNNs, adversarial examples can be used to train a robust model that is resilient to adversarial perturbations, known as adversarial training [Madry et al.2017]. They have also been used in interpreting DNNs [Koh and Liang2017, Dong et al.2017].

(a) Image
(b) Adversarial examples with target class labels

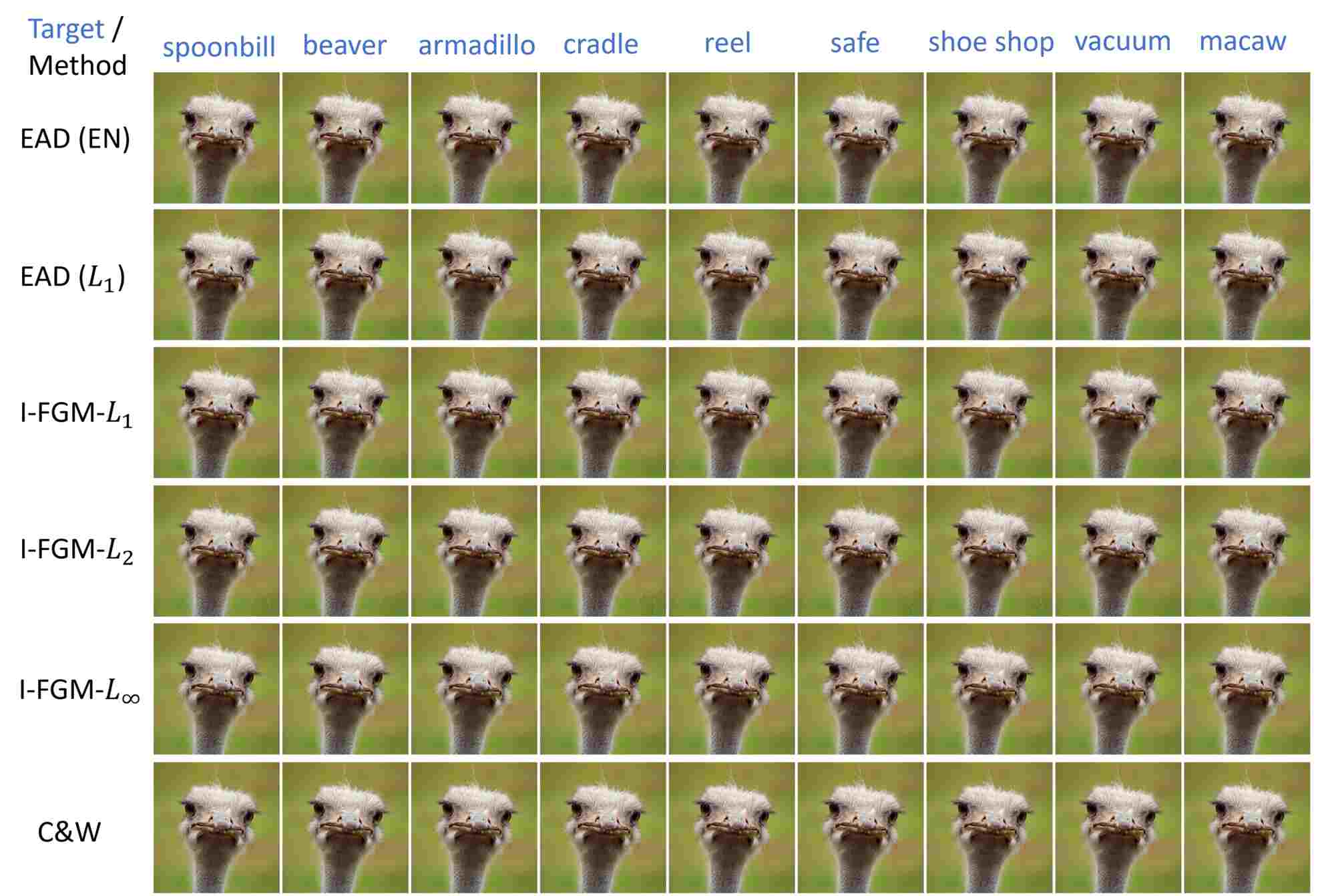

Figure 1: Visual illustration of adversarial examples crafted by EAD (Algorithm 1). The original example is an ostrich image selected from the ImageNet dataset (Figure 1 (a)). The adversarial examples in Figure 1 (b) are classified as the target class labels by the Inception-v3 model.

Throughout this paper, we use adversarial examples to attack image classifiers based on deep convolutional neural networks. The rationale behind crafting effective adversarial examples lies in manipulating the prediction results while ensuring similarity to the original image. Specifically, in the literature the similarity between original and adversarial examples has been measured by different distortion metrics. One commonly used distortion metric is the

norm, where denotes the norm of a

-dimensional vector

for any . In particular, when crafting adversarial examples, the distortion metric is used to evaluate the maximum variation in pixel value changes [Goodfellow, Shlens, and Szegedy2015], while the distortion metric is used to improve the visual quality [Carlini and Wagner2017b]. However, despite the fact that the norm is widely used in problems related to image denoising and restoration [Fu et al.2006], as well as sparse recovery [Candès and Wakin2008], -based adversarial examples have not been rigorously explored. In the context of adversarial examples, distortion accounts for the total variation in the perturbation and serves as a popular convex surrogate function of the metric, which measures the number of modified pixels (i.e., sparsity) by the perturbation. To bridge this gap, we propose an attack algorithm based on elastic-net regularization, which we call elastic-net attacks to DNNs (EAD). Elastic-net regularization is a linear mixture of and

penalty functions, and it has been a standard tool for high-dimensional feature selection problems

[Zou and Hastie2005]. In the context of attacking DNNs, EAD opens up new research directions since it generalizes the state-of-the-art attack proposed in [Carlini and Wagner2017b] based on distortion, and is able to craft -oriented adversarial examples that are more effective and fundamentally different from existing attack methods.

To explore the utility of -based adversarial examples crafted by EAD, we conduct extensive experiments on MNIST, CIFAR10 and ImageNet in different attack scenarios. Compared to the state-of-the-art and attacks [Kurakin, Goodfellow, and Bengio2016b, Carlini and Wagner2017b]

, EAD can attain similar attack success rate when breaking undefended and defensively distilled DNNs

[Papernot et al.2016b]. More importantly, we find that attacks attain superior performance over and attacks in transfer attacks and complement adversarial training. For the most difficult dataset (MNIST), EAD results in improved attack transferability from an undefended DNN to a defensively distilled DNN, achieving nearly 99% attack success rate. In addition, joint adversarial training with and based examples can further enhance the resilience of DNNs to adversarial perturbations. These results suggest that EAD yields a distinct, yet more effective, set of adversarial examples. Moreover, evaluating attacks based on distortion provides novel insights on adversarial machine learning and security implications of DNNs, suggesting that may complement and based examples toward furthering a thorough adversarial machine learning framework.

Related Work

Here we summarize related works on attacking and defending DNNs against adversarial examples.

Attacks to DNNs

FGM and I-FGM: Let and denote the original and adversarial examples, respectively, and let denote the target class to attack. Fast gradient methods (FGM) use the gradient of the training loss with respect to for crafting adversarial examples [Goodfellow, Shlens, and Szegedy2015]. For attacks, is crafted by

(1)

where specifies the distortion between and , and takes the sign of the gradient. For and attacks, is crafted by

(2)

for , where specifies the corresponding distortion. Iterative fast gradient methods (I-FGM) were proposed in [Kurakin, Goodfellow, and Bengio2016b], which iteratively use FGM with a finer distortion, followed by an -ball clipping. Untargeted attacks using FGM and I-FGM can be implemented in a similar fashion.

C&W attack: Instead of leveraging the training loss, Carlini and Wagner designed an

-regularized loss function based on the logit layer representation in DNNs for crafting adversarial examples

[Carlini and Wagner2017b]. Its formulation turns out to be a special case of our EAD formulation, which will be discussed in the following section. The C&W attack is considered to be one of the strongest attacks to DNNs, as it can successfully break undefended and defensively distilled DNNs and can attain remarkable attack transferability.

JSMA: Papernot et al. proposed a Jacobian-based saliency map algorithm (JSMA) for characterizing the input-output relation of DNNs [Papernot et al.2016a]. It can be viewed as a greedy attack algorithm that iteratively modifies the most influential pixel for crafting adversarial examples.

DeepFool: DeepFool is an untargeted attack algorithm [Moosavi-Dezfooli, Fawzi, and Frossard2016]

based on the theory of projection to the closest separating hyperplane in classification. It is also used to craft a universal perturbation to mislead DNNs trained on natural images

[Moosavi-Dezfooli et al.2016].

Black-box attacks: Crafting adversarial examples in the black-box case is plausible if one allows querying of the target DNN. In [Papernot et al.2017], JSMA is used to train a substitute model for transfer attacks. In [CPY17_zoo_2], an effective black-box C&W attack is made possible using zeroth order optimization (ZOO). In the more stringent attack scenario where querying is prohibited, ensemble methods can be used for transfer attacks [Liu et al.2016].

Defenses in DNNs

Defensive distillation: Defensive distillation [Papernot et al.2016b] defends against adversarial perturbations by using the distillation technique in [Hinton, Vinyals, and Dean2015]

to retrain the same network with class probabilities predicted by the original network. It also introduces the temperature parameter

in the softmax layer to enhance the robustness to adversarial perturbations.

Adversarial training: Adversarial training can be implemented in a few different ways. A standard approach is augmenting the original training dataset with the label-corrected adversarial examples to retrain the network. Modifying the training loss or the network architecture to increase the robustness of DNNs to adversarial examples has been proposed in [Zheng et al.2016, Madry et al.2017, Tramèr et al.2017, Zantedeschi, Nicolae, and Rawat2017].

Detection methods: Detection methods utilize statistical tests to differentiate adversarial from benign examples [Feinman et al.2017, Grosse et al.2017, Lu, Issaranon, and Forsyth2017, Xu, Evans, and Qi2017]. However, 10 different detection methods were unable to detect the C&W attack [Carlini and Wagner2017a].

EAD: Elastic-Net Attacks to DNNs

Preliminaries on Elastic-Net Regularization

Elastic-net regularization is a widely used technique in solving high-dimensional feature selection problems [Zou and Hastie2005]. It can be viewed as a regularizer that linearly combines and penalty functions. In general, elastic-net regularization is used in the following minimization problem:

(3)

where is a vector of optimization variables, indicates the set of feasible solutions, denotes a loss function, denotes the norm of , and are the and regularization parameters, respectively. The term in (3) is called the elastic-net regularizer of . For standard regression problems, the loss function is the mean squared error, the vector represents the weights (coefficients) on the features, and the set . In particular, the elastic-net regularization in (3) degenerates to the LASSO formulation when

, and becomes the ridge regression formulation when

. It is shown in [Zou and Hastie2005] that elastic-net regularization is able to select a group of highly correlated features, which overcomes the shortcoming of high-dimensional feature selection when solely using the LASSO or ridge regression techniques.

EAD Formulation and Generalization

Inspired by the C&W attack [Carlini and Wagner2017b], we adopt the same loss function for crafting adversarial examples. Specifically, given an image and its correct label denoted by , let denote the adversarial example of with a target class . The loss function for targeted attacks is defined as

(4)

where is the logit layer (the layer prior to the softmax layer) representation of in the considered DNN, is the number of classes for classification, and is a confidence parameter that guarantees a constant gap between and .

It is worth noting that the term is proportional to the probability of predicting as label , since by the softmax classification rule,

(5)

Consequently, the loss function in (4) aims to render the label the most probable class for , and the parameter controls the separation between and the next most likely prediction among all classes other than . For untargeted attacks, the loss function in (4) can be modified as

(6)

In this paper, we focus on targeted attacks since they are more challenging than untargeted attacks. Our EAD algorithm (Algorithm 1) can directly be applied to untargeted attacks by replacing in (4) with in (6).

In addition to manipulating the prediction via the loss function in (4), introducing elastic-net regularization further encourages similarity to the original image when crafting adversarial examples. Our formulation of elastic-net attacks to DNNs (EAD) for crafting an adversarial example with respect to a labeled natural image is as follows:

(7)

where is as defined in (4), are the regularization parameters of the loss function and the penalty, respectively. The box constraint restricts to a properly scaled image space, which can be easily satisfied by dividing each pixel value by the maximum attainable value (e.g., 255). Upon defining the perturbation of relative to as , the EAD formulation in (EAD Formulation and Generalization) aims to find an adversarial example that will be classified as the target class while minimizing the distortion in in terms of the elastic-net loss , which is a linear combination of and distortion metrics between and . Notably, the formulation of the C&W attack [Carlini and Wagner2017b] becomes a special case of the EAD formulation in (EAD Formulation and Generalization) when , which disregards the penalty on . However, the penalty is an intuitive regularizer for crafting adversarial examples, as represents the total variation of the perturbation, and is also a widely used surrogate function for promoting sparsity in the perturbation. As will be evident in the performance evaluation section, including the penalty for the perturbation indeed yields a distinct set of adversarial examples, and it leads to improved attack transferability and complements adversarial learning.

EAD Algorithm

When solving the EAD formulation in (EAD Formulation and Generalization) without the penalty (i.e., ), Carlini and Wagner used a change-of-variable (COV) approach via the transformation on in order to remove the box constraint [Carlini and Wagner2017b]. When , we find that the same COV approach is not effective in solving (EAD Formulation and Generalization), since the corresponding adversarial examples are insensitive to the changes in (see the performance evaluation section for details). Since the penalty is a non-differentiable, yet piece-wise linear, function, the failure of the COV approach in solving (EAD Formulation and Generalization) can be explained by its inefficiency in subgradient-based optimization problems [Duchi and Singer2009].

To efficiently solve the EAD formulation in (EAD Formulation and Generalization) for crafting adversarial examples, we propose to use the iterative shrinkage-thresholding algorithm (ISTA) [Beck and Teboulle2009]. ISTA can be viewed as a regular first-order optimization algorithm with an additional shrinkage-thresholding step on each iteration. In particular, let and let be the numerical gradient of computed by the DNN. At the -th iteration, the adversarial example of is computed by

(8)

where denotes the step size at the -th iteration, and is an element-wise projected shrinkage-thresholding function, which is defined as

(9)

for any . If , it shrinks the element by and projects the resulting element to the feasible box constraint between 0 and 1. On the other hand, if , it thresholds by setting . The proof of optimality of using (8) for solving the EAD formulation in (EAD Formulation and Generalization) is given in the supplementary material111https://arxiv.org/abs/1709.04114. Notably, since is the attack objective function of the C&W method [Carlini and Wagner2017b], the ISTA operation in (8) can be viewed as a robust version of the C&W method that shrinks a pixel value of the adversarial example if the deviation to the original image is greater than , and keeps a pixel value unchanged if the deviation is less than .

Our EAD algorithm for crafting adversarial examples is summarized in Algorithm 1. For computational efficiency, a fast ISTA (FISTA) for EAD is implemented, which yields the optimal convergence rate for first-order optimization methods [Beck and Teboulle2009]. The slack vector in Algorithm 1 incorporates the momentum in for acceleration. In the experiments, we set the initial learning rate with a square-root decay factor in . During the EAD iterations, the iterate is considered as a successful adversarial example of if the model predicts its most likely class to be the target class . The final adversarial example is selected from all successful examples based on distortion metrics. In this paper we consider two decision rules for selecting : the least elastic-net (EN) and distortions relative to . The influence of , and the decision rules on EAD will be investigated in the following section.

Input: original labeled image , target attack class , attack transferability parameter , regularization parameter , step size , # of iterations
Output: adversarial example
Initialization:
for  to  do


end for
Decision rule: determine from successful examples in (EN rule or rule).
Algorithm 1 Elastic-Net Attacks to DNNs (EAD)

Performance Evaluation

In this section, we compare the proposed EAD with the state-of-the-art attacks to DNNs on three image classification datasets - MNIST, CIFAR10 and ImageNet. We would like to show that (i) EAD can attain attack performance similar to the C&W attack in breaking undefended and defensively distilled DNNs, since the C&W attack is a special case of EAD when ; (ii) Comparing to existing -based FGM and I-FGM methods, the adversarial examples using EAD can lead to significantly lower distortion and better attack success rate; (iii) The -based adversarial examples crafted by EAD can achieve improved attack transferability and complement adversarial training.

Comparative Methods

We compare EAD with the following targeted attacks, which are the most effective methods for crafting adversarial examples in different distortion metrics.

C&W attack: The state-of-the-art targeted attack proposed by Carlini and Wagner [Carlini and Wagner2017b], which is a special case of EAD when .

FGM: The fast gradient method proposed in [Goodfellow, Shlens, and Szegedy2015]. The FGM attacks using different distortion metrics are denoted by FGM-, FGM- and FGM-.

I-FGM: The iterative fast gradient method proposed in [Kurakin, Goodfellow, and Bengio2016b]. The I-FGM attacks using different distortion metrics are denoted by I-FGM-, I-FGM- and I-FGM-.

Best case Average case Worst case
Optimization
method
ASR ASR ASR
COV 100 13.93 1.377 0.379 100 22.46 1.972 0.514 99.9 32.3 2.639 0.663
100 13.92 1.377 0.379 100 22.66 1.98 0.508 99.5 32.33 2.64 0.663
100 13.91 1.377 0.379 100 23.11 2.013 0.517 100 32.32 2.639 0.664
100 13.8 1.377 0.381 100 22.42 1.977 0.512 99.9 32.2 2.639 0.664
100 12.98 1.38 0.389 100 22.27 2.026 0.53 99.5 31.41 2.643 0.673
EAD
(EN rule)
100 14.04 1.369 0.376 100 22.63 1.953 0.512 99.8 31.43 2.51 0.644
100 13.66 1.369 0.378 100 22.6 1.98 0.515 99.9 30.79 2.507 0.648
100 12.79 1.372 0.388 100 20.98 1.951 0.521 100 29.21 2.514 0.667
100 9.808 1.427 0.452 100 17.4 2.001 0.594 100 25.52 2.582 0.748
100 7.271 1.718 0.674 100 13.56 2.395 0.852 100 20.77 3.021 0.976
Table 1: Comparison of the change-of-variable (COV) approach and EAD (Algorithm 1) for solving the elastic-net formulation in (EAD Formulation and Generalization) on MNIST. ASR means attack success rate (%). Although these two methods attain similar attack success rates, COV is not effective in crafting -based adversarial examples. Increasing leads to less -distorted adversarial examples for EAD, whereas the distortion of COV is insensitive to changes in .

Experiment Setup and Parameter Setting

Our experiment setup is based on Carlini and Wagner’s framework222https://github.com/carlini/nn˙robust˙attacks. For both the EAD and C&W attacks, we use the default setting11footnotemark: 1, which implements 9 binary search steps on the regularization parameter (starting from 0.001) and runs iterations for each step with the initial learning rate . For finding successful adversarial examples, we use the reference optimizer11footnotemark: 1 (ADAM) for the C&W attack and implement the projected FISTA (Algorithm 1) with the square-root decaying learning rate for EAD. Similar to the C&W attack, the final adversarial example of EAD is selected by the least distorted example among all the successful examples. The sensitivity analysis of the parameter and the effect of the decision rule on EAD will be investigated in the forthcoming paragraph. Unless specified, we set the attack transferability parameter for both attacks.

We implemented FGM and I-FGM using the CleverHans package333https://github.com/tensorflow/cleverhans. The best distortion parameter is determined by a fine-grained grid search - for each image, the smallest in the grid leading to a successful attack is reported. For I-FGM, we perform 10 FGM iterations (the default value) with -ball clipping. The distortion parameter in each FGM iteration is set to be , which has been shown to be an effective attack setting in [Tramèr et al.2017]. The range of the grid and the resolution of these two methods are specified in the supplementary material11footnotemark: 1.

The image classifiers for MNIST and CIFAR10 are trained based on the DNN models provided by Carlini and Wagner11footnotemark: 1. The image classifier for ImageNet is the Inception-v3 model [Szegedy et al.2016]. For MNIST and CIFAR10, 1000 correctly classified images are randomly selected from the test sets to attack an incorrect class label. For ImageNet, 100 correctly classified images and 9 incorrect classes are randomly selected to attack. All experiments are conducted on a machine with an Intel E5-2690 v3 CPU, 40 GB RAM and a single NVIDIA K80 GPU. Our EAD code is publicly available for download444https://github.com/ysharma1126/EAD-Attack.

Figure 2: Comparison of EN and decision rules in EAD on MNIST with varying regularization parameter (average case). Comparing to the EN rule, for the same the rule attains less distortion but may incur more and distortions.

Evaluation Metrics

Following the attack evaluation criterion in [Carlini and Wagner2017b], we report the attack success rate and distortion of the adversarial examples from each method. The attack success rate (ASR) is defined as the percentage of adversarial examples that are classified as the target class (which is different from the original class). The average , and distortion metrics of successful adversarial examples are also reported. In particular, the ASR and distortion of the following attack settings are considered:

Best case: The least difficult attack among targeted attacks to all incorrect class labels in terms of distortion.

Average case: The targeted attack to a randomly selected incorrect class label.

Worst case: The most difficult attack among targeted attacks to all incorrect class labels in terms of distortion.

Sensitivity Analysis and Decision Rule for EAD

We verify the necessity of using Algorithm 1 for solving the elastic-net regularized attack formulation in (EAD Formulation and Generalization) by comparing it to a naive change-of-variable (COV) approach. In [Carlini and Wagner2017b], Carlini and Wagner remove the box constraint by replacing with , where and is a vector of ones. The default ADAM optimizer [Kingma and Ba2014] is then used to solve and obtain . We apply this COV approach to (EAD Formulation and Generalization) and compare with EAD on MNIST with different orders of the regularization parameter in Table 1. Although COV and EAD attain similar attack success rates, it is observed that COV is not effective in crafting -based adversarial examples. Increasing leads to less -distorted adversarial examples for EAD, whereas the distortion (, and ) of COV is insensitive to changes in . Similar insensitivity of COV on

is observed when one uses other optimizers such as AdaGrad, RMSProp or built-in SGD in TensorFlow. We also note that the COV approach prohibits the use of ISTA due to the subsequent

term in the penalty. The insensitivity of COV suggests that it is inadequate for elastic-net optimization, which can be explained by its inefficiency in subgradient-based optimization problems [Duchi and Singer2009]. For EAD, we also find an interesting trade-off between and the other two distortion metrics - adversarial examples with smaller distortion tend to have larger and distortions. This trade-off can be explained by the fact that increasing further encourages sparsity in the perturbation, and hence results in increased and distortion. Similar results are observed on CIFAR10 (see supplementary material11footnotemark: 1).

MNIST CIFAR10 ImageNet
Attack method ASR ASR ASR
C&W () 100 22.46 1.972 0.514 100 13.62 0.392 0.044 100 232.2 0.705 0.03
FGM- 39 53.5 4.186 0.782 48.8 51.97 1.48 0.152 1 61 0.187 0.007
FGM- 34.6 39.15 3.284 0.747 42.8 39.5 1.157 0.136 1 2338 6.823 0.25
FGM- 42.5 127.2 6.09 0.296 52.3 127.81 2.373 0.047 3 3655 7.102 0.014
I-FGM- 100 32.94 2.606 0.591 100 17.53 0.502 0.055 77 526.4 1.609 0.054
I-FGM- 100 30.32 2.41 0.561 100 17.12 0.489 0.054 100 774.1 2.358 0.086
I-FGM- 100 71.39 3.472 0.227 100 33.3 0.68 0.018 100 864.2 2.079 0.01
EAD (EN rule) 100 17.4 2.001 0.594 100 8.18 0.502 0.097 100 69.47 1.563 0.238
EAD ( rule) 100 14.11 2.211 0.768 100 6.066 0.613 0.17 100 40.9 1.598 0.293
Table 2: Comparison of different attacks on MNIST, CIFAR10 and ImageNet (average case). ASR means attack success rate (%). The distortion metrics are averaged over successful examples. EAD, the C&W attack, and I-FGM- attain the least , , and distorted adversarial examples, respectively. The complete attack results are given in the supplementary material11footnotemark: 1.

In Table 1, during the attack optimization process the final adversarial example is selected based on the elastic-net loss of all successful adversarial examples in , which we call the elastic-net (EN) decision rule. Alternatively, we can select the final adversarial example with the least distortion, which we call the decision rule. Figure 2 compares the ASR and average-case distortion of these two decision rules with different on MNIST. Both decision rules yield 100% ASR for a wide range of values. For the same , the rule gives adversarial examples with less distortion than those given by the EN rule at the price of larger and distortions. Similar trends are observed on CIFAR10 (see supplementary material11footnotemark: 1). The complete results of these two rules on MNIST and CIFAR10 are given in the supplementary material11footnotemark: 1. In the following experiments, we will report the results of EAD with these two decision rules and set , since on MNIST and CIFAR10 this value significantly reduces the distortion while having comparable and distortions to the case of (i.e., without regularization).

Attack Success Rate and Distortion on MNIST, CIFAR10 and ImageNet

We compare EAD with the comparative methods in terms of attack success rate and different distortion metrics on attacking the considered DNNs trained on MNIST, CIFAR10 and ImageNet. Table 1 summarizes their average-case performance. It is observed that FGM methods fail to yield successful adversarial examples (i.e., low ASR), and the corresponding distortion metrics are significantly larger than other methods. On the other hand, the C&W attack, I-FGM and EAD all lead to 100% attack success rate. Furthermore, EAD, the C&W method, and I-FGM- attain the least , , and distorted adversarial examples, respectively. We note that EAD significantly outperforms the existing -based method (I-FGM-). Compared to I-FGM-, EAD with the EN decision rule reduces the distortion by roughly 47% on MNIST, 53% on CIFAR10 and 87% on ImageNet. We also observe that EAD with the decision rule can further reduce the distortion but at the price of noticeable increase in the and distortion metrics.

Notably, despite having large and distortion metrics, the adversarial examples crafted by EAD with the rule can still attain 100% ASRs in all datasets, which implies the and distortion metrics are insufficient for evaluating the robustness of neural networks. Moreover, the attack results in Table 1 suggest that EAD can yield a set of distinct adversarial examples that are fundamentally different from or based examples. Similar to the C&W method and I-FGM, the adversarial examples from EAD are also visually indistinguishable (see supplementary material11footnotemark: 1).

Figure 3: Attack success rate (average case) of the C&W method and EAD on MNIST and CIFAR10 with respect to varying temperature parameter for defensive distillation. Both methods can successfully break defensive distillation.

Breaking Defensive Distillation

In addition to breaking undefended DNNs via adversarial examples, here we show that EAD can also break defensively distilled DNNs. Defensive distillation [Papernot et al.2016b] is a standard defense technique that retrains the network with class label probabilities predicted by the original network, soft labels, and introduces the temperature parameter in the softmax layer to enhance its robustness to adversarial perturbations. Similar to the state-of-the-art attack (the C&W method), Figure 3 shows that EAD can attain 100% attack success rate for different values of on MNIST and CIFAR10. Moreover, since the C&W attack formulation is a special case of the EAD formulation in (EAD Formulation and Generalization) when , successfully breaking defensive distillation using EAD suggests new ways of crafting effective adversarial examples by varying the regularization parameter . The complete attack results are given in the supplementary material11footnotemark: 1.

Improved Attack Transferability

It has been shown in [Carlini and Wagner2017b] that the C&W attack can be made highly transferable from an undefended network to a defensively distilled network by tuning the confidence parameter in (4). Following [Carlini and Wagner2017b], we adopt the same experiment setting for attack transferability on MNIST, as MNIST is the most difficult dataset to attack in terms of the average distortion per image pixel from Table 1.

Fixing , adversarial examples generated from the original (undefended) network are used to attack the defensively distilled network with the temperature parameter [Papernot et al.2016b]. The attack success rate (ASR) of EAD, the C&W method and I-FGM are shown in Figure 4. When , all methods attain low ASR and hence do not produce transferable adversarial examples. The ASR of EAD and the C&W method improves when we set , whereas I-FGM’s ASR remains low (less than 2%) since the attack does not have such a parameter for transferability.

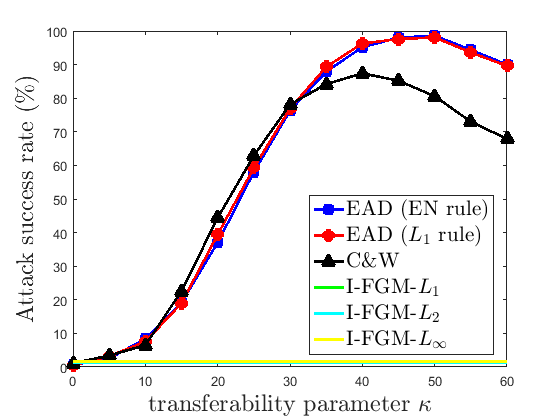

Figure 4: Attack transferability (average case) from the undefended network to the defensively distilled network on MNIST by varying . EAD can attain nearly 99% attack success rate (ASR) when , whereas the top ASR of the C&W attack is nearly 88% when .

Notably, EAD can attain nearly 99% ASR when , whereas the top ASR of the C&W method is nearly 88% when . This implies improved attack transferability when using the adversarial examples crafted by EAD, which can be explained by the fact that the ISTA operation in (8) is a robust version of the C&W attack via shrinking and thresholding. We also find that setting too large may mitigate the ASR of transfer attacks for both EAD and the C&W method, as the optimizer may fail to find an adversarial example that minimizes the loss function in (4) for large . The complete attack transferability results are given in the supplementary material11footnotemark: 1.

Attack
method
Adversarial
training
Average case
ASR
C&W
()
None 100 22.46 1.972 0.514
EAD 100 26.11 2.468 0.643
C&W 100 24.97 2.47 0.684
EAD + C&W 100 27.32 2.513 0.653
EAD
( rule)
None 100 14.11 2.211 0.768
EAD 100 17.04 2.653 0.86
C&W 100 15.49 2.628 0.892
EAD + C&W 100 16.83 2.66 0.87
Table 3: Adversarial training using the C&W attack and EAD ( rule) on MNIST. ASR means attack success rate. Incorporating examples complements adversarial training and enhances attack difficulty in terms of distortion. The complete results are given in the supplementary material11footnotemark: 1.

Complementing Adversarial Training

To further validate the difference between -based and -based adversarial examples, we test their performance in adversarial training on MNIST. We randomly select 1000 images from the training set and use the C&W attack and EAD ( rule) to generate adversarial examples for all incorrect labels, leading to 9000 adversarial examples in total for each method. We then separately augment the original training set with these examples to retrain the network and test its robustness on the testing set, as summarized in Table 1. For adversarial training with any single method, although both attacks still attain a 100% success rate in the average case, the network is more tolerable to adversarial perturbations, as all distortion metrics increase significantly when compared to the null case. We also observe that joint adversarial training with EAD and the C&W method can further increase the and distortions against the C&W attack and the distortion against EAD, suggesting that the -based examples crafted by EAD can complement adversarial training.

Conclusion

We proposed an elastic-net regularized attack framework for crafting adversarial examples to attack deep neural networks. Experimental results on MNIST, CIFAR10 and ImageNet show that the -based adversarial examples crafted by EAD can be as successful as the state-of-the-art and attacks in breaking undefended and defensively distilled networks. Furthermore, EAD can improve attack transferability and complement adversarial training. Our results corroborate the effectiveness of EAD and shed new light on the use of -based adversarial examples toward adversarial learning and security implications of deep neural networks.

Acknowledgment Cho-Jui Hsieh and Huan Zhang acknowledge the support of NSF via IIS-1719097.

References

Supplementary Material

Proof of Optimality of (8) for Solving EAD in (3)

Since the penalty in (3) is a non-differentiable yet smooth function, we use the proximal gradient method [Parikh, Boyd, and others2014] for solving the EAD formulation in (3). Define to be the indicator function of an interval such that if and if . Using , the EAD formulation in (3) can be rewritten as

(10)

where . The proximal operator of constrained to is

(11)

where the mapping function is defined in (9). Consequently, using (Proof of Optimality of (8) for Solving EAD in (3)), the proximal gradient algorithm for solving (EAD Formulation and Generalization) is iterated by

(12)
(13)

which completes the proof.

Grid Search for FGM and I-FGM (Table 4)

To determine the optimal distortion parameter for FGM and I-FGM methods, we adopt a fine grid search on . For each image, the best parameter is the smallest in the grid leading to a successful targeted attack. If the grid search fails to find a successful adversarial example, the attack is considered in vain. The selected range for grid search covers the reported distortion statistics of EAD and the C&W attack. The resolution of the grid search for FGM is selected such that it will generate 1000 candidates of adversarial examples during the grid search per input image. The resolution of the grid search for I-FGM is selected such that it will compute gradients for 10000 times in total (i.e., 1000 FGM operations 10 iterations) during the grid search per input image, which is more than the total number of gradients (9000) computed by EAD and the C&W attack.

Grid search
Method Range Resolution
FGM-
FGM-
FGM-
I-FGM-
I-FGM-
I-FGM-
Table 4: Range and resolution of grid search for finding the optimal distortion parameter for FGM and I-FGM.

Comparison of COV and EAD on CIFAR10 (Table 5)

Table 5 compares the attack performance of using EAD (Algorithm 1)) and the change-of-variable (COV) approach for solving the elastic-net formulation in (EAD Formulation and Generalization) on CIFAR10. Similar to the MNIST results in Table 1, although COV and EAD attain similar attack success rates, we find that COV is not effective in crafting -based adversarial examples. Increasing leads to less -distorted adversarial examples for EAD, whereas the distortion (, and ) of COV is insensitive to changes in . The insensitivity of COV suggests that it is inadequate for elastic-net optimization, which can be explained by its inefficiency in subgradient-based optimization problems [Duchi and Singer2009].

Best case Average case Worst case
Optimization
method
ASR ASR ASR
COV 100 7.167 0.209 0.022 100 13.62 0.392 0.044 99.9 19.17 0.546 0.064
100 7.165 0.209 0.022 100 13.43 0.386 0.044 100 19.16 0.546 0.065
100 7.148 0.209 0.022 99.9 13.64 0.394 0.044 99.9 19.14 0.547 0.064
100 6.961 0.211 0.023 100 13.35 0.396 0.045 100 18.7 0.547 0.066
100 5.963 0.222 0.029 100 11.51 0.408 0.055 100 16.31 0.556 0.077
EAD
(EN rule)
100 6.643 0.201 0.023 99.9 13.39 0.392 0.045 99.9 18.72 0.541 0.064
100 5.967 0.201 0.025 100 12.24 0.391 0.047 99.7 17.24 0.541 0.068
100 4.638 0.215 0.032 99.9 10.4 0.414 0.058 99.9 14.86 0.56 0.081
100 4.014 0.261 0.047 100 8.18 0.502 0.097 100 12.11 0.69 0.147
100 3.688 0.357 0.085 100 8.106 0.741 0.209 100 12.59 1.053 0.351
Table 5: Comparison of the change-of-variable (COV) approach and EAD (Algorithm 1) for solving the elastic-net formulation in (EAD Formulation and Generalization) on CIFAR10. ASR means attack success rate (%). Similar to the results on MNIST in Table 1, increasing leads to less -distorted adversarial examples for EAD, whereas the distortion of COV is insensitive to changes in .

Comparison of EN and decision rules in EAD on MNIST and CIFAR10 (Tables 6 and 7)

Figure 5 compares the average-case distortion of these two decision rules with different values of on CIFAR10. For the same , the rule gives less distorted adversarial examples than those given by the EN rule at the price of larger and distortions. We also observe that the distortion does not decrease monotonically with . In particular, large values (e.g., ) may lead to increased distortion due to excessive shrinking and thresholding. Table 6 and Table 7 displays the complete attack results of these two decision rules on MNIST and CIFAR10, respectively.

Figure 5: Comparison of EN and decision rules in EAD on CIFAR10 with varying regularization parameter (average case). Comparing to the EN rule, for the same the rule attains less distortion but may incur more and distortions.
Best case Average case Worst case
Decision
rule
ASR ASR ASR
EAD
(EN rule)
100 13.66 1.369 0.378 100 22.6 1.98 0.515 99.9 30.79 2.507 0.648
100 13.19 1.37 0.383 100 21.25 1.947 0.518 100 29.82 2.512 0.659
100 12.79 1.372 0.388 100 20.98 1.951 0.521 100 29.21 2.514 0.667
100 10.95 1.395 0.42 100 19.11 1.986 0.558 100 27.04 2.544 0.706
100 9.808 1.427 0.452 100 17.4 2.001 0.594 100 25.52 2.582 0.748
100 7.912 1.6 0.591 100 14.49 2.261 0.772 100 21.64 2.835 0.921
100 7.271 1.718 0.674 100 13.56 2.395 0.852 100 20.77 3.021 0.976
100 7.088 1.872 0.736 100 13.38 2.712 0.919 100 20.19 3.471 0.998
EAD
( rule)
100 13.26 1.376 0.386 100 21.75 1.965 0.525 100 30.48 2.521 0.666
100 11.81 1.385 0.404 100 20.28 1.98 0.54 100 28.8 2.527 0.686
100 10.75 1.403 0.424 100 18.69 1.983 0.565 100 27.49 2.539 0.71
100 8.025 1.534 0.527 100 15.42 2.133 0.694 100 23.62 2.646 0.857
100 7.153 1.639 0.593 100 14.11 2.211 0.768 100 22.05 2.747 0.934
100 6.347 1.844 0.772 100 11.99 2.491 0.927 100 18.01 3.218 0.997
100 6.193 1.906 0.861 100 11.69 2.68 0.97 100 17.29 3.381 1
100 5.918 2.101 0.956 100 11.59 2.873 0.993 100 18.67 3.603 1
Table 6: Comparison of the elastic net (EN) and decision rules in EAD for selecting adversarial examples on MNIST. ASR means attack success rate (%).
Best case Average case Worst case
Decision
rule
ASR ASR ASR
EAD
(EN rule)
100 5.967 0.201 0.025 100 12.24 0.391 0.047 99.7 17.24 0.541 0.068
100 5.09 0.207 0.028 99.9 10.94 0.396 0.052 99.9 15.87 0.549 0.075
100 4.638 0.215 0.032 99.9 10.4 0.414 0.058 99.9 14.86 0.56 0.081
100 4.35 0.241 0.039 100 8.671 0.459 0.079 100 12.39 0.63 0.117
100 4.014 0.261 0.047 100 8.18 0.502 0.097 100 12.11 0.69 0.147
100 3.83 0.319 0.067 100 8.462 0.619 0.145 100 13.03 0.904 0.255
100 3.688 0.357 0.085 100 8.106 0.741 0.209 100 12.59 1.053 0.351
100 2.855 0.52 0.201 100 7.735 1.075 0.426 100 14.66 1.657 0.661
EAD
( rule)
100 5.002 0.209 0.029 100 11.03 0.4 0.052 99.8 16.03 0.548 0.074
100 3.884 0.231 0.04 100 8.516 0.431 0.071 100 12.91 0.585 0.099
100 3.361 0.255 0.05 100 7.7 0.472 0.089 100 11.7 0.619 0.121
100 2.689 0.339 0.091 100 6.414 0.552 0.135 100 10.11 0.732 0.192
100 2.6 0.358 0.103 100 6.127 0.617 0.171 100 8.99 0.874 0.272
100 2.216 0.521 0.22 100 5.15 0.894 0.372 100 7.983 1.195 0.542
100 2.201 0.568 0.256 100 5.282 0.958 0.417 100 8.437 1.274 0.593
100 2.306 0.674 0.348 100 6.566 1.234 0.573 100 12.81 1.804 0.779
Table 7: Comparison of the elastic net (EN) and decision rules in EAD for selecting adversarial examples on CIFAR10. ASR means attack success rate (%).

Complete Attack Results and Visual Illustration on MNIST, CIFAR10 and ImageNet (Tables 8, 9 and 10 and Figures 6, 7 and 8)

Tables 8, 9 and 10 summarize the complete attack results of all the considered attack methods on MNIST, CIFAR10 and ImageNet, respectively. EAD, the C&W attack and I-FGM all lead to 100% attack success rate in the average case. Among the three image classification datasets, ImageNet is the easiest one to attack due to low distortion per image pixel, and MNIST is the most difficult one to attack. For the purpose of visual illustration, the adversarial examples of selected benign images from the test sets are displayed in Figures 6, 7 and 8. On CIFAR10 and ImageNet, the adversarial examples are visually indistinguishable. On MNIST, the I-FGM examples are blurrier than EAD and the C&W attack.

Best case Average case Worst case
Attack ASR ASR ASR
C&W () 100 13.93 1.377 0.379 100 22.46 1.972 0.514 99.9 32.3 2.639 0.663
FGM- 99.9 26.56 2.29 0.577 39 53.5 4.186 0.782 0 N.A. N.A. N.A.
FGM- 99.4 25.84 2.245 0.574 34.6 39.15 3.284 0.747 0 N.A. N.A. N.A.
FGM- 99.9 83.82 4.002 0.193 42.5 127.2 6.09 0.296 0 N.A. N.A. N.A.
I-FGM- 100 18.34 1.605 0.403 100 32.94 2.606 0.591 100 53.02 3.979 0.807
I-FGM- 100 17.6 1.543 0.387 100 30.32 2.41 0.561 99.8 47.8 3.597 0.771
I-FGM- 100 49.8 2.45 0.147 100 71.39 3.472 0.227 99.9 95.48 4.604 0.348
EAD (EN rule) 100 9.808 1.427 0.452 100 17.4 2.001 0.594 100 25.52 2.582 0.748
EAD ( rule) 100 7.153 1.639 0.593 100 14.11 2.211 0.768 100 22.05 2.747 0.934
Table 8: Comparison of different adversarial attacks on MNIST. ASR means attack success rate (%). N.A. means “not available” due to zero ASR.
Best case Average case Worst case
Attack ASR ASR ASR
C&W () 100 7.167 0.209 0.022 100 13.62 0.392 0.044 99.9 19.17 0.546 0.064
FGM- 99.5 14.76 0.434 0.049 48.8 51.97 1.48 0.152 0.7 157.5 4.345 0.415
FGM- 99.5 14.13 0.421 0.05 42.8 39.5 1.157 0.136 0.7 107.1 3.115 0.369
FGM- 100 32.74 0.595 0.011 52.3 127.81 2.373 0.047 0.6 246.4 4.554 0.086
I-FGM- 100 7.906 0.232 0.026 100 17.53 0.502 0.055 100 29.73 0.847 0.095
I-FGM- 100 7.587 0.223 0.025 100 17.12 0.489 0.054 100 28.94 0.823 0.092
I-FGM- 100 17.92 0.35 0.008 100 33.3 0.68 0.018 100 48.3 1.025 0.032
EAD (EN rule) 100 4.014 0.261 0.047 100 8.18 0.502 0.097 100 12.11 0.69 0.147
EAD ( rule) 100 2.597 0.359 0.103 100 6.066 0.613 0.17 100 8.986 0.871 0.27
Table 9: Comparison of different adversarial attacks on CIFAR10. ASR means attack success rate (%).
Best case Average case Worst case
Method ASR ASR ASR
C&W () 100 157.3 0.511 0.018 100 232.2 0.705 0.03 100 330.3 0.969 0.044
FGM- 9 193.3 0.661 0.025 1 61 0.187 0.007 0 N.A. N.A. N.A.
FGM- 12 752.9 2.29 0.087 1 2338 6.823 0.25 0 N.A. N.A. N.A.
FGM- 19 21640 45.76 0.115 3 3655 7.102 0.014 0 N.A. N.A. N.A.
I-FGM- 98 292.2 0.89 0.03 77 526.4 1.609 0.054 34 695.5 2.104 0.078
I-FGM- 100 315.4 0.95 0.03 100 774.1 2.358 0.086 96 1326 4.064 0.153
I-FGM- 100 504.9 1.163 0.004 100 864.2 2.079 0.01 100 1408 3.465 0.019
EAD (EN rule) 100 29.56 1.007 0.128 100 69.47 1.563 0.238 100 160.3 2.3 0.351
EAD ( rule) 100 22.11 1.167 0.195 100 40.9 1.598 0.293 100 100 2.391 0.423
Table 10: Comparison of different adversarial attacks on ImageNet. ASR means attack success rate (%). N.A. means “not available” due to zero ASR.
(a) EAD (EN rule)
(b) EAD ( rule)
(c) I-FGM-
(d) I-FGM-
(e) I-FGM-
(f) C&W
Figure 6: Visual illustration of adversarial examples crafted by different attack methods on MNIST. For each method, the images displayed on the diagonal are the original examples. In each row, the off-diagonal images are the corresponding adversarial examples with columns indexing target labels (from left to right: digits 0 to 9).
(a) EAD (EN rule)
(b) EAD ( rule)
(c) I-FGM-
(d) I-FGM-
(e) I-FGM-
(f) C&W
Figure 7: Visual illustration of adversarial examples crafted by different attack methods on CIFAR10. For each method, the images displayed on the diagonal are the original examples. In each row, the off-diagonal images are the corresponding adversarial examples with columns indexing target labels.
Figure 8: Visual illustration of adversarial examples crafted by different attack methods on ImageNet. The original example is the ostrich image (Figure 1 (a)). Each column represents a targeted class to attack, and each row represents an attack method.

.

Complete Results on Attacking Defensive Distillation on MNIST and CIFAR10 (Tables 11 and 12)

Tables 11 and 12 display the complete attack results of EAD and the C&W method on breaking defensive distillation with different temperature parameter on MNIST and CIFAR10. Although defensive distillation is a standard defense technique for DNNs, EAD and the C&W attack can successfully break defensive distillation with a wide range of temperature parameters.

Best case Average case Worst case
Method ASR ASR ASR
C&W
()
1 100 14.02 1.31 0.347 100 23.27 1.938 0.507 99.8 32.96 2.576 0.683
10 100 16.32 1.514 0.393 100 25.79 2.183 0.539 99.9 36.18 2.882 0.684
20 100 16.08 1.407 0.336 99.9 26.31 2.111 0.489 99.6 37.59 2.85 0.65
30 100 16.23 1.409 0.332 99.9 26.09 2.083 0.468 99.7 38.05 2.858 0.629
40 100 16.16 1.425 0.355 100 27.03 2.164 0.501 100 39.06 2.955 0.667
50 100 16.48 1.449 0.34 100 26.01 2.111 0.486 99.9 36.74 2.826 0.651
60 100 16.94 1.506 0.36 100 27.44 2.247 0.512 99.7 38.74 2.998 0.668
70 100 15.39 1.297 0.297 99.9 25.28 1.961 0.453 99.8 36.58 2.694 0.626
80 100 15.86 1.315 0.291 100 26.89 2.062 0.46 99.9 38.83 2.857 0.651
90 100 16.91 1.493 0.357 99.9 27.74 2.256 0.508 99.8 39.77 3.059 0.66
100 100 16.99 1.525 0.365 99.9 27.95 2.3 0.518 99.8 40.11 3.11 0.67
EAD
(EN rule)
1 100 9.672 1.363 0.416 100 17.75 1.954 0.58 100 26.42 2.532 0.762
10 100 11.79 1.566 0.468 100 20.5 2.224 0.617 100 29.59 2.866 0.768
20 100 11.54 1.461 0.404 100 20.55 2.133 0.566 100 30.97 2.809 0.719
30 100 11.82 1.463 0.398 100 20.98 2.134 0.546 100 31.92 2.847 0.701
40 100 11.58 1.481 0.426 100 21.6 2.226 0.583 100 32.48 2.936 0.739
50 100 12.11 1.503 0.408 100 21.09 2.161 0.56 99.9 30.52 2.806 0.731
60 100 12.56 1.559 0.431 100 21.71 2.256 0.588 100 32.47 2.982 0.752
70 100 11.1 1.353 0.356 100 19.92 2.001 0.518 99.9 29.99 2.655 0.691
80 100 11.6 1.369 0.347 100 21.08 2.076 0.519 99.7 31.91 2.805 0.712
90 100 12.57 1.546 0.424 100 22.62 2.312 0.587 99.9 33.38 3.047 0.744
100 100 12.72 1.575 0.433 100 22.74 2.335 0.596 100 33.82 3.1 0.754
EAD
( rule)
1 100 6.91 1.571 0.562 100 14 2.149 0.758 100 22.41 2.721 0.935
10 100 8.472 1.806 0.628 100 16.16 2.428 0.798 99.9 25.38 3.061 0.945
20 100 8.305 1.674 0.556 100 16.16 2.391 0.764 100 25.84 3.031 0.93
30 100 8.978 1.613 0.51 100 16.48 2.417 0.749 100 25.72 3.124 0.932
40 100 8.9 1.62 0.536 100 16.74 2.475 0.778 99.9 25.66 3.241 0.947
50 100 9.319 1.645 0.51 100 17.01 2.401 0.744 100 24.59 3.103 0.939
60 100 9.628 1.723 0.546 100 17.7 2.477 0.752 100 26.38 3.287 0.944
70 100 8.419 1.524 0.466 100 16.01 2.193 0.674 100 24.31 2.935 0.892
80 100 8.698 1.554 0.462 100 17.17 2.283 0.677 100 25.97 3.083 0.904
90 100 9.219 1.755 0.557 100 18.46 2.529 0.744 99.9 27.9 3.315 0.926
100 100 9.243 1.801 0.579 100 18.44 2.535 0.759 99.9 28.44 3.351 0.929
Table 11: Comparison of the C&W method and EAD on attacking defensive distillation with different temperature parameter on MNIST. ASR means attack success rate (%).
Best case Average case Worst case
Method ASR ASR ASR
C&W
()
1 100 6.414 0.188 0.02 100 12.46 0.358 0.04 100 17.47 0.498 0.058
10 100 7.431 0.219 0.024 100 15.48 0.445 0.049 99.9 22.36 0.635 0.073
20 100 8.712 0.256 0.028 100 18.7 0.534 0.058 100 27.4 0.776 0.087
30 100 8.688 0.254 0.028 100 19.34 0.554 0.06 99.8 27.67 0.785 0.089
40 100 8.556 0.251 0.028 100 18.43 0.528 0.058 100 26.89 0.761 0.086
50 100 8.88 0.26 0.028 100 19.56 0.559 0.06 99.9 29.07 0.822 0.091
60 100 8.935 0.262 0.029 100 19.43 0.554 0.06 100 28.56 0.809 0.091
70 100 9.166 0.269 0.03 100 19.99 0.571 0.061 100 29.6 0.838 0.093
80 100 9.026 0.266 0.029 100 19.93 0.571 0.061 99.5 29.64 0.839 0.092
90 100 9.466 0.278 0.031 100 21.21 0.606 0.065 100 31.23 0.884 0.099
100 100 9.943 0.292 0.032 100 21.46 0.614 0.066 99.9 32.54 0.921 0.103
EAD
(EN rule)
1 100 3.594 0.236 0.044 100 7.471 0.462 0.09 99.9 10.88 0.638 0.136
10 100 4.072 0.286 0.052 100 9.669 0.567 0.104 100 14.97 0.782 0.154
20 100 5.24 0.321 0.056 100 11.79 0.662 0.118 100 17.72 0.932 0.175
30 100 5.54 0.313 0.051 100 12.33 0.658 0.112 100 18.12 0.94 0.175
40 100 5.623 0.309 0.05 100 12.02 0.626 0.105 100 18.14 0.915 0.167
50 100 5.806 0.319 0.05 100 13 0.671 0.109 100 19.46 0.979 0.176
60 100 6.07 0.319 0.051 100 13.06 0.662 0.109 100 19.5 0.964 0.173
70 100 6.026 0.33 0.052 100 13.85 0.695 0.111 100 20.06 0.997 0.177
80 100 5.958 0.327 0.052 100 13.74 0.697 0.111 99.9 20.28 0.999 0.174
90 100 6.261 0.34 0.054 100 14.07 0.711 0.117 99.9 21.27 1.046 0.189
100 100 6.499 0.358 0.057 100 15.02 0.756 0.123 100 22.12 1.084 0.192
EAD
( rule)
1 100 2.302 0.328 0.098 100 5.595 0.556 0.154 99.9 8.41 0.776 0.237
10 100 2.884 0.37 0.101 100 6.857 0.718 0.2 100 10.44 1.037 0.321
20 100 3.445 0.435 0.118 100 8.943 0.802 0.201 99.9 13.73 1.164 0.322
30 100 3.372 0.452 0.128 100 8.802 0.796 0.202 100 14.31 1.124 0.304
40 100 3.234 0.465 0.136 100 8.537 0.809 0.209 100 13.82 1.093 0.297
50 100 3.402 0.479 0.142 100 8.965 0.848 0.22 100 14.96 1.17 0.317
60 100 3.319 0.497 0.151 100 8.647 0.863 0.232 99.8 14.46 1.174 0.325
70 100 3.438 0.506 0.153 100 9.344 0.913 0.239 100 15.06 1.214 0.331
80 100 3.418 0.5 0.15 100 9.202 0.914 0.242 100 15.14 1.227 0.337
90 100 3.603 0.519 0.157 100 9.654 0.96 0.258 99.8 15.82 1.287 0.361
100 100 3.702 0.543 0.161 100 9.839 0.993 0.269 99.8 16.22 1.351 0.379
Table 12: Comparison of the C&W method and EAD on attacking defensive distillation with different temperature parameter on CIFAR10. ASR means attack success rate (%).

Complete Attack Transferability Results on MNIST (Table 13 )

Table 13 summarizes the transfer attack results from an undefended DNN to a defensively distilled DNN on MNIST using EAD, the C&W attack and I-FGM. I-FGM methods have poor performance in attack transferability. The average attack success rate (ASR) of I-FGM is below 2%. On the other hand, adjusting the transferability parameter in EAD and the C&W attack can significantly improve ASR. Tested on a wide range of values, the top average-case ASR for EAD is 98.6% using the EN rule and 98.1% using the rule. The top average-case ASR for the C&W attack is 87.4%. This improvement is significantly due to the improvement in the worst case, where the top worst-case ASR for EAD is 87% using the EN rule and 85.8% using the rule, while the top worst-case ASR for the C&W attack is 30.5%. The results suggest that -based adversarial examples have better attack transferability.

Best case Average case Worst case
Method ASR ASR ASR
I-FGM- None 12.2 18.39 1.604 0.418 1.6 19 1.658 0.43 0 N.A. N.A. N.A.
I-FGM- None 9.8 17.77 1.537 0.395 1.3 17.25 1.533 0.408 0 N.A. N.A. N.A.
I-FGM- None 14.7 46.38 2.311 0.145 1.7 48.3 2.44 0.158 0 N.A. N.A. N.A.
C&W
()
0 5.4 11.13 1.103 0.338 1.1 10.16 1.033 0.343 0 N.A. N.A. N.A.
5 16.6 15.58 1.491 0.424 3.4 17.35 1.615 0.46 0 N.A. N.A. N.A.
10 42.2 21.94 2.033 0.525 6.5 21.97 2.001 0.527 0 N.A. N.A. N.A.
15 74.2 27.65 2.491 0.603 22.6 32.54 2.869 0.671 0.4 56.93 4.628 0.843
20 92.9 29.71 2.665 0.639 44.4 38.34 3.322 0.745 2.4 54.25 4.708 0.91
25 98.7 30.12 2.719 0.664 62.9 45.41 3.837 0.805 10.9 71.22 5.946 0.972
30 99.8 31.17 2.829 0.69 78.1 49.63 4.15 0.847 23 85.93 6.923 0.987
35 100 33.27 3.012 0.727 84.2 55.56 4.583 0.886 30.5 105.9 8.072 0.993
40 100 36.13 3.255 0.772 87.4 61.25 4.98 0.918 21 125.2 9.09 0.995
45 100 39.86 3.553 0.818 85.2 67.82 5.43 0.936 7.4 146.9 10.21 0.996
50 100 44.2 3.892 0.868 80.6 70.87 5.639 0.953 0.5 158.4 10.8 0.996
55 100 49.37 4.284 0.907 73 76.77 6.034 0.969 0 N.A. N.A. N.A.
60 100 54.97 4.703 0.937 67.9 82.07 6.395 0.976 0 N.A. N.A. N.A.
EAD
(EN rule)
0 6 8.373 1.197 0.426 0.6 4.876 0.813 0.307 0 N.A. N.A. N.A.
5 18.2 11.45 1.547 0.515 2.5 13.07 1.691 0.549 0 N.A. N.A. N.A.
10 39.5 15.36 1.916 0.59 8.4 16.45 1.989 0.6 0 N.A. N.A. N.A.
15 69.2 19.18 2.263 0.651 19.2 22.74 2.531 0.697 0.4 31.18 3.238 0.846
20 89.5 21.98 2.519 0.692 37 28.36 2.99 0.778 1.8 39.91 3.951 0.897
25 98.3 23.92 2.694 0.724 58 34.14 3.445 0.831 7.9 49.12 4.65 0.973
30 99.9 25.52 2.838 0.748 76.3 40.2 3.909 0.884 23.7 59.9 5.404 0.993
35 100 27.42 3.009 0.778 87.9 45.62 4.324 0.92 47.4 70.93 6.176 0.999
40 100 30.23 3.248 0.814 95.2 52.33 4.805 0.945 71.3 83.19 6.981 1
45 100 33.61 3.526 0.857 98 57.75 5.194 0.965 86.2 98.51 7.904 1
50 100 37.59 3.843 0.899 98.6 66.22 5.758 0.978 87 115.7 8.851 1
55 100 42.01 4.193 0.934 94.4 70.66 6.09 0.986 44.2 127 9.487 1
60 100 46.7 4.562 0.961 90 75.59 6.419 0.992 13.3 140.35 10.3 1
EAD
( rule)
0 6 6.392 1.431 0.628 0.5 6.57 1.565 0.678 0 N.A. N.A. N.A.
5 19 8.914 1.807 0.728 3.2 9.717 1.884 0.738 0 N.A. N.A. N.A.
10 40.6 12.16 2.154 0.773 7.5 13.74 2.27 0.8 0 N.A. N.A. N.A.
15 70.5 15.39 2.481 0.809 19 18.12 2.689 0.865 0.3 23.15 3.024 0.884
20 90 17.73 2.718 0.83 39.4 24.15 3.182 0.902 1.9 38.22 4.173 0.979
25 98.6 19.71 2.897 0.851 59.3 30.33 3.652 0.933 7.9 45.74 4.818 0.997
30 99.8 21.1 3.023 0.862 76.9 37.38 4.191 0.954 22.2 55.54 5.529 1
35 100 23 3.186 0.882 89.3 41.13 4.468 0.968 46.8 66.76 6.256 1
40 100 25.86 3.406 0.904 96.3 47.54 4.913 0.979 69.9 80.05 7.064 1
45 100 29.4 3.665 0.931 97.6 55.16 5.399 0.988 85.8 96.05 7.94 1
50 100 33.71 3.957 0.95 98.1 62.01 5.856 0.992 85.7 113.6 8.845 1
55 100 38.09 4.293 0.971 93.6 65.79 6.112 0.995 43.8 126.4 9.519 1
60 100 42.7 4.66 0.985 89.6 72.49 6.572 0.997 13 141.3 10.36 1
Table 13: Comparison of attack transferability from the undefended network to the defensively distilled network () on MNIST with varying transferability parameter . ASR means attack success rate (%). N.A. means not “not available” due to zero ASR. There is no parameter for I-FGM.

Complete Results on Adversarial Training with and examples (Table 14)

Table 14 displays the complete results of adversarial training on MNIST using the -based adversarial examples crafted by the C&W attack and the -based adversarial examples crafted by EAD with the EN or the decision rule. It can be observed that adversarial training with any single method can render the DNN more difficult to attack in terms of increased distortion metrics when compared with the null case. Notably, in the average case, joint adversarial training using and examples lead to increased and distortion against the C&W attack and EAD (EN), and increased distortion against EAD (). The results suggest that EAD can complement adversarial training toward resilient DNNs. We would like to point out that in our experiments, adversarial training maintains comparable test accuracy. All the adversarially trained DNNs in Table 14 can still attain at least 99% test accuracy on MNIST.

Best case Average case Worst case
Attack
method
Adversarial
training
ASR ASR ASR
C&W
()
None 100 13.93 1.377 0.379 100 22.46 1.972 0.514 99.9 32.3 2.639 0.663
EAD () 100 15.98 1.704 0.492 100 26.11 2.468 0.643 99.7 36.37 3.229 0.794
C&W () 100 14.59 1.693 0.543 100 24.97 2.47 0.684 99.9 36.4 3.28 0.807
EAD + C&W 100 16.54 1.73 0.502 100 27.32 2.513 0.653 99.8 37.83 3.229 0.795
EAD
()
None 100 7.153 1.639 0.593 100 14.11 2.211 0.768 100 22.05 2.747 0.934
EAD () 100 8.795 1.946 0.705 100 17.04 2.653 0.86 99.9 24.94 3.266 0.98
C&W () 100 7.657 1.912 0.743 100 15.49 2.628 0.892 100 24.16 3.3 0.986
EAD + C&W 100 8.936 1.975 0.711 100 16.83 2.66 0.87 99.9 25.55 3.288 0.979
EAD
(EN)
None 100 9.808 1.427 0.452 100 17.4 2.001 0.594 100 25.52 2.582 0.748
EAD (EN) 100 11.13 1.778 0.606 100 19.52 2.476 0.751 99.9 28.15 3.182 0.892
C&W () 100 10.38 1.724 0.611 100 18.99 2.453 0.759 100 27.77 3.153 0.891
EAD + C&W 100 11.14 1.76 0.602 100 20.09 2.5 0.75 100 28.91 3.193 0.882
Table 14: Comparison of adversarial training using the C&W attack, EAD ( rule) and EAD (EN rule) on MNIST. ASR means attack success rate.
