Dynamics of Pedestrian Crossing Decisions Based on Vehicle Trajectories in Large-Scale Simulated and Real-World Data

04/08/2019
by   Jack Terwilliger, et al.
32

Humans, as both pedestrians and drivers, generally skillfully navigate traffic intersections. Despite the uncertainty, danger, and the non-verbal nature of communication commonly found in these interactions, there are surprisingly few collisions considering the total number of interactions. As the role of automation technology in vehicles grows, it becomes increasingly critical to understand the relationship between pedestrian and driver behavior: how pedestrians perceive the actions of a vehicle/driver and how pedestrians make crossing decisions. The relationship between time-to-arrival (TTA) and pedestrian gap acceptance (i.e., whether a pedestrian chooses to cross under a given window of time to cross) has been extensively investigated. However, the dynamic nature of vehicle trajectories in the context of non-verbal communication has not been systematically explored. Our work provides evidence that trajectory dynamics, such as changes in TTA, can be powerful signals in the non-verbal communication between drivers and pedestrians. Moreover, we investigate these effects in both simulated and real-world datasets, both larger than have previously been considered in literature to the best of our knowledge.

READ FULL TEXT VIEW PDF

Authors

page 1

page 2

page 3

03/22/2020

Analysis and Prediction of Pedestrian Crosswalk Behavior during Automated Vehicle Interactions

For safe navigation around pedestrians, automated vehicles (AVs) need to...
04/08/2019

Eye Contact Between Pedestrians and Drivers

When asked, a majority of people believe that, as pedestrians, they make...
05/25/2022

From Pedestrian Detection to Crosswalk Estimation: An EM Algorithm and Analysis on Diverse Datasets

In this work, we contribute an EM algorithm for estimation of corner poi...
04/02/2019

Hacking Nonverbal Communication Between Pedestrians and Vehicles in Virtual Reality

We use an immersive virtual reality environment to explore the intricate...
02/16/2022

Luminous Zebra Crossing, Intelligent Zebra Crossing

1.Application background: With the development of social economy and th...
05/22/2019

Applied hybrid binary mixed logit to investigate pedestrian crossing safety at midblock and unsignalized intersection

Pedestrian's crossing from unsignalized locations at intersections or mi...
12/05/2017

The Role of Compliance in Heterogeneous Interacting Agents: Data from Observations

The dynamics of agent-based systems provide a framework to face the comp...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

As experienced human drivers, we take for granted our ability to reason about pedestrians movements, intents, mental models, and conflict resolution dynamics. As pedestrian, vehicle passengers, and vehicle drivers, we quickly develop the necessary perceptual capabilities such as foresight into whether a pedestrian is likely to cross the street and the ability to communicate with pedestrians in explicit, non-verbal ways. As an illustration, consider a situation in which someone is driving through a bustling street in downtown Boston. The driver spots a pedestrian on the sidewalk in the middle of a city block walking towards the curb. She notices the pedestrian is looking in her direction. The pedestrian pauses, but then the driver decelerates. The pedestrian then jaywalks (crosses outside a crosswalk) across the street in front of the vehicle. While banal, this example encourages us to ask: (1) to what extent did the driver’s influenced the pedestrian’s decision to cross and (2) how the driver was able to reason about the interaction. To design vehicle automation that operates safely and efficiently in urban environments with an awareness of pedestrians, we will need answers to the above questions. In this paper, we investigate (1) the relationship between vehicle trajectories and pedestrian crossing decisions and (2) people’s ability to update their estimates of a vehicle’s time to arrival (TTA) when vehicles accelerate.

Previous work has recorded the TTA between vehicles and pedestrians at the moment pedestrians begin to cross the street. In 1953,

Moore [6] first showed evidence that speed and distance influence when pedestrians decide to cross and in 1955, Cohen et al. [2] began investigating TTA. More recently, Brewer et al. [1] found that 85% gap acceptances (i.e., instances where pedestrians choose to cross) fall between 5.3 and 9.4 seconds. Pawar and Patil [7] provide convergent data, showing that, in developing countries, a similar relationship exists between TTA and gap existence. While these studies have provided valuable information and models about real-world crossing behavior, to design robust safety systems and vehicle automation, it’s important to understand how dynamics of trajectories, as opposed to a static notion of TTA, relate to pedestrian decision making.

Using simulators, previous works have measured and studied people’s ability to estimate vehicle kinematics: the accuracy of TTA estimation, the effects of velocity, and how we may use these estimates in deciding whether to cross the street. Petzoldt [8] show that TTA estimations are influenced by vehicle speed and distance (e.g., pedestrians underestimate TTA at high velocities) and provide further evidence that pedestrians use TTA to decide whether to cross. While these have been useful studies, the experiments have been limited to situations where vehicles travel at constant velocities.

In order to understand pedestrian-vehicle interaction in greater depth we investigated behaviors both in a dynamic real-world environment and through simulation that considers dynamic trajectories. We perform our analysis on two large-scale datasets. The first is a real-world naturalistic driving dataset (see §II-A). The second is an online simulated dataset (see §II-B). In §III, we present our results. In §IV, we conclude with a discussion of applications to autonomous vehicle control algorithms and future research directions.

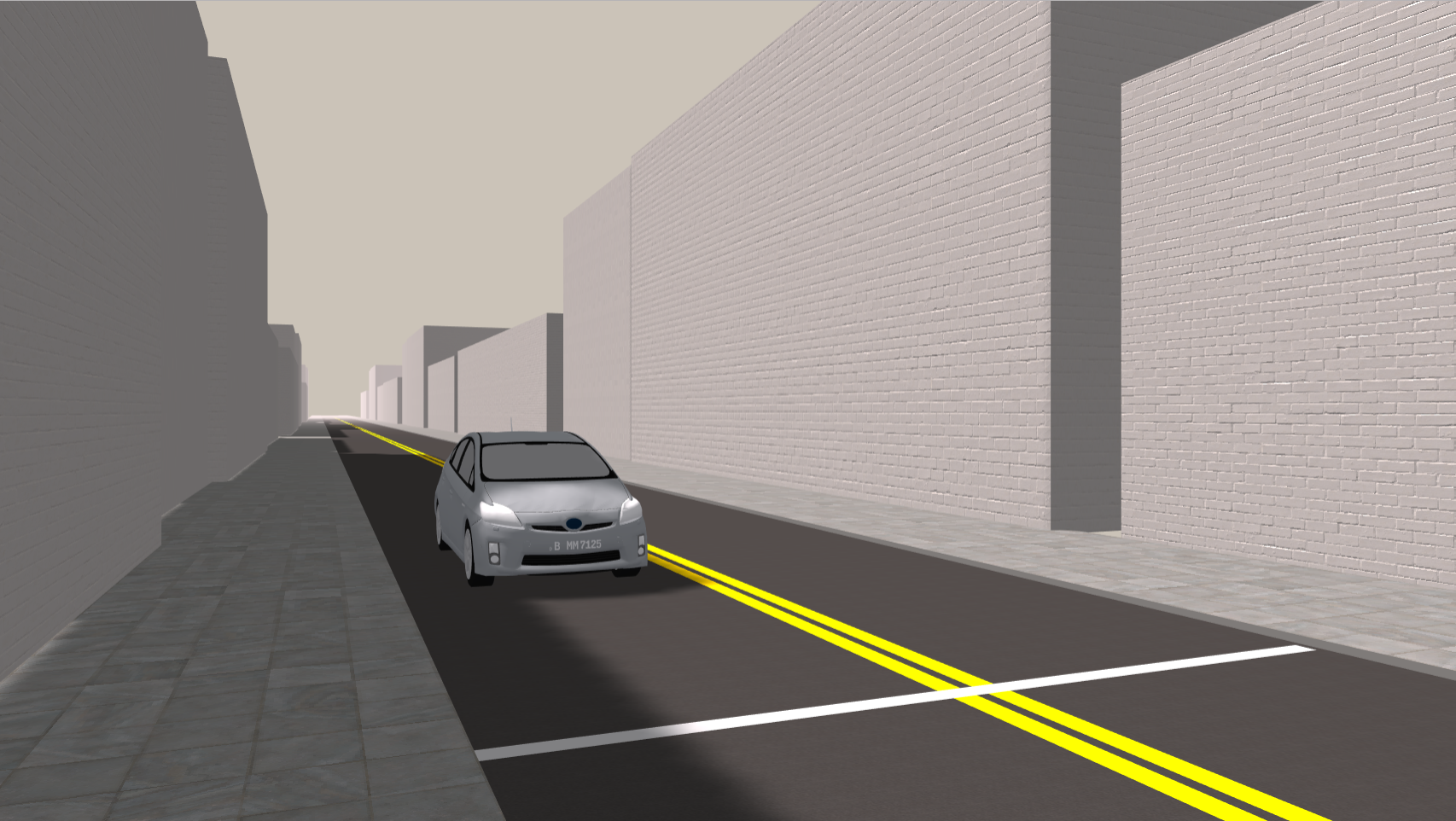

Fig. 2: Screenshot from the online TTA estimation experiment.
