Dynamically Unfolding Recurrent Restorer: A Moving Endpoint Control Method for Image Restoration

by   Xiaoshuai Zhang, et al.
Peking University

In this paper, we propose a new control framework called the moving endpoint control to restore images corrupted by different degradation levels in one model. The proposed control problem contains a restoration dynamics which is modeled by an RNN. The moving endpoint, which is essentially the terminal time of the associated dynamics, is determined by a policy network. We call the proposed model the dynamically unfolding recurrent restorer (DURR). Numerical experiments show that DURR is able to achieve state-of-the-art performances on blind image denoising and JPEG image deblocking. Furthermore, DURR can well generalize to images with higher degradation levels that are not included in the training stage.


page 7

page 8

page 13

page 14

page 15

page 16


Estimation and Restoration of Compositional Degradation Using Convolutional Neural Networks

Image restoration from a single image degradation type, such as blurring...

Recurrent Inference Machines for Solving Inverse Problems

Much of the recent research on solving iterative inference problems focu...

One Size Fits All: Hypernetwork for Tunable Image Restoration

We introduce a novel approach for tunable image restoration that achieve...

Non-blind Image Restoration Based on Convolutional Neural Network

Blind image restoration processors based on convolutional neural network...

Multi-Dimension Modulation for Image Restoration with Dynamic Controllable Residual Learning

Based on the great success of deterministic learning, to interactively c...

Classifying degraded images over various levels of degradation

Classification for degraded images having various levels of degradation ...

Regularized Richardson-Lucy Algorithm for Sparse Reconstruction of Poissonian Images

Restoration of digital images from their degraded measurements has alway...

1 Introduction

Image restoration, including image denoising, deblurring, inpainting, etc.

, is one of the most important areas in imaging science. Its major purpose is to obtain high quality reconstructions of images corrupted in various ways during imaging, acquisiting, and storing, and enable us to see crucial but subtle objects that reside in the images. Image restoration has been an active research area. Numerous models and algorithms have been developed for the past few decades. Before the uprise of deep learning methods, there were two classes of image restoration approaches that were widely adopted in the field: transformation based approach and PDE approach. The transformation based approach includes wavelet and wavelet frame based methods

(Elad et al., 2005; Starck et al., 2005; Daubechies et al., 2007; Cai et al., 2009), dictionary learning based methods (Aharon et al., 2006), similarity based methods (Buades et al., 2005; Dabov et al., 2007), low-rank models (Ji et al., 2010; Gu et al., 2014), etc. The PDE approach includes variational models (Mumford & Shah, 1989; Rudin et al., 1992; Bredies et al., 2010)), nonlinear diffusions (Perona & Malik, 1990; Catté et al., 1992; Weickert, 1998), nonlinear hyperbolic equations (Osher & Rudin, 1990), etc. More recently, deep connections between wavelet frame based methods and PDE approach were established (Cai et al., 2012, 2016; Dong et al., 2017).

One of the greatest challenge for image restoration is to properly handle image degradations of different levels. In the existing transformation based or PDE based methods, there is always at least one tuning parameter (e.g. the regularization parameter for variational models and terminal time for nonlinear diffusions) that needs to be manually selected. The choice of the parameter heavily relies on the degradation level.

Recent years, deep learning models for image restoration tasks have significantly advanced the state-of-the-art of the field. Jain & Seung (2009)

proposed a convolutional neural network (CNN) for image denoising which has better expressive power than the MRF models by

Lan et al. (2006). Inspired by nonlinear diffusions, Chen & Pock (2017) designed a deep neural network for image denoising and Zhang et al. (2017a)

improves the capacity by introducing a deeper neural network with residual connections.

Tai et al. (2017) introduced a deep network with long term memory which was inspired by neural science. However, these models cannot gracefully handle images with varied degradation levels. Although one may train different models for images with different levels, this may limit the application of these models in practice due to lack of flexibility.

Taking blind image denoising for example. Zhang et al. (2017a) designed a 20-layer neural network for the task, called DnCNN-B, which had a huge number of parameters. To reduce number of parameters, Lefkimmiatis (2017) proposed the UNLNet, by unrolling a projection gradient algorithm for a constrained optimization model. However, Lefkimmiatis (2017) also observed a drop in PSNR comparing to DnCNN. Therefore, the design of a light-weighted and yet effective model for blind image denoising remains a challenge. Moreover, deep learning based models trained on simulated gaussian noise images usually fail to handle real world noise, as will be illustrated in later sections.

Another example is JPEG image deblocking. JPEG is the most commonly used lossy image compression method. However, this method tend to introduce undesired artifacts as the compression rate increases. JPEG image deblocking aims to eliminate the artifacts and improve the image quality. Recently, deep learning based methods were proposed for JPEG deblocking (Dong et al., 2015; Zhang et al., 2017a, 2018). However, most of their models are trained and evaluated on a given quality factor. Thus it would be hard for these methods to apply to Internet images, where the quality factors are usually unknown.

In this paper, we propose a single image restoration model that can robustly restore images with varied degradation levels even when the degradation level is well outside of that of the training set. Our proposed model for image restoration is inspired by the recent development on the relation between deep learning and optimal control. The relation between supervised deep learning methods and optimal control has been discovered and exploited by Weinan (2017); Lu et al. (2018); Chang et al. (2017); Fang et al. (2017). The key idea is to consider the residual block as an approximation to the continuous dynamics . In particular, Lu et al. (2018); Fang et al. (2017) demonstrated that the training process of a class of deep models (e.g. ResNet by He et al. (2016), PolyNet by Zhang et al. (2017b), etc.) can be understood as solving the following control problem:


Here is the input, is the regression target or label, is the deep neural network with parameter , is the regularization term and

can be any loss function to measure the difference between the reconstructed images and the ground truths.

In the context of image restoration, the control dynamic can be, for example, a diffusion process learned using a deep neural network. The terminal time of the diffusion corresponds to the depth of the neural network. Previous works simply fixed the depth of the network, i.e. the terminal time, as a fixed hyper-parameter. However Mrázek & Navara (2003) showed that the optimal terminal time of diffusion differs from image to image. Furthermore, when an image is corrupted by higher noise levels, the optimal terminal time for a typical noise removal diffusion should be greater than when a less noisy image is being processed. This is the main reason why current deep models are not robust enough to handle images with varied noise levels. In this paper, we no longer treat the terminal time as a hyper-parameter. Instead, we design a new architecture (see Fig. 3) that contains both a deep diffusion-like network and another network that determines the optimal terminal time for each input image. We propose a novel moving endpoint control model to train the aforementioned architecture. We call the proposed architecture the dynamically unfolding recurrent restorer (DURR).

We first cast the model in the continuum setting. Let be an observed degraded image and be its corresponding damage-free counterpart. We want to learn a time-independent dynamic system with parameters so that and for some . See Fig. 2 for an illustration of our idea. The reason that we do not require is to avoid over-fitting. For varied degradation levels and different images, the optimal terminal time of the dynamics may vary. Therefore, we need to include the variable in the learning process as well. The learning of the dynamic system and the terminal time can be gracefully casted as the following moving endpoint control problem:


Different from the previous control problem, in our model the terminal time is also a parameter to be optimized and it depends on the data . The dynamic system

is modeled by a recurrent neural network (RNN) with a residual connection, which can be understood as a residual network with shared weights

(Liao & Poggio, 2016). We shall refer to this RNN as the restoration unit. In order to learn the terminal time of the dynamics, we adopt a policy network to adaptively determine an optimal stopping time. Our learning framework is demonstrated in Fig. 3. We note that the above moving endpoint control problem can be regarded as the penalized version of the well-known fixed endpoint control problem in optimal control (Evans, 2005), where instead of penalizing the difference between and , the constraint is strictly enforced.

Ground Truth
Noisy Input, 10.72dB
DnCNN, 14.72dB
DURR, 21.00dB
Ground Truth
Noisy Input, 10.48dB
DnCNN, 14.46dB
DURR, 24.94dB
Figure 1: Denoising results of images from BSD68 under extreme noise conditions not seen in training data ().

In short, we summarize our contribution as following:

  • We are the first to use convolutional RNN for image restoration with unknown degradation levels, where the unfolding time of the RNN is determined dynamically at run-time by a policy unit (could be either handcrafted or RL-based).

  • The proposed model achieves state-of-the-art performances with significantly less parameters and better running efficiencies than some of the state-of-the-art models.

  • We reveal the relationship between the generalization power and unfolding time of the RNN by extensive experiments. The proposed model, DURR, has strong generalization to images with varied degradation levels and even to the degradation level that is unseen by the model during training (Fig. 1).

  • The DURR is able to well handle real image denoising without further modification. Qualitative results have shown that our processed images have better visual quality, especially sharper details compared to others.

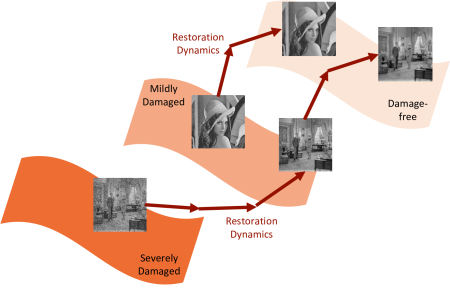

Figure 2: The proposed moving endpoint control model: evolving a learned reconstruction dynamics and ending at high-quality images.

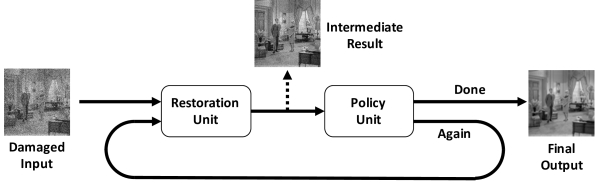

Figure 3: Pipeline of the dynamically unfolding recurrent restorer (DURR).

2 Method

The proposed architecture, i.e. DURR, contains an RNN (called the restoration unit) imitating a nonlinear diffusion for image restoration, and a deep policy network (policy unit) to determine the terminal time of the RNN. In this section, we discuss the training of the two components based on our moving endpoint control formulation. As will be elaborated, we first rain the restoration unit to determine

, and then train the policy unit to estimate


2.1 Training the Restoration Unit

If the terminal time for every input is given (i.e. given a certain policy), the restoration unit can be optimized accordingly. We would like to show in this section that the policy used during training greatly influence the performance and the generalization ability of the restoration unit. More specifically, a restoration unit can be better trained by a good policy.

The simplest policy is to fix the loop time as a constant for every input. We name such policy as “naive policy”. A more reasonable policy is to manually assign an unfolding time for each degradation level during training. We shall call this policy the “refined policy”. Since we have not trained the policy unit yet, to evaluate the performance of the trained restoration units, we manually pick the output image with the highest PSNR (i.e. the peak PSNR).

We take denoising as an example here. The peak PSNRs of the restoration unit trained with different policies are listed in Table. 1. Fig. 4 illustrates the average loop times when the peak PSNRs appear. The training is done on both single noise level () and multiple noise levels (). For the refined policy, the noise levels and the associated loop times are (35, 6), (45, 9). For the naive policy, we always fix the loop times to 8.

Strategy Noise Level
Training Noise Policy
40 Naive 28.61 28.13 27.62 27.19 26.57 26.17 24.00
35, 45 Naive 27.74 27.17 26.66 26.24 26.75 25.61 24.75
35, 45 Refined 29.14 28.33 27.67 27.19 27.69 26.61 25.88
Table 1: Average peak PSNR on BSD68 with different training strategies.

As we can see, the refined policy brings the best performance on all the noise levels including 40. The restoration unit trained for specific noise level (i.e. ) is only comparable to the one with refined policy on noise level 40. The restoration unit trained on multiple noise levels with naive policy has the worst performance.

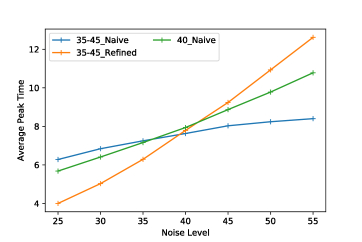

Figure 4: Average peak time on BSD68 with different training strategies.

These results indicate that the restoration unit has the potential to generalize on unseen degradation levels when trained with good policies. According to Fig. 4, the generalization reflects on the loop times of the restoration unit. It can be observed that the model with steeper slopes have stronger ability to generalize as well as better performances.

According to these results, the restoration unit we used in DURR is trained using the refined policy. More specifically, for image denoising, the noise level and the associated loop times are set to (25, 4), (35, 6), (45, 9), and (55, 12). For JPEG image deblocking, the quality factor (QF) and the associated loop times are set to (20, 6) and (30, 4).

2.2 Training The Policy Unit

We discuss two approaches that can be used as policy unit:

Handcraft policy: Previous work (Mrázek & Navara, 2003) has proposed a handcraft policy that selects a terminal time which optimizes the correlation of the signal and noise in the filtered image. This criterion can be used directly as our policy unit, but the independency of signal and noise may not hold for some restoration tasks such as real image denoising, which has higher noise level in the low-light regions, and JPEG image deblocking, in which artifacts are highly related to the original image. Another potential stopping criterion of the diffusion is no-reference image quality assessment (Mittal et al., 2012), which can provide quality assessment to a processed image without the ground truth image. However, to the best of our knowledge, the performaces of these assessments are still far from satisfactory. Because of the limitations of the handcraft policies, we will not include them in our experiments.

Reinforcement learning based policy: We start with a discretization of the moving endpoint problem (1) on the dataset , where are degraded observations of the damage-free images . The discrete moving endpoint control problem is given as follows:


Here, is the forward Euler approximation of the dynamics . The terminal time is determined by a policy network , where is the output of the restoration unit at each iteration and the weight. In other words, the role of the policy network is to stop the iteration of the restoration unit when an ideal image restoration result is achieved. The reward function of the policy unit can be naturally defined by


In order to solve the problem (2.2), we need to optimize two networks simultaneously, i.e. the restoration unit and the policy unit. The first is an restoration unit which approximates the controlled dynamics and the other is the policy unit to give the optimized terminating conditions. The objective function we use to optimize the policy network can be written as


where denotes the distribution of the trajectories under the policy network . Thus, reinforcement learning techniques can be used here to learn a neural network to work as a policy unit. We utilize Deep Q-learning (Mnih et al., 2015) as our learning strategy and denote this approach simply as DURR.

3 Experiments

3.1 Experiment Settings

In all denoising experiments, we follow the same settings as in Chen & Pock (2017); Zhang et al. (2017a); Lefkimmiatis (2017). All models are evaluated using the mean PSNR as the quantitative metric on the BSD68 (Martin et al., 2001). The training set and test set of the BSD500 (400 images in total) are used for training. Both the training and evaluation process are done on gray-scale images.

The restoration unit is a simple U-Net (Ronneberger et al., 2015) style fully convolutional neural network. For the training process of the restoration unit, the noise levels of 25, 35, 45 and 55 are used. Images are cut into patches, and the batch-size is set to 24. The Adam optimizer with the learning rate 1e-3 is adopted and the learning rate is scaled down by a factor of 10 on training plateaux.

The policy unit is composed of two ResUnit and an LSTM cell. For the policy unit training, we utilize the reward function in Eq.4

. For training the policy unit, an RMSprop optimizer with learning rate 1e-4 is adopted. We’ve also tested other network structures, these tests and the detailed network structures of our model are demonstrated in the appendix.

In all JPEG deblocking experiments, we follow the settings as in Zhang et al. (2017a, 2018). All models are evaluated using the mean PSNR as the quantitative metric on the LIVE1 dataset (Sheikh, 2005). The training set and testing set of BSD500 are used for training. Both the training and evaluation processes are done on the Y channel (the luminance channel) of the YCbCr color space. The images with quality factors 20 and 30 are used during the training process of the restoration unit. All other parameter settings are the same as in the denoising experiments.

3.2 The Complete DURR

After training the restoration unit, the policy unit is trained using the Deep Q-learning algorithm stated above until full convergence. Then the two units are combined to form the complete DURR model.

3.2.1 Image Denoising

We select DnCNN-B(Zhang et al., 2017a) and UNLNet (Lefkimmiatis, 2017) for comparisons since these models are designed for blind image denoising. Moreover, we also compare our model with non-learning-based algorithms BM3D (Dabov et al., 2007) and WNMM (Gu et al., 2014). The noise levels are assumed known for BM3D and WNMM due to their requirements. Comparison results are shown in Table 2.

Despite the fact that the parameters of our model ( for the restoration unit and for the policy unit) is less than the DnCNN (approximately ), one can see that DURR outperforms DnCNN on most of the noise-levels. More interestingly, DURR does not degrade too much when the the noise level goes beyond the level we used during training. The noise level is not included in the training set of both DnCNN and DURR. DnCNN reports notable drops of PSNR when evaluated on the images with such noise levels, while DURR only reports small drops of PSNR (see the last row of Table 2 and Fig. 6). Note that the reason we do not provide the results of UNLNet in Table 2 is because the authors of Lefkimmiatis (2017) has not released their codes yet, and they only reported the noise levels from 15 to 55 in their paper. We also want to emphasize that they trained two networks, one for the low noise level () and one for higher noise level (). The reason is that due to the use of the constraint by Lefkimmiatis (2017), we should not expect the model generalizes well to the noise levels surpasses the noise level of the training set.

For qualitative comparisons, some restored images of different models on the BSD68 dataset are presented in Fig. 5 and Fig. 6. As can be seen, more details are preserved in DURR than other models. It is worth noting that the noise level of the input image in Fig. 6 is 65, which is unseen by both DnCNN and DURR during training. Nonetheless, DURR achieves a significant gain of nearly 1 dB than DnCNN. Moreover, the texture on the cameo is very well restored by DURR. These results clearly indicate the strong generalization ability of our model.

More interestingly, due to the generalization ability in denoising, DURR is able to handle the problem of real image denoising without additional training. For testing, we test the images obtained from Lebrun et al. (2015). We present the representative results in Fig. 7 and more results are listed in the appendix.

28.55 28.73 29.15 28.96 29.16
27.07 27.28 27.66 27.50 27.72
25.99 26.26 26.62 26.48 26.71
25.26 25.49 25.80 25.64 25.91
24.69 24.51 23.40 - 25.26
22.63 22.71 18.73 - 24.71
Table 2: Average PSNR (dB) results on the BSD68 dataset. Values with means the corresponding noise level is not present in the training data of the model. The best results are indicated in red and the second best results are indicated in blue.
Ground Truth
Noisy Input, 17.84dB
(a) BM3D, 26.23dB
(b) WNMM, 26.35dB
(c) DnCNN, 27.31dB
(d) DURR, 27.42dB
Figure 5: Denoising results of an image from BSD68 with noise level 35.
Ground Truth
Noisy Input, 13.22dB
(a) BM3D, 21.35dB
(b) WNMM, 21.02dB
(c) DnCNN, 21.86dB
(d) DURR, 22.84dB
Figure 6: Denoising results of an image from BSD68 with noise level 65 (unseen by both DnCNN and DURR in their training sets).

3.2.2 JPEG Image Deblocking

For deep learning based models, we select DnCNN-3 (Zhang et al., 2017a) for comparisons since it is the only known deep model for multiple QFs deblocking. As the AR-CNN (Dong et al., 2015) is a commonly used baseline, we re-train the AR-CNN on a training set with mixed QFs and denote this model as AR-CNN-B. Original AR-CNN as well as a non-learning-based method SA-DCT (Foi et al., 2007) are also tested. The quality factors are assumed known for these models.

Quantitative results are shown in Table 3. Though the number of parameters of DURR is significantly less than the DnCNN-3, the proposed DURR outperforms DnCNN-3 in most cases. Specifically, considerable gains can be observed for our model on seen QFs, and the performances are comparable on unseen QFs. A representative result on the LIVE1 dataset is presented in Fig. 8. Our model generates the most clean and accurate details. More experiment details are given in the appendix.

10 27.77 28.65 28.98 28.53 29.40 29.23
20 30.07 30.81 31.29 30.88 31.59 31.68
30 31.41 32.08 32.69 32.31 32.98 33.05
40 32.45 32.99 33.63 33.39 33.96 34.01
Table 3: The average PSNR(dB) on the LIVE1 dataset. Values with means the corresponding QF is not present in the training data of the model. The best results are indicated in red and the second best results are indicated in blue.
Noisy Image
Figure 7: Denoising results on a real image from Lebrun et al. (2015).

3.3 Other Applications

Our model can be easily extended to other applications such as deraining, dehazing and deblurring. In all these applications, there are images corrupted at different levels. Rainfall intensity, haze density and different blur kernels will all effect the image quality.

4 Conclusions

In this paper, we proposed a novel image restoration model based on the moving endpoint control in order to handle varied noise levels using a single model. The problem was solved by jointly optimizing two units: restoration unit and policy unit. The restoration unit used an RNN to realize the dynamics in the control problem. A policy unit was proposed for the policy unit to determine the loop times of the restoration unit for optimal results. Our model achieved the state-of-the-art results in blind image denoising and JPEG deblocking. Moreover, thanks to the flexibility of the given policy, DURR has shown strong abilities of generalization in our experiments.

Ground Truth
(a) AR-CNN
(b) DnCNN
(c) DURR
Figure 8: JPEG deblocking results of an image from the LIVE1 dataset, compressed using QF 10.


  • Aharon et al. (2006) Michal Aharon, Michael Elad, and Alfred Bruckstein. -svd: An algorithm for designing overcomplete dictionaries for sparse representation. IEEE Transactions on signal processing, 54(11):4311–4322, 2006.
  • Bredies et al. (2010) K. Bredies, K. Kunisch, and T. Pock. Total Generalized Variation. SIAM Journal on Imaging Sciences, 3:492, 2010.
  • Buades et al. (2005) Antoni Buades, Bartomeu Coll, and J-M Morel. A non-local algorithm for image denoising. In Computer Vision and Pattern Recognition, 2005. CVPR 2005. IEEE Computer Society Conference on, volume 2, pp. 60–65. IEEE, 2005.
  • Cai et al. (2009) J.F. Cai, S. Osher, and Z. Shen. Split Bregman methods and frame based image restoration. Multiscale Modeling and Simulation: A SIAM Interdisciplinary Journal, 8(2):337–369, 2009.
  • Cai et al. (2012) Jian-Feng Cai, Bin Dong, Stanley Osher, and Zuowei Shen. Image restoration: total variation, wavelet frames, and beyond. Journal of the American Mathematical Society, 25(4):1033–1089, 2012.
  • Cai et al. (2016) Jian-Feng Cai, Bin Dong, and Zuowei Shen. Image restoration: a wavelet frame based model for piecewise smooth functions and beyond. Applied and Computational Harmonic Analysis, 41(1):94–138, 2016.
  • Catté et al. (1992) Francine Catté, Pierre-Louis Lions, Jean-Michel Morel, and Tomeu Coll. Image selective smoothing and edge detection by nonlinear diffusion. SIAM Journal on Numerical analysis, 29(1):182–193, 1992.
  • Chang et al. (2017) Bo Chang, Lili Meng, Eldad Haber, Lars Ruthotto, David Begert, and Elliot Holtham. Reversible architectures for arbitrarily deep residual neural networks. AAAI2018, 2017.
  • Chen & Pock (2017) Y. Chen and T Pock. Trainable nonlinear reaction diffusion: A flexible framework for fast and effective image restoration. IEEE Transactions on Pattern Analysis & Machine Intelligence, 39(6):1256–1272, 2017.
  • Dabov et al. (2007) Kostadin Dabov, Alessandro Foi, Vladimir Katkovnik, and Karen Egiazarian. Image denoising by sparse 3-d transform-domain collaborative filtering. IEEE Transactions on image processing, 16(8):2080–2095, 2007.
  • Daubechies et al. (2007) I. Daubechies, G. Teschke, and L. Vese. Iteratively solving linear inverse problems under general convex constraints. Inverse Problems and Imaging, 1(1):29, 2007.
  • Dong et al. (2017) Bin Dong, Qingtang Jiang, and Zuowei Shen. Image restoration: Wavelet frame shrinkage, nonlinear evolution pdes, and beyond. Multiscale Modeling & Simulation, 15(1):606–660, 2017.
  • Dong et al. (2015) Chao Dong, Yubin Deng, Chen Change Loy, and Xiaoou Tang. Compression artifacts reduction by a deep convolutional network. In Proceedings of the IEEE International Conference on Computer Vision, pp. 576–584, 2015.
  • Elad et al. (2005) M. Elad, J.L. Starck, P. Querre, and D.L. Donoho.

    Simultaneous cartoon and texture image inpainting using morphological component analysis (MCA).

    Applied and Computational Harmonic Analysis, 19(3):340–358, 2005.
  • Evans (2005) Lawrence C Evans.

    An introduction to mathematical optimal control theory version 0.2.

    Tailieu Vn, 2005.
  • Fang et al. (2017) Cong Fang, Zhenyu Zhao, Pan Zhou, and Zhouchen Lin.

    Feature learning via partial differential equation with applications to face recognition.

    Pattern Recognition, 69:14–25, 2017.
  • Foi et al. (2007) Alessandro Foi, Vladimir Katkovnik, and Karen Egiazarian. Pointwise shape-adaptive dct for high-quality denoising and deblocking of grayscale and color images. IEEE Transactions on Image Processing, 16(5):1395–1411, 2007.
  • Gu et al. (2014) Shuhang Gu, Lei Zhang, Wangmeng Zuo, and Xiangchu Feng. Weighted nuclear norm minimization with application to image denoising. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2862–2869, 2014.
  • He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778, 2016.
  • Jain & Seung (2009) Viren Jain and Sebastian Seung. Natural image denoising with convolutional networks. In Advances in Neural Information Processing Systems, pp. 769–776, 2009.
  • Ji et al. (2010) H. Ji, C. Liu, Z. Shen, and Y. Xu. Robust video denoising using low rank matrix completion. IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2010.
  • Lan et al. (2006) Xiangyang Lan, Stefan Roth, Daniel Huttenlocher, and Michael J Black. Efficient belief propagation with learned higher-order markov random fields. In European conference on computer vision, pp. 269–282. Springer, 2006.
  • Lebrun et al. (2015) Marc Lebrun, Miguel Colom, and Jean-Michel Morel. The noise clinic: a blind image denoising algorithm. Image Processing On Line, 5:1–54, 2015.
  • Lefkimmiatis (2017) Stamatios Lefkimmiatis. Universal denoising networks: A novel cnn-based network architecture for image denoising. arXiv preprint arXiv:1711.07807, 2017.
  • Liao & Poggio (2016) Qianli Liao and Tomaso Poggio. Bridging the gaps between residual learning, recurrent neural networks and visual cortex. arXiv preprint, 2016.
  • Lu et al. (2018) Yiping Lu, Aoxiao Zhong, Quanzheng Li, and Bin Dong. Beyond finite layer neural networks: Bridging deep architectures and numerical differential equations.

    Thirty-fifth International Conference on Machine Learning (ICML)

    , 2018.
  • Martin et al. (2001) D. Martin, C. Fowlkes, D. Tal, and J. Malik. A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In Proc. 8th Int’l Conf. Computer Vision, volume 2, pp. 416–423, July 2001.
  • Mittal et al. (2012) Anish Mittal, Anush Krishna Moorthy, and Alan Conrad Bovik. No-reference image quality assessment in the spatial domain. IEEE Transactions on Image Processing, 21(12):4695–4708, 2012.
  • Mnih et al. (2015) Volodymyr Mnih, Koray Kavukcuoglu, David Silver, Andrei A Rusu, Joel Veness, Marc G Bellemare, Alex Graves, Martin Riedmiller, Andreas K Fidjeland, Georg Ostrovski, et al. Human-level control through deep reinforcement learning. Nature, 518(7540):529, 2015.
  • Mrázek & Navara (2003) Pavel Mrázek and Mirko Navara. Selection of optimal stopping time for nonlinear diffusion filtering. International Journal of Computer Vision, 52(2-3):189–203, 2003.
  • Mumford & Shah (1989) D. Mumford and J. Shah. Optimal approximations by piecewise smooth functions and associated variational problems. Communications on pure and applied mathematics, 42(5):577–685, 1989.
  • Osher & Rudin (1990) Stanley Osher and Leonid Rudin. Feature-oriented image enhancement using shock filters. SIAM Journal on Numerical Analysis, 27(4):919–940, Aug 1990. URL http://www.jstor.org/stable/2157689.
  • Perona & Malik (1990) Pietro Perona and Jitendra Malik. Scale-space and edge detection using anisotropic diffusion. IEEE Transactions on pattern analysis and machine intelligence, 12(7):629–639, 1990.
  • Ronneberger et al. (2015) Olaf Ronneberger, Philipp Fischer, and Thomas Brox. U-net: Convolutional networks for biomedical image segmentation. In International Conference on Medical image computing and computer-assisted intervention, pp. 234–241. Springer, 2015.
  • Rudin et al. (1992) Leonid I Rudin, Stanley Osher, and Emad Fatemi. Nonlinear total variation based noise removal algorithms. Physica D: nonlinear phenomena, 60(1-4):259–268, 1992.
  • Sheikh (2005) HR Sheikh. Live image quality assessment database release 2. http://live.ece.utexas.edu/research/quality, 2005.
  • Starck et al. (2005) J.L. Starck, M. Elad, and D.L. Donoho. Image decomposition via the combination of sparse representations and a variational approach. IEEE transactions on image processing, 14(10):1570–1582, 2005.
  • Tai et al. (2017) Ying Tai, Jian Yang, Xiaoming Liu, and Chunyan Xu. Memnet: A persistent memory network for image restoration. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 4539–4547, 2017.
  • Weickert (1998) Joachim Weickert. Anisotropic diffusion in image processing, volume 1. Teubner Stuttgart, 1998.
  • Weinan (2017) E Weinan. A proposal on machine learning via dynamical systems. Communications in Mathematics & Statistics, 5(1):1–11, 2017.
  • Zhang et al. (2017a) Kai Zhang, Wangmeng Zuo, Yunjin Chen, Deyu Meng, and Lei Zhang. Beyond a gaussian denoiser: Residual learning of deep cnn for image denoising. IEEE Transactions on Image Processing, 26(7):3142–3155, 2017a.
  • Zhang et al. (2018) Xiaoshuai Zhang, Wenhan Yang, Yueyu Hu, and Jiaying Liu. Dmcnn: Dual-domain multi-scale convolutional neural network for compression artifacts removal. In Proceedings of the 25th IEEE International Conference on Image Processing, 2018.
  • Zhang et al. (2017b) Xingcheng Zhang, Zhizhong Li, Chen Change Loy, and Dahua Lin. Polynet: A pursuit of structural diversity in very deep networks. In 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), pp. 3900–3908. IEEE, 2017b.


4.1 Network Structure

4.1.1 The Adopted Structure

For the restoration unit, we use a minimal U-Net (Ronneberger et al., 2015) style network to predict the residual image. The input of the restoration unit is the processed image (i.e. the last output) and the original degraded observation. The architecture of the network is listed in Table. 4. The architecture of the policy unit is listed in Table. 5.

Type Kernel Dilation Stride Outputs
conv. 55 1 11 32
conv. 33 1 11 32
conv. 33 1 22 64
conv. 33 1 11 64
dilated conv. 33 2 11 64
dilated conv. 33 4 11 64
deconv. 1 64
conv. 33 1 11 32
conv. 55 1 11 1
Table 4:

Architecture of the restoration unit. After each convolution layer, except the last one, there is a Parametric Rectified Linear Unit (PReLU) layer. The output of the second conv. layer is concatenated as a part of the input of the second-to-last conv. layer.

Type Kernel Dilation Stride Outputs Remark
conv. 55 1 11 16
conv. 33 1 11 16 Link 1
conv. 33 1 11 16
conv. 33 1 11 16 Add Link 1
conv. 33 1 22 32 Link 2
conv. 33 1 11 32
conv. 33 1 11 32 Add Link 2
conv. 33 1 22 64 Link 3
conv. 33 1 11 64
conv. 33 1 11 64 Add Link 3
Global Average Pooling
LSTM with 32 hidden units
fc. - - - 1
Table 5:

Architecture of the policy unit. After each convolution layer, there is a Rectified Linear Unit (ReLU) layer.

4.1.2 Discussions

Fig. 9 justify the rationality of our restoration unit design. An AR-CNN-like structure is tested in our experiments, the number of parameters is comparable with the restoration unit adopted in DURR.

As the Fig. 9 illustrates, the U-Net style network (the one we adopted) generated images tend to have significantly less artifacts as well as more pleasing qualities, though the PSNR results of these images are close.

4.2 Analysis on Generalization Power and Efficiencies

In this part, we try to analysis the generalization power and time efficiency of our models. We carry out a new experiment on denoising under fair settings, where all models are trained using BSD400 images with . Furthermore, our inference time can be greatly reduced while performance being kept, if we meticulously shrink the width of the two units, and modify the policy to apply the enhance unit for two times on each restoration stage. This model is called Doppio-DURR in the table.

Experiment results are in Tab.6 and Tab.7. It can be seen that the performances of our models surpass DnCNN-B on all noise levels and two metrics when testing under this fair setting, especially on unseen noise levels. These results further proves the generalization power of our models.

As for the inference time, our model D-DURR is the fastest among all noise levels. The DURR is faster than the DnCNN-B on low noise levels. Due to the dynamically unfolding process, the DURR could be slower than the DnCNN-B when the noise level goes higher.

(unseen) (unseen)
DnCNN-B 30.55/0.849 29.16/0.824 27.69/0.770 26.66/0.742 22.84/0.506
DURR 31.32/0.883 29.28/0.838 27.84/0.795 26.83/0.757 25.80/0.704
D-DURR 31.19/0.878 29.19/0.829 27.72/0.786 26.72/0.749 25.71/0.700
Table 6: Average PSNR / SSIM on BSD68. Red for the best. Blue for the second best.
(unseen) (unseen)
DnCNN-B 4.71 4.71 4.71 4.71 4.71
DURR 2.66 4.69 6.75 9.78 13.09
D-DURR 1.28 2.31 3.01 3.79 4.65
Table 7: Average Inference Time (ms) on BSD68. Red for the best. Blue for the second best.

4.3 Further Results

4.3.1 Image Denoising

The performaces of DnCNN and DURR under extreme noise conditions () is tested. Though the noise level is unseen for both models, it can be easily observed from Fig. 1 that the proposed DURR outperforms DnCNN on both quantitative measurements and visual qualities.

We further report the results of our algorithm in Fig. 14 and Fig. 12. We demonstrate the output of every second iteration of the restoration unit in Fig. 15. We also plot the PSNR variety when passing the restoration unit different times, the tendency is plotted in Fig. 13. The test performance increases during passing the first few steps, but the benefit seems to diminish after a peak. To demonstrate this point more intuitively, the residual image with our output and ground truth is also demonstrated in Fig. 15. This indicates us that adaptively choose a stopping time is reasonable and necessary.

Figure 9: Denoising results of different restoration unit structure designs. Left images are produced by the AR-CNN-like unit. Right images are produced by our proposed minimal U-Net style network.

4.4 Real Image Denoising

In this section, we demonstrate more results of processing the real images. In Fig. 10, we demonstrate the output of the restoration unit with different unfolding times (i.e. passing the restoration unit with different times). Results demonstrate that our network has strong generalization ability and can be used to handle the problem of real image denoising. Fig. 10 show that our restoration unit behaves much like a bilateral filter, which preserves the edges and reduces the noise. If we filter the images for too many times, the images tend to become over-smoothed.

4.5 JPEG Deblocking

Here we demonstrate in Fig. 11 that our model is able to remove the noise while preserving the structures. It can be easily seen in the white zoom-in boxes that the edges of the windows is well-preserved after the processing of DURR. In the meantime DnCNN fails to keep the structure.

Noisy Image
Figure 10: Denoising result of a real image. The subcaption denotes the unfolding time.
Ground Truth
(a) AR-CNN
(b) DnCNN
(c) DURR
Figure 11: JPEG deblocking results of an image from the LIVE1 dataset, compressed using QF 10.
Ground Truth
Noisy Input, 17.94dB
(a) BM3D, 29.60dB
(b) WNMM, 29.73dB
(c) DnCNN, 31.67dB
(d) DURR, 31.72dB
Figure 12: Denoising results of an image from BSD68 with noise level 35.
PSNR tendency for lion and harbor images in Fig. 15.
Averge loop time relates to QF.
Figure 13: Image quality’s relation to loop times.
Ground Truth
Noisy Input, 18.05dB
BM3D, 26.22dB
WNMM, 26.54dB
DnCNN, 28.64dB
DURR, 28.72dB
Figure 14: Denoising results of an image from BSD68 with noise level 35.
Figure 15: Denoising results on images from the BSD68 dataset. The input harbor image’s noise level is set to 45 and the lion image’s noise level is set to 25.
