I Introduction

Neuromorphic circuits [1] try to emulate aspects of neurobiological information in semiconductor hardware in order to solve problems that biology excels at, for example robotics control, image processing or data classification. Furthermore, it represents an alternative to general-purpose high-performance computing for large-scale brain simulation [2]. Besides system capacity, energy efficiency is one major scaling target, especially when large scale brain models are to be simulated with reasonable power consumption, which is typically limited by the effort for cooling and power supply. Energy efficiency is mandatory for the application in mobile, battery powered scenarios such as drones or mobile robots.

There exist approaches for low power and energy efficient neuromorphic circuits using analog subthreshold circuits [3, 4, 5, 6] or in recent years memristors [7, 8]. However, these systems show severe device variability and it is challenging to scale them to larger systems. In contrast, digital neuromorphic hardware systems such as TrueNorth [9], Loihi [10] or SpiNNaker [11] emulate neural processing by means of digital circuits or embedded software. Due to their purely digital realization they can be implemented in the latest CMOS technologies, operate very reliably/reproducibly and can be scaled to large system sizes.

To make digital neuromorphic systems as energy-efficient as analog ones, we can take inspiration from biology: The brain seems to maximize the ratio of information transmitted/computed to energy consumed [12]

. That is, it consumes energy proportional to task complexity or activity levels. The brain also seems to use this in a spatial dimension, i.e. energy is allocated to different regions according to task demand

[13]. The cost of a single spike limits the number of neurons that are concurrently active to one percent of the brain.

Transferring this concept to digital neuromorphic hardware, where large neural networks are mapped to many processing cores, leads to the requirement for local, fine-grained scalability for the trade-off between processing power and energy efficiency for highly dynamic workloads, i.e. spikes to be processed in biological real time. The temporal demand for high computational performance to be able to process large neural networks in biological real time requires high processor clock frequencies, and thereby the operation at nominal or even overdrive supply voltages, leading to high-power consumption. In contrast, low power operation can only be achieved by operating the processor core at lower supply voltages at the cost of higher logic delays and thereby slower maximum clock frequencies. Dynamic voltage and frequency scaling (DVFS) during system operation can break this trade-off, by lowering supply voltage and frequency during periods of low processor performance requirements and increasing supply voltage and clock frequency only if peak performance is required temporarily


DVFS is widely used in modern MPSoCs, like for mobile communication [15, 16, 17] or database acceleration [18]. In the mentioned scenarios DVFS is typically controlled by a task scheduling unit which assigns supply voltage and frequency settings to the worker processing elements dynamically. In contrast, neuromorphic many core systems do not contain a central task management unit, since the neuromorphic application runs in parallel on processing elements [11]. Their actual workload for neuron state updates and synaptic event processing mainly depends on both the neural network topology and the input (e.g. spikes) of the experiment or application. It is therefore not known in advance or by any central control unit. However, the DVFS technique is beneficial for those systems, since neural networks show significant temporal variations of activity, making them very energy efficient for the neuromorphic task to be solved. This technique is to be employed by future digital neuromorphic hardware, such as the second generation of the SpiNNaker [11] system, which is currently in the prototyping phase.

This work presents a DVFS architecture for neuromorphic many core systems, where each processing element can autonomously change its supply voltage and frequency, only determined by its local workload. It extends a conference publication [19]

by a technique for workload estimation and performance level selection for neuromorphic DVFS and a numerical energy consumption model for architecture exploration. Both aspects are demonstrated by means of chip measurement results for several benchmarks.

In Sec. II the architecture of the neuromorphic SoC is presented including the hardware architecture and software flow for DVFS and Sec. III describes the corresponding power consumption model. Sec. IV presents a test chip in 28nm CMOS, with measurement results including 3 neuromorphic benchmarks summarized in Sec. V. Sec. VI shows an exploration of DVFS architecture parameters for future neuromorphic many core systems, such as SpiNNaker2.

Ii Neuromorphic SoC Architecture

Ii-a Overview

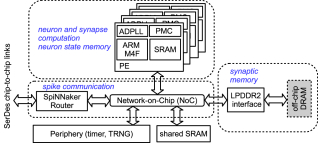

Fig. 1: System architecture

Fig.1 shows the block diagram of the many core system, based on the SpiNNaker architecture [11]. The neuromorphic computation problem is mapped to processing elements (PEs), which are responsible for neuron state computation and synaptic processing. In this work, the PEs are based on ARM M4F processors with local SRAM and a globally asynchronous locally synchronous (GALS) clocking architecture for dynamic power management. Off chip DRAM serves as synaptic weight storage. A SpiNNaker router [20] is used for on-chip and off-chip neuromorphic spike communication. The on-chip components are connected by a packet based network-on-chip (NoC), carrying spike packets, DMA packets for DRAM access and various types of control packets. In the periphery, shared modules are included, such as true random number generators (TRNGs) [21] and timers for the neuromorphic real time simulation time step (e.g. 1ms) generation.

Ii-B Power Management Hardware Architecture

The power management architecture of the PE is shown in Fig. 2. It is based on the concepts from [22] and [16]. The PE is equipped with a local all-digital phase-locked-loop ADPLL [23] with open-loop output clock generation [24], enabling ultra-fast defined frequency switching. The core domain, including the processor and local SRAM is connected to one out of several global supply rails by PMOS header power switches. If all switches are opened, the core is in power-shut-off. This allows for individual, fine-grained power management and GALS operation.

Fig. 2: PE DVFS architecture [19]

A PE performance level (PL) consists of a supply voltage and frequency pair. Switching between PLs is scheduled by the power management controller (PMC) [22]. The supported scenarios include the change between two PLs when the core is active as well as power-shut-off (PSO) and power-on after PSO. Therefore, the PMC schedules a sequence of the events clock disable, supply selection, net pre-charge, frequency selection and clock enable as shown in Fig. 3. The timings are derived from the reference clock signal (period typically ) and are fully configurable.

Fig. 3: PE DVFS Timing of performance level change [19]

When connecting a PE to another supply rail at a new target level, rush currents must be reduced to prevent unwanted supply voltage drops of other PE, being currently operated at the target rail, as illustrated in Fig. 4. Therefore, a pre-charge scheme is used, where a small (configurable) number of power switches is connected to the target supply net to reduce the slew rate of the switched net [22]. Measurement results of this scheme for the SoC implementation in this work are shown in Sec. IV-B. As result PL changes of active PEs can be achieved within approximately , i.e., instantaneously from the perspective of the software running on the PE.

Fig. 4: Illustration of PE supply switching

PL changes are triggered by sending commands via the NoC interface to the PMC. For power-up or remotely controlled DVFS, these commands can be sent by another core, orchestrating system boot-up. During PE operation (e.g. distributed neuromorphic application) the PE can trigger PL changes on its own by sending a NoC packet to its own PMC (self DVFS). Thus, the PE software can actively change its PL without significant latency or software overhead. The application specific power management algorithms can be completely implemented in software at the local PEs.

Ii-C Spiking Neural Network Simulation

(a) Logical SNN realization
(b) Physical implementation
Fig. 5: Spiking neural network simulation architecture

We follow the approach of SpiNNaker [25] to implement real-time spiking neural networks (SNN). Each core simulates the dynamics of a number of neurons and their inbound synapses (Fig. 5(a)). A real-time tick from a peripheral timer regularly triggers the neuron state updates and synapse processing which must complete within each simulation cycle (e.g. ) otherwise the neurons may fall out of sync. The spike communication between neurons is established by the SpiNNaker router that forwards multicast packets containing the identifiers of the sending neurons to target PEs according to a configurable routing table. At the target PE the spike events are inserted into a hardware FIFO attached to the local SRAM and processed in the subsequent cycle. Note that this is different to the typical SpiNNaker operation where incoming spikes are processed immediately.

Details about the memory layout for neural processing are shown in Fig. 5(b). Being accessed in every simulation cycle, the neuron state variables and parameters are stored in local SRAM. The synapse parameters, which require more memory and are only needed at an incoming spike, are stored in external DRAM. They are organized in so-called synapse rows which are contiguous memory blocks containing the synapses between one source neuron and all neurons of a core [26]. In the synapse row each existing synaptic connection is represented by a 32-bit word with a 16-bit weight, an 8-bit target neuron identifier, one synapse type bit (excitatory/inhibitory), and a 4-bit delay. The size of a synapse row depends on the fan-out of each source neuron, cf. Fig. 5(a).

When processing a received spike event, the core extracts start address and size of the synapse row belonging to the source neuron from a lookup table in the SRAM. Then, a direct memory access (DMA) for reading the synapse row from the external DRAM is scheduled with a dedicated DMA controller. During the DMA transfer the processor is not idle but can execute other tasks like neuron updates from a job queue [27]. Upon completion of the DMA, the synapses are processed and the weights are added to input ring buffers of the target neurons. These ring buffers accumulate the synaptic inputs for the next cycles and enable configurable synaptic delays. When calculating the neuron state update, the synaptic input from the buffer corresponding to the current cycle is injected into the neuron model. If neurons have fired, spike events are generated and sent to the SpiNNaker router.

Ii-D Power Management Software Architecture

The computational load in neuromorphic simulations is determined by the neuron state updates and synaptic events. While the neuron processing cost is constant in each simulation cycle, the number of synaptic events to be processed per time and core strongly varies with network activity. Our approach for neuromorphic power management exploits this by periodically adapting the performance level to the current workload. Fig. 6 visualizes the flow of a neuromorphic simulation with DVFS. Within a simulation cycle of length spikes are received by the PE and registered in the hardware spike FIFO. While spikes of cycle are received those from cycle are processed without interrupting the processor at incoming spikes. At the beginning of each cycle the workload is estimated based on the spikes in the queue and the performance level is set to the lowest possible level that guarantees the completion of the neural processing within the cycle .

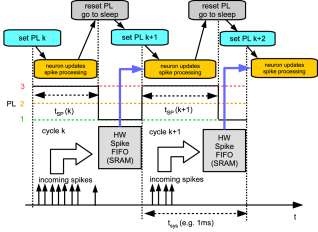

Fig. 6: Software flow for neuromorphic simulation with DVFS [19]

Ii-E Workload Estimation

The workload for neuron processing is constant in each cycle and depends on the number of neurons per core and the cost for each neuron state update (in clock cycles):


Instead, the cost for synapse processing varies with the number of spike events received and the fan-out of respective source neurons to the neurons on this core (Fig. 5(a)). The cost for decoding the synapse words and applying the weights to the input buffers of the neurons is given by


where is the cost for processing one synapse.

In addition, there is a non-negligible overhead for each received presynaptic spike for looking up the synapse row address and the DMA transfer, which we summarize as


Hence, the total workload in clock cycles is given by


where subsumes all remaining tasks such as the main experiment control or sending of spike events.

Ii-F Performance Level Selection

In each cycle the lowest perfomance level is chosen that achieves the completion of neuron and synapse processing within time step . The PL is determined by comparing the workload to thesholds and representing the compute capacities of PL1 and PL2 (in clock cyles per time step):


Then synaptic event processing and neuron state computation is performed at . When these tasks are completed after the spike processing time the processor is set back to PL1 and sleep mode (clock gating) is activated. It reads


The optimization target for PL selection is to maximize within a single period, since this relates to the usage of the minimum required PL to complete the neuron and synapse processing tasks while maintaining biological real-time operation.

To obtain a good estimate of the workload at the beginning of the simulation cycle, we must compute and iterate over all spike events in the FIFO and add up their fan-outs which are implicitly contained in the synapse row lookup table as the synapse row sizes. This extra loop over the spike events creates an additional workload that consumes part of the compute performance per simulation cycle and increases the energy demands at the first glance. Yet, the possibility to precisely adapt the performance level to the workload offers great power saving capabilities, and it must be evaluated for each application whether the detailed strategy (Eq. 5) pays off.

Fig. 7: Secure strategy for selection of performance level thresholds: Depending on the fan-out of the input neurons per core, the worst-case workload for received spikes can be calculated assuming that the spikes belong to the inputs with the largest fan-out. The PL thresholds , are obtained by the intersections with the compute capacities , of the PLs. The PL is selected according to Eq. 7. The strategy is illustrated for one core of the synfire chain model investigated in Sec. V-A1.

For this paper, however, we consider a simple performance level selection model based on the number of received spikes in the spike queue:

For this paper, however, we consider a simple performance level selection model that compares the number of received spikes in the spike queue with thresholds and :


The relation between selected performance level and the thresholds can be seen at the bottom of Fig. 7. This strategy was used in the preceding work [19] and allows a fast selection of the performance level as is immediately available at the beginning of the cycle . In turn, the thresholds and must be tuned for each application for the best exploitation of energy savings. Care has to be taken that all spike events can be processed at the chosen PL before the end of the time step. To ensure this, we employ a worst-case strategy for setting the performance level thresholds based on the fan-out of source neurons per core, as illustrated in Fig. 7: For spikes received, the worst case for the workload is when these spikes belong to the input neurons with the highest fan-out. As we know the fan-out of each neuron before the simulation, we can set the perfomance level thresholds according to this worst case: For this, we sort the fan-out of all inputs per core in descending order, and compute the worst-case workload for spikes received according to Eq. 4. Then, the thresholds and are given by the intersection points of the worst-case workload and the compute capacities and , as sketched in the bottom of Fig. 7. The advantage of this approach is two-fold: On the one hand, it guarantees the completion of synapse processing within the time step, on the other hand it is universal and can be employed to any network architecture. In real applications, however, higher thresholds might suffice when the worst-case that the input neurons with the highest fan-out fire at the same time never occurs.

Iii Power and Energy Model

To derive a model for power consumption and energy efficiency [28] of the PE within the many core system, a breakdown into the individual contributors (from application perspective) is required. Based on the definitions from [29], the total PE power consumption is split into baseline power, and the energies for neuron and synapse processing in the simulation cycles, as explained in the following. The parameter extraction is shown in Sec. IV-C.

Iii-a Baseline Power

The baseline power is consumed by the processor running the neuromorphic simulation kernel without processing any neurons or synapses. The timer events are received but trigger no neuron processing or synapse processing of the PEs. The baseline power also includes the PE leakage power, when connected to the particular rails of the PL. The baseline power of PL is .

Iii-B Neuron Processing Energy

The neuron processing energy per simulation time step at PL is modeled by,


assuming a linear relation with an offset energy (as extracted in Sec. IV-C) and an incremental neuron processing energy per neuron. The total energy depends on the number of neurons mapped to the particular PE, independent from the network activity.

Iii-C Synapse Processing Energy

The synapse energy is the PE contribution caused by processing synaptic events within each simulation time step. The PE synapse energy at PL is modeled by,


assuming a linear relation with an offset offset energy and an incremental energy per synaptic event. The total energy depends on the number of synaptic events within a simulation cycle on the particular PE, and thereby from the network activity.

From these definitions, the total energy consumed within a simulation cycle of length at PL reads


assuming that after the completion of neuron and synapse processing within that cycle after the PE is set back to PL1 (as illustrated in Fig. 6). This reduces baseline power in that idle time of length . The average power consumption over the total experiment of cycles reads


Iv Test Chip

Iv-a Overview

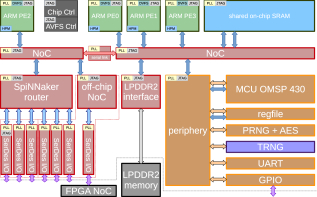

Fig. 8: Test chip block diagram

A test chip of the SpiNNaker2 neuromorphic many core system has been implemented in GLOBALFOUNDRIES SLP CMOS technology. Its block diagram is shown in Fig. 8. It contains 4 PEs with ARM M4F processors and hardware accelerators for exponentials [30] and true random number generators [21]. Each PE includes local SRAM and the proposed power management architecture with three PLs. off-chip DRAM is interfaced by LPDDR2. All on-chip components are connected by a NoC, where the longer range point to point connections are realized using the serial on-chip link [31]. The chip photo is shown in Fig. 9. For lab evaluation a power supply PCB is used which hosts up to 4 chip modules. This is connected to an FPGA evaluation board via SerDes links which then connects to the host PC via standard Ethernet. The setup is shown in Fig. 10, consisting of a power supply PCB hosting up to 4 chip modules and an FPGA board for host PC communication over Ethernet. A graphical user interface running on the host PC allows exploration of the DVFS measurements [32].

Fig. 9: Chip Photo, with major building blocks marked [19]
Fig. 10: Measurement setup, PCB with power supply and up to 4 test chip modules, FPGA board and host PC GUI [32]

Iv-B PE Measurement Results

Fig. 11(a) shows the measured maximum PE frequency versus the supply voltage including a polynomial fitting curve. The PE is operational with high yield (including SRAM) down to . In this testchip the three PLs for the neuromorphic application are defined as PL1 (, ), PL2 (, ) and PL3 (, ) spanning a range from the nominal supply voltage of this process node of down to the minimum SRAM supply of . The design has been implemented for target performance at PL3. Hold timing has been fixed in all corners. The achieved performance at PL1 and PL2 has been analyzed from sign-off timing analyses. Fig. 11(b) shows the scaling of the PE energy-per-task metric and power consumption when scaling and . The dynamic energy consumption of the operating processor, consisting of internal and switching power of logic gates and interconnect structures dominates in this design implementation. Therefore a fitting of , where is the normalized energy per specific task, is applicable here. By voltage and frequency scaling in the mentioned ranges, the energy consumption per task can be reduced by and the power consumption by relative to the nominal operation point of PL3 (,).

(a) maximum PE clock frequency
(b) power and energy per operation
Fig. 11: Processing element (ARM M4F) DVFS measurements
(a) PU to
(b) PU to
(c) PU to (always-on-rail)
(d) SC from to
Fig. 12: Robustness measurements of PL changes, color maps show the pass-rate of a software test case running of the victim PE, when the aggressor PE is switching its PL, parameters are the number of pre-charge switches and the pre-charge time.

The robustness of the PL switching has been analyzed by measurements in which a particular PE (aggressor) performs PL switches to a target supply net while another PE (victim) is actively operating at this target net, performing a task which can be checked for successful execution. The PL switching is repeated multiple times. The experiment is repeated for various settings of supply net pre-charge time and number of activated pre-charge switches (see Sec. II-B). Fig. 12 shows the measurement results for various scenarios for power-up (PU) and supply (PL) change (SC).

In Fig. 12(a) PU to the rail (PL1) is measured, which is very robust versus the switching time and the number of pre-charge switches. This is caused by the fact that the frequency setting of PL1 has significant headroom to the maximum possible frequency of (see Fig. 11(a)), thereby tolerating temporary supply drops during switching.

In case of PU to PL2 (Fig. 12(b)), a strong dependency of the robustness on the pre-charge time and number of switches is visible. For a large number of pre-charge switches the victim PE fails due to the large rush current induced voltage drop at PL2. A smaller number of pre-charge switches anyway requires a minimum pre-charge time, which decreases with increasing number of switches. This is caused by the fact that if the pre-charge time is too short, all power switches are activated although the PE supply net has not yet settled to PL2, resulting in a significant rush current and PL2 supply drop directly after the pre-charge phase. The PU behavior to PL3 is similar (Fig. 12(c)) but much more robust, since the supply net PL3 is the always on-domain of the chip toplevel, therefore having high on-chip decoupling capacitance which tolerates larger rush currents during power switching. Fig. 12(d) shows the SC scenario from PL1 to PL2 which is most critical (PL2 has smaller on-die decoupling capacitance than PL3). Also high switching robustness is achieved here. In summary, for safe operation well within the PASS regions of Fig. 12, a setting of 31 pre-charge switches enables save PU in and SC in .

Iv-C DVFS Power Model Parameter Extraction

Fig. 13: Neural and synapse energy parameter extraction. The data points at 16,000 synaptic events per ms in the bottom plot also show up in Table III as power figures for the locally-connected network.

The power management model parameters from Sec. III have been extracted. For baseline power extraction the simulation kernel without neuron processing code and synapse processing code has been executed at different PLs, including the trigger to the PE. The neuron processing power has been determined by running the neuron state calculation for different numbers of leaky integrate-and-fire (LIF) neurons with conductance-based synapses as shown in Fig. 13. The power for synapse processing has been measured by running the synapse calculation code with a varying number of synaptic events. Therefore, we used a locally-connected network with 80 neurons per core that are connected to all neurons on the same core, but not to other cores. Then we modified the number of spiking neurons per core and time step to vary the number of synaptic events. This network topology is identical to the local network used in [29] and allows the direct comparison of energy efficiency to the first generation SpiNNaker system in Sec. V-C.

The results of the power model parameter extraction are shown in Fig. 13

. Linear interpolation has been applied to extract the model parameters for neuron

energy and and synapse energy and , respectively. All parameters are summarized in Tab. I. As expected, the energy per task ( or ) scales with , while the baseline power at PL1 is only of the power at PL3, which is consistent with the results in Sec. IV-B.

PL1 () PL2 () PL3 ()
[] 8.94 20.03 28.53
[] 14.92 37.44 71.17
[] 1000 1410 1540
[] 2.19 2.88 3.96
[] 730 990 1490
[] 0.45 0.65 0.90
TABLE I: Measured parameters of power management model

V Results

V-a Benchmark Networks

To show the capabilities of neuromorphic power management we implement three diverse spiking neural networks for execution on the chip. The benchmarks were selected to cover the wide range of neural activity found in the brain [33], ranging from asynchronous irregular activity over synchronous spike packets to network bursts. In all networks we use leaky integrate-and-fire neurons with conductance-based synapses. Table II lists characteristics of the networks and the thresholds of received spikes used for the performance level selection. The thresholds were determined using the worst-case approach described in Section II-F, except for the synfire network, which uses the same numbers as in the preceding work [19] for consistency.

(a) Synfire chain network [19]
(b) Bursting network
(c) Asynchronous irregular firing network
Fig. 14: Benchmark networks
synfire bursting async
neuron model LIF + noise LIF LIF
neurons per core 250 250 250
synapses per core 20000 25000 10000
avg. fan-out 80 21 8
20 47 47
100 214 229
TABLE II: Benchmark networks

V-A1 Synfire Chain

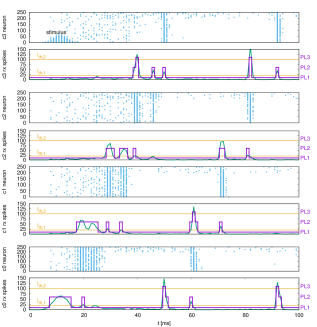

Fig. 15: Synfire chain benchmark spike train, sent spikes (blue), number of received spikes per core (green), PL selection thresholds (orange) and core PL (violet), plot shows zoom in to simulation time for illustration of fast PL changes.

The first benchmark is a synfire chain network [34] which was already used in the preceding work [19]: Synfire chains are feedforward networks that propagate synchronous firing activity through a chain of neuron groups [35]. We implement a synfire chain with feedforward inhibition [34] consisting of (Fig. 14(a)), each with (E) and (I) neurons. As in [34]

the neurons receive a normally distributed noise current. Excitatory neurons are connected to both excitatory and inhibitory neurons of the next group, while inhibitory neurons only connect to the excitatory population of the same group. There are

connections per neuron from I to E and connections per neuron from E of the previous group, the delays are within a group and between groups. There are no recurrent connection within a population. We simulate one group per core and connect the last group to the first one. At start, the first group receives a Gaussian stimulus pulse packet generated on core 3 (, ). As shown in Fig. 15, the pulse packet propagates stably from one group to another, where the feedforward inhibition ensures that the network activity does not explode.

As shown in Fig. 15, cores adapt their PLs to the number of incoming spikes within the current simulation cycle. Fig. 18(a) shows histograms of the cycles being processed at a particular PL versus . Within some cycles being processed at PL3 many spikes occur simultaneously such that their processing requires up to , where is the real-time constraint. Thus, the system is close to its performance limit. A conventional system without DVFS would have to be operated at PL3. In the DVFS approach only a little percentage of cycles are processed at higher PLs, thereby achieving nearly the energy efficiency of the low voltage operation at PL1.

V-A2 Bursting Network

Fig. 16: Bursting network benchmark spike train, sent spikes (blue), number of received spikes per core (green), PL selection thresholds (orange) and core PL (violet). Only core 0 is shown as activity on other cores is nearly identical.

The second benchmark is a sparse random network generating network bursts, where the neurons collectively switch between UP states with high firing rate and DOWN states with low baseline activity. Such network events have been found both in-vitro and in-vivo at different spatial and temporal scales [36]. The implemented model is based on [37] and consists of

excitatory neurons recurrently connected with probability

(Fig. 14(b)). The neurons are equally distributed over the 4 cores. Spike frequency adaptation (SFA) is implemented by creating an inhibitory synapse from each neuron to itself with a long synaptic decay time constant . A background population (BG) of 200 Poisson neurons is connected with to the excitatory population to generate a baseline firing activity in the network. Spikes from the BG population are stored before simulation in the DRAM and thus do not add significant workload. Typical network dynamics are shown in Fig. 16: The network quickly enters an UP state with average firing rate higher than until the SFA silences the neurons into a DOWN state until the next network burst is initiated. The histogram of simulation cycles versus is shown in Fig. 18(b). Here the peak performance PL3 is not utilized.

V-A3 Asynchronous Irregular Firing Network

Fig. 17: Asynchronous network benchmark spike train, sent spikes (blue), number of received spikes per core (green), PL selection thresholds (orange) and core PL (violet). Only core 0 is shown as activity on other cores is nearly identical.

A sparse random network with asynchronous irregular firing activity serves as the third benchmark. The limited size of the prototype system does not allow to implement the standard benchmark for sparse random networks [38], which is commonly used to benchmark SNN simulators [39, 40] or neuromorphic hardware [41]. Instead, we use the same network architecture as for the bursting network (Fig. 14(c)) and disable the spike frequency adaption. Additionally, the recurrent connection probability is reduced to such that the network stays in a low-rate asynchronous irregular firing regime, as can be seen in Fig. 17. Fig. 18(c) shows the corresponding histogram of simulations cycles versus . In this case only the lowest PL is required. The system automatically remains in its most energy efficient operation mode.

(a) Synfire chain network
(b) Bursting network
(c) Asynchronous irregular firing network
Fig. 18: Histograms of simulation cycles () processed at different PLs versus

V-B Power Management Results

To assess the benefit of the dynamic power management, we compare the power consumption for the benchmarks at the highest performance level (PL3) and using DVFS. The power measurement is done differentially. First the total power is measured with the neuromorphic experiment running on the chip. Then spike sending is deactivated and the power is measured. Since no spike is sent, no spike is received and processed. The difference is the synapse processing power. Then all neural processing is deactivated and upon timer interrupt only empty interrupt handlers are called. The power at this stage is measured as . is the neuron processing power. Then the ARM cores are deactivated and the power is measured as . is the baseline power. When DVFS is enabled, the PL is determined by the network activity. Thus, after measuring with the complete software autonomously switching PLs during simulation, the percentage of simulation time at the are recorded and then applied to the simulations when measuring and .

local synfire bursting async
only PL3 only PL1 only PL3 DVFS only PL3 DVFS only PL3 DVFS
totalexcluding unused test chip components 138.2 72.7 135.6 71.2 136.5 71.6 133.8 67.3
infrastructuretimer, router, LPDDR2 48.2 48.2 48.2 48.2 48.2 48.2 48.2 48.2
baseline 71.2 14.9 76.2 17.0 76.0 17.0 76.4 14.7
neuron 3.0 1.7 7.7 3.6 7.8 3.5 7.5 3.6
synapse 15.9 7.9 3.5 2.4 4.5 2.9 1.7 0.8
power [mW] PE 90.0 24.5 87.4 23.0 88.3 23.4 85.6 19.1
SynEvents/s 16,000,000 3,030,000 2,240,000 489,000
E/SynEventtotal power divided by SynEvents/s [nJ] 8.6 4.5 44.7 23.5 61.0 32.0 274 138
E/SynEventPE power divided by SynEvents/s (PE only) [nJ] 5.6 1.5 28.8 7.59 39.4 10.5 175 39.1
TABLE III: Benchmark power results

Tab. III summarizes the power measurement results of the system for the benchmarks. For comparison, we also include the locally-connected network used for the power model parameter extraction in Sec. IV-C. The testchip as shown in Fig. 8 contains only 4 PEs for prototyping purposes, for which the relative impact of infrastructure power, including the LPDDR2 memory interface is relatively high. It is expected that for future neuromorphic SoCs the infrastructure overhead is somehow balanced with respect to the number and performance of the PEs on the chip. Thus, the further comparison of energy efficiency is focused on the PEs only, which benefit from the proposed DVFS technique. Using DVFS, baseline power can be reduced by , neuron power by up to and synapse power by between and , depending on the experiment. The total PE power reduction by means of DVFS is . For comparison with other systems, we also calculate the energy per synaptic event (total energy vs. total synaptic events), which reaches its minimum value of PE energy at highest utilization within the locally connected network, similar to the benchmark used in [29].

V-C Results Comparison

Although this work is focused on a dynamic power management technique for event-based digital neuromorphic systems, thereby not being directly comparable to other neuromorphic approaches, Tab. IV compares the achieved energy consumptions also of different neuromorphic systems. For realistic comparison two metrics for synaptic energy are considered. First, the energy per synaptic event as in total energy divided by synaptic events processed across the system and second the incremental energy for one more synaptic event. These metrics are not scaled to the semiconductor technology, since completely different circuit approaches provide their optimal results in different technology nodes. For a fair comparison these metrics would have to be extracted from the same benchmark running on the different neuromorphic hardware systems [42]. We did not put memristor systems in the table, as the approach seems too different and no large-scale memristor systems have been reported. However, for comparison we would still name a few figures for memristor synapse arrays: Du et al. [7] report measurements of for potentiation/depression at a single synapse, but without the circuit overhead. Chakma et al. [43] simulate memristors and CMOS neurons, reporting between 0.1 and for both learning and passive memristors, with additional for the CMOS neurons. Analog subthreshold systems [6, 4, 3, 44] and mixed-signal systems [45, 46, 47] use analog circuits to mimic neural and synaptic behavior. Custom-digital neuromorphic chips [48, 49, 10] use event-based processing in custom non-processor units. They can be implemented in nanometer CMOS technologies and show low energy per synaptic event regarding total power in the same order of magnitude as the analog and mixed-signal approaches. Multi-processor-based neuromorphic systems, such as this work, trade off much higher system flexibility due to software defined neuromorphic processing by two to three orders of magnitude higher energy consumption. However, the scaling of semiconductor technology together with dynamic power management techniques such as the proposed DVFS in this work reduces this gap. Compared to SpiNNaker approximately reduction of neuron processing energy and PE energy per synaptic event is achieved. For our benchmarks on this work, as summarized in Tab. III, the application of DVFS results in 73% total PE power reduction. The proposed technique is also applicable to custom-digital neuromorphic systems which operate in an event-driven fashion.

System Reference Type Techn. node Neuron power E/SynEvent E/additional SynEvent
[] [/] [] []
Neurogrid [6] analog sub-Vt 180 119 n.a.
ROLLS [4, 5] analog sub-Vt 180 n.a. 0.077
HiAER-IFAT [3] analog sub-Vt 130 50 n.a.
cxQuad [44, 5] Synaptic input event of is broadcast to all per core. Total power assumes firing at connected to each consuming at . mixed-signal 180 46 0.134
BrainScales [45] mixed-signal accelerated 180 100 n.a.
Titan [46, 47] Assuming accelerated operation with speed-up factor of 100, power draw of , 128 inputs firing at connected to each. mixed-signal 28 18 n.a.
TrueNorth [48] custom digital 28 26 n.a.
Odin [49] custom digital 28 n.a. 9.8
Loihi [10] custom digital 14 0.052 n.a. 23.6
SpiNNaker [29]Results extracted from 1st column of Table III in [29], infrastructure power assumed as per board, cf. Figure 6 of [29] MPSoC 130 26 13300regarding PE power only (19300) regarding total power 8000
SpiNNaker2 prototype this workat PL1 MPSoC 28 2.19 1500 (4500) 450

For all systems we report the best case with highest energy efficiency found in literature. Note that results are not fully commensurable, especially for the metric considering total power, as different benchmarks are applied.

TABLE IV: Efficiency comparison of neuromorphic hardware systems

Vi DVFS Architecture Exploration

Based on a numerical power management model from Sec. III and the extracted model parameters from the test chip, an exploration of the DVFS architecture is performed. The synfire chain from Sec. V-A1 is chosen as benchmark, since it shows highly dynamic workload with the temporary demand for peak performance at the highest PL. Fig. 19 shows the measured PE power consumption compared to the DVFS model parameters, extracted with a fanout of 80 similar to the synfire chain configuration as shown in Sec. IV-C. The power values match with acceptable accuracy.

Fig. 19: Measured power consumption versus DVFS model (synfire chain)

For DVFS architecture exploration the number of PLs with dedicated supply rails is considered as parameter, since the hardware overhead of separated supply rails, power switches and external voltage regulators is the main system overhead of the DVFS approach. Therefore, the power saving potential versus the number of PLs is analyzed. It is based on the workload threshold method described in this paper, based on . If the number of PLs is lower, e.g. 2, it is directly switched to PL3 when is achieved. PL2 is omitted in this case. Fig. 20 shows the simulated and measured PE power for different numbers of PLs. They always include the at PL, since this one provides the required peak performance. It can be seen that already with the PE power can be reduced by . Addition of a third level results in power reduction. A hypothetical 4th PL has been added to a scheme of (0.70V, 0.80V, 0.90V, 1.0V) with (125MHz, 300MHz, 400MHz, 500MHz) and analyzed using the model. Adding this results in only additional power reduction compared to three PLs. From this it is concluded that more than with distinct supply rails do not gain much additional efficiency, justifying their additional overhead.

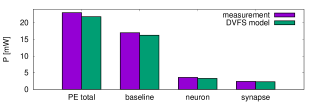

Fig. 20: PE power prediction (baseline power, neuron power, synapse power) of synfire chain benchmark for different number of PLs and one scenario with an additional DFS of level at the lowest available PL

Without the insertion of an additional supply rail, a dynamic frequency scaling (DFS) performance level can be added. This is based on the supply rail selection of the lowest PL but has a much lower ADPLL clock generator frequency setting. The PE can switch to this DFS level, after the neuron and synapse computation within a simulation time step is done after . This allows the reduction of baseline power after the computation is done, while still allowing the core to react on interrupts. Fig. 20 shows an example DFS analysis result where an additional DFS level with clock frequency is assumed. This reduces the total PE baseline power after close to the leakage power value of , and , respectively. Due to the high baseline power portion in this particular implementation, this results in power reduction at the highest PL. Adding one or two more PLs, power can be reduced by additionally and , respectively.

Vii Conclusion

A DVFS power management approach for event-based neuromorphic real-time simulations on MPSoCs has been presented. Its effectiveness has been demonstrated with a CMOS prototype. For a neuromorphic benchmark application, the PE power including baseline power and energy consumption for neuromorphic processing can be significantly reduced by up to compared to non-DVFS operation while maintaining biological real-time operation. Using the presented neuromorphic power management model, energy consumption of the next generation large scale neuromorphic many core systems can be estimated. It helps to design both the power management hardware architecture, the software flow and the strategy for mapping a neuromorphic problem to the system with energy awareness. The results will directly flow into the SpiNNaker2 neuromorphic many core system, which is currently under development.


  • [1] S. Furber, “Large-scale neuromorphic computing systems,” Journal of neural engineering, vol. 13, no. 5, p. 051001, 2016.
  • [2] S. J. van Albada, A. G. Rowley, J. Senk, M. Hopkins, M. Schmidt, A. B. Stokes, D. R. Lester, M. Diesmann, and S. B. Furber, “Performance comparison of the digital neuromorphic hardware spinnaker and the neural network simulation software nest for a full-scale cortical microcircuit model,” Frontiers in neuroscience, vol. 12, 2018.
  • [3] T. Yu, J. Park, S. Joshi, C. Maier, and G. Cauwenberghs, “65k-neuron integrate-and-fire array transceiver with address-event reconfigurable synaptic routing,” in Biomedical Circuits and Systems Conference (BioCAS), 2012 IEEE.   IEEE, 2012, pp. 21–24.
  • [4] N. Qiao, H. Mostafa, F. Corradi, M. Osswald, F. Stefanini, D. Sumislawska, and G. Indiveri, “A reconfigurable on-line learning spiking neuromorphic processor comprising 256 neurons and 128k synapses,” Frontiers in neuroscience, vol. 9, p. 141, 2015.
  • [5] G. Indiveri, F. Corradi, and N. Qiao, “Neuromorphic architectures for spiking deep neural networks,” in Electron Devices Meeting (IEDM), 2015 IEEE International.   IEEE, 2015, pp. 4–2.
  • [6] B. V. Benjamin, P. Gao, E. McQuinn, S. Choudhary, A. R. Chandrasekaran, J.-M. Bussat, R. Alvarez-Icaza, J. V. Arthur, P. A. Merolla, and K. Boahen, “Neurogrid: A mixed-analog-digital multichip system for large-scale neural simulations,” Proceedings of the IEEE, vol. 102, no. 5, pp. 699–716, 2014.
  • [7] N. Du, M. Kiani, C. G. Mayr, T. You, D. Bürger, I. Skorupa, O. G. Schmidt, and H. Schmidt, “Single pairing spike-timing dependent plasticity in bifeo3 memristors with a time window of 25 ms to 125 s,” Frontiers in neuroscience, vol. 9, 2015.
  • [8]

    H. Mostafa, A. Khiat, A. Serb, C. G. Mayr, G. Indiveri, and T. Prodromakis, “Implementation of a spike-based perceptron learning rule using tio2- x memristors,”

    Frontiers in neuroscience, vol. 9, 2015.
  • [9] F. Akopyan, J. Sawada, A. Cassidy, R. Alvarez-Icaza, J. Arthur, P. Moerolla, N. Imam, Y. Nakamura, P. Datta, G. J. Nam, B. Taba, M. Beakes, B. Brezzo, J. B. Kuang, R. Manohar, W. P. Risk, B. Jackson, and D. S. Modha, “TrueNorth: design and tool flow of a 65 mW 1 million neuron programmable neurosynaptic chip,” IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 34, no. 10, pp. 1537–1557, Oct 2015.
  • [10] M. Davies, N. Srinivasa, T. H. Lin, G. Chinya, Y. Cao, S. H. Choday, G. Dimou, P. Joshi, N. Imam, S. Jain, Y. Liao, C. K. Lin, A. Lines, R. Liu, D. Mathaikutty, S. McCoy, A. Paul, J. Tse, G. Venkataramanan, Y. H. Weng, A. Wild, Y. Yang, and H. Wang, “Loihi: A neuromorphic manycore processor with on-chip learning,” IEEE Micro, vol. 38, no. 1, pp. 82–99, January 2018.
  • [11] E. Painkras, L. A. Plana, J. Garside, S. Temple, F. Galluppi, C. Patterson, D. R. Lester, A. D. Brown, and S. B. Furber, “Spinnaker: A 1-w 18-core system-on-chip for massively-parallel neural network simulation,” IEEE Journal of Solid-State Circuits, vol. 48, no. 8, pp. 1943–1953, Aug 2013.
  • [12] J. J. Harris, R. Jolivet, and D. Attwell, “Synaptic energy use and supply,” Neuron, vol. 75, no. 5, pp. 762–777, 2012.
  • [13] P. Lennie, “The cost of cortical computation,” Current biology, vol. 13, no. 6, pp. 493–497, 2003.
  • [14] D. Ma and R. Bondade, “Enabling power-efficient DVFS operations on silicon,” Circuits and Systems Magazine, IEEE, vol. 10, no. 1, pp. 14 –30, quarter 2010.
  • [15] M. Winter, S. Kunze, E. Adeva, B. Mennenga, E. Matus, G. Fettweis, H. Eisenreich, G. Ellguth, S. Höppner, S. Scholze, R. Schüffny, and T. Kobori, “A 335Mb/s 3.9mm2 65nm CMOS flexible MIMO detection-decoding engine achieving 4G wireless data rates,” in Solid-State Circuits Conference Digest of Technical Papers (ISSCC), 2012 IEEE International, Feb. 2012, pp. 216 –218.
  • [16] B. Noethen, O. Arnold, E. Perez Adeva, T. Seifert, E. Fischer, S. Kunze, E. Matus, G. Fettweis, H. Eisenreich, G. Ellguth, S. Hartmann, S. Höppner, S. Schiefer, J.-U. Schlusler, S. Scholze, D. Walter, and R. Schüffny, “A 105GOPS 36mm2 heterogeneous SDR MPSoC with energy-aware dynamic scheduling and iterative detection-decoding for 4G in 65nm CMOS,” in Solid-State Circuits Conference Digest of Technical Papers (ISSCC), 2014 IEEE International, Feb 2014.
  • [17] S. Haas, T. Seifert, B. Nöthen, S. Scholze, S. Höppner, A. Dixius, E. P. Adeva, T. Augustin, F. Pauls, S. Moriam, M. Hasler, E. Fischer, Y. Chen, E. Matúš, G. Ellguth, S. Hartmann, S. Schiefer, L. Cederström, D. Walter, S. Henker, S. Hänzsche, J. Uhlig, H. Eisenreich, S. Weithoffer, N. Wehn, R. Schüffny, C. Mayr, and G. Fettweis, “A heterogeneous SDR MPSoC in 28 nm CMOS for low-latency wireless applications,” in Proceedings of the 54th Annual Design Automation Conference 2017, ser. DAC ’17.   New York, NY, USA: ACM, 2017, pp. 47:1–47:6. [Online]. Available: http://doi.acm.org/10.1145/3061639.3062188
  • [18] S. Haas, O. Arnold, B. Nöthen, S. Scholze, G. Ellguth, A. Dixius, S. Höppner, S. Schiefer, S. Hartmann, S. Henker, T. Hocker, J. Schreiter, H. Eisenreich, J. U. Schlüßler, D. Walter, T. Seifert, F. Pauls, M. Hasler, Y. Chen, H. Hensel, S. Moriam, E. Matús, C. Mayr, R. Schüffny, and G. P. Fettweis, “An MPSoC for energy-efficient database query processing,” in 2016 53nd ACM/EDAC/IEEE Design Automation Conference (DAC), June 2016, pp. 1–6.
  • [19] S. Höppner, Y. Yan, B. Vogginger, A. Dixius, J. Partzsch, F. Neumärker, S. Hartmann, S. Schiefer, S. Scholze, G. Ellguth, L. Cederstroem, M. Eberlein, C. Mayr, S. Temple, L. Plana, J. Garside, S. Davison, D. R. Lester, and S. Furber, “Dynamic voltage and frequency scaling for neuromorphic many-core systems,” in 2017 IEEE International Symposium on Circuits and Systems (ISCAS), May 2017, pp. 1–4.
  • [20] J. Navaridas, M. Luján, L. A. Plana, S. Temple, and S. B. Furber, “Spinnaker: Enhanced multicast routing,” Parallel Computing, vol. 45, pp. 49 – 66, 2015, computing Frontiers 2014: Best Papers. [Online]. Available: http://www.sciencedirect.com/science/article/pii/S0167819115000095
  • [21] F. Neumarker, S. Höppner, A. Dixius, and C. Mayr, “True random number generation from bang-bang ADPLL jitter,” in 2016 IEEE Nordic Circuits and Systems Conference (NORCAS), Nov 2016, pp. 1–5.
  • [22] S. Höppner, C. Shao, H. Eisenreich, G. Ellguth, M. Ander, and R. Schüffny, “A power management architecture for fast per-core DVFS in heterogeneous MPSoCs,” in Circuits and Systems (ISCAS), 2012 IEEE International Symposium on, May 2012, pp. 261 –264.
  • [23] S. Höppner, S. Haenzsche, G. Ellguth, D. Walter, H. Eisenreich, and R. Schüffny, “A fast-locking ADPLL with instantaneous restart capability in 28-nm CMOS technology,” Circuits and Systems II: Express Briefs, IEEE Transactions on, vol. 60, no. 11, pp. 741–745, Nov 2013.
  • [24] S. Höppner, S. Henker, H. Eisenreich, and R. Schüffny, “An open-loop clock generator for fast frequency scaling in 65nm CMOS technology,” in Mixed Design of Integrated Circuits Systems, 2011. MIXDES ’11. MIXDES-18th International Conference, Jun. 2011.
  • [25] S. B. Furber, F. Galluppi, S. Temple, and L. A. Plana, “The SpiNNaker project,” Proceedings of the IEEE, vol. 102, no. 5, pp. 652–665, 2014.
  • [26] M. Noack, J. Partzsch, C. Mayr, and R. Schüffny, “Biology-derived synaptic dynamics and optimized system architecture for neuromorphic hardware,” in 17th International Conference on Mixed Design of Integrated Circuits and Systems MIXDES 2010, 2010, pp. 219–224.
  • [27] T. Sharp, L. A. Plana, F. Galluppi, and S. Furber, Neural Information Processing: 18th International Conference, ICONIP 2011, Shanghai, China, November 13-17, 2011, Proceedings, Part III.   Berlin, Heidelberg: Springer Berlin Heidelberg, 2011, ch. Event-Driven Simulation of Arbitrary Spiking Neural Networks on SpiNNaker, pp. 424–430.
  • [28] J. Haid, C. Bachmann, A. Genser, C. Steger, and R. Weiss, “Power emulation: Methodology and applications for hw/sw power optimization,” in Eighth ACM/IEEE International Conference on Formal Methods and Models for Codesign (MEMOCODE 2010), July 2010, pp. 133–138.
  • [29] E. Stromatias, F. Galluppi, C. Patterson, and S. Furber, “Power analysis of large-scale, real-time neural networks on SpiNNaker,” in Neural Networks (IJCNN), The 2013 International Joint Conference on, Aug 2013, pp. 1–8.
  • [30] J. Partzsch, S. Höppner, M. Eberlein, R. Schüffny, C. Mayr, D. R. Lester, and S. Furber, “A fixed point exponential function accelerator for a neuromorphic many-core system,” in 2017 IEEE International Symposium on Circuits and Systems (ISCAS), May 2017, pp. 1–4.
  • [31] S. Hoppner, D. Walter, T. Hocker, S. Henker, S. Hanzsche, D. Sausner, G. Ellguth, J.-U. Schlussler, H. Eisenreich, and R. Schuffny, “An energy efficient multi-gbit/s noc transceiver architecture with combined AC/DC drivers and stoppable clocking in 65 nm and 28 nm CMOS,” Solid-State Circuits, IEEE Journal of, vol. 50, no. 3, pp. 749–762, March 2015.
  • [32] S. Höppner, Y. Yan, B. Vogginger, A. Dixius, J. Partzsch, P. Joshi, F. Neumärker, S. Hartmann, S. Schiefer, S. Scholze, G. Ellguth, L. Cederstroem, M. Eberlein, C. Mayr, S. Temple, L. Plana, J. Garside, S. Davison, D. R. Lester, and S. Furber, “Live demonstration: Dynamic voltage and frequency scaling for neuromorphic many-core systems,” in 2017 IEEE International Symposium on Circuits and Systems (ISCAS), May 2017, pp. 1–1.
  • [33]

    G. Buzsáki and K. Mizuseki, “The log-dynamic brain: how skewed distributions affect network operations,”

    Nature Reviews Neuroscience, vol. 15, no. 4, pp. 264–278, 2014.
  • [34] J. Kremkow, L. U. Perrinet, G. S. Masson, and A. Aertsen, “Functional consequences of correlated excitatory and inhibitory conductances in cortical networks,” Journal of Computational Neuroscience, vol. 28, no. 3, pp. 579–594, 2010. [Online]. Available: http://dx.doi.org/10.1007/s10827-010-0240-9
  • [35] M. Abeles, “Synfire chains,” Scholarpedia, vol. 4, no. 7, p. 1441, 2009.
  • [36] G. Gigante, G. Deco, S. Marom, and P. Del Giudice, “Network events on multiple space and time scales in cultured neural networks and in a stochastic rate model,” PLoS computational biology, vol. 11, no. 11, p. e1004547, 2015.
  • [37] M. Mattia and M. V. Sanchez-Vives, “Exploring the spectrum of dynamical regimes and timescales in spontaneous cortical activity,” Cognitive neurodynamics, vol. 6, no. 3, pp. 239–250, 2012.
  • [38] T. P. Vogels and L. F. Abbott, “Signal propagation and logic gating in networks of integrate-and-fire neurons,” Journal of neuroscience, vol. 25, no. 46, pp. 10 786–10 795, 2005.
  • [39] R. Brette, M. Rudolph, T. Carnevale, M. Hines, D. Beeman, J. M. Bower, M. Diesmann, A. Morrison, P. H. Goodman, F. C. Harris et al., “Simulation of networks of spiking neurons: a review of tools and strategies,” Journal of computational neuroscience, vol. 23, no. 3, pp. 349–398, 2007.
  • [40] F. Zenke and W. Gerstner, “Limits to high-speed simulations of spiking neural networks using general-purpose computers,” Frontiers in neuroinformatics, vol. 8, 2014.
  • [41] J. C. Knight and S. B. Furber, “Synapse-centric mapping of cortical models to the spinnaker neuromorphic architecture,” Frontiers in neuroscience, vol. 10, 2016.
  • [42] A. Diamond, T. Nowotny, and M. Schmuker, “Comparing neuromorphic solutions in action: implementing a bio-inspired solution to a benchmark classification task on three parallel-computing platforms,” Frontiers in neuroscience, vol. 9, p. 491, 2016.
  • [43] G. Chakma, M. M. Adnan, A. R. Wyer, R. Weiss, C. D. Schuman, and G. S. Rose, “Memristive mixed-signal neuromorphic systems: Energy-efficient learning at the circuit-level,” IEEE Journal on Emerging and Selected Topics in Circuits and Systems, vol. 8, no. 1, pp. 125–136, 2018.
  • [44] S. Moradi, N. Qiao, F. Stefanini, and G. Indiveri, “A scalable multicore architecture with heterogeneous memory structures for dynamic neuromorphic asynchronous processors (dynaps),” IEEE transactions on biomedical circuits and systems, 2017.
  • [45] S. Schmitt, J. Klaehn, G. Bellec, A. Grübl, M. Guettler, A. Hartel, S. Hartmann, D. H. de Oliveira, K. Husmann, V. Karasenko, M. Kleider, C. Koke, C. Mauch, E. Müller, P. Mueller, J. Partzsch, M. A. Petrovici, S. Schiefer, S. Scholze, B. Vogginger, R. A. Legenstein, W. Maass, C. Mayr, J. Schemmel, and K. Meier, “Neuromorphic hardware in the loop: Training a deep spiking network on the brainscales wafer-scale system,” Proceedings of the 2017 IEEE International Joint Conference on Neural Networks, pp. 2227–2234, 2017. [Online]. Available: http://ieeexplore.ieee.org/document/7966125/
  • [46] C. Mayr, J. Partzsch, M. Noack, S. Hänzsche, S. Scholze, S. Höppner, G. Ellguth, and R. Schüffny, “A biological-realtime neuromorphic system in 28 nm CMOS using low-leakage switched capacitor circuits,” IEEE transactions on biomedical circuits and systems, vol. 10, no. 1, pp. 243–254, 2016.
  • [47] M. Noack, J. Partzsch, C. Mayr, S. Hänzsche, S. Scholze, S. Höppner, G. Ellguth, and R. Schüffny, “Switched-capacitor realization of presynaptic short-term-plasticity and stop-learning synapses in 28 nm CMOS,” Frontiers in Neuroscience, vol. 9, 2015.
  • [48] P. A. Merolla, J. V. Arthur, R. Alvarez-Icaza, A. S. Cassidy, J. Sawada, F. Akopyan, B. L. Jackson, N. Imam, C. Guo, Y. Nakamura et al., “A million spiking-neuron integrated circuit with a scalable communication network and interface,” Science, vol. 345, no. 6197, pp. 668–673, 2014.
  • [49] C. Frenkel, J.-D. Legat, and D. Bol, “A 0.086-mm 9.8-pJ/SOP 64k-synapse 256-neuron online-learning digital spiking neuromorphic processor in 28nm CMOS,” arXiv preprint arXiv:1804.07858, 2018.
