The ability to accurately analyse geoscience data at, or close to, real time is becoming increasingly important. For example, within the oil and gas sector this need can arise as a consequence of (i) the sheer volume of data now being collected and (ii) operational considerations. It is this setting that we consider in this article, seeking to enable the rapid identification of certain anomalous features within Distributed Acoustic Sensing data obtained from an oil producing facility. Specifically, we seek to build on recent work within the non-stationary time series community to develop an approach that permits the online monitoring of these complex signals.
The technology used to generate the data considered in this article, Distributed Acoustic Sensing (DAS), involves the use of a fibre-optic cable as a sensor in which the entire length of the fibre is used to measure acoustic or thermal disturbances. DAS originates from the defence industry where it is commonly used in security and border monitoring (Owen et al., 2012). Recently, the technology has been applied within the oil and gas industry, for example in pipeline monitoring and management (Williams, 2012; Mateeva et al., 2014). The use of DAS to monitor production volumes and composition within a well requires the installation of a fibre-optic cable along the length of the well combined with an interrogator unit on the surface (Paleja et al., 2015). This unit sends light pulses down the cable and processes the back-scattered light. The installation of such technology has become popular as it can be a cost effective way to obtain continuous, real-time and high-resolution information.
When monitoring the behaviour of wells it is important to be able to detect unusual occurrences, including potential corruptions of the data. Striping is one particular form of corruption that can have a particularly deleterious effect, rendering data potentially unusable in a specific time region. Stripes are characterised by sudden, and distinctive changes in the structure of the signal over time, see Mateeva et al. (2014) and Ellmauthaler et al. (2017) for examples. These features can be present simultaneously across all channels or only apparent across a subset of channels, for example from the surface to a set depth within the well. Crucially, the occurrence of stripes simultaneously at different locations indicates that these features are not physical. Instead stripes can occur for a number of reasons, including a disturbance of the fibre-optic cable near the unit, or problems with the electronics due to the high sampling rate.
Visually, stripes can manifest themselves in a variety of ways. Some are visually obvious within the DAS data, such as the stripe that occurs at around ms in Figure 1(a). Other occurrences can be more subtle, and therefore more challenging to detect. For example, the stripe could be a change in the second-order structure. Critically such features can make it difficult to carry out further analysis of the data, such as flow rate analysis. For this reason, there is significant interest in being able to detect regions of striping as soon as they occur, so that they can be removed whilst keeping as much of the original signal intact as possible. It is this challenge of dynamically detecting striping regions that motivates the work presented in this article.
There exist a variety of techniques for the classification of time series in the statistical and machine learning literature. An exhaustive review is beyond the scope of this article, but popular classification methods include hidden Markov models (HMM) (see e.g.Rabiner (1989); Ephraim and Merhav (2002); Cappé et al. (2009)1995; Muller et al., 2001; Kampouraki et al., 2009)2004; Povinelli et al., 2004; Kersten, 2014); nearest neigbour classifiers (Zhang et al., 2004; Wei and Keogh, 2006) and multiscale methods (Chan and Fu, 1999; Mörchen, 2003; Aykroyd et al., 2016) to name but a few. More recent contributions for large-scale (online) classification include the MOA machine learning framework (Bifet et al., 2010; Read et al., 2012). For a recent overview of classification in the time series context, see for example Fu (2011). Dependent on the application being considered, one might adopt various modelling choices. For example, some classifiers have distinct advantages, such as simplicity of implementation, speed or suitability for massive online applications. However many, such as GMM or SVM-based approaches, do not explicitly allow temporal dependence or are limited to a narrow class of series structure (HMMs), which is seen as crucial to classification of time series in the majority of realistic settings (see e.g. Bifet et al. (2013)). Complex hidden dependence structure is typical of the DAS data studied in this article (see Figure 2).
Our approach to the dynamic stripe identification problem builds on recent work within the time series literature. Wavelet approaches to modelling time series have become very popular in recent years, principally because of their ability to provide time-localised measures of the spectral content inherent within many contemporary data (e.g. Killick et al. (2013); Nam et al. (2015); Chau and von Sachs (2016); Nason et al. (2017)). This locally stationary
modelling paradigm is flexible enough to represent a wide range of non-stationary behaviour and has also been extended to enable the modelling and estimation of multivariate non-stationary time series structures (e.g.Sanderson et al. (2010) and Park et al. (2014)). Typically these settings assume that the data have already been collected, and are available for offline analyses.
The novel contribution in this article is to employ the MvLSW modelling framework of Park et al. (2014) to represent the DAS data, using a moving window approach, thereby extending previous work to the online dynamic classification setting. This modelling framework allows us to classify multivariate time series with complex dependencies both within and between channels of the series, including those which exhibit visually subtle changes in behaviour over time. Reusing data calculations allows us to also produce a computationally efficient nondecimated wavelet transform in the online setting.
Our article is organised as follows. Section 2 contains an overview of the Multivariate Locally Stationary Wavelet (MvLSW) model and existing dynamic classification method. In Section 3, we describe the proposed online classification method. Section 4 contains a simulation study evaluating the performance of the proposed classifier using synthetic data, further justifying the use of time-varying coherence as a feature for classification. A case study using an acoustic sensing dataset is then described in Section 5, where we discuss the utility of the proposed classifier as a stripe detection method. Finally, Section 6 includes some concluding remarks.
2 Wavelets and time series
The problem of modelling and analysing non-stationary time series can be approached in a number of ways that often involve assuming the changing second-order structure adopts a time varying spectrum or autocovariance. Examples within the existing literature include the oscillatory processes (Priestley, 1981), Locally Stationary Fourier model (Dahlhaus, 1997) and time-varying autoregressive processes (Dahlhaus et al., 1999). Due to the high frequency nature of acoustic sensing data, we focus our attention on wavelet-based methods such as the Locally Stationary Wavelet (LSW) processes, introduced by Nason et al. (2000). The use of wavelets allows for the time-scale decomposition of a signal using computationally efficient transform algorithms, whilst also allowing the structure to change over time.
Methods for the classification of non-stationary time series can broadly be divided into two categories; static or dynamic. Static classification approaches attempt to assign an entire test signal to a particular class. They differ in the way in which they choose to model the nonstationarity, including through Locally Stationary Fourier processes (Sakiyama and Taniguchi, 2004), the smooth localised exponentials (SLEX) framework (Huang et al., 2004) and wavelets (Fryzlewicz and Ombao, 2009; Krzemieniewska et al., 2014). In contrast, dynamic classification approaches allow for the class assignment of the test signal to vary over time which allows for more flexibility in the classification and covers problems where the underlying nonstationarity is due to class switching. The method that we introduce is an online analogue of the dynamic classification approach of Park et al. (2018) which looks to detect subtle changes in the dependence structure of a multivariate signal in a fast and efficient manner.
Before introducing our proposed method in Section 3, we first outline some details of the locally stationary wavelet framework of Park et al. (2014) together with the (offline) dynamic classification method introduced in Park et al. (2018) that forms the basis of our online approach. We begin with some introductory concepts of wavelets. For a more comprehensive introduction to the area, see Nason (2008) or Vidakovic (1999).
2.1 Discrete wavelet transforms
Succinctly, wavelets can be seen as oscillatory basis functions with which one can represent signals in a multiscale manner. More specifically, for a function (signal) , we can write
for scales and locations , and where the wavelet is a basis function formed as a dilation and translation of a “mother” wavelet ; scaling functions are similarly formed as dilated and translated versions of a father wavelet . The wavelet coefficients capture local oscillatory behaviour of the signal at a scale (frequency) , whereas the scaling coefficients represent the signal’s smooth (mean) behaviour at different scales. More specifically, fine scale coefficients capture the local characteristics of a signal; coarse scale coefficients describe the overall behaviour of the signal.
The Discrete Wavelet Transform (DWT).
Computation of wavelet coefficients resulting from traditional wavelet transforms is performed using the so-called Discrete Wavelet Transform (DWT), first introduced by Mallat (1989). The algorithm proceeds by alternately applying high- and low-pass filtering and decimation (subsampling) operations to the observed data.
Let and be a low- and high-pass filter pair associated with a given wavelet, such as the quadrature mirror filters used in the construction of compactly supported wavelets introduced by Daubechies (1992). Following Nason and Silverman (1995), let denote the even decimation operator that selects every even-indexed element in a sequence, in other words . The detail coefficients of the DWT of a time series (where ) can be found using
for . Similarly, the scaling or smooth coefficients of the DWT are given by
The information contained in the original time series can thus be fully described by the set of coefficients .
The Nondecimated Discrete Wavelet Transform (NDWT).
The nondecimated wavelet transform (NDWT) is a modification of the DWT outlined above in which the decimation step is not carried out, resulting in smooth and detail coefficients at each level of the transform. This allows for a fuller description of the local characteristics of the data in the decomposition, a feature that turns out to be particularly helpful for describing time series. A more detailed treatment of the NDWT can be found in Nason and Silverman (1995), see also Coifman and Donoho (1995); Percival (1995). In the context of streaming data, the transform is such that only a small number of coefficients need to be recomputed at each time step, recycling previously evaluated coefficients. This computationally efficient algorithm will be used within our online dynamic classification technique described in Section 3.
2.2 Multivariate locally stationary wavelet (MvLSW) processes
We now turn to consider the application of wavelets within non-stationary time series models. Specifically we focus on the recently proposed multivariate locally stationary wavelet (MvLSW) framework introduced by Park et al. (2014), which we later use to model the DAS data described in Section 1. This approach provides a flexible model for multivariate time series that is able to capture (second order) nonstationarity, as well as temporally inhomogeneous dependence structure between channels of a multivariate series.
Following Park et al. (2014), a -variate locally stationary wavelet process can be represented as
where and is the lower-triangular transfer function matrix. Each element of the transfer function matrix is assumed to be a Lipschitz continuous function with Lipschitz constants, , that satisfy for each pair of channels . The vectors are discrete non-decimated wavelets associated to a low- / high-pass filter pair, , constructed according to Nason et al. (2000) as
In the equations above, is the Kronecker delta function and where is the number of non-zero elements of the filter . The random vectors in (1) are defined such that and .
The local wavelet spectral (LWS) matrix and the wavelet coherence of a multivariate signal are key quantities of interest in the dynamic classification problem. Given a MvLSW signal with associated transfer function matrix, , the local wavelet spectral matrix is defined as
This quantity describes the cross-covariance between channels at each scale and (rescaled) location . The coherence is a measure of the dependence between the channels of a multivariate signal at a particular time and scale. Following Park et al. (2014), the wavelet coherence matrix is given by
where is the LWS matrix from (2) and is a diagonal matrix with entries given by . It is these spectral and coherence quantities which we use to enable us to accurately classify multichannel signals with time-varying dependence and second order structure.
Estimation of MvLSW spectral and coherence components.
In practice, the coherence and LWS matrix are unknown for an observed multivariate series and need to be estimated. The LWS matrix of a multivariate signal can be estimated by first calculating the empirical wavelet coefficient vector at locations and scales . The raw wavelet periodogram matrix is then defined as .
Park et al. (2014) establish that the raw wavelet periodogram is a biased and inconsistent estimator of the true LWS matrix, . However, they show that (asymptotically) this bias is described by the well known inner product matrix of discrete autocorrelation wavelets, . The elements of are given by where (see Eckley and Nason (2005) or Nason et al. (2000) for further information). The bias inherent within the raw wavelet periodogram can therefore be removed using the inverse of this inner product matrix. To obtain consistency, the resulting estimate must be smoothed in some way, for example using a rectangular kernel smoother (Park et al., 2014). This results in an (asymptotically) unbiased, and consistent, estimator of the LWS matrix, , given by , where denotes the kernel bandwidth corresponding to a smoothing window of length . Estimation of the wavelet coherence matrix is then straightforward, simply using a plug-in estimator, substituting into Equation (3).
With the key modelling notation established, we now briefly summarise an approach to dynamic classification based upon the MvLSW framework. This will be the cornerstone of the approach that we propose in Section 3.
2.3 Dynamic Classification
Following their work on MvLSW processes, Park et al. (2018) introduced an approach to dynamically classify a Multivariate Locally Stationary Wavelet signal whose class membership may change over time. The approach assumes that at any time , the signal can belong to one of different classes, where is known. Let denote the class membership of at time where . Following Park et al. (2018), the signal in (1) can be then represented as
where is the class specific transfer function which is constrained to be constant over time and represents an indicator function which equals 1 if and 0 otherwise.
To classify the multivariate signal , the approach makes use of a set of training signals, denoted for . It is assumed that the class membership of these training signals over time, , is known. For each training signal, the LWS matrix and coherence matrix can be estimated, as discussed in Section 2.2.
The aim of this classification method is to calculate the probability of the signal belonging to a particular class at a given time point. To do this, the likelihood of the signal belonging to each class given the information contained in the training signals is calculated. It is necessary to apply a Fisher-z transform to the coherence estimates to ensure that the estimates can be approximated by a Gaussian distribution. For a class, the transformed coherence is given by
The mean and variance of the transformed coherence for classcan be estimated using the transformed coherence for the training signals that are known to belong to that particular class. Note that in practice, the Gaussian distribution will be an approximation to the true distribution of the (finite sample) Fisher z-transformed coherence estimates. We recommend that, as for any such analysis, this assumption is validated for any data set analysed.
As in Krzemieniewska et al. (2014), classification is performed using a subset of wavelet coefficients that show the largest difference between the classes in terms of the transformed coherence. The subset, denoted by , consists of the scale and channel indices for . is made up of the coefficients that have the largest values of the discrepancy measure given by
In practice, a proportion is typically chosen and the subset are those % of time-scale indices with the largest discrepancies (Krzemieniewska et al., 2014). In order to estimate the probability that the signal belongs to a particular class at a given time, the transformed coherence
is first estimated, before using Bayes’ theorem to obtain
where is the likelihood and
is a prior probability(Park et al., 2018). Due to the use of the Fisher-z transform in (4), the likelihood takes the form of a Gaussian likelihood with mean vector and covariance matrix . The vector consists of the elements of , whilst similarly contains the elements . The Gaussian likelihood hence takes the form
In practice, the true mean vectors and covariance matrices of are unknown, and they are estimated using the training data. In the examples provided in Section 4, we use a flat (uninformative) prior. However, of course, many other prior specifications could be used in the formulation above to reflect beliefs from application-specific expert knowledge.
The dynamic classification method described here is an offline approach that calculates the probability of belonging to a particular class at each time point. Since we are interested in detecting stripes in DAS data in an online setting, we adapt the existing method to allow for classification of data streams. We describe our approach below.
3 Online dynamic classification of multivariate series
In order to adapt the existing dynamic classification method outlined in Section 2.3 to an online setting, we make use of a moving window approach. The use of such a window encapsulates the constraint in many data streaming applications that there is only a limited data storage and memory with which to perform analysis.
Our online dynamic classification technique proceeds as follows. For a window of length the first step of our algorithm is to calculate the set of discriminative indices as defined in Equation (5) using a set of training signals of length . For reasons of efficiency, the discriminative indices are used in the classification step for each window of the data. Although window-specific indices could be used, in our experience, updating the set of discriminative indices for each window increases computational complexity without providing significant accuracy improvement. The dynamic classification method described in Section 2.3 is applied to the first window of data to obtain the probability that the signal belongs to a particular class for the time points in the window.
Upon arrival of a new data point, the window then shifts by one, and the data under analysis consists of the old data together with the new data point, but we also lose the first data point contained in the previous window. The online wavelet transform is then used to efficiently update the wavelet coefficients and the transformed coherence estimate for the new window. Using the information previously calculated from the training signals, we can then obtain the probability that the signal belongs to a particular class for the time points contained in the new window. The algorithm continues by repeatedly moving the window for each new data point and estimating the probability of each data point belonging to a class until we reach the end of the data stream.
During our classification algorithm, we obtain multiple estimates for the probability that a signal belongs to a particular class (at each time point) from the different windows into which a data point falls. For example, for a time series of length analysed with a moving window of length , we obtain estimates for the probabilities of an individual time point belonging to a given class , which we denote for window .
A question that arises as a result of the iterative approach is how to combine the estimates from different windows to obtain an overall probability that the time point belongs to a particular class, and hence classify the signal. In what follows, for computational simplicity we use a simple average, but other more sophisticated combination methods could be used. In other words, our final probability estimates are given by
In some applications, an overall classification of the signal is required rather than probability estimates. In this case, the class that has the largest probability is assigned to the time point for all .
A summary of our method for estimating the probability that a given multivariate signal belongs to a particular class at a particular time is given in Algorithm 1.
4 Synthetic Data Examples
We now turn to assess the performance of our proposed online dynamic classification approach. To this end, a simulation study is designed to test the ability of this wavelet-based appproach to classify data streams exhibiting various characteristics. More specifically, the study consists of three different scenarios. These scenarios are chosen to mimic signals arising in practice:
Scenario 1: Signal of length 1024, short time segments of length 100 between changes in class, nine class changes in total.
Scenario 2: Signal of length 1024, alternating long/short segments of length 300 and 100 between changes, five class changes in total.
Scenario 3: Signal of length 2048, long segments of length 300 between changes, six class changes in total.
For all scenarios, the generated series randomly switch classes between time segments. A window length of 256 is used when implementing the online dynamic classification method and the training data consists of 10 signals, some of which contain changes in class. The R packages wavethresh (Nason, 2016) and mvLSW (Taylor et al., 2017) are used to calculate the wavelet coefficients and transformed coherence that are used in the online dynamic classification.
Long segments of length 300 between class changes are chosen to ensure that there is a maximum of one class change in each dynamic classification window. In the situation where the class changes are reasonably far apart, we expect the online dynamic classification algorithm to classify the signal well. As a contrast, short segments of length 100 are also chosen to demonstrate some potential limitations of the method. In particular, when the signal contains multiple class changes that are close together, there is a possibility that our approach will misclassify the signals.
For each scenario, we consider a number of examples of generating processes for the classes in the multivariate series. The first example we examine consists of three classes where each class is defined by a trivariate normal signal with mean and differing cross-channel dependence structure. More specifically, the classes are defined by the three covariance matrices
Example simulated data for this process using the different class switching scenarios above are shown in Figure 2(a).
To investigate the potential of our proposed approach further, we studied an example with a time-varying moving average (VMA) process, with three classes defined by the following coefficient matrices:
The third example we consider is a vector autoregressive process with intra- and cross-channel changes in dependence between each class (see Figure 2(c)). The three classes in the example are defined by
where the noise vectors are zero-mean multivariate normal realisations, distributed with covariances
In the simulation study, we compare our proposed method with a number of alternative classification techniques. Firstly we consider a Hidden Markov Model (HMM) approach – a probabilistic model of the joint distribution of observed variables, together with their “hidden” states (in this setting, classes). Such methods have previously been used for classification in the literature, see for exampleAinsleigh et al. (2002). In this model, it is assumed that (i) the observed data at a particular time is independent of all other variables, given its class and (ii) given the previous class, the class at a time is independent of all other variables (i.e. the changes in class are Markovian). This means that we assume that the probability of changing class does not depend on time or previous class membership, which can be an unrealistic assumption to make in practice. Furthermore, HMMs can be computationally intensive to implement especially in multiclass settings, requiring procedures such as the EM algorithm for tractable model fitting, see e.g. Cappé et al. (2009). An introduction to HMMs and their applications can be found in Zucchini and MacDonald (2009).
A sequential HMM approach is applied to both the full test signal and its transformed coherence at the set of discriminative indices, using the R package HMM (Himmelmann, 2010). In both cases, the model is initialized to have equal state probabilities, and then trained using the initial data. When a new data point arrives, the probabilities of belonging to each state are computed. This process of increasing the number of data points and computing the probabilities is repeated until we reach the end of the signal. As with the online dynamic classification approach, multiple estimates for the probability of belonging to a state at a particular time point are obtained. This is because each time a data point falls within a window, probabilities associated to the time point belonging to a particular class are calculated. For each time point, the estimates are averaged and the overall classification of the signal is then defined to be the most likely state at each point. We also considered a third variant of the sequential HMM approach that was applied to each window of the data used in the online dynamic classification and the corresponding transformed coherence. However this produced poor results so we omit them from the comparisons below.
To demonstrate the importance of accounting for the dependence structure within the test series, we also apply a support vector machine (SVM) classifier to the series, available in the R package e1071 (Meyer et al., 2015), as well as the mixture modelling approach from the mclust R package (Fraley et al., 2017) (denoted GMM). These methods do not explicitly allow temporal dependence in the classification rules, and so we would expect them to perform poorly in cases where this dependence features in the test series. Specifically, we used a radial basis kernel for the SVM classifier. The GMM approach implemented allows for potentially different numbers of mixture components and covariance structures for each class, with the number of components chosen with the Bayesian information criterion (BIC). Similar to the HMM method described above, we show results on the SVM and GMM methods applied to the transformed coherence measure – the results for the techniques on the raw series performed poorly and so they aren’t reported in the tables. In addition, we compare our method to the Naïve Bayes (NB) classifier in the RMOA (Wijfells, 2014) suite of online methods (again using the transformed coherence). This latter technique uses a Bayesian classification rule similar to that in (6), and hence provides a useful comparison to our proposed use of time-varying wavelet coherence in a Bayesian rule. We also investigated the performance of several of the ensemble classification techniques implemented in the RMOA package, however their performance was similar to the NB classifier so we omit these results for brevity.
Training procedure details.
The training data for both the online dynamic classification and the sequential HMM approaches consists of ten signals of length 256. Of the ten signals, we simulate two each from Class 1, 2 and 3 and the remaining four signals contain a mixture of all three. For the competitor methods that are applied to the transformed coherence measure, the training data has a slightly different form. In this case, the training signals are simulated with class memberships as defined above but the approaches are trained on the transformed coherences of these signals at the set of discriminative indices rather than the raw data. For the different scenarios and generating processes considered, in practice we find that the subset of most discriminative indices tends to consist of the finest scales, i.e. scales , but that all channel indices appear to be important.
For each of the scenarios, 100 replications of the test signals are simulated and three different classification evaluation measures are considered. In particular, the number of class changes detected is recorded along with the V-measure (Rosenberg and Hirschberg, 2007) and the true positive detection rate, defined to be the proportion of each signal that is correctly classified. A change is detected if the signal switches class and this change lasts for longer than four time points. The V-measure assesses the quality of a certain segmentation (given the truth) and is measured on the scale where a value of represents perfect segmentation.
. Sequential HMM denotes the results for the full test signal and Embedded HMM denotes the results for the transformed coherence; similar descriptors are used for the SVM, GMM and NB classifiers applied to the transformed coherence of the raw data. We remind the reader that these classification methods performed very poorly on the original series, and so are not reported in the tables. In each case, we have recorded the average number of changes detected, V-measure and true positive rate (described above) over the 100 replications; the numbers within the brackets represent the standard deviation of the corresponding quantities. Recall that the number of true class changes for Scenarios 1, 2 and 3 are nine, five and six respectively.
|Scenario 1||Scenario 2||Scenario 3|
|(nine changes)||(five changes)||(six changes)|
|Method||Average number of changes detected|
|Online dynamic classification ()||9.38 (0.65)||5.58 (0.88)||6.19 (0.44)|
|Sequential HMM||10.44 (3.80)||6.71 (5.65)||10.96 (13.78)|
|Embedded HMM||11.90 (3.29)||8.49 (3.53)||15.29 (3.74)|
|Embedded SVM||13.55 (2.34)||8.50 (2.02)||8.02 (1.56)|
|Embedded GMM||17.88 (3.58)||15.45 (3.10)||29.16 (5.34)|
|Embedded NB||12.71 (2.27)||7.43 (1.50)||6.16 (0.42)|
|Online dynamic classification ()||0.89 (0.02)||0.89 (0.03)||0.94 (0.01)|
|Sequential HMM||0.94 (0.05)||0.93 (0.09)||0.94 (0.09)|
|Embedded HMM||0.78 (0.05)||0.74 (0.10)||0.80 (0.04)|
|Embedded SVM||0.80 (0.03)||0.82 (0.04)||0.91 (0.02)|
|Embedded GMM||0.81 (0.02)||0.73 (0.04)||0.75 (0.03)|
|Embedded NB||0.82 (0.06)||0.86 (0.03)||0.95 (0.01)|
|Method||Average true positive rate|
|Online dynamic classification ()||0.91 (0.02)||0.94 (0.02)||0.97 (0.01)|
|Sequential HMM||0.93 (0.11)||0.95 (0.11)||0.94 (0.13)|
|Embedded HMM||0.59 (0.09)||0.64 (0.13)||0.75 (0.10)|
|Embedded SVM||0.70 (0.05)||0.85 (0.05)||0.95 (0.02)|
|Embedded GMM||0.57 (0.06)||0.64 (0.05)||0.79 (0.05)|
|Embedded NB||0.75 (0.06)||0.88 (0.04)||0.97 (0.01)|
For the three class multivariate normal example (Table 1), it can be seen that all three methods overestimate the number of changes detected. The online dynamic classification performs the best in terms of the average number of changes detected, only marginally overestimating the number of changes, and is competitive with other methods in terms of V-measure and average true positive rate. Both the sequential HMM approach and the Naïve Bayes classification rule perform well in this setting according to the V-measure and the average true positive rate. However, we note here that the improvement over our proposed method is minimal considering the variability in the estimates.
|Scenario 1||Scenario 2||Scenario 3|
|(nine changes)||(five changes)||(six changes)|
|Method||Average number of changes detected|
|Online dynamic classification ()||9.82 (1.10)||5.78 (0.93)||6.59 (0.87)|
|Sequential HMM||35.75 (7.38)||33.75 (8.82)||77.24 (16.54)|
|Embedded HMM||10.28 (3.71)||8.69 (2.74)||14.57 (4.89)|
|Embedded SVM||11.90 (1.90)||5.96 (1.10)||9.18 (2.28)|
|Embedded GMM||13.31 (2.89)||14.21 (3.32)||18.09 (4.56)|
|Embedded NB||12.07 (1.63)||5.87 (0.68)||11.38 (2.36)|
|Online dynamic classification ()||0.87 (0.02)||0.89 (0.03)||0.94 (0.01)|
|Sequential HMM||0.76 (0.04)||0.66 (0.05)||0.64 (0.06)|
|Embedded HMM||0.75 (0.07)||0.73 (0.08)||0.79 (0.05)|
|Embedded SVM||0.85 (0.02)||0.88 (0.04)||0.87 (0.03)|
|Embedded GMM||0.81 (0.02)||0.71 (0.03)||0.81 (0.03)|
|Embedded NB||0.84 (0.02)||0.86 (0.03)||0.87 (0.03)|
|Method||Average true positive rate|
|Online dynamic classification ()||0.89 (0.03)||0.93 (0.02)||0.97 (0.01)|
|Sequential HMM||0.54 (0.15)||0.57 (0.14)||0.50 (0.15)|
|Embedded HMM||0.62 (0.08)||0.67 (0.11)||0.68 (0.05)|
|Embedded SVM||0.83 (0.03)||0.91 (0.03)||0.92 (0.03)|
|Embedded GMM||0.70 (0.05)||0.62 (0.05)||0.72 (0.03)|
|Embedded NB||0.81 (0.03)||0.92 (0.02)||0.90 (0.03)|
As we introduce dependence into the series, the distinction between our proposed method and its competitors becomes more marked. For the moving average process (Table 2), the performance of the online dynamic classification method improves as we increase the length of the segments between class changes; on the other hand, the sequential HMM procedure (as with the other competitors applied to the original series) cannot cope with the dependence in the data, drastically overestimating the number of changes in the data.
|Scenario 1||Scenario 2||Scenario 3|
|(nine changes)||(five changes)||(six changes)|
|Method||Average number of changes detected|
|Online dynamic classification ()||9.79 (0.96)||5.36 (0.66)||6.64 (0.87)|
|Sequential HMM||12.03 (5.49)||9.30 (4.46)||17.27 (6.44)|
|Embedded HMM||13.11 (2.70)||10.44 (3.16)||17.83 (6.60)|
|Embedded SVM||12.80 (3.14)||7.59 (2.03)||12.37 (2.78)|
|Embedded GMM||16.82 (3.04)||6.32 (2.75)||19.64 (4.40)|
|Embedded NB||14.64 (3.13)||6.87 (1.40)||11.91 (2.62)|
|Online dynamic classification ()||0.87 (0.02)||0.89 (0.03)||0.92 (0.02)|
|Sequential HMM||0.81 (0.08)||0.73 (0.09)||0.75 (0.07)|
|Embedded HMM||0.79 (0.03)||0.71 (0.08)||0.74 (0.06)|
|Embedded SVM||0.78 (0.03)||0.83 (0.05)||0.84 (0.03)|
|Embedded GMM||0.75 (0.02)||0.61 (0.07)||0.73 (0.04)|
|Embedded NB||0.78 (0.06)||0.84 (0.04)||0.84 (0.03)|
|Method||Average true positive rate|
|Online dynamic classification ()||0.89 (0.02)||0.95 (0.02)||0.96 (0.01)|
|Sequential HMM||0.70 (0.11)||0.69 (0.09)||0.65 (0.11)|
|Embedded HMM||0.59 (0.09)||0.60 (0.10)||0.59 (0.10)|
|Embedded SVM||0.65 (0.05)||0.89 (0.04)||0.89 (0.04)|
|Embedded GMM||0.51 (0.04)||0.45 (0.04)||0.51 (0.05)|
|Embedded NB||0.64 (0.06)||0.89 (0.03)||0.89 (0.03)|
The online dynamic classification algorithm outperforms the competitors consistently for the autoregressive series, as shown in Table 3. More specifically, it classifies the changes well in terms of the V-measure and true positive rate, i.e. a low misclassification rate. Provided that the set of training data accurately represents the range of classes present, we would expect the dynamic classification approach to be able to correctly detect both the location of the changes and the classes involved. In contrast, whilst the comparative methods detect the location of class changes well resulting in high V-measure, they can struggle to identify which class the signal belongs to after the class change has occurred, resulting in a lower true positive rate (a higher overall rate of misclassification). This can potentially be a challenge if accurate detection of anomalous areas is important.
In addition, note that in nearly all cases across the examples and scenarios, there is less variability in the evaluation measures using our proposed online dynamic classification (indicated by lower standard deviations). We also note here that the use of the coherence measure improves the performance of all competitor methods, justifying its efficacy as a classification feature in many settings. Crucially, we also found that the online dynamic classification approach was faster than HMM-based methods for longer time series.
5 Case Study
In the previous section we considered the efficacy of our approach against tried and tested examples. We now turn to consider an application arising from our collaboration with researchers working in the oil and gas industry.
The general philosophy is to apply our online dynamic classification method to acoustic sensing data provided by an industrial collaborator, with the aim of detecting striping within these signals. The training data consists of ten quadvariate signals of length 4096 obtained from a subsampled version of an acoustic sensing dataset. The class assignments for each of the training signals have been decided by an industrial expert. The test signal is obtained from the same dataset and is a quadvariate signal of length 8192, unseen in the training signals. The test series exhibits autocorrelation as well as dependence between series (see Figure 2). Due to the zero-mean assumption of the mvLSW model, in practice we detrend the series before analysis by taking first order differences of each component series (see Figure 1(b)).
We apply the online dynamic classification approach with a moving window of length 4096 to the test signal. Based on the results from Section 4, for comparison the sequential HMM method is applied to the full test signal with the first 400 data points used to train a two-state model. We also apply the sequential HMM approach to the transformed coherence of the test signal, again training a two state model using the first 400 data points. Two-state models have been applied to demonstrate our belief that the acoustic sensing data contains areas of stable behaviour and striping.
In this case the true class membership of the test signal is unknown, therefore we compare the results visually. The classification results for each of the methods are found in Figure 4; areas of the test signal for which a change in class is detected are shown in red. It can be seen that the online dynamic classification method performs best in that it detects the stripes in the test signal with only minimal areas of misclassification when compared to the expert’s judgement. In contrast, applying the sequential HMM approach to the transformed coherence of the signal also results in a change of class being detected at the stripes but the class changes take place over a longer period than we would expect. Finally, applying the sequential HMM method to the full signal results in the stripes being detected but the end of the test signal being misclassified.
Recalling that the overall aim of this analysis has been to detect sudden regions of interest within (multivariate) acoustic sensing signals, as accurately as possible whilst minimising the number of falsely detected points – then the results look very positive. Specifically the classification results obtained by the online dynamic classification method compare very favourably. It is interesting to note that in these examples, coarser scales (i.e. scales 6-11) appear to play a key role in the classification.
When compared with a subjective analysis of the data as displayed in Figure 1 we see that, each method correctly assigns ‘non-stripe’ regions with the following (correct) classification proportions; 0.944 for online dynamic classification, 0.792 for embedded HMM and 0.477 for sequential HMM.
6 Concluding remarks
In this article, we introduced an online dynamic classification method that can be used to detect changes in class within a data stream. We demonstrated the efficacy of the method using simulated data examples and an acoustic sensing dataset from an oil producing facility. The case study shows that our approach can be successfully used to detect anomalous periods in acoustic data, resulting in fewer areas of misclassification compared to more traditional classification methods, such as Markov Model approaches. Moreover, we have found that the use of a coherence measure in classification improves the performance of these methods.
In practice, we have found that a parsimonious choice of window is required: as with other moving window approaches, too short a window, and the results are not satisfactory; too long a window increases the computational time and potentially produces edge effects. We leave the challenge of automatically choosing window length as an avenue for future research. In addition, we have observed that, as with other competitor methods, our approach classifies well when the distance between class changes is comparable to the window length but can struggle when we have shorter segments between changes.
Future work may consider the problem of detecting stripes that are characterised by more gradual changes in their properties. In practice, these features may be less obvious and we might wish to not just detect but also classify the type of stripe present in the acoustic sensing data. Our method could potentially be used to do this, provided that our training data represents the range of stripes that we wish to classify.
Appendix A Comparison of computational cost of online classification methods
In this section, we provide an analysis of the computational cost of the various competitor classification methods outlined in Section 4. To this end, we run each online classification method on a set of test signals of increasing length, namely . In particular, for each method and series length, we record the runtime of each method, averaged over replications of series from the first example in Section 4. This allows us to compare how the runtime of each method scales with series length, , removing external factors such as efficiency of coding and implementation programming language.

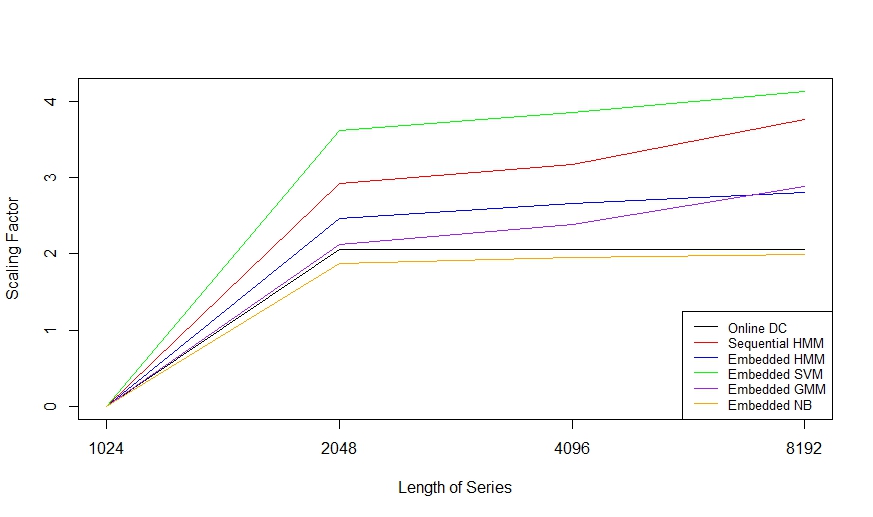

The results of the runtime analysis are shown in Figure 5. As seen from the plot, as expected, each method increases in runtime with the length of the series. However, after an initial increase, our dynamic online classification method has a desirable near constant scaling with the length of the series. Its scaling profile is the best after the NB classifier. Given the improvement in classification over the competitor methods across the range of examples studied in Section 4, we feel that this profile justifies the use of the proposed method.
- Ainsleigh et al. (2002) Ainsleigh, P. L., N. Kehtarnavaz, and R. L. Streit. 2002. Hidden Gauss-Markov models for signal classification. IEEE Transactions on Signal Processing 50 (6): 1355–1367.
- Aykroyd et al. (2016) Aykroyd, R. G., S. Barber, and L. R. Miller. 2016. Classification of multiple time signals using localized frequency characteristics applied to industrial process monitoring. Computational Statistics & Data Analysis 94: 351–362.
- Bifet et al. (2010) Bifet, A., G. Holmes, R. Kirkby, and B. Pfahringer. 2010. OA: Massive online analysis. Journal of Machine Learning Research 11: 1601–1604.
- Bifet et al. (2013) Bifet, A., J. Read, I. Žliobaitė, B. Pfahringer, and G. Holmes. 2013. Pitfalls in benchmarking data stream classification and how to avoid them. In Joint European Conference on Machine Learning and Knowledge Discovery in Databases, 465–479. Springer. Springer.
- Cappé (2011) Cappé, O. 2011. Online EM algorithm for hidden Markov models. Journal of Computational and Graphical Statistics 20 (3): 728–749.
- Cappé et al. (2009) Cappé, O., E. Moulines, and T. Rydén. 2009. Inference in hidden markov models. In Proceedings of EUSFLAT Conference, 14–16.
- Chan and Fu (1999) Chan, K. P., and A. W. C. Fu. 1999. Efficient time series matching by wavelets. In Proceedings of the 15th International Conference on Data Engineering, 126–133. IEEE. IEEE.
- Chau and von Sachs (2016) Chau, J., and R. von Sachs. 2016. Functional mixed effects wavelet estimation for spectra of replicated time series. Electronic Journal of Statistics 10 (2): 2461–2510.
- Coifman and Donoho (1995) Coifman, R. R., and D. L. Donoho. 1995. Translation-invariant de-noising. In Wavelets and statistics, 125–150. Springer.
- Cortes and Vapnik (1995) Cortes, C., and V. Vapnik. 1995. Support-vector networks. Machine Learning 20 (3): 273–297.
- Crouse et al. (1998) Crouse, M. S., R. D. Nowak, and R. G. Baraniuk. 1998. Wavelet-based statistical signal processing using hidden Markov models. IEEE Transactions on Signal Processing 46 (4): 886–902.
- Dahlhaus (1997) Dahlhaus, R. 1997. Fitting time series models to non-stationary processes. The Annals of Statistics 25 (1): 1–37.
- Dahlhaus and Subba Rao (2006) Dahlhaus, R., and S. Subba Rao. 2006. Statistical inference for time-varying ARCH processes. The Annals of Statistics 34 (3): 1075–1114.
- Dahlhaus et al. (1999) Dahlhaus, R., M. H. Neumann, and R. von Sachs. 1999. Nonlinear wavelet estimation of time-varying autoregressive processes. Bernoulli 5 (5): 873–906.
- Daubechies (1992) Daubechies, I. 1992. Ten Lectures on Wavelets. Philadelphia: Society for Industrial and Applied Mathematics.
- Eckley and Nason (2005) Eckley, I. A., and G. P. Nason. 2005. Efficient computation of the discrete autocorrelation wavelet inner product matrix. Statistics and Computing 15 (2): 83–92.
- Ellmauthaler et al. (2017) Ellmauthaler, A., M. E. Willis, X. Wu, and M. LeBlanc. 2017. Noise sources in fiber-optic distributed acoustic sensing vsp data. In 79th eage conference and exhibition 2017.
- Ephraim and Merhav (2002) Ephraim, Y., and N. Merhav. 2002. Hidden Markov Processes. IEEE Transactions on Information Theory 48 (6): 1518–1569.
- Fraley et al. (2017) Fraley, C., A. E. Raftery, L. Scrucca, T. B. Murphy, and M. Fop. 2017. mclust: Gaussian mixture modelling for model-based clustering, classification, and density estimation. R package version 5.4. http://cran.r-project.org/package=mclust.
- Fryzlewicz and Ombao (2009) Fryzlewicz, P., and H. C. Ombao. 2009. Consistent classification of non-stationary time series using stochastic wavelet representations. Journal of the American Statistical Association 104 (485): 299–312.
A review on time series data mining.
Engineering Applications of Artificial Intelligence24 (1): 164–181.
- Himmelmann (2010) Himmelmann, L. 2010. HMM: HMM - Hidden Markov Models. R package version 1.0. https://cran.r-project.org/package=HMM.
- Hu et al. (2013) Hu, B., Y. Chen, J. Zakaria, L. Ulanova, and E. Keogh. 2013. Classification of multi-dimensional streaming time series by weighting each classifier’s track record. In Ieee 13th international conference on data mining (icdm), 281–290. IEEE. IEEE.
- Huang et al. (2004) Huang, H. Y., H. C. Ombao, and D. S. Stoffer. 2004. Discrimination and classification of nonstationary time series using the SLEX model. Journal of the American Statistical Association 99 (467): 763–774.
- Kampouraki et al. (2009) Kampouraki, A., G. Manis, and C. Nikou. 2009. Heartbeat time series classification with support vector machines. IEEE Transactions on Information Technology in Biomedicine 13 (4): 512–518.
Kersten, J. 2014. Simultaneous feature selection and Gaussian mixture model estimation for supervised classification problems.Pattern Recognition 47 (8): 2582–2595.
- Killick et al. (2013) Killick, R., I. A Eckley, and P. Jonathan. 2013. A wavelet-based approach for detecting changes in second order structure within nonstationary time series. Electronic Journal of Statistics 7: 1167–1183.
- Krzemieniewska et al. (2014) Krzemieniewska, K., I. A. Eckley, and P. Fearnhead. 2014. Classification of non-stationary time series. Stat 3 (1): 144–157.
- Mallat (1989) Mallat, S. G. 1989. A theory for multiresolution signal decomposition: the wavelet representation. IEEE Transactions On Pattern Analysis and Machine Intelligence 11 (7): 674–693.
- Mateeva et al. (2014) Mateeva, A., J. Lopez, H. Potters, J. Mestayer, B. Cox, D. Kiyashchenko, P. Wills, S. Grandi, K. Hornman, B. Kuvshinov, and W. Berlang. 2014. Distributed acoustic sensing for reservoir monitoring with vertical seismic profiling. Geophysical Prospecting 62 (4): 679–692.
- Mateeva et al. (2014) Mateeva, A., J. Lopez, H. Potters, J. Mestayer, B. Cox, D. Kiyashchenko, P. Wills, S. Grandi, K. Hornman, B. Kuvshinov, W. Berlang, Y. Zhaohui, and R. Detomo. 2014. Distributed acoustic sensing for reservoir monitoring with vertical seismic profiling. Geophysical Prospecting 62 (4): 679–692.
- McLachlan and Peel (2004) McLachlan, G., and D. Peel. 2004. Finite mixture models. John Wiley & Sons.
Meyer et al. (2015)
Meyer, D., E. Dimitriadou,
K. Hornik, A. Weingessel,
F. Leisch, C. C. Chang,
and C. C. Lin.
e1071: Misc functions of the department of statistics, probability theory group (formerly: E1071), tu wien. R package version 1.6-7. http://cran.r-project.org/package=e1071.
Mörchen, F. 2003. Time series feature extraction for data mining using DWT and DFT, Technical Report 33, University of Marburg.
Muller et al. (2001)
Muller, K. R., S. Mika,
G. Ratsch, K. Tsuda, and
An introduction to kernel-based learning algorithms.
IEEE Transactions On Neural Networks12 (2): 181–201.
- Nam et al. (2015) Nam, C. F. H., J. A. D. Aston, I. A. Eckley, and R. Killick. 2015. The uncertainty of storm season changes: Quantifying the uncertainty of autocovariance changepoints. Technometrics 57 (2): 194–206.
- Nason (2008) Nason, G. P. 2008. Wavelet Methods in Statistics with R. New York, Springer.
- Nason (2016) Nason, G. P. 2016. wavethresh: Wavelets Statistics and Transforms. R package version 4.6.8. https://cran.r-project.org/package=wavethresh.
- Nason and Silverman (1995) Nason, G. P., and B. W. Silverman. 1995. The stationary wavelet transform and some statistical applications. Lecture Notes in Statistics 103: 281–300.
- Nason et al. (2000) Nason, G. P., R. Von Sachs, and G. Kroisandt. 2000. Wavelet processes and adaptive estimation of the evolutionary wavelet spectrum. Journal of the Royal Statistical Society: Series B 62 (2): 271–292.
- Nason et al. (2017) Nason, G. P., B. Powell, D. Elliott, and P. A. Smith. 2017. Should we sample a time series more frequently?: decision support via multirate spectrum estimation. Journal of the Royal Statistical Society: Series A (Statistics in Society) 180 (2): 353–407.
- Obermaier et al. (2001) Obermaier, B., C. Guger, C. Neuper, and G. Pfurtscheller. 2001. Hidden markov models for online classification of single trial eeg data. Pattern Recognition Letters 22 (12): 1299–1309.
- Owen et al. (2012) Owen, A., G. Duckworth, and J. Worsley. 2012. OptaSense: fibre optic distributed acoustic sensing for border monitoring. In Intelligence and Security Informatics Conference (EISIC), 2012 European, IEEE, 362–364.
- Paleja et al. (2015) Paleja, R., D. Mustafina, T. Park, D. Randell, J. van der Horst, R. Crickmore, et al.. 2015. Velocity Tracking for Flow Monitoring and Production Profiling Using Distributed Acoustic Sensing. In SPE Annual Technical Conference and Exhibition. Society of Petroleum Engineers. Society of Petroleum Engineers.
- Park et al. (2014) Park, T., I. A. Eckley, and H. C. Ombao. 2014. Estimating time-evolving partial coherence between signals via multivariate locally stationary wavelet processes. IEEE Transactions On Signal Processing 62 (20): 5240–5250.
- Park et al. (2018) Park, T., I. A. Eckley, and H. C. Ombao. 2018. Dynamic Classification using Multivariate Locally Stationary Wavelets. Signal Processing (accepted for publication). https://doi.org/10.1016/j.sigpro.2018.01.005.
- Percival (1995) Percival, D. P. 1995. On estimation of the wavelet variance. Biometrika 82 (3): 619–631.
- Povinelli et al. (2004) Povinelli, R. J., M. T. Johnson, A. C. Lindgren, and J. Ye. 2004. Time series classification using Gaussian mixture models of reconstructed phase spaces. IEEE Transactions on Knowledge and Data Engineering 16 (6): 779–783.
- Priestley (1981) Priestley, M. B. 1981. Spectral analysis and time series. London, Academic Press.
- Rabiner (1989) Rabiner, L. R. 1989. A tutorial on hidden markov models and selected applications in speech recognition. Proceedings of the IEEE 77 (2): 257–286.
- Read et al. (2012) Read, J., A. Bifet, G. Holmes, and B. Pfahringer. 2012. Scalable and efficient multi-label classification for evolving data streams. Machine Learning 88 (1-2): 243–272.
Rosenberg and Hirschberg (2007)
Rosenberg, A., and J.
V-measure: A conditional entropy-based external cluster evaluation
Proceedings of the 2007 Joint Conference on Empirical Methods in Natural Language Processing and Computational Natural Language Learning (emnlp-conll), Vol. 7, 410–420.
Sakiyama and Taniguchi (2004)
Sakiyama, K., and M.
Discriminant analysis for locally stationary processes.
Journal of Multivariate Analysis90 (2): 282–300.
- Sanderson et al. (2010) Sanderson, J., P. Fryzlewicz, and M. W. Jones. 2010. Estimating linear dependence between nonstationary time series using the locally stationary wavelet model. Biometrika 97 (2): 435–446.
- Taylor et al. (2017) Taylor, S., T. Park, I. A. Eckley, and R. Killick. 2017. mvLSW: Multivariate Locally Stationary Wavelet Process Estimation. R package version 1.2.1. https://cran.r-project.org/package=mvLSW.
- Vidakovic (1999) Vidakovic, B. 1999. Statistical Modeling by Wavelets. New York, Wiley.
- Wei and Keogh (2006) Wei, L., and E. Keogh. 2006. Semi-supervised time series classification. In Proceedings of the 12th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 748–753. ACM. ACM.
- Wijfells (2014) Wijfells, J. 2014. RMOA: Connect R with MOA to perform streaming classifications. R package version 1.0. https://github.com/jwijffels/RMOA.
- Williams (2012) Williams, J. 2012. Distributed Acoustic Sensing for Pipeline Monitoring. Pipeline & Gas Journal 239 (7).
- Zhang et al. (2004) Zhang, H., T. B. Ho, and M. S. Lin. 2004. A Non-parametric Wavelet Feature Extractor for Time Series Classification. In Advances in Knowledge Discovery and Data Mining, eds. H. Dai, R. Srikant, and C. Zhang, 595–603. Springer.
- Zucchini and MacDonald (2009) Zucchini, W., and I. L. MacDonald. 2009. Hidden Markov Models for Time Series: an Introduction using R. New York, Chapman and Hall–-CRC.
