1 Introduction

Computed tomography (CT) images reconstructed from X-ray projections allow effective medical diagnosis and treatment. However, due to increasingly common metallic implants, CT images are often adversely affected by metal artifacts which not only exhibit undesirable visual effects but also increase the possibility of false diagnosis. This creates the problem of metal artifact reduction (MAR), for which existing solutions are inadequate.

Unlike typical image restoration tasks such as super-resolution

[14, 32, 25, 35], compression artifact removal [31, 7], and denoising [3, 16, 15], metal artifacts are often structured and non-local (e.g. streaking and shadowing artifacts as in Figure 0(a)

). Modeling such artifacts in image domain is extremely difficult. Therefore, before the emergence of deep learning, most existing works

[12, 4, 18, 17]

proposed to reduce metal artifact in the X-ray projection (sinogram) domain. The metal-corrupted regions are viewed as missing, and replaced by interpolated values. However, as the projections are taken from a single object under certain geometry, physical constraints should be satisfied by the enhanced sinogram. Otherwise, severe

secondary artifacts can be introduced in the reconstructed CT images.

(a) CT with metal artifacts
(b) RDN333The residual dense network (RDN) proposed in [32] without up-scaling layers. [32]
(c) CNNMAR [33]
(d) DuDoNet (Ours)
Figure 1: (a) Sample MAR results for a CT image with intense metal artifact. Metal implants are colored in yellow. (b) Artifacts are not fully reduced and a ‘white band’ is present between the two implants. (c) Organ boundaries on the right are smeared out. (d) DuDoNet effectively reduces metal shadows and recovers fine details.

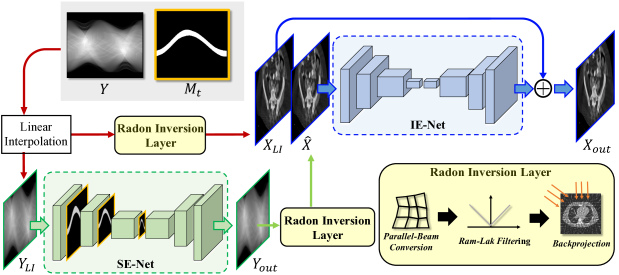

Figure 2: The proposed Dual Domain Network (DuDoNet) for MAR. Given a degraded sinogram and a metal trace mask , DuDoNet reduces metal artifacts by simultaneously refining in the sinogram and image domains.

Recently, motivated by the success of deep learning in solving ill-posed inverse problems [32, 25, 15, 19, 30, 23], several works have been proposed to overcome the difficulties in MAR. Wang et al. [24]

applied the pix2pix model

[9] to reduce metal artifact in the CT image domain. Zhang et al. [33]

proposed to first estimate a prior image by a convolutional neural network (CNN). Based on the prior image, metal-corrupted regions in the sinogram are filled with surrogate data through several post-processing steps for reduced secondary artifact. Park et al.

[20] applied U-Net [22] to directly restore metal-corrupted sinograms. Although metal artifacts can be reduced by these deep learning approaches, we will show that, despite the strong expressive power of deep neural networks, either image domain enhancement or sinogram domain enhancement is limited in being able to restore metal shadows and secondary artifact.

We hereby propose Dual Domain Network (DuDoNet) to address these problems by learning two CNNs on dual domains to restore sinograms and CT images simultaneously. Our intuition is that image domain enhancement can be improved by fusing information from the sinogram domain, and inconsistent sinograms can be corrected by the learning signal back-propagated from the image domain to reduce secondary artifacts. Specifically, we propose a novel network (Figure 2) consisting of three parts: a sinogram enhancement network (SE-Net), a Radon inversion layer (RIL), and an image enhancement network (IE-Net). To address the issue that in the sinogram domain, information about small metal implants tends to vanish in higher layers of the network due to down-sampling, we propose a mask pyramid U-Net architecture for SE-Net, which retains metal mask information across multiple scales. The key to our dual-domain learning is RIL that reconstructs CT images using the filtered back-projection (FBP) algorithm and efficiently back-propagates gradients from the image domain to the sinogram domain. Based on RIL, we introduce a Radon consistency loss to penalize secondary artifacts in the image domain. Finally, IE-Net refines CT images via residual learning. Extensive experiments on CT images from hundreds of patients demonstrate that dual domain enhancement generates superior artifact-reduced CT images.

In summary, we make the following contributions:

  • [noitemsep,topsep=0pt]

  • We propose an end-to-end trainable dual-domain refinement network for MAR. The network is able to recover details corrupted by metal artifacts.

  • We propose a mask pyramid (MP) U-Net to improve sinogram refinement. The MP architecture improves performance especially when small metallic implants are dominated by the non-metal regions.

  • We propose a Radon inversion layer (RIL) to enable efficient end-to-end dual domain learning. RIL can benefit the community through its ubiquitous use in various reconstruction algorithms [26, 10, 1, 34].

  • We propose a Radon consistency (RC) loss to penalize secondary artifacts in the image domain. Gradients of the loss in the image domain are back-propagated through RIL to the sinogram domain for improved consistency.

2 Backgrounds and Related Works

Tissues inside the human body such as bones and muscles have different X-ray attenuation coefficients . If we consider a 2D slice of human body, the distribution of the attenuation coefficients represents the underlying anatomical structure. The principle of CT imaging is based on the fundamental Fourier Slice Theorem, which guarantees that the 2D function can be reconstructed solely from its dense 1D projections. In CT imaging, projections of the anatomical structure are inferred by the emitted and received X-ray intensities through the Lambert-Beer Law [2]. We consider the following CT model under a polychromatic X-ray source with energy distribution :

(1)

where is the projection generation process, and represents the projection data (sinogram). The 2D is the anatomical structure (CT image) we want to recover from the measured projection data .

For normal body tissues, is almost constant with respect to the X-ray energy . If we let , then

(2)

Therefore, given measured projection data , the CT image can be inferred by using a reconstruction algorithm 444We use to denote the linear operation for reconstruction.:  [11].

However, when metallic implants are present, , where has large variations with respect to due to . Eq. (1) becomes

(3)

where the region of in will be referred to as metal trace in the rest of the paper. When the reconstruction algorithm is applied,

(4)

The term after in (4) is the metal artifact. It is clear that perfect MAR can be achieved only if the last term in Eq. (4) is suppressed while the term is unaffected. However, it is generally an ill-posed problem since both terms contribute to the region of metal trace.

2.1 Inpainting-based Methods

One commonly adopted strategy in MAR is to formulate sinogram completion as an image inpainting task. Data within the metal trace are viewed as missing and filled through interpolation. Linear interpolation (LI)

[12] is a widely used method in MAR due to its simplicity. Meyer et al. [18] proposed the NMAR algorithm, where sinograms are normalized by tissue priors before performing LI. NMAR requires proper tissue segmentation in the image domain, which is unreliable when severe metal artifacts are present. Mehranian et al. [17] restored sinograms by enforcing sparsity constraints in the wavelet domain. In general, inpainting-based approaches fail to replace the data of in (3) within metal trace by consistent values. It is this introduced inconsistency in sinogram data that leads to noticeable secondary artifacts after reconstruction.

2.2 MAR by Iterative Reconstruction

In iterative reconstruction, MAR can be formulated as the following optimization problem:

(5)

where is the metal trace mask. on the metal trace and otherwise. is some regularization function, e.g. total variation (TV) [8] and sparsity constraints in the wavelet domain [29]. Eq. (5) is often solved through iterative approaches such as the split Bregman algorithm. Iterative reconstruction usually suffers from long processing time as they require multiplying and inverting huge matrices in each iteration. More importantly, hand-crafted regularization does not capture the structure of metal artifacts and would result in an over-smoothed reconstruction. Recently, Zhang et al. [29] proposed a re-weighted JSR method which combines NMAR into (5) and jointly solves for and interpolated sinogram. Similar to NMAR, the weighting strategy in re-weighted JSR requires tissue segmentation. In phantom study, better performance against NMAR is achieved by re-weighted JSR. However, the improvements remain limited for non-phantom CT images.

2.3 Deep Learning based Methods for MAR

Convolutional neural networks have the ability to model complex structures within data. Motivated by the success of DNNs in solving inverse problems, Gjesteby et al. [6] and Park et al. [20] proposed to refine sinograms using a CNN for improved consistency. Zhang et al. [33] proposed a CNNMAR model to first estimate a prior image by a CNN and then correct sinogram similar to NMAR. However, even with the strong expressive power of CNNs, these approaches still suffer from secondary artifacts due to inconsistent sinograms.

Gjesteby et al. [5], Xu et al. [27] and Wang et al. [24] proposed to reduce metal artifact directly in the CT image domain. The metal artifacts considered in these works are mild and thus can be effectively reduced by a CNN. We will show in our experiments that image domain enhancement is not sufficient for mitigating intense metal shadows.

3 Proposed Method

As shown in Figure 2, our proposed model consists of three parts: (a) a sinogram enhancement network (SE-Net), (b) a Radon inversion layer (RIL), and (c) an image enhancement network (IE-Net). Inputs to the model include a degraded sinogram and the corresponding metal trace mask . Notice that we use to represent the detector size and to represent the number of projection views. The region where is the metal trace. Given the inputs, we first apply LI [12] to generate an initial estimate for the sinogram data within metal trace. The resulting interpolated sinogram is denoted by . SE-Net then restores within the metal trace through a mask pyramid U-Net architecture. To maintain sinogram consistency, we introduce a Radon consistency (RC) loss. A sinogram will be penalized by the RC loss if it leads to secondary artifacts in the image domain after passing through RIL. Finally, the reconstructed CT image is refined by IE-Net via residual learning.

3.1 Sinogram Enhancement Network

Sinogram enhancement is extremely challenging since geometric consistency should be retained to prevent secondary artifact in the reconstructed CT image, so prior works only replace data within the metal trace. Similarly, given a metal-corrupted sinogram and metal trace mask , SE-Net learns to restore the region of in . In sinogram domain enhancement, when the metal size is small, or equivalently, the metal trace is small, information about metal trace is dominated by non-metal regions in higher layers of network due to down-sampling. To retain the mask information, we propose to fuse through a mask pyramid U-Net architecture. The output of SE-Net is written as

(6)

We use an loss to train SE-Net:

(7)

where is the ground truth sinogram without metal artifact.

3.2 Radon Inversion Layer

Although sinogram inconsistency is reduced by SE-Net, there is no existing mechanism to penalize secondary artifacts in the image domain. The missing key element is an efficient and differentiable reconstruction layer. Therefore, we propose a novel RIL to reconstruct CT images from sinograms and at the same time allow back-propagation of gradients. We hightlight that trivially inverting in existing deep learning frameworks would require a time and space complexity of , which is prohibitive due to limited GPU memory.

In this work, we consider the projection process as the Radon transform under fan-beam geometry with arc detectors [11]. The distance between an X-ray source and its rotation center is . The resulting fan-beam sinograms are represented in coordinates . To reconstruct CT images from , we adopt the fan-beam filtered back-projection (FBP) algorithm as the forward operation of RIL.

Our RIL consists of three modules: (a) a parallel-beam conversion module, (b) a filtering module, and (c) a backprojection module. The parallel-beam conversion module transforms to its parallel-beam counterpart through a change of variables. The FBP algorithm in coordinate becomes more effective and memory-efficient than in . Parallel-beam FBP is then realized by the subsequent filtering and back-projection modules.

Parallel-beam Conversion Module. We utilize the property that a fan beam sinogram can be converted to its parallel beam counterpart through the following change of variables [11]:

(8)

The change of variable in (8) is implemented by grid sampling in , which allows back-propagation of gradients. With , CT images can be reconstructed through the following Ram-Lak filtering and back-projection modules.

Ram-Lak Filtering Module. We apply the Ram-Lak filtering to in the Fourier domain.

(9)

where and

are the Discrete Fourier Transform (DFT) and inverse Discrete Fourier Transform (iDFT) with respect to the detector dimension.

Backprojection Module. The filtered parallel-beam sinogram is back-projected to the image domain for every projection angle by the following formula:

(10)

It is clear from (18) that the computation is highly parallel. We make a remark here regarding the property of RIL . Due to the back-projection nature of , the derivative with respect to the input is actually the projection operation . That is, any loss in the image domain will be aggregated and projected to the sinogram domain. This desirable property enables joint learning in sinogram and image domains.

Ground truth CT image
Figure 3: Sample simulated metal artifact on patient CT. The X-ray spectrum is shown in the upper-left corner. Metallic implants are colored in yellow for better visualization.

Radon Consistency Loss. With the differentiable RIL, we introduce the following Radon consistency (RC) loss to penalize secondary artifacts in after reconstruction.

(11)

where is the ground truth CT image without metal artifact.

Difference from DL-based Reconstruction. Our RIL is designed to combine the image formation process (CT reconstruction) with deep neural networks and achieve improved MAR by dual-domain consistency learning. Methods in [26, 10, 1, 34] target image formation via deep learning, which is not the main focus of this work.

3.3 Image Enhancement Network

Since our ultimate goal is to reduce visually undesirable artifacts in image domain, we further apply a U-Net to enhance by residual learning:

(12)

where is reconstructed from , the linearly interpolated sinogram. is also optimized by loss.

(13)

The full objective function of our model is:

(14)

One could tune and balance each term in (14) for better performance. However, we found that the default setting works sufficiently well.

4 Experimental Results

Following the de facto practice in the literature [33], our evaluations consider simulated metal artifacts on real patient CTs. Various effects are considered including polychromatic X-ray, partial volume effect, and Poisson noise. The simulated artifacts exhibit complicated structures and cannot be easily modelled by a very deep CNN. All the compared approaches are evaluated on the same dataset, and superior performance is achieved by our method. Evaluations on clinical data is presented in the supplementary material.

Metal Artifact Dataset. Recently, Yan et al. [28] released a large-scale CT dataset DeepLesion for lesion detection. Due to its high diversity and quality, we use a subset of images from DeepLesion to synthesize metal artifact. 4,000 images from 320 patients are used in the training set and 200 images from 12 patients are used in the test set. All images are resized to . We collect a total of 100 metal shapes. 90 metal shapes are paired with the 4,000 images, yielding 360,000 combinations in the training set. 10 metal shapes are paired with the 200 images, yielding 2,000 combinations in the test set. In the training set, the sizes of the metal implants range from 16 to 4967 pixels. In the test set, the sizes of the metal implants range from 32 to 2054 pixels.

We adopt similar procedures as in [33] to synthesize metal-corrupted sinograms and CT images. We assume a polychromatic X-ray source with spectrum in Figure 3. To simulate Poisson noise in the sinogram, we assume the incident X-ray has photons. Metal partial volume effect is also considered. The distance from the X-ray source to the rotation center is set to 39.7cm, and 320 projection views are uniformly spaced between 0-360 degrees. The resulting sinograms have size . Figure 3 shows some sample images with simulated metal artifacts.

Evaluation Metrics. We choose peak signal-to-noise ratio (PSNR) and structured similarity index (SSIM) for quantitative evaluations. In DeepLesion, each CT image is provided with a dynamic range, within which the tissues are clearly discernible. We use the dynamic range as the peak signal strength when calculating PSNR.

PSNR(dB)/SSIM Large Metal Small Metal Average
A)
B) SE-Net
C) IE-Net
D) IE-Net
E) SE-NetIE-Net
F) IE-NetRCL
G) SE-NetIE-NetRCL
Table 1: Quantitative evaluations for different components in DuDoNet.

Implementation Details.

We implement our model using the PyTorch

[21] framework. All the sinograms have size , and all the CT images have size . To train the model, we use the Adam [13] optimizer with , and a batch size of 8. The learning rate starts from

, and is halved for every 30 epochs. The model is trained on two Nvidia 1080Ti for 380 epochs.

4.1 Ablation Study

In this section, we evaluate the effectiveness of different components in the proposed approach. Performance is evaluated on the artifact-reduced CT images. When evaluating SE-Nets without image domain refinement, we use the reconstructed CT images . We experiment on the following configurations:

  1. [label=),itemsep=1 pt]

  2. : The sinogram enhancement network without mask pyramid network.

  3. SE-Net: The full sinogram enhancement module.

  4. IE-Net: Image enhancement module. IE-Net is applied to enhance without .

  5. IE-Net: Dual domain learning with and IE-Net.

  6. SE-NetIE-Net: Dual domain learning with SE-Net and IE-Net.

  7. IE-NetRCL: Dual domain learning with Radon consistency loss.

  8. SE-NetIE-NetRCL: Our full network.

Notice that the configurations including , SE-Net and IE-Net are single domain enhancement approaches.

Table 1 summarizes the performance of different models. Since there are totally 10 metal implants in the test set, for conciseness, we group the results according to the size of metal implants. The sizes of the 10 metal implants are: [2054, 879, 878, 448, 242, 115, 115, 111, 53, 32] in pixels. We simply put every two masks into one group.

From E and G, it is clear that the use of the RC loss improves the performance over all metal sizes for at least 0.3 dB. In Figure 4, the model trained with RC loss better recovers the shape of the organ.

From F and G, we observe an interesting trend that the proposed mask pyramid architecture results in 0.2 dB gain when the metal size is small, and the performance is nearly identical when the metal is large. The reason is that the mask pyramid retains metal information across multiple scales. Figure 5 demonstrates that in the proximity of small metal implants, the model with mask pyramid recovers the fine details.

Without RC loss
With RC loss
Ground Truth
Figure 4: Visual comparisons between models without RC loss (E in Table 1) and our full model (G in Table 1).
Without MP
With MP
Ground Truth
Figure 5: Visual comparisons between models without MP (F in Table 1) and our full model (G in Table 1).
IE-Net
IE-Net-RDN
Ground Truth
Figure 6: Visual comparisons between models without SE-Net (top row IE-Net and IE-Net-RDN) and our full model (bottom row and ).
PSNR(dB)/SSIM Large Metal Small Metal Average
LI
NMAR
cGAN-CT
RDN-CT
CNNMAR
DuDoNet (Ours)
Table 2: Quantitative evaluation of MAR approaches in terms of PSNR and SSIM.
(a) Small metallic implants.
Ground TruthPSNR/SSIM
With Metal Artifact10.98/0.1485
LI20.62/0.5462
NMAR23.21/0.6336
cGAN-CT15.12/0.2678
RDN-CT20.88/0.5353
CNNMAR23.11/0.6405
DuDoNet26.91/0.7258
(b) Medium metallic implants.
Ground TruthPSNR/SSIM
With Metal Artifact9.67/0.1137
LI18.36/0.6628
NMAR19.08/0.6697
cGAN-CT28.15/0.7328
RDN-CT21.52/0.6966
CNNMAR19.66/0.6370
DuDoNet28.72/0.8108
(c) Large metallic implants.
Ground TruthPSNR/SSIM
With Metal Artifact12.15/0.1519
LI19.27/0.6260
NMAR20.20/0.6597
cGAN-CT18.68/0.4460
RDN-CT26.28/0.6946
CNNMAR20.92/0.6916
DuDoNet27.31/0.7947
Figure 7: Visual comparisons on MAR for different types of metallic implants.

Effect of Dual Domain Learning. In the proposed framework, IE-Net enhances by fusing information from SE-Net. We study the effect of dual domain learning by visually comparing our full pipeline (G in Table 1) with single domain enhancement IE-Net (C in Table 1). In addition to the U-Net architecture, we also consider IE-Net with RDN architecture, which is denoted as IE-Net-RDN. Visual comparisons are shown in Figure 6. We observe that single domain models IE-Net and IE-Net-RDN fail to recover corrupted organ boundaries in . In our dual domain refinement network, SE-Net first recovers inconsistent sinograms and reduces secondary artifacts as in . IE-Net then refines to recover the fine details.

Effect of LI sinogram. The inputs to our network are the linear interpolated sinogram and its reconstructed CT . One possible alternative is to directly input the metal corrupted sinogram and CT, and let the network learn to restore the intense artifacts. However, we experimentally found out this alternative approach does not perform well. Metal shadows and streaking artifacts are not fully suppressed.

4.2 Comparison with State-of-the-Art Methods

In this section, we compare our model with the following methods: LI [12], NMAR [18], cGAN-CT [24], RDN-CT [32] and CNNMAR [33]. We use cGAN-CT to refer the approach by Wang et al. [24] which applies cGAN for image domain MAR. RDN [32] was originally proposed for image super-resolution (SR). The fundamental building unit of RDN is the residual dense block (RDB). Recently, it has been shown that by stacking multiple RDBs or its variant, the residual in residual dense blocks (RRDBs) [25], local details in natural images can be effectively recovered. We build a very deep architecture with 10 RDBs (80 conv layers) for direct image domain enhancement, which is denoted by RDN-CT. Specifically, we select , following the notations in [32]. Inputs to RDN-CT are patches.

Quantitative Comparisons. Table 2 shows quantitative comparisons. We observe that the state-of-the-art sinogram inpainting approach CNNMAR achieves higher SSIM than image enhancement approaches (e.g. RDN and cGAN-CT) especially when the size of metal is small. The reason is that sinogram inpainting only modifies data within the metal trace and recovers the statistics reasonably well. In most of the cases, CNNMAR also outperforms cGAN-CT in terms of PSNR. However, when CNN is sufficiently deep (e.g. RDN-CT), image enhancement approaches generally achieve higher PSNR. Our dual domain learning approach jointly restores sinograms and CT images, which attains the best performance in terms of both PSNR and SSIM consistently in all categories.

Visual Comparisons. Figure 7 shows visual comparisons. Figure 6(a) considers metal artifacts resulted from two small metallic implants. From the zoomed figure (with metal artifact), we can perceive severe streaking artifacts and intense metal shadows between the two implants. We observe that sinogram inpainting approaches such as LI, NMAR and CNNMAR effectively reduce metal shadows. However, fine details are either corrupted by secondary artifacts as in LI or blurred as in NMAR and CNNMAR. Image domain approaches such as cGAN-CT and RDN-CT produce sharper CT images but fail to suppress metal shadows. Our method effectively reduces metal shadows and at the same time retains fine details. Figure 6(b) shows a degraded CT image with long metal implants. We observe similar trend that sinogram inpainting approaches do not perform well in regions with intense streaking artifact. In this example, image domain methods reduce most of the artifacts. It is possibly due to that fact that the pattern of the artifact in Figure 6(b) is monotonous compared to Figures 6(a) and 6(c). However, noticeable speckle noise is present in the result by cGAN-CT, and RDN-CT does not fully recover details in the middle. Figure 6(c) considers metal artifacts result from two large metallic implants. Likewise, sinogram inpainting methods and direct image domain enhancement have limited capability of suppressing metal artifacts. More visual comparisons are presented in the supplemental material.

4.3 Running Time Comparisons

On an Nvidia 1080Ti GPU, it takes 0.24 ms for RIL to reconstruct a sinogram of size to a CT image of size , and 11.40 ms for back-propagation of gradients. RIL requires 16 MB of memory for forward pass and 25 MB for back-propagation. In Table 3 we compare the running time of different MAR approaches. With the running time of LI included, DuDoNet runs almost faster than the very deep architecture RDN while achieving superior performance.

LI [12] NMAR [18] cGAN-CT[24] RDN-CT[32] CNNMAR[33] DuDoNet(Ours)
0.0832 0.4180 0.0365 0.5150 0.6043 0.1335
Table 3: Comparison of running time measured in seconds.

5 Conclusion

In this paper, we present the Dual Domain Network for metal artifact reduction. In particular, we propose to jointly improve sinogram consistency and refine CT images through a novel Radon inversion layer and a Radon consistency loss, along with a mask pyramid U-Net. Experimental evaluations demonstrate that while state-of-the-art MAR methods suffer from secondary artifacts and very-deep neural networks have limited capability of directly reducing metal artifacts in image domain, our dual-domain model can effectively suppress metal shadows and recover details for CT images. At the same time, our network is computationally more efficient. Future work includes investigating the potential of the dual-domain learning framework for other signal recovery tasks, such as super-resolution, noise reduction, and CT reconstruction from sparse X-ray projections.

Acknowledgements: This research was supported by MURI from the Army Research Office under the Grant No. W911NF-17-1-0304, NSF award #17228477, and the Morris K. Udall Center of Excellence in Parkinson’s Disease Research by NIH.

Appendix A Fanbeam CT Geometry

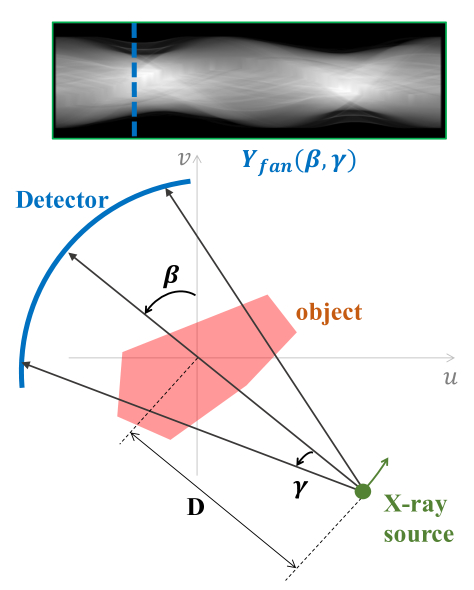

Figure 8 illustrates the general fanbeam CT geometry. The X-ray source and the arc detector rotate with respect to the origin. The distance between the X-ray source and the origin is . For each projection angle , the arc detector receives the X-rays transmitted from the object. The intensity values received by the detector is represented as a 1D signal with independent variable . As shown in the top of Figure 8, the sinogram data consists of the 1D signals received in different projection angles .

Figure 8: Fanbeam CT geometry.

Appendix B Implementation Details

b.1 Network Architecture

The proposed DuDoNet consists of SE-Net and IE-Net. The architecture of SE-Net is presented in Table 4. The architecture of IE-Net is identical to U-Net [22]. denotes the number of output channels. represents the sinogram mask down-sized to

. All downsampling convolution layers except for the first layer use leaky ReLU activation function with

. All upsampling convolution layers except for the last layer use ReLU activation function. We use ‘K#-C#-S#-P#’ to denote the configuration of the convolution layers, where ‘K’, ‘C’, ‘S’ and ‘P’ stand for the kernel, channel, stride and padding size, respectively.

Name Description
INPUT Input sinogram and
DOWN_CONV0 K4-C64-S2-P1
CONCAT0 Concatenate
DOWN_CONV1 K4-C128-S2-P1
CONCAT1 Concatenate
DOWN_CONV2 K4-C256-S2-P1
CONCAT2 Concatenate
DOWN_CONV3 K4-C512-S2-P1
CONCAT3 Concatenate
DOWN_CONV4 K4-C512-S2-P1
CONCAT4 Concatenate
UPSAMPLE5
UP_CONV5 K3-C512-S1-P1
CONCAT5 Concatenate CONCAT3
UPSAMPLE6
UP_CONV6 K3-C256-S1-P1
CONCAT6 Concatenate CONCAT2
UPSAMPLE7
UP_CONV7 K3-C128-S1-P1
CONCAT7 Concatenate CONCAT1
UPSAMPLE8
UP_CONV8 K3-C64-S1-P1
CONCAT8 Concatenate CONCAT0
UPSAMPLE9
UP_CONV9 K3-C1-S1-P1
Table 4: Network architecture of SE-Net.

b.2 Radon Inversion Layer

We implement our Radon Inversion Layer (RIL) in PyTorch [21] and CUDA. In the following, we detail our implementation.

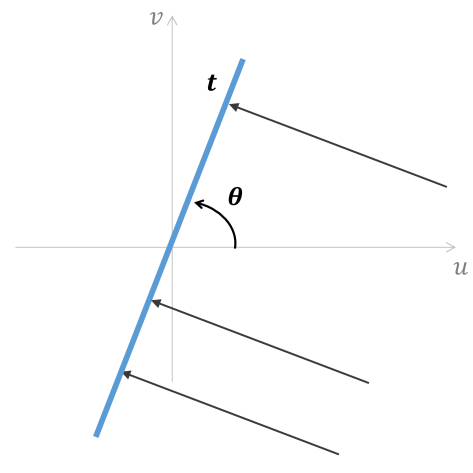

Figure 9: Parallel-beam CT geometry.

RIL consists of three modules: (1) parallel-beam conversion module, (2) Ram-Lak filtering module and (3) backprojection module. Given a fanbeam sinogram , we first convert it to a parallel beam sinogram using the fan-to-parallel beam conversion. Then, we can reconstruct the CT image using the Ram-Lak filtering and backprojection. The parallel-beam conversion is implemented according to the following relation

(15)
(16)

where is the projection location on the parallel beam detector and is the projection angle in the parallel-beam geometry as shown in Figure 9. For efficiency, we implement the change of variable using two 1D interpolations, one for in (15) and the other for in (16).

The Ram-Lak filtering for is implemented by

(17)

where and are the Discrete Fourier Transform (DFT) and inverse Discrete Fourier Transform (iDFT) with respect to the detector dimension. The filtering module is implemented using the operations torch.fft and torch.ifft in PyTorch.

The backprojection module takes the filtered projection as input, and reconstructs via

(18)

where is a function of , , and . The forward-pass of (18) is parallelizable in . During back-propagation, the gradients of the CT image with respect to the sinogram are given by

(19)

The backprojection module is implemented as a CUDA extension of PyTorch.

Appendix C Evaluation on CT Images with Real Metal Artifact

Evaluating MAR methods on CT images of patients carrying metal implants is challenging for two reasons: 1) Modern clinical CT machines have certain build-in MAR algorithms. Evaluations on CT images after MAR would not be meaningful; 2) Sinogram data with metal artifacts are difficult to access, except perhaps from machine manufacturers. To the best of our knowledge, there is no existing sinogram database which targets MAR.

In order to compare different MAR methods, we manually collect CT images with metal artifact from DeepLesion [28] and apply the following steps to obtain the metal trace and the LI sinogram . DuDoNet can be applied by taking and as inputs. Conceptually, the steps can be understood as projecting the input CT image with unknown imaging geometry to the source domain555The domain of CT images with simulated metal artifacts. with known geometry.

(i) : We first segment out the metal mask by applying a threshold of 2,000 HU to the metal-corrupted CT image. can be obtained by forward projection with the imaging geometry presented in Section 4 in the manuscript.

(ii) : We adopt the same simulation procedures and imaging geometry as in the manuscript to synthesize metal-corrupted sinogram . can be generated from and by linear interpolation.

Figure 10 presents visual comparisons of different MAR algorithms. Metal masks obtained by step (i) are colored in yellow. We would like to emphasize that the true sinogram of a given CT image cannot be inferred without information about the actual imaging geometry (e.g. source to detector distance, and number of projection views). Therefore, in Figure 10, due to inconsistent imaging geometry, sinogram-based MAR approaches (e.g. LI) may lead to an even worse visual quality than raw CT. In contrast, DuDoNet effectively reduces metal artifacts in real CT images.

Raw CT
LI
NMAR
RDN-CT
CNNMAR
DuDoNet
Raw CT
LI
NMAR
RDN-CT
CNNMAR
DuDoNet
Figure 10: Evaluations on real data. All models are exactly the same as in the main paper (no re-training).

Appendix D Additional Visual Comparisons on CT images with Synthesized Metal Artifact

See pages D and D.

Ground Truth
With Metal Artifact
LI [12]
NMAR [18]
cGAN-CT [24]
RDN-CT [32]
CNNMAR [33]
DuDoNet
Ground Truth
With Metal Artifact
LI [12]
NMAR [18]
cGAN-CT [24]
RDN-CT [32]
CNNMAR [33]
DuDoNet
Ground Truth
With Metal Artifact
LI [12]
NMAR [18]
cGAN-CT [24]
RDN-CT [32]
CNNMAR [33]
DuDoNet
Ground Truth
With Metal Artifact
LI [12]
NMAR [18]
cGAN-CT [24]
RDN-CT [32]
CNNMAR [33]
DuDoNet
Ground Truth
With Metal Artifact
LI [12]
NMAR [18]
cGAN-CT [24]
RDN-CT [32]
CNNMAR [33]
DuDoNet
Ground Truth
With Metal Artifact
LI [12]
NMAR [18]
cGAN-CT [24]
RDN-CT [32]
CNNMAR [33]
DuDoNet

Appendix E Practical Issues

In this section, we discuss practical issues when applying deep learning for MAR. Suppose we have access to the sinograms and CT images taken from a CT machine, methods such as CNNMAR [33], and cGAN-CT [24] require paired data, i.e., CT images with and without metallic implants from the same patient. In our approach, data within the metal trace is viewed as missing and replaced using LI [12]. Therefore, to train a DuDoNet, only implant-free sinograms, CT images and masks of metallic implants are required. In the experimental evaluations, we synthesize metal artifacts mainly for comparing with existing MAR approaches. In real applications, simulated pairs are not needed by the proposed DuDoNet.

References

  • [1] J. Adler and O. Öktem. Learned primal-dual reconstruction. IEEE Transactions on Medical Imaging, 37(6):1322–1332, June 2018.
  • [2] Beer. Bestimmung der absorption des rothen lichts in farbigen flüssigkeiten. Annalen der Physik und Chemie, 162(5):78–88, 1852.
  • [3] K. Dabov, A. Foi, V. Katkovnik, and K. Egiazarian. Image denoising by sparse 3-d transform-domain collaborative filtering. IEEE Transactions on image processing, 16(8):2080–2095, 2007.
  • [4] X. Duan, L. Zhang, Y. Xiao, J. Cheng, Z. Chen, and Y. Xing. Metal artifact reduction in ct images by sinogram tv inpainting. In Nuclear Science Symposium Conference Record, 2008. NSS’08. IEEE, pages 4175–4177. IEEE, 2008.
  • [5] L. Gjesteby, Q. Yang, Y. Xi, B. Claus, Y. Jin, B. De Man, and G. Wang. Reducing metal streak artifacts in ct images via deep learning: Pilot results. In The 14th International Meeting on Fully Three-Dimensional Image Reconstruction in Radiology and Nuclear Medicine, pages 611–614, 2017.
  • [6] L. Gjesteby, Q. Yang, Y. Xi, Y. Zhou, J. Zhang, and G. Wang. Deep learning methods to guide ct image reconstruction and reduce metal artifacts. In SPIE Medical Imaging, 2017.
  • [7] J. Guo and H. Chao. Building dual-domain representations for compression artifacts reduction. In

    European Conference on Computer Vision

    , pages 628–644. Springer, 2016.
  • [8] H. Gupta, K. H. Jin, H. Q. Nguyen, M. T. McCann, and M. Unser. Iterative metal artifact reduction for x-ray computed tomography using unmatched projector/backprojector pairs. IEEE Transactions on Medical Imaging, 43(6):3019–3033, 2016.
  • [9] P. Isola, J.-Y. Zhu, T. Zhou, and A. A. Efros.

    Image-to-image translation with conditional adversarial networks.

    In

    The IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , pages 1125–1134, 2017.
  • [10] K. H. Jin, M. T. McCann, E. Froustey, and M. Unser. Deep convolutional neural network for inverse problems in imaging. IEEE Transactions on Image Processing, 26(9):4509–4522, Sept 2017.
  • [11] A. C. Kak and M. Slaney. Principles of computerized tomographic imaging. Society for Industrial and Applied Mathematics, 2001.
  • [12] W. A. Kalender, R. Hebel, and J. Ebersberger. Reduction of ct artifacts caused by metallic implants. Radiology, 164(2):576–577, 1987.
  • [13] D. Kingma and J. Ba. Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980, 2014.
  • [14] C. Ledig, L. Theis, F. Huszár, J. Caballero, A. Cunningham, A. Acosta, A. P. Aitken, A. Tejani, J. Totz, Z. Wang, et al. Photo-realistic single image super-resolution using a generative adversarial network. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), volume 2, page 4, 2017.
  • [15] J. Lehtinen, J. Munkberg, J. Hasselgren, S. Laine, T. Karras, M. Aittala, and T. Aila. Noise2Noise: Learning image restoration without clean data. In

    International Conference on Machine Learning (ICML)

    , volume 80, pages 2965–2974, 2018.
  • [16] M. Makitalo and A. Foi. Optimal inversion of the anscombe transformation in low-count poisson image denoising. IEEE transactions on Image Processing, 20(1):99–109, 2011.
  • [17] A. Mehranian, M. R. Ay, A. Rahmim, and H. Zaidi. X-ray ct metal artifact reduction using wavelet domain l0 sparse regularization. IEEE Transactions on Medical Imaging, 32:1707–1722, 2013.
  • [18] E. Meyer, R. Raupach, M. Lell, B. Schmidt, and M. Kachelrieß. Normalized metal artifact reduction (nmar) in computed tomography. Medical physics, 37(10):5482–5493, 2010.
  • [19] J. Pan, W. Ren, Z. Hu, and M. Yang. Learning to deblur images with exemplars. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2018.
  • [20] H. S. Park, Y. E. Chung, S. M. Lee, H. P. Kim, and J. K. Seo. Sinogram-consistency learning in ct for metal artifact reduction. arXiv preprint arXiv:1708.00607, 2017.
  • [21] A. Paszke, S. Gross, S. Chintala, G. Chanan, E. Yang, Z. DeVito, Z. Lin, A. Desmaison, L. Antiga, and A. Lerer. Automatic differentiation in pytorch. In NIPS-W, 2017.
  • [22] O. Ronneberger, P. Fischer, and T. Brox. U-net: Convolutional networks for biomedical image segmentation. In Medical Image Computing and Computer Assisted Intervention (MICCAI), pages 234–241. Springer, 2015.
  • [23] D. Ulyanov, A. Vedaldi, and V. Lempitsky. Deep image prior. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), June 2018.
  • [24] J. Wang, Y. Zhao, J. H. Noble, and B. M. Dawant. Conditional generative adversarial networks for metal artifact reduction in ct images of the ear. In Medical Image Computing and Computer Assisted Intervention (MICCAI), 2018.
  • [25] X. Wang, K. Yu, S. Wu, J. Gu, Y. Liu, C. Dong, Y. Qiao, and C. C. Loy. Esrgan: Enhanced super-resolution generative adversarial networks. In The European Conference on Computer Vision Workshops (ECCVW), September 2018.
  • [26] T. Würfl, F. C. Ghesu, V. Christlein, and A. Maier. Deep learning computed tomography. In Medical Image Computing and Computer Assisted Intervention (MICCAI), pages 432–440. Springer International Publishing, 2016.
  • [27] S. Xu and H. Dang. Deep residual learning enabled metal artifact reduction in ct. In Medical Imaging 2018: Physics of Medical Imaging, volume 10573, page 105733O. International Society for Optics and Photonics, 2018.
  • [28] K. Yan, X. Wang, L. Lu, L. Zhang, A. P. Harrison, M. Bagheri, and R. M. Summers. Deep lesion graphs in the wild: Relationship learning and organization of significant radiology image findings in a diverse large-scale lesion database. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), June 2018.
  • [29] H. Zhang, B. Dong, and B. Liu. A reweighted joint spatial-radon domain ct image reconstruction model for metal artifact reduction. SIAM J. Imaging Sciences, 11:707–733, 2018.
  • [30] H. Zhang and V. M. Patel. Densely connected pyramid dehazing network. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [31] X. Zhang, W. Yang, Y. Hu, and J. Liu. Dmcnn: Dual-domain multi-scale convolutional neural network for compression artifacts removal. In IEEE International Conference on Image Processing (ICIP), 2018.
  • [32] Y. Zhang, Y. Tian, Y. Kong, B. Zhong, and Y. Fu. Residual dense network for image super-resolution. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • [33] Y. Zhang and H. Yu. Convolutional neural network based metal artifact reduction in x-ray computed tomography. IEEE Transactions on Medical Imaging, 2018.
  • [34] Z. Zhang, X. Liang, X. Dong, Y. Xie, and G. Cao. A sparse-view ct reconstruction method based on combination of densenet and deconvolution. IEEE Transactions on Medical Imaging, 37(6):1407–1417, June 2018.
  • [35] Z. Zhong, T. Shen, Y. Yang, Z. Lin, and C. Zhang. Joint sub-bands learning with clique structures for wavelet domain super-resolution. arXiv preprint arXiv:1809.04508, 2018.
