I Introduction
The increasing penetration of intelligent visual sensors has clearly revolutionized the way Internet of Things (IoT) works. For visual data analytics, we witness the recordbreaking predictive performance achieved by convolutional neural networks (CNNs) [1, 2, 3, 4]. To this end, there has been a growing demand to bring CNNpowered intelligence into IoT devices, ranging from drones, to security surveillance, to selfdriving cars, to wearables and many more, for enabling intelligent “InternetofEyes”. This demand is in line with the recent surge of edge computing where raw data are processed locally in edge devices using their embedded inference algorithms [5]. Such local processing avoids the necessity of transferring data back and forth between data centers and edge devices, reducing communication cost and latency, and enhancing privacy, compared to traditional cloud computing.
Despite the promise of CNNpowered “InternetofEyes”, deploying CNNs into resourceconstrained IoT devices is a nontrivial task because IoT devices, such as smart phones and wearables, have limited energy, computation, and storage resources. Meanwhile, the excellent performance of CNN algorithms comes at a cost of very high complexity. Some of these algorithms require around one billion multiplyaccumulate (MAC) operations [6] during the inference.
This mismatch between the limited resources of IoT devices and the high complexity of CNNs is only getting worse because the network architectures are getting more complex as they are designed to solve harder and largerscale tasks [7]. To close the gap between the stringently constrained resources of IoT devices and the increasingly growing complexity of CNNs, there is a pressing need to develop innovative techniques that can achieve orders of magnitude savings in CNN inference.
For more resourceefficient implementations, CNNs are mostly compressed before being deployed, thus are “static” and unable to adjust their own complexity at inference. As [8, 9, 10]
pointed out, the continuous improvements in accuracy, while significant, are small relative to the growth in model complexity. This implies that 1) computationally intensive models may only be necessary to classify a handful of “hard tail” examples correctly and 2) computationally intensive models are wasteful for many simple and “canonical” examples. Meanwhile, IoT applications often have dynamic time or energy constraints over time, due to timevarying system requirements or resource allocations. Ideally, the deployed CNN should adaptively and automatically use “smaller” networks when test images are easy to recognize or the computational resources are limited, and only perform full inference when necessary.
Lately, a handful of works have considered the problem of adaptively controlling the number of computations for dynamic inference, by either enabling early prediction from intermediate layers, or dynamically bypassing unnecessary intermediate layers and only executing subnetwork inferences [11, 12, 13, 14, 8]. However, there seem to be no effort to unify the two directions (skipping and early exiting). We argue that the integration of both is not only beneficial but even necessary, to fit CNNs for practical IoT deployments. Moreover, the current dynamic layerskipping methods only allow a “coarsegrained” choice to execute each layer or not, while the potential power of finergrained dynamic selections over channels or filters in a layer has not been jointly considered. Last but not least, the dynamic inference has so far only been explored in simple chainlike backbones such as ResNet [10]. While more complicated connectivity [15] or treelike topology [16] has proven to improve accuracy much further, it remains unclear how dynamic inference could benefit their inference efficiency.
This paper makes multifold efforts to address the above unsolved challenges. We propose a novel dual dynamic inference (DDI) framework, that is motivated to address the practical IoT needs for resourceefficient CNN inference. Our main contributions are as follows:

We consider two dynamic inference mechanisms, i.e., inputdependent and resourcedependent, and for the first time unify them in one framework. They together ensure boosting and controlling the energy efficiency, by both constantly suppressing unnecessary costs for easy samples, and halting inference for all samples to meet hard resource constraints enforced.

For inputdependent dynamic inference, DDI goes beyond the existing layerskipping scheme and incorporates a novel multigrained skipping (MGL2S) approach. Specifically, MGL2S simultaneously allows for layer and channelwise skipping, enabling superior flexibility in striking a more favorable accuracyresource balance.

Beyond ResNet where DDI can be straightforwardly integrated, we demonstrate how DDI could be readily applied to more complicated backbones such as DenseNet, which we observe further gains. Furthermore, DDI could be optimized with any specific resource goals, such as inference latency or energy cost.
Noting that since skipping decision is inherently discrete and thus nondifferentiable, it creates difficulties for training. SkipNet [10]
adopts a twostage training procedure: first it uses softmax decision for training and discrete decision for inference, but since the parameters are not directly optimized for discrete selection for inference, it will result in poor accuracy; thus, for the second stage, they use reinforcement learning to further optimize the discrete policy. In this paper, we apply a similar softmax approximation technique to train the decision, with an additional novel regularization term that explicitly enforces efficient learning, such that no further refinement by reinforcement learning is necessary.
We conduct extensive experiments on CIFAR 10 and ImageNet datasets, demonstrating the superior performance (in terms of accuracyresource tradeoff) and flexibility of DDI, over existing dynamic inference methods.
Ii Related Work
Model Compression. Model compression has been extensively studied for reducing model sizes [17] and speeding up inference [18]. Early works [19, 20] reduce the number of parameters by elementwise pruning unimportant weights. More structured pruning was exploited by enforcing group sparsity, such as the filter or channel pruning [21, 22, 23, 24, 25, 26, 27, 28, 29]. [30] first proposed multigrained pruning by grouping weights into structured groups with each employing a Lasso regularization. [31] proposed to stack elementwise pruning on top of the filterwise pruned model. Lately, [32] proposed to train a multigrained pruned network by introducing a multitask objective. A comprehensive review of model compression can be found in [33].
Dynamic Inference. Model compression presents “static” solutions for improving inference efficiency, i.e., the compressed models cannot adaptively adjust their complexity at inference. In contrast, the rising direction of dynamic inference reveals a different option to execute partial inference, conditioned on input complicacy or resource constraints.
Dynamic Layer Skipping. Many dynamic inference methods [10, 34, 35] propose to selectively execute subsets of layers in the network conditioned on each input, framed as sequential decision making. Most of them used gating networks to skip within chainlike, ResNetstyle models [36]. SkipNet [10]
introduced a hybrid learning algorithm which combines supervised learning with reinforcement learning to learn the layerwise skipping policy based on the input, enabling greater computational savings and supporting deep architectures. BlockDrop
[34] trained one global policy network to skip residual blocks.Channel Selection or Pruning. The smallest “skippable” unit in the above methods is a residual block. Hence, the above layer skipping methods can only be applied to the networks with residual skips. In comparison, many inputadaptive filter pruning or attention works could also be viewed as finergrained channel skipping ideas. [37]
modeled channel skipping as a Markov decision process, and used RNN gating networks to adaptively prune convolutional layer channels. GaterNet
[38] trained a separate network to calculate the routing policy. The slimmable neural network [39] was recently proposed to train networks with varying channel widths while sharing parameters. [40] proposed an architecture that contains distinct components each of which computes features for similar classes, and executed only a small number of components for each image.Early Exiting. To meet the stringent resource constraints, a few prior works introduced “early exit” into CNN inference. BranchyNet [41] augmented CNNs with additional branch classifiers for forcing a large portion of inputs to exit at these branches in order to meet the resource demands. In a similar flavor, [9] extended the early exiting idea by adding multiscale aggregation for intermediate classifiers in order to pass coarserlevel features to later classifiers.
Iii The Proposed Framework
In IoT applications, it is apparent that one always desires to save resources whenever possible, without incurring considerable inference performance loss: that is considered as a “soft” constraint for efficient inference. Meanwhile, due to systemlevel scheduling and coordination, the edge devices often have to perform “approximate computing” [42] in order to output the best possible result with a stringent and potentially timevarying resource limit (even that result considerably degrades compared to the full inference performance): that could be in contrast viewed as a “hard” constraint for efficient inference.
The practical need in IoT applications has motivated us to develop and integrate two different adaptive inference schemes: 1) inputdependent dynamic inference: the model will execute only a small subset of computations (e.g., a simpler submodel) for the inference of simple inputs, and more computations will be activated only for harder inputs as needed; 2) resourcedependent dynamic inference: regardless of specific input samples, the model has to terminate its inference and output a good prediction, within certain resource limits that may potentially vary over time.
We hereby propose a unified Dual Dynamic Inference (DDI) framework to embed the following two capabilities into one network:

InputAdaptive Dynamic Inference (IADI): the network learns to dynamically choose which subset of computations to execute during inference so as to best reduce total inference comp/energy cost with minimal degradation of the prediction accuracy. Then a multigrained skipping policy will be learned together with the network training.

ResourceAdaptive Dynamic Inference (RADI): for learning under hard resource constraints (such constraints can be varied over time), a deep network could admit multiple early exits in addition to the final output, to enable “anytime classification”, where its prediction for a test example is progressively updated, facilitating the output of a prediction at any time.
To our best knowledge, DDI represents the first effort to unify the above two mechanisms in one framework. The two mechanisms together ensure boosting and controlling the comp/energy efficiency, by both saving unnecessary costs, and halting inference when there are hard constraints. DDI could be optimized for different specific forms of resources, such as computational latency or energy cost.
Iiia InputAdaptive Dynamic Inference
IiiA1 MGL2S for chainlike backbones (e.g., ResNet)
IADI will selectively execute a subset of inference computation based on the input complexity. A baseline for IADI would be the dynamic layer skipping method as described in [10] that learns to skip a layer or not. In comparison, enabling finergrained options, such as skipping a channel or filter, would be more flexible and potentially yield higher computational and energy efficiency. However, it is nontrivial to achieve such finergrained learning due to the much larger skipping policy searching space.
To tackle this, we propose MGL2S for both finergrained and efficient implementation of IADI. MGL2S allows for skipping both layers and channels in a CNN inference, and performs so in a coarsetofine fashion. Overall, it first examines whether a layer shall be entirely skipped; and if not, it will consider skipping part of channels in that layer. The skipping policies are jointly learned by compact supervised gating networks (rather than as two sequential steps) together with the base network. Comparing to merely channelwise skipping, one of the advantages of combining it with layerwise skipping is that the efforts to compute the channelwise routing policy can be saved if that layer is skipped first, where the computational overhead of a channel gating function is 12.5% comparing to the backbone networks, while that of a layer gating function is less than 1% [10].
Next, we introduce how to incorporate MGL2S into ResNet inference, which has been the most popular testbed for dynamic inference [10, 34] due to its skipping connection and chainlike simple structure. For the th layer, we let denote its output feature map and therefore as its input, where denotes the channel number of the th layer. Also, we employ to denote the convolutional operation in the th layer, and consider two gating networks: for layer skipping and for channel skipping. The layer skipping during inference could be formulated as:
(1)
Note that outputs a scalar : 0 denotes skipping the th layer computation and let directly pass on to . This implicitly requires and to have the same dimension, which is another reason why ResNet has been preferred. Similarly, channel skipping can also be expressed as (also depicted in Fig. 1):
(2)
However, as a critical difference from layer skipping, outputs a lengthvector , where a zero value denotes that corresponding channel (indexed from 1 to ) should be skipped.
Accordingly, MGL2S can be defined as:
(3)
In practice, to reduce the computational overhead, we first compute the output, and if it is zero, we do not compute since all channels are by default skipped.
IiiA2 Heterogeneous Gating Design in MLG2S
Design of : As discussed in [10]
, recurrent neural networks (RNN) can serve as a gating function and find routing for all layers as a sequential decisionmaking process. It is computationally efficient due to weight reuses, and can better capture the conditional relevance between different layers. We adopt this convention and implement
as a Long Short Term Memory (LSTM) network, as depicted in Fig.
2(a). Specifically, at each LSTM stage, we project its output to a scalar between [0, 1] using a Sigmoid function, and then quantize it to either 0 or 1.

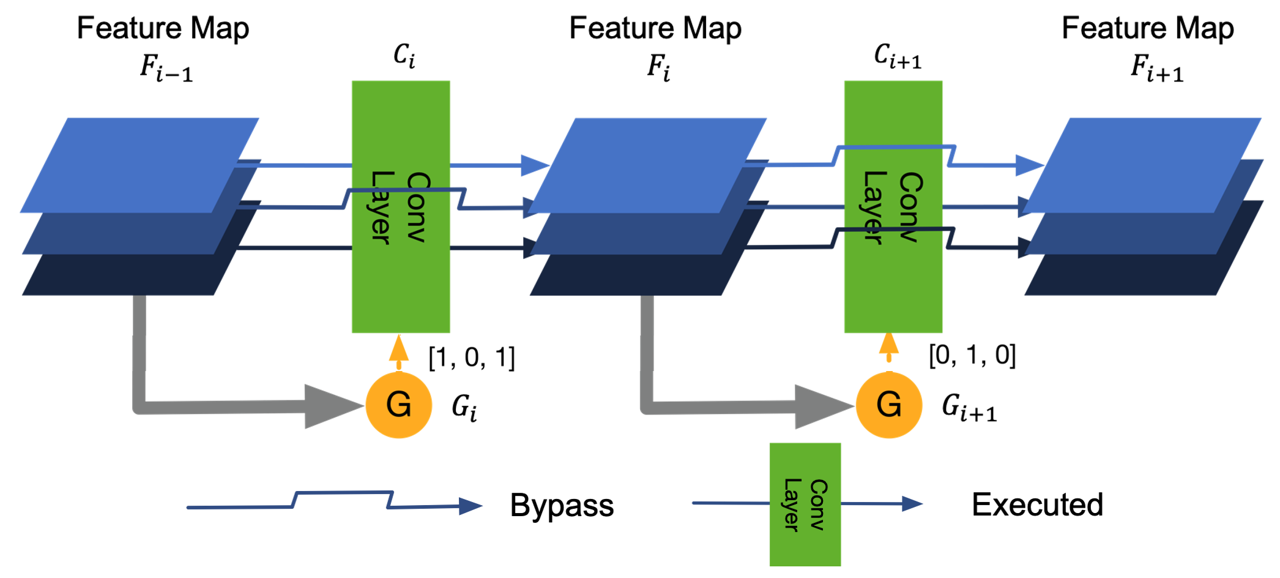

Design of : When skipping channels, the interchannel relevance is usually more significant a consideration than crosslayer correlations. Moreover, different layers normally have different output channel numbers , making a recurrent design difficult. Motivated by the two observations, we turn to design a CNN gating function for each layer’s channel skipping. Each CNN gate is associated with one convolutional layer in the base model. The CNN gate structure is depicted in Fig. 2(b). Its output is a dimensional vector ( is the output channel number of the current layer), that is fed to a Sigmoid function to be elementwise rescaled and quantized to 0 or 1.For evaluating the final computational savings, we take the overhead of gating networks into account. Based on the above lightweight design, the computational overhead incurred by and accounts for about 0.04% and 12.5% of the computational cost of a residual block in ResNet34, respectively. Note that although CNN gates seem to have caused more overhead, applying it to channel skipping still brings overall resource savings as we will show in Section IV. We leave the more efficient design of CNN gates for future work.
IiiA3 Extending MGL2S to Densely Connected Backbones (e.g., DenseNet)
DenseNet [15] shows superior performance to ResNet in terms of accuracy and computational cost trade off, thanks to its much heavily connected intermediate layers. Meanwhile, extending MGL2S to DenseNet has not been explored in previous dynamic inference works. Compared to chainlike backbones (e.g., ResNet), the output of each layer in DenseNet is concatenated with the outputs of all preceding layers through shortcuts. This leads to an even more enlarged routing space to decide on when using as a backbone of dynamic inference. Moreover, the layerwise input dimension changes throughout DenseNet also turn the (implicit) underlying assumption in ResNet layer skipping invalid, i.e., and always having the same dimension.

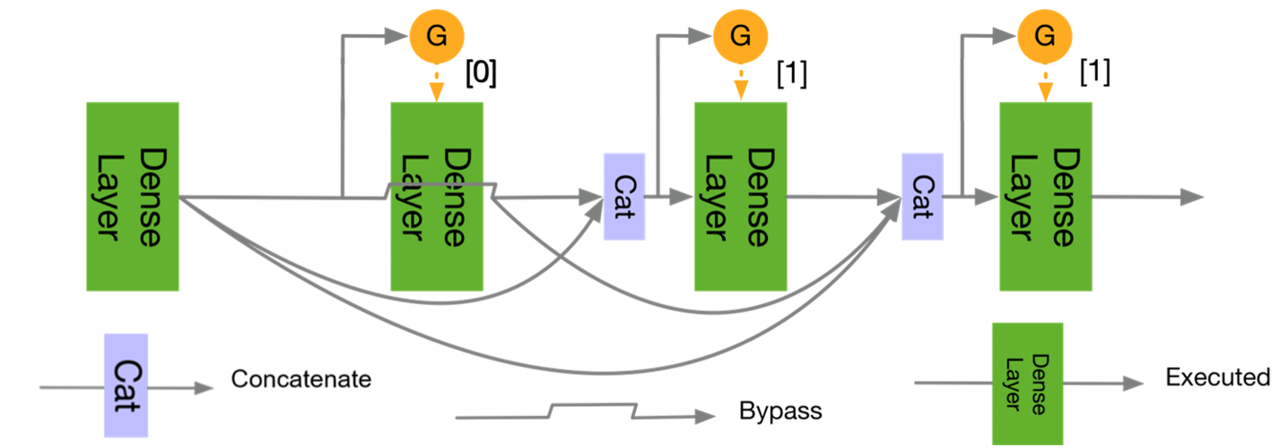

To alleviate the above challenges, we propose a modified layer skipping strategy as illustrated in Fig. 3. Specifically, if the second dense layer is skipped, then its output will be identical to the output of the first dense layer.
Design of and in DenseNet: We apply the same LSTM gating network used in ResNet for implementing in DenseNet. For channel skipping, we also use a CNN gating function to implement . However, the channel dimension of the input for the gate will gradually increase due to the feature concatenation structure in DenseNet. Therefore, directly applying the CNN gate in ResNet will cause unacceptable heavy computational overhead. For example, directly adopting the same in Fig. 2(b) for DenseNet100 will lead to the gating computational overhead that is 4 times higher than the base network. To this end, we design a lightweight CNN gate for DenseNet, consisting of a bottleneck layer followed by a convolution layer. This new gating design has around 11% overhead of the original DenseNet model, as shown in Fig. 4
IiiB ResourceAdaptive Dynamic Inference
RADI performs anytime prediction in order to meet various hard resource constraints. Specifically, following similar ideas from [41], RADI adds multiple branch classifiers to the network, and make an early prediction on the branch whenever a resource constraint is met. Fig. 5 shows the positioning principle and design of branch classifiers.
Training for RADI. During training, each branch classifier has the same softmax loss as the final classifier , . The branches and main output are jointly trained. The overall loss is the direct summation of side branch losses and main branch loss
(4)
Testing for RADI. To show RADI’s flexibility to perform inference under hard resource constraint as described in Section III, we first set a strict resource limit, which can be the number of FLOPs or energy consumption; then for each test sample, we halt the inference process as long as the constraint is met, and perform classification at the latest side branch it has passed.
IiiC Training Strategy for DDI
Training DDI takes two phases. We first train MGL2S on the base network. We then add RADI to the pretrained IADI network, and tune from end to end. The hyperparameters for training DDI will be found at Section
IVA.Training MGL2S. We use supervised learning to obtain the layer and channel skipping policies. The dynamic skipping policies are learned by minimizing a hybrid loss consisting of prediction accuracy loss and the resourceaware loss . The learning goal is defined as:
(5)
where is a weighted coefficient, and and denote the parameters of the base model and the gating networks. The resourceaware loss is defined as the dynamic cost associated with the set of executed layers, which can be measured in terms of FLOPs or energy loss, and is a function of the gating parameters and network parameters .
Iv Experiments
In this section, we present extensive evaluation results of the proposed techniques. Section IVA describes the experiment setup including the employed CNN models and datasets, and model design/training details. In Section IVB, we 1) evaluate our IADI technique against stateoftheart designs of both dynamic skipping and static compression, 2) compare IADI over the base models with various skipping strategies, 3) study IADI when using energyaware loss, e.g. real time inference energy cost, and 4) compare IADI over the SkipNet baseline based on the ImageNet dataset. Section IVC summarizes DDI’s performance under hard resource constraint. In Section IVD we discuss visualization for inputs and their corresponding skipping ratios. In Section IVE, we compare the feature maps learned by layer skipping and channel skipping methods and discuss why adding channel skipping achieves better prediction accuracy.
Iva Experimental Setup
Evaluation Models, Datasets and Metrics. ^{1}^{1}1The stride is set to be 1 unless otherwise specified in this subsection. We evaluate our proposed techniques using stateoftheart CNN architectures including ResNet [36] and DenseNet [15] on two image classification benchmarks: CIFAR10 and ImageNet. CNN Models: For CIFAR10, we use ResNet38, ResNet74, and DenseNet100. In particular, ResNet38 and ResNet74 start with a convolutional layer followed by 18 and 36 residual blocks with each having two convolutional layers. The 18 and 36 residual blocks are divided into 3 stages uniformly. For ImageNet, we employ a standard DenseNet model DenseNet201. Both DenseNet100 and DenseNet201 follow the design standard from [15], where we use a growth rate of 12 for experiments on CIFAR10, and a growth rate of 32 for experiments on ImageNet. Metrics: Performance is evaluated in terms of classification accuracy and computational/inference energy savings.
Gating Network Design for IADI. As shown in Fig. 2(a), for layer skipping, we utilize an LSTM to implement the gating network [43]. For reducing the associated computational overhead, the gating network pipeline consists of 1) an average pooling layer that is designed to compress the input feature map into a vector with denoting the number of input channels, 2) a
convolutional layer for further feature extraction, and 3) a single layer LSTM with a hidden unit size of 10.
For channel skipping, we employ a lightweight CNN gate, which is made of 1) a convolutional layer with a stride of 2, 2) a global average pooling layer for compressing the feature map into a feature, and 3) a fully connected layer of size ( is the number of output channels).Branch Position and Design for RADI. Branch Position: Since the architectural design of both ResNet [36] and DenseNet [15] follows a stagewise pattern, where feature maps within the same stage have the same resolution, we distribute the branch classifiers at all stages of the network. Specifically, on CIFAR10, we add branch classifiers at approximately 1/4 and 3/4 depth of every stage of the ResNet and DenseNet model, resulting in a total of 6 branches; On ImageNet, for the adopted DenseNet201 model, there are a total of 3 branch classifiers: one at 1/2 depth of the first dense block, and the other two at 1/4 and 3/4 depth of the remaining two dense blocks, respectively. Branch Classifier Design:
Since feature maps at the networks’ early stages have high resolution, and accurate classification requires coarse level features of images, our branch classifier design adds more max pooling layers with a stride of 2 at branch classifiers’ early stages, extracting coarse level features that help boost the prediction accuracy. A detailed description of the structure of our branch classifiers can be found in our pytorch code.
Training Details. Training DDI involves two phases: train IADI and then train RADI. Train IADI
: given a pretrained CNN model, if we directly train both the gating networks and the pretrained model together by randomly initializing the former using the Gaussian distribution, e.g., consider 50% skipping ratio, the resulting accuracy is observed to decrease drastically as compared to that of the pretrained model. We conjecture that this is because the batch normalization parameters trained for the original model cannot capture the statistics of the updated feature maps due to layer/channel skipping. To resolve this issue, we propose to start with a warmup process, during which the base network is fixed and only the gating network is trained to reach a skipping ratio of 0. After that, the base and gating networks are jointly trained using the standard stochastic gradient descent algorithm.
Train DDI: once IADI is trained to reach the specified learning goal, we add the branch classifiers and then train the IADI model and branch classifiers jointly as described in Section IIIB.Hyperparameter Settings: For both CIFAR10 and ImageNet datasets, we set the momentum to 0.9 and the weightdecaying factor to 1e4. For experiments on CIFAR10, we set the learning rate to 5e2, batch size to 128, and to 2e4; and train a total of 50k iterations for the IADI stage and another 50k iterations for the DDI stage. For experiments on ImageNet, we set the initial learning rate to 5e2, batch size to 512, and
to 4e6; and train IADI and DDI in a sequential order with each having 90 epochs.
IvB Performance of the Proposed IADI
IADI vs. Stateoftheart techniques on CIFAR10. We compare IADI against six stateoftheart techniques including four dynamic skipping techniques (SkipNet [10], BlockDrop [34], SACT and ACT [8]) and two static compression techniques (PFEC [44] and LCCL [45]).
To be consistent with the baselines, we apply IADI on ResNet. Fig. 6 shows that the models resulted from IADI, i.e., ResNet38IADI and ResNet74IADI, outperform all stateoftheart techniques by achieving a better accuracy given the same computational cost (i.e., FLOPS) or requiring less computational cost to achieve the same accuracy. Specifically, comparing to the most competitive baselines (SkipNet38 and SkipNet74), ResNet38IADI and ResNet74IADI can save up to 4 and 3 computational cost while achieving a slightly higher accuracy (90.55% vs. 90% and 90.01% vs. 90%), respectively. Furthermore, ResNet38IADICT can even achieve up to a higher accuracy compared with SkipNet74 under the same computational cost (i.e., FLOPs).
Next, we evaluate IADI on DenseNet to show that IADI consistently achieves a better accuracy/FLOPs tradeoff when being applied to a different CNN model, and a better network backbone can further boost the performance of IADI. Fig. 7 shows that when the backbone models DenseNet100 and ResNet128 have a similar computational cost (1% difference), DenseNet100IADI outperforms ResNet128IADI in accuracy by a nontrivial margin (up to 0.76%) under a wide range of computational cost. To further demonstrate the accuracy/FLOPs tradeoff superiority of IADI on DenseNet, we compare DenseNet100IADI with the base DenseNets. Fig. 7 shows DenseNet100IADI consistently achieves a better accuracy (up to 0.7%) given the same computational cost.
IADI vs. stateoftheart methods on ImageNet. We evaluate IADI on DenseNet201 trained with the ImageNet dataset. We compare the top1 accuracy v.s. computational savings (e.g., FLOPs) on the validation set. As can be shown in Fig. 8, our proposed DenseNet201IADI shows higher accuracy than SkipNet101 under varied computational costs. Specifically, it achieves up to 2 times computational savings under the same or higher accuracy compared to SkipNet101, and up to 4% higher accuracy than SkipNet101 under the same computational cost. We also observe that the superiority of our proposed model become less significant when the computational costs become higher. The reason for this is that the highest Top1 accuracy of the pretrained DenseNet201 we can find in pytroch is 76.89%^{2}^{2}2The Pytorch version we use is 0.4.1, the pretrained DenseNet201 model was found from torchvision, which is lower than the reported 77.5% in [15].
IADI vs. Merely Layer/Channel Skipping Techniques. We here compare IADI with various skipping strategies (including skipping layer with RNN gates, and skipping channel with RNN or CNN gates) on both ResNet and DenseNet. Fig. 9 shows the comparison on ResNet. We can see that IADI implemented using MGL2S outperforms all other skipping strategies by achieving a higher accuracy given the same FLOPS or requiring less computational cost to achieve the same accuracy. Specifically, ResNet38IADI and ResNet74IADI can boost the accuracy by up to 7% and 3.5%, respectively, compared with SkipNet38 and SkipNet74 under the same computational savings (57% and 71%, respectively). Furthermore, we can see that ResNet38IADI and ResNet74IADI will not incur an accuracy loss until up to 50% and 60%, respectively, whereas SkipNet38 and SkipNet74 start to have an obvious accuracy degradation at computational savings of 20% and 15%, respectively.
Fig. 10 shows the comparison on DenseNet. Similarly, we can see that DenseNet100IADI outperforms (up to 1.2%) both layer and channel skipping over a wide range of computational cost, showing the consistent superiority of IADI. In addition, we can observe in both Figs. 9 and 10 that channel skipping with CNN gates in general achieve a higher accuracy (up to 1%) compared with that of using RNN gates, justifying our reasoning in Section IIIA2. The promising performance of channel skipping when excluding the gating overhead and the relatively large overhead of CNN gates (11 % vs. 0.04% when using RNN gates) suggests that there is a potential to further reduce the overhead of CNN gates using compression techniques such as quantization.
IADI with Different Resourceaware Losses. IADI can adapt to the most critical resource constraint for various applications by employing different resourceaware losses (i.e., in Eq. 5). For example, it has been shown that computational cost might not align with energy consumption because CNNs’ energy cost is mostly dominated by data movement and memory accesses [46]. As such, for energylimited platforms such as batterypowered wearable devices, energy instead of computational cost, i.e., FLOPs, should be used as the resourceaware loss in Eq. 5 for making use of IADI’s flexibility in adapting to various resource constraints. We denote the IADI guided by energy consumption as ResNetxIADIEnergy, and the one guided by computational cost as ResNetxIADICT. Fig. 12 shows that ResNet74IADIEnergy consistently leads to larger energy savings compared to Resnet74IADICT. In order to compute the energy cost of each layer, we adopt the following energy model:
(6)
Comp Savings (%)  40.00  50.00  60.00  70.00  80.00

Energy Savings (%)  36.08  47.10  57.30  66.79  78.20
Acc (%)  93.65  93.33  93.06  92.54  91.90
where and denote the energy costs of accessing the th memory hierarchy and one multiplyandaccumulate (MAC) operation [47], respectively, while and denote the total number of MAC operations and accesses to the th memory hierarchy, respectively. Note that stateoftheart CNN accelerators commonly employ such a hierarchical memory architecture for minimizing the dominant memory access and data movement costs. In this work, we consider the most commonly used design of three memory hierarchies including the main memory, the cache memory, and local register files [47], and employ a stateoftheart simulation tool called ”SCALESim” [48] to calculate the number of memory accesses and the total number of MACs .

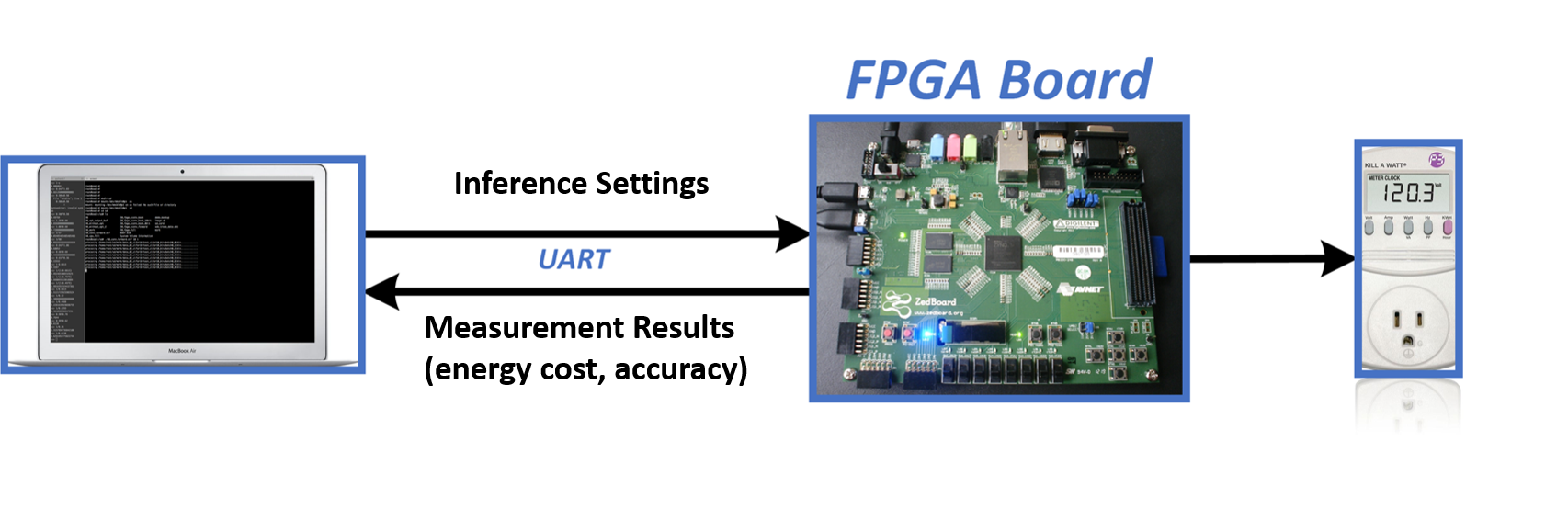

We also evaluate the proposed ResNet74IADI in terms of accuracy and realdevice energy savings measured on a stateoftheart FPGA [49], which is a digilent ZedBoard Zynq7000 ARM/FPGA SoC Development Board. Fig. 11 shows our FPGA measurement setup, in which the FPGA board is connected to a laptop through a serial port. In particular, the network structure is downloaded from the laptop to the FPGA board, and the realmeasured energy cost is obtained on FPGA board for the inference process and then sent back to the laptop. Table I shows that in addition to FLOPs measurements, our proposed method can achieve competitive energy savings and accuracy trade off as well.
IvC Performance of the DDI under hard resource constraints
We obtain the DDI models by adding early exiting classifiers to welltrained IADI models. In evaluation, we train DDI on top of ResNet74IADI and DenseNet100IADI on CIFAR10. For ImageNet, we train DDI on top of DenseNet201IADI. To demonstrate DDI’s flexibility in performing inference under stringent hard resource constraint, we first set a computational budget B (measured in FLOPs), then for each test sample, we force it to exit at the branch classifier when the budget is met, and monitor the overall accuracy on the test set.
Table II and Table III summarize the DDI evaluation on CIFAR10 and ImageNet, respectively. In both tables, each budget corresponds to the computational cost of halting inference at a particular branch; to evaluate the performance of DDI’s early classification, a set of baseline models that have the same budgets are chosen. On CIFAR10 (see Table II), for ResNet74DDI, we compare it with ResNet14 (59M FLOPs), ResNet20 (84M FLOPs), ResNet26 (117M FLOPs), ResNet38 (170M FLOPs), where the FLOPs of the full ResNet74 model is 340M, and its top1 accuracy on CIFAR10 is 93.80% ; For DenseNet100DDI, we compare it with DenseNet76 (370M FLOPs), DenseNet82 (420M FLOPs), DenseNet88 (470M FLOPs) ^{3}^{3}3All the ResNet and DenseNet baselines are constructed according to the standard structure on CIFAR10 as described in [36] and [15], where we use grwoth rate of 12 for the densenet baseline models., where the FLOPs of the full DenseNet100 model is 580M, and its top1 accuracy on CIFAR10 is 94.57%. On ImageNet (see Table III), we compare DenseNet201DDI with ResNet18 (1.9G FLOPs), GoogleNet (2G FLOPs) [50], SqueezeNet 10 (0.837G FLOPs) [51], the FLOPs of the full DenseNet201 model is 4G, and its top1 accuracy on ImageNet is 76.89%. Both Table II and Table III demonstrate the flexibility of DDI models to perform anytime prediction under varied computational budgets, with better (up to 9%) / or competitive prediction accuracy compared to the baseline models under the same computational costs.
Model  Budget(M)  DDI Acc  Base Acc  Acc

ResNet  58  91.00%  90.70%  0.30%
74DDI  74  92.82%  91.25%  +1.57%
117  93.81%  92.30%  +1.51%
144  93.88%  92.50%  +1.33%
DenseNet  372  93.83%  94.35%  0.52%
100DDI  392  94.44%  94.45%  0.01%
408  94.68%  94.16%  +0.52%
Model  Budget(G)  DDI Acc  Base Acc  Acc

DenseNet  0.837  60.26%  58.10%  +2.16%
201DDI  1.900  70.80%  69.76%  +1.04%
2.000  74.80%  65.80%  +9.00%
IvD Skipping Behavior Visualization and Analysis
Easy/Hard Inputs vs. Skipping Ratio. To visualize and analyze IADI’s effectiveness in adapting its complexity to the classification difficulty of the input images, we select two groups of input images with the corresponding skipping ratio being larger than 60% (“Easy”) and smaller than 40% (“Hard”), respectively. Fig. 13 shows a subset of these two groups. It is interesting to see that the “Easy/Hard” images identified by IADI is consistent with our human eyes. For example, we can see that the “Easy” images have a clearer boundary while the “Hard” images tend to have a blurry one.
IvE Detailed Skipping Behavior Visualization and Analysis
Feature Degradation due to Layer/Channel Skipping. We here visualize the feature degradation of layer/channel skipping compared with that of the original model. As shown in the example of Fig. 14, layer skipping can cause feature change and large variation in terms of illumination sharpness and clarity, as compared with that of the original one, whereas the feature change and variation is marginal for channel skipping. This justifies the more gradual accuracy loss (see Fig. 9) offered by channel skipping than layer skipping under the same computational cost.

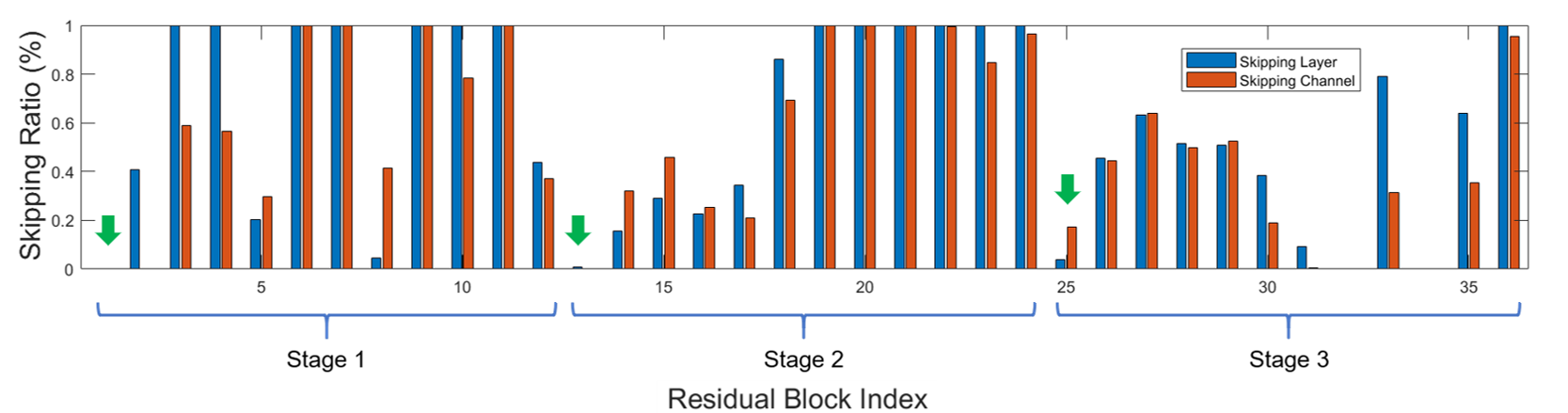

Skipping Patterns of Layer/Channel Skipping. To visualize the effectiveness of layer/channel skipping, we show in Fig. 15 the skipping ratio of all the layers in ResNet74 when applying layer and channel skipping with both having a 92% accuracy and 50% computational savings. [52] has shown that while it is possible to skip most of the residual blocks except the first one at each stage for maintaining the accuracy. It is interesting to observe in Fig. 15 that both layer and channel skipping automatically learn the importance of the first residual block at each stage and avoid skipping them.
V Conclusion and Discussions
We have proposed DDI, a novel framework that unifies inputdependent (IADI) and resourcedependent (RADI) dynamic inference. For IADI, we develop a MGL2S training approach that allows simultaneous coarsegrained layer and finegrained channel skipping. Applied on ResNet trained with CIFAR10, our IADI model achieves up to 4 times computational savings with the same or higher accuracy compared to the most competitive baseline SkipNet. We also applied MGL2S to DenseNet with novel gating and skipping design, achieving consistently better accuracyresource balance than ResNet and SkipNet. Specifically, our DenseNetIADI model achieves up to 2 times computational savings with the same or higher accuracy comparing to the SkipNet baseline. We further combine the IADI framework with early exiting and demonstrate that the DDI model has the flexibility to perform anytime prediction under hard computational budgets constraints with similar or better accuracy than the baseline models.
