DRAB-LOCUS: An Area-Efficient AES Architecture for Hardware Accelerator Co-Location on FPGAs

11/11/2019
by   Jacob T. Grycel, et al.
0

Advanced Encryption Standard (AES) implementations on Field Programmable Gate Arrays (FPGA) commonly focus on maximizing throughput at the cost of utilizing high volumes of FPGA slice logic. High resource usage limits systems' abilities to implement other functions (such as video processing or machine learning) that may want to share the same FPGA resources. In this paper, we address the shared resource challenge by proposing and evaluating a low-area, but high-throughput, AES architecture. In contrast to existing work, our DSP/RAM-Based Low-CLB Usage (DRAB-LOCUS) architecture leverages block RAM tiles and Digital Signal Processing (DSP) slices to implement the AES Sub Bytes, Mix Columns, and Add Round Key sub-round transformations, reducing resource usage by a factor of 3 over traditional approaches. To achieve area-efficiency, we built an inner-pipelined architecture using the internal registers of block RAM tiles and DSP slices. Our DRAB-LOCUS architecture features a 12-stage pipeline capable of producing 7.055 Gbps of interleaved encrypted or decrypted data, and only uses 909 Look Up tables, 593 Flip Flops, 16 block RAMs, and 18 DSP slices in the target device.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 16

12/01/2019

A Novel FPGA-Based High Throughput Accelerator For Binary Search Trees

This paper presents a deeply pipelined and massively parallel Binary Sea...
06/05/2018

Combining Multiple Optimised FPGA-based Pulsar Search Modules Using OpenCL

Field-Programmable Gate Arrays (FPGAs) are widely used in the central si...
12/17/2020

A fully pipelined FPGA accelerator for scale invariant feature transform keypoint descriptor matching,

The scale invariant feature transform (SIFT) algorithm is considered a c...
06/21/2016

An Area-Efficient FPGA Overlay using DSP Block based Time-multiplexed Functional Units

Coarse grained overlay architectures improve FPGA design productivity by...
11/19/2019

AddNet: Deep Neural Networks Using FPGA-Optimized Multipliers

Low-precision arithmetic operations to accelerate deep-learning applicat...
05/22/2018

CascadeCNN: Pushing the performance limits of quantisation

This work presents CascadeCNN, an automated toolflow that pushes the qua...
03/23/2022

CoMeFa: Compute-in-Memory Blocks for FPGAs

Block RAMs (BRAMs) are the storage houses of FPGAs, providing extensive ...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

As the Advanced Encryption Standard (AES) lies at the core of many important security operations—ranging from securing network connections to full disk encryption—improvements to performance and efficiency can benefit a large and diverse set of systems. One means to achieve this performance increase is through the use of hardware acceleration. For instance, a number of studies have leveraged field programmable gate arrays (FPGAs) for accelerating AES (Shylashree et al., 2012).111While application-specific integrated circuits (ASICs) offer an alternative approach to hardware acceleration, their high non-recurring engineering cost and limited flexibility makes them less attractive than FPGAs for use in low-cost systems. While these FPGA-based AES architectures achieve high throughput, they typically do so at the cost of high resource usage on the FPGA, i.e., monopolizing large quantities of components such as flip flops and look up tables. While higher throughput is valuable, we argue in this paper that area-efficiency is often an equally important design goal for AES architectures.

Area-efficiency, intuitively, is a measure of how effectively the AES architecture capitalizes on the FPGA’s resources. The key challenge is not only making effective use of under-utilized components (such as digital signal processing slices), but understanding the physical layout of those components and incorporating that knowledge into the AES architecture. However, the potential payoff is great as area efficient designs offer substantial benefits over those focusing purely on throughput. Most notably, area-efficiency opens up possibilities for using hardware-accelerated security in new domains. A variety of embedded systems simply cannot implement strong, efficient encryption due to processor limitations or other constraints (e.g., power)—FPGA-based approaches are a promising way to overcome these challenges and enable cryptographic security primitives on constrained embedded systems. Indeed, manufacturers have begun releasing cheap system-on-a-chip (SoC) platforms that feature co-located FPGAs and CPUs. However, without area-efficient AES designs, the system developer may have to choose between security and other operations that benefit from hardware acceleration, such as deep learning

(Wang et al., 2017; Hao et al., 2019) or video processing (Hoozemans et al., 2019). An area-efficient AES architecture would allow other types of hardware acceleration to run concurrently on the same FPGA.

In this paper, we propose a novel AES architecture that considers resource-efficiency as a first-order design principle, balancing resource usage and throughput. Key to our design is the use of block RAM and digital signal processing slices—resources that are largely ignored (or under-utilized) by prior works (Shylashree et al., 2012)—to efficiently implement the AES sub-round transformations without the need for large numbers of logic slices. The DSP/RAM-Based Low-CLB Usage (DRAB-LOCUS) architecture offers several advantages over existing approaches, including: (i) high throughput on cheaper hardware; (ii) more efficient use of FPGA resources, including those left unused by most existing AES architectures; and (iii) more functionality, allowing for concurrent encryption and decryption on multiple blocks. We summarize our contributions as follows:

  • We present the resource-efficient DRAB-LOCUS AES architecture which uses just 593 flip flops and 909 look up tables. The design leverages block RAM and digital signal processing resources to implement the sub-round transformations and build a 12 stage pipeline. We use the pipeline to construct an iterative and inner-pipelined datapath that is able to process 12 independent blocks of data at any time. Furthermore, we use this architecture to produce 7.055 Gbps of data and can arbitrarily switch between encryption and decryption for any block in the datapath.

  • We provide a deeper understanding of different AES architectures, exploring the fundamental trade-offs between throughput, resource usage, and power consumption. For instance, increasing the number of stages in a pipeline without increasing resource usage yields high resource-efficiency. These findings have implications beyond AES and can inform the design of resource-efficient architectures for other algorithms, both cryptographic and otherwise.

  • We propose new metrics for evaluating implementation efficiency in Section 5.2 that incorporate other resource types like block RAM and digital signal processing resources. For example, we consider throughput per look up table and throughput per flip flop, when before, previous studies consider only throughput per slice. These metrics provide a more complete evaluation of how effectively an implementation uses its resources to achieve high speed data processing, which can help designers to make informed decisions about which implementations to include in their system.

  • We present a case study in co-location of hardware accelerators with AES implementations in embedded systems. This investigation explores what types of implementations may be more appropriate alongside different deep learning and video processing applications. We analyze whether using fully-unrolled AES architectures is feasible when resources are shared with other accelerators, and discuss the security benefits of area-efficient implementations in resource-constrained environments.

In Section 2 we discuss pertinent background topics for AES and FPGAs and then present our methodology for creating a high-speed and area-efficient AES architecture in Section 3. We present our DRAB-LOCUS implementation in Section 4 and evaluate its performance and efficiency compared to other recent AES architectures in Section 5. Additionally in Section 5, we recommend new metrics and standards for reporting and analyzing AES implementations. We present our co-location case study considering AES implementations and other hardware accelerators in Section 6, and provide a brief analysis of related non-area-efficient work in Section 7.

2. Background

This section introduces the basics of the Advanced Encryption Standard and the structure and components of FPGAs. The discussion of the DRAB-LOCUS design in Section 3 heavily references the topics introduced in this section.

2.1. The Advanced Encryption Standard

The block cipher Rijndael is the base algorithm for the National Institute of Standards and Technology’s Advanced Encryption Standard (AES). Selected for its simple architecture and easy implementation in both hardware and software, many studies have focused on designing efficient digital circuit realizations of AES and implementing them in Field Programmable Gate Arrays (FPGA) (Shylashree et al., 2012).

2.1.1. AES Structure

AES is a symmetric-key block cipher with support for 128, 192, and 256-bit keys. The cipher utilizes four sub-round transformations and a key schedule, and treats a 128-bit input block as a 4 byte by 4 byte two-dimensional array called the cipher state. The cipher state passes through the sub-round transformations 10, 12 or 14 times (rounds) based on the key size (4). We list the sub-round transformations and key schedule below.

  1. Sub Bytes:

    A non-linear transformation performed by replacing an input byte based on a fixed look up table. The non-linear substitutions can also be calculated at runtime.

  2. Shift Rows: A linear transformation on the rows of the state block, where each row is rotated a fixed number of positions.

  3. Mix Columns: A linear transformation performed by multiplying the state block by a constant block using standard matrix multiplication.

  4. Add Round Key: A linear transformation that consists of adding the state block to a round key derived from the initial cipher key.

  5. Key Schedule: An iterative process that expands the initial 128-bit key into 10 round keys by substituting bytes and rotating 32-bit words from the original and subsequent keys.

2.1.2. AES Mathematics in Hardware

Mathematical operations in AES are performed on individual 8-bit values in , a common algebraic finite field used in computer-based arithmetic. Elements in this field are commonly represented as polynomials of degree 7 with binary coefficients. Essentially, this is the finite field of two elements extended to contain 8-term polynomials. By definition, both addition and multiplication, as well as their inverses, can be performed on any element in the field.

When represented as 8-bit binary strings, addition can be performed by calculating the exclusive or (XOR) of two elements. Multiplication is slightly more complicated, and can be implemented using a binary left shift followed by an XOR reduction with a primitive polynomial that generates . These simple operations in the field lend themselves to easy implementation in digital circuits, which commonly contain both XOR and shifting components. This close relationship between the cipher mathematics and digital hardware resources makes AES an attractive cryptographic primitive for implementation in digital systems.

2.2. Field Programmable Gate Arrays

Field Programmable Gate Arrays (FPGA) are reconfigurable digital logic devices that comprise combinatorial and sequential logic elements with a programmable interconnect that allows digital design engineers to rapidly prototype systems and update them in the field. Unlike Application-Specific Integrated Circuits, FPGAs do not require long and expensive fabrication periods and are useful for frequent hardware changes. As FPGAs are often used alongside a traditional CPU to provide optimized hardware processing, there are more devices on the market today that include CPUs and FPGAs into a single system on a chip to provide tight integration of software and custom hardware. Because of this, FPGAs are popular platforms for implementing hardware accelerators for applications such as cryptography, deep learning, and video processing. Using hardware accelerators can reduce CPU overhead by offloading processing-intensive tasks.

Below we discuss the primary components of the Xilinx 7-series FPGAs that we utilize in our DRAB-LOCUS architecture: configurable logic blocks, block RAM, digital signal processing slices, and clock regions. We also discuss finite state machines, a common control scheme for managing dataflow through FPGAs. For a more complete introduction to FPGAs, see the survey by Kuon et al (Kuon et al., 2007).

2.2.1. Configurable Logic Blocks

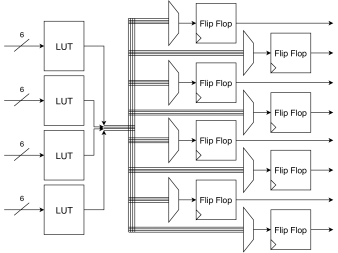

The majority of the FPGA consists of look up tables (LUTs) and flip flops combined into units called configurable logic blocks (CLBs). LUTs implement combinatorial logic functions such as AND, OR, XOR, and basic math functions, where the result of the function is stored for all possible combinations of inputs. Flip flops are sequential storage units that run on a clock. On each edge of the clock, flip flops store data on the input, and hold it on the output until the next clock edge (3).

LUTs offer two primary advantages over using individual logic gates. First, they are able to implement large functions in a single component that would normally require a high number of gates. This allows the FPGA to have a compact architecture that increases its capacity for logic functions. Second, the delay through the longest sequence of logic elements between two flip flops is easier to predict. This sequence is also called the critical path. With logic gates, each component can have a different time delay from when an input arrives and to when the gate produces an output. These varying delays make it difficult to calculate the total delay of the critical path. With LUTs, each component has a nearly identical delay, so the critical path delay is determined by simply multiplying the LUT delay by the number of path components.

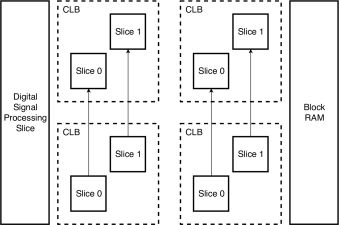

Configurable logic blocks are organized in columns and rows within the FPGA to simplify the connections made between each logic element and achieve high-speed data rates. Each logic block is further divided into two logic slices that contain multiple LUTs and flip flops. Refer to Appendix A for further discussion of the layout of FPGAs and logic slices. As the most abundant components of the FPGA, logic blocks have been highly optimized for speed and flexible routing. For designs that primarily use slice logic, FPGA design tools have higher flexibility for choosing locations at which to implement logic functions. However, usage of other resources such as I/O ports, clock buffers, processor interfaces, block RAM, and digital signal processing slices (discussed next) can influence where designs place logic in the FPGA.

2.2.2. Block RAM

The second common resource in Xilinx 7-series FPGAs are block RAM tiles, which are 36 kilobit memories accessible from within the FPGA. Block RAMs support true dual-port access models, where each port (a or b) can run on an independent clocks and have separate addresses and write enables. Our architecture uses the dual-port functionality to utilize a single block ram to perform look up operations on two bytes of the cipher state, as discussed in Sections 3.1.1 and 3.1.3.

Xilinx block RAM supports data widths up to 32 bits wide, and can be divided into any number of storage locations, as long as the number of data address can be encoded in 16 bits. Depending on the size of the needed memory, block RAM tiles may be configured as two separate 18 kilobit blocks, or a single 36 Kb block. Refer to Appendix A for further discussion of block RAM.

Block RAM memory look ups have a latency of one cycle by default, however they also contain a built-in register that can delay output data by an extra clock cycle. This is useful because the block RAM devices write output data late in the clock cycle, which makes it difficult for the output to reach other sequential elements in time for the next rising edge. By enabling the output register, outputs from block RAM will appear soon after the rising edge, and have more time to travel through the critical path and reach the next sequential element.

2.2.3. Digital Signal Processing Slices

The last relevant Xilinx 7-series resources are the Digital Signal Processing (DSP) slices. DSP slices were introduced to FPGAs to increase signal processing capabilities for digital and analog signal applications. These blocks can implement a number of mathematical and logical operations on 48-bit wide inputs, and are organized in the FPGA for high speed daisy-chaining along vertical paths in the fabric. Optionally, input data can be delayed by 1 or 2 clock cycles using the internal registers for implementing digital signal filters, or for decreasing delays between connected components for meeting timing constraints (1). We leverage the internal registers to build pipeline stages into our design without having to use lots of flip flops from logic slices, as discussed in Sections 3.1.13.1.3, and 3.1.4. See Appendix A for more details on DSP resources.

2.2.4. Clock Regions

FPGAs are divided into partitions called clock regions, which consist of columns of logic blocks, block RAM, and DSP slices. While each clock region has access to global clocks that reach every section of the FPGA, they also contain dedicated paths for local clock signals not accessible anywhere else. The organization of FPGAs into clock regions allows for more complicated designs that require multiple distinct operating frequencies. One further advantage is that if an FPGA is running a design that only occupies a single clock region, it is possible to constrain the clocks to only run in that region and avoid wasting power on sending the signals to other parts of the device (2).

2.3. Finite State Machines

FPGA designs often require a control module that is responsible for directing data, and configuring other parts of the design to perform different actions. One of the most common techniques for implementing controllers is to create a finite state machine that modifies outputs based on inputs from the system. Finite state machines are easily implemented in FPGAs, with flip flops that hold the current state of the controller, and LUTs that calculate the next state to transition to based on the state flip flops and any inputs to the design. Due to the compact organization of LUTs and flip flops in the logic slices, state machines are usually implemented in such a way that they are able to run at any speed supported by other components in the FPGA.

3. Area-efficient Design

We developed our FPGA-based DRAB-LOCUS AES architecture by considering alternative resource usage strategies. In order to develop an area-efficient and high-throughput implementation, we considered a number of different high-level architectures and sub-round transformation designs. Whereas other studies tend to focus on optimizing a single section of the AES algorithm, we set out to design a full architecture and consider how low-level optimizations and design techniques would impact the cipher as a whole. Throughout the design process, we used the following performance indicators to gauge the effect our design decisions would have on the overall architecture: (i) throughput, the number of encrypted/decrypted bits produced each second, (ii) Latency, the number of cycles elapsed before a block finishes all AES rounds, (iii) resource usage, the number of flip flop, look up table, block RAM, and DSP slices used across the FPGA.

There are a number of FPGA design techniques that can affect these performance indicators. For example, running the design on a faster clock will increase the throughput of the design, but make it harder to use alternative resources like block RAMs and DSP slices since they are placed farther apart. Logic slices are better suited for high speed operation, which means more and more parts of the design will need to run in logic slices as the clock speed increases. However, placing flip flops in between block RAM and DSP slices can reduce the critical path between these distantly placed components, making it easier to use them and run at a high clock rate. An example of this is discussed in Section 3.1.2.

The remainder of this section describes the full DRAB-LOCUS design. We compare our design to other architectures in Section 5. We leave the exploration of possible side channels and physical layer attacks for future work and instead focus on the performance and architectural advantages of our design.

3.1. Datapath Architecture

A range of architectures have been used in the past to implement AES in hardware, each of which can be defined by whether it uses pipelining or loop-unrolling techniques. In a pipelined design, registers are inserted into the datapath at regular intervals to increase the amount of data that can be processed at one time. Furthermore, registers can be inserted inside of a single AES round, or between subsequent copies of the round, given that the design uses multiple round instances; these two techniques are referred to as inner-round and outer-round pipelining, respectively (Shylashree et al., 2012).

In a loop-unrolled design, an entire round is instantiated multiple times with data flowing sequentially through each copy, allowing for data to continuously enter the cipher without any control mechanism. On the other hand, in an iterative architecture, data is fed back into a single instance of the round multiple times. When paired with inner and/or outer-round pipelining, designs can produce high throughput at the expense of more resource usage (more pipeline stages yield more flip flops).

We designed the DRAB-LOCUS architecture with an iterative, inner-pipelined structure, allowing us to maximize throughput while using few resources. This means the datapath mainly consists of a single instance of each sub-round transformation, where data is fed back through the design until it has completed 9 rounds, as can be seen in Figure 1. While the iterative component of our design minimizes resource usage by only instantiating the AES round once, the inner-pipelined aspect requires more hardware registers, which can be expensive depending on the number of pipeline stages. In order to mitigate this, we use the built-in registers of the block RAM and DSP slices to insert pipeline stages, as explained in subsequent sections. All register stages are indicated by red dashed boxes in the datapath figures.

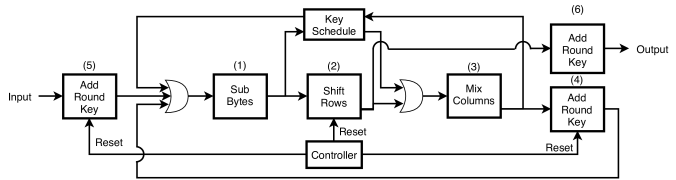

Figure 1. Full Datapath Architecture

We modify the iterative inner-pipelined structure to include two extra instances of the add round key transformation (5,6) in order to easily handle multiple blocks of data at the same time. With a single instance of the add round key transformation (4), there could be a case where two blocks need to pass through the same instance at the same time. For example, if one block exits the mix columns transformation (3), and one block exits the shift rows transformation (2) during its final round, both blocks have to pass through the add round key transformation (4) next. With a single instance, a controller would have to stall the entire datapath to resolve the data conflict. By using three instances of the add round key transformation (4,5,6), we avoid potential data hazards.

We were able to use this same architecture for both encryption and decryption by using the equivalent inverse cipher (4). This is a modification to the AES decryption algorithm that reorders the inverse sub-round transformations to be in the same order as their encryption counterparts, with the only significant change being required in the key schedule. In the equivalent inverse cipher, each round key must pass through the inverse mix columns transformation (3) before being added to the cipher state in the add round key transformation (4,6). To support this, we added connections to the datapath before and after the mix columns transformation (3) for the key schedule to perform inverse mix columns on each round key. Additionally, we added connections before and after the sub bytes transformation (1) to perform s-box lookups during round key calculation, as discussed in Section 3.3.

As the DRAB-LOCUS architecture supports arbitrary switching between encryption and decryption at every pipeline stage, the key schedule must calculate all round keys and inverse round keys during an initialization phase, so during cipher operation the key schedule taps into the datpath are unused (Section 3.3). This means that we can use an OR gate to multiplex sub-round transformations, as the key schedule inputs are held at zero. This reduces the complexity and connectivity of the controller, making the design easier to implement. The only other requirement for using OR gates is that the output of the add round key transformation (4) is reset to zero when a new input is added to the datapath. The controller triggers this reset using dedicated high-speed reset paths in the FPGA, as discussed in Section 3.2. A high-level block diagram of the data path with control and key schedule connections is shown in Figure 1 and a schematic of the datapath can be seen in Figure 3.

3.1.1. The Sub Bytes Transformation

The DRAB-LOCUS architecture performs the sub bytes transformation by using block RAM tiles configured as ROM look up tables. This is one of two commonly used techniques, the other of which is to perform composite field arithmetic in  (Shylashree et al., 2012). We chose to use the block RAM look up table technique as this results in less utilization of slice logic.

The sub bytes design uses each byte of the input block as an address into a block RAM look up table. There is enough space to store the tables for both encryption and decryption such that the encryption table resides in the first 2,048 bits of memory, and the decryption table resides in the second 2,048 bits of memory. Therefore, we use a single block RAM to perform both the sub bytes and inverse sub bytes transformations, by prepending the mode for the current block to each 8-bit address input to select between the encryption and decryption tables.

Furthermore, since the Xilinx 7-series block RAM supports true dual port interfacing, we use a single block RAM to perform lookups for two bytes of the input block, as shown in Figure 2. To construct the full sub bytes transformation, we replicate this structure 8 times in the full datapath. Although we strive to minimize resource usage, replicating the block RAM 8 times greatly simplifies the DRAB-LOCUS architecture, as using a single block RAM would add internal loops to the datapath. This would require additional control logic and make it difficult to process multiple blocks with different modes at the same time.

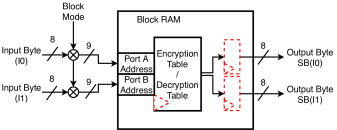

Figure 2. Sub Bytes Transformation Design

The sub bytes transformation adds two pipeline stages to the datapath, where the first stage comes from the 1-cycle memory look up, and the second from enabling the output registers built into the block RAM. The DRAB-LOCUS architecture benefits from the second stage in two ways. First, the lookup delay through the RAM is slow, and can make it hard to implement the design in the FPGA without causing timing issues. The output register makes it easier to implement the design with a fast clock (as discussed in Section 2.2.2). Second, as the second register is internal to the block RAM, this increases the number of pipeline stages in the datapath without requiring 128 flip flops from the logic slices. Both of these features contribute to high throughput and low resource usage.

3.1.2. The Shift Rows Transformation

The design implements the shift rows transformation using LUTs and flip flops from the logic slices. Assuming that we only wanted to support encryption (or decryption), we could statically maps input bytes to rotated output bytes. However, because the DRAB-LOCUS architecture concurrently performs both encryption and decryption, the datapath uses a switch made of LUTs and flip flops to choose between the rotations for encryption or decryption depending on the mode needed for the current block.

While using logic slices to implement shift rows requires the use of 128 flip flops, this technique also allows the cipher to run at higher clock frequencies, as the flip flops can be placed equidistant to the sub bytes and mix columns instances. This decreases the critical path between block RAMs, which may be placed far apart due to the layout of Xilinx 7-series FPGAs, allowing for an overall faster cipher speed.

3.1.3. The Mix Columns Transformation

DRAB-LOCUS splits the mix columns transformation into two sequential stages, corresponding to the two steps of matrix multiplication.

Byte Multiplication Lookup – The first step of matrix multiplication is to multiply elements of the two matrices together. We load precomputed byte multiplications corresponding to the mix columns matrix into block RAMs, which perform a lookup operation for each byte of the input block. Since the mix columns input block is multiplied by a fixed matrix for encryption and decryption, it is guaranteed that each byte of the input block is multiplied by every byte of the fixed matrix at some point during the computation. Furthermore, as each row of the fixed matrix is simply a rotational permutation of the first row, each input byte will only be multiplied by four different values. For example, each input byte is multiplied only by 01 (twice), 02, and 03 for encryption; for decryption, each byte is multiplied by 09, 0B, 0D, and 0E. Additionally, both matrices have the same structure, but with different bytes. This allows us to use the same storage structure in block RAM for encryption and decryption. We discuss the storage format further in Appendix B. Each input block byte is used as an address to look up the corresponding 32-bit multiplication results, and the mode (encryption/decryption) is used to select the high or low 256 memory entries (similar to the sub bytes transformation design).

We use the registers built into the block RAM to add another pipeline stage to the datapath, again without using any flip flops. Similar to the sub bytes design, this also enables the cipher to run at higher frequencies, as the output register decreases the length of the critical path within the mix columns instance.

Wide XOR – The second step of matrix multiplication is to add all of the multiplied terms together to produce an element in the output matrix. The design uses DSP slices to perform 48-bit wide XORs

on the outputs of the block RAM look up. We mix the block RAM outputs together to form 4 48-bit vectors for the high 48 bits, 4 48-bit vectors for the middle 48 bits, and 4 32-bit vectors for the remaining 32 low bits. Equation

1 shows an example of the standard matrix multiplication for the first 4 output bytes during encryption, and we use the patterns of matrix multiplication to concatenate different output bytes from the block RAMs, such that addend terms line up in the same position across four vectors. Refer to Appendix B for more specific equations involving the block RAM outputs. We assume that the input state is organized in column-major order as shown in , with containing the MSB.

(1)

The 48-bit vectors pass into cascaded DSP slices, such that the output of one slice is the input to another. A cascaded structure improves the maximum operating speed of the DSP slices by using dedicated short-distance routes between the slices. To operate this part of mix columns at the same speed as the rest of the architecture, we enabled internal DSP slice input and output registers, decreasing the critical path between DSP slices and block RAMs.

The number of registers used for each DSP slice varies in order to synchronize data through the cascade. For example, the inputs to the second slice must be delayed by two cycles to account for the 2-cycle delay through the first slice. In order to use an input and output register in the first slice, a total of three delay cycles are required for the third slice in the cascade. Since the DSP slices only have 2 input registers, mix columns uses 128 flip flops from the logic slices to acquire the third delay cycle. In total, the DSP cascade tree adds four pipeline stages to the datapath, in addition to the 2 stages from the block RAMs. The full mix columns design is shown in the full datapath diagram (Figure 3).

3.1.4. The Add Round Key Transformation

The DRAB-LOCUS architecture implements the add round key transformation using DSP slices, similar to the second stage of mix columns. Since the add round key transformation XORs two 128-bit values, only three parallel DSP slices are needed, unlike mix columns, which cascades sequential DSP slices. Since the DSP slices operate on 48-bit signals and there is a 128-bit input, two DSP slices compute two 48-bit XORs and one DSP slice computes one 32-bit XOR. In order to add more pipeline stages to the datapath, and to decrease the critical path between the add round key transformation and the mix columns transformation and key schedule, the design enables two input registers and one output register on each DSP slice.

For the two extra add round key instances in the initial and final rounds of the cipher, the architecture only uses one input register, since the DSP slices are only routed to the key schedule, and not to block RAMs (as in the main-round instance). Since the initial and final add round key instances are not part of the main datapath pipeline, extra registers do not contribute to throughput, and instead only increase the latency. Thus, by only using two register stages we maintain a shorter critical path to the key schedule and reduce overall latency by two clock cycles.

One final component of the DSP slices we use are the reset inputs, which hold the outputs at zero when a new block enters the pipeline, or the key schedule is initializing the round keys. This reset signal, and the data hazards it prevents, are discussed further in Section 3.2. The three parallel DSP slices for the add round key instance can be seen in the datapath in Figure 3.

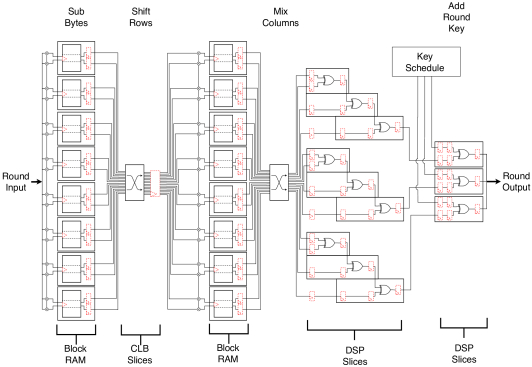

Figure 3. Full Datapath Schematic

3.2. Control Module

Since the datapath for our DRAB-LOCUS architecture has an iterative inner-pipelined structure, we designed a controller to ensure that each block passes through the transformations the appropriate number of rounds and to prevent data collisions when a new block enters the datapath. Since the design processes multiple blocks at the same time, new input blocks have to be synchronized into the datapath so as to not interfere with data in the pipeline. We designed the control module so it meets the following requirements:

  1. Track each block as it moves through the datapath until it is ready to pass through the final add round key instance.

  2. Pass the mode of operation (encryption/decryption) for each block to the sub-round transformation it is currently in.

  3. Stall new inputs to the cipher when data in the pipeline is moving from add round key to sub bytes.

  4. Reset the output of the initial add round key instance until a new block of data is ready to enter the pipeline.

  5. Hold the output of the add round key instance in reset when a new block of data enters the pipeline.

  6. Hold the add round key and shift rows instances in reset while the key schedule calculates round keys.

The controller fulfills requirement 1 by using 12 113-bit-long shift registers to track each block as it travels through each stage of the pipeline and iterates through the datapath until the final add round key transformation. We implement these using LUTs from the M-type logic slices, which feature LUTs with clock inputs that can be used as 32-bit shift registers, as long as the only bit that needs to be accessed is the final bit (3). Since the DRAB-LOCUS controller only needs the last bit from the 113-bit shift registers to know when a block has completed the appropriate number of rounds, we can implement the registers using 4 LUTs from the M-type logic slices without requiring any flip flops.

The controller fulfills requirements 2, 3, 4, and 5 using two 12-bit-long shift registers, where one tracks which pipeline stages have a block in them, and the other tracks the mode for each block in the pipeline. The pipeline-tracking shift register controls whether the add round and initial round key instances should be reset (requirements 3, 4, and 5). The mode shift register is responsible for passing the correct mode of operation to each sub-round transformation so that the correct operation is performed on the block currently in each pipeline stage (requirement 2). We implement these shift registers using LUTs and flip flops, since the controller must access multiple bits inside each register, making it impossible to use the clocked M-type LUTs.

The controller fulfills requirement 6 by using a finite state machine to identify when the key schedule is initializing, or the entire cipher is reset. During reset and initialization, the state machine holds data in the datapath at a zero value, and releases it for normal operation. The state machine also has a flush state that fills the shift registers with zeros, as the shift-register configuration of the LUTs doesn’t accept a reset signal.

3.3. Key Schedule

We designed the key schedule with a finite state machine that iteratively computes round keys and inverse round keys for the equivalent inverse cipher so that the key for any round is available on request since any block in the pipeline can be in any round. We use block RAM to store all of the computed keys, and use 12 counters to keep track of which round key is needed for each block in the datapath. As with the sub bytes and mix columns block RAM, we append the block mode bit to the memory look up address to select between keys for encryption and decryption.

As described in Section 3.1, the key schedule logic connects to the sub bytes and mix columns transformations, as round key calculations use s-box substitutions, and the equivalent inverse cipher requires inverse mix columns to each key for decryption. Since the controller holds the rest of the datapath in reset during initialization, the key schedule is able to use these transformations without data errors. During normal cipher operation, the key schedule state machine holds its inputs to these transformations in reset to avoid data errors as well.

Due to having three instances of the add round key transformation, it is possible for the datapath to need the initial, final, and an arbitrary round key at the same time. We solve this challenge by using one block RAM port to produce an arbitrary round key and another port to always produce the final round key, and by adding a 128-bit register to hold the initial round key. This register, and two other 128-bit registers that hold intermediate keys during initialization, make the key schedule have the most slice usage of the design. This is reflected in Table 1 in the next section.

Summary: Our usage of block RAMs and DSPs allows us to build a 12-stage pipeline for the DRAB-LOCUS datapath without relying on slice logic to implement pipeline stages or sub-round transformations. We use the built in registers of block RAM and DSPs to add stages to the pipeline. A small control module accompanies the iterative and inner-pipelined datapath to ensure correct dataflow through the cipher, and also keeps track of whether each block is undergoing encryption or decryption. Finally, we take advantage of the equivalent inverse cipher for AES to use the same datapath for both encryption and decryption, and design the key schedule to be able to produce any round key for any block in the datapath, regardless if using encryption or decryption.

4. Implementation

We synthesized and implemented the DRAB-LOCUS design using a high-speed-grade Zynq 7000 SoC featuring co-located ARM processors and an Artix-7 grade FPGA (xc7z030sbg485-3). As a result of our focus on using block RAM and DSP slices for area-efficiency, the entire implementation fits in one half of a clock region. This uses less power because the FPGA only has to route clock signals to one section of the device.

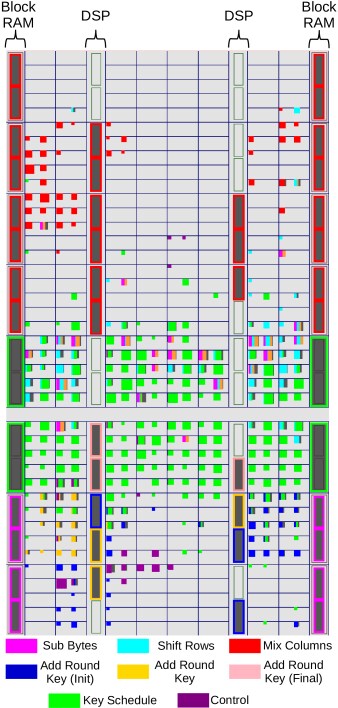

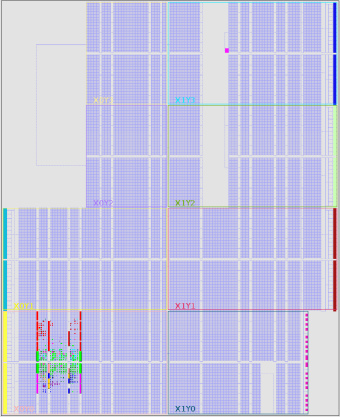

In addition to fitting within a single clock region, all of the logic elements are contained within two columns of block RAM titles. This compact layout allows DRAB-LOCUS to run at the maximum frequency supported by the block RAMs. This is because there is less physical distance between components and, therefore, less delay on the critical path.

This implementation of the DRAB-LOCUS architecture runs on a 528 MHz clock, producing 7.055 Gbps of interleaved encrypted and decrypted data with a latency of 217 nanoseconds. Table 1 gives a detailed breakdown of the resource and power usage. In Appendix C, we provide more details on the physical layout. We use Equations 2 and 3 to calculate latency and throughput, respectively, as is done in other FPGA implementation studies (Reza Rezaeian Farashahi and Sayedi, 2014; Drimer et al., 2010).

Resource Usage (#) Power Consumption (mW)
Slices LUTs Flip Flops B. RAMs DSPs Slices B. RAMs DSPs Signal Clock
Control 21 27 34 0.5 0.5 3
Key Schedule 220 616 303 4 8 99 22 21
Datapath
 Sub Bytes 23 64 4 3 86 12 0.5
 Shift Rows 74 74 128 1 8 8
 Mix Columns 38 128 8 9 0.5 173 35 42 10
 Add Round Key 15 32 3 0.5 13 3 0.5
 ^Init 42 96 3 2 0.5 3 0.5
 ^Final 3 9 0.5
Total (data) 167 266 256 12 18 7 259 58 68 20
Total (all) 310 909 593 16 18 15.5 357 58 90.5 44
Table 1. Resource usage and power consumption of DRAB-LOCUS components
(2)

Latency is defined as the number of cycles required to process a single block of data. Each block passes through the 12-stage datapath pipeline for 9 rounds, and then through the sub bytes, shift rows, initial add round key, and final add round key transformations to complete the initial and final rounds. We multiply the cycle count by the clock period to obtain the latency in nanoseconds.

(3)

The throughput is calculated as follows. First, by dividing the clock frequency by the cycle count we know how often the design produces a block of data. We multiply this rate by 128 to account for the 128 bits in each block. Finally, we multiply by 12 to account for the 12 blocks processed concurrently in the datapath (12 blocks of data are produced every 115 cycles).

Summary: The DRAB-LOCUS implementation uses only 909 LUTs, 593 flip flops, 16 block RAM, and 18 DSP in the target FPGA. This low resource utilization produces a compact layout that allows the design to run on a fast clock signal, where the clock speed is limited by the maximum block RAM frequency and not the critical path delay. The AES sub-round transformations use only 266 LUTs and 256 flip flops, less than half of the total design’s slice utilization.

5. Evaluation

Our evaluation focuses on answering the following key questions. First, how does DRAB-LOCUS compare to other FPGA-based AES architectures? Specifically, what is the impact of different architectural design decisions on throughput and resource usage? Second, how efficiently does DRAB-LOCUS use its allocated resources? How do we evaluate efficiency for AES designs in general? Finally, how does the use of non-logic-slice resources affect power consumption?

We pick the following three architectures for our evaluation because (i) they all leverage block RAM and DSP resources and (ii) they all optimize for different metrics: AES-EncDec optimizes for high-throughput, AES-Modes optimizes for low-area, and AES-Efficient optimizes for area-efficiency. The latter architecture offers the most direct and interesting comparison to DRAB-LOCUS.

As the Xilinx design tools compute the resource usage, power consumption, and clock frequencies of the implementations, we did not have to load the designs on to physical chips to measure performance. Instead we use the implementation statistics from the studies, which we summarize in Table 2. Beyond these three designs, we provide a brief analysis of more AES implementations in Section 7 to compare DRAB-LOCUS to designs that do not leverage block RAM and DSP, or do not describe how they use them.

AES-EncDec architecture. Wang and Ha achieved a throughput of 78.22 Gbps using a fully-pipelined architecture at the cost of high usage of all types of FPGA components: flip flops, LUTs, Block RAM, DSP (Wang and Ha, 2016). This is an example of a high-throughput design with high resource usage. We also include it to discuss how architecture structure can increase design performance at the expense of high resource usage, even when two designs use the resource in the same way. Additionally, this is the only comparable design that supports both encryption and decryption, as DRAB-LOCUS does.

AES-Modes architecture. de la Piedra et al. built a low-area design using 28 DSP slices, and only 159 logic slices and 15 block RAM. However, their design has a much lower throughput than DRAB-LOCUS with only 124 Mbps (de la Piedra et al., 2013). This is an example of a design with low resource usage that produces low throughput. We also include it to discuss how architecture structure can impact performance even when two designs have similar resource usage. One main feature of the AES-Modes design is that it operates on a single column of the AES cipher state, which yields the low resource usage, but also causes a higher latency. The design also supports the Galois Counter mode of operation.

AES-Efficient architecture. Drimer et al. built an area-efficient design that uses a single-column-based architecture, with four instances of the datapath that together effectively operate on the full cipher state (Drimer et al., 2010). It features an 8 stage inner-pipelined and iterative structure, and has similar area-efficiency to DRAB-LOCUS. However, this design only supports one process (encryption or decryption depending on build configuration), whereas DRAB-LOCUS supports both encryption and decryption for 12 concurrent blocks. We include it as an example of how differences in the pipelined part of an iterative design can either increase or decrease functionality. We also investigate an unrolled variant of this architecture called AES-Expanded when evaluating power consumption in Section 5.3.

Resource Usage (#) Performance Metrics
Slices LUTs Flip Flops B. RAMs DSPs Freq. Latency Throughput Device
(MHz) (Cycles) (Gbps)
AES-EncDec 5613 15919 n/a 400 144 611 55 78.22 Virtex 6
AES-Modes 159 n/a n/a 15 28 91.5 188 0.124 Artix 7
AES-Efficient 296 393 665 9 16 550 84 6.7 Virtex 5
 Datapath 259 338 624 8 16
DRAB-LOCUS 310 909 593 16 18 528 115 7.055 Zynq 7000
 Datapath 167 266 256 12 18
Table 2. Architecture performance comparison

5.1. Architectural Effects on Performance

The three comparable designs all use block RAM and DSP in similar ways to DRAB-LOCUS to implement the mix columns and add round key sub-round transformations. However, the architectural design decisions made in each implementation heavily influence performance with respect to resource usage.

AES-EncDec uses a fully-unrolled and pipelined architecture, while the other designs have an iterative structure with either inner or outer pipeline registers. AES-EncDec achieves a throughput of 78.22 Gbps, which is 11 times the throughput of DRAB-LOCUS, however it also uses 17 times the number of LUTs, 25 times the number of block RAM, and 8 times the number of DSP that DRAB-LOCUS uses. Using a fully-unrolled architecture causes an increase in resource usage that is disproportionate to the performance gain.

Conversely, AES-Modes uses an iterative architecture with outer-pipeline registers that store the block passing through the cipher, and has lower area than DRAB-LOCUS, but also significantly lower throughput. The design uses half as many logic slices and 1.5 times as many DSP as DRAB-LOCUS, but only achieves 2% of the throughput that DRAB-LOCUS supports. Even with similar resource usage and resource types, the performance of the designs differ greatly. DRAB-LOCUS achieves its higher throughput by using block RAM and DSP to add stages to the datapath pipeline.

The AES-Efficient datapath uses a similar iterative inner-pipelined architecture to DRAB-LOCUS, but with 72 more LUTs, 368 more flip flops, and 4 less block RAM. This difference in block RAM comes mainly from the design decisions that enable DRAB-LOCUS to perform both encryption and decryption concurrently on 12 blocks of data. AES-Efficient uses a T-box-based implementation which combines the sub bytes and mix columns sub-round transformations into a single look up and XOR operation (Kundi et al., 2010). However, this technique utilizes an entire 36 kilobit block RAM to store the lookup values for encryption, so it is not possible to perform both encryption and decryption using a single block RAM configuration.

By keeping the sub bytes and mix columns sub-round transformations separate, DRAB-LOCUS is able to perform both encryption and decryption at the expense of using 4 more block RAMs. This technique increases the latency of DRAB-LOCUS by two extra delay cycles for the sub bytes sub-round transformation, but also increases the capacity of the datapath to operate on two more blocks of data than if the design used T-boxes. Even with extra latency, DRAB-LOCUS maintains higher throughput than AES-Efficient, and supports both encryption and decryption.

The DRAB-LOCUS key schedule was also designed to be able to provide any round key at any time, in order to support encryption and decryption for 12 concurrent blocks in the datapath. In order to achieve this, the key schedule utilizes 616 LUTs, 303 flip flops, and 4 block RAMs, which increases the total LUT usage beyond that of AES-Efficient. But, at the expense of these extra resources, DRAB-LOCUS achieves more functionality. This shows that including extra algorithm optimizations such as T-boxes can reduce the potential for design functionality, and that minimally increasing resource usage can allow for extra functionality, such as supporting encryption and decryption concurrently on multiple blocks.

Summary: Pipelined designs are able to achieve high throughput at the cost of higher resource usage. Importantly, the increase in resources may outweigh the increase in throughput. In contrast, slightly reducing resource usage and pipelining can drastically lower throughput. We conclude that maximizing the number of pipeline stages in an iterative design without increasing resource usage results in better area-efficiency. Furthermore, using algorithmic optimizations may limit functionality such as processing multiple concurrent blocks and performing both encryption and decryption. DRAB-LOCUS achieves greater area-efficiency than the other designs by balancing low resource usage and high-throughput, while offering the advanced functionality of interleaving encryption and decryption operations on 12 concurrent blocks of data.

5.2. Implementation Efficiency

Studies that build FPGA designs for data processing often evaluate the efficiency of their implementation by computing the amount of throughput produced per logic slice. Each of the 3 comparable designs reports their efficiency in this way, however this metric does not give any information on how much the block RAM and DSP resources contribute to the design throughput. For example, AES-EncDec reports an efficiency of 13.9 Mbps/slice, although the design also uses 400 block RAM and 144 DSP. Furthermore, this metric does not incorporate the usage of each logic slice. Since each slice in a design could be using from 1 LUT and 1 flip flop to 4 LUTs and 8 flip flops, the throughput per slice metric does not accurately reflect how well the slice logic is being used to process data.

Starting with this metric, the designs have the following efficiencies: AES-EncDec achieves 13.9 Mbps/slice, AES-Modes achieves 0.778 Mbps/slice, AES-Efficient achieves 22.6 Mbps/slice, and DRAB-LOCUS achieves 22.75 Mbps/slice. Aside from the fact that these calculations do not address the slice utilization issue previously described, these calculations also neglect whether all of the slices in a design are part of the datapath, key schedule, or controller. As the controller and key schedule do not process input data directly, it may not be appropriate to include their slice usage in such efficiency measurements. This is more of a philosophical question of which we leave further discussion for future research.

To address these two issues, we propose that evaluation of design efficiency should incorporate the following metrics for resources in the datapath only: Mbps/LUT, Mbps/flip flop, Mbps/block RAM multiplied by the average block RAM memory usage, and Mbps/DSP.

The LUT and flip flop metrics would be useful in applications where a limited number of logic slices are available, as it shows how well the implementation would capitalize on the remaining available logic slice elements. On the other hand, the block RAM and DSP metrics would be informative in the case where these resources are limited, and a designer is concerned about whether a design uses them to their full potential. Additionally, we incorporate the percentage of memory in the block RAMs that is utilized into the metric to indicate how effectively the memory is used.

As Drimer et al. address in their study, we suggest that future studies report as much information as possible about their implementations in order to increase transparency when evaluating AES designs, as we do in this paper. For example, neither AES-Modes nor AES-Efficient state how their control mechanisms contribute to resource usage, and neither AES-EncDec nor AES-Modes state how their key schedules contribute to resource usage. This makes it difficult to accurately evaluate their efficiency using these metrics.

The adjusted efficiency measurements for AES-Efficient and DRAB-LOCUS is shown in Table 3, as these two designs state the resource usage for the datapath alone. This table also reveals that it is effective to use block RAM and DSP in the AES datapath, as each singular unit is able to process large chunks of data (32-bit for block RAM, 48-bit for DSP), instead of splitting operations across multiple LUTs and flip flops.

LUT Flip Flop B. RAM DSP
AES-Efficient 19.8 10.7 837.5 418.75
DRAB-LOCUS 26.5 27.56 220.47 391.94
Table 3. Throughput Per Resource (Mbps/#)

Summary: The traditional technique of calculating throughput per logic slice is a weak metric for evaluating design efficiency in terms of performance versus area. We propose that efficiency analysis include four measurements: throughput per LUT, throughput per flip flop, throughput per block RAM, and throughput per DSP. The block RAM measurement should incorporate what percentage of the block RAM memory is actually used to process data. The DSP measurement reveals that using block RAM and DSP in the datapath is an effective way to process large chunks of data. DRAB-LOCUS has nearly two times better LUT and flip flop efficiency than the other area-efficient design in our evaluation, AES-Efficient, and similar DSP efficiency with more functionality.

5.3. Design Effects on Power Consumption

While there are fewer FPGA AES studies that focus on low-power implementations, power consumption is still an area of interest for many system designers. Of the three comparable designs, only the designers of AES-Efficient report power consumption. Additionally, Drimer et al. include a second fully-unrolled implementation built on the base structure of the AES-Efficient design, which we refer to as AES-Expanded (Drimer et al., 2010). The power consumption of these two implementations and DRAB-LOCUS is shown in Table  4.

Logic B.RAM DSP Signal Total
Slices +Clock
AES-Efficient 56 285 111 39 491
AES-Expanded 165 2140 833 74 3212
DRAB-LOCUS 7 259 58 88 412
Table 4. Datapath power consumption (mW)

AES-Efficient uses more LUTs and flip flops than DRAB-LOCUS, which is the cause of the higher slice power consumption. However, AES-Efficient uses slightly less block RAM and DSP resources than DRAB-LOCUS, which is not reflected in the power comparison. This may be due to differences in the target device, as AES-Efficient is implemented on a Virtex FPGA, which is a high-performance FPGA that naturally consumes more power than the Zynq 7000 SoCs. This highlights the importance of disclosing the target device as part of an AES implementation analysis.

On the other hand, AES-Expanded consumes nearly 10 times the power of DRAB-LOCUS and AES-Efficient. With a fully-pipelined structure, this design also uses significantly more resources. Table 4 shows that the large increase in power consumption from AES-Efficient to AES-Expanded comes from the block RAMs and DSP slices, which both have increase factors of 7.5, while the logic slice power only increases by a factor of 3. This shows that using more block RAMs and DSP slices in a design will also significantly increase the power usage. Therefore, while low-area designs certainly consume less power due to their overall lower resource usage, low-area designs that use block RAMs and DSP slices will have higher power consumption than equivalent designs that primarily use logic slices.

Finally, while the power consumption of a running implementation is important for power supply considerations, it is also desirable to know how much power over time is required to process data. We propose that an additional power metric of the nanowatt-seconds required to process a single block is needed to better measure the tradeoffs between latency and pipeline length. Overall, this metric reflects how effectively the design uses its power to process data. The DRAB-LOCUS design uses 7.47 nanowatt-seconds, AES-Efficient uses 9.37 nanowatt-seconds, and AES-Expanded uses 622.17 nanowatt-seconds to process a single block of input data.

Summary: Replacing logic slices with higher-power components, like block RAMs and DSP slices, will increase the overall power usage, but with careful design the performance growth of the datapath outpaces this power increase. Furthermore, the target device directly impacts power consumption, so it is important for future studies to describe the exact evaluation platform for accurate power evaluation. Further, we recommend that studies include an evaluation of their power usage that shows how much power, in nanowatt-seconds, is required to process a single block of data. This metric better measures the relationship between power consumption and performance, showing that DRAB-LOCUS consumes less power over time to process a single block of data than AES-Efficient.

5.4. Overall Summary

Area-efficiency requires striking a balance between throughput and resource usage, primarily by capitalizing on under-utilized components. DRAB-LOCUS strikes this balance by leveraging block RAM tiles and DSP slices key components in the architecture’s compact datapath structure. Further, evaluating area-efficiency requires the use of new metrics that better encapsulate LUT, flip flop, block RAM, and DSP usage. These new metrics offer more insight into how effectively a design uses the resources available in the target device. DRAB-LOCUS’s use of block RAMs and DSP slices results in an implementation with similar efficiency to AES-Efficient, but higher throughput, less power consumption over time, and greater functionality, i.e., support for multiplexed encryption and decryption on 12 concurrent blocks.

6. Accelerators on Embedded Systems

One promising application of area-efficient AES architectures is enabling efficient cryptographic primitives on resource-constrained embedded systems without forcing the system designer to choose between using the FPGA for security or some other operation. In this section, we discuss the feasibility of using several AES implementations, including DRAB-LOCUS

, alongside other hardware accelerators. To do this, we compute how many logic slices, block RAMs, and DSPs are available after co-location on Zynq 7000 devices. Complicating our analysis, we can only estimate the number of logic slices in each accelerator, as the studies only report their LUT usage. Therefore, we present a best-case analysis, underestimating the number of logic slices. Further, the AES designs may run slower after co-location due to architectural differences between the original devices and the Zynq devices. We consider the following hardware accelerators for co-location with the AES designs:

  1. Video Processing: Hoozemans et al. designed a video processing system using softcore processors for dedicated image filtering. The system utilizes 8,315 slices, 105 block RAMs, and 26 DSPs, which was implemented on a Zynq 7000 (xc7z020) SoC. This platform has the following available resources: 13,300 slices, 140 block RAMs, and 220 DSPs (Hoozemans et al., 2019).

  2. DLAU Wang et al. built a deep learning accelerator on a Zynq 7000 (xc7z020) SoC using 9,096 slices, 35 block RAMs, and 167 DSPs (Wang et al., 2017).

  3. CNN

    Qiu et al. built a convolutional neural network accelerator for image classification using 45,654 slices, 486 block RAMs, and 780 DSPs

    (Qiu et al., 2016). Their study used a Xilinx ZC706 evaluation board which features a Zynq 7000 (xc7z045) with 54,650 slices, 545 block RAMs, and 900 DSPs.

  4. DNN Hao et al. proposed a methodology for designing FPGA-based deep neural network accelerators and presented several different network model implementations on a Zynq 7000 (xc7z020) SoC (Hao et al., 2019). We selected three of their new models: DNN 1 uses 10,973 slices, 134 block RAM, 202 DSPs; DNN 2 uses 10,161 slices, 109 block RAMs, 186 DSPs; DNN 3 uses 11,704 slices, 108 block RAMs, and 172 DSPs.

AES-EncDec AES-Modes AES-Efficient DRAB-LOCUS
Slices B. RAMs DSPs Slices B. RAMs DSPs Slices B. RAMs DSPs Slices B. RAMs DSPs
Video -628 -365 50 4,826 20 166 4,689 26 178 4,675 19 176
DLAU -1,409 -295 -91 4,045 90 25 3,908 96 37 3,894 89 25
CNN 3,383 -341 -24 8,837 31 92 8,700 50 104 8,686 43 102
DNN 1 -3,286 -394 -126 2,168 -9 -10 2,031 -3 2 2,017 -10 0
DNN 2 -2,474 -369 -110 2,980 3 6 2,843 22 18 2,829 15 16
DNN 3 -4,017 -368 -96 1,437 17 20 1,300 23 32 1,286 16 30
Table 5. Available resources after co-location

Table 5 shows the amount of remaining resources after co-locating each AES design with each non-AES accelerator—a negative resource value in any column indicates that the two accelerators cannot fit on the same FPGA. AES-EncDec does not fit alongside any of the accelerators due to the high resource usage of its fully-unrolled architecture. While this design produces high throughput, it is not suitable for co-location with other accelerators. AES-Modes, AES-Efficient, and DRAB-LOCUS all fail when co-located with DNN 1, due to the DNN accelerator’s high block RAM and DSP usage. However, in all other cases DRAB-LOCUS and the other two AES designs are small enough to be implemented alongside the other accelerators. Among these three, DRAB-LOCUS is the most attractive option as it offers the most throughput and supports concurrent encryption and decryption.

Summary: Area-efficiency is important for allowing co-location of accelerators on the same FPGA. DRAB-LOCUS makes the most efficient use of the available resources to support the most functionality and produce the highest throughput among the AES designs that support co-location.

7. Related Work

In contrast to DRAB-LOCUS and the architectures discussed previously, there are a number of proposed architectures that do not leverage block RAMs or DSPs, or do not provide detailed explanations of how they use block RAMs and DSPs. Few of these architectures are designed for area-efficiency, but are included to provide a broader context for our work. Below, we broadly divide these into the following categories based on their structure: (1) instruction-based, (2) purely iterative with no pipeline, (3) iterative with inner pipelining, and (4) fully pipelined and unrolled.

Norbert et al. proposed an uncommon instruction-based design, where an external interface controls data through the cipher. This design produces 215 Mbps of encrypted (or decrypted) data running on a 161 MHz clock, and utilizes 1,125 logic slices (Pramstaller et al., 2005). Tay et al. proposed a design that has a purely iterative architecture which produces 597 Mbps of encrypted data running on a 107 MHz clock, and utilizes 3,048 LUTs and 808 flip flops (Tay et al., 2014).

Rahmunnisa et al. proposed an iterative inner-pipelined design that produces 37.1 Gbps of decrypted data running on a 505 MHz clock, and utilizes 3,788 LUTs, 2,056 flip flops, 48 block RAMs, and 2 DSP slices (Rahimunnisa et al., 2014). Although this design uses block RAM and DSP, the nature of their use was not explicitly described, so we did not include the design in our detailed analysis. Farashahi et al. proposed an iterative inner-pipelined design that produces 7.95 Gbps of encrypted data running on a 671.5 MHz clock, and utilizes 3,557 LUTs, and 2,132 flip flops (Reza Rezaeian Farashahi and Sayedi, 2014). Rao et al. proposed an iterative inner-pipelined design that produces 676 Mbps of encrypted data running on a 311.7 MHz clock, and utilizes 359 logic slices (Muzaffar Rao and Grout, 2015).

Zhang et al. proposed a fully-unrolled and pipelined design that produces 93.5 Gbps of encrypted data running on a 730.7 MHz clock, and utilizes 5,081 logic slices (Yong Zhang and Yasir, 2017). Samiee et al. proposed a fully-unrolled and pipelined design that produces 43.71 Gbps of decrypted data running on a 341.5 MHz clock, and utilizes 7,865 logic slices (Samiee et al., 2011). Oukili and Bri proposed a fully-unrolled and pipelined design that produces 79 Gbps of encrypted data running on a 617.6 MHz clock, and utilizes 14,736 LUTs and 18,305 flip flops (Oukili and Bri, 2017).

While these related works produce high throughput, it may be difficult to use the nearby block RAMs and DSPs due to logic congestion and routing challenges. Comparatively, the DRAB-LOCUS architecture is significantly more area-efficient due to its use of block RAMs and DSPs. By offloading some processing from logic slices, AES-Efficient and DRAB-LOCUS make better use of available resources. Furthermore, DRAB-LOCUS achieves similar area-efficiency as AES-Efficient, but offers more functionality.

8. Conclusions

While AES and other cryptographic primitives form the foundation of security, there are myriad safety-critical embedded systems that lack the ability to do these operations efficiently. Consequently, such systems often forgo cryptographic operations in favor of saving their limited computational and power resources for other tasks.

FPGA-based hardware acceleration offers a performant, low-power solution to cryptography on embedded systems. Just as importantly, FPGAs also offer the flexibility to concurrently accelerate other emerging operations, e.g., deep learning. However, taking advantage of these new possibilities requires a new approach to developing accelerator architectures, namely one that focuses on balancing raw performance with resource usage so that system designers do not have to choose between using the FPGA for cryptographic operations or using it for other algorithms. In short, area-efficient designs make better use of available resources to allow for co-location of hardware accelerators.

We proposed an area-efficient AES architecture, DRAB-LOCUS, that achieves a balance between resource usage and throughput by incorporating under-utilized components, such as block RAM tiles and DSP slices. We identified how architectural design decisions influence key trade-offs and discussed new metrics for evaluating the efficiency and power usage of cryptographic accelerators. These metrics provide a measure of how effectively a design capitalizes on the available resources to improve performance. DRAB-LOCUS achieves higher resource efficiency than throughput-focused AES architectures, higher throughput than low-area designs, and more functionality and lower power usage than other area-efficient designs. While our focus is on AES, the design principles we discuss in this paper are applicable to other cryptographic algorithms.

Area-efficient hardware accelerators promote the adoption of security for new and emerging applications. Such designs, for example, may allow robotic swarm systems with limited resources to offload parts of network security operations, such as TLS, to hardware. Regardless of the specific application, area-efficient hardware acceleration is a promising approach for boosting the design of secure embedded systems.

References

  • [1] (2018-03) 7 series dsp48e1 slice. 1.10 edition, Xilinx. Cited by: §2.2.3.
  • [2] (2018-07) 7 series fpgas clocking resources. 1.14 edition, Xilinx. Cited by: §2.2.4.
  • [3] (2016-09) 7 series fpgas configurable logic block user guide. 1.8 edition, Xilinx. Cited by: §2.2.1, §3.2.
  • [4] (2001-11) ADVANCED encryption standard (aes). Federal Information Processing Standards Publication Technical Report 197, Department of CommerceNational Institute of Standards and Technology. Cited by: §2.1.1, §3.1.
  • A. de la Piedra, A. Touhafi, and A. Braeken (2013) Compact implementation of ccm and gcm modes of aes using dsp blocks. In 2013 23rd International Conference on Field programmable Logic and Applications, Vol. , pp. 1–4. External Links: Document, ISSN 1946-147X Cited by: §5.
  • S. Drimer, T. Güneysu, and C. Paar (2010) DSPs, brams, and a pinch of logic: extended recipes for aes on fpgas. ACM Trans. Reconfigurable Technol. Syst. 3 (1), pp. 3:1–3:27. External Links: ISSN 1936-7406, Link, Document Cited by: §4, §5.3, §5.
  • C. Hao, X. Zhang, Y. Li, S. Huang, J. Xiong, K. Rupnow, W. Hwu, and D. Chen (2019) FPGA/dnn co-design: an efficient design methodology for iot intelligence on the edge. External Links: 1904.04421 Cited by: §1, item 4.
  • J. Hoozemans, J. van Straten, T. Viitanen, A. Tervo, J. Kadlec, and Z. Al-Ars (2019) ALMARVI execution platform: heterogeneous video processing soc platform on fpga. Journal of Signal Processing Systems 91 (1), pp. 61–73. External Links: ISSN 1939-8115, Document, Link Cited by: §1, item 1.
  • D. Kundi, A. Aziz, and N. Ikram (2010) Resource efficient implementation of t-boxes in aes on virtex-5 fpga. Information Processing Letters 110 (10), pp. 373 – 377. External Links: ISSN 0020-0190, Document, Link Cited by: §5.1.
  • I. Kuon, R. Tessier, and J. Rose (2007) FPGA architecture: survey and challenges. Foundations and Trends in Electronic Design Automation 2, pp. 135–253. External Links: Document Cited by: §2.2.
  • T. N. Muzaffar Rao and I. Grout (2015) AES implementation on xilinx fpgas suitable for fpga based wbsns. In International Conference on Sensing Technology, Vol. 9. Cited by: §7.
  • S. Oukili and S. Bri (2017) High speed efficient advanced encryption standard implementation. In 2017 International Symposium on Networks, Computers and Communications (ISNCC), Vol. , pp. 1–4. External Links: Document, ISSN Cited by: §7.
  • N. Pramstaller, S. Mangard, S. Dominikus, and J. Wolkerstorfer (2005) Efficient aes implementations on asics and fpgas. In Advanced Encryption Standard – AES, H. Dobbertin, V. Rijmen, and A. Sowa (Eds.), Berlin, Heidelberg, pp. 98–112. Cited by: §7.
  • J. Qiu, J. Wang, S. Yao, K. Guo, B. Li, E. Zhou, J. Yu, T. Tang, N. Xu, S. Song, Y. Wang, and H. Yang (2016) Going deeper with embedded fpga platform for convolutional neural network. In Proceedings of the 2016 ACM/SIGDA International Symposium on Field-Programmable Gate Arrays, FPGA ’16, New York, NY, USA, pp. 26–35. External Links: ISBN 978-1-4503-3856-1, Link, Document Cited by: item 3.
  • K. Rahimunnisa, P. Karthigaikumar, S. Rasheed, J. Jayakumar, and S. SureshKumar (2014) FPGA implementation of aes algorithm for high throughput using folded parallel architecture. Security and Communication Networks 7 (11), pp. 2225–2236. External Links: Document, Link, https://onlinelibrary.wiley.com/doi/pdf/10.1002/sec.651 Cited by: §7.
  • B. R. Reza Rezaeian Farashahi and S. M. Sayedi (2014) FPGA based fast and high-throughput 2-slow retiming 128-bit aes encryption algorithm. Microelectronics Journal 45, pp. 1014–1025. Cited by: §4, §7.
  • H. Samiee, R. E. Atani, and H. Amindavar (2011) A novel area-throughput optimized architecture for the aes algorithm. In 2011 International Conference on Electronic Devices, Systems and Applications (ICEDSA), Vol. , pp. 29–32. External Links: Document, ISSN 2159-2055 Cited by: §7.
  • N. Shylashree, N. Bhat, and V. Shridhar (2012) FPGA implementations of advanced encryption standard: a survey. In International Journal of Advances in Engineering and Technology, Vol. 3, pp. 265–285. External Links: ISSN 2231-1963 Cited by: §1, §1, §2.1, §3.1.1, §3.1.
  • J. J. Tay, M. M. Wong, and I. Hijazin (2014) Compact and low power aes block cipher using lightweight key expansion mechanism and optimal number of s-boxes. In 2014 International Symposium on Intelligent Signal Processing and Communication Systems (ISPACS), Vol. , pp. 108–114. External Links: Document, ISSN Cited by: §7.
  • C. Wang, L. Gong, Q. Yu, X. Li, Y. Xie, and X. Zhou (2017) DLAU: a scalable deep learning accelerator unit on fpga. IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems 36 (3), pp. 513–517. External Links: Document, ISSN 0278-0070 Cited by: §1, item 2.
  • Y. Wang and Y. Ha (2016) High throughput and resource efficient aes encryption/decryption for sans. In 2016 IEEE International Symposium on Circuits and Systems (ISCAS), Vol. , pp. 1166–1169. External Links: ISSN 2379-447X Cited by: §5.
  • N. W. Yong Zhang and Yasir (2017) FPGA based highly efficient aes implementation. In Proceedings of the World Congress on Engineering and Computer Science, Vol. 1. Cited by: §7.

Appendix A Xilinx 7 Series FPGAs

FPGAs have a column-based structure, where groups of configurable logic blocks lie in between columns of block RAMs and DSPs, as shown in Figure 4. Within each logic block there are two logic slices that contain 4 LUTs and 8 flip flops (Figure 5). We argue that area-efficient designs are needed to take advantage of available resources due to to tight packing of components in the FPGA. A design that only uses the slices, or just the block RAM and DSP, in an area could make it difficult for others to access the unused resources. By using all of the available resources in a given area, a design can increase its performance and reduce resource waste.

Figure 4. Simplified Xilinx 7-Series FPGA Architecture
Figure 5. Simplified Xilinx 7-Series Logic Slice

The Xilinx 7-series block RAM supports two independent data ports that access the same bank of memory as shown in Figure 6. The dual port feature is helpful in a wide range of applications, and we take advantage of this by using a single block RAM to perform two byte lookups in the sub bytes and mix columns transformations. Furthermore, the input address and output data size are flexible, which also allows different use cases where data sizes may not match for each block RAM.

Figure 6. Xilinx 7-Series Dual Port Block RAM

The Xilinx 7-series DSP slices support a number of arithmetic and logic functions, which allows them to be used in a number of applications, such as AES, other than signal processing. The logic functions operate on two inputs, which have optional input registers, as shown in Figure 7, to decrease the critical path from other components. Additionally, DSP slices have dedicated inputs and outputs connected to other vertically-aligned DSPs for high-speed cascaded calculations.

Figure 7. Xilinx 7-Series DSP48E1 Slice

Appendix B Mix Columns Matrix Equations

The mix columns transformation performs matrix multiplication between the cipher state block and a fixed encryption or decryption matrix, shown below. The multiplication involves each byte of the cipher state block, and each byte of the fixed matrix, so we store the products of each input byte as a 32-bit vector in block RAM. Since the matrices for encryption and decryption are congruent, but with different values, we use the same storage format order for encryption and decryption, as shown in Figure 8.


Figure 8. Mix Columns Multiplication Storage

We use the following equations (4) for both encryption and decryption to form the input vectors for the DSP XOR phase of mix columns (see Section 3.1.3). These equations are for the high bits of the output block, and we use similar patterns for the middle and low bits.

(4)

Appendix C Physical Layout of Drab-Locus

We implemented the DRAB-LOCUS architecture on a Zynq 7000 (xc7z030) SoC. Figure 9 shows that the implementation fits in one half of a clock region, which can save power in applications where the other clock regions are not used. Since the design is compact, the device does not need to use extra power to route clock and control signals to multiple clock regions.

Figure 9. Location of DRAB-LOCUS in the Virtex 7 FPGA

Figure 10 shows that the DRAB-LOCUS implementation lies between two columns of block RAMs, and uses most of the available DSPs between them. Furthermore, the larger filled-in squares between the block RAMs and DSPs indicate high usage of the LUTs and flip flops available in the logic slices. This shows that DRAB-LOCUS makes effective use of nearby resources, and prevents slices, block RAMs, and DSPs from being unused. If DRAB-LOCUS did not use the available block RAMs and DSPs, it would be difficult for other co-located accelerators to use them due to the occupied slices surrounding them.

Figure 10. Physical Layout of DRAB-LOCUS
