1 Introduction

Training deep neural networks with Computer Graphics (CG) rendered images has recently emerged as a promising approach for various visual object recognition tasks. With CG engines, one can easily generate a huge number of labeled training images. While CG-rendered images seem to be the perfect data source, a deep neural network trained with synthetic images is often much less accurate than one trained with a much smaller number of real images due to the covariate shift problem shimodaira2000improving .

To address the covariate shift problem, several works propose learning a synthetic-to-real image translation function taigman2016unsupervised ; shrivastava2016learning ; zhu2017unpaired ; liu2017unsupervised ; hoffman2017cycada . These works are all based on the generative adversarial networks (GANs) framework goodfellow2014generative . Typically, they set up a zero sum game to be played by an image translation network and a discriminator, where the goal of the image translation network is to make a synthetic image look real so that the discriminator cannot tell it apart from real images. To ensure that a translated synthetic image shares the same semantic content, various constraints (e.g., cycle-consistency, shared latent space, or semantic consistency) are enforced. Using the translation function, one can use translated synthetic images to better train a deep neural network.

We propose a novel method for training deep neural networks with synthetic images called domain stylization. It is based on an existing photorealistic image style transfer algorithm li2018closed . Our main contribution is to show that with a straightforward modification, we can make this stylization algorithm effective for the synthetic-to-real task. Specifically, we use this stylization algorithm to stylize synthetic images using randomly paired real images and propose using the resulting images to train deep neural networks (Section 3). Experimental results on four synthetic-to-real tasks for semantic segmentation and object detection show that the proposed method achieves better accuracy in most of the scenarios, outperforming state-of-the-art image translation methods by a large amount (Section 4). Our second contribution is to provide a Frechet Inception Distance based analysis illustrating how our method mitigates the covariate shift problem (Section 5).

Our approach has several advantages over previous approaches. First, we do not need to train an image-to-image translation network. While GANs are notoriously hard to train, our approach does not require any training. Second, the stylization process can potentially be done “on the fly,” which means we do not need to pre-stylize all the synthetic images, thus saving much effort and space. Finally, our method achieves better accuracy in most of the scenarios, outperforming state-of-the-art image translation methods by a large margin.

2 Related Works

Learning with synthetic images.

Training machine learning models using CG-rendered depth images is a well-established practice for depth-based object recognition

shotton2011real ; sharp2015accurate ; peng2015learning ; richter2015discriminative . However, the same success has not yet been extended to CG-rendered RGB images due to challenges in rendering realistic RGB images.

Synthetic-to-real image translation. Recently, several works utilize GANs goodfellow2014generative for image-to-image translation isola2016image ; wang2017high ; taigman2016unsupervised ; shrivastava2016learning ; zhu2017unpaired ; liu2017unsupervised ; huang2018multimodal . By translating an image from synthetic to real domains, one can make CG-rendered images more realistic. Based on the observation that existing image-to-image translation methods have no guarantee that a translated synthetic image preserves the original semantic layout, Hoffman et. al. hoffman2017cycada incorporate a semantic layout preserving loss in image-to-image translation. These works show promising results on the synthetic-to-real task but have to deal with the difficult problem of GAN training. In our work, we take a different avenue to make synthetic images more realistic. Our approach is based on randomly pairing a synthetic image to a real image and transferring the style in the real image to the synthetic image. The style transfer is achieved by simple, efficient feature transform and image smoothing operations. Our experimental results show that the stylized synthetic images yield a better synthetic-to-real performance.

Domain adaptation. Synthetic-to-real is a special case of the visual domain adaptation problem saenko2010adapting

, which concerns adapting a classifier trained in one visual domain to another. Various methods exist, ranging from metric learning

kulis2011you ; gong2012geodesic , subspace modeling gopalan2011domain ; fernando2013unsupervised

, deep feature alignment

tzeng2014deep , to adversarial training ganin2016domain ; liu2016coupled .

3 Domain Stylization

We propose Domain Stylization (DS), an effective approach of using the existing FastPhotoStyle li2018closed to generate stylized synthetic image datasets for the synthetic-to-real problem. We generate the stylized synthetic dataset as follows: Let be a synthetic image dataset that consists of pairs of CG-rendered image and its rendered semantic segmentation mask . Let be a real image dataset that consists of pairs of real image and its estimated semantic segmentation mask

. (We will discuss how to obtain these estimated semantic segmentation masks below.) To create the stylized synthetic dataset, for every image–label pair in

, we randomly sample image–label pairs in to generate stylized synthetic images. For example, when picking the th and th pairs from and , respectively, the output is given by where . Note that the segmentation mask remains the same since the FastPhotoStyle method does not change semantic content in an image.

Visual quality of the stylization output depends on the selection of the style image. A randomly selected style image could lead to an undesired output. Ideally, one needs to search for the best style image in the real dataset for each synthetic image. However, this is computationally expensive. Moreover, evaluating the visual quality of a stylization often requires human-in-the-loop, which is difficult to scale. Therefore, we use randomly selected style images in our implementation. Although this seems to be ad hoc, it works really well in practice. In our experiments, we set via an ablation study. We also note that there exist cases where a semantic label in the synthetic image is missing in the real image. In this case, the FastPhotoStyle method will only stylize those regions where a matched region exists and leave the style in the unmatched region unchanged. These cases are non-ideal but they do not cause problems in practice.

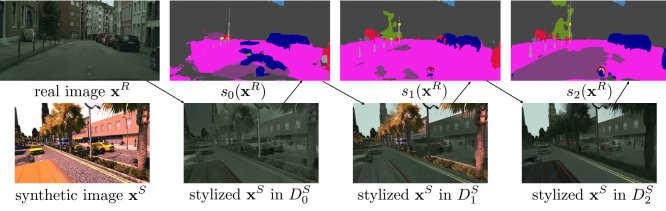

Figure 1: Examples of intermediate stylization outputs. First, the synthetic image is stylized using the real image () without the aid of any segmentation map. Then we train a segmentation network () using these stylized images, and use to segment the real images (). Given the segmentation map, we can then better stylize the synthetic image and so on.
  Input: , , ,
  Compute
  for  to  do
     Compute
     Generate
  end for
  Output:
Algorithm 1 Training with stylized synthetic datasets.

We now describe how we use the stylized synthetic dataset for the semantic segmentation task. Our method is an iterative approach. It iterates between two steps: the Domain Stylization (DS) step and the Semantic Segmentation Learning (SSL) step (referring to the training procedure for training a semantic segmentation network). Since semantic segmentation masks for synthetic images can be easily computed by using CG engines (e.g., via embedding object class ID in the material map), we hence assume they are always available. We use the semantic segmentation network learned in the intermediate step for computing the semantic segmentation masks for the real images.

We first generate a stylized synthetic dataset without using segmentation masks. This is achieved by assigning all pixels to 1 in the segmentation masks:

(1)

We then use to train a semantic segmentation network, . The trained semantic segmentation network is then used to compute the semantic segmentation mask for each real images, . The synthetic dataset is then stylized using the real image dataset with the new segmentation masks for creating a new stylized synthetic dataset

(2)

The new stylized dataset is used to train a new segmentation network . We iterate these two steps for a number of iterations, . We set in our experiments via an ablation study. The learned segmentation network from the last iteration is the output, which we use to segment unseen real images. The procedure is summarized in Algorithm 1. In Figure 1, we show the intermediate segmentation masks and stylized synthetic images for a pair of synthetic and real images. When conducting benchmark evaluation, we use the defined training set (images only) for stylization and report performance on the test set.

4 Experiments

In this section, we will first evaluate our method on synthetic-to-real street scene segmentation and synthetic-to-real indoor scene segmentation. We will then present an ablation study analyzing several design choices in the proposed method. Finally, we also apply the proposed algorithm to a synthetic-to-real object detection task. For all the experiments, we compare the proposed method to several recent synthetic-to-real methods, including GAN-based image translation methods and domain randomization. We follow the synthetic-to-real settings in the prior works where we treat the synthetic dataset as the source domain and the real dataset as the target domain. Ground truth semantic segmentation labels from the real datasets is neither used for stylization nor for training.

4.1 Synthetic-to-real Street Scene Segmentation

Figure 2: Example images of target, source and generated images by competing methods and domain stylization.

Datasets. For synthetic-to-real street scene segmentation, the evaluation is based on the Cityscapes benchmark cordts2016cityscapes . The benchmark consists of urban street scene images from various European cities and consider 19 semantic object classes, including road, sky, car, pedestrian, etc. We use the Cityscapes training set, which consists of 2,975 images for stylizing synthetic images. We use two different synthetic datasets separately. The first one is the GTA dataset provided by richter2016playing . It consists of 24,966 images rendered from the Grand Theft Auto V video game. The second synthetic dataset is the SYNTHIA dataset ros2016synthia , which consists of 9,400 images rendered from driving a virtual car in several virtual cities. Semantic segmentation ground truth for the two synthetic datasets are available. We train semantic segmentation networks using the stylized versions of these synthetic datasets and evaluate the performance using the Cityscapes validation set. In summary, we evaluate the following two synthetic-to-real settings: GTACityscapes and SYNTHIACityscapes.

Semantic segmentation network. We use the -layer Dilated Residual Network DRN-C-26 yu2017dilated for semantic segmentation due to its good performance. The network is based on ResNet he2015deep and dilated convolution yu2015multi ; chen2015semantic

. We use the source code provided by the authors for the experiments. Specifically, we finetune from the ImageNet-pretrained model using

SGD with learning rate and momentum . We decay the learning rate by a factor of for every epochs and train the network for epochs in total. For a fair comparison, we evaluate all the competing methods using DRN-C-26

with the same training hyperparameters. We report performance achieved in the last epoch for all the competing methods.

Competing methods. We compare the proposed method to various synthetic-to-real methods. We use the implementations provided by the authors to generate training data for training the networks. Some example images generated by the algorithms are shown in Figure 2.

  • [noitemsep]

  • Real. The network is trained using the real image training set; the result is served as a performance upper-bound.

  • Synth. In this setting, we directly train the network using synthetic images in their original version.

  • Domain Randomization tobin2017domain aims at generalizing a model, trained purely using synthetic data, to recognize real world cases by providing sufficient simulated variability at training time. Its effectiveness was shown on a task of detecting objects of simple geometry (e.g., cylinders and cubes) for a robotic grasping task. In the original implementation, the variety is achieved by pasting random textures on object meshes where the random textures are created with a random RGB value, a gradient between two random RGB values, or a checkerboard pattern of two random RGB values. In order to deal with complex real-world street scenes, we implement the domain randomization idea by randomly changing the color of each object in a rendered scene. Specifically, we use the HSV color representation and apply a random shift to the hue value111The shift is a circular shift because he hue value is in . of an object where the object region is identified using the segmentation mask. We will refer to this method as DR.

  • CycleGAN zhu2017unpaired is an image-to-image translation model. It is based on GAN goodfellow2014generative and a cycle-consistency constraint. We train CycleGAN to translate images between the synthetic and real image datasets, and use the obtained network to translate a synthetic image to a corresponding real image. We then use the translated synthetic images to train the semantic segmentation network. We resize the images in both the real and synthetic datasets so that the longer side of the image is 1024 for easing the adversarial learning. The same processing is applied to the other image translation-based synthetic-to-real methods.

  • UNIT liu2017unsupervised is also an image-to-image translation model. Unlike CycleGAN, it is based on the Coupled GAN framework liu2016coupled , which assumes a shared-latent space between two image domains. We apply UNIT to translate a synthetic image to a real image for training the semantic segmentation network.

  • CyCADA hoffman2017cycada is an extension of the CycleGAN algorithm where a semantic layout preserving loss is incorporated to ensure the translation preserves the original image content.

  • FCNs-ITW hoffman2016fcns is based on feature space adversarial training for learning domain invariant feature representations.

Results.

In Table 1, we report the GTACityscapes performance achieved by various competing algorithms where per-class IoU, mean IoU, and pixel accuracy numbers are shown. We find that the proposed algorithm achieved the best pixel accuracy score of 87.2. For mean IoU, CycleGAN’s performance is 39.6, which is slightly better than 38.3 achieved by the proposed algorithm. We note that the performance numbers of CyCADA and FCNs-ITW are duplicated from the original papers where the base network of CyCADA is identical to ours.

The results on SYNTHIACityscapes is also reported in Table 1. We find that the proposed algorithm achieves a mean IoU score of 29.5 and a pixel accuracy score 76.5, which are significantly better than those achieved by the other competing algorithms.

GTACityscapes

road

sidewalk

building

wall

fence

pole

traffic light

traffic sign

vegetation

terrain

sky

person

rider

car

truck

bus

train

motorbike

bicycle

mean IoU

Pixel Acc.

Synth. 68.9 19.9 52.8 6.5 13.6 9.3 11.7 8.0 75.0 11.0 56.5 36.9 0.1 51.3 8.5 4.7 0.0 0.1 0.0 22.9 71.9
DR 67.5 23.5 65.7 6.7 12.0 11.6 16.1 13.7 70.3 8.3 71.3 39.6 1.6 55.0 15.1 3.0 0.6 0.2 3.3 25.5 73.8
CycleGAN 89.3 45.1 81.6 27.5 18.6 29.0 35.7 17.3 79.3 29.4 71.5 59.7 15.7 85.3 18.2 14.8 1.4 21.9 12.5 39.6 86.6
UNIT 90.5 38.5 81.1 23.5 16.3 30.2 25.2 18.5 79.5 26.8 77.8 59.2 17.4 84.4 22.2 16.1 1.6 16.7 16.9 39.1 87.1
FCNs ITW 70.4 32.4 62.1 14.9 5.4 10.9 14.2 2.7 79.2 21.3 64.6 44.1 4.2 70.4 8.0 7.3 0.0 3.5 0.0 27.1 -
CyCADA 79.1 33.1 77.9 23.4 17.3 32.1 33.3 31.8 81.5 26.7 69.0 62.8 14.7 74.5 20.9 25.6 6.9 18.8 20.4 39.5 82.3
proposed 89.0 43.5 81.5 22.1 8.5 27.5 30.7 18.9 84.8 28.3 84.1 55.7 5.4 83.2 20.3 28.3 0.1 8.7 6.2 38.3 87.2
SYNTHIACityscapes
Synth. 28.5 10.8 49.6 0.2 0.0 18.5 0.7 5.6 65.3 0.0 71.6 36.6 6.4 43.8 0.0 2.7 0.0 0.8 10.0 18.5 54.6
DR 31.3 16.7 59.5 2.2 0.0 19.7 0.4 6.2 64.7 0.0 67.3 43.1 3.9 35.1 0.0 8.3 0.0 0.3 5.5 19.2 57.9
CycleGAN 58.8 20.4 71.6 1.6 0.7 27.9 2.7 8.5 73.5 0.0 73.1 45.3 16.2 67.2 0.0 14.9 0.0 7.9 24.7 27.1 71.4
UNIT 56.3 20.6 73.2 1.8 0.3 29.0 4.0 11.8 72.2 0.0 74.5 50.7 18.4 67.3 0.0 15.1 0.0 6.7 29.5 28.0 70.8
FCNs ITW 11.5 19.6 30.8 4.4 0.0 20.3 0.1 11.7 42.3 0.0 68.7 51.2 3.8 54.0 0.0 3.2 0.0 0.2 0.6 17.0 -
proposed 67.0 28.0 75.3 4.0 0.2 29.9 3.8 15.7 78.6 0.0 78.0 54.0 15.4 69.7 0.0 12.0 0.0 9.9 19.2 29.5 76.5
Real 97.2 78.4 90.0 45.4 45.4 49.3 52.7 66.2 90.2 56.6 92.9 72.4 48.9 91.7 52.7 68.6 51.3 42.1 67.6 66.3 94.3
Table 1: Results on Cityscapes validation set; IoU for each class, mean IoU, and pixel accuracy of different adaptation methods between GTA Cityscapes and SYNTHIA Cityscapes.

We repeat the experiments on these two datasets with a more powerful semantic segmentation network, DeepLabV3 chen2017rethinking . We see a similar accuracy improvement and consistent ranking between the algorithms. Results can be found in Table 2.

GTACityscapes based on DeepLabV3

road

sidewalk

building

wall

fence

pole

traffic light

traffic sign

vegetation

terrain

sky

person

rider

car

truck

bus

train

motorbike

bicycle

mean IoU

Pixel Acc.

Synth. 79.2 26.9 79.5 19.1 27.4 29.4 34.9 17.9 81.8 25.3 71.9 60.8 22.1 81.5 34.1 17.0 2.5 21.3 26.9 40.0 82.9
CycleGAN 89.9 45.4 85.6 38.3 32.9 36.1 45.1 27.6 83.7 28.9 83.4 65.8 32.0 86.2 30.0 32.1 1.8 33.5 37.2 48.2 88.4
UNIT 87.6 39.4 85.2 38.2 35.1 35.3 42.3 33.4 76.0 21.0 69.4 63.7 29.3 85.4 34.1 31.4 28.5 31.5 39.8 47.7 86.0
proposed 86.9 44.5 84.7 38.8 26.6 32.1 42.3 22.5 84.7 30.9 85.9 67.0 28.1 85.7 38.3 31.8 21.5 31.3 24.6 47.8 87.6
SYNTHIACityscapes based on DeepLabV3
Synth. 66.0 26.7 77.4 2.6 0.2 33.8 16.0 21.3 77.9 0.0 81.8 59.8 23.0 70.0 0.0 8.0 0.0 13.4 26.3 31.8 76.7
CycleGAN 82.5 38.5 76.0 0.7 0.4 32.2 10.7 18.4 77.4 0.0 78.1 60.2 26.5 79.1 0.0 23.0 0.0 12.1 31.5 34.0 82.8
UNIT 86.2 43.9 76.6 1.2 1.4 33.4 13.1 20.4 75.6 0.0 79.0 57.8 25.7 77.3 0.0 23.0 0.0 17.0 36.2 35.1 84.2
proposed 75.8 32.2 81.8 2.5 0.8 35.9 20.6 23.3 81.5 0.0 83.4 62.4 24.5 78.0 0.0 28.2 0.0 22.2 31.4 36.0 81.8
Real 97.9 83.5 91.6 56.5 61.2 54.8 63.9 73.6 91.3 59.9 93.2 77.7 60.1 94.0 79.3 87.0 76.1 61.0 73.2 75.6 95.5
Table 2: Results on Cityscapes validation set with a stronger semantic segmentation network.
CityscapesSYNTHIA

road

sidewalk

building

wall

fence

pole

traffic light

traffic sign

vegetation

terrain

sky

person

rider

car

truck

bus

train

motorbike

bicycle

mean IoU

Pixel Acc.

Synth. 39.8 14.0 64.4 2.1 0.4 12.7 8.3 3.5 47.8 0.0 76.2 42.0 8.2 29.0 0.0 14.2 0.0 10.1 11.0 20.2 58.9
CycleGAN 40.8 13.2 62.0 0.5 0.4 11.3 3.3 3.9 47.7 0.0 67.6 17.0 3.3 16.3 0.0 2.3 0.0 4.2 6.1 15.8 56.8
UNIT 43.7 23.1 58.2 1.0 0.9 13.8 4.2 5.8 41.5 0.0 24.4 29.0 8.9 20.0 0.0 3.7 0.0 5.8 10.6 15.5 55.7
proposed 46.6 23.8 65.8 1.5 0.4 17.2 6.5 6.2 53.5 0.0 79.6 39.9 11.2 25.9 0.0 7.7 0.0 7.1 11.2 21.3 63.1
Table 3: Results on images that are generated with different image translation methods.

In Table 3, we evaluate the network trained with Cityscapes images on the original SYNTHIA images and translated SYNTHIA images by competing methods and the proposed method. We again use the DRN-C-26 architecture for this experiment. We note that the accuracy degrades when the images are translated by UNIT and CycleGAN algorithms as these algorithms do no guarantee to preserve the semantic content. It can also be seen in Figure 2 that UNIT and CycleGAN sometimes convert sky to vegetation, remove parts of a bicycle etc., whereas the images that are translated with the proposed algorithm improve the results, and preserve the semantic content.

4.2 Synthetic-to-real Indoor Scene Segmentation

Datasets. For synthetic-to-real indoor scene segmentation, the evaluation is based on the NYU-Depth V2 dataset Silberman:ECCV12 . The NYU dataset comprises video sequences of various indoor scenes, recorded using both RGB and depth cameras. Full image semantic segmentation masks are available for a small subset of the images. We use 383 bedroom RGB images in the dataset for evaluation which are divided into a training set of 192 images and a validation set of 191 images. The image resolution is . We consider 6 semantic object classes including floor, wall, ceiling, bed, table, and chair. Pixels belong to the other semantic classes are ignored. We use the SUNCG dataset song2016semantic , which is a dataset of 45K indoor 3D scenes, to generate a dataset of synthetic bedroom images using the House3D wu2018building software. We generate 7,274 bedroom images from various 3D scenes. The image resolution is . The synthetic-to-real setting for the experiment is termed as SUNCGNYU.

SUNCGNYU

floor

ceiling

wall

bed

chair

table

meanIoU

Pxl Acc.

Synth. 24.4 4.0 49.2 20.3 8.1 1.5 17.9 49.6
DR 9.0 2.0 29.4 23.4 5.2 0.8 11.6 37.3
CycleGAN 23.7 12.3 54.7 27.4 5.9 4.0 21.3 52.4
UNIT 14.0 8.1 62.7 39.2 5.8 0.5 21.7 60.0
proposed 42.7 8.9 76.9 51.3 20.2 1.9 33.6 72.8
Real 79.2 19.2 92.3 76.8 29.2 5.9 50.4 89.3
Table 4: Results on indoor scene segmentation.

Results. As reported in Table 4, we find that the proposed method achieves a mIoU of 33.6, which is 1.58 times better than 21.3 achieved by CycleGAN. In terms of pixel accuracy, the score of the proposed method is 72.8, outperforming 60.0 achieved by UNIT.

4.3 Ablation Study

We analyze various algorithm design choices on the setting of SYNTHIACityscapes. We run each set-up with 5 random seeds and report the averaged results.

Number of stylization . In Table 6, we report the performance of the proposed algorithm using different numbers of stylizations per synthetic image . We find as increasing from 1 to 10 the performance scores increase a lot. But as we further increase to 25 or 50, the performance scores saturate.

Granularity of segmentation masks. We analyze the impact of granularity of segmentation masks. We have different set-ups. The first one is not using any semantic segmentation mask; an example would be the stylized synthetic image at the th iteration in Figure 1. The second set-up is using a coarse semantic label mask which divides the regions into road, sky and others. Third set-up is using fine semantic label masks (19 classes), which corresponds to stylized synthetic image at the st iteration in Figure 1. As shown in Table 6, stylizing synthetic image based on finer label masks leads to improved performance scores.

Number of iterations . We iterate over stylization, training a network to estimate label masks, and stylization with the estimated label masks. We see an improvement of mean AP beginning with 27.1 (), and increasing to 29.2 after the first iteration (). With the second iteration (), mAP increases to 29.5, and converges. The third iteration does not increase the accuracy further.

Set-up mean IOU PXL ACC.

Study1
1 style 25.8 71.1
10 style 26.3 71.8
25 style 26.2 71.7
50 style 26.4 71.5
Study2 No mask 23.8 61.6
Coarse map 26.3 71.8
Fine map 27.6 71.3

Table 6: Mean AP scores on the KITTI benchmark. Easy (E), Moderate (M), and Hard (H).
GTAKITTI
car pedestrian
E M H E M H
Synth 70.4 61.5 51.0 45.5 37.8 34.2
DR 75.3 70.3 59.8 45.3 39.3 35.2
Cyclegan 79.3 70.0 58.8 44.0 38.3 34.9
UNIT 76.6 68.2 56.9 48.6 41.6 37.5
proposed 81.1 74.2 63.1 52.3 44.9 40.2

Real
90.6 84.6 75.3 67.4 54.7 49.2
Table 5: Ablation Study

4.4 Synthetic-to-real Object Detection

For object detection, we use the KITTI benchmark geiger2012we , which consists of 7,481 labeled images captured by driving around the city of Karlsruhe. We split these images for 5-fold cross validation. The split is on video-sequence level. There is no overlapping video sequences between training and validation sets. We use the 2D bounding box annotations for car and pedestrian detection. For synthetic dataset, we use a set of images rendered from Grand Theft Auto V, tailored for the detection task. The setting is termed as GTAKITTI. For this task, we stylize the synthetic images without using any segmentation masks (e.g. ). We then train a detection network using the stylized synthetic images.

We train a variant of the single shot detector liu2016ssd for 100 epochs. We report the performance achieved in the last epoch averaged over 5 validation buckets. The performance is measured on car and pedestrian detection tasks under three different levels of difficulties, easy, moderate, and hard, as defined by the KITTI benchmark.

Table 6 shows the results. We find that the proposed method improves the car detection mean AP score from 61.5 to 74.2 and pedestrian detection mAP score from 37.8 to 44.9 in the moderate setting, respectively. The improvement is clearly larger than those achieved by the GAN-based image translation methods.

Figure 3: Frechet Inception distances (FIDs) between features of Cityscapes images and different variants of SYNTHIA images. (a) FIDs of different classes on DenseNet161 layer transition_2. (b) Weighted average FIDs on feature extractors. It can be seen that domain stylization, especially with the aid of segmentation maps, helps reduce the distances.

5 Discussions

We conduct a study to explain effectiveness of domain stylization. We first note that as training with synthetic data but testing on real data, one faces the covariate shift problem shimodaira2000improving —the training data and test data follow different distributions but the conditional distributions of outputs given inputs are the same. As stylizing synthetic images with real images, we transform the distribution of synthetic data to better align with the distribution of real data. To quantify how well the two distributions align, we use the Frechet Inception distance (FIDheusel2017gans .

Suppose we have two datasets , . We first extract deep features, ’s and ’s, from ’s and ’s, respectively, using a feature extractor network derived from a pretrained network on the ImageNet classification task (the inception network). Next, we gather the features in ’s whose semantic labels are . This gives us a number of

-dimensional vectors, where

is the feature dimension. We then fit a multi-variate Gaussian to these features vectors by computing the mean

and the co-variance matrix

of these vectors. Similar, we have and . The FID between these extracted features is

(3)

In our experiment, we compute the FID between the Cityscapes dataset and three variants of the SYNTHIA dataset: the original images, domain stylized images without using label maps, and domain stylized images using predicted label maps. We use several different pretrained networks including DenseNet huang2017densely , InceptionNet szegedy2016rethinking , and ResNet he2015deep . Figure 3(a) shows the FIDs for sample classes on DenseNet161 layer transition_2. Figure 3(b) shows the average FIDs across all labels from different feature extractors, namely DenseNet161, InceptionV3, and ResNet101, weighted by class occurrence frequencies. It can be seen that when domain stylization is used, the distances between the synthetic images and real images are dramatically reduced. Moreover, the distances can be further reduced when the label maps are available during stylization.

6 Conclusion

We showed that by using an existing image style transfer algorithm, we can generate synthetic datasets to train deep neural networks for several semantic segmentation and visual object detection tasks, and that these networks yield better final performance than state-of-the-art image translation algorithms. Furthermore, our Frechet Inception distance based analysis justifies each step of our proposed approach by showing improved quantitative metrics in both stages of our algorithm. We expect the experimental results of this paper to serve as a baseline for future synthetic-to-real image translation algorithms, and we expect the results to improve as the image stylization algorithms develop.

References

  • (1) L.-C. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. L. Yuille. Semantic image segmentation with deep convolutional nets and fully connected crfs. In International Conference on Learning Representations (ICLR), 2015.
  • (2) L.-C. Chen, G. Papandreou, F. Schroff, and H. Adam. Rethinking atrous convolution for semantic image segmentation. arXiv preprint arXiv:1706.05587, 2017.
  • (3) M. Cordts, M. Omran, S. Ramos, T. Rehfeld, M. Enzweiler, R. Benenson, U. Franke, S. Roth, and B. Schiele.

    The cityscapes dataset for semantic urban scene understanding.

    In

    IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , 2016.
  • (4) B. Fernando, A. Habrard, M. Sebban, and T. Tuytelaars. Unsupervised visual domain adaptation using subspace alignment. In IEEE International Conference on Computer Vision (ICCV), 2013.
  • (5) Y. Ganin, E. Ustinova, H. Ajakan, P. Germain, H. Larochelle, F. Laviolette, M. Marchand, and V. Lempitsky. Domain-adversarial training of neural networks. Journal of Machine Learning Research, 2016.
  • (6) A. Geiger, P. Lenz, and R. Urtasun. Are we ready for autonomous driving? the kitti vision benchmark suite. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012.
  • (7) B. Gong, Y. Shi, F. Sha, and K. Grauman. Geodesic flow kernel for unsupervised domain adaptation. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2012.
  • (8) I. Goodfellow, J. Pouget-Abadie, M. Mirza, B. Xu, D. Warde-Farley, S. Ozair, A. Courville, and Y. Bengio. Generative adversarial nets. In Advances in Neural Information Processing Systems (NIPS), 2014.
  • (9) R. Gopalan, R. Li, and R. Chellappa. Domain adaptation for object recognition: An unsupervised approach. In IEEE International Conference on Computer Vision (ICCV), 2011.
  • (10) K. He, X. Zhang, S. Ren, and J. Sun. Deep residual learning for image recognition. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.
  • (11) M. Heusel, H. Ramsauer, T. Unterthiner, B. Nessler, and S. Hochreiter. Gans trained by a two time-scale update rule converge to a local nash equilibrium. In Advances in Neural Information Processing Systems (NIPS), 2017.
  • (12) J. Hoffman, E. Tzeng, T. Park, J.-Y. Zhu, P. Isola, K. Saenko, A. A. Efros, and T. Darrell. Cycada: Cycle-consistent adversarial domain adaptation. In International Conference on Machine Learning (ICML), 2018.
  • (13) J. Hoffman, D. Wang, F. Yu, and T. Darrell. Fcns in the wild: Pixel-level adversarial and constraint-based adaptation. arXiv preprint arXiv:1612.02649, 2016.
  • (14) G. Huang, Z. Liu, K. Q. Weinberger, and L. van der Maaten. Densely connected convolutional networks. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • (15) X. Huang, M.-Y. Liu, S. Belongie, and J. Kautz. Multimodal unsupervised image-to-image translation. In European Conference on Computer Vision (ECCV), 2018.
  • (16) P. Isola, J.-Y. Zhu, T. Zhou, and A. A. Efros.

    Image-to-image translation with conditional adversarial networks.

    In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • (17) B. Kulis, K. Saenko, and T. Darrell. What you saw is not what you get: Domain adaptation using asymmetric kernel transforms. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2011.
  • (18) Y. Li, M.-Y. Liu, X. Li, M.-H. Yang, and J. Kautz. A closed-form solution to photorealistic image stylization. In European Conference on Computer Vision (ECCV), 2018.
  • (19) M.-Y. Liu, T. Breuel, and J. Kautz. Unsupervised image-to-image translation networks. In Advances in Neural Information Processing Systems (NIPS), 2017.
  • (20) M.-Y. Liu and O. Tuzel. Coupled generative adversarial networks. In Advances in Neural Information Processing Systems (NIPS), 2016.
  • (21) W. Liu, D. Anguelov, D. Erhan, C. Szegedy, S. Reed, C.-Y. Fu, and A. C. Berg. Ssd: Single shot multibox detector. In European Conference on Computer Vision (ECCV), 2016.
  • (22) P. K. Nathan Silberman, Derek Hoiem and R. Fergus. Indoor segmentation and support inference from rgbd images. In European Conference on Computer Vision (ECCV), 2012.
  • (23) X. Peng, B. Sun, K. Ali, and K. Saenko. Learning deep object detectors from 3d models. In IEEE International Conference on Computer Vision (ICCV), 2015.
  • (24) S. R. Richter and S. Roth. Discriminative shape from shading in uncalibrated illumination. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2015.
  • (25) S. R. Richter, V. Vineet, S. Roth, and V. Koltun. Playing for data: Ground truth from computer games. In European Conference on Computer Vision (ECCV), 2016.
  • (26) G. Ros, L. Sellart, J. Materzynska, D. Vazquez, and A. M. Lopez. The synthia dataset: A large collection of synthetic images for semantic segmentation of urban scenes. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.
  • (27) K. Saenko, B. Kulis, M. Fritz, and T. Darrell. Adapting visual category models to new domains. In European Conference on Computer Vision (ECCV), 2010.
  • (28) T. Sharp, C. Keskin, D. Robertson, J. Taylor, J. Shotton, D. Kim, C. Rhemann, I. Leichter, A. Vinnikov, Y. Wei, et al. Accurate, robust, and flexible real-time hand tracking. In CHI, 2015.
  • (29) H. Shimodaira. Improving predictive inference under covariate shift by weighting the log-likelihood function. Journal of statistical planning and inference, 2000.
  • (30) J. Shotton, A. Fitzgibbon, A. Blake, A. Kipman, M. Finocchio, R. Moore, and T. Sharp. Real-time human pose recognition in parts from a single depth image. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2011.
  • (31) A. Shrivastava, T. Pfister, O. Tuzel, J. Susskind, W. Wang, and R. Webb. Learning from simulated and unsupervised images through adversarial training. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • (32) S. Song, F. Yu, A. Zeng, A. X. Chang, M. Savva, and T. Funkhouser. Semantic scene completion from a single depth image. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • (33) C. Szegedy, V. Vanhoucke, S. Ioffe, J. Shlens, and Z. Wojna. Rethinking the inception architecture for computer vision. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016.
  • (34) Y. Taigman, A. Polyak, and L. Wolf. Unsupervised cross-domain image generation. In International Conference on Learning Representations (ICLR), 2017.
  • (35) J. Tobin, R. Fong, A. Ray, J. Schneider, W. Zaremba, and P. Abbeel. Domain randomization for transferring deep neural networks from simulation to the real world. In Intelligent Robots and Systems (IROS), 2017.
  • (36) E. Tzeng, J. Hoffman, N. Zhang, K. Saenko, and T. Darrell. Deep domain confusion: Maximizing for domain invariance. arXiv preprint arXiv:1412.3474, 2014.
  • (37) T.-C. Wang, M.-Y. Liu, J.-Y. Zhu, A. Tao, J. Kautz, and B. Catanzaro. High-resolution image synthesis and semantic manipulation with conditional gans. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • (38) Y. Wu, Y. Wu, G. Gkioxari, and Y. Tian. Building generalizable agents with a realistic and rich 3d environment. arXiv preprint arXiv:1801.02209, 2018.
  • (39) F. Yu and V. Koltun. Multi-scale context aggregation by dilated convolutions. In International Conference on Learning Representations (ICLR), 2016.
  • (40) F. Yu, V. Koltun, and T. Funkhouser. Dilated residual networks. In IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • (41) J.-Y. Zhu, T. Park, P. Isola, and A. A. Efros. Unpaired image-to-image translation using cycle-consistent adversarial networks. In IEEE International Conference on Computer Vision (ICCV), 2017.
