Domain-Sharding for Faster HTTP/2 in Lossy Cellular Networks

07/18/2017 ∙ by Utkarsh Goel, et al. ∙ Montana State University 0

HTTP/2 (h2) is a new standard for Web communications that already delivers a large share of Web traffic. Unlike HTTP/1, h2 uses only one underlying TCP connection. In a cellular network with high loss and sudden spikes in latency, which the TCP stack might interpret as loss, using a single TCP connection can negatively impact Web performance. In this paper, we perform an extensive analysis of real world cellular network traffic and design a testbed to emulate loss characteristics in cellular networks. We use the emulated cellular network to measure h2 performance in comparison to HTTP/1.1, for webpages synthesized from HTTP Archive repository data. Our results show that, in lossy conditions, h2 achieves faster page load times (PLTs) for webpages with small objects. For webpages with large objects, h2 degrades the PLT. We devise a new domain-sharding technique that isolates large and small object downloads on separate connections. Using sharding, we show that under lossy cellular conditions, h2 over multiple connections improves the PLT compared to h2 with one connection and HTTP/1.1 with six connections. Finally, we recommend content providers and content delivery networks to apply h2-aware domain-sharding on webpages currently served over h2 for improved mobile Web performance.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

The widely adopted HyperText Transfer Protocol (HTTP/1.1) improves performance of the request-response model by pipelining requests on the server side. However, with HTTP/1.1 (h1) servers transfer resources only in the order they receive requests. This behavior of h1 creates a head-of-line (HOL) blocking for all requests on the application layer and slows down the webpage load time (PLT), especially when faster requests have to wait in the pipeline for the slower requests to finish processing.

To mitigate this HOL blocking, modern Web browsers and content providers (CPs) take different approaches. Specifically, Web browsers establish up to six TCP connections for each domain name on the webpage [35], which allows the browser to request six objects in parallel, but wait for the seventh object until one of the six connections becomes available. On the other hand, CPs design their websites such that the embedded objects are distributed across multiple domain names, a technique known as Domain-Sharding [35]. The combination of the above two techniques allows Web browsers to establish six connections for each of the many domain names to perform parallel downloading of resources and thus mitigate the HOL blocking.

The HTTP/2 (h2) protocol, standardized in May 2015, follows a different approach to eliminate HOL blocking on the application layer [19]. Instead of using domain sharding and opening multiple TCP connections for each domain name, h2 uses only one TCP connection to exchange all request and response payloads. Specifically, instead of relying on pipelining all requests as in the case of h1, h2 allows multiplexing and interleaving of all requests and responses such that incoming requests could be processed in parallel and in any order determined by the server.

While h2 eliminates HOL blocking on the application layer, it retains HOL blocking on the transport layer [19, 39, 42]. Specifically, since h2 utilizes TCP as its transport protocol, packet loss on h2’s single TCP connection reduces the congestion window by 50% (and 30% in the case of TCP CUBIC [38]). While h1 also utilizes TCP and suffers similarly in the event of packet loss, for h1 Web browsers establish six TCP connections and packet loss does not degrade the cumulative congestion window as much as it does for the single TCP connection in the case of h2. Previous studies have shown either improvement or degradation in PLTs when loading webpages over h2, compared to h1 [21, 23, 25, 41, 49, 53, 55]. The disagreement about h2 performance creates uncertainty among CPs and their surrogate proxy infrastructures (content delivery networks, CDNs) as to whether and how to follow suit. Should CDNs continue to serve mobile Web content over h1, or argue to their CP customers the performance benefits of serving webpages over h2 in mobile networks?

In this paper, we answer these questions through a comprehensive comparison of h1 and h2 performance in cellular networks. Specifically, we investigate the impact of packet loss on PLT when using h1 over six TCP connections and h2 over one TCP connection. We also investigate whether the webpage structure has implications on h2 performance. In order to understand Web performance, we first extend our previous work to understand the dynamic nature of cellular network characteristics in terms of packet loss, round trip time, and bandwidth [31]. Specifically, we develop several techniques to emulate various cellular network conditions as observed for cellular carriers in rural and urban areas. We then replay the network conditions and compare PLTs using h2 and h1 as application layer protocols.

We classify our five major contributions as follows:

Dataset Richness: Our analysis of cellular network characteristics is based on 50 K TCP connections captured over several days from an Akamai CDN cluster hosted inside a data-center of a major cellular network provider in the US. Our collected TCP traces represent the characteristics of a real world cellular network, as the TCP connections to the selected Akamai CDN cluster are not influenced by any interference from the public Internet [11]. This is because the selected CDN cluster serves traffic only to cellular clients in that ISP. We provide the details on our data collection technique in Section IV.

Identifying Cellular Network Characteristics: Our analysis of live TCP traces captured from a CDN cluster suggests three unique characteristics of cellular networks.

  • [leftmargin=0.15in]

  • We observe that about 32% of the TCP connections over cellular networks experience packet loss. We also make similar observations in our previous work of detecting TCP terminating proxies across cellular networks worldwide, where we use the packet loss information in the TCP logs provided by Linux kernel of production Akamai CDN servers [30].

  • Next, we observe that packet losses in cellular networks are clustered – several consecutive TCP segments are lost at the same time. Our observations are similar to the recent work of Flach et al., where they found that traffic policers introduce high packet loss rate in cellular networks [26].

  • Finally, we observe that TCP connections over cellular networks experience packet loss multiple times during their lifetime. Additionally, when a loss occurs, up to 40% of the TCP segments flowing over the connection at that time are dropped. Note that this loss rate is different from the cumulative packet loss the connection experiences during its entire lifetime.

Measurements: Our comprehensive view of cellular network characteristics from an Akamai CDN cluster deployed inside cellular ISP datacenter allows us to improve existing cellular network emulation techniques. Specifically, existing network emulators, such as TC NETEM [16], Network Link Conditioner [52], and others, introduce packet loss on a link at random times during emulation. An emulation model dependent on random occurrences of loss does not provide a realistic representation of cellular network conditions. Therefore, based on the observations we make about cellular network characteristics, we emulate several cellular network conditions in terms of packet loss rate, time gap between two loss events, round trip time (RTT) between the client and the CDN server, and bandwidth attributed to cellular base stations. To allow further research in this direction, we make our emulation script available at https://github.com/akamai/cell-emulation-util.

Investigating HTTP/2 Performance: We make extensive use of the HTTP Archive repository to synthesize several webpages that represent real world websites [15]. For example, we synthesize a webpage with hundreds of small objects (less than 1 KB each), a webpage with a few large objects (about 435 KB each), and several webpages with tens of objects ranging from 1 KB to 620 KB in size. Using the emulated network, we conduct several experiments to compare PLTs of these webpages loaded in turn over h2 and h1. We list the results from our experimental evaluation as follows:

  • [leftmargin=0.15in]

  • We observe that for a webpage with hundreds of small sized objects, h2 outperforms h1 in all emulated network conditions, except in the condition where the single TCP connection of h2 frequently experiences loss.

  • Next, we observe that for a webpage with a few large objects, h2 does not outperform h1 at all. In fact, the PLTs over h2 are significantly higher than h1.

  • And finally, we observe that for a webpage with object sizes ranging from 1 KB to 620 KB, h2 outperforms h1 when the webpage has few large objects and many small objects. However, as the number of large objects increase (keeping the total number of objects on the webpage same), the performance of h2 is comparable to h1. Additionally, as the network conditions on h2’s single TCP connection worsen, PLTs observed over h2 are much larger than the PLTs observed over h1 under the same network conditions.

Sharding Webpages for Faster PLTs over HTTP/2: To the best of our knowledge, there is currently no known best practice as to how h2 should be tuned to minimize the impact of loss on PLT. In this work, we side-step from the recommendation of disabling domain-sharding in h2 [7, 19, 35, 36, 40, 46]. Our goal is not to argue that domain-sharding is necessary to speedup PLTs for h2-enabled webpages – only future evaluations will demonstrate the relative benefits of domain-sharding and other methods for reducing PLTs. Instead, we investigate whether a technique that enables application layer control of how Web objects are downloaded can be effective and safe in its own right. We now discuss its implications on Web performance as follows:

  • [leftmargin=0.15in]

  • We perform experimental evaluation to demonstrate that multiple h2 connections improve the mobile Web performance in lossy cellular network conditions, when compared to both h2 with single TCP connection and h1 with six TCP connections.

  • We investigate and develop a new domain-sharding technique that isolates large downloads on separate TCP connections, while keeping downloads of small objects on a single connection. Our devised domain-sharding technique is different from the legacy sharding technique currently used in the case of h1. Specifically, current sharding techniques distribute webpage resources over several domain names depending upon the type of object. For example, the domain img.example.com is used for all images irrespective of the image size.

  • Through experimental evaluation, we demonstrate that h2 achieves faster or comparable PLTs to h1 when using our domain-sharding technique. The PLTs over h2 when using the legacy sharding technique results in worse PLTs. Therefore, we recommend CPs and CDNs to apply h2-aware domain-sharding practices for h2-enabled webpages.

The rest of the paper is organized as follows. In section II, we discuss related work that investigates and improves Web performance over h2. In Section III, we discuss our need to develop an emulation testbed, instead of using already deployed systems, for analyzing cellular network characteristics. Next, we discuss our data collection process in Section IV and our characterization of cellular network conditions in Section V. In Section VI, we discuss various emulated cellular network conditions. In Section VII, we compare Web performance over h1 and h2 and present a novel domain-sharding technique to speed up PLTs in Section VIII. In Section IX, we discuss the challenges in validating our mobile emulator. In Section X, we discuss the practical implications of applying domain-sharding. Finally, we conclude in Section XI.

Ii Related Work

While the QUIC protocol is being designed to eliminate HOL blocking on both transport and application layers, QUIC is not a standard yet and will likely require several years before its widespread adoption by CPs for the production traffic [39]. The BBR protocol is another transport layer development that allows faster loss discovery/recovery in high loss scenarios [22]. However, our results show that domain-sharding improves PLTs across various emulated high and low loss scenarios. Therefore, we argue that even with a loss-resistant TCP stack, multiple connections will still enable h2 to achieve faster PLTs.

A study by Mi et al. shows the performance of a modified version of standard h2 protocol between custom clients and Web servers that establishes new TCP connections every time the server detects a large object being requested by the client [43]. While the study shows h2 performance benefits when isolating large downloads on separate TCP connections, the modified protocol adds latency to the overall PLT by establishing new TCP connections when a request for large object is detected by the server. In contrast, we provide an application layer solution that minimizes the impact of TCP HOL blocking on h2’s performance, without the need of any changes to the client Web browser. Specifically, our work improves PLTs over h2 by establishing multiple TCP connections as soon as the domain-sharded HTML for the base page is available and parsed by the Web browser.

A study by Varvello et al. investigates the adoption and performance of h2 for top ranked webpages, when measured from wired and mobile hosts [53]. Their evaluation of PLT over h2 indicates performance improvement for some websites and degradation for others, due to reasons associated with latency between hosts and Web servers. Bocchi et al. also measure h2 performance, however they stop short of explaining reasons behind the observed performance differences [21]. Other studies compare performance of h2 without TLS support with h1 in clear-text, using 3G USB modems [23] and network simulations using static configurations on TC NETEM [23, 41]. Emran et al. compare SPDY performance with h1 over a production cellular network [25]. Their results indicate that SPDY degrades Web performance in lossy cellular conditions.

Previous studies collectively do not suggest clear improvements in Web performance when using h2 protocol for mobile content delivery. In contrast to these studies, our goal is to disambiguate previous results through controlled experiments using synthetic webpages that represent structures of popular webpages. Therefore, we investigate PLTs for synthetic webpages and show the impact of object size on PLT, when using h2 in dynamically changing lossy cellular network conditions.

A study by Wang et al. investigates the impact of SPDY protocol on Web performance in various simulated cellular network conditions [55]. Their results indicate that SPDY helps for some pages but hurts for others. Additionally, their study implements domain-sharding as it appears on many webpages using h1, i.e. sharding objects by their type. The authors then investigate the impact of domain-sharding on PLT and identify that sharding does not improve Web performance. In contrast, our work investigates the impact of domain-sharding based on the object size and make a case for applying domain-sharding to download all small objects one connection and large objects on separate connections.

Iii Why a New Cellular Emulation Testbed?

Akamai’s global infrastructure for content delivery serves webpages for its CP customers and processes a total of over 40 million HTTP requests every second from clients around the globe. Many of its CP customers desire to understand the performance of how fast their websites load on clients in different networks. To understand the performance of Web content delivery on production traffic, Akamai utilizes Real User Measurement (RUM) [8] system that uses the Web browser exposed Navigation Timing API [9] to capture several performance metrics pertaining to webpage load. Specifically, when clients request the base page HTML, Akamai’s RUM system injects custom JavaScript that runs on the client’s browser and uses the Navigation Timing API to record the time taken to perform DNS lookup of the base page domain name, time to establish TCP connection, and the overall PLT, among many other metrics [29, 30]. While RUM allows for large scale measurements across many mobile networks and client devices, it does not record transport layer metrics, such as packet loss rates and timestamps of loss occurrence during the lifetime of a TCP connection. These problems have also been discussed at the recent PAM conference [20].

Moreover, a recent study shows that webpages are loaded over h2 only by modern hardware and Web browsers, whereas h1 is used predominantly by older hardware and Web browsers [49]. Given that mobile hardware significantly impacts the PLT [50], RUM measurement data pertaining to h2 and h1

performance is skewed. It is possible to configure CDN clusters to serve webpages over

h2 only 50% of the time and thus perform a fair comparison with h1 when webpages are loaded over the same mobile hardware. However, modern webpages contain many resources that are often downloaded over transport and application layer protocols different than the ones used by the base page [32], e.g. the base page being loaded over h2 but most other objects over h1. Using RUM for such webpages will further skew the PLTs in our analysis of real world performance of h2 and h1.

Finally, existing mobile network measurement tools, such as Akamai Mobitest [3], WebPageTest [1], RadioOpt Traffic Monitor [10], Gomez Last-Mile [2], Keynote [13], 4GMark [4], nPerf [6], and WProf [54] also do not emulate or record the live loss rates found in real world cellular networks when measuring Web performance. In fact, many of these and other tools rely on Navigation Timing API and inherit its limitations as discussed earlier [33].

Given the aforementioned limitations of existing Web performance measurement APIs/tools, we develop a testbed to emulate different cellular network conditions by investigating live TCP traffic captured from a real world cellular network.

Fig. 1: Clustered retransmissions at different times during connections.
Fig. 2: Time gap between retransmission clusters for different connections.
Fig. 3: Retransmission rates for different connections.

Iv Data Collection Methodology

Akamai accelerates its content delivery by deploying its CDN clusters in close proximity to many cellular ISPs’ packet gateways (P-GWs) [30, 57, 59]. In fact, many of Akamai’s CDN clusters are deployed deep inside network datacenters of cellular ISPs [11]. We selected one such CDN cluster co-located with a P-GW of a major cellular ISP in the US to passively capture live TCP traffic pertaining to that cellular network. Our choice of the selected CDN cluster is based on the fact that the TCP connections to the cluster are not at all influenced by any interference from the outside public Internet and that the cluster is one of the biggest Akamai clusters hosted in that cellular ISP. This is because the selected CDN cluster only serves Web content to cellular clients in that ISP [11].

Next, we ran TCPDump on each CDN server in the cluster at different times of a day to capture incoming and outgoing TCP segments. Previous works, including our own, show that the cellular network chosen in this study uses TCP terminating proxies to split TCP connections between mobile clients and CDN servers on port 80, but never does so for connections to port 443 [30, 58]. Therefore, we only capture TCP segments to-and-from port 443, which ensures that the captured segments are for end-to-end connections between clients and CDN servers, as opposed to segments from the TCP terminating proxy [58].

Next, for each TCP connection captured in TCPDumps, we use tshark to extract four characteristics periodically every 70 ms [17]. The four characteristics are the number of segments exchanged between the client and the server, the number of bytes exchanged between the client and the server, the number of segments retransmitted by the server, and the average time lapse between acknowledgments. Note that the first 70 ms interval starts when the TCP SYN is received by the server. The choice of 70 ms as the time interval to calculate the above four metrics is based on our previous work showing that 70 ms is the median Round Trip Time (RTT) between clients in the chosen cellular network and the selected Akamai CDN cluster [30]. Therefore, in the median case we expect the above mentioned three metrics to change after 70 ms.

Our total dataset consists of the above mentioned metrics for about 50 K TCP connections captured on port 443. Note that the number of connections captured are limited to 50 K because these connections represent only the HTTPS traffic captured to-and-from one of the P-GWs deployed by the chosen cellular ISP. We observe that the quality of TCP connections analyzed in this study is consistent with the quality analyzed in previous work conducted at a different time from the same P-GW [31]. Therefore, we argue that our way of profiling TCP connections is independent of the time when TCP traffic is captured. Further, although in our investigation we capture TCP traffic from one cluster co-located with one P-GW, our analysis of loss from the captured TCP traffic indicates similar packet loss to what is found in many other networks in North America and Europe when analyzing loss from different CDN clusters [26, 30]. Therefore, we speculate that our findings in this study are potentially applicable to other cellular networks.

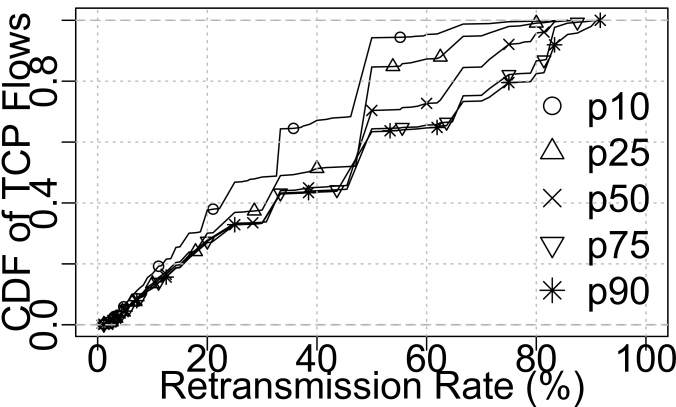

Fig. 4: Distributions of retransmission rates.

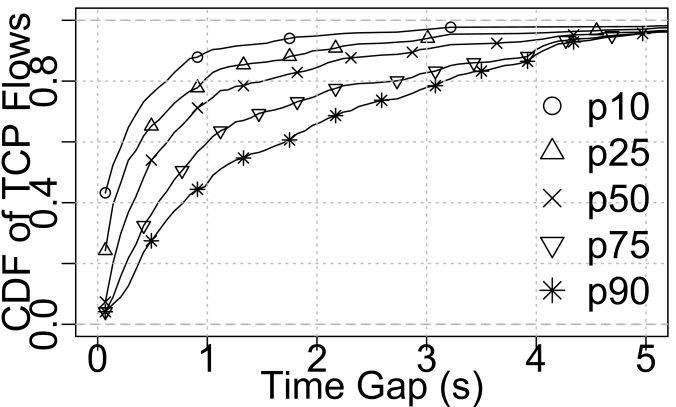

Fig. 5: Distributions of time gaps in retransmissions.
Fig. 6:

Distributions of estimated throughput.

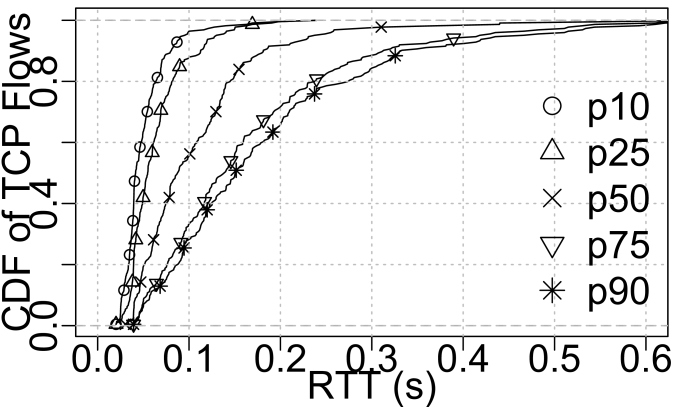

Fig. 7: Distributions of RTT between ACK segments.

V Cellular Network Characteristics

The packet traces captured with TCPDump we use in our study only indicate retransmissions by the server, not per se packet loss in the network. For example, while the server could retransmit due to socket timeouts caused by temporary congestion, or packet drop in the network due to corruption, TCP congestion control interprets both these events as congestion in the network and retransmits the segments it infers are lost [27]. Our approach to identify loss relies on reverse engineering TCP’s reaction to the changing dynamics of the cellular network. We argue that from the outside of a cellular network it is impossible to identify the real cause of a retransmission. From this point forward in the paper, we refer to packet loss as the TCP segments retransmitted by the server and use the terms loss and retransmission interchangeably.

Next, we make four observations when analyzing the captured TCP traffic. The first observation we make is that about 32% of the total TCP connections in the chosen cellular network experience packet loss. This observation is similar to our previous work on detecting TCP terminating proxies in cellular networks worldwide, where we use the packet loss information in the TCP logs provided by Linux kernel of production Akamai CDN servers [30].

The second observation we make is that losses in cellular networks are clustered. In other words, when TCP interprets congestion, the server often retransmit many consecutive TCP segments. In Figure 3, we show several boxplots, each for a 70 ms slice, representing distributions of the number of TCP segments retransmitted by servers across all TCP connections. Note that we only show number of retransmissions for those TCP connections that experienced retransmissions in the selected time slice on x-axis. The x-axis represents the timestamp when a 70 ms slice finishes. The y-axis represents the number of packets retransmitted by server on a log scale. From the figure we observe that many individual TCP connections experience clustered retransmissions. For example, during the time slice finishing at 420 ms, we observe that servers retransmit clusters of 5, 10, and even 20 segments for different TCP connections. Although we observe clustered retransmissions for connections existing longer than 2.1 seconds, for figure clarity we restrict the figure to the first 2.1 seconds. Our observations are similar to the recent work of Flach et al., where the authors observe that traffic policers introduce high packet loss rate in cellular networks [26].

The third observation we make is that TCP connections experience retransmissions at multiple times during their respective lifetimes. In Figure 3, for each connection we show a boxplot distribution representing the time gaps between retransmission clusters observed in subsequent 70 ms slices. Since we record the occurrence of retransmission clusters at every 70 ms, each time gap is at least 70 ms long. From the figure we observe that for several connections the subsequent retransmission clusters appear within 500 ms. In other words, many connections experience clustered loss every half a second.

Finally, the fourth observation we make is that when a TCP connection experiences clustered retransmissions, in a 70 ms slice up to 40% of the segments are retransmitted by the server. We support this claim through Figure 3, where for each TCP connection we show a boxplot distribution of rate of retransmitted TCP segments, across different 70 ms time slices. Note that this retransmission rate is different from the aggregate retransmission that the connection experiences during its entire lifetime. For example, while there could be 20% segments retransmitted in a given 70 ms time slice, however, the aggregate retransmission rate for the connection can be significantly lower than 20%.

Vi Emulating Cellular Networks

One of the goals of this study is to improve existing techniques for emulating cellular networks. While there exist many network emulators to model loss, latency, and bandwidth between clients and servers, such as TC NETEM [16], Network Link Conditioner [52], these emulators introduce packet loss on network links at random times during emulation. Such emulators do not achieve a realistic emulation of cellular networks as loss in cellular networks does not occur at random times. Using TC NETEM and our observations from Section V, we develop a testbed that refines how packet loss is introduced on network links between clients and servers.

Fig. 8: Distributions of retransmission rates.
Fig. 9: Distributions of time gap between retransmission clusters.
Fig. 10: Distributions of estimated throughput.

Next, using only the captured TCP connections that experienced loss (32% of the collected dataset), we develop two emulation scenarios: 1) network quality observed in different situations, such as good or bad reception, stationary or moving user; and 2) time gap between retransmission clusters, or how frequently a TCP connection experiences loss. For the first emulation scenario, we classify all TCP connections into four different network qualities, namely Good, Fair, Passable, and Poor. In the second emulation scenario, we classify all TCP connections into three different categories based on the time gap between retransmission clusters, or how frequently a TCP connection experiences loss, namely Good, Median, and Poor.

Vi-a Classifying Connections Based on Network Quality

In Figures 7-7, we show distributions of 10th, 25th, 50th, 75th, and 90th percentile retransmission rate, time gap between retransmission clusters, estimated throughput, and RTT, as observed across all TCP connections in all 70 ms time slices. Next, using these distributions, we label TCP connections into the five different categories, as shown in Table I. For example, when emulating a network with Good quality, we select the 10th percentile (p10) retransmission rate distribution from Figure 7, 10th percentile RTT (p10) distribution from Figure 7, 90th percentile (p90) throughput distribution from Figure 7, and 90th percentile (p90) distribution of time gap between retransmission clusters from Figure 7. We then model the network between the client and server by modifying the above characteristics every 70 ms.

Note: Network bandwidth in cellular networks is attributed to the base station and is not dependent on loss and RTT; however, network throughput is dependent on loss and RTT [56]. In our emulation, for lack of actual bandwidth information, we use the observed throughput to model the bandwidth. The collected TCP traces do not reveal the network bandwidth and therefore one can only calculate the achieved throughput. We acknowledge the fact that using observed throughput as a substitute for bandwidth is not ideal. On the other hand, modeling the bandwidth with a constant value for the entire duration of the emulation is also not realistic. Therefore, in order to model the bandwidth, we decide to use the observed throughput as an approximate value for network bandwidth.

Quality Rtx. Rate Time Gap Throughput RTT
Good p10 p90 p90 p10
Fair p25 p75 p75 p25
Passable p50 p50 p50 p50
Poor p75 p25 p25 p75
TABLE I: Emulation based on network quality.

Vi-B Classifying Connections based on Time Gap Between
Retransmission Clusters

When using this classification to categorize TCP connections, a Poor condition represents a network where subsequent retransmission clusters are separated by less than 250 ms in the median case. Next, a Median condition represents a network where subsequent retransmission clusters occur every 250 ms to 750 ms in the median case. And finally, a Good condition represents a network where subsequent retransmission clusters are separated by atleast 750 ms in the median case.

Fig. 11: RTT Distributions according to tshark.
Fig. 12: RTT Distributions from the kernel TCP logs.

In Figures 10-10, we show distributions of retransmission rate, time gap between retransmission clusters, and estimated throughput, for different classifications of cellular network conditions. For example, in Figure 10 we show that TCP connections that belong to a Good, Median, and Poor network conditions experience retransmission clusters after 1.15 seconds, 350 ms, and 165 ms respectively in the median case.

With respect to RTT distributions, from Figure 12 we observe that RTT for Poor networks is much lower than RTT for Good conditions. We argue that this behavior is due to the fact that when client receives out-of-order segments, TCP congestion control on the client transmits TCP ACKs immediately to accelerate recovery of lost segments [18]. Therefore, a receiver on a Poor network (experiencing loss frequently) sends ACKs as soon as it receives an out-of order packet. When such ACKs are received by the server, tshark calculates the time difference between the previous and the new ACK segments, which results in exactly one RTT as ACKs are sent immediately following a loss. In other words, if segment X is lost and server keeps sending X+N segments, the client will send a DUP ACK immediately for every N packets until X is recovered.

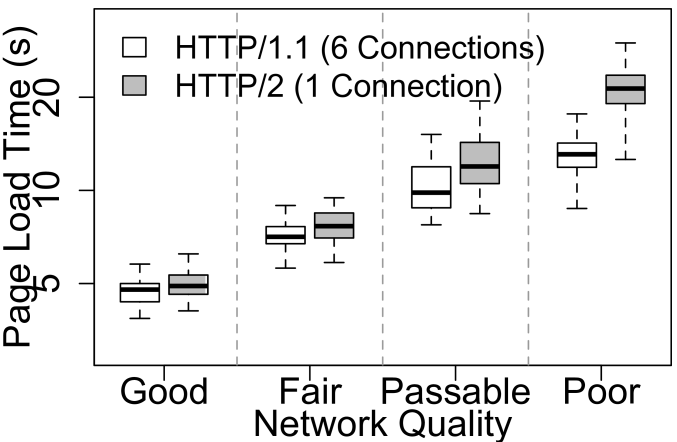

Fig. 13: PLTs of a webpage with 365 objects of size 1 KB.
Fig. 14: PLTs of a webpage with 10 objects of size 435 KB each.
Fig. 15: PLTs of webpages with 136 objects of size 1-620 KB each.

In the case of Good connections (experiencing loss rarely), the TCP congestion control on the client sends ACKs for only every other TCP segment. Moreover, the client waits up to 500 ms to accumulate all ACKs and then transmit an ACK for the most recently in-order segment received [18]. Therefore, when there is no loss for several RTTs, the time difference between two received ACK segments is much larger than the true RTT between the client and server. In other words, if the client delays ACKs, the ACK RTT value calculated by tshark will result in higher values than the values calculated in the case of a Poor network. Note that even though recent versions of Red Hat only delay ACKs for 40 ms, our argument, related to why calculating RTTs based on the arrival times of ACKs is inaccurate, still holds valid. Specifically, if the TCP stack on the client delays the transmission of ACKs by 40 ms, the overall RTT observed by the server is more than 150% (110 ms) of the true RTT (70 ms in the median case).

Therefore, to extract accurate RTT distributions for different network conditions, we extract over 15 million TCP log lines recorded by the same CDN cluster over a week, where each TCP log line represents an end-to-end connection between a client and server’s port 443. We are interested to understand whether or not latency is correlated to loss in cellular networks. From each TCP log line we extract the minimum, average, maximum RTT, and the time to establish TCP connection, along with the total loss the connection experienced during its lifetime. We observe that latency in cellular networks has an extremely low correlation with the observed loss. Specifically, for 15 million TCP connections, the correlation values between the overall observed loss and minimum, maximum, average RTT, and the time to establish TCP connection were only 0.004, 0.17, 0.24, and 0.05 respectively. This is likely due to the fact that latency in cellular networks depends on multiple factors such as, time spent in radio resource negotiations, time to switch the device radio from idle to active, packet queuing on routers in the core network. Therefore, given the low correlation between latency and loss, from the TCP logs we select the time to establish TCP connections as a standalone distribution of RTT to use when emulating Good, Median, and Poor network conditions. We show the RTT distribution in Figure 12, which has the median RTT of 70 ms, same as the one we used for slicing TCP connections.

Vi-C Emulation in action

To emulate networks based on the two techniques described in Sections VI-A and VI-B, we setup a network topology using three machines with TCP CUBIC installed on Ubuntu 14.04. On the first machine, we configure a client that runs Chromium Telemetry for loading webpages using the Google Chrome browser [5]. On the second machine, we configure an Apache Web server that supports h1 and h2 on different virtual hosts. Finally, on the third machine, we configure a bridge to connect the client and the server. For our experiments, the initial congestion window (ICW) on the server is set to 10 segments of size 1460 bytes each. The receive windows advertised by the client and server during connection setup are set to 65 KB.

Depending on the emulation scenarios defined in Sections VI-A and VI-B, we configure the bridge to use TC NETEM commands to modify loss, time to subsequent loss, RTT, and bandwidth every 70 ms. Note that we use the retransmission rates discussed in Sections VI-A and Section VI-B to model loss rates on the bridge. Similarly, we use the time gap between retransmission clusters to model the time when loss is introduced on the link between the client and server. Finally, we use the estimated throughput to model network bandwidth between the client and server, with the reasoning described in notes of Section VI-A.

Vii Comparing Web performance of h2 and h1

In this section, we emulate the five network qualities described in Section VI-A to compare PLTs over h2 and h1. Since there is no standard definition of PLT, similarly to many other studies [25, 29, 34, 41, 50, 53, 55], we estimate the PLT as the time from when the user enters the URL in the Web browser until the browser fires the JavaScript’s OnLoad event. For measuring the PLT, we use the client to load several webpages synthesized from HTTP Archive [15]. HTTP Archive is a repository that maintains structures of many popular webpages designed for both mobile and desktop screens.

The webpages we synthesize represent many popular mobile websites, ranging in the HTML document size, number of embedded objects, and total webpage size. Note that we use synthesized webpages instead of relying on real webpages, because real webpages contain many third party objects that could influence the overall PLT by up to 50% [32]. Further, many third party objects are downloaded over h1, even though the base page HTML could be downloaded over h2. As such, third party objects on real webpages introduce interference in PLT estimations. Therefore, we synthesize webpages that do not include third party content and whose structure, object size, and overall size represent popular webpages.

In our experiments, for each scenario, we load each page 200 times over h2 and 200 times over h1 using TLS. Note that we use log y-axis on all figures for clarity.

The first webpage contains 365 objects of size 1 KB each, the HTML document size of about 38 KB, and a total page size of about 400 KB. This webpage represents 40% of the top 1000 mobile webpages that embed up to 400 objects, 25% of the webpages with up to 40 KB HTML document size, 52% of the webpages with a total webpage size of up to 1 MB, and 49% of the pages that transfer up to 400 KB of image data [15]. In Figure 15, we observe that PLTs over h2 are significantly lower than PLTs over h1. This is because h1 establishes six TCP connections with the server, which allows the server to transfer only six objects in parallel. As each TCP connection for h1 can only download one object at a time, the server sends a total of 6 segments (6 KB) for the requested six objects, before it waits for the next request. In other words, h1 can only send 6 KB of data in each round trip, regardless of the congestion window size on the server. On the other hand, unlike h1, h2 multiplexes many objects on the single TCP connection and can pack multiple objects in one TCP segment. Initially, a single TCP connection for h2 allows the server to send 10 segments, that is 14.6 KB (14 objects for this site), with the number of segments that the server can send growing exponentially with each round trip during the TCP slow start. Therefore, a webpage with many small objects make an ideal case for h2 to reduce the number of round trips required, in comparison to h1. In fact, since h1 requires more round trips to load this webpage, it experiences more aggregate packet loss compared to h2. Finally, when packet loss forces the server to drop its TCP congestion window, the server in the case of h2 still transmits more objects than in the case of h1. Therefore, we observe that h2 outperforms h1 across all emulated scenarios.

The second webpage contains 10 large objects of size 435 KB each, the HTML document size of about 10 KB, and total page size of about 4 MB. This webpage represents 40% of the top 1000 mobile webpages that embed up to 400 objects, 38% of the webpages with up to 20 KB HTML document size, and 6% of the webpages with a total webpage size of about 4 MB [15]. From Figure 15, we observe that h1 outperforms h2 across all emulated network qualities. We argue that since the object sizes in this page are much larger than the object sizes in the previous page, the server in the case of h1 uses all six TCP connections to send a total of about 60 segments (87.6 KB) in the first round trip. Whereas, in the case of h2 with one TCP connection, the server sends only 10 segments (14.6 KB) of data in the first round trip. Note that the number of segments that the server can send over each connection doubles in every round trip. During TCP slow start, the cumulative congestion window usable over h1 is six times larger than the congestion window usable over h2. Further, as the network quality gets worse when loss occurs, the congestion window of the single connection over h2 does not grow as much as it grows cumulatively for six connections in the case of h1. For example, in Poor network quality we observe that PLTs over h2 are significantly higher than PLTs over h1. Therefore, a webpage with many large objects requires many more round trips over h2 than it would require over h1.

The HTTP Archive data also suggests that many popular webpages embed both small and large objects, however, their counts differ significantly. Therefore, using the HTTP Archive data we synthesize three more webpages, each containing 136 objects of size in the range of 1 KB to 620 KB, but with different number of large objects. Specifically, the first webpage is of size 2 MB, with three large objects (ranging from 30 KB to 620 KB in size) and 133 small objects (ranging from 20 B to 5 KB in size). This webpage is similar to the 16% of the top 1000 mobile webpages depicting many popular e-commerce, news, and sports websites [14]. The second webpage is of size 8 MB, with 12 large objects and 124 small objects. This webpage is similar to many news, airlines, and blogging websites, such as WikiHow, NYPost, Delta, and others [14]. The third webpage is of size 12 MB, with 18 large objects and 118 small objects. This webpage is similar to many news, online gaming, and streaming websites, such as Twitch.tv, TomsHardware.com, and others [14]. The first, second, and third pairs of boxplots in Figure 15 for each network quality represent the distribution of PLTs for webpages of size 2 MB, 8 MB, and 12 MB, respectively. From the figure we observe that for a 2 MB page, PLTs over h2 are lower than PLTs over h1. This is because, similarly to Figure 15, server sends many more objects over h2 in parallel, compared to only six objects that the server sends in parallel over h1.

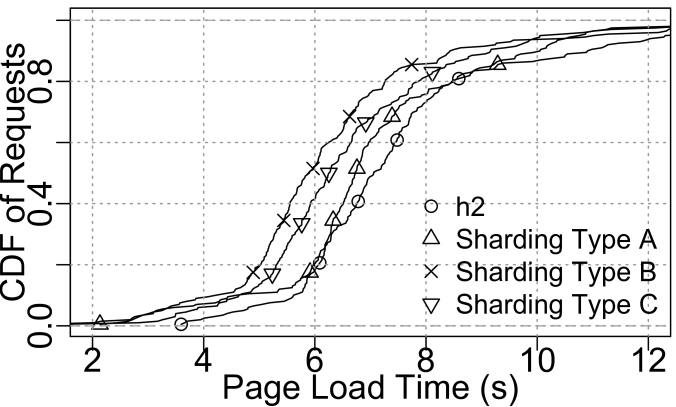

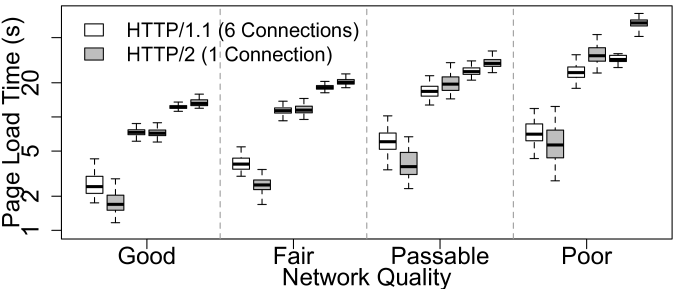

Fig. 16: h2 PLTs with different connection counts.

For the 8 MB page, although the page contains 12 large objects, PLTs over h2 and h1 are comparable under Good and Fair networks. This is because h2 gets benefits of multiplexing small-sized objects, whereas, h1 suffers from HOL blocking for both small and large-sized objects. However, as the network quality get worse, PLTs over h2 become larger than h1, because in the case of h2, downloading large objects over single TCP connection suffers from small congestion window due to frequent packet loss. In fact, a large object download multiplexed with small objects prevents the small objects from being downloaded in fewer round trips, especially when packet loss occurs during large object downloads.

Finally, for the 12 MB page, the PLTs over h2 are always higher than h1. This is because, the majority of the time is spent loading the large objects. Therefore, when loss occurs, the congestion window on the server in the case of h2 does not grow as much and as fast as it grows cumulatively for six connections in the case of h1 – affecting the PLTs over h2 when downloading large objects. Note that TCP’s slow start is less important here as most of the PLT comes from the congestion avoidance phase. To confirm whether the ICW impacts PLTs for large webpages, we loaded a webpage 25 MB in size (results not shown in the paper) and observed no statistical significance in the difference between h2 and h1 PLTs.

When using the emulation scenarios described in Section VI-B, we found that the results were qualitatively similar to what we describe above. Therefore, due to the page limit, we do not show or discuss those results explicitly in the paper, however we briefly discuss them using Figures 191919, and 22 in Section VIII.

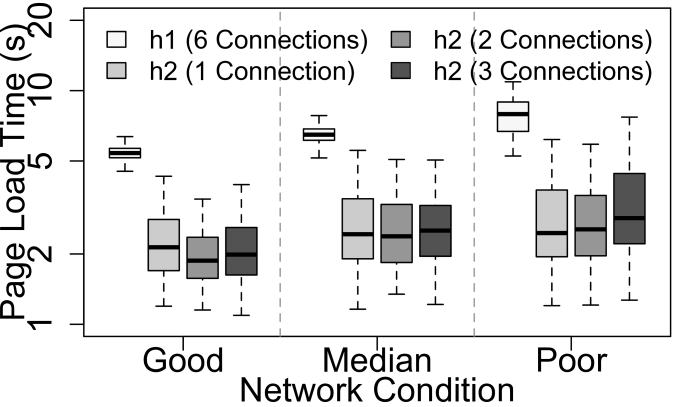

Fig. 17: PLT distributions of a webpage with 365 objects of size 1 KB each when emulating based on TCP loss frequency.
Fig. 18: PLT distributions of a webpage with 10 objects of size 435 KB each when emulating based on TCP loss frequency.

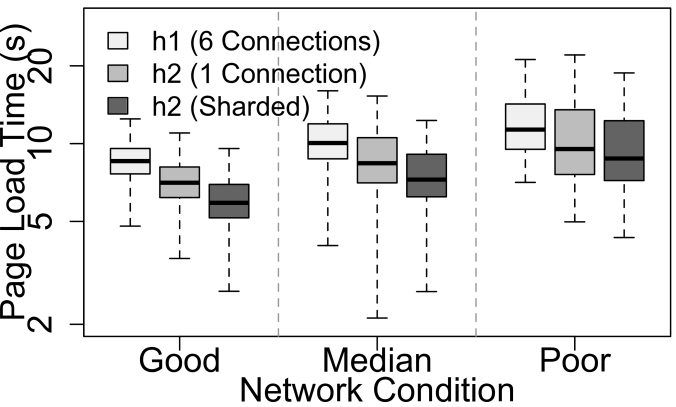

Fig. 19: PLT distributions for a 2 MB page when emulating based on TCP loss frequency.

Viii h2 performance with Domain-sharding

From the previous section we observe that in the event of packet loss, h2 degrades PLTs that contain both large and small objects multiplexed over the same TCP connection. In this section, we investigate whether PLTs over h2 can be improved by isolating large and small object transfers on different connections, such that their downloads do not interfere, especially during loss. We speculate that isolating large and small objects onto separate connections should allow the server to transfer all small objects in fewer round trips using h2’s multiplexing (similarly to Figure 15, and as well as prevent the downloads of large objects from blocking smaller objects in the event of loss (similarly to Figure 15). However, unlike h1, modern Web browsers, such as Google Chrome and Mozilla Firefox, establish only one TCP connection for every h2-compatible domain name on the webpage. To the best of our knowledge, there is currently no provision in the browser source code to allow establishment of multiple h2 connections, without modifying the underlying h2 protocol [39, 43]. Besides increasing the number of TCP connections used for h2 as we do in this paper, one could also tune TCP specifically for h2, for example, by increasing the ICW to 6 times the size of what is recommended for h1, i.e. 60 segments. However, we will discuss the performance of this approach later in the section.

We leverage domain-sharding by using multiple h2-compatible domain names on webpages to enable the browser to establish multiple h2 connections. Specifically, we setup multiple h2-compatible domain names on the server to shard webpage objects on these domain names. Note that we associate each domain name with a unique certificate to avoid connection coalescing used by modern Web browsers.

We then investigate how webpage objects should be sharded such that the impact of packet loss on h2 is minimized. For this investigation, we use the 8 MB page (with 12 large objects and 124 small objects) used for Figure 15 and create several versions of this page. Each version contains some number of large objects isolated on different connections via domain-sharding. Specifically, in Figure 16, Sharding Type A refers to the page where we isolate only two large objects on different connections, and all other objects on one connection – total of three connections. Sharding Type B refers to the page where we isolate all 12 large objects on different connections and all small objects on one connection – total of 13 connections. Sharding Type C refers to the page where we isolate five large objects on different connections, and all other objects on one connection – total of six connections. The page loads labeled as h2 show PLTs using the original 8 MB page over single connection.

From Figure 16, we observe that PLTs for sharded webpages are always lower than PLTs over h2 with one connection. Moreover, Sharding Type B offers the lowest PLTs among all sharded webpages, as this approach speeds up transfers of small objects and prevents large objects to impact small object downloads during loss. Therefore, isolating each large download on a separate connection is a reasonable strategy to reduce the PLT of h2-enabled webpages.

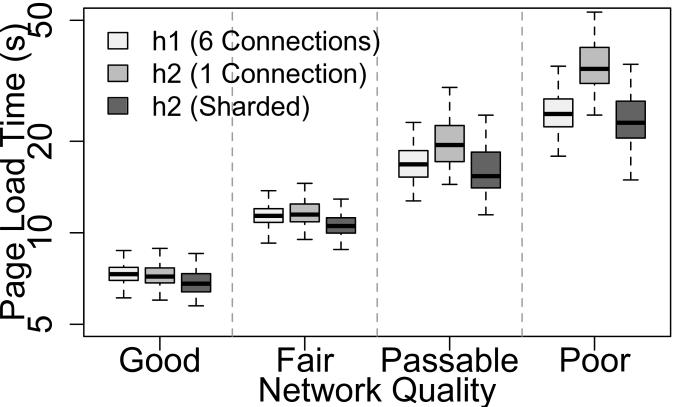

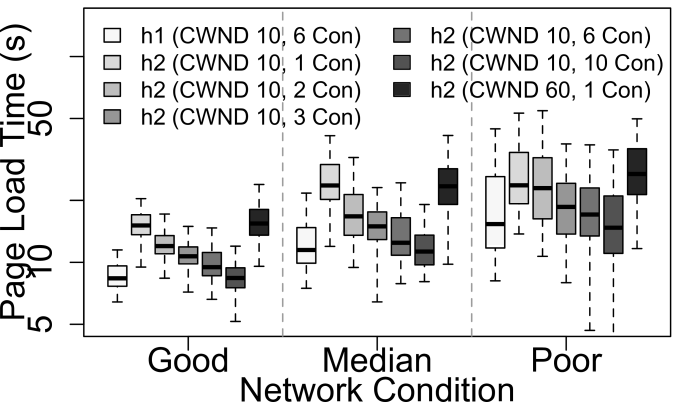

Fig. 20: PLTs of a 2 MB page when emulating based on network quality.

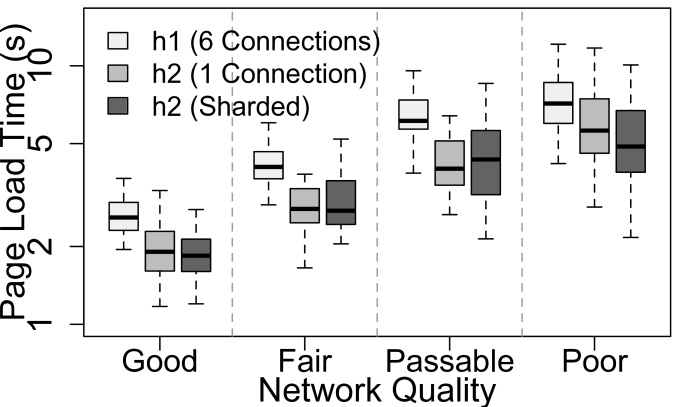

Fig. 21: PLTs of 8 MB page when emulating network based on TCP loss frequency.

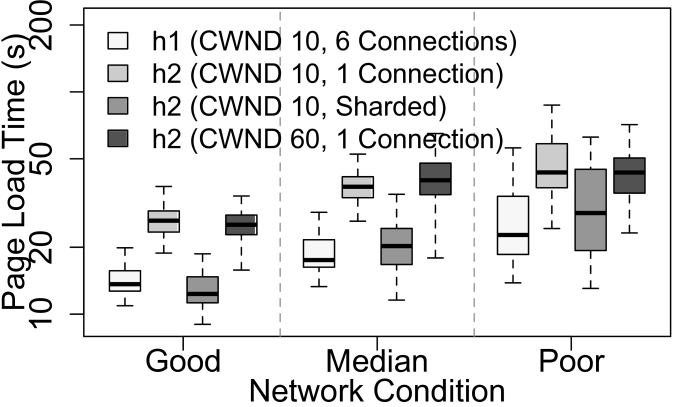

Fig. 22: PLTs of a 8 MB page when emulating based on network quality.

Viii-a Measuring Web performance with Sharded-h2

In Figure 19, we show the distributions of PLTs for a webpage with 365 objects of size 1 KB each loaded over h2 with one connection, h1 with six connections, and h2 with multiple connections, using the emulation scenarios described in Section VI-B. Similar to Figure 15, we observe that h2 with one connection outperforms h1 with six connections. When sharding half of the objects on a different h2-compatible domain name, i.e. using two connections, we observe that in Good conditions multiple h2 connections improve the PLTs by 12% in the median case. Further, when sharding the page with three h2-compatible domain names, i.e. using three connections, we observe that the PLTs are either comparable or slightly higher than PLTs over h2 with two connections. For webpages with hundreds of small-sized objects, establishing multiple connections introduce additional latency of TCP and TLS handshakes to the overall PLT – negating the benefits of domain-sharding.

Next, in Figure 19 we show PLT distributions of a webpage with 10 large objects of size 435 KB each, using the emulation scenarios described in Section VI-B. For this experiment, we create multiple copies of the webpage and shard the resources on different h2-compatible domain names, such that the browser establishes two, three, six, and 10 h2 connections depending upon how many domain names we use on the webpage. Similarly to Figure 15, we observe that h2 with one connection degrades PLT when compared to h1 with six connections. We also observe that as the number of h2 connections increase, the PLTs decrease under all network conditions. For example, under Good network conditions, the median PLT over h1 with six connections is 8 seconds, h2 with one connection is 15 seconds, and PLTs over h2 with two, three, six, 10 connections are 12, 10, 9, and 8 seconds respectively. Although, for such a webpage multiple h2 connections do not result in PLTs lower than h1 but only comparable, we argue that loading the webpage with sharding provides significantly lower PLTs compared to webpages loaded over h2 with one connection. We also measure the PLT over h2 when using one connection with a ICW of 60 segments. Similar to Figure 22, we observe that a high ICW does not improve PLTs, because in lossy network conditions the rate at which the congestion window re-grows after loss remains same as the rate it grows when using one connection with ICW of 10.

In Figure 19, we show the PLT distribution of a 2 MB webpage (same page as used in Figure 15) when loaded over h2 with one connection, h1 with six connections, and h2 with four connections (one for all small objects and the other three for the three large objects). Similarly to Figure 15, in Figure 19 we observe that h2 outperforms h1 in terms of PLT. Moreover, h2 with four connections achieves even faster PLTs, compared to both h2 with one connection and h1 with six connections.

When emulating the network based on network quality as shown in Figure 22, we observe that in the case of Good, Fair, and Passable user experiences, sharded-h2 with four connections achieves either 3% faster or comparable PLTs to h2 with one connection. However, in the case of Poor user experience, sharded-h2 offers 13% faster PLTs than h2 with one connection.

Next, in Figure 22, we show PLT distributions of a 8 MB webpage, when loaded using the emulation scenarios described in Section VI-B. For this experiment, we used one domain name for all small objects and 12 different domain names for the 12 large objects. From the figure we observe that under Good network conditions, sharded-h2 offers 53% faster PLTs compared to h2 with one connection and 10% faster PLT compared to h1 with six connections. Even when the network conditions get worse, sharded-h2 outperforms h2 with one connection, however, in such conditions sharded-h2 yields PLTs higher or comparable to h1. Finally, and similarly to Figure 19, we observe that PLTs over h2 with one connection using ICW of 60 are comparable to PLTs using one connection with ICW of 10.

Our results for sharded-h2 for the 12 MB page in both emulation setups are qualitatively similar to the ones shown in Figures 22 and 22.

Note: Instead of using 12 h2-compatible hostnames, one could use two h1 hostnames, for each of which browsers establish six connections. Also, as browsers can not infer object sizes from the base page HTML, our sharding technique enables CPs to instruct browsers on how to fetch objects on different connections, based on their sizes, for improved performance.

Ix Challenges in Validating the Emulator

As mentioned in Section III, RUM-based systems that leverage browser provided APIs, such as the Navigation Timing API [9], do not capture TCP metrics and thus their estimation of PLT does not indicate whether the page load experienced loss, and if so, how much [8]. While CDN providers capture TCP metrics pertaining to the recorded RUM data, both RUM and TCP-based metrics are independently recorded at a very low sample rate of 1-5%. Despite this fact, we sought to find page load sessions for which both RUM and TCP-based metrics were recorded, but because of the low sampling rate the common set was too small to perform meaningful analysis [28].

Additionally, since about 32% of the TCP connections experience loss, RUM-based PLT estimations include page loads from sessions with and without loss. On the other hand, we emulate only lossy network conditions. And so, the comparison of PLT distributions across the two techniques does not help validate our mobile emulator.

Next, our data collection technique relies on capturing TCP traffic using TCPDump, which do not indicate the deployed cellular network technology (2G/3G/LTE). Therefore, we can not comment on the degree of fidelity to which our cellular emulator can emulate radio access networks. However, we speculate that our classification of captured TCP connections into various network qualities could potentially reflect on the different cellular technologies deployed by the carrier. For example, the Good, Median, and Poor network conditions could potentially represent the behavior of transport protocol over LTE, 3G, and 2G configurations respectively.

In summary, the current Web performance measurement techniques do not allow us to validate the emulator we developed – motivating further research into cellular network measurement and emulation. However, we believe that seeding the emulator with real cellular network data enables us to emulate the dynamic characteristics of cellular networks, with sufficient fidelity to reason about their impact on h2 performance.

X Discussion on Domain-Sharding

Since our internal investigation of loss (not shown) indicates little-to-no loss in wired access networks and since our study only focuses on cellular network conditions, we recommend the use of domain-sharding for webpages served to mobile clients only. However, depending on how domain-sharding is employed by Web developers and CDN providers, its use may pose several potential implications on Web performance.

The use of domain-sharding incurs additional DNS lookups, which may take several hundred milliseconds in cellular networks [29, 30, 47], and can potentially increase the overall PLT. However, several Web optimization techniques, such as DNS Pre-Resolve [24] and DNS PiggyBacking [48], can eliminate this additional lookup latency by providing hints in the base page HTML, such that the Web browser resolves the domain names much before the resolution is needed. Other hints, such as TCP Pre-Connect, can also help browsers help establish TCP connections much before they are needed [37].

Additional connections via domain-sharding also requires additional computational resources for cryptographic operations [44]. However, major CDN providers today use the latest cipher suites, such as ChaCha20 and Poly1305, that offer improved mobile Web performance, even when compared to the unencrypted Web [45, 51]. Moreover, for many years domain-sharding has been in use with h1, and therefore the needed resources are already available to support even up to six encrypted connections for each domain name. We argue that using domain-sharding with h2 will require far fewer secure connections, as unlike h1, a single h2 connection can be used to download all small objects – only leaving a few big objects to be downloaded on separate connections.

Guidelines to applying domain-sharding in practice: Many CDN providers use several front end optimization (FEO) techniques to generate the base page HTML based on the type of client device (mobile vs desktop), client’s Web browser, device screen size, client’s ISP, last-mile performance, among many other factors [12]. As such, our proposed domain-sharding can serve as another optimization technique that FEO engines could incorporate to generate different versions of webpages – pages with and without domain-sharding. Similarly to the existing FEO implementations, the different versions of the same webpage could be cached by CDN servers and the sharded version could be served to cellular clients.

Xi Conclusions

h2 eliminates HOL blocking at the application layer but retains it on the transport layer, which impacts Web performance in lossy cellular network conditions. In this work, we study the characteristics of TCP connections observed for clients in a major US cellular carrier. We then model various cellular network conditions to investigate h2 performance under lossy network conditions. Our results indicate that h2 offers faster PLTs when webpages contain small objects, however, h2 degrades PLTs when downloading webpages with many large objects. Using domain-sharding, we demonstrate that loading webpages over h2 with multiple TCP connections reduces the impact of packet loss on PLT – improving Web performance for mobile clients. Based on our experimental evaluation of applying domain-sharding on h2-enabled webpages, we recommend CPs and CDN providers to apply h2-aware domain-sharding practices when upgrading mobile Web content delivery to h2 protocol.

ACKNOWLEDGMENTS: We thank Javier Garza, Ajay Kumar, and Kanika Shah for their help in setting experiments and refining our research directions. We also thank NSF for supporting us via grants CNS-1555591 and CNS-1527097.
