1 Introduction

Almost all voice-based applications such as mobile communications, hearing aids or human to machine interfaces require a clean version of speech for an optimal use. Single-channel speech enhancement can substantially improve the speech intelligibility and speech recognition of a noisy mixture [1, 2]. However improvement with a single-channel filter is limited by the distortions introduced during the filtering operation. The distortion can be reduced in multichannel processing which exploits spatial information [3, 4]. The multichannel Wiener filter (MWF) [5] for example yields the optimal filter in the mean squared error (MSE) sense and can be extended to a speech distortion weighted multichannel Wiener filter (SDW-MWF) where the noise reduction is balanced by the speech distortion [6].

Up to a certain point, the effectiveness of these algorithms increases with the number of microphones. More microphones can allow for a wider coverage of the acoustic scene and a more accurate estimation of the statistics of the source signals. In large rooms, or even in flats, this implies the need of huge microphone arrays, which, if they are constrained, can become prohibitively expensive and lacks flexibility. However, in our daily life, with the omnipresence of computers, we are surrounded by an increased number of embedded microphones, telephones and tablets. They can be viewed as unconstrained ad hoc microphone arrays which are promising but also challenging [7]. A distributed adaptive node-specific signal estimation (DANSE) algorithm [8], where the nodes exchange a single linear combination of their local signals, was proposed for a fully connected microphone array. It was shown to converge to the centralized MWF [9]. The constraint of a fully connected array can be lifted with randomized gossiping-based algorithms, where beamformer coefficients are computed in a distributed fashion [10]. Message passing [11] or diffusion-based [12] algorithms can increase the rather slow convergence rate of these solutions. Another way to exploit the broad covering of the acoustic field by ad hoc microphone arrays is to gather the microphones into clusters dominated by a single common source which can be estimated more efficiently [13].

All these algorithms require the knowledge of either the direction of arrival (DOA) or the speech activity to compute the filters and are sensitive to signal mismatches [14] or detection errors [6]

. Deep learning-based approaches have been proposed to estimate accurately these quantities through the prediction of a

time-frequency (TF) mask [15, 16, 17] or of the spectrum of the desired signals [18]. Although often used in a multichannel context, most of these solutions use single-channel data as input of their deep neural networks. Multichannel information was first taken into account through spatial features [19], but can also be exploited using the magnitude and phase of several microphones as the input of a convolutional recurrent neural network (CRNN) [20, 21]. This yields better results than single-channel prediction but combining all the sensor signals is not scalable and seems suboptimal because of the redundancy of the data. Coping with the redundancy, Perotin et al. [22]

combined a single estimate of the source signals with the input mixture and used the resulting tensor to train a

long short-term memory (LSTM) recurrent neural network (RNN).

In this paper, we consider a fully connected microphone array with synchronized sensors. This allows for using the MWF-based DANSE algorithm which was reported to achieve good speech enhancement performance [9]. Following the results shown by Perotin et al. [22], we take advantage of the DANSE paradigm [9] by combining at each node one local signal with the estimations of the target signal sent by the other nodes. This uses the multichannel context for the mask estimation but avoids the redundancy brought by the signals of a same node. Additionally, this scheme takes advantage of the internal filter operated in DANSE and reduces the costs in terms of bandwidth and computational power compared to a network combining all the sensor signals.

The paper is organised as follows. The problem formulation and DANSE are described in Section 2. In Section 3 we present our solution to estimate the TF masks. The experimental setup is described in Section 4 and results are discussed in Section 5 before we conclude the paper.

2 Problem formulation

2.1 Signal model

We consider an additive noise model expressed in the short time Fourier transform (STFT) domain as where is the recorded mixture at frequency index and time frame index . The speech target signal is denoted and the noise signal . For the sake of conciseness, we will drop the time and frequency indexes and . The signals are captured by

microphones and stacked into a vector

. In the following, regular lowercase letters denote scalars; bold lowercase letters indicate vectors and bold uppercase letters indicate matrices.

2.2 Multichannel Wiener filter

The MWF operates in a fully connected microphone array. It aims at estimating the speech component of a reference signal at microphone . Without loss of generality, we take the reference microphone as in the remainder of the paper. The MWF minimises the MSE cost function expressed as follows:

(1)

is the expectation operator and denotes the Hermitian transpose. The solution to (1) is given by

(2)

with , and . Under the assumption that speech and noise are uncorrelated and that the noise is locally stationary, where . Computing these matrices requires the knowledge of noise-only periods and speech-plus-noise periods. This is typically obtained with a voice activity detector (VAD) [6, 9].

The SDW-MWF provides a trade-off between the noise reduction and the speech distortion [6]. The filter parameters minimise the cost function

(3)

with the trade-off parameter. The solution to (3) is given by

(4)

If the desired signal comes from a single source, the speech covariance matrix is theoretically of rank 1. Under this assumption, Serizel et al. [23] proposed a rank-1 approximation of based on a generalized eigenvalue decomposition (GEVD), delivering a filter that is more robust in low SNR scenarios and provides a stronger noise reduction.

2.3 Danse

In this section, we briefly describe the DANSE algorithm under the assumption that a single target source is present. We consider microphones spread over nodes, each node containing microphones. The signals of one node are stacked in . As can be seen in (2), the array wide MWF should be computed from all signals of the array, which can result in high bandwidth and computational costs. In DANSE, only a single compressed signal is sent from node to the other nodes. So a node has signals, stacked in , where is a column vector gathering the compressed signals coming from the other nodes . Replacing by and solving (3) yields the DANSE solution to the SDW-MWF:

(5)

where , the filter at node , can be decomposed into two filters as . The first filter is applied on the local signals and is applied on the compressed signals sent from the other nodes. The covariance matrices and are computed from the speech and noise components of . The compressed signal is computed as . Bertrand and Moonen proved that this solution converges to the MWF solution with , while dividing the bandwidth load by a factor at each node [9].

In this paper, we will focus on the batch-mode algorithm where the speech and noise statistics are computed based on the whole signal in order to focus on the interactions between the mask estimated by the DNN and the MWF filters.

3 Deep neural network based distributed multichannel Wiener filter

Heymann et al. predicted TF masks out of a single signal of the microphone array [16]. Perotin et al. [22] or Chakrabarty and Habets [21] included several other signals to improve the speech recognition or speech enhancement performance. We propose to extend these scenarios to the multi-node context of DANSE. In DANSE, at node , a single VAD is used to estimate the source and noise statistics required for both filters and . The first part of our contribution is to replace the VAD by a TF mask predicted by a DNN. Besides, since the compressed signals are sent from one node to the others, we also examine the option of exploiting this extra source of information by using it for the mask prediction. The schematic principle of DANSE is depicted in Figure 1. As it can be seen, an initialisation phase is required to compute the initial signal . We propose to do this with a first neural network. The second stage of DANSE is represented in the greyed box in Figure 1 and expended in Figure 2. Our second contribution is highlighted with the red arrow. It is to exploit the presence of at one node to better predict the masks with the DNN. Several iterations are necessary for the filter to converge to the solution (4). In DANSE, iterations are done at every time step. As we developed an offline batch-mode algorithm, we stopped the processing after the first iteration. To analyse the effectiveness of combining with a reference signal to predict the mask, we compare our solution with a single-channel prediction, where the masks required for both initialisation and iteration stages are predicted by a single-channel model seeing only the local signal .

We compare two different architectures for each of these schemes. The first architecture is a bidirectional LSTM introduced by Heymann et al. [16]. When additional inputs are used with a RNN, they are stacked over the frequency axis [22]. Although this might deliver improved performance compared to the single-channel version, stacking it over the frequency axis is not efficient as many connections are used to represent relations between TF bins that might not be related. That is why we propose a CRNN architecture which is more appropriate to process multichannel data. At each node, the compressed signals and the local reference signal are considered as separate convolutional channels.

During the training, in order to take into account the spectral shape of the speech, we weight the MSE loss between the predicted mask and the ground truth mask by the STFT frame of the input , corresponding to the predicted frame. Both models are thus trained to minimise the cost function

where represents the empirical mean.

Lastly, since the filter is also applied on , we use the GEVD of the covariance matrices to compute the MWF of equation (4). Contrary to equation (2), this does not explicitly take the first microphone as a reference. It also assigns higher importance to the compressed signals, which is desirable since they are pre-filtered with potentially higher signal to noise ratios than the local signals.

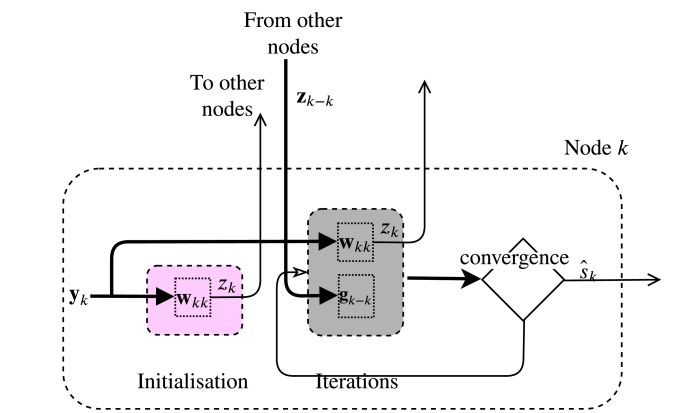

Figure 1: Block diagram of DANSE principle. Bold arrows represent vectors, simple ones represent scalars.

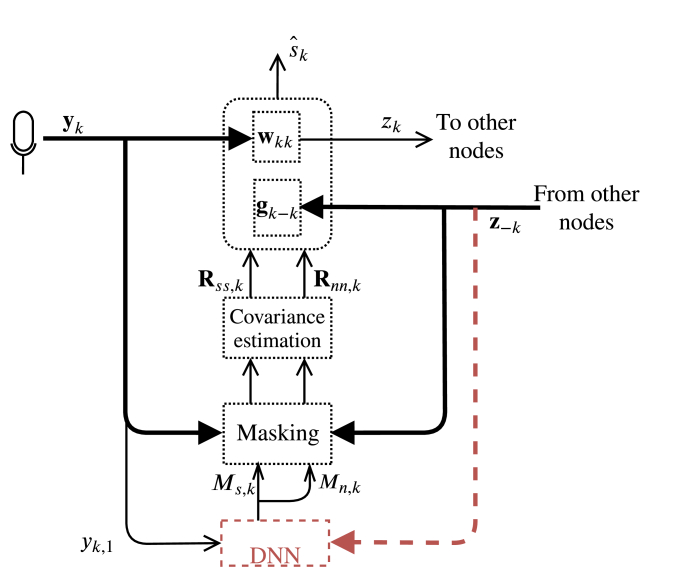

Figure 2: Expansion of the iterated step in Figure 1. Red parts are the modifications proposed to DANSE. Bold arrows represent multichannel signals.

4 Experimental setup

4.1 Dataset

Training as well as test data was generated by convolving clean speech and noise signals with simulated room impulse responses, and then by mixing the convolved signals at a specific SNR. The anechoic speech material was taken from the clean subset of LibriSpeech [24]. The RIRs were obtained with the Matlab toolbox Roomsimove111homepages.loria.fr/evincent/software/Roomsimove_1.4.zip simulating shoebox-like rooms.

In the training set, the length of the room was drawn uniformly as  m, the width as  m, the height as  m. Two nodes of four microphones each recorded the acoustic scene. The distance between the nodes was set to  m, the microphones being  cm away from the node centre. Each node was at least 1 m away from the closest wall. One source of noise and one of speech were placed at  m from the array centre. Both sources had an angular distance relative to the array centre. The microphones as well as the sources were at the constant height of  m. The SNR was drawn uniformly between  dB and

 dB. The noise was white noise modulated in the spectral domain by the long term spectrum of speech. We generated

files of 10 seconds each, corresponding to about 25 hours of training material.

The test configuration was the same as the training configuration but with restricted values for some parameters. The length of the room was randomly selected among  m, the width among  m, and the height was set to  m. The angular distance between the sources was randomly selected in . The noise was a random part of the third CHiME challenge dataset [25] in the cafeteria or pedestrian environment. We generated files representing about 2 hours of test material.

4.2 Setup

All the data was sampled at 16 kHz. The STFT was computed with an FFT-length of 512 samples (32 ms), 50% overlap and a Hanning window.

Our CRNN model was composed of three convolutional layers with 32, 64 and 64 filters respectively. They all had

kernels, with stride

and ReLU activation functions. Each convolutional layer was followed by a batch normalization over the frequency axis and a maximum pooling layer of size

(along the frequency axis). The recurrent part of the network was a layer with 256 gated recurrent units, and the last layer was a fully connected layer with a sigmoid activation function. The input data of both CRNN and RNN networks was made of sequences of 21 STFT

frames and the mask corresponding to the middle frame was predicted. We trained them with the RMSprop optimizer

[26].

5 Results

We evaluate the speech enhancement performance based on the source to artifacts ratio (SAR), source to interferences ratio (SIR) and source to distortion ratio (SDR) [27] computed with the mir_eval222https://github.com/craffel/mir_eval/ toolbox. The performance reported corresponds to the mean over the test samples of the objective measures computed at the node with the best input SNR

. We also report the 95% confidence interval.

The GEVD

filter does not explicitly take one sensor signal as the reference signal to minimise the cost function, but a projection of the input signals into the space spanned by the common eigenvectors of the covariance matrices. Because of that, the objective measures computed with respect to the convolved signals did not give results that were coherent with perceptual listening tests performed internally on random samples. Indeed, differences between the enhanced signal and the reference signal are interpreted as artefacts whereas they are due to the decomposition of the input signals into the eigenvalue space of the covariance matrices. Therefore, we compute the objective measures using the dry (source) signals as reference signals. This decreases the

SAR because the reverberation is then considered as an artefact but the comparison between methods correlates more with the perceptual listening tests.

We present the objective metrics for the different approaches in Table 1. In this table, single node filters are referred to as MWF (upper part of the table) and distributed filters as DANSE (lower part of the table). For each filter, the architecture used to obtain the masks is indicated between parenthesis. RNN refers to Heymann’s architecture and CRNN to the network introduced in Section 4.2. The subscript of the network architecture indicates the channels considered at the input. The results obtained with the single-channel DNN models are denoted with ”SC”. When the compressed signals were used as additional input to the DNN to predict the mask of the second filtering stage, models are denoted with ”MC”. Additionally, we report the number of trainable parameters of each model in Table 2.

5.1 Oracle performance

The VAD gives information about the speech-plus-noise and noise-only periods in a wide-band manner only, whereas a mask gives spectral information that enables a finer estimation of the speech and noise covariance matrices. This additional information is translated into an improvement of the speech enhancement performance with both types of filters (MWF and DANSE). In the following section, we analyse whether this conclusion still holds when the masks are predicted by a neural network.

5.2 Performance with predicted masks

(dB) SAR SIR SDR
MWF (oracle VAD) 2.40.3 24.70.3 2.30.3
MWF (oracle mask) 4.00.3 26.70.3 3.90.3
MWF (RNN) 3.40.3 25.10.4 3.30.3
MWF (CRNN) 3.30.3 25.10.4 3.20.3
DANSE (oracle VAD) 2.6 0.3 25.2 0.3 2.6 0.3
DANSE (oracle mask) 4.8 0.3 27.6 0.3 4.8 0.3
DANSE (RNN) 26.00.4
DANSE (CRNN)
DANSE (RNN)
DANSE (CRNN) 4.70.3 27.40.3 4.60.3
Table 1: Speech enhancement results in dB with oracle activity detectors and predicted ones.

First, replacing the oracle VAD by masks brings significant improvement in terms of all objective measures. This confirms the idea that TF masks are better activity detectors than VADs, even oracle ones. Second, the objective measures corresponding to the output signals of DANSE filters are always better than those of the MWF filters. This confirms the benefit of using the DANSE algorithm. Although these differences are not high, increasing the number of nodes and the distance between them might enhance the utility of the distributed method.

From the results in Table 1, there is no clear advantage of using a CRNN over using a RNN in the single channel case. Indeed, the objective measures of RNN and CRNN match in all points. In the multichannel case, the performance of the RNN-based approach does not increase. This tends to confirm that the RNN is not able to efficiently exploit multichannel information. Since the RNN delivered good results in the single-channel scenario, this leads to the conclusion that stacking multichannel input on the frequency axis is not appropriate. In addition, as shown in Table 2, the number of parameters of the RNN almost doubles when a second signal is used, whereas it barely increases for the CRNN. This is due to the convolutional layers of the CRNN which can process multichannel data much more efficiently than recurrent layers.

The CRNN solution can exploit the multichannel inputs efficiently and the performance increases for all metrics. The biggest improvement is obtained for the SIR. Indeed, one of the main difficulties for the models is to predict noise-only regions, because of people talking in the noise CHiME database. Since the compressed signals are pre-filtered, they contain less noise and they are less ambiguous. This makes it easier for the model to recognize noise-only regions, without degrading its predictions of speech-plus-noise regions.

Model Number of parameters
RNN
CRNN
RNN
CRNN
Table 2: Number of trainable parameters of the neural networks.

6 Conclusion and future work

We introduced an efficient way of estimating masks in a multi-node context. We developed multichannel models combining an estimation of the target signals sent by the other nodes with a local sensor. This proved to better predict TF masks, which led to higher speech enhancement performance that outperformed the results obtained with an oracle VAD. A CRNN was compared to a RNN and the CRNN could exploit much better the multichannel information. In addition, the RNN architecture is limited by its number of parameters, especially if the number of nodes had to increase. In such scenarios, the difference between single-channel and multichannel models performance might be even more important but this still has to be explored. To attain performance closer to the oracle ones, several options are possible. First, the rather simple architectures that were used could be replaced by state-of-the art architectures. Besides, given the increase in performance when the target estimation is given, it would also be interesting to additionally give the noise estimation at the input of the models.
