1 Introduction

Local search algorithms are typically efficient and scalable approaches to solve large instances of real world optimisation problems [5, 13]. Such algorithms use the following overall approach: starting from an initial solution, iteratively move from one solution to another, with the aim to eventually arrive at a good solution. The initial solution is often generated randomly or by using a specialised method. Then, in each iteration, a candidate solution is obtained by modifying the current solution using a perturbation method. If the candidate solution in a given iteration satisfies a given acceptance criterion, it is used as the starting point for the next iteration. Otherwise, the current solution in the given iteration becomes the starting point for the next iteration. The traditional Hill Climbing (HC) approach is a local search method that strictly uses a greedy strategy as its acceptance criterion [3]. HC accepts the candidate solution only if its fitness value is better (smaller in minimisation problems and larger in maximisation problems) than that of the current solution. This greedy strategy typically leads the search to quickly being trapped in a local optimum.

An important challenge in designing a local search algorithm is to find a good balance between interleaving diversification and intensification phases during search [13]. Diversification means exploring the solution space as widely as possible, with the intent of ideally finding a globally optimum solution. In contrast, intensification means improving the current solution in order to converge to the best local solution as quickly as possible. The perturbation method as well as the acceptance criterion need to take this balancing issue into account. As HC does not explore solutions that are worse than the current solution in each iteration, HC uses a very high level of intensification at the cost of very low level of diversification. Overall, the HC algorithm converges quickly to a local optimum, but the quality of its solutions is often not high [7, 8]. Diversification strategies are hence necessary to provide better solutions.

There are well-studied acceptance criteria that, with the aim to avoid or escape local optima, also accept worsening moves, rather than simply accepting only better candidate solutions. Simulated Annealing (SA) [14]

uses a stochastic acceptance criterion, where worsening moves are accepted with a probability based on the difference in the fitness values of the current solution and the candidate solution, with the probability exponentially diminishing over time. Threshold Acceptance (TA)

[11] is a deterministic acceptance criterion, which accepts worsening moves if the difference in the fitness values of the current and the candidate solution is below a given threshold. The Great Deluge Algorithm (GDA) [10, 16, 17] accepts worsening moves if the fitness value of the candidate solution is below a given level. Each of the above acceptance criteria has a parameter whose initial value and a variation schedule must be defined beforehand. Unfortunately, obtaining a suitable initial value and variation schedule is difficult to achieve, and is often problem domain dependent and/or problem instance dependent [6, 8, 16]. This can make practical use of SA, TA and GDA quite finicky.

In contrast to the above approaches, Late Acceptance Hill Climbing (LAHC) search [7, 8] is a relatively straightforward technique which deterministically accepts worsening moves and has no complicated parameters. An array with a predefined length stores the fitness values of previously visited solutions. Fitness values of candidate solutions are compared against the least recent element in the array. Since the fitness values from previous iterations can be worse than that of the current solution, a candidate solution that is worse than the current solution can be accepted. As the search progresses, the array is deterministically updated with fitness values of new solutions. The use of the fitness array thus brings about search diversity. The larger the length of the array, the better the diversity level. Overall, LAHC exhibits better diversification in terms of the explored solutions and provides solutions which typically have higher quality than HC [7, 8]. Moreover, LAHC has been successful in several optimisation competitions [2, 19], and has been used in real world applications [18].

Despite the promising aspects of LAHC, in this work we observe that there are situations where LAHC can unfortunately behave in a similar manner to HC, even when using a large fitness array. For example, when the same fitness value is stored many times in the array, particularly when a new local optimum is found. In this case, the fitness values in the array are iteratively replaced with the new local optimum fitness value, thereby reducing diversity.

To address the above shortcoming, we propose a new search approach termed Diversified Late Acceptance Search (DLAS). With the aim to improve the overall diversity of the search, the approach uses: (i) a new acceptance strategy which increases diversity of the accepted solutions, and (ii) a new replacement strategy to improve the diversity of the values in the fitness array by taking worsening, improving, and sideways movement scenarios into account.

Section 2 overviews the LAHC algorithm and discusses its problems. Section 3 presents the proposed DLAS algorithm. Section 4 provides comparative evaluations on benchmark Travelling Salesman Problems (TSPs) and Quadratic Assignment Problems (QAPs). The main findings are summarised in Section 5.

2 Late Acceptance Hill Climbing

Local search algorithms start from an initial solution . The current solution in each iteration is then modified by a given perturbation method to generate a new candidate solution . Next, using a given acceptance criterion , the candidate solution is either accepted or rejected, meaning either if , or if . Assume and denote the fitness values of solutions and , respectively. For convenience, we assume minimisation problems, where one solution is better than the other if fitness value of the former is less than that of the latter. In HC, iff , and so for all . Hence HC accepts only non-worsening moves, ie., sideways moves or improving moves.

The most recent version of LAHC [8] accepts candidate solution if its fitness value is better than or equal to the fitness value of the current solution , as in HC. Furthermore, for a given history length , candidate solution is accepted if its fitness value is better than the fitness value of the then current solution at iteration . In other words, or for . Since is usually (not always as in HC) greater than , the candidate solution can be accepted at iteration , even if . LAHC thus accepts worsening moves like TA and GDA and thereby aims to avoid or escape from local minima. Overall, LAHC exhibits better diversification level with a larger  [4, 8], as this allows comparison with further earlier solutions which are most likely further worse as well.

Figure 2 shows the pseudo code for LAHC. To achieve memory efficiency, a circular fitness array of size stores fitness values of previous solutions. Initially all values in are set to the initial , ie., (line 4). Note that , , and at each iteration in Figure 2 correspond to , , and , respectively. A candidate solution is accepted if or where (lines 9-10). The value in is replaced by whenever (lines 13-14).

 1 proc LAHC  2 Initialise curr solution , compute  3 Specify length for fitness array  4 forall ,  5      // best  6 while termination-criteria   // iter  7 , compute // perturb  8  9 if or 10            // accept 11 if 12      // new best 13 if 14                // replace in 15 16 return
Figure 1: Late Acceptance Hill Climbing (LAHC) algorithm, adapted from [8].
 1 proc DLAS  2 Initialise curr solution , compute  3 Specify length for fitness array  4 forall ,  5 ,  6        // best  7 while termination-criteria     // iter  8                         // previous  9 , compute  // perturb 10 11 if or 12              // accept 13 if 14       // new best 15 if 16                 // replace in 17 else if and 18 if 19            // decrement 20                 // replace in 21 if 22 compute ,  // recompute 23 24 return
Figure 2: Proposed Diversified Late Acceptance Search (DLAS).

2.1 Problems with LAHC

We have empirically observed that for some problems LAHC unfortunately behaves in a similar manner to HC and does not accept worsening moves. Figs. 4 and 4 show typical search progress trend while solving the benchmark U1817 TSP instance (see Sec. 4 for TSP details). A similar pattern is seen in other benchmark instances. For a small value of , LAHC is quickly trapped in a local optimum, leading to poor quality solutions. Even using restart techniques may not help to obtain higher quality solutions [4, 8]. For larger values of the search is less prone to trapping, but this comes at the cost of slow convergence speed; the solution quality can be poor if not enough time is allotted. This characteristic of LAHC makes it less useful for applications in time-constrained systems where a high-quality solution must be found quickly.

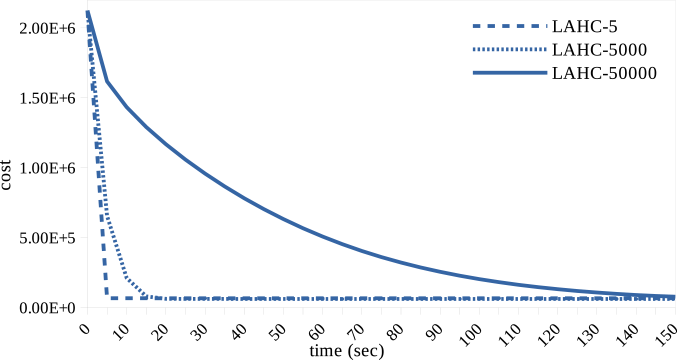

Figure 3: Search progress for the first 150 seconds while solving the benchmark U1817 TSP instance via LAHC with {5, 5000, 50000}. Further progress is shown in Fig. 4. (To aid clarity, results for DLAS are not shown as they effectively cover LAHC with = at the given scale.)

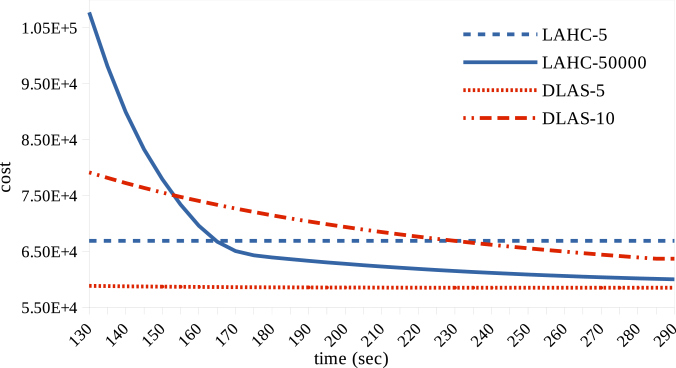

Figure 4: Search progress of LAHC and DLAS with various values in later iterations of solving the U1817 instance. LAHC with = converges quicker than LAHC with =, but obtains a worse solution. DLAS with = obtains a better solution than LAHC. Furthermore, DLAS with = converges much quicker than LAHC with =.

The poor performance of LAHC is due to the following reasoning. Consider the LAHC algorithm in Figure 2. Assume that in a given iteration, all the values in the fitness array are equal to the fitness value of a newly found best solution , where is a hard-to-improve or a local optimum solution. This happens when a new overall best solution with fitness value is found and remains to be equal to for at least consecutive iterations. In this case, no worsening moves with larger fitness values than will be accepted anymore, and if is a local optimum then the search is trapped in that solution. Clearly, this is the situation HC reaches when it is trapped in a local optimum. In Sec. 4 we show that even when using a large value for , LAHC behaves like HC in solving many problems in a large proportion of the iterations.

3 Proposed Diversified Late Acceptance Search

We propose a new search approach that aims to obtain high diversity level and high convergence speed, all while not suffering from the abovementioned drawbacks of LAHC. We have termed the proposed method as Diversified Late Acceptance Search (DLAS). We overview the approach as follows. We aim to keep or obtain larger fitness values in the fitness array when the search encounters non-improving moves (diversification). Furthermore, we cautiously replace large fitness values with small values when the search accepts improving moves (intensification). Lastly, our acceptance criterion is more relaxed than LAHC (diversification).

3.1 Acceptance Strategy

Comparing the fitness values of the candidate solutions with a larger value than (with ) arguably increases diversity of accepted solutions. Our acceptance strategy is to compare the fitness value of the candidate solution in each iteration with the maximum fitness value in the fitness array , instead of comparing it just with . The new candidate solution would be accepted if or , ie., the maximum value in the fitness array . The first condition allows accepting new candidate solutions with fitness values equal to when all the values in are the same, especially in the initial and final iterations of the search. Accepting candidate solutions with smaller fitness values than in other iterations increases the level of acceptable worsening moves and thereby increases the diversity level of the search. Section 3.3 shows how to efficiently find and maintain the maximum value in .

3.2 Replacement Strategy

Our proposed replacement strategy has two parts. In the first part, if the fitness value of the new current solution is larger than , the value in is always replaced by . Such a replacement is avoided in the most recent version of LAHC to increase intensification of the search. However, this replacement increases the probability of accepting more worsening moves in future iterations and thereby can result in better final solutions. In the second part, if is smaller than , the replacement must be done just when is smaller than the previous value of as well. Such a replacement strategy avoids replacing other large values in the fitness array in a series of consecutive steps if the search falls in a plateau or local optimum.

We note that the combination of the above two replacement approaches is new and is different from replacing just in acceptance or just in improving moves. An illustration of the proposed method, especially the replacement strategy, is given in Section 3.4.

3.3 Diversified Late Acceptance Search

Figure 2 shows the pseudo code for the proposed method using the above acceptance and replacement strategies. Variables and in Figure 2 are respectively always equal to the maximum value in the fitness array and the number of occurrences of that value in the array. In line 5, and are initialised by and . In every iteration in line 8, holds the previous value of . In line 11, new candidate solution is accepted if = or . In line 15, if , replacement is made. Otherwise, in line 17, if and , replacement is made. However, before making the replacement this time, if is equal to , is decremented by one. In line 21, if is zero, the values of and are recomputed by checking all the values in the fitness array.

Figure 5: All possible combinations of values of , and compared to each other and corresponding replacement rules in the proposed DLAS approach. See the text for details.

3.4 DLAS Replacement Scenarios

Figure 5 shows eight possible combinations of values of , and compared to each other and corresponding replacement rules.

Worsening Moves. In cases (1)–(3) in Figure 5, worsening moves take place. In case (1), the fitness value of the new current solution is still smaller than . In this case, contrary to LAHC, replacement is not allowed in the proposed DLAS method. This avoidance of replacement actually preserves the large values in the fitness array when DLAS does not improve the current solutions in some consecutive iterations, and at the same time the fitness values of the new worse solutions are not larger than the corresponding values in the fitness array . In cases (2) and (3), the fitness value of the new current solution is greater than . In both these cases, contrary to LAHC, replacement is allowed in DLAS to increase diversity of values in the fitness array .

Improving Moves. In cases (5)–(7), improving moves take place. In cases (5) and (6), the fitness value of the new current solution is smaller than . In both these cases, as in LAHC, replacement is allowed to optimistically increase the intensification of the search. In case (7), the fitness value of the new current solution is still greater than . Contrary to LAHC, replacement is allowed in DLAS to increase diversity of values in the fitness array.

Sideways Moves or Rejected Moves. In cases (4) and (8), there are two possible outcomes: a candidate solution is not accepted, or a sideways move occurs. In case (4), the fitness values of the previous and the new current solutions, ie., and , are greater than . In this case, contrary to LAHC, replacement is allowed in DLAS to increase diversity of the accepted solutions in future iterations. In case (8), the fitness values of the previous and the new current solutions are smaller than . In this case, contrary to LAHC, replacement is not allowed in DLAS. This avoidance of replacement actually avoids replacing all the values in the fitness array in consecutive iterations when DLAS falls in a plateau or local optimum.

4 Comparative Evaluation

In this section we evaluate the performance of the proposed DLAS method, the most recent version of LAHC (as described in Sec. 2), and the recently proposed Step Counting Hill Climbing (SCHC) [9]. All experiments were ran on the same computing cluster with a 500 Mb memory limit. Each node of the cluster is equipped with Intel Xeon CPU E5-2670 processors running at 2.6 GHz.

In SCHC a fitness bound and a counter limit are used instead of a fitness array. The fitness bound is initialised by the fitness of the initial solution and the counter limit is similar to the length of the fitness array. In each iteration, a candidate solution is accepted if its fitness is equal to or better than that of the current solution or better than the fitness bound. Whenever the number of iterations becomes a factor of the counter limit, the fitness bound is made equal to the fitness of the current solution.

The proposed DLAS algorithm, as well as LAHC and SCHC, are general purpose local search algorithms for solving any optimisation problem. Hence, we use sets of Travelling Salesman Problems (TSPs) and Quadratic Assignment Problems (QAPs) just to compare the relative performance of the three algorithms, and not to improve the best known solutions for the individual problems.

4.1 Time Cutoff and Fitness Array Length

To provide a fair comparison, we use time cutoff as the stopping condition. However, as each instance has its own size and complexity level, we decided to solve all of them first with LAHC using a reasonably large fitness array size . We initially performed 50 runs of the LAHC algorithm (with =) on each instance, with the stopping condition as getting trapped in a local optimum for at least 10% of the total running time. Then we took the longest running time across the 50 runs as the cutoff time for each instance. We then ran all three algorithms with just the cutoff time as the stopping condition 50 times for each unique value for .

The reported results in the following subsections are the averages of 50 runs on each instance using the best performing value for . For example, Figure 4 compares LAHC and DLAS algorithms in the later steps of solving U1817 TSP instance using various values for . The figure shows that given 290 seconds as the cutoff time for this instance, = and = are the best values for LAHC and DLAS algorithms, respectively.

4.2 Experiments on TSP instances

Every TSP instance includes a set of cities or points on a map. The cities are all connected with each other by symmetric roads of given distances or lengths. The goal of solving such a TSP instance is to find the shortest closed tour that includes all the cities such that every city is visited exactly once. We took all the symmetric Euclidean distance TSP instances with 1,000 to 10,000 cities from the well-known TSPLIB benchmark dataset at http://comopt.ifi.uni-heidelberg.de/software/TSPLIB95/

. We used the same source code and the same perturbation heuristic provided by the authors of

[8] for solving the TSP instances. The perturbation heuristic randomly divides a given tour into two parts and then reverses one part [15].

Dev. from the best Time to find the % of iterations
Instance Best known Time known solution last best sol. behaving like HC
name sol. cost cutoff LAHC SCHC DLAS LAHC SCHC DLAS LAHC SCHC DLAS
Dsj1000 18659688 100 924536 705626 339555 80 66 52 21 36 0
Pr1002 259045 120 6265 6552 4795 78 63 51 37 47 0
U1060 224094 150 4560 5647 4193 84 68 55 45 54 0
Vm1084 239297 155 5884 6593 5927 79 65 51 51 60 0
Pcb1173 56892 160 1910 2118 1306 81 77 49 52 52 0
D1291 50801 165 2612 1856 1404 111 88 93 35 49 0
Nrw1379 56638 177 2024 2159 1180 117 93 90 37 51 0
Fl1400 20127 180 290 324 901 116 92 33 43 57 0
U1432 152970 200 3513 4139 2022 125 114 176 45 55 0
Fl1577 22249 250 466 524 634 153 139 108 50 57 0
D1655 62128 270 2424 2464 1550 153 120 160 43 59 0
Vm1748 336556 280 10328 11009 8967 163 125 173 45 59 0
U1817 57201 290 2320 2461 1450 189 146 244 41 59 0
D2103 80450 309 5846 6137 2660 194 161 279 39 47 0
U2152 64253 320 2598 2956 1350 211 198 292 46 51 0
U2319 234256 350 3625 3837 2557 258 228 347 45 56 0
Pr2392 378032 370 19557 16025 9003 238 167 274 40 58 0
Pcb3038 137694 521 6530 7118 3116 324 267 384 42 51 0
Fl3795 28772 1110 1542 1547 1202 802 769 666 65 72 0
Fnl4461 182566 1150 9607 10558 3978 454 419 940 62 69 0
Rl5915 565530 1200 36974 39929 19232 718 613 1198 48 59 0
Rl5934 556045 1320 35718 38535 34863 812 664 814 46 60 0
Pla7397 23260728 2545 962561 990251 916947 1926 1818 2542 59 70 0
Table 1: Results on TSP instances for LAHC and SCHC with =50000, and DLAS with =5. In the first column, the size of each instance is the number in the name of the instance, which indicates the number of cities. The 2nd column is the best known solution cost reported in the literature. The 3rd column is the time cutoff value used by all methods. The 4th column shows the deviations of the best solution cost from the best known solution cost. The 5th column shows the time spent by each algorithm to find the best solution. The 6th column shows percentage of iterations in which each algorithm undesirably behaves like HC. Shading denotes winning numbers where the differences are statistically significant.

Table 1 shows the results on TSP instances using LAHC and SCHC with = and DLAS with =. The size of each instance is the number in the name of the instance, which indicates the number of cities. In 20 out of 23 instances, the proposed DLAS method with = has found better solutions than both LAHC and SCHC with =

. In 17 of those instances the differences are statistically significant based on t-test with the confidence level of 0.95. The results also show that in small instances (with small number of cities), DLAS finds better solutions in less time, while in large instances it does not get trapped in a local optimum quickly and continues to search for a better solution. For example, for the largest instance in the last line of the table with the time cutoff of 2545 seconds, LAHC and SCHC are quickly trapped in a local optimum and cannot improve their last found solutions. In contrast, the proposed DLAS method continues to improve its solutions until almost the end of the cutoff time.

The results also show that even when using a very large value for in LAHC and SCHC, in about half of the iterations (especially for large instances), LAHC and SCHC undesirably behave like HC. This includes iterations in which the maximum value in the fitness array in LAHC and the fitness bound in SCHC are equal to the last found best solution. In contrast, the percentage of iterations in which DLAS behaves like HC is zero. In other words, even when using very small fitness arrays, there is always room for worsening moves to be accepted by DLAS. This indicates that the combination of the new acceptance and replacement strategies in DLAS is more effective in increasing the diversity level of the search than just increasing the length of the fitness array.

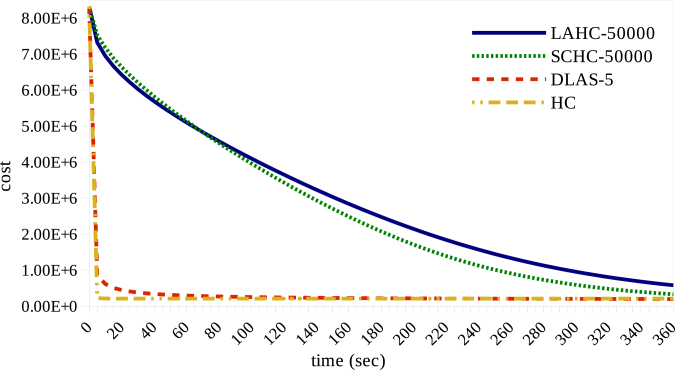

Figure 6: Search progress for the first 360 seconds while solving the benchmark Fnl4461 TSP instance via HC, LAHC and SCHC with =, and DLAS with =.

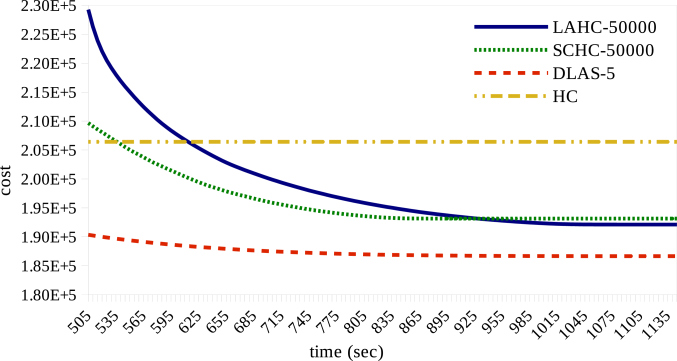

Figure 7: As per Fig. 7, but in later iterations. The proposed DLAS approach obtains a better solution than HC, LAHC and SCHC. Furthermore, DLAS converges quicker than LAHC.

Figs. 7 and 7 show that DLAS with = has a high convergence speed (due to the small fitness array size) and converges almost as fast as HC. It also shows that DLAS with = ends up with a better solution than LAHC and SCHC with =, and HC for the Fnl4461 instance.

4.3 Experiments on QAP instances

Every QAP instance includes two same-size sets of locations and facilities. The locations are all connected with each other by symmetric links of given distances or lengths. There is a flow between every pair of facilities with a given weight. The goal of solving such a QAP instance is assigning each facility to a location such that the sum of weights of flows between every two facilities multiplied by the distances between their assigned locations is minimised.

We took all QAP instances with at least 80 locations and facilities from the well-known QAPLIB benchmark dataset at http://anjos.mgi.polymtl.ca/qaplib/. We used the same source code and the same perturbation heuristic provided in http://mistic.heig-vd.ch/taillard/ for solving the QAP instances. The perturbation heuristic randomly selects two locations and swaps their assigned facilities.

Dev. from the best Time to find the % of iterations
Instance Best known Time known solution last best sol. behaving like HC
name sol. cost cutoff LAHC SCHC DLAS LAHC SCHC DLAS LAHC SCHC DLAS
Lipa80a 253195 20 1607 1564 1411 14 11 8 1.3 0.3 0.0
Tai80a 13499184 21 330957 354263 264177 15 12 15 0.5 0.0 0.0
Lipa80b 7763962 26 39769 190699 0 22 17 8 8.0 28.5 0.0
Tai80b 818415043 27 4227835 3574665 979737 20 17 6 8.1 16.8 0.0
Sko81 90998 24 222 178 113 19 16 5 4.7 14.8 0.0
Lipa90a 360630 23 2045 2024 1893 19 15 13 0.0 1.0 0.0
Lipa90b 12490441 36 51015 20709 0 29 22 11 15.0 33.2 0.0
Dre90 1838 35 1575 1615 1450 16 12 8 0.0 6.3 0.0
Sko90 115534 28 321 310 219 26 21 8 1.2 10.0 0.0
Sko100a 152002 40 190 239 218 32 25 11 4.6 16.8 0.0
Tai100a 21052466 35 460894 486157 378092 23 18 29 0.0 0.9 0.0
Sko100b 153890 52 175 173 160 30 24 10 9.3 16.0 0.0
Tai100b 1185996137 55 2711882 2823207 5124004 34 29 13 12.6 38.3 0.0
Sko100c 147862 42 147 132 121 32 26 11 6.6 15.6 0.0
Sko100d 149576 42 241 246 245 30 24 10 10.7 23.8 0.0
Sko100e 149150 42 150 165 156 31 25 10 5.8 19.7 0.0
Sko100f 149036 42 237 232 204 33 26 11 7.7 16.9 0.0
Wil100 273038 35 149 171 241 32 26 10 2.5 12.8 0.0
Dre110 2264 37 2031 2057 1782 25 19 18 1.7 4.9 0.0
Esc128 64 21 0 0 0 6 5 0.3 70.0 77.0 0.0
Dre132 2744 65 2522 2543 2140 39 30 39 4.7 10.8 0.0
Tai150b 498896643 105 1511339 1669639 2641722 73 61 56 9.2 22.8 0.0
Tho150 8133398 130 9615 9282 6894 80 65 79 14.1 23.8 0.0
Tai256c 44759294 60 128527 132333 134885 35 27 54 16.9 30.9 0.0
Table 2: Results on QAP instances for LAHC and SCHC with =, and DLAS with =. The size of each instance is the number in the name of the instance, which indicates the number of locations or facilities. Explanations for the other columns are as per Table 1.

Table 2 shows the results on QAP instances using LAHC and SCHC with = and DLAS with =, respectively. In 15 out of 24 instances, the proposed DLAS method with = found better solutions than both LAHC and SCHC with =. In 10 of those instances the differences are statistically significant based on t-test with the confidence level of 0.95. Notably, the results also show that in most of the instances, especially small ones, DLAS finds better solutions in considerably less time. The last column shows that even using a very large value for , in about 10% of the iterations LAHC behaves like HC. For SCHC, it is about 20%. In contrast, the percentage of iterations in which DLAS behaves like HC is zero.

5 Main Findings

The well-known Late Acceptance Hill Climbing (LAHC) search algorithm strives to escape or avoid local optima by deterministically accepting worsening moves. LAHC stores fitness values of a predefined number of previous solutions in a fitness array and compares fitness values of candidate solutions against the least recent element in the array, rather than simply against the fitness value of the current solution. The fitness values stored in the array are deterministically replaced as the search progresses. Unfortunately, the behaviour of LAHC can become similar to that of traditional Hill Climbing search (ie., getting trapped in a local minimum) when the same fitness value is stored many times in the fitness array, particularly when a new local optimum is found.

To address the above issue, we have proposed: (i) a new acceptance strategy which increases diversity of the accepted solutions, and (ii) a new replacement strategy to improve the diversity of the values in the fitness array by taking worsening, improving, and sideways movement scenarios into account. These strategies improve the overall diversity of the search.

The proposed Diverse Late Acceptance Search (DLAS) method is shown to outperform the current state-of-the-art LAHC method on benchmark Travelling Salesman Problems and Quadratic Assignment Problems. The combination of the new acceptance and replacement strategies in DLAS is more effective in increasing the diversity of the search than just increasing the length of the fitness array, and can lead to better quality solutions that are obtained with a lower number of iterations (ie., less time).

Future avenues of exploration include comparative evaluation of DLAS against other LAHC variants [1], as well as evaluation on other optimisation problems such as high-school timetabling [6, 12].

References

  • [1] Abuhamdah, A.: Experimental result of late acceptance randomized descent algorithm for solving course timetabling problems. International Journal of Computer Science and Network Security 10(1), 192–200 (2010)
  • [2] Afsar, H.M., Artigues, C., Bourreau, E., Kedad-Sidhoum, S.: Machine reassignment problem: the ROADEF/EURO challenge 2012. Annals of Operations Research 242(1), 1–17 (2016)
  • [3] Appleby, J., Blake, D., Newman, E.: Techniques for producing school timetables on a computer and their application to other scheduling problems. The Computer Journal 3(4), 237–245 (1961)
  • [4]

    Bazargani, M., Lobo, F.G.: Parameter-less late acceptance hill-climbing. In: Genetic and Evolutionary Computation Conference. pp. 219–226 (2017)

  • [5] Bhardwaj, S., Curtin, R.R., Edel, M., Mentekidis, Y., Sanderson, C.: ensmallen: a flexible C++ library for efficient function optimization. In: Workshop on Systems for ML and Open Source Software at NIPS / NeurIPS (2018), https://doi.org/10.5281/zenodo.2008650
  • [6] Burke, E., Bykov, Y., Newall, J., Petrovic, S.: A time-predefined local search approach to exam timetabling problems. IIE Transactions 36(6), 509--528 (2004)
  • [7] Burke, E.K., Bykov, Y.: A late acceptance strategy in hill-climbing for examination timetabling problems. In: Conference on the Practice and Theory of Automated Timetabling (2008)
  • [8] Burke, E.K., Bykov, Y.: The late acceptance hill-climbing heuristic. European Journal of Operational Research 258(1), 70--78 (2017)
  • [9] Bykov, Y., Petrovic, S.: A step counting hill climbing algorithm applied to university examination timetabling. Journal of Scheduling 19(4), 479--492 (2016)
  • [10] Dueck, G.: New optimization heuristics: The great deluge algorithm and the record-to-record travel. Journal of Computational Physics 104(1), 86--92 (1993)
  • [11] Dueck, G., Scheuer, T.: Threshold accepting: a general purpose optimization algorithm appearing superior to simulated annealing. Journal of Computational Physics 90(1), 161--175 (1990)
  • [12] Fonseca, G.H., Santos, H.G., Carrano, E.G.: Late acceptance hill-climbing for high school timetabling. Journal of Scheduling 19(4), 453--465 (2016)
  • [13] Hoos, H.H., Stützle, T.: Stochastic local search: Foundations and applications. Elsevier (2004)
  • [14] Kirkpatrick, S., Gelatt, C.D., Vecchi, M.P.: Optimization by simulated annealing. Science 220(4598), 671--680 (1983)
  • [15] Lin, S., Kernighan, B.W.: An effective heuristic algorithm for the traveling-salesman problem. Operations Research 21(2), 498--516 (1973)
  • [16] McMullan, P.: An extended implementation of the great deluge algorithm for course timetabling. Computational Science -- ICCS 2007. Lecture Notes in Computer Science, Vol. 4487. pp. 538--545 (2007)
  • [17] Obit, J., Landa-Silva, D., Ouelhadj, D., Sevaux, M.: Non-linear great deluge with learning mechanism for solving the course timetabling problem. In: Metaheuristics International Conference (2009)
  • [18] Smet, G.D., et al.: OptaPlanner User Guide. Red Hat and the community, http://www.optaplanner.org
  • [19] Wauters, T., Toffolo, T., Christiaens, J., Van Malderen, S.: The winning approach for the Verolog Solver Challenge 2014: the swap-body vehicle routing problem. In: Belgian Conference on Operations Research (ORBEL) (2015)
