Distributed Transmission Control for Wireless Networks using Multi-Agent Reinforcement Learning

We examine the problem of transmission control, i.e., when to transmit, in distributed wireless communications networks through the lens of multi-agent reinforcement learning. Most other works using reinforcement learning to control or schedule transmissions use some centralized control mechanism, whereas our approach is fully distributed. Each transmitter node is an independent reinforcement learning agent and does not have direct knowledge of the actions taken by other agents. We consider the case where only a subset of agents can successfully transmit at a time, so each agent must learn to act cooperatively with other agents. An agent may decide to transmit a certain number of steps into the future, but this decision is not communicated to the other agents, so it the task of the individual agents to attempt to transmit at appropriate times. We achieve this collaborative behavior through studying the effects of different actions spaces. We are agnostic to the physical layer, which makes our approach applicable to many types of networks. We submit that approaches similar to ours may be useful in other domains that use multi-agent reinforcement learning with independent agents.

READ FULL TEXT VIEW PDF

Authors

page 16

05/22/2018

Scalable Centralized Deep Multi-Agent Reinforcement Learning via Policy Gradients

In this paper, we explore using deep reinforcement learning for problems...
02/14/2020

Resource Management in Wireless Networks via Multi-Agent Deep Reinforcement Learning

We propose a mechanism for distributed radio resource management using m...
09/14/2020

Deep Actor-Critic Learning for Distributed Power Control in Wireless Mobile Networks

Deep reinforcement learning offers a model-free alternative to supervise...
02/02/2021

Towards Multi-agent Reinforcement Learning for Wireless Network Protocol Synthesis

This paper proposes a multi-agent reinforcement learning based medium ac...
05/21/2021

Programming and Deployment of Autonomous Swarms using Multi-Agent Reinforcement Learning

Autonomous systems (AS) carry out complex missions by continuously obser...
06/20/2019

When Multiple Agents Learn to Schedule: A Distributed Radio Resource Management Framework

Interference among concurrent transmissions in a wireless network is a k...
09/26/1998

Learning Nested Agent Models in an Information Economy

We present our approach to the problem of how an agent, within an econom...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Modern communication environments can be large, complex, and dynamic, and thus can pose a problem for traditional algorithms that are often designed for a particular goal or environment, and may have difficulty scaling and adapting to new circumstances. Additionally, many traditional approaches rely on a centralized controller, and without such a controller may fail to find optimal performance if a distributed approach is employed. Machine learning and reinforcement learning approaches have been proposed as a promising alternative as they may learn to find solutions even in for extremely challenging complex and dynamic environments [4]. Herein, we present a Multi-Agent Reinforcement Learning (MARL) approach applied to the problem of distributed transmissions control.

Our distributed approach uses individual agents to control the transmission of devices (if and when to transmit), providing a solution to transmission control and medium access control tasks where a centralized control mechanism is infeasible or disadvantageous. Distributed approaches have the advantage of limiting communication overhead and may be more extensible in terms of the number of devices and spacial range, as a centralized bottleneck is avoided and devices do not need to be near a centralized controller. Additionally, in some systems, especially large or sensitive systems, a centralized approach may not be feasible in terms of security and robustness. For example, an attack on a centralized mechanism may cause the entire network to fail. Communication settings where this distributed approach may be advantageous include tactical ad hoc networks, sensor networks, device-to-device communications, and various other internet of things systems.

Moving away from centralized approaches poses some technical challenges. In general, network-level planning is easier with a centralized mechanism. From a reinforcement learning (RL) perspective, if centralized mechanism controls each node’s actions and has complete access to all the nodes’ observations and rewards, then the problem reduces to a classical Markov Decision Process (MDP) and single-agent solutions can be used

[11].

We consider the setting with transmitters represented as individual reinforcement learning agents. The environment is such that only a limited number of the agents are able to successfully transmit concurrently due to the friendly interference caused by transmitting. It is then the task of the agents to learn when to transmit. We devise a general form for the action space and analyze the effects of different actions spaces sizes on the performance in terms of network throughput and fairness. By tailoring the action space to the environment we see that the agents are able to learn cooperative transmission patterns that lead to efficient and fair performance. Based on our analysis, we choose action spaces that perform well and compare them against CSMA-style benchmarks. We find that our RL agents often outperform the benchmarks in terms of throughput and fairness.

We test our approach in a custom simulation environment based on OpenAI Gym [1]

. Our environment is open source and is freely available for download on GitHub with a link provided in Appendix

A.

2 Related Work

A similar objective to ours is explored in Ref. Jiang and Lu [5] from the perspective of domain-agnostic cooperative RL. The work proposes a method for optimizing the trade-off between fairness and efficiency in MARL, which is analogous to our desire to optimize optimize fairness and throughput. However, the agents are allowed to share information with other local agents. In the context of communications systems, however, this information sharing may induce unwanted overhead, and in our approach we do not rely on information sharing.

An adjacent area or research involves learning to communicate for RL agents — that is, learning how to share information so that agents can cooperatively achieve some goal. [2, 7]. While this goal may not be related to communications systems per se, there is an inherent scheduling component for the information sharing which is similar to our task. In particular, Kim et al. [7] considers an environment with bandwidth and medium access constraints. While these works use distributed execution, they rely on a centralized training mechanism. In contrast, in our work we focus on optimizing communications systems using fully distributed MARL.

Ref. Yu et al. [10] investigates how a deep reinforcement learning agent can learn a Medium Access Control (MAC) strategy to coexist with other networks that use traditional (not machine learning–based) MAC algorithms. In some ways, it may be easier to learn to coexist with a traditional MAC algorithms, as the algorithms may have a certain structures, regularities, or periodicities that can be learned by the agent. In this paper we focus purely on multi-agent scheduling, where all agents have the same action spaces and it is difficult to predict a priori what patterns may emerge.

Despite not using a machine learning approach, perhaps the closest to this paper is the recent work of Ref. Raeis and Golestani [8] which proposes an algorithm for distributed, fair MAC scheduling and additionally provides theoretical guarantees for service disparity.

3 Problem Formulation and Approach

We consider scenarios with agents acting as transmitting devices (nodes in a wireless network). The transmission medium is limited such that only a threshold number, , of agents can successfully transmit at the same time. The threshold is uniform for all agents: if more than agents transmit on the same step, then all of the transmissions are unsuccessful at the respective receivers. Given this threshold behavior, we are agnostic to the PHY-layer. With we can model an abstracted CDMA PHY-layer where can be interpreted as the spreading factor. For we can model many other systems that use an OFDM-based PHY-layer.

The agents may only transmit once on a given step. We leave the definition of a transmission abstracted so that a transmission could represent either the transmission of a single packet, multiple packers, or some number of bits.

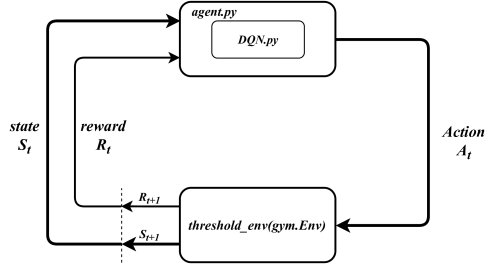

Figure 1: Depiction of the flow of information between our software during the reinforcement learning process. The threshold_env inherits from gym.Env, the base class for OpenAI Gym, and serves as the environment in which the agents act. In agent.py the agents are defined using a DQN model. State, reward, and action information (, , and ) are passed between the environment and the agents. Since this is a multi-agent setting, , , and are lists containing the respective information for each agent. E.g., is a list of the states for each agent at time . Figure adapted from Ref. Sutton and Barto [9].

3.1 Simulation Software

We provide a software platform to model the interaction of agents in a threshold-limited communication setting. A link to view or download the code can be found in Appendix A. There are two primary components to the software, the first is agent.py where the agents’ RL models are defined and used to select actions, and the second is the simulation environment, called threshold_env, which is built on top of OpenAI Gym and inherits from the gym.Env base class. The primary functionality is implemented in the step method, which advances the simulation. The step method takes a list of actions (one action per agent) as input. The actions are performed in the environment and the agents move into a new state and receive some reward. The information regarding the new states and the reward is then returned by the step method to be used by the agents’ RL models in the agent.py file. The information flow between our software is depicted in Figure 1.

While we use our custom environment in this paper as it is suits our desired level of abstraction, our approach can easily be tested using other dedicated wireless communication simulators if one wanted to more finely model the particularities a specific communication system. Internally, we have tested our approach with ns3-gym [3] and found the results to be consistent with our custom environment.

3.2 RL Background

A general reinforcement learning problem is formulated as a Markov Decision Process (MDP), which may be represented by the tuple where is the set of states an agent may encounter, is the set of actions an agent can take,

is the state transition function which follows the Markov Property and gives the probability that the agent’s next state is

given that the agent is in state and takes action , and is the reward function which outputs a real number. It is then the task of an agent to maximize it’s long-term reward over many steps.

Our environment can be classified as a multi-agent, Partially Observable Markov Decision Process (POMDP). Each agent is taking actions regarding if and when to transmit. The actions taken by an agent are not directly communicated to the other agents in the environment. However, the other agents can indirectly observe the effects of the these actions by measuring the overall level of interference. In the following sections, we define the state space, action space, reward function, and the RL model.

3.3 State Space

An agent’s observation of their state consists of four features (t, s, i, b) which are described below.

  • Whether the agent transmitted,

  • Whether the transmission was successful,

  • Interference-sensed (normalized),

  • buffer size (normalized),

If an agent did not transmit then is automatically set to . The interference-sensed feature is normalized by dividing the number of transmissions from other agents by the number of other agents. We constrain the interference-sensed feature, , such that an agent cannot transmit and sense on the same step, as in a realistic system its transmission would dominate any local sensing mechanism. If an agent transmits, then is set to . Buffer size can be thought of as representing how many packets are waiting to be transmitted by an agent. The buffer size feature, , is normalized by setting a maximum buffer size.

3.4 Action Space

We provide a structure for the action space. In this work, we test actions spaces of different sizes, but they all follow the same form. Effectively, the agent has the choices: do not transmit on the next step, transmit on the next step, or wait for certain number of steps and then transmit. The encoding for a selected action is shown below.

  • Do not transmit

  • Transmit on the next step

  • Transmit after one step

  • Transmit after two steps

  • Transmit after three steps

A transmission lasts for one simulation-step. If an agent’s buffer is zero, then the RL model is not used and the agent takes no action as there are no packets to be transmitted, and thus no decision to be made. Since we consider multi-agent settings, the agents will be making decisions asynchronously as some actions last over multiple steps. In section 4.1 we analyze the performance of different action space sizes. An action space of size , (), is defined as .

3.5 Reward Function

The reward for function for single-step actions is shown below.

(1)

For multi-step actions, the single-step rewards are averaged over the number of steps the action acts over.

3.6 RL Model

We use the vanilla Deep Q-Network (DQN) algorithm as the RL model for each agent. At a high level, the algorithm consists of a neural network that takes an agent’s state observation as input and outputs an estimate of the Q-value for each possible action. The Q-value represents the long-term sum of rewards an agent will receive if they take a particular action in a particular state and then from that point on continue to act optimally with respect to the Q-value estimates.

Unless the agent selects an action randomly according to it’s exploration mechanism, the agent will select the action that corresponds to the maximum Q-value. After taking the step in the environment where the agent performs the action, the transition is saved to the agent’s experience replay memory (assuming a single-step action). The experience replay memory is sampled during training. If an agent selects an action that extends over multiple steps, the state at the time of the decision, is saved, and the per-step reward is averaged over the duration of the action. For example, if an action taken at time extends over steps, then let , and the transition that is saved is .

If an agent’s buffer size is zero, then the RL model is not used since there are no packets to send and no decision to make; i.e., the agent takes no action and no transition is saved to the agent’s memory.

The DQN hyperparameters are described in Appendix

B and the code is provided in the repository linked to in Appendix A.

4 Experiments and Results

In this section we describe a number of experiments and analyze the agents’ performance. We start in Sec. 4.1 by investigating the effect of the action space on throughput and fairness for different number of agents and different threshold values for the maximum number of concurrent successful transmissions, . Based on these results, we provide an action space recommendation that we use for the remaining experiments where we compare agent performance versus CSMA-inspired benchmarks in Sec. 4.2. Lastly, in Sec. 4.3, we examine the how the advantage the RL agents provide relates to an agent’s ability to manage its buffer size for different buffer rates (source rates). All experiments are run 3 times for 10,000 steps and the results shown are averages over the 3 runs.

Throughput is calculated as the number of successful transmissions per step. Since an agent may only transmit one packet per step, the maximum possible network throughput is . For greater clarity, the throughput data are smoothed over steps. The plotted value at time step is the average over the values preceding time step . The fairness at time is calculated using Jain’s fairness index as

(2)

where is the number of agents and is the smoothed throughput for agent at time . A value of 1 represents maximum fairness.

4.1 Action Space Analysis

We test a range of action space sizes for , , and agents. We also vary the threshold, , for additional tests with and agents. The buffer rate is such that the buffer is incremented on every step and is uniform for all agents, so the agents always have packets to transmit.

Throughput, Fairness,
No. of Actions 4 Agents 10 Agents 4 Agents 10 Agents
2 Actions Mean = 1.23383 STDEV = 0.05380 Mean = 1.13013 STDEV = 0.09343 Mean = 0.79449 STDEV = 0.01814 Mean = 0.38081 STDEV = 0.04988
3 Actions Mean = 1.84297 STDEV = 0.00767 Mean = 1.05710 STDEV = 0.05481 Mean = 0.99914 STDEV = 0.00010 Mean = 0.53656 STDEV = 0.01878
4 Actions Mean = 1.29135 STDEV = 0.02454 Mean = 1.00863 STDEV = 0.06923 Mean = 0.99897 STDEV = 0.00073 Mean = 0.71488 STDEV = 0.02333
5 Actions Mean = 1.14423 STDEV = 0.26474 Mean = 1.04642 STDEV = 0.06590 Mean = 0.99289 STDEV = 0.00988 Mean = 0.70399 STDEV = 0.16237
6 Actions Mean = 0.90587 STDEV = 0.07312 Mean = 1.05044 STDEV = 0.19130 Mean = 0.98259 STDEV = 0.01012 Mean = 0.89317 STDEV = 0.04956
7 Actions Mean = 0.86968 STDEV = 0.05590 Mean = 1.21009 STDEV = 0.17026 Mean = 0.96761 STDEV = 0.02630 Mean = 0.91798 STDEV = 0.02299
8 Actions Mean = 0.86249 STDEV = 0.06013 Mean = 1.10272 STDEV = 0.23757 Mean = 0.92256 STDEV = 0.00266 Mean = 0.91769 STDEV = 0.06550
9 Actions Mean = 1.00109 STDEV = 0.07765 Mean = 0.73018 STDEV = 0.33294
10 Actions Mean = 0.91435 STDEV = 0.12382 Mean = 0.92223 STDEV = 0.05944
11 Actions Mean = 0.96161 STDEV = 0.03941 Mean = 0.94661 STDEV = 0.02341
Table 1:

Average and standard deviation of network throughput and fairness for 4 and 10 agents with

. The values are computed from the last 1,000 steps out of a 10,000 step training run, and are averaged over 3 runs.

Results for throughput and fairness for 4 and 10 agents with are show in Table 1. For 4 agents throughout is maximized with an action space of size ; fairness is above for 3, 4, and 5 actions. For 10 agents the highest throughput value is achieved with . It is interesting to note that the second best throughput is achieved with , but the corresponding fairness is very poor; fairness is near or above for , with the exception of 9 actions, but this may have been due to unlucky sampling as the standard deviation is much larger than that for any other action space size. To manage the trade-off between throughput and fairness for 10 agents, a larger actions space shows better results, as this gives good results for fairness and does not (significantly) diminish throughput performance.

The size of the action space clearly has an effect on throughput and fairness. This fact is both obvious and interesting. An action space of size 2 amounts to a decision of whether to transmit. Larger action spaces conceptually change the decision to include: how long to wait before transmitting. It may not have been predictable a priori that extending the action space in this way would have such an effect as, fundamentally, on each step an agent is either transmitting or not, and each action for only schedules one transmission (with being a single-step decision not to transmit).

Viewed another way, extending the action space is a way of biasing the set of actions so that the agents have a lower probability of miscoordination. Ref. Kapetanakis and Kudenko [6] defines coordination in the context of MARL as “the ability of two or more agents to jointly reach a consensus over which actions to perform in an environment”, and miscoordination penalty is incurred when the joint actions lead to a lower reward. In our setting, we can define miscoordination to mean when more than agents transmit on the same step, giving a reward of for all agents that transmitted.

For example, if and actions were selected uniformly at random for 10 agents with ( meaning “don’t transmit” and meaning ”transmit”), then probability of miscoordination (of more than 2 agents selecting

on a given step) is, by the binomial distribution,

(3)

With the assumption of randomly selected actions, as the action space increases the probability of miscoordination decreases. More details and a proof of this can be found in Appendix C. However, as the size of the action space, , keeps increasing, eventually a lower probability of miscoordination would also result in diminishing throughput. Of course, our agents do not select actions uniformly at random, but still, this theoretical analysis implies that there is some optimal middle-ground for .

Additional tabulated results are displayed in Appendix D, which together with Table 1

help inform us as we formulate a heuristic for finding an optimal action space. We make note of some trends emerging from the empirical data. For example, the fairness data for

in Appendix D shows a general trend that fairness increases and then may plateau as the number of actions increase. For throughput, we generally observe that as we increase the number of actions throughput increases until a point, and then may decrease. This trend can be seen clearly for for 4 agents with agents in Table 1; and for 2 agents with , and 10 agents with both in Appendix D; incidentally, it is when that throughput is maximized in all the aforementioned examples, but we conjecture that the reason for this is not caused by an inherent property of the 3-action space. Rather, for each example, where is the number of agents.

Based our empirical results we recommend the following heuristic for choosing the size of the action space which we choose to promote good performance for both throughput and fairness; we create such that

(4)

In some cases, like for 10 agents in Table 1, the throughput is high for the smallest action space, but when this occurs the fairness is unacceptably low. The same behavior can be observed for 10 agents with in the appendix. In these cases as well, using our heuristic we find a much more equitable trade-off between throughput and fairness.

4.2 Benchmarking

Using our heuristic in Equation (4) to set the size of action space, we compare the performance of our RL agents against three distributed CSMA-inspired benchmarks.

CSMA (Carrier Sense Multiple Access) is a MAC protocol used in Wi-Fi systems; the premise is that a device will sense the spectrum to see if the transmission medium (channel) is clear. If the channel is clear, then the device may transmit. If the transmission is unsuccessful, because, for example, another device also transmitted at the same time and caused interference, then the device randomly chooses a number of steps, , in some predefined interval, , to wait before attempting to transmit again. We’ll refer to as a backoff timer and as the backoff–upper-bound.

We consider these algorithms reasonable to compare against for benchmarking as our action space may be viewed as doing something similar: giving the agents the ability to choose how long to wait before attempting a transmission.

We call the three algorithms we use for benchmarking exponential CSMA, p-persistent CSMA, and p-persistent. For exponential CSMA, we initially set ; if the a transmission is unsuccessful, a new is randomly selected and the new backoff–upper-bound is set to . When the agent has a successful transmission, the backoff–upper-bound is reset to . In p-persistent CSMA, is a constant and it set to the size of the action space that the RL agent is using in the benchmarking experiment. The p-persistent algorithm works the same as p-persistent CSMA, with the only difference being that a spectrum reading that shows no transmissions is not required as a precondition to transmit, as it is for the other two algorithms.

Figure 2 shows plots for throughput and fairness for an experiment with 10 agents, , and as in the previous section, the agents’ buffers are incremented on every step. Using Equation (4) we set the size of the action space, . We see that our RL agents achieve nearly optimal network performance, as a fairness of 1 is optimal, and a network throughput of is optimal. The network throughput for the benchmarking algorithms are comparatively low. We see that 3-persistent CSMA produces the lowest throughput, while the 3-persistent algorithm does better, which is likely due to the fact that it does not require sensing that the spectrum is clear before transmitting. Exponential CSMA does better still in terms of throughput, although still far off of the performance of the RL agents, but its corresponding network fairness is poor. As noted in Ref. Raeis and Golestani [8], the traditional distributed heuristic algorithms based on CSMA may suffer from unfairness, which we observe here. Five of the Exponential CSMA agents capture the channel, as they can all successfully transmit with , and this causes the other five agents’ backoff–upper-bound to continually and exponentially increase. The network fairness for the RL agents and 3-persistent, are both quite good with the best fairness being achieved by the RL agents. The high value for network fairness demonstrates that despite each RL agent being controlled by a distinct model and trying to optimize its own reward, our distributed approach can still lead to cooperative and fair network behavior.

Additional throughput and fairness benchmarks for 2, 4, and 10 agents with varying values for can be found in Appendix E. We see that in almost all cases the RL agents outperform the CSMA-inspired benchmarks in terms of throughput. The only time this is not the case is for 10 agents, , , where exponential CSMA has higher throughput but much worse fairness. Overall, we take this as confirmation that our heuristic for choosing the size of the action space works well to optimize throughput and fairness separately and to provide a reasonable trade-off when necessary.

(a) Throughput for 10 agents, , .
(b) Fairness for 10 agents, , .

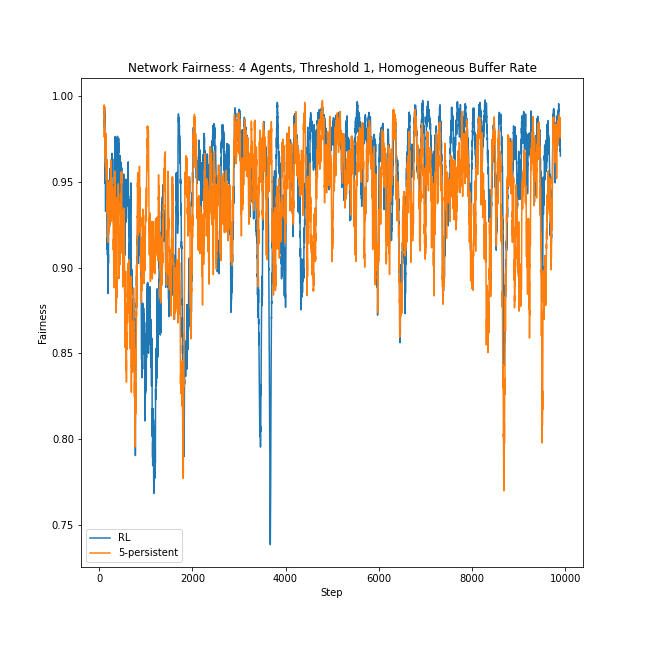

Figure 2: Network throughput and fairness with the performance for the RL agents and the benchmarking algorithms plotted against each other. The plotted data is the averaged over three runs.

4.3 Buffer Experiments

In the previous experiments the agents’ buffers were incremented on every step, so each agent would always have packets to transmit. While this was useful to determine how the agents would act cooperatively even when all agents had packets to transmit, in many real-world communications systems the information demands are not as stringent or as constant. In the following sections we test the RL agents in settings with less stringent and heterogeneous buffer rates and analyze the performance in terms of throughput, fairness, and how well the agents are able to manage their buffers. In real-world systems, if a buffer reaches its maximum size then information loss or bottlenecks may occur. We compare against the p-persistent benchmarking algorithm as in the previous section it showed higher throughput than p-persistent CSMA and better fairness than exponential CSMA. We test with 4 agents with a maximum buffer size of 100 units, , and set according to Eqn. (4).

In the first experiment we use a homogeneous buffer rate and increment each agent’s buffer every 8 steps. Plots for network throughput and the buffer size for one of the agents are displayed in Fig. 3. The network throughput in Fig. (a)a is clearly, though only slightly higher for the RL agents than for the 5-persistent algorithm. Despite there not being a large gap in throughput, the RL agents do far better at managing their buffer, as can be seen in Fig. (b)b: both buffers rise initially, but as the training progress the RL agent learns to transmit effectively with the other agents so that the buffer stays low, while the buffer gets maxed-out with the 5-persistent algorithm.

Next, we devise an experiment where agents have their buffers incremented heterogeneously. We increment the buffers every steps respectively for each agent. (E.g., agent 1’s buffer is incremented every 2 steps, agents 2’s buffer is incremented every 5 steps, and so on.) In Fig. 10 in Appendix F, the normalized buffer sizes for each of the agents are plotted. For both the RL and 5-persistent approaches, Agent 1 is not able to prevent its buffer from being maxed-out: the buffer rate is too demanding. For Agent 2, both approaches lead to the buffer being maxed-out initially, but about halfway through the simulation, the RL agent learns to transmit effectively enough so that its buffer stays under maximum buffer size. The buffer sizes for Agent 3 are similar to those in the homogeneous buffer experiments, which makes sense as the buffer rate (incremented every 8 steps) is the same: the RL agent’s buffer rises initially, but it quickly learns to act such that the buffer is kept low while for the 5-persistent algorithm the buffer quickly maxes out. For agent 4, the RL agent handles this buffer rate with ease, and while the 5-persistent approach manages to slow the increase of the buffer size, the buffer size is still maxed-out at the end (or is at least very close to being maxed-out).

These experiments show our RL approach and heuristic for selecting an action space continues works well even when applied to settings with different, and potentially heterogeneous, information demands.

Additional plots for throughput and fairness for both buffer experiments are shown in Appendix F.

(a) Network throughput
(b) Normalized buffer size for Agent 1
Figure 3: Network throughput and normalized buffer size of Agent 1 for a setting where the agents’ buffers are homogeneously incremented every 8 steps. There are 4 agents with and . Network throughput is averaged over 3 runs.

5 Conclusions and Future Directions

5.1 Summary

In this work we presented a distributed MARL approach for transmission control (an MARL-based MAC multiple access method): we formulated the RL agents, theoretically and empirically evaluated the action space to come up with a heuristic for selecting the size of the action space, benchmarked against CSMA-style algorithms, and tested performance with different buffer rates. Overall, the RL agents outperform the benchmarks in terms of throughput, fairness, and the ability to manage their buffer. We share the open source code for the custom Gym environment, RL agents, and the algorithms used for benchmarking through the link in Appendix A.

5.2 Discussion

The results of the action space analysis in Sec. 4.1 show that sometimes the same reinforcement learning problem can be formulated with different action spaces that are functionally equivalent (meaning that any trajectory of actions that is possible using one action space is also possible in the other), and yet some actions spaces will be better at maximizing an objective. Equation (4) provides a heuristic for choosing the size of the action space given the structure for the action space formulated in Sec. 3.4. Choosing the size of the action space in this way can be viewed as tailoring the action space to the problem within a general structure. Selecting a good action space creates a bias towards selecting actions that are likely to create successful patterns of transmission at a network-level. Our method of theoretically analyzing the action space with the assumption of randomly selected actions combined with empirical testing could be used in other cases where there is freedom in choosing an action space.

The benchmarking in Sec. 4.2 showed that the RL agents outperform the CSMA-style algorithms, and that this performance gap is consistent for varying number of agents and different threshold values for . The fact that the benchmarking algorithms did not perform well indicates some of the shortcomings of traditional distributed algorithms for transmission control, namely, mediocre throughput performance, or good throughput performance but at the expense of fairness. Meanwhile, the RL agents performed well not only in terms of network throughput, but also in fairness demonstrates the power of a distributed MARL approach, where even though the agents act individually to maximize their reward, cooperative behavior can emerge that maximizes network metrics as well if the MARL approach is constructed properly.

The advantage provided by the RL agents was demonstrated further in the buffer experiments in Sec. 4.3. In these settings the RL agents were often able to keep there buffer sizes low and prevent the their buffers from reaching the maximum size. In real-world systems if an agents buffer were to be maxed-out that could represent information loss or a major bottleneck in the network, so the ability to keep buffer sizes low confers significant value. These experiments also provide evidence that our action space with the heuristic defined in Eqn. (4) to set the size of the action space works well in different settings. The initial action space analysis in Sec. 4.1 was for a setting where each agent’s buffer was incremented on every step. This represents an impossibly high information demand if is smaller than the number of agents, but in basing our action space analysis off of this setting we find the best solution for the most demanding scenario, that is, when all agents always have a constant stream of new packets to transmit. The tests in Sec. 4.3 confirm that the RL approach combined and heuristic continues to perform well even if the information demands are reduced or are heterogeneous.

5.3 Future Directions

In this work we dealt with the problem of transmission control/medium access at a highly abstracted level. The potential advantage of this is that our approach may be widely applicably to a variety of communications systems, or potentially of independent interest to those interested in MARL. That being said, if one wanted to deploy our approach on physical communications systems, then one may want a more particularized environment to test the approach under the confines of a specific real-world system. Fortunately, there are well-developed network simulators available. Internally we have tested our approach with ns3-gym [3] and observed similar performance.

While our approach seems to work well, there may also be room for improvement in the formulation of the RL problem in terms of defining an optimal feature space, action space, and reward function. The buffer experiments in Sec. 4.3 showed good results for the RL agents, however, the reward function used, Eqn. (1), is quite simplistic and does not directly use any buffer terms. If one wanted to incentivize certain buffer management (e.g., penalize when the buffer is maxed-out or have the reward be proportional to buffer size), then buffer terms could be added to the reward function accordingly.

We tested with 2, 4, and 10 agents, but it would be interesting to see how the approach scales to larger number of agents and with different threshold values for . Additionally, there may be other algorithms to benchmark against that could perform better than the CSMA-style algorithms we employed. Lastly, further study could be directed towards the exploration of different RL algorithms instead of DQN and/or different hyperparameters for the neural networks.

To make it easier for those interested in further investigating or expanding on this work, we provide the open source software for the Gym environment and RL agents in Appendix A.

Appendix A Link to Software

The custom Gym environment as well as the RL model and benchmarking algorithms can be found at https://github.com/Farquhar13/RL_Transmission_Control.

Appendix B DQN Hyperparameters

Each agents is equipped with a separate DQN model, but the hyperparameters are the same for all the models. The DQN model uses a small feed-forward neural network for Q-value estimation. We use an

-greedy exploration strategy where a random action is taken with probability , and on each step is decreased by a factor of until . The agent trains on every step. The training batch is constructed by randomly sampling past transitions.

DQN Hyperparameters
Hyperparameter Value
Input dimension
Hidden layer 1 dimension 128
Hidden layer 2 dimension 256
Activation function to hidden layers ReLu
Activation function to output layer Linear
Starting Epsilon
Epsilon decay
Minimum epsilon
Gamma
Learning rate
Batch size 64
Loss function Mean Square Error
Optimizer Adam

Appendix C Miscoordination Penalty Probabilities

A miscoordination will occur when more than agents transmit at the same time. The probability of miscoordination for 10 agents selecting actions uniformly at random with, , , is calculated in Eqn. (3) using the probability mass function for the binomial distribution:

(5)

We can calculate the miscoordination penalty when by letting be number of agents and be the probability of choosing to transmit. Then,

(6)

Calculating the probability of miscoordination for larger action spaces is more complicated, as for the action space will have some multi-step actions, which means that agents will be taking actions asynchronously.

We can calculate the probability of miscoordination in different way by taking taking a certain view of the actions. If we map the actions such a denotes a transmission and a denotes no transmission, then we can view the actions as lists. The action space for can be written:

So . If we are at least steps into the simulation and assume, as before, that actions are taken uniformly at random, then we can calculate the probability of transmitting on an arbitrary step. Let and respectively be the count of the number of zeros and ones in the lists in . Then the transmission probability, for is,

(7)

and we find for , , and since there is one transmission for every except for . The transmission probability will decrease as the size of the action space gets larger. Formally, this can be seen by noting that is an arithmetic series and it can be shown that , and thus scales quadratically with the size of the action space , whereas only scales linearly with . Using the fact that actions are taken independently, we now can calculate the probability of miscoordination on an arbitrary step for agents with threshold and action size as,

(8)

Assuming that actions are selected uniformly at random, we can now prove that a larger action space leads to a lower miscoordination probability for agents with threshold . Let , where . We have shown that a larger action space leads to a smaller transmission probability, so . Suppose . So,

(9)

The last line is true since, for any with , then , so , thus every is positive and a sum of positive terms is greater than zero. Therefore, .

Put simply, a larger action space will result in a lower transmission probability, which implies a lower probability for miscoordination.

Appendix D Action Space Analysis Additional Data

Throughput,
No. of Agents / No. of Actions 2 Agents 4 Agents 10 Agents
2 Actions Mean = 0.78006 STDEV = 0.17884 Mean = 0.60261 STDEV = 0.03866 Mean = 0.57710 STDEV = 0.03215
3 Actions Mean = 0.95078 STDEV = 0.02402 Mean = 0.61586 STDEV = 0.02624 Mean = 0.46621 STDEV = 0.06823
4 Actions Mean = 0.64971 STDEV = 0.01450 Mean = 0.63784 STDEV = 0.03712 Mean = 0.48662 STDEV = 0.06416
5 Actions Mean = 0.73348 STDEV = 0.06607 Mean = 0.69083 STDEV = 0.17607 Mean = 0.44202 STDEV = 0.03817
6 Actions Mean = 0.81372 STDEV = 0.07375 Mean = 0.66441 STDEV = 0.01132 Mean = 0.40869 STDEV = 0.05880
7 Actions Mean = 0.67896 STDEV = 0.12725 Mean = 0.43054 STDEV = 0.05287
8 Actions Mean = 0.69733 STDEV = 0.07090 Mean = 0.40404 STDEV = 0.05060
9 Actions Mean = 0.37100 STDEV = 0.02976
10 Actions Mean = 0.41004 STDEV = 0.07357
11 Actions Mean = 0.43033 STDEV = 0.05623
Table 2: Average & standard deviation of throughput for threshold 1. Data is from the last 1,000 steps of a 10,000 step training period and averaged over three runs.
Fairness,
No. of Agents / No. of Actions 2 Agents 4 Agents 10 Agents
2 Actions Mean = 0.87845 STDEV = 0.20949 Mean = 0.52672 STDEV = 0.03866 Mean = 0.29744 STDEV = 0.04632
3 Actions Mean = 0.99983 STDEV = 0.00010 Mean = 0.67614 STDEV = 0.13102 Mean = 0.42953 STDEV = 0.03979
4 Actions Mean = 0.99976 STDEV = 0.00001 Mean = 0.83247 STDEV = 0.00112 Mean = 0.49201 STDEV = 0.02939
5 Actions Mean = 0.99159 STDEV = 0.00820 Mean = 0.93710 STDEV = 0.06327 Mean = 0.55159 STDEV = 0.07052
6 Actions Mean = 0.99634 STDEV = 0.00291 Mean = 0.88923 STDEV = 0.06939 Mean = 0.63227 STDEV = 0.02151
7 Actions Mean = 0.90435 STDEV = 0.10433 Mean = 0.65110 STDEV = 0.05479
8 Actions Mean = 0.97265 STDEV = 0.00634 Mean = 0.67006 STDEV = 0.02951
9 Actions Mean = 0.67199 STDEV = 0.04562
10 Actions Mean = 0.69593 STDEV = 0.02341
11 Actions Mean = 0.67655 STDEV = 0.07446
Table 3: Average & standard deviation of fairness for threshold 1. Data is from the last 1,000 steps of a 10,000 step training period and averaged over three runs.
4 Agents, Throughput & Fairness,
No. of Action Throughput Fairness
2 Actions Mean = 1.71945 STDEV = 0.15431 Mean = 0.89216 STDEV = 0.03130
3 Actions Mean = 1.99699 STDEV = 0.02159 Mean = 0.99979 STDEV = 0.00009
4 Actions Mean = 1.61192 STDEV = 0.04602 Mean = 0.99045 STDEV = 0.00238
5 Actions Mean = 1.55774 STDEV = 0.06220 Mean = 0.98197 STDEV = 0.00516
6 Actions Mean = 1.57845 STDEV = 0.08176 Mean = 0.94473 STDEV = 0.02596
7 Actions Mean = 1.45513 STDEV = 0.08087 Mean = 0.94238 STDEV = 0.00399
8 Actions Mean = 1.56845 STDEV = 0.08251 Mean = 0.90685 STDEV = 0.02018
Table 4: Average & standard deviation of throughput & fairness for 4 agents threshold 3. Data is from the last 1,000 steps of a 10,000 step training period and averaged over three runs.
10 Agents, Throughput & Fairness,
No. of Action Throughput Fairness
2 Actions Mean = 3.19046 STDEV = 0.58891 Mean = 0.85694 STDEV = 0.14962
3 Actions Mean = 3.91997 STDEV = 0.03990 Mean = 0.98970 STDEV = 0.00431
4 Actions Mean = 3.31367 STDEV = 0.00995 Mean = 0.99861 STDEV = 0.00126
5 Actions Mean = 2.59365 STDEV = 0.17936 Mean = 0.98708 STDEV = 0.00375
6 Actions Mean = 2.43987 STDEV = 0.08961 Mean = 0.96973 STDEV = 0.01043
7 Actions Mean = 2.41671 STDEV = 0.15506 Mean = 0.96493 STDEV = 0.00990
8 Actions Mean = 2.44283 STDEV = 0.16497 Mean = 0.92002 STDEV = 0.00580
9 Actions Mean = 1.85070 STDEV = 0.05589 Mean = 0.94923 STDEV = 0.01256
10 Actions Mean = 1.85649 STDEV = 0.07320 Mean = 0.90869 STDEV = 0.02141
11 Actions Mean = 1.70585 STDEV = 0.08802 Mean = 0.92496 STDEV = 0.01213
Table 5: Average & standard deviation of throughput & fairness for 10 agents threshold 5. Data is from the last 1,000 steps of a 10,000 step training period and averaged over three runs.

Appendix E Benchmarking Additional Data

Figure 4: Network throughput and fairness for 2 agents, , . (Data averaged over three runs.)
Figure 5: Network throughput and fairness for 4 agents, , . (Data averaged over three runs.)
Figure 6: Network throughput and fairness for 10 agents, , . (Data averaged over three runs.)
Figure 7: Network throughput and fairness for 4 agents, , . (Data averaged over three runs.)
Figure 8: Network throughput and fairness for 10 agents, , . (Data averaged over three runs.)

Appendix F Buffer Experiments Additional Data

Figure 9: Network fairness for 4 agents, , , where each agent’s buffer is incremented every 8 steps. (Fairness averaged over three runs.)
Figure 10: Buffer sizes for 4 agents, k = 1, , where buffers are incremented heterogeneously every (2, 5, 8, 10) steps respectively for each agent. (Buffer sizes averaged over three runs.)
Figure 11: Network throughput and fairness for 4 agents, , , where buffers are incremented heterogeneously every (2, 5, 8, 10) steps respectively for each agent. (Throughput and fairness averaged over three runs.)

References

  • [1] G. Brockman, V. Cheung, L. Pettersson, J. Schneider, J. Schulman, J. Tang, and W. Zaremba (2016) OpenAI gym. arXiv. External Links: Document, Link Cited by: §1.
  • [2] J. N. Foerster, Y. M. Assael, N. de Freitas, and S. Whiteson (2016) Learning to communicate with deep multi-agent reinforcement learning. External Links: 1605.06676 Cited by: §2.
  • [3] P. Gawłowicz and A. Zubow (2019) ns-3 meets OpenAI Gym: The Playground for Machine Learning in Networking Research. In ACM Intl. Conf. on Modeling, Analysis and Sim. of Wireless and Mobile Systems, External Links: Link Cited by: §3.1, §5.3.
  • [4] J. Jagannath, N. Polosky, A. Jagannath, F. Restuccia, and T. Melodia (2019-10) Machine learning for wireless communications in the internet of things: a comprehensive survey. Ad Hoc Networks 93, pp. 101913. External Links: Document, Link Cited by: §1.
  • [5] J. Jiang and Z. Lu (2019) Learning fairness in multi-agent systems. External Links: 1910.14472 Cited by: §2.
  • [6] S. Kapetanakis and D. Kudenko (2004) Reinforcement learning of coordination in heterogeneous cooperative multi-agent systems. In Adaptive Agents and Multi-Agent Systems II, pp. 119–131. Cited by: §4.1.
  • [7] D. Kim, S. Moon, D. Hostallero, W. J. Kang, T. Lee, K. Son, and Y. Yi (2019) Learning to schedule communication in multi-agent reinforcement learning. External Links: 1902.01554 Cited by: §2.
  • [8] M. Raeis and S. J. Golestani (2021) Distributed fair scheduling for information exchange in multi-agent systems. CoRR abs/2102.08814. External Links: Link, 2102.08814 Cited by: §2, §4.2.
  • [9] R. S. Sutton and A. G. Barto (2018) Reinforcement learning: an introduction. MIT press. Cited by: Figure 1.
  • [10] Y. Yu, T. Wang, and S. C. Liew (2018) Deep-reinforcement learning multiple access for heterogeneous wireless networks. In 2018 IEEE International Conference on Communications (ICC), Vol. , pp. 1–7. External Links: Document Cited by: §2.
  • [11] K. Zhang, Z. Yang, H. Liu, T. Zhang, and T. Başar (2018) Fully decentralized multi-agent reinforcement learning with networked agents. External Links: 1802.08757 Cited by: §1.
