 # Discrete Geodesic Nets for Modeling Developable Surfaces

We present a discrete theory for modeling developable surfaces as quadrilateral meshes satisfying simple angle constraints. The basis of our model is a lesser known characterization of developable surfaces as manifolds that can be parameterized through orthogonal geodesics. Our model is simple, local, and, unlike previous works, it does not directly encode the surface rulings. This allows us to model continuous deformations of discrete developable surfaces independently of their decomposition into torsal and planar patches or the surface topology. We prove and experimentally demonstrate strong ties to smooth developable surfaces, including a theorem stating that every sampling of the smooth counterpart satisfies our constraints up to second order. We further present an extension of our model that enables a local definition of discrete isometry. We demonstrate the effectiveness of our discrete model in a developable surface editing system, as well as computation of an isometric interpolation between isometric discrete developable shapes.

## Authors

##### This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

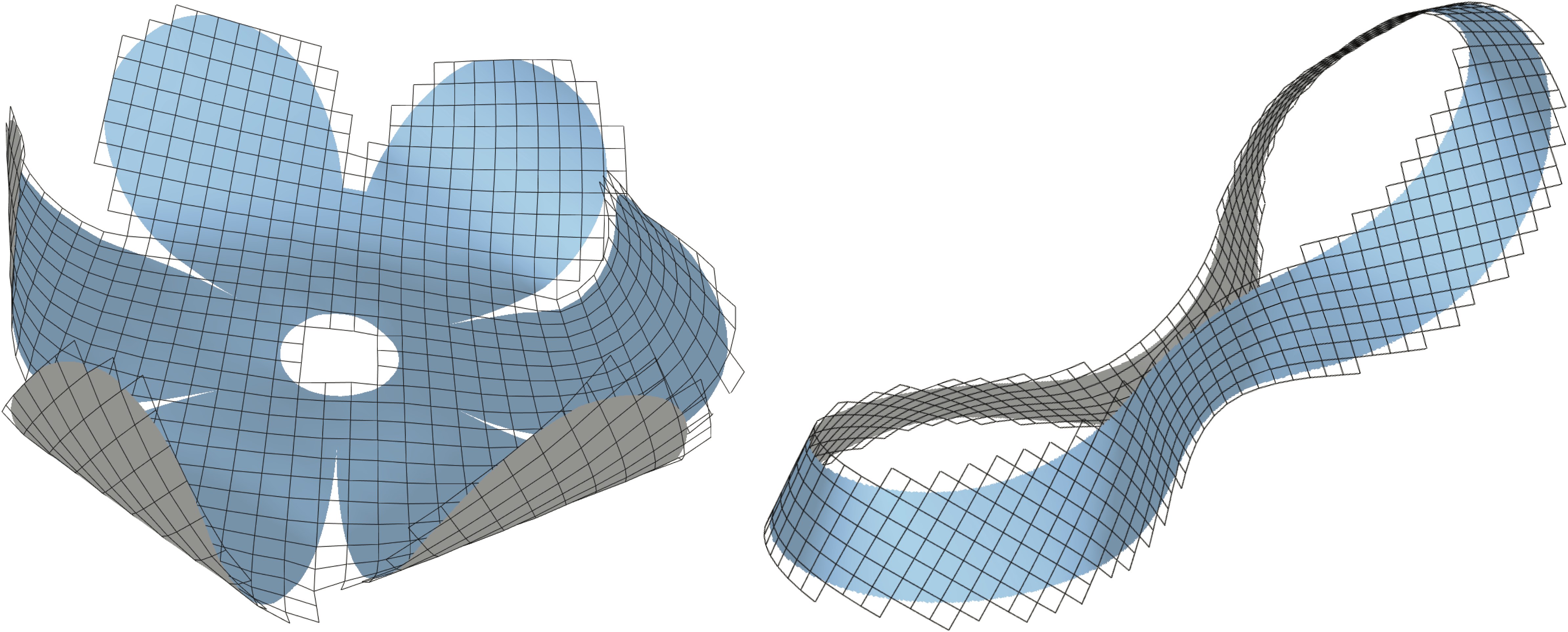

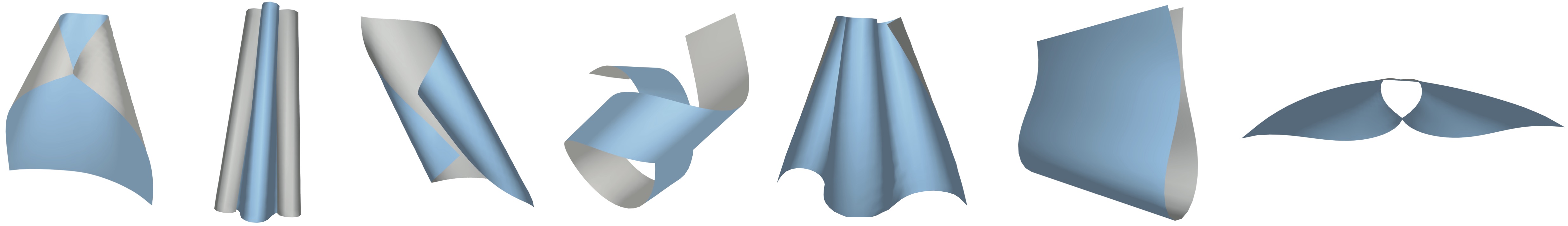

## 1. Introduction Figure 1. We propose a discrete model for developable surfaces. The strength of our model is its locality, offering a simple and consistent way to realize deformations of various developable surfaces without being limited by the topology of the surface or its decomposition into torsal developable patches. Our editing system allows for operations such as freeform handle-based editing, cutting and gluing, modeling closed and un-oriented surfaces, and seamlessly transitioning between planar, cylindrical, conical and tangent developable patches, all in a unified manner. Figure 2. A lantern shaped developable surface, demonstrating how our discrete model can seamlessly and effortlessly model developable surfaces with nontrivial topology. This figure was created from an alternating cut pattern on a square sheet (left). The shapes in the middle were formed by pulling the central vertex up while constraining the corners to stay on their initial plane. Right: A physical model made of paper with the same cut pattern (we glued the corners to the table and lifted the center point using a thin thread).

The concept of isometry lies at the core of the study of surfaces. Loosely speaking, two surfaces are isometric if one can be obtained by bending and twisting the other. The deforming map is then called an isometry, and the properties of a surface that are invariant to isometries are called intrinsic properties. A local isometry is such a mapping in a neighborhood of some point on a surface.

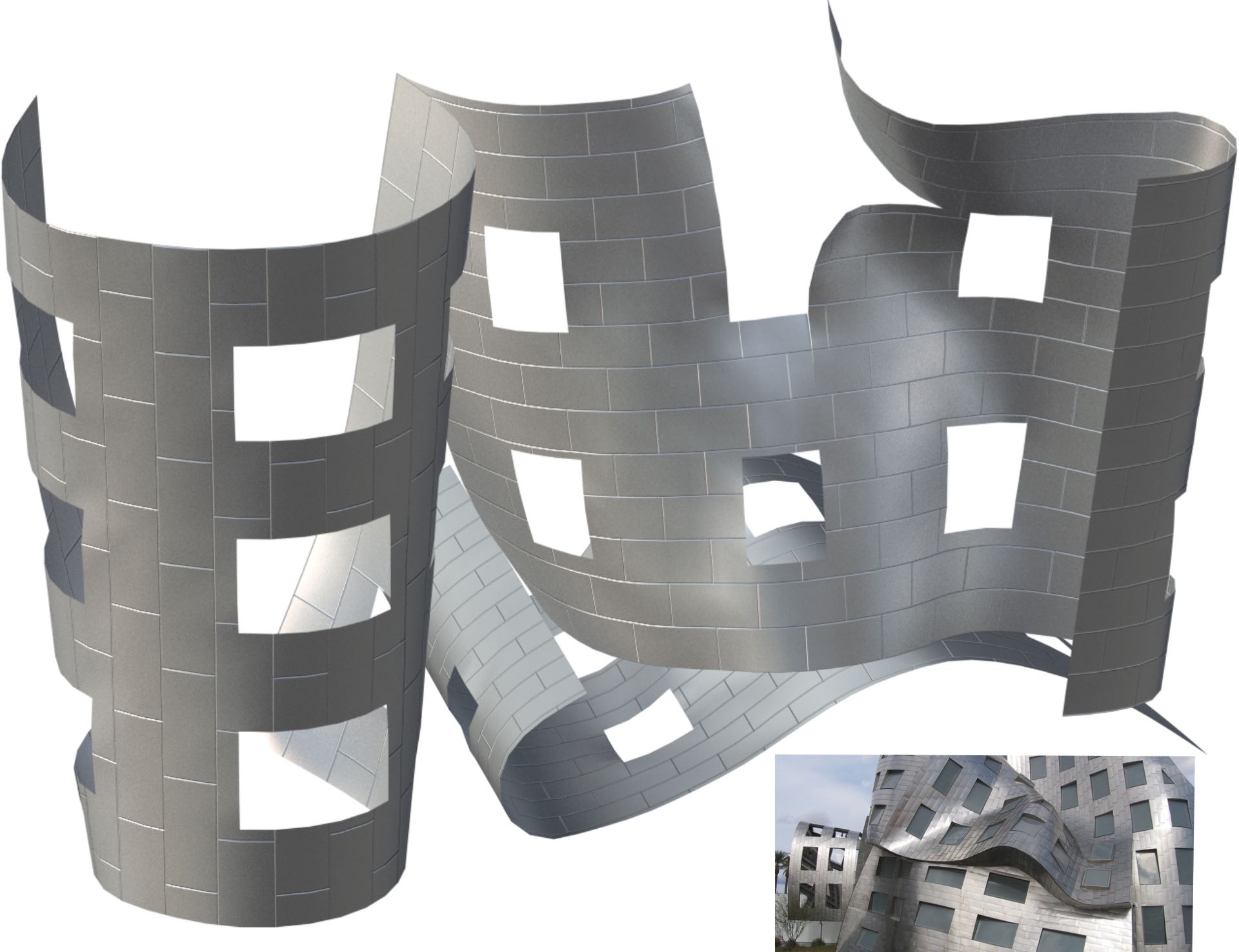

Surfaces that are locally isometric to a plane are called developable surfaces. In the physical world, these surfaces can be formed by bending thin flat sheets of material, which makes them particularly attractive in manufacturing [Pérez and Suárez, 2007], architecture [Shelden, 2002] and art [Wertheim, 2004]. Consequently, the design of freeform developable surfaces has been an active research topic in computer graphics, computer aided design and computational origami for several decades.

The scope of our work is modeling developable surfaces through deformation, which can be applied in a design and fabrication pipeline. This is in contrast to contour interpolation works [Frey, 2004; Rose et al., 2007], which compute a developable surface passing through an input set of curves, as well as shape approximation through developable surfaces [Pottmann and Wallner, 1999; Chen et al., 1999]. Our goal is to model smooth deformations, such as the rolling and bending of a planar sheet into a cone, rather than origami-like folding and creasing [Tachi, 2009].

Smooth developable surfaces are well studied in differential geometry [do Carmo, 1976] and are often characterized as surfaces with vanishing Gaussian curvature, or, equivalently, as ruled surfaces with a constant normal along each ruling.

A given smooth developable surface can be naturally discretized as a ruled surface, as it can be locally represented by a single curve

and its orthogonal rulings (see inset). For this reason, many discrete developable models encode rulings explicitly [Bo and Wang, 2007; Liu et al., 2006]. However, this representation has limitations when it comes to interactive modeling of a developable surface. In this process, the user starts with an initial developable surface , for instance a planar surface, and interactively manipulates it to obtain a desired surface (see Figs. 1, 2). Since the output surface is not necessarily known precisely in advance, one would like to explore the entire space of attainable developable surfaces in this interactive setting. As stated in [Tang et al., 2016], explicitly including the rulings in the surface representation limits the space of possible deformations of . From a user’s point of view, it may be more intuitive to manipulate local point handles to edit the surface, rather than editing its global rulings.

We show that such developable shape space exploration is made possible by discretizing a lesser known, local condition for developability: The existence of an orthogonal geodesic parameterization. We propose an alternative way to understand developable surface isometries by looking at their invariants, rather than the rulings.

### 1.1. Contributions

• [label=–]

• We introduce discrete orthogonal geodesic nets to model developable surfaces as quadrilateral nets with angle constraints. Our conditions are simple and local, and our model does not depend on the explicit encoding of the rulings or the surface topology.

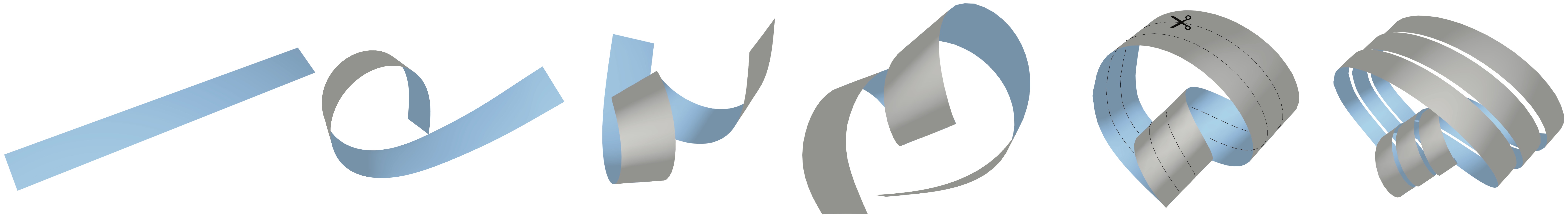

• We use this model to build a simple editing system for developable surfaces with point handles as user interface. Our system can smoothly transition between a wide range of shapes while maintaining developability, and, unlike previous methods, does not require the user to specify global rulings or any other global structure of the unknown desired shape.

• We further study our new discrete model and draw parallels to smooth developable surfaces. We prove that our discrete constraints are satisfied in the smooth case up to second order, analyze our model’s degrees of freedom, discretize quantities such as tangents and normals and propose a local scheme to approximate the rulings. We formulate and prove a discrete analogue to a known continuous theorem linking curvature line parameterizations, geodesic parameterizations, and developable surfaces.

• We introduce a generalization of our nets, called discrete 4Q orthogonal geodesic nets, which allows us to define local discrete isometry between our surfaces. We demonstrate the effectiveness and flexibility of such 4Q nets by computing an isometric interpolation between isometric developable shapes.

## 2. Preliminaries

### 2.1. Nets in discrete differential geometry

In the spirit of previous works in discrete differential geometry [Desbrun et al., 2005; Bobenko and Suris, 2008], we discretize a developable surface as a quad grid mesh, referred to as a net, which can be viewed as a discrete analogue to a smooth parameterization (often termed smooth net). This approach has been previously taken to discretize and construct a variety of surface types, including constant Gaussian curvature surfaces [Wunderlich, 1951; Bobenko and Pinkall, 1996], minimal surfaces [Bobenko et al., 2006] and isothermic surfaces [Bobenko and Suris, 2009]. Just as a smooth surface can be locally represented by a parameterization , a discrete surface can be locally represented by a discrete map (Fig. 3). This structural view is especially appealing, as it can be used to convert between smooth and discrete notions on surfaces, such as tangents, normals and surface transformations, and to analyze the construction of discrete surfaces and their convergence to the continuous counterparts. Discrete analogues of smooth differential geometry theorems are systematically studied in the context of nets; see the review in [Bobenko and Suris, 2008]. Figure 3. A smooth net f:R2→R3 and a discrete net F:Z2→R3.

The same smooth surface can be represented by many different parameterizations, or nets, and some are more convenient than others. These typically differ by the properties of their coordinate curves . Prominent examples include curvature line nets, where the coordinate curves are principal curvature lines, and asymptotic nets, whose coordinate curves trace the asymptotic directions of a surface. The freedom to choose various nets exists also in the discrete setting, and usually a discrete model of a surface is coupled with a given parameterization. For example, discrete minimal surfaces have been defined through curvature line nets, and discrete constant negative Gaussian curvature surfaces through nets of asymptotic lines [Bobenko and Pinkall, 1996; Bobenko et al., 2006]. Each choice of parameterization implies certain conditions on the discrete surface, formulated in terms of the values of , i.e., the positions of the net’s vertices.

### 2.2. Developable surfaces through conjugate nets

The neighborhood of a non-planar point on a developable surface can be locally parameterized by its rulings, which are straight lines contained in the surface. This means that there exists a neighborhood such that and all points in are parameterized by

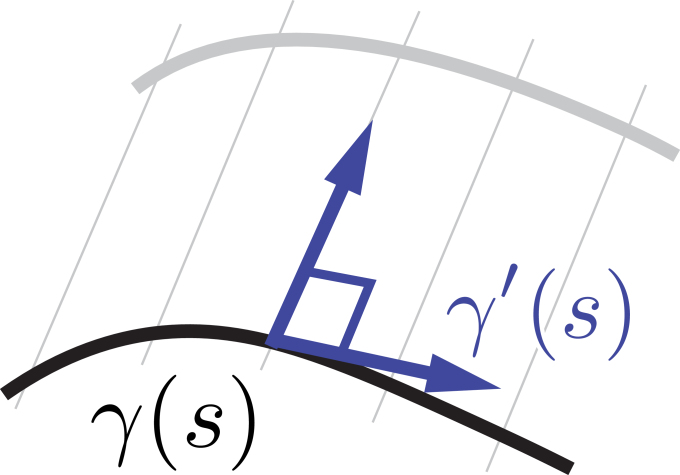

 x(s,t)=γ(s)+tr(s),

where corresponds to the ruling, and fixing the parameter gives us another curve on the surface with non-vanishing curvature, from which the rulings emanate.

The subset is called a torsal surface

. A torsal surface can be classified based on the directions of its rulings: if they are parallel, it is said to be cylindrical, if they all intersect at a single point, it is a generalized cone, and otherwise it is a so-called tangent surface (see Fig.

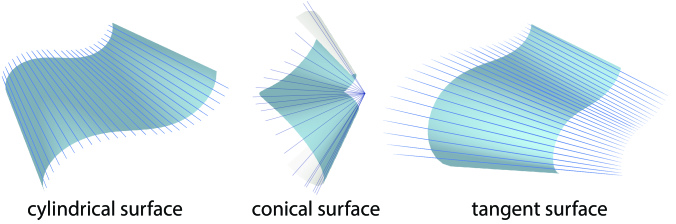

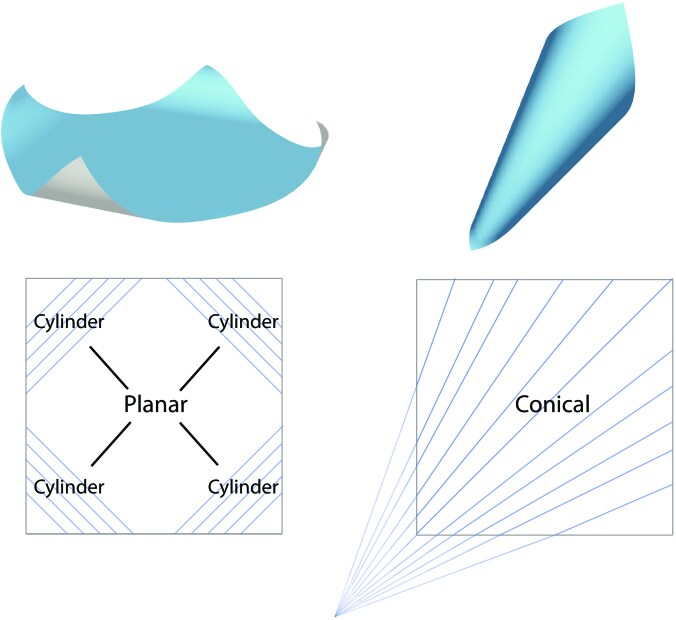

4). Figure 4. Different types of developable surfaces and their rulings. Left: A cylindrical shape with parallel rulings. Center: all rulings meet in a point in a conical surface. Right: a tangent developable surface where the rulings meet at a curve.

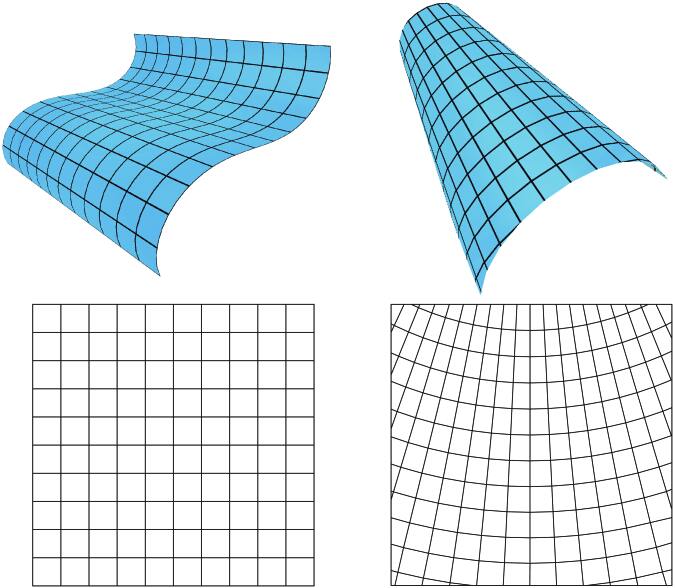

A parameterization of a developable surface through its rulings is called a developable conjugate net [Liu et al., 2006]. To clarify the previous statement, we elaborate on the definition of a conjugate net in a more general context, where is a smooth net that is not necessarily developable. A smooth parameterization is a conjugate net if

 ⟨nx,fy⟩=0,  where n=fx×fy∥∥fx×fy∥∥.

Here, is the normal map of , and a subscript denotes differentiation with respect to the coordinate in the subscript. In this case the tangents are said to be conjugate directions. The condition is equivalent to . Intuitively, in such a parameterization, infinitesimally small squares in the parameter domain are mapped to planar quads on the surface up to second order. Hence, planar quad meshes are seen as a discretization of conjugate nets [Bobenko and Suris, 2008]. Note that curvature line nets are a special case of conjugate nets. In the case of a developable surface, the normal is constant along a ruling, and therefore any developable net parameterized through rulings is in fact a conjugate net. A well established discrete model for a conjugate developable net is a planar quad strip [Sauer, 1970; Pottmann and Wallner, 2001; Liu et al., 2006].

### 2.3. The combinatorics of a developable surface

The possible presence of planar parts in developable surfaces further complicates their representation. A general developable surface is a composition of (possibly infinite) torsal and planar patches. The works of Liu et al.  and Kilian et al.  model torsal surfaces by discrete conjugate nets, i.e., planar quad strips where the rulings are explicitly given by the transversal quad edges. Accordingly, the discrete representation in [Liu et al., 2006; Kilian et al., 2008; Tang et al., 2016] consists of multiple discrete torsal patches connected together to form a discrete developable surface. The connectivity between those patches is represented by a combinatorial structure termed decomposition combinatorics [Tang et al., 2016]. As stated in [Tang et al., 2016], this fixed combinatorial structure requires the user to manually specify the said combinatorial structure of the modeled developable surface, and it is not possible to model a smooth transition between different combinatorial decompositions. We call this problem the combinatorial problem (see Fig. 5). Figure 5. Two isometric shapes (top row) that are composed of different configurations of torsal surfaces, as illustrated in the bottom row. Our method does not rely on explicit encoding of this combinatorial structure of the developable surface, and can seamlessly model the transition between shapes without additional input from the user.

### 2.4. Developable surface isometry

A common task in a developable surface editing system is modeling isometries, which are non-stretching deformations that preserve distances on the surface. Since we are interested in modeling and editing shapes while staying within the shape space of developable surfaces, surface representations by conjugate or curvature lines are not good candidates for this application, because they are not invariant under isometries, as we explain next.

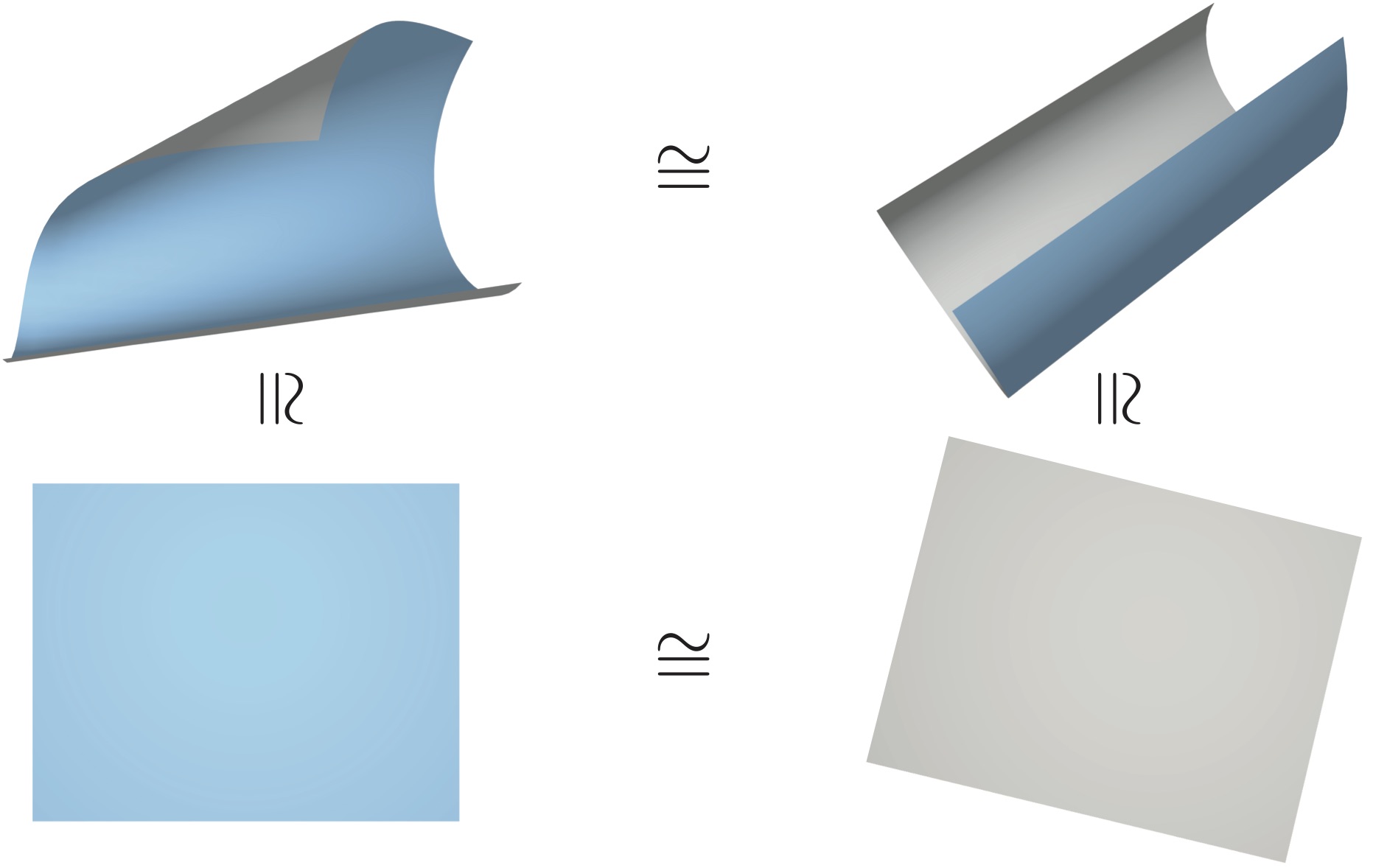

Isometrically unrolling a developable surface onto the plane reveals the innate shape of its curves. In the following, we often display a developable surface next to its flattened, isometric planar version, and refer to the geometry of a thereby flattened curve as the curve’s intrinsic geometry. For instance, geodesics on a developable surface are curves that are intrinsically straight. The intrinsic shape of a curve is determined by its geodesic curvature , which does not change under isometry. As an example, all curvature lines of a cylinder are intrinsically straight, and for a cone they are a family of concentric circles and radial straight lines emanating from a single point (see Fig. 6). Rulings and their conjugate directions are altered by isometries, but an isometry always maps geodesics to geodesics and intrinsic circles to circles of the same geodesic curvature. Therefore, a discrete isometry cannot be plausibly defined based on a mapping between conjugate curves on two developable surfaces. Figure 6. Two isometric developable surfaces (a cylindrical and a conical one) in curvature line parameterization (top row), and their isometrically flattened versions (bottom row), which reveal the intrinsic geometry of the curvature lines. These families of lines are intrinsically different, and there is no isometric mapping from one family to the other.

### 2.5. Developable surface through orthogonal geodesic nets

We propose to look at a different type of parameterization of developable surfaces, which is better suited for our interactive editing goals and is a more natural starting point to define discrete isometry. Imagine taking a flat piece of paper with a square grid texture and watching the vertices of the squares while curving and rolling the paper. Squares, which started as planar, transform, but the intrinsic distances between all points stay the same, as long as one does not tear or stretch the paper. This is analog to our model. We propose a discrete model of developable surfaces through intrinsic entities: geodesics, which are invariant under isometries. A net is a geodesic net if its coordinate curves trace geodesics on the surface. On a developable surface, geodesics are straight lines when developed onto the plane. As we still have a degree of freedom in choosing the directions of the intrinsic lines, we set them to be of the simplest form – orthogonal – as in a rectangular grid (see Fig. 7). By employing geodesics rather than rulings and conjugate directions, we overcome the aforementioned combinatorial problem and are able to define a notion of discrete isometry for such surfaces. Figure 7. Tracing orthogonal geodesics while rolling a planar surface into a circular cone.

## 3. Related work

### 3.1. Developable surfaces

The theory of surfaces formed by local isometries of the plane is covered in the differential geometry literature [do Carmo, 1976; Spivak, 1999] and traces back to the works of Euler and Monge in the eighteenth century [Lawrence, 2011]. Gauss’ Theorema Egregium coupled with Minding’s theorem shows that developable surfaces are surfaces with zero Gaussian curvature. Intuitively, this means that the image of their Gauss map is a curve or a point. Another point of view is the characterization of developable surfaces as special ruled surfaces, namely, those with constant tangents along rulings [Pottmann and Wallner, 2001]. Hence, a developable surface is locally a planar or a torsal surface. A torsal surface can be constructed by a single curve: For example, one can pass a torsal surface through a curvature line curve and its parallel Bishop frame [Bishop, 1975], or through a geodesic and its Frenet frame [Graustein, 1917].

The study of and developable surfaces is a much newer area, stirred by the beautiful models and work of Huffmann [Huffman, 1976; Wertheim, 2004] and more recently by the field of computational origami [Demaine and O’Rourke, 2007], which examines shapes created by straight and curved folds. Straight folds are creases through lines on a paper. Any shape created by repeated application of these folds is piecewise planar [Demaine et al., 2011]. Curved folds are creases through arbitrary curves on a paper. These are more rigid than straight folds, as splitting a surface into two parts by a curve and folding the surface on one side of the curve locally determines the shape of the other part [Kilian et al., 2008].

The study of smooth developable surfaces is analytic in nature, whereas the study of origami folds is in essence combinatorial. As previously stated, our work focuses on modeling smooth deformations.

### 3.2. Modeling with developable surfaces

Works on deformations of developable surfaces can be largely categorized into geometric and physics based.

Geometric approaches are not tied to a physical representation such as a paper sheet or a metal plate. They mainly consider and discretize the geometry of a smooth developable surface. The foundation of these works is a discrete developable surface model, i.e., an exact definition of the set of discrete developable surfaces. The definition should be flexible enough for the user to explore a wide range of shapes, while capturing important properties of the smooth surface. The works of Liu et al.  and Kilian et al.  model torsal surfaces as planar quad strips, which are a discretization of developable conjugate nets. In [Tang et al., 2016] the authors model smooth torsal surfaces as developable splines. These are represented as ruled surfaces connecting two Bézier curves satisfying a set of quadratic equations that guarantee a constant normal along rulings. The work of [Bo and Wang, 2007] models a torsal surface by a single geodesic curve and rulings emanating from it, i.e., the rectifying developable of a curve. All works above model a general developable surface as a composition of multiple torsal surfaces, explicitly encoding rulings and sharing the combinatorial problem we discussed in Sec. 2.3. Moreover, by construction these approaches cannot model isometry between different torsal shapes, such as a cylinder and a cone, as explained in Fig. 6. We refer the reader to the ’Limitations’ and ’Future work’ paragraphs in Section 7 of [Tang et al., 2016] for an in-depth discussion of these shortcomings.

The work of [Solomon et al., 2012] presents an origami based editing system for developable surfaces, allowing the user to navigate through the highly nonlinear space of admissible folds of a sheet. By involving a mean curvature bending energy, the user can further ask to relax the folds, resulting in a smoother looking, yet always piecewise planar surface [Demaine et al., 2011]. Due to the reliance on global folds, this method shares a similar dependency on rulings with the previously mentioned works, which also complicates the user interface. Our proposal can be seen as a follow-up to all these works, removing the dependency on rulings and adding a notion of discrete isometry that is capable of smoothly interpolating between a wide range of shapes.

In contrast to geometric models, physics based models are coupled with given material properties of the surface. They model a material’s behavior through energy minimization, simulating the physical shape when applying forces. The focus of these works is the physics of an object, such as an elastic simulation [Burgoon et al., 2006], or paper crumpling and tearing [Narain et al., 2013; Schreck et al., 2015; Schreck et al., 2017], rather than the geometry of developable surfaces. As such, these works do not deal with defining a precise notion of a discrete developable surface, nor do they aim at the exploration of the entire shape space of developable surfaces without straying off constraints. Developable surface editing can be indirectly approximated by discrete shell models [Grinspun et al., 2003; Fröhlich and Botsch, 2011] when starting from a flat sheet and setting a very high penalty in the stretch component of the elastic energy; the latter could lead to numerical problems, however. We view the physics based approaches as tangential to the geometric models, and they can also potentially benefit from new discrete surface models.

### 3.3. Developable surfaces in discrete differential geometry

As mentioned in Sec. 2, the work of Liu et al.  discretizes developable surfaces through conjugate line nets as planar quad strips, where the transversal quad edges lie on rulings. In contrast, our proposed discretization is through orthogonal geodesic nets, which is especially convenient when modeling deformations and isometries of developable surfaces. Our discretization is inspired by the work of Wunderlich  on discrete Voss surfaces, which are surfaces parameterized through conjugate lines that are also geodesics. Voss surfaces include surfaces that are not necessarily developable, and modeling with conjugate orthogonal geodesics is quite limiting, since any such net is in fact a cylindrical shape. Therefore, as a base for our model we use the same notion of a geodesic net set by Wunderlich but drop the conjugacy requirement, which means that our model allows for non planar quads.

A few works in DDG cover discrete isometries of specific classes of surfaces, such as those of Voss surfaces [Schief et al., 2008], where conjugate geodesics are preserved. We are not aware of a method that covers the entire range of developable surface isometries. As mentioned, developable Voss surfaces form only a limited subset of developable surfaces, and our isometry definition subsumes this subset, covering general developable surfaces in orthogonal geodesic parameterization.

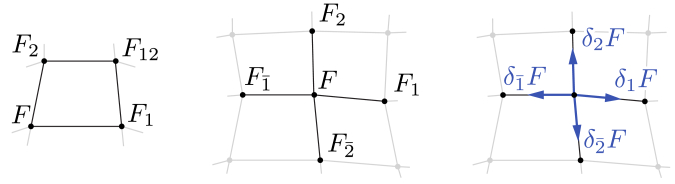

## 4. Notations and setup Figure 8. The shift notation on a quad (left) and a star (center); edge directions (right).

As briefly introduced in Sec. 2, we denote continuous maps in lower case letters and their discrete equivalents by upper case. The notation , where , refers to a (local) regular parameterization of a smooth surface, and is its normal map. Derivatives with respect to the coordinates and

are denoted by subscripts, e.g., tangent vectors

and derivatives of the normal . We denote the unit tangents of the coordinate lines by , which are linearly independent as is an immersion.

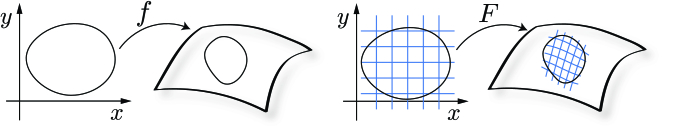

A natural discrete analogy for a local parameterization is a map , where . We refer to as our discrete net, and likewise denotes our discrete Gauss map. Discrete unit tangents are denoted by . We define these quantities in the following for our particular setting, namely discrete geodesic nets.

As is customary in discrete differential geometry, we slightly abuse the naming and employ shift notation to refer to vertex positions on our net, denoting

 F=F(j,k), F1=F(j+1,k), F2=F(j,k+1), F12=F(j+1,k+1), F¯1=F(j−1,k), F¯2=F(j,k−1),

where , i.e., the lower index denotes the coordinate number to shift, and a bar above it indicates a negative shift (see Fig. 8). The unit-length directions of edges emanating from a point are denoted as i.e.,

 δ1F=(F1−F)/∥F1−F∥,   δ¯1F=(F¯1−F)/∥F¯1−F∥, δ2F=(F2−F)/∥F2−F∥,   δ¯2F=(F¯2−F)/∥F¯2−F∥.

We assume our net is a discrete immersion, which means that the edge directions are distinct. In practice, we represent our discrete nets as pure quad grid meshes, where the valence of every inner vertex is 4. We refer to an inner vertex, its four neighbors and its four emanating edges as a star. Our discrete nets neither require nor assume any global orientation on the mesh. The shift notation requires only a local arbitrary orientation per quad or star, and is used for convenience.

## 5. Discrete orthogonal geodesic nets

We are interested in defining conditions on , i.e., on the positions of our mesh vertices, such that it represents a discrete developable surface parameterized by orthogonal geodesic lines. In the following, we develop the necessary definitions and their properties, to arrive at the following condition:

###### Definition 1 ().

A discrete net is said to be a discrete developable surface in orthogonal geodesic parameterization, i.e., a discrete orthogonal geodesic net, if for every star, all angles between consecutive edges are equal.

To develop the rationale for the condition above, we start by looking at smooth developable geodesic nets.

### 5.1. Smooth developable geodesic nets

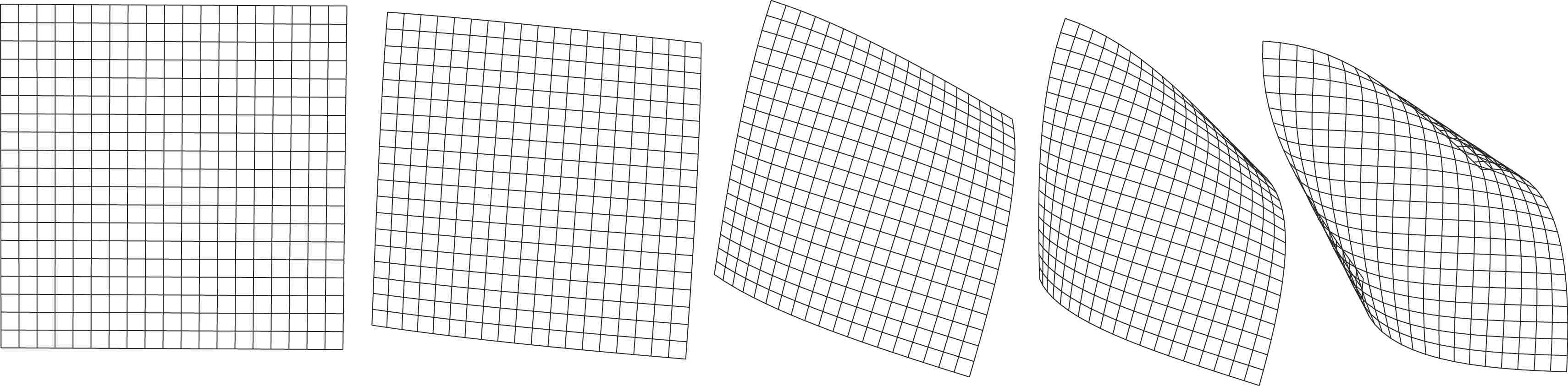

When is a geodesic net a developable net? Let be a geodesic net and an axis-aligned rectangle. The rectangle is mapped by to a “curved rectangle” . Let be the interior angles at the vertices of , measured as the angles between the respective tangent directions (as usual in differential geometry), e.g., .

###### Lemma 5.1 ().

A geodesic net is developable if and only if for every axis-aligned rectangle , the angles of the mapped curved rectangle satisfy:

 (1) 4∑j=1αj=2π.
###### Proof.

Applying the local Gauss-Bonnet theorem to (see [do Carmo, 1976], chapter 4, page 268), we get

 (2) ∫f(P)KdA+∫∂f(P)κgds + 4∑j=1αj=2π,

where is the Gauss curvature and is the geodesic curvature. Since is a geodesic net, the images of ’s edges under are geodesics, and so on the curves of , hence .
Assume is developable. Then vanishes and , hence .
Assume is not developable. Then there exists a point such that ; assume w.l.o.g. . There is a sufficiently small neighborhood with such that on . Let be an axis-aligned rectangle, then and from (2) we have , contradicting our condition (1). ∎

###### Corollary 5.2 ().

An orthogonal geodesic net , i.e., a geodesic net with , is a developable net.

An isometry of a planar region is an orthogonal geodesic net, as it maps a regular grid in the plane to orthogonal geodesics. Therefore the opposite is also true: every developable net can be parameterized by an orthogonal geodesic net. This is summarized by the following corollary:

###### Corollary 5.3 ().

A smooth surface is developable if and only if it can be locally parameterized by orthogonal geodesics.

We are now ready to discuss discrete geodesic nets and our derivation of an equivalent condition for their orthogonality.

### 5.2. Discrete geodesic nets

As a base for our model we use the following definition:

###### Definition 2 ().

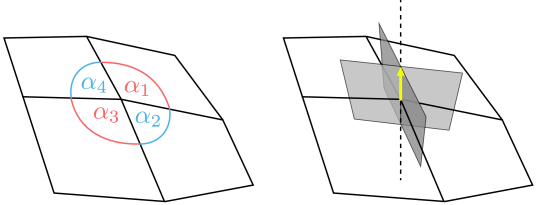

A discrete net is a discrete geodesic net if each two opposing angles made by the edges of a star in the net are equal (see Fig. 9).

This is a modification of a definition set by Wunderlich  in his work discretizing Voss surfaces, which are surfaces parameterized through conjugate geodesics. By [Wunderlich, 1951], a discrete net is a discrete Voss surface if it is a planar quad net that also satisfies the angle condition in Def. 2. We remove the planarity restriction, as we are interested in discretizing geodesics that are not necessarily conjugate.

To obtain an intuition, consider the polylines and as two discrete coordinate curves passing through point . A geodesic curve is “as straight as possible”, dividing the angle deviation from on both sides equally, i.e., for the first curve and for the second, where are the angles around the star of (see Fig. 9). Together, these two conditions are equivalent to and , as in Def. 2. Figure 9. Left: A star in a discrete geodesic net has equal opposing angles. Right: On a geodesic star, the intersection of the osculating planes of the discrete coordinate curves is the surface normal.

We define tangents and normals on discrete geodesic nets through their (discrete) coordinate lines, mimicking the properties of their continuous counterparts. On a smooth geodesic net , let be some point and the coordinate lines through . The curves and are geodesics emanating from at two linearly independent directions . If is regular and non-degenerate at , i.e., , it has a well defined Frenet frame and an osculating plane spanned by . Since has zero geodesic curvature, its curvature is equal to the normal curvature of the surface, which implies that the curve’s normal is in fact parallel to the surface normal at : (where ). If also has non-vanishing first and second derivatives, the surface normal is parallel to the intersection line between the two osculating planes . We can find a natural discrete model for those quantities for a discrete geodesic net .

Let be a vertex on a discrete geodesic net, and let be discrete geodesic curves through and , respectively. We say that the curve is non-degenerate if the three points are not collinear. In that case, we can define the osculating plane and Frenet frame:

###### Definition 3 ().

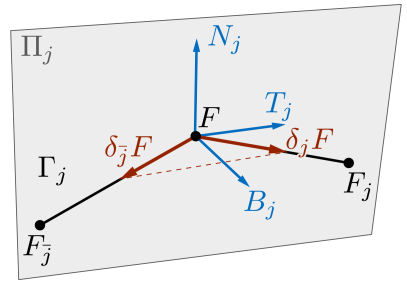

The osculating plane   of a non-degenerate discrete curve   through vertices is the plane passing through these three points. The Frenet frame of   at is denoted by  , where

See Fig. 10 for an illustration. Note that are well defined also when are collinear, and are never zero as our net is assumed to be a discrete immersion. Figure 10. A discrete coordinate curve Γj at F (in black), its osculating plane Πj spanned by the edges of Γj, the Frenet frame (in blue): tangent Tj, normal Nj and binormal Bj. The dashed red vector is δjF−δ¯jF.
###### Definition 4 ().

The discrete Gauss map of a geodesic net is

 N=T1×T2∥T1×T2∥,

where are defined as above.

Just as in the continuous case, the principle normals of discrete geodesic curves and the surface normal agree, as shown by the following lemma:

###### Lemma 5.4 ().

Let be two non-degenerate discrete curves around a vertex of a discrete geodesic net and their discrete Frenet frames. Then and the discrete surface normal (see Def. 4) are all parallel and lie on the intersection of the osculating planes and .

###### Proof.

By construction, , and by direct computation using the opposite angles condition (Def. 2) we have . Therefore . Similar computation shows and therefore . ∎

Note that is the angle bisector of both discrete curves meeting at , see Fig. 9.

### 5.3. Discrete developable geodesic net

Using the tangents defined above, we are now ready to define discrete developable surfaces through nets of orthogonal geodesics:

###### Definition 5 ().

A discrete orthogonal geodesic net is a discrete geodesic net where at every star, the discrete tangents of the two discrete coordinate curves are orthogonal: . Such a net is a discrete developable surface in orthogonal geodesic parameterization.

This definition obviously reflects the smooth case, where an existence of an orthogonal geodesic net on a surface is equivalent to developablity (Cor. 5.3). The following theorem provides useful interpretations of our net and helps to see why this definition is equivalent to Def. 1 (see also Fig. 11). Figure 11. These three conditions on a geodesic star are equivalent: the two osculating planes are perpendicular to each other (left), the projection of the star’s edges onto the tangent plane forms an orthogonal cross (middle), all angles around the star are equal (right). Figure 12. Developable surfaces created using our vertex-handle based editing system. These examples were designed by deforming a flat sheet.
###### Theorem 5.5 ().

Assume a star has equal opposing angles, i.e., it fulfills the angles condition for discrete geodesic nets (Def. 2). Then the following conditions are equivalent:

1. The discrete tangents of the coordinate curves are orthogonal: .

2. The edges of the star form a right-angle cross when projected into the discrete tangent plane, which is the plane orthogonal to the discrete normal .

3. All angles between consecutive edges of the star are equal.

###### Proof.

By Lemma 5.4, is a bisector of the unit-length vectors , as well of the unit-length vectors . Adding the formulas for from Def. 3 we have

 δ1F+δ¯1F =~aN, δ2F+δ¯2F =~cN, δ1F−δ¯1F =~bT1, δ2F−δ¯2F =~dT2,

for some . By adding/subtracting the respective equations of the second row to/from the first row, we can write the star’s edge directions as

 δ1F =aN+bT1, δ2F =cN+dT2, δ¯1F =aN−bT1, δ¯2F =cN−dT2,

for some .
(1)(2) Projection to the tangent plane is equivalent to removing the normal component from each vector, hence the direction vectors of the projected star edges are and the claim follows.
(3)(1) As we assume opposing angles in the star are equal, (3), which is equivalent to for a non-degenerate star. ∎

Note that the third condition (all angles in the star are equal) subsumes the condition for a discrete geodesic net (Def. 2) and conveniently encapsulates discrete orthogonal geodesic nets, as we expressed in Def. 1.

## 6. Modeling deformations of discrete developable surfaces

Our definition of discrete developable surfaces (Def. 1) is simple and local, such that it can be easily used in applications. We demonstrate this in an interactive editing system for discrete developable surfaces. Starting from a given discrete orthogonal geodesic net , e.g., an orthogonal planar grid or a cylinder, the user can fix and move vertices around, as well as glue together or sever vertices. The latter is permitted only in case the operation keeps the mesh a (not necessarily oriented) manifold. We denote the set of vertices manipulated by the user (the handles) by . Whenever the user moves the handle vertices, the system computes a result from the space of discrete orthogonal geodesic nets, which is as close as possible to the prescribed handle positions. We analyze this shape space in Sec. 8. To choose a good, or intuitive solution, our optimization includes isometry and smoothness regularizers, as well as constraints for boundary vertices.

### 6.1. Orthogonal geodesic constraints

Def. 1 gives us the feasible shape space through a set of constraints on each inner vertex of and a generalization for boundary vertices. We constrain every vertex to have all its corner angles equal. Let be the set of edges originating at a vertex , ordered such that consecutive edges share a quad. Then the condition is equivalent to:

 (3) ⟨ej,ej+1⟩∥ej+2∥−⟨ej+1,ej+2⟩∥ej∥=0.

In case of a corner boundary vertex with only two incident edges and and one angle, we constrain the angle to remain as in the reference shape:

 (4) ⟨e1,e2⟩∥e1∥∥e2∥−arccos(α)=0,

where in . We denote the constraints (3), (4) as where enumerates all the inner and boundary vertices and their relevant incident edges.

### 6.2. Smoothness and isometry regularizers

The constraints above do not encode smoothness or isometry, and simply projecting a given initial guess onto the feasible space might lead to unintuitive results. To generate smooth and aesthetically pleasing deformations, we seek a feasible solution that minimizes a deformation energy . We employ a simple smoothness term, namely the Laplacian energy of the displacement w.r.t. the current state of the shape, or the current “frame”, :

 (5) Esmooth(F)=∥∥L(F)−L(Fk)∥∥2,

where we use the simple uniform Laplacian . The second energy term encourages maintaining isometry of the boundary, intuitively helping to control the scaling of the deformation:

 (6) Eiso(F)=∑ej∈∂F(∥ej∥−lj)2,

where is the set of boundary edges of , and ’s are the edge lengths in

. Finally, we add the positions of the handle vertices as soft constraints, since the user is likely to manipulate the handles in ways that are at odds with the developability constraints. The overall deformation energy is therefore

 (7) E(F)=Esmooth+wisoEiso(F)+wpos∑v∈H∥v−vc∥2,

where are the handle positions prescribed by the user and , are scalar weights.

### 6.3. Optimization

In each frame, we solve the following optimization problem:

 (8) argminF E(F) subject to ci(F)=0,  i=1,…,m.

We use the quadratic penalty method [Nocedal and Wright, 2006], which converts the above constrained minimization to a series of unconstrained problems of the form

 (9) argminFwE(F)+∑ici(F)2.

The above is iterated starting with and halving the weight in each subsequent iteration, until the constraints are satisfied numerically, i.e. . The minimizations (9) are solved using using L-BFGS [Nocedal, 1980], where we use ARAP [Sorkine and Alexa, 2007] with the given positional constraints to get an initial guess. The figures in this paper and the accompanying video were generated with the parameters , and the input mesh was first scaled to have an average edge length of . Figure 13. An example of developable shapes with nontrivial topology, created in our interactive editing system (rendering done offline). Inspired by Frank Gehry’s design of the Lou Ruvo Center for Brain Health (lower right). The texture coordinates for our model are simply obtained from the vertex coordinates of a planar rectangular grid with the same boundary edge lengths.

### 6.4. Results

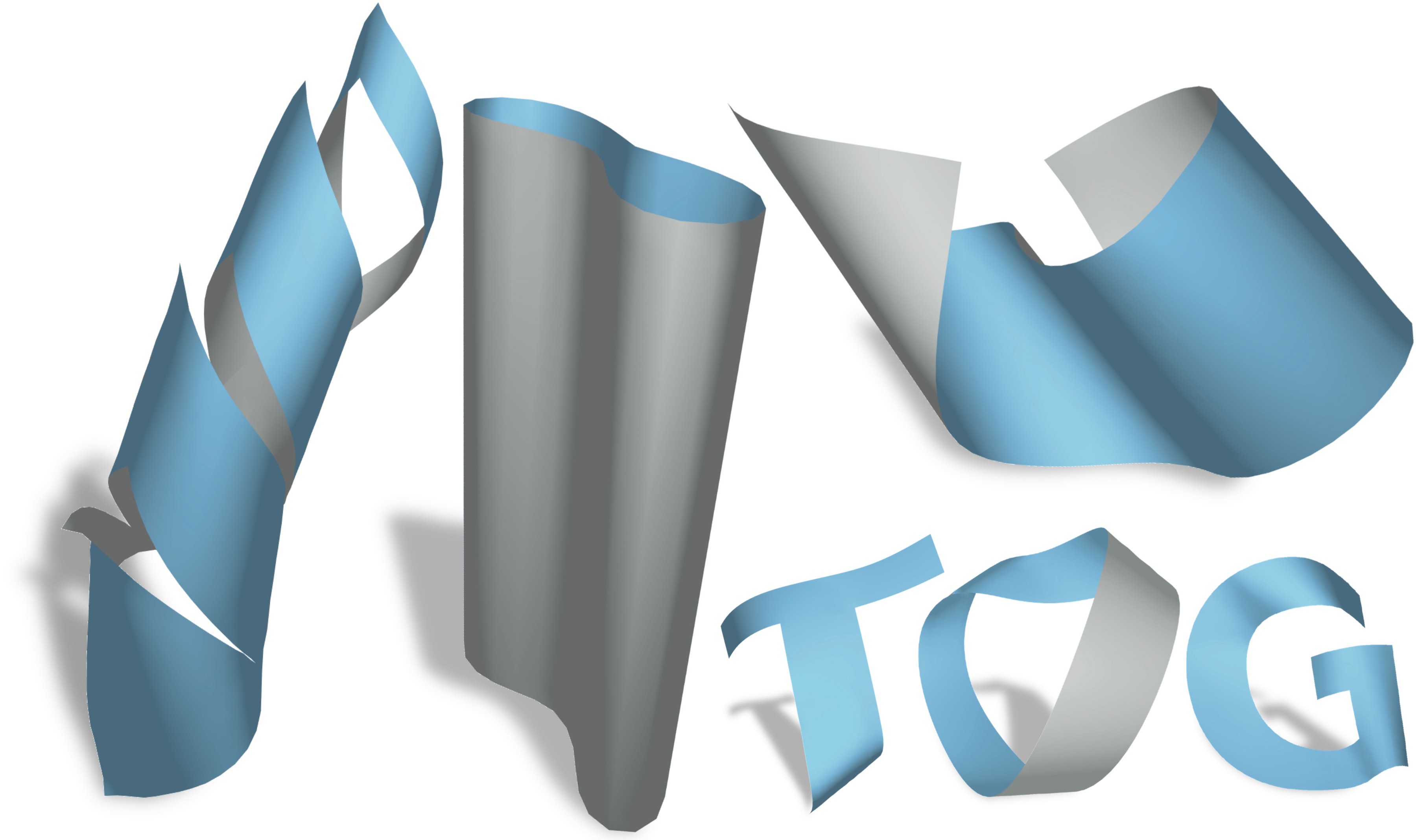

We implemented our editing system on a 3.4 GHz Intel Core i7 machine, on which our single threaded implementation can handle around 1000 vertices interactively. The results in Fig. 12 demonstrate a variety of rolled, paper-like shapes similar to the results of [Solomon et al., 2012], but made with a more intuitive, vertex-handle based editing system (see also the accompanying video). Our system can seamlessly handle surfaces with nontrivial topology, as well as non-orientable surfaces, as shown in Figs. 1, 2, 13.

Similarly to other nets in DDG, e.g., discrete -surfaces, the geometric information of our net is only the vertex positions. Edges should not be seen as part of the surface, and the non-planarity of the quads in our model implies that we can only render and fabricate our surfaces by arbitrarily triangulating them. Note that this would also be the case for a dense sampling of a general smooth orthogonal geodesic net, which approximates our model, as shown later in Sec. 8.1. Nevertheless, we demonstrate in Fig. 14 that our discrete model could be used for fabrication purposes. Figure 14. Validation by fabrication. We 3D-printed a “sandwich” (top row) whose inner cut surface is the result of deforming a flat square using ARAP (left column) and our editing system for discrete developable surfaces (right column) using the same (soft) positional constraints. We cut two squares out of a thin copper sheet with the dimensions of the initial model before deformation, and we sandwiched these squares in the fabricated pieces (second row). Not surprisingly, since the ARAP result is not developable, the sheet wrinkles and buckles (bottom left), while our result exhibits pure bending (bottom right). Note that our result is smooth everywhere except at the boundary, where a cone-like kink is created in the digital model to remedy the doubly curved ARAP surface.

## 7. Normals and rulings

We continue investigating our discrete developable surface model by looking at the Gauss map and a simple local definition of the rulings. Although our model does not explicitly enforce any properties of these two objects, we empirically see that their behavior corresponds well to the expected properties of a developable surface.

### 7.1. One-dimensional Gauss map

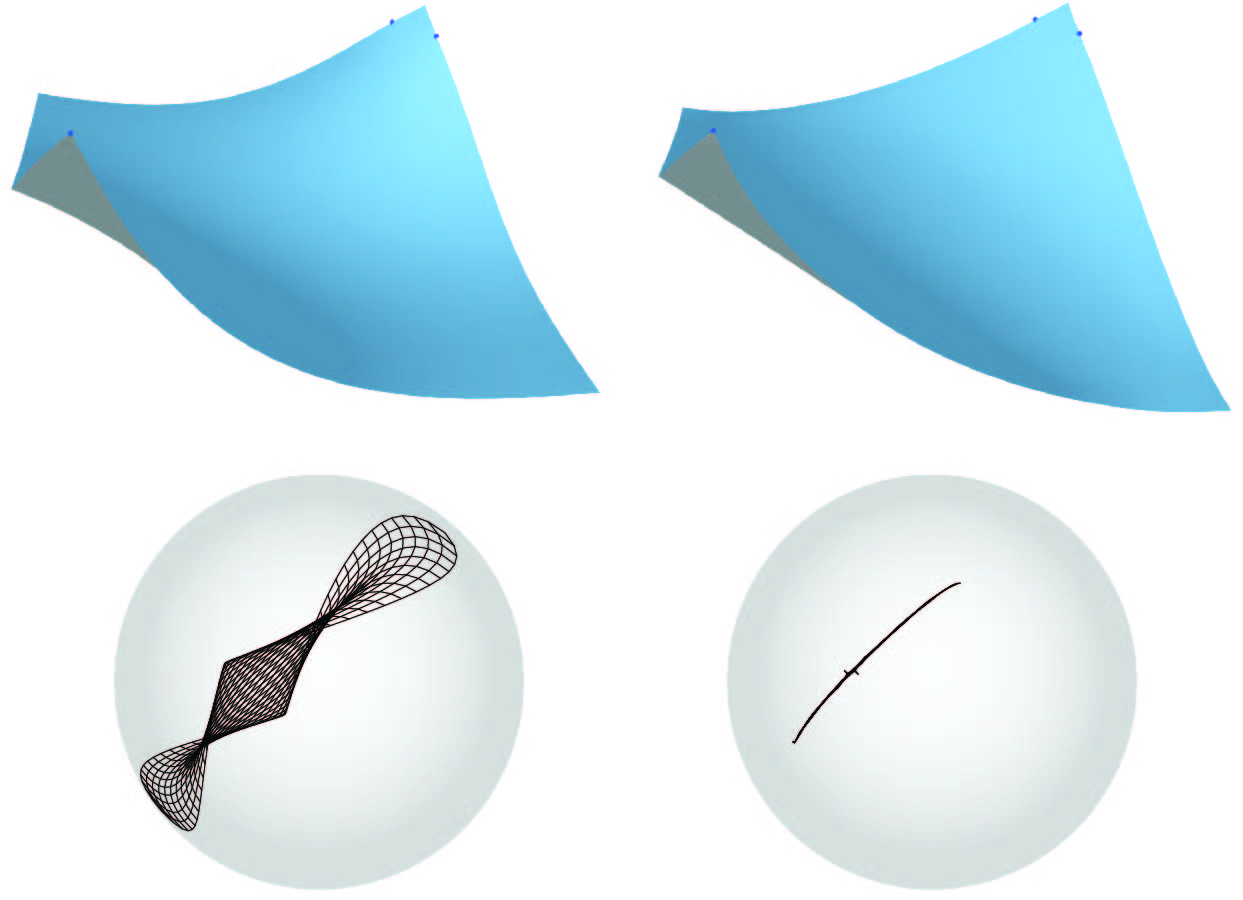

In the continuous case, a smooth developable surface has vanishing Gaussian curvature. Since it corresponds to the area of the Gauss map, it means that the normal map of is one-dimensional [do Carmo, 1976]. Def. 4 supplies us with a discrete per-vertex normal on a discrete geodesic net , and we can view the collection of all vertex normals with the connectivity of as a discrete net . We show in Fig. 15 and the supplementary video that editing with our system results in a discrete Gauss map that is approximately one-dimensional. Figure 15. Left: The result of moving the lower left corner of a planar mesh towards the upper right corner using ARAP deformation [Sorkine and Alexa, 2007]. Right: the same positional constraints are employed in our developable surface deformation system (Sec. 6), using the result of ARAP on the left as the initial guess. In this case the soft positional constraints are satisfied up to high precision. Below each net we display the image of its Gauss map N (which in this case is virtually indistinguishable from the standard vertex-based normals of a triangle mesh obtained by triangulating the quad net). Note that our Gauss map tends to be one-dimensional.

### 7.2. Vertex based rulings

Intuitively, rulings are line segments on a surface generated by the intersection of infinitesimally close tangent planes. As mentioned above, the Gauss map of a smooth developable net has a one-dimensional image, or, equivalently, parallel partial derivatives: . There is a unique ruling emanating from every non-planar on the surface in a direction that is orthogonal to . The ruling is a curvature line, hence it is also orthogonal to the other principal direction [do Carmo, 1976]. Therefore, if w.l.o.g. , then . This holds even if one of the terms vanishes. This can be readily discretized:

###### Definition 6 ().

The direction of a discrete ruling, emanating from a point of a discrete geodesic developable net is

 R=N×(Nx+Ny),

where and , oriented such that .

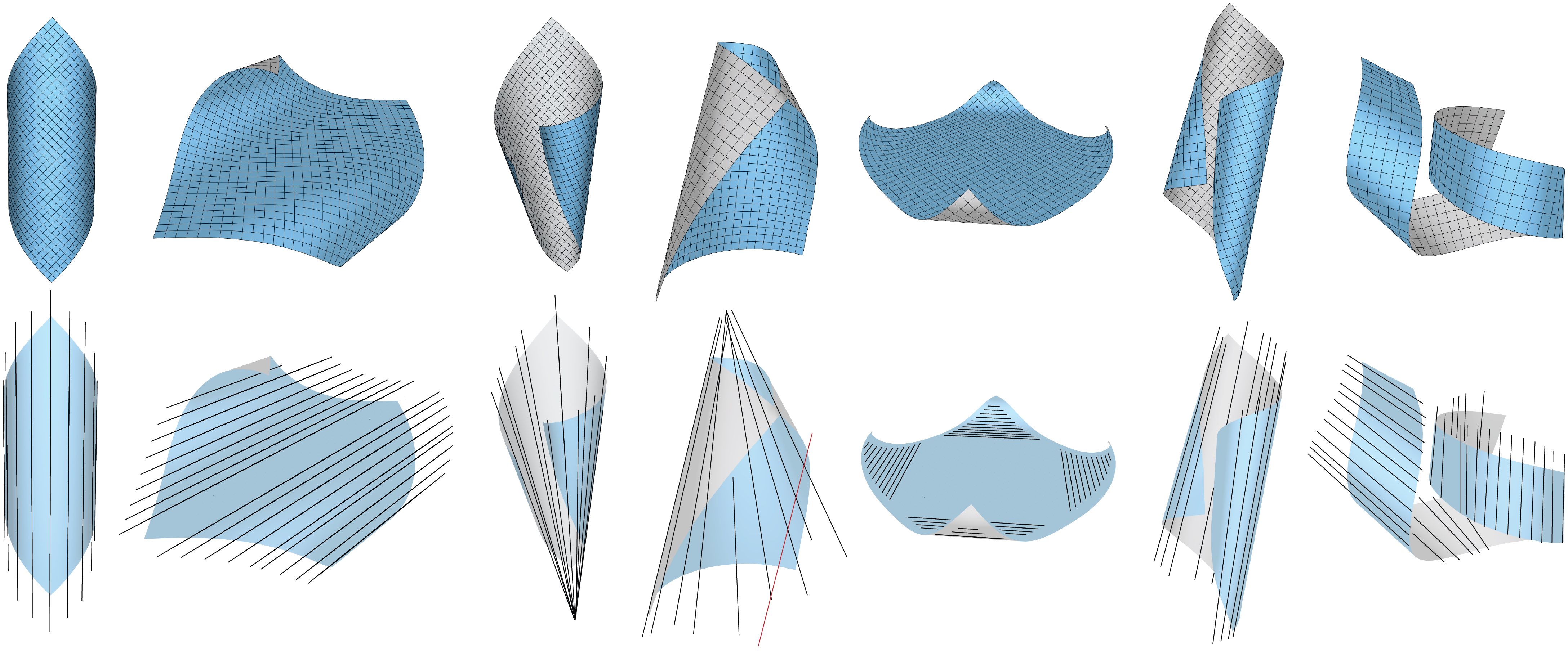

Def. 6 is entirely local, however in practice the discrete rulings tend to fit the surface globally, see Fig. 17. Note that the definition above is only valid at inner vertices with all neighbors being inner vertices as well, such that are defined. Unlike in the continuous case, and are not necessarily parallel.

## 8. Analysis and parallels with the smooth model

In this section we further study discrete geodesic nets, drawing parallels between the discrete and continuous cases. We analyze the variety of shapes that can be modeled by discrete orthogonal geodesic nets given in Def. 1. Loosely speaking, a good discrete developable model should be sufficiently flexible to approximate every smooth developable surface, which we show by the Taylor expansion analysis in Sec. 8.1. The model should also be sufficiently restrictive, or rigid, to avoid unreasonable shapes. To that end, in Sec. 8.2 we show that our discrete orthogonal geodesic nets share a similar rigid behavior with a smooth developable surface. In Sec. 8.3 we prove a discrete analogue for a simple theorem connecting curvature line nets, geodesic nets and orthogonal geodesic nets. Figure 16. A series of samplings of a smooth orthogonal geodesic net f with increasing sampling density. By Theorem 8.1, the stars of these discrete nets have equal angles up to second order, hence a discrete orthogonal geodesic net F can also be viewed as an approximate sampling of a smooth orthogonal geodesic net f. Figure 17. Discrete developable geodesic nets and their vertex based rulings. From left to right: Two cylinders, two cones, a planar region connected to four cylinders, two tangent developable surfaces. Remarkably, the rulings tend to fit the shapes globally, despite their entirely local definition (Def. 6). They are, however, less stable around planar regions due to the calculation of Nx,Ny (see the red ruling in the center). We visualize the rulings sparsely for clarity. See the accompanying video for a three dimensional view.

### 8.1. Approximation of an analytical, smooth orthogonal geodesic net

Let be an arbitrary analytical smooth net and a point on the surface. Imagine sampling points around to generate a discrete star. We show that this star is a discrete orthogonal geodesic star as in Def. 1 up to second order if and only if is an orthogonal geodesic net (Fig. 16).

Let and let .

From here on, we refer to this set of points as an -star of the net around the point (see inset). The unit-length directions of the star edges are denoted as .

By Def. 1, an -star is a discrete orthogonal geodesic star if all its angles are equal, i.e., if

 (10) ⟨δjf(ϵ), δj+1f(ϵ)⟩−⟨δj+1f(ϵ),δj+2f(ϵ)⟩=0,

where we use the notation and to enumerate all incident edges. We show that our discretization is indeed loyal to the smooth case in the following theorem.

###### Theorem 8.1 ().

Equal angles on -stars.

1. An analytic net is an orthogonal net, meaning , if and only if all its -stars are discrete orthogonal geodesic stars up to first order, i.e.,

2. An analytic net is an orthogonal geodesic net if and only if all its -stars are discrete orthogonal geodesic stars up to second order, i.e.,

The proof is detailed in Appendix A.

### 8.2. Rigidity through developable surface extension

Applying a deformation on a smooth developable surface locally generally dictates its shape globally. One way to see this is by looking at the rulings: on a smooth developable surface, the rulings are global, in the sense that they either extend infinitely, or their endpoints must hit the boundaries of the surface [Spivak, 1999]. Flipping this point of view, one can ask how to extend a developable surface at its boundary: the possibilities are generally quite limited, since the points along the rulings are uniquely determined (see Fig. 17). Note that arbitrarily extending rulings often results in singularities. Our discrete model shares a similar rigid structure, as shown in the following.

#### 8.2.1. Extension of a discrete orthogonal geodesic net

Assume we have a vertex in our discrete net, as well as some neighboring vertices to its left (or right) and bottom (Fig. 18, right). The position of the top neighbor is then generally uniquely determined, as shown by the following two lemmas. Therefore, a given discrete orthogonal net can generally be extended at its boundary by setting only a small number of parameters, as illustrated in Fig. 19. The process is analogue to the smooth case explained above, but it is not based on rulings.

###### Lemma 8.2 ().

(Direction propagation). Given a vertex and three neighbors such that the discrete curve through is non-degenerate. Then there is a unique direction such that is an orthogonal geodesic star (where lies on the ray through ; see Fig. 18).

###### Proof.

By Theorem 5.5, the vector must be in the direction of the reflection of w.r.t. the plane spanned by . ∎

In the case where is a straight line, there is a family of solutions consisting of all vectors that are orthogonal to . Figure 18. Left: By Lemma 8.2 the direction δ2F is the reflection of δ¯2F w.r.t. the plane Π1. Right: By Lemma 8.3, the same direction δ2F intersects a cone C with the apex at F¯12, determining the position of the point F2. Figure 19. Extension of a discrete orthogonal net. Given a choice of two parameters: edge length l and one angle α, the row propagates by Lemmas 8.2 and 8.3.

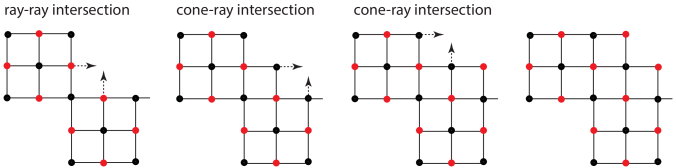

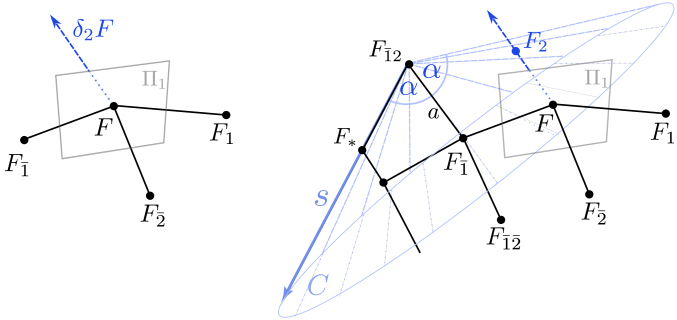

###### Lemma 8.3 ().

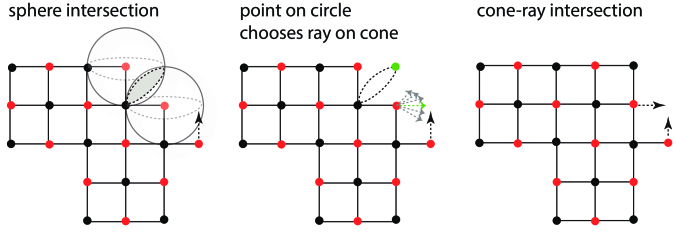

(Cone-ray intersection). Given a vertex in an orthogonal geodesic net that has at least all the neighboring vertices denoted in Fig. 18 (right side). Let be the cone or plane generated by revolving the ray emanating from through about the axis (see Fig. 18). Then, the vertex has to lie on the intersection of and a line emanating from (Fig. 18).

###### Proof.

By Def. 1, the angle between the net edges and must be equal to the angle between and , and so must lie on . ∎

Given the construction for above, we see that, speaking informally, extending a discrete orthogonal geodesic net by one vertex at its boundary is a determined process if we already have neighbors below and to the left or to the right. The only degrees of freedom are available when one begins adding a new row to the grid, without yet having neighbors on the left or right but only below, see Fig. 19. Assuming general position, we first use Lemma 8.2 to compute the directions of the new net edges that point upwards. We can then select the length of the first new edge, effectively setting a vertex of the new row, as well as the cone half-angle for the first cone of the new row. Then, the remaining vertices of the row are determined using Lemma 8.3, as illustrated in Fig. 18 and Fig. 19.

### 8.3. Relation to curvature line nets

Here we prove a discrete version of the following simple theorem and connect discrete geodesic nets, conical nets and discrete orthogonal geodesic nets.

###### Theorem 8.4 ().

A smooth geodesic net that is also a curvature line net is an orthogonal geodesic net, and therefore a parameterization of a developable surface.

###### Proof.

If is a curvature line net then and are orthogonal, hence by Cor. 5.2 is developable. ∎

Conical meshes [Liu et al., 2006] are known to be a discrete analogue of curvature line nets. An inner vertex is conical if all the four oriented face planes meeting at are tangent to a common oriented cone of revolution, and a mesh is conical if its quads are planar and all of its inner vertices are conical.

###### Theorem 8.5 ().

A discrete geodesic net that is also a conical net is a discrete orthogonal geodesic net.

###### Proof.

Using the notation of Fig. 9, a net is conical if and only if its quads are planar and every inner vertex satisfies the angle balance [Wang et al., 2007]. Since the net is also a discrete geodesic net, and and therefore , as in Def. 1. ∎

Note that both in the discrete and the smooth case, a (discrete) orthogonal geodesic net that is also a (discrete) conjugate net has planar coordinate curves.

## 9. Discrete Isometry

So far we have defined a model for discrete developable surfaces, but we have not touched upon the subject of their discrete isometries. Our net can describe a variety of surfaces with different scales, shapes and lengths (see inset for two orthogonal geodesic nets with the same connectivity). Though our editing system uses smoothness and isometry regularizers, which generally prevents large stretch in deformations, in this section we are looking for a definition of discrete isometry that specifies when two nets are “the same” in a precise manner. Two smooth surfaces are said to be isometric, denoted , if there exists an isometry map , i.e., a bijective map that preserves distances on the surfaces, or equivalently the lengths of all geodesics. Figure 20. An application of Lemma 9.1: A developable surface with disc topology and piecewise geodesic boundary with π2-corners is isometric to a flat rectangular shape on the plane. Two such surfaces with equal lengths of the boundary pieces are isometric, as their flattened shapes are isometric. Figure 21. Our local isometry model allows us to deform, glue, and cut a surface while maintaining an exact discrete notion of isometry. In this figure we twist a long strip twice, glue it, and then cut it along two horizontal sections, creating three interleaved knotted surfaces.

### 9.1. Global isometry for disc topology nets

In the special case of two developable surfaces with disc topology, one can test whether they are isometric by looking at their boundaries, as justified by the following lemma.

###### Lemma 9.1 ().

Let and be two smooth developable surfaces with disc topology and equal-length boundaries. Let be their closed boundary curves in arc length parameterization and the geodesic curvatures of these curves on and , respectively. Then .

###### Proof.

See Appendix B. ∎

This lemma can be extended to the case of piecewise geodesic boundary, where the lengths of matching boundary pieces on the two surfaces are equal and the angles of the turns (or “corners”) match as well, see Fig. 20. This is simple to discretize: two discrete developable nets and with disc topology and piecewise geodesic boundaries can be considered isometric if each matching pair of boundary pieces have equal lengths and the matching corners’ angles agree.

Such a global definition of isometry cannot be easily generalized to non-disc topologies and it does not provide us with the isometry map in the discrete case. One can easily find a situation where two discrete nets with the same connectivity are deemed isometric by the global definition above, but there is no vertex-to-vertex map that we can reasonably call an isometry.

For example, the inset shows a case of two isometric rectangles represented by two different discrete orthogonal geodesic nets, where the discrete mapping that matches corresponding vertices does not preserve any edge lengths. Consequently, a smaller piece of the first surface is not isometric to the corresponding piece of the second surface. In practical terms, this means that the global criterion is too limited for the purposes of isometric shape modeling, and we need a local definition of isometry that tells us when a mapping between two discrete nets is isometric.

### 9.2. A local model for isometry: discrete orthogonal 4Q geodesic nets

A natural attempt to define local isometry is to employ the global definition above to each local neighborhood on a surface. For our discrete nets, the first idea would be to look at the level of each single quad and impose length constraints. Unfortunately, the analysis in Sec. 8.2 implies that we cannot add this many constraints to our net. Fig. 19 depicts how the cone-ray intersection discussed in Sec. 8.2 propagates and determines a whole quad strip, leaving us solely one edge length and one angle per strip as degrees of freedom. We therefore have to expand our notion of local neighborhood on discrete nets and loosen the developable net definition somewhat. We define a new class of nets called 4Q orthogonal geodesic nets, composed of 4Q orthogonal patches, defined as follows:

###### Definition 7 ().

An orthogonal 4Q patch is a composition of four quads (see Fig. 22), such that:

1. [topsep=4pt,itemindent=]

2. Odd vertices have discrete orthogonal geodesic stars (Def. 1);

3. Even vertices have discrete geodesic stars (Def. 2);

4. The lengths of opposing sides (each a sum of two edges) of the 4Q patch are equal. Figure 22. An orthogonal 4Q patch. Odd (black) vertices are discrete orthogonal geodesic vertices, even (red) are discrete geodesic vertices. The lengths of opposing sides of the 4Q patch are equal. An orthogonal 4Q patch is seen as isometric to a rectangle in the plane with the same side lengths.

Conditions (1) and (2) imply that an orthogonal 4Q patch can be seen as discrete developable, since its boundary can be interpreted as a set of four geodesic curves intersecting orthogonally, resulting in a vanishing integrated Gaussian curvature in the interior of the patch. Condition (3) implies that the 4Q patch can be seen as isometric to a rectangle, in the sense of the extension of Lemma 9.1 discussed above. In the same spirit, we can model (global) isometries of the 4Q patch by requiring the conservation of the lengths of its sides.

An orthogonal 4Q geodesic net is a discrete net composed of orthogonal 4Q patches. Two orthogonal 4Q geodesic nets are isometric if there exists a one-to-one correspondence between their 4Q patches, such that for each pair of matching patches, the corresponding side lengths are equal. Modeling isometric deformations on an orthogonal 4Q net amounts to keeping these lengths fixed, enabling us to model isometries on a wide range of surfaces, unconstrained by their topology.

In Appendix C we analyze the rigidity of orthogonal 4Q nets by looking at the construction of a 4Q net from a single strip, similarly to the analysis of orthogonal geodesic nets in Sec. 8.2. We observe that orthogonal 4Q nets have a similar rigid structure, which implies that while these nets do offer us additional degrees of freedom to incorporate local length constraints, they are not too permissive and still reasonably represent the space of developable surfaces. Figure 23. An interpolation sequence of isometric orthogonal 4Q nets. Note that in all cases, the deformations alter the rulings directions and their combinatorial structure. See the accompanying video for the entire sequence.

### 9.3. Optimization

To perform isometric surface deformation on orthogonal 4Q nets, our optimization stays largely similar to Sec. 6.3, with a few minor differences. We constrain the orthogonal geodesic vertices just as in Sec. 6.1 (Eq. (3)). Condition (2) in Def. 7, i.e., equality of opposing angles around an even vertex can be written as

 (11) ⟨ej,ej+1⟩∥ej+2∥∥ej+3∥−⟨ej+2,ej+3⟩∥ej∥∥ej+1∥=0,

where the ’s are the edge vectors emanating from the vertex. We combine the length constraints (3) in Def. 7 with the isometry requirement by constraining the length of each side of each 4Q patch (i.e., the sum of the two respective edge lengths) to retain the same value as in the input orthogonal 4Q net. We thus do not need to include an isometry regularizer as in Sec. 6.3, since our constraints already maintain the lengths of the coordinate curves exactly.

### 9.4. Results

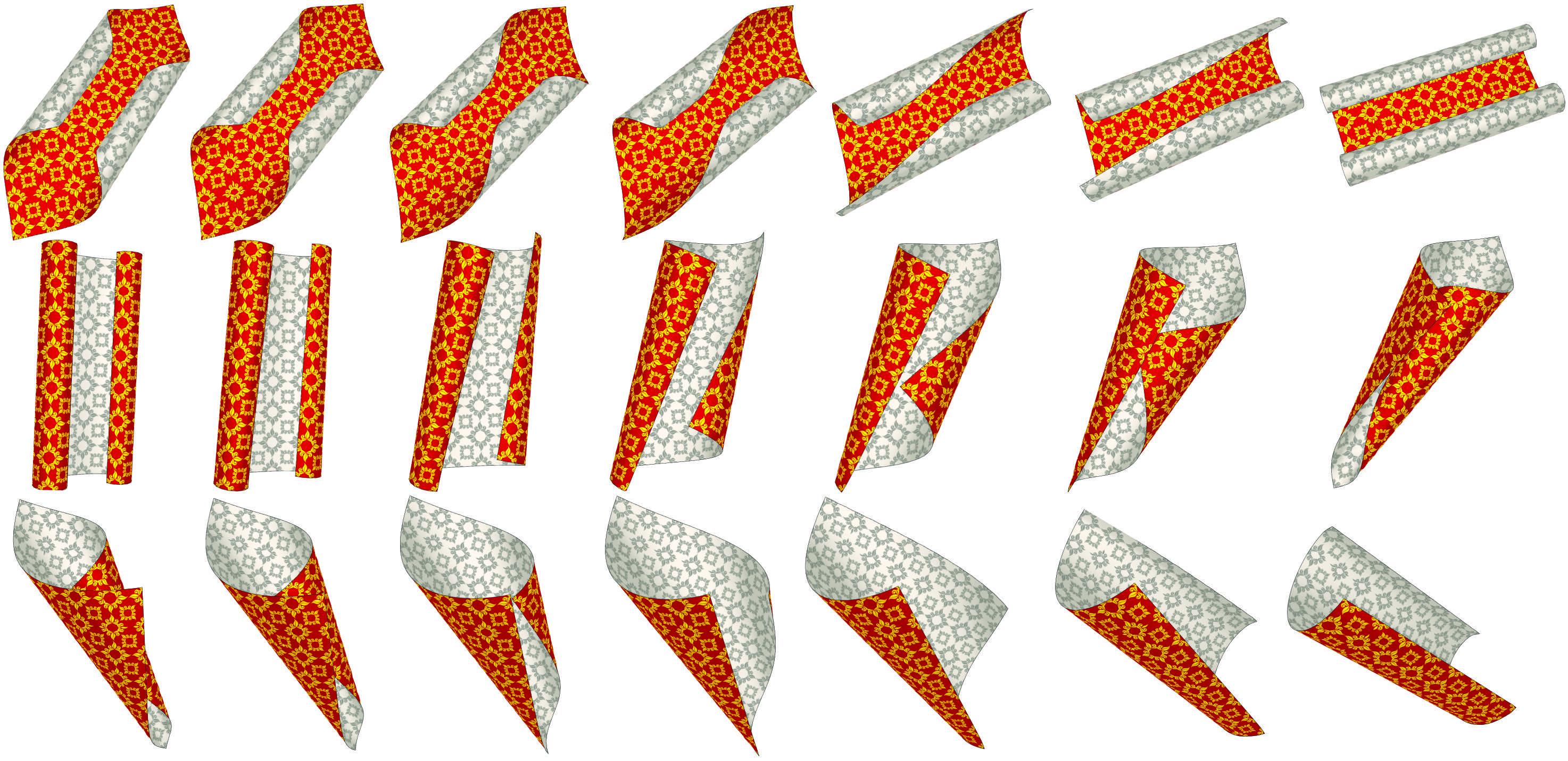

Incorporating the constraints in Sec. 9.3 allows us to isometrically edit orthogonal 4Q nets. We found experimentally that this optimization, which includes angle as well as length constraints, is in practice slower than the optimization in Sec. 6.3, allowing us to interactively edit coarser models of about 600 vertices. Fig. 21 demonstrates an editing operation that includes bending, glueing and cutting of a strip, all done while maintaining the orthogonal 4Q patches isometric to the reference state.

Additionally, our constraints can be used in combination with a shape interpolation algorithm such as [Lipman et al., 2005; Fröhlich and Botsch, 2011]. In Fig. 23 we compute a sequence of isometric shapes, morphing a source shape into an (isometric) target, thereby simulating isometric bending of developable surfaces that generally happens not along their rulings. An initial guess for each interpolation frame is first computed with [Fröhlich and Botsch, 2011], followed by the optimization of (i.e., projection onto) our constraints, as specified in Sec. 9.3.

## 10. Limitations and future work

This paper is a first step towards a discrete theory for modeling developable surface deformations through orthogonal geodesics. As such, this work focuses on the geometric model, its connections to the smooth case, and a straightforward integration of the model in existing applications. Various practical as well as theoretical problems remain unanswered, opening new avenues for further research, as detailed below.

Deformation algorithms for discrete developable geodesic nets. Our most notable limitation is speed, as our editing system can only handle interactive editing of nets with ca. 1000 vertices. In this work we used an out-of-the box L-BFGS algorithm, and we leave it as future work to devise a more efficient deformation algorithm. In addition, we believe it would be useful to allow for interactive exploration of our shape space by discretizing various geometric flows, for instance to enable approximation of arbitrary shapes by our discrete developable nets.

Boundary conditions. Our theory mainly concerns the internal vertices of the net, and our boundary constraints derived in Sec. 6.1 can be seen as a generalization of the internal vertex constraints, specifying that the boundary is a piecewise-geodesic curve, i.e., comprised of pieces of straight lines meeting at right angles. Currently, we can circumvent the jagged appearance of our boundaries by applying culling using alpha-textures, as was done for the letter G in Fig. 1 and is further illustrated in Fig. 24. Given that developable surfaces are fairly rigid and the degrees of freedom in extending them at the boundary is quite limited, the culling approach is a reasonable pragmatic solution. Nevertheless, it would be interesting to derive other boundary conditions, allowing us to model curved boundaries with prescribed geodesic curvature using coarser models and represent shapes with curved boundaries by a tighter mesh. Figure 24. Editing a flower and an ’O’ shaped developable surface with curved boundaries. Such boundaries can be approximated up to any precision by an orthogonal geodesic net. In practice however, for the purpose of interactive editing, our grid resolution is limited by our L-BFGS optimization. Our current pragmatic solution to alleviate the jagged boundary appearance is culling using alpha-textures. In the future we plan to explore the discretization of general curved boundary conditions and prescribing geodesic curvature.

Subdivision and refinement operations. The geometry of our model consists solely of the vertex positions, and the quad faces are generally non-planar. Currently we simply arbitrarily triangulate the quad faces for rendering and fabrication purposes. In particular for fabrication applications, it would be interesting to look at refinement operations for our model that adhere to our constraints, as well as the convergence of such refinements to a smooth developable surface.

Discrete geodesic nets. We leave further study of non-orthogonal discrete geodesic nets as future work. These can be beneficial for modeling developable surfaces, as well as deformations and isometries on more general doubly curved surfaces. In particular, we would like to define a discrete Gaussian curvature on these nets through an extension of the derivation in Sec. 5.

Isometry. We are well aware that Sec. 9 is just the tip of the iceberg. In terms of applications, modeling isometries is essential for simulating the bending of physical developable surfaces, and we have not yet experimented with methods to build or bend real life objects. We also did not treat the subject of choosing an optimal interpolation path between two isometric shapes, nor have we devised an interpolation algorithm with smoothness guarantees. We believe that there is much more theory to explore in order to better understand the 4Q geodesic nets.

###### Acknowledgements.
The authors would like to thank Noam Aigerman, Mario Botsch, Oliver Glauser, Roi Poranne, Katja Wolff, Christian Schüller, Jan Wezel and Hantao Zhao for illuminating discussions and help with results production. The work was supported in part by the Sponsor European Research Council Rlhttps://erc.europa.eu/ under Grant No.: Grant #3 (ERC Starting Grant iModel) and by the Deutsche Forschungsgemeinschaft-Collaborative Research Center, TRR 109, ”Discretization in Geometry and Dynamics.”

## References

•
• Bishop  Richard L Bishop. 1975. There is more than one way to frame a curve. The American Mathematical Monthly 82, 3 (1975), 246–251.
• Bo and Wang  Pengbo Bo and Wenping Wang. 2007. Geodesic-Controlled Developable Surfaces for Modeling Paper Bending. Comput. Graph. Forum 26, 3 (2007), 365–374.
• Bobenko and Pinkall  Alexander Bobenko and Ulrich Pinkall. 1996. Discrete surfaces with constant negative Gaussian curvature and the Hirota equation. J. Differential Geom. 43, 3 (1996), 527–611.
• Bobenko et al.  Alexander I Bobenko, Tim Hoffmann, and Boris A Springborn. 2006. Minimal surfaces from circle patterns: Geometry from combinatorics. Annals of Mathematics 164, 1 (2006), 231–264.
• Bobenko and Suris  Alexander I. Bobenko and Yuri B. Suris. 2008. Discrete differential geometry: integrable structure. Graduate studies in mathematics, Vol. 98. American Mathematical Society, Providence (R.I.).
• Bobenko and Suris  Alexander I Bobenko and Yuri B Suris. 2009. Discrete Koenigs nets and discrete isothermic surfaces. International Mathematics Research Notices 2009, 11 (2009), 1976–2012.
• Burgoon et al.  Rob Burgoon, Zoë J Wood, and Eitan Grinspun. 2006. Discrete shells origami. In 21st International Conference on Computers and their Applications (CATA 2006) Proceedings.
• Chen et al.  H.-Y. Chen, I.-K. Lee, S. Leopoldseder, H. Pottmann, T. Randrup, and J. Wallner. 1999. On Surface Approximation Using Developable Surfaces. Graphical Models and Image Processing 61, 2 (1999), 110 – 124.
• Demaine et al.  Erik D Demaine, Martin L Demaine, Vi Hart, Gregory N Price, and Tomohiro Tachi. 2011. (Non) existence of pleated folds: how paper folds between creases. Graphs and Combinatorics 27, 3 (2011), 377–397.
• Demaine and O’Rourke  Erik D. Demaine and Joseph O’Rourke. 2007. Geometric Folding Algorithms: Linkages, Origami, Polyhedra. Cambridge University Press.
• Desbrun et al.  M. Desbrun, E. Grinspun, P. Schröder, and M. Wardetzky. 2005. Discrete differential geometry: An applied introduction. In SIGGRAPH Course Notes, Vol. 1.
• do Carmo  Manfredo P. do Carmo. 1976. Differential Geometry of Curves and Surfaces. Prentice-Hall.
• Frey  William H Frey. 2004. Modeling buckled developable surfaces by triangulation. Computer Aided Design 36, 4 (2004), 299–313.
• Fröhlich and Botsch  Stefan Fröhlich and Mario Botsch. 2011. Example-Driven Deformations Based on Discrete Shells. Computer Graphics Forum 30, 8 (2011), 2246–2257.
• Graustein  William Caspar Graustein. 1917. On the Geodesics and Geodesic Circles on a Developable Surface. Annals of Mathematics 18, 3 (1917), 132–138.
• Grinspun et al.  Eitan Grinspun, Anil N. Hirani, Mathieu Desbrun, and Peter Schröder. 2003. Discrete Shells. In Proc. ACM SIGGRAPH/Eurographics Symposium on Computer Animation. 62–67.
• Huffman  David A. Huffman. 1976. Curvature and Creases: A Primer on Paper. IEEE Trans. Computers 25, 10 (1976), 1010–1019.
• Kilian et al.  Martin Kilian, Simon Flöry, Zhonggui Chen, Niloy J. Mitra, Alla Sheffer, and Helmut Pottmann. 2008. Curved Folding. ACM Trans. Graph. 27, 3, Article 75 (Aug. 2008), 9 pages.
• Lawrence  Snežana Lawrence. 2011. Developable Surfaces: Their History and Application. Nexus Network Journal 13, 3 (2011), 701–714.
• Lipman et al.  Yaron Lipman, Olga Sorkine, David Levin, and Daniel Cohen-Or. 2005. Linear Rotation-invariant Coordinates for Meshes. In ACM SIGGRAPH 2005 Papers (SIGGRAPH ’05). ACM, New York, NY, USA, 479–487.
• Liu et al.  Yang Liu, Helmut Pottmann, Johannes Wallner, Yong-Liang Yang, and Wenping Wang. 2006. Geometric Modeling with Conical Meshes and Developable Surfaces. ACM Trans. Graph. 25, 3 (2006), 681–689.
• Narain et al.  Rahul Narain, Tobias Pfaff, and James F. O’Brien. 2013. Folding and Crumpling Adaptive Sheets. ACM Transactions on Graphics 32, 4 (July 2013), 51:1–8. Proceedings of ACM SIGGRAPH 2013, Anaheim.
• Nocedal  Jorge Nocedal. 1980. Updating quasi-Newton matrices with limited storage. Mathematics of computation 35, 151 (1980), 773–782.
• Nocedal and Wright  J. Nocedal and S. J. Wright. 2006. Numerical Optimization (2nd ed.). Springer, New York.
• Pérez and Suárez  Francisco Pérez and José Antonio Suárez. 2007. Quasi-developable B-spline surfaces in ship hull design. Computer-Aided Design 39, 10 (2007), 853–862.
• Pottmann and Wallner  Helmut Pottmann and Johannes Wallner. 1999. Approximation algorithms for developable surfaces. Comput. Aided Geom. Des. 16, 6 (1999), 539 – 556.
• Pottmann and Wallner  Helmut Pottmann and Johannes Wallner. 2001. Computational line geometry. Springer, Berlin, Heidelberg, New York.
• Rose et al.  Kenneth Rose, Alla Sheffer, Jamie Wither, Marie-Paule Cani, and Boris Thibert. 2007. Developable Surfaces from Arbitrary Sketched Boundaries. In Proc. Symposium on Geometry Processing. 163–172.
• Sauer  Robert Sauer. 1970. Differenzengeometrie. Springer.
• Schief et al.  Wolfgang K. Schief, Alexander I. Bobenko, and Tim Hoffmann. 2008. On the Integrability of Infinitesimal and Finite Deformations of Polyhedral Surfaces. In Discrete Differential Geometry. Birkhäuser Basel, Basel, 67–93.
• Schreck et al.  Camille Schreck, Damien Rohmer, and Stefanie Hahmann. 2017. Interactive paper tearing. Computer Graphics Forum (Eurographics) 36, 2 (2017), 95–106.
• Schreck et al.  Camille Schreck, Damien Rohmer, Stefanie Hahmann, Marie-Paule Cani, Shuo Jin, Charlie C. L. Wang, and Jean-Francis Bloch. 2015. Nonsmooth Developable Geometry for Interactively Animating Paper Crumpling. ACM Trans. Graph. 35, 1 (2015), 10.
• Shelden  Dennis Robert Shelden. 2002. Digital surface representation and the constructibility of Gehry’s architecture. Ph.D. Dissertation. Massachusetts Institute of Technology.
• Solomon et al.  Justin Solomon, Etienne Vouga, Max Wardetzky, and Eitan Grinspun. 2012. Flexible Developable Surfaces. Comput. Graph. Forum 31, 5 (2012), 1567–1576.
• Sorkine and Alexa  Olga Sorkine and Marc Alexa. 2007. As-Rigid-As-Possible Surface Modeling. In Proceedings of EUROGRAPHICS/ACM SIGGRAPH Symposium on Geometry Processing. 109–116.
• Spivak  Michael Spivak. 1999. A Comprehensive introduction to differential geometry, 1. Publish or Perish, Houston, TX.
• Tachi  Tomohiro Tachi. 2009. Simulation of rigid origami. Origami 4 (2009), 175–187.
• Tang et al.  Chengcheng Tang, Pengbo Bo, Johannes Wallner, and Helmut Pottmann. 2016. Interactive Design of Developable Surfaces. ACM Trans. Graph. 35, 2, Article 12 (Jan. 2016), 12 pages.
• Wang et al.  Wenping Wang, Johannes Wallner, and Yang Liu. 2007. An angle criterion for conical mesh vertices. Journal for Geometry and Graphics 11, 2 (2007), 199–208.
• Wertheim  Margaret Wertheim. 2004. Cones, curves, shells, towers: He made paper jump to life. The New York Times 2, 4 (2004), 5.
• Wunderlich  W. Wunderlich. 1951. Zur Differenzengeometrie der Flächen konstanter negativer Krümmung. Sitzungsber. Österr. Akad. Wiss. 160 (1951), 39–77.

## Appendix A Proof of Theorem 8.1

Assuming is analytic, with the shorthand , we use Taylor expansion to write the nearby points of in the form

 f1(ϵ) =f+ϵfx+ϵ22fxx+o(ϵ3), f¯1(ϵ) =f−ϵfx+ϵ22fxx+o(ϵ3), f2(ϵ) =f+ϵfy+ϵ22fyy+o(ϵ3), f¯2(ϵ) =f−ϵfy+ϵ22fyy+o(ϵ3).

The rest of the proof requires writing the first coefficients of the Taylor expansion of the edge directions . Here we derive the coefficients of , and the other coefficients are analogous. The edge vector can be written as

 f1(ϵ)−f=ϵfx+ϵ22fxx+…

and so can be written as

 δ1f(ϵ)=ϵ(fx+ϵ2fxx+…)∥ϵ(fx+ϵ2fxx+…)∥=fx+ϵ2fxx+…∥fx+ϵ2fxx+…∥.

Let be the Taylor coefficients of , by direct computation:

 a0=δ1f(0)=fx∥fx∥ a1=δ1f′(0)=−⟨fxx,fx⟩2⟨fx,fx⟩3/2fx+12√⟨fx,fx⟩fxx.

Similarly performing this for and plugging the expressions in Eq. (10) gets us

 ⟨δ1f(ϵ),δ2f(ϵ)⟩−⟨δ2f(ϵ),δ¯1f(ϵ)⟩=2⟨fx,fy⟩∥fx∥∥fy∥+o(ϵ)

and by symmetry we get exactly the same for the other angles. Therefore, the angles of an -star are equal up to first order if and only if is an orthogonal (not necessarily geodesic) net. If is orthogonal, then by plugging in we see that:

 ⟨δ1f(ϵ),δ2f(ϵ)⟩=ϵ⟨fx,fyy⟩+⟨fxx,fy⟩2∥fx∥∥fy∥+o(ϵ2) ⟨δ2f(ϵ),δ¯1f(ϵ)⟩=ϵ−⟨fx,fyy⟩+⟨fxx,fy⟩2∥fx∥∥fy∥+o(ϵ2) ⟨δ¯1f(ϵ),δ¯2f(ϵ)⟩=ϵ−⟨fx,fyy⟩−⟨fxx,fy⟩2∥fx∥∥fy∥+o(ϵ2) ⟨δ¯2f(ϵ),δ1f(ϵ)⟩=ϵ⟨fx,fyy⟩−⟨fxx,fy⟩2∥fx∥∥fy∥+o(ϵ2)

Equality of all the linear terms implies and . Together with , this implies that is a geodesic orthogonal net. To see that, let be the principle normal of the coordinate curve and let for some . Then and so . By construction, the principle normal satisfies , which means that the principle normal of the coordinate curve is parallel to the surface normal and so the curve is a geodesic. By a similar calculation, the principle normal of the coordinate curve is parallel to the surface normal.

## Appendix B Proof of Lemma 9.1

Every developable surface is locally isometric to a planar surface. By [Tang et al., 2016], a simply connected developable surface is (globally) isometric to a planar surface. Hence, disc topology developable surfaces are isometric to some planar surfaces . As geodesic curvature is invariant to isometries, the curvatures of the boundary curves of are . By the fundamental theorem of planar curves, the planar boundary curves differ by a rigid motion (meaning that are exactly the same planar shape up to rigid motion) if and only if , hence if and only if . Figure 25. Left: A given 4Q strip. Center: By direction propagation, any vertex with its three neighbors can be generally completed to a geodesic star by a point on a unique ray. Right: The first extension 4Q quad must be such that the horizontal rays emanating from its middle, determined by the direction propagation, intersect the two neighboring vertical rays emanating from the strip, such that valid vertices can be formed at the intersection points.

## Appendix C 4Q net evolution

Analogously to our analysis in Sec. 8.2, we show how orthogonal 4Q net constraints propagate from a given horizontal strip, leaving only a few degrees of freedom, and in practice, for nets representing smooth shapes, almost none. Recall that we denote by black vertices the centers of discrete orthogonal geodesic stars, while red vertices are centers of discrete geodesic stars that are not necessarily orthogonal; opposite sums of edges in every 4Q quad are equal. We start by noting that a vertex and three of its neighbors can be generally completed to a geodesic star by a point located on a unique ray (Fig. 25), and we refer to this as direction propagation; this is analogous to the plane reflection Lemma 8.2 that refers to the special case of orthogonal geodesic stars, and is a direct result of Lemma 5.4. We analyze the most constrained case, where one 4Q quad is already given that extends our horizontal strip. This is similar to the choice of one edge length and angle for discrete orthogonal geodesic nets in Sec. 8.2, but with a few more degrees of freedom (Fig. 25). By direction propagation, this first extension 4Q quad must be such that the two horizontal rays emanating from its middle intersect the two neighboring vertical rays from the strip (Fig. 25), so that valid vertices can be formed at the intersection points.

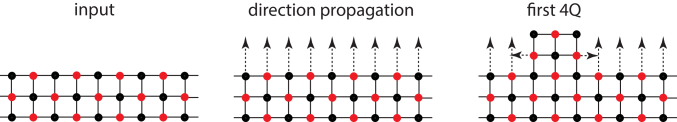

We continue observing how the entire strip propagates by the orthogonal 4Q geodesic net constraints. We refer the reader to Fig. 26, where we note that by the previous constraint on the first extending 4Q quad, two rays intersect at a new vertex. The rest of the figure shows repeated application of Lemma 8.3, a sequence of cone-ray intersections. Note that this lemma is also valid when only one of the vertices is a geodesic, as evident in its proof. Figure 26. A ray-ray intersection and repeated application of Lemma 8.3 determines the location of all but one vertices of a neighboring 4Q quad.

The cone intersection propagation determines all vertices of a neighboring 4Q quad but one. This vertex must fulfill two conditions:

1. The sums of edge lengths of the opposing vertical sides of the 4Q quad are equal;

2. The sums of edge lengths of the opposing horizontal sides of the 4Q quad are equal.

As all edges except one are already determined, this means that the missing vertex should lie in a fixed distance from two different points, or equivalently on an intersection of two spheres (Fig. 27). If the spheres intersect, they either intersect in a point or a circle; in practice for a smooth enough net, this generally results in a circle. Every point on this circle satisfies the length constraint, but does not in general create a direction that intersects with a given vertical direction for the net. The set of all of these directions generates a cone, and so the last 4Q vertex lies on the intersection of this cone with a given vertical ray (see Fig. 27). This process repeats to reveal the entire extension strip, as the next vertex of a neighboring 4Q quad is given by a ray-ray intersection. Figure 27. Left: The upper right corner vertex lies on an intersection of two spheres. Center: These spheres generally intersect in a circle. Every point on this circle determines a unique ray by direction propagation, and all these directions together form a cone. Right: This cone intersects with a given vertical ray, and the upper right corner vertex is a point on a circle that propagates the direction of the intersecting ray on the cone.
