Dimension constraints improve hypothesis testing for large-scale, graph-associated, brain-image data

08/20/2019 ∙ by TIen Vo, et al. ∙ University of Wisconsin-Madison 0

For large-scale testing with graph-associated data, we present an empirical Bayes mixture technique to score local false discovery rates. Compared to empirical Bayes procedures that ignore the graph, the proposed method gains power in settings where non-null cases form connected subgraphs, and it does so by regularizing parameter contrasts between testing units. Simulations also show that GraphMM controls the false discovery rate in a variety of settings. We apply GraphMM to magnetic resonance imaging data from a study of brain changes associated with the onset of Alzheimer's disease.empirical Bayes, graph-respecting partition, GraphMM, image analysis, local false discovery rate, mixture model.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 12

page 20

page 36

page 39

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The development of empirical Bayesian methods for large-scale hypothesis testing addresses important practical challenges to do with identifying distributional changes while controlling the false discovery rate. Often, these methods are applied relatively late in the data-analysis pipeline, after p-values, test statistics, or other summary statistics are computed for each testing unit. Essentially, the analyst performs univariate testing

en masse, with the final unit-specific scores and discoveries dependent upon the choice of empirical Bayesian methodology. Empirical Bayes tools account for the collective properties of the univariate statistics and thereby gain their advantage (e.g., Storey (2003), Efron (2010), Stephens (2017)). These methods may be underpowered in some applied problems when the underlying effects are relatively weak. Motivated by tasks in neuroscience and brain imaging, we describe an empirical-Bayesian approach that operates earlier in the data-analysis pipeline and that leverages regularities achieved through constraining the dimension of the parameter space. Our approach is restricted to data sets in which the variables constitute nodes of a known, undirected graph, which we use to guide regularization. We report simulation and empirical studies with structural magnetic resonance imaging to demonstrate the striking operating characteristics of the new methodology. We conjecture that power is gained for graph-associated data by moving upstream in the data reduction process and by recognizing low complexity parameter states.

The following toy problem illustrates in a highly simplified setting the phenomenon we leverage for improved power. Suppose we have two sampling conditions, and two variables measured each condition, say and in the first condition and and

in the second. We aim to test the null hypothesis that

and have the same expected value; say . Conditional upon target values , and nuisance mean values and

, the four observations are mutually independent, with normal distributions and some constant, known variance

. We further imagine that these four variables are part of a larger system, throughout which the distinct expected values themselves fluctuate, say according to a standard normal distribution. Within this structure, a test of may be based upon the local false discovery rate

where we are mixing discretely over null (with probablity

) and non-null cases. Notice in this setting the across-system variation in expected values may be handled analytically and integrated out; thus in this predictive distribution is the density of a mean 0 normal distribution with variance ; and is the bivariate normal density with margins and with correlation between and . In considering data and on the second variable, it may be useful to suppose that the expected values here are no different from their counterparts on the first variable. We say the variables are blocked if both and , and we consider this a discrete possibility that occurs with probablity throughout the system, independently of . In the absence of blocking there is no information in and that could inform the test of

(considering the independence assumptions). In the presence of blocking, however, data on these second variables are highly relevant. Treating blocking as random variable across the system, we would score

using the local false discovery rate , which requires consideration of a 4-variate normal and joint discrete mixing over the blocking and null states for full evaluation. Fig. 1 shows the result of simulating a system with variable pairs, where the marginal null frequency , , and the blocking rate varies over three possibilities. Shown is the false discovery rate of the list formed by ranking instances by either or . The finding in this toy problem is that power for detecting differences between and increases by accounting for the blocking, since the list of discovered non-null cases by is larger for a given false discovery rate than the list constructed using . In other words, when the dimension of the parameter space is constrained by blocking, more data become relevant to the test of and power increases.

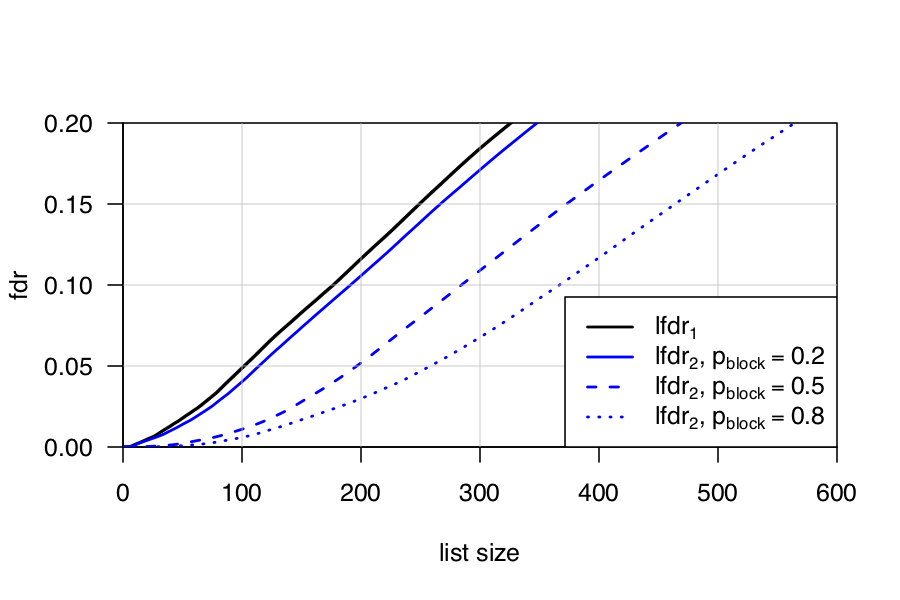

Figure 1: False discovery rate (vertical) as a function of list size (horizontal) for various testing procedures. refers to the procedure to list the unit if the local false discovery rate is sufficiently small (black). Blue lines refer to the operating characteristics when using which is , for various probabilities that the two units share parameters. By accounting for blocking, we benefit through increased yield for a given false-discovery-rate.

Making a practical tool from the blocking observation requires that a number of modeling and computational issues be resolved. Others have recognized the potential, and have designed computationally intensive Bayesian approaches based on Markov chain Monte Carlo (

Do and others (2005), Dahl and Newton (2007), Dahl and others (2008), Kim and others (2009)). We seek simpler methodology that may be more readily adapted in various applications. In many contexts data may be organized at nodes of an undirected graph, which will provide a basis for generalizing the concept of blocking using special graph-respecting partitions. Having replicate observations per group is a basic aspect of the data structure, but we must also account for statistical dependence among variables for effective methodology. In the proposed mixture formulation we avoid the product-partition assumption which entails independencies that greatly simplify computations but at the expense of model validity and robustness; we gain numerical efficiency and avoid Markov chain Monte Carlo through a graph-localization of the mixture computations. The resulting tool we call GraphMM, for graph-based mixture model. It is deployed as a freely available open-source R package available at https://github.com/tienv/GraphMM/. We investigate its properties using a variety of synthetic-data scenarios, and we also apply it to identify statistically significant changes in brain structure associated with the onset of mild cognitive impairment.

2 Methods

2.1 Data structure and inference problem

Let denote a simple, connected, undirected graph with vertex set and edge set , and consider partitions of , such as ; that is, blocks (also called clusters) constitute non-empty disjoint subsets of for which . In the application in Section 3.2, vertices correspond to voxels at which brain-image data are measured, edges connect spatially neighboring voxels, and the partition conveys a dimension-reducing constraint. The framework is quite general and includes, for example, interesting problems from genomics and molecular biology. Recall that for any subset , the induced subgraph , where contains all edges for which and . For use in constraining a parameter space, we introduce the following property: we say that respects , or that is graph-respecting, if for all , the induced graph is connected. Fig.  2 presents a simple illustration.

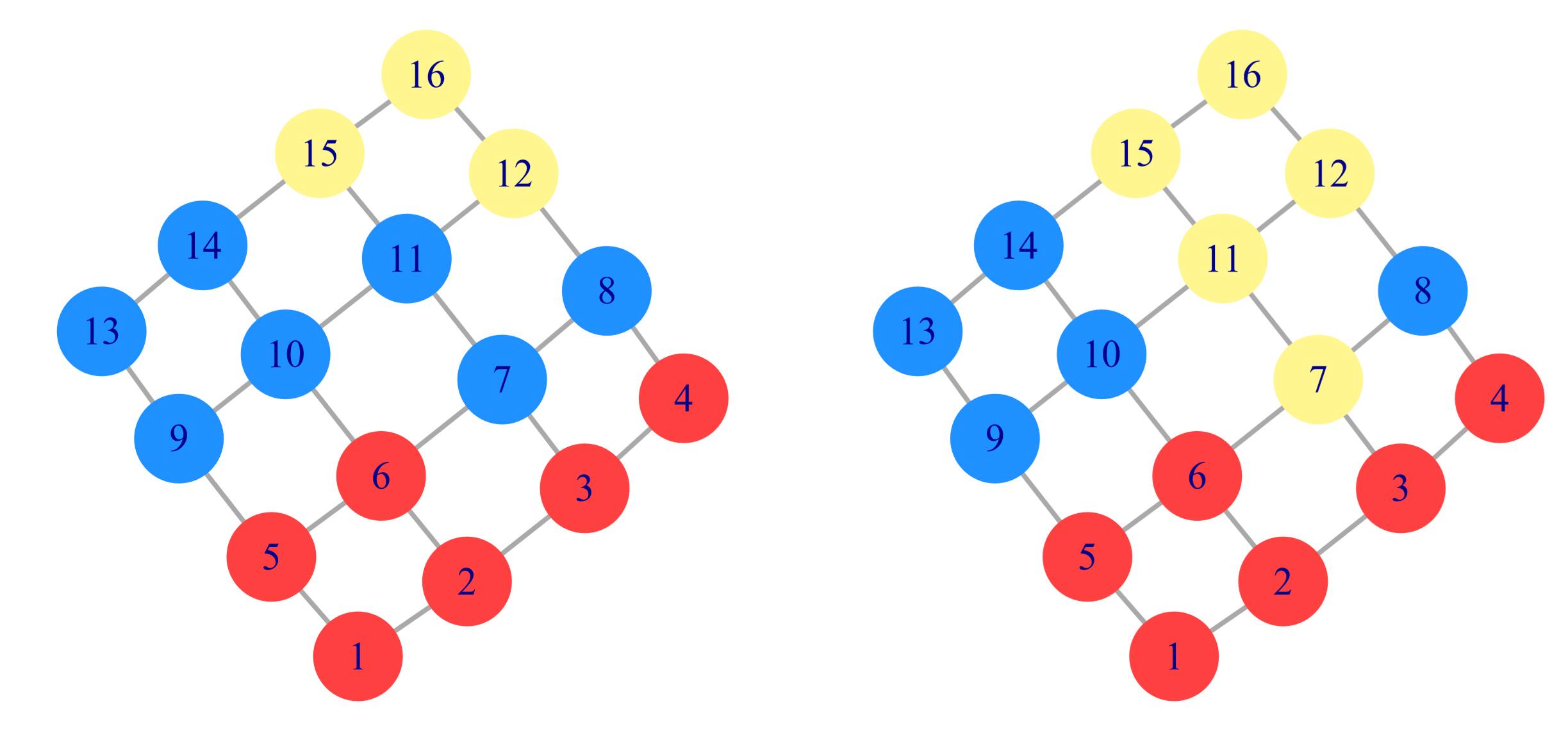

Figure 2: Examples of partitions on a graph. Different colors represent different blocks. The partition on the left is graph-respecting while the one on the right is not (the blue block induces a subgraph with two components).

It happens that any graph-respecting partition may be encoded with a vector of binary edge variables

, say with . Connected vertices in the same block have , and those in different blocks have . For general graphs not every binary edge vector corresponds to a graph-respecting partition, however if is a tree then the graph-respecting partitions are in one-to-one correspondence with length- binary vectors. In case the graph is complete, then the set of possible graph-respecting partitions is the same as the set of all partitions of ; i.e. the graph provides no reduction in the complexity of the set of partitions. It becomes relevant to statistical modeling that the size of the set of graph-respecting partitions, though large, still is substantially smaller than the set of all partitions as the graph itself becomes less complex. For example there are 21147 partitions of objects (the 9th Bell number), but if these 9 objects are are arranged as vertices of a regular lattice graph, then there are only 1434 graph-respecting partitions. In certain modeling settings, such as with Dirchlet-process mixture models, latent partitions allow for modeling parameter heterogeneity. We use the graph-respecting property to regularize the otherwise unwieldy set of such partitions.

In our setting, the graph

serves as a known object that provides structure to a data set being analyzed for the purpose of a two-group comparison. This is in contrast, for example, to graphical-modeling settings where the possibly unknown graph holds the dependency patterns of the joint distribution. We write the two-group data as

and , where , and . Here and denote the numbers of replicate samples in both groups. In Section 3.2, for example, indexes the brain of a normal control subject and indexes the brain of a subject with mild cognitive impairment. For convenience, let and denote the across-graph samples on subjects and , which we treat as identically distributed within group and mutually independent over and owing to the two-group, unpaired experimental design.

Our methodology tests for changes between the two groups in the expected-value vectors: and . Specifically, we aim to test, for any vertex ,

(2.1)

We seek to gain statistical power over contemporary testing procedures by imposing a dimension constraint on the expected values. Although it is not required to be known or even estimated, we suppose there exists a graph-respecting partition

that constrains the expected values:

(2.2)

All vertices in block have a common mean in the first group, say , and a common mean in the second group. The contrast on test, then, is ; together with , the binary vector holding indicators is equivalent to knowing whether or not in (2.1) is true for each vertex . When data are consistent with a partition in which the number of blocks is small compared to the number of vertices , then it may be possible to leverage this reduced parameter-space complexity for the benefit of hypothesis-testing power.

2.2 Graph-based Mixture Model

2.2.1 Discrete mixing.

We adopt an empirical Bayes, mixture-based testing approach, which requires that for each vertex we compute a local false discovery rate:

(2.3)

Our list of discovered (non-null) vertices is for some threshold

. Conditional on the data, the expected rate of type-I errors within

is dominated by the threshold (Efron (2007), Newton and others (2004)). The sum in (2.3) is over the finite set of pairs of partitions and block-change indicator vectors . This set is intractably large for even moderate-sized graphs. We have experimented with Markov-chain Monte Carlo for general graphs, but present here exact computations in the context of very small graphs. Specifically, for each vertex in the original graph we consider a small local subgraph in which is one of the central vertices, and we simply deploy GraphMM on this local graph. Further details are in Supplementary Material.

By summing in (2.3) we perform marginal posterior inference, and thus have a mechanism for borrowing strength among vertices . Of course by Bayes’s rule,

and both the prior mass and the prior predictive density need to be specified to compute inference summaries. Various modeling approaches present themselves. For example, we could reduce data per vertex to a test statistic (e.g., t-statistic) and model the predictive density nonparametrically, as in the R package locFDR (see Efron (2010)

). Alternatively, we could reduce data per vertex less severely, retaining effect estimates and estimated standard errors, as in adaptive shrinkage (

Stephens (2017)

). In either case we would need to retain information about statistical dependencies between vertices; numerical experiments show that badly mis-specifying this dependence leads to inflated false discovery rate. The approach reported here takes an explicit parametric-model formulation for the predictive distribution of data given the discrete state

. This restricts the sampling model to be Gaussian, but allows general covariance among vertices and is not reliant on the product-partition assumption commonly used in partition-based models (Barry and Hartigan (1992)).

In the present work we use a simple specification for ; namely and encodes independent and identically distributed block-specific Bernoulli indicators of a block shift. In numerical experiments we use univarite empirical-Bayes techniques to estimate (Supplementary Material).

2.2.2 Predictive density given discrete structure.

We take a multivariate Gaussian sampling model:

We do not constrain the covariance matrices and , though we place a conjugage inverse Wishart prior distribution on them:

Our predictive densities are conditional on the blocking and change patterns in and ; in general there is no simple conjugate reduction owing to the less-than-full dimension of free parameters in and . On these free parameters we further specify independent Gaussian forms:

Hyperparameters in GraphMM include scalars , , , , df and matrices , , which we estimate from data across the whole graph following the empirical Bayes approach (for details see Supplementary Material).

Model (2.2.2) specifies the joint density . For the purpose of hypothesis testing, we need to marginalize most variables, since is equivalent to and for block in partition

, and local false discovery rates require marginal posterior probabilities. Integrating out inverse Wishart distributions over the covariance matrices is possible analytically. We find:

(2.4)

where

In the above, notation denotes matrix determinant and and are sample means

Note that and are sample covariance matrices of and respectively. We using Laplace approximation to numerically integrate the freely-varying means in order to obtain the marginal predictive density . Our explicit formula is presented in Supplementary Material.

Notably, by not constraining the sample covariance matrices and the GraphMM model does not adopt a product-partition form. In such, the predictive density would factor over blocks in the graph-respecting partition, and this would lead to simpler computations. We found in preliminary numerical experiments that various data sets are not consistent with this simplified dependence pattern, and we therefore propose the general form here. In working on relatively small local graphs the computations remain relatively straightforward in this case.

2.3 Data-driven simulations

Our primary evaluation of GraphMM is through an extensive set of simulations. As we have been motivated by a brain science problem (Section 3.2), we design these simulations to have summary empirical characteristics matching the empirical characteristics of our primary data set (Section 3.2). This data set comes from the Alzheimer’s Disease Neuroimaging Initiative 2 (ADNI-2), and provides a template for the simulation. Briefly, we consider brain MRI data from a group of normal control subjects (group 1) and a second group of subjects suffering from late-stage mild cognitive impairment (late MCI), a precursor to Alzheimer’s disease. The simulation-guiding data involve a single coronal slice with voxels. Fig. 3 illustrates the general framework for all simulation scenarios; further details are in Algorithm 2, Supplementary Material. We use greedy clustering (Collins, 2014) on the empirical mean profiles to generate blocks for the synthetic expected values, and we adjust the empirical covariances by adding diagonal weight to assure invertibility. Three synthetic data sets are simulated in each scenario. The first three scenarios address the issue of block size; the next two investigate the role of the distribution of condition effects. To assess robustness, we also consider parameter settings where partitions are not graph respecting, and condition effects are not uniform over blocks. We also deploy two permutation experiments; the first uses sample label permutation to confirm the control of the false discovery rate, and the second uses voxel permutation to confirm that sensitivity drops when we disrupt the spatially coordiated signal.

Figure 3: Structure of data-driven simulation (Scenarios 1-5): Steps 1-4 make the correlation structure of synthetic data similar to that of MRI data. Steps 5-7 aim to mimic the mean structure and clustering pattern of MRI data. Steps 8-11 simulate data following multivariate normal distribution with specified correlation and mean structure.

When applying GraphMM to each synthetic data set, we estimate hyperparameters for all distributional components and consider discoveries as for various thresholds . We call the controlled FDR the mean , as this is the conditional expected rate of type-1 errors on the list, given data (and computable from data). We know the null status in each synthetic case, and so we also call the empirical FDR to be that rate counting latent null indicators; likewise the true positive rate counts the non-null indicators. We compare GraphMM to several contemporary testing methods, including Benjamini-Hochberg correction (BH adj), Benjamini and Hochberg (1995), local FDR, (locfdr) Efron (2007), and -value (qvalue), Storey (2003)

, that are all applied to voxel-specific t-tests. We also compare results to adaptive shrinkage,

Stephens (2017), both the local FDR statistic (ash_lfdr) and the -value (ash_qval). These methods all work on summaries of voxel-specific tests; summaries may be p-values (for BH and q-value), or t-statistics (for locFDR), or effect estimates and estimated standard errors (for ASH). In any case, none of the methods leverages the graphical nature of the data in the way done by GraphMM.

3 Results

3.1 Operating characteristics of GraphMM

We first do a sanity check to confirm that statistical efficiency gains may arise by regularizing the expected values through the graph-respecting assumption. In a predictive simulation of the lattice, we generate synthetic Gaussian data as follows: expected values are guided by some generative graph-respecting partition (drawn from a prior); block-specific means are realized as i.i.d. Gaussian variables; the 9 data elements in deviate from these means by realizations of i.i.d. Gaussian variables. Each simulated data set is one instance of data when the generative setting is graph-respecting. We take each such simulated data set and work out what two different analysts would surmise about the generative partition. Analyst A knows that the expected values follow some partition structure. Analyst B knows also that the expected values follow a graph-respecting partition. Each analyst computes a posterior distribution, say , over the set of partitions; indeed each posterior distribution is concentrated at some level around the generative partition . A simple measure of the concentration is through the induced distribution on the Adjusted Rand Index, which measures a similarity between two partitions. For any level of similarity, , each analyst has a posterior probability . Figure 4 compares analysts by the average of these posterior similarity distributions over data sets . It reveals that by enforcing regularity on the prior distribution over partitions (i.e., by enforcing the graph-respecting property), we tend to place greater posterior probability mass near the generative partition. In applications where the graph conveys structure of expected values, the graph-respecting assumption may usefully regularize the local FDR computations to benefit sensitivity.

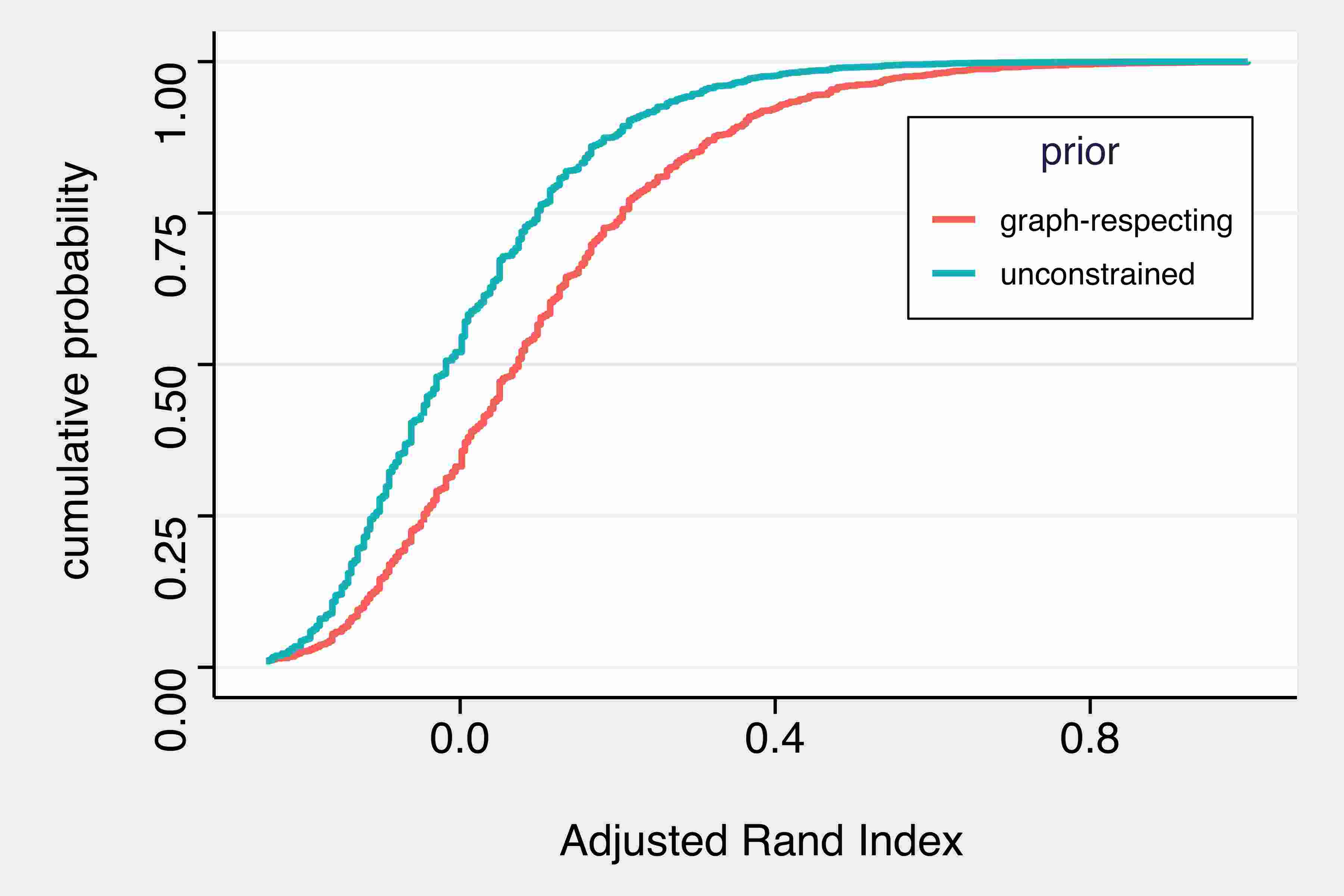

Figure 4: Shown are predictive averages of posterior similarity distributions between the generative mean partition and the posterior distribution over partitions for two analysts. For each similarity value (Adjusted Rand Index), each curve records the predictive average , where OK is the event that the true partition is graph-respecting. One analyst uses a prior that ignores the graph; the other uses a graph-respecting prior. The analyst who has regularized posterior computations tends to place more posterior probability near the generative partition.

Next we address operating characteristics of the GraphMM methodology itself, aiming to find FDR-controlled lists of non-null vertices. Synthetic data sets mimic the structure and empirical characteristics of the brain MRI study data described in Section 3.2. The first three synthetic-data scenarios consider a single MRI brain slice measured on replicates from two conditions, with characteristics approximately matching the characteristics of observed data (Table 2). These scenarios vary the underlying size distribution of blocks, but follow the GraphMM model in having graph-respecting partitions of the underlying signal, block-level shifts between conditions, and multivariate Gaussian errors. The left panel of Figure 5 shows that all methods on test are able to control the false discovery rate. All methods display sensitivity for the signals, though GraphMM demonstrates superior power in the first two cases where blocks extend beyond the individual voxel. The high sensitivity in Scenario 2 may reflect that the prior distribution of block sizes used in the local GraphMM more closely matches the generative situation. Notably, even when this block-size distribution is not aligned with the GraphMM prior, we do not see an inflation of the false discovery rate.

Scenarios 4 and 5 are similar to the first cases, however they explore different forms of signals between the two groups; both have an average block size of 4 voxels, but in one case the changed block effects are fewer, relatively strong and in the other case they are more frequent, and relatively weaker (Table 3). In both regimes, GraphMM retains its control of FDR and exhibits good sensitivity compared to other methods (Fig. 6).

Scenario 1
12-14 vx/block
Scenario 2
2-5 vx/block
Scenario 3
1 vx/block
Figure 5: Operating characteristics on synthetic data. Rows correspond to simulation scenarios (1=top, large blocks; 2=middle, small blocks; 3=bottom, tiny blocks). On the left we compare the empirical FDR with the target controlling FDR. Dominance by the diagonal (black) confirms that all methods are controlling FDR at the target rates. The right panels show how well different methods identify voxels that are truly different between the two groups. Substantial power gains are evident by GraphMM. Table 2 provides simulation details.
Scenario 4
low frequency
large shifts
Scenario 5
high frequency
small shifts
Figure 6: Operating characteristics on synthetic data (Scenarios 4 and 5).

GraphMM is designed for the case where partition blocks are graph respecting and the changes between conditions affect entire blocks. Our next numerical experiment checks the robustness of GraphMM when this partition/change structure is violated Fig. 7 shows that GraphMM continues to control FDR and also retains a sensitivity advantage even when its underlying model is not fully correct.

Figure 7: Robustness to graph-respecting assumption. FDR (left) and sensitivity (right) in a case where latent partitions are not graph respecting, but have similarity 0.48 (Rand index).

To further assess the properties of GraphMM, we performed several permutation experiments. Both started with the data set from Section 3.2. In the first, we simply permuted the sample labels of the 148 control subjects and 123 late MCI subjects, repeating for ten permuted sets. On each permuted set we applied various methods to detect differences. All discoveries are false discoveries in this null case. The left panel of Figure 8 shows that GraphMM and other methods are correctly recognizing the apparent signals as being consistent with the null hypothesis.

The second permutation experiment retains the sample-grouping information, but permutes the voxels within the brain slice on test. This permutation disrupts both spatial measurement dependencies and any spatial structure in the signal. Since GraphMM is leveraging spatially-coherent patterns in signal, we expect it to produce fewer statistically significant findings in this voxel-permutation case. The right panel of Fig. 8 shows this dampening of signal as we expect, when looking at the empirical cdf of computed values .

sample label permutation voxel permutation
Figure 8: Permutation experiments:

3.2 Analysis of Magnetic Resonance Images from the ADNI dataset

The data set used in this section comes from the Alzheimer’s disease Neuroimaging Initiative-II (ADNI-2)00footnotetext: The ADNI project was launched in 2003 by the National Institute on Aging, the National Institute of Biomedical Imaging and Bioengineering, the Food and Drug Administration, private pharmaceutical companies, and nonprofit organizations. The overarching goal of ADNI study comprises of detecting Alzheimer’s Disease (AD) at the earliest possible stage, identifying ways to track the disease progression with biomarkers and support advances in AD intervention, prevention and treatments. ADNI is the result of the efforts of many co-investigators from a broad range of academic institutions and private corporations, and subjects have been recruited from over 50 sites across the U.S. and Canada.. Our goal here was two fold:

  1. evaluate the sensitivity of our proposal in identifying group-level differences between participants corresponding to different disease stages in a real scientific analysis task, and

  2. assess, via scientific interpretation of the results, the extent to which the findings from our analysis is corroborated by known results in the literature on aging and Azheimer’s disease (AD).

The latter sub-goal is feasible because one could utilize standard pre-processing steps, described shortly, on our cohort of brain images and identify the brain regions pertinent to the clinical condition. Since the spatial location of these gray matter anatomical regions can be identified, we can evaluate whether the results are meaningful from the scientific perspective.

Dataset and pre-processing steps used. For the experimental analysis that is presented in this section, gray matter tissue probability maps derived from the co-registered T1-weighted magnetic resonance imaging (MRI) data, downloaded from ADNI using pre-processing steps provided in the commonly used voxel-based morphometry (VBM) toolbox in Statistical Parametric Mapping software (SPM, http://www.fil.ion.ucl.ac.uk/spm). Note that prior to registration to a common template or atlas (which provides a common coordinate system for conducting the analysis), standard artifact removal and other corrections were performed, consistent with existing literature Ithapu and others (2015). Our dataset included brain images of healthy control subjects (cognitively normal, abbreviated by CN) and

subjects with late mild cognitively impairment (LMCI). We also pre-filter voxels with very low marginal standard deviation

(Bourgon and others, 2010), which leaves voxels in total. We then apply rank-based inverse normal transformation in order to make data approximately normal.

Analysis task and baselines. Our goal is to detect or identify regions (i.e., voxels) where the distribution of gray matter intensities is significantly different across the clinical conditions, i.e., healthy controls (CN) and late stage Mild Cognitive impaired individuals (LMCI). To keep the computational burden manageable, instead of processing the entire 3D image volume at once, we applied GraphMM (as well as a number of baseline methods) to 2D image slices in the coronal direction. Our baseline methods include Statistical non-parametric Mapping toolbox using Matlab SnPM, a popular image analysis method used by various groups, and -value with adaptive shrinkage using R package ashr

, which represents an advanced voxel-specific empirical-Bayes method.

Summary of main experimental findings. Fig. 9 shows a representative example output of our analysis for a montage of 4 coronal slices extracted from the 3D image volume. The color bar (red to yellow), for each method presented, is a surrogate for the strength of some score describing the group-level difference: for instance, for SnPM, the color is scaled based on adjusted -values, for the -value method, it is scaled based on -values, whereas for GraphMM, the color is scaled based on local false discovery rates . It is clear that while the regions reported as significantly different between CN and LMCI have some overlap between the different methods, GraphMM is able to identify many more significantly different voxels compared to baseline methods, at various FDR thresholds (Fig. 11). A closer inspection of one case is informative (Fig.10). Voxel at coordinates is not found to be different between CN and MCI according to SnPM (adjusted -value = 0.578) and -value method (-value = 0.138). But when we look at the results provided by GraphMM, the local FDR is . It is clear that part of the reason behind the increased sensitivity is that GraphMM is leveraging the consistent pattern of shifts among neighboring voxels.

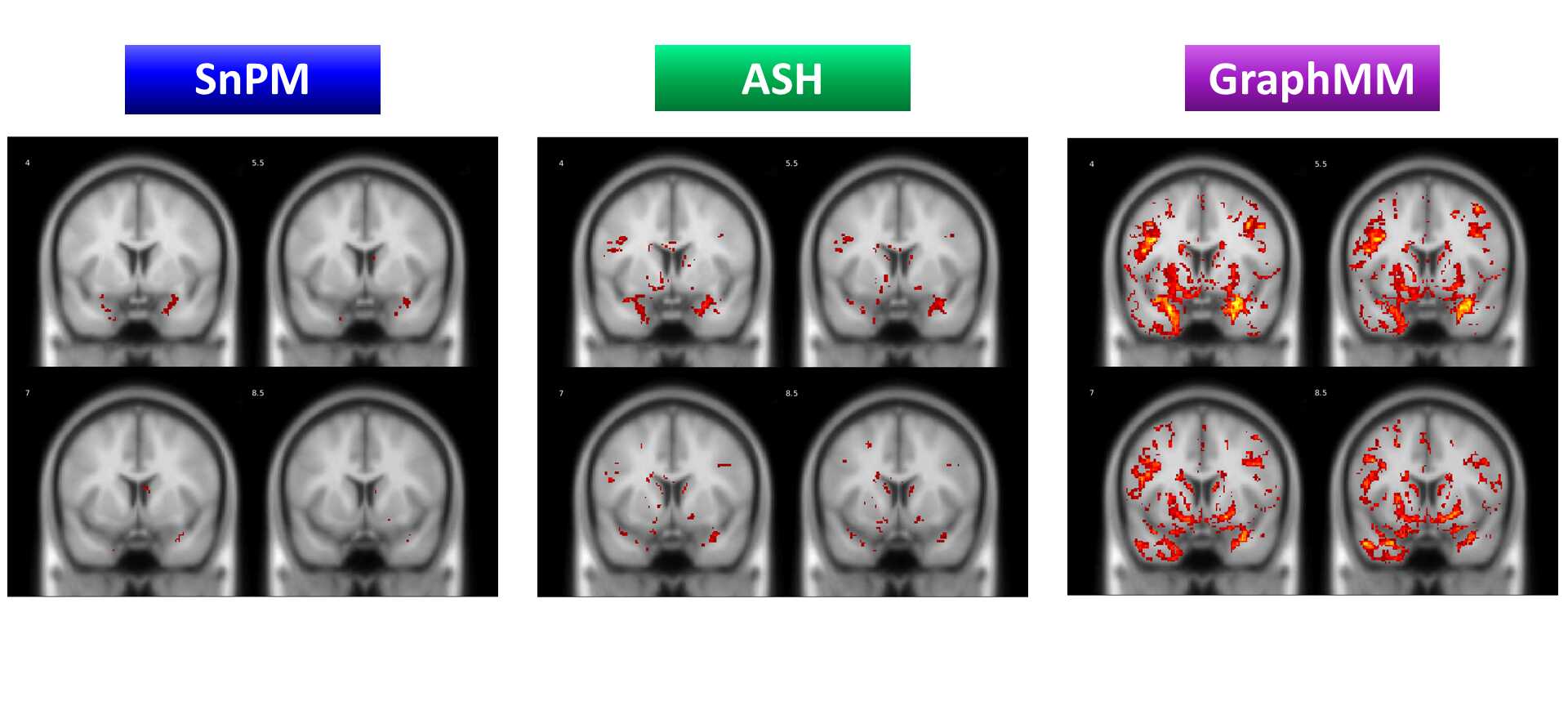

Figure 9: Figure shows significantly different voxels at 5% FDR (colored area) for 4 coronal slices, found by Statistical non-parametric mapping (SnPM), adaptive shrinkage (ASH) and the proposed GraphMM.

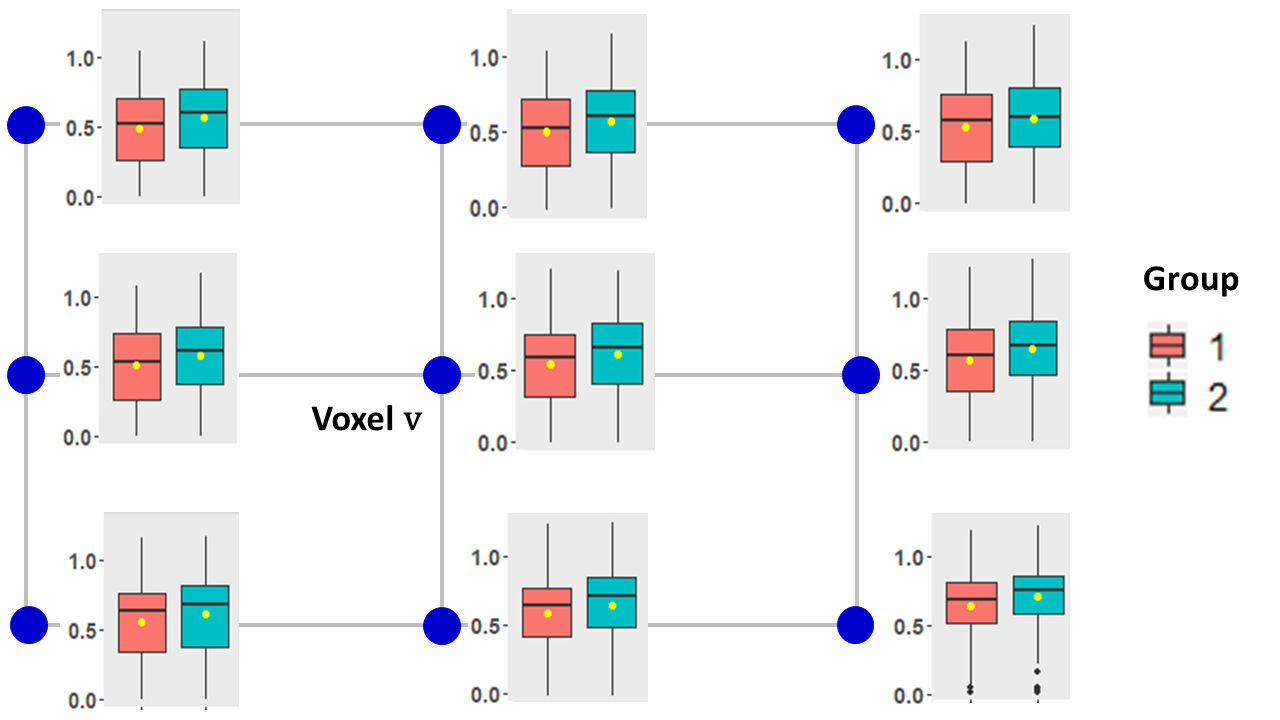

Figure 10: Boxplots for voxel at coordinates and its neighbors. Voxel is altered according to GraphMM but not according to SnPM or -value. Similar shifts nearby lead to the increased evidence reported by GraphMM.

Clusters. Another statistical measure often reported in the neuroimaging literature is the size of significant clusters, where clusters refer to spatially connected set of voxels that are significantly altered by the sampling condition (e.g., clinical condition). The rational here is that stray voxels reported as significantly different are more likely to be an artifact relative to a group of anatomically clustered voxels. In the literature, results are often reported for clusters with size greater than or equal to 20. In the setting of graph-associated data, a significant cluster forms a connected component of the 3-dimensional lattice graph associated with the data. Fig. 12 shows a bar plot for the size of significant cluster. Here, we see that GraphMM performs favorably relative to the baseline methods and consistently reports larger clusters.

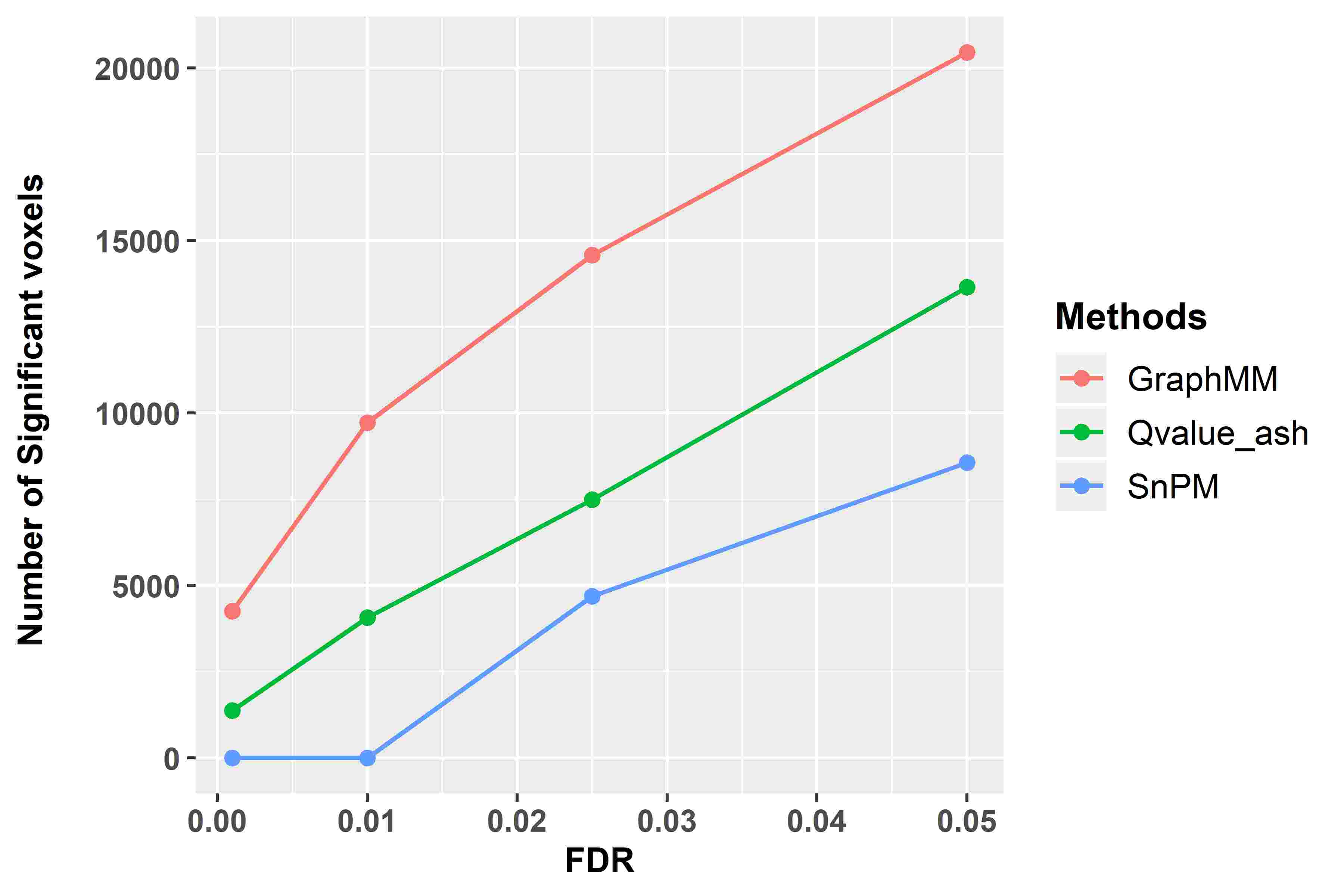

Figure 11: Plot of Controlled FDR vs. Number of significant voxels on the whole brain data. The figure confirms the high yield of GraphMM.

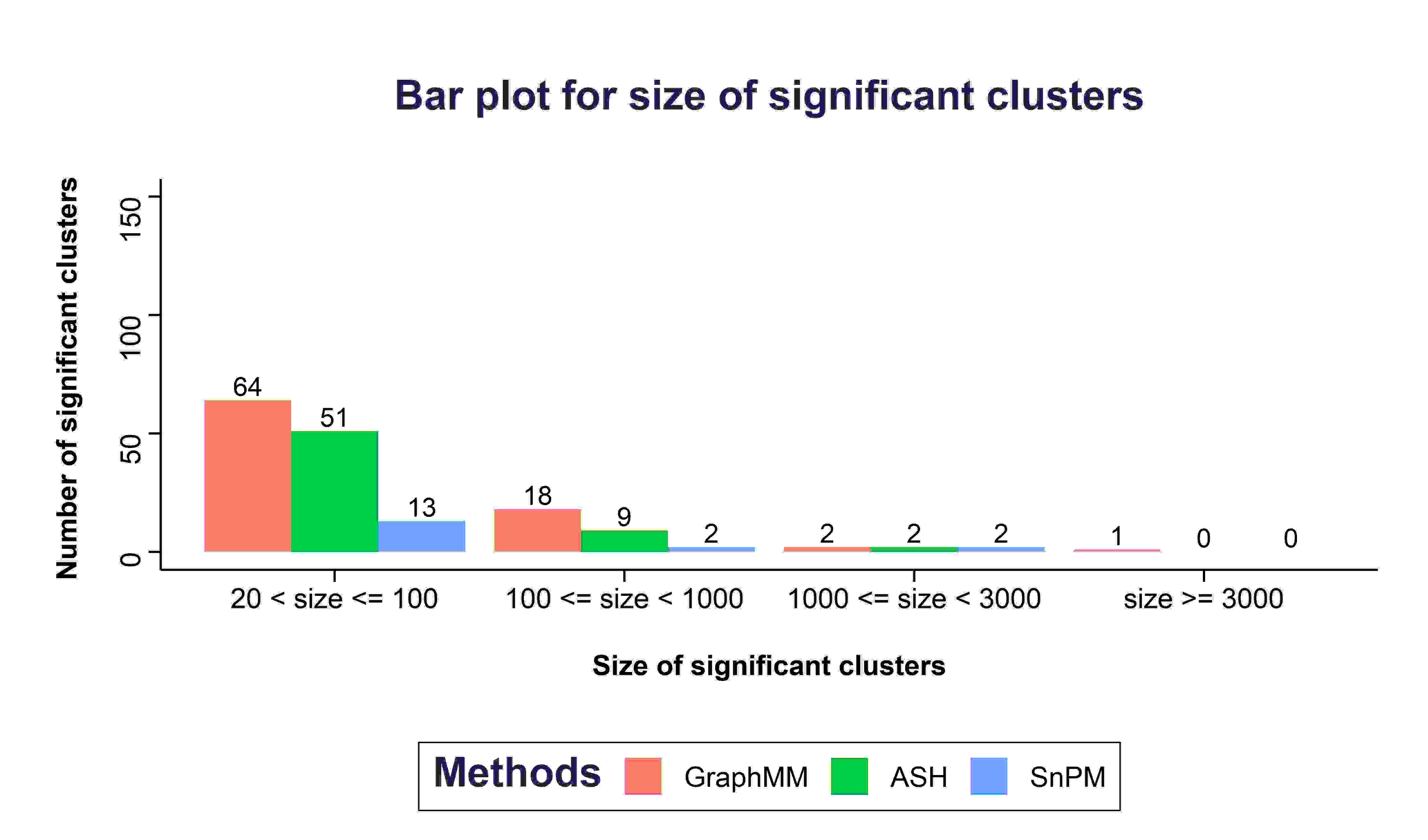

Figure 12: Bar plot for summary on the size of significant clusters. By definition, a significant region is a collection of significant voxels that is spatially connected.

Scientific interpretation of the results. To better interpret the statistical results, we use the Matlab package xjview to link anatomical information associated with those voxels that reported to be significantly different by the various methods. The xjview package maps the significant clusters from the analysis to the brain template or atlas (i.e., common coordinate system) using automated anatomical labeling information (Tzourio-Mazoyer and others, 2002). This is helpful because one can then easily assign anatomically meaningful names to the voxel clusters that are significantly different. The results are summarized in Table 1 where we report the brain regions associated with significant findings from GraphMM as well as SnPM. Specifically, Column 3 in the table provides comparisons from both methods listing the number of significant voxels in the corresponding regions. This process provides additional evidence to assess if our analysis indeed revealed regions known to be associated with AD. We can answer this question by inspecting the neurological functions of the identified brain regions shown in column 4. Here, we only show the top 15 brain regions that contain most number of significant voxels. From Table 1, we see that GraphMM discovers all the brain regions found by SnPM, with many more significant voxels in each region with more pronounced evidence of statistical significance. The only exception is the hippocampus where both methods identify a large number of voxels but GraphMM finds fewer significant voxels than SnPM. In addition, there are regions revealed to be significant by GraphMM but not by SnPM, including the precentral gyrus, middle frontal gyrus, inferior frontal gyrus opercular, insular, anterior cingulate, and supramarginal gyrus, which are relevant in the aging and AD literature. GraphMM consolidates known alterations between CN and LMCI and reveals potentially important new findings.

No. Brain region # Voxels   GraphMM     SnPM                      Neurological function
1 Hippocampus 1411 1646 Receives and consolidates new memory about experienced events, allowing for establishment of long-term memories. [Cohen and Eichenbaum (1993)]
2 Parahippocampal Gyrus 1008 410 Involved in episodic memory and visuospatial processing [Aminoff and others (2013)].
3 Amygdala 710 365 Plays an essential role in the processing and memorizing of emotional reactions [Knafo (2012)]
4 Temporal Gyrus (superior, middle and inferior) 2031 287 Involved in various cognitive processes, including language and semantic memory processing (middle) as well as visual perception (inferior) and sound processing (superior) [Onitsuka and others (2004), Bigler and others (2007)]
5 Putamen 793 12 Linked to various types of motor behaviors, including motor planning, learning, and execution.[Marchand and others (2008)].
6 Fusiform Gyrus 735 308 Influence various neurological phenomena including face perception, object recognition, and reading [Weiner and Zilles (6 03)].
7 Temporal Pole (superior, middle) 882 74 Involved with multimodal analysis, especially in social and emotional processing. [Plotzker and others (2007)].
8 Precentral Gyrus 829 0 Consists of primary motor area, controlling body’s movements. [Graziano and others (2002)].
9 Middle Frontal Gyrus 635 0 Plays essential role in attentional reorienting. [Japee and others (2015)].
10 Inferior Frontal Gyrus Opercular 573 0 Linked to language processing and speech production. [Greenlee and others (2007)].
11 Calcarine 381 22 Where the primary visual cortex is concentrated, processes visual information. [Meadows (2011)].
12 Caudate 437 46 Plays essential roles in motor processes and a variety of executive, goal-directed behaviours [Grahn and others (2008)].
13 Insular 275 0 Involved in consciousness, emotion and the regulation of the body’s homeostasis [Gogolla (2017)].
14 Anterior Cingulate 260 0 Plays a major role in mediating cognitive influences on emotion. [Stevens and others (2011)].
15 Supramarginal Gyrus 225 0 Linked to phonological processing and emotional responses. [Hartwigsen and others (2010)].
Table 1: Brain regions with significant ( 5% FDR ) change in gray matter volume. found by GraphMM.

4 Discussion

Mass univariate testing remains the dominant approach to detect statistically significant changes in comparative brain-imaging studies (e.g., Groppe and others (2011)). Here, a classical testing procedure, like the test of a contrast in a regression model, is applied in parallel over all testing units (voxels), leading to a large number of univariate test statistics and p-values. Subsequently, significant voxels are identified through some filter, such as the Benjamini-Hochberg (BH) procedure, that aims to control the false discovery rate. The approach is often very effective and has supported numerous important applied studies of brain function. In structural magnetic resonance image studies of Alzheimer’s disease progression, such mass univaraiate testing has failed in some cases to reveal subtle structural changes between phenotypically distinct patient populations. The underlying problem is limited statistical power for relatively small effects, even with possibly hundreds of subjects per group. Empirical Bayes procedures improve power somewhat over BH by recognizing properties of the collection of tests. In case the data are associated with a graph and are consistent with a relatively low dimension of parameter states, we have shown one way to further enhance the empirical Bayes procedures.

Empirical Bayesian procedures trace their beneficial operating characteristics to “information sharing”, or, equivalently, “borrowing strength”. In isolation, the parameters governing data at a given testing unit are inferred locally from data at that unit. Having limited data at each unit limits any inferences we may try to make. But in treating the unit-level parameters – considered over many units – as draws from some common, system-level population of parameters, Bayesian theory provides a formal approach to link information between units (e.g., Bernardo and Smith (1994)). Relatively elaborate information sharing is provided by highly flexible Bayesian models. For example, the Dirichlet process mixture (DPM) model engenders a clustering of the inference units, with units in the same cluster block if (and only if) they share the same parameter values. The DPM model has been effective at representing heterogeneity in a system of parameters (e.g., Muller and Quintana (2004)), and in improving sensitivity in large-scale testing (e.g., Dahl and Newton (2007), Dahl and others (2008)). Benefits come at a high computational cost, since in principle the posterior summaries require averaging over all partitions of the units (e.g., Blei and Jordan (2006)). There are also modeling costs: DPM’s usually have a product-partition form in which the likelihood function factors as a product over blocks of the partition (Hartigan (1990)). In applications, such as brain imaging, we observe that independence between blocks is violated in a way that may lead to inflation of the actual false discovery rate over a target value.

The application of main focus in our research is structural magnetic resonance imaging (sMRI) data that arise in studies of brain structure and function. sMRI provides information to describe the shape, size, and integrity of brain structures. Briefly, the contrast and brightness of structural magnetic resonance images is determined by the characteristics of brain tissues. Depending on the types of sMRI sequences (e.g, T1-weighted, T2-weighted, proton density-weighted), different aspects of brain tissues are emphasized. We are particularly interested in T1-weighted sMRI, which provides good contrast between gray matter tissue (darker gray) and white matter tissue (lighter gray), while the cerebrospinal fluid is void of signal (black). Because brain function depends to some extent on the integrity of brain structure, sMRI has become an integral part for clinical assessment of patients with suspected Alzheimer’s disease (Vemuri and Jack (2010)). By studying structural magnetic resonance images, we are able to make inference about gray matter atrophy in the brain, which has been shown to be one of classic symptoms for Alzheimer’s disease (AD) in the neuroscience literature (e.g., Frisoni and others (2002), Scheltens and others (2002), Moller and others (2013)). Essentially, conclusions regarding the atrophy of gray matter may come from detecting changes in gray matter volume across different stages of Alzheimer’s degenerative process. Furthermore, identifying subtle changes at early stages could help with early detection of gray matter atrophy, which ultimately facilitates AD diagnosis, interventions and treatments.

The crux of methodological research on large-scale testing in neuroimaging has been how to find thresholds on voxel-wise test statistics that control a specified false positive rate and maintain testing power. The two approaches that are most popular to neuroimaging researchers include: family-wise error control using Random Field Theory (e.g., Worsley and others (2004)) and false discovery rate control using Benjamin-Hochberg procedure (e.g., Genovese and others (2002)). The former is based on additional assumptions about the spatial smoothness of the MRI signal. There have been criticisms. e.g., in Eklund and others (2016), that these smoothness assumptions are usually not satisfied by the data, which would lead to alarmingly high degree of false positive. The voxel-wise test statistic can be either parametric (implemented in SPM Matlab package Penny and others (2007)) or non-parametric (implemented in Statistical Nonparametric mapping (SnPM) Matlab toolbox Nichols (2001)). A review of available methods for large-scale testing in neuroimaging inference can be found in Nichols (2012) and the references therein. Tansey and others (2018) presented an FDR tool that processes unit-specific test statistics in a way to spatially smooth the estimated prior proportions. As the clinical questions of interest move towards identifying early signs of AD, the changes in average brain profiles between conditions invariably become more subtle and increasingly hard to detect; the result is that very few voxels or brain regions may be detected as significantly different by standard methods. The methodology we study in this thesis aims to increase the sensitivity of large-scale tests for neuroimaging and related data.

Graphs provide powerful tools for representing diverse patterns of interactions between entities of a system and have been widely used for modeling data arising in various fields of science (e.g., Gross and Yellen (2004)). In the present work, vertices of the graph correspond to variables in a data set and the undirected edges convey relational information about the connected variables, due to associations with the context of the data set, such as temporal, functional, spatial, or anatomical information. The graphs we consider constitute an auxiliary part of observed data. For clarity, these graphs may or may not have anything to do with undirected graphical representations of the dependence in a joint distribution (e.g. Lauritzen (1996)), as in the graphical models literature. For us, the graph serves to constrain patterns in the expected values of measurements. By limiting changes in expected values over the graph, we aim to capture low complexity of the system. An alternative way to model low-complexity is through “smoothed/bandlimited” signals (e.g., Ortega and others (2018), Chen and others (2016)). Comparisons between the approaches are warranted.‘

We have advanced the idea of latent graph-respecting partitions that constrain expected values into low-dimensional space. The partition is paired with a vector of block-specific change indicators to convey the discrete part of the modeling specification. We used a uniform distribution over graph-respecting partitions in our numerical experiments, and have also considered more generally the distribution found by conditioning a product partition model (PPM) to be graph-respecting. In either case, two vertices that are nearby on the graph are more likely to share expected values, in contrast to the exchangeability inherent in most partition models. Graph restriction greatly reduces the space of partitions; we simply enumerated all such partitions in our proposed graph-local computations and thereby avoided MCMC over partition space. When the generative situation is similarly graph restricted, we expect improved statistical properties; but we also showed that false discovery rates are controlled even if the generative situation is not graph respecting. Special cases of graph-restricted partitions have been studied by others. When

is a lattice graph, we have induces a spatial random partition distribution, which is the topic of study in Page and Quintana (2016). When is a decomposable graph, the random partition distribution proposed here and the one introduced in Caron and Doucet (2009) are similar in the sense that they are both restricted only on the set of graph-respecting partitions. For a general graph , the distance dependent Chinese restaurant process (ddCPR) introduced in Blei and Frazier (2011) can induce a partition distribution that is also restricted on the graph-respecting partitions, though it differs from the distributions used here. When is a complete graph there is no restriction and all partitions have positive mass. When is a line graph the graph-respecting partition model matches Barry and Hartigan (1992) for change-point analysis.

Acknowledgements

This research was supported in part by NIH grant 1U54AI117924 to the University of Wisconsin Center for Predictive Computational Phenotyping. The authors were also supported in part by NIH R01 AG040396 and NSF CAREER award RI 1252725.
