1 Introduction

Wireless Sensor Networks (WSNs) have been initially proposed for military operations by the end of 90s (Estrin et al., 1999). However, with their potential in many applications, they have started to be deployed in different civil applications in early 2000s. WSNs have been touted to be used in many applications. These include but is not limited to environmental monitoring, habitat monitoring, structural health monitoring, health applications, agriculture applications and surveillance (Xu, 2002). Typically, in such applications, a large number of sensors are deployed to sense the environment and send the collected data to a gateway or base-station for further processing. The communication is multi-hop and all the nodes are assumed to be battery-operated with limited processing and storage capabilities. There has always been incredible interest in WSN research from node level to application level (Akyildiz et al., 2002). The bulk of WSN research has focused on energy-efficient protocols at different layers of the protocol stack. The goal was to maximize the lifetime of the WSNs while enabling distributed operations. Energy-efficient MAC, routing, and transport protocols have been proposed (Akkaya and Younis, 2005, Demirkol et al., 2006, Wang et al., 2006). Later, these protocols were augmented with security capabilities (Walters et al., 2007). Despite the huge amount of research, the WSN market was not mature. In the early 2000s, there were only a few sensor products (such as Mica2) and standardization efforts were not adequate. Therefore, the use of term WSN has been diminished and efforts are directed towards more personal sensor devices that came with the proliferation of smart phones and other wearable devices. The attention has shifted to these devices, referred to as Internet of Things (IoT).

The term IoT was first phrased in the context of supply chain management by Kevin Ashton in 1999 to get executive attention at Procter & Gamble (Ashton, 2009). Although it was used in different and somewhat related concepts earlier, the definition has become more comprehensive to comprise devices from health-care to entertainment and transportation to building management (Sundmaeker et al., 2010). Therefore, the term might be used to describe the world where other devices are uniquely distinguishable, addressable, and contactable by means of the Internet. For example smart homes are furnished with hi-tech devices controlling such devices as the TV, refrigerator, microwave, blinds, music system, air conditioning units.

Today, we have more than 5 billion “things” connected to the Internet and this number is expected to be nearly 50 billion (there are also different estimates) by 2020

(Tillman, 2013). Taking the advantage of using RFID and sensor network technology, physical objects such as computers, phones, wearable technologies, home appliances, vehicles, medical devices and industrial systems can be easily connected, tracked and managed by a single system (Jiang et al., 2014). One of the many reasons to get these devices connected is that most people all want to take advantage of being conveniently “online” in this age of Internet. On the other hand, we do underestimate the down sides of being connected in every second of every day.

Although the expected number of connected devices is hypothetical, there is a real issue regarding existence of such a large collection of devices which are mostly vulnerable to cyberattacks. On October 21, 2016, we faced the reality of how our innocent household devices connected to the Internet could be part of an IoT army committing distributed denial of service attack (DDoS) to shut down websites including Twitter, Netflix, Paypal and Amazon Web services (Williams, 2016). In addition to being vulnerable, Syed Zaeem Hosain, CTO of Aeris - a pioneer in the machine-to-machine market, has raised the concern that scalability in IoT is the biggest issue as such a large number of devices will be generating enormously big data (Hosain, 2016). Hence, the following questions are asked by Mr. Hosain:

  • How will we transport such large data?

  • How will we store it?

  • How will we analyze it?

  • How will we search/find targeted data in large collection?

  • How will we keep the data secure and private?

All of these questions are part of our concerns about IoT today, however it is urgent that these issues must be addressed in advance before we are faced with serious scalability issues.

Miorandi et al. have discussed that IoT is a leading technology which brings various areas from cyber and the physical world together by the means of making physical devices smarter and connected with one another (Miorandi et al., 2012). By taking this into account, the usage of the term IoT can be generalized into the following broad areas as discussed in (Atzori et al., 2010, Peña-López, 2005):

  • the global network providing ultimate interconnection ability to the smart things (devices) via the Internet

  • the collection of assistive technologies (e.g. RFIDs, Near Field Communication devices, and WISP.)

  • the group of applications and services (e.g. Cloud services and Web of things.)

(a) Search trends for IoT, Wireless Sensor Networks and Ubiquitous Computing
(b) Search trends for Wireless Sensor Networks and Ubiquitous Computing
Figure 3: Google search trends between January 2004 and December 2016: The numbers represent search interest relative to the highest point on the chart for all world and time. A value of 100 is the peak popularity for the term. A value of 50 means that the term is half as popular. Likewise a score of 0 means the term was less than 1% as popular as the peak (Google, 2016b).

Although different terms have similar meaning the popularity of concepts has changed over the time. Now we look at web search popularity of the terms IoT (including Internet of Things), WSNs and Ubiquitous Computing (UC) as they are used interchangeably. Fig. 3(a) is created using Google Trends and it shows how fast the IoT popularity has increased in web searches compared to the terms WSNs and UC over the decade. Similarly, Fig. 3(b) shows how the popularity of the terms WSNs and UC has decreased (comparatively) since 2004.

Whether it is called IoT or WSN, there has been a lot of studies to secure these networks starting from the node level to network level (Zawoad and Hasan, 2015). The security services provided in IoT and WSN include confidentiality, integrity, authentication, access control, anonymity and availability.

However, with the increasing prevalence of these devices in many real-life applications, a need has emerged for conducting digital/network forensics to be able to understand the reasons for failures and various attacks. Therefore, in recent years also we have witnessed some studies on cyber-forensics that relate to WSNs or IoT. The goal of this chapter is to investigate such forensic research on WSNs and IoT, and put them in a systematic manner for better understanding and future research.

This chapter is organized as follows: In the Section 2, we provide a brief background on digital forensics. Section 3 presents related background in IoT and WSNs. Section 4 discusses how digital forensics can be applied to IoT and WSN environments.

2 Digital Forensics

Digital Forensics is a branch of forensics science particularly targeting identification, collection (a.k.a. acquisition), examination, analysis, and reporting of digital evidence in order to present it to a court of law. Fig 4 shows the U.S. Department of Justice’s digital forensics investigative process described in “A guide to first responders” (DoJ, 2001). Digital forensics investigators deal with tremendous amounts of data from numerous types of devices including computers, phones, wearable devices, industrial controls systems, military deployment systems.

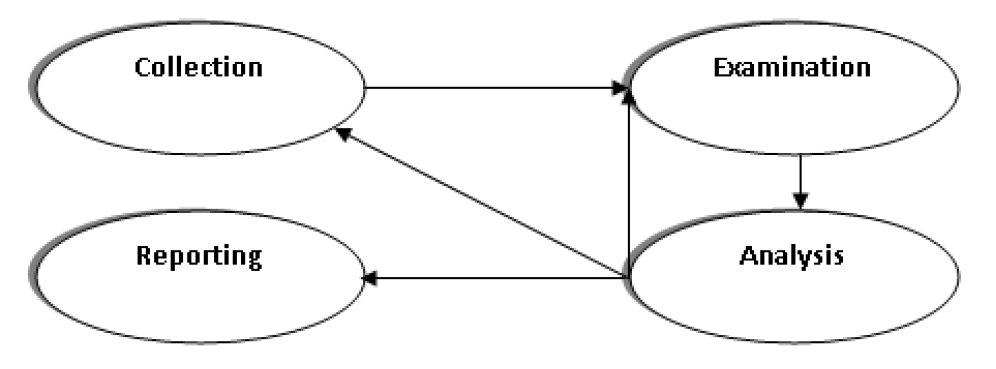

Figure 4: Digital Forensics Process Model (Karabiyik, 2015)

When a crime/incident occurs, incident first responders arrive to the scene to identify and secure the digital devices for forensics soundness (preserving integrity of evidence). After securing the evidence devices digital forensics investigators collect digital evidence for further examination and analysis. This basically means to find crime/incident related data on the digital device such as finding traces of an attack and its timestamp on memory of hacked smart TV. During the collection, examination and analysis phases, investigators use digital forensics tools (both hardware and software). These tools help investigators to locate and recover digital evidence which can be both inculpatory (evidence that proves the guilt) and exculpatory (evidence that proves the innocence). At the reporting phase, investigators prepare a report to include in their testimony. When the investigator is asked to testify and present the evidence at a court, the admissibility of the evidence will be questioned based on the procedures followed by the investigator. The most important factor for the admissibility is to verify that the evidence device has not been altered during the investigation. In the case of the IoT environment, this may be quite challenging as there is no universal standard to collect, examine and analyze data from IoT.

Due to the accelerated advancement in technology, particularly in last the two decades, huge numbers of (heterogeneous) objects became available for personal or enterprise use. This also yields an enormous amount of heterogeneous data and thus more sophisticated and more difficult digital forensics investigations.

3 Related Background on IoT and WSNs

The evolutionary background of IoT lies in the advancement of the technology on micro sensor devices in the later 90s. Specifically, the advancements in micro processors, memory technology and more importantly micro sensing devices led to the development of tiny sensors. These sensors are then equipped with radio communication capability on battery energy which enabled unattended intelligent sensing devices that can gather, process and transmit data. In the early 2000s many sensor devices were built to fit the needs of various applications as seen in Fig. 5.

Figure 5: Various sensor platforms: Arduino, Particle, SUN Spots, IRIS Motes

Of particular interest to these devices are their resources, especially in terms of memory and storage. Early sensors have very scarce resources in terms of memory which makes data storage almost impossible for forensics purposes. Typically, there were two cases where memory was used: 1) User memory used for storing application-related or personal data; and 2) Program memory used for programming the device. This memory also contains identification data if the device has any. Table 1 shows the memory sizes for these devices.

Devices Memory Size
Passive Tags O(100B)
Active Tags O(1kB)
IRIS Motes O(100kB)
Gateways O(100MB)
Table 1: Memory size for different platforms

The other sensor component that is of interest due to forensics would be the communication module. Early devices relied on energy-aware MAC protocols for communication (Demirkol et al., 2006). Some of them later became standards such as Zigbee (Baronti et al., 2007) but some of them were only adapted such as Bluetooth (Bluetooth, 2001) as seen in Table 2.

Standard Rate Frequency
Bluetooth 2.1Mb/s 2.4GHz
ZigBee 250kb/s 2.4GHz/918MHz/868MHz
RFM TR 1000 (proprietary) 19.2kb/s 916.5MHz
Chipcon CC 1000 (proprietary) 100kb/s 433MHz
Table 2: MAC protocols and data rates for different sensors

At the network layer, energy-efficient routing protocols were developed to provide service to large-scale WSNs consisting of thousands of nodes (Werner-Allen et al., 2006, Szewczyk et al., 2004, Arora et al., 2004) and employ multi-hop communication (Akkaya and Younis, 2005). Zigbee Alliance had also routing and application layer protocols for WSNs (Baronti et al., 2007). In most cases, these protocols were distributed and required sensor nodes to maintain a simple routing table for data forwarding. In some cases, the routing protocol was managed by the gateway which is assumed to collect all the sensor data from the sensors. In any case, there was enough information in the sensors or gateway to be able to identify routing failures in real-time but this might be challenging for cyberforensics purposes as will be discussed later.

The heavy research on WSNs later led to the development of some standards such as Zigbee/IEEE802.15.4, IETF ROLL (Ko et al., 2011, Sheng et al., 2013), IETF 6LoWPAN (Shelby and Bormann, 2011), Wireless HART (Song et al., 2008), ISA100 (Committee et al., 2009) which accelerated the production of sensor devices. In the meantime, there has been further developments to enrich the resources of sensor devices and getting them connected to the Internet. The enrichment was in terms of processor and memory capacity and the number of sensing modules. With the proliferation of smart mobile phones, the idea of smart, connected, sensing and battery-operated devices have penetrated our everyday lives which has led to the development of similar products to make our lives convenient. Within a few years, a lot of sensing and communication capable devices such as smart meters, cameras, thermostats, wearables, RFIDs, tags, bulbs, beds, speakers, locks, watches, cookers, keypad, and applicances, have started to be seen which are referred to as IoT devices in general (Devices, 2016).

With the enriched resources, these devices started to look like more of our laptops with comparable memory/storage sizes and communication capabilities. In addition to Zigbee or Bluetooth, Wifi/4G has also started to be used for communication purposes. Finally, the data collected from these devices was not stored in the gateways but rather transferred to cloud storage where it can be accessed for later use.

The IoT era changed the needs of the WSN era and Digital Forensics was one of the affected area as the devices are being used in a lot of daily applications by humans. Therefore, we discuss how digital forensics is applied to the IoT and WSNs.

4 Applying Digital Forensics to IoT and WSNs

IoT and WSNs consist of sensitive data stored and processed hence, in theory it is suggested that the data which is processed and cumulated by well known firms will be the subject of future digital forensic investigations. The evidence that is provided by IoT or WSNs to the forensic community will be far more finer compared to what the community currently possesses. In addition, IoT and WSNs also offer new and better opportunities for data that is at times misused, through growth and development in the forensic community’s procedures. The techniques/algorithms methods that were used and or developed were based on the digital forensics process model consisting of collection, examination, analysis, and reporting of the data/evidence. Using these practices not only data for evidence is identified in a myriad system, but is also preserved for future references as the information presented is an intense fusion of collection, extraction, processing, and interpretations.

Digital forensics in IoT/WSNs is a challenge especially when it comes to accuracy due to the intensity of analysis. This results in data sometimes losing its granularity as systems may store, use, or present different semantics however, it does have the ability to adopt dissimilar formats, and may hold a proprietary format. Taking into the heterogeneity of data that IoT/WSNs devices generate it is even more challenging. The following questions must be answered before the investigation is being performed in order to avoid inadmissibility of evidence. Can data be collected from the devices using available tools? Is the data propriety? How can it be analyzed? Are forensic tools compatible with this data?

Most of the challenges in IoT forensics are also available to the WSNs particularly at the device/data storage and network levels. The only difference in most cases is the scale of WSNs because of the application-specific needs. Early WSNs works lacked any security in regards to integrity and authentication because of the broadcast nature of communication. There was no formal set of requirements for achieving forensic readiness in WSNs. However, with the rapid tendency towards the usage of efficient, low memory footprint and low power devices in the industry, devices will be less likely to keep data stored in memory. Therefore, similar forensic readiness frameworks that will be discussed in the following sections must be developed for such devices in advance. Otherwise, forensically crucial data can be easily lost forever.

In the next section we will discuss the challenges that investigators and practitioners face when performing digital forensics procedures in both IoT and WSNs. Although IoT and WSNs are different with respect to their structures, WSNs are considered to be part of IoT (Christin et al., 2009, Mainetti et al., 2011, Li and Xiong, 2013, Jiang et al., 2013), a concept of worldwide connected ubiquitous devices. The distinctions between two environments are not clearly pointed by the research in the current literature and digital forensics efforts similarly applied to both concepts, particularly research in IoT forensics are conducted with WSN characteristics in mind. This makes some of the research efforts in both environments inseparable from the digital forensics perspectives.

4.1 Challenges in IoT and WSN Forensics

In this section, we discuss the digital forensics challenges for IoT and WSN as specified by Hegarty et al. (2014). Note that most of the challenges we discuss in this section are applicable to both IoT and WSN.

Sources Example
Expected
evidence
Internal to
network
Hardware End
nodes
IoTware e.g. game consoles, fridges,
mobile devices, smart meters,
readers, tags, embedded systems,
heat controller
Sensor data e.g.
IP address, Rime
number, sensor ID
Network
Wired and Wireless, mobile
communications e.g. GSM, sensor
networks, HIDS, NIDS, HMS
Network, Logs
Perimeter
devices
AAA server, firewall, NAT server,
IDS, NIDS, HIDS
External Cloud
Public, Private, Hybrid cloud
systems
Client Virtual
Machines; logs
Web
Web clients, webservers,
social networks
Web logs; user
activity
Hardware End
nodes
Mobile devices, sensor nodes
and networks
Sensor data e.g.
IP address, Rime
number, sensor ID
‘X’ Area
Networks
Home Area Networks (HAN) Network logs
Table 3: Potential evidence sources in IoT and WSN Environments (Oriwoh and Sant, 2013)

4.1.1 Different Interfaces and Storage Units:

The IoT devices that are used in everyday life have different interfaces which allow users to use services or control the devices. Example interfaces could be propriety software, mobile application, hardware, or embedded firmware which provides an invisible interface. The variety of interfaces makes digital forensic investigation a tedious process as digital forensics tools do not automatically detect all types of interfaces, file systems and even data itself. Similar issues arise when WSNs are the forensically targeted environments. In addition to the variety of interfaces, IoT devices store data in miscellany of storage units both volatile and non-volatile including internal and external memory units (e.g. eMMC, eFlash, and DRAM) and cloud storage (e.g. HDD and SSD) (Pereira et al., 2013). As for the sources of digital evidence, Table 3 gives a broader view of where potential evidence may reside in an IoT and WSN environment.

Differences in the interfaces and storage units causes investigators to perform manual forensic methods on the devices if (at all) possible. This will also increase the time required for the investigation as automated tools do not recognize propriety interfaces. Another issue is that volatile data might be destroyed by the device after they are used. In this case, data recovery may not be even possible. In addition, data may also be destroyed due to the wear-leveling technology in flash memory devices and solid state drives. Every memory cell has a certain read/write lifetime which varies between 10000 and 100000 depending on the manufacturer. Therefore, internal firmware in the memory will distribute data stored in the memory to the unused (unallocated) cells in order to level memory wearing in mostly used memory cells. In this case, previously deleted data will be destroyed because unallocated space also consists of the memory cells that has previously been used to store data but later deleted.

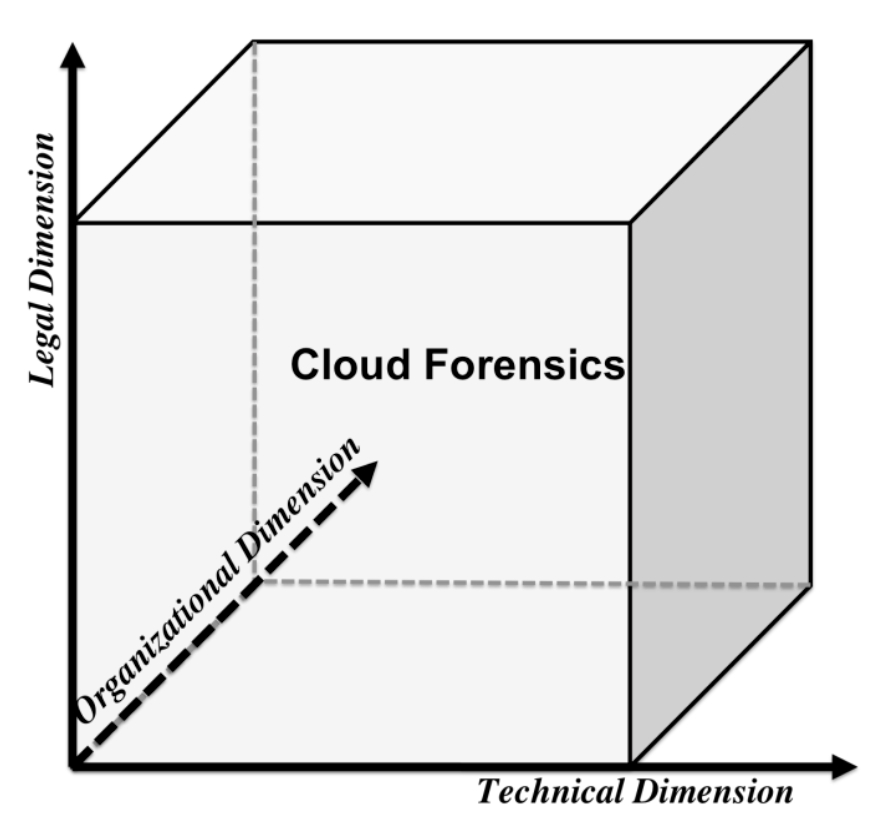

Figure 6: Cloud forensic three-dimensional model (Ruan et al., 2011)

Furthermore, data stored in the cloud raises serious issues in digital forensics investigations performed in IoT and WSN environment. In order to identify these issues, Ruan et al. (2011) defines cloud forensics in three dimensions (see Fig. 6). The two most important problems in cloud forensics that are also highly related to IoT and WSN forensics are multi-tenancy and multi-jurisdiction. Multi-tenancy allows cloud tenants to access the software instance simultaneously (Computing, 2010), therefore user ascription and ownership for specific data become the investigators’ major concerns.

In order to provide efficient service availability and reduce the cost of services, major cloud service providers such as Google, Amazon and HP locate their data centers all around the world. Different countries and different states have different jurisdictions. A crime in one jurisdiction may not be considered a crime in another. In addition, law enforcement agencies having different jurisdictions may not be willing to cooperate with each other. Due to all of these issues, investigators may have to deal with multi-jurisdiction issues when data from IoT and WSNs are stored in cloud.

4.1.2 Lack of Universal Standard for IoT and WSN Data Storage

Due to the characteristics of IoT/WSN data, it is extremely difficult to create a universal standard for data storage. Nevertheless, there have been efforts to create frameworks to provide a unified way to store data for IoT. Li et al. (2012) identify the IoT data features as follows:

  • Multi-source and Heterogeneity: IoT/WSN data is sampled by various connected devices including Radio Frequency Identification (RFID) readers, cameras, smart appliances, proximity, pressure, temperature, humidity, and smoke sensors. The data collected from this vast category of devices have significantly different semantics and structures.

  • Huge scale: The IoT/WSN contains a large number of perception devices, these devices’ continuously and automatically collect information leads to a rapid expansion of data scale.

  • Temporal-spatial correlation: As the data are constantly collected from IoT/WSN, the data will consist both time and space attributes in order to correlate them with respect to the changing location of device over time.

  • Interoperability: IoT/WSN are currently evolving to achieve data-sharing to facilitate collaborative work between different applications. For instance, in the case of an on-road emergency, while the patient’s medical record is securely shared with a nearest emergency center (Rabieh et al., 2018), the data related to road conditions may be also assessed for timely arrival by an autonomous car.

  • Multi-dimensional: IoT application now integrates several sensors or WNSs to simultaneously monitor a number of sensing devices, such as temperature, humidity, light, pressure, and so on. And thus the sample data is usually multidimensional.

The available methods and techniques are mostly limited and designed for a certain set of technologies. For instance Li et al. (2012) have proposed a solution to the storage and management of IoT data named IOTMDB using NoSQL (Not Only SQL). In addition to this work, Jiang et al. (2014) proposed a data storage framework to efficiently store big IoT data which is collected from the deployed devices (WSNs) into storage units by combining and extending multiple databases and Hadoop (an open source framework that provides capability of process and storage of large data sets). In addition, Gubbi et al. (2013) introduced a conceptual IoT framework with Aneka cloud computing platform-runtime platform and a framework for developing distributed applications on the cloud (Manjrasoft, 2016)- being at the center. This framework integrates ubiquitous sensors and various applications (e.g. surveillance, health monitoring and critical infrastructure monitoring) using aforementioned cloud platform.

From the forensics investigation’s point of view, analysis of data coming from different sources will be a serious challenge. The only way to deal with the analysis of such heterogeneous data is to use Hexadecimal editors (a.k.a HEX editors) as they allow reading the raw data from storage units. However, it will be a tedious (if not infeasible with large scale data) process because of the amount of data collected from IoT devices and WSNs.

Temporal-spatial correlation of IoT/WSN data may be useful for the investigators when data includes geolocation information (e.g., GPS coordinates) readable by the tools used. However, IoT/WSN space can be defined of any size and data may come with custom space information. This also needs to be translated into intelligible data by the investigators as evidence.

Interoperability of the devices will be a serious challenge for forensics investigations as the data will be shared among the applications and the origin of the data needs to be known to conclude the investigation. If the data being operated by different applications is not traceable then accountability or non-repudiation issues will be raised. For instance, it will be difficult to answer the questions: What caused the operation failure? Was there any attack? What data is produced by each application/device?

4.1.3 Devices have different levels of complexity, battery life/source

As discussed earlier, IoT devices may vary depending on the duties they perform, how often the device communicates, size of the data being transmitted, and available storage in the device (SiliconLabs, 2016)

. This variance is also reflected on the complexity of devices. While the device may be as simple as a single sensor collecting environmental values from animals’ habitats, it may also be complex enough to consist of a processor, relatively large memory units, and communication protocols with security mechanisms (e.g., Internet refrigerator). In the former, battery replacement will be impractical therefore battery life is expected to outlive the animal

(Chen, 2012). In the latter however, the device will need to constantly consume power to be available for its service.

Complexity and battery life/source of the device affects digital forensics investigations from similar points of view as discussed above such as volatility of data, availability of data, ownership and user ascription. For example, the data in network and volatile memory disappears in a short amount of time, thus recovery of such data is often impossible unless the device keeps logs of data. This requires existence of more non-volatile memory and processing power hence larger battery.

Figure 7: IoT Forensics (Zawoad and Hasan, 2015)

4.1.4 Availability of Propriety Operating Systems

The operating systems (OS) that are used for IoT was originally designed for WSNs such as TinyOS (Levis et al., 2005), Contiki (Dunkels et al., 2004) and OpenEmbedded Linux (OpenEmbedded, 2017). However, with the advances in the development of more sophisticated IoT devices than small sensors, the need for new OSs for IoT emerged. Hence, RIOT (Baccelli et al., 2013) was developed to bridge the gap between the available OSs for WSNs and the new needs for IoT. Recent development of Android Things (Google, 2016a) also move this trend to another level to provide leveraging the existing Android development tools, APIs and resources to build an IoT environment. While Table 4 depicts the comparison of different OSs for IoT and WSN, the details about these existing solutions can be obtained from the given resources above. In Table 4, P means: Partial Support, N means: No Support and Y means: Full Support for given points.

OS
Min
RAM
Min
ROM
C
Support
C++
Support
Multi-
Threading
Modularity Real-Time
Contiki <2KB <30KB P N P P P
TinyOS <1kB <4kB N N P N N
RIOT 1.5kB 5kB Y Y Y Y Y
Linux 1MB 1MB Y Y Y Y P

OS IPv6 TCP 6LoWPAN RPL CoAP
Contiki Y P Y Y Y
TinyOS N P Y Y Y
RIOT Y Y Y P P
Linux Y Y Y Y N
Table 4: Comparison tables for different IoT and WSN Operating Systems and supported protocols (Minerva et al., 2015)

There has been digital forensics research on the protocols such as IPv6 (Nikkel, 2007, Kumar et al., 2014, 2016), 6LoWPAN (Perumal et al., 2015, Kumar et al., 2016), and RPL (Kumar et al., 2016) that we mentioned in Table 4. These research efforts mostly provide frameworks for forensic readiness of IoT and WSNs. To the contrary of the availability of forensic readiness frameworks, wide variety of available protocols for both IoT and WSN creates a troublesome investigative process and introduces a steep learning curve for forensic examiners.

IoT forensics can be divided into three categories depending on where the forensic data is located and the investigation can take place (see Fig. 7) (Zawoad and Hasan, 2015). Specifically these are : 1) Device/Node; 2) Network where the data is collected; and 3) Cloud where the data is stored. The forensic research on WSNs is conducted at the first and second levels where sensor data is collected and transfered, and the communication takes place. Next we explain each category.

4.2 Device Level Investigation

IoT or WSNs deploy a variety of devices with certain characteristics. Typically these devices employ processing units, memory, communication module and sensing modules. The richness of the set of such devices increased significantly with the developments in micro electro-mechanical devices (Gaura and Newman, 2006). Examples of devices include but is not limited to sensors, smart phones, smart meters, smart thermostats, cameras, wearable devices, on-board vehicle devices, RFIDs, smart watches, and drones.

Device level investigation is necessary when data needs to be collected from the memory of a device in IoT/WSN. As discussed in Section 4.1, IoT/WSN devices may have propriety interfaces and storage units. Although it creates a burden on investigators in terms of longer investigation time and increased learning curve, evidence must be collected from these heterogeneous devices. Thus, the current state of the research shows that there is a long way to standardize the device level investigations for both IoT and WSNs environments. In this section, we explain general forensics techniques which are used when data is not available through device’s interface. We then discuss some of the techniques used to collect forensic data from specific devices and their memories.

The National Institute of Standards and Technology (NIST) discussed different digital forensics data acquisition techniques from mobile devices in “Guidelines on Mobile Device Forensics” (Ayers et al., 2013). They recommend performing the following acquisition methods: manual extraction, logical extraction, hex dumping/JTAG, chip-off, micro read. Manual and logical acquisition methods are usually available when devices provide user interface and are not locked, password protected, and damaged. In the case of IoT devices (other than smartphones and tablets), it is mostly not the case. Therefore, investigators usually perform hex dumping/JTAG and chip-off techniques (micro read is a special technique and it is out of our scope).

When smartphones or tablets are the interests of the investigations, examiners use state-of-art digital forensic tools such as Cellebrite UFED Physical Analyzer, Paraben Device Seizure, XRY, and Oxygen Forensics for their data acquisition and analysis. This is mainly because these devices come with a well understood operating systems such as Android, iOS, or Windows. Therefore, physical and logical acquisition is generally available to the investigators using aforementioned toolkits. Although we discuss some data acquisition techniques from mobile devices in this section, we do not elaborate more on the available forensic toolkits.

Forensically related data from a mobile device’s main storage unit is typically available for acquisition, however volatile data acquisition could often be challenging. Therefore, particular research interest from the mobile forensics community emerged for volatile memory acquisition. Anderson (2008), Kollár (2010), and Sylve et al. (2012) proposed early forensic volatile memory dumping tools crash, fmem, and dmd respectively. The acquired data from these tools is then analyzed using other available tools such as hex editors. As a more recent research, Saltaformaggio et al. (2016) proposed an open source tool called RetroScope which recovers multiple previous screens (from 3 to 11) from the volatile memory of a smartphone using a spatial-temporal memory acquisition technique. This technique shows that investigators can recover earlier content of an application (e.g. Facebook, WhatsApp, and WeChat) after the data is not available through conventional techniques and tools. This technique can also be particularly effective when the investigators do not have access to the smartphone’s data storage due to being password protected. Another recent research on volatile memory acquisition tool development for mobile devices is done by Yang et al. (2016). The proposed tool, AMExtractor, collects volatile memory from a wide variety of Android devices for forensic acquisition meaning with high integrity.

Hex dumping/JTAG technique allows investigators to access the memory content by connecting special cables to the provided pins on the device. This is done by loading a firmware to the device’s memory which is then used to access the information in the rest of the device memory. Fig. 8 shows the JTAG module attached to Samsung Galaxy S4 Active phone’s mainboard. Using the connectors available on the module and forensic memory reading tools, data from the phone’s memory can be easily accessed.

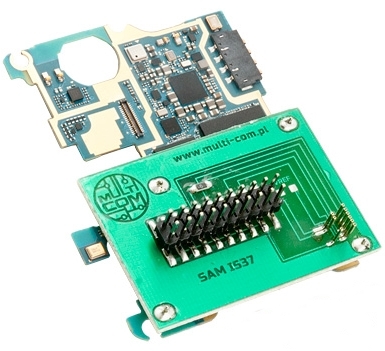

Figure 8: JTAG module for Samsung Galaxy S4 Active smartphone

Chip-off is another technique used when phone data is not available due to several reasons such as JTAG is not possible and phones being physically broken, burned or locked. In such cases, investigators can physically remove the flash memory from the device using chip-off technique. Although this techniques is described for mobile phones, it can also be used pretty much for any IoT device or a sensor in WSNs which stores data in flash memory (NAND, NOR, OneNAND or eMMC) (Intelligence, 2016). It is also important to note that chip-off techniques may damage the memory and may cause permanent data loss even though all the precautions are taken (Swauger, 2012).

Chip-off is a delicate and challenging method of data acquisition, therefore it requires extensive training in both electronic engineering and file system forensics. After the memory is removed from the phone, investigators are able to create binary image (bit-by-bit copy) of the removed memory. Fig. 11(a) shows removed NAND flash memory from iPhone5c and Fig. 11(b) shows example of how removed NAND chip is mirrored using a test board. Finally, Fig. 12 shows the raw data acquired from the removed memory via chip programmer and reading program.

(a) iPhone 5c with removed NAND
(b) Test board for copying NAND chips
Figure 11: Chip-off and NAND memory mirroring for iPhone 5c (both figures are from (Skorobogatov, 2016))

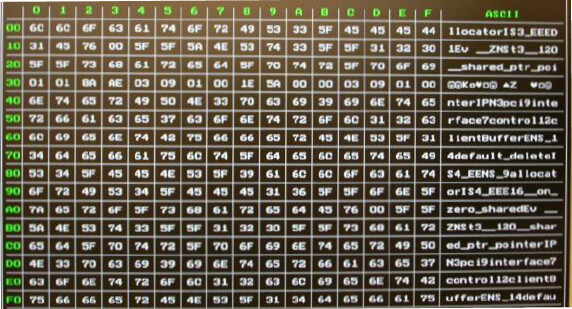

Figure 12: Data acquired from iPhone 5c NAND via reading software (Skorobogatov, 2016)

Zaharis et al. (2010) propose an architecture which provides remote live forensics protection and eliminates malicious code execution in WSNs using sandboxing methods. Using the proposed architecture, one may dump the volatile memory from the sensor device. However, this architecture does not provide full memory dump for analysis, instead it extracts data selectively due to power efficiency constraints. The collected data is only used for verification of the integrity of the program that each sensor device is running. Nevertheless, this is not considered complete forensics analysis of sensor device memory.

In order to close the gap discussed above, Kumar et al. (2014) propose an architecture of memory extraction from devices that are used in both IoT and WSNs environments. The main goal of this work is to investigate the extracted data in order to determine the reasons which could have caused the security breaches. This architecture is specifically designed to extract, analyze, and correlate forensic data for IPv6-based WNS devices which run Contiki (Dunkels et al., 2004) operating system and is powered by 8051-based, 8-bit micro-controllers. Contiki is a light-weight and open source operating system for IoT and WSN devices. It is important to note that the analysis done by the authors is purely hardware based and does not depend on WSN traffic analysis.

This work is divided into three steps which are extraction, analysis, and co-relation. In the first step, a copy of memory is extracted from the device memory. In the second step, the acquired data is analyzed in a fully automated fashion in order to reduce investigation time. In the final step, a set of new data is looked for by co-relating retrieved data from one device to another device in the case of multiple devices being used in the network.

As wearable IoT devices are becoming part of our everyday life, especially fitness trackers, they started to appear in the crime/incident scene and also being used in court cases (Alba, 2016, Siegal, 2016, News4JAX, 2016). This resulted in the need for forensic data collection from fitness trackers with different interfaces. Cyr et al. (2014) have studied security analysis of Fitbit, a wearable fitness device. Although they mostly focused on the security issues in both device communication and mobile application, its importance is also negligible from the digital forensics perspective. This is mainly because their methods can be used by forensic investigators.

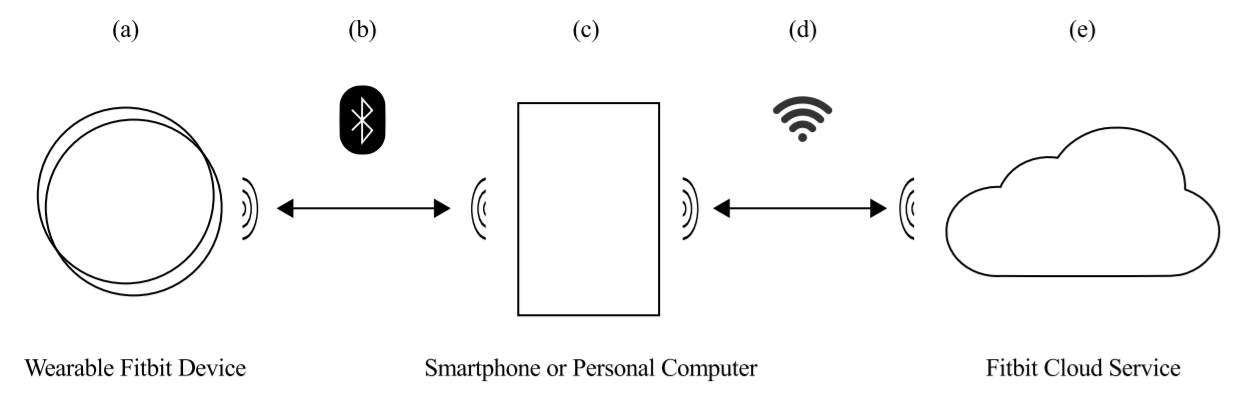

Figure 13: The Fitbit system components: attack surface is partitioned into five regions, (a), (b), (c), (d), and (e) (Cyr et al., 2014)

Fig. 13 shows each component in Fitbit system when synchronization is performed between a Fitbit device, mobile device or computer, and Fitbit cloud service. This system is also partitioned into possible attack surfaces in the figure. In addition to security analysis, the same partitioning can also be used for forensic investigation as well. The device’s memory can be extracted from Fig. 13(a) and analyzed using JTAG or chip-off techniques, and a chip reading software. Fig. 13(b) and Fig. 13(c) can be attacked to read communication between both devices shown in Fig. 13(a) and Fig. 13(c). Fitbit cloud data however, can be retrieved using similar methods discussed later in Section 4.4.

In most of the wearable fitness devices, memory is packaged with waterproof material. Therefore, it is impossible to physically access the memory without destroying the packaging (see Fig. 14). Once the memory device is accessed, then JTAG or chip-off can be used to retrieve raw data from the memory.

Figure 14: Fitbit Flex teardown process (iFixit, 2016)

4.3 Network Level Investigation

In some applications, IoT devices or sensors form a network of collective sensing and action. Therefore, in addition to device level data, there will be data collected at the network level regarding the flow of data, routing and tracking of lost packets. This IoT-related network may utilize one or more of the following networks:

  • Body Area Network (BAN),

  • Personal Area Network (PAN),

  • Home/Hospital Area Networks (HAN),

  • Local Area Networks (LAN),

  • Wide Area Networks (WAN),

  • Cyber-Physical System (CPS).

For each type of network, there needs to be customized mechanisms to be able to conduct cyber forensics after an incident. This forms a new form of research area that is different from the existing traditional wired networks.

Regardless of which form of network is used, most of the data in networks is volatile, and volatility of data causes serious issues in forensic investigations. Most of the hardware used in networks record transmitted data itself or some other information about that data in logs. These logs are indispensable to the forensic investigators as they may contain information which can eventually be used as evidence.

Firewalls capture and record the information about network traffic and keep the logs of events and transmitted data which goes through them while preventing unauthorized access to the systems. Jahanbin et al. (2013) proposed a design of autonomous intelligent multi-agent system in order to collect, examine and analyze firewall logs, and report possible evidence related to an ongoing or previous criminal activities in WSNs.

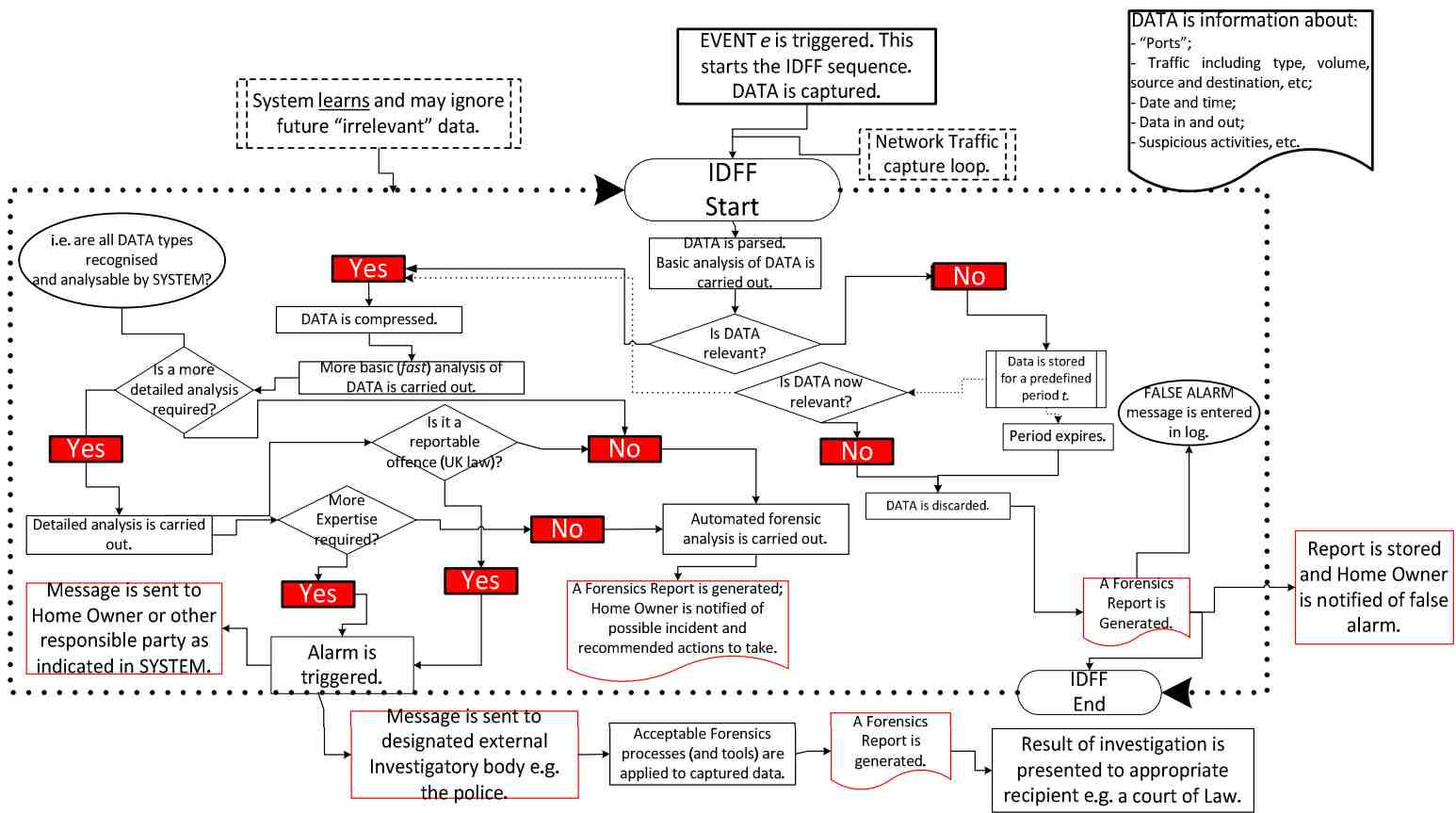

The proposed architecture is designed to be located between the firewall and the end user, and it consists of three cognitive agents.

  • The collector agent: This agent is used in collection step and responsible for collection and processing of the firewall logs that are recorded for a given WSN.

  • The inspector agent: This agent is used in the inspection step and is responsible for identification of suspicious events from the given log files. It is also responsible for transmission of suspicious events to the next agent.

  • The investigator agent: This agent is used in both investigation and notification steps. In the investigation step, it examines the forwarded suspicious event by the inspector agent and evaluates its effects and importance. It eventually decides whether it is malicious or not. In the notification step, the decisions are reported as security alerts to the security administrator in details.

It must be noted that, in order to preserve forensic soundness, the firewall logs must be checked for integrity purposes as users (either an administrator or adversary) might alter the logs and destroy the evidence (intentionally or unintentionally). All the agents mentioned above work on the exact copy of the firewall log files and keep the originals as evidence in order to preserve integrity and provide reproducibility of forensic evidence.

Although WSNs have received the attention of security researchers, digital forensics research is still lacking in the discipline. In order to at least prepare WSNs for forensics investigations, Mouton and Venter (2011a) proposed a digital forensics readiness prototype in IEEE 802.15.4 WSNs. This prototype is designed based on the description made by Tan (2001) who defines two digital forensics readiness objectives as:

  1. Maximizing an environment’s ability to collect credible digital evidence, and;

  2. Minimizing the cost of forensics in an incident response.

(a) A graphical representation of a wireless sensor network (Mouton and Venter, 2009)
(b) A graphical representation of the network layout with digital forensics readiness implemented (Mouton and Venter, 2011a)

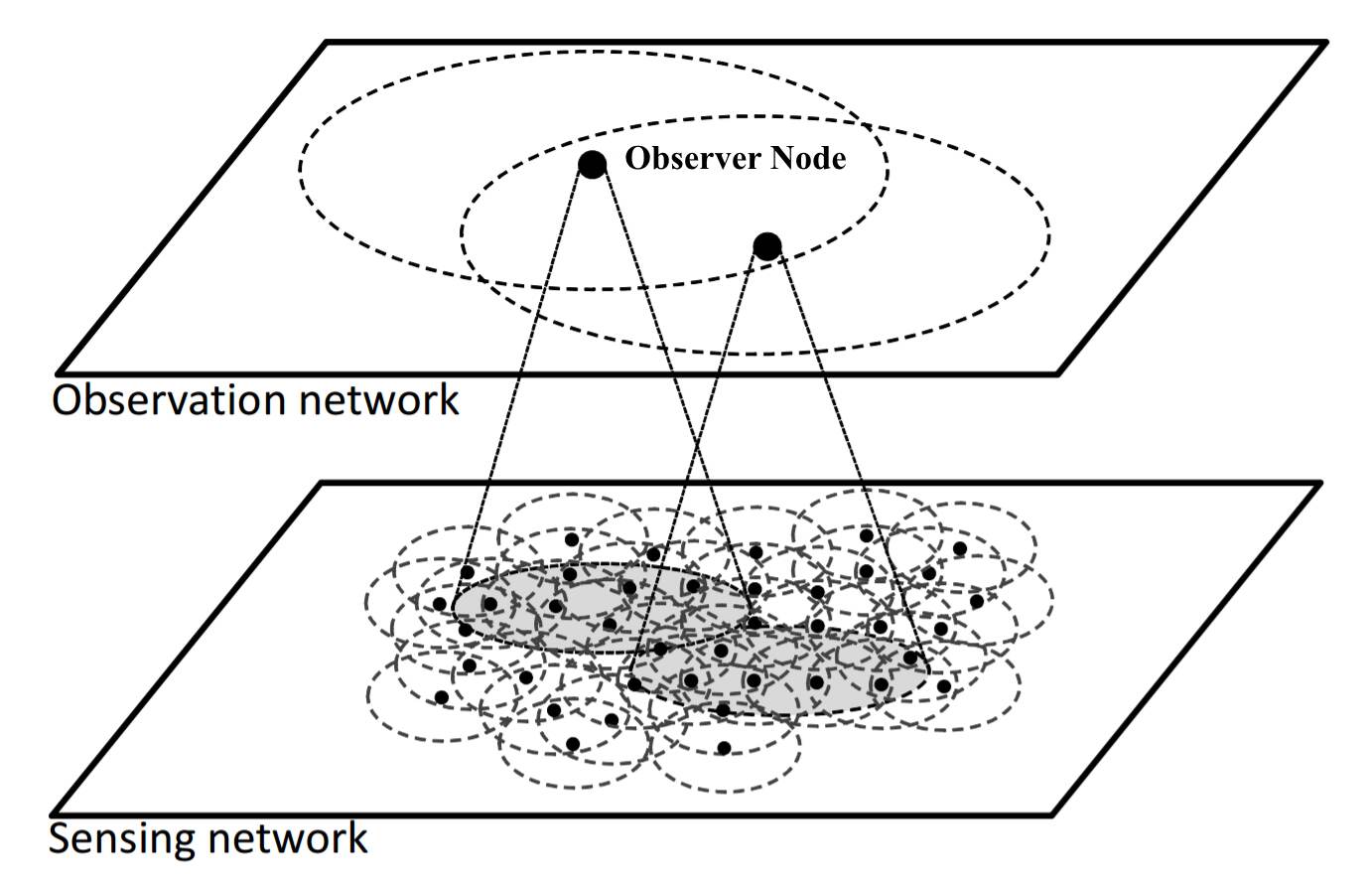

Figure 17: Adding a digital forensics readiness layer to an existing Wireless Sensor Network for digital evidence collection

Although Tan (2001)’s objectives are sufficient enough for general digital forensics investigations, Mouton and Venter modified these objectives to be better suited to WSNs. Their objectives are threefold and aim to perform the investigation in the shortest amount of time, spending the least amount of time, and without causing disruptions in the network which may perform mission-critical tasks Mouton and Venter (2011a). As digital forensics investigations require the original source of evidence being protected against alterations, the last objective is critical for forensic soundness. In order to avoid inadmissibility of evidence and make the implementation of digital forensics readiness, the authors created additional independent forensics WSN referred as fWSN (see Fig. 17(a)), along with the original WSN referred as oWSN (see Fig. 17(b)).

Mouton and Venter also discuss the list of requirements (see Table 5) which can be used as a preliminary approach and need to be considered in order to implement digital forensics readiness in an IEEE 802.15.4 WSN environment. Note that the first column in the table shows some important factors which make WNSs environments unique and different from WLAN.

Factors Detailed requirement list
Communication Protocol 1. The fWSN ensures the collection of all data packets by motes in the field utilizing a receipt acknowledgement packet protocol.
2. In order to make sure that the data packets are not changed, oWSN’s broadcasting communication should be intercepted.
3. All poWSN ossible communication that is originating from oWSN.
Proof of Authenticity and Integrity 4. While fWSN captures the data, the authenticity and integrity of all the data packets should be preserved.
5. Authenticity and integrity of the captured data in the fWSN should be preserved while they are being stored.
6. Verification on the authenticity and integrity of all the data packets should be available when digital investigation takes place.
Time Stamping 7. The data packets should have a time stamp assigned to them in order to preserve their authenticity and integrity.
8. The order of the captured packets should reflect the correct sequence when compared to the data transmitted from the original network.
Modification of the network after deployment 9. It should be possible to implement the fWSN without any alteration in the oWSN.
Protocol Data Packets 10. fWSN’s operation should not be affected by the routing protocol or the network topology being used by oWSN.
Radio Frequencies 11. The fWSN should be able to communicate on the same radio frequencies that are available to the oWSN.
12. All communication within the fWSN should occur on a frequency not utilized in the oWSN.
13. Data packet should be captured forensically by the fWSN when an intruder WSN is in the area and communicates on a frequency that influences the oWSN.
Power Supply 14. In order to ensure that the fWSN captures all forensically relevant packet, the fWSN should have at least the same or a longer network lifetime than the oWSN in terms of battery power. Also, the fWSN should not increase power consumption in the oWSN.
Network Overhead 15. While intercepting communication, the oWSN should be free of extra network overhead.
Data Integrity 16. The fWSN should by no means be able to influence the oWSN or influence any sensory data transmitted within the oWSN.
Table 5: Requirements in order to achieve digital forensic readiness in a IEEE 802.15.4 WSN environment (Mouton and Venter, 2011b)

In another work, (Triki et al., 2009) propose a solution to digital forensics investigations when wormhole attacks take place in a WSN. This solution ultimately aims to collect digital evidence, detect colluded nodes and reconstruct the events which occurred during the wormhole attack which allows attackers to transmit a packet from one point to another point in the network by creating ‘tunnels’ (see Fig. 18). This will allow attackers to distribute the packet to other nodes from the second point in the network (see Arora et al. (2010) for attack details).

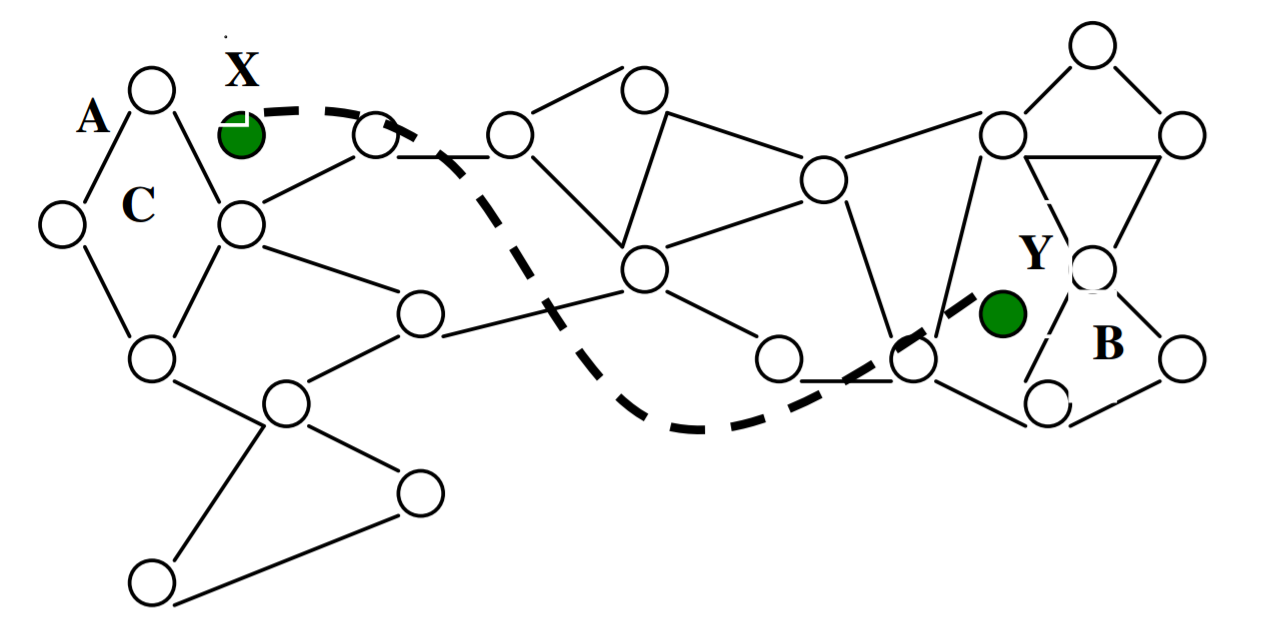

Figure 18: Wormhole Attack (Arora et al., 2010)

The proposed solution suggests creating a virtual network called observation network which consists of a set of investigator nodes and base stations. The nodes in this secondary network are called observers. Each observer has a limited coverage and they are responsible for monitoring the communication between observed nodes located in the sensing network (see architecture in Fig. 19). Observers collect information about the suspicious nodes such as traffic between nodes, routing path of data packets, and identity of those nodes. The aggregated evidence data is then broadcast to base-stations.

Figure 19: Proposed WSN architecture (Triki et al., 2009)

Base stations are responsible for several activities which are defined in the following two groups (Triki et al., 2009).

  1. Sensing based activities such as:

    • Analyzing collected data from sensors

    • Creating decisions by correlating and filtering the data

    • Transmitting configuration to sensors

    • Activating sensors dynamically to reduce battery usage

  2. Investigation based activities such as:

    • Collecting forensic information about the observed nodes from observation network

    • Analyzing, correlating and merging the evidence in order to determine malicious nodes and rebuild the attack scenarios

    • Communicating with observers about configuration of their locations

This proposed architecture is able to detect all types of wormhole attacks as the observer nodes and the observation network is designed in such a way that no observed nodes are left behind in the sensing network. In other words, all the observed nodes are clustered into groups and each cluster is constantly observed by observer nodes.

4.3.1 CyberForensics for CPS and SCADA.

Recently, IoT has also started to be deployed in control systems for actuation purposes which led to the concept of CPS (Rajkumar et al., 2010, Khaitan and McCalley, 2015). In such systems, IoT devices are involved in sensing, communicating and acting. The difference from the above networks is that there are nodes which do actuation and thus this creates another venue for forensics investigation. One form of CPS is in the area of control systems for critical applications such as energy, transportation and industry. In such systems, the network is referred to as Supervisory Control and Data Acquisition (SCADA) (Boyer, 2009) and failure or attacks in such systems is crucial to be detected and investigated for the applications to sustain (Krutz, 2005). SCADA systems, are used for the collection and analysis of real-time data from Industrial Control Systems (ICS). Most of the CPSes rely on computer and control systems in order to provide reliable operations to safeguard the infrastructure. Therefore, forensics analysis of SCADA/ICS systems has been an important tool which was considered in some works. In the remainder of this section, we also discuss these approaches as they relate to a network-level investigation.

SCADA systems consists of a field site and control center. In the field site, there are IoT devices which are considered as intelligent such as Programmable Logic Controllers (PLCs) or Remote Terminal Units (RSUs). These are typically attached to physical processes such as thermostats, motors, and switches. The control center is responsible for collecting data related to the state of field instruments and interacting with the field sites. Components found at the control center typically consist of a Human Machine Interface (HMI), Historian and Master Terminal Unit (MTU). All of these are connected with a LAN that can run various protocols including MODBUS Modbus (2004), DNP3 Clarke et al. (2004), and Ethernet.

The information security vulnerabilities of ICS have been studied extensively, and the vulnerable nature of these systems is well-known (Stouffer et al., 2011, Patzlaff, 2013, Shahzad et al., 2014). However, in the case of a security incidents (e.g., denial of service attacks), it is important to understand what the digital forensics consequences of such an attack are? What procedures or protocols are needed to be used during an investigation? What tools and techniques are appropriate to be used by the investigator? Where can forensic data be collected and how?

In the rest of this section, we discuss various research efforts aimed at assisting SCADA forensics procedures by proposing tools, techniques and forensics investigation models.

SCADA Live Forensics:

SCADA is originally deployed to non-networked environments, therefore there has been a lack of security against Internet-based threats and cyber-related forensics. Over time, there has been a huge increase in the vulnerability of threats caused through connectivity allowing remote control over the Internet. The attacks necessitated SCADA system a forensic investigation in order to understand the effects and cause of the intrusion. Taveras (2013) focuses on detecting the abnormal changes of sensor reads, illegal penetrations, failures, traffic over the communication channel and physical memory content by creating a software application. The challenging issue is that the tool should be developed in a way that it should have the minimal impact over the SCADA resources during the data acquisition process.

The problem involved in this process is that SCADA systems should not be turned off for data acquisition and analysis as it is being continuously operational. There has not been a single forensic tool to preserve the hardware and software state of a system during investigation. Research continued to provide a computing module to support the incident response and digital evidence collection process. Experiment is performed on the SCADA system by performing live data acquisition and then performing subsequent offline analysis of the acquired data.

Based on the live forensic analysis of the data collected from the SCADA system, it is concluded that traditional information security mechanisms cannot be applied directly as these systems cannot tolerate delays in performance which eventually require a lot of memory to perform long processes. Thus, SCADA systems should consider a special operating paradigm. This also paved the way to improve the infrastructure of the systems and provide appropriate tools for forensic analysis over interconnected SCADA systems.

Limitations of forensic analysis tools on SCADA systems:

As Ahmed et al. (2012) notes, currently available traditional digital forensics tools are not capable of performing data analysis on SCADA systems. The main reason is that state-of-the-art tools are designed to work on deterministic systems and devices such as hard disk drives, mobile phones, network traffic captures saved in pcap files. However, SCADA systems generate propriety log data depending on the make and model the hardware. As discussed above, investigators are in need of creating new scripts for their own particular needs to overcome this issue. Hence, there is an expectation from the research community and forensics tools developers to design SCADA forensics tools or patch currently available tools in order to respond to this demand.

Developing Forensics Investigation Models for SCADA:

Once the vulnerabilities and the possible attacks on the SCADA/ICS systems are analyzed, it is crucial to perform forensically sound forensic analysis on SCADA/ICS. The current literature shows some efforts of developing forensic analysis frameworks and models.

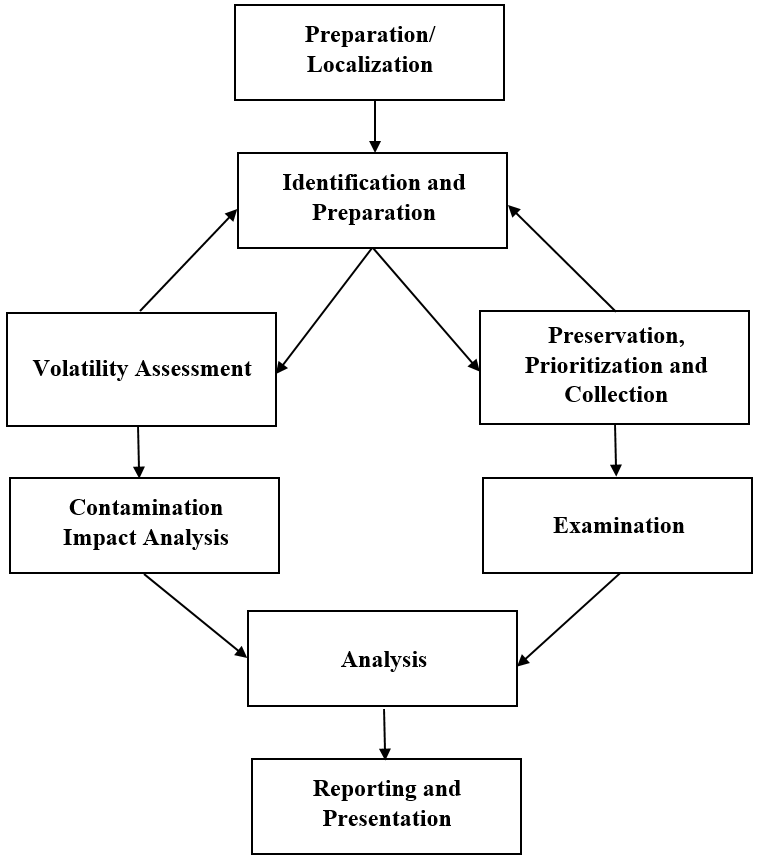

Figure 20: Cyber Forensics Model for SCADA/ICS by Stirland et al. (2014)

One of the early frameworks is proposed by Wu et al. (2013). In addition to this framework, Stirland et al. (2014) proposed a methodology to analyze the problems involved in SCADA/ICS systems proposed (see Fig. 20). The authors in this work particularly categorize a set of forensic toolkits (both commercial and open source) to support each stage of an investigation and structure of the control systems. The proposed methodology involves a clear process of investigation which includes the following phases:

SCADA Device Phase Forensic Tool
Network Phase 3 TCPDump
Phase 4 Network Miner, Wireshark, AlienVault
HMI Phase 3
Write Blockers, FTK Imager, EnCase, Helix,
SHA-256/MD5 Hashing Tool
Phase 4 EnCase, XWays, Accessdata FTK, Volatility
PLC/RTU Phase 3 Besope PLC Flashing Software
Phase 4 XWays
Engineering
Computer
Phase 3
Write Blockers, FTK Imager, EnCase, Helix,
SHA-256/MD5 Hashing Tool
Phase 4 EnCase, XWays, Accessdata FTK, Volatility
Database
Server
Phase 3
Write Blockers, FTK Imager, EnCase, Helix,
SHA-256/MD5 Hashing Tool
Phase 4 EnCase, XWays, Accessdata FTK, Volatility
OPC Phase 3
Write Blockers, FTK Imager, EnCase, Helix,
SHA-256/MD5 Hashing Tool
Phase 4 EnCase, XWays, Accessdata FTK, Volatility
Historian Phase 3
Write Blockers, FTK Imager, EnCase, Helix,
SHA-256/MD5 Hashing Tool
Phase 4 EnCase, XWays, Accessdata FTK, Volatility
Table 6: Forensic Toolkit Application to SCADA Systems
  1. Identification and preparation of the requirements and the problem involved in extracting the evidence.

  2. Identifying data sources- this phase involves gathering the data from sources and analyzing if the system supports the data sources.

  3. Preservation, prioritizing and collection – this phase works depending on the priority of data and different data capturing techniques are involved to ensure all devices are captured or not.

  4. Examination and analysis- this phase involves in performing the analysis depending on the data sources, methods and provides a timeline in preparing the data and logs on it and allows to extract data.

  5. Reporting and presentation- this phase involves in providing a report to all the details performed in the above phases including the outcome of the analysis which also includes documentation of the further recommendations for future study.

Security is of high importance for the control systems and there are many recommendations for further improvements in incident response to support investigation and increase the level of complexity for attacking the systems by attackers. It is concluded that the proposed methodology for developing a forensics toolkit is considered based on the requirements of SCADA systems. Various suggested tools are shown in Table 6. There are already existing tools which support the elements of SCADA forensic investigation and further research and progress in this area is needed in order to identify more evidence and artifacts.

Moreover, Ahmed et al. (2012) discuss the challenges for forensics investigators in SCADA systems and their potential solutions. In order to address some of these unique challenges of SCADA forensics analysis, a recent framework was proposed in (Eden et al., 2016). This framework aims at identifying necessary steps for incident response as well. Fig. 21 shows the SCADA forensic incident response model consisting of six main stages: 1) Prepare; 2) Detect; 3) Isolate; 4) Triage; 5) Respond; and 6) Report.

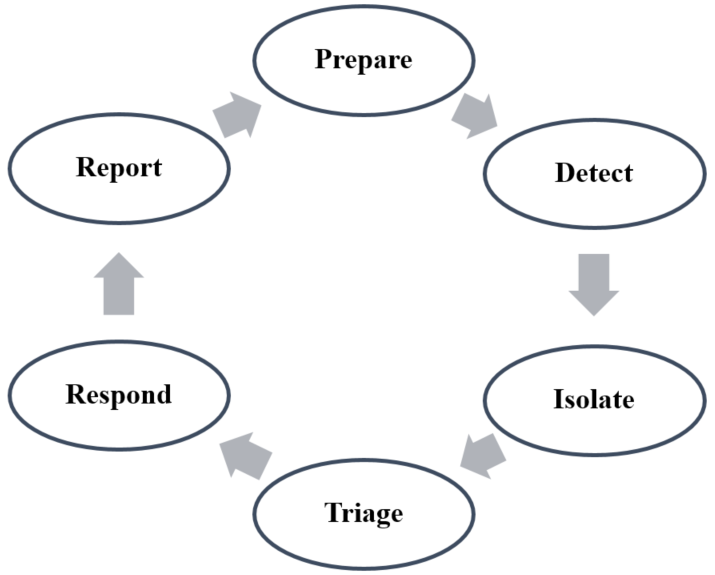

Figure 21: Forensics Model for SCADA Systems

This proposed model suggests that the preparation phase must be performed prior to incident the happening. In this first stage, an investigator must understand the system’s architecture with respect to its configuration and hardware devices used in the system. This step is crucial to the first responders to avoid complication when the recovery from an incident is time sensitive. In this stage, it is made sure that all the hardware used in the system is well documented. In addition to the system architecture, the forensics investigator is also expected to know the SCADA system’s requirements with respect to availability of the system. This is essential particularly if the system is mission critical and running states of a certain device must be preserved while the investigation is in progress. Therefore, prior knowledge of system requirements play a critical role. Finally, the investigator is also expected to understand potential attacks targeting hardware, software and the communication stack of the SCADA system. Such knowledge will allow the investigators to better perform in the following phases.

In the second stage of the model, the investigator is expected to detect the type of attack and potential infected areas in the system. This detection will be performed based on the real-time data available in the system such as network packages and log files. Once the type of attack has been determined, investigators will be able to locate infected areas based on the behavior of the attack. As long as the infected areas are detected, it will be easier to know the type of data in the next stage.

The isolate stage is critical for the investigation with respect to the importance of SCADA system in the CPS. In most of cases, infected areas in the network must be isolated so that further contamination and disruption to the system can be avoided. The success of the isolation will be dependent on the success of the detection of potential infected areas.

Despite the classical forensics investigations, triaging is different in SCADA networks. Forensics investigators must identify the data sources in order to triage the available data. This will also be dependent on the information (e.g., device make, model, and serial number) provided in earlier stages, particularly preparation and detection stages. Once the data identification is performed, then data sources ought to be prioritized with respect to the value, volatility and accessibility of data. This will allow investigators to acquire as much evidence as possible.

In the respond stage, investigators perform actual data acquisition from the SCADA system (network) by using the priority list created in the previous stage. As a rule of thumb, data must be acquired from the SCADA system by using forensically sound tools and techniques. As discussed before, this will prove the admissibility of evidence in a court of law (when needed). In order to acquire data from various devices and network, aforementioned forensics acquisition techniques can be used. Once the data acquisition is completed, then analysis of data is performed using available forensics tools or by creating new special scripts for unconventional data. Eventually, the aim is to find a forensics artifact to be presented as evidence from the large set of unrelated system data.

Finally, similar to the traditional investigations, the reporting stage requires investigators to document all the steps taken, tools used, evidence collected, and challenges faced. When they are documented systematically, then the investigator may create a timeline of events by reviewing the findings to support the evidence found and determine the source of an incident/attack. The final report must comply with the chain of custody by providing validation and verification of evidence found.

Our final discussion in this section is briefly on accurate modeling of the SIEMENS S7 SCADA Protocol for intrusion detection and digital forensics using real-life data. Siemens S7 is used in SCADA systems for communications between a HMI and the Programmable Logic Controllers (PLCs). In (Kleinmann and Wool, 2014), Intrusion Detection system (IDS) model is designed for S7 networks which analyzes the traffic to and from a specific PLC. A unique Deterministic Finite Automata (DFA) is used to model the HMI-PLC channel traffic whether it is highly periodic or not.

SCADA systems have its own strategy in analyzing the fault or malfunction. In this paper, it is defined that the research based on traffic simulation has several risks such as lack of realism which effects the use of SCADA systems. Three different traces of datasets are collected in order to perform the experiments which are collected at ICS facilities. The first S7 SCADA trace was collected from a manufacturing plant where a single channel is observed between the HMI and an S7 complaint VIPA PLC. Next two traces are collected from a water treatment facility which has control over specific levels in tanks. A Wireshark program is used to collect the traces with HMI running in background in the operating system. Authors show that, based on the analysis of the traffic from two ICS plants, some key semantics of the proprietary of S7 protocol can be reverse engineered. It is also observed that previously developed Modbus showed successful results in the same way DFA-based approach is very successful with high accuracy and extremely low-false positive rates; IDs is further extremely efficient which works at line speed to detect the anomalies.

4.4 Cloud Level Investigation

As discussed in the previous sections, forensic investigation in cloud environments has its own challenges such as multi-tenancy and multi-jurisdiction. Since IoT devices have limited storage and computational resources, the actual data is processed and stored in the cloud. This causes investigations being conducted in the cloud environment especially when data in physical storage and network does not result useful evidence. Hence, similar investigative challenges in the cloud exist when forensic investigations in IoT are conducted. Although current research efforts in IoT forensics are in their very early stages, there are some successful models suggesting easier investigations in the cloud environment. In this section we will specifically focus on IoT forensics investigation models proposed for cloud environments.

According to Zawoad and Hasan (2015), the term IoT forensics was not formally defined until they proposed forensics-aware model (see Fig. 22) for IoT infrastructures called FAIoT. This model supports digital evidence collection and analysis in the IoT environment by providing easiness and forensic soundness. Such a model might also allow cloud service providers addressing the needs of law enforcement officers when a search warrant is obtained to collect data from cloud environments.

Figure 22: Proposed Model of IoT Forensics (Zawoad and Hasan, 2015)
Secure Evidence Preservation Module:

This module provides constant monitoring of the registered devices for forensics evidence in the form of logs files or data collected by sensors. If evidence is recognized, it is then stored in the evidence repository. Evidence repository database is designed on top of Hadoop Distributed File System (HDFS) in order to provide scalable and reliable data processing of large data. The data kept in the database will be categorized based on the IoT device and its owner in order to reduce multi-tenancy issues and avoid commingling of data in cloud. (Zawoad and Hasan, 2015).

Secure Provenance Module:

This module provides chain of custody for the evidence stored and kept in the database. This is made possible by using provenance aware file system (PASS) introduced by Muniswamy-Reddy et al. (2006). PASS is a storage system which performs automated collection, management, storage and search of provenance an object (Muniswamy-Reddy et al., 2006). Secure Provenance Module provides provenance record of evidence stored in provenance database by using PASS.

Finally, investigators can access the evidence and its provenance record using proposed APIs which makes sure the confidentiality of evidence by using encryption algorithms. In order for this to be possible, investigators need a Web Server to access the requested data through the API.

In another work, Oriwoh and Sant (2013) propose a more specialized model called Forensics Edge Management System (FEMS) which is specific to smart home environments. FEMS is an automated system which can be integrated into smart homes in order to perform initial forensic investigations while providing basic security services (Oriwoh and Sant, 2013). Fig. 23 shows the architecture of the FEMS and all the security and forensic services provided by FEMS.

Figure 23: The FEMS Architecture (Oriwoh and Sant, 2013)

Oriwoh and Sant also proposed a digital forensics framework called IoT Digital Forensics Framework (IDFF) (see Fig. 24). This framework presents step by step operation presented in the flowchart in order to show how FEMS operation is performed. As stated by the authors, usage of FEMS provides automatic, intelligent, and autonomous detection and investigation, and indicates the source of security issues in smart homes to its users.

Figure 24: Detailed flowchart of the IoT Digital Forensics Framework (IDFF) (Oriwoh and Sant, 2013)

4.5 Future Research

As digital forensics in IoT and WSNs is a relatively new concept particularly for the digital forensics community, the current research reveals important future work to be conducted. It is quite obvious that newer investigative techniques will be soon needed as Google has announced Android Things (Google, 2016a) a new operating system to develop new IoT devices and there is a growing number of IoT devices being deployed in our daily applications. It is worth noting that as WSNs are now widely considered under the IoT concept, most of the endeavors for digital forensics research will be also applicable for WSNs. In addition, digital forensic solutions and frameworks also will be needed due to the availability of low memory footprint and low power requirement devices used in WSNs.

Despite this inevitable demand in the very near future, once they are developed, these new methods will ultimately help investigators to perform standard investigative processes. Until then, it could also be possible to use some of the available tools and techniques that are readily available for current Android operating systems. In addition to the existing research literature, we believe some of the areas for further work could be listed as follows:

  • standardize data storage units and interfaces in similar devices. Forensically valuable IoT devices (e.g. fitness trackers) could be designed and manufactured with data storage units which can be analyzed using state of the art forensic tools. Using known interfaces such as JTAG connections for IoT devices is also critical for faster and reliable investigations.

  • develop automated decision-making systems on forensically sound data for specific IoT technologies such as smart homes. It is well known that artificial intelligence techniques have been applied to many digital forensic domains to intelligently automate duties performed by human entities. Therefore, as an example, it can be very useful to adapt machine learning techniques to classify evidence in IoT domain or expert systems can be used to create intelligent tools to make decisions based on knowledge collected from both investigators and IoT environments.

  • build a model that would correlate evidence found in IoT environments. Digital forensics evidence correlation is an important concept especially when heterogeneous data is involved in investigations. Case et al. (2008) have developed a framework for automatic evidence discovery and correlation from a variety of forensic targets. We also believe that similar models can also be built for IoT environments in order to use unrelated data leading to actual evidence through correlation.

  • analyze Android Things and develop new forensics models and tools for data acquisition, examination, analysis and reporting. This brand new operating system needs immediate attention from the researchers as it is projected to be used in many IoT devices in the near future.

  • create new digital forensics investigation models (e.g. Electronic Discovery Reference Model, see http://www.edrm.net) for specific IoT environments. Due to the heterogeneity of data and hardware in IoT devices, it could be useful to develop IoT specific investigation models. Because, currently available models are mostly designed for storage, network, and cloud specific, however, IoT environments may necessitate all three environments being used.

  • collaborate with data analytics and fault-tolerance experts to cooperatively analyze data from IoT devices not only related to user activity but also related to hardware and embedded systems. This opens up opportunities for insurance companies as they would like to investigate issues regarding failures while some of these failures might be due to actual attacks from external attackers.

  • create robust and standard solutions particularly for live data acquisition, automated data collection, recovery of memory and processes from live units in SCADA systems.

  • develop legal solutions to the issues including preservation of the chain of custody and admissibility of IoT evidence. In digital investigations, it is critical to preserve chain of custody for evidence admissibility. However, it may not be possible in IoT environments because of their designs. Involvement in legislative processes regarding IoT forensics investigations is needed to determine solutions from the legal aspects.

4.6 Conclusion

The IoT and WSNs offer a significant source of potential evidence, however due to their heterogeneous nature and the ways in which data is distributed, aggregated, and processed, there are challenges that the digital forensics investigations must overcome. For this purpose, new techniques are required to not only overcome the hurdles, but also influence the architecture and processes in order to gain access to this rich source of potential evidence in the IoT and thus WSN environments. In this book chapter, we explained digital forensics challenges in IoT and WSN environments. We also analyzed and explained currently available solutions to overcome some of those challenges from different perspectives. As discussed in the Section 4.5, there are still many open research problems in this new area.

References

  • Ahmed et al. (2012) I. Ahmed, S. Obermeier, M. Naedele, and G. G. Richard III. Scada systems: Challenges for forensic investigators. Computer, 45(12):44–51, 2012.
  • Akkaya and Younis (2005) K. Akkaya and M. Younis. A survey on routing protocols for wireless sensor networks. Ad hoc networks, 3(3):325–349, 2005.
  • Akyildiz et al. (2002) I. F. Akyildiz, W. Su, Y. Sankarasubramaniam, and E. Cayirci. A survey on sensor networks. IEEE communications magazine, 40(8):102–114, 2002.
  • Alba (2016) A. Alba. Police, attorneys are using fitness trackers as court evidence, 2016. URL http://www.nydailynews.com/news/national/police-attorneys-fitness-trackers-court-evidence-article-1.2607432.
  • Anderson (2008) D. Anderson. White paper: Red hat crash utility, 2008.
  • Arora et al. (2004) A. Arora, P. Dutta, S. Bapat, V. Kulathumani, H. Zhang, V. Naik, V. Mittal, H. Cao, M. Demirbas, M. Gouda, et al. A line in the sand: a wireless sensor network for target detection, classification, and tracking. Computer Networks, 46(5):605–634, 2004.
  • Arora et al. (2010) M. Arora, R. K. Challa, and D. Bansal. Performance evaluation of routing protocols based on wormhole attack in wireless mesh networks. In Second International Conference on Computer and Network Technology, pages 102–104. IEEE, 2010.
  • Ashton (2009) K. Ashton. That ‘internet of things’ thing. RFiD Journal, 22(7):97–114, 2009.
  • Atzori et al. (2010) L. Atzori, A. Iera, and G. Morabito. The internet of things: A survey. Computer networks, 54(15):2787–2805, 2010.
  • Ayers et al. (2013) R. Ayers, S. Brothers, and W. Jansen. Guidelines on mobile device forensics (draft). NIST Special Publication, 800:101, 2013.
  • Baccelli et al. (2013) E. Baccelli, O. Hahm, M. Gunes, M. Wahlisch, and T. C. Schmidt. Riot os: Towards an os for the internet of things. In Computer Communications Workshops (INFOCOM WKSHPS), 2013 IEEE Conference on, pages 79–80. IEEE, 2013.
  • Baronti et al. (2007) P. Baronti, P. Pillai, V. W. Chook, S. Chessa, A. Gotta, and Y. F. Hu. Wireless sensor networks: A survey on the state of the art and the 802.15. 4 and zigbee standards. Computer communications, 30(7):1655–1695, 2007.
  • Bluetooth (2001) S. Bluetooth. Bluetooth specification version 1.1. Available HTTP: http://www. bluetooth. com, 2001.
  • Boyer (2009) S. A. Boyer. SCADA: supervisory control and data acquisition. International Society of Automation, 2009.
  • Case et al. (2008) A. Case, A. Cristina, L. Marziale, G. G. Richard, and V. Roussev. Face: Automated digital evidence discovery and correlation. digital investigation, 5:S65–S75, 2008.
  • Chen (2012) Y.-K. Chen. Challenges and opportunities of internet of things. In 17th Asia and South Pacific Design Automation Conference, pages 383–388. IEEE, 2012.
  • Christin et al. (2009) D. Christin, A. Reinhardt, P. S. Mogre, R. Steinmetz, et al. Wireless sensor networks and the internet of things: selected challenges. Proceedings of the 8th GI/ITG KuVS Fachgespräch Drahtlose sensornetze, pages 31–34, 2009.
  • Clarke et al. (2004) G. R. Clarke, D. Reynders, and E. Wright. Practical modern SCADA protocols: DNP3, 60870.5 and related systems. Newnes, 2004.
  • Committee et al. (2009) I. S. Committee et al. Isa100. 11a,” wireless systems for industrial automation: Process control and related applications. Technical report, Technical Report, Research Triangle Park, North Carolina, 2009.
  • Computing (2010) C. Computing. Toward a multi-tenancy authorization system for cloud services. 2010.
  • Cyr et al. (2014) B. Cyr, W. Horn, D. Miao, and M. Specter. Security analysis of wearable fitness devices (fitbit). Massachusets Institute of Technology, page 1, 2014.
  • Demirkol et al. (2006) I. Demirkol, C. Ersoy, and F. Alagoz. Mac protocols for wireless sensor networks: a survey. IEEE Communications Magazine, 44(4):115–121, 2006.
  • Devices (2016) I. Devices. Various iot devices, 2016. URL http://iotlist.co.
  • DoJ (2001) DoJ. Electronic crime scene investigation: A guide for first responders. 2001.
  • Dunkels et al. (2004) A. Dunkels, B. Gronvall, and T. Voigt. Contiki-a lightweight and flexible operating system for tiny networked sensors. In Local Computer Networks, 2004. 29th Annual IEEE International Conference on, pages 455–462. IEEE, 2004.
  • Eden et al. (2016) P. Eden, A. Blyth, P. Burnap, Y. Cherdantseva, K. Jones, H. Soulsby, and K. Stoddart. A Cyber Forensic Taxonomy for SCADA Systems in Critical Infrastructure, pages 27–39. Springer International Publishing, Cham, 2016. ISBN 978-3-319-33331-1. doi: 10.1007/978-3-319-33331-1˙3. URL http://dx.doi.org/10.1007/978-3-319-33331-1_3.
  • Estrin et al. (1999) D. Estrin, R. Govindan, J. Heidemann, and S. Kumar. Next century challenges: Scalable coordination in sensor networks. In Proceedings of the 5th annual ACM/IEEE international conference on Mobile computing and networking, pages 263–270. ACM, 1999.
  • Gaura and Newman (2006) E. Gaura and R. Newman. Smart MEMS and sensor systems. World Scientific, 2006.
  • Google (2016a) Google. Android things, 2016a. URL https://developer.android.com/things/index.html.
  • Google (2016b) Google. Google trends, 2016b. URL https://www.google.com/trends.
  • Gubbi et al. (2013) J. Gubbi, R. Buyya, S. Marusic, and M. Palaniswami. Internet of things (iot): A vision, architectural elements, and future directions. Future Generation Computer Systems, 29(7):1645–1660, 2013.
  • Hegarty et al. (2014) R. Hegarty, D. Lamb, and A. Attwood. Digital evidence challenges in the internet of things. In Proceedings of the Tenth International Network Conference (INC 2014). Lulu. com, page 163, 2014.
  • Hosain (2016) S. Hosain. Reality check: 50b iot devices connected by 2020 – beyond the hype and into reality, 2016. URL http://www.rcrwireless.com/20160628/opinion/reality-check-50b-iot-devices-connected-2020-beyond-hype-reality.
  • iFixit (2016) iFixit. Fitbit flex teardown, 2016. URL https://www.ifixit.com/Teardown/Fitbit+Flex+Teardown/16050.
  • Intelligence (2016) B. Intelligence. Chip-off forensics, 2016. URL http://www.binaryintel.com/services/jtag-chip-off-forensics/chip-off_forensics/.
  • Jahanbin et al. (2013) A. Jahanbin, A. Ghafarian, S. A. H. Seno, and S. Nikookar. Computer forensics approach based on autonomous intelligent multi-agent system. International Journal of Database Theory and Application, 6(5):1–12, 2013.
  • Jiang et al. (2014) L. Jiang, L. Da Xu, H. Cai, Z. Jiang, F. Bu, and B. Xu. An iot-oriented data storage framework in cloud computing platform. IEEE Transactions on Industrial Informatics, 10(2):1443–1451, 2014.
  • Jiang et al. (2013) Y. Jiang, L. Zhang, and L. Wang. Wireless sensor networks and the internet of things. International Journal of Distributed Sensor Networks, 9(6):589750, 2013. doi: 10.1155/2013/589750. URL http://dx.doi.org/10.1155/2013/589750.
  • Karabiyik (2015) U. Karabiyik. Building an intelligent assistant for digital forensics. PhD thesis, THE FLORIDA STATE UNIVERSITY, 2015.
  • Khaitan and McCalley (2015) S. K. Khaitan and J. D. McCalley. Design techniques and applications of cyberphysical systems: A survey. IEEE Systems Journal, 9(2):350–365, 2015.
  • Kleinmann and Wool (2014) A. Kleinmann and A. Wool. Accurate modeling of the siemens s7 scada protocol for intrusion detection and digital forensics. Journal of Digital Forensics, Security and Law, 9(2):4, 2014.
  • Ko et al. (2011) J. Ko, A. Terzis, S. Dawson-Haggerty, D. E. Culler, J. W. Hui, and P. Levis. Connecting low-power and lossy networks to the internet. IEEE Communications Magazine, 49(4), 2011.
  • Kollár (2010) I. Kollár. Forensic ram dump image analyzer. 2010.
  • Krutz (2005) R. L. Krutz. Securing SCADA systems. John Wiley & Sons, 2005.
  • Kumar et al. (2014) V. Kumar, G. Oikonomou, T. Tryfonas, D. Page, and I. Phillips. Digital investigations for ipv6-based wireless sensor networks. Digital Investigation, 11:S66–S75, 2014.
  • Kumar et al. (2016) V. Kumar, G. Oikonomou, and T. Tryfonas. Traffic forensics for ipv6-based wireless sensor networks and the internet of things. In Internet of Things (WF-IoT), 2016 IEEE 3rd World Forum on, pages 633–638. IEEE, 2016.
  • Levis et al. (2005) P. Levis, S. Madden, J. Polastre, R. Szewczyk, K. Whitehouse, A. Woo, D. Gay, J. Hill, M. Welsh, E. Brewer, et al. Tinyos: An operating system for sensor networks. Ambient intelligence, 35:115–148, 2005.
  • Li and Xiong (2013) F. Li and P. Xiong. Practical secure communication for integrating wireless sensor networks into the internet of things. IEEE Sensors Journal, 13(10):3677–3684, 2013.
  • Li et al. (2012) T. Li, Y. Liu, Y. Tian, S. Shen, and W. Mao. A storage solution for massive iot data based on nosql. In Green Computing and Communications (GreenCom), 2012 IEEE International Conference on, pages 50–57. IEEE, 2012.
  • Mainetti et al. (2011) L. Mainetti, L. Patrono, and A. Vilei. Evolution of wireless sensor networks towards the internet of things: A survey. In Software, Telecommunications and Computer Networks (SoftCOM), 2011 19th International Conference on, pages 1–6. IEEE, 2011.
  • Manjrasoft (2016) Manjrasoft. Aneka: Enabling .net-based enterprise grid and cloud computing, 2016. URL http://www.manjrasoft.com.
  • Minerva et al. (2015) R. Minerva, A. Biru, and D. Rotondi. Towards a definition of the internet of things (iot). IEEE Internet Initiative, (1), 2015.
  • Miorandi et al. (2012) D. Miorandi, S. Sicari, F. De Pellegrini, and I. Chlamtac. Internet of things: Vision, applications and research challenges. Ad Hoc Networks, 10(7):1497–1516, 2012.
  • Modbus (2004) I. Modbus. Modbus application protocol specification v1. 1a. North Grafton, Massachusetts (www. modbus. org/specs. php), 2004.
  • Mouton and Venter (2009) F. Mouton and H. Venter. A secure communication protocol for wireless sensor networks. In Proceedings of the Annual Security Conference ”Security Assurance and Privacy: organizational challenges”, Las Vegas, 2009.
  • Mouton and Venter (2011a) F. Mouton and H. Venter. A prototype for achieving digital forensic readiness on wireless sensor networks. In AFRICON, pages 1–6. IEEE, 2011a.
  • Mouton and Venter (2011b) F. Mouton and H. S. Venter. Requirements for wireless sensor networks in order to achieve digital forensic readiness. In WDFIA, pages 108–121, 2011b.
  • Muniswamy-Reddy et al. (2006) K.-K. Muniswamy-Reddy, D. A. Holland, U. Braun, and M. I. Seltzer. Provenance-aware storage systems. In USENIX Annual Technical Conference, General Track, pages 43–56, 2006.
  • News4JAX (2016) News4JAX. Fitness tracker data used in court cases, 2016. URL http://www.click2houston.com/news/fitness-tracker-data-used-in-court-cases.
  • Nikkel (2007) B. J. Nikkel. An introduction to investigating ipv6 networks. digital investigation, 4(2):59–67, 2007.
  • OpenEmbedded (2017) OpenEmbedded. Openembedded, the build framework for embedded linux, 2017. URL http://www.openembedded.org/wiki/Main_Page.
  • Oriwoh and Sant (2013) E. Oriwoh and P. Sant. The forensics edge management system: A concept and design. In Ubiquitous Intelligence and Computing, 2013 IEEE 10th International Conference on and 10th International Conference on Autonomic and Trusted Computing (UIC/ATC), pages 544–550. IEEE, 2013.
  • Patzlaff (2013) H. Patzlaff. D7. 1 preliminary report on forensic analysis for industrial systems. CRISALIS Consortium, Symantec, Sophia Antipolis, France, 2013.
  • Peña-López (2005) I. Peña-López. ITU internet report 2005: the internet of things. 2005.
  • Pereira et al. (2013) P. P. Pereira, J. Eliasson, R. Kyusakov, J. Delsing, A. Raayatinezhad, and M. Johansson. Enabling cloud connectivity for mobile internet of things applications. In Service Oriented System Engineering (SOSE), 2013 IEEE 7th International Symposium on, pages 518–526. IEEE, 2013.
  • Perumal et al. (2015) S. Perumal, N. M. Norwawi, and V. Raman. Internet of things (iot) digital forensic investigation model: Top-down forensic approach methodology. In Digital Information Processing and Communications (ICDIPC), 2015 Fifth International Conference on, pages 19–23. IEEE, 2015.
  • Rabieh et al. (2018) K. Rabieh, K. Akkaya, U. Karabiyik, and J. Qamruddin. A secure and cloud-based medical records access scheme for on-road emergencies. In Consumer Communications & Networking Conference (CCNC), 2018 15th IEEE Annual, pages 1–8. IEEE, 2018.
  • Rajkumar et al. (2010) R. R. Rajkumar, I. Lee, L. Sha, and J. Stankovic. Cyber-physical systems: the next computing revolution. In Proceedings of the 47th Design Automation Conference, pages 731–736. ACM, 2010.
  • Ruan et al. (2011) K. Ruan, J. Carthy, T. Kechadi, and M. Crosbie. Cloud forensics. In IFIP International Conference on Digital Forensics, pages 35–46. Springer, 2011.
  • Saltaformaggio et al. (2016) B. Saltaformaggio, R. Bhatia, X. Zhang, D. Xu, and G. G. Richard III. Screen after previous screens: Spatial-temporal recreation of android app displays from memory images. In USENIX Security Symposium, pages 1137–1151, 2016.
  • Shahzad et al. (2014) A. Shahzad, S. Musa, A. Aborujilah, and M. Irfan. Industrial control systems (icss) vulnerabilities analysis and scada security enhancement using testbed encryption. In Proceedings of the 8th International Conference on Ubiquitous Information Management and Communication, page 7. ACM, 2014.
  • Shelby and Bormann (2011) Z. Shelby and C. Bormann. 6LoWPAN: The wireless embedded Internet, volume 43. John Wiley & Sons, 2011.
  • Sheng et al. (2013) Z. Sheng, S. Yang, Y. Yu, A. Vasilakos, J. Mccann, and K. Leung. A survey on the ietf protocol suite for the internet of things: Standards, challenges, and opportunities. IEEE Wireless Communications, 20(6):91–98, 2013.
  • Siegal (2016) J. Siegal. One woman’s fitbit just decided a criminal case, 2016. URL http://bgr.com/2016/04/20/fitbit-fitness-tracker-legal-case/.
  • SiliconLabs (2016) SiliconLabs. Battery size matters, 2016. URL http://www.silabs.com/products/wireless/Pages/battery-life-in-connected-wireless-iot-devices.aspx.
  • Skorobogatov (2016) S. Skorobogatov. The bumpy road towards iphone 5c nand mirroring. arXiv preprint arXiv:1609.04327, 2016.
  • Song et al. (2008) J. Song, S. Han, A. Mok, D. Chen, M. Lucas, M. Nixon, and W. Pratt. Wirelesshart: Applying wireless technology in real-time industrial process control. In Real-Time and Embedded Technology and Applications Symposium, 2008. RTAS’08. IEEE, pages 377–386. IEEE, 2008.
  • Stirland et al. (2014) J. Stirland, K. Jones, H. Janicke, and T. Wu. Developing cyber forensics for scada industrial control systems. In The International Conference on Information Security and Cyber Forensics (InfoSec2014), pages 98–111. The Society of Digital Information and Wireless Communication, 2014.
  • Stouffer et al. (2011) K. Stouffer, J. Falco, and K. Scarfone. Guide to industrial control systems (ics) security. NIST special publication, 800(82):16–16, 2011.
  • Sundmaeker et al. (2010) H. Sundmaeker, P. Guillemin, P. Friess, and S. Woelfflé. Vision and challenges for realising the internet of things. Cluster of European Research Projects on the Internet of Things, European Commision, 2010.
  • Swauger (2012) J. Swauger. Chip-off forensics, 2012.
  • Sylve et al. (2012) J. Sylve, A. Case, L. Marziale, and G. G. Richard. Acquisition and analysis of volatile memory from android devices. Digital Investigation, 8(3):175–184, 2012.
  • Szewczyk et al. (2004) R. Szewczyk, A. Mainwaring, J. Polastre, J. Anderson, and D. Culler. An analysis of a large scale habitat monitoring application. In Proceedings of the 2nd international conference on Embedded networked sensor systems, pages 214–226. ACM, 2004.
  • Tan (2001) J. Tan. Forensic readiness. Cambridge, MA:@ Stake, pages 1–23, 2001.
  • Taveras (2013) P. Taveras. Scada live forensics: real time data acquisition process to detect, prevent or evaluate critical situations. European Scientific Journal, ESJ, 9(21), 2013.
  • Tillman (2013) K. Tillman. How many internet connections are in the world? right. now., 2013. URL http://blogs.cisco.com/news/cisco-connections-counter.
  • Triki et al. (2009) B. Triki, S. Rekhis, and N. Boudriga. Digital investigation of wormhole attacks in wireless sensor networks. In Network Computing and Applications, 2009. NCA 2009. Eighth IEEE International Symposium on, pages 179–186. IEEE, 2009.
  • Walters et al. (2007) J. P. Walters, Z. Liang, W. Shi, and V. Chaudhary. Wireless sensor network security: A survey. Security in distributed, grid, mobile, and pervasive computing, 1:367, 2007.
  • Wang et al. (2006) C. Wang, K. Sohraby, B. Li, M. Daneshmand, and Y. Hu. A survey of transport protocols for wireless sensor networks. IEEE network, 20(3):34–40, 2006.
  • Werner-Allen et al. (2006) G. Werner-Allen, K. Lorincz, M. Ruiz, O. Marcillo, J. Johnson, J. Lees, and M. Welsh. Deploying a wireless sensor network on an active volcano. IEEE internet computing, 10(2):18–25, 2006.
  • Williams (2016) W. Williams. How friday’s cyberattack shut down netflix, twitter, and spotify, 2016. URL http://www.csmonitor.com/Technology/2016/1023/How-Friday-s-cyberattack-shut-down-Netflix-Twitter-and-Spotify.
  • Wu et al. (2013) T. Wu, J. F. P. Disso, K. Jones, and A. Campos. Towards a scada forensics architecture. In Proceedings of the 1st International Symposium on ICS & SCADA Cyber Security Research 2013, pages 12–21. BCS, 2013.
  • Xu (2002) N. Xu. A survey of sensor network applications. IEEE Communications Magazine, 40(8):102–114, 2002.
  • Yang et al. (2016) H. Yang, J. Zhuge, H. Liu, and W. Liu. A tool for volatile memory acquisition from android devices. In IFIP International Conference on Digital Forensics, pages 365–378. Springer, 2016.
  • Zaharis et al. (2010) A. Zaharis, A. I. Martini, L. Perlepes, G. Stamoulis, and P. Kikiras. Live forensics framework for wireless sensor nodes using sandboxing. In Proceedings of the 6th ACM workshop on QoS and security for wireless and mobile networks, pages 70–77. ACM, 2010.
  • Zawoad and Hasan (2015) S. Zawoad and R. Hasan. Faiot: Towards building a forensics aware eco system for the internet of things. In Services Computing (SCC), 2015 IEEE International Conference on, pages 279–284. IEEE, 2015.
