Diffusion map for clustering fMRI spatial maps extracted by independent component analysis

by   Tuomo Sipola, et al.

Functional magnetic resonance imaging (fMRI) produces data about activity inside the brain, from which spatial maps can be extracted by independent component analysis (ICA). In datasets, there are n spatial maps that contain p voxels. The number of voxels is very high compared to the number of analyzed spatial maps. Clustering of the spatial maps is usually based on correlation matrices. This usually works well, although such a similarity matrix inherently can explain only a certain amount of the total variance contained in the high-dimensional data where n is relatively small but p is large. For high-dimensional space, it is reasonable to perform dimensionality reduction before clustering. In this research, we used the recently developed diffusion map for dimensionality reduction in conjunction with spectral clustering. This research revealed that the diffusion map based clustering worked as well as the more traditional methods, and produced more compact clusters when needed.



There are no comments yet.


page 5

page 6


Parcellation of fMRI Datasets with ICA and PLS-A Data Driven Approach

Inter-subject parcellation of functional Magnetic Resonance Imaging (fMR...

Evaluating Graph Signal Processing for Neuroimaging Through Classification and Dimensionality Reduction

Graph Signal Processing (GSP) is a promising framework to analyze multi-...

A supervised clustering approach for fMRI-based inference of brain states

We propose a method that combines signals from many brain regions observ...

Learning Bijective Feature Maps for Linear ICA

Separating high-dimensional data like images into independent latent fac...

Multi-Frequency Vector Diffusion Maps

We introduce multi-frequency vector diffusion maps (MFVDM), a new framew...

On the geometric structure of fMRI searchlight-based information maps

Information mapping is a popular application of Multivoxel Pattern Analy...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

In order to gain understanding about the human brain, various technologies have recently been introduced, such as electroencephalography (EEG), tomography, magnetoencephalography (MEG) and functional magnetic resonance imaging (fMRI). They provide scientists with data about the temporal and spatial activity inside the brain. Functional magnetic resonance imaging is a brain imaging method that measures blood oxygenation level. It detects changes in this level, that are believed to be related to neurotransmitter activity. This enables the study of brain functioning, pathological trait detection and treatment response monitoring. The method localises brain function well, and thus is useful in detecting differences in subject brain responses [1, 2].

Deeper understanding about the simultaneous activities in the brain begins with a decomposition of the data. Independent component analysis (ICA) has been extensively used to analyze fMRI data. It tries to decompose the data into multiple components that are mixed in the original data. Basically, there are two ways to perform ICA: group ICA and individual ICA [3]. Group ICA is performed on the data matrix including all the participants’ fMRI data, and individual ICA is applied on each dataset of each participant. Among datasets of different participants, group ICA tends to need more assumptions which are not required by individual ICA [4]. For individual ICA, if the components for each participant are known, it is expected to find the most common components among the participants. Therefore, clustering spatial maps extracted by ICA is a necessary step for the individual ICA approach to find common spatial information across different participants in fMRI research.

ICA decomposes the individual datasets and creates components that can be presented with spatial maps. After ICA has been applied, a data matrix of size by is produced, where is the number of spatial maps and is the number of voxels of each spatial map. The spatial maps come from different participants, and is much smaller than in fMRI research. Clustering the spatial maps is mostly done using the by similarity matrix of the by data matrix [3, 5]. Surprisingly, it usually works well although such a similarity matrix inherently can just explain a certain amount of the total variance contained in the high-dimensional by data matrix [5].

New mathematical approaches for functional brain data analysis should take into account the characteristics of the data analyzed. As stated, spatial maps have high dimensionality . In machine learning, dimensionality reduction is usually performed on such datasets before clustering. In the small--large-

clustering problem, the conventional dimensionality reduction methods, for example, principal component analysis (PCA)

[6], might not be suitable for the non-linear properties of the data. In this research, we apply a recently developed non-linear method called diffusion map [7, 8] for dimensionality reduction. The probabilistic background of the diffusion distance metric will give an alternative angle to this dataset by facilitating the clustering task and providing visualization. This paper explores the possibility of using the diffusion map approach for fMRI ICA component clustering.

2 Methodology

This paper considers a dimensionality reduction approach to clustering of high-dimensional data. The clustering procedure flows as follows:

  1. Data normalization with logarithm

  2. Neighborhood estimation

  3. Dimensionality reduction with diffusion map

  4. Spectral clustering

Data normalization should be done if the features are on differing scales. This ensures that the distances between the data points are meaningful. Neighborhood estimation for diffusion map creates the neighborhood where connections between data points are considered. Dimensionality reduction creates a new set of fewer features that still retain most information. Spectral clustering groups similar points together.

We assume that our dataset consists of vectors of real numbers:

. In practice the dataset is a data matrix of size , whose rows represent the samples and columns the features. In this study each row vector is a spatial map and column vector contains the corresponding voxels in different spatial maps.

2.1 Diffusion map

Diffusion map is a dimensionality reduction method that embeds the high-dimensional data to a low-dimensional space. It is part of the manifold learning method family and can be characterized with its use of diffusion distance as the preserved metric [7].

The initial step of the diffusion map algorithm itself calculates the affinity matrix

, which has data vector distances as its elements. Here Gaussian kernel with Euclidean distance metric is used [7, 9]. For   selection, see below. The affinity matrix is defined as

where is the -dimensional data point. The neighborhood size parameter is determined by finding the linear region in the sum of all weights in , while trying different values of [10, 11]. The sum is

From the affinity matrix the row sum diagonal matrix is calculated. The matrix is then normalized as

. This matrix represents the transition probabilities between the data points, which are the samples for clustering and classification. The conjugate matrix

is created in order to find the eigenvalues of

. In practice, substituting , we get

This so-called normalized graph Laplacian  [12] preserves the eigenvalues [9]

. Singular value decomposition (SVD)

yields the eigenvalues

and eigenvectors in matrix

. The eigenvalues of and stay the same. It is now possible to find the eigenvectors of with [9].

The low-dimensional coordinates in the embedded space are created using and :

Now, for each -dimensional point , there is a corresponding -dimensional coordinate, where . The number of selected dimensions depends on how fast the eigenvalues decay. The coordinates for a single point can be expressed as


The diffusion map now embeds the data points while preserving the diffusion distance to a certain bound given that enough eigenvalues are taken into account [7].

2.2 Spectral clustering

Spectral clustering is a method to group samples into clusters by benefitting from the results of spectral methods that reveal the manifold, such as the diffusion map. Spectrum here is understood in the mathematical sense of spectrum of an operator on the matrix . The main idea is that the dimensionality reduction has already simplified the clustering problem so that the clustering itself in the low-dimensional space is an easy task. This leaves the actual clustering for any clustering method that can work with real numbers [13, 14, 15].

The first few dimensions from the diffusion map represent the data up to a relative precision, and thus contain most of the distance differences in the data [7]. Therefore, some of the first dimensions will be used to represent the data. Threshold at in the embedded space divides the space between the possible clusters, which means that a linear classification can be used. With the linear threshold, the second eigenvector separates the data into two clusters in the low-dimensional space. This eigenvector solves the normalized cut problem, which means that there are small weights between clusters but the internal connections between the members inside the cluster are strong. Clustering in this manner happens through similarity of transition probabilities between clusters [13, 14, 16, 17].

3 Results

The data comes from experiments where participants listened to music. The data analysis was performed on a collection of spatial maps of brain activity. After dimensionality reduction and spectral clustering, the results are presented and compared to more traditional methods.

3.1 Data description

In this research the fMRI data are based on the data sets used by Alluri et al. [18]. Eleven musicians listened to a 512-second modern tango music piece during the experiment. In the free-listening experiment the expectation was to find relevant brain activity significantly correlating with the music stimulus. The stimuli were represented by musical features used in music information retrieval (MIR) [18].

After preprocessing, PCA and ICA were performed on each dataset of each participant, and 46 ICA components (i.e., spatial maps) were extracted for each dataset [19, 20]. Then, temporal courses of the spatial maps were correlated with one musical feature, Brightness [18]. As long as the correlation coefficient was significant (statistical -value ), the spatial maps were selected for further analysis. Altogether, spatial maps were selected from 11 participants. The number of voxels for each spatial map was . So, the 23 by 209,633 data matrix was used for the clustering to find the common spatial map across the 11 participants.

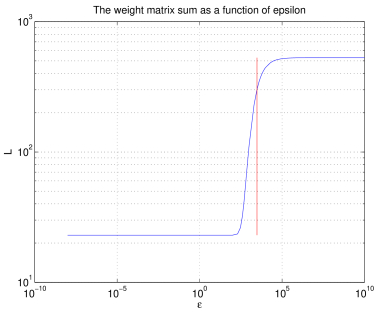

Figure 1: Selecting for diffusion map. The red line shows the selected value.

3.2 Data analysis

The data matrix was analyzed using the methodology explained in Section 2. The dimensionality of the dataset was reduced and then the spectral clustering was carried out. The weight matrix sum for selection is in Figure 1

; the used value is in the middle region, highlighted with straight vertical line. Clustering was performed with only one dimension in the low-dimensional space. To compare the results with more traditional clustering methods, the high-dimensional data was clustered with agglomerative hierarchical clustering

[21] with Euclidean distances using the similarity matrix [5] and -means algorithms [21]. The clustering results for two clusters were identical using all the methods.

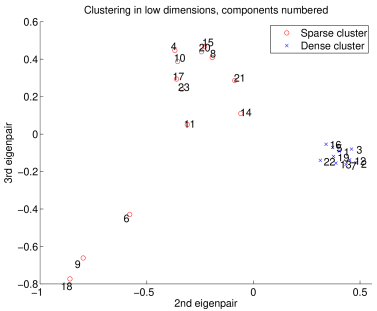

Figure 2: Diffusion map clustering results.

Figure 2 shows the resulting clustering from the diffusion map. The figure uses the first two eigenpairs for low-dimensional presentation, for these two clusters even one dimension is enough. The spatial maps are numbered and the two clusters are marked with different symbols. The dividing spectral clustering line is at along the horizontal axis, so the point to the right of are in one cluster and to the left another. Two clusters, dense and sparse, are detected using this threshold. The dense cluster, marked with crosses, contains components that are considered to be similar according to this clustering. The traditional PCA and kernel PCA with Gaussian kernel for spectral clustering are compared to the diffusion map [22, 23]. In Figure 3 diffusion map with correct creates more firm connections, which eases the clustering task. The effect of diffusion distance metric is also seen.

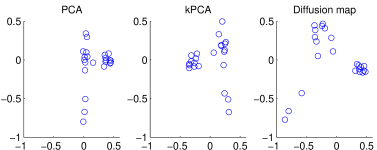

Figure 3: Dimensionality reduction method comparison. The coordinates have been scaled.

In Figure 4 the dendrogram produced by the agglomerative clustering is shown. The clustering results are the same as with the dimensionality reduction approach. The separation is visible at the highest level and the structure corresponds to the distances seen in Figure 2. All the points in, e.g., the dense cluster in Figure 2 are in the left cluster of Figure 4. This comparison shows the evident separation between the two clusters and also validates the results from diffusion map methodology.

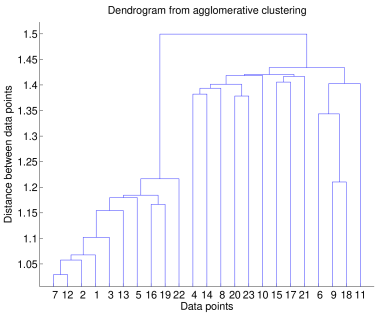

Figure 4: Dendrogram from the agglomerative clustering.

Figure 5

illustrates the kind of spatial maps that are found in the dense cluster. Dark areas along the lateral sides is used to highlight those voxels whose values differed more than three standard deviations from the mean. The numbers marking the slices are their Z-coordinates. The corresponding low-dimensional point is in Figure

2 numbered as 3. It is now possible to inspect the clusters more closely with domain experts.

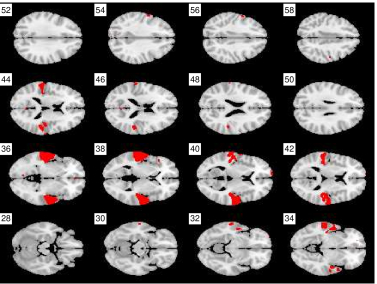

Figure 5: Example spatial map in the dense cluster, this is data point number 3. Dark lateral areas mark more than three standard deviations from the mean, e.g. in slices 36 and 38.

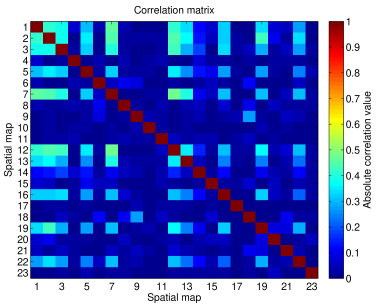

Figure 6: Absolute correlation values between the spatial maps.

Figure 6 shows the correlation matrix of all the 23 spatial maps. This is a way to inspect the similarity of the brain activity. The correlation matrix is also the basis of analysis for the hierarchical clustering [5]. In the figure it can be seen that there is some correlation between some of the spatial maps, but not so much between others.

Figures 7 and 8 illustrate the internal structure of the clusters by showing the correlation matrices for the individual clusters. The members in the dense cluster have higher correlation among themselves than the members in the sparse cluster. This information is also seen in Figure 2 where the diffusion distances inside the dense cluster are smaller.

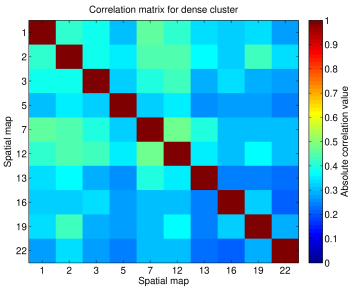

Figure 7: Absolute correlation values between the spatial maps that belong to the dense cluster.

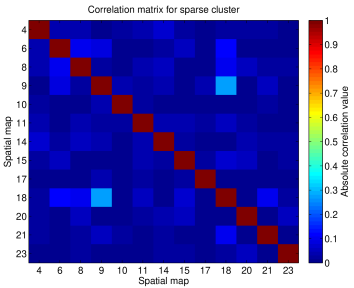

Figure 8: Absolute correlation values between the spatial maps that belong to the sparse cluster.
