1 Introduction

At the atomic level, physical processes are governed by differential equations containing many degrees of freedom. Macroscopic phenomena in matter emerge from microscopic interactions that can be simulated through numerical integration of the equations of motion. In classical simulations, these equations of motion are derived from a Hamiltonian quantity

. In quantum simulations, they are derived from a Hamiltonian operator . Examples of microscopic quantities from simulations are time series of positions, velocities, and forces on atoms and molecules. From these, a rich family of macroscopic observables can be calculated to describe the configurational and temporal correlation functions of atoms. These observables determine different properties of the simulated materials.

Classically, simulating the positions of particles with conserved energy requires integrating the Hamiltonian equations of motion:

(1)

where and are the respective momentum and position of the particle. is the Hamiltonian of the system. For conservative systems, it is given by the sum of kinetic energy and the potential energy,

(2)

where boldface denotes the set of quantities for all particles, is the potential energy and is the kinetic energy of the particle.

Simulating an entire system explicitly tracking all relevant degrees of freedom is computationally intractable in most cases. Typically, one is interested in a small subset of a system, such as a molecule or protein, and concerned only with the influence of the environment, also known as bath, on the system but not the details of the environment itself. For this reason, one usually incorporates an environment Hamiltonian with coarse-grained macroscopic variables of interest into the original Hamiltonian: . The inclusion of is important in simulating systems under certain thermodynamic conditions. For example, the crystallization and melting of water occur under specific temperature and pressure. These conditions are imposed by the environment, which must therefore be incorporated into . The environment, and therefore , can also be explicitly controlled and optimized in many complex physical processes. Rotskoff and Vanden-Eijnden (2018); Tafoya et al. (2019); Sivak and Crooks (2016) For example, can represent an external laser that is varied to control chemical reaction dynamics. In nucleation processes, time-dependent temperature protocols can be designed to drive molecular self-assembly Sajfutdinow et al. (2018); Jacobs et al. (2015) to escape kinetic traps.

The control setting in molecular simulations is similar to that of robotics control of fine-grained degrees of freedom, as described by Zhong et al. Zhong et al. (2019) However, molecular simulation is typically concerned with coarse-grained variables that control macroscopic thermodynamics states. These variables represent ensembles of many micro-states. Such control is usually realized by incorporating a dissipative Hamiltonian term.

Recent advances in differential equation solvers have shown that differentiable simulations may be performed, in which the result of a simulation can be analytically differentiated with respect to its inputs. Chen et al. (2018); Lu et al. (2019b); Li et al. (2019); Liang et al. (2019); Holl et al. (2020); Lu et al. (2019a); Long et al. (2017) This work applies differentiable simulation to a variety of molecular learning and control problems. We show that a Hamiltonian can be learned such that the macroscopic observables computed from a simulation trajectory match a given target. This is done through automatic differentiation of the macroscopic observables with respect to the system Hamiltonian. Moreover, we show that the same principles can be used to control the system Hamiltonian to force the system towards a target state.

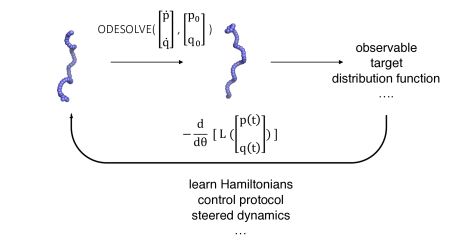

Figure 1: Differentiable molecular simulation workflow for learning and controlling physical models. The ODE is propagated with Eq. 1; and denote the set of momenta and positions for all particles.

2 Approach

2.1 Molecular simulations

Molecular simulations with a control Hamiltonian In this work, we demonstrate the use of automatic differentiation in molecular dynamics simulations. To simulate systems under fixed thermodynamic conditions with macroscopic thermodynamic controls, most applications require fixed temperature, pressure, or strain. A typical way to impose thermodynamic constraints is to introduce modified equations of motion that contain virtual external variables. For example, to control the temperature of a systems, a virtual heat bath variable is needed to couple to the system variables. Nosé (1984); Martyna et al. (1992); Parrinello and Rahman (1982)

These modified equations of motion can be integrated using ODE solvers. In the Appendix we provide details of the Nose-Hover chain, a common method for imposing constant temperature conditions. In our experiments we have implemented a differentiable version of this integrator to represent realistic dynamics of particle systems at constant temperature while allowing backpropagation.

The use of a graph neural network to represent a control Hamiltonian

is also demonstrated in an example application. Graph neural networks (GNN) are a state-of-the-art architecture to learn the molecular potential energy function Gilmer et al. (2017); Schütt et al. (2017); Duvenaud et al. (2015) while preserving physical symmetries (translational, rotational and permutational). GNNs have shown flexible fitting power to represent molecular energies, and can be used to model control Hamiltonians (see Appendix).

Quantum dynamics with control To extend the notion of Hamiltonian dynamics to quantum mechanics, we consider the evolution of the wave function , where are the spatial degrees of freedom,

is the Hamiltonian operator, and the exponential term is a unitary propagator. In abstract vector notation, this can be written as

. Time-dependent control terms in the Hamiltonian can be used to steer the evolution toward a desired outcome. For example, one can manipulate the intensity spectrum and/or the phase of light to control quantum behaviour. The latter is known as coherent control, Shapiro and Brumer (2003); Judson and Rabitz (1992) and has been used to control the out-of-equilibrium behavior of various physical processes. Zhu et al. (1995); Stievater et al. (2001); Brinks et al. (2010); Haché et al. (1997); Warren et al. (1993) A prototypical light-controlled process is the isomerization of the molecule retinal, which is responsible for human vision, Palczewski (2012) light-sensing, Briggs and Spudich (2005) and bacterial proton pumping. Schulten and Tavan (1978) Changes in the light impingent on the molecule can alter the efficiency, or quantum yield, of isomerization. Coherent control of retinal within an entire protein, bacteriorhodopsin, was demonstrated in Ref. Prokhorenko et al. (2006). Further, coherent control of the isomerization of retinal was demonstrated in vivo in the light-sensitive ion channel channelrhodopsin-2. Paul et al. (2017) This control led to the manipulation of current emanating from living brain cells.

Computational and theoretical analysis of control can explain and motivate experimental control protocols. Lavigne and Brumer (2019b, a, 2017); Pachón and Brumer (2013) In Ref. Lavigne and Brumer (2017), for example, an experimental control protocol was reproduced computationally and explained theoretically. A minimal model for retinal Hahn and Stock (2000)

was used to simulate the quantum yield (isomerization efficiency), and a genetic algorithm was used to shape the incident pulse. With the minimal retinal model used commonly in the literature,

Axelrod and Brumer (2019); Tscherbul and Brumer (2014, 2015); Lavigne and Brumer (2017) we here analyze the control of the incident pulse through differentiable simulations. We allow for control of both the phase and intensity spectrum of the light; restriction to phase-only (i.e. coherent) control is also straightforward. In particular, we show that back-propagation through a quantum simulation can be used to shape the incident pulse and control the isomerization quantum yield. This provides an example of out-of-equilibrium molecular control with differentiable molecular simulations.

2.2 Back-propagation with the adjoint method

To be able to differentiate molecular simulations to reach a control target, we adopt the reverse-mode automatic differentiation method from the work by Chen et al., which uses adjoint sensitivity methods. Pontryagin et al. (1962); Chen et al. (2018) Taking derivatives requires computation of the adjoint state . Evaluating the loss requires the reverse-time integration of the vector-Jacobian product:

(3)

where represents the Hamiltonian ODE defined in Eq. 1, with being the learnable parameters in the Hamiltonian. The reverse-mode automatic differentiation computes the gradient through the adjoint states without backpropagating through the forward computations in the ODE solver. This has the advantage of having constant memory costs. The ability to output positions and momenta at individual timesteps allows one to directly compute observables and correlation functions from a trajectory. Separate reverse adjoint integrations are performed for observations at different individual observation times.

3 Targeted molecular dynamics

In this section, we show that with differentiable simulations, it is possible to bias the molecular dynamics in simulations towards a target state specified by a set of observables. From the perspective of engineering, a control Hamiltonian and thermodynamic protocol can be used to actively drive self-assembly of molecular structures. Nguyen and Vaikuntanathan (2016); Jacobs et al. (2015, 2015); Hormoz and Brenner (2011) This type of protocol connects a starting state to a final state, with the motion governed by two Hamiltonians. Being able to devise such simulation protocols is also useful in the context of non-equilibrium work relations (such as the celebrated Jarzynski equality Jarzynski (1997, 1997) and Crook’s Fluctuation Theorem, Crooks (1999)), because this allows one to compute free energy differences with both equilibrium Vaikuntanathan and Jarzynski (2008) and non-equilibrium simulations. Rotskoff and Vanden-Eijnden (2018) A similar equality is also known in statistics as annealed importance sampling. Neal (1998); Grosse et al. (2015); Habeck (2017) We show that one can adaptively learn a control Hamiltonian by perturbing a prior Hamiltonian with backpropagation to produce a state with a set of target observables and simulation outcomes.

In a first example, it is shown how differentiable molecular simulations allow control of dynamics by pertubatively seeking transitions pathways from a starting state to a target state. This learning scheme does not require a user-defined reaction coordinate. This is advantageous, because reaction coordinates are challenging to define in many complex dynamic processes, such as protein folding and chemical reactions. We demonstrate the application in toy 2-D and 3-D systems (Fig. 2 and 3, respectively). In the 2D case, a bias potential is trained to steer a particle in 2D double well potential energy surface toward a target state. It starts as a small pertubative potential and then slowly increases in magnitude to help the particle pass over the barrier separating the states. This similar to biasing methods that have been used in identifying pathways in protein folding Mendels et al. (2018) and chemical reactions. Maeda et al. (2016)

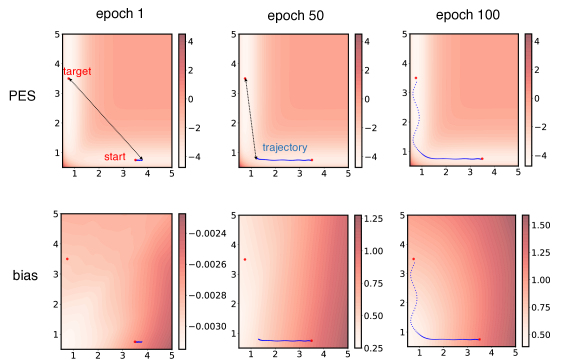

Figure 2: Controllable simulations in a toy 1 particle system in a 2D space. The control Hamiltonian is learned so that the particle goes from a starting position to a target. We use an MLP to parametrize a 2D bias potential. The target loss to minimize is the distance between the final and target positions. The particle is initialized with zero velocity. During training, we run Hamiltonian dynamics with 100 steps and compute the loss to update the bias potential and steer the particle trajectory toward the target state.

To train a controllable 3D polymer folding process, we use a GNN to represent , which biases a linear chain of identical particles connected with a harmonic Hamiltonian into a helical fold (see Fig. 3). The prior potential is a sum over identical harmonic bond potentials, with an equilibrium bond length of 1 in arbitrary units: , where

is the index for the bonds along the chain. This Hamiltonian is perturbed in the simulations to produce a folded helical structure at a constant temperature using the Nose-Hoover Chain integrator described above and in the Appendix. We back-propagate through the simulations to continuously update the GNN parameters, so that the loss function

is minimized. Here, the set of functions include structural variables of the polymer chain: bond distances, angles and dihedrals angles along the chain.

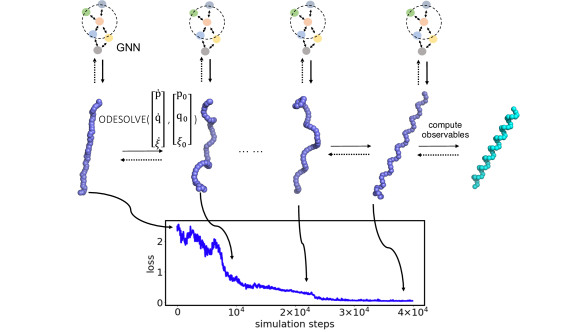

Figure 3: A We perform continuous model training during the simulations to bias a harmonic polymer chain toward a targeted helix shape. This is accomplished by training a bias Hamiltonian parameterized by a GNN. Here, and denote the set of momenta and positions for all particles, and denotes the Hamiltonian control variables that maintain a certain temperature. The simulations are run for 40000 steps, and the loss is computed and differentiated to update GNN weights every 40 simulation steps.

4 Learning from observables

We demonstrate an example of fitting pair correlation distributions in Lennard Jones (LJ) systems (Fig. 4). Pair correlation distributions characterize structural and thermodynamic properties of condensed phase systems. Jones (1924) We demonstrate that by differentiating through the simulation trajectories, one can actively modify parameters to match a target distribution function. To make the distribution function our differentiable target, we implement a differentiable histogram to approximate the typical non-differentiable histogram operation. This is done by summing over pair distances expanded in a basis of Gaussians (‘‘Gaussian smearing"), followed by normalization to ensure that the histogram integration yields the total number of pair distances. Given an observation of pair distance that we wish to approximately map onto a histogram with bins, the Gaussian-smeared function is given by

(4)

where approximates the bin width. A Gaussian basis is used to replace the non-differentiable Dirac Delta function to compute an approximate histogram. The total normalized histogram is the expected value over individual samples of over the all the observations of pair distances (between atoms and ) in the trajectory:

(5)

The pair correlation function is obtained by normalizing by differential volumes:

(6)

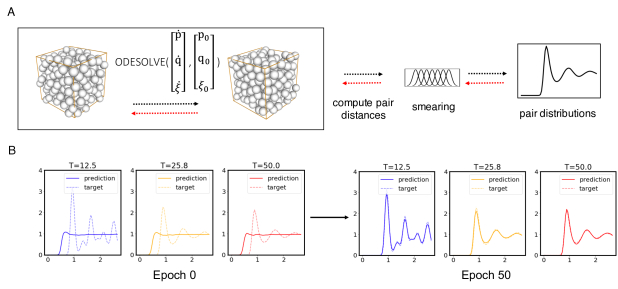

Figure 4: Computational workflow to fit pair distribution functions for an LJ system. The target distributions functions are obtained with = 1 and

= 1. For each training epoch, we compute the pair distribution functions from simulated trajectories. We back-propagate the mean square loss between simulated and target pair distribution functions to update the LJ parameters.

We set up the experiment to learn a Lennard Jones potential Jones (1924): , with the total potential energy of the system given by . The parameters to be optimized are and . We simulate the system at three different temperatures and obtain three different pair correlation functions . For each temperature the model learns to reproduce the same radial distribution function by minimizing the mean square loss between the simulated pair distribution function and the target. At each epoch, the parameters are updated with gradient descent.

5 Control protocol for light-driven quantum dynamics

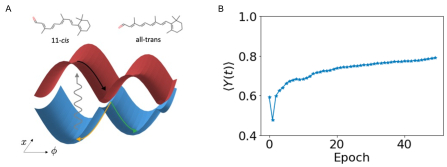

Figure 5: A Potential energy surfaces of the model retinal Hamiltonian. The model consists of two electronic states, denoted with blue and red, a vibrational mode , and a torsional isomerization mode . B Control of the time-averaged quantum yield as a function of training epoch.

We use the model introduced in Ref. Hahn and Stock (2000) for the retinal chromophore. The model Hamiltonian consists of two diabatic electronic states, a single torsional mode for the isomerizing double bond, and a single stretching mode (see Fig. 3B). Details of the model, the construction of the Hamiltonian and the operators of interest can be found in Refs. Hahn and Stock (2000); Tscherbul and Brumer (2015); Axelrod and Brumer (2019).

The total Hamiltonian of the system and the control field is given by

(7)

where is the system Hamiltonian, is the control Hamiltonian, is the dipole operator, and is the electric field. The system wave function evolves under the Schrödinger equation,

(8)

where is the wave function and is the reduced Planck constant. Computationally, the wave function is represented as a vector and the Hamiltonian as a matrix, and the system dynamics are obtained by solving Eq. (8). Physical quantities are obtained as expectation values of operators, , where is an observable and is the corresponding operator. The minimal model contains only two nuclear degrees of freedom, but coupling to other nuclear modes and to the solvent can have significant effects on the quantum yield.Balzer et al. (2003) These effects can be approximately treated with perturbative master equations. Tscherbul and Brumer (2015); Axelrod and Brumer (2018, 2019) In this case a similar control scheme could be used, with the Schrödinger equation replaced by a master equation, and the wave function replaced by a density operator.

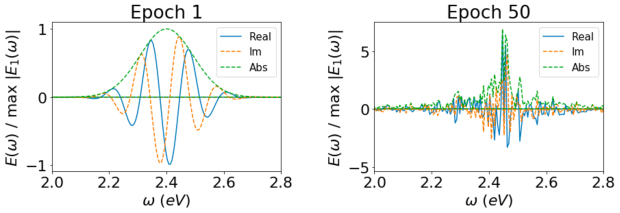

In the first training epoch, a Gaussian form is used for the controllable electric field:

(9)

Here, is the amplitude of the field, is the center frequency, is the pulse arrival time, and is the pulse duration. The pulse duration is set to fs, the center frequency to eV, and the arrival time to fs. The short pulse duration is chosen to approximate a delta-function, the arrival time to ensure that the pulse is completely contained within the simulation, and the center frequency to approximately match the electronic excitation energy. The field amplitude is initialized as . This choice is arbitrary since, as explained below, the quantum yield is normalized with respect to excited state population, and hence to the field intensity.

The quantity to be optimized is the quantum yield, i.e. the efficiency of isomerization. The cis projection operator is denoted as and the trans projection operator as . In position space, the operators are given by and , where is the Heaviside step function and the molecular rotation coordinate. The quantum yield is given by

(10)

where denotes a quantum expectation value, is the projection of onto the diabatic excited electronic state, projects onto the ground diabatic state, and is the ground state population. Subtraction of ensures that any population remaining in the ground state does not contribute to the quantum yield. Since the quantum yield depends on time, we optimize its average over a time period after the pulse is over:

(11)

where denotes a time average. Here, is the time at which the yield is first recorded, and is the averaging time. We set ps and ps.

The dynamics are discretized with a timestep of fs. The electric field is discretized with a time step of fs. This is done to limit the timescale over which the electric field can vary. To avoid the use of complex numbers in backpropagation, the real and imaginary parts of the wave function are stored as separate vectors and , respectively. They then follow the coupled equations of motion

(12)

The expectation value of an operator is given by

(13)

During simulations, we backpropagate through the simulation trajectory to optimize both the magnitude and phase of the temporal electric field. The numerical results are shown in Fig. 3 B. The quantum yield begins at approximately 0.6, and after 50 epochs reaches 0.8 as the electric field is improved. These results show that differentiable simulations can be used to learn control protocols for electric field-driven isomerization.

6 Conclusions

Simulating complex landscapes of molecular states is computationally challenging. Being able to control molecular simulations allows accelerating the exploration of configurational space and to intelligently design control protocols for various applications. In this work, we proposed a framework for controlling molecular simulations based on macroscopic quantities to develop learning and control protocols. The proposed approach is based on model learning through simulation time feedback from bulk observables. This also opens up new possibilities for designing control protocols for equilibrium and non-equilibrium simulations by incorporating bias Hamiltonians. This work can be extended to the simulation of other types of molecular systems with different thermodynamic boundary conditions and different control scenarios.

7 Related work

On differentiable simulations Several works have incorporated physics-based simulations to control and infer movements of mechanical objects. These are done by incorporating inductive biases that obey Hamiltonian dynamics. Greydanus et al. (2019); Sanchez-Gonzalez et al. (2019) Many works also focus on performing model control over dynamical systems. Li et al. (2019); Battaglia et al. (2016); Zhong et al. (2019); Morton et al. (2018) Differentiable simulations/sampling with automatic differentiation have also been utilized in constructing models from data in many differential equation settings like computational fluid dynamics, Schenck and Fox (2018); Morton et al. (2018) physics simulations, Hu et al. (2019); Bar-Sinai et al. (2019); Hu et al. (2019); Liang et al. (2019) quantum chemistry, Tamayo-Mendoza et al. (2018)

, tensor networks

Liao et al. (2019), generating protein structures, Ingraham et al. (2019b, a); Townshend et al. (2018); Anand et al. (2019); Senior et al. (2020)

and estimating densities of probability distributions with normalizing flows

Zhang et al. (2018); Grathwohl et al. (2019) and point clouds. Yang et al. (2019) Much progress has been made in developing differentiable frameworks for molecular dynamics, Schoenholz and Cubuk (2019) PDEs, Han et al. (2018); Long et al. (2017, 2019); Lu et al. (2019b) and ODEs. Chen et al. (2018)

On statistical physics and molecular dynamics

In machine learning for molecular dynamics, automatic differentiation has been applied in analyzing latent structure of molecular kinetics,

Mardt et al. (2018); Xie et al. (2019); Wu et al. (2018); Li et al. (2019); Wehmeyer and Noé (2018); Ceriotti (2019); Post et al. (2019); Wang et al. (2019); Hernández et al. (2018); Chen et al. (2018) fitting models from quantum chemistry calculations Schütt et al. (2017); Bartók et al. (2010); Yao et al. (2018); Behler and Parrinello (2007); Mailoa et al. (2019); Zhang et al. (2018); Smith et al. (2017) or experimental measurements, Xie et al. (2019); Xie and Zhang (2018) learning model reduction of atomistic simulations Lu et al. (2019b); Ma et al. (2018); John and Csányi (2017); Wang and Gómez-Bombarelli (2019); Wang et al. (2018); Zhang et al. (2018); Bejagam et al. (2018); Durumeric and Voth (2019); Hoffmann et al. (2019) and sampling microstates. Noé and Wu (2018); Bonati et al. (2019); Guo et al. (2018); Rogal et al. (2019); Schneider et al. (2017) For the computation of free energy in simulations, adaptive methods and variational methods have been proposed with bias Hamiltonians on a specified reaction coordinate, Darve et al. (2008) or invertible transformations Jarzynski (2001); Vaikuntanathan and Jarzynski (2008) between initial and target configurations. For non-equilibrium simulations, variational methods have been applied in the computation of large deviation functions to better sample rare events. Nguyen and Vaikuntanathan (2016); Das and Limmer (2019); Dolezal and Jack (2019) Studying optimal control protocols has also been a recent focus for several physical systems. Bukov et al. (2017); Rotskoff et al. (2017); Cavina et al. (2018, 2018)

Acknowledgments

WW thanks Toyota Research Institute, SA thanks the MIT Buchsbaum Fund, and RGB thanks DARPA AMD, MIT DMSE and Toyota Faculty Chair for financial support.
