DICE: Dynamic Interconnections for the Cellular Ecosystem

To enable roaming of users, the cellular ecosystem integrates many entities and procedures, including specific infrastructure to connect Mobile Network Operators (MNOs), business partnerships or the use of third-party Data Clearing Houses (DCHs) for billing. Many of these rely on specifications rooted in dated and arcane practices, involving long waiting periods for financial clearing, complex billing models, and disparate mechanisms for dealing with inter-MNO disputes. In this paper, we propose a novel solution, DICE (Dynamic Interconnections for the Cellular Ecosystem), aimed at facilitating dynamic collaboration between MNOs, and sustain fluid interconnection models between the end-users and MNOs. DICE uses distributed ledger technology (DLT) to enable MNOs to interact directly, and offer customizable services to their users through the use of crypto-currencies. We leverage real-world data from a major operational MNO in Europe to support our claims, and to extract the requirements for the DICE system. We introduce the DICE protocol, and discuss real-world implementation considerations.


page 1

page 2

page 3

page 4


Blockchain-Enabled NextGen Service Architecture for Mobile Internet Offload

The amalgamation of different generations of mobile cellular networks ar...

The Untold Secrets of Operational Wi-Fi Calling Services: Vulnerabilities, Attacks, and Countermeasures

Since 2016, all of four major U.S. operators have rolled out nationwide ...

Community-Based Service Ecosystem Evolution Analysis

The prosperity of services and the frequent interaction between services...

LightAutoML: AutoML Solution for a Large Financial Services Ecosystem

We present an AutoML system called LightAutoML developed for a large Eur...

Knowledge-driven Data Ecosystems Towards Data Transparency

A Data Ecosystem offers a keystone-player or alliance-driven infrastruct...

DICE: Automatic Emulation of DMA Input Channels for Dynamic Firmware Analysis

Microcontroller-based embedded devices are at the core of Internet-of-Th...

1. Introduction

Roaming is one of the fundamental features of cellular networks. It enables clients of one MNO to use the network of another MNO when traveling outside their provider’s area of coverage. To support roaming, partnering MNOs must have a commercial agreement in place, and a technical solution for exchanging signaling and voice/data traffic. Despite the fast evolution of cellular technology over the past decades, this logic has remained largely unchanged. Even more, the associated platforms and systems are opaque, and little innovation has gone into this area. The advance of the inter-provider charging system is especially challenging, as it requires standardization, and subsequent joint evolution and deployment in the networks involved. This is inefficient, as the current inter-provider charging system for roaming services imposes penalties in terms of performance, operational costs and business revenues (15).

In this paper, we propose DICE (Dynamic Interconnections for the Cellular Ecosystem), a novel framework for dynamically establishing roaming agreements between MNOs, and enabling almost real-time financial clearing for roaming services through secure and private transfer of crypto-currencies. Most MNOs today choose to outsource to a DCH for end-to-end roaming operations management, including data collection, clearing and cash settlement, although it is possible to do this on a peer-to-peer basis. Even with DCH, the charging settlement between MNOs remains a slow and tedious procedure (i.e., monthly or yearly for roaming partners with little traffic) and disputes are largely handled case-by-case. Based on real-world data from an MNO in Europe, this is a significant challenge for operators, which are grappling to remain relevant in an otherwise fast evolving landscape (Shaun Kennedy, ). When analyzing the business interactions, MNOs have reported major revenue leakage, mainly because of incomplete customer records, accumulated roaming records, debt write-off and fraud. This issue is imperative, as support for “things” roaming internationally (e.g., connected cars, logistics and wearables) is critical for IoT verticals. Taking advantage of international mobile roaming, IoT platforms can offer more stable connectivity/coverage services to IoT verticals. In this context, there is a stringent need for MNOs to develop sustainable strategies for next-generation interconnections to remain relevant.

The purpose of DICE is to allow MNOs to exchange value easily, without the need of a third party to act as a trusted intermediary, to verify the interaction between the roaming partners. With DICE, MNOs can avoid the need for using a DCHs and instead leverage the potential of Distributed Ledger Technology (DLT) and tokens to retrieve revenue from their roaming partners.

The current business logic around MNO interworking for roaming has further implications in the communication performance. The intrinsic lack of trust between the Home Mobile Network Operator (HMNO) and the Visited Mobile Network Operator (VMNO), and the unwillingness of the former to expose to a foreign operator charging information for their users makes home-routed roaming (HR) roaming the default roaming configuration. Recent measurement studies confirmed that majority of MNOs deploys HR (Mandalari et al., 2018). With HR, the roaming traffic is routed through the home country, regardless the roaming user’s actual geo-location. This allows MNOs to control the charging function of their outbound roaming users, but is also translates into a non-negligible delay penalty and potential performance impairment, as previously uncovered via measurements in the wild (Mandalari et al., 2018). With existing regulation meant to tackle silent roamers and boost roaming revenues (e.g., Roam like at Home in Europe (3)), users also expect high quality, always-on services in a visited network; if these expectations are not met the risk of churn increases. Facilitating local breakout (LBO) roaming and simplifying the inter-MNO charging settlement would respond to this innovation need. However, all these require MNOs to trust their roaming partners to correctly charge roamers, without leaving the doubt that fraud (e.g., tampering with roaming records) might occur. The shift in the business logic that DICE brings through the use of crypto-currencies deliver this, and thus promotes the local breakout roaming configuration. We focus our design on data communications and LTE technology111For voice traffic, there is the need for a permanent identifier which depends on the HMNO, so incoming calls will always be routed through the HMNO. We are not changing this logic, instead we focus on data communications (and outgoing calls) that only require the roamer to have an attachment point to the visited network.

With DICE, we make a two-fold contribution to disrupt the cellular ecosystem: (i) we enable MNOs to have a direct dynamic cooperation in a private and secure setup, establish roaming relationships, and perform data and financial clearing in almost real time, and (ii) we enable the end-user to have control over her mobile connection and connect to a network in a visited country as a native user, receiving optimal service performance. The DLT solution lowers uncertainty about the identity of the different entities involved in the roaming transaction (i.e, the roaming user, the home network and the visited network offering roaming services to the roaming user), and allows the exchange of value without trust between the entities. The purpose of DICE is to allow MNOs to engage in a roaming partnership and to exchange value easily, without the need of a third party to act as a trusted intermediary with the role to verify the interaction between the roaming partners. The notion of uncertainty we consider integrates three main components: identity of partner entities, visibility of transactions between any entities, and recourse in case something goes wrong. No individual organization in the group can be trusted with maintaining this archive of records, because falsified or deleted information would significantly benefit that party while damaging the others. Nonetheless, it is vital that all agree on the archive’s contents, in order to prevent charging disputes.

2. Background and Related Work

2.1. Roaming Background

To support roaming, the two partners must have a functioning technical solution and a commercial agreement in place (i.e., valid interworking). Once interworking is established, the Home Subscriber Servers (HSS) of the roaming partners communicate among them when a roaming customer (Alice) of an HMNO tries to authenticate to the VMNO.

When Alice is outside her provider’s area of coverage, she tries to connect to a local MNO according to a list of preferred MNOs per geographical area provided by HMNO. Assuming VMNO is selected, roamer Alice follows the specified procedure. First, it contacts the HSS of VMNO with their international mobile subscriber identity number (IMSI). The HSS recognizes that Alice’s IMSI does not belong to VMNO, but rather to HMNO and checks for a roaming agreement. If the agreement is in place, the HSS contacts its counterpart in HMNO, otherwise it refuses the access. This procedure leverages an international signaling infrastructure that is usually provided by a third party.

Once authentication is completed there are three possible configurations for data transfer. The one that is currently deployed is HR (5; 8). Other two configurations that are not actually popular are local breakout (LBO) (5; 8) and IPX hub breakout (IHBO) (13). For the former, the visited network assigned the IP address of the roaming user; for the latter, the IP Packet Exchange (IPX) provides Alice’s IP address.

With the most popular configuration (i.e., HR), HMNO logs Alice’s activity at its Packet Data Network Gateway (PGW) while VMNO does the same at its Serving Gateway (SGW). Both MNOs generate Transferred Account Procedure (TAP) files containing Alice’s activity for charging, which are collected by the DCH. The DCH validates and verifies the TAP files and in case of disagreement between information from MNOs, they trigger a dispute. The DCH automatically handles disputes for minor differences, but in most cases disputes are handled case-by-case. The charging settlement procedure is not real time but rather happens yearly, monthly, or when the bill exceeds a certain threshold.

2.2. Related Work

Although prior work extensively investigated business aspects of the wired internet (Lutu et al., 2012), the interconection of networks (Fanou et al., 2016) and its evolution in time (Dhamdhere and Dovrolis, 2008), the interactions between mobile networks and the global Internet remain largely unexplored. Some prior work has underlined structural characteristics of MNOs, internal organization (Vallina-Rodriguez et al., 2015) and their impact around the world (Rula et al., 2017). However, we have little visibility on the mobile networks’ interconnection dynamics and associated business relationships in the context of international roaming. This is an important gap to fill, especially since we know that the manner in which mobile networks interconnect can have important side-effects on the experience of the end-user (Mandalari et al., 2018; Shaun Kennedy, ). In particular, an important effect comes from the relationships between mobile connectivity providers and content providers (Michelinakis et al., 2018). The idea of leveraging distributed ledgers for increasing the dynamics of business agreements in the wired internet (i.e., at Internet Exchange Points) has recently been presented as part of the Dynam-IX framework (Marcos et al., 2018). Similarly, DICE allows for roaming agreement updates in a dynamic manner. Additionally, DICE enables LBO roaming and allows MNOs to avoid tedious procedures for data and financial clearing implemented in the current ecosystem through the creation of a roaming crypto-currency. Furthermore, the use of DLT enables DICE to eliminate the need for roaming fraud detection, as roaming records become immutable once committed. Similar benefits of DLT have also been exploited in charging schemes for third-party infrastructure usage in the cellular edge (Li et al., 2019). Though used in a different application than the one we present in this paper, this validates the feasibility of DLT-enabled solutions to work in a production environment and tackle hard problems such as interaction in the cellular ecosystem without trust.

3. DICE Toy Example

In this section, we provide an overview of how DICE innovates the data and financial settlement procedures, and removes the performance issues for using HR roaming.

3.1. DICE Design Considerations

DICE aims to facilitate dynamic collaboration between MNOs by: (i) eliminating the need for an intermediary, such as a DCH for clearing and settlement services and (ii) supporting the implementation of LBO roaming by enabling the roaming user to attach to a visited network as a native user.

To achieve these goals DICE must ensure the following:

Near real time billing: DICE should enable MNOs to bill a user and settle the roaming charges among them in almost real time. This would guarantee the user is able to consume the traffic she is allowed, avoiding incomplete and accumulated roaming records.

Automated dispute resolution: DICE should avoid the generation of disputes among MNOs, and automatically solve any billing issue arising.

Trust: DICE should provide mechanisms to build trust among MNOs to guarantee optimal performance for the customer (e.g., enable LBO roaming).

Confidentiality: DICE must guarantee that any information considered private by the MNOs (e.g., billing information across roaming partners, or personal customer information) does not leak to unauthorized parties.

DICE builds on DLT, also known as blockchain, to enable MNOs to interact directly and offer custom services to their users (e.g., through the use of crypto-currencies). MNOs in the DICE consortium are free to engage in dynamic and versatile business relationships, without the need of third-party facilitators. The components of the DICE framework include: i) a protocol to automate the interaction of mobile operators (also with their subscribers); ii) a template to specify contracts easily and the legal framework to handle them; iii) a blockchain solution to store every transaction between the involved entities and enable the exchange of value. This enables MNOs to interact directly without trust, benefit from the immutability of roaming records in the blockchain and ensure an optimal experience to end-users.

We provide next a toy example to demonstrate how Alice can use the DICE solution to roam internationally, and how DICE mechanisms provides near real time billing and avoid disputes across MNOs. We then discuss how to leverage existing DLT to implement such mechanisms and guarantee trust and confidentiality in Sec. 5.

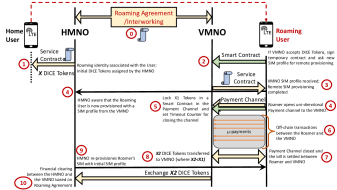

Figure 1. A user roaming across MNOs with DICE.
