Detection and Tracking of General Movable Objects in Large 3D Maps

12/22/2017 ∙ by Nils Bore, et al. ∙ KTH Royal Institute of Technology 0

This paper studies the problem of detection and tracking of general objects with long-term dynamics, observed by a mobile robot moving in a large environment. A key problem is that due to the environment scale, it can only observe a subset of the objects at any given time. Since some time passes between observations of objects in different places, the objects might be moved when the robot is not there. We propose a model for this movement in which the objects typically only move locally, but with some small probability they jump longer distances, through what we call global motion. For filtering, we decompose the posterior over local and global movements into two linked processes. The posterior over the global movements and measurement associations is sampled, while we track the local movement analytically using Kalman filters. This novel filter is evaluated on point cloud data gathered autonomously by a mobile robot over an extended period of time. We show that tracking jumping objects is feasible, and that the proposed probabilistic treatment outperforms previous methods when applied to real world data. The key to efficient probabilistic tracking in this scenario is focused sampling of the object posteriors.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 3

page 4

page 9

page 11

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Mobile robots often operate in large environments that can not be fully observed without moving. In fact, the floor plan of most buildings is divided into rooms, which the robot can only visit one at a time. This setup creates an interesting problem if the robot is to keep track of specific objects. For example, imagine a care robot that helps elderly keep track of their belongings, as suggested in [1]. Since the robot cannot be in all places simultaneously, it will not observe most objects as they move, as is required by classical tracking techniques. We might instead rely fully on appearance to identify the objects, but this also fails if the objects are visually similar. To enable tracking in this scenario, we need to take into account that the objects might have moved while we were not observing them. Imagine we are looking for a patient’s cell phone, and that we last saw it in her room. In general, we should expect to find the object in the same place, or somewhere nearby. Further, if the robot looks, and the phone is not there, the next hypothesis is that it should be somewhere within the closed environment of the patient’s department or the care home. Any further guesses need to be based on knowledge of who might have taken the phone and to where. These common sense intuitions should form the basis for any tracking algorithm that works even when the robot does not continuously observe the targets.

The need for tracking specific instances of objects arises in several robotic applications, for example when mapping in highly dynamic [2] and long-term scenarios [3], obstacle avoidance [4][5] and object search [6]. Of particular interest to us is surveillance of objects with long-term dynamics moving in large environments. The application we have in mind is a robot tasked with monitoring a number of mostly static objects that typically do not leave some closed environment, such as in the care scenario described above. Another application is security, where a robot should monitor the presence for example of important items in an office. In these surveillance applications, a probabilistic model for the objects’ positions is essential for the robot, since it aids it in knowing where to look. In addition to helping us distinguish similar objects, a tracking framework with a probabilistic motion model provides us with such distributions, as illustrated in Figure 1. When the robot covers more locations, the model should refine the distributions to aid the search.

As mentioned in [7]

, tracking of instances is also necessary when we would like to learn explicit movement models for objects. This is true both for instance level models and more general object categories. For example, to estimate a movement model for the mug category, it does not suffice to study the collective movement of mugs. This can be illustrated by a collection of mugs standing in a kitchen drying rack. If the method can only estimate the number of mugs in the rack, it will fail to detect that people are leaving washed mugs, in order to pick them up later. Therefore, a reasonable algorithmic model would be that of a queue, rather than a set. More generally, a cumulative model will fail to capture any such interactions of objects.

Since a mobile robot cannot observe all objects in a large environment simultaneously, some of them will be moved when the robot is not looking. Most often, objects only move locally, as humans might use them for some task and then put them down. However, objects sometimes move in unpredictable ways, to entirely different parts of the robot environment. This might happen if the task is completed somewhere else than the original object position, as when drinking from a cup brought from the kitchen. A key insight is that these latter movements happen much more seldom than small adjustments of object positions. We therefore propose decomposing the modeling of object movement into two parts: local movements describing the small adjustments, and rarer global movements for longer jumps. In this scheme, we can explain most object detections with local movements from the previous positions. One concrete advantage of this can be highlighted by an example where we have observed two visually similar objects. With new observations, the first object is well explained by local motion from the previous position. If the second is not but a similar object is observed elsewhere, we can conclude that the second is more likely to have jumped there than the first. This matches well with our human intuition.

(a) Position probabilities of chair 1.
(b) Position probabilities of chair 2.
(c) Position probabilities of chair 3.
Fig. 1: Example of our system tracking objects: the current detections of objects (red) and location probabilities (blue-violet) for three different chairs. The chairs are visually similar, making long-term tracking just from visual or shape features difficult.

To track objects within the maps, we need to generate object detections from the scene observations. In previous work on similar topics [7][3], it has been popular to use scene differencing for detection. This is natural, as we are only interested in tracking objects that move; static objects are trivial to track. But even movable objects often remain static for long periods of time, necessitating a mechanism for detection when they do not move. Methods have been proposed for extending 3D scene differencing temporally, to segment one movable object across a sequence of scene observations [8]. In this work, we propose restricting such an extension to only the unambiguous parts. In practice, this means the we identify two parts in different scenes as the same only if they are static between the observations. As we will show, such a scheme can still segment the movable objects in all frames. Importantly, it defers movable object clustering to the tracker, which incorporates a probabilistic motion model and can therefore handle uncertainty.

In our scenario, the task is assumed to be to track and monitor a fixed set of objects. The robot patrols one floor of a building at regular intervals, visits all relevant locations and builds local 3D maps. From each map observation, we can extract a set of object detections and corresponding visual features. In the experiments we use CNN features, which proved to discriminate well between dissimilar objects. Although it only takes a few minutes to travel between the different locations and construct the maps, we expect the robot to visit the same location again on the time scale of a few hours. Since it can only survey one location at a time, the majority of the objects we are interested in will not be observed for hours at a time. Between observations the objects move locally within the locations and will occasionally jump to different locations. The sparse observations and the two movement modes complicate inferring the object positions and demand careful modeling of probabilities.

The main idea presented in the paper brings together modeling of discrete object jumps in between locations and smaller local variation in a probabilistic multi-target tracking framework. We survey previous work of relevance and present a key set of assumptions which make the problem tractable. Since the method is developed for tracking in the context of a mobile robot patrolling an environment, we have developed a complete system to verify the viability of the approach. In summary, we present the following contributions:

  1. A multi-object tracking model for continuous movement paired with larger discontinuous movement that happens when the robot is somewhere else

  2. A practical, efficient inference scheme that fully captures the proposed underlying model

  3. Experimental validation on a robot and in simulation

Ii Related Work

This paper sits atop and draws upon a variety of different disciplines, including mapping, computer vision and Bayesian inference. As such, we focus on a few key areas where we find the most relevant work. Most studies that address detection and tracking of movable objects in a mobile robotic framework are found within the area of

robot mapping. In this field, considerable effort has been spent to handle dynamics in order to better model noise in the measurements and to improve localization [9][10]. Others aim to infer object positions with respect to the map, as described in the sections below. Our work is a variant of the multi-target tracking problem; another area of relevance which we discuss in the subsequent paragraphs. Finally, we survey related work on 3D object detection and segmentation.

Within the fields of robot mapping and localization, there have been substantial contributions to solving detection and tracking of multiple objects, referred to as the DATMO problem [11]. The area can be divided into approaches dealing with short-term dynamics such as cars and humans [2][12], and long-term dynamics, such as furniture [13][7][3][14]. In a robotic setting, short-term dynamic objects are typically continuously observed while long-term, or semi-static, objects are only observed every once in a while, during which the objects might have moved. In the following, we will focus on methods that deal with the latter problem, corresponding to our problem formulation. Biswas et al. [3] studies the problem of associating dynamic objects between measurements at different times. Besides the static map, they also keep track of a set of objects, each associated with at set of measurements. While [3] do not incorporate a movement model, thus allowing arbitrary movement, they use the mutual exclusion constraint, which disallows association of two detections made at the same time to the same object. A more recent system dealing with objects that are moved was presented in [15]. The authors specifically address the problem of modeling how long objects can be expected to stay at their last observed position. In addition, they present a scheme for learning the model from observations. While we do not employ the proposed probabilistic model for this time interval, it can be integrated into our system by modifying our prior model.

The GATMO system [7] presented by Gallagher et al. is the method that comes closest to realizing the vision we present in this paper. In fact, that system addresses the problem of tracking short-term, as well as long-term dynamics. The method detects movable objects by means of scene differencing on 2D laser data The discovered objects are kept in a database of categories, with an object moving to an ”Absent” category if it is no longer in a similar position as when last observed. It may move back to the ”Movable” category if there is a new detection somewhere else with a similar laser signature. Also worth noting here is earlier work of Schulz et al. [13] and Wolf et al. [16], who present similar systems, but only for tracking moveable objects locally within a map. Notably, [13] also incorporates the localization uncertainty of the robot when estimating the object positions. GATMO [7] and to some extent [13][16] address the same general problem that we do. We improve on [13][16] by also tracking larger scale motion, necessitating joint modeling of the objects. Our probabilistic model is an important improvement on the GATMO [7] system. As demonstrated by our experiments, it enables robust performance also in the presence of noise. Lastly, unlike these earlier systems, the proposed system operates on top of 3D maps.

At the basic level, our problem is a multi-target tracking (MTT) problem, . Many techniques have been proposed to address MTT but few address the problem in a setting similar to ours. Our system must track the discrete process of jumping between a finite number of locations as well as the continuous 2D position of the objects. Typically, this also includes inferring the association of measurements to targets. However, explicitly representing associations between targets, locations and measurements requires a high-dimensional state space and is not feasible. Instead, we focus on sampling based particle filters. To improve performance in high-dimensional state spaces one can sometimes use analytic representations of the continuous part, resulting in a so-called Rao-Blackwellized particle filter (RBPF). RBPFs have been proposed for multi-target tracking in a number of papers, e.g. [17][18][19]. Our approach is inspired by that of Särkkä et al. [17], which integrates one measurement at a time and samples correspondences to the tracked targets. Given the associations, the continuous positions can be tracked using classical Kalman filters. However, our sampling scheme is more similar to the method of Vu et al. [20], which uses MCMC techniques to estimate the associations of several measurements jointly. Another approach to MTT is Probability Hypothesis Density (PHD) filters [21][22], which maintain the combined target intensity function rather than the posteriors. As we are interested in explicit object posteriors, e.g. for object search, these methods are not directly relevant to this paper.

In the broader field of 3D object detection and segmentation, there are several works relevant to ours, particularly in regards to segmentation. In [8], Herbst et al. present a system which jointly segments scenes observed at different times. The method uses an elegant multi-scene MRF formulation and graph cuts to segment objects that move in between observations. This has the advantage of providing consistent segmentation boundaries by comparing several static scenes to each other at once, thus filtering out noise. While the output of this segmentation is the same as ours, it is unlikely that method would scale from the tens of scenes presented in the paper to the hundreds that might be collected by a robot. Instead, our method can run in an online manner, which is desirable on a robot platform. In [23], Finman et al. present a complete system for object discovery. Their method detects objects from pair-wise scene differencing and associates new detections with previously observed object models. Similar to us, they update the visual object models online using a tracker, but do not explicitly model specific object instances or their positions. In [24] we introduced a scene differencing method that was also used in [25]. The method finds objects by comparing to a background model of the environment, called a meta-room. In the current work, we do not rely on a background model. Instead, we compare precisely registered depth frames of subsequent observations, allowing us to reliably detect smaller objects than [24], such as mugs. Another advantage to [24] is the option of joint segmentation, allowing us to segment static objects in the past if they move in subsequent observations.

In a subsequent work [25], we studied the related problem of offline clustering of object instances that have been observed within one room at different times. One of the main conclusions was that lighting variation or inability to always observe objects from similar angles present problems for object recognition in this application. To alleviate this problem, we proposed to group the initial clusters of visual features by spatio-temporal coherency. Importantly, the second step makes sure no objects observed at the same time are assigned to the same cluster. In the current work, we approach the problem from a different angle, by studying objects that may also move between locations but never completely leave or enter the robot environment. Further, while the offline clustering algorithm in [25] is greedy, we propose an online probabilistic framework where we perform joint data association.

To summarize, while [25][16][13] track local movement using features and [3][14] track only using features, ignoring position, none of them formulate a full motion model that can track general objects. Only [7] studies the full problem of tracking general long-term dynamic objects within large environments, but without a specified motion model or a noise model. We improve on their work by incorporating motion and noise priors in a probabilistic model working on 3D data. This enables reliable estimates even in the noisy environments where many robots find themselves. Detections come from a simple temporally consistent segmentation logic that combines the precision of [8] with the fast sequential updates of [24].

Iii Method

A robot moves between a finite number of locations in an environment. Its task is to monitor a number of semi-static objects at each time step . For this, the robot needs to reason about the current locations of the objects, and their exact positions within the locations. At each time , it observes one of the locations , giving it a sequence of point measurements . Each point comprises a 2D position

, together with a visual feature vector

, each with some noise. While some of the measurements correspond to one of the objects it is monitoring, others originate from other objects or spurious noise. To know which objects to monitor, the initial positions are given. Our tracking formulation is based on the closed world assumption, meaning no object enters or fully leaves the environment. This is justified, since the tracking system can still maintain a distribution over possible positions in the environment, while concluding it does not know where an object is if the uncertainty grows too high.

In the following section, we briefly describe how our method generates the point measurements from RGBD scans of the current location . Then in subsequent Sections III-B1 and III-B2, we detail the local and global process models, respectively. Finally, in Section III-B3 and onwards, we describe how to combine the models into a joint posterior and then propose a framework for efficient inference.

Iii-a Map Differencing and Consistent Segmentation

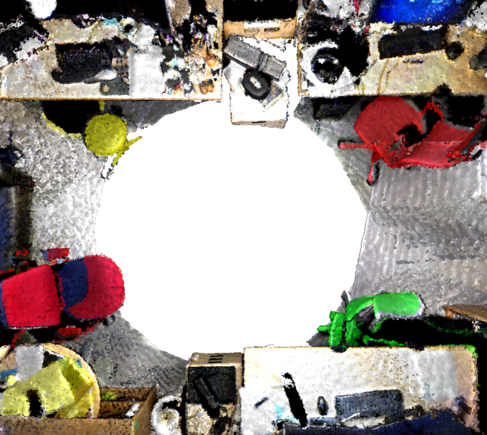

Fig. 2: The change detection result in one local map. There are different sources of detections, coming from forward change detection (green), backward change detection (red) and propagated detections (yellow). The hole in the center of the map is due to the robot standing in that position when collecting the local map.

Before

Moves

Static

Static

Moves

After

Present

Absent

Forward detection

Forward propagated detection

Backward detection

Fig. 3: A real world example where a chair moves and then moves again. It is detected through forward change detection and the detection is propagated into subsequent frames. The second movement is detected via the backward change detection pass.

Present

Backward prop.

Local movement

Occluded

Backward prop.

Forward prop.

Absent

Fig. 4: A more complex example where the object moves several times and with occlusion. Note that small local movements will be registered as a backward and a forward detection at the same time step. When occluded, we do not register any measurements.

As our robot patrols the environment, it performs 3D sweeps using its RGBD sensor at the pre-specified locations . The RGDB frames are registered into local maps, see [25] for details. Our aim is to track objects moving within our environment. It is therefore natural to use change detection techniques [24][23][26] to detect image segments corresponding to moving objects.

Change detection only detects objects that move in between two time points and . However, if at time any of the objects remained in the same place as in , we would like to still detect them, as this is vital information for our object tracking. That is, we need to distinguish between not having moved and not being there any more. Therefore, we add a new component to the detection system wherein we propagate detections of objects into previous and subsequent observations. This allows us to in theory segment all instances of objects that have moved at any point in the robot’s observations. When formulating the principles for propagating the detected objects, there are several scenarios to take into account. First, an object can appear as well as disappear, allowing it to be detected by change detection. We distinguish between detection of appearing and disappearing objects, by referring to the processes as forward and backward change detection, respectively. If an object has appeared in frame , it could be present in the subsequent frames while backward detections might have been present in previous frames. We thus compare all the registered depth image frames in observation with those in to see if the pixels corresponding to the object have similar values, see Figure 3. The object detections are propagated in either direction until the depth values do no longer correspond or we detected an object change in the opposite direction, indicating that the object disappeared, see Figure 4. Finally, a complicating factor is the objects might be occluded. While one could use the observations before and after an occlusion to model the probability of the object being there, we do not to attempt any such reasoning in this work.

To summarize, several passes determine the final object detections. First, our algorithm computes forward- and backward change detection passes by comparing each subsequent pair of observations. Then, a forward pass propagates all the detected objects to the subsequent static observations of the same object. No propagated detection is added when it has already been detected by another pass. Finally, a backward pass propagates the detections from backward change detection. The output of the segmentation of one local map is shown in Figure 2. Note that the method can be modified to run online simply by skipping the backward detection and propagation steps.

Iii-B Object Posteriors

(a) Local, small movements of the objects within the locations.
(b) Global movements, jumping within or between different locations.
Fig. 5: Illustration of the possible movements of three objects. Arrows indicate possible movements. The objects can move locally, within a certain area. Additionally, they may also jump to new locations in completely different areas of the environment.

Now we turn to the problem of associating the detections from every time step with objects in order to track them. The modeling of object movement can be described in terms of a combination of two different processes. On the one hand, an object often moves locally in one place, as illustrated in Figure 4(a). Picture, for example, a chair in front of a desk; it frequently moves a bit when the user is getting up or adjusting the seating position. More rarely, objects might also move somewhere completely different, as illustrated in Figure 4(b). To be able to track these rare movements, we need to reason situations when a tracked object’s visual descriptor does not match anything nearby its previous position. If its descriptor is also close to that of a new, unexplained object, we might be confident the object has ”jumped”. Since the robot can only observe objects within one location at each time step, estimating for each of the objects will prove essential to our treatment of the problem. In the following, we describe our modeling of the two processes separately and then how to combine them.

Iii-B1 Local Movement

Individual object, or target, states and measurements at time are composed of continuous object 2D position and descriptor vectors, as well as a discrete location ,

The continuous states can be observed directly, with some noise and therefore have the same dimension as the measurements . Note that for the measurements, the continuous location also uniquely defines the discrete location . We denote the set of target states at time step , and the measurements . If the objects move only locally, and if we assume Gaussian noise for the process, and for the position and descriptor measurements, we can describe the system using linear dynamics. Given assignments that map each target to its corresponding measurement

, we may use the standard update equations for the Kalman filter to track each target separately. With the prior that the object stays locally, the state will simply propagate as the previous state plus some normally distributed noise. The continuous states can further be directly observed, giving us

(1)

with and denoting process noise and measurement noise, respectively. The feature part has no process noise but we do assume normally distributed measurement noise. In our application this is a reasonable assumption, as discussed in Section IV-A. Note that our model can incorporate other distributions. In this local model, the location never changes but it is implicitly given by the last measurement associated with the target.

Iii-B2 Global Movement & Associations

0
0 0
0 0 0
TABLE I:

The prior probabilities given previous location. Note that we can get the probability for row two from row one by taking into account that

. Similarly, we get the third row from .

In addition to the continuous pose, our objects can also jump between several discrete locations . These often correspond to rooms such as offices or different parts of a hallway. At each time point, we assume an object might take the ”action” of jumping to a random or staying,

(2)

If object did not jump, we know it stayed in the same location as before, . In the event of a jump, it may uniformly jump to any of the locations in the robot environment. There is therefore the probability of jumping to the location we are currently observing and of jumping to any of the other locations. If the number is large, we gain little information about an object’s location from knowing it is missing from one of the locations. Instead, for simplicity we introduce a new location , indicating that we believe the object jumped to a new location, but we do not know which. Therefore, if , we already know jumped in subsequent time steps, and the location stays until it is associated with a measurement, . As we will see, this simplification helps improve our inference. Thus, the location priors are

Intrinsically, multi-target tracking is a problem of estimating the measurement associations . Now, can take on measurement indices as well as , which indicates the target did not give rise to any measurement at this time. If, for example, the last target estimate is not at the current observation location , and the target did not jump, the probability of not getting a measurement of the target is , since we can only observe one location at a time. Even if the object is at the estimated location, it is detected with some large probability , allowing for some errors in the detector. Together, this gives us the measurement prior model,

and correspondingly, if each of the measurements in the location are a-priori equally likely to originate from the object,

(3)

With the conditional priors in hand, we can compute the individual target association priors , see Table I. Since the associations encode the locations except for when , we simplify notation by taking to mean all associations and locations at time . Note that the individual association priors are conditioned only on , as opposed to the full . Further, there is no closed form expression to combine them into a joint prior , since we need to disallow assignments of targets to the same measurement. While we never sample from this specific distribution, it is relevant to talk about how one might do so here; we will use the same techniques later on for the proposal distribution.

One option to sample from the joint association prior is to use MCMC methods. In our case, one might use blocked Gibbs sampling [27] of two random target assignments at a time, conditioned on the other assignments. It is important to sample the assignments in blocks of several targets since this allows the targets to switch measurement assignments. The Gibbs sampling procedure allows us to keep the probability of assigning a measurement in the current room fixed, even when most of the observations are already assigned to another target. In effect, this is analogous to adaptively changing the set of measurements depending on which are unassigned at that iteration of the sampling procedure, and sample from computed over this modified set of measurements.

While we have found that Gibbs sampling of the joint prior is indeed feasible, it might be unnecessarily slow. We can also approximate the distribution using the assumption that the target locations are independent. However, there is still the constraint over that no two targets can be associated with the same measurement, giving

In particular, this approximation becomes exact when , since a target can then be assigned to without any noticeable effect on the other priors. This distribution is easier to work with as we can use rejection sampling to sample from the individual priors and reject any sample set with overlapping assignments.

Iii-B3 Combined Process Model

Now, we would like to combine the continuous local processes and the model for the locations and associations in such a way that we can estimate the full posterior jointly. Fortunately, given and measurements , the states are independent. This allows us to decompose the posterior:

(4)

This is the basic principle underlying the use of Rao-Blackwellized particle filters for multiple target tracking, see for example [17][19]. It allows us to sample a for every particle while also maintaining an analytic filter for each state

. This decomposition reduces sampling variance, allowing the use of far fewer particles than if we were to track the full state

using particle sampling.

We will outline our modeling of the combined process dynamics before we delve further into the details of inference. In the following, we assume the process has propagated according to the discrete dynamics in the previous section. If an object does not jump, it adheres to the dynamics in Equation 1. If it does jump, the movement model a-priori distributes the spatial part uniformly over the target spatial domain, . If at the same time, it is associated with a measurement , our new estimate of the target position will therefore be , where is the spatial measurement noise. The complete continuous dynamics are

(5)

where the random parts are distributed according to

(6)
(a) Features from experiment 1 reduced to two dimensions for visualization. They discriminate well between most of the objects. The only exceptions are the monitor and chairs to the far right: the features of objects 10 and 12 changed drastically after the objects jumped, interleaving them with the noise measurements and those of object 4.
(b) Features from experiment 2. Since the tracked objects are visually similar chairs, the features do not discriminate well. However, we see that the noisy detections are well separated from the chairs, indicating that they help us focus on the objects of interest.
Fig. 6: CNN Features from the Google Inception v3 network [28]

. They consist of the tensor responses at the final bottleneck layer dimension reduced using t-SNE

[29]. Additional images and labels for training covariances were extracted from the KTH Longterm Dataset Labels (https://strands.pdc.kth.se/public/KTH_longterm_dataset_labels/readme.html) data set. Note that each class corresponds to a specific instance. Semantically similar instances are mostly grouped together. For example, the four classes to the left in Figure 5(a) represent all of the food containers, bottles and mugs in that dataset.

Iii-B4 Likelihoods

The idea behind our Rao-Blackwellized particle filter is to sample locations and associations and then update using linear Gaussian dynamics. The idea comes from [17], where the system incorporates one new measurement for every time step. Since our system has distinct time steps where it gets several coupled measurements at once, we incorporate these measurements in the same update step, unlike [17][19]. In the following, we will look at how to extract weighted samples of the posterior recursively using a particle filter. This can then be combined with the linear part of the state to form the full posterior, see Equation 4. Using Bayes’ rule two times, we can decompose the association posterior to give us a recursive expression:

(7)

The first term, , defines our measurement likelihood. Given the full set of associations , it decomposes into a product of point likelihoods. Since we know which data points originate from the tracked objects, we know the others do not. We will refer to the latter as clutter measurements, giving

(8)

The point likelihood of local movements is simply the Kalman marginal likelihoods of position and features [17]. If we instead consider jumps , we know from the previous section that

is a-priori uniformly distributed over the spatial domain. Further, taking the association

into account, it must be somewhere within the measurement location . The likelihood is therefore given by the Kalman feature marginal likelihood times a uniform density over the area. With being the area of that location, and the feature estimate, we get

As of yet, we have not defined any prior probability of getting clutter measurements, only of targets not giving rise to a measurement. However, as we will see, clutter is implicitly sampled within the Gibbs sampling procedure. The likelihood of the clutter measurements is given by a uniform density over the spatial and feature domains, . Note that the support of the feature density, , needs to be estimated from data.

Iii-B5 Sampling from the Proposal

A density proportional to the update of the posterior in Equation 7 is called the optimal importance distribution. Sampling particle updates from the proposal would minimize variance among our particle weights but is in general difficult and typically requires some approximation [30]. Using approximate MCMC methods to sample from the proposal is therefore a well-established idea [30] and has been used to estimate data associations for multi-target tracking in [18]. In our case, recall that describes our transition model, which is in turn given by the individual association priors as outlined in Section III-B1. The individual priors can be combined with the likelihoods to compute the individual proposals . Using these distributions, the importance distribution is sampled analogously to ; either with Gibbs sampling or approximated with an independence assumption. In the following, we explore the two methods in more detail.

In Gibbs sampling, the idea is to sample one of the variables at a time conditioned on all the others, denoted . This gives us a modified individual proposal in the form of a conditional distribution over , . Note that since we know all of the assignments, can be uniquely identified with either a target or a clutter likelihood in Equation 8. Again, due to the hard constraints in the prior, it is important to sample several assignments block-wise. We do 100 iterations of burn-in, sampling two random target assignments from a joint version of at each iteration, and pick the final assignments as our sample. The algorithm is initialized with assignments from approximate rejection sampling as described below.

We also investigate a faster sampling scheme using the prior of Equation III-B2, paired with approximate independent likelihoods. The data points are already independent given assignments, . But given no assignment , without the other assignments we do not know if it implies that a measurement will be rejected as clutter. Instead, we approximate it with an independent likelihood that should be the same for all data points, see Section III-D for a derivation of the approximation used here. Given the likelihood, a joint independent distribution over is given by . To sample from the approximate posterior, we generate samples from , which we reject if any two targets are assigned to the same measurement. In the experiments, we report results both from this approximate rejection sampling and from Gibbs sampling.

Iii-C Calculating the Weights

Since the likelihood is not actually a probability mass function with respect to , i.e. it does not sum to one, the importance distribution is defined by the product modulo a normalization constant ,

and is given by the sum of the product over all assignments,

(9)

Since varies between the particles, we need to update the weights proportional to their values of , as it is not reflected in the sampling. Intuitively, this is similar to a particle filter that uses the likelihood to update the weights of the particles. As we can not compute the directly, it needs to be approximated. Components of the sum in Equation 9 typically take on their largest values in a few places where the likelihood is large. The idea is therefore to produce estimates of by sampling from the proposal distribution . In the following, we mainly use the fact that :

(10)

If we look at the last line, we can then estimate the expectation by sampling many and compute for each sample. The inverse of the estimated expectation gives us our estimate of the sum . Importantly, we already perform Gibbs sampling from to sample our particle proposals. By simply running a few more iterations of the same MCMC chain, we can use this procedure to estimate . Being able to produce both of these properties at the same time caters to the efficiency and simplicity of the algorithm.

In addition to this scheme, we also evaluate a faster version where we compute using the approximated independent posterior . Inserting the corresponding product into the sum of Equation 9 results in a product over the individual sums, .

Iii-C1 Rao-Blackwellized Multi-Target Tracking

In summary, this gives us the sequential importance sampling updates:

  1. Sample new locations and associations, either using Gibbs sampling or approximate rejection sampling:

  2. Update the position and feature estimates

  3. Update the weights using Gibbs from previous section or with approximate :

At each step of the filtering, we can then construct a posterior over the joint feature and spatial distributions of the objects. The feature part can be marginalized out simply by removing the corresponding dimensions from the posterior:

(11)

The resulting density is illustrated in the filtering results, see for example Figure 1 and Table III.

Iii-D Implementation

While each particle could potentially need its whole history of associations and measurements to define the probabilities, in reality we can get away with much less. Each particle is parametrized by a list of sets for the targets . In particular, the target locations fully specify the probability of the proposal distribution, as seen in Table I. and parametrize the marginal likelihoods.

For the version with approximate rejection sampling using , we need to estimate the independent likelihoods conditioned on no observation of . These roughly describe the data distribution. One approach would be to try to directly approximate the unconditional likelihood of the data points, which is hard in itself. However, we have found empirically that another approach works better in our case. We proceed using the intuition that these values should remain fairly constant with respect to the current target . If the current data is assigned low values by the Kalman likelihoods, those values should start approaching the data density. This allows sampling for example of jumps. With this intuition in mind, we approximate the data likelihood by the expectation of the data likelihood with respect to the estimated continuous distribution of target , . In the derivation, we use the fact that there should be negligible overlap between the different target distributions of one particle and that :

While this is an approximation, we have seen empirically that it performs better than trying to estimate the data likelihood. Again, we reason this is due to that the marginal is determined mainly by the ratio to the point likelihoods of the measurement associations.

Iv Experiments

(a) Experiment 1.
(b) Experiment 2.
Fig. 7: The jumps of the objects in the two experiments. Arrows indicate jumping objects while dots show the position of static objects with only local movement. Jumps are annotated with time step and object id. In the first experiment there are 3 jumps between 2 rooms (i.e. locations). The second experiment contains 13 objects from 3 rooms jumping a total of 14 times.

We perform several experiments, both on real data collected autonomously by a robot and on simulated data. In the following, we describe the exact details of the method used as well as the experimental setups.

Iv-a Detections and Features

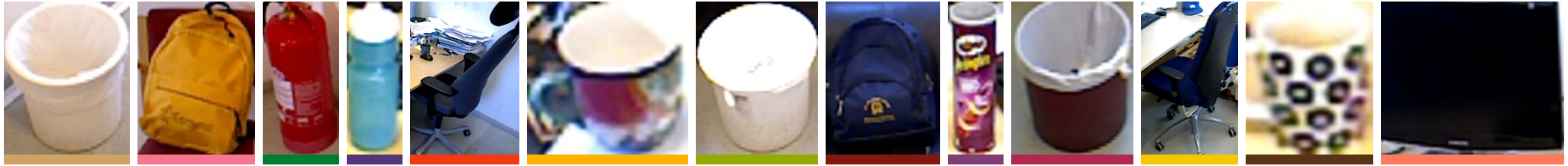

Fig. 8: The objects in experiment 2. Objects 0-12 from left to right: Trash can, bag, fire extinguisher, bottle, chair, mug, trash can, bag, container, trash can, chair, mug, monitor. The tracker features are initialized from these images, which were also extracted using the method in Section III-A. The colors along the bottom correspond to object colors in Figures 6(a) and 5(a).

For basic change detection, we rely on the Statistical Inlier Estimation (SIE) method of Ekekrantz et al. [31]. The method compares two subsequent local maps from the same location to find the differences and through them the moving objects. While the method can also extract parts that are highly dynamic (i.e. moving while the sweeps are collected), we choose to ignore these parts, as they mostly consist of moving humans. SIE explicitly models the noise of the range sensors as part of its optimization, enabling us to reliably extract smaller objects close by but also larger objects that are further away. The resulting detections are fed into the system of Section III-A to add detections of the objects in the observations where they are static.

In recent years, convolutional neural networks have come to play a vital role in computer vision. Today, they represent the most successful technique e.g. for classification of images. For applications, a popular method for adopting a network to a particular domain is

finetuning. In [32] and [33], the authors showed finetuning of networks often lead to slightly better performance, but can be difficult to get right. Further, in [33] as well as [34]

, features extracted from the tensor responses of one of the layers in a pre-trained network showed remarkable performance on a wide range of computer vision tasks. Importantly for our application,

[33] showed these features could achieve state-of-the art performance in both instance recognition benchmarks and retrieval scenarios. Whenever we can distinguish the objects by visual appearance we would like to take advantage of the discriminative power of these features. Therefore, we use CNN features reduced to three dimensions using t-SNE [29], see Figure 6. In our experiments, we found that three dimensions provide a good trade-off between computational complexity of the filter, accurate estimation of covariances and discrimination. In addition, we have seen that after t-SNE reduction, the variation within each class is well approximated by a multivariate Gaussian. The two-dimensional illustration in Figure 6 gives some indication of this.

Iv-B Parameters

Parameter Particles ,
Value 0.03 0.98 0.35 0.15 300 estimated

Most of the parameters have some meaning and can to an extent be selected by hand. In these experiments, we have , , , , with , . Note that the spatial dimensions are independent. We deliberately set to a slightly lower value to avoid sampling too many jumps, which might lead to particle depletion with many objects. For simplicity, the spatial process noise is constant, but could also increase as some function of the time between observation and . since we do not expect the descriptors to change over time. We fit the measurement covariance and support from the data set referenced in Figure 6. While the areas of the locations, , can be estimated from the 3D map observations, the rooms in our data sets are all around and we use this value in all experiments.

Iv-C Evaluation metrics

To compare the performance of different methods, we use the CLEAR Multiple Object Tracking metrics from [35]. The metrics are defined using the association of targets to observations based on estimated positions. These associations can be used to compute the mean errors, number of mismatching associations, number of false positives and the number of missed observations. The MOTA metric [35] combines several of these measures into a global score, showing the performance of the trackers. We also compute the MOTP metric, which is simply the mean distance error of the associations [35].

To find the best association for the MOTA calculation, we use the Hungarian algorithm to minimize the combined distance between filter estimates and observations, similar to [35]. We only consider associations closer than . Once we have computed the associations, we compute the false positives as the number of estimates associated with a measurement with no label. Missed observations are similarly labels with no estimate. Mismatches are observations which the estimate assigns a label different from the annotated label. In [35], the authors count mismatches only in the observation sequence where the initial error is made; for example when two target paths cross. However, for our application it is important we maintain tracking of the correct targets over the whole sequence. We therefore count any observation with the wrong label estimate as a mismatch.

To establish an independent baseline to compare against, we also used our detections and features in a system similar to GATMO [7]. Since all short-term dynamics and static structures have already been filtered, we only need to keep track of the long-term dynamics. Therefore, the baseline tracker keeps track of two sets of objects, movable and absent. We use the information from Section III-A to know if a detected object was propagated, i.e. if it has not moved. Given the previous sets of movable and absent objects, a movable object is explained and kept in the movable set if it is static as compared to the previous observation. If it is not, or the object was in the absent set, it can be matched to one of the unexplained observations. Then, a match is made if the visual feature distance is smaller than some threshold. We find the threshold by running several experiments with different thresholds, and picking the one that gives the best results on both annotated data sets. If it is matched in this way, it is placed in the movable set, otherwise among the absent objects. The estimated position of a given object is simply taken to be that of its last matched observation.

Iv-D Experimental setup

We perform several experiments using the STRANDS robot platform [36]. In each case, the inputs to the system are RGBD frames a robot collects autonomously while moving between a few different locations. Typically, after observing one location, the robot visits the other ones before returning to the same location again. Since we want to validate the system in the presence of lots of movement, and especially movement of the objects between different locations, we manually move the some of the objects when the robot is away. This gives us ground truth knowledge of which specific objects moved. As the motion of single objects in the experiments was exaggerated as compared to most natural environments, we argue that it provides a thorough validation of the robustness of the tracker. The collected frames are fused into maps, mostly consisting of an entire room, and segmented using the system in Section III-A. Features are extracted from the images associated with the point cloud segments. The object position observations are simply computed as the mean of the point clouds. To initialize the tracking system, we mark the segments corresponding to the objects we wish to track in the first observations.

The first experiment should verify the tracking ability under frequent movement, but with dissimilar objects, to avoid ambiguity. There are a couple of instances of most types, but in particular the fire extinguisher and monitor types only appear once, see Figure 8. In the sequence of 77 observations, the 13 objects jump a total of 14 times, see Figure 6(a). While the first experiment should validate the ability to track in favorable circumstances, the second experiment tests the ability to handle ambiguity and noise in the features. To that end, all of the objects are chairs, and most of them are visually similar. The seven chairs in the sequence are all in either of two locations. In the 55 observations of the locations, there are three jumps taking place, as well as considerable local movement of all chairs, see Figure 6(b). The second experiment should be challenging for methods that do not explicitly handle ambiguous evidence, such as the baseline.

To verify how much information either modality contributes to the tracker, we benchmark the full system as well as the local and global tracking components individually. The local tracker is simply a variant of the full system with , disallowing any jumping within or between locations. A global tracker based purely on features is obtained by replacing the spatial Kalman measurement likelihood with a uniform distribution. The spatial position thus has no contribution to the final estimate. To attain position estimates, we instead set the positions of each particle’s targets to those of their last estimated measurement correspondences .

Finally, we perform experiments in simulation to investigate how tracking performance is affected by varying the number of tracked objects and the rate of jumps. Given a number of pre-defined areas, jumps are sampled between the areas as well as Gaussian process noise around the current positions. Additionally, with each observation round we sample a number of noise detections not corresponding to any of the targets. Since we sample a full simulation sequence for every value of the parameters, the sampling will introduce some additional variability in the performance measures. To decrease the effects of sampling, we sample three simulations per value, and evaluate the tracker ten times on every sampled simulation.

V Results

Since the filtering method is sampling based and the results vary slightly, we do 50 experiments with each method and present both qualitative and quantitative results from these runs. The experiments are all with 300 particles, which proved to be sufficient to track the posteriors (see Section V-A). Qualitative results are reported on the version using approximate rejection sampling of the proposal, with comparisons to the results with other variations of our method and to the baseline. We evaluate sampling the proposals using Gibbs sampling by itself and then also with Gibbs weight calculation.

V-a Experiment 1: Various Objects

Fig. 9: The MOTA score as a function of the number of particles, with statistics from 10 runs on experiment 2. After about 300, increasing the number of particles has little effect.

In Figure 9, we see that the MOTA score on this experiment increases with the number of particles. After about 300 particles, the trend stabilizes at around , demonstrating that 300 is enough to approximate our defined posterior accurately, and that other errors are due to modeling imperfections or system noise. The posteriors of four different objects from experiment 1 are visualized in Table III. Whenever an object disappears from a location, it affects the posterior of the corresponding object. The local uncertainty increases, at the same time as new associations are sampled around other measurement locations. In the example posteriors, we see that the posteriors are well concentrated when the objects are static.

Features of the tracked objects in experiment 1 are shown in Figure 5(a). The different object classes result in features that are well separated. Out of the ten experiments, 10 out of the 14 jumps are tracked correctly in the majority of cases. These include successful tracking of diverse objects such as mugs, bottles, canisters, trash cans and bags. In fact, the failures were all with larger objects such as the jumping chair and the monitor. In these cases, the features seem to have dramatically changed before or during the jumps of the objects. In the case of the office chair, a rotation led to the feature of another chair to become more similar, causing confusion in the inference. The other failure occurred at time steps 37 and 39 when the fire extinguisher and a trash can respectively switched places, see Table III and Figure 6(a). This typically lead the tracker to estimate that the objects stayed in the same places and adapt to the new appearance. Besides the ten successfully tracked jumps, the two static objects were inferred correctly.

System MOTP[35] Miss rate False pos. Mism. MOTA[35]
Simplified 0.11 0.17 0.07 0.08 0.67
Gibbs sampl. 0.12 0.17 0.06 0.07 0.70
Gibbs weights 0.12 0.17 0.04 0.06 0.73
Gibbs weights* 0.11 0.13 0.01 0.00 0.86
Features** 0.18 0.40 0.07 0.06 0.46
Local*** 0.13 0.21 0.04 0.27 0.48
Baseline 0.11 0.08 0.01 0.00 0.91
TABLE II: Results from experiment 1. The main method is run with the simplified independent proposal, Gibbs sampling of proposals and Gibbs estimation of weights. The rates are averaged over 50 runs. *optimized for experiment () **no spatial tracking ***
Initialization 1 2 3 4

Object 3 - Bottle

[width=0.99]img/experiment_2/bottle_3/probs/time47_half.png

Jump

Object 5 - Mug

[width=0.99]img/experiment_2/mug_5/probs/time15_half.png

Jump

[width=0.99]img/experiment_2/mug_5/probs/time33_half.png

Jump

Object 6 - Trash can

[width=0.99]img/experiment_2/trash_6/probs/time37_half.png

Jump

Object 8 - Container

[width=0.99]img/experiment_2/crisps_8/probs/time30_half.png

Jump

TABLE III: Posteriors (red-blue gradients) of four different objects from experiment 1 at different time steps together with the image of the closest measurement. If there is no image, no measurement was associated with the estimate at that time step. The trash can in column 3 shows one of the failures. Since that and the fire extinguisher swap places around step 2, the estimates are confused, causing a mismatch. The other objects are correctly tracked, since the images of ”Intialization” and ”4” coincide. Note that all objects jump at least once.

Quantitative results are presented in Table II. Importantly, we observed that in the experiments where the results were qualitatively worse, this correlated with a significantly lower MOTA rate. As expected, with almost no overlap between the feature distributions, the baseline achieves good results. Compared to the baseline, the proposed tracker takes several time steps to converge on the new target location whenever a target jumps. This is due to the uncertainty embedded in the tracker, and leads to a significantly lower MOTA score in this case. If we decrease the feature uncertainty to about one third of the estimated covariance , as shown in Table II, the proposed tracker becomes more certain and collapses on new locations more quickly, leading to a score almost in line with the baseline. In general, the proposed tracker infers the same jumps as the baseline, but estimates are lagging due to uncertainty.

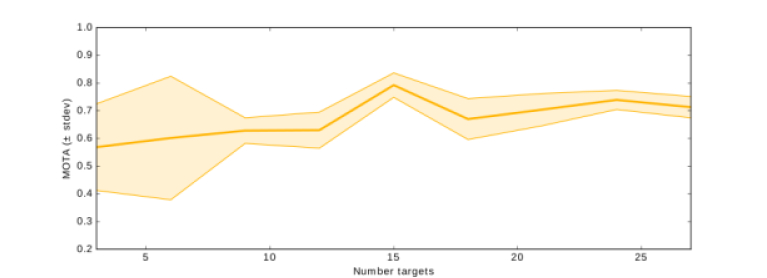

Fig. 10: The MOTA score as a function of the number of targets in simulation. Note that the score stays constant when adding targets. The initial variability is due to how the simulation is set up; if only one target is at a location and it jumps somewhere else, the old location is unlikely to be observed again, leading the tracker to believe that the target is still there.

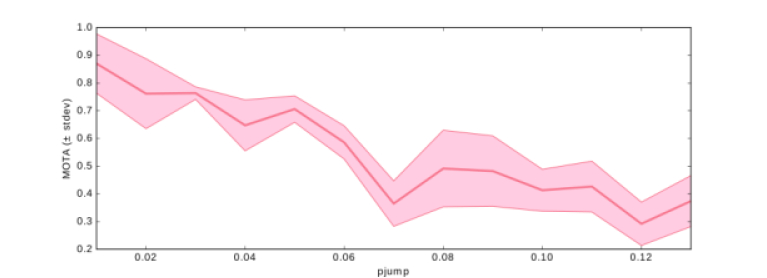

Fig. 11: MOTA score as a function of the rate of jump in simulation, with statistics from 30 runs. Note that the score is decreasing with the jump rate. Since three simulations are sampled for each rate, some additional variability can be seen.

From the results, we see that the local tracker performed significantly worse than the full system on this dataset. Due to the large number of jumps, the model is too limited in this scenario. The high mismatch rate of the local tracker is due to its inability to jump, instead settling for the neighboring observations which might be visually dissimilar. On the other hand, we see that the feature-based tracker was almost on par with the local model. However, the high estimated uncertainty of the features keeps the feature-based tracker from achieving a result in line with that of the baseline. The result tells us approximately how much of the performance of the combined model is purely due to the features. We can see that, with the feature uncertainty, the combined model performs significantly better than the individual models. This is mirrored in the qualitative results, where the full inference framework clearly outperformed both methods.

In this experiment, each Gibbs sampling method contributes to a slight performance improvement over rejection sampling. Qualitatively, the Gibbs strategies were able to more often correctly infer that the garbage can and fire extinguisher switched places and, more generally, collapse on the correct locations faster. These results and those from experiment 2 give us confidence that while the MCMC schemes are slightly more accurate, the approximate version is a reasonable approximation. The trade-off becomes apparent in the run-time of the method, which is roughly doubled when doing 100 iterations of burn in for Gibbs sampling.

V-B Experiment 2: Chairs

As can be seen in Figure 5(b), the features do not discriminate well between the chairs and the inference therefore has to rely more on the measurement positions to estimate the target positions. Of the three jumps, the filter tracks two of them correctly, while the last one happens too late in the observation sequence for the estimate to consolidate on the new position. In general, the filter requires two to three observations before a jump is inferred. At the first jump, the chair jumps close to another identical chair, leading the tracker to confuse the two chairs in the majority of the ten runs. Such errors are to be expected as there is no way to distinguish these visually identical chairs. Chair number 4 (see Figure 6(b)) moves around within a roughly three meter diameter but the tracker accurately follows it in most of the runs. The rest of the objects all move around locally and are tracked correctly in the majority of experiments.

System MOTP[35] Miss rate False pos. Mism. MOTA[35]
Simplified 0.18 0.18 0.03 0.11 0.68
Gibbs sampl. 0.18 0.15 0.02 0.12 0.70
Gibbs weights 0.18 0.19 0.04 0.09 0.68
Features* 0.25 0.84 0.01 0.04 0.11
Local** 0.18 0.17 0.04 0.12 0.67
Baseline 0.16 0.20 0.02 0.28 0.49
TABLE IV: Results from experiment 2 with chairs. The rates are an average over 50 runs. *no spatial tracking **

Quantitative results are presented in Table IV. Both Gibbs proposal sampling and with weight calculation have about the same MOTA score as approximate rejection sampling, with pure Gibbs proposal sampling being slightly higher. Correspondingly, qualitative results for all three methods are similar. The baseline method performs significantly worse than these methods on this experiment. It suffers since it only tracks static objects spatially, without a soft local movement prior. Whenever there is any movement, it therefore relies on the uncertain features to estimate associations. Qualitative results reflected the low score, with the estimated positions frequently jumping between different positions.

Since there are few jumps in this experiment, we see that the local version of the tracker performs well also in comparison to the full system. In particular, since the jumps do not occur until halfway through the sequence, this version typically gives perfect results up until that point. However, the larger jumps cannot be tracked, and it errs at this point. Interestingly, the small jump within one room at the end of the sequence is typically inferred correctly. The feature-based tracker qualitatively performed badly for this experiment, which can also be seen from the MOTA. Since different particle hypotheses were typically associated with several of the chairs in the two rooms, the estimate ended up somewhere in the middle. This can be seen by the high miss rate, which is due to the position annotations being too far away from any estimates. In conclusion, we see the combined tracker performed the best in this scenario, with the local tracker providing most information for the joint inference.

V-C Experiment 3: Simulations

In the simulated environment, we generated results for various number of targets and rate of jumps, with three simulations sampled for every parameter value. Our hypothesis is that tracking performance should decrease with the rate of jump, rather than with the number of targets. This is due to how our proposal distribution is constructed; when one target is well explained by a measurement, most of the particles are likely to sample that association. Hence, particle depletion happens more rapidly when there are several uncertain associations, as happens when targets jump. If we look at the graph in Figure 11, we can indeed see that the MOTA develops negatively with an increasing jump rate. Correspondingly, Figure 11 shows the performance stays more or less constant when increasing the number of targets. From these graphs, we can deduce that the complexity of the proposed algorithm scales with the jump rate rather than with the number of targets. This is important in real world environments, where the number of objects might be very large, but jumps happen relatively seldom.

V-D Data from robot deployment

System MOTP[35] Miss rate False pos. Mism. MOTA[35]
Proposed 0.14 0.15 0.10 0.04 0.71
TABLE V: Statistics from robot deployment, with 9 objects in 34 observations. Values are comparable to other experiments.

In addition to the experiments, we have also evaluated the method on data gathered by a mobile robot in a real world deployment. The robot patrolled an office environment during a period of two months, gathering observations of a few places with one or two days’ interval. In our analysis, we have focused on three places with highly movable objects: one reception area and two kitchens. In these scenes, we marked three objects in each location, most of them moving around within the area. Since no motion was observed in between the locations, the experiment should mostly be seen as a way to test the stability of the methods in a real world scenario. In Table V, we see that the numbers reflect those in other experiments. Indeed, the method manages to track the objects through most of the sequences, confirming the validity of the approach as applied to natural data.

Vi Discussion

We see that the joint tracker is able to bring in information from both the visual and spatial modalities to produce a reliable estimate of the object positions. In the case where we have different object classes, the CNN features proved to be highly discriminative, allowing us to track the jumps even of comparatively small cups. In fact, the small objects seem to consistently provide good features, even in the presence of motion blur. This, together with the preliminary deployment results in Section V-D, gives us confidence that the proposed system will be able to work in a real world scenario, where change detection is likely to detect the movement of a multitude of small objects. Further, the method works well even when we increase the number of objects to track since the accuracy of the algorithm depends more on the number of jumps. To maintain accurate posteriors in the event of many jumping objects, one could employ an adaptive particle set scheme such as [37].

The baseline method is based on the previous GATMO [7], as applicable within our system. Since this method does not reason probabilistically, it suffers when there is noise and ambiguity in the measurements, as can be seen in the second experiment. Since there is overlap between the distributions of the different features, objects with overlap are sometimes confused. In a real-world scenario, this kind of situation is to be expected, as there are often many similar-looking objects. Moreover, we expect more noise in real-world scenarios, when there is more lighting variation, and the objects may be observed from more angles. We conclude that it is important to incorporate uncertainty as part of the tracking, especially in environments that contain multiple visually similar objects.

While not discussed in the results, the tracking is enabled partly by the performance of the change detection framework discussed in Section III-A. Even when the objects did not move, and were detected through the propagation approach, all objects were detected in all the observations. This is remarkable, since in total, we have 522 annotated objects in the datasets. It shows that this simple method is sufficient, at least given precise registration. However, the segmentation sometimes either over- or undersegments the objects. Particularly for the chairs, oversegmentation is an issue that should be dealt with in a more principled fashion, potentially by training a supervised segmentation method on similar data. In most cases, the tracker was nonetheless able to handle these deficiencies.

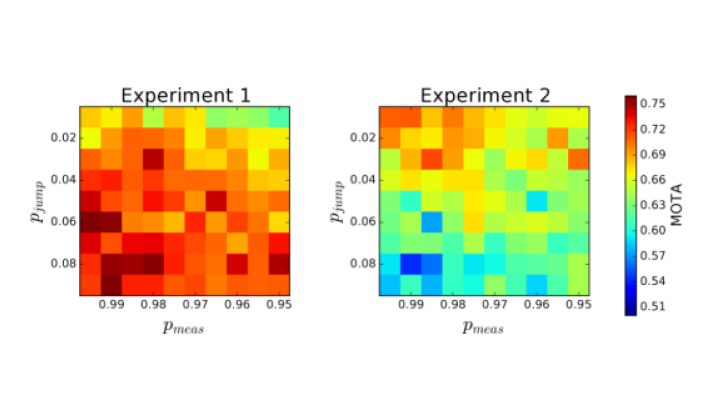

Fig. 12: Effect of the interaction of and on the MOTA score in the two experiments. In experiment 2, the method performs well roughly within the quadrant , . The optimal value of seems to be higher in the first experiment, at or above .

In Figure 12, we see the effect of varying the and parameters. In the experiments, we have chosen to use the same values of the parameters for consistency. However, from the figure, we observe that the method performs better on experiment 1 when the value is higher than the one used. The difference in the optimal value of between the experiments is due to that the actual rate of jumps is higher in experiment 1, with about jumps per observation versus in experiment 2. The relation in the jump frequencies to the optimal values leads us to believe that it might be beneficial to estimate the number of jumps using the algorithm and adjust the parameter iteratively in an EM fashion. Similarly, we saw in experiment 1 that estimating the feature covariance for the data at hand can significantly improve results.

Vii Conclusion & Future Work

We presented a system which can track multiple similar objects even in the presence of noise and when only a subset of the objects can be observed at any given time. There are three major reasons that together enable the system to track objects of sizes that range from mugs to chairs accurately. First, the probabilistic method of [31] together with our temporal segmentation allows us to identify even small changes in the 3D maps consistently. Secondly, recent CNN architectures such as the one used [28] allow us to represent the discovered objects using discriminative features. For the smaller objects, it is key to use the image data as the depth data is often too noisy to produce reliable features. Third, our Rao-Blackwellized object tracker accurately models the dynamics of the scenario and allows us to maintain realistic posteriors of object positions. Even when the objects are visually similar, the tracker can rely on the spatial measurements for reasoning.

As mentioned, one pitfall of the current system is that it relies on a closed world assumption. Without this, tracking the jumps of objects would likely be intractable. An open question is how to resolve this conflict. We would like to investigate if we could model how probable different object types are to stay within the confines of the environment. For example, a chair is very likely to stay while a cardboard box will likely be thrown away. It would therefore be appealing to learn these probabilities and track jumps only when the object is likely to stay in the environment. For temporary objects, the system should instead track the births and deaths, see e.g. [18][17]. With the ability to integrate new objects as they are observed comes also the possibility of applying the movement models to improve a full-blown SLAM system as suggested in [38].

More generally, we would like to learn more properties of the objects given the visual features. In addition to estimating the jump probability of the object type, there should also be specific movement model variances for different targets. In this case, a monitor serves as a good example of something that stays in the exact same place for a long time, while a chair will always be expected to move around a bit. The chair should thus have a higher uncertainty associated with its movement model than the monitor. In turn, one specific kitchen chair might be more probable to move than an office chair.

Viii Acknowledgements

The authors would like to thank Erik Ward for many rewarding conversations on the problems of multi-target tracking. The work presented in this paper has been funded by the European Union Seventh Framework Programme (FP7/2007-2013) under grant agreement No 600623 (“STRANDS”).

References

  • [1] J. Koch, J. Wettach, E. Bloch, and K. Berns, “Indoor localisation of humans, objects, and mobile robots with rfid infrastructure,” in Hybrid Intelligent Systems, 2007. HIS 2007. 7th International Conference on, pp. 271–276, IEEE, 2007.
  • [2] C.-C. Wang, C. Thorpe, S. Thrun, M. Hebert, and H. Durrant-Whyte, “Simultaneous localization, mapping and moving object tracking,” The International Journal of Robotics Research, vol. 26, no. 9, pp. 889–916, 2007.
  • [3] R. Biswas, B. Limketkai, S. Sanner, and S. Thrun, “Towards object mapping in non-stationary environments with mobile robots,” in Intelligent Robots and Systems, 2002. IEEE/RSJ International Conference on, vol. 1, pp. 1014–1019, IEEE, 2002.
  • [4] N. E. Du Toit and J. W. Burdick, “Robot motion planning in dynamic, uncertain environments,” IEEE Transactions on Robotics, vol. 28, no. 1, pp. 101–115, 2012.
  • [5] L. Montesano, J. Minguez, and L. Montano, “Modeling the static and the dynamic parts of the environment to improve sensor-based navigation,” in Robotics and Automation, 2005. ICRA 2005. Proceedings of the 2005 IEEE International Conference on, pp. 4556–4562, IEEE, 2005.
  • [6] K. Shubina and J. K. Tsotsos, “Visual search for an object in a 3d environment using a mobile robot,” Computer Vision and Image Understanding, vol. 114, no. 5, pp. 535–547, 2010.
  • [7] G. Gallagher, S. S. Srinivasa, J. A. Bagnell, and D. Ferguson, “Gatmo: A generalized approach to tracking movable objects,” in Robotics and Automation, 2009. ICRA’09. IEEE International Conference on, pp. 2043–2048, IEEE, 2009.
  • [8] E. Herbst, X. Ren, and D. Fox, “RGBD object discovery via multi-scene analysis,” in Intelligent Robots and Systems (IROS), 2011 IEEE/RSJ International Conference on, pp. 4850–4856, IEEE, 2011.
  • [9] D. F. Wolf and G. S. Sukhatme, “Mobile robot simultaneous localization and mapping in dynamic environments,” Autonomous Robots, vol. 19, no. 1, pp. 53–65, 2005.
  • [10] P. Biber, T. Duckett, et al., “Dynamic maps for long-term operation of mobile service robots,” in Robotics: science and systems, pp. 17–24, 2005.
  • [11] C.-C. Wang and C. Thorpe, “Simultaneous localization and mapping with detection and tracking of moving objects,” in Robotics and Automation, 2002. Proceedings. ICRA’02. IEEE International Conference on, vol. 3, pp. 2918–2924, IEEE, 2002.
  • [12] M. Montemerlo, S. Thrun, and W. Whittaker, “Conditional particle filters for simultaneous mobile robot localization and people-tracking,” in Robotics and Automation, 2002. Proceedings. ICRA’02. IEEE International Conference on, vol. 1, pp. 695–701, IEEE, 2002.
  • [13] D. Schulz and W. Burgard, “Probabilistic state estimation of dynamic objects with a moving mobile robot,” Robotics and Autonomous Systems, vol. 34, no. 2, pp. 107–115, 2001.
  • [14] D. Anguelov, R. Biswas, D. Koller, B. Limketkai, and S. Thrun, “Learning hierarchical object maps of non-stationary environments with mobile robots,” in

    Proceedings of the Eighteenth conference on Uncertainty in artificial intelligence

    , pp. 10–17, Morgan Kaufmann Publishers Inc., 2002.
  • [15] R. Toris and S. Chernova, “Temporal persistence modeling for object search,” in Robotics and Automation (ICRA), 2017 IEEE International Conference on, pp. 3215–3222, IEEE, 2017.
  • [16] D. F. Wolf and G. S. Sukhatme, “Towards mapping dynamic environments,” in In Proceedings of the International Conference on Advanced Robotics (ICAR), pp. 594–600, 2003.
  • [17] S. Särkkä, A. Vehtari, and J. Lampinen, “Rao-blackwellized particle filter for multiple target tracking,” Information Fusion, vol. 8, no. 1, pp. 2–15, 2007.
  • [18]

    S. Oh, S. Russell, and S. Sastry, “Markov chain monte carlo data association for multi-target tracking,”

    IEEE Transactions on Automatic Control, vol. 54, no. 3, pp. 481–497, 2009.
  • [19] I. Miller and M. Campbell, “Rao-blackwellized particle filtering for mapping dynamic environments,” in Robotics and Automation, 2007 IEEE International Conference on, pp. 3862–3869, IEEE, 2007.
  • [20] T. Vu, B.-N. Vo, and R. Evans, “A particle marginal metropolis-hastings multi-target tracker,” IEEE Transactions on Signal Processing, vol. 62, no. 15, pp. 3953–3964, 2014.
  • [21]

    R. Mahler and T. Zajic, “Multitarget filtering using a multitarget first-order moment statistic,” in

    Proc. SPIE, vol. 4380, pp. 184–195, 2001.
  • [22] B.-N. Vo and W.-K. Ma, “The gaussian mixture probability hypothesis density filter,” IEEE Transactions on signal processing, vol. 54, no. 11, pp. 4091–4104, 2006.
  • [23] R. Finman, T. Whelan, M. Kaess, and J. J. Leonard, “Toward lifelong object segmentation from change detection in dense RGBD maps,” in Mobile Robots (ECMR), 2013 European Conference on, pp. 178–185, IEEE, 2013.
  • [24] R. Ambrus, N. Bore, J. Folkesson, and P. Jensfelt, “Meta-rooms: Building and maintaining long term spatial models in a dynamic world,” in Intelligent Robots and Systems (IROS), 2014 IEEE/RSJ International Conference on, pp. 1854–1861, IEEE, 2014.
  • [25]

    R. Ambrus, J. Ekekrantz, J. Folkesson, and P. Jensfelt, “Unsupervised learning of spatial-temporal models of objects in a long-term autonomy scenario,” in

    Intelligent Robots and Systems (IROS), 2015 IEEE/RSJ International Conference on, pp. 5678–5685, IEEE, 2015.
  • [26] E. Herbst, P. Henry, and D. Fox, “Toward online 3-d object segmentation and mapping,” in Robotics and Automation (ICRA), 2014 IEEE International Conference on, pp. 3193–3200, IEEE, 2014.
  • [27] S. Geman and D. Geman, “Stochastic relaxation, gibbs distributions, and the bayesian restoration of images,” IEEE Transactions on pattern analysis and machine intelligence, no. 6, pp. 721–741, 1984.
  • [28] C. Szegedy, V. Vanhoucke, S. Ioffe, J. Shlens, and Z. Wojna, “Rethinking the inception architecture for computer vision,” in

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    , pp. 2818–2826, 2016.
  • [29] L. v. d. Maaten and G. Hinton, “Visualizing data using t-sne,”

    Journal of Machine Learning Research

    , vol. 9, no. Nov, pp. 2579–2605, 2008.
  • [30] A. Doucet, S. Godsill, and C. Andrieu, “On sequential monte carlo sampling methods for bayesian filtering,” Statistics and computing, vol. 10, no. 3, pp. 197–208, 2000.
  • [31] J. Ekekrantz, N. Bore, R. Ambrus, J. Folkesson, and P. Jensfelt, “Unsupervised object discovery and segmentation of RGBD images,” arXiv preprint arXiv:1710.06929, 2017.
  • [32] K. Chatfield, K. Simonyan, A. Vedaldi, and A. Zisserman, “Return of the devil in the details: Delving deep into convolutional nets,” arXiv preprint arXiv:1405.3531, 2014.
  • [33] A. Sharif Razavian, H. Azizpour, J. Sullivan, and S. Carlsson, “Cnn features off-the-shelf: an astounding baseline for recognition,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, pp. 806–813, 2014.
  • [34] J. Donahue, Y. Jia, O. Vinyals, J. Hoffman, N. Zhang, E. Tzeng, and T. Darrell, “Decaf: A deep convolutional activation feature for generic visual recognition.,” in Icml, vol. 32, pp. 647–655, 2014.
  • [35] K. Bernardin and R. Stiefelhagen, “Evaluating multiple object tracking performance: the clear mot metrics,” EURASIP Journal on Image and Video Processing, vol. 2008, no. 1, pp. 1–10, 2008.
  • [36] N. Hawes, C. Burbridge, F. Jovan, L. Kunze, B. Lacerda, L. Mudrová, J. Young, J. Wyatt, D. Hebesberger, T. Kortner, et al., “The strands project: Long-term autonomy in everyday environments,” IEEE Robotics & Automation Magazine, vol. 24, no. 3, pp. 146–156, 2017.
  • [37] D. Fox, “Adapting the sample size in particle filters through kld-sampling,” The international Journal of robotics research, vol. 22, no. 12, pp. 985–1003, 2003.
  • [38] S. L. Bowman, N. Atanasov, K. Daniilidis, and G. J. Pappas, “Probabilistic data association for semantic slam,” in Robotics and Automation (ICRA), 2017 IEEE International Conference on, IEEE, 2017.
