Detecting Heads using Feature Refine Net and Cascaded Multi-scale Architecture

03/25/2018 ∙ by Dezhi Peng, et al. ∙ South China University of Technology International Student Union 0

This paper presents a method that can accurately detect heads especially small heads under indoor scene. To achieve this, we propose a novel Feature Refine Net (FRN) and a cascaded multi-scale architecture. FRN exploits the multi-scale hierarchical features created by deep convolutional neural networks. Proposed channel weighting method enables FRN to make use of features alternatively and effectively. To improve the performance of small head detection, we propose a cascaded multi-scale architecture which has two detectors. One called global detector is responsible for detecting large objects and acquiring the global distribution information. The other called local detector is specified for small objects detection and makes use of the information provided by global detector. Due to the lack of head detection datasets, we have collected and labeled a new large dataset named SCUT-HEAD that includes 4405 images with 111251 heads annotated. Experiments show that our method has achieved state-of-art performance on SCUT-HEAD.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Face detection and pedestrian detection are two important research problems in computer vision and significant results have been achieved in recent years. However, there are some limitations in practical application. Face detection can only detect faces, which means a person who turns his back to the camera can not be detected. Due to the complexity of the indoor scene, most parts of body are not visible. Therefore, pedestrian detection is also hard to work in such situation. Head detection doesn’t have these limitations, hence is more suitable for people locating and counting, especially under the indoor scene. However, there are also many challenges to detect heads under the indoor scene such as the variance of scales and appearances of heads, and small head detection.

Due to the various scales and appearances of heads, how to exploit extracted features effectively to localize heads and distinguish them from background remains a big problem. Many previous methods make use of multi-scale features generated at different levels of deep convolutional neural networks. Hariharan et al.[1]

encodes concatenated rescaled feature maps at different levels into one vector called hypercolumn for every location. SSD

[2]

makes effort to employ multi-scale features to estimate class probability and bounding box coordinates. Lin

et al.[3] proposes a top-down architecture for building high-level semantics feature maps of different scales and make predictions on feature maps of different scales respectively. Some other methods such as HyperNet[4] and ParseNet[5]

combine multiple layers together for the final predictions. Many experiments have implied that making use of multi-scale features makes sense. In this paper, we propose a novel method named Feature Refine Net (FRN) for exploiting multi-scale features. Compared to previous methods, FRN uses channel weighting to perform feature selection by adding learnable weights to channels of feature maps. The most useful features for the specific domain are selected and made use of. Moreover, feature decomposition upsampling is proposed to upsample small feature maps by decomposing one pixel to a related region. Resized feature maps are concatenated and undergo an Inception-style synthesis. Experiments have proven that FRN provides a great improvement on detection performance.

Small heads detection is another problem that must be addressed. Hu et al.[6] proposes a framework named HR which resizes the input image to different scales and applies scale invariant detectors. Inspired by attention mechanism of human, we proposed a cascaded multi-scale architecture for small heads detection. Rather than resizing the entire image to different scales like HR, our method focuses on refining local detection results by increasing the resolution of clips of an image. The proposed architecture consists of two different detectors named global detector and local detector respectively. Global detector detects large heads and informs local detector about the location of small heads. Then local detector works on the enlarged clips which contain small heads for more accurate small head detection.

Due to the lack of head detection datasets, we have also collected and labeled a large-scale head detection dataset named SCUT-HEAD. Our method reaches 0.91 Hmean on partA and 0.90 Hmean on partB, which outperforms many popular object detection frameworks such as Faster R-CNN[7], R-FCN[8], YOLO[9] and SSD[2].

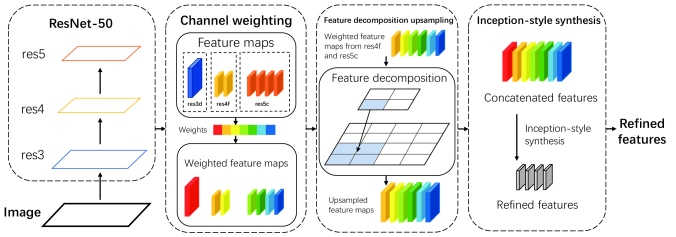

Fig. 1: The overall architecture of FRN (based on ResNet-50): (1) Channel weighting is applied on res3, res4 and res5 to perform feature selection. (2) Weighted features undergo feature decomposition upsampling and their scales are increased twofold. (3) Three groups of feature maps are concatenated together along the channel dimension. (4) We adopt Inception-style synthesis method to composite the concatenated feature maps in order to make use of the internal relationship between channels and reduce the computation complexity.

To summarize, the main contributions of this paper are listed as follows:

  • We propose a new model named Feature Refine Net (FRN) for multi-scale features combination and automatic feature selection.

  • A cascaded multi-scale architecture is designed for small heads detection.

  • A head detection dataset named SCUT-HEAD with 4405 images and 111251 annotated heads is built.

Ii Method

Ii-a Overall Architecture

In this paper, we implement our method based on R-FCN[8] and use ResNet-50 (ignoring pool5, fc1000 and prob layers) as feature extractor. We denote the feature maps produced by res3x, res4x and res5x blocks as res3, res4 and res5 respectively. FRN shown in Fig.1 is inserted into R-FCN framework and RPN works on the output of FRN for region proposals. Then we train two modified R-FCNs named local detector and global detector for the cascaded multi-scale architecture which is shown in Fig.3. The cascaded multi-scale architecture consists of four stages of (1) a global detector that works on the entire image to detect large heads and obtains the rough location of small heads; (2) multiple clips which have high probability of containing small heads; (3) a local detector that works on the clips and results in more accurate head detection; (4) an ensemble module that merges both local and global detectors and non maximum suppression is applied.

Ii-B Feature Refine Net

Feature Refine Net (FRN) refines the multiple feature maps res3, res4 and res5. Firstly, through channel weighting, each channel of feature maps is multiplied by the corresponding learnable weight. Then, we use feature decomposition upsampling to increase the resolution of res4 and res5 twofold. Next, feature maps are concatenated along the channel dimension. Finally, concatenated feature maps undergo Inception-style synthesis yielding refined features.

Ii-B1 Channel Weighting

Deep convolutional neural networks generate multiple feature maps at different layers. The feature maps generated at low levels contain more detailed information and have a smaller receptive field, hence are more suitable for small object detection and precise locating. The feature maps generated at high levels contain more abstract but coarser information and have a larger receptive field. Therefore they are suitable for large object detection and classification. Due to the different characteristics mentioned above, the selection of feature maps will be useful. The feature extractor pre-trained on ImageNet

[10] such as VGG[11], ResNet[12] has proven to have great generalizing ability, yielding general representation of objects. However, even after finetuning, extracted features still reserve some characteristics of object categories in ImageNet. Direct usage of features may not be the best choice. Thus we use channel weighting to select and take advantage of the most useful features.

Channel weighting is the key component of FRN. We multiply each channel of feature maps with the corresponding learnable weight parameter. It enables FRN to select which feature to use automatically, which means the detector with FRN will be more adaptive for the specific domain. Let denote the index of channel, denote the spatial position of pixels in a feature map and denote the number of channels. The relationship between input feature maps and output feature maps can be expressed as follows:

(1)

where

is the weight parameter. Weight parameters are optimized during backpropagating. Let

denote the loss of the output feature maps . Then the gradients of with respect to and are as follows:

(2)
(3)

In our method, we apply channel weighting to res3, res4 and res5 respectively. As shown in Fig.6, the channels which contain more useful information have higher weights. From the analysis in section III-C and III-D, channel weighting performs feature selection very well and raises the accuracy as well.

Ii-B2 Feature Decomposition Upsampling

Previous methods such as [3, 5]

use nearest neighbor upsampling or bilinear interpolation or even simply replication to upsample small feature maps. Unlike previous methods, we conduct feature maps upsampling by feature decomposition. Every pixel in a feature map is related to a local region of feature maps at low level. Therefore, we decompose each pixel to a

region to upsample a feature map. We use a mapping matrix to represent the relationship between the input pixel and the decomposed region .

(4)

Because each channel of feature maps represent a specific feature of an object, we use different mapping matrices for different channels. The relationship between the upsampled feature maps and the input feature maps can be expressed as follows:

(5)

Let denote the loss of the output feature maps . Then during backpropagation, the gradients with respect to and are as follows:

(6)
(7)

In our method, the weighted feature maps from res4, res5 are upsampled to match the scale of res3. Every pixel is decomposed to a region according to the corresponding mapping matrix.

Ii-B3 Inception-Style Synthesis

After upsampling, multiple feature maps are concatenated together along the channel dimension. However, simple concatenating operation has two drawbacks. Firstly, concatenated feature maps have too many channels and their scale is too large. It is a big challenge for computation capacities if we simply apply concatenated feature maps to the following process. Secondly, concatenated feature maps lack the internal relationship between different channels because all the previous processes of FRN are operated on each channel respectively. Therefore, we adopt an Inception-style synthesis method on the concatenated feature maps to composite multiple features together and reduce the number of channels and scale of concatenated feature maps simultaneously.

Fig. 2:

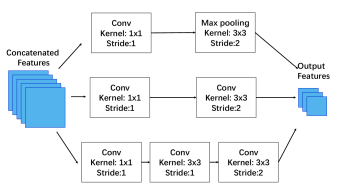

Inception-style synthesis: the overall structure is divided into three paths: (a) convolution (kernel: 1x1, stride: 1), maxpooling (kernel: 2x2, stride: 1); (b) convolution (kernel: 1x1, stride: 1), convolution (kernel: 3x3, stride: 2); (c) convolution (kernel: 1x1, stride:1), convolution (kernel: 3x3, stride: 1), convolution (kernel: 3x3, stride: 2). The outputs of these three paths are concatenated finally.

Inception module[13] has achieved great success on computer vision tasks because of its efficient and delicate design. Our synthesis method depicted in Fig.2 takes advantage of Inception module. After Inception-style synthesis, the number of channels decreases from 3584 to 1024 and the scale of feature maps is reduced by 50%.

Ii-C Cascaded Multi-Scale Architecture

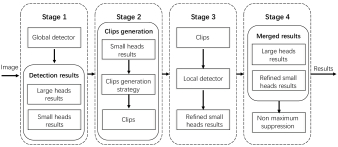

Fig. 3: Procedure of Cascaded Multi-Scale Architecture: (1) global detector works on the entire image to detect large heads and obtain the rough location of small heads; (2) multiple clips which have high probability of containing small heads are generated and enlarged; (3) local detector works on the clips and results in more accurate head detection; (4) results of both detectors are merged and non maximum suppression is applied.

Small object detection has always been one of the most challenging problems. Previous methods[14, 2, 6, 15] focus on making use of features with small receptive field or the resolution of images and feature maps to solve this problem. Inspired by the attention mechanism of humans, we propose a method named Cascaded Multi-scale Architecture for small head detection. The procedure is shown in Fig.3. The proposed architecture consists of two detectors named global detector and local detector, both of which are R-FCN combined with FRN.

At training stage, global detector and local detector are trained separately. The main difference in training strategies is the dataset. The global detector is trained on the original dataset while the local detector is trained on the dataset generated from the original dataset. The newly generated dataset aims to small head detection. For each image in the original dataset, we crop a clip centered at each small head annotation and reserve the small head annotations whose overlaps with the clip are more than 90%. Then, all the clips are resized to times larger, yielding the new dataset for the local detector.

At testing stage, the global detector is applied on the original image and produces the coordinates of big heads and the rough location of small heads. Then, multiple clips are cropped from the input image. The clips are resized to times larger and used as the input of local detector. Local detector produces better detection of small heads. Finally, the outputs of both detectors are merged and non maximum suppression is applied on the merged results.

Fig. 4: Detection results of different average scales ranging from to

The description above shows the strategy of our cascaded multi-scale architecture. However, there are also some important issues to be addressed:

Ii-C1 How to distinguish small heads?

We define the average scale of an annotation as the average of its width and height. The performance of R-FCN with FRN w.r.t different average scales ranging from to is shown in Fig.4. The Hmean result of heads with average scale less than is much lower than heads with larger scales. Therefore, we regard heads with average scale less than as small heads and others as large heads.

Ii-C2 How to determine the zooming factor ?

The average scales of small heads range from to and the average value is around . Our detector has a good performance on scales larger than . Considering the computational complexity, is set to 3. Then the average scales of small heads range from to after clips are resized. Therefore, the accuracy of small heads detection can be improved.

Ii-C3 How to determine the scale of clips ?

When performing cropping operation, we reserve the small head annotations whose overlaps with the clip are more than 90%. The small head annotations whose overlaps with the clip are less than 90% and big head annotations are abandoned. Therefore, the information contained in the overlapping area with the abandoned annotations becomes noise. To determine the scale of clips, we use a similar metric like signal-to-noise ratio in information theory. We define the area of reserved annotations as signal and the overlapping area of abandoned small heads and large heads as noise. Let , , denote the signal, the noise from small heads, and the noise from large heads. The scale ratio of large heads over small heads is around 4 which means will overwhelm . To solve this problem, we add weights to and and set the value of weights in inverse proportion to the scale of large heads and small heads. So we set to 0.2 and to 0.8. Let C denote the number of clips and W denote the set of values of w. Then w is determined by:

(8)

We set = {64, 80, 96, 112, 128, 144, 160, 176}. The biggest signal-to-noise ratio is 3.626 when = 112. Therefore, the best choice of is 112.

Ii-C4 How to generate clips at testing stage?

At testing stage, we cannot crop a clip for each small heads in consideration of efficiency. Let B denote the small head detection results of global detector. For every bounding box in set B, we crop a clip centered at this bounding box and delete all the bounding boxes reserved in the clip from set B. The cropping operation is not finished until set B is empty.

Method PartA PartB
P R H P R H
Faster R-CNN[7](VGG16) 0.86 0.78 0.82 0.87 0.81 0.84
YOLOv2[9] 0.91 0.61 0.73 0.74 0.67 0.70
SSD[2] 0.84 0.68 0.76 0.80 0.66 0.72
R-FCN[8] (ResNet-50) 0.87 0.78 0.82 0.90 0.82 0.86
R-FCN + FRN (ResNet-50)
(proposed)
0.89 0.83 0.86 0.92 0.84 0.88
Multi-Scale (proposed) 0.92 0.90 0.91 0.92 0.87 0.90
TABLE I: Comparation between previous methods and our method(Multi-Scale denotes the cascaded architecture based on R-FCN + FRN)

Iii Experiments

Iii-a Datasets

We have collected and labeled a large-scale head detection dataset named SCUT-HEAD111The SCUT-HEAD dataset can be downloaded from https://github.com /HCIILAB/SCUT-HEAD-Dataset-Release.. The proposed dataset consists of two parts. PartA includes 2000 images sampled from monitor videos of classrooms in a university with 67321 heads annotated. As classrooms of one university usually look similar and the poses of people vary less, we carefully choose representative images to gain variance and reduce similarity. PartB includes 2405 images crawled from the Internet with 43930 heads annotated. We have labeled every visible head with xmin, ymin, xmax and ymax coordinates and ensured that annotations cover the entire head including the blocked parts but without extra background. Both PartA and PartB are divided into training and testing parts. 1500 images of PartA are for training and 500 for testing. 1905 images of PartB are for training and 500 for testing. Our dataset follows the standard of Pascal VOC. Two representative images and annotations are shown in Fig.5.

Fig. 5: (a) An example image and annotations of PartA in SCUT-HEAD. (b) An example image and annotations of PartB in SCUT-HEAD.

Iii-B Implementation details

Global detector and local detector are trained using stochastic gradient descent (SGD). Momentum and weight decay are set to be 0.9 and 0.0005 respectively. Widths of images are resized to 1024 while keeping their aspect ratios. Learning rate is set to 0.001 during 0

10k iterations, 0.0001 during 10k 20k iterations and 0.00001 during 20k 30k iterations. As for anchors setting strategy, we generate anchors using Kmeans with modified distance metrics[9]. Online hard example mining (OHEM)[16] is also applied for more effective training.

Iii-C Results

We compare our method with other object detection methods. Results in Table I imply that our method has a great improvement compared to other methods especially after applying the cascaded multi-scale architecture. We have also compared the performance of R-FCN using different techniques of FRN in Table II

, which proves that our final design of FRN reaches the best result. Note that the method without Inception-style synthesis replaces it by convolution layer (kernel size: 1x1, stride: 1) followed by max pooling (kernel size: 2, stride: 2) and method without feature decomposition upsampling replaces it by bilinear interpolation.

Technique Usage
Channel weighting
Inception-style synthesis
Feature decomposition upsampling
Result (Hmeans) 0.8412 0.8497 0.8591
TABLE II: Comparation between using different techniques of FRN (Based on PartA of SCUT-HEAD)

Iii-D Channel weighting

We plot the weights of channel weighting layers in Fig.6 to indicate the importance of different features. The two channels with the biggest weights are the 20th channel of res3 and the 748th channel of res5. From the visualization of these two channels and the input image, we can have a better understanding of the CNN and effectiveness of channel weighting. The 20th channel of res3 is better at indicating the location of heads. The location of heads can be easily estimated by light blue points. The 748th channel of res5 is more suitable for the classification of heads and background. Heads are indicated by the blue areas and the remaining areas indicate the background. It is implied that the feature maps at low level localize objects more precisely while the feature maps at high level do better in classification.

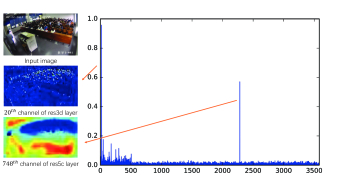

Some other randomly selected feature maps are visualized in Fig.7. Compared to the two feature maps shown in Fig.6, the randomly selected feature maps don’t have implicit relationship with the goal of head detection.

Fig. 6: Weights for channels of res3, res4 and res5 ([0, 511] for res3, [513, 1535] for res4 and [1536, 3583] for res5) and visualization of two features with biggest weights.
Fig. 7: Visualization of the input image and some other feature maps from res3 and res5 (the left two are from res3 and the right two are from res5).

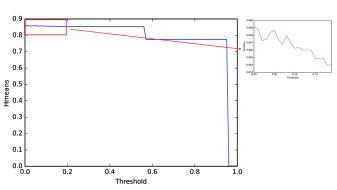

Fig. 8: Detection result using features with weight bigger than a threshold (weights of unused features are set to zero). It implies that the features with big weights contribute much to the final result while the features with small weights do not really make sense.

The results using features with weights bigger than a threshold are shown in Fig.8. When threshold ranges from 0.00 to 0.20, some features with small weights are abandoned. However, it has a really small influence on the performance of the whole detection framework. Although all the features with weights smaller than 0.20 are abandoned, the performance only decreases by 0.05 which is negligible. The whole curve only has two sharp drops. The first drop happens after the 748th channel of res5 is abandoned. The second drop happens after the 20th channel of res3 is abandoned. The performance drops to nearly zero. It is implied that our channel weighting layers use features effectively and alternatively towards the goal of head detection.

From the above analysis, we can conclude that channel weighting performs feature selection very well. The most useful features for the specific goal of head detection are selected and made use of.

Iii-E Small head detection

We improve small head detection through two ways. The first is FRN which combines multiple features at different levels together. The feature maps at low levels have smaller receptive field and more detailed information which are beneficial to small head detection. The second is the cascaded multi-scale architecture. It is designed for small head detection specifically through the combination of global and local information. The results of small heads detection are shown in Table III.

Average scale 0 10 px 10 20 px
Method P R H P R H
R-FCN 0.12 0.10 0.11 0.53 0.77 0.63
R-FCN + FRN 0.17 0.19 0.18 0.83 0.76 0.80
Multi-scale 0.63 0.57 0.60 0.93 0.84 0.88
TABLE III: Small head detection performances

Iii-F Other datasets

We also compare our method on Brainwash dataset[17] in Table IV. Brainwash dataset contains 91146 heads annotated in 11917 images. Our method also achieves state-of-the-art performance on this dataset compared with several baselines including context-aware CNNs local model (Con-local)[18], end-to-end people detection with Hungarian loss (ETE-hung)[17], localized fusion method (f-localized)[19] and R-FCN[8].

Method Con-local ETE-hung R-FCN f-localized our method
AP 45.4 78.4 84.8 85.3 88.1
TABLE IV: Comparation on Brainwash dataset

Iv Conclusion

In this paper, we have proposed a novel method for head detection using Feature Refine Net (FRN) and cascaded multi-scale architecture. FRN combines multi-scale features and takes advantage of the most useful features. The cascaded multi-scale architecture focuses on small heads detection. Owing to these techniques, our method achieves a great performance on indoor-scene head detection. Furthermore, we built a dataset named SCUT-HEAD which is for indoor-scene head detection.

V Acknowledgement

This research is supported in part by the National Key R&D Program of China (No. 2016YFB1001405), NSFC (Grant
No.: 61472144, 61673182, 61771199), GD-NSF (no. 2017A0
30312006), GDSTP (Grant No.: 2014A010103012, 2015B01
0101004, 2015B010130003), GZSTP (no. 201607010227).
