1. Introduction

Robotics systems are often distributed and can involve challenging computational tasks. Resource-efficiency is a fundamental challenge of such systems since large amounts of data must be processed with soft or even hard real-time constraints (Yanmaz et al., 2018). Compared to implementations on CPUs and GPUs, FPGAs have been shown to offer higher performance and higher energy-efficiency for many of the involved tasks, e.g., for vision kernels (Qasaimeh et al., 2019), for morphological image processing functions (Brugger et al., 2015), for feature detection and description algorithms (Ulusel et al., 2016)

, and for convolutional neural network inference

(Venieris and Bouganis, 2019). However, despite the demonstrated advantages of FPGAs, their proliferation into the robotics domain is still limited for several reasons. On one hand, FPGA design and, all the more, software/hardware co-design are arguably more challenging than embedded software development. On the other hand, robotics engineers and application developers are typically not trained in FPGA circuit or hardware/software co-design.

High level synthesis (HLS) tools are available today that accept standard C/C++ for describing behavior and (semi-)automatically take such descriptions to FPGA hardware. Although HLS tools increase productivity and are thus highly useful, a consistent programming model for implementing software and hardware functions is still lacking. Porting a robotics application from software to hardware or accelerating parts of the application in hardware requires the creation of suitable interfaces between software and FPGA hardware and very often leads to a re-development of substantial parts of the application.

The distributedness of typical robotics systems that is caused by the spatial placement of sensors and actors and the demand for increased computational capacity or robustness, also poses challenges for hardware acceleration. There have been approaches for including reconfigurable hardware into distributed embedded systems, for example ReCoNets (Haubelt et al., 2003), but these approaches are not compatible with existing and widely-used software abstractions for creating distributed robotics systems.

In our work, we take up a very popular programming environment in the robotics domain, the robot operating system (ROS). ROS is a middleware layer that models applications as set of communicating nodes and provides several communication mechanisms for information exchange.

In this paper, which is an extension of our previous conference publication (Lienen et al., 2020)

, we present the open source project

ReconROS as a novel integration of ROS with ReconOS (Agne et al., 2014).

ReconOS provides an architecture and programming model to enable shared memory multi-threading for software and hardware threads. As a result, ReconROS allows robotics developers to utilize hardware acceleration for ROS applications either as hardware-accelerated ROS nodes or as ROS nodes mapped completely to hardware. The latter option provides a consistent programming model for ROS applications, independently of the mapping of ROS nodes to software or hardware.

The remainder of the paper is organized as follows: Section 2 provides an overview over ROS and related approaches for integrating hardware accelerators into ROS. Section 3 elaborates on different approaches for accelerating ROS applications, before Section 4 details ReconROS with its architecture and design flow. In Section 5, we present experiments to quantify overheads involved when mapping ROS nodes to hardware and to demonstrate the feasibility and flexibility of ReconROS. Finally, Section 6 concludes the paper and gives an outlook to future work.

2. Background and Related Work

In this section, we first briefly introduce the robot operating system (ROS) and then analyze and compare related approaches for integrating FPGA hardware acceleration into ROS.

2.1. The Robot Operating System (ROS)

The Robot Operating System (ROS)111https://www.ros.org is an open source middleware on top of Linux for robotics applications that was originally developed by William Garage and is now coordinated by the Open Robotic Foundation. ROS comprises a multitude of libraries and an infrastructure for building and reusing robot-related software modules. The ROS programming paradigm splits larger software architectures into nodes, which use certain communication mechanisms for information exchange.

The decomposition into nodes promises code reusability and modularity for robot architectures. Available communication mechanisms comprise (i) a many-to-many publish/subscribe model, which allows to broadcast messages to multiple subscribers but is one-way, (ii) services that follow a client-server model where the server provides data only if requested by the client, basically mimicking a remote procedure call, and (iii) actions.

Actions is the most elaborated communication mechanism where a client inquires about a functionality at a server, starts the functionality if it is available, and then receives regular feedback about the server’s progress. Technically, actions are implemented in two phases. The first phase corresponds to a ROS service and the second phase comprises a second ROS service and a feedback channel using the ROS publish/subscribe mechanism.

ROS2 is the latest release of ROS. In earlier versions only one ROS node per Linux process was supported. This prevented the use of shared memory communication when both ROS nodes are mapped to the same compute node. While this limitation was mitigated through the support of so-called nodelets, with ROS2 multiple ROS nodes can natively run within one Linux process and there is support for shared memory communication. ROS2 is built on top of an exchangeable communication layer, the data distribution service (DDS). DDS is an industry standard for decentralized communication and available from different vendors. Compared to older ROS versions, the use of DDS provides better configurability and improves properties such as scalability, reliability and durability (Maruyama et al., 2016).

Another important element of ROS are ROS messages, which are multi-layered combinations of built-in data types such as integers, floats and strings. Besides predefined message types, e.g., for images or 3D point clouds, custom messages can be created. Since the length of a message might vary during runtime, the ROS2 middleware supports dynamic memory allocation for messages.

2.2. Related Approaches for ROS-FPGA Integration

In the last years, a few approaches have been presented that integrate reconfigurable hardware accelerators into a ROS software architecture. Yamashina et al. (Yamashina et al., 2015) proposed so-called ROS-compliant FPGA components. A ROS node is implemented in software and accesses the hardware component, i.e., the accelerator, via a software wrapper. Communication within the ROS network is completely handled in software and, whenever acceleration is needed, only the payload of the ROS message is transmitted to the hardware component. Semantically, the communication between the ROS software wrapper and the hardware accelerator is a remote procedure call, realized in Xilinux. In (Yamashina et al., 2016), the automated design tool cReComp (creator for reconfigurable component) is presented to help generate ROS-compliant FPGA components and thus reduce development costs. For the implementation of a ROS-compliant FPGA component with cReComp, the developer has to modify a configuration file and create user logic for the hardware accelerator. The configuration file contains information about the interface between the processing system and the programmable logic. cReComp generates the software and hardware parts for this interface. An evaluation by a group of test developers confirmed higher design productivity compared to manually designed interfaces.

In follow-up work, Sugata et al. (Sugata et al., 2017) identify the communication times between ROS nodes as bottlenecks and aim to reduce these times through implementing the ROS publish/subscribe messaging in hardware. In their system, communication is divided into two phases: the connection establish phase, which is supported by software, and the data communication phase that is realized by two network stacks implemented in FPGA hardware. This reduces the communication time between nodes by 50 percent.

Ohkawa et al. (Ohkawa et al., 2019) extend this work by using high level synthesis (HLS) for accelerator implementation and ROS protocol interpretation to increase productivity. Their approach takes the ROS message definition, the ROS node configuration, and behavioral code written in C/C++ for the accelerator and generates the FPGA design. The infrastructure of the generated design includes several components: the hardwired TCP/IP stacks for the data communication phase, a data conversion between ROS messages and the application, an interface between the data conversion and the application, and, finally, the application itself.

Leal et al. (Leal et al., 2020) present Forest, an approach for combining the more recent release ROS2 with hardware acceleration. Forest uses configuration files to specify so-called ROS2-FPGA nodes, which are a composition of a ROS2 software node, an HLS-coded FPGA hardware module, and a PYNQ driver for the interaction between the ROS2 software node and the hardware module.

While (Sugata et al., 2017; Ohkawa et al., 2019) migrate almost a complete ROS node to hardware, Podlubne and Göhringer (Podlubne and Göhringer, 2019) go one step further and propose a methodology for full-hardware implementation of a number of ROS nodes. Their hardware designs comprise four parts: the ROS application nodes that use publish/subscribe communication, a so-called application-to-ROS converter, a communication interface, and a manager. Basically, the application-to-ROS converter serializes the ROS-based IP traffic on an AXI bus, the communication interface handles the AXI messages and sends them to a TCP/IP stack to connect to external ROS nodes, and the manager coordinates the communication between the ROS nodes and the TCP/IP stack. Conceptually, the application-to-ROS converter must reside in hardware, but the communication interface and the manger could also be mapped to the processing system of the platform FPGA. However, the main feature of this methodology is the option to implement one or more ROS nodes fully in hardware and map them to reconfigurable logic without the need of using a processor. Likewise, any application implemented in reconfigurable hardware can be made ROS-compatible. Furthermore, the presented implementation can use dynamic custom ROS messages.

Strohmer et al. (Strohmer et al., 2019) presented a ROS-enabled hardware framework for experimental robotics. They use the programmable logic on a Xilinx Zynq-7000 for signal conditioning and partition the available CPU cores into a non real-time part running Linux with ROS and a real-time part running control algorithms. A distributed network of FPGAs can extend the signal conditioning part using TosNet, which provides memory access across multiple nodes by memory mirroring.

Eisoldt et al. (Eisoldt et al., 2021) contributed ReconfROS, a framework for ROS hardware acceleration based on shared-memory communication. The architecture on the system-on-chip comprises a software part including a ROS node, a shared memory area, and one or more processing blocks in the programmable logic. The software-mapped ROS node subscribes to topics and writes received messages into the shared memory area, from where the data can be accessed by the hardware processing blocks. Finally, the software-mapped ROS node publishes the resulting data. The control of the processing blocks is done via control registers which are mapped into the virtual address space of the software application.

3. Design Considerations

The goal of this work is to provide developers of ROS2-based robotics applications with a flexible means to utilize programmable logic for hardware acceleration. On the level of ROS2 applications, there are several schemes for such an integration, which are sketched in Figure 1. Figure 1(a) shows a scheme where some parts of a ROS2 node, typically runtime-consuming functions, are mapped to one or several accelerators in programmable logic. The semantics of the communication between the ROS2 node and the accelerators is that of a remote procedure call (RPC). In Figure 1(b), a hardware accelerator is shared between several ROS2 nodes. Communication semantics is still RPC, but the implementation is more involved since proper arbitration between the accesses of the ROS2 nodes is required. The third scheme shown in Figure 1(c) is the most advanced and allows to map complete ROS2 nodes to hardware. Essentially, the hardware accelerator is turned into a ROS2 node. In this scheme, all ROS2 nodes can communicate via the ROS2 communication mechanisms, independently of their mapping to software or hardware. Semantically, this is the most intriguing scheme since it provides a consistent programming model across hardware and software where all ROS2 nodes use exactly the same ROS2 functions.

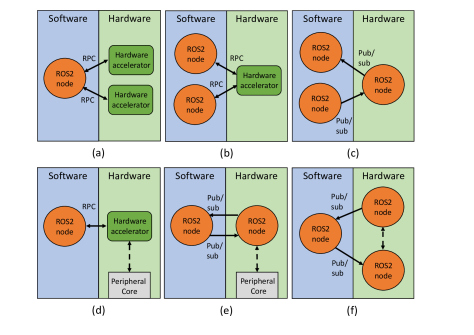

Figure 1. Different schemes for integrating ROS2 node with hardware accelerators

Often, developers decide to attach interfaces to sensors and actuators directly to the reconfigurable hardware and provide peripheral cores in hardware to access them rather than putting them under operating system control on the host CPU. Figure 1(d) and Figure 1(e) sketch such schemes with dashed lines. While these schemes are popular for maximizing performance in concrete robotics applications, there are also two possible pitfalls:

First, flexibility is reduced since directly connected peripherals can not be accessed by other ROS2 nodes, and much less so when the ROS2 nodes are mapped to different compute nodes in a distributed system. Second, many sensors and actors come with standardized interfaces and corresponding drivers, e.g., USB, for which the use of an existing, software-accessible peripheral of the compute platform is much more productive than to implement suitable interfaces and protocol stacks in hardware.

Along the same line, the scheme shown in Figure 1(f) directly connects several ROS2 nodes mapped to hardware without relying on ROS2 communication mechanisms. This can increase performance in particular cases, but again lacks flexibility since the mapping of the ROS2 nodes is severely constrained.

ReconROS222https://github.com/Lien182/ReconROS integrates the ROS2 middleware with the ReconOS/Linux architecture and programming model for hardware/software multithreading on platform FPGAs and can realize all schemes shown in Figure 1(a)-(f) and their combinations. On one hand, ReconOS enables us to develop applications as a set of software and hardware threads under the shared memory model. On the other hand, ROS2 allows for declaring several ROS2 nodes within one Linux process. Therefore, in the schemes shown in Figure 1(a)(b)(d) each hardware accelerator is encapsulated by a ReconOS hardware thread. In contrast to most of related work, ReconROS hardware accelerators can communicate with the ROS2 software nodes not only by passing data in an RPC manner, but can also use shared memory communication in the Linux virtual address space, which is more efficient when larger data structures have to be passed. In such a case, pointers to arbitrarily large ROS2 messages are passed and the accelerators themselves retrieve the relevant message payload from shared memory. Furthermore, since ReconOS hardware threads can execute standard operating system synchronization primitives, the required arbitration for the scheme in Figure 1(b) is straight-forward to realize.

In the more advanced schemes shown in Figure 1(c)(e)(f), ReconOS hardware threads implement complete ROS2 nodes and allow them to access operating system functions and also ROS2 communication primitives, using the whole set of standard and even custom-defined ROS messages.

Table 1 compares ReconROS with related approaches. In contrast to all other approaches except for (Leal et al., 2020), ReconROS leverages the more future-oriented ROS2 version which promises improved scalability and real-time properties. Hardware acceleration of a ROS node mostly implies to partition the node and implement it as hardware/software co-design. This is followed by all approaches except (Podlubne and Göhringer, 2019). Mapping several ROS nodes to hardware is possible in (Eisoldt et al., 2021) and ReconROS. Full memory access for hardware accelerators and arbitrarily long ROS messages are featured by (Eisoldt et al., 2021) and ReconROS. A consistent hardware/software programming model and the support of all available ROS2 communication paradigms are unique features of ReconROS.

Characteristic
(Yamashina et al., 2015),(Yamashina et al., 2016),
(Sugata et al., 2017),(Ohkawa et al., 2019)
(Podlubne and Göhringer, 2019) (Strohmer et al., 2019) (Eisoldt et al., 2021) (Leal et al., 2020)
ReconROS
ROS version
1 1 1 1 2 2
Support of hardware/software
co-designed ROS nodes
Multiple ROS
nodes per FPGA
Consistent hardware/software
programming model
Memory access
for hardware accelerators
Support of arbitrarily
long ROS messages

Support of ROS
services and actions

Table 1. Comparison of approaches for integrating hardware accelerators with ROS

4. ReconROS

In this section, we present the architecture of ReconROS, followed by the design flow and an example that shows the programming interface.

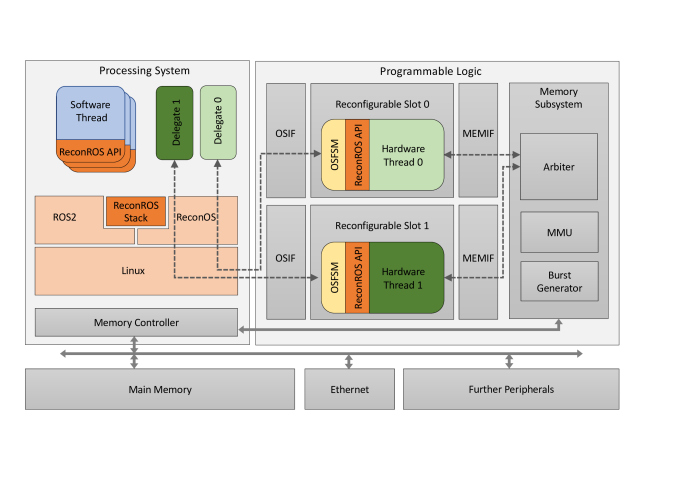

Figure 2. ReconROS architecture with two hardware ROS2 nodes (threads) and several software ROS2 nodes (threads)

4.1. Hardware/Software Architecture

ReconROS inherits most of its hardware architecture from the underlying ReconOS (Agne et al., 2014; Lübbers and Platzner, 2009). Figure 2 shows an example architecture with two hardware ROS2 nodes (threads) and several software ROS2 nodes (threads). The hardware threads are mapped to reconfigurable slots and are connected to the Linux operating system kernel running on the CPU via the operating system interface (OSIF) and to shared memory via the memory interface (MEMIF). A so-called operating system finite state machine (OSFSM) is attached to each hardware thread to serialize the thread’s operating system interactions. On the CPU, the communication with the OSIF is handled by a ReconROS driver and by light-weight delegate threads that serve the operating system calls for the hardware threads. The memory subsystem enables the hardware threads to access the whole address space of the ReconROS application, including shared memory and memory-mapped peripherals. ReconOS supports virtual memory and therefore includes an MMU in its memory subsystem.

ReconROS object ROS2 equivalent Description
rosnode node
Represents a ROS2 node (software or hardware)
in the ReonROS Stack
rosmsg message
Message type for communication mechanisms
publish/subscribe, service, or action
rossub subscriber
Enables a rosnode to subscribe to a topic
using a specific rosmsg
rospub publisher
Enables a rosnode to publish to a topic
using a specific rosmsg
rossrvs / rossrvc service server / client
Extends a rosnode by the capability to act as
server or client for ROS2 services
rosacts / rosactc action server / client
Extends a rosnode by the capability to act as
server or client for ROS2 actions
Table 2. Objects of the ReconROS stack

To realize ReconROS, we have developed two additional components, (i) the ReconROS stack and (ii) the ReconROS API for software and hardware threads. The ReconROS stack extends the existing set of ReconOS objects such as semaphores or mailboxes with ROS2-related objects. Table 2 lists the objects of the ReconROS stack. ROS2 nodes mapped to either software or hardware can create these objects and call corresponding methods in exactly the same way.

The ReconROS API abstracts the standard ROS2 API and allows ReconOS threads to access the objects of the ReconROS stack. As indicated in Figure 2, the ReconROS API is available for both software and hardware threads. While due to the flexibility of the underlying ReconOS system any ROS2 function can be made available for hardware threads, the current set of provided functions dealing with the objects listed in Table 2 is sufficient to implement ROS2 hardware nodes that receive data, process it, and send it back. In particular, ROS2 hardware nodes can publish and subscribe to topics and assume both server and client roles in ROS2 services and actions. Software threads can not only access the ReconROS API but also the standard ROS2 API to utilize a richer set of functions.

In contrast to most of related work, our ROS2 hardware nodes can access shared memory and thus implement a more efficient ROS message handling. When hardware threads access functions of the ReconROS API, e.g., for subscribing or publishing to topics, the OSIF and the delegate thread mechanism are used to pass pointers between the ReconROS stack in software and the hardware threads to allow them to access the ROS message data structures in memory through their MEMIFs. Compared to message communication via the OSIF, which corresponds roughly to the mechanism used in most of related work, this design decision brings about two advantages: First, the MEMIF interface provides higher data rates due to the used AXI high performance interface of the processing system. Second, the transmission of the data can be done without using the processing system, which leads to more potential for parallel execution of software and hardware threads.

Figure 3 exemplifies the sequence of events when a hardware ROS2 node initiates the function ROS_SUBSCRIBER_TAKE from the ReconROS API

1
. The function call of the hardware thread includes the command for this API function and a reference to the subscriber. The command is transmitted by the OSFSM and unblocks the corresponding delegate thread on the CPU. The delegate then executes the ROS2 subscriber take function rcl_take on behalf of the hardware thread

2
. When a message for the subscribed topic becomes available, the ReconROS stack stores it in main memory

3
and unblocks the delegate thread

4
, which in turn sends the message pointer via the OSIF back to the hardware thread

5
. Subsequently, the hardware thread can read the message via its MEMIF

6
.

Publishing a message from a hardware thread works analogously: First, the hardware threads stores the message in the main memory. Then, it sends a ROS_publish command and the message pointer via the OSIF interface to its delegate thread, which executes the command.

Figure 3. Sequence of events when a ROS2 hardware node calls the ROS_SUBSCRIBER_TAKE function from the ReconROS API

The ReconROS mechanism described in Figure 3 also supports the implementation of ROS2 services and actions. ROS2 services comprise the receiving and sending of a single message, while the more involved ROS2 actions combine two ROS2 services with a publish/subscribe feedback channel.

4.2. Design Flow

The design flow for a ReconROS application adapts the original ReconOS design flow (Agne et al., 2014) and is sketched in Figure 4. The flow starts with the specification of a ReconROS project comprising a project configuration file, the sources for software and hardware threads that represent the ROS2 nodes, and the definition of message types used for the application.

The configuration file specifies the used ROS2 objects with their dependencies, the ReconOS architecture including, in particular, the number of reconfigurable slots and the mapping of hardware threads to reconfigurable slots, and the settings for the build tool flow.

The basic element of each ReconROS application is the rosnode object, which represents a ROS2 node in the network. A rosnode object can be extended by one or more communication objects, which can be subscriber (rossub) or publisher (rospub) objects for specific topics in case of publish/subscribe communication, service (rossrvs / rossrvc) objects for client-server communications, and action (rosacts / rosactc) objects for ROS2 actions. In addition, each of these extensions, i.e., publisher, subscriber, service, and action, requires a reference to an instance of a ROS message rosmsg of a specific type. Declarations of rosmsg objects include the communication type, a group, and the message type. For example, a specific message declaration could specific ’Image’ as message type, ’sensor_msgs’ as group, and publish/subscribe as communication type.

Threads for ROS2 software nodes can be developed in C and threads for ROS2 hardware nodes in C/C++ for use with high-level synthesis or, alternatively in VHDL. Importantly, we provide the same ReconROS API for software and hardware threads which greatly simplifies the creation of hardware-accelerated versions of software threads.

Based on the configuration file and the sources, the ReconOS development kit (rdk) creates the ReconROS binaries for the specific project.

The rdk command export_msg extracts information from the message package definition and creates a Colcon project, which is then compiled to the message package by the command build_msg. Colcon is a ROS2 build tool, and the message package comprises message-related data and scripts that are used by the ROS2 runtime. The rdk command export_sw creates the software project based on the sources for software threads and configuration data. The software project also includes the ReconOS delegate threads, all necessary initialization functions for the ReconOS primitives, and the ROS2 middleware dependencies. Moreover, the software project includes header definitions for the messages, which are part of the compiled message package. The binaries for the ARM architecture are then created by the rdk command build_sw.

Both commands, build_sw and build_msg employ an ARM-32 docker container emulated with Qemu to build the binaries. Compared to a standard cross-compilation tool chain for the embedded ARM cores, our setup greatly simplifies the ROS2 build step with all its dependencies since the package manager within the container can be used.

Finally, the rdk command export_hw creates the hardware project based on the sources for hardware threads and configuration data. The hardware project contains the complete ReconROS architecture with its OSIFs, MEMIFs, and supporting modules. The command calls Xilinx Vivado HLS for high-level synthesis and thus also requires the message header definitions. The FPGA bitstream is then created by the rdk command build_hw.

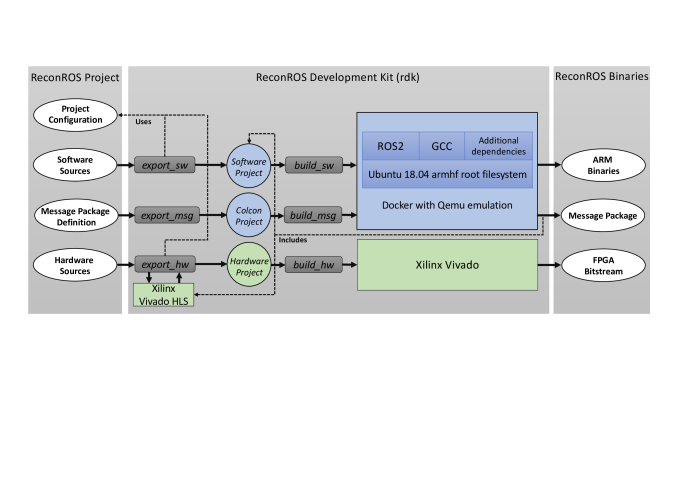

Figure 4. ReconROS design flow

4.3. Example ROS2 Application

As an example we elaborate on a ROS2 application comprising four nodes, which is shown in Figure 5. Node 1 captures images from a camera and publishes them to the topic /image_raw. Node 2, the digital image processing node (DIP), subscribes to this topic, offloads the processing of a Sobel image filter to node 3, and publishes the filtered images to the topic /image_filtered. Node 4 reads and displays the filtered images. The data exchange between the DSP node and the image processing node is done with a ROS2 service called sobel_service. The ReconROS application comprises nodes 2 and 3, where both are to be mapped to reconfigurable hardware and run either on a single or on two FPGA platforms. Nodes 1 and 4 are assumed to be existing or being compiled with appropriate ROS2 design flows to other target architectures, e.g., desktop PCs.

Figure 5. Example ROS2 application

Listing 1 shows the ROS2-related part of the configuration file for the nodes 2 and 3.

The information for the ROS2 nodes is organized into so-called resource groups. Lines 1–4 specify node 3, beginning with the definition of a rosnode object named ”Sobel” in line 2. In line 3, a message object of type ROS2 service message is defined with further references to a ROS2 message package and the communication as well as service types. Line 4 declares a ROS2 server object for a ROS2 service, connects it to the ROS2 node node_3 and the message object filter_service_msg, assigns the name ”sobelservice” to it, and sets the polling time for checking for new service requests to .

Lines 6–12 specify node 2, including the rosnode object named ”DIP”, the same message object as used by node 2, and a client object for a ROS2 service. Additionally, node 2 is extended with the message object image_msg of a ROS2 built-in message type and corresponding subscriber and publisher objects for the topics /image_raw and /image_filtered.

1   [ResourceGroup(at)ResourceGroupSobel]
2   node_3 = rosnode, "Sobel"
3   filter_service_msg = rossrvmsg, application_msgs, srv, SobelSrv
4   filter_server = rossrvs, node_3, filter_service_msg, "sobelservice", 10000
5
6   [ResourceGroup(at)ResourceGroupDIP]
7   node_2 = rosnode, "DIP"
8   filter_service_msg = rossrvmsg, application_msgs, srv, SobelSrv
9   filter_client = rossrvc, node_2, filter_service_msg, "sobelservice", 10000
10   image_msg = rosmsg, sensor_msgs, msg, Image
11   sub = rossub, node_2, image_msg, "/image_raw", 10000
12   pub = rospub, node_2, image_msg, "/image_filtered"
Listing 1: Configuration file (ROS2-related part) for the ReconROS application shown in Figure 5

Listing 2 presents C/C++ code for the HLS-implementation of the ”Sobel” ROS2 node. Using the ReconROS API, the processing loop starts in line 3 with a blocking read for a new service request. When a request becomes available, the function ROS_SERVICESERVER_TAKE returns a pointer to the service request data structure. With the help of the OFFSETOF macro, line 4 determines another pointer to the address of the request’s payload. The macro MEM_READ is employed to first read the address of the image in line 7 and then to read the image into a ram structure within the FPGA in line 8. After a Sobel filter function is executed on the image in line 10, the result is written back to main memory via the MEM_WRITE macro. Finally, the node sends the filtered data back to the node requesting the filter service. (ROS_SERVICESERVER_SEND_RESPONSE).

1  while(1) {
2   // Wait for service request and get pointer to payload
3   pMsg = ROS_SERVICESERVER_TAKE(resourcedip_srv, resourcedip_filter_srv_req);
4   pMsg += OFFSETOF(application_msgs__srv__SobelSrv_Request, img.data.data);
5
6   // Get pointer to image in memory and copy it to FPGA-internal memory
7   MEM_READ(pMsg, pPayloadService, 4);
8   MEM_READ(pPayloadService[0], ram, IMAGE_SIZE * 4);
9
10   SobelFilter(ram);
11
12   // Write filtered image back to memory and send service response
13   MEM_WRITE(ram, pPayloadService[0], IMAGE_SIZE * 4);
14   ROS_SERVICESERVER_SEND_RESPONSE(resourcedip_srv, resourcedip_filter_srv_res);
15  }
Listing 2: C/C++ code (partial) for the HLS implementation of the ”Sobel” ROS2 node

Listing 3 displays a similar procedure for the ”DIP” node, which is expanded with three communication objects, a subscriber object for the topic /image_raw, a client object for the service /sobel_service, and a publisher object for the topic /image_filtered.

1  while(1) {
2   // Wait for published image and get pointer to payload
3   pMsg = ROS_SUBSCRIBER_TAKE(resourcesobel_subdata, resourcesobel_image_msg);
4   pMsg += OFFSETOF(sensor_msgs__msg__Image, data.data);
5
6   // Get pointer to image in memory and copy it to FPGA-internal memory
7   MEM_READ(pMsg, pPayloadPubSub, 4);
8   MEM_READ(pPayloadPubSub[0], ram, IMAGE_SIZE * 4);
9
10   // Request filter service, pServiceRequest is set up during initialization
11   MEM_WRITE(ram, pServiceRequest[0], IMAGE_SIZE * 4);
12   ROS_SERVICECLIENT_SEND_REQUEST(resourcesobel_srv,resourcesobel_filter_srv_req);
13
14   // Wait for service response and get pointer to payload
15   pMsg = ROS_SERVICECLIENT_TAKE(resourcesobel_srv, resourcesobel_filter_srv_res);
16   pMsg += OFFSETOF(application_msgs__srv__SobelSrv_Response, img.data.data);
17
18   // Get pointer to payload and copy it to FPGA-internal memory
19   MEM_READ(pMsg, pPayloadService, 4);
20   MEM_READ(pPayloadService[0], ram, IMAGE_SIZE * 4);
21
22   // Write filtered image back to memory and publish it
23   MEM_WRITE(ram, pPayloadPubSub[0], IMAGE_SIZE * 4);
24   ROS_PUBLISHER_PUBLISH(resourcesobel_pubdata, resourcesobel_image_msg);
25  }
Listing 3: C/C++ code (partial) for the HLS implementation of the ”DIP” ROS2 node

5. Evaluation

In this section, we first describe experiments to quantify the overheads involved for mapping ROS2 nodes to hardware, followed by a distributed mechatronics application example that demonstrates the feasibility and flexibility of ReconROS.

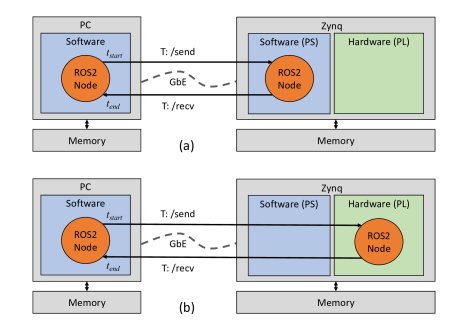

Figure 6. ReconROS ping-pong application

5.1. ROS2 Hardware Node Overheads and Communication Times

To characterize runtime overheads when mapping ROS2 nodes to hardware instead of software, and contrasting them to communication times within a ROS2 network, we have first

implemented a ping-pong ReconROS application with two ROS2 nodes distributed onto a desktop PC and a Mini-ITX 7Z100 board containing a Xilinx Zynq-7100 platform FPGA, connected via Gigabit Ethernet as shown in Figure 6. The platform FPGA runs Ubuntu 18.04 and ReconROS based on ROS2 dashing. All ROS2 nodes use the same C/C++ source for software and hardware implementations. Software implementations have been compiled with optimizations level O3, and hardware implementations have been created with HLS without any optimizations. The ROS2 node on the PC publishes messages to the topic T:/send. The ROS2 node on the Zynq subscribes to this topic, creates copies of received messages in local memory, and publishes them to the topic T:/recv.

Table 3 presents the runtimes for these copy tasks in software and hardware, and , and the resulting speedup , as well as the runtimes for the overall ping-pong application measured as roundtrip time at the PC and the resulting speedup for different message sizes. Since the underlying ReconOS implementation has a lower memory bandwidth compared to the Zynq’s ARM processor subsystem and there is additional hardware-software signaling required, we observe a slowdown for the hardware ROS2 copy node, which is distinct for larger message sizes. For example, copying a message of 6 MiB is about slower in hardware than in software. While improving ReconOS’ memory subsystem would obviously reduce the slowdown, Table 3 also shows that for the overall ping-pong application where we have to take communication into account the slowdown is less pronounced with for a 6 MiB message.

Message
size
[ms]
[ms]
[ms]
[ms]
4 Byte
0.01 0.01 1.00 1.68 1.70 0.99
8 KiB
0.03 0.12 0.15 11.39 11.47 0.99
1 MiB
3.59 12.81 0.28 58.71 66.24 0.89
6 MiB
18.91 76.35 0.25 381.44 438.02 0.87
Table 3. Runtimes of software and hardware ROS2 nodes and for the overall ping-pong application, and corresponding speedups

The ReconROS communication times in Table 3 are in the same order as that of related work (Sugata et al., 2017), where communication times were measured between a ROS node on a PC and a ROS node on an ARM within a Zynq for messages of size 1 MiB and 6 MiB, albeit on a different ROS version. Importantly, the two versions of the ReconROS ping-pong application in Figure 6(a) and (b) are semantically identical. Switching from one to the other simply requires a change in the ReconROS configuration file and to start the software or hardware ROS node, respectively, in the application’s main routine.

Generally, the overall ROS2 application speedup or slowdown, respectively, achieved by moving individual ROS2 nodes from software to hardware depends on i) the raw speedup of the ROS2 node, ii) the message size, iii) the overall application’s topology and involved communication patterns and times, and iv) the ratio between node computation times and communication times. The ROS2 nodes in the ping-pong application do not represent any computational load. Hence, we have implemented the following four smaller applications on the platform shown in Figure 6:

Inverse kinematics:

This application computes control signals for driving a servo motor that sets a joint angle based on a desired position and orientation of a robotic manipulation platform. The application is part of a larger mechatronic system (Lienen, 2019) for controlling the movements of a Stewart platform (Stewart, 1965b)

with six degrees of freedom. The computation involves coordinate transformations and an iterative implementation of the

function. The ROS2 input message is an unsigned 32 Bit integer packed with two fixed-point numbers in Q8.6 format that represent the desired rotation angles of the platform around the x-axis and the y-axis. The ROS2 output messages is also a 32 Bit unsigned integer containing a 10 Bit unsigned integer which is the pulse width coded control signal for the motor.

Number sorting:

This application sorts an array of 32 Bit unsigned integers based on the odd-even transposition sort algorithm

(Knuth, 1998). The algorithm is based on a comparator network that employs stages with comparisons each to sort numbers. The ROS2 node on the PC generates random numbers and publishes messages comprising 2048 numbers as an array. The Zynq-based ROS2 node sorts the data and sends it back.

Sobel filter:

This application implements a Sobel image filter (Gonzalez and Woods, 2018) operating on three channels (RGB) of dimension

. The filter applies two filter kernels on each channel of the image and calculates the absolute value of the dot product as an approximation for the geometric mean. The ROS2 input and output messages are of the type

Image from the ROS2 sensor message package.

MNIST classifier:

This application classifies handwritten digits from the MNIST dataset. The classifier is implemented as a ROS2 service, which accepts input request images of size

as custom ROS2 messages and response the estimated digit. The classifier consists of three convolution layers, three pooling layers and two fully connected layers. The achieved accuracy is about 97%.

ReconROS application
Slice LUTs
DSP
BRAM
Inverse kinematics
4802 (1.73%) 17 (0.84%) 3 (0.40%)

Number sorting
10396 (3.75%) 0 (0.00%) 2 (0.26%)

Sobel filter
13625 (4.91%) 0 (0.00%) 10 (1.32%)

MNIST classifier
26071 (9.40%) 18 (0.89%) 57.5 (7.62%)
Table 4. Resource usage and utilization (in % of the Xilinx Zynq 7100) for the implemented ReconROS applications

Table 4 displays resource usage and FPGA utilization for the four applications, and Table 5 the runtimes for the Zynq-bound ROS2 nodes, which are either mapped to the ARM core () or to reconfigurable logic (), the resulting raw speedup , as well as the runtimes for the overall application measured as roundtrip time at the PC and the resulting speedup . The inverse kinematics application achieves a raw ROS2 node speedup of , the sobel filter and MNIST classifier also achieve raw speedups, but the number sorting application does not benefit from hardware mapping. It has to be noted that the goal of these experiments has been to evaluate the overheads involved for ReconROS applications rather than achieving high speedups through hardware acceleration. There is obviously a certain potential to improve the raw speedups for the hardware-mapped ROS2 nodes, in particular for the number sorting application where more parallelism can be exploited. Depending on the relation between communication and computation times, the speedups for the overall ROS2 applications are sometimes considerably lower than the raw speedups, i.e., for inverse kinematics, sometimes slightly lower, i.e., for the sobel filter and the MNIST classifier, and in the case of number sorting even slightly higher.

ReconROS application
[ms]
[ms]
[ms]
[ms]
Inverse kinematics
1.20 0.19 6.32 7.70 6.64 1.16

Number sorting
17.44 35.11 0.50 24.42 42.08 0.58

Sobel filter
37.53 22.28 1.68 83.39 68.54 1.22

MNIST classifier
88.03 30.74 2.86 98.58 41.25 2.39
Table 5. Runtimes of software and hardware ROS2 nodes and for the overall applications, and corresponding speedups

5.2. Mechatronics Model

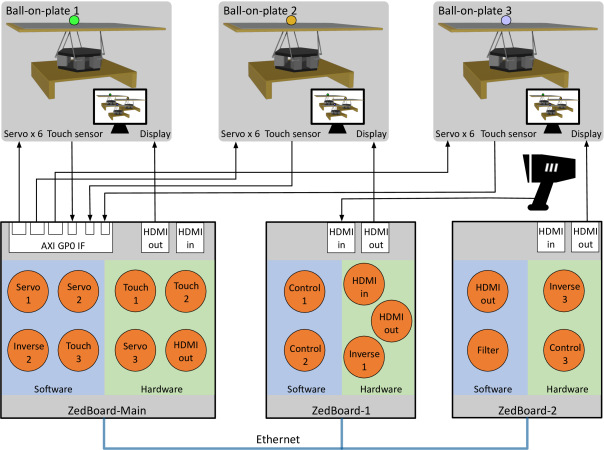

To showcase the suitability of ReconROS for distributed hardware-accelerated ROS2 applications we present the mechatronics model (Lienen, 2019) shown in Figure 7. The model comprises three ball-on-plate stations that are able to balance a mechanical platform such that a ball thrown onto the platform does not fall off. To this end we employ a Stewart platform (Stewart, 1965a) that allows the system to move an object in six degrees of freedom, including linear translations in , and direction but also three rotations (pitch, roll, and yaw). Stewart platforms are perfectly suitable for high dynamic mechatronics applications such as flight simulators or telescopes. In our setup, we drive six servo motors by pulse-width modulated signals to adjust corresponding angles between the motor axes and the legs connecting to the platform, which then results in the wanted movement. To capture the position of the ball on the platform we use a resistive touchscreen mounted on the surface of the platform.

Additionally, each ball-on-plate station is equipped with a monitor, and a camera is capturing all stations.

The computing infrastructure includes three ZedBoards, as outlined in Figure 7. Each ZedBoard is equipped with a Xilinx Zynq-7020 platform FPGA and runs Ubuntu 18.04 and ReconROS based on ROS2 dashing. The servo actors and touchscreen sensors are connected to ZedBoard-Main, the camera is connected to ZedBoard-1 and the monitor inputs on the three ball-on-plate stations are driven by a ZedBoard each. All compute platforms are connected in an Ethernet network.

The overall ROS2 application splits into two parts, the control of ball-on-plate stations and a video processing chain. Figure 8 shows all involved ROS2 nodes with their communication objects. The control loop for a ball-on-plate station comprises the four ROS2 nodes Touch, Control, Inverse and Servo. The Touch node starts a new control cycle by reading the actual position of the ball on the platform. This information is scaled and sent to the Control

node that implements a PID controller and a Kalman filter to determine the desired rotations for the platform with respect to the

and axes. The subsequent Inverse node applies inverse kinematics transformations to determine the required angle for each of the six servo motors. Finally, the Servo node converts the angles into pulse width modulated signals to drive the motors.

The video processing chain includes ROS2 nodes for video input, HDMI in, processing, Filter, and video output, HDMI out. The HDMI interface implementation includes mechanisms for the transport of image data from and to the main memory without processor interaction by using AXI VDMAs (Video Direct Memory Access).

All ROS2 nodes use publish/subscribe mechanisms to communicate with topics shown in Figure 8.

Figure 7. Mechatronics model based on three ball-on-plate stations with Stewart platforms
Figure 8. ROS2 application with node and communication objects for the mechatronics model shown in Figure 7

We have realized all ROS2 nodes in software and hardware. Table 6 lists the raw node runtimes. The hardware implementations of the inverse kinematics and the filter nodes can exploit low-level parallelism and achieve speedups. All other nodes are either more control-flow intensive, exhibit little computation, or are bound by the memory bandwidth and are thus better mapped to software.

Given that both software and hardware implementations for the ROS2 nodes are available, developers can easily distribute the nodes across the boards in the network, change the mapping of nodes in the project configuration files, and re-build the system. One specific example for such a mapping of nodes is indicated in Figure 8. With this mapping, the sampling time of the Touch node and, thus, the control loop could be set to 20 ms which results in rather smooth movements of the Stewart platforms. It must be noted that the implemented system is not a hard real-time system with a guaranteed sampling period of 20 ms. Creating a hard real-time system would require to modify ReconROS and the underlying ROS2 and Linux layers, as well as substitute Ethernet communication with a real-time version and is clearly out of scope for this work. Table 7 lists the resources required for this specific mapping, including the actual hardware-mapped nodes, the necessary ReconROS infrastructure, and the components needed for the HDMI input and output interfaces.

ROS2 node
[ms]
[ms]
Servo
0.001 0.001 1
Control
0.017 0.030 0.57
Inverse
1.430 0.196 7.30
Touch
0.001 0.001 1
HDMI In
5.160 18.460 0.28
HDMI Out
4.590 18.400 0.25
Filter
37.530 22.280 1.68
Table 6. Runtimes for the ROS2 nodes of the mechatronics example in software and hardware
Board
FPGA
Slice LUTs
DSP
BRAM
Zedboard Main
Zynq-7020 13467 (25.31%) 0 (0.00%) 3 (2.14%)

Zedboard 1
Zynq-7020 13235 (24.88%) 77 (35.00%) 3 (2.14%)

Zedboard 2
Zynq-7020 13031 (24.49%) 77 (35.00%) 3 (2.14%)

Table 7. Resource utilization of the three involved FPGA-boards

6. Conclusion and Future Work

In this paper we have presented ReconROS, a novel approach that enables developers of ROS2 robotics applications to leverage the performance and energy-efficiency of FPGA implementations. ReconROS bases on ReconOS and allows for flexible hardware acceleration of ROS2 nodes through an API that supports a consistent programming model for ROS2 nodes across the hardware/software boundary, while preserving the main advantages of ReconOS such as full memory access for hardware threads or operating system like synchronization mechanisms for hardware/software co-designed applications.

Future work is planned along the following lines: First, we want to leverage partial reconfiguration available with ReconOS (Agne et al., 2014) to manage the reprogrammable hardware resources more efficiently, for example by configuring ROS2 hardware nodes on demand. Second, since in distributed ROS networks not all compute nodes might be equipped with platform FPGAs, we plan to investigate the feasibility of a ROS2 node offering acceleration-as-a-service. Third, while programming distributed robotics applications with FPGA acceleration is greatly supported by ReconROS, there is a demand for simulating such systems before deployment and for adding runtime monitoring functionality that can be used for debugging. Finally, we plan to showcase ReconROS for multi-drones (Scherer and Rinner, 2020) which are one of the most demanding classes of distributed robotics systems.

References

  • A. Agne, M. Happe, A. Keller, E. Lübbers, B. Plattner, M. Platzner, and C. Plessl (2014) ReconOS: An Operating System Approach for Reconfigurable Computing. IEEE Micro 34 (1), pp. 60–71. Cited by: §1, §4.1, §4.2, §6.
  • C. Brugger, L. Dal’Aqua, J. A. Varela, C. D. Schryver, M. Sadri, N. Wehn, M. Klein, and M. Siegrist (2015) A quantitative cross-architecture study of morphological image processing on CPUs, GPUs, and FPGAs. In Proc. 2015 IEEE Symposium on Computer Applications Industrial Electronics (ISCAIE), Vol. , pp. 201–206. Cited by: §1.
  • M. Eisoldt, S. Hinderink, M. Tassemeier, M. Flottmann, J. Vana, T. Wiemann, J. Gaal, M. Rothmann, and M. Porrmann (2021) ReconfROS: running ros on reconfigurable socs. In Proc. of the 2021 Drone Systems Engineering and Rapid Simulation and Performance Evaluation: Methods and Tools Proceedings, pp. 16–21. Cited by: §2.2, Table 1, §3.
  • R.C. Gonzalez and R.E. Woods (2018) Digital image processing. Pearson. External Links: ISBN 9780133356724, LCCN 2017001581 Cited by: §5.1.
  • C. Haubelt, D. Koch, and J. Teich (2003) ReCoNet: modeling and implementation of fault tolerant distributed reconfigurable hardware. In Proc. 16th Symposium on Integrated Circuits and Systems Design, 2003. SBCCI 2003, Vol. , pp. 343–348. Cited by: §1.
  • D.E. Knuth (1998) The art of computer programming: volume 3: sorting and searching. Pearson Education. External Links: ISBN 9780321635785 Cited by: §5.1.
  • D. P. Leal, M. Sugaya, H. Amano, and T. Ohkawa (2020) Automated integration of high-level synthesis fpga modules with ros2 systems. In 2020 International Conference on Field-Programmable Technology (ICFPT), pp. 292–293. Cited by: §2.2, Table 1, §3.
  • C. Lienen, M. Platzner, and B. Rinner (2020) ReconROS: Flexible Hardware Acceleration for ROS2 Applications. In 2020 International Conference on Field-Programmable Technology (ICFPT), Vol. , pp. . Cited by: §1.
  • C. Lienen (2019) Implementing a Real-time System on a Platform FPGA operated with ReconOS. Master’s Thesis, Paderborn University. External Links: Link Cited by: §5.1, §5.2.
  • E. Lübbers and M. Platzner (2009) ReconOS: Multithreaded Programming for Reconfigurable Computers. ACM Transactions on Embedded Computing Systems 9 (1), pp. 8:1–8:33. Cited by: §4.1.
  • Y. Maruyama, S. Kato, and T. Azumi (2016) Exploring the Performance of ROS2. In Proc. 13th International Conference on Embedded Software, Cited by: §2.1.
  • T. Ohkawa, Y. Sugata, H. Watanabe, N. Ogura, K. Ootsu, and T. Yokota (2019) High level synthesis of ROS protocol interpretation and communication circuit for FPGA. In Proc. 2019 IEEE/ACM 2nd International Workshop on Robotics Software Engineering (RoSE), Vol. , pp. 33–36. Cited by: §2.2, §2.2, Table 1.
  • A. Podlubne and D. Göhringer (2019) FPGA-ROS: Methodology to Augment the Robot Operating System with FPGA Designs. In Proc. 2019 International Conference on ReConFigurable Computing and FPGAs (ReConFig), Vol. . Cited by: §2.2, Table 1, §3.
  • M. Qasaimeh, K. Denolf, J. Lo, K. Vissers, J. Zambreno, and P. H. Jones (2019) Comparing Energy Efficiency of CPU, GPU and FPGA Implementations for Vision Kernels. In Proc. 2019 IEEE International Conference on Embedded Software and Systems (ICESS), Vol. , pp. 1–8. Cited by: §1.
  • J. Scherer and B. Rinner (2020) Multi-Robot Persistent Surveillance With Connectivity Constraints. IEEE Access 8, pp. 15093–15109. Cited by: §6.
  • D. Stewart (1965a) A platform with six degrees of freedom. Proc. of the Institution of Mechanical Engineers 180 (1), pp. 371–386. Cited by: §5.2.
  • D. Stewart (1965b) A Platform with Six Degrees of Freedom. In Proc. of the Institution of Mechanical Engineers, Vol. 180, pp. 371–386. Cited by: §5.1.
  • B. Strohmer, A. BØgild, A. S. SØrensen, and L. B. Larsen (2019) ROS-Enabled Hardware Framework for Experimental Robotics. In Proc. 2019 International Conference on ReConFigurable Computing and FPGAs (ReConFig), Vol. . Cited by: §2.2, Table 1.
  • Y. Sugata, T. Ohkawa, K. Ootsu, and T. Yokota (2017) Acceleration of Publish/Subscribe Messaging in ROS-Compliant FPGA Component. In Proc. of the 8th International Symposium on Highly Efficient Accelerators and Reconfigurable Technologies (HEART2017), External Links: ISBN 9781450353168 Cited by: §2.2, §2.2, Table 1, §5.1.
  • O. Ulusel, C. Picardo, C. B. Harris, S. Reda, and R. I. Bahar (2016) Hardware acceleration of feature detection and description algorithms on low-power embedded platforms. In Proc. 2016 26th International Conference on Field Programmable Logic and Applications (FPL), Vol. , pp. 1–9. Cited by: §1.
  • S. I. Venieris and C. Bouganis (2019)

    fpgaConvNet: Mapping Regular and Irregular Convolutional Neural Networks on FPGAs

    .
    IEEE Transactions on Neural Networks and Learning Systems 30 (2), pp. 326–342. Cited by: §1.
  • K. Yamashina, H. Kimura, T. Ohkawa, K. Ootsu, and T. Yokota (2016) CReComp: Automated Design Tool for ROS-Compliant FPGA Component. In Proc. IEEE 10th International Symposium on Embedded Multicore/Many-Core Systems-on-Chip, MCSoC 2016, pp. 138–145. External Links: ISBN 9781509035304 Cited by: §2.2, Table 1.
  • K. Yamashina, T. Ohkawa, K. Ootsu, and T. Yokota (2015) Proposal of ROS-compliant FPGA component for low-power robotic systems (retraction notice). In Proc. International Conference on Intelligent Earth Observing and Applications 2015, Vol. 9808, pp. 98082N. Cited by: §2.2, Table 1.
  • E. Yanmaz, S. Yahyanejad, B. Rinner, H. Hellwagner, and C. Bettstetter (2018) Drone networks: Communications, coordination, and sensing. Ad Hoc Networks 68, pp. 1–15. Cited by: §1.
