I Introduction

Wireless communications industry is currently one of the fastest growing industries in the world. The industry has several segments such as cellular telephony, satellite-based communication networks, wireless LANs, and ad hoc wireless networks. An ad hoc wireless network is an autonomous system of nodes connected through wireless links. It does not have any fixed infrastructure such as base stations in cellular networks. The nodes in the network coordinate among themselves for communication. Hence, each node in the network, apart from being a source or destination, is also expected to route packets for other nodes in the network. Such networks find varied applications in real-life environments such as communication in battle fields, communication among rescue personnel in disaster affected areas, and wireless sensor networks.

The conventional protocols for routing, multicasting, and broadcasting in ad hoc wireless networks assume that nodes follow the prescribed protocol without any deviation and they cooperate with one another in performing network functions such as packet forwarding, etc. However, in many current applications of ad hoc wireless networks, nodes are autonomous, rational, and intelligent, and could exhibit strategic behavior. A wireless node is autonomous because no other wireless node may have direct control over the decisions or actions taken by that node. A wireless node is rational in the sense of making decisions consistently in pursuit of its own objectives. Each node’s objective is to maximize the expected value of individual payoff measured in some utility scale. Note that selfishness or self-interest is an important implication of rationality. A wireless node is intelligent in the sense that it takes into account its knowledge or expectation of behavior of other nodes in determining its best response actions. The behavior exhibited by a network of rational and intelligent nodes can be modeled in a natural way using game theory [1]. We use the phrase selfish nodes in this paper, to refer to rational and intelligent nodes.

There are several recent efforts exploring the use of game theoretic models in the modeling and analysis of various design problems in ad hoc networks at different levels of the protocol stack [2], [3]. It has been applied at (a) the physical layer level to analyze distributed power control [4], [5] and waveform adaption; (b) at the data link layer level to analyze medium access control [6] and the reservation of bandwidth [7], [8]; and (c) at the network layer level to model the behavior of the packet forwarding strategies [9], [10]. Applications at the transport layer and above also exist, although less pervasive in the literature.

A question of interest in all the situations mentioned above is that of how to provide appropriate incentives to prevent selfish behavior by the nodes. Examples of selfish nodes include: a node increasing its power without regard for interference it may cause on its neighbors; a node immediately retransmitting a frame in the case of a collision without waiting for the back-off phrase; a node refusing to forward the transit packets of the other nodes in the network, etc. Selfish behavior is generally detrimental to the overall network performance. In this paper, our focus is on studying the packet forwarding strategies of selfish nodes in the specific context of broadcast.

I-a The Incentive Compatible Broadcast (ICB) Problem

Broadcast is useful in ad hoc wireless networks in many situations, for example, route discovery, paging a particular host, or sending an alarm signal, etc. Successful broadcast requires appropriate forwarding of the packet(s) by individual wireless nodes. The nodes incur certain costs for forwarding packets since packet forwarding consumes the resources of the nodes. If the nodes are rational, we cannot take packet forwarding by nodes for granted. Reimbursing the forwarding costs or transit costs incurred by the nodes is a way to make them forward the packets. For this, we need to know the exact transit costs at the nodes. However, the nodes may not be willing to reveal the true transit costs. Broadcast protocols that induce revelation of true transit costs by the individual wireless nodes can be called incentive compatible, following mechanism design terminology. We can design an incentive compatible broadcast protocol by prescribing an appropriate allocation rule and payment rule into the broadcast protocol. We shall refer to the problem of designing such robust broadcast protocols as the incentive compatible broadcast (ICB) problem [11]. In this paper, we address the ICB problem in ad hoc wireless networks and offer an elegant solution using mechanism design theory.

I-B Relevant Work

In the recent times, routing in the presence of selfish nodes has received significant attention, driven by the need to design protocols, like routing protocols, multi-cast protocols, etc., for networks with selfish nodes.

The early research in cooperation of stimulation in ad hoc wireless networks used a reputation mechanism [12]. These approaches use techniques such as auditing, use of appropriate hardware, system-wide optimal point analysis to identify selfish nodes and isolate non-cooperative nodes from the network. The watchdog-mechanism in Marti, Giuli, Lai, Baker [13], the core mechanism in Michiardi, and Molva [14], the confidant mechanism in Buchegger, and Boudec [15], etc. are a few examples of reputation mechanisms. These methods look for a system-wide optimum point which may not be individually optimal. Also, the use of hardware is not always feasible in network settings.

Srinivasan, Nuggehalli, and Chiasserini [16] modeled the routing situation using the repeated prisoner’s dilemma problem. According to evolutionary game theory, an effective strategy in this kind of setting is the so-called TIT-FOR-TAT strategy. In Altman, Kherani, Michiardi and Molva [17]

, each node is assumed to forward packets with some probability which is independent of the source. These models do not take the dynamics of the network into consideration. A game theoretic model was introduced by Urpi, Bonuccelli and Giordano

[18] based on static Bayesian games [1] to model forwarding behavior of selfish nodes in ad hoc wireless networks. Although this model properly formulates the game that the nodes are playing, it does not allow non-simultaneous decision making. In addition, the strategies in this framework are not dependent on past behavior. To get around these problems, Nurmi [19] modeled routing in ad hoc wireless networks with selfish nodes as a dynamic Bayesian game. This model is rich in the sense that it allows non-simultaneous decision making and incorporating history information into the decision making process.

Another important approach to designing incentive mechanisms is based on the techniques of microeconomics. Mechanism design is a powerful tool to model such situations. There have been several efforts to design incentive mechanisms for routing in ad hoc wireless networks in the presence of selfish nodes. Feigenbaum, Papadimitriou, Sami, and Shenker [20] and Hershberger and Suri [21] developed an incentive mechanism to address the truthful low cost routing (unicast) problem. The model consists of nodes where each node represents an autonomous system. They assume that each node incurs a transit cost for forwarding one transit packet. For any pair of nodes and of the network, is the total amount of traffic originating from and destined for node . The payments to nodes are computed using the Vickrey-Clarke-Groves (VCG) payment rules [22, 23]. The authors in [20] and [21] presented a distributed method such that each node can compute its payment to node for carrying the transit traffic from node to node if node is on the least cost path from to .

A similar type of model was presented by Anderegg and Eidenbenz [9] for stimulating cooperation among selfish nodes in ad hoc networks using an incentive scheme. This model generalizes one aspect of [20] by associating several costs to each node, one per each neighbor, instead of just one. This leads to a model based on edge weighted graph representation of the ad hoc network. The VCG mechanism is used to compute a power efficient path, where each node determines the power level required to transit/forward the packets. A node by itself cannot determine its power level required because it needs feedback information in the form of packets from its neighbors. As the nodes are selfish and non-cooperative, this feedback information may allow a node to cheat its neighbors in order to raise its own payoff. The authors of [9] did not address this issue. Eidenbenz, Santi, and Resta [24] modified the model in Anderegg and Eidenbenz [9] by using the VCG mechanism to compute the payments to the nodes, but the sender is charged the total declared cost of a second least cost path, that is the least cost path with all nodes in the cost efficient path removed. This requires the existence of at least two node disjoint paths between the sender and the receiver. Wang and Li [25] proposed strategy-proof mechanisms for the truthful unicast problem. They also presented an algorithm for fast computation of payments to nodes and a distributed algorithm for payment computation.

Zhong, Li, Liu, and Yang [26] used a two-stage routing protocol to model the routing problem in ad hoc wireless networks with selfish nodes. They integrated a novel cryptographic technique into the VCG mechanism to solve the link cost dependence problem. Zhong, Chen, and Yang [27] proposed a system called Sprite, which combines incentive methods and cryptography techniques to implement a group cheat-proof ad hoc routing system. Lu, Li, Wu [28] embed an incentive-compatible, efficient, and individual rational payment scheme into the routing protocol in ad hoc networks which consist of selfish nodes. Unlike traditional routing protocols in ad hoc networks, which only elicit cost information from selfish nodes, this model motivates selfish nodes to report truthfully both their stability and cost information.

In all the above solution approaches for the incentive compatible unicast problem (also known as the truthful unicast problem), the intermediate nodes on the path between the source node and the destination node are compensated for forwarding the packet. Let us apply this technique of service reimbursement to the incentive compatible broadcast (ICB) problem and see the consequences. Consider a portion of the network as shown in Figure 1. Let us consider node to be the source of broadcast. Nodes , , , and are the intended destinations of the broadcast packet. Node needs to reimburse the nodes , , and , since these nodes are intermediate nodes on the path between node and node and they forward the broadcast packet. For similar reasons, node needs to reimburse the nodes and and node needs to reimburse node . On the whole, node receives payments from nodes , , and for forwarding a packet once. Similarly, node receives payments from node , and node . Hence we end up with high values of over payments leading to an inefficient solution to the ICB problem. It is important to observe, in the context of broadcast, that all the nodes in the network are intended destinations and there is no concept of intermediate nodes as in the case of unicast.

Fig. 1: Relating incentive compatible unicast solution to the ICB problem

Wang and Li [29], [10] have proposed strategy-proof mechanisms for the truthful multicast problem in ad hoc wireless networks with selfish nodes. The authors, in this model, assume that the nodes in the multicast set forward the packets for free among themselves. However, this assumption may not be credible in real world applications, especially when the nodes are rational. In our work, we assume that nodes, being rational, do not necessarily forward the broadcast packets for free. This assumption clearly captures the real-world more accurately.

Suri and Narahari [30, 31] proposed a dominant strategy incentive compatible mechanism, DSIC-B, that is built into the corresponding broadcast protocol, as a solution to the ICB problem. In the DSIC-B protocol, a node pays only for the node from which it has received the broadcast packet and these payments are designed such that the mechanism is truthful in the dominant strategy sense, that is, true cost revelation is a best response for each node irrespective of what the other nodes report. There are, however, two limitations of using the DSIC-B protocol [30, 31].

  • (L1): The underlying graph of ad hoc wireless network must be bi-connected.

  • (L2): The DSIC-B protocol is not budget balanced [22, 32].

The limitation (L1) implies that the DSIC-B protocol works only for networks where the underlying graph of that network is bi-connected. This means that there cannot exist any cut vertex in the underlying graph. As the number of nodes in the network increases, sustaining this condition is difficult. The limitation (L2) implies that certain external budget needs to be injected into the network to sustain the running of the protocol.

To summarize the relevant work,

  • Several game theoretic models and mechanism design solutions have been proposed in the context of routing and other functions in ad hoc networks. However, most of these address only unicast and multicast.

  • The mechanism design solutions proposed in the literature are all based on the VCG mechanisms. Though the VCG mechanisms guarantee the extremely desirable property of dominant strategy incentive compatibility, the incentive budgets required tend to be very high. In fact, there is a recent study [33] on the limitations of VCG mechanisms (i.e. dominant strategy incentive compatible mechanisms) in the design of protocols for networks with selfish nodes.

  • There are not too may studies in the literature which address the incentive compatible broadcast problem. Also the existing approaches for incentive compatible broadcast have many limitations. Further, the existing solutions available for unicast and multicast invariably lead to inefficient solutions when applied to the broadcast setting.

Till this point, we have set the stage for the need of designing efficient incentive based mechanisms for ICB problem. We propose to use Bayesian model to design such incentive mechanisms. In the following section, we argue in the favor of choosing a Bayesian model with which we can overcome several limitations due to VCG based mechanisms.

I-C Need for a Bayesian Model

There are several reasons why the Bayesian model makes more sense than a VCG type of model:

  • The payments in the VCG model are almost always much higher when compared with the Bayesian models (This is natural because the dominant strategy incentive compatibility property guaranteed by the VCG model is a much stronger property and hence entails higher incentives to be paid). This is well known in the mechanism design literature.

  • In the case of the Bayesian model, budget balance is satisfied. On the other hand, in the case of the VCG model, budget balance is difficult to achieve, except under very special settings. Budget balance is a desirable property because it ensures that the protocol does not require any external source of funding and therefore is self-sustaining.

  • In the case of broadcast, the context is such that there is one source node and the rest of the nodes are receivers of the broadcast packet. Since the nodes are rational, they may need to make payments to receive the broadcast packet(s). It makes sense to expect all the nodes that receive packets to make the same payments. This is because the source node has no way of distinguishing among the remaining nodes (which are all receivers). We have shown in this paper that the payments as computed by the Bayesian model will be identical for all the receiving nodes. Thus the Bayesian model captures the real-world in a natural way.

However, there are two issues with the use of Bayesian approach. First, due to the high payments entailed by VCG-based solutions, there is a compelling need to look for Bayesian incentive compatibility, which is a much weaker form of incentive compatibility. Second, we may lose out on individual rationality. We have however derived a sufficient condition under which individual rationality is also guaranteed by our Bayesian model.

I-D Contributions and Outline of the Paper

Motivated by the above considerations, we offer the following contributions in this paper.

  • We propose an incentive based broadcast mechanism that satisfies Bayesian incentive compatibility and minimizes the incentive budgets required by the individual nodes. Bayesian incentive compatibility ensures that truth revelation is a best response for each node whenever all other nodes are also truthful.

  • The above proposed mechanism, which we call BIC-B (Bayesian incentive compatible broadcast) mechanism, also satisfies budget balance. This ensures that the protocol is self-sustaining and does not require any external budget for sustaining the running of the protocol.

  • We also derive a necessary and sufficient condition for the ex-post individual rationality of the BIC-B mechanism. Individual rationality guarantees that the nodes do not incur negative payoffs by participating in the protocol.

  • We present an approach for a protocol implementation based on the BIC-B mechanism. We also explain how the payments to the nodes are computed following the proposed mechanism.

  • We show that the BIC-B protocol exhibits superior performance in comparison to existing protocols for incentive compatible broadcast such as DSIC-B.

The rest of the paper is organized as follows. In Section II, we present a game theoretic model for the incentive compatible broadcast problem and offer a Bayesian incentive compatible mechanism design solution for the problem. In Section III, we investigate different properties of the proposed BIC-B protocol such as budget balance, budget minimization, and individual rationality. In Section IV, we present a simulation experiment to exhibit the superior performance of the BIC-B protocol. Section V concludes the paper and outlines a few directions for future work.

Ii The Model and the BIC-B Protocol

An ad hoc wireless network, in this paper, is represented by an undirected graph , where is the set of wireless nodes and is the set of communication links between the nodes. There exists a communication link between two nodes and , if a node is reachable from node , and node is also reachable from node . Thus we have an undirected graph representation. We assume that wireless nodes use directional antennas and a single transmission by a node may be received by only a subset of nodes in its vicinity. We note that all nodes in the graph are connected.

We assume that the nodes in the ad hoc wireless network are owned by rational and intelligent individuals and so their objective is to maximize their individual goals. For this reason, they may not always participate loyally in key network functions, such as forwarding the packets, since such activity might consume the node’s resources, such as battery power, bandwidth, CPU cycles, etc. Let each node incur a cost for forwarding a packet. For simplicity, we assume that is independent of the neighbor from which the packet is received and the neighbor to which the packet is destined. We can represent as the weight of node in the graph . This implies that we work with a node weighted graph.

Consider the task of broadcast in such a setting. Assume that the source of the broadcast is node . Not all remaining nodes may be connected to node , hence appropriate intermediate nodes have to forward the broadcast packet to ensure that the packet reaches all the nodes in the network. As explained above, the nodes that forward the packet(s) incur costs. This means, we need to look at a tree that spans all the nodes and has the source node as the root of the tree. We call such a tree as Source Rooted Broadcast Tree (SRBT). Given an SRBT, we design an appropriate incentive scheme or mechanism that is built into the broadcast protocol.

Ii-a A Game Theoretic Model

A game theoretic model in the above setting is described below.

  • There are wireless nodes, in the ad hoc network. Let .

  • Each wireless node privately observes a signal that determines the cost for the node to forward a packet. The value of is known to agent deterministically since is dependent of the consumed CPU cycles, battery power, bandwidth, etc. However this value is not known to other nodes. Hence we call as the private value or type of node .

  • We denote by the set of types of node , . is the set of all type profiles of the nodes. represents a typical type profile of the nodes.

  • It is assumed that the types of the nodes are drawn from a common prior distribution . We make the standard assumption that individual belief functions are computed using the above common prior. The belief function () describes the belief of node about the types of the remaining nodes.

  • is the set of different possible outcomes. Each outcome specifies the set of routers and payments to those routers for forwarding packets. The selection of a particular choice of set of routers depends on the type profile of the nodes. This is captured by social choice function [22].

  • If a node forwards a packet, it incurs a cost and hence it must be compensated appropriately. More generally, we capture this notion by a utility function . In particular, we assume that the utility functions are quasi-linear.

Following the terminology of mechanism design [22], a mechanism is a collection of strategy sets and an outcome function . Here captures the possible announcements of node regarding its incurred costs. The outcome function is defined as . A mechanism is a framework which prescribes an action set for each player and specifies how these action profiles are transformed into outcomes. The outcome function gives the rule for obtaining outcomes from action profiles. A mechanism induces a Bayesian game where is computed from [22]. This induced Bayesian game can have a solution which is either a dominant strategy equilibrium or a Bayesian Nash equilibrium. Accordingly we have either a dominant strategy incentive compatible mechanism or a Bayesian incentive compatible mechanism, respectively.

Ii-B The BIC-B Protocol

We now present a mechanism that implements the social choice function (SCF) . Here , and are interpreted in the following way. is the allocation rule that represents which nodes in the network have to forward the packet, given the profile

of types. The vector

gives payments received by the nodes, given the profile of types. For any , if , then the interpretation is that receives some positive amount and if , then the interpretation is that pays some positive amount.

Assume that we are given the corresponding to the graph under consideration. We design, based on the given SRBT, an the following payment scheme that determines the payments to the individual nodes for a broadcast. In the SRBT, all the internal nodes forward the broadcast packet. We call such packet forwarding nodes as routers, and represent the set of routers by . Note that each outcome of the SCF has an allocation rule and a payment rule. We define the allocation rule in the following way: , ,

= if
= if

The valuation function, , of node is its cost to forward a transit packet. From the allocation rule in our SCF , we get, , ,


The broadcast packets from the source node travel through the paths specified in the SRBT. To compensate the incurred cost of the routers in the network, we need to determine payments to the nodes. We follow the payment rule of the classical dAGVA mechanism or expected externality mechanism [22, 34], to compute the payments to the nodes in our scheme. Using the payment rule of the dAGVA mechanism [22, 34], , , we get


From (1), (2) we get, , ,


where is interpreted as the total expected value to node that would be generated by all the remaining nodes in the absence of node . This completes the characterization of the payment rule of the BIC-B mechanism. Note that this mechanism with the above payment rule is incentive compatible. This directly follows from the incentive compatibility property of the dAGVA mechanism [22, 34].

In the following, we first present an illustrative example to understand the details of the proposed payment scheme and we then investigate the properties of the mechanism.

Ii-C An Example

Now we provide an example to illustrate the payment scheme in BIC-B protocol. Let us consider the graph in Figure 2, which is not bi-connected. We recall that the types of nodes are their incurred transit costs. We consider the type sets of nodes as , , ,

. Now let us assume that the players belief probability functions are independent discrete uniform distributions with equal probabilities for all types. and

is the announced cost profile.

Fig. 2: Illustrative example 1

In this example, is also the same the original graph. Now, the allocation rule is . We note that and . The valuation functions of nodes are, , , , . Now we compute the payments using the payment rule (3) of BIC-B protocol.

The payment computation for node :
= = = = (since types are statistically independent) = =

In the similar fashion, we can compute the payments to the remaining nodes also. The payments to nodes are: , , 7.3, . In this example, node and node do not forward the packets. Observe that they pay the same amount, namely . Since node and node are routers, they receive amounts and respectively. Further observe that .

Iii Properties of the Bic-B Protocol

Iii-a Budget Balance

Assume that , . To show budget balance, we need to show that the sum of the payments received and the payments made by the nodes in the network is zero, i.e. . Let us assume that , . Then, from (3), we get

It can be noted that each node distributes equally among the remaining nodes. Figure 3 shows this interpretation for a graph with 3 nodes.

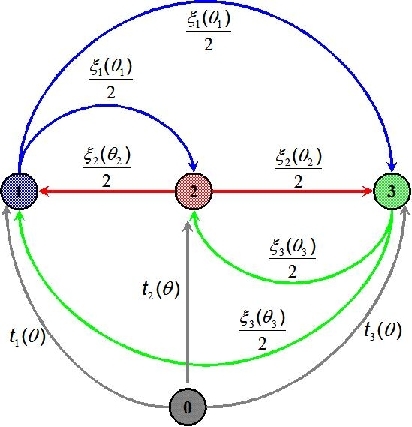

Fig. 3: An interpretation of the payment rule

Let us represent the flow into the node with positive sign and the flow going out from the node by negative sign. Now the payment, , for node can be written as


Similarly, we can write down the payments to the remaining two nodes.

Iii-B Payments by Non-Router Nodes

Recall that is the set of nodes and represents the set of routers in the network. We now state Lemma 1 which is useful in proving Lemma 2 and subsequently Theorem 1.
Lemma 1: For any and for any , we have = .
Proof: Proof is provided in the appendix.
Lemma 2: For the BIC-B protocol, , . That is, the nodes other than the routers will pay a positive amount of money for receiving the packet(s).
Proof: If is empty, then the source node can reach all the remaining nodes in the network within a single hop. In that case, the payments will be 0. We are not interested in such a trivial situation. So we assume that,


Let us assume that, ,

= (since )

Since the types of nodes are statistically independent, the values of , , are all the same. We represent this value with . That is,


Now, let us assume that , . Then

(consequence of Lemma 1)
(since )
= (from equation (5))

So, we can conclude that


From the payment rule (3) of the BIC-B protocol, we have ,

(since from equation (5))
0, (from (6)).

According to our previous interpretation, means that node needs to pay the specified amount. This completes the proof the lemma. (Q.E.D.).
Observation 1: From the proof of Lemma 2, we know that ,


Note that the right hand side of the above expression is independent from . Hence, using the BIC-B protocol, , are all the same. The immediate implication is that the payments made by the nodes other than the routers are the same.

Iii-C Optimality of the Bic-B Payments

Here we prove the optimality of the payments prescribed by the BIC-B protocol. We note that an appropriate allocation rule is employed to determine the SRBT of the underlying graph of the ad hoc wireless network for the broadcast task. We define cost of SRBT is sum of the forwarding costs of the router nodes. It is the case that any allocation rule tries to minimize the cost of the SRBT. If it is hard to find optimal SRBT, then we assume that an appropriate approximation algorithm is used to determine the SRBT.

We make the following observation for the sake of Theorem 1.
Observation 2: Consider two type profiles and . Assume that these two types are different only with respect to the type of node . Using the BIC-B mechanism, when the types are and , the payments to node are and respectively. Note that if the corresponding SRBT is the same for both the types and , then the set of routers is the same and hence the payments and respectively to node are the same. This is because in the payment rule (3) of BIC-B mechanism, the quantities involved only look for expected values of the types of the routers.
Theorem 1: For the given SRBT structure of the underlying graph of the ad hoc wireless network, the payment to any node using the BIC-B mechanism is minimum among all other Bayesian incentive compatible mechanisms based on SRBT.
Proof: We provide a contradiction to prove the statement. Let be the payment rule of the BIC-B mechanism based on the given SRBT. Assume that there exists another Bayesian incentive compatible mechanism with payment rule such that the payment to a router node is strictly less. That is,


We construct a contradiction to show that is not incentive compatible for the node under some cost profile . We construct from by replacing the cost of node with , where . That is, if the cost profile is such that , (where the -tuple indicates a cost profile of the nodes where the cost of node is and the costs of remaining nodes is represented by ), then the cost profile is such that . Recall that node is a router in the corresponding SRBT when type profile is . We now consider the following two cases.

Case 1: Consider is the announced cost profile. Assume that node is a router in the corresponding SRBT. This assumption is true definitely if because node is a router even with the type . That is, the SRBT is one and the same under both the type profiles and . Using the payment rule , the payment to node is . Now the gain from being a router to the node is (using (7) and Observation 2).

Case 2: Consider is the announced cost profile. Assume that node is not a router in the appropriate SRBT. Then there is no forwarding cost incurred to node . Then there is no issue.

Hence for node , if its type is and then it happens to be a router in the corresponding SRBT and it gets negative gains. Due to the appropriate arguments in Theorem 2, there exists a such that is true. Hence the mechanism with as the payment rule is not incentive compatible. This provides the required contradiction. (Q.E.D.).

Iii-D Individual Rationality of the Bic-B Protocol

We now investigate the individual rationality (IR) of the BIC-B protocol. In particular, we investigate the ex post individual rationality, which is the strongest among the three notions of individual rationality [22, 32]. In the following theorem, we obtain a necessary and sufficient condition for the ex post individual rationality of the BIC-B protocol. Let be the announced cost of a node and be the actual cost of that node.
Theorem 2: The BIC-B protocol is ex post individual rational if and only if


where the is the announced cost of the node .
Proof: See Appendix.

Iii-E An Implementation of the BIC-B Protocol

In the previous sections, we have designed the BIC-B mechanism for providing incentives to the nodes to participate in the broadcast task. We have also proved certain important properties of the mechanism. Here we provide a protocol implementation for the BIC-B mechanism.

The protocol implementation is motivated by the emerging technology of hybrid ad hoc wireless networks, where there are base stations that provide fixed infrastructure for many network related functions. We propose that additional functionality (which we call mediation functionality) as described below be incorporated into each base station. Let us call this part of the base station as the mediator. The mediator could be a part of any other network infrastructure also.

The mediator elicits the types from all the nodes, computes the allocation and payments of the nodes, and announces the outcome. We assume that all the nodes can communicate with the mediator.

After receiving the messages from the mediator regarding the payments, each node constructs an internal table as shown in Table I. Each row of the table corresponds to a node in the network. Each row contains three fields of information: (a) Source ID, which specifies the source node ID from which the packet is originating, (b) Node List, which specifies the set of nodes to which the packet needs to be forwarded, and (c) Payment, which specifies the payment to be received or paid. The following is the structure of internal table of a node:

Source ID Node List Payment
TABLE I: Structure of Internal Table of a Node

In view of the above, the BIC-B protocol can be implemented as follows.

BIC-B Protocol: If a node receives a broadcast packet, it checks its internal table entry corresponding to the source ID of the broadcast. Then it forwards the packet to the set of nodes specified in the Node List field of the entry and receives the payment as mentioned in the Payment field of the entry. On the other hand, if the Node List field is empty, then the node does not forward the packet to any node and makes a payment as mentioned in the Payment field of the entry.

In the above protocol, all the payment information by the node is communicated directly to the mediator which takes care of all the book keeping.

Iv Performance of the BIC-B Protocol

In this section, we show the efficacy of the proposed BIC-B protocol for the ICB problem. In our simulation experiments, we compare the performance of the BIC-B protocol with that of the Dominant Strategy Incentive Compatible Broadcast (DSIC-B) protocol [11], [30].

Iv-a Simulation Model

The DSIC-B protocol is based on dominant strategy equilibrium of the underlying game and the BIC-B protocol is based on the Bayesian Nash equilibrium of the underlying game. Since every dominant strategy equilibrium is also a Bayesian Nash equilibrium, but not vice-versa, we first find a dominant strategy equilibrium of the underlying game and compute the payments to the nodes using the DSIC-B and the BIC-B protocols [11].

We work with a randomly generated graph of an ad hoc wireless network with the number of nodes . According to our network model presented in Section II, the graph is node weighted where these weights are the transit costs of the nodes chosen independently and uniformly from a range . After the nodes announce their types, we first compute the least cost paths to all the nodes from the source node and then construct an SRBT. Using the SRBT, we can decide the set of routers. This fixes the allocation rule. Then we compute payments to the nodes using the payment rule of the appropriate broadcast protocol. In all our simulation experiments, the results for the performance metrics are averages taken over 100 random instances.

Iv-B Simulation Results

We consider two performance metrics. The first metric is average payment to routers (APR). This specifies the payment on an average to each router for forwarding the transit packets. The graph in Figure 4 shows the comparison of the BIC-B protocol and the DSIC-B protocol using APR. In the figure, the lower curve corresponds to the BIC-B protocol. It is clear from the figure that the BIC-B protocol performs better than the DSIC-B protocol. This means that the system wide payments made by the nodes to forward a broadcast packet is less using the BIC-B protocol.

Fig. 4: Average payment to routers in the DSIC-B and BIC-B protocols

The second performance metric, we follow, is the worst overpayment ratio (WOR). We first define overpayment ratio as the ratio of payment made by a node to its least cost path value from the source node . Now, we can define WOR as the maximum over the overpayment ratios of all the nodes in the network. That is,


where cost of path from source of broadcast to node is the sum of forwarding costs of the nodes that lie on the path from the source of broadcast node to the node . Ideally we expect this ratio to be . We compare the WOR of BIC-B protocol and the DSIC-B protocol in Figure 5. We note that the lower curve corresponds to the BIC-B protocol in the figure. From the graph, it is easy to see that the worst overpayment ratio in the network is higher using the DSIC-B protocol than BIC-B protocol. WOR conveys the following significant information. When a node receives a packet from a router, then clearly the payment made by the receiver node to the router is higher than the value of its least cost path, since it has to give incentives to the router to make it reveal the true incurred cost. If we take a ratio of the payment to the value of least cost path, from the Figure 5, this ratio is less than 2 times over all the nodes using the BIC-B protocol and it is higher than 5 times over all the nodes using the DSIC-B protocol. This says that nodes end up with very high payments, using DSIC-B protocol, than actually what their value of the corresponding least cost path.

Fig. 5: Worst overpayment ratios for the DSIC-B and BIC-B protocols

V Conclusions and Future Work

We considered the incentive compatible broadcast (ICB) problem in ad hoc wireless networks with selfish nodes. We proposed an incentive based broadcast protocol that satisfies Bayesian incentive compatibility and minimizes the incentive budgets required by the individual nodes. The proposed protocol, BIC-B, also satisfies budget balance. We also derived a necessary and sufficient condition for the ex-post individual rationality of the BIC-B protocol. We showed that the BIC-B protocol exhibits superior performance when compared to a dominant strategy incentive compatible solution to the problem. Thus in this paper, we have addressed the ICB problem by proposing an incentive mechanism and design of the BIC-B protocol.

While designing incentive based protocols, we note that the complete solution includes (a) design of the incentive mechanism (b) design of a protocol which implements the incentive mechanism and (c) addressing any problems that may arise, such as the cheating problem. Our main contribution in this paper is in designing an incentive mechanism. We have also briefly addressed the design of a protocol in the current version of the paper. To address the cheating, we need to invoke cryptographic techniques. There is some literature available on the use of cryptographic techniques to implement protocols, for example [35].

In terms of mechanism design, it would be interesting to explore optimal broadcast mechanisms in the Myerson sense [22, 34]. These are mechanisms that minimize the incentive budgets subject to Bayesian incentive compatibility and individual rationality.

An important problem that could be explored is design of Bayesian incentive compatible protocols for unicast and multicast problems. Existing game theoretic approaches to unicast and multicast are all based on VCG mechanisms and have the usual limitations associated with the use of VCG mechanisms.

Also, it is important to address certain practical issues that arise in the implementation of these mechanisms as part of standard protocols. For example, the payment computation is performed in a centralized way in the BIC-B protocol. It would be interesting to design a distributed algorithm for this problem that could help deploy the BIC-B protocol in the real world.

Vi Acknowledgment

The research in this paper is partially supported by a research on Algorithmic Mechanism Design for Complex Game Theoretic Problems funded by the Office of Naval Research (Grant No. N0014-06-1-0994), Arlington, VA, USA. We wish to thank Dr Shantanu Das, Program Manager, Communications and Networking, for the encouragement and support.
