Dermoscopic Image Analysis for ISIC Challenge 2018

07/24/2018 ∙ by Jinyi Zou, et al. ∙ Lenovo 0

This short paper reports the algorithms we used and the evaluation performances for ISIC Challenge 2018. Our team participates in all the tasks in this challenge. In lesion segmentation task, the pyramid scene parsing network (PSPNet) is modified to segment the lesions. In lesion attribute detection task, the modified PSPNet is also adopted in a multi-label way. In disease classification task, the DenseNet-169 is adopted for multi-class classification.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 3

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The goal of the recurring ISIC challenge is to develop image analysis algorithms to enable the automated diagnosis of melanoma from dermoscopic images. In ISIC 2018, the challenge is broken into three separate tasks: lesion segmentation, lesion attribute detection and disease classification. For task1 and task2, we adopt a modified PSPNet for lesion segmentation [1]. For task3, we adopt the DenseNet-169 model for classification [2].

2 Lesion Segmentation

The goal of this task is the automated predictions of lesion segmentation boundaries within dermoscopic images. There are 2594 images for training and 100 images for validation. The evaluation metrics in this task is Jaccard Index, as shown in Eq.

1. Different with ISIC 2017, the segmentation score below 0.65 will be set to 0 in ISIC 2018.

(1)

where denotes the number of predicted pixels belonging to the lesion and denotes the number of ground truth pixels belonging to the lesion. In the following, I will describe the data augmentation strategies, the model design and experimental results in lesion segmentation task.

2.1 Data Augmentation

The data augmentation strategy can be summarized as follows:

  • Image flip in both horizontal and vertical directions

  • Image scale variation from 0.8 to 1.2

  • Color jitter using the parameters the brightness with a maximum delta of 64/255, contrast with a maximum delta of 0.75, saturation with a maximum delta of 0.25 and hue with a maximum delta of 0.04

In our experiments we find that color jitter makes a little contribution for lesion segmentation.

2.2 Model Design and Experimental Results

To extract low-level image features to enhance the segmentation performance, we not only use the features maps in last layer but also the feature maps in middle layers in ResNet for concatenation, as shown in Fig.1. Therefore, we can make use of more finer texture information in the modified PSPNet to improve lesion segmentation performance.

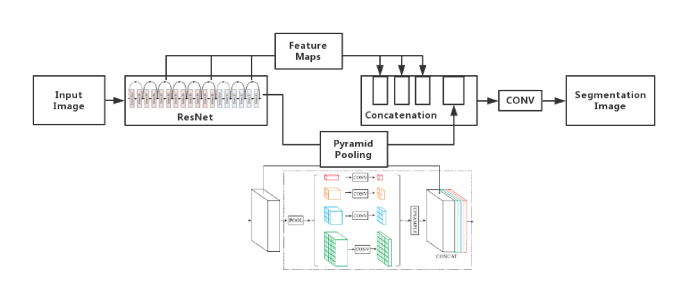

Figure 1: The flowchart of modified PSPNet.

In the training stage, the parameters of the model can be summarized as follows: the backbone network is ResNet, the training image resolution is , the learning rate is set to with Adam Optimizer. In addition, the post-processing procedure including the conditional random field (CRF) and the watershed algorithms are adopted to filter the segmentation noises and only the largest connected component will be remained as the lesion segmentation result [3][4].

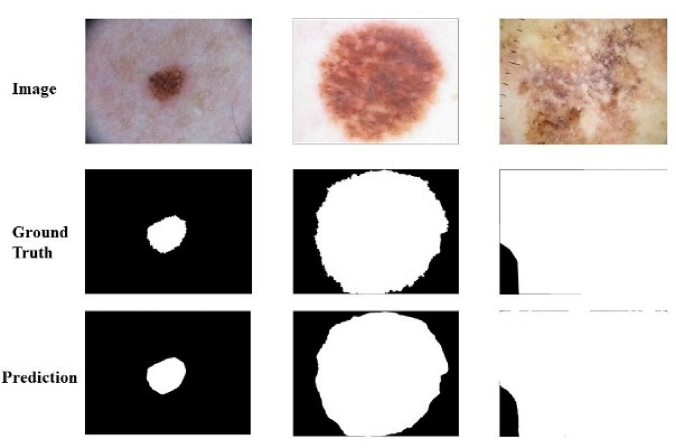

Figure 2: Experimental results for lesion segmentation using PSPNet.

Some experimental results are shown in Fig.2. In training dataset, the segmentation performance is . In validation dataset, the segmentation performance is without post-processing and with post-processing.

3 Lesion Attribute Detection

The goal of this task is the automated predictions of the locations of dermoscopic attributes within dermoscopic images, including pigment network, negative network, streaks, milia-like cysts and globules (including dots). This task shares the same training data with task1, with different mask data for different segmentation targets. The evaluation is similar to task1, the difference is that in this task we need to predict multiple categories.

In this task, the modified PSPNet is also adopted to achieve lesion attribute detection in a multi-class way. In addition, the lesion segmentation result in task1 is used to refine the lesion attribute detection results. Only the pixels in segmented lesions will be categorized to lesion attributes.

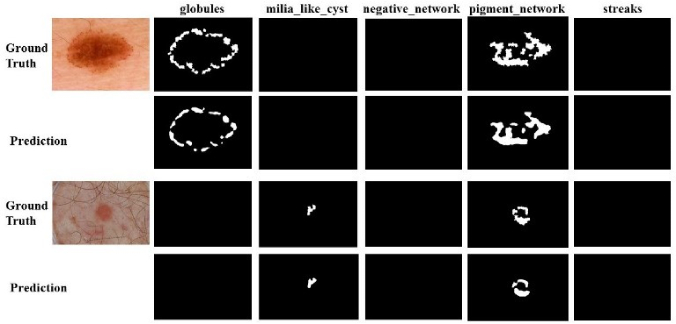

Figure 3: Experimental results for using PSPNet for lesion attribute detection.
