Delay Analysis of Random Scheduling and Round Robin in Small Cell Networks

We analyze the delay performance of small cell networks operating under random scheduling (RS) and round robin (RR) protocols. Based on stochastic geometry and queuing theory, we derive accurate and tractable expressions for the distribution of mean delay, which accounts for the impact of random traffic arrivals, queuing interactions, and failed packet retransmissions. Our analysis asserts that RR outperforms RS in terms of mean delay, regardless of traffic statistic. Moreover, the gain from RR is more pronounced in the presence of heavy traffic, which confirms the importance of accounting fairness in the design of scheduling policy. We also find that constrained on the same delay outage probability, RR is able to support more user equipments (UEs) than that of RS, demonstrating it as an appropriate candidate for the traffic scheduling policy of internet-of-things (IoT) network.

READ FULL TEXT VIEW PDF

page 1

page 2

page 3

page 4

01/30/2018

SIR Coverage Analysis in Cellular Networks with Temporal Traffic: A Stochastic Geometry Approach

The bloom in mobile applications not just bring in enjoyment to daily li...
12/05/2020

Implementing QZMAC (a Decentralized Delay Optimal MAC) over 6TiSCH under the Contiki OS in an IEEE 802.15.4 Network

Motivated by the emerging delay-sensitive applications of the Internet o...
09/08/2021

Data Aggregation in Synchronous Large-scale IoT Networks: Granularity, Reliability, and Delay Tradeoffs

This paper studies data aggregation in large-scale regularly deployed In...
06/16/2020

Spatio-Temporal Analysis of Cellular Networks with Cell-Center/Edge Users

Emergence of various types of services has brought about explosive growt...
05/01/2021

Better than the Best: Gradient-based Improper Reinforcement Learning for Network Scheduling

We consider the problem of scheduling in constrained queueing networks w...
06/02/2021

Cooperative Encoding and Decoding of Mixed Delay Traffic under Random-User Activity

This paper analyses the multiplexing gain (MG) achievable over Wyner's s...
09/08/2018

Delay-Constrained Input-Queued Switch

In this paper, we study the delay-constrained input-queued switch where ...

I Introduction

The paradigm shift from traditional macro cellular network to small cell networks is unrelenting, whereas more and more user equipments (UEs), including smartphones, tablets, and smartwatches, will be connected to the small access points (SAPs) [1]. Since the wireless spectrum is usually limited, there is inevitable contention among UEs for communication resource. At this stage, operators need to choose an appropriate traffic scheduling protocol to allocate resource among different UEs so as to meet the delay requirement [1]. Among the large number of proposed scheduling schemes [2], random scheduling (RS) and round robin (RR) are the most popular practical choices due to their low-implementation cost [3]. Even though, a full understanding on the respective delay performance of RS and RR is still essential to help devise insights and perform suitable design. While the delay performance of both schemes has been well understood in wired data networks [3], it remains in darkness from the perspective of wireless small cell networks because: ) the irregular deployment of SAPs leads to asymmetric UE performance, e.g., some UEs may succeed in capturing a large portion of resources than others because of their relative position in the network, and thus enjoy preferential treatment; ) the shared nature of wireless channel results in the queuing evolution of any typical cell strongly interacted with its neighbors, which piles on analytical complications.

Most of the previous works only focus on one aspect of the issue [3, 4, 5, 6], i.e., they model only the temporal arrival of packets [3] or the spatial lotations [4, 5, 6], and thus fail to track the other. Recently, several attempts have been made to analyze delay in large-scale networks by modeling the spatial-temporal randomness [7, 8, 9, 10]. However, the results in [7] only give upper and lower bounds, that can be loose in light traffic condition, for the delay distribution, hence may fail to explicitly capture the interplay between spatial topology and temporal queuing evolution. While [8] attains a precise expression for the distribution of mean delay, the result holds for single UE per cell scenario, which do not allow one to investigate the effect of different scheduling policies. The model in [9, 10] consider uplink random access for multi-UE per cell and accounts for the intra-cell and inter-cell interference due to the scheduling policy. However, the results only analyze the RS and do not extend to other scheduling methods.

In this work, we take a complete treatment to the delay analysis in small cell networks under different traffic scheduling policies. Specifically, we model the locations of SAPs as homogeneous Poisson point process (PPP) where each cell has multiple associated UEs. The traffic arrivals are modeled as independent Bernoulli processes, and account for the retransmission of unsuccessfully delivered packets. By combining stochastic geometry with queueing theory, we derive accurate expressions for the mean delay distribution under both RS and RR protocols, allowing to compare them and to draw insightful conclusions.

Ii System Model

Fig. 1: Example of a small cell network with random traffic arrivals.

We consider the downlink of a small cell network, as depicted in Fig. 1, that consists of randomly deployed SAPs. We model the spatial locations of SAPs as a homogeneous PPP with spatial density . For notational simplicity, we assume each SAP has

associated UEs, who are uniformly distributed within the Voronoi cell it generated.

111Note that the results obtained through the machinery of queueing theory and stochastic geometry can be modified to model random number of UEs per SAP [11]. All SAPs and UEs are equipped with single antenna, and every SAP transmits with power . We assume the channels between any pair of nodes to be narrowband and affected by two attenuation components, namely small-scale Rayleigh fading, and large-scale path loss.

We use a discrete time queuing system to model the traffic profile, and segment the time axis into slots with equal duration. We assume all queuing activities, i.e., packet arrivals and departures, take place at each time slot. For a generic UE, we model its packet arrivals as independent Bernoulli processes with rates (packet/slot) [7, 9, 8]. We further assume that each node accumulates all incoming packets in an infinite-size buffer. At the beginning of any typical time slot, every node with a non-empty buffer initiates a transmission attempt. If the received signal-to-interference ratio (SIR) exceeds a predefined threshold, the transmission is successful and the packet can be removed from the queue, otherwise, the transmission fails and the packet remains in the buffer. We assume the feedback of each transmission, either success or fail, can be instantaneously aware by the SAPs such that they are able to schedule transmission at next time slot. Moreover, for those SAPs with empty buffers, they mute the transmissions to reduce power consumption and inter-cell interference.

In the following, we investigate two traffic scheduling protocols, i.e., random scheduling (RS) and round robin (RR), described as below [7]222For tractability purpose, the scheduling policy is applied with respect to all the UEs regardless of their queueing status [7]. In this fashion, the least amount of resource will be allocated to the active UEs (i.e., those UEs with non-empty queues) and the results derived in this paper are essentially upper bounds for the actual delay distribution in small cell networks..

Ii-1 Random Scheduling

During each time slot, every active SAP randomly selects one of its UEs to serve.

Ii-2 Round Robin

The SAPs arrange their UEs in a sequential order, and successively select one of the UEs to serve in each slot.

(6)



Iii Analysis

Iii-a Preliminaries

Iii-A1 Service Rate

Using the Slivnyak’s theorem [12], we can focus on a typical UE who locates at the origin and receives data from its tagged SAP at . The corresponding service rate at time slot can then be written as

(1)

where is the channel fading from SAP to the origin, is the path loss exponent, the SIR decoding threshold, and represents an indicator showing whether an SAP located at is transmitting at time slot (in this case, ) or not (in this case, ).

Due to the broadcast nature of wireless medium, the queuing status of each SAP is coupled with other transmitters and hence results in interacting queue [13]. Consequently, the SAP active state, , is both spatial and temporal dependent: The spatial locations determine how the SAPs interfere with each other, and the temporal traffic dynamic affects the queue evolution. Moreover, as a generic UE may see common interferencing SAPs in consecutive time slots, the system service rate is temporally correlated [14, 9, 15]. Such temporal correlation introduces memory to the queue and can highly complicate the analysis. In the following, we assume each link experiences independent service rate across time to maintain the mathematical tractability [9, 15].

Iii-A2 Mean Delay

In this paper, we adopt the mean delay, i.e., the average number of required slots for one successful packet transmission, as our performance metric. A formal definition is given as follows.

Definition 1

Let be the number of packets arrived at a typical transmitter within period , and be the number of time slots between the arrival of the -th packet and its successful delivery. The mean delay is defined as

(2)

Note that encapsulates the cross-network delay information as it is obtained by sampling at a random transmitter. Moreover, while

is defined via ergodic average, it is nevertheless a random variable because of the random service rate. Besides, the element

in (2) refers to the total amount of time that the -th packet is in the queuing system, both in the queue (caused by other accumulated unsent packets) and in the service (due to link failure and retransmission).

Iii-B Delay Analysis

This section details the main results of our work. First of all, we condition on the random service rate, and give an explicit form of the mean delay for RS protocol.

Lemma 1

Given the UE number , the arrival rate , and the service rate , the mean delay at a typical SAP under RS is given by

(3)

and the queue non-empty probability is given by

(4)
Proof:

See [7, 11] for a detail proof.

The distribution of mean delay under RS protocol can be readily derived.

Theorem 1

The cumulative distribution function (CDF) of the mean delay under RS is given by

(5)

where is given by the fixed-point equation (6) on top of this page, with , being the imaginary part of a complex number, and written as

(7)

whereas is the hypergeometry function [8].

Proof:

See [8] for a detail proof.

The function given in (6) can be solved via an iterative approach, and low-computational-complexity approximation is available to boost up the convergent speed [8].

In regard to the RR protocol, we notice that each UE is scheduled to access the wireless channel in deterministic pattern. Hence, by conditioning on the service rate, we obtain an explicit form of mean delay as below.

Lemma 2

Given the UE number , the arrival rate , and the service rate , the mean delay at a typical SAP under RR is given as

(8)

and the queue non-empty probability is given by

(9)
Proof:

See Appendix -A for a sketch of the proof.

With the above result, the distribution of mean delay under RR can be derived subsequently.

Theorem 2

The CDF of the mean delay under RR is given by

(10)

where is given by (6).

Proof:

The proof is similar to that of Theorem 1.

Remark 1

From Lemma 1 and Lemma 2, we note that when , there is . This observation confirms that RR outperforms RS in terms of delay regardless of traffic condition, which is in line with [7].

Remark 2

Take in the expressions of Theorem 1 and Theorem 2, we find that , i.e., the UEs that are able to success without retransmission form a probabilistic null set in small cell networks.

Remark 3

When , we have and , which reveals that the CDF of mean delay obeys fat tail property.

Iv Simulation and Numerical Results

Fig. 2: CDF of mean delay: Simulations vs Analysis.

We now give simulation results that validate the accuracy of our analysis, and numerical results to compare the performance of the employed scheduling schemes. Unless otherwise stated, we adopt the following system parameters [11, 7]: ,  dBm, ,  dB, , and .

In Fig. 2, we plot the CDF of mean delay under two different traffic statistics, namely, light traffic (where ) and heavy traffic (where ). The figure shows a close match between simulations and analytical results, thus validates Theorem 1 and Theorem 2. Moreover, it can be seen that RR attains smaller mean delay than RS in both light and heavy traffic regime, which is consistent with Remark 1. Additionally, we note that the gain from RR is more pronounced under heavy traffic condition. Because when traffic profile grows, not only more newly arrived packets will build up the buffer, that incurs longer queuing delay, but more severely, more idle SAPs are activated and hence increases the interference, which results in longer transmission delay. Under such circumstance, a scheduling protocol that regulates network inputs and grants each UE a fair service opportunity is critical for delay performance. Hence, compared to RS that provides only random channel access, RR is able to achieve much better gain in delay via regulated access control.

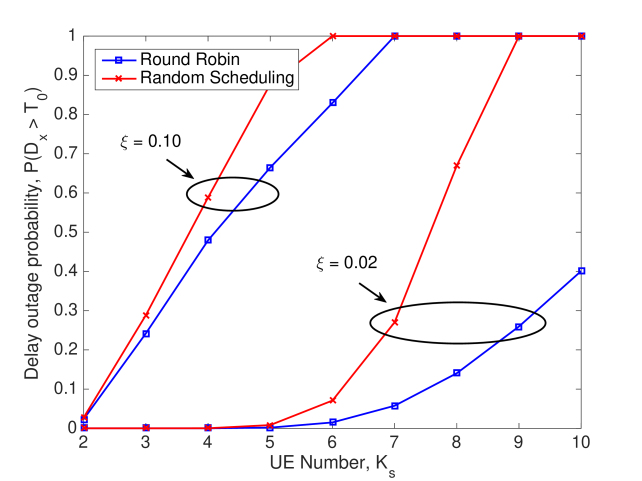

Fig. 3: Delay outage probability versus per-cell UE number.
