Degrees of Freedom of Holographic MIMO Channels

11/18/2019
by   Andrea Pizzo, et al.
0

This paper focuses on physically large spatially-continuous apertures, called holographic MIMO. Given the area limitation of the aperture, the limit on the available spatial degrees of freedom (DoF) is derived under isotropic propagation of electromagnetic waves. A linear-system theoretic interpretation of wave propagations reveals that the channel has a bandlimited spectrum. This is used in [1, 2] to approximate it with a Fourier plane-wave series representation that provides a simple and intuitive way to compute the DoF.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

09/21/2021

Nyquist-Sampling and Degrees of Freedom of Electromagnetic Fields

A signal-space approach is presented to study the Nyquist sampling and n...
04/16/2018

Area Rate Evaluation based on Spatial Clustering of massive MIMO Channel Measurements

Channel models for massive MIMO are typically based on matrices with com...
11/12/2019

Spatial Characterization of Holographic MIMO Channels

Imagine beings surrounded by continuous apertures that can emit and rece...
03/08/2021

Wave focusing and related multiple dispersion transitions in plane Poiseuille flows

Motivated by the recent discovery of a dispersive-to-nondispersive trans...
04/25/2020

A Relation Spectrum Inheriting Taylor Series: Muscle Synergy and Coupling for Hand

There are two famous function decomposition methods in math: 1) Taylor S...
05/04/2021

Holographic MIMO Communications

Imagine a MIMO communication system that fully exploits the propagation ...
12/14/2020

Holographic MIMO Communications Under Spatially-Stationary Scattering

Holographic MIMO is a spatially-constrained MIMO system with a massive n...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

A holographic MIMO (multiple-input multiple-output) system consists of a physically large antenna surface with (approximately) continuous aperture [3]. This concept is also known as extremely large aperture Massive MIMO [4], large intelligent surfaces [5, 6], and holographic beamforming [7].

In multiple-antenna channels, the channel capacity grows linearly with the number of spatial degrees of freedom (DoF) [8, 9, 10], which is therefore a key performance measure. Holographic MIMO represents the ultimate form of a spatially-constrained multiple-antenna channel where the number of antennas goes to infinity. A fundamental question thus arises: given an area limitation on the aperture, what are the available DoF of a holographic MIMO system? The statical models typically used in the MIMO literature are insufficient to answer this question [2]. Consider for example the uncorrelated Rayleigh fading model where the channel is statistically uncorrelated across all antenna pairs. In this case, increases unboundedly as [9]. However, as grows large in a given area, spatial correlation among antenna pairs naturally arises and therefore cannot increase indefinitely. This is analogous to a bandlimited waveform (time-domain) channel, given the bandwidth constraint and transmission interval , increasing the number of time samples will not increase the capacity indefinitely. The available DoF are fundamentally limited to [11].

To demonstrate an analogous result for multiple-antenna channels, statistical models driven by electromagnetic theory considerations are required [12]. To this end, a continuous formulation is somewhat preferable [13]. Results in this direction can be found in [5, 14, 15]. In [14], the authors study the reception of a monochromatic complex-valued electromagnetic field over a spherically-symmetric aperture (e.g., disk, ball) under a random non-line-of-sight (NLoS) propagation. The DoF are computed by means of a signal space approach, which follows directly from the reasoning involved to derive the Shannon formula. Particularly, a continuous series expansion of the electromagnetic random channel is obtained over an orthonormal basis with statistically uncorrelated coefficients, as for the famous Karhunen-Loève expansion [16]. The DoF are thus simply obtained by counting the average number of non-zero coefficients, and are found to grow with the surface area of the aperture rather than with its volume, measured in units of wavelength-squared. The extension to a more general non-monochromatic electromagnetic field is provided in [15]

and it is based on the celebrated Landau’s eigenvalue theorem

[17]. However, an explicit form for the basis is hardly available in general and often leads to non-trivial representations [14, 18, 15], which rely on special functions or unfamiliar subsidiary mathematical results.

A similar result was recently obtained in [5] by considering a monochromatic electromagnetic field over a rectangular aperture under a deterministic LoS propagation. Unlike [14, 15], this leads to a simple deterministic channel model, which is first used in [5] to evaluate the capacity normalized by the deployed area of the aperture, and then to compute the DoF. A more realistic random NLoS propagation environment is considered in [1, 2]

and leads to a Fourier plane-wave spectral representation of the random electromagnetic channel in Cartesian coordinates. Suitably discretized, this provides a Fourier plane-wave series representation of the channel of the form of an orthonormal series expansion with statistically-uncorrelated Gaussian-distributed coefficients. This can be regarded as the asymptotic version of the multivariate Karhunen-Loève series expansion

[16]. In this paper, we use the Fourier plane-wave series representation in [1, 2] to compute the average DoF of a holographic MIMO system, i.e, a large, but finite, spatially-continuous aperture.

(1)



(4)



2 Preliminaries

We begin by reviewing the basics of the analytical framework developed in [1, 2]. Consider electromagnetic waves propagation in every direction111The non-isotropic case is handled by observing that it is obtained from the isotropic case through a linear time-invariant filtering operation [1, 2]. through a homogeneous, isotropic, and infinite random scattered medium [1]. Under these settings, each of the three Cartesian components of the electrical field can be described independently by the scalar wave equation [19] and electromagnetic waves qualitatively behave as acoustic waves [1]. Hence, the channel over an infinitely large spatially-continuous aperture can be modeled as a Gaussian space-frequency scalar random field: , which is a function of frequency and spatial coordinates . We treat only monochromatic waves, i.e., propagating at the same frequency , which can thus be omitted. We assume that can be modeled as a zero-mean, spatially-stationary and Gaussian random field. This is a scenario of primary interest in wireless communications.

2.1 Fourier Spectral Representation

Every zero-mean, second-order, stationary Gaussian random waveform channel can be represented either in time domain or in frequency domain. The mapping between these two representations is the one-dimensional (1D)

Fourier spectral representation. Similarly, can be represented either in spatial domain or wavenumber (also known as spatial-frequency) domain, which represent the time and frequency counterparts, respectively. The spatial-wavenumber mapping is given by the 3D Fourier spectral representation in (1) where are the real-valued Cartesian coordinates in the wavenumber domain,

is a zero-mean stationary white-noise Gaussian random field with unit spectrum, and

is the power spectral density. The latter has a key role between the two domains, as shown next. Notice that (1) can be regarded as a superposition of an uncountably-infinite number of plane-waves each one having statistically-independent Gaussian-distributed random amplitude [1, 2]. The condition excludes the so-called evanescent waves, which decay exponentially fast in space and do not contribute to the far-field propagation.

2.2 Fourier Plane-Wave Spectral Representation

Since

is a Gaussian spatial random field of electromagnetic nature, each of its realizations needs to satisfy, with probability

, the so-called homogeneous Helmholtz equation where is the wavenumber with being the wavelength. As a direct consequence of the Helmholtz equation, we have that [1, 2]

(2)

which is an impulsive function with wavenumber support on the surface of a sphere of radius . Its impulsive nature makes it hard the direct computation of (1) since the square-root of an impulsive function is not defined. This is addressed in [1, 2] and yields a 2D Fourier plane-wave spectral representation of where are defined in (4) and are two 2D independent, zero-mean, complex-valued, white-noise Gaussian random fields. The “plane-wave” terminology refers to the fact that and represent a decomposition of the channel in terms of an uncountably infinite number of plane-waves that are spatially propagating in the half-spaces and , respectively. Notice that has bandlimited spectrum in the wavenumber domain since the coordinates in have a compact support given by a disk of radius centered on the origin, as illustrated in Fig. 1. In other words, only a subset of plane-waves in (1) effectively propagate. These are called propagating waves. This is a direct consequence of the Helmholtz equation, which thus acts as a 2D linear space-time invariant physical filter. Notice that the plane-waves associated with the propagation directions outside the disk would be associated with evanescent waves.

In [1, 2], the above results are used to derive a Fourier series representation that well approximates over large, but finite, spatially-constrained continuous apertures. This is reviewed next.

Figure 1: Propagating and evanescent plane-waves.

2.3 Fourier Plane-Wave Series Representation

Consider a compact spatially-continuous rectangular aperture with side lengths . The channel energy collected over the finite spatial volume is contained in a countably infinite number of plane-waves; see Fig. 1. Therefore, (4) can be replaced by a 2D Fourier plane-wave series representation with periods and along the and axes [2]. Since the channel spectra is bandlimited, only a countably finite number of plane-waves propagate through space (i.e., propagating waves). Within the fundamental period, the following approximation is found for :

(5)

where the discrete spectral support is a 2D lattice ellipse of semi-axes and and the Fourier coefficients are

(6)

where and

are statistically-independent Gaussian-distributed random variables with variances

computed in [2]. Notice that the approximation error of (5) becomes negligible as . At carrier frequency  GHz (i.e.,  cm), an aperture length of  m already provides , which increases to at  GHz (i.e.,  cm). This means that (5) is a good approximation in practice.

3 Channel Degrees of Freedom

We now use (5) to compute the DoF of linear, planar and volumetric continuous apertures. Before this, we review the reasoning involved to derive the formula [11].

Consider a bandlimited waveform channel of bandwidth and time interval . The Shannon-Nyquist sampling theorem states that we can approximate as a linear combination of a countably finite number of elements of the cardinal basis of functions with coefficients collected inside the time interval and equally spaced by :

(7)

where the approximation error becomes negligible as . The limit can be seen as going to infinity while going to zero, but has a higher convergence speed such that . This is because physics-based signals are of limited energy and thus subject to the phenomena of spectral concentration [12] under which as increases the effective bandwidth gets smaller and smaller. As a consequence, the available DoF are limited to a finite non-zero value

(8)

which is the product between time interval duration and the frequency bandwidth . Notably, (5) and (7) are two bandlimited orthonormal series expansion having a countably-finite number of coefficients, whose cardinality determines the space dimension, i.e., the available DoF.

3.1 Linear Aperture

Assume is a line segment of length along the axis. The Fourier series expansion (5) may be rewritten as

(9)

where is the 1D Fourier basis and are the statistically-independent Gaussian Fourier coefficients. The average available DoF are

(10)

given by the product between the aperture length and the wavenumber . From Fig. 1, it follows that in the 1D case; that is, represents the wavenumber bandwidth. Therefore, (10) is the spatial-wavenumber counterpart of (8) where the time interval and angular frequency bandwidth are replaced with and , respectively.

3.2 Planar Aperture

Assume is a rectangle of side lengths and on the plane. The Fourier series representation in (5) reads

(11)

where is the 2D Fourier basis, and is the th Fourier coefficient defined over the discrete spectral support . The available DoF are simply the measure of the lattice wavenumber support, which is given by with [20]. Therefore, we have that

(12)

which is proportional to the surface area of the aperture measured in units of wavelength-squared. From (10), one may expect that the expansion of a 1D aperture into a 2D aperture may yield DoF. However, this is not the case. The DoF are reduced by a factor , which is exactly the ratio between the areas of the disk and the square circumscribing it. This is due to the fact that evanescent waves are not included in our analysis; see Fig. 1.

3.3 Volumetric Aperture

When is a parallelepiped of side lengths , , and , the Fourier series expansion at any is given by (11) by replacing the th Fourier coefficient with [2]. In this case, it is more convenient to proceed as follows [16]. By collecting the samples along , i.e.,

, we obtain a single random vector

given by, for and

(13)

where is obtained from by a linear application matrix

(14)

The available DoF are given by the product between the space dimension spanned by the 2D Fourier basis – as given in (12) – and the vector space dimension spanned by . This is given by , since the two columns of are linearly independent regardless of . Thus, the DoF are

(15)

As for the 2D case, the DoF are proportional to , and not to the volume of . Hence, the expansion of a planar aperture into a volume aperture asymptotically yields only a two-fold increase in the available DoF. This is because the upper and lower hemispheres of the spherical wavenumber support can be independently parametrized on the disk [2, Fig. 2(a)], which brings us back to the 2D case. Compared to the DoF obtained for a volumetric deployment in [5, Sec. III.C], the only difference is a factor . This is because in LoS propagation the plane-waves impinge on the aperture from only one of the two half-spaces where the aperture is located.

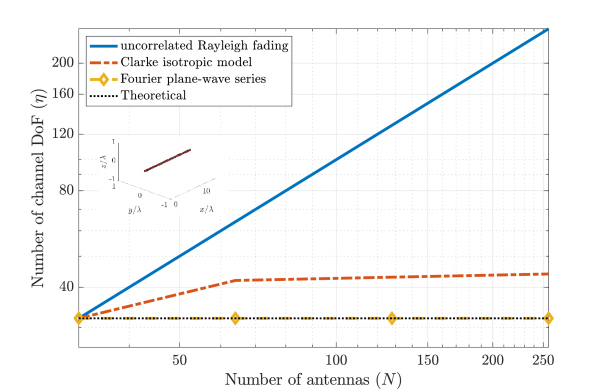

Figure 2: DoF as a function of for a linear aperture.

4 Numerical results

Numerical results are now used to validate the accuracy of the analytical framework for apertures of relatively small size. We approximate the continuous aperture by discretizing its spatial domain on a grid of points with spacing . The channel samples generated by sampling (9), (11), and (13) for any are collected into . The uncorrelated Rayleigh fading model [9, 10] and the Clarke’s model [21, 22] are also considered. In both cases, is generated through the discrete Karhunen-Loève representation; that is, where , and is the spatial correlation matrix. With uncorrelated Rayleigh fading, . With the Clarke’s model, it is a block-Toeplitz matrix with entries with that is obtained by sampling the spatial autocorrelation function between antenna locations and [2].

The DoF are numerically evaluated by generating an ensemble of random vectors

and averaging the number of linear independent vectors enclosed within this ensemble. We begin by considering a linear aperture with

. Fig. 2 illustrates the DoF as a function of . As increases, reduces and the array approaches a continuous aperture. The results show that the DoFs are a monotonically non-decreasing function of . With uncorrelated Rayleigh fading, grows linearly with since the channel samples are uncorrelated across all antenna. On the contrary, is limited to (10) for the channel samples obtained through the Fourier plane-wave series representation. The Clarke’s model shows a similar behavior with a smoother transition region for the channel eigenvalues due to the different numerical generation method for the channel samples. The practical relevance of the results in Fig. 2 is that they tell us the right number of antennas to be deployed on an aperture of size . Similar results are found when considering higher dimensional apertures and their limits (12) and (15). This is illustrated in Figs. 3 and 4 for the 2D and 3D cases, respectively.

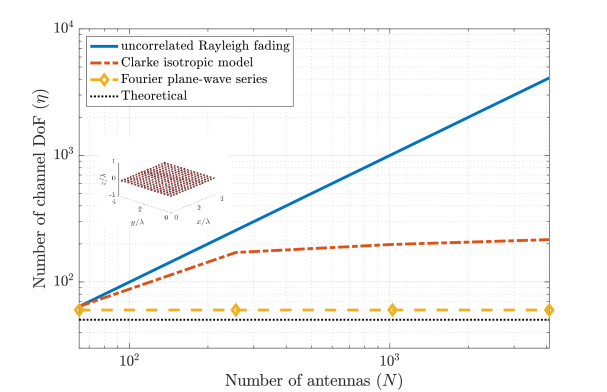

Figure 3: DoF as a function of for a planar aperture.
Figure 4: DoF as a function of for a volume aperture.

5 Conclusions

A random electromagnetic isotropic channel generates, over a spatially-contained continuous aperture, a number of DoF that is proportional to the surface area, measured in units of wavelength-squared. We obtained this result by using a Fourier plane-wave series expansion of the channel, which yields the optimal number of antennas to be deployed under isotropic propagation. This treatment can be extended to include transmit side as well as non-isotropic propagation [2].

References

  • [1] T. L. Marzetta, “Spatially-stationary propagating random field model for Massive MIMO small-scale fading,” in 2018 IEEE Int. Symposium Inf. Theory (ISIT), June 2018, pp. 391–395.
  • [2] A. Pizzo, T. L. Marzetta, and L. Sanguinetti, “Spatial characterization of Holographic MIMO channels,” CoRR, vol. abs/1911.04853, 2019.
  • [3] E. Björnson, L. Sanguinetti, H. Wymeersch, J. Hoydis, and T. L. Marzetta, “Massive MIMO is a reality—What is next? Five promising research directions for antenna arrays,” Digital Signal Processing, 2019, to appear.
  • [4] A. Amiri, M. Angjelichinoski, E. de Carvalho, and R. W. Heath, “Extremely large aperture massive MIMO: Low complexity receiver architectures,” in IEEE Global Communications Conference Workshops (GLOBECOM Workshops), 2018.
  • [5] S. Hu, F. Rusek, and O. Edfors, “Beyond Massive MIMO: The potential of data transmission with large intelligent surfaces,” IEEE Transactions on Signal Processing, vol. 66, no. 10, pp. 2746–2758, May 2018.
  • [6] M. Di Renzo, M. Debbah, D.-T. Phan-Huy, A. Zappone, M.-S. Alouini, C. Yuen, V. Sciancalepore, G. C. Alexandropoulos, J. Hoydis, H. Gacanin, J. de Rosny, A. Bounceu, G. Lerosey, and M. Fink, “Smart radio environments empowered by reconfigurable AI meta-surfaces: an idea whose time has come,” EURASIP Journal on Wireless Communications and Networking, vol. 2019:129, 2019.
  • [7] E. J. Black, “Holographic beam forming and MIMO,” Pivotal Commware, Tech. Rep., 2017., 2017.
  • [8] David Tse and Pramod Viswanath, Fundamentals of Wireless Communication, Cambridge University Press, 2005.
  • [9] Emre Telatar, “Capacity of multi-antenna gaussian channels,” European Transactions on Telecommunications, vol. 10, no. 6, pp. 585–595, 1999.
  • [10] G. J. Foschini and M.J. Gans, “On limits of wireless communications in a fading environment when using multiple antennas,” Wireless Personal Communications, vol. 6, no. 3, pp. 311–335, Mar 1998.
  • [11] C. E. Shannon, “The mathematical theory of communication,” Bell System Technical Journal, vol. 27, no. 3, pp. 379–423, 1948.
  • [12] Massimo Franceschetti, Wave Theory of Information, Cambridge University Press, 2017.
  • [13] A. B. Baggeroer, “Space/time random processes and optimum array processing,” Tech. Rep. ADA035593, Naval Undersea Center, San Diego (CA), Apr. 1976.
  • [14] A. S. Y. Poon, R. W. Brodersen, and D. N. C. Tse, “Degrees of freedom in multiple-antenna channels: a signal space approach,” IEEE Trans. Inf. Theory, vol. 51, no. 2, pp. 523–536, Feb 2005.
  • [15] M. Franceschetti, “On Landau’s eigenvalue theorem and information cut-sets,” IEEE Trans. Inf. Theory, vol. 61, no. 9, pp. 5042–5051, Sept 2015.
  • [16] H. L. Van Trees,

    Detection Estimation and Modulation Theory, Part I

    ,
    Wiley, 1968.
  • [17] H. J. Landau, “On szegö’s eingenvalue distribution theorem and non-hermitian kernels,” Journal d’Analyse Mathématique, vol. 28, no. 1, pp. 335–357, Dec 1975.
  • [18] H. J. Landau and H. O. Pollak, “Prolate spheroidal wave functions, fourier analysis and uncertainty — ii,” Bell System Technical Journal, vol. 40, no. 1, pp. 65–84, 1961.
  • [19] W. C. Chew, Waves and Fields in Inhomogenous Media, Wiley-IEEE Press, 1995.
  • [20] Ekkehard Krätzel, Lattice Points, Springer Netherlands, 1989.
  • [21] R. H. Clarke, “A statistical theory of mobile-radio reception,” The Bell System Technical Journal, vol. 47, no. 6, pp. 957–1000, July 1968.
  • [22] T. Aulin, “A modified model for the fading signal at a mobile radio channel,” IEEE Trans. Veh. Technol., vol. 28, no. 3, pp. 182–203, Aug 1979.
