DeepAR: Probabilistic Forecasting with Autoregressive Recurrent Networks

04/13/2017 ∙ by Valentin Flunkert, et al. ∙ Amazon 0

A key enabler for optimizing business processes is accurately estimating the probability distribution of a time series future given its past. Such probabilistic forecasts are crucial for example for reducing excess inventory in supply chains. In this paper we propose DeepAR, a novel methodology for producing accurate probabilistic forecasts, based on training an auto-regressive recurrent network model on a large number of related time series. We show through extensive empirical evaluation on several real-world forecasting data sets that our methodology is more accurate than state-of-the-art models, while requiring minimal feature engineering.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Forecasting plays a key role in automating and optimizing operational processes in most businesses and enables data driven decision making. In retail for example, probabilistic forecasts of product supply and demand can be used for optimal inventory management, staff scheduling and topology planning Larson et al. (2001), and are more generally a crucial technology for most aspects of supply chain optimization.

The prevalent forecasting methods in use today have been developed in the setting of forecasting individual or small groups of time series. In this approach, model parameters for each given time series are independently estimated from past observations. The model is typically manually selected to account for different factors, such as autocorrelation structure, trend, seasonality, and other explanatory variables. The fitted model is then used to forecast the time series into the future according to the model dynamics, possibly admitting probabilistic forecasts through simulation or closed-form expressions for the predictive distributions. Many methods in this class are based on the classical Box-Jenkins methodology (Box and Jenkins, 1968), exponential smoothing techniques, or state space models (Hyndman et al., 2008; Seeger et al., 2016).

In recent years, a new type of forecasting problem has become increasingly important in many applications. Instead of needing to predict individual or a small number of time series, one is faced with forecasting thousands or millions of related time series. Examples include forecasting the energy consumption of individual households, forecasting the load for servers in a data center, or forecasting the demand for all products that a large retailer offers. In all these scenarios, a substantial amount of data on past behavior of similar, related time series can be leveraged for making a forecast for an individual time series. Using data from related time series not only allows fitting more complex (and hence potentially more accurate) models without overfitting, it can also alleviate the time and labor intensive manual feature engineering and model selection steps required by classical techniques.

In this work we present DeepAR, a forecasting method based on autoregressive recurrent networks, which learns such a global model from historical data of all time series in the data set. Our method builds upon previous work on deep learning for time series data Graves (2013); Sutskever et al. (2014); van den Oord et al. (2016), and tailors a similar LSTM-based recurrent neural network architecture to the probabilistic forecasting problem.

One challenge often encountered when attempting to jointly learn from multiple time series in real-world forecasting problems is that the magnitudes of the time series differ widely, and the distribution of the magnitudes is strongly skewed. This issue is illustrated in Fig.

1,

Figure 1: Log-log histogram of the number of items versus number of sales for the 500K time series of ec, showing the scale-free nature (approximately straight line) present in the ec dataset (axis labels omitted due to the non-public nature of the data).

which shows the distribution of sales velocity (i.e. average weekly sales of an item) across millions of items sold by Amazon. The distribution is over a few orders of magnitude an approximate power-law. This observation is to the best of our knowledge new (although maybe not surprising) and has fundamental implications for forecasting methods that attempt to learn global models from such datasets. The scale-free nature of the distribution makes it difficult to divide the data set into sub-groups of time series with a certain velocity band and learn separate models for them, as each such velocity sub-group would have a similar skew. Further, group-based regularization schemes, such as the one proposed by Chapados (2014)

, may fail, as the velocities will be vastly different within each group. Finally, such skewed distributions make the use of certain commonly employed normalization techniques, such input standardization or batch normalization

Ioffe and Szegedy (2015), less effective.

The main contributions of the paper are twofold: (1) we propose an RNN architecture for probabilistic forecasting, incorporating a negative Binomial likelihood for count data as well as special treatment for the case when the magnitudes of the time series vary widely; (2) we demonstrate empirically on several real-world data sets that this model produces accurate probabilistic forecasts across a range of input characteristics, thus showing that modern deep learning-based approaches can effective address the probabilistic forecasting problem, which is in contrast to common belief in the field and the mixed results reported in (Zhang et al., 1998; Kourentzes, 2013).

In addition to providing better forecast accuracy than previous methods, our approach has a number key advantages compared to classical approaches and other global methods: (i) As the model learns seasonal behavior and dependencies on given covariates across time series, minimal manual feature engineering is needed to capture complex, group-dependent behavior; (ii) DeepAR makes probabilistic forecasts in the form of Monte Carlo samples that can be used to compute consistent quantile estimates for all sub-ranges in the prediction horizon; (iii) By learning from similar items, our method is able to provide forecasts for items with little or no history at all, a case where traditional single-item forecasting methods fail; (vi) Our approach does not assume Gaussian noise, but can incorporate a wide range of likelihood functions, allowing the user to choose one that is appropriate for the statistical properties of the data.

Points (i) and (iii) are what set DeepAR apart from classical forecasting approaches, while (ii) and (iv) pertain to producing accurate, calibrated forecast distributions learned from the historical behavior of all of the time series jointly, which is not addressed by other global methods (see Sec. 2

). Such probabilistic forecasts are of crucial importance in many applications, as they—in contrast to point forecasts—enable optimal decision making under uncertainty by minimizing risk functions, i.e. expectations of some loss function under the forecast distribution.

2 Related Work

Due to the immense practical importance of forecasting, a vast variety of different forecasting methods have been developed. Prominent examples of methods for forecasting individual time series include ARIMA models Box and Jenkins (1968) and exponential smoothing methods; Hyndman et al. (2008) provide a unifying review of these and related techniques.

Especially in the demand forecasting domain, one is often faced with highly erratic, intermittent or bursty data which violate core assumptions of many classical techniques, such as Gaussian errors, stationarity, or homoscedasticity of the time series. Since data preprocessing methods (e.g. Box and Cox (1964)

) often do not alleviate these conditions, forecasting methods have also incorporated more suitable likelihood functions, such as the zero-inflated Poisson distribution, the negative binomial distribution

Snyder et al. (2012), a combination of both Chapados (2014), or a tailored multi-stage likelihood Seeger et al. (2016).

Sharing information across time series can improve the forecast accuracy, but is difficult to accomplish in practice, because of the often heterogeneous nature of the data. Matrix factorization methods (e.g. the recent work of Yu et al. (2016)), as well as Bayesian methods that share information via hierarchical priors Chapados (2014) have been proposed as mechanisms for learning across multiple related time series and leveraging hierarchical structure Hyndman et al. (2011).

Neural networks have been investigated in the context of forecasting for a long time (see e.g. the numerous references in the survey Zhang et al. (1998), or Gers et al. (2001) for more recent work considering LSTM cells). More recently, Kourentzes (2013) applied neural networks specifically to intermittent data but obtained mixed results. Neural networks in forecasting have been typically applied to individual time series, i.e. a different model is fitted to each time series independently Kaastra and Boyd (1996); Ghiassi et al. (2005); Díaz-Robles et al. (2008)

. On the other hand, outside of the forecasting community, time series models based on recurrent neural networks have been very successfully applied to other applications, such as natural language processing

Graves (2013); Sutskever et al. (2014), audio modeling van den Oord et al. (2016) or image generation Gregor et al. (2015). Two main characteristics make the forecasting setting that we consider here different: First, in probabilistic forecasting one is interested in the full predictive distribution, not just a single best realization, to be used in downstream decision making systems. Second, to obtain accurate distributions for (unbounded) count data, we use a negative Binomial likelihood, which improves accuracy but precludes us from directly applying standard data normalization techniques.

3 Model

*

Figure 2: Summary of the model. Training (left): At each time step , the inputs to the network are the covariates , the target value at the previous time step , as well as the previous network output . The network output is then used to compute the parameters of the likelihood , which is used for training the model parameters. For prediction, the history of the time series is fed in for , then in the prediction range (right) for a sample is drawn and fed back for the next point until the end of the prediction range generating one sample trace. Repeating this prediction process yields many traces representing the joint predicted distribution.

Denoting the value of time series at time by , our goal is to model the conditional distribution

of the future of each time series given its past , where denotes the time point from which we assume to be unknown at prediction time, and are covariates that are assumed to be known for all time points. To prevent confusion we avoid the ambiguous terms “past” and “future” and will refer to time ranges and as the conditioning range and prediction range, respectively. During training, both ranges have to lie in the past so that the are observed, but during prediction is only available in the conditioning range. Note that the time index is relative, i.e.  can correspond to a different actual time period for each .

Our model, summarized in Fig. 2, is based on an autoregressive recurrent network architecture Graves (2013); Sutskever et al. (2014). We assume that our model distribution consists of a product of likelihood factors

parametrized by the output of an autoregressive recurrent network

(1)

where is a function implemented by a multi-layer recurrent neural network with LSTM cells.111Details of the architecture and hyper-parameters are given in the supplementary material. The model is autoregressive, in the sense that it consumes the observation at the last time step as an input, as well as recurrent, i.e. the previous output of the network is fed back as an input at the next time step. The likelihood is a fixed distribution whose parameters are given by a function of the network output (see below).

Information about the observations in the conditioning range is transferred to the prediction range through the initial state . In the sequence-to-sequence setup, this initial state is the output of an encoder network. While in general this encoder network can have a different architecture, in our experiments we opt for using the same architecture for the model in the conditioning range and the prediction range (corresponding to the encoder and decoder in a sequence-to-sequence model). Further, we share weights between them, so that the initial state for the decoder is obtained by computing (1) for , where all required quantities are observed. The initial state of the encoder as well as are initialized to zero.

Given the model parameters , we can directly obtain joint samples through ancestral sampling: First, we obtain by computing (1) for . For we sample where initialized with and . Samples from the model obtained in this way can then be used to compute quantities of interest, e.g. quantiles of the distribution of the sum of values for some time range in the future.

3.1 Likelihood model

The likelihood determines the “noise model”, and should be chosen to match the statistical properties of the data. In our approach, the network directly predicts all parameters (e.g. mean andvariance) of the probability distribution for the next time point.

For the experiments in this paper, we consider two choices, Gaussian likelihood for real-valued data, and negative-binomial likelihood for positive count data. Other likelihood models can also readily be used, e.g. beta likelihood for data in the unit interval, Bernoulli likelihood for binary data, or mixtures in order to handle complex marginal distributions, as long as samples from the distribution can cheaply be obtained, and the log-likelihood and its gradients wrt. the parameters can be evaluated. We parametrize the Gaussian likelihood using its mean and standard deviation,

, where the mean is given by an affine function of the network output, and the standard deviation is obtained by applying an affine transformation followed by a softplus activation in order to ensure :

For modeling time series of positive count data, the negative binomial distribution is a commonly used choice Snyder et al. (2012); Chapados (2014). We parameterize the negative binomial distribution by its mean and a shape parameter ,

where both parameters are obtained from the network output by a fully-connected layer with softplus activation to ensure positivity. In this parameterization of the negative binomial distribution the shape parameter scales the variance relative to the mean, i.e. . While other parameterizations are possible, we found this particular one to be especially conducive to fast convergence in preliminary experiments.

3.2 Training

Given a data set of time series and associated covariates , obtained by choosing a time range such that in the prediction range is known, the parameters of the model, consisting of the parameters of the RNN as well as the parameters of , can be learned by maximizing the log-likelihood

(2)

As is a deterministic function of the input, all quantities required to compute (2) are observed, so that—in contrast to state space models with latent variables—no inference is required, and (2

) can be optimized directly via stochastic gradient descent by computing gradients with respect to

. In our experiments, where the encoder model is the same as the decoder, the distinction between encoder and decoder is somewhat artificial during training, so that we also include the likelihood terms for in (2) (or, equivalently, set ).

For each time series in the dataset, we generate multiple training instances by selecting windows with different starting points from the original time series. In practice, we keep the total length as well as the relative length of the conditioning and prediction ranges fixed for all training examples. For example, if the total available range for a given time series ranges from 2013-01-01 to 2017-01-01, we can create training examples with corresponding to 2013-01-01, 2013-01-02, 2013-01-03, and so on. When choosing these windows we ensure that entire prediction range is always covered by the available ground truth data, but we may chose to lie before

the start of the time series, e.g. 2012-12-01 in the example above, padding the unobserved target with zeros. This allows the model to learn the behavior of “new” time series taking into account all other available features. By augmenting the data using this windowing procedure, we ensure that information about absolute time is only available to the model through covariates, but not through the relative position of

in the time series.

Bengio et al. (2015) noted that, due to the autoregressive nature of such models, optimizing (2) directly causes a discrepancy between how the model is used during training and when obtaining predictions from the model: during training, the values of are known in the prediction range and can be used to compute ; during prediction however, is unknown for , and a single sample from the model distribution is used in the computation of according to (1) instead. While it has been shown that this disconnect poses a severe problem for e.g. NLP tasks, we have not observed adverse effects from this in the forecasting setting. Preliminary experiments with variants of scheduled sampling (Bengio et al., 2015) did not show any significant accuracy improvements (but slowed convergence).

3.3 Scale handling

Applying the model to data that exhibits a power-law of scales as depicted in Fig. 1 presents two challenges. Firstly, due to the autoregressive nature of the model, both the autoregressive input as well as the output of the network (e.g. ) directly scale with the observations , but the non-linearities of the network in between have a limited operating range. Without further modifications, the network thus has to learn to scale the input to an appropriate range in the input layer, and then to invert this scaling at the output. We address this issue by dividing the autoregressive inputs (or ) by an item-dependent scale factor , and conversely multiplying the scale-dependent likelihood parameters by the same factor. For instance, for the negative binomial likelihood we use and where , are the outputs of the network for these parameters. Note that while for real-valued data one could alternatively scale the input in a preprocessing step, this is not possible for count distributions. Choosing an appropriate scale factor might in itself be challenging (especially in the presence of missing data or large within-item variances). However, scaling by the average value

, as we do in our experiments, is a heuristic that works well in practice.

Secondly, due to the imbalance in the data, a stochastic optimization procedure that picks training instances uniformly at random will visit the small number time series with a large scale very infrequently, which result in underfitting those time series. This could be especially problematic in the demand forecasting setting, where high-velocity items can exhibit qualitatively different behavior than low-velocity items, and having an accurate forecast for high-velocity items might be more important for meeting certain business objectives. To counteract this effect, we sample the examples non-uniformly during training. In particular, in our weighted sampling scheme, the probability of selecting a window from an example with scale is proportional to . This sampling scheme is simple, yet effectively compensates for the skew in Fig. 1.

3.4 Features

The covariates can be item-dependent, time-dependent, or both.222Covariates that do not depend on time are handled by repeating them along the time dimension. They can be used to provide additional information about the item or the time point (e.g. week of year) to the model. They can also be used to include covariates that one expects to influence the outcome (e.g. price or promotion status in the demand forecasting setting), as long as the features’ values are available also in the prediction range.

Figure 3: Example time series of ec

. The vertical line separates the conditioning period from the prediction period. The black line shows the true target. In the prediction range we plot the p50 as a blue line (mostly zero for the three slow items) and the 80% confidence interval (shaded). The model learns accurate seasonality patterns and uncertainty estimates for items of different velocity and age.

In all experiments we use an “age” feature, i.e., the distance to the first observation in that time series. We also add day-of-the-week and hour-of-the-day for hourly data, week-of-year for weekly data and month-of-year for monthly data.333

Instead of using dummy variables to encode these, we simply encode them as increasing numeric values.

Further, we include a single categorical item feature, for which an embedding is learned by the model. In the retail demand forecasting data sets, the item feature corresponds to a (coarse) product category (e.g. “clothing”), while in the smaller data sets it corresponds to the item’s identity, allowing the model to learn item-specific behavior. We standardize all covariates to have zero mean and unit variance.

4 Applications and Experiments

We implement our model using MXNet, and use a single p2.xlarge AWS instance containing 4 CPUs and 1 GPU to run all experiments. On this hardware, a full training & prediction run on the large ec dataset containing 500K time series can be completed in less than 10 hours. While prediction is already fast, is can easily parallelized if necessary. A description of the (simple) hyper-parameter tuning procedure, the obtained hyper-parameter values, as well as statistics of datasets and running time are given in supplementary material.

Datasets – We use five datasets for our evaluations. The first three–parts, electricity, and traffic–are public datasets; parts consists of 1046 aligned time series of 50 time steps each, representing monthly sales for different items of a US automobile company Seeger et al. (2016); electricity contains hourly time series of the electricity consumption of 370 customers Yu et al. (2016); traffic, also used in Yu et al. (2016), contains the hourly occupancy rate, between 0 and 1, of 963 car lanes of San Francisco bay area freeways. For the parts dataset, we use the 42 first months as training data and report error on the remaining 8. For electricity we train with data between 2014-01-01 and 2014-09-01, for traffic we train all the data available before 2008-06-15. The results for electricity and traffic are computed using rolling window predictions done after the last point seen in training as described in Yu et al. (2016). We do not retrain our model for each window, but use a single model trained on the data before the first prediction window. The remaining two datasets ec and ec-sub are weekly item sales from Amazon used in Seeger et al. (2016). We predict 52 weeks and evaluation is done on the year following 2014-09-07. The time series in these two datasets are very diverse and erratic, ranging from very fast to very slow moving items, and contains “new” products introduced in the weeks before the forecast time 2014-09-07, see Fig. 3. Further, item velocities in this data set have a power-law distribution, as shown in Fig. 1.

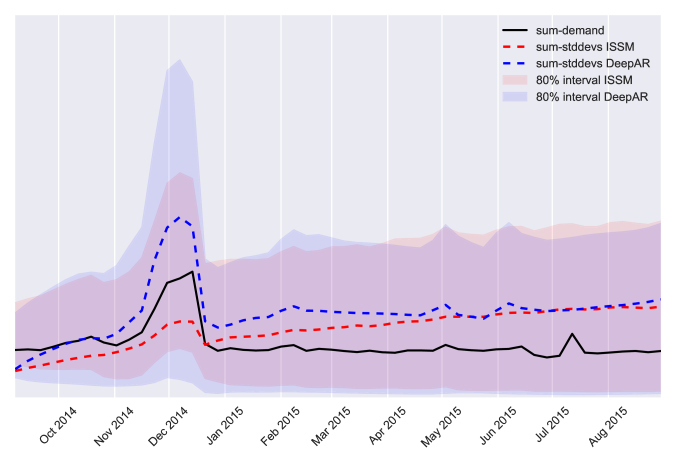

Figure 4: Uncertainty growth over time for ISSM and DeepAR models. Unlike the ISSM, which postulates a linear growth of uncertainty, the behavior of uncertainty is learned from the data, resulting in a non-linear growth with a (plausibly) higher uncertainty around Q4. The aggregate is calculated over the entire ec dataset.
Figure 5: Coverage for two spans on the ec-sub dataset. The left panel shows the coverage for a single time-step interval, while the right panel shows these metrics for a larger time interval with 9 time-steps. When correlation in the prediction sample paths is destroyed by shuffling the samples for each time step, correlation is destroyed and the forecast becomes less calibrated. This shuffled prediction also has a 10% higher -risk.
-risk -risk average
parts
all(8) all(8) average
Snyder (baseline) 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Croston 1.47 1.70 2.86 1.83 - - - - 1.97
ISSM 1.04 1.07 1.24 1.06 1.01 1.03 1.14 1.06 1.08
ETS 1.28 1.33 1.42 1.38 1.01 1.03 1.35 1.04 1.23
rnn-gaussian 1.17 1.49 1.15 1.56 1.02 0.98 1.12 1.04 1.19
rnn-negbin 0.95 0.91 0.95 1.00 1.10 0.95 1.06 0.99 0.99
DeepAR 0.98 0.91 0.91 1.01 0.90 0.95 0.96 0.94 0.94
ec-sub
(3, 12) all(33) (3, 12) all(33) average
Snyder 1.04 1.18 1.18 1.07 1.0 1.25 1.37 1.17 1.16
Croston 1.29 1.36 1.26 0.88 - - - - 1.20
ISSM (baseline) 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
ETS 0.83 1.06 1.15 0.84 1.09 1.38 1.45 0.74 1.07
rnn-gaussian 1.03 1.19 1.24 0.85 0.91 1.74 2.09 0.67 1.21
rnn-negbin 0.90 0.98 1.11 0.85 1.23 1.67 1.83 0.78 1.17
DeepAR 0.64 0.74 0.93 0.73 0.71 0.81 1.03 0.57 0.77
ec
(3, 12) all(33) (3, 12) all(33) average
Snyder 0.87 1.06 1.16 1.12 0.94 1.09 1.13 1.01 1.05
Croston 1.30 1.38 1.28 1.39 - - - - 1.34
ISSM (baseline) 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
ETS 0.77 0.97 1.07 1.23 1.05 1.33 1.37 1.11 1.11
rnn-gaussian 0.89 0.91 0.94 1.14 0.90 1.15 1.23 0.90 1.01
rnn-negbin 0.66 0.71 0.86 0.92 0.85 1.12 1.33 0.98 0.93
DeepAR 0.59 0.68 0.99 0.98 0.76 0.88 1.00 0.91 0.85
Table 1: Accuracy metrics relative to the strongest previously published method (baseline). Best results are marked in bold (lower is better).

4.1 Accuracy comparison

For the parts and ec/ec-sub datasets we compare with the following baselines which represent the state-of-the-art on demand integer datasets to the best of our knowledge:

  • Croston: the Croston method developed for intermittent demand forecasting from R package (Hyndman and Khandakar, 2008)

  • ETS: the ETS model (Hyndman et al., 2008) from R package with automatic model selection. Only additive models are used as multiplicative models shows numerical issues on some time series.

  • Snyder the negative-binomial autoregressive method of (Snyder et al., 2012)

  • ISSM the method of (Seeger et al., 2016) using an innovative state space model with covariates features

In addition, we compare to two baseline RNN models to see the effect of our contributions:

  • rnn-gaussian uses the same architecture as DeepAR with a Gaussian likelihood; however, it uses uniform sampling, and a simpler scaling mechanism, where time series are divided by and outputs are multiplied by

  • rnn-negbin uses a negative binomial distribution, but does not scale inputs and outputs of the RNN and training instances are drawn uniformly rather than using weighted sampling.

As in (Seeger et al., 2016), we use -risk metrics (quantile loss) that quantify the accuracy of a quantile of the predictive distribution; the exact definition of these metric is given in supplementary material. The metrics are evaluated for a certain spans in the prediction range, where is a lead time after the forecast start point. Table 1 shows the -risk and -risk and for different lead times and spans. Here all(K) denotes the average risk of the marginals for . We normalize all reported metrics with respect to the strongest previously published method (baseline). DeepAR performs significantly better than all other methods on these datasets. The results also show the importance of modeling these data sets with a count distribution, as rnn-gaussian performs significantly worse. The ec and ec-sub data sets exhibit the power law behavior discussed above, and without scaling and weighted sampling accuracy is decreased (rnn-negbin). On the parts data set, which does not exhibit the power-law behavior, rnn-negbin performs similar to DeepAR.

electricity traffic
ND RMSE ND RMSE
MatFact 0.16 1.15 0.20 0.43
DeepAR 0.07 1.00 0.17 0.42
Table 2: Comparison with MatFact

In Table 2 we compare point forecast accuracy on the electricity and traffic datasets against the matrix factorization technique (MatFact) proposed in Yu et al. (2016). We consider the same metrics namely Normalized Deviation (ND) and Normalized RMSE (NRMSE) whose definition are given in the supplementary material. The results show that DeepAR outperforms MatFact on both datasets.

4.2 Qualitative analysis

Figure 3 shows example predictions from the ec data set. In Fig. 5, we show aggregate sums of different quantiles of the marginal predictive distribution for DeepAR and ISSM on the ec dataset. In contrast to ISSM models such as Seeger et al. (2016), where a linear growth of uncertainty is part of the modeling assumptions, the uncertainty growth pattern is learned from the data. In this case, the model does learn an overall growth of uncertainty over time. However, this is not simply linear growth: uncertainty (correctly) increases during Q4, and decreases again shortly afterwards.

The calibration of the forecast distribution is depicted in Fig. 5. Here we show, for each percentile the , which is defined as the fraction of time series in the dataset for which the -percentile of the predictive distribution is larger than the the true target. For a perfectly calibrated prediction it holds that , which corresponds to the diagonal. Compared to the ISSM model, calibration is improved overall.

To assess the effect of modeling correlations in the output, i.e., how much they differ from independent distributions for each time-point, we plot the calibration curves for a shuffled forecast, where for each time point the realizations of the original forecast have been shuffled, destroying any correlation between time steps. For the short lead-time span (left) which consists of just one time-point, this has no impact, because it is just the marginal distribution. For the longer lead-time span (right), however, destroying the correlation leads to a worse calibration, showing that important temporal correlations are captured between the time steps.

5 Conclusion

We have shown that forecasting approaches based on modern deep learning techniques can drastically improve forecast accuracy over state of the art forecasting methods on a wide variety of data sets. Our proposed DeepAR model effectively learns a global model from related time series, handles widely-varying scales through rescaling and velocity-based sampling, generates calibrated probabilistic forecasts with high accuracy, and is able to learn complex patterns such as seasonality and uncertainty growth over time from the data.

Interestingly, the method works with little or no hyperparameter tuning on a wide variety of datasets, and in is applicable to medium-size datasets containing only a few hundred time series.

6 Supplementary materials

Error metrics

-risk metric

The aggregated target value of an item in a span is denoted as . For a given quantile we denote the predicted -quantile for by . To obtain such a quantile prediction from a set of sample paths, each realization is first summed in the given span. The samples of these sums then represent the estimated distribution for and we can take the -quantile from the empirical distribution.

The -quantile loss is then defined as

In order to summarize the quantile losses for a given span across all items, we consider a normalized sum of quantile losses , which we call the -risk.

ND and RMSE metrics

ND and RMSE metrics are defined as follow:

ND RMSE

where is the predicted median value for item at time and the sums are over all items and all time points in the prediction period.

Experiment details

We use MxNet as our neural network framework Chen et al. (2015). Experiments are run on a laptop for parts and with a single AWS p2.xlarge instance (four core machine with a single GPU) for other datasets. Note that predictions can be done in all datasets end to end in a matter of hours even with a single machine. We use ADAM optimizer Kingma and Ba (2014) with early stopping and standard LSTM cells with a forget bias set to in all experiment and 200 samples are drawn from our decoder to generate predictions.

parts electricity traffic ec-sub ec
time series 1046 370 963 39700 534884
time granularity month hourly hourly week week
domain
encoder length 8 168 168 52 52
decoder length 8 24 24 52 52
training examples 35K 500K 500K 2M 2M
item input embedding dimension 1046 370 963 5 5
item output embedding dimension 1 20 20 20 20
batch size 64 64 64 512 512
learning rate 1e-3 1e-3 1e-3 5e-3 5e-3
LSTM layers 3 3 3 3 3
LSTM nodes 40 40 40 120 120
running time 5min 7h 3h 3h 10h
Table 3: Datasets statistics and RNN parameters

For parts dataset, we use the 42 first months as training data and report error on the remaining 8. For the other datasets electricity, traffic, ec-sub and ec the set of possible training instances is sub-sampled to the number indicated in table 3. The scores of electricity and traffic are reported using the rolling window operation described in Yu et al. (2016), note that we do not retrain our model but reuse the same one for predicting across the different time windows instead. Running times measures an end to end evaluation, e.g. processing features, training the neural network, drawing samples and evaluating produced distributions.

For each dataset, a grid-search is used to find the best value for the hyper-parameters item output embedding dimension and # LSTM nodes

(e.g. hidden number of units). To do so, the data before the forecast start time is used as training set and split into two partitions. For each hyper-parameter candidate, we fit our model on the first partition of the training set containing 90% of the data and we pick the one that has the minimal negative log-likelihood on the remaining 10%. Once the best set of hyper-parameters is found, the evaluation metrics (0.5-risk, 0.9-risk, ND and RMSE) are then evaluated on the test set, e.g. the data coming after the forecast start time. Note that this procedure could lead to over-fitting the hyper-parameters to the training set but this would then also degrades the metric we report. A better procedure would be to fit parameters and evaluate negative log-likelihood not only on different windows but also on non-overlapping time intervals. As for the learning rate, it is tuned manually for every dataset and is kept fixed in hyper-parameter tuning. Other parameters such as encoder length, decoder length and item input embedding are considered domain dependent and are not fitted. Batch size is increased on larger datasets to benefit more from GPU’s parallelization. Finally, running times measures an end to end evaluation, e.g. processing features, training the neural network, drawing samples and evaluating produced distributions.

Missing Observations

In some forecasting settings, the target values might be missing (or unobserved) for a subset of the time points. For instance, in the context of demand forecasting, an item may be out-of-stock at a certain time, in which case the demand for the item cannot be observed. Not explicitly modeling such missing observations (e.g. by assuming that the observed sales correspond to the demand even when an item is out of stock), can, in the best case, lead to systematic forecast underbias, and, in a worst case in the larger supply chain context, can lead to a disastrous downward spiral where an out-of-stock situation leads to a lower demand forecast, lower re-ordering and more out-of-stock-situations. In our model, missing observations can easily be handled in a principled way by replacing each unobserved value by a sample from the conditional predictive distribution when computing (1), and excluding the likelihood term corresponding to the missing observation from (2).We omitted experimental results in this setting from the paper, as doing a proper evaluation in the light of missing data in the prediction range requires non-standard adjusted metrics that are hard to compare across studies (see e.g. (Seeger et al., 2016)).
