1 Introduction
Online advertising is a form of advertising that leverages the Internet to deliver promotional marketing messages to consumers. The goal of online advertising is to assign the right ads to the right consumers so as to maximize the revenue, clickthrough rate (CTR) or return on investment (ROI) of the advertising campaign. The two main marketing strategies in online advertising are guaranteed delivery (GD) and realtime bidding (RTB). For guaranteed delivery, ad exposures to consumers are guaranteed by contracts signed between advertisers and publishers in advance [Jia et al.2016]. For realtime bidding, each ad impression is bid by advertisers in realtime when an impression is just generated from a consumer visit [Cai et al.2017]. However, the majority of online advertising techniques are based on offline/static optimization algorithms that treat each impression independently and maximize the immediate revenue for each impression, which is challenging in realworld business, especially when the environment is unstable. Therefore, great efforts have been made on developing reinforcement learning based online advertising techniques [Cai et al.2017, Wang et al.2018a, Zhao et al.2018b, Rohde et al.2018, Wu et al.2018b, Jin et al.2018], which can continuously update their advertising strategies during the interactions with consumers and the optimal strategy is made by maximizing the expected longterm cumulative revenue from consumers. However, most existing works focus on maximizing the income of ads, while ignoring the negative influence of ads on user experience for recommendations.

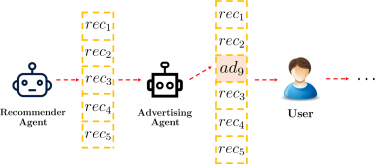

Designing an appropriate advertising strategy is a challenging problem, since (i) displaying too many ads or improper ads will degrade user experience and engagement; and (ii) displaying insufficient ads will reduce the advertising revenue of the platforms. In realworld platforms, as shown in Figure 1, ads are often displayed with normal recommended items, where recommendation and advertising strategies are typically developed by different departments, and optimized by different techniques with different metrics [Feng et al.2018]. Upon a user’s request, the recommendation system firstly generates a list of recommendations according to user’s interests, and then the advertising system needs to make three decisions (subactions), i.e., whether to interpolate an ad in current recommendation list (reclist); and if yes, the advertising system also needs to choose the optimal ad and interpolate it into the optimal location (e.g. in Figure 1 the advertising agent (AA) decides to interpolate an ad between and of the reclist). The first subaction maintains the frequency of ads, while the other two subactions aims to control the appropriateness of ads. The goal of advertising strategy is to simultaneously maximize the income of ads and minimize the negative influence of ads on user experience.
The abovementioned three decisions (subactions) are internally related, i.e., (only) when the AA decides to interpolate an ad, the locations and candidate ads together determine the rewards. Figure 2 illustrates the two conventional Deep Qnetwork (DQN) architectures for online advertising. Note that in this paper we suppose (i) there are candidate ads for each request, and (ii) the length of the recommendation list (or reclist) is . The DQN in Figure 2(a) takes the state space and outputs Qvalues of all locations. This architecture can determine the optimal location but cannot choose the specific ad to interpolate. The DQN in Figure 2
(b) inputs a stateaction pair and outputs the Qvalue corresponding to a specific action (ad). This architecture can select a specific ad but cannot decide the optimal location. Taking a representation of location (e.g. onehot vector) as the additional input is an alternative way, but
evaluations are necessary to find the optimal actionvalue function , which prevents the DQN architecture from being adopted in practical advertising systems. It is worth to note that both architectures cannot determine whether to interpolate an ad (or not) into a given reclist. Thus, in this paper, we design a new DEep reinforcement learning framework with a novel DQN architecture for online Advertising in Recommender systems (DEAR), which can determine the aforementioned three tasks simultaneously with reasonable time complexity. We summarize our major contributions as follows:
We identify the phenomena of online advertising with recommendations and provide a principled approach for better advertising strategy;

We propose a deep reinforcement learning based framework DEAR and a novel Qnetwork architecture, which can simultaneously determine whether to interpolate an ad, the optimal location and which ad to interpolate;

We demonstrate the effectiveness of the proposed framework in realworld short video site.
2 Problem Statement
In this paper, we study the advertising problem within a reclist as a Markov Decision Process (MDP), in which an AdvertisingAgent (AA) interacts with environment
(or users) by sequentially interpolating ads into a sequence of reclists over time, so as to maximize the cumulative reward from the environment. Formally, the MDP consists of a tuple of five elements :
State space : A state is defined as a user’s browsing history before time and the information of current request at time . More specifically, a state consists of a user’s recommendation and ad browsing history, the reclist and contextual information of current request.

Action space : The action of AA is to determine three internally related tasks, i.e., whether interpolate an ad in current reclist (that is considered in , more details are presented in following sections); if yes, the AA needs to choose a specific ad and interpolate it into the optimal location in the reclist. Without the loss of generality, we assume that the AA could interpolate at most one ad into a reclist, but it is straightforward to extend it with multiple ads.

Reward : After the AA taking an action at the state , i.e., (not) interpolating an ad into a reclist, a user browses this mixed recad list and provides her feedback. The AA will receive the immediate reward based on user’s feedback. The reward is twofold: (i) the income of ad that depends on the quality of the ad, and (ii) the influence of an ad on the user experience.

Transition probability
: Transition probability
defines the state transition from to after taking action . We assume that the MDP satisfies .
Discount factor : Discount factor is introduced to measure the present value of future reward. When , all future rewards will be fully counted into current action; on the contrary, when , only the immediate reward will be considered.
With the abovementioned notations and definitions, the problem of ad interpolation into recommendation lists can be formally defined as follows: Given the historical MDP, i.e., , the goal is to find an advertising policy , which can maximize the cumulative reward from users, i.e., maximizing the income of ads and minimizing the negative influence on user experience.
3 The Proposed Framework
In this section, we will propose a deep reinforcement learning framework for online advertising in recommender systems. To be more specific, we will first propose a novel DQN architecture, which could tackle the aforementioned three tasks simultaneously. Then, we discuss how to train the framework via offline users’ behavior log.
3.1 The DQN Architecture for Online Advertising
As aforementioned the online advertising in recommender system problem is challenging because (i) the action of the advertising agent (AA) is complex which consists of three subactions, i.e., whether interpolate an ad into current reclist, if yes, which ad is optimal and where is the best location; (ii) the three subactions are internally related, i.e., when the AA decides to interpolate an ad, the candidate ads and locations are interactive to maximize the reward, which prevents traditional DQN architectures from being employed in online advertising systems; and (iii) the AA should simultaneously maximize the income of ads and minimize the negative influence of ads on user experience. To address these challenges, we propose a deep reinforcement learning framework with a novel Deep Qnetwork architecture. In the following, we first introduce the processing of state and action features, and then we illustrate the proposed DQN architecture with optimization algorithm.
3.1.1 The Processing of State and Action Features
The state
consists of a user’s rec/ads browsing history, the contextual information and reclist of current request. The recommendation (or ad) browsing history is a sequence of recommendations (or ads) the user has browsed. We leverage two RNNs with Gated Recurrent Units (GRU) to capture users’ sequential preference of recommendations and ads separately. The inputs of RNN are the features of user’s recently browsed recommendations (or ads), while we use the final hidden state of RNN as the representation of user’s dynamic preference of recommendations
(or ads). Here we leverage GRU rather than Long ShortTerm Memory (LSTM) because of GRU’s simpler architecture and fewer parameters.
The contextual information feature of current user request consists of information such as the OS (ios or android), app version and feed type (swiping up/down the screen) of user’s current request. Next, we represent the reclist of current request by the concatenated features of recommended items that will be displayed in current request, and we transform them into a lowdimensional dense vector . Note that other architectures like CNN for NLP [Kim2014] can also be leveraged. Finally, we get a lowdimensional representation of state by concatenating and :
(1)
For the transition from to , the recommendations and ads browsed at time will be added into browsing history to generate and , depends on user’s behavior at time , and comes from the recommendation system. For the action , is the feature of a candidate ad, and is the location to interpolate the selected ad (given a list of recommendations, there exist possible locations). Next, we will elaborate the architecture of the proposed DQN architecture.
3.1.2 The Proposed DQN Architecture
Given the state , the action of AA consists three subactions, i.e., whether to interpolate an ad, if yes, (ii) where is the optimal location and (iii) which ad is optimal.
We first consider to simultaneously tackle the subaction (ii) and (iii). In other words, we aim to estimate the Qvalues of all possible locations
for any given candidate ad . To incorporate these two subactions into one framework, we proposed a novel DQN architecture, as illustrated in Figure 3(a), which is on the top of the two conventional Deep Qnetwork architectures shown in Figure 2. The inputs are the representations of state and any candidate ad , while the output is the actionvalue (Qvalue) corresponding to locations. In this way, the proposed DQN architecture could take advantage of both two traditional DQN architectures, which could simultaneously evaluate the Qvalues of two types of internally related subactions, i.e., evaluating the Qvalues of all possible locations for an ad.To incorporate the first subaction (whether to interpolate an ad or not) into the above DQN architecture, we consider not interpolating an ad as a special , and extend the length of output layer from to , where corresponds to the Qvalue of not incorporating an ad into current reclist. Therefore, the proposed DQN architecture could take the three subactions simultaneously, where the Qvalue depends on the combination of adlocation pair; and when of any candidate ads corresponds to the maximal Qvalue, the AA will not interpolate an ad into current reclist.

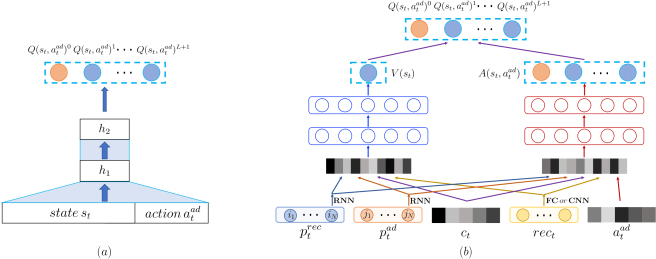

The detailed DQN architecture is illustrated in Figure 3(b). On one hand, whether to interpolate an ad into current reclist is mainly impacted by the state (the browsing history, the contextual information and especially the quality of current reclist), e.g., if a user has good experience for current reclist, the advertising agent may prefer to interpolate an ad into the current reclist; while if a user has bad experience for current reclist, the user has high possibility to leave, then the AA will not insert an ad to increase this possibility. On the other hand, the reward for choosing an ad and location is closely related to all the features (both current reclist and the ads). According to this observation, we divide the Qfunction into value function , which is determined by the state features, and the advantage function , which is determined by the features of both state and action [Wang, Freitas, and Lanctot2015].
3.1.3 Discussion

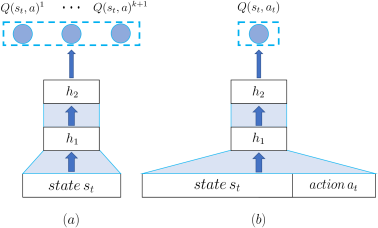

There exist two classic DQN architectures as illustrated in Figure 2, where (i) the left one takes state as input and outputs Qvalues of all actions, and (ii) the right one takes a stateaction pair and outputs the Qvalue of this pair. These two conventional architectures can only evaluate Qvalues for one level of actions, e.g., the agent in Maze environment can only choose to go up, down, left, or right [Brockman et al.2016]. Compared with these two traditional architectures, the proposed DEAR takes a stateaction pair of one level of actions, and outputs the Qvalues corresponding to the combination of this stateaction pair and another level of actions. Hierarchical reinforcement learning (HRL) architectures like [Kulkarni et al.2016] can also handle multiple levels of tasks. However, HRL frameworks suffer from the instability problem when training multiple levels jointly [Nachum et al.2018]. To the best of our knowledge, the proposed DEAR architecture is the first individual DQN architecture that can evaluate the Qvalues of two or more levels of internally related actions simultaneously with reasonable time complexity. This design is general which has many other possible applications. For example, in Maze environment the input of DEAR can be the pair of agent’s location (state) and the direction to go (action), then the DEAR can output the Qvalues corresponding to the location, direction and how many steps to go in this direction (another level of related actions).
3.2 The Reward Function
After the AA executing an action at the state , i.e., interpolating an ad into a reclist (or not), a user browses this mixed recad list and provides her feedback. In online advertising with normal recommendation problem, the AA aims to simultaneously maximize the income of ads and minimize the negative influence of ads on user experience (i.e. to optimize user experience). Thus the immediate reward is twofold: (i) the income of ad , and (ii) the user experience .
In practical platforms, the major risk of interpolating ads improperly or too frequently is that user will leave the platforms. Thus, user experience is measured by whether she/he will leave the platform after browsing the current recad list, and we have:
(2)
in other word, the AA will receive a positive reward if the user continue to browse the next list, otherwise negative reward. Then, we design the reward function as follows:
(3)
where the is the income of ad, which is a positive value if interpolate an ad, otherwise 0. The hyperparameter controls the importance of the second term, which measures the influence of an ad on user experience. Based on the reward function, optimal actionvalue function , which has the maximum expected return achievable by the optimal policy, should follow the Bellman equation [Bellman2013] as:
(4)
where the operation needs to look through all candidate ads (input) and all locations (output).
session  user  normal video  ad video

1,000,000  188,409  17,820,066  10,806,778
session dwell time  session length  session ad revenue  reclist with ad
17.980 min  55.032 videos  0.667  55.23%
3.3 The Optimization Task
The Deep Qnetwork, i.e., actionvalue function
, can be optimized by minimizing a sequence of loss functions
as:(5)
where is the target for the current iteration. We introduce separated evaluation and target networks [Mnih et al.2013] to help smooth the learning and avoid the divergence of parameters, where represents all parameters of the evaluation network, and the parameters of the target network are fixed when optimizing the loss function . The derivatives of loss function with respective to parameters are presented as follows:
(6)
where , and will look through the candidate ad set and all locations (including the location that represents not interpolating an ad). Note that a recall mechanism is employed by the platform to select a subset of ads that may generate maximal revenue, and filter out ads that run out of their budget (RTB) or have fulfilled the guaranteed delivery amount (GD). In this paper, we mainly focus on the income of platform and user experience.
3.4 Offpolicy Training Task
We train the proposed framework based on users’ offline log, which records the interaction history between behavior policy (the advertising strategy in use) and users’ feedback. Our AA takes the action based on the offpolicy and obtains the feedback from the offline log. We present our offpolicy training algorithm in details in Algorithm 1.
In each iteration of a training session, there are two stages. For storing transitions stage: given the state (line 6), the AA takes action according to the behavior policy (line 7), which follows a standard offpolicy way [Degris, White, and Sutton2012]; then the AA observes the reward from offline log (line 8) and updates the state to (line 9); and finally the AA stores transition into replay buffer (line 10). For model training stage: the AA samples minibatch of transitions from replay buffer (line 11), and then updates the parameters according to Equation (6) (lines 13). Note that in line 7, when the behavior policy decides not to interpolate an ad, we use an allzero vector as .
3.5 Online Test Task
The online test algorithm is presented in Algorithm 2, which is similar to the transition generating stage in Algorithm 1. In each iteration of the session, given the current state (line 5), the AA decides to interpolate an ad into the reclist (or not) by the welltrained advertising policy (line 6), then the target user browses the mixed recad list and provides her/his feedback (line 7). Finally, the AA updates the state to (line 8) and goes to the next iteration.
4 Experiments
In this section, we conduct extensive experiments on a real short video site to evaluate the effectiveness of the proposed framework. We mainly focus on three questions: (i) how the proposed framework performs compared to representative baselines; (ii) how the components in the framework contribute to the performance; and (iii) how the hyperparameters impact the performance. We first introduce experimental settings. Then we seek answers to the above three questions.
4.1 Experimental Settings
Since there are no public dataset consists of both recommended and advertised items, we train our model on the dataset of March, 2019 collected in a short video site, where there are two types of videos, i.e., normal videos (recommended items) and ad videos (advertised items). The features for a normal video contain: id, like score, finish score, comment score, follow score and group score, where the scores are predicted by the platform. The features for an ad video consist of: id, image size, pricing, hiddencost, rcpreclk and recallpreclk, where the last four are predicted by the platform. Note that (i) the predicted features are widely and successfully used in many applications such as recommendation and advertising in the platform, (ii) we discretize each feature as a onehot vector, and (iii) the same features are used by baselines for a fair comparison. We collect 1,000,000 sessions in temporal order to train the proposed framework via an offpolicy manner. More statistics about the dataset are shown in Table 1.
For the architecture of DEAR, the dimension of ad and normal videos’ features is , the length of a reclist is , and the size of ad candidate set for a request is . For a given session, the initial user browsing history is collected from the first three requests of the session. The dimensions of are
. We leverage two 2layer neural network to generate
and , respectively. The length of the output layer is , i.e., there are possible locations including the one representing not to interpolate an ad. We set the discounted factor , and the size of replay buffer is 10,000. For the hyperparameters of the proposed framework such as , we select them via crossvalidation. Correspondingly, we also do parametertuning for baselines for a fair comparison. We will discuss more details about hyperparameter selection for the DEAR framework in the following subsections. Reward is the revenue of ad videos, and is 1 if user continue to browse next list and 0 otherwise. To measure the online performance, we leverage the accumulated rewards in the session as the metric.4.2 Overall Performance Comparison
We compare the proposed framework with the following representative baseline methods:

W&D [Cheng et al.2016]
: This baseline is a wide & deep model for jointly training feedforward neural networks with embeddings and linear model with feature transformations for generic recommender systems with sparse inputs. We further augment it W&D to predict whether interpolate an ad and estimate the CTR of ads. W&D is the behavior policy
in use of the video platform.
DFM [Guo et al.2017]: DeepFM is a deep neural network model that integrates the architectures of factorizationmachine (FM) and wide & deep model. It models loworder feature interactions like FM and models highorder feature interactions like W&D.

GRU [Hidasi et al.2015]: GRU4Rec utilizes RNN with Gated Recurrent Units (GRU) to predict what user will click/order next based on the clicking/ordering histories. We also augment it for ads interpolation.

HDQN [Kulkarni et al.2016]: This baseline is a hierarchical DQN framework where the highlevel DQN determines the locations (including the location of not interpolating ad), and the lowlevel DQN selects a specific ad.

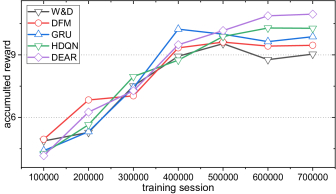

The results are shown in Figure 4. We make the following observations:

The DFM achieves better performance than W&D, where DeepFM can be trained endtoend without any feature engineering, and its wide part and deep part share the same input and also the embedding vector.

GRU outperforms W&D and DFM, since GRU can capture the temporal sequence of user behaviors within one session, while W&D and DFM neglect it.

HDQN performs better than GRU, since GRU is designed to maximize the immediate reward of each request, while HDQN aims to maximize the rewards in the long run. This result suggests that introducing reinforcement learning can improve the longterm performance of online recommendation and advertising.

DEAR outperforms HDQN, since HRL frameworks like HDQN are not stable when multiple levels are jointly trained by an offpolicy manner [Nachum et al.2018].
To sum up, DEAR outperforms representative baselines, which demonstrates its effectiveness in online advertising. Note that the improvement of DEAR is significant (), we omit the results of hypothesis test because of the space limitation.
reward  improvement  pvalue

DEAR1  9.936  10.32%  0.000
DEAR2  10.02  9.056%  0.000
DEAR3  10.39  5.495%  0.001
DEAR4  10.57  3.689%  0.006
DEAR  10.96
4.3 Component Study
To answer the second question, we systematically eliminate the corresponding components of DEAR by defining the following variants:

DEAR1
: This variant shares the same architectures with the proposed model, while we train the framework through a supervised learning manner.

DEAR2: This variant is to evaluate the effectiveness of RNNs, hence we replace each RNN by two fullyconnected layers (FCNs), concatenate recommended or advertised items as one vector and feed it into the corresponding FCN.

DEAR3: This baseline leverages the DQN architecture in Figure 2(b) with an additional input, which represents the location by a onehot vector.

DEAR4: The architecture of this variant does not divide the Qfunction into the value function and the advantage function for the AA.
The results are shown in Table 2. It can be observed:

DEAR1 validates the effectiveness of introducing reinforcement learning for online advertising.

DEAR2 demonstrates that capture user’s sequential preference over recommended and advertised items can boost the performance.

DEAR3 validates the effectiveness of the proposed DEAR architecture over conventional DQN architecture that takes an ad as input while outputs the Qvalue corresponding to all possible locations for the given ad .

DEAR4 proves that whether interpolate an ad into reclist is mainly depended on state (especially the quality of reclist), while the reward for selecting an ad and location depends on both and (ad). Thus dividing into the value function and the advantage function can improve the performance.
In summary, introducing RL and appropriately designing neural network architecture can boost the performance.
4.4 Parameter Sensitivity Analysis
In this section, we investigate how the proposed framework DEAR performs with the changes of in Equation (3), while fixing other parameters. We select the accumulated and accumulated of the whole session as the metrics to evaluate the performance.
Figure 5 demonstrates the parameter sensitivity of . We find that with the increase of , the performance of improves, while decreases. On one hand, when we increase the importance of the second term in Equation (3), the AA tends to interpolate fewer ads or select the ads that will not decrease user’s experience, although they may generate suboptimal revenue. On the other hand, when we decrease the importance of the second term of Equation (3), the AA prefers to interpolate more ads or choose the ads that will lead to maximal revenue, while ignoring the negative impact of ad on user’s experience.
5 Related Work
In this section, we briefly review works related to our study. In general, the related work can be mainly grouped into the following categories.
The first category related to this paper is guaranteed delivery, where ads that share a single idea and theme are grouped into campaigns, and are charged on a paypercampaign basis for the prespecified number of deliveries (click or impressions) [Salomatin, Liu, and Yang2012]. Most popular GD (Guaranteed Delivery) solutions are based on offline optimization algorithms, and then adjusted for online setup. However, deriving the optimal strategy to allocate impressions is challenging, especially when the environment is unstable in realworld applications. In [Wu et al.2018a], a multiagent reinforcement learning (MARL) approach is proposed to derive cooperative policies for the publisher to maximize its target in an unstable environment. They formulated the impression allocation problem as an auction problem where each contract can submit virtual bids for individual impressions. With this formulation, they derived the optimal impression allocation strategy by solving the optimal bidding functions for contracts.
The second category related to this paper is RTB, which allows an advertiser to submit a bid for each individual impression in a very short time frame. Ad selection task is typically modeled as multiarmed bandit (MAB) problem with the setting that samples from each arm are iid, feedback is immediate and rewards are stationary [Yang and Lu2016, Nuara et al.2018, Gasparini et al.2018, Tang et al.2013, Xu, Qin, and Liu2013, Yuan, Wang, and van der Meer2013, Schwartz, Bradlow, and Fader2017]. The problem of multiarmed bandits with budget constraints and variable costs is studied in [Ding et al.2013]. In this case, pulling the arms of bandit will get random rewards with random costs, and the algorithm aims to maximize the longterm reward by pulling arms with a constrained budget. Under the MAB setting, the bid decision is considered as a static optimization problem of either treating the value of each impression independently or setting a bid price to each segment of ad volume. However, the bidding for a given ad campaign would repeatedly happen during its life span before the budget running out. Thus, the MDP setting has also been studied [Cai et al.2017, Wang et al.2018a, Zhao et al.2018b, Rohde et al.2018, Wu et al.2018b, Jin et al.2018]. A modelbased reinforcement learning framework is proposed to learn bid strategies in RTB advertising [Cai et al.2017], where neural network is used to approximate the state value, which can better deal with the scalability problem of large auction volume and limited campaign budget. A modelfree deep reinforcement learning method is proposed to solve the bidding problem with constrained budget [Wu et al.2018b]: the problem is modeled as a control problem, and RewardNet is designed for generating rewards to solve reward design trap, instead of using the immediate reward. A multiagent bidding model takes the other advertisers’ bidding in the system into consideration, and a clustering approach is introduced to solve the large number of advertisers challenge [Jin et al.2018].
The third category related to this paper is reinforcement learning based recommender systems, which typically consider the recommendation task as a Markov Decision Process (MDP), and model the recommendation procedure as sequential interactions between users and recommender system [Zhao et al.2019b, Zhao et al.2018a]. Practical recommender systems are always with millions of items (discrete actions) to recommend [Zhao et al.2016, Guo et al.2016]. Thus, most RLbased models will become inefficient since they are not able to handle such a large discrete action space. A Deep Deterministic Policy Gradient (DDPG) algorithm is introduced to mitigate the large action space issue in practical RLbased recommender systems [DulacArnold et al.2015]. To avoid the inconsistency of DDPG and improve recommendation performance, a treestructured policy gradient is proposed in [Chen et al.2018a]. Biclustering technique is also introduced to model recommender systems as gridworld games so as to reduce the state/action space [Choi et al.2018]. To solve the unstable reward distribution problem in dynamic recommendation environments, approximate regretted reward technique is proposed with Double DQN to obtain a reference baseline from individual customer sample [Chen et al.2018c]. Users’ positive and negative feedback, i.e., purchase/click and skip behaviors, are jointly considered in one framework to boost recommendations, since both types of feedback can represent part of users’ preference [Zhao et al.2018c]. Architecture aspect and formulation aspect improvement are introduced to capture both positive and negative feedback in a unified RL framework. A pagewise recommendation framework is proposed to jointly recommend a page of items and display them within a 2D page [Zhao et al.2017, Zhao et al.2018b]. CNN technique is introduced to capture the item display patterns and users’ feedback of each item in the page. A multiagent modelbased reinforcement learning framework (DeepChain) is proposed for the wholechain recommendation problem [Zhao et al.2019c], which is able to collaboratively train multiple recommendation agents for different scenarios by a modelbased optimization algorithm. A user simulator RecSimu base on Generative Adversarial Network (GAN) framework is presented for RLbased recommender systems [Zhao et al.2019a], which models real users’ behaviors from users’ historical logs, and tackle the two challenges: (i) the recommended item distribution is complex within users’ historical logs, and (ii) labeled training data from each user is limited. In the news feed scenario, a DQN based framework is proposed to handle the challenges of conventional models, i.e., (1) only modeling current reward like CTR, (2) not considering click/skip labels, and (3) feeding similar news to users [Zheng et al.2018]. An RL framework for explainable recommendation is proposed in [Wang et al.2018b], which can explain any recommendation model and can flexibly control the explanation quality based on the application scenario. A policy gradientbased topK recommender system for YouTube is developed in [Chen et al.2018b], which addresses biases in logged data through incorporating a learned logging policy and a novel topK offpolicy correction. Other applications includes sellers’ impression allocation [Cai et al.2018a], fraudulent behavior detection [Cai et al.2018b], and user state representation [Liu et al.2018].
6 Conclusion
In this paper, we propose a deep reinforcement learning framework DEAR with a novel Deep Qnetwork architecture for online advertising in recommender systems. It is able to (i) determine three internally related actions at the same time, i.e., whether to interpolate an ad in a reclist or not, if yes, which is the optimal ad and location to interpolate; and (ii) simultaneously maximize the revenue of ads and minimize the negative influence of ads on user experience. It is worth to note that the proposed DQN architecture can take advantage of two conventional DQN architectures, which can evaluate the Qvalue of two or more kinds of related actions simultaneously. We evaluate our framework with extensive experiments based on a short video site. The results show that our framework can significantly improve online advertising performance in recommender systems.
There are several interesting research directions. First, in addition to only optimizing advertising strategies in recommender systems, we would like to develop a framework that jointly optimizes advertising and recommending strategies simultaneously. Second, the proposed framework DEAR is quite general for evaluating the Qvalue of two or more types of internally related actions, we would like to investigate more applications beyond online advertising, such as recommendations and video games.
References
 [Bellman2013] Bellman, R. 2013. Dynamic programming. Courier Corporation.
 [Brockman et al.2016] Brockman, G.; Cheung, V.; Pettersson, L.; Schneider, J.; Schulman, J.; Tang, J.; and Zaremba, W. 2016. Openai gym. arXiv preprint arXiv:1606.01540.
 [Cai et al.2017] Cai, H.; Ren, K.; Zhang, W.; Malialis, K.; Wang, J.; Yu, Y.; and Guo, D. 2017. Realtime bidding by reinforcement learning in display advertising. In Proceedings of the Tenth ACM International Conference on Web Search and Data Mining, 661–670. ACM.
 [Cai et al.2018a] Cai, Q.; FilosRatsikas, A.; Tang, P.; and Zhang, Y. 2018a. Reinforcement mechanism design for ecommerce. In Proceedings of the 2018 World Wide Web Conference, 1339–1348. International World Wide Web Conferences Steering Committee.

[Cai et al.2018b]
Cai, Q.; FilosRatsikas, A.; Tang, P.; and Zhang, Y.
2018b.
Reinforcement mechanism design for fraudulent behaviour in
ecommerce.
In
Proceedings of the 32nd AAAI Conference on Artificial Intelligence
.  [Chen et al.2018a] Chen, H.; Dai, X.; Cai, H.; Zhang, W.; Wang, X.; Tang, R.; Zhang, Y.; and Yu, Y. 2018a. Largescale interactive recommendation with treestructured policy gradient. arXiv preprint arXiv:1811.05869.
 [Chen et al.2018b] Chen, M.; Beutel, A.; Covington, P.; Jain, S.; Belletti, F.; and Chi, E. 2018b. Topk offpolicy correction for a reinforce recommender system. arXiv preprint arXiv:1812.02353.
 [Chen et al.2018c] Chen, S.Y.; Yu, Y.; Da, Q.; Tan, J.; Huang, H.K.; and Tang, H.H. 2018c. Stabilizing reinforcement learning in dynamic environment with application to online recommendation. In Proceedings of the 24th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, 1187–1196. ACM.

[Cheng et al.2016]
Cheng, H.T.; Koc, L.; Harmsen, J.; Shaked, T.; Chandra, T.; Aradhye, H.;
Anderson, G.; Corrado, G.; Chai, W.; Ispir, M.; et al.
2016.
Wide & deep learning for recommender systems.
In Proceedings of the 1st workshop on deep learning for recommender systems, 7–10. ACM.  [Choi et al.2018] Choi, S.; Ha, H.; Hwang, U.; Kim, C.; Ha, J.W.; and Yoon, S. 2018. Reinforcement learning based recommender system using biclustering technique. arXiv preprint arXiv:1801.05532.
 [Degris, White, and Sutton2012] Degris, T.; White, M.; and Sutton, R. S. 2012. Offpolicy actorcritic. arXiv preprint arXiv:1205.4839.
 [Ding et al.2013] Ding, W.; Qin, T.; Zhang, X.D.; and Liu, T.Y. 2013. Multiarmed bandit with budget constraint and variable costs. In TwentySeventh AAAI Conference on Artificial Intelligence.
 [DulacArnold et al.2015] DulacArnold, G.; Evans, R.; van Hasselt, H.; Sunehag, P.; Lillicrap, T.; Hunt, J.; Mann, T.; Weber, T.; Degris, T.; and Coppin, B. 2015. Deep reinforcement learning in large discrete action spaces. arXiv preprint arXiv:1512.07679.
 [Feng et al.2018] Feng, J.; Li, H.; Huang, M.; Liu, S.; Ou, W.; Wang, Z.; and Zhu, X. 2018. Learning to collaborate: Multiscenario ranking via multiagent reinforcement learning. In Proceedings of the 2018 World Wide Web Conference, 1939–1948. International World Wide Web Conferences Steering Committee.
 [Gasparini et al.2018] Gasparini, M.; Nuara, A.; Trovò, F.; Gatti, N.; and Restelli, M. 2018. Targeting optimization for internet advertising by learning from logged bandit feedback. In 2018 International Joint Conference on Neural Networks (IJCNN), 1–8. IEEE.
 [Guo et al.2016] Guo, H.; Li, X.; He, M.; Zhao, X.; Liu, G.; and Xu, G. 2016. Cosolorec: Joint factor model with content, social, location for heterogeneous pointofinterest recommendation. In International Conference on Knowledge Science, Engineering and Management, 613–627. Springer.
 [Guo et al.2017] Guo, H.; Tang, R.; Ye, Y.; Li, Z.; and He, X. 2017. Deepfm: a factorizationmachine based neural network for ctr prediction. arXiv preprint arXiv:1703.04247.
 [Hidasi et al.2015] Hidasi, B.; Karatzoglou, A.; Baltrunas, L.; and Tikk, D. 2015. Sessionbased recommendations with recurrent neural networks. arXiv preprint arXiv:1511.06939.
 [Jia et al.2016] Jia, Z.; Zheng, W.; Qian, L.; Zhang, J.; and Sun, X. 2016. Efficient delivery policy to minimize user traffic consumption in guaranteed advertising.
 [Jin et al.2018] Jin, J.; Song, C.; Li, H.; Gai, K.; Wang, J.; and Zhang, W. 2018. Realtime bidding with multiagent reinforcement learning in display advertising. In Proceedings of the 27th ACM International Conference on Information and Knowledge Management, 2193–2201. ACM.
 [Kim2014] Kim, Y. 2014. Convolutional neural networks for sentence classification. Eprint Arxiv.
 [Kulkarni et al.2016] Kulkarni, T. D.; Narasimhan, K.; Saeedi, A.; and Tenenbaum, J. 2016. Hierarchical deep reinforcement learning: Integrating temporal abstraction and intrinsic motivation. In Advances in neural information processing systems, 3675–3683.
 [Liu et al.2018] Liu, F.; Tang, R.; Li, X.; Zhang, W.; Ye, Y.; Chen, H.; Guo, H.; and Zhang, Y. 2018. Deep reinforcement learning based recommendation with explicit useritem interactions modeling. arXiv preprint arXiv:1810.12027.
 [Mnih et al.2013] Mnih, V.; Kavukcuoglu, K.; Silver, D.; Graves, A.; Antonoglou, I.; Wierstra, D.; and Riedmiller, M. 2013. Playing atari with deep reinforcement learning. arXiv preprint arXiv:1312.5602.
 [Nachum et al.2018] Nachum, O.; Gu, S. S.; Lee, H.; and Levine, S. 2018. Dataefficient hierarchical reinforcement learning. In Advances in Neural Information Processing Systems, 3303–3313.
 [Nuara et al.2018] Nuara, A.; Trovo, F.; Gatti, N.; and Restelli, M. 2018. A combinatorialbandit algorithm for the online joint bid/budget optimization of payperclick advertising campaigns. In ThirtySecond AAAI Conference on Artificial Intelligence.
 [Rohde et al.2018] Rohde, D.; Bonner, S.; Dunlop, T.; Vasile, F.; and Karatzoglou, A. 2018. Recogym: A reinforcement learning environment for the problem of product recommendation in online advertising. arXiv preprint arXiv:1808.00720.
 [Salomatin, Liu, and Yang2012] Salomatin, K.; Liu, T.Y.; and Yang, Y. 2012. A unified optimization framework for auction and guaranteed delivery in online advertising. In Proceedings of the 21st ACM international conference on Information and knowledge management, 2005–2009. ACM.
 [Schwartz, Bradlow, and Fader2017] Schwartz, E. M.; Bradlow, E. T.; and Fader, P. S. 2017. Customer acquisition via display advertising using multiarmed bandit experiments. Marketing Science 36(4):500–522.
 [Tang et al.2013] Tang, L.; Rosales, R.; Singh, A.; and Agarwal, D. 2013. Automatic ad format selection via contextual bandits. In Proceedings of the 22nd ACM international conference on Information & Knowledge Management, 1587–1594. ACM.
 [Wang et al.2018a] Wang, W.; Jin, J.; Hao, J.; Chen, C.; Yu, C.; Zhang, W.; Wang, J.; Wang, Y.; Li, H.; Xu, J.; et al. 2018a. Learning to advertise with adaptive exposure via constrained twolevel reinforcement learning. arXiv preprint arXiv:1809.03149.
 [Wang et al.2018b] Wang, X.; Chen, Y.; Yang, J.; Wu, L.; Wu, Z.; and Xie, X. 2018b. A reinforcement learning framework for explainable recommendation. In 2018 IEEE International Conference on Data Mining (ICDM), 587–596. IEEE.
 [Wang, Freitas, and Lanctot2015] Wang, Z.; Freitas, N. D.; and Lanctot, M. 2015. Dueling network architectures for deep reinforcement learning.
 [Wu et al.2018a] Wu, D.; Chen, C.; Yang, X.; Chen, X.; Tan, Q.; Xu, J.; and Gai, K. 2018a. A multiagent reinforcement learning method for impression allocation in online display advertising. arXiv preprint arXiv:1809.03152.
 [Wu et al.2018b] Wu, D.; Chen, X.; Yang, X.; Wang, H.; Tan, Q.; Zhang, X.; Xu, J.; and Gai, K. 2018b. Budget constrained bidding by modelfree reinforcement learning in display advertising. In Proceedings of the 27th ACM International Conference on Information and Knowledge Management, 1443–1451. ACM.
 [Xu, Qin, and Liu2013] Xu, M.; Qin, T.; and Liu, T.Y. 2013. Estimation bias in multiarmed bandit algorithms for search advertising. In Advances in Neural Information Processing Systems, 2400–2408.
 [Yang and Lu2016] Yang, H., and Lu, Q. 2016. Dynamic contextual multi arm bandits in display advertisement. In 2016 IEEE 16th International Conference on Data Mining (ICDM), 1305–1310. IEEE.
 [Yuan, Wang, and van der Meer2013] Yuan, S.; Wang, J.; and van der Meer, M. 2013. Adaptive keywords extraction with contextual bandits for advertising on parked domains. arXiv preprint arXiv:1307.3573.
 [Zhao et al.2016] Zhao, X.; Xu, T.; Liu, Q.; and Guo, H. 2016. Exploring the choice under conflict for social event participation. In International Conference on Database Systems for Advanced Applications, 396–411. Springer.
 [Zhao et al.2017] Zhao, X.; Zhang, L.; Ding, Z.; Yin, D.; Zhao, Y.; and Tang, J. 2017. Deep reinforcement learning for listwise recommendations. arXiv preprint arXiv:1801.00209.
 [Zhao et al.2018a] Zhao, X.; Xia, L.; Tang, J.; and Yin, D. 2018a. Reinforcement learning for online information seeking. arXiv preprint arXiv:1812.07127.
 [Zhao et al.2018b] Zhao, X.; Xia, L.; Zhang, L.; Ding, Z.; Yin, D.; and Tang, J. 2018b. Deep reinforcement learning for pagewise recommendations. In Proceedings of the 12th ACM Recommender Systems Conference, 95–103. ACM.
 [Zhao et al.2018c] Zhao, X.; Zhang, L.; Ding, Z.; Xia, L.; Tang, J.; and Yin, D. 2018c. Recommendations with negative feedback via pairwise deep reinforcement learning. In Proceedings of the 24th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, 1040–1048. ACM.
 [Zhao et al.2019a] Zhao, X.; Xia, L.; Ding, Z.; Yin, D.; and Tang, J. 2019a. Toward simulating environments in reinforcement learning based recommendations. arXiv preprint arXiv:1906.11462.
 [Zhao et al.2019b] Zhao, X.; Xia, L.; Tang, J.; and Yin, D. 2019b. Deep reinforcement learning for search, recommendation, and online advertising: a survey by xiangyu zhao, long xia, jiliang tang, and dawei yin with martin vesely as coordinator. ACM SIGWEB Newsletter (Spring):4.
 [Zhao et al.2019c] Zhao, X.; Xia, L.; Zhao, Y.; Yin, D.; and Tang, J. 2019c. Modelbased reinforcement learning for wholechain recommendations. arXiv preprint arXiv:1902.03987.
 [Zheng et al.2018] Zheng, G.; Zhang, F.; Zheng, Z.; Xiang, Y.; Yuan, N. J.; Xie, X.; and Li, Z. 2018. Drn: A deep reinforcement learning framework for news recommendation. In Proceedings of the 2018 World Wide Web Conference on World Wide Web, 167–176. International World Wide Web Conferences Steering Committee.
