1 Introduction

Modern enterprises often rely on intrusion detection system (IDS

), either misuse-based or anomaly detection based, to protect their IT and OT systems. However, existing

IDS techniques overlook one critical problem, which is the program reidentification: given a program, with a claimed ID (such as executable name), running in the system, can we confirm the program’s identity and guarantee that this program is not a disguised malicious program, or a hijacked program with different behaviors, by comparing it to the normal program with the same ID? To make the attack processes stealthy and avoid detection, hackers often falsify the IDs of the tools they have used to bypass the IDS. For example, a malware may have the ID of a benign software [17] and a system tool (e.g., PowerShell) used by the hackers may have the ID of another software which is less sensitive [9]. In fact, running programs with fake IDs is a strong signal of the system being compromised [11]. Capturing the programs with fake IDs can help identifying very stealthy attacks and reduce the security risks in enterprise networks.

Existing techniques cannot be directly applied to address the problem of program reidentification. Digital code signing techniques, such as Public Key Infrastructure (PKI) [13], may help identify the certified authors of programs. However, many open-source programs that are widely used in enterprises may not contain valid signatures. Further, modern programs are evolving at a fast pace. Each version of the program has a unique signature. Handling the fast inflating set of signatures for programs is practically difficult. Malware detection or Anti-Virus [26] may detect malware. Yet, hackers may also use common system tools to finish their attacks, such as malware free attacks [27]. Besides, a sophisticated malware can also bypass the anti-virus by hiding its malicious features, and a hacker can also hijack the memory of a benign program to perform malicious actions [1]. There are more sophisticated program watermarking techniques to identify a program [21], but their computational costs are prohibitively high so that they cannot be widely applied to modern enterprise environments, which contain thousands of programs.

We observe that the system behaviors, such as file accessing, inter-process communications, and network communications, of a program have distinguishable patterns [23]. For example, every instance of excel.exe loads a fixed set of .DLL files while opening a spreadsheet file. If an EXCEL.EXE instance performs a rare operation, such as loading an unseen .DLL file or initiating another process, this excel.exe is very likely to be hijacked or even malware with the ID of EXCEL.EXE. Such patterns are stable during the evolution of the program, and the system behavioral events can be efficiently collected by system monitoring techniques [10, 18]. Based on this observation, in this paper, we propose DeepRe-ID, an attentional multi-channel graph neural network based approach for deep program reidentificaion based on the system behaviors of the program.

In particular, we design a compact graph modeling, the program behavior graph, to preserve all the useful information from massive system monitoring data and capture the interactions between different system entities. The constructed behavior graph is a heterogeneous graph , which involves a hierarchy of different dependencies from simple to complex. Among all the dependencies, the complex ones are not exposed directly by the edges in the graph but can be inferred by a hierarchy of deep representation. To capture the hierarchical dependencies, we first propose a multi-channel transformation module to transform the heterogeneous graph into the multi-channel homogeneous graph guided by the meta-paths. After the multi-channel transformation, we feed the resulted graph and its corresponding entity features into a graph neural network for graph embedding. We propose a contextual graph encoder and stack it layer by layer to learn the hierarchical graph embedding via propagating the contextual information. Noticing the different importance of the different channels, channel-aware attention is further developed to align the multi-channel graph embeddings. We conduct an extensive set of experiments on real-world enterprise monitoring data to evaluate the performance of our approach. The results demonstrate the effectiveness of our proposed algorithm. We also apply DeepRe-ID to real enterprise security systems. The results show our method is effective in identifying the disguised signed programs and robust to the normal dynamic changes like program version upgrade.

In summary, the contributions of this paper are:

  • We identify the important problem of program reidentification in intrusion detection, which is often overlooked by the existing intrusion detection systems.

  • We propose a heterogeneous graph model to capture the interactions between different system entities from large-scale system surveillance data.

  • We develop a multi-channel transformation to transform heterogeneous information network into multi-channel homogeneous graph.

  • We propose a graph neural network based approach to learn the graph embedding via propagating the contextual information.

  • We propose a channel-aware attention mechanism to learn the representation from different channels jointly.

  • Our empirical studies on real enterprise monitoring data demonstrate the effectiveness of our method.

2 Preliminaries and Problem Statement

In this section, we first present the preliminaries, then define the machine learning problem that we are concerned with

Deep Program Reidentification.

System Entity There are three main types of system entities in an operating system: processes, files, and Internet sockets (INETSockets). Each type of entity is associated with a set of categorical attributes. In this paper, we use “program” and “process” interchangeably whenever there is no ambiguity.

System Event A system event is an interaction between a pair of system entities. Formally, a system event represents a source entity , destination entity and their interaction happens at time stamp . There are multiple types of system events, due to the existence of different types of entities. We consider three different types of system events, including: (1) a process forking another process (P-P), (2) a process accessing a file (P-F), and (3) a process connecting to an INETSocket (P-I).

Problem Statement Given a target program with corresponding event data during a time window and a claimed name/ID, we check whether it belongs to the claimed name/ID. If it matches the behavior pattern of the claimed name/ID, the predicted label should be ; otherwise it should be . More formally, given event data of a program, a mapping function is used to map to a binary label , such that .

3 Algorithm

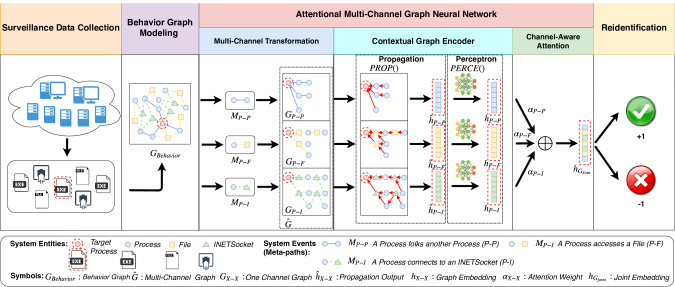

Figure 1: System Architecture of Deep Program Reidentification.

3.1 Overview

In this section, we introduce DeepRe-ID, a graph neural network based approach to verify the system program in a data-driven manner. The framework of DeepRe-ID (as shown in Figure 1), consists of the following six components:

  • Surveillance Data Collection This module collects three different types of low-level system events (see Section 2 for definition) from IT/OT systems.

  • Behavior Graph Modeling Based on the collected program event data, a compact heterogeneous program behavior graph is constructed for the target process from large-scale program event data to capture the complex interactions and eliminate the data redundancies.

  • Multi-Channel Transformation This module transforms the generated heterogeneous behavior graph to a multi-channel graph with each channel modeling one type of meta-path relationship.

  • Contextual Graph Encoder

    Based on the generated multi-channel graph, we propose an effective graph neural network with propagation layer and perceptron layer to extract the graph embedding.

  • Channel-Aware Attention In this module, an attention mechanism is proposed to align the graph embeddings extracted from different channels and generate the attentional joint embedding.

  • Program Reidentification

    After the joint embedding being extracted, the resulted low-dimensional vector is fed to a classification layer to generate the prediction.

3.2 Behavior Graph Modeling

Real information networks like the enterprise networks often generate a large volume of system behavioral data with rich information on program/process level events. We utilize a system monitoring tool based the Windows ETW [18]

to collect the program behavioral event data. The data has four properties: (1) High Volume. The system event data collected from a single computer system in one day can easily reach 20 GB and the number of events relates to one specific program can easily reach thousands. It is prohibitively expensive to perform the analytic task on such massive data in terms of both time and space. (2) High Dimensionality. Each system event is associated with thousands of attributes, including information of involved system entities and their relationships, which causes the curse of dimensionality

[25]. (3) Categorical. All available attributes are categorical, and each attribute has hundreds of categories. Analysis of categorical data is very challenging due to the lack of intrinsic proximity measure [5]. (4) Redundant. The attributes are redundant. Most of the attributes of system entities are the same. Repeatedly saving these attributes results in a significant redundancy. The events are also redundant. The event with the same system entity and relationship are usually repeatedly stored, which also causes a notable redundancy. These challenges motivate our idea of graph modeling.

We construct the compact graph to model the program behaviors. Formally, given the program event data across several machines within a time window (e.g., 1 day), a heterogeneous graph is constructed for the target program. denotes a set of nodes, each represents an entity, belongs to three types: process (P), file (F), INETSocket (I), namely . denotes a set of edges (dependencies) between the source entity and destination entity with relation . We consider three types of relations, including: (1) a process forking another process (PP), (2) a process accessing a file (PF), and (3) a process connecting to an Internet socket (PI). Each graph is associated with an adjacency matrix . With the help of the behavior graph modeling, we reduce the data redundancy significantly but keep important information.

3.3 Attentional Multi-channel Graph Neural Networks

After the graph modeling, a heterogeneous program behavior graph is constructed. There exist a hierarchy of different dependencies from simple to complex. Among all the dependencies, the complex ones are not exposed directly by the edge in the graph but can be inferred by a hierarchy of deep representation. For example, a process accessing a file (PF) is a simple dependency, two processes accessing the same file (PFP) is a complex dependency. To infer the relationship of two processes accessing the same file, we can check whether they share the same context. Due to the complex and obscure dependency, it requires a deep graph structure learning model to capture the hierarchical dependency. However, recent deep graph neural network methods [16, 8, 12, 24] only focus on the homogeneous graph and can not capture the heterogeneity within the heterogeneous graph. To learn the hierarchical dependency representation (hierarchical graph embedding) from heterogeneous graph, we propose an attentional multi-channel graph neural network, which consists of multi-channel transformation, input layer, contextual graph encoder, and channel-aware attention.

Multi-channel Transformation Due to the heterogeneity intrinsic of entities (nodes) and dependencies (edges) in a heterogeneous graph, the diversities between different dependencies vary dramatically, which significantly increase the difficulty of applying graph neural network. To address this challenge, we design a multi-channel transformation module to transform the heterogeneous graph to a multi-channel graph guided by the meta-paths. A meta-path [22] is a path that connects entity types via a sequence of relations over a heterogeneous network. For example, in a computer system, a meta-path can be the system events (PP, PF, PI) described in Section 2, with each one defining a unique relationship between two entities. The multi-channel graph is a homogeneous graph with each channel constructed via a certain type of meta-path. Formally, given a heterogeneous graph with a set of meta-paths , the transformed multi-channel network is defined as follows:


where denotes the homogeneous links between the entities in , which are connected through the meta-path . Each channel graph is associated with an adjacency matrix . indicates the number of meta-paths. Here, we use three types of one-step meta-paths: , , to construct a three-channel graph.

Input Layer After the multi-channel transformation, an input layer is applied to construct the feature vector for each entity. Specifically, two types of features are constructed: connectivity features and statistic features. Since these features are constructed without any expert knowledge, they are knowledge free.

Connectivity features are constructed to describe the pairwise proximity between entities. The connectivity feature of entity is defined as , which denotes the first-order proximity between and other entities. Graph statistical features are generated based on the graph theory. The graph statistical feature of entity is defined as , including four graph measurements: degree centrality, closeness centrality, betweenness centrality, and clustering coefficient.

Contextual Graph Encoder111In this subsection, we remove the subscripts of channel indicator for all the graph related symbols for simplification. In this step, we feed the multi-channel graph and the corresponding entity features to a graph neural network for graph embedding. To learn the hierarchical graph representation, we propose contextual graph encoder (CGE) and stack a deep graph neural work. Given the homogeneous graph with each associated with a corresponding feature , our target is to learn an encoding function , that encodes the graph to a low dimensional vector (graph embedding), where denotes the generated graph embedding vector. Specifically, we use the representation of the target entity (target contextual entity embedding), which encodes both contextual structure and its features by a mapping function , as the representation of the graph. In this way, we reduce the graph embedding problem into the target entity embedding. Formally, our graph encoder can be defined as follows:


The basic contextual graph encoder consists of a propagation layer and a perceptron layer . The propagating layer propagates the information from the context of the target entity. We define the propagation layer as follows:


where denotes the layer number, denotes the propagation matrix at layer , and indicates the output of at layer . The first layer takes the features of each entity. The propagation layer propagates information to the target entity within a region, named graph receptive field . The graph receptive field usually consists of all L-hop contexts of target entities. The propagation operation encodes both the graph structure and the entity features, which is similar to performing a graph convolution operation [16]. After the propagation is performed, a perceptron layer is applied to the propagated representation of the entities, such that:


where is the shared trainable weight matrix for all the entities at layer and is a nonlinear gating function. Benefit from weight sharing, it is both statistically and computationally efficient compared with traditional entity embedding. Weight sharing can act as powerful regularization to preserve the invariant property in the graph, and the number of parameters is significantly reduced.

We design our propagation layer by performing the random walk on the graph via a diffusion process characterized by a specific probability

and a state transition matrix . Here denotes the degree matrix of the adjacency matrix , such that . 1 is a all one vector. After some transitions, such Markov process converges to a stationary distribution with th row indicates the likelihood of diffusion from the entity, hence the proximity of that entity. This stationary distribution of the diffusion process is proven to have a closed form solution [3]. When considering the 1-step truncation of the diffusion process, the propagation layer is defined as follows:


The receptive field is defined as , with denoting all the contexts of target entity . The propagation layer computes the weighted sum of the contexts’ current representation. We set and build a three-layer CGE as follows:


where is a element-wise rectified linear activation. We perform the CGE to each channel graph and generate corresponding graph representation respectively.

Channel-Aware Attention Going through the CGE, the graph embeddings for each channel graph are extracted. However, different channels should not be considered equally. For example, Ransomware is usually very active in accessing the files but barely folks a process, or opens an internet socket, while the VPN is generally very active in opening the internet socket but it barely accesses a file or folks a process. Therefore, we need to treat different channels differently. Here, we propose a channel-aware attention, an attention mechanism, to align the graph embeddings from different channels and generate the joint embedding. Specifically, we learn the attention weights for different channels automatically.

Formally, given the corresponding graph embedding for each channel , we define the attention weight as follows:


where is graph embedding of the target channel, denotes the representation of the other channels. denotes a trainable attention vector, denotes a trainable weight mapping the input features to the hidden space, denotes the concatenation operation, and

denotes the nonlinear gating function. We formulate a feed-forward neural network that is used to compute the correlation between one channel and other channels. This correlation is normalized by a softmax function. Let

represent Eq.(10). The joint representation of each channel can be represented as follows:


The channel-aware attention allows us to better infer the importance of different channels by leveraging their correlations and learn a channel-aware representation.

3.4 Program Reidentification

After the joint graph embedding is generated from program event data, a binary classifier is used to verify whether the program matches its claimed name. Specifically, we trained the binary classifier for each known program. Our framework takes a claimed program event data as the input and generates the corresponding prediction. The final outputs are +1 or -1 indicating identified or unidentified prediction result.

To train a verification model for a particular program, we collect a set of program events including events belong to that program and the ones do not belong to that program. Their corresponding labels are with . If the event data belongs to the claimed program, its ground truth label , otherwise its ground truth label

. Our target is to design an end-to-end binary classifier. Specifically, we propose to use logistic regression classifier, and the objective function is defined as follows:


where denotes the predicted label. We optimize the above objective with Adam optimizer. The gradients of the parameters are calculated recursively according to the graph topology. Since our approach is end to end, we directly optimize the reidentification objectives. Once the model achieves a good performance (e.g., using accuracy (ACC) as the measure), the training process terminates, and the trained model is suitable for program reidentification.

4 Experiments

4.1 Data

In the experiments, we evaluate the proposed method on the real-world system monitoring data. The data is collected from a real enterprise network composed of machines, in a time span of consecutive weeks. The sheer size of the data set is around 3 Terabytes. We consider three different types of system events as defined in Section 2. Each entity is associated with a set of attributes, and each process has an executable name as its identifier/ID. In total, there are about million event records, with about processes, files, and Internet sockets. Based on the system event data, we construct the behavior graph (see Section 3.2) per program per day. For each entity, we construct three types of features according to Section 3.3: fea-1: connectivity feature, fea-2 statistics feature, and fea-3: the combination of fea-1 and fea-2.

4.2 Experiment Setup

4.2.1 Baselines

To evaluate the performance of Deep Program Reidentification, we compare the proposed method with the following typical and state-of-art classification models:

  • LR and SVM

    : LR and SVM represent the Logistic regression and Linear Support Vector Machine respectively. They are two typical classification methods. The raw features extracted from each process are used as the input, including the connectivity features and the graph statistics feature. The LR and SVM are implemented using sciket-learn.

  • XGB

    : XGB represents the gradient boosting. It is a decision tree based classification model implemented using XGBoost

    [6]. It is the state-of-art linear classification model in most of the tasks. We set maximum trees with the learning rate equals to 0.1.

  • MLP

    : MLP represents the Multi-layer Perceptron, which is a deep neural network based classification model with multiple non-linear layers between the input layer and the output layer. It is a special case of our contextual graph encoder if we define the propagation layer as an identity matrix.

Since our approach DeepRe-ID consists of several components, we consider several variants as well.

4.2.2 Evaluation Metrics

Similar to [7]

, We evaluate the performance of different methods using a variety of measures, including accuracy (ACC), F-1 score, AUC score, precision and recall.

4.3 Synthetic Experiments

In this part, to evaluate the proposed method in a more controlled setting for assessing algorithm performance, we conduct the three sets of synthetic experiments on

most active programs as follows: (1) We evaluate the effectiveness of multi-channel transformation module and channel-aware attention; (2) We evaluate the performance of our method on normal program reidentification; (3) We perform the parameter sensitivity analysis. We perform 5-fold cross-validation on each program and report the average testing results of all the programs for each evaluation metric. We conduct a grid search on the parameter of each method to identify the parameter setting that yields the highest result, which is done using cross-validation. In particular, we set the dimension of the hidden layer being


4.3.1 Evaluation of Different Meta-paths

Meta-Path Evaluation Criteria
DeepRe-ID 0.838 0.864 0.843
DeepRe-ID 0.821 0.855 0.838
DeepRe-ID 0.579 0.635 0.592
DeepRe-ID 0.876 0.901 0.890
DeepRe-ID 0.905 0.929 0.908
Table 1: Reidentification results of different meta-paths.

In this experiment, we evaluate the performance of different kinds of meta-paths and their combinations. Giving each kind of meta-path, such as PP, PF or PI, corresponding to one type of system event, we construct the multi-channel graph with entity features and then feed them to the contextual graph encoder to generate the graph embedding. After the graph embedding is obtained, we feed it to logistic regression to train the classification model for program reidentification. We denote these baselines as DeepRe-ID, DeepRe-ID, DeepRe-ID, and DeepRe-ID. To effectively evaluate our attention module, we consider both direct concatenation and our proposed attentional version, which are denoted as DeepRe-ID and DeepRe-ID. From Table 1, we can observe that: (1) The DeepRe-ID outperforms DeepRe-ID with single type of meta-path and their simple combination; (2) The combinations of multiple meta-path perform better than any single meta-path, since they cover multiple types of dependency and provide complementary information; (3) The one with channel-aware attention performs better than simple concatenation, since the importance of different meta-paths vary for different programs. Channel-aware attention captures that difference and computes a weighted combination of different meta-paths.

4.3.2 Evaluation on Normal Program Reidentification

Method Settings Evaluation Criteria
ACC F-1 AUC Precision Recall
LR fea-1 0.693 0.755 0.699 0.632 0.948
fea-2 0.705 0.770 0.703 0.655 0.950
fea-3 0.724 0.772 0.727 0.675 0.948
SVM fea-1 0.502 0.662 0.502 0.505 0.970
fea-2 0.795 0.778 0.725 0.701 0.935
fea-3 0.504 0.652 0.504 0.505 0.975
XGB fea-1 0.775 0.802 0.776 0.732 0.930
fea-2 0.833 0.860 0.846 0.821 0.936
fea-3 0.855 0.866 0.856 0.827 0.937
fea-1 0.633 0.745 0.643 0.626 0.938
fea-2 0.775 0.808 0.779 0.724 0.932
fea-3 0.778 0.808 0.780 0.726 0.932
fea-1 0.633 0.743 0.653 0.625 0.945
fea-2 0.801 0.830 0.805 0.769 0.921
fea-3 0.815 0.831 0.816 0.778 0.923
DeepRe-ID / 0.905 0.929 0.908 0.905 0.933
DeepRe-ID / 0.929 0.961 0.935 0.932 0.936
Table 2: Comparison of other classification methods.

In this experiment, we evaluate the performance on normal program reidentification by comparing DeepRe-ID with other four baselines including LR, SVM, XGB, and MLP. We use the constructed features as described in Section 4.1

. To show the effectiveness of the deep learning model, we consider both shallow and deep version of the neural network based model, which is denoted as

and , respectively. We consider the one-layer configuration as the shallow model and the three-layer configuration as the deep model. For the baseline methods, we use the constructed raw features: fea-1, fea-2, fea-3 as the inputs. Table 2 shows that overall, DeepRe-ID consistently and significantly outperforms all baselines in terms of all metrics. More specifically, (1) fea-3(concatenate the connectivity feature and graph statistic feature) helps to improve the performance for all baseline classification models, but since they are all raw features without considering graph structure, their performance can not catch up with the proposed method; (2) fea-2(graph statistic feature) is more useful than fea-1(graph connectivity feature), since fea-1 is very sparse, which is difficult to use for some state-of-art methods, such as SVM; (3) the deep model outperforms the shallow model for deep learning method since the deep model can capture the hierarchical dependency representation.

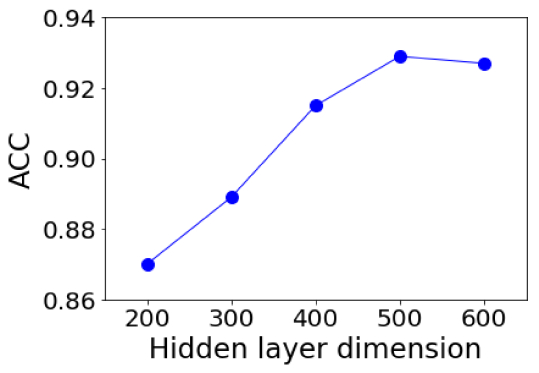

Figure 2: Parameter Sensitivity

In this experiment, we conduct the sensitivity analysis of how different choices of parameters will affect the performance of our proposed approach. Specifically, DeepRe-ID has an important parameters: the number of dimension in each perceptron layer. The results are shown in Figure 2.

4.4 Real-world Experiments

In this section, we evaluate the performance of the DeepRe-ID in two real-world tasks: disguised program detection and robustness study on program version upgrades.

4.4.1 Disguised Program Detection

(a) TPR Results.
(b) FPR Results.
Figure 3: Disguised program detection results.

In order to avoid detection, the hacker usually disguises their malicious program as a legitimate program. To test the performance of DeepRe-ID in disguised program detection, in this experiment, we simulate five different types of real advanced attacks [2] including: (1) WannaCry: A crypto worm which disguised itself as 7z.exe. (2) Phishing Email: A malicious Trojan is downloaded as an Outlook attachment, and the enclosed macro is triggered by Excel to create a fake java.exe, and the disguised malicious java.exe further SQL exploited a vulnerable server to start cmd.exe in order to create an info-stealer. (3) Emulating Enterprise Environment: The hacker generates telnet process to create a trojan malware binary with a disguised naormal program name. Then, DLL is injected through the running process notepad.exe. The hackers use mimikaz and kiwi for memory operation inside the meterpreter context. Finally, malware PwDump7.exe and wce.exe are copied and run on target hosts. (4) Diversifying Attack Vectors: The attacker first writes malicious PHP file by HTTP connection, then downloads the malware process(trojan.exe), and connects back to attacker host. The process notepad.exe is run to perform DLL injection. Hacker further uses mimikaza and kiwi to perform memory operation inside meterpreter context. Finally, it copies and runs Pwdup7.exe and wce.exe on the target host. (5) Domain Controller Penetration The hacker first sends an email attaching a document that includes the malware python32.exe. This malware opens a connection back to the attacker so that they can run notepad.exe and perform reflective DLL injection to obtain need privileges. Finally, they transfer password enumerator and run the process gsecdumpv2b5.exe to get all user credentials. We tried each type of the attacks ten times during different time windows to generate different testing samples.

The detection performance is evaluated using the true positive rate (TPR) and false positive rate (FPR). The TPR defines the fraction of intrusion attacks that are detected during the evaluation. FPR, on the other hand, describes the fraction of normal event sequences that trigger an alert during the evaluation. We compare our method with the four baselines and use the deep model for all neural network based techniques. Figure 3 shows that DeepRe-ID outperforms all the other baselines by at least in TPR and in FPR.

4.4.2 Robustness Study on Program Upgrade

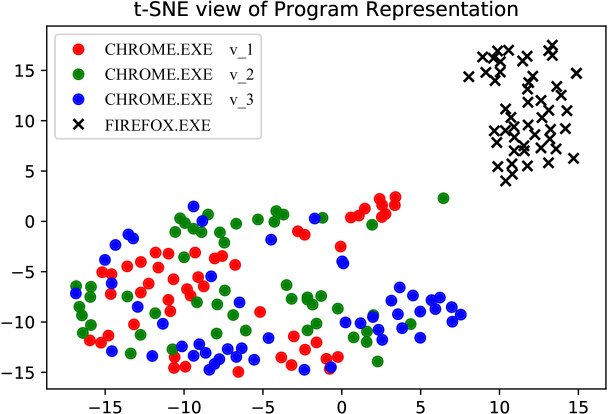

Figure 4: Scatter plot embedding of different versions of CHROME.EXE vs FIREFOX.EXE.

The normal program usually gets the upgrade with multiple versions. However, different versions have different signatures, which may cause false alarms in intrusion detection systems. In this experiment, we evaluate the robustness of DeepRe-ID on program upgrade. In particular, we select the web browser software CHROME.EXE for a case study. We collect the data of CHROME.EXE with three different versions and one version of another web browser software FIREFOX.EXE. Then, the graph embedding before the classifier for these CHROME.EXE data and FIREFOX.EXE data are extracted and visualized using t-SNE. From Figure 4, we can see that in the embedding space, the data points belong to the different versions of CHROME.EXE are close to each other, even they have different signatures, while the data points of FIREFOX.EXE are far away from all the CHROME.EXE data points, which demonstrates our method is robust to the normal program upgrades.

5 Related Work

5.1 Intrusion Detection

In general, intrusion detection refers to the process of monitoring the events occurring in a computer system or network and analyzing them for signs of intrusions. Currently, there are two main types of approaches, namely anomaly detection and misuse detection [15]. Anomaly detection approaches define and characterize correct/wrong behaviors of the system, while the misuse detection approaches monitor for explicit patterns, with the intrusion patterns known in advance. Existing anomaly detection approaches in large-scale enterprise network systems have been separately considering different data representations. In particular, host-based anomaly detection methods locally extracted patterns from process-level events as the discriminators of abnormal intrusion [14, 19]. In contrast, network-based anomaly detection methods focused on disclosing abnormal subgraph structures from network-level events, most of which were inspired by graph properties [20].

5.2 Graph Representation Learning

Recently, representation learning [4] has become a very promising topic in machine learning with wide applicability. Many representation learning works aim at learning representations with deep learning due to its powerful feature learning ability. Recent years, several deep learning approaches are proposed on graph-structured data, including [16, 8, 12, 24]. They leverage convolution operation in the spatial domain or spectral domain. [8] propose the fast localized convolutions. [16] propose a first-order approximation scheme to reduce the computation cost of graph filter spectrum. [12] extends the graph convolution with a more general form of sample and aggregation function for node context. More recent work by [24] learns the context aggregation with considering the weights between the neighborhood and current nodes. However, these work mainly focus on the node classification for heterogeneous network. Different from theirs, our work focus on learning the embedding from the heterogeneous graph.

6 Conclusion

In this paper, we investigate the problem of program re-identification in IT/OT systems, which is often overlooked by traditional intrusion detection techniques. We propose DeepRe-ID, an attentional graph neural network method to verify the program’s identity based on its behavior graph. Different from the existing graph neural network methods, DeepRe-ID is able to capture and encode the heterogeneous complex dependency among different entities in a hierarchical way. The experimental results show that DeepRe-ID outperforms all the baseline methods by at least in terms of all the metrics. We also apply DeepRe-ID to a real enterprise system for disguised program detection. Our method can achieve superior performance and demonstrate robustness to the normal dynamic changes.
