Deep Phase Correlation for End-to-End Heterogeneous Sensor Measurements Matching

08/21/2020 ∙ by Zexi Chen, et al. ∙ Zhejiang University 2

The crucial step for localization is to match the current observation to the map. When the two sensor modalities are significantly different, matching becomes challenging. In this paper, we present an end-to-end deep phase correlation network (DPCN) to match heterogeneous sensor measurements. In DPCN, the primary component is a differentiable correlation-based estimator that back-propagates the pose error to learnable feature extractors, which addresses the problem that there are no direct common features for supervision. Also, it eliminates the exhaustive evaluation in some previous methods, improving efficiency. With the interpretable modeling, the network is light-weighted and promising for better generalization. We evaluate the system on both the simulation data and Aero-Ground Dataset which consists of heterogeneous sensor images and aerial images acquired by satellites or aerial robots. The results show that our method is able to match the heterogeneous sensor measurements, outperforming the comparative traditional phase correlation and other learning-based methods.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 2

page 4

page 5

page 7

page 8

page 13

page 14

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Localization is one of the most fundamental problem for mobile robots. With a decade of research, localization given the measurement and the map built by the same sensor is relatively mature. But for matching measurements from heterogeneous sensor modalities remains an open problem. This problem is practical considering the effort to build a map. We would like the map to be sharable by multiple robot users, even equipped with heterogeneous sensors. Note the great progress in visual inertial navigation and mapping [11], the solution space to localization can be reduced to 3 or 4, namely the translation and the heading angle. By exploiting birds-eye view measurements, the problem is re-formulated as an image matching problem with warping space built on . In this paper, we focus on this scenarios with birds-eye view images acquired by ground vehicles, satellites and UAV with vision and LiDAR, as shown in Figure 1.

Previous researches on homogeneous image matching can be divided into two categories: those rely on point features correspondences to localize in specific setups [12, 9, 1, 3], those apply dense correlation methods to find the best pose candidate in solution space [16, 4, 17, 7, 2]. However, all these approaches do not perform well when heterogeneous measurements are given. As for heterogeneous image matching, [8, 15] utilize hand-craft features to localize LiDAR against satellite maps. These frameworks rely heavily on the coverage and optimality of the hand-crafted features over the variations in real environment. Learning-based methods proved to have certain generalization ability are intuitively appropriate for heterogeneous image matching. [10, 18] learn the embeddings for heterogeneous observations and exhaustively search for the optimal pose in the discrete solution space, which is more interpretable than regressing the pose by an end-to-end network as in [6, 5]. However, the former suffers from low efficiency and limited pose range due to the exhaustive evaluation on the large pose space, constraining the application with known scale.

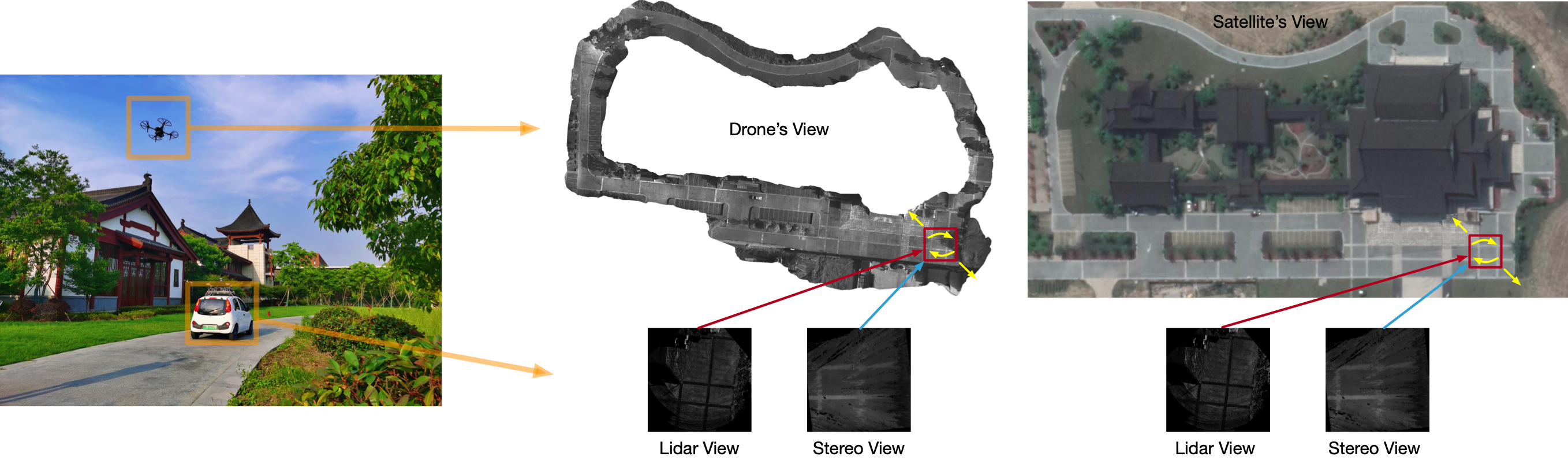

Figure 1: A typical scenario for localization based on matching measurements from heterogeneous sensors. Left: Aerial-Ground cooperation; middle: matching observations from LiDAR or stereo cameras of the ground robot to drone’s global map; right: matching observations from LiDAR or stereo cameras of the ground robot to satellite’s global map.

By revealing the problems encountered by prior works, one can think of an ideal matcher that can obtain the solution without exhaustive evaluation and also have good interpretability and generalization. In our work, we set to propose such a learnable matcher, of which the essence is a differentiable phase correlation. Phase correlation [16] is a similarity-based matcher that performs well for inputs with the same modality but only tolerate small high frequency noise. We modify the phase correlation into a differentiable manner and embed it into our end-to-end framework. This architecture allows our system to find optimal feature extractors with respect to the resultant pose of image matching. Specifically, we adopt the conventional phase correlation pipeline proposed by [16]

and explicitly endow the Discrete Fourier Transform (DFT) layer, log-polar transformation layer (LPT), and differentiable correlation layer (DC) with differentiability and thus make it trainable for our end-to-end matching network as shown in Figure

2. Our experiments show the robustness and efficiency of the propose method on matching heterogeneous sensor measurements.

2 Deep Phase Correlation Network

With known gravity direction, the relative pose between the two observed birds-eye view images can be simplified as similarity transform :

(1)

where is the scale, is the rotation matrix generated by the heading angle , and

is the translation vector. In general, the two images are disturbed by illumination, shadow and occlusion, or even acquired by heterogeneous sensors. For example,

is acquired by a birds-eye camera of a UAV in the morning, while is a local elevation map constructed by the ground robot with a LiDAR. To address this issue, a general process is to extract features from the two images, and estimate the relative pose using the features instead of the original sensor measurements. By applying the template matching to the features, we derive the optimal feature extractors and for the two images respectively by solving

(2)

where is the ground truth, is a scoring function to measure the similarity, and is to transform by relative pose . Inner product is often regarded as the scorer function. Then we have

(3)

There are two problems. First, an exhaustive evaluation is required for all elements in , which is extremely time consuming considering the dimensional space . Second, is not differentiable, thus (3) is hard to be optimized. If and are hand-crafted processes, the optimization is even harder. In this paper, we set to differentiate (3) and eliminate the exhaustive evaluation to find efficient data-driven feature extractors and .

2.1 Decoupled correlation based pose estimator

Cross-correlation: We begin with the known scale and rotation , reducing the unknown parameters to . Denoting and , we have

(4)

where is a position in the feature. Note the term in the is the cross-correlation function parameterized by between and , which can be evaluated very efficiently using convolution.

Translation invariance: In general, if we achieve scale and rotation by assuming known translation, then the problem is chicken-and-egg. We introduce a representation which is invariant to translation, but variant to scale and rotation. Thus we can ignore the translation when solving for scale and rotation. Specifically, we refer to the magnitude of frequency spectrum of and . According to the property of Fourier transform, we have

(5)

where is the fourier transform. It means that only rotation and scale have effects on the magnitude of frequency spectrum.

(6)

Cartesian to log-polar:

We decouple rotation and scale from relative pose using the frequency spectrum. However, exhaustive evaluation is still required for rotation and scale. By looking into the frequency domain, we have

(7)

where is a position in the frequency spectrum. By representing it in the polar coordinates, we have

(8)

where and . To deal with the scale, we further apply the logarithm to the position

(9)

Now we finally arrive at the correlation form with respect to the scale and rotation, which eliminates all exhaustive evaluation in the whole pose estimator.

(10)

When there is no feature extractor, or equivalently, the original sensor measurements are fed, the process is called phase correlation, estimating the relative pose in very efficiently. However, when there is variation between the pair of inputs, the feature extractor is indispensable.

2.2 End-to-end learnable feature extractor

Figure 2: The architecture of proposed Deep Phase Correlation Network (DPCN), which consists of 4 U-Net based feature extractors and differentiable phase correlation for decoupled scale, rotation and translation estimation.

Expectation as differentiable : To find the feature extractor which is optimal with respect to the training data, we have to approximate the in (4) and (10

) with differentiable function. We connect the cross-correlation to a softmax function, which maps the input to a discrete probability density function

. Set translation part as example, the cross-correlation in (4) is

(11)

By keeping the features positive, we do not need to care about the negative correlation. Still refering to the translation part, given the probability function, we derive the expectation as the optimal translation estimator, and substitute it into (

4), yielding the differentiable form

(12)

For rotation and scale (10), the same expectation estimator can be applied to approximate the non-differentiable based estimator. When learning, we assign a temperature coefficient to the softmax to tune the range of feature input, which accelerates the convergence, but does not make difference in theoretic derivation. The whole pose estimator can be regarded as a differentiable phase correlation (DPC) with back-propagated gradients to enforce the learning of feature extractor.

Deep feature extractor: The conventional phase correlation [16] utilizes high pass filters to suppress high frequency random noise of two inputs, which can be seen as a feature extractior. For more distinct variation between the pair of inputs, one high pass filter is far from sufficient. Considering that there is no common feature to directly supervise the feature extractor, we utilize the end-to-end learning to address the problem.

We adopt U-Net for feature extraction, aiming at learning the common features of the two images implicitly. We construct 4 separate U-Nets with the input and output size of

respectively for the template image and the source image in the rotation phase and the translation phase, shown in Figure 2. Each U-Net is constructed with 4 down-sampling encoder layers and 4 up-sampling decoder layers to extract features. As the training progresses, the parameters of four U-Nets are tuned. Note that this network is light-weighted so that it could be efficient enough for real-time execution. Combining the feature extractor and the DPC, we name the whole network as DPCN.

2.3 Data preparation for learning

One question is that why we supervise DPCN on the estimated pose, but not the correlation matrix with a one-peak matrix centering at the correct position, thus the expectation based estimator can be eliminated. We argue that enforcing the correlation matrix to be one-peak is over-supervision. In theory of phase correlation, the position corresponding to the maximum correlation, does not necessarily mean zero correlation for the others, which can be explained by the resonance in physics. However, when the correlation map is passed through softmax estimator, the temperature coefficient suppresses the non-maximal part in the correlation matrix to be close to 0, resulting in a normalized probability density function. In addition to the pose supervision as shown in (12), we also supervise the probability density function of translation, and scale/rotation, to be one-peak. Still refer to the translation as example, we do it by applying the KL-divergence:

(13)

where is a normalized one-peak function centering at . In practice, we slightly expand the one-peak function with Gaussian smooth. Theoretically, the resultant distribution for some cases can be multi-modal, e.g. the repetitive local environment. However, given massive training data with similar input and different output, the optimal solution to (13) is a multi-modal probability function, i.e. multi-modal . The two loss (13) and (12) are mixed by weight. For translation part, multi-modal result occurs more often, so we increase the loss of (13) in the total loss for translation phase.

3 Experimental Results

In this section, we explicitly evaluate the performance of our approach. By utilizing phase correlation with DFT and log-polar transform over the learned representation of two images, we are able to fully estimate the rotation and scale transformation of the two heterogeneous images, and eventually able to estimate the 4-DoF relative pose .

Dataset & Metrics: Our approach is evaluated both on randomly generated simulation dataset and on real-world dataset ”Aero-Ground Dataset”[19] which contains several different image pairs shown as follows:

  • l2d:“LiDAR Local Map” to “Drone’s Birds-eye Camera View”;

  • l2sat:“LiDAR Local Map” to “Satellite Map”;

  • s2d:“Stereo Local Map” to “Drone’s Birds-eye Camera View”;

  • s2sat:“Stereo Local Map” to “Satellite Map”.

On the simulation dataset, we evaluate our work on homogeneous, heterogeneous, and heterogeneous with dynamic obstacles images pairs whereas on the Aero-Ground Dataset, we evaluate our work on the application of cooperative SLAM system between ground mobile robots, the MAV and the Satellite. The demonstration of both datasets is shown in Figure 3 and 4. Finally, we applied our method to Monte Carlo Localization to prove the real-time capability and robustness of our method. In all datasets, we constrained translations of both and , rotation changes and scale changes in the range of pixels, and respectively with images shapes of .

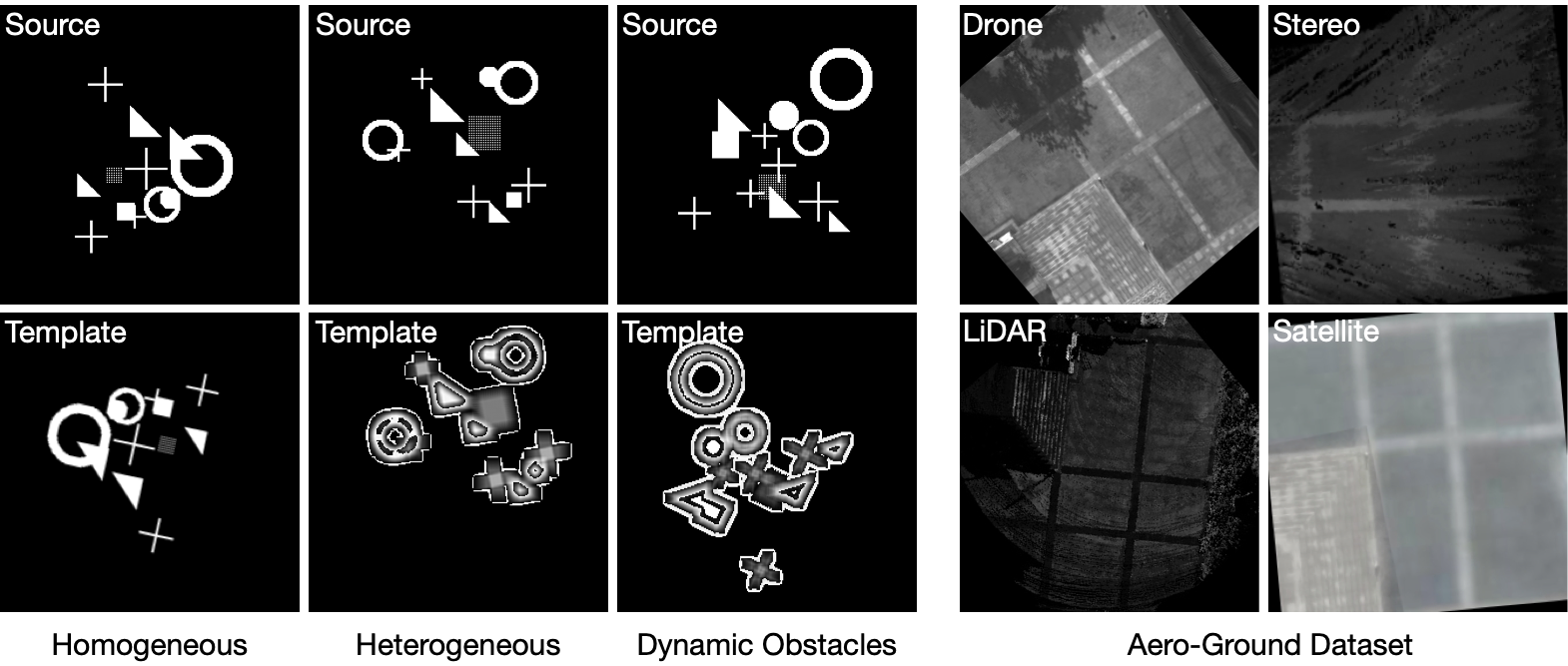

Figure 3: Simulation dataset(left) containing “Homogeneous”, “Heterogeneous” and “Dynamic Obstacles” sets. Aero-Ground Dataset(right) containing “drone’s view”, “LiDAR intensity”, “stereo” and “satellite”

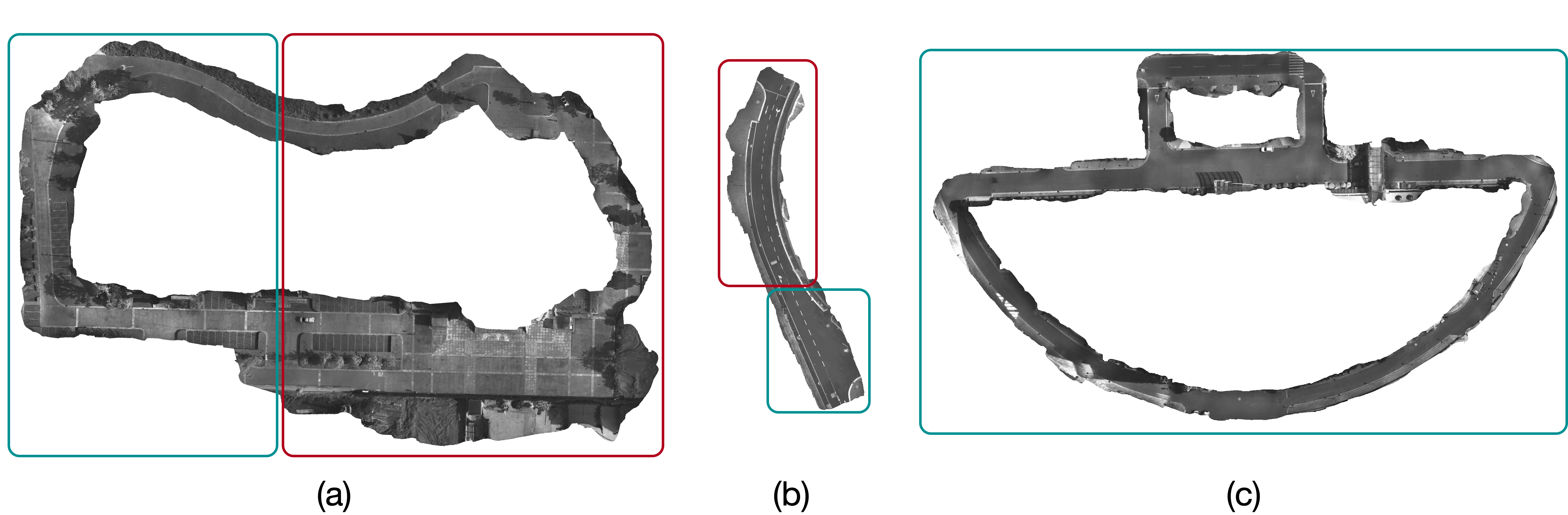

Figure 4: Demonstration of birds-eye views of the different scenes in Aero-Ground dataset. The experiments are carried out on location (a) and (b) separately in which the model is trained on images pairs generated inside red areas and validated on images pairs generated inside blue area. The generalization experiment is carried out with estimating poses of images inside location (c) with models trained on (a) and (b).

For evaluating the accuracy and error rate of estimation, we consider “Accuracy in Units” and Mean Square Error(MSE) of the estimated result and the ground truth as the mean indicator:

(14)
(15)

where being the output type(x, y, rotation, and scale), being the threshold of accuracy (pixel for translation, degree for rotation and multiplier for scale), being the amount of image pairs, being the estimated result of the th image pair and being the corresponding ground truth. “Accuracy in Units” is calculated as the percentage of estimation with an error lower than the threshold.

Comparative Methods: Benchmarks in the experiments include conventional Phase Correlation[16], deep learning based QATM[3], DAM[14], Relative Pose Regression(RPR), and Dense Search(DS). Phase Correlation is the baseline for registering two homogeneous images and the pipeline of which is also partly adopted in our approach. We select it as a benchmark for evaluating the performance of our approach in matching homogeneous images. QATM is a representative work in image matching applying deep learning to learn features for matching and NMS for matching selection. It could handles translation displacement with high accuracy and therefore we select it as the benchmark for evaluating translation estimations in heterogeneous images. Unfortunately, the author of QATM only provided a pretrained model without a training script so that we could only evaluate its performance with the provided model. DAM trains and learns affine transformations including translation, rotation and scale changes, and therefore we trained DAM on the same dataset and compare our method with it on the four aspects. Relative Pose Regression(RPR) is adopted by multiple methods[6, 5] in pose regression by outputting desired classes of estimation through several fully-connected layers without an analytical solutions. Finally, Dense Search(DS) is the methodology adopted by [2] whcih violently rotates images to some discrete angles to estimate the relative shifts. We trained DS in a smaller rotation range [0,15] due to its discrete property and time consumption. It is selected as a benchmark to demonstrate the advantage of estimation continuity and swiftness of our approach.

3.1 Simulation Dataset

In order to verify the feasibility of our approach under several different situations and the generalization capability of the fully differentiable methodology, we conduct various of experiments on the simulation dataset. The experiments on a pair of homogeneous images is conducted to verify the equivalence to the conventional phase correlation when dealing with images of same styles. Moreover, with experiments on a pair of heterogeneous images conducted, we show the unique capability of our approach with estimating the 4-DoF pose of two images with drastic style changes. Finally, we introduce dynamic obstacles to the heterogeneous image pairs to demonstrate the robustness of our approach for being insensitive to dynamic obstacles.

Benchmarks Exp. Runtime(ms)
Registration
1 0.6635 99.2 0.9231 99.5 0.0663 99.7 0.0710 98.9 141.4
2 1774.1592 52.3 3233.8133 33.2 145.8561 72.3 0.1992 97.6 138.8
3 2319.5537 49.2 2945.3017 42.6 121.5026 67.9 0.1218 96.7 137.0
QATM 1 15.4820 95.4 8.9192 96.3 108.3
2 2999.3710 31.4 4286.4810 26.4 108.9
3 3651.4691 25.6 4901.7201 21.5 109.1
DAM 1 53.7597 90.6 28.6825 95.9 19.2243 81.7 0.1452 90.5 111.7
2 2.5816 98.4 4.6234 97.9 28.9341 80.8 0.1432 90.9 114.2
3 46.1165 71.3 89.6835 68.2 36.5608 77.8 0.3625 87.3 110.4
RPR 1 8.6754 96.9 2.2201 97.3 16.2723 90.2 0.0805 95.2 64.1
2 22.3634 39.9 32.8334 41.2 97.8517 78.3 0.1367 96.7 64.7
3 14.6842 51.1 11.1322 56.8 101.3329 76.8 0.1846 96.1 63.5
DS 1 7.4092 85.1 11.1108 79.3 26.2656 33.4 304.5
2 5.4970 86.6 7.3333 86.5 31.3891 23.9 301.3
3 6.2850 83.9 7.8176 79.6 25.6643 27.1 301.4
DPCN 1 0.1031 100 0.2162 100 0.0528 100 0.0522 100 71.9
(Ours) 2 0.0073 100 0.0172 100 0.0397 100 0.0642 100 72.1
3 0.0761 100 0.4671 100 0.0913 100 0.0013 100 72.1

Note: , and is conducted on “Homogeneous”, “Heterogeneous”, and “Dynamic Obstacles” sets respectively. Red is the best performance and blue is the secondary.

Table 1: Results of simulation dataset. We choose the threshold error of for translation, for rotation and for scale. More thresholds are elaborated in Appendix C

Experimental results on the simulation dataset are shown in Table 1. The results show that for the homogeneous pairs of images, our method maintains an equivalent performance with the conventional phase correlation pipeline in accuracy with faster speed and outperformed the rest of the baselines. In the heterogeneous dataset and dynamic obstacle dataset, our approach outperformed any existing baselines in accuracy and is only a bit slower than the Relative Pose Regression.

The key to our approach is applying a fully optimal differentiable DFT with log-polar transformation to back-propagate the supervised error to train a multi-channel feature-based representation which is optimized for phase correlation to estimate the relative pose. It outperformed the conventional phase correlation method applying high pass filter with the learned representation when dealing with images that is not simply a cutout to one another. The learned representation, the result of the DFT, log-polar transformation, and the correlation map shown in Figure 6 indicate that the network is interpretable: by supervising end-to-end, the network is finally able to predict the transformation of two heterogeneous images with their U-Net outputs of convergent features. Note that the simulation dataset is randomly generated to reduce overfitting.

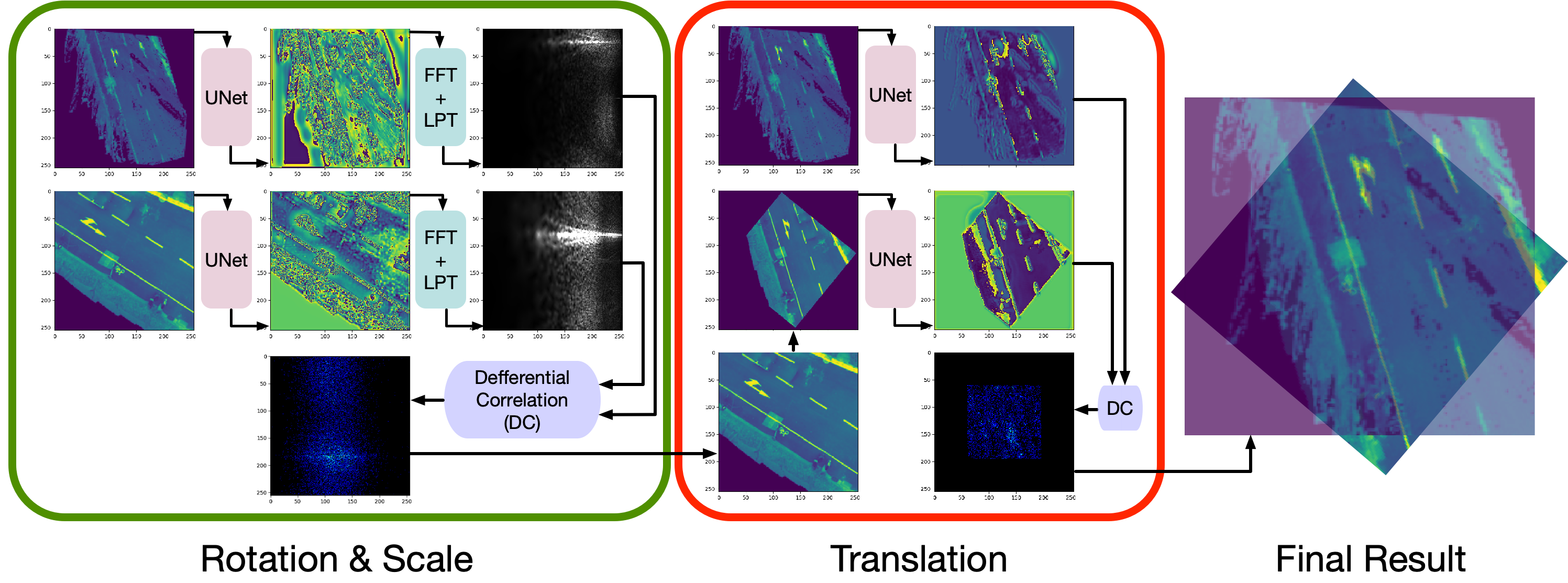

Figure 5: Workflow visualization showing that with codecs applied and trained, the network is able to reduce the impact of noise and style changes while conventional phase correlation without feature learning fails to recognize the relations of two images.

Table 2 and elaborations in Appendix C verify the generalizing ability of our approach For generalization experiments, the model is trained on the “Heterogeneous” set and is evaluated on two other sets in simulation datasets. The results show that with models not specifically trained, it can still maintain a high rate of accuracy in all 4-DoF.

Exp.
Homogeneous 0.4121 100 0.705 100 0.0432 100 0.015 100
Dynamic Obstacle 0.0276 100 0.105 100 0.039 100 0.003 100
Table 2: Results of generalization experiments with simulation dataset.

3.2 Aero-Ground Dataset

To evaluate the applicability in the real world of our approach, we conduct experiments on Aero-Ground Dataset to match images across sensors. Few baseline support 4-DoF(or more) pose estimations across sensors and therefore we relax the condition by providing rotation and scale ground truth as initials to several benchmark for comparison, including the DAM with scaling initialized and QATM with both rotation and scale initialized. We train and validate our models in two different scenes (Figure 4(a) and (b)) separately and generalize them in the third scene(Figure 4(c)).

Scene Benchmarks Exp. Runtime(ms)
(a) QATM l2sat 6533.8164 21.5 4082.8421 57.1 109.2
l2d 8168.9537 34.9 4160.1207 21.9 108.8
s2sat 8268.8350 24.3 7135.4707 19.5 108.9
s2d 5288.4170 33.6 5309.1103 31.7 109.7
DAM l2sat 507.1945 55.4 208.8668 70.8 44.2139 37.8 110.6
l2d 690.1782 39.4 301.1191 66.8 96.5603 22.5 117.3
s2sat 740.6881 35.2 732.4164 33.6 105.1678 24.1 114.4
s2d 536.5027 51.5 616.4043 43.9 68.1288 33.9 114.2
DPCN l2sat 40.5561 96.9 4.8175 98.0 0.1172 99.2 0.00345 95.5 74.39
(Ours) l2d 15.53 98.2 6.4531 94.0 0.0412 99.2 0.0122 94.2 74.63
s2sat 65.373 90.9 15.5920 97.8 0.1078 97.4 0.0055 93.7 75.38
s2d 327.31 91.3 14.493 92.6 0.2274 99.3 0.0070 93.5 73.44
(b) Benchmarks
QATM l2d 3603.8648 37.5 4018.3337 35.9 109.2
s2d 2808.5308 36.3 2878.3589 31.0 108.5
DAM l2d 972.8225 30.1 588.4123 42.2 61.3341 35.1 113.9
s2d 633.2790 40.9 484.3626 49.6 85.3438 27.4 116.5
DPCN l2d 8.0043 96.2 102.359 89.2 0.0059 99.7 0.0005 99.7 75.34
(Ours) s2d 88.7428 91.6 61.0860 90.6 0.7634 99.4 0.0035 95.0 75.96
Table 3: Results of the scene (a) and (b). More thresholds are elaborated in Appendix C

Table 3 shows validation results on scene (a) and (b) with the threshold error of for translation, for rotation and for scale. Acknowledging that each ground-image is generated with a scale of in the Aero-Ground Dataset, the threshold error of for translation could be transformed to in the real world. The results prove that when estimating 4-DoF poses across real-world sensors, our approach is the first to finish this job with an accuracy of at least when considering error lower than . Even when we relax the conditions and provide initials to the rest of the benchmarks, our approach still outperforms the rest of them in 2-DoF(QATM) and 3-DoF(DAM). Additional demonstrations of the experiment comparing with conventional phase correlation is shown in appendix B.

To evaluate the generalizing capability of our approach, we conduct experiments on scene (c) with DPCN models trained on scene(a) and (b) and DAM model trained on scene(c). The results shown in Figure 6 and Table 4(Appendix C) prove that with the types of source sensors given and fixed, our approach is capable of estimating poses regardless of scene changes and illumination changes with similar accuracy and still outperformed DAM which is specifically trained on (c). Therefore, the robustness of our approach in the real-world application is well documented.

(a) Estimation of
(b) Estimation of
(c) Estimation of
Figure 6: Transformation estimation in generalization on scene (c).

3.3 Application in satellite map based localization

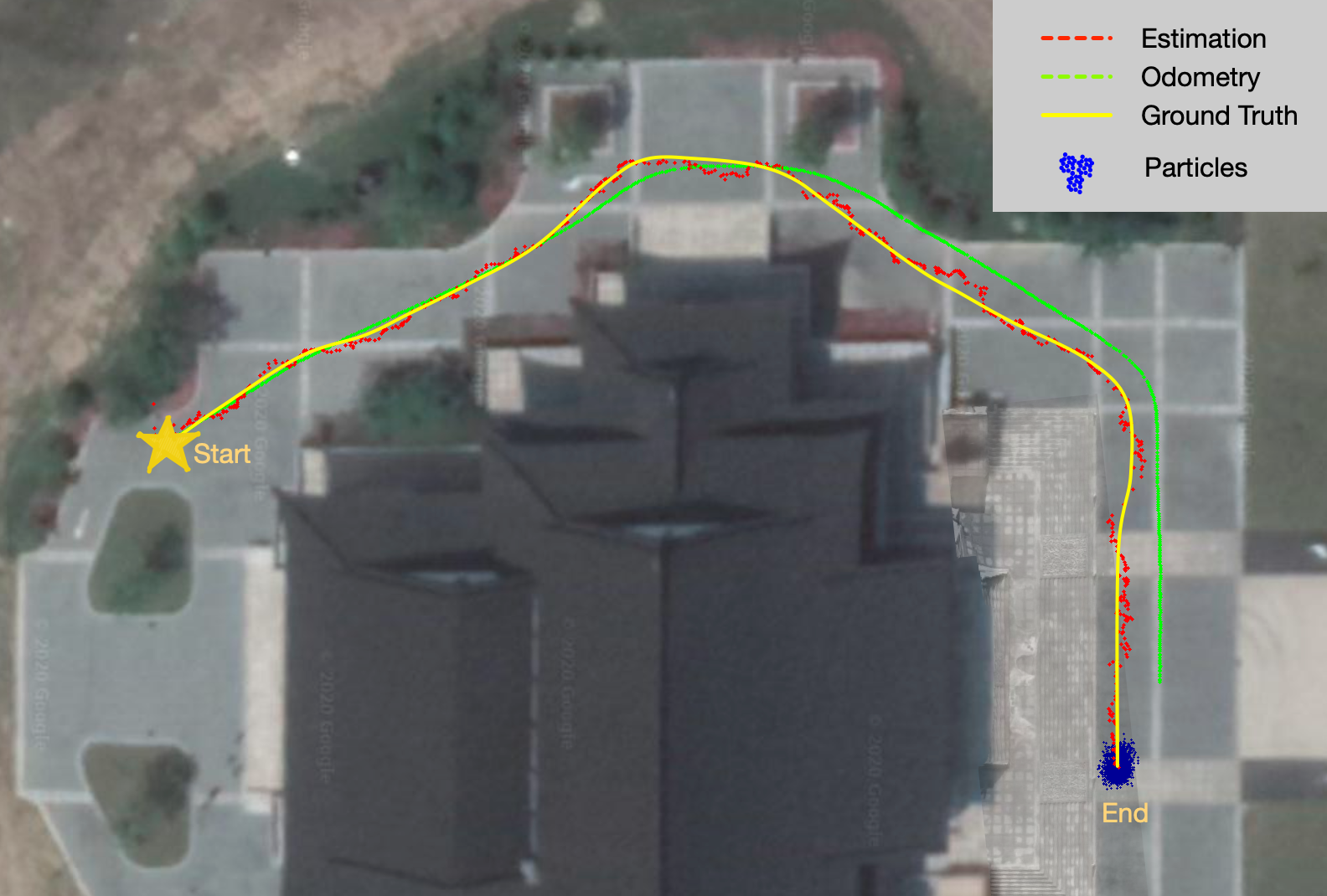

Figure 7: Application in Mont Carlo Localization.

In this section, we demonstrate the application in localization by introducing our approach to Monte Carlo Localization. It proves that with corresponding maps as the output, our model is capable of real-time air-ground localization, e.g. scene(a). A demonstration is shown in Figure 7, where the green dashed line is the odometry estimated by “VINS” through a stereo camera, the red dashed line is generated by MCL by matching 4-DoF poses of LiDAR intensity map and satellite ,ap, and the yellow line is the ground truth. As the cumulative error of the odometry gradually increases, the corrective effect of our method is sufficiently demonstrated.

4 Conclusion

We present an approach for precise multi-sensor pose matching which greatly fascinate multi-agent collaborative exploration. We achieve this by training pairs of individual U-Nets with end-to-end poses to learn representations of heterogeneous images to be recognized by differentiable phase correlation(DFT+LPT+Correlation). We show that by training the network end-to-end with a fully differentiable pipeline, the network is easy and fast to be trained, precise in matching and capable of running in real-time. We also show that with every estimation analytical, the network is completely interpretive and has the capability of generalization.

If a paper is accepted, the final camera-ready version will (and probably should) include acknowledgments. All acknowledgments go at the end of the paper, including thanks to reviewers who gave useful comments, to colleagues who contributed to the ideas, and to funding agencies and corporate sponsors that provided financial support.

References

  • [1] D. Barnes, W. Maddern, G. Pascoe, and I. Posner (2017-11) Driven to Distraction: Self-Supervised Distractor Learning for Robust Monocular Visual Odometry in Urban Environments. External Links: 1711.06623, ISBN 9781538630808, Link Cited by: §1.
  • [2] D. Barnes, R. Weston, and I. Posner (2019) Masking by Moving: Learning Distraction-Free Radar Odometry from Pose Information. (CoRL). External Links: 1909.03752, Link Cited by: §1, §3.
  • [3] J. Cheng, Y. Wu, W. Abdalmageed, and P. Natarajan (2019) QATM: Quality-aware template matching for deep learning.

    Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition

    2019-June, pp. 11545–11554.
    External Links: Document, arXiv:1903.07254v2, ISBN 9781728132938, ISSN 10636919 Cited by: §1, §3.
  • [4] R. Kaslin, P. Fankhauser, E. Stumm, Z. Taylor, E. Mueggler, J. Delmerico, D. Scaramuzza, R. Siegwart, and M. Hutter (2016) Collaborative localization of aerial and ground robots through elevation maps. SSRR 2016 - International Symposium on Safety, Security and Rescue Robotics, pp. 284–290. External Links: Document, ISBN 9781509043491 Cited by: §1.
  • [5] A. Kendall and R. Cipolla (2017)

    Geometric loss functions for camera pose regression with deep learning

    .
    In Proceedings - 30th IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2017, External Links: Document, 1704.00390, ISBN 9781538604571 Cited by: §1, §3.
  • [6] A. Kendall, M. Grimes, and R. Cipolla (2015) PoseNet: A convolutional network for real-time 6-dof camera relocalization. In Proceedings of the IEEE International Conference on Computer Vision, External Links: Document, ISBN 9781467383912, ISSN 15505499 Cited by: §1, §3.
  • [7] J. Kim, J. Kim, S. Choi, M. A. Hasan, and C. Kim (2018) Robust template matching using scale-adaptive deep convolutional features. Proceedings - 9th Asia-Pacific Signal and Information Processing Association Annual Summit and Conference, APSIPA ASC 2017 2018-Febru (December), pp. 708–711. External Links: Document, ISBN 9781538615423 Cited by: §1.
  • [8] R. Kummerle, B. Steder, C. Dornhege, A. Kleiner, G. Grisetti, and W. Burgard (2010) Large scale graph-based SLAM using aerial images as prior information. Robotics: Science and Systems 5, pp. 297–304. External Links: Document, ISBN 9780262514637, ISSN 2330765X Cited by: §1.
  • [9] T. Y. Lin, Y. Cui, S. Belongie, and J. Hays (2015) Learning deep representations for ground-to-aerial geolocalization. In Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, External Links: Document, ISBN 9781467369640, ISSN 10636919 Cited by: §1.
  • [10] W. Lu, Y. Zhou, G. Wan, S. Hou, and S. Song (2019) L3-net: Towards learning based lidar localization for autonomous driving. In Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, External Links: Document, ISBN 9781728132938, ISSN 10636919 Cited by: §1.
  • [11] A. I. Mourikis and S. I. Roumeliotis (2007)

    A multi-state constraint Kalman filter for vision-aided inertial navigation

    .
    In Proceedings - IEEE International Conference on Robotics and Automation, External Links: Document, ISBN 1424406021, ISSN 10504729 Cited by: §1.
  • [12] M. Noda, T. Takahashi, D. Deguchi, I. Ide, H. Murase, Y. Kojima, and T. Naito (2011) Vehicle ego-localization by matching in-vehicle camera images to an aerial image.

    Lecture Notes in Computer Science (including subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics)

    6469 LNCS (PART 2), pp. 163–173.
    External Links: Document, ISBN 9783642228186, ISSN 03029743 Cited by: §1.
  • [13] Y. Pan, X. Xu, Y. Wang, X. Ding, and R. Xiong (2019) GPU accelerated real-time traversability mapping. In IEEE International Conference on Robotics and Biomimetics, ROBIO 2019, External Links: Document, ISBN 9781728163215 Cited by: §A.2.
  • [14] J. H. Park, W. J. Nam, and S. W. Lee (2020) A two-stream symmetric network with bidirectional ensemble for aerial image matching. Remote Sensing. External Links: Document, ISSN 20724292 Cited by: §3.
  • [15] P. Ruchti, B. Steder, M. Ruhnke, and W. Burgard (2015) Localization on OpenStreetMap data using a 3D laser scanner. In Proceedings - IEEE International Conference on Robotics and Automation, External Links: Document, ISSN 10504729 Cited by: §1.
  • [16] B. Srinivasa Reddy and B. N. Chatterji (1996) An FFT-based technique for translation, rotation, and scale-invariant image registration. IEEE Transactions on Image Processing. External Links: Document, ISSN 10577149 Cited by: §1, §1, §2.2, §3.
  • [17] I. Talmi, R. Mechrez, and L. Zelnik-Manor (2017) Template matching with deformable diversity similarity. In Proceedings - 30th IEEE Conference on Computer Vision and Pattern Recognition, CVPR 2017, External Links: Document, 1612.02190, ISBN 9781538604571 Cited by: §1.
  • [18] T. Y. Tang, D. De Martini, D. Barnes, and P. Newman (2020) RSL-Net: Localising in Satellite Images from a Radar on the Ground. IEEE Robotics and Automation Letters 5 (2), pp. 1087–1094. External Links: Document, 2001.03233, ISSN 23773766 Cited by: §1.
  • [19] ZJU-Lab (2020)(Website) External Links: Link Cited by: §3.

Appendix A Network Structure and Experimental Setup

a.1 Network Structure

We train the DPCN network with the input of pairs of heterogeneous images and the ground truth of their relative pose. There are two phases here in the training. Phase 1

: Rotation and scale changes are trained and estimated in this phase. The pair of images go through a pair of U-Nets and their outputs go through the DFT layer for translation reduction. The Log Polar Transform remaps the DFT’s output to the log polar coordinate so that rotation and scale variances are then shown in columns and rows. Afterward, phase correlation is able to estimate the rotation and scale with a relative power spectrum as the output. Finally, we supervised the U-Net using Cross-Entropy Loss of both rotation, scale, and their ground truth.

Phase 2: Translation of the image is trained and estimated in this phase. The source image of the image pair is rotated and scaled by the result in phase 1 and the new image pair(original template image and the new source image) go through a new pair of codec. The translation is then estimated by phase correlation and therefore the codec is supervised using Cross-Entropy Loss and L1 Loss of estimated transformation and their ground truth.

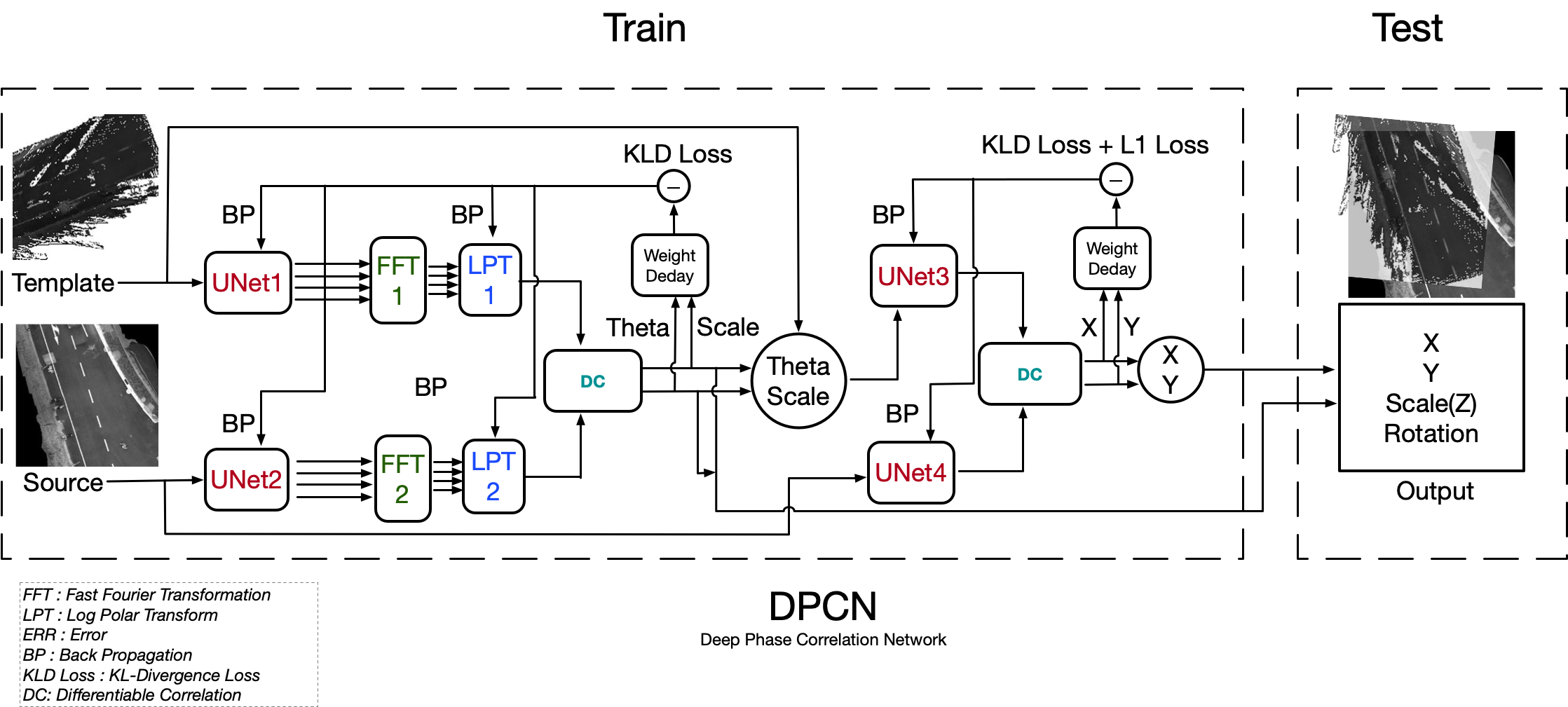

Figure 8: The network structure of DPCN

a.2 Experimental Setup

Hardware: All models for the full method and their comparison models were trained on a single server with CPU of Intel i9-9900X @ 3.5GHz x 20 and GPU of RTX 2080ti x 4. The validation experiments are all conducted on a single desktop computer(AMD Ryzen 3700X @ 3.7GHz x8) with the GPU of an RTX 2060super. The Aero-Ground Dataset is record by a ground robot and a DJI M100 drone. The ground robot is equipped with three 32-wire Velodyne LiDAR, four pairs of stereo cameras by Flir and one RTK dGPS provided by QX. The DJI drone records videos by one pair of Intel Realsense D435i stereo camera with one facing forward and one downward.

Software: The birds-eye global map from the drone used in the training and validation is constructed by full-licensed software Metashape with video clips from the Aero-Ground dataset. The local map of both LiDAR intensity style and stereo style from the ground robot is constructed by Elevation Map[13]. All of the maps constructed above and the satellite map obtained from Google Maps have the resolution of 0.1 MPP.

Appendix B Additional Demonstration

Demonstrations of comparing DPCN and conventional phase correlation on real-world dataset Aero-Ground Dataset is shown in Figure 9 and Figure 10. They show that when matching heterogeneous images from different sensors, the trainable feature extractors in DPCN play important roles in outperforming the conventional phase correlation. However, the core of the entire DPCN is the differentiable DFT, LPT and phase correlation that could back propagate losses and eventually train the feature extractors. They also prove that by learning features through the supervision of the end-to-end poses, the approach is capable of reducing hollows, rejecting noises and assimilate different styles to estimate the 4-DoF relative pose.

b.1 DPCN Results

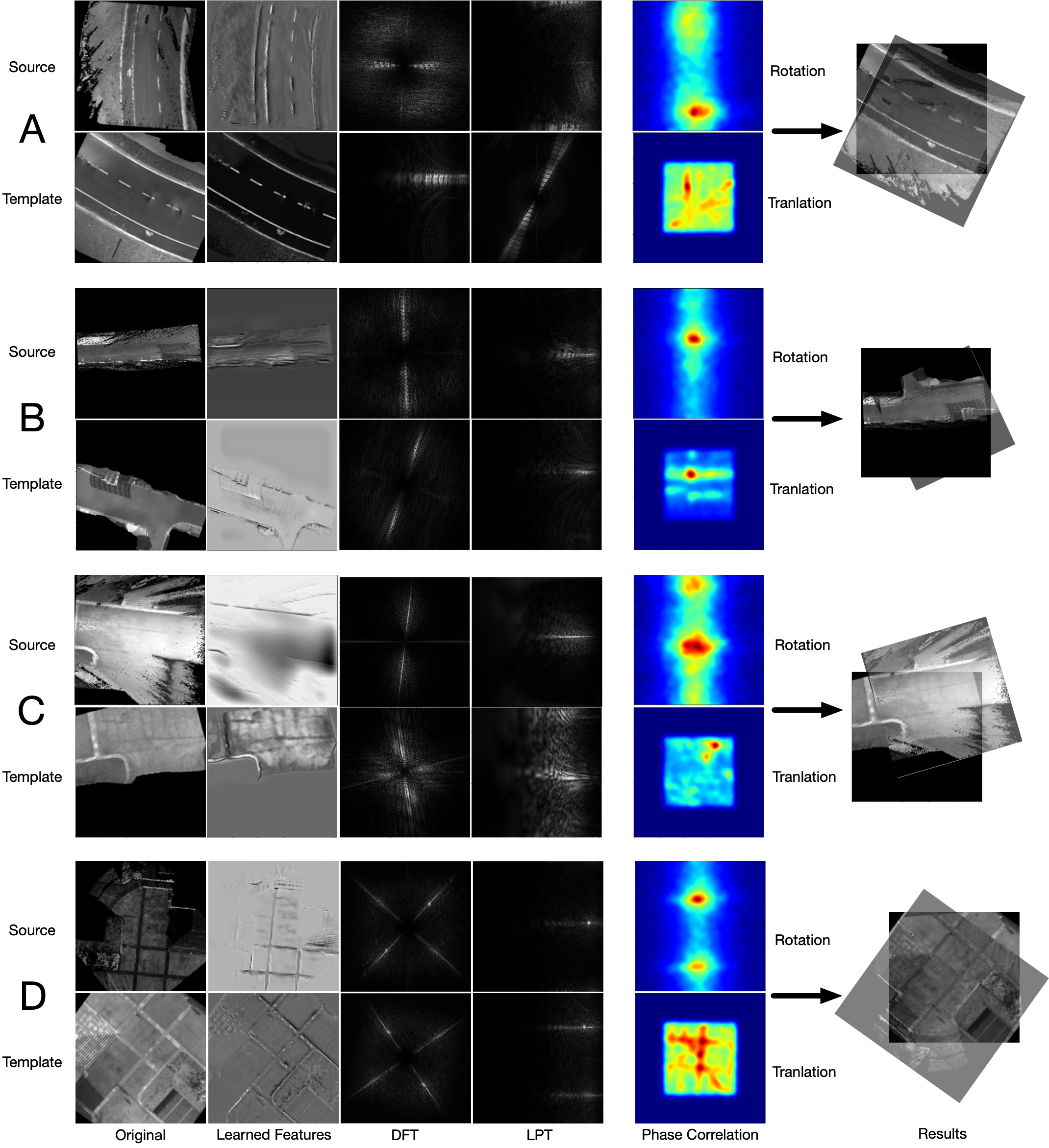

Figure 9: Additional four demonstrations matching heterogeneous images pairs from Aero-Ground Dataset. The respective comparisons are shown in subsection B.2.

b.2 Conventional Phase Correlation Results

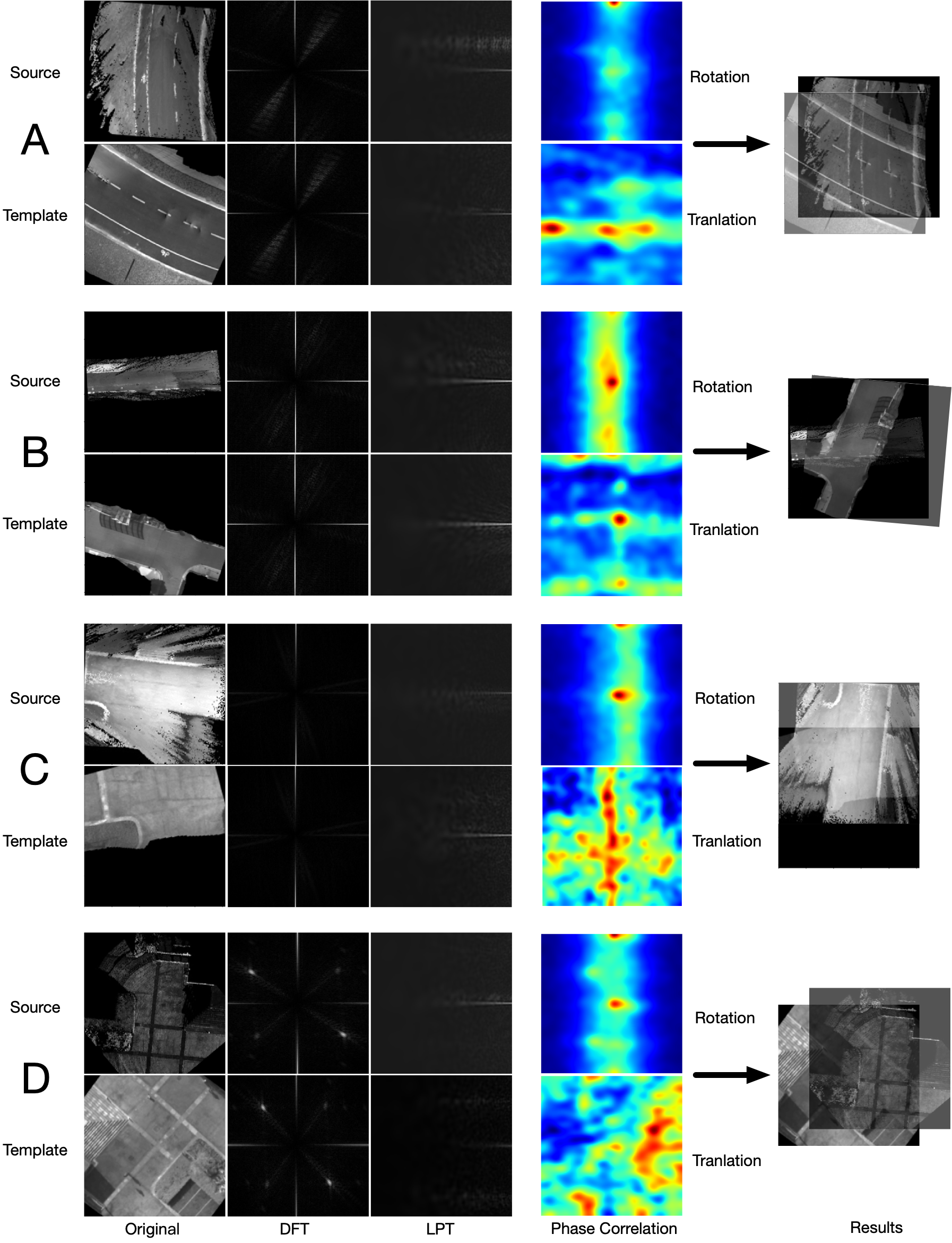

Figure 10: Comparison using conventional phase correlation to match heterogeneous images pairs from subsection B.1.

Appendix C Elaboration on Estimation

The threshold of estimation in experiments in 3 is elaborated in this section by the means of graphs. Figure 11 shows the of translation estimation in simulation dataset, figure 12 shows the of translation estimation in Aero-Ground dataset, Figure 13 shows the of translation estimation in simulation dataset, and Table 4 show the exact error of generalization experiments on Aero-Ground Dataset.

(a) Estimation of in Homogeneous dataset
(b) Estimation of in Homogeneous dataset
(c) Estimation of in Heterogeneous dataset
(d) Estimation of in Heterogeneous dataset
(e) Estimation of in Dynamic Obstacle dataset
(f) Estimation of in Dynamic Obstacle dataset
Figure 11: of translation estimation in simulation dataset.
(a) Estimation of in “LiDAR to Drone” scene(a)
(b) Estimation of in “LiDAR to Drone” scene(a)
(c) Estimation of in “LiDAR to Satellite” scene(a)
(d) Estimation of in “LiDAR to Satellite” scene(a)
(e) Estimation of in “Stereo to Drone” scene(a)
(f) Estimation of in “Stereo to Drone” scene(a)
Figure 12: of translation estimation in Aero-Ground dataset.
(g) Estimation of in “Stereo to Satellite” scene(a)
(h) Estimation of in “Stereo to Satellite” scene(a)
(i) Estimation of in “LiDAR to Drone” scene(b)
(j) Estimation of in “LiDAR to Drone” scene(b)
(k) Estimation of in “Stereo to Drone” scene(b)
(l) Estimation of in “Stereo to Drone” scene(b)
Figure 12: of translation estimation in Aero-Ground dataset.
(a) Estimation of in simulation generalization
(b) Estimation of in simulation generalization
Figure 13: of translation estimation in generalization.
Model
DPCN in (a) 232.4638 73.2 29.9253 92.4 89.0943 95.7 0.0084 95.0
DPCN in (b) 31.2071 92.2 138.5449 88.5 2.8793 96.3 0.0153 93.3
DAM 602.8490 40.8 720.9244 33.1 88.7239 22.5 0.0153 93.3
QATM 3922.6715 26.7 1103.6291 36.9
Table 4: Results of generalization experiments with Aero-Ground Dataset. Experiments are conducted with the input type of stereo camera and drone’s birds-eye (AKA “s2d” in Table 3), therefore, the model applied in these experiments are trained on the “s2d” dataset in scene (a) and (b). For generalization, we choose the threshold error of for translation, for rotation and for scale. More threshold is elaborated in Figure 6
