I Introduction

Intrusion Detection Systems (IDSes), such as Snort [1], Suricata [2], or Bro [3], are widely used to secure Internet connection against attacks and malicious traffic. One of the prominent approaches for IDSes is deep packet inspection (DPI), which is based on matching regular expressions (REs) describing attack patterns against network traffic. Despite the recent rapid increase of encrypted traffic on the Internet, RE-based DPI is still in high demand since IDSes are often deployed at network entry points after decryption.

Due to the increasing number of security vulnerabilities and network attacks, the number of REs in IDSes is constantly growing. At the same time, the speed of networks is growing too—telecommunication companies started to deploy 100 Gbps links, the 400 Gbps Ethernet standard has recently been ratified [4], and large data centers already call for a 1 Tbps technology. Consequently, despite many proposed optimisations, existing IDSes are still far from being able to process the traffic in current high-speed networks at the line speed. The best software-based solution we are aware of is the one in [5], which can achieve a 100 Gbps throughput using Bro on a cluster of servers with a well-designed distribution of network traffic. Processing network traffic at such speeds in single-box IDSes is far beyond the capabilities of software-based solutions—hardware acceleration is needed.

A well-suited technology for accelerating IDSes is that of field-programmable gate arrays (FPGAs). They provide high computing power and flexibility for network traffic processing, and they are increasingly being used in data centers [6, 7] for this purpose. The flexibility of FPGAs allows them to match REs at speeds over 100 Gbps [8]. Such high speeds, however, put excessive demands on the resources of FPGAs. The sets of the matched REs are complex, large, and still growing, and matching on the speeds of tens and hundreds of Gbps requires massive parallelization. For instance, in the HW architecture that we propose in Section II, processing 100 Gbps input network traffic requires 64 concurrently functioning RE matching units (of 8-bit input width operating at 200 MHz) and processing 400 Gbps requires even 256 units. These demands easily exceed the size of any available FPGA chip. Reducing the consumed resources is thus of paramount importance.

The FPGA matching units traditionally implement finite automata (FAs), either deterministic (DFAs) or nondeterministic (NFAs). In this paper, we focus on NFAs since they are often much smaller than the corresponding DFAs and can be efficiently mapped into FPGAs as shown, e.g., by [9, 10, 11, 12, 13].

The main conceptual difference from other works on efficient synthesis of NFAs into FPGAs (described in more detail in the related work section), which allows us to achieve much higher matching speeds, lies in leveraging reduced NFAs that over-approximate the language of the original NFA—we design novel reduction techniques that provide high-quality tradeoffs between the precision and reduction factors.

Subsequently, in order to utilise the resources of an FPGA in the best possible way, we propose a multi-stage architecture of the RE matching engine. Consider an NFA  that recognizes the language  of a given set of REs. The proposed architecture is composed of several stages where the first stage contains many, concurrently running, copies of small NFAs that crudely over-approximate , and further stages contain a smaller number of copies of NFAs that are larger but more precise. The throughput of the stages decreases: the first stage needs to be able to process the network traffic at the line speed while the subsequent stages can handle less. The task of every stage is to decrease the amount of traffic entering the next stage by removing some of the packets that are guaranteed not to be in . The last stage contains either , or, in the case of insufficient FPGA resources, a reduced version of that over-approximates (in which case the final processing step takes place in software). The NFAs used in the over-approximating stages need to discard a significant portion of their input from further processing while keeping all of the suspicious traffic. In the worst case, i.e., when every input packet is a member of , this is, naturally, impossible. Fortunately, in standard traffic on a backbone network, only a small portion of the packets is normally in (the extreme case when a significant proportion of network traffic is in  usually corresponds to a DoS attack, which needs to be handled by other means than IDSes).

Our approximate NFA reduction takes an advantage of particularities of standard network traffic. Namely, given an NFA constructed from the REs of interest, we label its states with their significance—the likelihood that they will be used during processing a packet—, and then simplify the least significant parts of the automaton. The simplification is implemented by pruning and merging of the insignificant states. The significance of a state is determined using training traffic, a finite sample of “standard” traffic from the network node where the IDS is to be deployed (it may be necessary to generate a new design once in a while). The reduction scales well—the worst-case time complexity of the most expensive step, computing the state labelling, is  where  is the number of states of the NFA and  is the size of the training traffic (since the automata are usually sparse, the quadratic factor is rarely an issue on real-world examples).

We implemented the proposed approach and evaluated it on REs taken from the IDS Snort and other resources. We were able to obtain a substantial reduction of the size of the NFAs while keeping the number of false positives low. When used within the multi-stage architecture, we were able to perform RE matching at 100 and 400 Gbps on sets of REs whose sizes were far beyond the capabilities of existing solutions.

The contributions of this paper are the following:

  1. We propose a new HW architecture for matching REs in high-speed computer networks using several stages of NFAs that over-approximate the matched REs.

  2. We developed new scalable over-approximation techniques that take into account the profile of network traffic and thus provide great reductions of the NFAs while keeping an acceptable error.

  3. We present experimental results proving that our approach can indeed be successfully used to implement single-box hardware-accelerated IDSes at speeds of 100 Gbps or even 400 Gbps, which is, taking into account the size and complexity of the considered REs, far beyond the capabilities of current solutions.

Related Work

Many different architectures for resource-efficient mapping of NFAs for fast RE matching into FPGAs have been designed, starting with the work of Prasana and Sidhu [9]. Later, Clark and Schimmel [10] reduced hardware resources by using a shared decoder of input symbols, and the architecture of Sourdis et al. [11] implements an NFA transition table by a pre-decoded CAM. Lin et al. [12] introduced an architecture that allows hardware resources to be shared for matching REs with the same prefixes, infixes, and suffixes. Furthermore, the work of Yun and Lee [13] improved the encoding of states using the so-called at-most-two-hot encoding.

To increase the RE matching speed, some architectures make the NFAs process multiple bytes of the input per clock cycle. Prasanna et al. [14] introduced spatial stacking for multi-character matching, but the high fan-out of the automaton significantly decreases its frequency, already for matching 8 bytes per clock cycle. Achieving the 100 Gbps throughput, which requires more than 64 bytes to be processed at once, is thus not possible. Becchi and Crowley [15]

introduced a multi-striding technique, which is widely used to increase the throughput of many NFA-based RE matching architectures. Multi-striding alone, however, cannot increase the processing speed to 100 Gbps because with the length of the stride, the NFA grows rapidly, and the frequency drops dramatically

[8].

We build on our previous work [8] introducing parallel pipelined automata, which can scale the throughput of NFA-based RE matching to over 100 Gbps. The processing speed is increased at the cost of a linear growth of hardware resources because the architecture consists of many automata connected in one processing pipeline. In a recent work, a novel FPGA architecture that significantly improved the throughput of DFA-based RE matching has been proposed by Yang et al. [31]. The architecture achieves a throughput of 140 Gbps on a single FPGA chip for IDS modules where the underlying DFAs have up to 10k states (corresponding to 34 REs of Snort). Our new multi-stage architecture, which leverages approximate NFAs, fundamentally improves the results of [8] and [31]. We can achieve, on a similar chip, a throughput beyond 200 Gbps for much more complicated sets of REs (e.g., Snort’s spyware module with 461 REs where the underlying NFA has 10k states and the corresponding DFA is prohibitively large—our attempt of its determinisation depletedthe available memory (32 GiB) after reaching 616k states).

The works closest to our NFA reduction techniques are [16] and [17]. In [16], the authors address the issue of software-based acceleration of matching REs describing network attacks in Snort. To reduce the number of membership tests needed for matching a packet against distinct DFAs, [16] builds a “search tree” with the DFAs in its leaves and with the inner nodes occupied by preferably small DFAs that over-approximate the union of their children (the precise DFA accepting the union is prohibitively large). Matching a packet then means to propagate it down the tree as long as it belongs to languages of the DFA nodes. The over-approximating DFAs are constructed using a similar notion of significance of states as in our approach. The differences from our work are the following: (1) [16] needs several membership tests per packet, (2) it targets only software and its hardware implementation would be too complex, (3) it does not consider reduction of NFAs, and (4) it uses only a pruning-based reduction (we also employ merging and simulation-based reductions).

Our previous work in [17] also targets approximate reductions of NFAs used in HW-accelerated IDSes. In contrast to the approach in this paper, which uses a sample of the network traffic to determine the states to remove, [17]

uses a probabilistic model of the traffic in the form of a probabilistic automaton, which is used to label states of the NFA by probabilities of activation. The method has the following drawbacks: (1) the model can be constructed from a sample of traffic only semi-automatically, with an aid of a network expert, and (2) it scales to NFAs of up to only around 1,300 states, whereas our NFAs are sometimes an order of magnitude larger. Moreover,

[17] considers only a single-stage architecture.

Simulation-based reduction is a standard language-preserving NFA reduction technique, which, apart from its basic form [18] (used in [19] in the context of FPGA-accelerated IDSes), comes in a number of advanced variants (e.g. look-ahead, multi-pebble, or mediated [20, 21, 22]), many of them implemented in the tool Reduce [23]. Although Reduce is a part of our workflow, the power of simulation reduction alone is by far insufficient for our purposes.

Finally, we compare our approach with RE-matching techniques that use modern general-purpose GPUs. As in FPGAs, we can distinguish architectures leveraging both DFAs and NFAs. Prominent GPU architectures based on DFAs include Gregex [28], hierarchical parallel machines [29], and a recent work employing algorithm/implementation co-optimization based on a GPU performance model [30]. These architectures are able to perform RE matching at the theoretical throughput of 100–150 Gbps. Their practical performance is, however, limited by the packet transfer throughput (e.g., the throughput of [28]was 25 Gbps on NVIDIA GTX260), and, indeed, the complexity of RE modules they can handle due to determinization.

An RE matching architecture for GPUs based on NFAs was proposed in iNFAnt [27] and further improved in [32]. In contrast to the aforementioned DFA-based solutions, this architecture can handle complex RE modules where the underlying NFAs have over 10 thousand states. The performance of this work is, however, significantly inferior to our FPGA-based architecture. For example, for a category of Snort modules where the underlying NFAs have 3–18 thousand states, [32] reports an overall throughput of 1–2 Gbps on NVIDIA Tesla c2050. Our experiments in Section IV show that, on Snort modules with similar sizes, our approach is able to achieve a throughput of over 100 Gbps.

Further disadvantages of using GPUs are that (i) they are notorious energy hogs, e.g., the NVIDIA Tesla K20c (used by [30]) card’s TDP is 225 W, which is significantly higher than the 75 W consumed by our FPGA-based architecture and (ii) they impose a high latency on packet processing (in the order of hundreds of ms compared to 10 s of our solution).

Ii Architecture

In this section, we first describe the basic architecture of the RE matching engine from [8], which is used as a building block of our multi-stage architecture described later.

Ii-a Regular Expression Matching Engine

The architecture proposed in [8] uses pipelining to enable RE matching in high-speed networks on a single FPGA. An example of an instance of this architecture consisting of pipelined FAs and a single packet buffer is shown in Fig. (a)a.

(a)
(b)
Fig. 1: (a) The architecture of an RE matching engine with pipelined FAs sharing a single packet buffer able to store -bit data words (columns), each of which consists of  independent -bit blocks (rows). (b) An example of the multi-stage architecture with 3 stages.

The packet buffer stores every -bits-wide input data word as independent data blocks of bits (i.e., ). Each of the  FAs can read data blocks on the corresponding row of the buffer and also receives the configuration of the previous FA in the pipeline that processed the previous block of the packet (or the initial configuration if the FA is processing the first block of a packet). Based on these inputs, the FA either computes the next configuration or determines an RE that matches the packet. These pieces of information are sent to the next FA in the pipeline until the last block of the packet is processed, in which case a bitmap encoding all matching REs is output. As only one of the

 pipelined FAs can perform RE matching in a given packet at any moment, the whole pipeline can theoretically perform RE matching in

 packets in parallel.

The FA that encodes the complete set of REs is replicated  times. For instance, to achieve the throughput of 100 Gbps, we used the replication factor in [8]. Such a massive replication costs a lot of FPGA resources, which becomes the major bottleneck of the approach. On the other hand, the replication is also a unique opportunity for optimizations because every reduction of the FA’s size means a 16-times higher reduction in the whole architecture. From this point of view, using NFAs is preferable to DFAs because, especially in the combination with language-preserving simulation-based reduction, they are much more succinct than DFAs, and can also be mapped into FPGAs more efficiently than DFAs. They are, however, still prohibitively large in many practical cases; this calls for better reduction methods. In Section III, we present two such methods in the form of approximate reductions, which do not preserve the language of the FA. The reduced FAs are used within our multi-stage architecture (built on top of the pipelined approach of [8]), which allows us to flexibly adjust the tradeoff between precision and consumed resources. The multi-stage architecture is described next.

Ii-B Multi-Stage Regular Expression Matching Architecture

We now propose a concept of a multi-stage RE matching unit that uses aggressive approximate reductions, which do not preserve the language of the NFA, to utilise FPGA resources efficiently. The architecture of the RE matching unit is composed of several stages (see Fig. (b)b for an example of a 3-stage architecture). Every stage in the architecture contains an instantiation of the RE matching engine described in Section II-A.

The idea is that each of the stages will use different NFAs—starting with a bigger number of smaller and imprecise NFAs and proceeding to smaller numbers of larger but more precise NFAs—to decrease, in a resource-efficient way, the number of packets entering the subsequent stage. Consider an NFA  that recognizes the language  defined by the REs in a given Snort module. The first stage of the architecture contains many copies of a small NFA , which over-approximates , i.e., apart from all packets in , it also matches some packets not in . All matched packets are then sent to Stage 2, which contains less copies of a larger NFA , which over-approximates , but more precisely than (which is the reason it is larger—less precise approximations of  obtained by our reduction are usually smaller than more precise ones).

The number of copies of  can be smaller due to the fact that the traffic entering it is just a fraction of the input traffic since Stage 1 has removed a significant number of packets from further processing. Each subsequent stage contains an even smaller number of even more precise (and, therefore, larger) NFAs. The final stage contains either copies of , in which case the output of the RE matching unit is exactly the packets from , or as precise over-approximation of  as possible given the available resources, in which case the last remaining false positives need to be removed in software.

Our approximate reduction methods (described in detail in Section III) output a Pareto frontier of NFAs obtained from the input NFA . Each NFA  comes with two parameters: (1) its size given as the number of look-up tables (LUTs) obtained from its HW synthesis, denoted by the function , and (2) the probability that it accepts an input packet, denoted by the function . Note that lower is better for both parameters.

Given the set , we aim at obtaining a configuration of the multi-stage architecture that is as small and precise as possible. This gives rise to the following two optimisation problems:

  • : minimise the amount of resources (denoted by the variable ) used by the RE matching unit given a maximum speed of traffic on its output  and

  • : minimise the speed of the traffic on the output of the last -th stage of the RE matching unit (denoted by the variable ) given a fixed amount of resources .

The optimization problems can be formalised (and then solved by a constraint solver) using the following constraints.

The first constraint formalises that, in an -stage architecture, the output of each stage (denoted using a real-valued variable ) is the fraction of the unit’s input traffic  given by the acceptance probability of the used NFA  (the 0/1 variable  denotes that Stage  uses the NFA ):

The second family of constraints formalises that every stage uses precisely one version of the NFA from :

Finally, the third constraint formalises the total resources  used by the architecture:

We suppose that is the throughput of the NFAs (obtained as the multiple of the NFA’s input bit-width and the clock frequency). The total resources are then computed in such a way that the -th stage uses  NFAs (since it needs to be able to process all of the output traffic from the previous stage), each taking LUTs.

The considered optimisation problems can then be formalised as follows:

Here, is the maximal permissible output traffic, and is the maximal number of LUTs available in the architecture.

Example: Consider the scenario with 100 Gbps input delivered over a 512-bit interface on 200 MHz. Moreover, assume that the data width of the NFAs is set to 32 bits, their throughput is, therefore, 6.4 Gbps, so 16 of them are needed to process the input 100 Gbps, and, further, assume that there are 10,000 available LUTs. Suppose that we are given a precise NFA  for which our reduction procedure—based on a sample of network traffic—yields a set of approximated NFAs (i.e., is the precise NFA ) such that their parameters are as given in Table Ia. Ignoring the (negligible) overhead of stage interconnection, the possible configurations of the multi-stage unit are presented in Table Ib. Note that Configuration 1 (which uses a single stage with no approximation) cannot fit within the available resources.

100 0.5
200 0.2
1,000 0.1
(a)
# Stg. 1 Stg. 2 Stg. 3 LUTs
1 16,000
2 7,200
3 9,600
4 7,200
(b)
TABLE I: (a) Parameters of the NFAs. (b) Possible configurations of the multi-stage unit (output of each configuration is 10 Gbps).

Iii Approximate NFA Reduction

nondeterministic finite automaton (NFA) over a finite alphabet is a quadruple where  is a finite set of states, is a transition relation, is the initial state, and is a set of final states. For and , we write to denote the set . It is lifted to sets as and to words as and for .

Our hardware architecture uses NFAs to accept packets based on their prefixes, and so we use a slightly non-standard notion of the language of an NFA. Namely, the language of a state is the set of words , i.e., words whose prefix can take from to some accepting state, followed by an arbitrary suffix. The language of is then defined as .

Iii-a Pruning Reduction

Our first NFA reduction is the so-called pruning reduction. The reduction removes from the automaton a set of states considered as insignificant, together with all their adjacent transitions. At the same time, in order to overapproximate the original language, all states that are not removed and that have a transition going to a removed state are made final. Below, we call such states border states, forming a set .

More precisely, let be an NFA over , and let , , be a set of states to be removed (we will later discuss how to find such a set). Let be the set of border states corresponding to . The operation of pruning from the states from produces the NFA where and .

Fig. 2: An example of pruning: the original NFA (left), after pruning (middle), and after a subsequent simulation reduction (right).

The pruning reduction over-approximates the original language, i.e., . The obtained NFA can, of course, be potentially further reduced by exact, simulation-based reductions [23]. An example of the pruning reduction is shown in Fig. 2 assuming that and hence . Recall that the acceptance is based on accepting prefixes.

The trade-off between reduction and accuracy that the pruning reduction offers depends on the choice of the set of the states to be removed. We therefore try to compose from such states of that have the least influence on the acceptance/rejection of packets in typical traffic. For that, we use a representative sample of the network traffic in the form of a multiset of packets. We label each state of the input NFA by its significance: the number of packets from over which the state can be reached in (if there are multiple ways of reaching over the same packet, we do not distinguish them). Formally, where is the number of occurrences of the packet in the multiset .

The error caused by the pruning reduction based on a set of states wrt a sample can be bounded in terms of significance of the border states corresponding to . Indeed, only the packets accepted at some border state can get wrongly accepted. Formally, where is the exact error caused by the reduction on the sample .

To specify the desired reduction, we use a target reduction ratio meaning that the automaton should be reduced to states. To obtain states while minimising the error, we fill with least significant states111 This strategy can cause a larger error when an originally non-accepting border state of a high significance is forced to become accepting by some insignificant accepting successor state. This could be avoided, e.g., by preferring pruning final states without a significant successor border state. In our experiments, we, however, sufficed with the simple strategy. .

Continuing with our example from Fig. 2, the reduction ratio is . To get the set , the significance of the states and must be smaller than that of , , and . Intuitively, this means that seeing after the initial symbols is rare. Hence, even if we allow the automaton to accept a string with the initial symbols followed by a  symbol that is not followed by the second required , no big error will be caused. The fact that such scenarios are commmon for NFAs obtained from real-world REs over real-world traffic is illustrated by our successful experiments (Section IV).

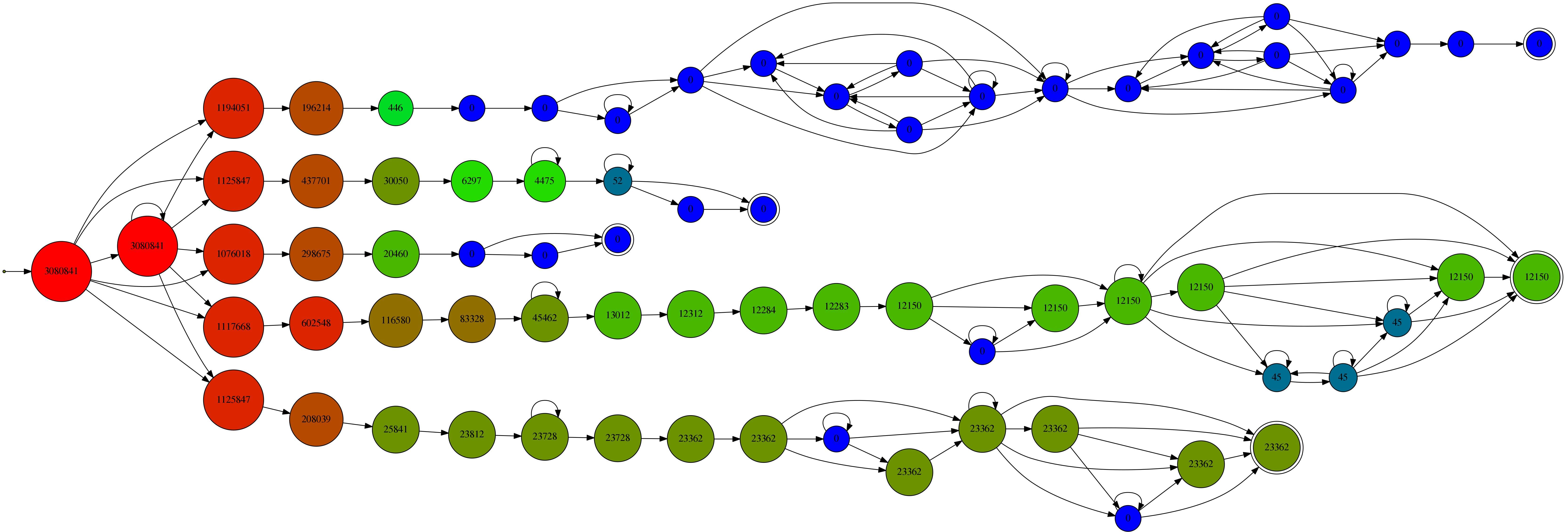

As an additional illustration, Fig. 3 shows a heat map of the states of an NFA obtained from one simplified RE (the sprobe PCRE mentioned in Sect. IV), having a typical stucture of many of the NFAs that one obtains from real-world PCREs, which was labelled over a sample of real-world traffic. The “cold” states (blue, green) have low significance and are good candidates for pruning.

Fig. 3: A heat map illustrating significance of states in a typical NFA.

The significance of all states is computed efficiently in time where and is the overall length of . For that, we can use the subset construction known from determinisation of NFAs, just run on particular packets . Namely, each state’s significance is initially set to zero. Then, we run  over every , computing consecutive sets of states that are possibly reached after processing the prefix , and, at the end of the run, we increment by one the significance of each of the states encountered on the way. Formally, for each , we start with , and, subsequently, compute for all . The significance of all states in the set is then incremented by one.

Iii-B Merging Reduction

Our second reduction, called a merging reduction, is motivated by an observation that, in typical traffic, packets that start with a prefix of a certain kind (i.e., they are from some language ) almost always continue by an infix that follows a predetermined pattern (a concrete word or a sequence of characters from predetermined character classes). We say that, in a sample , the pattern of is predetermined by . The part of the automaton that, after reading the prefix from , tests whether the infix fits the pattern can be significantly simplified by collapsing it into a single state with a self-loop over all the symbols that label the original transitions while causing a small error only: Indeed, it is unlikely that a packet with an infix other than the predetermined one will appear after the given prefix. Note that the pruning reduction discussed previously is not suitable for simplifying the states that test the pattern as they may be of an arbitrarily high significance.

The operation of merging a sub-automaton based on a set  of states means to (1) redirect the targets of transitions entering  to a new state , (2) reconnect all transitions leaving  to start from instead, (3) make final iff any of the states in is final, and (4) remove the states of . Note that, like pruning, merging also over-approximates the language by allowing any permutation of the infix pattern.

Our detection of the parts of automata to be merged—typically, sequences of states—is based on a notion of distance defined for a pair of states  and  as if they are neighbours (i.e., or for some ) and as otherwise. Intuitively, a small means that and are similar, which typically happens if most of the packets reaching continue to or vice versa.222In theory, it does not have to be the case, as may be polluted by packets reaching and leaving and from and to other states, but it is mostly the case in practice. Symbols on transitions from to hence form a predetermined pattern of length 1. Therefore, merging and , and thus over-approximating the pattern, should cause a small error only. Merging of longer patterns is then achieved by merging multiple patterns of length 1.

The merging reduction is parameterised by a distance ceiling —we merge states with distance below . Formally, the sets of states to be merged are defined as the equivalence classes of the smallest equivalence that contains all pairs with (in other words, is the reflexive transitive closure of ).

The merging reduction does not provide theoretical guarantees, and it is to a large degree based on empirical experience, in which its parametrisation with allows one to control the ratio between reduction and error well. There are, however, cases in which merging leads to an undesirable loss of precision even with a small . To limit such effects, we restrict merging by an additional parameter, the frequency ceiling . We prohibit merging of states with , that is, those whose frequency in is larger than the ceiling. Formally, given and , we merge the equivalence classes of .

Fig. 4: An input NFA (left) and an NFA obtained by merging (right).

An example of the merging reduction is shown in Fig. 4, assuming , , and that all other distances are greater than . To make the states , , and less critical, we further assume that , , . Intuitively, this means that only some packets continue over from to . Roughly all of those packets then continue until they reach , where another important split of the acceptance happens. The prefix , however, predetermines the subsequent occurrence of . By simplifying the automaton and allowing any string from to appear after , no significant error arises since most packets will anyway contain after only.

Iv Evaluation

In this section, we present an experimental evaluation of the proposed approach on real RE-matching instances.

Iv-a Considered REs

NFA States Transitions
backdoor 3,898 100,301
l7-all 7,280 2,647,620
pop3 923 209,467
sprobe 168 5,108
spyware 12,809 279,334
TABLE II: Sizes of the considered NFAs.

We experimented with a set of REs describing protocols and attacks obtained from the L7 classifier for the Linux Netfilter

[24] framework and from the Snort tool[1]. From the L7 classifier describing L7 protocols, we used all rules, giving us a set of REs denoted as l7-all below. From the Snort tool, we used the following set of REs: backdoor, pop3, and spyware-put (abbreviated as spyware below), describing attacks on selected protocols. We also used nine rules, denoted as sprobe, proposed for lawful interception in cooperation with our national police. We used the Netbench tool [25] for (i) translating REs to NFAs and (ii) the synthesis of reduced NFAs to VHDL. The sizes of the NFAs obtained by translating the considered REs are shown in Table II.

Iv-B Evaluation Data

The sample of network traffic that we used for our experiments was obtained from two measuring points of a nation-wide Internet provider connected to a 100 Gbps backbone link. The training data used for labelling the automata contained 1M packets sampled from the captured traffic during the time of 19.5 min containing 509M packets. The testing data used for the subsequent evaluation consisted of 21M packets sampled from the captured traffic containing 210M packets. The testing data was sampled over the time of 105 hours (over 4 days) such that every hour 1M packets were captured.

Iv-C Evaluation Environment

We implemented the proposed techniques in a Python prototype [33]. In the experiments, we ran merging with the frequency ceiling and the distance ceiling . FPGA synthesis was done using Xilinx Vivado v.2018.1.

Iv-D Running Time

Our reduction techniques are light-weight, and, in contrast to existing approaches [17], they are capable of reducing large NFAs appearing in real-world RE matching problems for real network scenarios. (Recall that the largest automata we consider have over 12k states or over 2.5M transitions.) Using the training data containing 1M packets, we needed about 15 min to derive the state labelling function for the largest considered NFAs. The runtime of the other parts of the reduction process was then negligible. Also note that, for a given NFA, the labelling can be performed only once for various values of the reduction ratio .

Iv-E Research Questions

We are interested in the following two key research questions related to the proposed approach:

  • Are our reduction techniques able to provide useful trade-offs between the reduction error and the reduction ratio?

  • Can the reduced NFAs be compiled into a multi-stage architecture with throughput of 100 Gbps and beyond?

R1: Reduction Trade-offs

In our experiments with the reduction techniques, we consider both the pruning and merging reductions. The merging reduction is, however, always combined with a subsequent pruning reduction as a standalone use of merging turned out not to be effective. Moreover, as a baseline, we also consider a so-called bfs-reduction. It does not use any training traffic and works by simply pruning away states that are far from the initial state. All of the approximate reductions are followed by the exact simulation-based reduction [20] whenever the tool Reduce [23] implementing this reduction is capable of handling the approximate NFA (it fails on large NFAs).

We consider two metrics characterizing the reduced automata. The first metric is the acceptance precision where denotes acceptance true positives (the packet is accepted and should have been accepted) and denotes acceptance false positives (the packet is accepted and should not have been accepted). This metric expresses the ratio of correctly accepted packets to all accepted packets from the testing traffic sample and hence characterizes the error caused by the approximation. Our second metric is the acceptance probability (where denotes the size of the input network traffic sample) that captures what fraction of the input traffic is accepted by the reduced NFA and passed to the next stage, i.e., how much the NFA reduces the flow of packets to be further processed. is an important metric for building efficient multi-stage architectures.

(a) for l7-all.
(b) for l7-all.
(c) for backdoor.
(d) for backdoor.
Fig. 5: Results for l7-all and backdoor.

Figs. 5 and 6 show the trade-offs achieved by our different reduction strategies (namely, bfs, prune, and merge-prune) on challenging RE matching problems.

Figs. (a)a and (b)b show results for the NFA describing l7-all. We observe that the particular reduction techniques provide a different quality of the trade-offs. In particular, bfs is not capable of producing any useful approximation. Further, we can observe that merge-prune dominates for reduction ratios lower than 0.3, but it is significantly outperformed by prune for higher ratios.

The figures show that these trends are preserved for both metrics. Note that the original NFA accepts around 17  of the traffic, and using the prune technique, we obtain a reduced NFA having only a half of the states with almost the same acceptance probability .

The reduction trade-offs that we obtain for the NFA of the backdoor attack are plotted in Figs. (c)c and (d)d. The bfs reduction is again significantly outperformed by both the prune and merge-prune methods when is considered. Note that these two techniques provide reductions that achieve almost a 100 % using only 35 % of the states of the original NFA. As the NFA accepts only 0.2 % of the traffic, we can obtain the accepting probability that is close to this value using only 22 % of its states regardless of the reduction used. We observed similar trends also for the pop3 and sprobe attacks (not presented here due to lack of space) where almost a 0 % was achieved using only 20 % and 25 % states, respectively.

Fig. 6: for spyware.

Finally, we report the results for spyware REs in Fig. 6. We can see that, wrt , prune lags behind the other two techniques for reduction ratios between 0.15 and 0.35. For higher reductions, all techniques provide close to 100 %. Similar trends can be observed also for the metric (not presented here). Note that the original NFA accepts about 3.5 % of the input traffic only.

The experiments conducted within R1 clearly demonstrate that the proposed reduction techniques are able to provide high-quality trade-offs between the precision and the reduction factors. They also show that our techniques can considerably outperform the baseline bfs-reduction and can handle very complex NFAs (having more than 10k states), where existing methods (such as those in [17] and [23]) fail.

R2: Compiling the Multi-Stage Architecture

We will use the reduced NFAs from R1 to obtain instantiations of the multi-stage architecture that can be used in FPGA-based IDSes to effectively decrease the amount of traffic that the software part of the IDS needs to process. We synthesise our designs for a card with the Xilinx Virtex UltraScale+ VU9P FPGA chip, which contains 1,182k LUTs (other resources are in our case always dominated by the number of LUTs). From our experience, it is possible to use up to 70 % of the LUTs available on the FPGA and successfully route designs at the considered frequency (200 MHz), which leaves us with 827k LUTs that we can use. Moreover, the components that we use for receiving packets and transfering them to the CPU consume around 90k LUTs, we are therefore left with 737k LUTs for RE matching.

In every stage of the RE matching unit, we use the pipelined NFAs architecture described in Section II-A instantiated with 8-bit data-width of the NFAs, which gave us the best results. Therefore, the throughput (parameter in Section II-B) of every NFA at 200 MHz is 1.6 Gbps. The optimisation problem of compiling the multi-stage architecture leads to a mixed integer quadratically constrained quadratic program, which we solve using the Gurobi solver [26] (this step took at most 2 s).

Our goal is to obtain single-box IDSes using a combination of hardware preprocessing and a software IDS. This means that the task of the hardware accelerator is to decrease the amount of the traffic entering the software part as much as possible while keeping all suspicious packets. Ideally, the final stage of the RE matching unit would be the precise NFA, so the hardware accelerator would output precisely the packets that match the given set of REs. Due to the size of the precise NFAs, this is, however, often infeasible, so we also consider the setting that decreases the traffic as much as possible.

Below, we provide results of our experiments for some of the considered sets of REs. We tried to compile architectures for the speeds 100, 200, and 400 Gbps using 1–4 stages.

Iv-E1 backdoor

In Table III, we present results of optimal architectures for the Snort’s backdoor module. We

Precise
speed 1 stg 2 stg 3 stg 4 stg
100 236k 56k 50k 50k
200 473k 113k 99k 96k
400 946k 223k 194k 186k
TABLE III: Optimal multistage architecture for the backdoor module.

present only results for the precise setting, as our multi-stage architectures can handle 400 Gbps traffic using the available resources (737k LUTs). Note that the single stage architecture (i.e., the “1 stg” column), can process traffic up to 200 Gbps only (the precise NFA consumes 3,695 LUTs). In order to process 400 Gbps, it is necessary to use the multi-stage architecture, in which case four stages give the best results.

Iv-E2 spyware

Our results for the Snort’s spyware module are shown in Table IV. This module is much

Precise 4 % of traffic
speed 1 stg 2 stg 3 stg 4 stg 1 stg 2 stg 3 stg 4 stg
100 5M 444k 296k 296k 227k 61k 65k 69k
200 10M 809k 513k 513k 453k 122k 126k 133k
400 20M 1.5M 945k 945k 907k 242k 247k 261k
TABLE IV: Optimal multistage architecture for the spyware module.

more complex than backdoor, since its precise NFA takes 78k LUTs. Therefore, for the throughputs of100 Gbps and 200 Gbps, the multi-stage architecture is needed. For 400 Gbps, we were not able to obtain a precise configuration; we were, however, able to obtain multi-stage configurations (the best one with 2 stages) that decrease the amount of traffic sent to the CPU below 4 % (i.e., 16 Gbps). Although 16 Gbps is on the edge ofcapabilities of current SW-based IDSes, we stress that thefinal-stage reduced NFA has very close to 100 % (Fig. 6) and thus only a small fraction of packets are misclassified.

Iv-E3 l7-all

Our most challenging example is from the l7-all RE set. Although the size of the precise automaton is not as large as for spyware (the precise NFA consumes 27,650 LUTs), it is less amenable for approximate reduction

Precise 17 % of traffic
speed 1 stg 2 stg 3 stg 4 stg 1 stg 2 stg 3 stg 4 stg
100 1.8M 894k 880k 880k 1.1M 597k 648k 701k
TABLE V: Optimal multistage architecture for the l7-all module.

because, in contrast to Snort modules, it contains REs that are matched by many packets. The results for the l7-all RE set are shown in Table V. Our best solution reduces the input traffic from 100 Gbps to 17 Gbps and uses 597 kLUTs in two stages. As in the previous case, the final-stage reduced NFA has almost 100 % precision and thus only a small fraction of packets are misclassified.

Iv-E4 sprobe and pop3

The sets of REs for sprobe and pop3 are, on the other hand, quite less challenging. The precise NFAs consume only 195 and 1,721 LUTs, respectively, so we can easily obtain a precise design at 400 Gbps with only a single stage using 50k and 440k LUTs, respectively.

The experiments conducted within R2 clearly demonstrate the practical potential of our approach. The key observation is that the resource reductions provided by the particular multi-stage architectures directly depend on the characteristics of the underlying NFAs (both the precise NFA and the reduced variants) and the typical traffic. Apart from the size of the precise NFA, there are two crucial characteristics: (1) whether the number of packets accepted by the precise NFA is low and (2) whether the reduction can compress the NFA while not increasing the number of accepted packets too much. If both these conditions are met (as for backdoor and spyware), we observe drastic resource savings allowing us to achieve throughput of the resulting IDSes going beyond 100 Gbps, which is unprecedented for REs of such size and complexity. On the other hand, if the original NFA is large, accepts many packets, and highly precise reductions achieve only moderate reductions (as for l7-all), the resulting multi-stage architecture provides only moderate savings and ensuring 100 Gbps remains at the edge of what we can achieve.

V Conclusion

We have leveraged techniques for approximate reduction of NFAs to allow RE matching of a set of Snort/Netfilter modules on speeds significantly beyond the capabilities of the state-of-the-art single-box solutions, namely 100 and even 400 Gbps. The use of the approximate reduction allowed us to significantly decrease the size of the NFAs while keeping the number of false positives low (e.g. for Snort’s spyware module, we obtained a reduction to 28 % of the original size while keeping the error below 2 %). Moreover, the use of the multi-stage architecture better utilises FPGA resources (e.g., using 3 stages, we were able to reduce the resources consumed by spyware down to 5 % of the original without introducing any error). As far as we know, our technique is the first solution that can be used to obtain single-box IDSes detecting large sets of complex REs at speeds over 100 Gbps.

Acknowledgement

We thank Vlastimil Košař for his comments on an earlier draft of the paper and Martin Žádník for providing us with the backbone network traffic. This work was supported by The Ministry of Education, Youth and Sports from the National Programme of Sustainability (NPU II) project IT4Innovations excellence in science — LQ1602.
