Deep neural networks for single channel source separation

11/12/2013 ∙ by Emad M. Grais, et al. ∙ Sabancı University 0

In this paper, a novel approach for single channel source separation (SCSS) using a deep neural network (DNN) architecture is introduced. Unlike previous studies in which DNN and other classifiers were used for classifying time-frequency bins to obtain hard masks for each source, we use the DNN to classify estimated source spectra to check for their validity during separation. In the training stage, the training data for the source signals are used to train a DNN. In the separation stage, the trained DNN is utilized to aid in estimation of each source in the mixed signal. Single channel source separation problem is formulated as an energy minimization problem where each source spectra estimate is encouraged to fit the trained DNN model and the mixed signal spectrum is encouraged to be written as a weighted sum of the estimated source spectra. The proposed approach works regardless of the energy scale differences between the source signals in the training and separation stages. Nonnegative matrix factorization (NMF) is used to initialize the DNN estimate for each source. The experimental results show that using DNN initialized by NMF for source separation improves the quality of the separated signal compared with using NMF for source separation.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Single channel audio source separation is an important and challenging problem and has received considerable interest in the research community in recent years. Since there is limited information in the mixed signal, usually one needs to use training data for each source to model each source and to improve the quality of separation. In this work, we introduce a new method for improved source separation using nonlinear models of sources trained using a deep neural network.

1.1 Related work

Many approaches have been introduced so far to solve the single channel source separation problem. Most of those approaches strongly depend on training data for the source signals. The training data can be modeled using probabilistic models such as Gaussian mixture model (GMM)

[1, 2, 3]

, hidden Markov model (HMM) or factorial HMM

[4, 5, 6]. These models are learned from the training data and usually used in source separation under the assumption that the sources appear in the mixed signal with the same energy level as they appear in the training data. Fixing this limitation requires complicated computations as in [7, 8, 9, 10, 11, 12]. Another approach to model the training data is to train nonnegative dictionaries for the source signals [13, 14, 15]

. This approach is more flexible with no limitation related to the energy differences between the source signals in training and separation stages. The main problem in this approach is that any nonnegative linear combination of the trained dictionary vectors is a valid estimate for a source signal which may decrease the quality of separation. Modeling the training data with both nonnegative dictionary and cluster models like GMM and HMM was introduced in

[16, 17, 18, 19] to fix the limitation related to the energy scaling between the source signals and training more powerful models that can fit the data properly. Another type of approach which is called classification-based speech separation aims to find hard masks where each time-frequency bin is classified as belonging to either of the sources. For example in [20]

, various classifiers based on GMM, support vector machines, conditional random fields, and deep neural networks were used for classification.

1.2 Contributions

In this paper, we model the training data for the source signals using a single joint deep neural network (DNN). The DNN is used as a spectral domain classifier which can classify its input spectra into each possible source type. Unlike classification-based speech separation where the classifiers are used to segment time-frequency bins into sources, we can obtain soft masks using our approach. Single channel source separation problem is formulated as an energy minimization problem where each source spectral estimate is encouraged to fit the trained DNN model and the mixed signal spectrum is encouraged to be written as a weighted sum of the estimated source spectra. Basically, we can think of the DNN as checking whether the estimated source signals are lying in their corresponding nonlinear manifolds which are represented by the trained joint DNN. Using a DNN for modeling the sources and handling the energy differences in training and testing is considered to be the main novelty of this paper. Deep neural network (DNN) is a well known model for representing the detailed structures in complex real-world data [21, 22]. Another novelty of this paper is using nonnegative matrix factorization [23] to find initial estimates for the sources rather than using random initialization.

1.3 Organization of the paper

This paper is organized as follows: In Section 2 a mathematical formulation for the SCSS problem is given. Section 3 briefly describes the NMF method for source separation. In Section 4, we introduce our new method. We present our experimental results in Section 5. We conclude the paper in Section 6.

2 Problem formulation

In single channel source separation problems, the aim is to find estimates of source signals that are mixed on a single channel

. For simplicity, in this paper we assume the number of sources is two. This problem is usually solved in the short time Fourier transform (STFT) domain. Let

be the STFT of , where represents the frame index and is the frequency-index. Due to the linearity of the STFT, we have:

(1)

where and are the unknown STFT of the first and second sources in the mixed signal. In this framework [13, 24], the phase angles of the STFT were usually ignored. Hence, we can approximate the magnitude spectrum of the measured signal as the sum of source signals’ magnitude spectra as follows:

(2)

We can write the magnitude spectrogram in matrix form as follows:

(3)

where are the unknown magnitude spectrograms of the source signals and need to be estimated using the observed mixed signal and the training data.

3 NMF for supervised source separation

In this section, we briefly describe the use of nonnegative matrix factorization (NMF) for supervised single channel source separation. We will relate our model to the NMF idea and we will use the source estimates obtained from using NMF as initilization for our method, so it is appropriate to introduce the use of NMF for source separation first.

To find a suitable initialization for the sources signals, we use nonnegative matrix factorization (NMF) as in [23]. NMF [25] factorizes any nonnegative matrix into a basis matrix (dictionary) and a gain matrix as

(4)

The matrix contains the basis vectors that are optimized to allow the data in to be approximated as a linear combination of its constituent columns. The solution for and can be found by minimizing the following Itakura-Saito (IS) divergence cost function [26]:

(5)

where

This divergence cost function is a good measurement for the perceptual difference between different audio signals [26]. The IS-NMF solution for equation (5) can be computed by alternating multiplicative updates of and as follows:

(6)
(7)

where is a matrix of ones with the same size of , the operation is an element-wise multiplication, all divisions and are element-wise operations. The matrices and are usually initialized by positive random numbers and then updated iteratively using equations (6) and (7).

In the initialization stage, NMF is used to decompose the frames for each source into a multiplication of a nonnegative dictionary and a gain matrix as follows:

(8)

where is the nonnegative matrix that contains the spectrogram frames of the training data of source . After observing the mixed signal, we calculate its spectrogram . NMF is used to decompose the mixed signal’s spectrogram matrix with the trained dictionaries as follows:

(9)

The only unknown here is the gains matrix since the dictionaries are fixed. The update rule in equation (6) is used to find . After finding the value of , the initial estimate for each source magnitude spectrogram is computed as follows:

(10)

where is an element-wise multiplication and the divisions are done element-wise.

The magnitude spectrograms of the initial estimates of the source signals are used to initialize the sources in the separation stage of the DNN approach.

4 The method

In NMF, the basic idea is to model each source with a dictionary, so that source signals appear in the nonnegative span of this dictionary. In the separation stage, the mixed signal is expressed as a nonnegative linear combination of the source dictionaries and separation is performed by taking the parts corresponding to each source in the decomposition.

The basic problem in NMF is that each source is modeled to lie in a nonnegative cone defined by all the nonnegative linear combinations of its dictionary entries. This assumption may be a limiting assumption usually since the variability within each source indicates that nonlinear models may be more appropriate. This limitation led us to consider nonlinear models for each source. It is not trivial to use nonlinear models or classifiers in source separation. Since deep neural networks were recently used with increased success in speech recognition and other object recognition tasks, they can be considered as superior models of highly variable real-world signals.

We first train a DNN to model each source in the training stage. We then use an energy minimization objective to estimate the sources and their gains during the separation stage. Each stage is explained below.

4.1 Training the DNN

We train a DNN that can classify sources present in the mixed signal. The input to the network is a frame of normalized magnitude spectrum, . The neural network architecture is illustrated in Figure 1. There are two outputs in the DNN, each corresponding to a source. The label of each training instance is a binary indicator function, namely if the instance is from source one, the first output label and the second output label . Let be the number of hidden nodes in layer for where is the number of layers. Note that and . Let be the weights between layers and , then the values of a hidden layer are obtained as follows:

(11)

where

is the elementwise sigmoid function. We skip the bias terms to avoid clutter in our notation. The input to the network is

and the output is .

Figure 1: Illustration of the DNN architecture.

Training a deep network necessitates a good initialization of the parameters. It is shown that layer-by-layer pretraining using unsupervised methods for initialization of the parameters results in superior performance as compared to using random initial values. We used Restricted Boltzmann Machines (RBM) for initialization. After initialization, supervised backpropagation algorithm is applied to fine-tune the parameters. The learning criteria we use is least-squares minimization. We are able to get the partial derivatives with respect to the inputs, and this derivative is also used in the source separation part. Let

be the DNN, then and

are the scores that are proportional to the probabilities of source one and source two respectively for a given frame of normalized magnitude spectrum

. We use these functions to measure how much the separated spectra carry the characteristics of each source as we elaborate more in the next section.

4.2 Source separation using DNN and energy minimization

In the separation stage, our algorithm works independently in each frame of the mixed audio signal. For each frame of the mixed signal spectrum, we calculate the normalized magnitude spectrum . We would like to express where and are the gains and and are normalized magnitude spectra of source one and two respectively.

We formulate the problem of finding the unknown parameters as an energy minimization problem. We have a few different criteria that the source estimates need to satisfy. First, they must fit well to the DNN trained in the training stage. Second, their linear combination must sum to the mixed spectrum and third the source estimates must be nonnegative since they correspond to the magnitude spectra of each source.

The energy functions and below are least squares cost functions that quantify the fitness of a source estimate to each corresponding source model in the DNN.

(12)
(13)

Basically, we expect to have when comes from source one and vice versa. We also define the following energy function which quantifies the energy of error caused by the least squares difference between the mixed spectrum and its estimate found by linear combination of the two source estimates and :

(14)

Finally, we define an energy function that measures the negative energy of a variable,

In order to estimate the unknowns in the model, we solve the following energy minimization problem.

(15)

where

(16)

is the joint energy function which we seek to minimize. and are regularization parameters which are chosen experimentally. Here is a vector containing all the unknowns which must all be nonnegative. Note that, the nonnegativity can be given as an optimization constraint as well, however we obtained faster solution of the optimization problem if we used the negative energy function penalty instead. If some of the parameters are found to be negative after the solution of the optimization problem (which rarely happens), we set them to zero. We used the LBFGS algorithm for solving the unconstrained optimization problem.

We need to calculate the gradient of the DNN outputs with respect to the input to be able to solve the optimization problem. The gradient of the input with respect to is given as for , where,

(17)

and , where contains the weights between node of the output layer and the nodes at the previous layer, in other words the th row of .

The flowchart of the energy minimization setup is shown in Figure 2. For illustration, we show the single DNN in two separate blocks in the flowchart. The fitness energies are measured using the DNN and the error energy is found from the summation requirement.

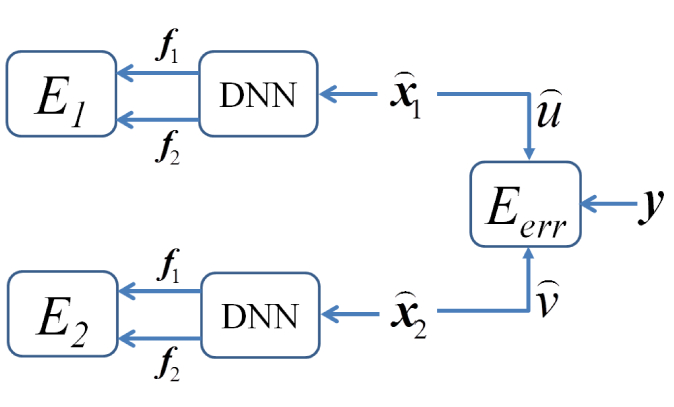

Figure 2: Flowchart of the energy minimization setup. For illustration, we show the single DNN in two separate blocks in the flowchart.
