1 Introduction
Online advertising has grown exponentially over the past few years due to the wide spread usage of internet across the world. The marketers track customer journeys as they are exposed to different online media channels(e.g. email, display, paid search) before they make the conversion at the end. Companies allocate marketing budgets to promote their business through these multiple online campaigns among different channels. To get maximum return on investment on the spend of online ads, marketers have to optimize their budget allocation among different media channels based on their value. How to measure the value of ads spend, however, is not trivial for marketers. The problem of measuring the influence of each campaign or channel on a conversion is referred as attribution problem [1] .

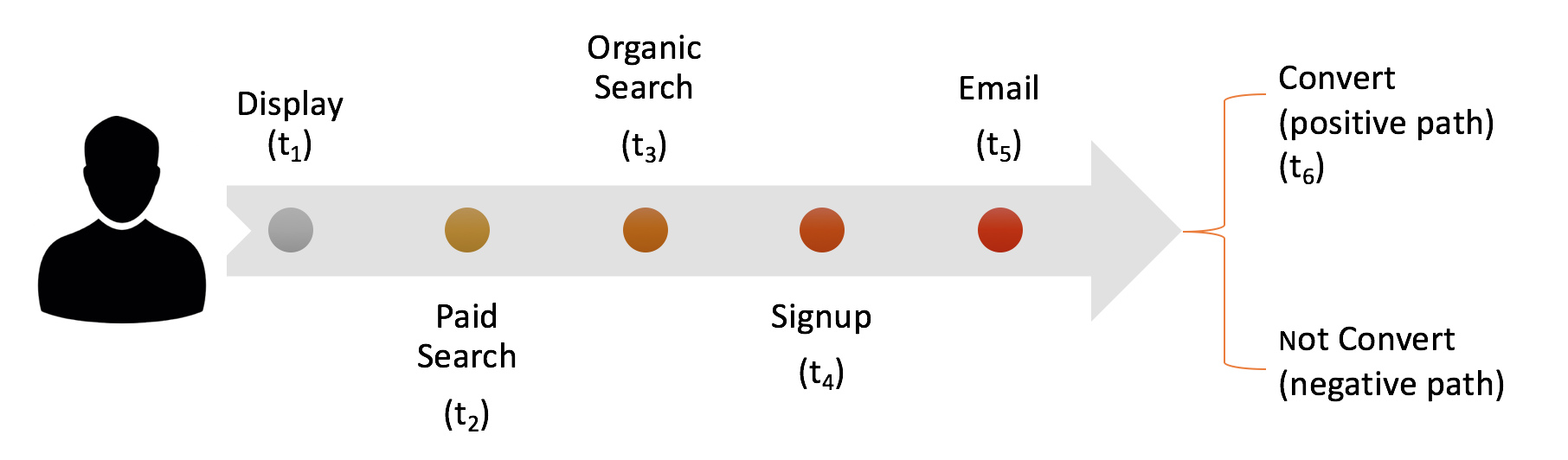

As shown in Figure[1], a user may be exposed to email, display, paid search ads before the users converts. Each ad has a relation with the user’s final conversion decision. In such a case, the marketer faces a dilemma of assessing the contribution of each channel to user’s conversion.
Marketers have applied simple rulebased heuristics to solve attribution problem in the past. First or last touch point approach ignore the effects of other channels; equal weight approach assume equal contribution from each channel, which ignores the channel difference; timedecayed attribution algorithm assumes that the credit decays based on a decay parameter which is simply based on intuition without data support.
In order to rectify the above pitfalls, datadriven attribution models have been introduced in recent years. In this paper, we propose a datadriven multitouch attribution and conversion prediction model denoted as deep neural net with attention for multitouch attribution (DNAMTA) that outperforms the other approaches in terms of both conversion prediction and attribution analysis.
2 Related Work
In order to overcome the drawbacks of rulebased heuristics, datadriven algorithmic models were proposed. Shao et al. [2]
propose a bagged logistic regression method and compares it with a probabilistic model. They predict conversion rate using count of ad occurrences and uses weights as credits for attribution analysis. While bagging provides stable estimates and better accuracy than probabilistic model, they do not have an interpretable model and ignores temporal factor. Dalessandro et al.
[3] propose causal inference methods to achieve interpretability. They used additional marginal lift of each ad as credits. Since their method was computationally difficult, under some assumptions, they were unable to estimate causal parameters. Ji et al. [4] adopt a probabilistic framework to remove the presentation biases. However, they do not directly measure the effect of ad exposure. Zhang et al. [5] propose datadriven multitouch attribution with survival theory but do not consider user characteristics.Ji et al. [6] use hazard rate to reflect the influence of an ad exposure. However, they assume that the impact of ad exposures is additive and fades with time. Abhishek et al. [7]propose multistage model of consumer response to advertising activity that addresses the problem of temporal dynamics of ad exposure. However, their framework is difficult to achieve model scalability, besides, higher order markov chains are hard to be implemented for better model accuracy.
Deep Learning [8] have been used extensively in image [9], speech recognition and language translation [10]
to achieve stateofart results. Attention mechanism embedded with Neural Network has been successfully applied in vision and NLP field
[11, 10], as attention mechanism can emphasize the important features along the timeseries observations. These novel ideas, however, are not yet used to tackle problems like attribution.3 Notation and Problem Formulation
We formalize the attribution problem as follows. An event is either a conversion or a touchpoint. Each customer path consists of events from multiple advertising channels. Let denote the event the user is exposed to in the path and , is the set of all the touchpoints that we are interested in. Thus, a single customer sequence path can be represented as , is the length of the sequence. represents the relative order of the event in the sequence, instead of the absolute event occurrence time. Beyond that, each event is also associated with some structure information, such as occurrence time, which can be formalized as another sequence . In addition to these dynamic sequence information, some static information which is unlikely to be changed during the conversion journey, such as gender, age, signup date etc., are represented as control variables . A customer path will be treated as positive if it ends with conversion(), otherwise it’s a negative(nonconversion) path(). Assuming each touchpoint has attribution value , then . The objective of this attribution problem is to estimate attribution value which represents the touchpoint ’s contribution towards a successful conversion.
To make this problem more mathematically welldefined, we use probabilistic reasoning to explain customer’s conversion decision, i.e. we want to find how likely a path will end up with conversion if it is exposed to a sequence of touchpoints and its corresponding control variable
. We denote this as conditional probability
. According to Bayes formula, and in order to get a good inference of this conditional probability we should have a good estimate of two components: and . can be estimated by maximum likelihood estimation(MLE) from the data. Since is a dynamic sequence observation with varying length, estimatingis difficult. Furthermore, if we use a naive onehot representation by aggregating through time, it ignores the time variance information. Therefore, it’s necessary to have a better representation of
, that helps to estimate probability and easily. We use a learning function to approximate this conditional probability . Thus the underlying structure for attribution of each touchpoint can be estimated from this learning function.Attribution problem is complex as hidden interactions between touchpoint needs to be modeled. Besides, contribution of touchpoint decreases with the increasing time lag(defined as the duration between the occurrence time and the end time) in a path. This typical time decay property is a common business assumption, which is unlikely to be captured by general linear model. Lastly, control variables like gender, age, sign up date etc. can also affect customer journey.

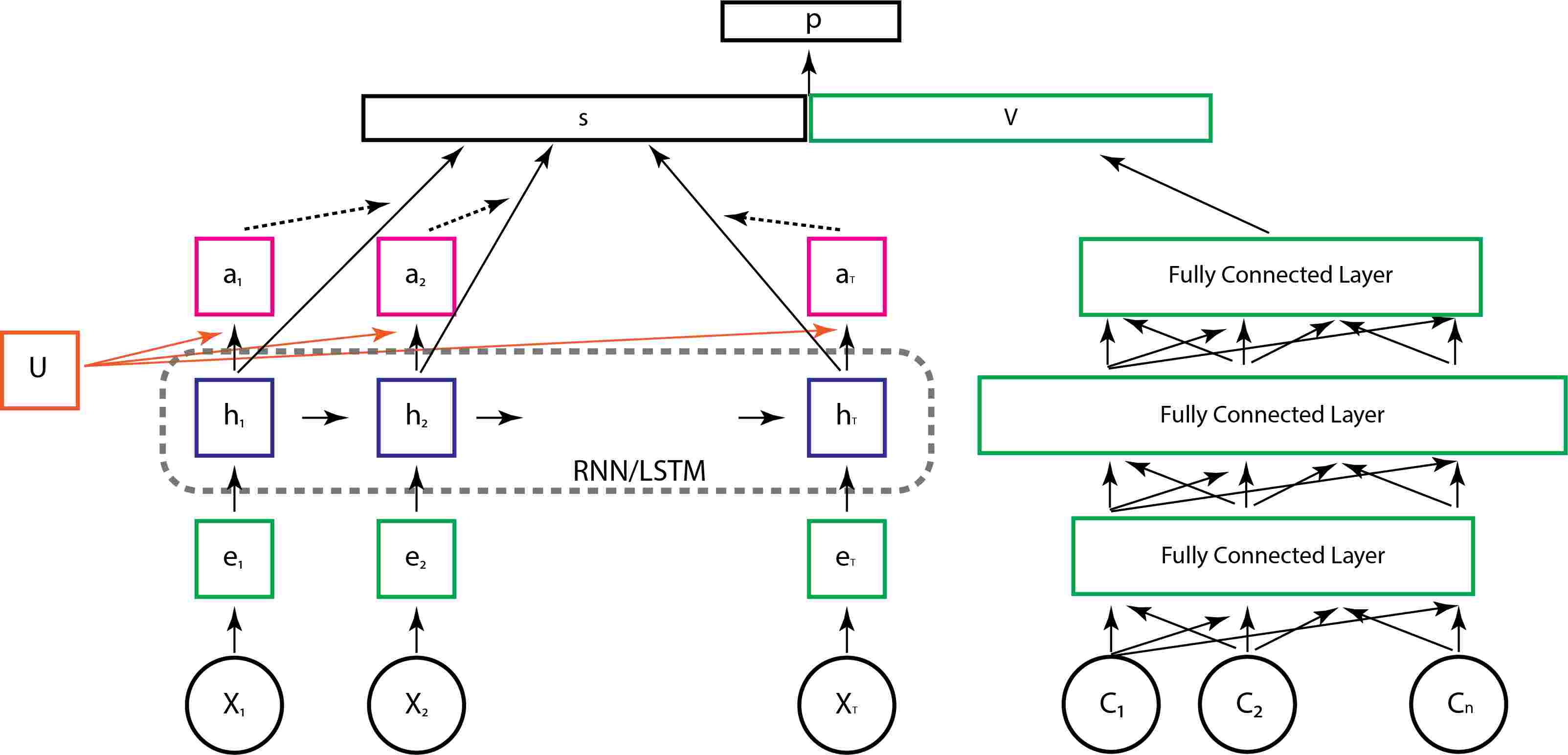

We propose a general deep learning framework in order to solve the above three challenges: DNAMTA. This model has three advantages: 1) DNAMTA with attention
is a Long Short Term Memory (LSTM) based deep sequential model, which is well known for capturing the long time dependency of sequence observations
[12]. Further, attention mechanism is used to capture the touchpoint contextual dependency. 2) Survival timedecay functions are introduced in DNAMTA with timedecay to explicitly model the timedecay assumption. 3) DNAMTA fusion model can combine static information of user as control variables with dynamic touchpoint observations.4 Deep Neural Network with Attention for Attribution

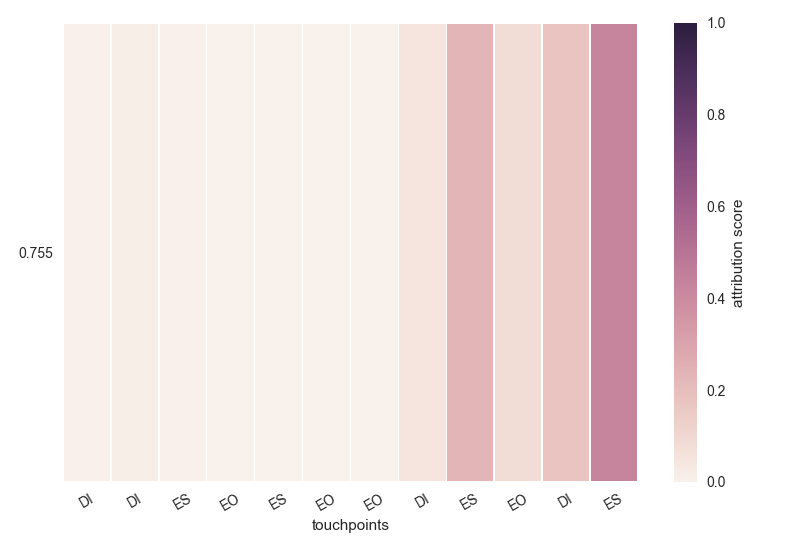

In a sequence of observations of touch points, same touchpoint may be differentially important at different time locations and at different frequency of occurrence. Our model introduces attention mechanism that lets the model to pay more or less attention to individual touchpoints when constructing the representation of the customer path. To demonstrate the idea, let’s take a look at Figure(2), which is a positive path where the customer finally made a conversion at the end. This customer has been exposed to a sequence of advertising events before a conversion decision is made. Each touchpoint is allocated different contribution value according to our model. The contribution of touchpoint "Email Sent" varies at different observation locations. Besides, touchpoint "Email Sent" has totally different importance compared with other touchpoints, such as "Display Impression". Details of our proposed model will be covered in Section[5].
Attention serves two benefits: it not only provides us reasonable better performance, but also gives insight on how touchpoint contributes to the conversion decision at any specific time which is the most valuable part of an attribution conversion problem. LSTM could help us handle capture the hidden underlying complex interaction patterns.
5 Model
5.1 Touchpoint Input Layer
The input for the model is a touchpoint sequence path with onehot representation of touch points , where is the total number of all possible touchpoints we are interested in and is the length of the sequence, which varies for different sequences. Note that this sequence only considers absolute order, the real temporal difference between each touchpoint pair could be different. Detailed information about dealing with temporal relation will be discussed in later section [5.6].
5.2 Touchpoint Embedding Layer
Given a path in the above format, we first transform the onehot representation of the touchpoint at step
to a dense vector through an embedding matrix
by . Specifically, column of embedding matrix , which is a vector of dimension, is the continuous representation vector of step touchpoint observation.Traditional onehot representation or bagofwords like feature representation are simply counting statistics, which ignore touchpoint contextual similarities and suffer from sparsity in representation. Touchpoint embedding aims to quantify and categorize hidden contextual similarities between each touchpoint based on their distribution in large samples of touchpoint paths.
5.3 Variabledepth LSTM Layer
We use LSTM [12] to obtain another level of representation of touchpoints by using embedding layer output , and therefore incorporate the contextual information in the historical observations. Each LSTM block updates current hidden state output based on embedding output and previous hidden state output through the formula
(1)
In Formula(1), is a nonlinear transformation function, which has various definitions according to practical problems.
Now each can be considered as a new representation of touchpoint by overviewing all historical touchpoint records, so conceptually is able to better describe the context meaning of touchpoint in the specific path compared with the raw embedding vector , which is unaware of past information. This is important for customer conversion journey, since the order, frequency and longterm dependency of touchpoint exposure could have a high impact on their final conversion decision.
5.4 Touchpoint Attention Layer
We introduce attention mechanism to find touchpoints that are important to the conversion and aggregate the representation of those informative touchpoints to form a path vector. Yang et al. [13]
proposed hierarchical attention mechanism for text sentiment analysis. We shall leverage this idea in our case. Specifically,
(2)
(3)
(4)
We first feed the touchpoint representation
through a onelayer multilayer perceptron(MLP) to get
as a hidden representation of
, then we measure the importance of the word as the similarity of with touchpoint context vector and get a normalized importance weight through a softmax function. We can notice that by design . The advantage of this construction is that the contribution of every touchpoint is always positive. After that, we compute the path vector as the weighted sum of the touchpoint representation based on the nonnegative weights. Actually, is the convex combination of all . The context vector can also be seen as a high level representation of a fixed sequence based on our domain knowledge about touchpoint importance, campaign marketers can custom their attribution model by constraining vector . The context vector can either be fixed or be randomly initialized and jointly learned during the process. We use the latter approach in our modeling.5.5 Touchpoint Path Classification
In our attribution conversion problem, some customer touchpoint journeys end up with conversions, these paths are treated as positive paths, otherwise, they are negative paths. With these labels, we can consider this attribution conversion learning problem as binary classification problem in the new path vector space. The path vector is a high level representation of the customer touchpoint journey by combining hidden outputs and attention weights.
(5)
where and
is nonlinear activation function ReLU
. In common binary classification problems, the probability for predicting the sequence observation path positive is usually the sigmoid function for linear combination of features. In attribution conversion problem, with some exposure of advertising channels, the probability for customers to make conversion decision is always greater than those without any exposure, which means the contribution of touchpoint for conversion is always nonnegative. Activation function ReLU is mathematically fit for this practical constraint.
5.6 Time Decay Attention Layer
Attention mechanism is widely used in NLP problems where the distance between each word is relative, depending on the word counts between them. We should consider exact time gap in attribution problem, since the time gaps between each touchpoint vary a lot, from hours to even months. This difference of time gaps could affect the connection strength of nearby touchpoints and further impact the final conversion. Therefore, we introduce the time decay attention layer by combining time decay information, inspired by the idea in [14]. Basically each touchpoint sequence observation has its occurrence time, the time gap difference between the occurrence time and the end time defined as . The smaller is, nearer is the occurrence time to end time. We assume the touchpoint contribution decreases when the occurrence time is far away from the end time. We penalize each attention weight described in component in Formula(3) by nonincreasing timedecay function. Detailed formula can be referred as below:
(6)
(7)
(8)
where is the decay parameter, it can be predefined based on data analysis of past customer conversion trend, or it can also be randomly initialized in model and directly learned from data.
5.7 Fusion Model
As we have mentioned in previous section, attribution conversion models usually try to establish the relationship between advertising channels and final conversion. However, customer characteristic information such as gender, age and some other static information may affect the touchpoint exposure and the conversion engagement. [15] points out that the confounding effects from these features could affect the distribution of conversion rate. For example, free signup is a promotion strategy from company to encourage customer to make conversion. Generally there are two situations when a conversion rate may peak: First, when customers free signup and second,when this free signup trial expires. Therefore, it’s necessary for us to take these control variables into consideration, which helps us to minimize the potential bias inference effects.
However, the number of control variables in real attribution conversion problems can be very large, which increases the difficulty of the variable selection among these control sets. Besides, a simple linear addon may not fit for describing the complex relationship between the factors and conversion. In order to account for these two problems, we propose a fusion model, which is built on the original DNAMTA model by introducing another deep neural network for control variable learning. In Figure(3), deep neural network modeling control variables is on the right hand. It aims to learn a sophisticated feature vector representation by going through several dense fully connected layers, which can capture the underlying structure. Later we concatenate the customer touchpoint path representation vector and the control variable vector before we apply it to classification layer. The touchpoint path classification formula will be changed
(9)
where is still the RELU function as mentioned in Section [5.5], and is just identical function.
6 Experiments
In this section, we present our experiments to compare different attribution models with DNAMTA. We also discuss the corresponding results and model interpretation for attribution.
6.1 Data
We ran our experiments on large event data set of a marketing organization with three primary channels display, email and paid search. We have 6 different touchpoints: display click, display impression, email click, email sent, email open and paid search. It contains 426853 records with history of 57 days including conversion day. Each record represents a customer’s journey, if this journey ends up with conversion action before the given data collection time, it is regarded as positive path; otherwise it’s labeled as negative. Even though customer may convert in the future, this kind journey is still not positive based on our definition. Due to the heavy imbalanced distribution of positive and negative paths in real dataset, we down sampled the negative path records to get the dataset with balanced labels. Each path record is associated with a freesignup date, a sequence of dates for each touchpoint event and a sequence of frequency of occurrence. A visit duration window is applied to multiple visits from the same advertising channel: subsequent visits are ignored if they occur within a short time.
We randomly split this data into two sets: 80% for training and 20% for testing. All experiment comparison results are based on the test dataset.
6.2 Model Settings and Implementation
As mentioned in [16], we will mainly focus on predictive accuracy(AUC) and interpretability. To demonstrate the performance of various attribution models, we compare our DNAMTA model with three commonly used attribution models i.e. last touch attribution, Logistic Regression and HMM [7] in our experiments:

LSTM is the fundamental LSTM model without attention mechanism.

DNAMTA is the first version of our deep attribution model with attention mechanism. After getting the outputs from each LSTM module, we will calculate the attention weights based on Formula(3), later we will use the reweighted LSTM outputs as a path representation vector for binary classification modeling.

DNAMTA with time decay is the second version of our deep attribution model. Besides incorporating attention mechanism, it also accounts for temporaleffect in attribution. The time decay weighted attention calculation formula is followed by Formula(7). For simplification, we assume time decay parameter stays the same for all channels, but each channel (e.g. page search) could have its own time decay parameter.

Fusion DNAMTA is the third version of our deep attribution model. Built on the top of time decayed DNAMTA, control variables such as user activity will be learned as a feature representation vector in another neural network. A fused representation vector is generated by concatenating touchpoint path vector and control variable vector, and it will be used for classification task based on the Formula(9).
We use TensorFlow 1.2.0
[17] and Python 3.0 for all deep model implementation, and sklearn 0.18.1, pomegranate for baseline model implementation. All the comparison experiments are run on GPU Tesla K80 and CPU. For LSTM model we choose to use stochastic Adam gradient descent [18] for training. In deep model, both the dimension of hidden size and attribution dimension (a.k.a. contextual vector ’s dimension) are 64. We use 3 hidden layers. During training process, a validation data set is hold out for hyper parameter tuning, and the model training process stops when the validation loss stops improving.6.3 Results
In Table 3, we report the prediction performance of all attribution models on testing dataset. We can observe that DNAMTA fusion model successfully utilizes both time and touchpoint dependent representation and confounding factors, and it achieves the highest prediction accuracy and AUC. Besides, on comparing with other models, we find that deep model with attention can generally improve the model prediction performance, which indicates the impact of attention mechanism in dynamic sequence path classification task, as attention can smartly reconsider touchpoint contextual dependencies and reallocate these touchpoint contributions.
As we mentioned in previous section, model prediction is not the only goal for attribution modeling. From the perspective of representation learning, a good representation for dynamic path is good for future statistical inference and strategy decision making. The path representation vector from last touchpoint attribution model is simple without modeling, but it does not capture the time dependency between each touchpoint. If both a long touchpoint sequence and a short one ends with up the same touchpoint, these two paths will be considered same in the last touchpoint prediction model. For logistic regression, the path representation vector considers the touchpoint content information and time information, but the dimension of this vector can be dramatically high and sparse when our predefined observation time window grows. For our dataset that spans touchpoint data of 57 days, the feature dimension in logistic regression is 342. However, in DNAMTA model, the path representation dimension is only 64 and also achieves better prediction performance than logistic regression does, which shows us the efficiency of representation provided by DNAMTA.
Similar to approach and arguments in [19], both the number of parameters in our model and the amount of computation it performs can be controlled independently of the size of the path if we fix the length of the customer path that is considered. Hence it is easily scalable with any size of data. In the case where we do not fix the path length, the computational demands scale linearly with the length of the path in consideration.
6.4 Modified Attribution Score with Attention
We propose a novel usage of the attention scores by incorporating it with traditional attribution score calculation [1]: fractional attribution score and incremental attribution score.

Incremental score We estimate the impact of a specific channel on the conversion by calculating the difference in conversion probabilities with and without the channel.

Fractional score We normalize all incremental scores of each channel for each path, and aggregate all incremental contributions at channel level as the fractional score.

Attention based score Attention values learned from deep model can be directly used as fractional score, as it serves as the contribution of each touchpoint after accounting for the interaction between each other.
LTA  LR  LSTM  DNAMTA




Display  0.392  0.538  0.642  0.448  0.398  0.411
0.383  0.241  0.174  0.362  0.384  0.372
PaidSearch  0.225  0.221  0.184  0.190  0.218  0.217
Total  1  1  1  1  1  1
LTA  LR  LSTM  DNAMTA




Display  0.325  0.356  0.392  0.369  0.326  0.341
0.133  0.155  0.158  0.169  0.183  0.180
PaidSearch  0.213  0.162  0.131  0.176  0.206  0.207
Total  0.671  0.673  0.681  0.714  0.715  0.728
LTA  HMM  LR  LSTM  DNAMTA




Accuracy  0.765  0.766  0.789  0.807  0.807  0.807  0.819
AUC  0.800  0.801  0.846  0.841  0.855  0.851  0.879
In all attribution models, display accounts for the most contribution for customer conversion. Especially for logistic regression and DNAMTA model, both fractional and incremental attribution scores for Display are very high. While after incorporating time decay property, DNAMTA with timedecay and fusion model lowers the display attribution scores. Indeed, customer has to be exposed to the product first before they can start their conversion journey. Display triggers the continuing advertising exposure, while display is usually less likely to show up closer to conversion. We didn’t include HMM in the comparison table (2, 1), because the attribution scores for HMM are quite similar to others.

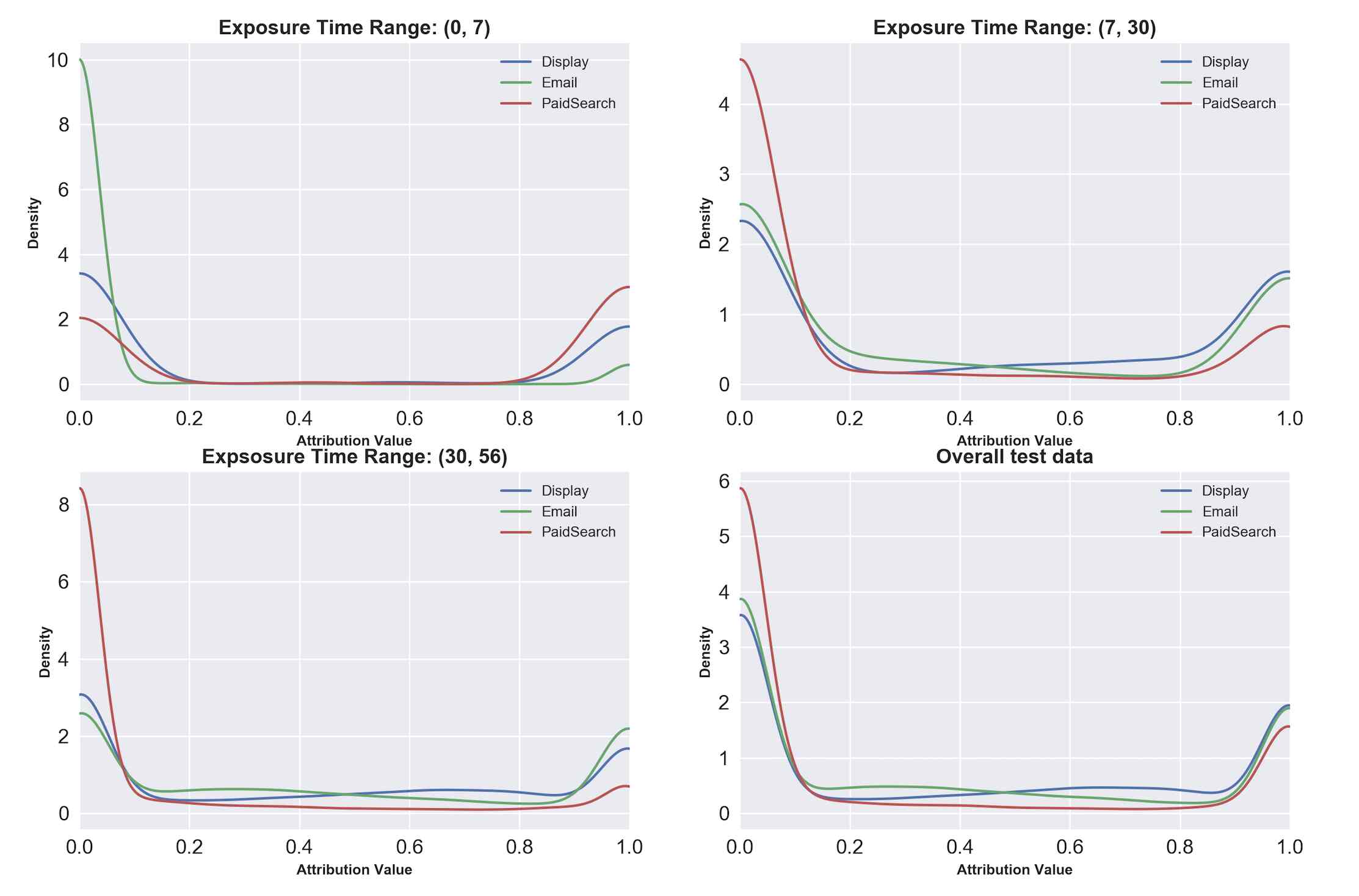

Figure(4) visualizes attribution density distributions for each touchpoint over various ad exposure lag. Overall, display accounts for the most conversion contribution, but among customers with different ads time exposure, touchpoint contribution distributions vary. For example, paid search has relatively high impact within the first week, but this contribution decreases for long time exposure of ads. As we mentioned in Section [3], DNAMTA is capable of capturing the underlying structure of touchpoints and their conversion contributions.
Figure(5) shows the time decay of attribution for each touchpoint. As the time lag (the difference between observation time and the end time of path) increases, the attribution for each touchpoint decreases. It confirms the time decay property for attribution score. The variance of onaverage attribution score at specific time lag also has a decreasing trend as the time lag increases. The most latest advertising exposure may contribute a lot to customer’s final conversion decision.
7 Conclusion and Future Work
In this paper, we introduce DNAMTA, a deep neural network framework incorporating attention mechanism, by considering temporal effect and user characteristics through control variable adjustment. It aims to have a deeper understanding about the dynamic interactions between advertising channels and their contributions to customer conversion. For predictive task, DNAMTA surpasses some widely used attribution models as well as basic LSTM model. For interpretability, DNAMTA can also provide good insights of the relative touchpoint attribution estimates.
Through the discussion in this paper, we also formalize attribution as a representation learning problem. Experiment results show that the dynamic path vector representation of dimension 64 from DNAMTA achieves better prediction performance compared to other attribution models. A good representation for dynamic advertising channels is not only good for prediction task and statistical inference, but also can be beneficial for transfer learning: transferring the domain knowledge and datadriven features to some other marketing problems with limited data observations. Marketers can thus allocate their budget spends on touchpoints in proportion to their contributions.
