1. Introduction

Protein interactions play an important role in biological processes. Interacted proteins form complicated protein networks known as protein complexes, which can perform a vast range of biological functions (Zhou and Qin, 2007). Protein interactions occur via interfaces, bonds of amino acids from different proteins. Locating protein interfaces requires to identify all amino acid pairs, which is an important yet challenging problem (Jordan et al., 2012; Northey et al., 2018). Experimental identification is expensive and time-consuming (Ezkurdia et al., 2009). Computational methods (Ahmad and Mizuguchi, 2011; Liu et al., 2009; Šikić et al., 2009; Wu et al., 2006; Bradford and Westhead, 2005; Sanchez-Garcia et al., 2019)

have been proposed to automatically predict protein interfaces. These methods focus on constructing hand-crafted features from different domains, then applying conventional machine learning approaches for interface prediction.

Deep learning methods have shown great success on grid-like data such as texts (kvaswani2017attention; Liu et al., 2019), images (Ronneberger et al., 2015; Simonyan and Zisserman, 2014; Liu et al., 2020), and non-grid data such as graphs (Hamilton et al., 2017; Kipf and Welling, 2016; Yuan and Ji, 2020). Following the success, recent studies (Fout et al., 2017; Townshend et al., 2019) propose to apply deep learning methods to learn features for amino acids and perform interaction predictions. Existing work (Townshend et al., 2019) folds proteins into 4D grid-like data and employ 3D Convolutional Neural Networks (CNNs) for feature learning. This is followed by dense layers to determine whether the two amino acids interact with each other. However, the topological structure information is ignored by representing proteins as grid-like data. Such information is important to decide the inherent properties of amino acids and proteins. In addition, recent work (Fout et al., 2017)

represents proteins as graphs, where nodes are amino acids and edges are affinities between nodes. Then it applies Graph Neural Networks (GNNs) to learn node features. For any amino acid pair, the node features are concatenated and a classifier is built based on these features. However, the original sequential information from amino acid chains is ignored when converting from proteins to graphs. In addition, existing studies predict each amino acid pair separately such that only the information from the input amino acid pair is considered. Due to the complex structure of proteins, the prediction of a amino acid pair may also depend on other amino acids. Such relations in known as the high-order pairwise interactions while none of existing work explicitly incorporate them.

To overcome these limitations, we propose a novel framework to solve the protein interface prediction problem. Instead of identifying each amino acid pair independently, we formulate it as a 2D dense prediction problem, which predicts all possible pairs simultaneously. In addition, we propose a novel deep learning model to solve it. Similar to existing work (Fout et al., 2017), we also represent proteins as graphs and employ GNNs to aggregate neighborhood information and learn node features. To incorporate the sequential information of amino acid chains, we propose the sequential modeling to reorder the features and preserve original sequential information. Such a step also enables the use of convolution operations in the latter stage. Next, we construct the high-order pairwise feature interactions based on node features, resulting in a 3D tensor. For each location, it stores the feature interaction of the corresponding amino acid pair. Note that the sequential information is also preserved in this tensor. Then 2D CNNs are employed to extract high-level pairwise interaction patterns and make predictions for all pairs as a 2D dense prediction task. Furthermore, to address the data imbalance problem, we not only incorporate cross-protein amino acid pairs for training, but also involve in-protein amino acid pairs. We evaluate our methods on the three cross-protein docking and binding affinity benchmarks (Hwang et al., 2010; Vreven et al., 2015; Hwang et al., 2008). Experimental results show that our methods consistently outperform all state-of-the-art methods and achieve over performance improvement. The results demonstrate the effectiveness of our proposed sequential modeling and high-order pairwise interaction method that incorporate both sequential information and high-order pairwise interaction patterns. Overall, our major contributions are summarized as follows:

  • We propose a novel formulation for the protein interface prediction problem. We consider it as a 2D dense prediction problem, which is a structured prediction problem and predicts all amino acid pair simultaneously.

  • We propose a novel deep learning method, which captures structural information from protein graphs, sequential information from original amino acid chains, and high-order pairwise interaction information between different amino acid pairs.

  • We obtain the new state-of-the-art performance on three protein docking and binding affinity benchmarks. Experimental results show the effectiveness of our proposed sequential modeling and high-order pairwise interaction method.

2. Related Work

Protein interface prediction has been studied intensively. To predict protein interfaces between protein complexes, two categories of methods have been proposed, those are, partner-independent prediction and partner-specific prediction (Afsar Minhas et al., 2014). The former is to predict whether there is an interaction between an amino acid in the given protein with any other protein (Leis et al., 2010; Deng et al., 2009; Zhou and Qin, 2007). The latter is to predict if there is an interaction between any two amino acids from two different proteins (Sanchez-Garcia et al., 2019; Northey et al., 2018). Partner-specific prediction has been demonstrated to achieve better performance due to the use of interaction information in protein complexes (Afsar Minhas et al., 2014; Ahmad and Mizuguchi, 2011). In this work, we focus on the partner-specific prediction that we predict interactions between any two amino acids from different proteins.

There exist several families of techniques for partner-specific prediction. Template-based methods predict interfaces in a query complex by computing interface and structure similarities to a given template complex (Tuncbag et al., 2011). One limitation is that the prediction can be performed only when there exit template complexes. Docking methods (Pierce et al., 2011; Schueler-Furman et al., 2005) typically predict several possible protein complexes from the given proteins, then use ranking criteria to decide the most native one. The interface is then identified after deciding the specific complex structure. Docking methods have shown similar performance with the template-based methods. Another big family is the machine learning-based methods. These methods focus on constructing features then use machine learning techniques for classification. The features are sourced from different domains. The used machine learning techniques include SVM (Bradford and Westhead, 2005)

and random forests

(Segura et al., 2012), etc.

The latest developed methods (Fout et al., 2017; Townshend et al., 2019) emphasize the representations of proteins and amino acids and have achieved the best reported performance. In the work (Townshend et al., 2019), an amino acid is represented as 4D grid-like data. The first 3 dimensions are the spatial coordinates of all atoms in the amino acid and the last one indicates the types of atoms. Then 3D CNNs are employed for amino acid feature learning and dense layers are to predict if the two amino acids interact or not. The work (Fout et al., 2017) represents proteins as graphs and use GNNs to aggregate structural information, followed by the dense layers for binary classification. However, using dense layers to classify each amino acid pair independently neglects the important high-order pairwise interactions that the prediction of one amino acid pairs may depend on the information from other amino acid pairs. In addition, the former fails to consider topological structure information by representing proteins as grid-like data, whereas the latter does not incorporate sequential information by representing proteins as graphs which are order-invariant.

Most methods for protein interface prediction are evaluated on the family of Docking Benchmark (DB) datasets, which contain DB2 (Mintseris et al., 2005), DB3 (Hwang et al., 2008), DB4 (Hwang et al., 2010) and DB5 (Vreven et al., 2015)

. The first three are all the subsets of DB5, which is the largest and most recent benchmark dataset for interface prediction. It also contains the most labeled examples for the problem. There are 230 protein complexes in total, and the the number of labeled interacted amino acid pairs is 20875. All the proteins carry structural and sequential information. Currently, DB5 is the most popular dataset for protein interface prediction, like the ImageNet

(Russakovsky et al., 2015)

in the computer vision domain. Before DB5 was generated, DB4 and DB3 were intensively used to evaluate different methods.

To overcome limitations in existing works, we propose an end-to-end framework that incorporates structural and sequential information and high-order pairwise interaction patterns for protein interface prediction. We conduct experiments on three Docking Benchmark datasets to demonstrate the effectiveness of our proposed methods.

3. Methods

The structural and sequential information are both important to determine the properties of proteins. However, existing work (Fout et al., 2017) represents proteins as graphs which can only capture structural information but neglect the sequential information of the original amino acid chains. In addition, existing methods (Fout et al., 2017; Townshend et al., 2019; Sanchez-Garcia et al., 2019) classify each amino acid pair separately, through which only the information of input amino acid pair is considered. However, the prediction of an input amino acid pair may also depend on the information of other amino acid pairs. Such relations are known as high-order pairwise interactions, and none of existing work explicitly considers them. To incorporate all of structural information, sequential information, and high-order pairwise interactions, we propose a novel formulation for the protein interface prediction problem and a novel deep learning method to solve it.

3.1. Problem Formulation

A protein complex is composed of two proteins, known as the ligand protein and the receptor protein. Suppose the ligand protein has amino acids and the receptor protein has amino acids, there are possible amino acids pairs. Protein interface prediction problem aims at predicting if there exists an interaction within each amino acid pair. Following the existing work (Fout et al., 2017), we represent proteins as graphs, where nodes represent amino acids and edges indicate affinities between amino acids. Formally, we define the feature matrix of the ligand protein as and the feature matrix of the receptor protein as where denotes that each node has a

-dimensional feature vector.

The existing work (Fout et al., 2017) formulates it as a binary classification problem that predicts the interaction between each node pair separately. Specifically, for the the -th node in and the -th node in , it concatenates the corresponding feature vectors and , then uses dense layers as a binary classifier to determine whether the two nodes interact with each other. However, such a formulation ignores high-order pairwise interactions that the interaction prediction of an amino acid pair may also depend on the information of other amino acid pairs. In addition, converting amino acids to graphs loses the sequential information of the original amino acid chains.

To address these issues, we incorporate the sequential information and formulate the protein interface prediction as a 2D dense prediction problem. First, given the node feature matrices and , we propose the sequential modeling (SM) to restore the sequential information, which results in the order-preserved node feature matrix for the ligand protein and for the receptor protein. Next, we propose the high-order pairwise interaction (HOPI) to generate a 3D tensor where each denotes the feature combination of the -th node in and the -th node in . Finally, based on the tensor , the protein interface prediction problem predicts a 2D matrix . Each element of can be either 0 or 1. For location , 1 means there exists an interaction between -th amino acid of the ligand protein and -th amino acid of the receptor protein, while 0 indicates there is no interaction. Since the predictions is generated based on the whole tensor , both sequential information and high-order pairwise interactions are incorporated.

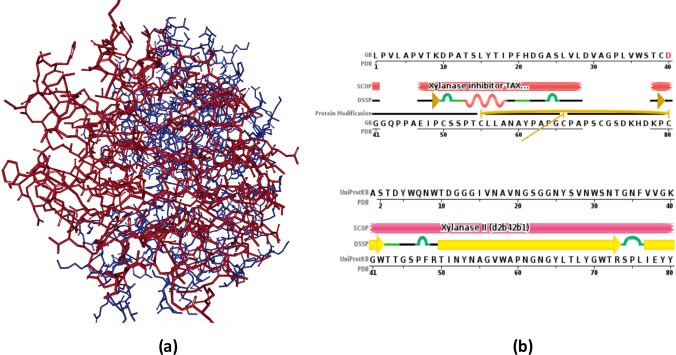

Figure 1. Structure view and sequence view of the protein complex 2B42. The protein complex contains two proteins, know as the ligand protein and the receptor protein. (a) is the structure view, where the red one denotes the ligand protein and the blue one denotes the receptor protein. (b) shows the first 80 amino acids in the amino acid sequence chains of the ligand protein and the receptor protein at the top and bottom, respectively. The figures are sourced from the Protein Data Bank website https://www.rcsb.org/ and (Pollet et al., 2009; Drew et al., 1981).

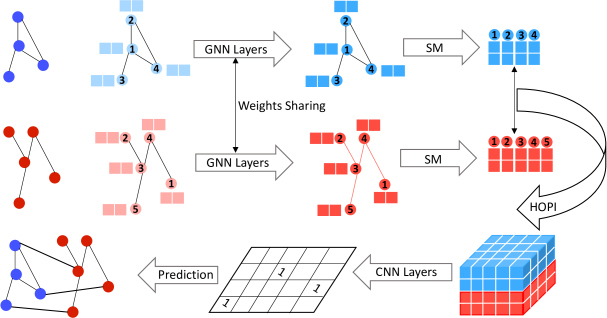

Figure 2. The overall architecture of our proposed methods. Given a ligand protein and a receptor protein, the task is to predict the interface between them. The two proteins are represented as graphs, where nodes represent amino acids and edges indicate affinities between nodes. Here we use the example that one graph contains 4 nodes and the other contains 5, and each node has 2 features. GNN layers are used to aggregate structural information and the weighs are shared by the two graphs. After that, sequential modeling (SM) is used to restore the sequential information from the original amino acid chains, resulting in two node feature matrices with the dimensions of and , respectively. Then the high-order pairwise interaction (HOPI) is performed on these two matrices to build pairwise interactions for any two amino acids from different proteins. Concatenation is used to build interactions between two amino acids. The achieved 3D tensor is with the dimension of and stores in-protein structural and sequential information and cross-protein pairwise interactions. Then 2D CNN layers are used for dense prediction, which produces the output feature map with the dimension of . The pixel value of each pixel on the output is either 1 or 0 to indicate an interaction for the corresponding amino acid pair.

3.2. Sequential Modeling

Both structural and sequential information are important for studying properties of protein complexes. As shown in Figure 1, representing proteins as graphs can well-convey the structural information. It is a popular way since we can employ graph neural networks to pass, transform and aggregate structural information across graphs (Ying et al., 2018). However, the sequential information from the original amino acid chains is lost when converting proteins to graphs because of order-invariant property of graphs. Such a sequential structure is the primary structure of a protein, which is unique to other proteins and defines important functions of the protein.

To overcome this limitation, we propose the sequential modeling to preserve the sequential information of the original input amino acid chains for a given protein. Formally, given an input protein with amino acids, we first record the original sequential order set . Then we formulate it as graphs and map each node in the graph with the index in . Next, we employ graph neural networks to learn node features, denoted as , where is the dimension of a node feature vector. Then we reorder the feature matrix based on the order set as

(1)

Then the node feature vectors in the new feature matrix has a consistent order with the original amino acid sequential order. In this way, feature matrix successfully captures both structural information from the protein graph and the sequential information from the amino acid chains. We believe such a reordering operation helps capture complex inherent relationships among amino acids, thereby resulting in more accurate interface prediction.

3.3. High-Order Pairwise Interactions

Protein interface prediction aims at determining interactions between two amino acids from different proteins. The protein structure is the 3D arrangements in amino acid chains and always folds into specific spatial conformations to enable biological functions (Pauling et al., 1951). It is possible that any two amino acids from different proteins can interact with each other. Existing methods (Fout et al., 2017; Sanchez-Garcia et al., 2019; Townshend et al., 2019) predict the interaction for each amino acid pair separately. One amino acid is picked from the ligand protein graph and the other is from the receptor protein graph. The features of the two amino acids are concatenated and passed to dense layers for binary classification. However, high-order context for amino acid pairs are ignored, which can help extract the important high-level interaction patterns. Hence, we propose the high-order pairwise interactions to learn complex interaction patterns for interface prediction.

Suppose we have the sequence-preserved node feature matrix for the ligand protein and for the receptor protein. We compute a third-order tensor . Each in is the transformation of and . It can be computed by either summation of and or the concatenation of and . The proposed HOPI allows the tensor to store structural information, sequential information, and inherent high-order pairwise interactions information. Then we employ convolutional neural networks (CNNs) to perform 2D dense predictions based on the tensor . Stacking several CNN layers extracts high-level pairwise interaction patterns from a region containing a subsequence from the ligand protein, a subsequence from the receptor protein, and inherent high-order pairwise interactions from the two subsequences. Finally, the output indicates the interactions between any possible amino acid pairs. Note that the prediction of depends not only on but also on all feature interactions within its receptive field.

The overall architecture is illustrated in Figure 2. Given a ligand protein and a receptor protein, GNNs are used to pass, transform and aggregate the structural information in protein graphs. All GNN layers are shared by the two proteins. Then the proposed sequential modeling performs reordering to preserves the sequential information of the original amino acid chains for both proteins. Next, the proposed high-order pairwise interaction method produce a 3D tensor containing feature interactions for all amino acid pairs. Finally, the tensor is passed to 2D CNNs for 2D dense prediction. The output map contains interaction predictions for all amino acid pairs. Note that any modern CNN architecture such as ResNet (He et al., 2016), UNet (Ronneberger et al., 2015) or DeepLab (Chen et al., 2017) can be flexibly integrated into our framework to perform dense prediction and the whole system can be trained end-to-end.

3.4. Graph Neural Networks

We employ graph neural networks to aggregate structural information. Suppose a node in the protein graph has nodes in its neighborhood. The neighboring node feature matrix is , and the neighboring edge feature matrix is , where is the dimension of node feature vectors and is the dimension of edge feature vectors. We first aggregate both node and edge features from neighborhood as

(2)

where , , and is an element-wise operation. and

are used to perform linear transformation on the neighboring node features and edge features, respectively. The node feature matrix

and edge feature matrix can be treated as a set of node vectors and a set of edge vectors , respectively. Note that node vectors in and edge vectors in are in a consistent order. An edge links the center node to the corresponding node . The achieved matrix aggregates information from both nodes and edges within the neighborhood. Each vector contains information from the node and the edge .

We use two methods to transform neighborhood information to the center node. The first one is to simply perform average on all neighboring vectors , namely neighborhood average (NeiA). Another approach is neighborhood weighted average (NeiWA), which essentially assigns relatively larger weights to these important vectors while smaller weights to the ones that are less important, then performs the weighted average on the neighboring nodes and edges. We introduce the two approaches below.

3.4.1. Neighborhood Average

For a node in the protein graph, the output of a GNN layer with NeiA is computed as

(3)

where denotes a vector of all ones of dimension . Essentially, we perform average across all the vectors in , and the final output is obtained by adding it with the residual identity map of the input.

3.4.2. Neighborhood Weighted Average

It is natural to consider that not all entries in contribute equally when aggregating neighboring information. We want to grant larger weights to these important node and edges for the center node. Formally, for a given node , the node-wise forward propagation of a GNN layer with NeiWA is computed as

(4)
(5)

where is a trainable vector which is trained during the whole training process, and is an element-wise softmax operation. Basically, projection from each vector in to the trainable vector is performed to compute the weight vector , in which each entry is the importance score for the corresponding vector in . After this, the weighted average is performed on to aggregate information from more informative nodes and edges to the center node. The final output is achieved by adding back the input node features.

3.5. Incorporating In-Protein Pairwise Interactions

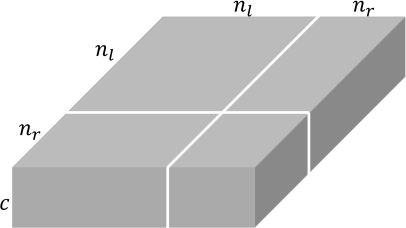

Figure 3. An illustration of incorporating in-protein pairwise information to the tensor . denotes the number of nodes in the ligand protein and denotes the number of nodes in the receptor protein. is the number of channels. The patch stores in-protein structural and sequential information and in-protein pairwise interactions in the ligand protein. The patch is similar for the receptor protein. Two patches store in-protein structural and sequential information and cross-protein pairwise interactions.

Protein interface prediction is to determine whether there are interactions between amino acids from two different proteins. Essentially, it investigates cross-protein pairwise interactions. The interactions can be partly determined by features and inherent properties of amino acids in both proteins. We name an interacted amino acid pair as a positive sample and a non-interacted pair as a negative sample. Generally, the number of positive samples is significant less than that of the negative samples in a protein complex. Hence, it causes the data unbalance problem. To address this issue, we propose to incorporate in-protein interaction information to increase the number of positive examples, and hence improve the predictions of cross-protein interactions.

Specifically, we propose to use HOPI to capture both in-protein and cross-protein pairwise interactions. Given the sequence-reserved node feature matrix for the ligand protein and for the receptor protein, the achieved tensor is expanded to the size of . An illustration of the tensor is provided in Figure 3. Either of the two regions and contains in-protein structural and sequential information, and in-protein pairwise interactions. The two regions are same as those introduced in Section 3.3, which contain cross-protein interactions. 2D CNNs are performed such that in-protein structural and sequential information, in-protein pairwise interactions, and cross-protein pairwise interactions are all captured for interface prediction.

3.6. Training Strategies

We define a training sample as a pair of amino acids and is labeled by their interaction. All samples in a protein complex can be treated as a sub-epoch. During one iteration, the network is trained on a part of samples in a protein complex. In this way, two subgraphs on the ligand and the receptor graphs are updated when aggregating neighboring structural information using GNNs. A small patch is updated on the tensor

when performing dense prediction using CNNs. A sub-epoch is finished when all training samples in one graph complex are used. And an epoch is finished when all training samples in all graph complexes in the dataset are passed to the network.

When considering the cross-protein pairwise interactions only, a common situation is that the number of positive samples is much less than that of the negative samples in a protein complex. Down-sampling on the negative samples is usually required to reach a reasonable predefined positive-negative (PN) ratio, which allows the training of the network. However, all negative samples are kept in the prediction phase. One way for data augmentation is to incorporate in-protein pairwise interactions. By doing this, some in-protein positive samples could be added in the training process. This is expected to compensate the small PN ratio in the cross-protein pairwise interactions.

4. Experimental Studies

4.1. Datasets

We use three datasets to evaluate our proposed methods. They all come from the popular Docking Benchmarks, which include several protein-protein docking and binding affinity benchmarks. The first one is generated from Docking Benchmarks version 5 (DB5) (Vreven et al., 2015; Fout et al., 2017). It is the largest and the most recent dataset which contains complicated protein structures for protein interface prediction. The dataset was originally split into training, validation and test sets (Fout et al., 2017; Townshend et al., 2019; Sanchez-Garcia et al., 2019). The training set contains 140 complexes, the validation set contains 35, and the test set contains 55 complexes. Each complex is a pair of ligand and receptor proteins. A data sample is a pair of amino acids from different proteins and their interaction. The total number of positive samples in the dataset is , which is much less than the number of negative samples. The PN ratio is around 1:1000. The Docking Benchmark version 4 (DB4) (Hwang et al., 2010) and Docking Benchmark version 3 (DB3) (Hwang et al., 2008) are two subsets of the DB5. The DB4 contains 175 complexes and 16004 positive samples, and the DB3 contains 127 complexes and 12335 positive samples in total.

All dataset are mined from the Protein Data Back (Berman et al., 2000). Each protein has original sequential information from amino acid chains. The numbers of amino acid in protein sequences ranges from tens to thousands. The protein structures are obtained from X-ray crystallography or biological mutagenesis experiments (Afsar Minhas et al., 2014). In protein graphs, nodes are amino acid and edges are affinities between nodes. both nodes and edges contain features from protein structures and sequences.

We use the same node features as in (Fout et al., 2017; Afsar Minhas et al., 2014). The node features are computed based on different properties of amino acid. The residue depth is defined as the minimal distance for an amino acid to the protein’s surface. It’s normalized in the range from 0 to 1 and has been demonstrated to carry valuable information for amino acid interactions. The amino acid composition defines the count of a specific amino acid in the direction and opposite direction of the side chain for the amino acid of interest. The threshold along two directions is the minimal atomic distance of 8A. The amino acid composition varies dramatically among amino acids, which is vital to determine the properties of an amino acid. The protrusion index for an amino acid is a collection of statistics of protrusion values for all atoms along its side chain. These features deliver important inherent structural information and properties for the amino acid of interest. They are combined and concatenated together in a consistent order, which results in the total number of node features to be 76. We use the same edge features as in the work (Fout et al., 2017). Each edge feature vector contains 2 features. One is the normalized distance between two amino acids and the other is the angle between two normal vectors for the two amino acid planes.

Recently a larger dataset Database of Interacting Protein Structures (DIPS) is created by (Townshend et al., 2019). An amino acid is represented as 4D grid-like data, which contains spatial information at the atom level and types of all atoms in the amino acid. However, the structural information is not considered in the dataset, thus the proteins can not be represented as graphs.

4.2. Baselines

The baseline methods could be grouped into three categories, these are, the state-of-the-art conventional machine learning method BIPSPI (Sanchez-Garcia et al., 2019), the CNN-based method SASNet(Townshend et al., 2019) and the GNN-based methods DCNN (Atwood and Towsley, 2016), NGF (Duvenaud et al., 2015), DTNN (Schütt et al., 2017) and NEA (Fout et al., 2017). Particularly, the GNN-based baselines use different graph neural architectures for node feature learning, but use the same dense layers as binary classifiers to predict the interaction for each pair of amino acid separately.
BIPSPI

is the abbreviation for xgBoost Interface Prediction of Specific-Partner Interactions. The method combines both structure and sequence features and uses Extreme Gradient Boosting

(Chen and Guestrin, 2016) with a novel scoring function for protein interface prediction.
SASNet is the Siamese Atomic Surfacelet Network, which uses only spatial coordinates and types of all atoms in amino acids and voxelizes all amino acids into a 4D-grid manner. The first three dimensions deliver the spatial information of an amino acid and the last dimension is the one-hot representation of types for all atoms in the amino acid. The paired two amino acid representations are then passed to 3D CNN with weights sharing, followed by concatenation operation and dense layers for binary classification to decide whether the two amino acids interact with each other.
DCNNs is diffusion-convolutional neural networks for graph-structured data applying diffusion-convolution operators times (-hops) for node feature learning. A diffusion-convolution operator scans a diffusion process for each node. For a node of interest, diffusion-convolution operators gather information from all nodes that each of those can connect to the node of interest through steps. Then several dense layers are used as a binary classifier to predict the interactions of two nodes.
NGF is the commonly used graph convolutional networks, which first aggregates node information in neighborhood by multiplying the adjacency matrix to the node feature matrix, and then performs linear transformations on node features, followed by a nonlinear function for node feature learning.
DTNN is deep tensor neural networks, which aggregates both node and edge information in neighborhood. Linear transformations are applied to node features and edge features separately. After that, element-wise multiplication on the corresponding node features and edge features is performed to achieve the final feature vector for the node of interest. Intuitively, edges serve as gates to help control information from the corresponding nodes.
NEA is Node and Edge Average, the state-of-the-art GNN-based method on the used DB5 dataset. Similar as DTNN

, it performs aggregation and linear transformation on both nodes and edge features in neighborhood. Then node and edge features are averaged and summed together, followed by a residual connection and nonlinear activation to generate node features.

4.3. Experimental Setup

We use the same data splitting as in all the baseline methods (Fout et al., 2017; Townshend et al., 2019; Sanchez-Garcia et al., 2019) for the DB5 datasets. For the DB4 and DB3 datasets, we first randomly split each dataset with a ratio of 6:2:2 for the training, validation and test samples, then fix the splitting in all experiments. We first only consider the cross-protein pairwise interactions for training. Similar to the work (Fout et al., 2017), we keep all the positive examples and perform down-sampling on the negative samples, resulting in the PN ratio of 1:10 during the training phase. We maintain the original PN ratio in the validation and test phases.

For three GNN-based baselines, different numbers of GNN layers are designed and explored in (Fout et al., 2017)

. We also conduct experiments using the same numbers of GNN layers for fair comparisons. Our proposed GNN layer has two variants, neighborhood average and neighborhood weighted average. We conduct experiments on both for clear comparisons. For high-order pairwise interaction, we perform concatenation on the feature vectors of two nodes from different proteins. Several residual blocks are employed for dense prediction. A residual block contains two 2D convolutional layers, the first of which is followed by ReLU as the activation function. The number of intermediate channels of the first convolutional layer is set as a hyperparameter. The identity map of the input is summed to the output of the second convolutional layer, followed by ReLU to generate the final output.

We use the grid search to tune hyperparameters. The search space for all hyperparameters is provided in Table 1. Adam Optimizer (Kinga and Adam, 2015) is employed for training and ReLU is used as the activation function. Each experimental setting is conducted to run 10 times with different random seeds. All hyperparameters are tuned based on the validation set. Optimal hyperparameters are tuned on one run and used across all the 10 runs.


Hyperparameters
Search Space
# of the Res. Blocks 3, 4, 5
# of Intermediate Channels 128, 192, 256
Learning Rate e-1, 1e-2, 5e-3, 1e-3
Batch Size 32, 64, 128
# of Epochs 50, 80, 100
Weight Decay 1e-3, 1e-4, 1e-5
Dropout 0.3, 0.5, 0.8
Table 1. The search space for hyperparameters.

As positive examples and negative examples are not balanced, we use Receiver operating characteristic (ROC) curve for evaluation. Specifically, we calculate Area Under the ROC Curve (AUC) based on the ROC curve for each complex. Then median AUC (MedAUC) for all the complexes in the test sets is used to evaluate the performance of different models. The used MedAUC can grantee very large or very small proteins will not have dramatic effects on the performance on the whole dataset.

4.4. Results


Method
DB5 DB4 DB3
BIPSPI 0.878 (0.003) 0.882 (0.004) 0.891 (0.016)
SASNet 0.876 (0.037) 0.866 (0.025) 0.862 (0.011)
DCNN 0.828 (0.018) 0.843 (0.022) 0.858 (0.015)
NGF 0.865 (0.007) 0.879 (0.017) 0.867 (0.016)
DTNN 0.867 (0.007) 0.868 (0.013) 0.883 (0.008)
NEA 0.876 (0.005) 0.884 (0.009) 0.881 (0.014)
NeiA+HOPI 0.902 (0.012) 0.916 (0.014) 0.910 (0.009)
NeiWA+HOPI 0.908 (0.019) 0.921 (0.018) 0.913 (0.013))
Table 2. Comparison among different models in terms of MedAUC. All the GNN-based methods apply one GNN layer for fair and convenient comparison. For the DB5 dataset, results for all the baselines are directly reported from the papers (Fout et al., 2017; Townshend et al., 2019). The best performance is in bold.
Method Number of GNN Layers
1 2 3 4
NGF 0.865 (0.007) 0.871 (0.013) 0.873 (0.017) 0.869 (0.017)
DTNN 0.867 (0.007) 0.880 (0.007) 0.882 (0.008) 0.873 (0.012)
Node and Edge Average 0.876 (0.005) 0.898 (0.005) 0.895 (0.006) 0.889 (0.007)
NeiA+HOPI 0.902 (0.012) 0.919 (0.015) 0.921 (0.009) 0.915 (0.009)
NeiWA+HOPI 0.908 (0.019) 0.930 (0.016) 0.924 (0.011) 0.914 (0.013)
Table 3. Comparison among the GNN-based methods in terms of MedAUC on the DB5 dataset. The number of GNN layers varies from 1 to 4. For all baseline methods, We report the results taken from the paper (Fout et al., 2017). The best performance is in bold.

Method
Ratio MedAUC
NeiA+HOPI w/o in-protein 1:10 0.902 (0.012)
NeiA+HOPI w in-protein 1:7 0.911 (0.017)
1:5 0.910 (0.017)
1:3 0.901 (0.014)
1:1 0.896 (0.013)
NeiWA+HOPI w/o in-protein 1:10 0.908 (0.019)
NeiWA+HOPI w in-protein 1:7 0.915 (0.021)
1:5 0.913 (0.017)
1:3 0.910 (0.018)
1:1 0.898 (0.013)
Table 4. Performance of incorporating in-protein pairwise interactions on the DB5 dataset. The original NeiA+HOPI and NeiWA+HOPI methods without in-protein pairwise interactions serve as baselines. ‘w/o’ denotes ‘without’ and ‘w’ denotes ‘with’.

4.4.1. Performance Study

We apply both variants of our GNN layers with the same sequential modeling and high-order pairwise interaction methods, denoted as NeiA+HOPI and NeiWA+HOPI, respectively. In this section, we compare our approaches with several baselines in terms of MedAUC on the three datasets. We fix the number of GNN layers for all GNN-based methods to be 1 for convenient comparisons, and the results are reported in Table 2. Note that for all baseline approaches on the DB5 dataset, we report the results taken from papers (Fout et al., 2017; Townshend et al., 2019)

. As the results for DB4 and DB3 are not reported in the related papers, we use the same data splitting and run experiments for all methods. All experiments run 10 times with random seeds. The average and the standard deviation of testing MedAUCs across the 10 runs are reported.

We can observe that our proposed approaches outperform all the baselines significantly. Specifically, the performance of our NeiA+HOPI is , , higher than the previous best GNN-based method NEA method over three datasets. Surprisingly, our proposed NeiWA+HOPI outperforms NEA by a larger margin of , and

on the three datasets, respectively. The NeiA+HOPI and NeiWA+HOPI also exhibit considerable improvement compared with the conventional machine learning method BIPSPI and CNN-based method SASNet. Note that the main difference of the NeiA+HOPI compared with NEA is the use of our proposed SM and HOPI methods. We preserve the original sequential information in proteins and use CNNs to capture the high-level pairwise interaction patterns. The superior performance of the NeiA+HOPI demonstrates the effectiveness of our proposed SM and HOPI methods. Different from the GNN-based methods, SASNet uses 3D convolution layers for feature extraction and then applies dense layers for binary classification. It leverages 3D spatial information of amino acids at the atom level but ignores the structural information. Our methods explicitly consider the structural and sequential information and high-order pairwise interactions, thereby leading to much better performance for protein interface prediction.

The four GNN-based methods use the same dense layers for binary classification but differ in graph neural architectures. Compared with NGF and DTNN, NEA incorporates additional edge information from neighborhood. DTNN performs element-wise multiplication but NEA performs summation over a node feature matrix and the corresponding edge feature matrix. Our methods make use of the information from edges by adding it to node features for powerful node representations. Basically, NEA computes the feature vector for the node of interest by averaging nodes and edges from its neighborhood. The assumption here is that all nodes and edges contribute equally to the center node. The NeiWA+HOPI selects more important nodes and edges by assigning larger weights to them, resulting in a slight improvement in performance compared with the NeiA+HOPI.

4.4.2. Comparison with GNN-based Methods

One GNN layer can incorporate 1-hop information from neighborhood to node features. Stacking GCN layers is capable of enlarging receptive fields by aggregating -hops information. It’s suggested that applying several GCNs layers can improve the interface prediction for some graph neural architectures (Fout et al., 2017). To explore such properties in our models and provide fair comparisons, we apply different numbers of GNN layers and conduct experiments on the DB5 dataset. The results are reported in Table 3. We can observe from the table that our methods achieve the best performance despite the number of GNN layers. This again demonstrates the effectiveness of our proposed SM and HOPI methods. Note that the other three GNN-based methods give better results when the number of GNN layers increases to 2 and 3, but start to harm the performance when it reaches 4. Consistent observations are shown in our models. Apparently, the model capacity of graph neural architectures can reach the upper bound but the proposed SM and HOPI help extract the sequential information and explore the inherent high-order pairwise interactions for accurate interface prediction.

4.4.3. Affect of In-Protein Pairwise Interactions

As the number of positive examples is relatively small in cross-protein amino acid pairs, we conduct experiments on the DB5 dataset and add some positive in-protein pairs in the training process. We keep the number of positive cross-protein pairs unchanged. For each complex, we randomly select the same number of positive examples in the ligand protein and the receptor protein. The final PN ration is set to be 1:7, 1:5, 1:3 and 1:1, respectively. The experimental results are shown in Table 4. We can observe from the results that the performance increases when adding positive in-protein examples and making the PN ratios to be 1:7 and 1:5. When more positive in-protein examples are added for training and the PN ratio reaches 1:1, the performance starts to decrease and becomes worse than that without in-protein pairs. This indicates that the inherent properties of amino acids may affect the interactions between them. These in-protein interactions are beneficial to the prediction of cross-protein interactions. However, when the in-protein interactions become dominant through adding too much positive in-protein examples, the prediction of cross-protein interactions is somehow interfered and harmed.

5. Conclusion

We study protein interface prediction. The latest state-of-the-art method represents proteins as graphs, but fails to consider sequential information from amino acid chains. We propose a novel model to incorporate both structural and sequential information, and high-order pairwise interactions for accurate interface prediction. We generate a 3D tensor to store these information. The output is adapted to a 2D map containing interactions for all amino acid pairs. The task becomes a 2D dense prediction task, where 2D convolutional neural networks are employed to learn high-level interaction patterns. We evaluate our methods over different datasets. The experimental results demonstrate the effectiveness of our proposed approach.

Acknowledgements.
This work was supported in part by National Science Foundation grants IIS-1908220 and DBI-1922969.

References

  • (1)
  • Afsar Minhas et al. (2014) Fayyaz ul Amir Afsar Minhas, Brian J Geiss, and Asa Ben-Hur. 2014. PAIRpred: Partner-specific prediction of interacting residues from sequence and structure. Proteins: Structure, Function, and Bioinformatics 82, 7 (2014), 1142–1155.
  • Ahmad and Mizuguchi (2011) Shandar Ahmad and Kenji Mizuguchi. 2011. Partner-aware prediction of interacting residues in protein-protein complexes from sequence data. PloS one 6, 12 (2011).
  • Atwood and Towsley (2016) James Atwood and Don Towsley. 2016. Diffusion-convolutional neural networks. In Advances in neural information processing systems. 1993–2001.
  • Berman et al. (2000) Helen M. Berman, John Westbrook, Zukang Feng, Gary Gilliland, T. N. Bhat, Helge Weissig, Ilya N. Shindyalov, and Philip E. Bourne. 2000. The Protein Data Bank. Nucleic Acids Research 28, 1 (2000), 235–242.
  • Bradford and Westhead (2005) James R Bradford and David R Westhead. 2005.

    Improved prediction of protein–protein binding sites using a support vector machines approach.

    Bioinformatics 21, 8 (2005), 1487–1494.
  • Chen et al. (2017) Liang-Chieh Chen, George Papandreou, Iasonas Kokkinos, Kevin Murphy, and Alan L Yuille. 2017. Deeplab: Semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE transactions on pattern analysis and machine intelligence 40, 4 (2017), 834–848.
  • Chen and Guestrin (2016) Tianqi Chen and Carlos Guestrin. 2016. Xgboost: A scalable tree boosting system. In Proceedings of the 22nd acm sigkdd international conference on knowledge discovery and data mining. 785–794.
  • Deng et al. (2009) Lei Deng, Jihong Guan, Qiwen Dong, and Shuigeng Zhou. 2009. Prediction of protein-protein interaction sites using an ensemble method. BMC bioinformatics 10, 1 (2009), 426.
  • Drew et al. (1981) Horace R Drew, Richard M Wing, Tsunehiro Takano, Christopher Broka, Shoji Tanaka, Keiichi Itakura, and Richard E Dickerson. 1981. Structure of a B-DNA dodecamer: conformation and dynamics. Proceedings of the National Academy of Sciences 78, 4 (1981), 2179–2183.
  • Duvenaud et al. (2015) David K Duvenaud, Dougal Maclaurin, Jorge Iparraguirre, Rafael Bombarell, Timothy Hirzel, Alán Aspuru-Guzik, and Ryan P Adams. 2015. Convolutional networks on graphs for learning molecular fingerprints. In Advances in neural information processing systems. 2224–2232.
  • Ezkurdia et al. (2009) Iakes Ezkurdia, Lisa Bartoli, Piero Fariselli, Rita Casadio, Alfonso Valencia, and Michael L Tress. 2009. Progress and challenges in predicting protein–protein interaction sites. Briefings in bioinformatics 10, 3 (2009), 233–246.
  • Fout et al. (2017) Alex Fout, Jonathon Byrd, Basir Shariat, and Asa Ben-Hur. 2017. Protein interface prediction using graph convolutional networks. In Advances in neural information processing systems. 6530–6539.
  • Hamilton et al. (2017) Will Hamilton, Zhitao Ying, and Jure Leskovec. 2017. Inductive representation learning on large graphs. In Advances in neural information processing systems. 1024–1034.
  • He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. 2016. Deep residual learning for image recognition. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    . 770–778.
  • Hwang et al. (2008) Howook Hwang, Brian Pierce, Julian Mintseris, Joël Janin, and Zhiping Weng. 2008. Protein–protein docking benchmark version 3.0. Proteins: Structure, Function, and Bioinformatics 73, 3 (2008), 705–709.
  • Hwang et al. (2010) Howook Hwang, Thom Vreven, Joël Janin, and Zhiping Weng. 2010. Protein–protein docking benchmark version 4.0. Proteins: Structure, Function, and Bioinformatics 78, 15 (2010), 3111–3114.
  • Jordan et al. (2012) Rafael A Jordan, EL-Manzalawy Yasser, Drena Dobbs, and Vasant Honavar. 2012. Predicting protein-protein interface residues using local surface structural similarity. BMC bioinformatics 13, 1 (2012), 41.
  • Kinga and Adam (2015) D Kinga and J Ba Adam. 2015. A method for stochastic optimization. In ICLR.
  • Kipf and Welling (2016) Thomas N Kipf and Max Welling. 2016. Semi-supervised classification with graph convolutional networks. arXiv preprint arXiv:1609.02907 (2016).
  • Leis et al. (2010) Simon Leis, Sebastian Schneider, and Martin Zacharias. 2010. In silico prediction of binding sites on proteins. Current medicinal chemistry 17, 15 (2010), 1550–1562.
  • Liu et al. (2009) Bin Liu, Xiaolong Wang, Lei Lin, Buzhou Tang, Qiwen Dong, and Xuan Wang. 2009. Prediction of protein binding sites in protein structures using hidden Markov support vector machine. BMC bioinformatics 10, 1 (2009), 381.
  • Liu et al. (2019) Yi Liu, Hao Yuan, and Shuiwang Ji. 2019. Learning Local and Global Multi-context Representations for Document Classification. In 2019 IEEE International Conference on Data Mining (ICDM). IEEE, 1234–1239.
  • Liu et al. (2020) Yi Liu, Hao Yuan, Zhengyang Wang, and Shuiwang Ji. 2020. Global Pixel Transformers for Virtual Staining of Microscopy Images. IEEE Transactions on Medical Imaging 39, 6 (2020), 2256–2266.
  • Mintseris et al. (2005) Julian Mintseris, Kevin Wiehe, Brian Pierce, Robert Anderson, Rong Chen, Joël Janin, and Zhiping Weng. 2005. Protein–protein docking benchmark 2.0: an update. Proteins: Structure, Function, and Bioinformatics 60, 2 (2005), 214–216.
  • Northey et al. (2018) Thomas C Northey, Anja Barešić, and Andrew CR Martin. 2018. IntPred: a structure-based predictor of protein–protein interaction sites. Bioinformatics 34, 2 (2018), 223–229.
  • Pauling et al. (1951) Linus Pauling, Robert B Corey, and Herman R Branson. 1951. The structure of proteins: two hydrogen-bonded helical configurations of the polypeptide chain. Proceedings of the National Academy of Sciences 37, 4 (1951), 205–211.
  • Pierce et al. (2011) Brian G Pierce, Yuichiro Hourai, and Zhiping Weng. 2011. Accelerating protein docking in ZDOCK using an advanced 3D convolution library. PloS one 6, 9 (2011).
  • Pollet et al. (2009) Annick Pollet, Stefaan Sansen, Gert Raedschelders, Kurt Gebruers, Anja Rabijns, Jan A Delcour, and Christophe M Courtin. 2009. Identification of structural determinants for inhibition strength and specificity of wheat xylanase inhibitors TAXI-IA and TAXI-IIA. The FEBS journal 276, 14 (2009), 3916–3927.
  • Ronneberger et al. (2015) Olaf Ronneberger, Philipp Fischer, and Thomas Brox. 2015. U-net: Convolutional networks for biomedical image segmentation. In International Conference on Medical image computing and computer-assisted intervention. Springer, 234–241.
  • Russakovsky et al. (2015) Olga Russakovsky, Jia Deng, Hao Su, Jonathan Krause, Sanjeev Satheesh, Sean Ma, Zhiheng Huang, Andrej Karpathy, Aditya Khosla, Michael Bernstein, Alexander C. Berg, and Li Fei-Fei. 2015. ImageNet Large Scale Visual Recognition Challenge. International Journal of Computer Vision (IJCV) 115, 3 (2015), 211–252. https://doi.org/10.1007/s11263-015-0816-y
  • Sanchez-Garcia et al. (2019) Ruben Sanchez-Garcia, Carlos Oscar Sánchez Sorzano, José María Carazo, and Joan Segura. 2019. BIPSPI: a method for the prediction of partner-specific protein–protein interfaces. Bioinformatics 35, 3 (2019), 470–477.
  • Schueler-Furman et al. (2005) Ora Schueler-Furman, Chu Wang, and David Baker. 2005. Progress in protein–protein docking: Atomic resolution predictions in the CAPRI experiment using RosettaDock with an improved treatment of side-chain flexibility. Proteins: Structure, Function, and Bioinformatics 60, 2 (2005), 187–194.
  • Schütt et al. (2017) Kristof T Schütt, Farhad Arbabzadah, Stefan Chmiela, Klaus R Müller, and Alexandre Tkatchenko. 2017. Quantum-chemical insights from deep tensor neural networks. Nature communications 8, 1 (2017), 1–8.
  • Segura et al. (2012) Joan Segura, Pamela F Jones, and Narcis Fernandez-Fuentes. 2012. A holistic in silico approach to predict functional sites in protein structures. Bioinformatics 28, 14 (2012), 1845–1850.
  • Šikić et al. (2009) Mile Šikić, Sanja Tomić, and Kristian Vlahoviček. 2009. Prediction of protein–protein interaction sites in sequences and 3D structures by random forests. PLoS computational biology 5, 1 (2009).
  • Simonyan and Zisserman (2014) Karen Simonyan and Andrew Zisserman. 2014. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556 (2014).
  • Townshend et al. (2019) Raphael Townshend, Rishi Bedi, Patricia Suriana, and Ron Dror. 2019. End-to-End Learning on 3D Protein Structure for Interface Prediction. In Advances in Neural Information Processing Systems. 15616–15625.
  • Tuncbag et al. (2011) Nurcan Tuncbag, Attila Gursoy, and Ozlem Keskin. 2011. Prediction of protein–protein interactions: unifying evolution and structure at protein interfaces. Physical biology 8, 3 (2011), 035006.
  • Vreven et al. (2015) Thom Vreven, Iain H Moal, Anna Vangone, Brian G Pierce, Panagiotis L Kastritis, Mieczyslaw Torchala, Raphael Chaleil, Brian Jiménez-García, Paul A Bates, Juan Fernandez-Recio, et al. 2015. Updates to the integrated protein–protein interaction benchmarks: docking benchmark version 5 and affinity benchmark version 2. Journal of molecular biology 427, 19 (2015), 3031–3041.
  • Wu et al. (2006) Feihong Wu, Byron Olson, Drena Dobbs, and Vasant Honavar. 2006. Comparing kernels for predicting protein binding sites from amino acid sequence. In The 2006 IEEE International Joint Conference on Neural Network Proceedings. IEEE, 1612–1616.
  • Ying et al. (2018) Zhitao Ying, Jiaxuan You, Christopher Morris, Xiang Ren, Will Hamilton, and Jure Leskovec. 2018. Hierarchical graph representation learning with differentiable pooling. In Advances in neural information processing systems. 4800–4810.
  • Yuan and Ji (2020) Hao Yuan and Shuiwang Ji. 2020. StructPool: Structured Graph Pooling via Conditional Random Fields. In Proceedings of the 8th International Conference on Learning Representations.
  • Zhou and Qin (2007) Huan-Xiang Zhou and Sanbo Qin. 2007. Interaction-site prediction for protein complexes: a critical assessment. Bioinformatics 23, 17 (2007), 2203–2209.
